User Manual
802.11abg
Wireless SDIO Card
User Manual
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
●
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and receiver.
●
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Testing was performed on Notebook PC with antennas at 5 mm spacing. The maximum SAR
value is: 0.476 W/kg.
Table of Contents
Package Contents & System Requirements ................................................................... 1
Features.............................................................................................................................. 1
SD WLAN Module Wireless Networks............................................................................. 1
SD WLAN Card Network Scenarios......................................................................1
Installing the Driver ............................................................................................................ 3
Accessing WLAN Utility..................................................................................................... 6
Configuring WLAN Utility.................................................................................................... 6
Network Adapters tab.............................................................................................6
IP Address tab.........................................................................................................7
Removing the Driver............................................................................................................ 9
1
PACKAGE CONTENTS & S
PACKAGE CONTENTS & SPACKAGE CONTENTS & S
PACKAGE CONTENTS & SYSTEM
YSTEMYSTEM
YSTEM
REQUIREMENTS
REQUIREMENTSREQUIREMENTS
REQUIREMENTS
1. Manual (In CD-ROM )
2. Drivers and configuration utilities on CD-ROM
3. Quick Install Guide
4. Product Device
If you miss any of these items please contact your agent.
F
FF
FEATURES
EATURESEATURES
EATURES
The 802.11abg Wireless SDIO Card is a wireless network card that complies with the IEEE 802.11abg
standard on wireless LANs (Revision B).
SDIO Card size as 40 (L) x 24 (W) x 2.1 (H) mm
SDIO Interface
Supports the IEEE802.11a/b/g wireless
High radio performance
Low power consumption
Data rates of 6-54Mbps for 802.11a and 1-54Mbps for 802.11g
Embedded 40MHz reference clock supported
Sleep clock using 32 KHz clock
Ready OS support as WinCE 5.0 and 6.0, Linux 2.6.9
SD WLAN MODULE WIRELESS NETWORKS
SD WLAN Card Network Scenarios
The 802.11abg Wireless SDIO Card enables you to:
• Connect your computer to a Small Office/Home Office (SOHO) network that includes Wi-Fi access
points
• Connect your computer to a Local Area Network (LAN) Infrastructure that includes the 802.11abg
Wireless SDIO Card, or other IEEE 802.11b compliant LAN systems
Wireless stations can be equipped with the 802.11abg Wireless SDIO Card, but also with other WLAN PC
Cards. Both of them share the same wireless functionality.
2

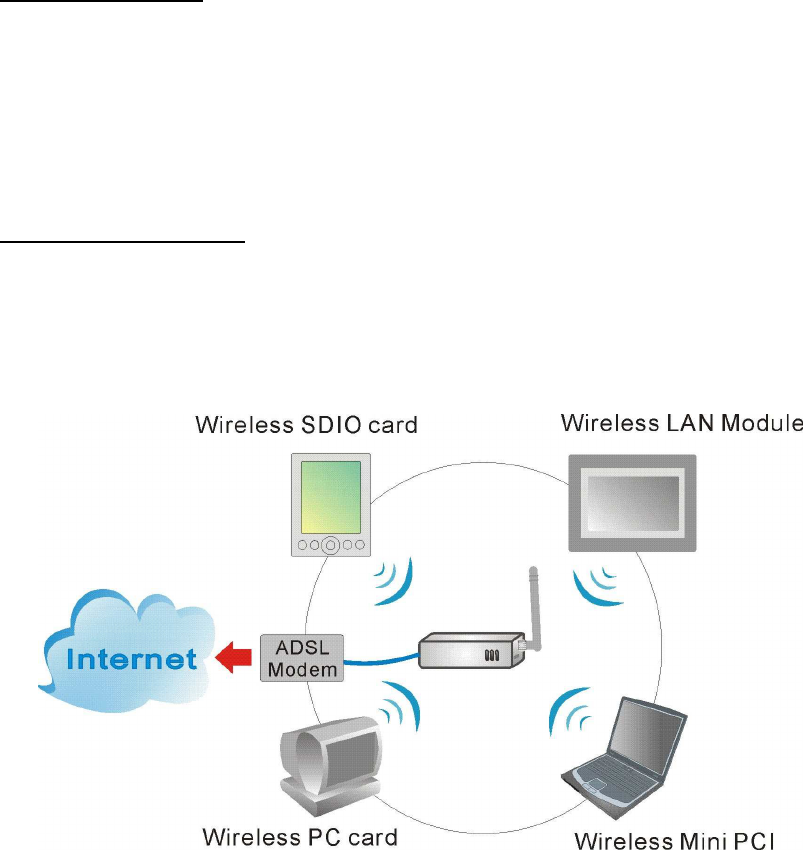

Home Networking
With 802.11abg Wireless SDIO Card, wireless access to the Internet or other devices is at your fingertips.
All you need to do is connect the 802.11abg Wireless SDIO Card to an existing access point that may be
connected to the external Cable or xDSL modems and you are ready to:
Share files and printers, and
Access the Internet
Enterprise Networking
With the Wi-Fi certified access point in the corporate network system, you can connect to a corporate Local
Area Network (LAN) infrastructure to access all network facilities in wireless. LAN Infrastructures may
either be:
Stand-alone wireless LANs
Wireless network infrastructures connected to an existing Ethernet network
3
INSTALLING THE DRIVE
INSTALLING THE DRIVEINSTALLING THE DRIVE
INSTALLING THE DRIVER
RR
R
Installation of the 802.11abg wireless SDIO card driver to the
PDA via using Microsoft ActiveSync®
1. Connect your PDA to your computer and make sure Microsoft ActiveSync® has established a
connection between the two devices.
Note: Do not insert the 802.11abg Wireless SDIO Card into the card slot of
your PDA until the Driver installation has been performed.
Important Notice:
The SDIO drivers are based on following CPU type:
Intel PXA270 for Windows Mobile® 5.0
Marvell PXA310 for Windows Mobile® 6.0

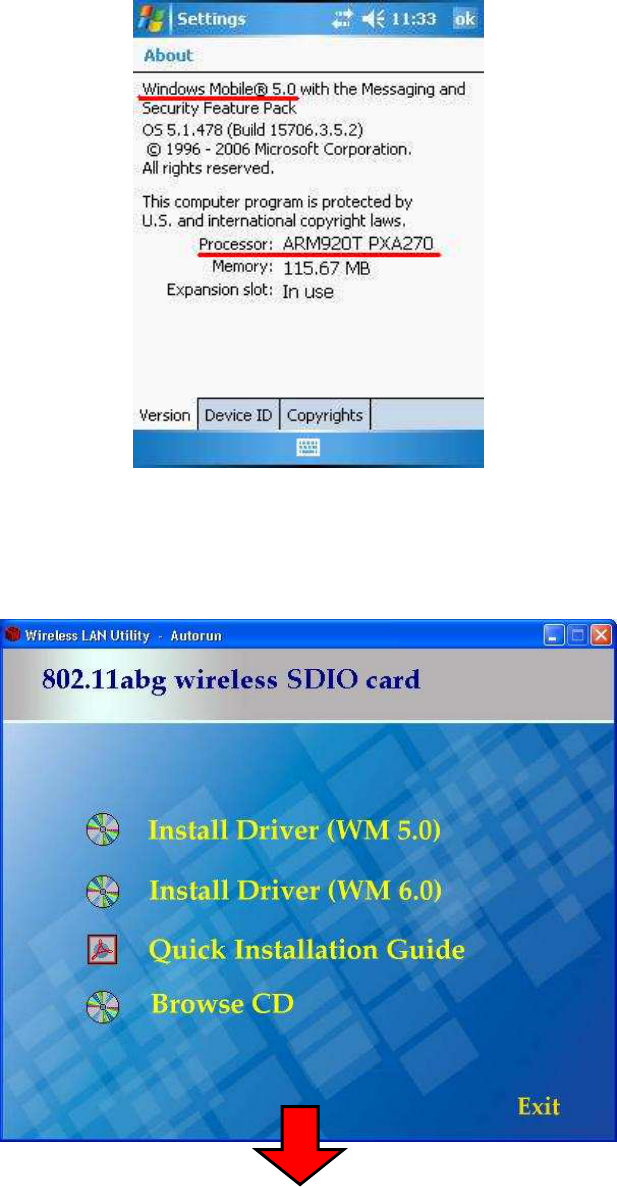

Please go to Start > Settings > System tab > select About icon > Version tab to check the PDA
CPU type.
If your PDA CPU is other type, please check with the agent of SDIO card. Due to different PDA CPU type
might cause incompatible between the driver and SDIO card.
4
Insert the included CD-ROM to your PC. The Wireless LAN Utility screen will appear, select the Install
Driver (WM 5.0 or 6.0) to start driver installation.
5

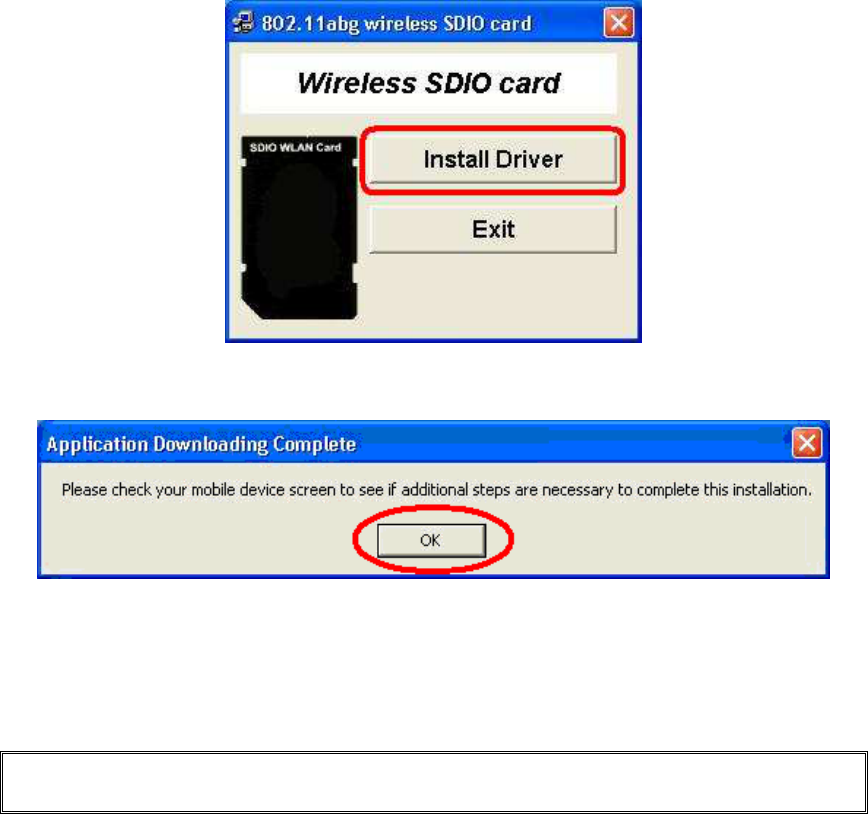

2. Click “OK” to complete the driver installation.
After finished driver installing, the installed successfully message will show on the PDA screen.
Note: Do not insert the 802.11abg wireless SDIO card into the card slot of
your PDA until the driver installation has been performed.
6
ACCESSING
ACCESSING ACCESSING
ACCESSING W
WW
WLAN
LANLAN
LAN
U
UU
UTILITY
TILITYTILITY
TILITY
Go to Start > Settings > Connections tab > select the Wi-Fi icon to access the Windows CE
built-in WLAN utility.
C
CC
CONFIGURING
ONFIGURING ONFIGURING
ONFIGURING WLAN U
WLAN UWLAN U
WLAN UTILITY
TILITYTILITY
TILITY
Select an available AP or router from the list and tap Connect to make a connection.
Network Adapters tab
Configure Network Adapters
My network card connects to:
Tap Work or The Internet from the pull-down
menu.
Work: Connects to the network in your office.
The Internet: Connects to your ISP at home.
Tap an adapter to modify settings:
Tap an adapter from the list to enter its
configuration screen.
Or select an adapter then tap Edit at the left-down
corner of the screen to enter its configuration
settings page.
7
If 802.11abg wireless SDIO card is tapped, the following screen will appear for you to configure:
IP Address tab
Use server-assigned IP address
Tap Use server-assigned IP address to obtain an IP address automatically. The wireless router will act
as a DHCP server. An IP address will be assigned from the wireless router.
8
Use specific IP address
IP address: Enter the IP address (within the range of the wireless router’s IP address, for instance, if
the IP address of the router which you would like to connect is 192.168.1.254, you may enter the IP
address from 192.168.1.1 to 192.168.1.253, such as 192.168.1.123)
Subnet mask: The subnet mask, for example, 255.255.255.0, must be the same as that set on your
Ethernet network.
Default gateway: Enter the IP address of your network’s gateway, such as 192.168.1.254. The gateway
is the device that enables communication between your computers and the Internet. In most cases, your
router acts as your gateway.
9
REMOVING
REMOVINGREMOVING
REMOVING THE DRIVER
THE DRIVER THE DRIVER
THE DRIVER
If you would like to remove the driver from your PDA, please make a connection between the PDA and
your computer via Microsoft ActiveSync® and then insert the CD-ROM into your PC.

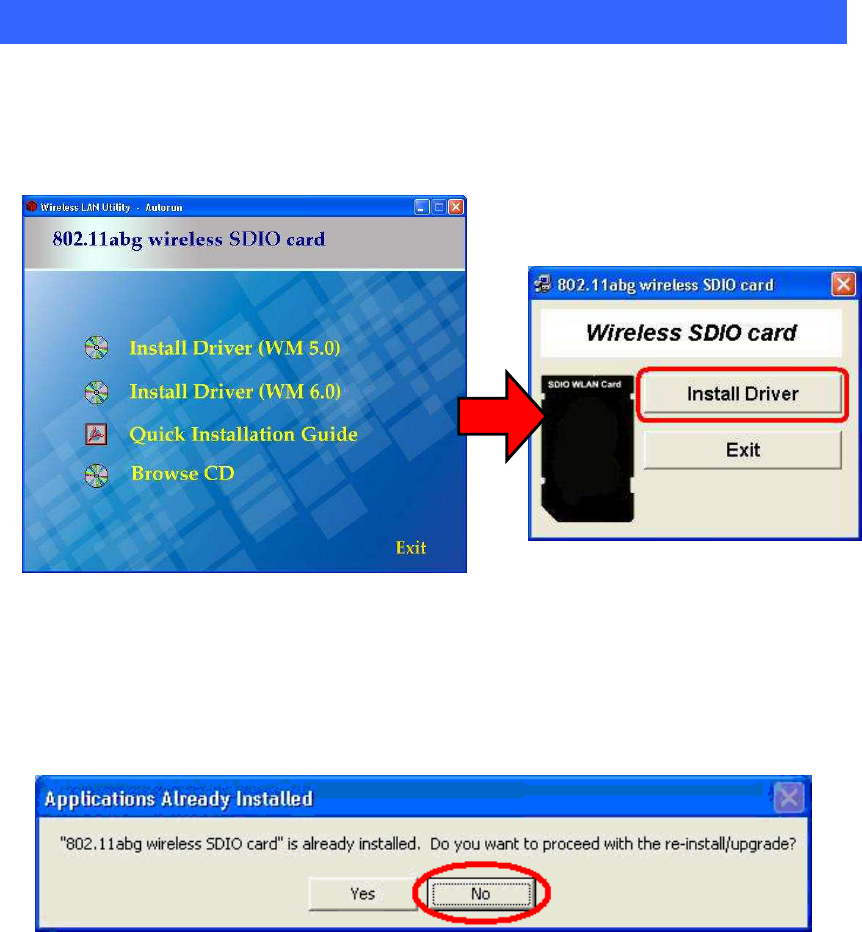

1. Select the Install Driver (WM 5.0 or 6.0) to start to REMOVE the driver.
2. If you would like to re-install or upgrade the driver, please click “Yes”; if not, please click “No” to
process removal.
10

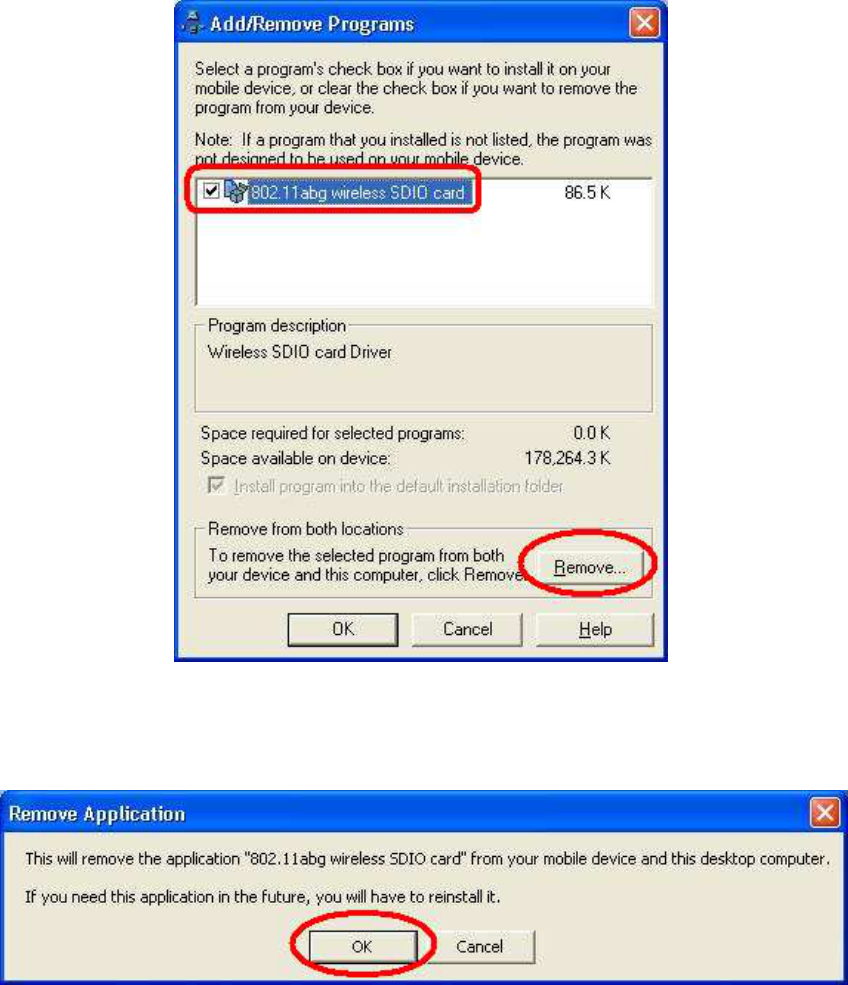

3. Select the 802.11abg wireless SDIO card item, and then click “Remove” button to uninstall the
program.
4. Click “OK” to confirm removing the application.
11

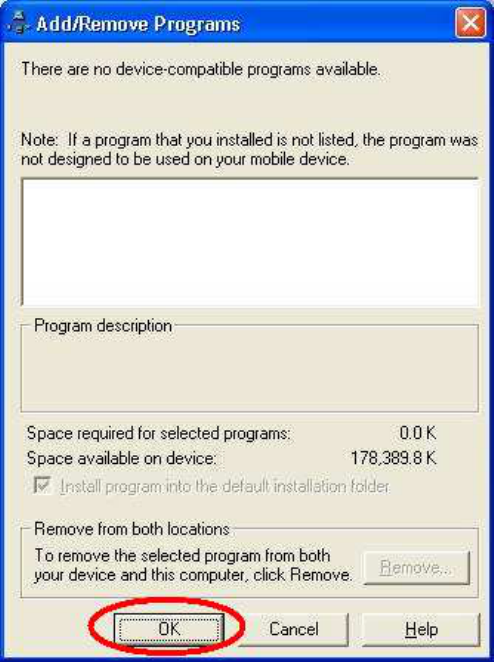

5. Click “OK” to complete the uninstallation.
