FEATURES
EATURESEATURES
EATURES
The 802.11abg Wireless SDIO Module is a wireless network Module that complies with the IEEE
802.11abg standard on wireless LANs (Revision B).
SDIO Module size as 40 (L) x 24 (W) x 2.1 (H) mm.
SDIO Interface
Supports the IEEE802.11 a/b/g wireless.
High radio performance.
Low power consumption.
Data rates of 6-54Mbps for 802.11a and 1-54Mbps for 802.11g.
Embedded 40MHz reference clock supported.
Sleep clock using 32 KHz clock.
Ready OS support as WinCE 5.0 and 6.0, Linux 2.6.9.
2 type external cable antenna to enhance extra performance
SD WLAN MODULE WIRELESS NETWORKS
SD WLAN Module Network Scenarios
The 802.11abg Wireless SDIO Module enables you to:
• Connect your computer to a Peer-to-Peer workgroup of wireless computing devices
• Connect your computer to a Small Office/Home Office (SOHO) network that includes Wi-Fi access
points
• Connect your computer to a Local Area Network (LAN) Infrastructure that includes the 802.11abg
Wireless SDIO Module, or other IEEE 802.11b compliant LAN systems
Wireless stations can be equipped with the 802.11abg Wireless SDIO Module, but also with other WLAN
PC Modules. Both of them share the same wireless functionality.
2
Peer-to-Peer (Ad-hoc) Workgroup
The Peer-to-Peer workgroup configuration enables you to quickly set up a small wireless workgroup, where
the workgroup participants can exchange files using features like “Files and Printer Sharing” as supported
by Microsoft® Networking.
You can use this option to setup a temporary or Ad-hoc network in environments where no access points
are available (for example in Small Office/Home Office “SOHO” environments). As long as the stations
are within range of one another, this is the easiest and least expensive way to set up a wireless network.
Home Networking
With 802.11abg Wireless SDIO Module, wireless access to the Internet or other devices is at your
fingertips. All you need to do is connect the 802.11abg Wireless SDIO Module to an existing access point
that may be connected to the external Cable or xDSL modems and you are ready to:
Share files and printers, and
Access the Internet
Enterprise Networking
With the Wi-Fi certified access point in the corporate network system, you can connect to a corporate Local
Area Network (LAN) infrastructure to access all network facilities in wireless. LAN Infrastructures may
either be:
Stand-alone wireless LANs
Wireless network infrastructures connected to an existing Ethernet network
3
INSTALLING THE DRIVE
INSTALLING THE DRIVEINSTALLING THE DRIVE
INSTALLING THE DRIVER
RR
R
Installation of the 802.11abg wireless SDIO Module driver to the
PDA via using Microsoft ActiveSync®

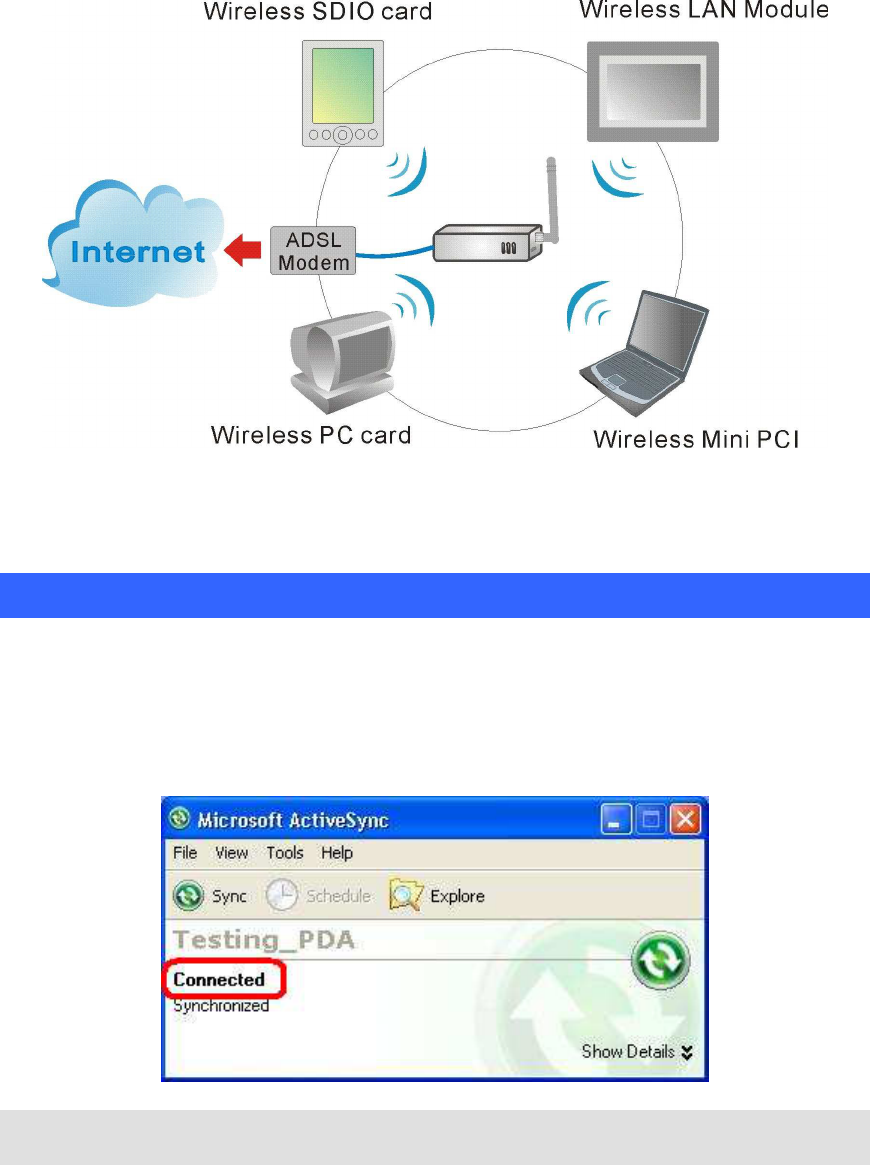

1. Connect your PDA to your computer and make sure Microsoft ActiveSync® has established a
connection between the two devices.
Note: Do not insert the 802.11abg Wireless SDIO Module into the Module
slot of your PDA until the Driver installation has been performed.
4
Important Notice:
The SDIO drivers are based on following CPU type:
Intel PXA270 for Windows Mobile® 5.0
Marvell PXA310 for Windows Mobile® 6.0
Please go to Start > Settings > System tab > select About icon > Version tab to check the PDA
CPU type.
If your PDA CPU is other type, please check with the agent of SDIO Module. Due to different PDA CPU
type might cause incompatible between the driver and SDIO Module.
5

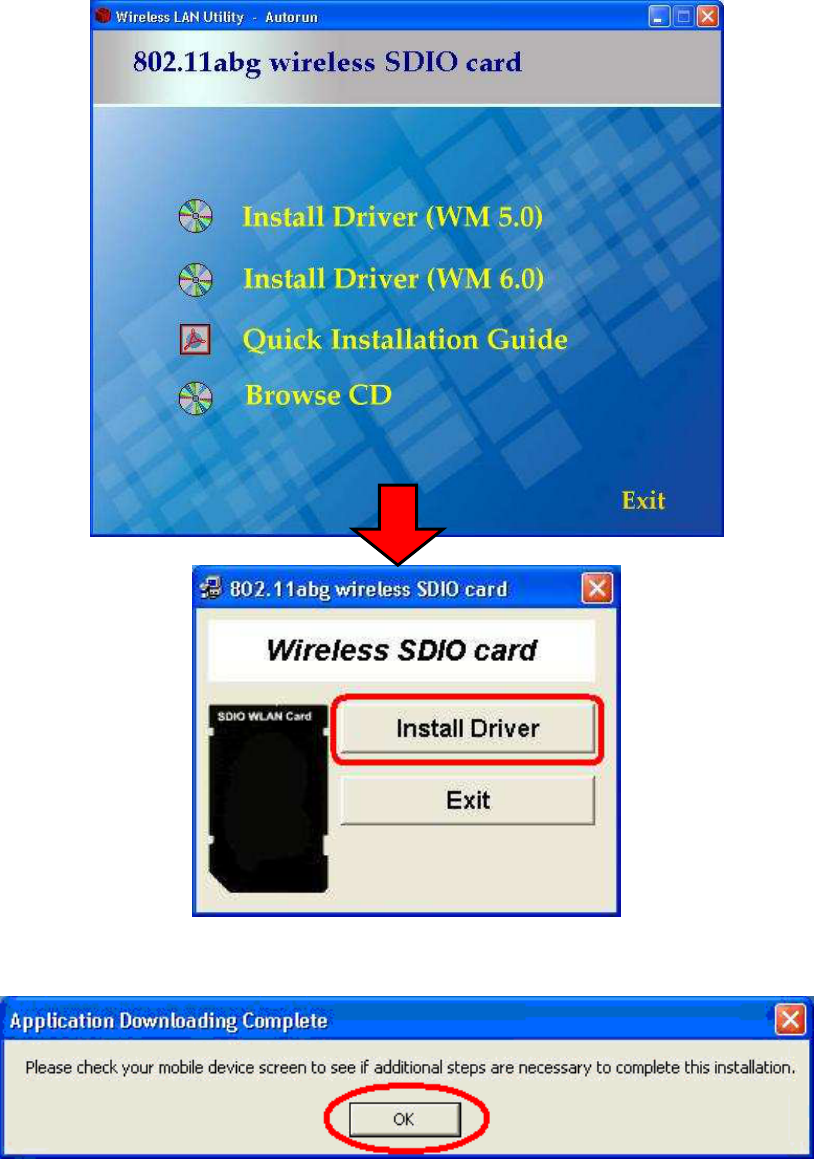

2. Insert the included CD-ROM to your PC. The Wireless LAN Utility screen will appear, select the Install
Driver (WM 5.0 or 6.0) to start driver installation.
3. Click “OK” to complete the driver installation.
6

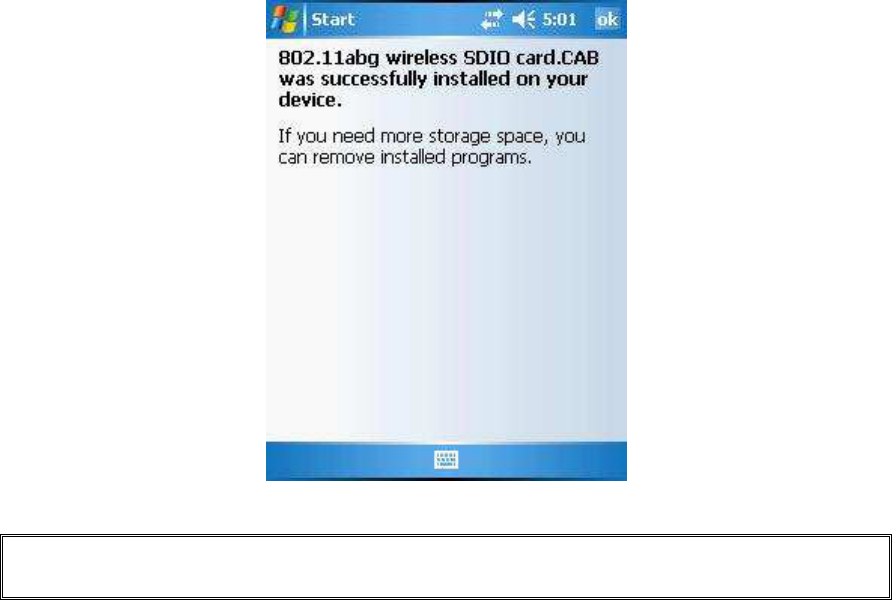

4. After finished driver installing, the installed successfully message will show on the PDA screen.
Note: Do not insert the 802.11abg wireless SDIO Module into the Module
slot of your PDA until the driver installation has been performed.
7
ACCESSING
ACCESSING ACCESSING
ACCESSING W
WW
WLAN
LANLAN
LAN
U
UU
UTILITY
TILITYTILITY
TILITY

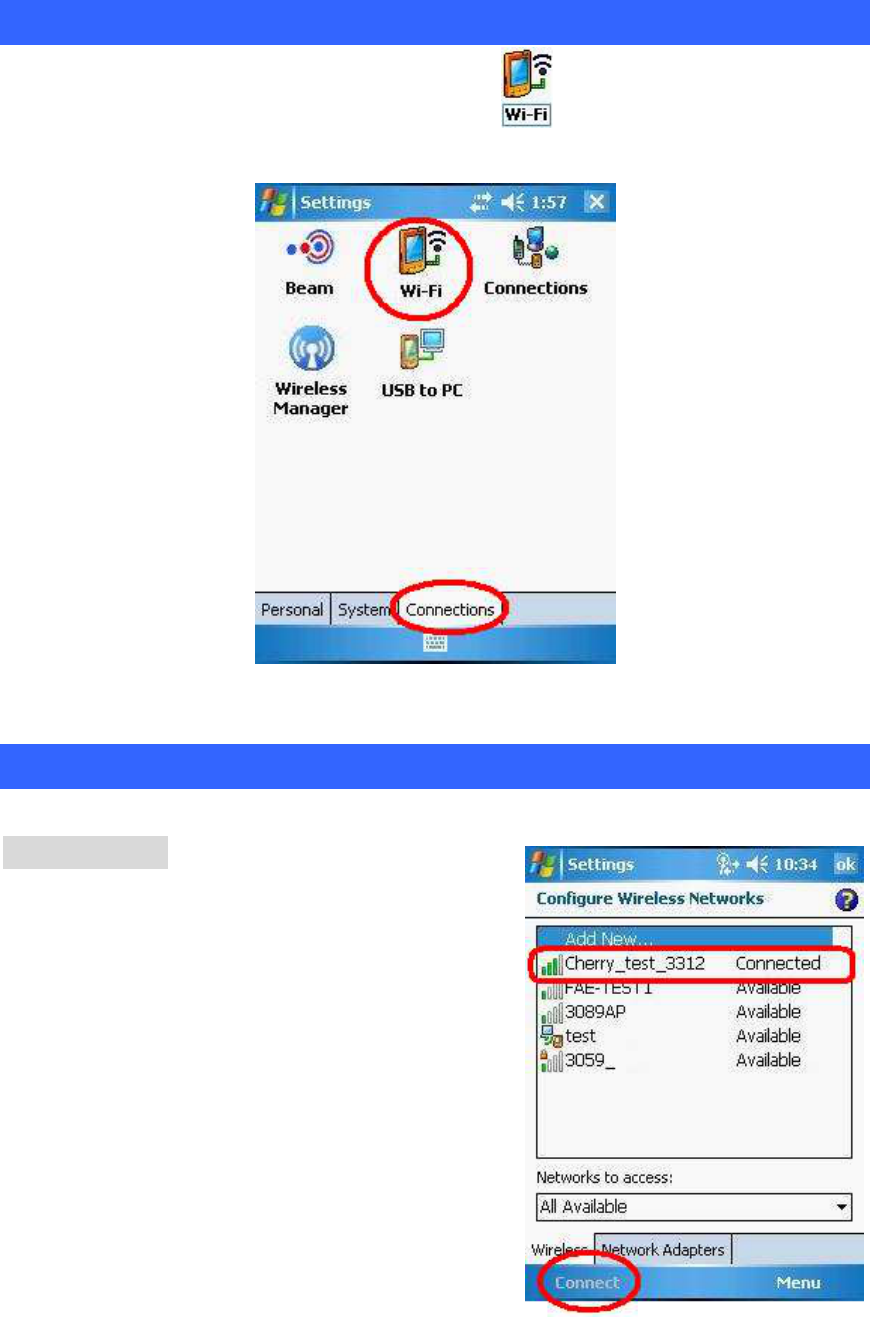

Go to Start > Settings > Connections tab > select the Wi-Fi icon to access the Windows CE
built-in WLAN utility.
C
CC
CONFIGURING
ONFIGURING ONFIGURING
ONFIGURING WLAN U
WLAN UWLAN U
WLAN UTILITY
TILITYTILITY
TILITY
Select an available AP or router from the list and tap Connect to make a connection.
Wireless tab
Configure Wireless Networks Select an available
network device from the list and tap Connect.
8
Network Adapters tab
Configure Network Adapters
My network Module connects to:
Tap Work or The Internet from the pull-down
menu.
Work: Connects to the network in your office.
The Internet: Connects to your ISP at home.

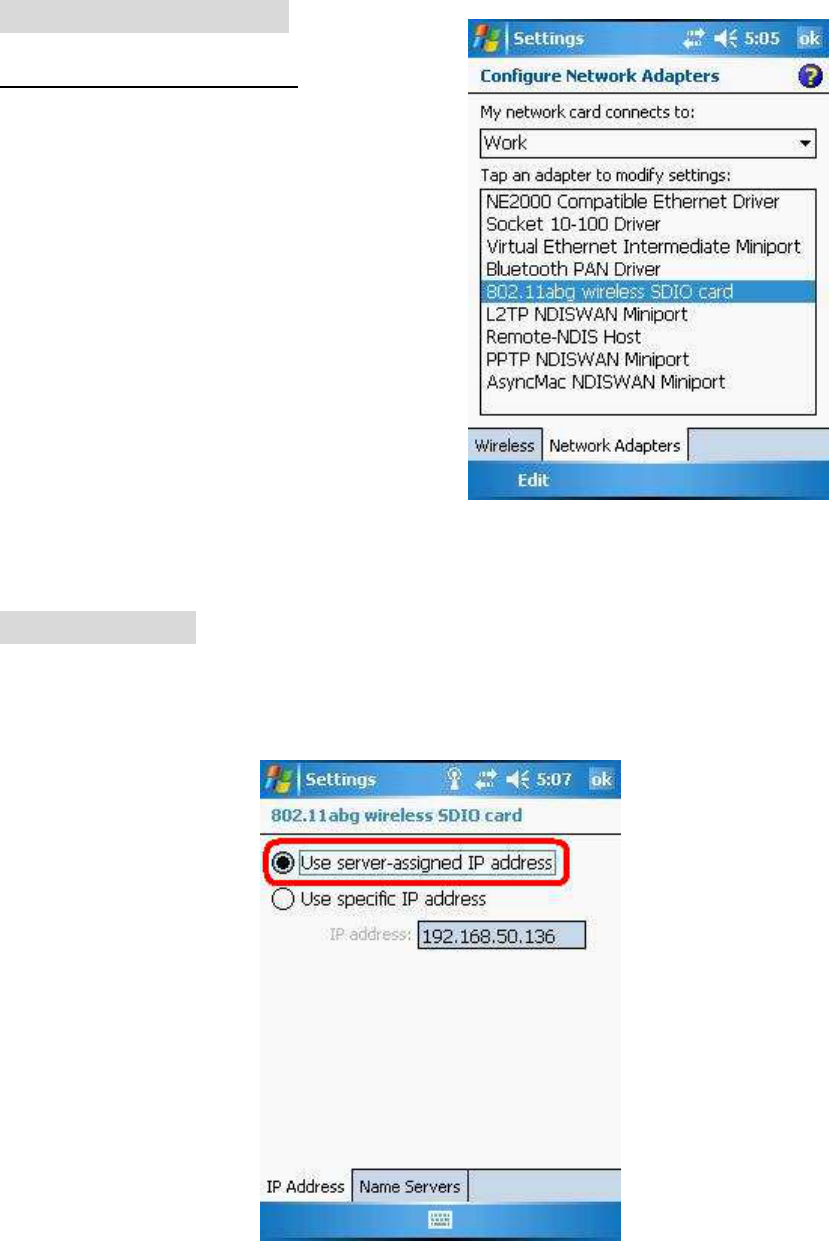

Tap an adapter to modify settings:
Tap an adapter from the list to enter its
configuration screen.
Or select an adapter then tap Edit at the left-down
corner of the screen to enter its configuration
settings page.
If 802.11abg wireless SDIO Module is tapped, the following screen will appear for you to configure:
IP Address tab
Use server-assigned IP address
Tap Use server-assigned IP address to obtain an IP address automatically. The wireless router will act
as a DHCP server. An IP address will be assigned from the wireless router.
9

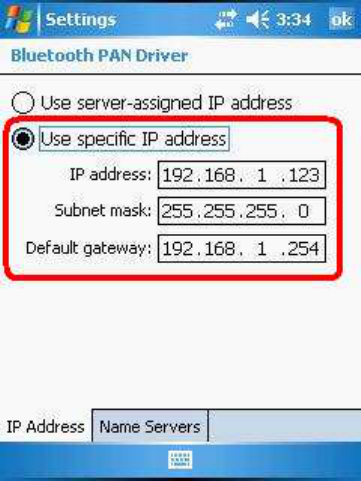

Use specific IP address
IP address: Enter the IP address (within the range of the wireless router’s IP address, for instance, if
the IP address of the router which you would like to connect is 192.168.1.254, you may enter the IP
address from 192.168.1.1 to 192.168.1.253, such as 192.168.1.123)
Subnet mask: The subnet mask, for example, 255.255.255.0, must be the same as that set on your
Ethernet network.
Default gateway: Enter the IP address of your network’s gateway, such as 192.168.1.254. The gateway
is the device that enables communication between your computers and the Internet. In most cases, your
router acts as your gateway.
10
REMOVING
REMOVINGREMOVING
REMOVING THE DRIVER
THE DRIVER THE DRIVER
THE DRIVER
If you would like to remove the driver from your PDA, please make a connection between the PDA and
your computer via Microsoft ActiveSync® and then insert the CD-ROM into your PC.

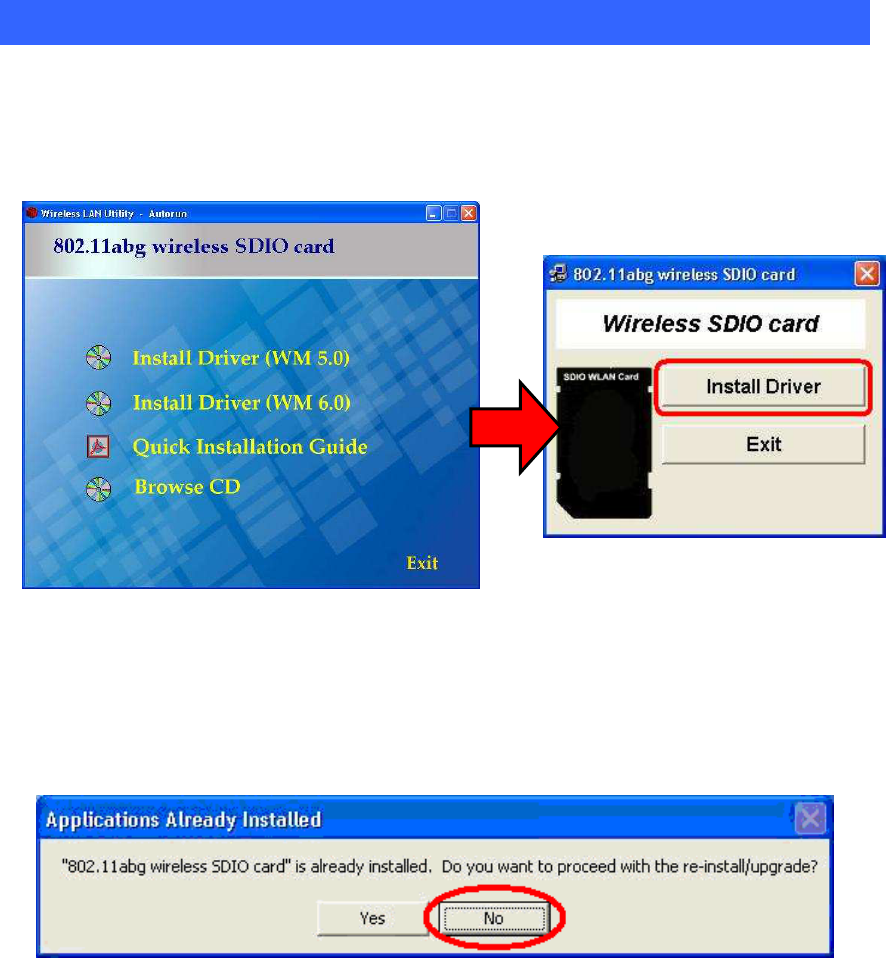

1. Select the Install Driver (WM 5.0 or 6.0) to start to REMOVE the driver.
2. If you would like to re-install or upgrade the driver, please click “Yes”; if not, please click “No” to
process removal.
11
3. Select the 802.11abg wireless SDIO Module item, and then click “Remove” button to uninstall the
program.

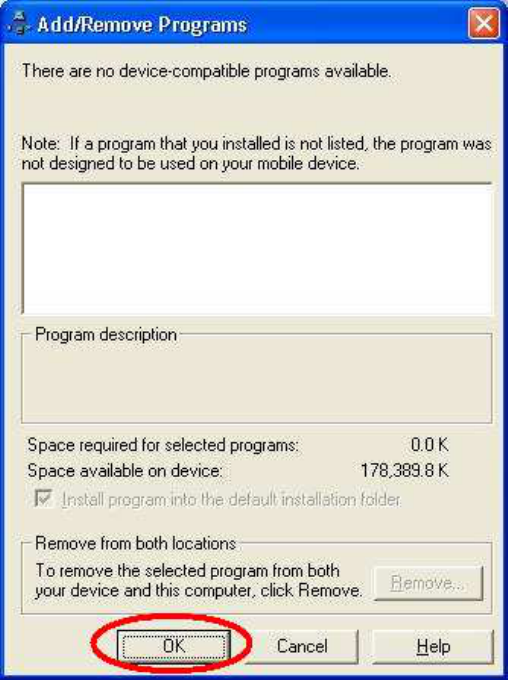

4. Click “OK” to confirm removing the application.
12
5. Click “OK” to complete the uninstallation.
13
SPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONS
Standard IEEE 802.11a/b/g standards
Chipset Atheros AR6001XL MAC /Base band /Radio chip
PA Chip FM7705
Host Interface SDIO 1.1
Operating Voltage 3.3V +/-5%
Power Requirement
Power consumption at 11a/g
TX: 360 mA, RX: 185 mA
Power consumption at 11b
TX: 360 mA, RX: 185 mA
Sleep mode: 995uA
Antenna Type TWO HRS U.FL compatible connector on board
Frequency Range 11b/g:2.412GHz-2.4835GHz
11a:4.9GHz-5.85GHz
Modulation
11a/g:Orthogonal Frequency Division Multiplexing (OFDM)
54Mbps/48Mbps:64QAM
36Mbps/24Mbps:16QAM
18Mbps/12Mbps:QPSK
9Mbps/6Mbps:BPSK
11b:Direct Sequence Spread Spectrum (DSSS)
11Mbps/5.5Mbps:CCk
2Mbps:DQPSK
1Mbps:DBPSK
Number of Selectable
Channels
11b/g:
USA, Canada (FCC): 11 channels (2.412GHz~2.462GHz)
Europe (CE) : 13 channels (2.412GHz~2.472GHz)
Japan (TELEC) : 14 channels (2.412GHz~2.4835GHz)
11a:
USA, Canada (FCC): 23channels
(5.15GHz~5.25GHz,,5.25GHz~5.35GHz,5.725GHz~5.825GHz)
Europe (CE): 32 channels
( 5.15GHz~5.25GHz,5.25GHz~5.35GHz, 5.47~5.724GHz)
802.11b: Direct Sequence Spread Spectrum System
Modulation Technique 802.11a/g: Orthogonal Frequency Division Multiplexing System
802.11b(11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
Data Rate 802.11a/g(54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12
Mbps, 9 Mbps, 6 Mbps)
Security Hardware-Based Encryption/Decryption Using 64, and 128-Bit
Wired-Equivalent Privacy (WEP) Keys
RF Output Power 11a 54Mbps OFDM: 9 dBm +1/-1.5dBm
11g 54Mbps OFDM: 11 dBm +1/-1.5dBm
11b 11Mbps CCK: 15dBm +1/-1.5dBm
14
Supported OS Microsoft Windows CE/Linux
Receiver Sensitivity -72 dBm at 54Mpbs/11a, 10% PER
-72 dBm at 54Mpbs/11g, 10% PER
-84 dBm at 11Mpbs/11b, 8% PER
Media Access Protocol CSMA/CA (Collision Avoidance) with ACK
Physical Specifications Dimension: 40 (L) x 24 (W) x 2.1 (H) mm
Environment
Specifications
Operating Temperature: -20~85℃ ambient temperature
Storage Temperature: -40~85℃ ambient temperature
Operating humidity: 90% maximum (non-condensing)
Storage humidity: 90% maximum (non-condensing)
EMC Certification
FCC in US
CE in Europe
TELEC/JATE in Japan
IC in Canada
