Abocom Systems WU5502S 802.11 b/g/n 1T1R Wireless USB Adapter User Manual

Abocom Systems Inc 802.11 b/g/n 1T1R Wireless USB Adapter

user manual

802.11 b/g/n 1T1R
Wireless USB Adapter
User’s Manual
Abocom
WU5502S
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
Country Code Statement
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible.
To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar
accessories that do not contain metallic components in its assembly. The use of accessories that do not
satisfy these requirements may not comply with FCC RF exposure requirements, and should be
avoided.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the
user’s authority to operate the equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Federal Communication Commission (FCC) Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE
C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified
in OET Bulletin 65 Supplement C. This equipment should be installed and operated with minimum
distance 2.5cm between the radiator & your body.
CE Statement:
Hereby, AboCom, declares that this device is in compliance with the essential requirement and other
relevant provisions of the R&TTE Driective 1999/5/EC.
Table of Contents
CHAPTER 1: INTRODUCTION .......................................................... 1
FEATURES ................................................................................................ 1
PHYSICAL DETAILS ..................................................................................... 1
CHAPTER 2: INSTALLATION............................................................. 2
FOR WINDOWS 2000/XP ........................................................................... 2
Install Software ................................................................................................................. 2
Install Hardware ................................................................................................................ 4
Verification ......................................................................................................................... 4
FOR WINDOWS VISTA ................................................................................ 5
Install Software ................................................................................................................. 5
Install Hardware ................................................................................................................ 8
Verification ......................................................................................................................... 8
FOR WINDOWS 7 ...................................................................................... 9
Install Software ................................................................................................................. 9
Install Hardware .............................................................................................................. 11
Verification ....................................................................................................................... 11
CHAPTER 3: NETWORK CONNECTION ....................................... 12
HOW TO MAKE A CONNECTION .................................................................. 12
HOW TO ADD A PROFILE ........................................................................... 14
CHAPTER 4: UTILITY CONFIGURATION .................................... 15
FOR WINDOWS 2000/XP ......................................................................... 15
Station Mode ................................................................................................................... 15

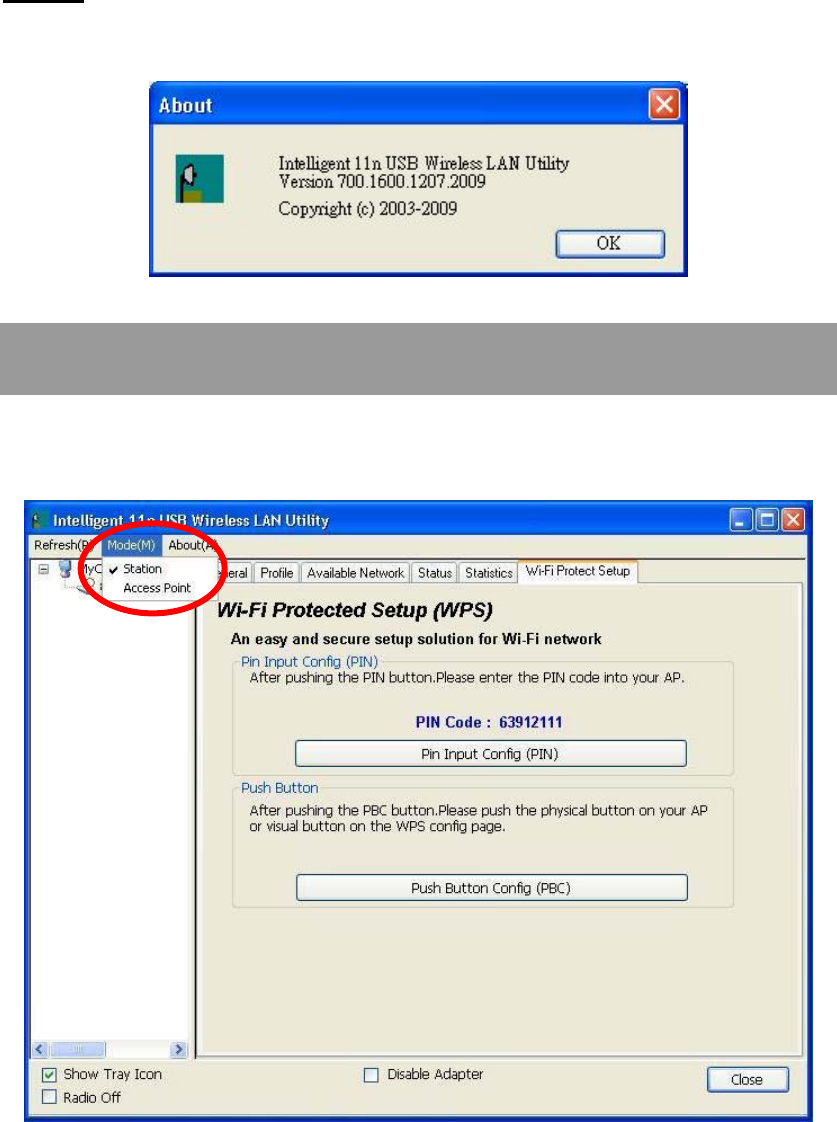

Switch to AP Mode .......................................................................................................... 24

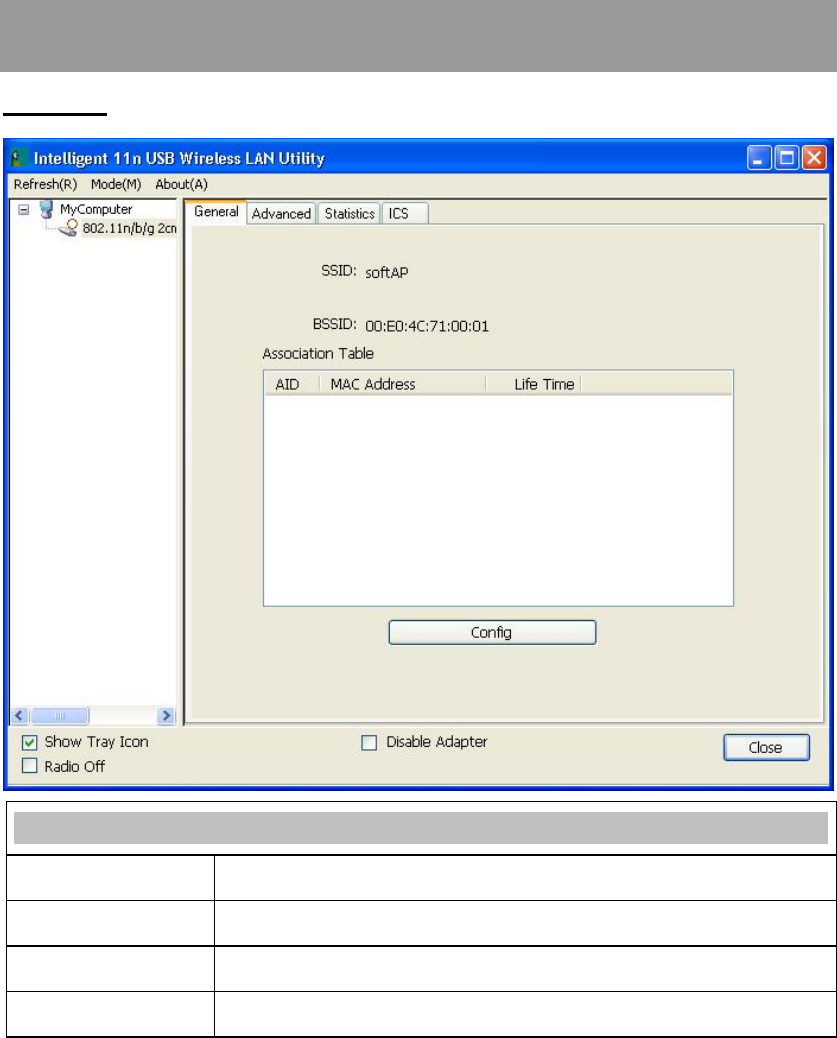

Soft AP mode ................................................................................................................... 25
FOR WINDOWS VISTA .............................................................................. 30
Station Mode ................................................................................................................... 30

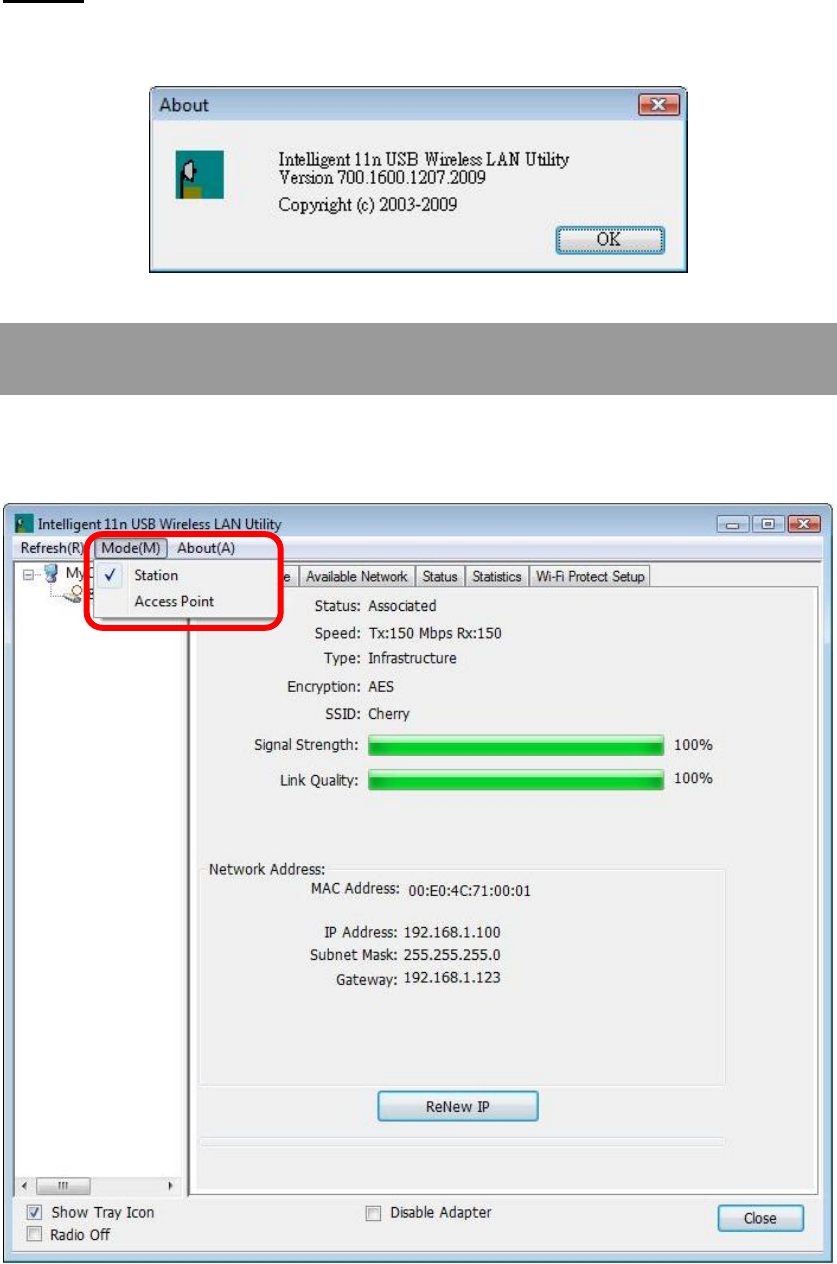

Switch to AP Mode .......................................................................................................... 39
Soft AP mode ................................................................................................................... 40
FOR WINDOWS 7 .................................................................................... 45
Station Mode ................................................................................................................... 45
Switch to AP Mode .......................................................................................................... 54
Soft AP mode ................................................................................................................... 55

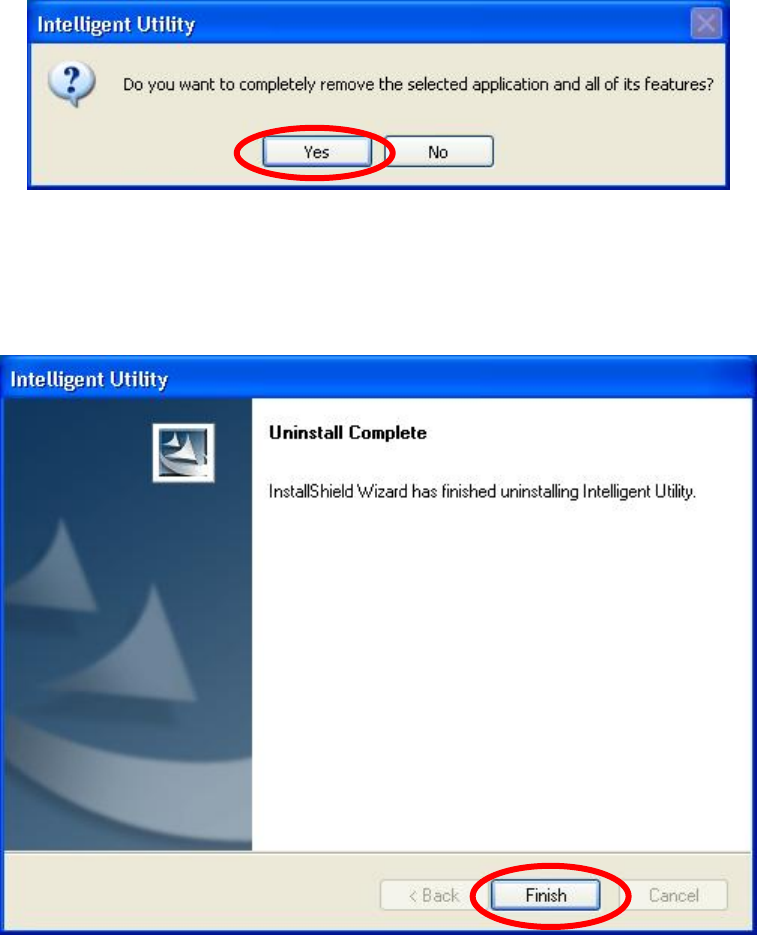

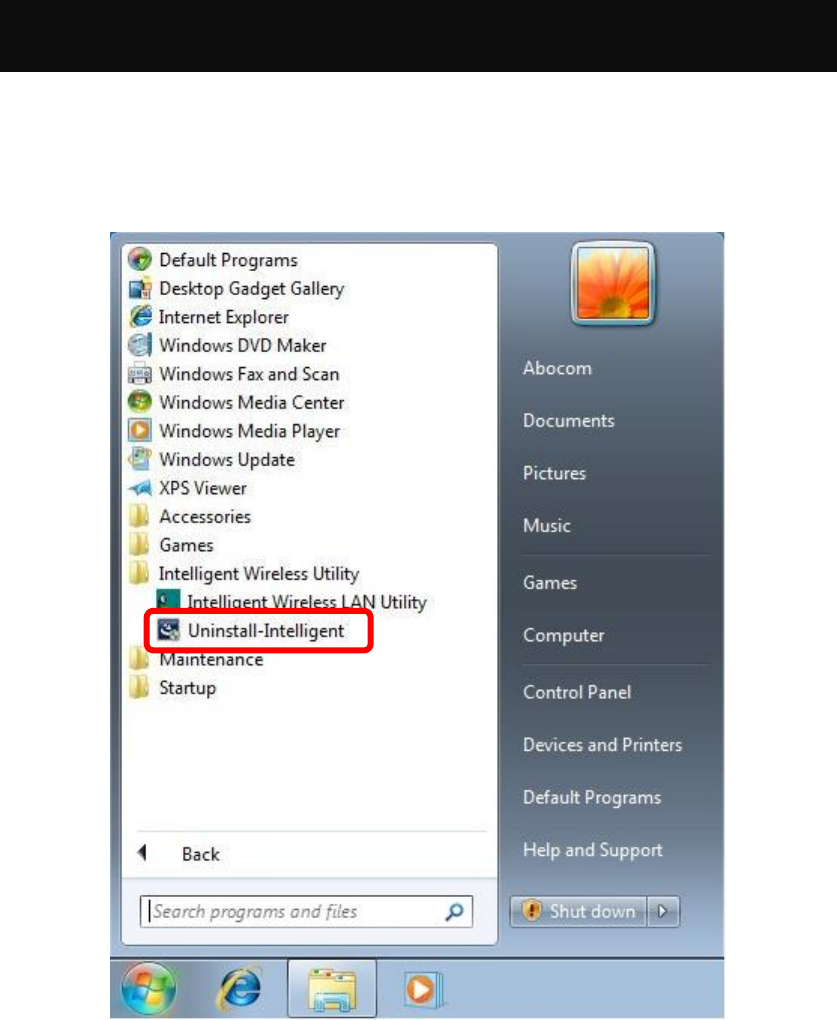

CHAPTER 5: UNINSTALL .................................................................. 60
FOR WINDOWS 2000/XP ......................................................................... 60
FOR WINDOWS VISTA .............................................................................. 62
FOR WINDOWS 7 .................................................................................... 64
- 1 -
Chapter 1:
Introduction
WU5502S measures just around 15 mm long and 15mm wide that make it hold the distinction of being
the smallest USB dongle in the world at present. WU5502S give mobile workers the freedom of
staying connected to the network while roaming around a building or multiple buildings maintaining
access to the Internet, e-mail, networked applications with the best convenience in narrow or crowded
space for it’s ultra micro size.WU5502S is expected to be able to reach 150Mbps, which is relatively
lower than normal, but still far more than sufficient to receive media streaming to the from access
point.
Features
1T1R Mode with 150Mbps PHY Rate
Complies with IEEE 802.11n and IEEE 802.11 b/g standards
Supports WEP 64/128, WPA, WPA2
Supports USB 2.0 interface
- 2 -
Chapter 2: Installation
For Windows 2000/XP
Install Software
Note:
Do not insert the Wireless USB Adapter into the computer until the
InstallShield Wizard finished installing.

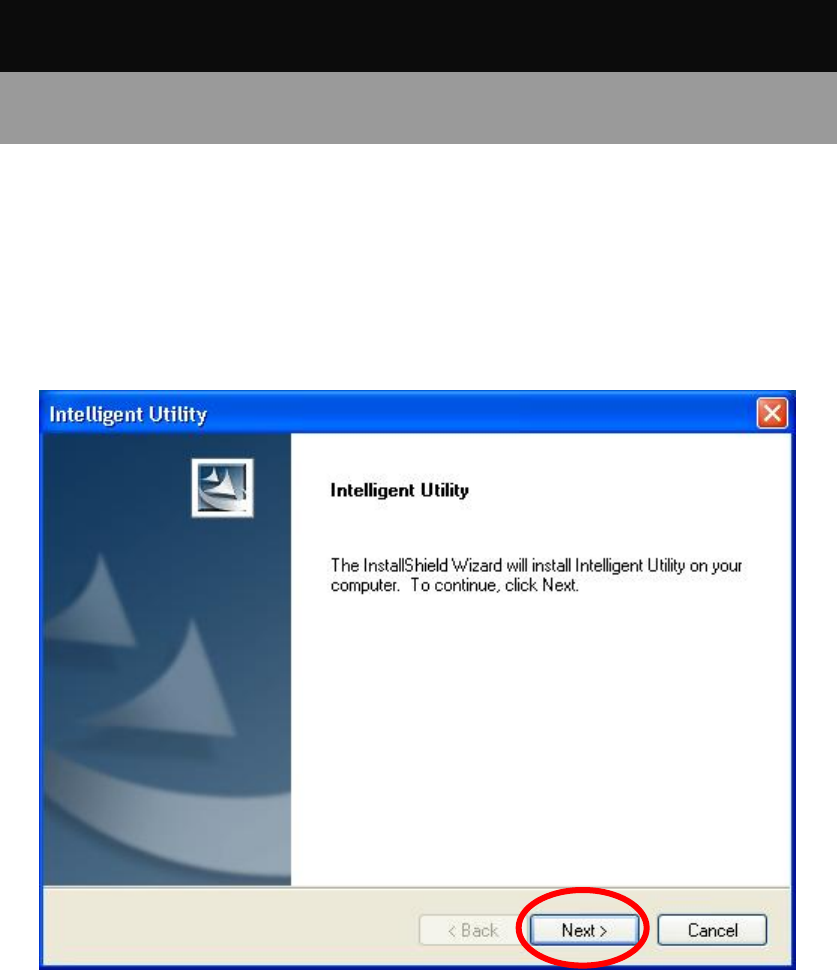

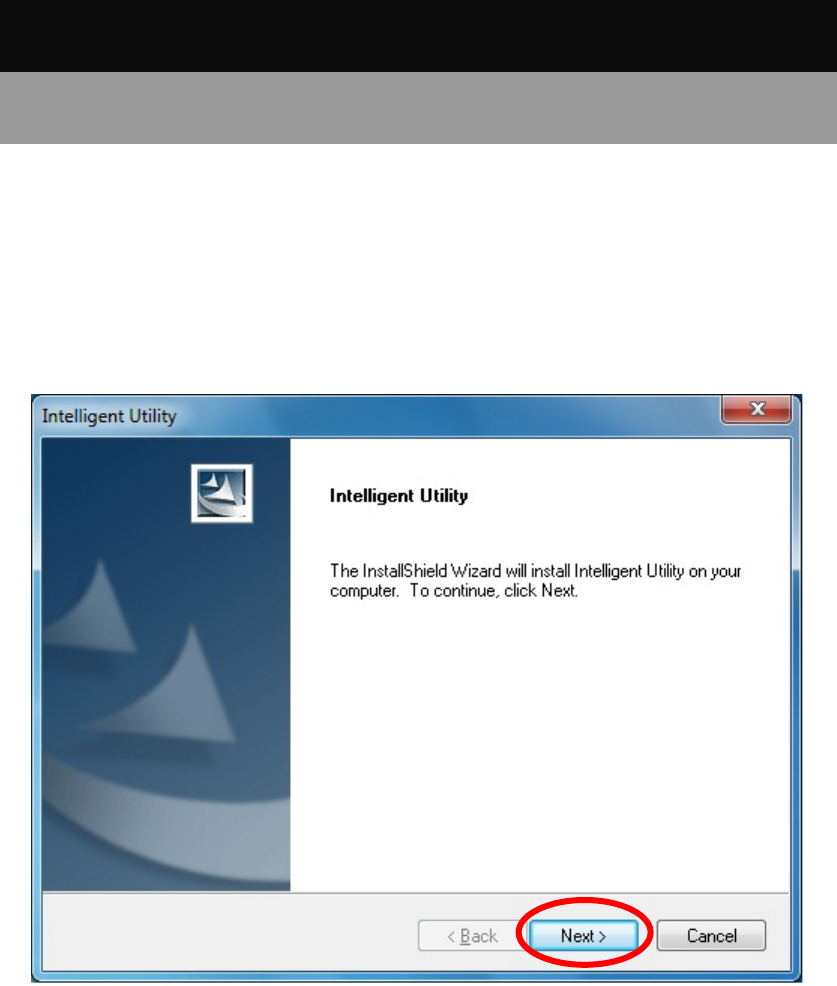

1. Exit all Windows programs. Insert the included Installation CD into the computer. The CD-ROM
will run automatically. Please click Next to process the installation.
- 3 -

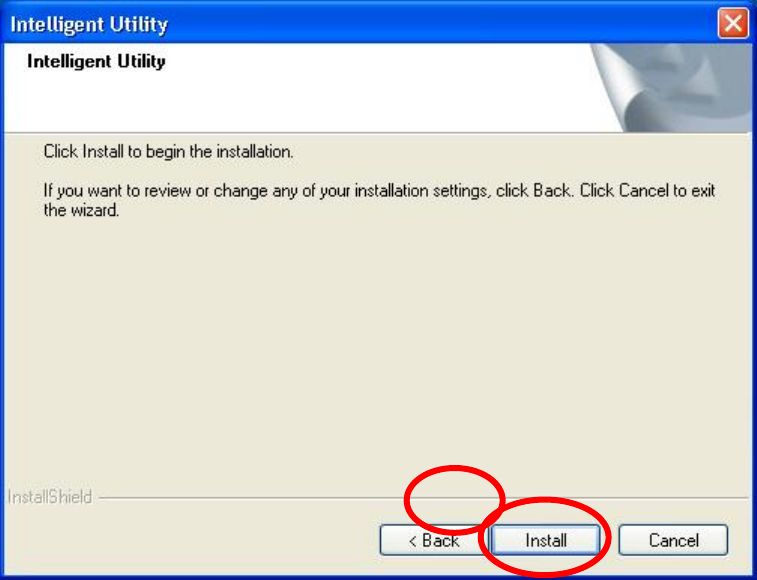

2. When prompt to the following message, please click Install to begin the installation.

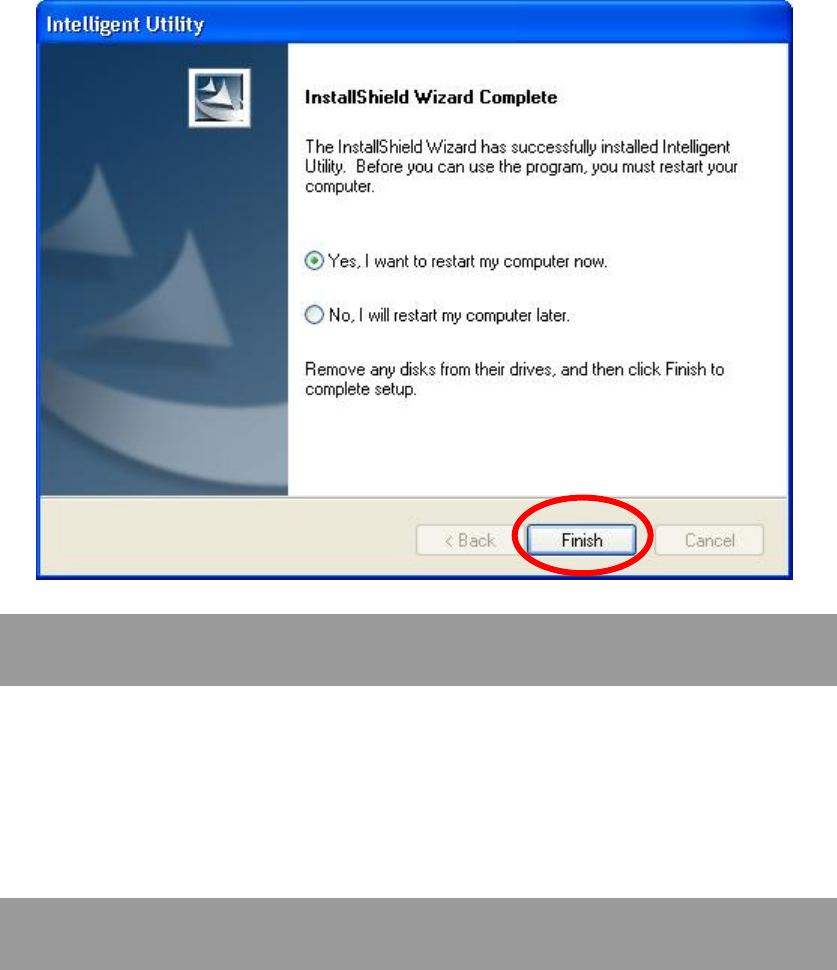

3. When the following screen appears, click Finish to restart the computer to complete the software
installation.
- 4 -
Install Hardware
Note:
Insert the Wireless USB Adapter when finished software installation.
Insert the Wireless USB Adapter into the USB Port of the computer. The system will automatically
detect the new hardware.
Verification

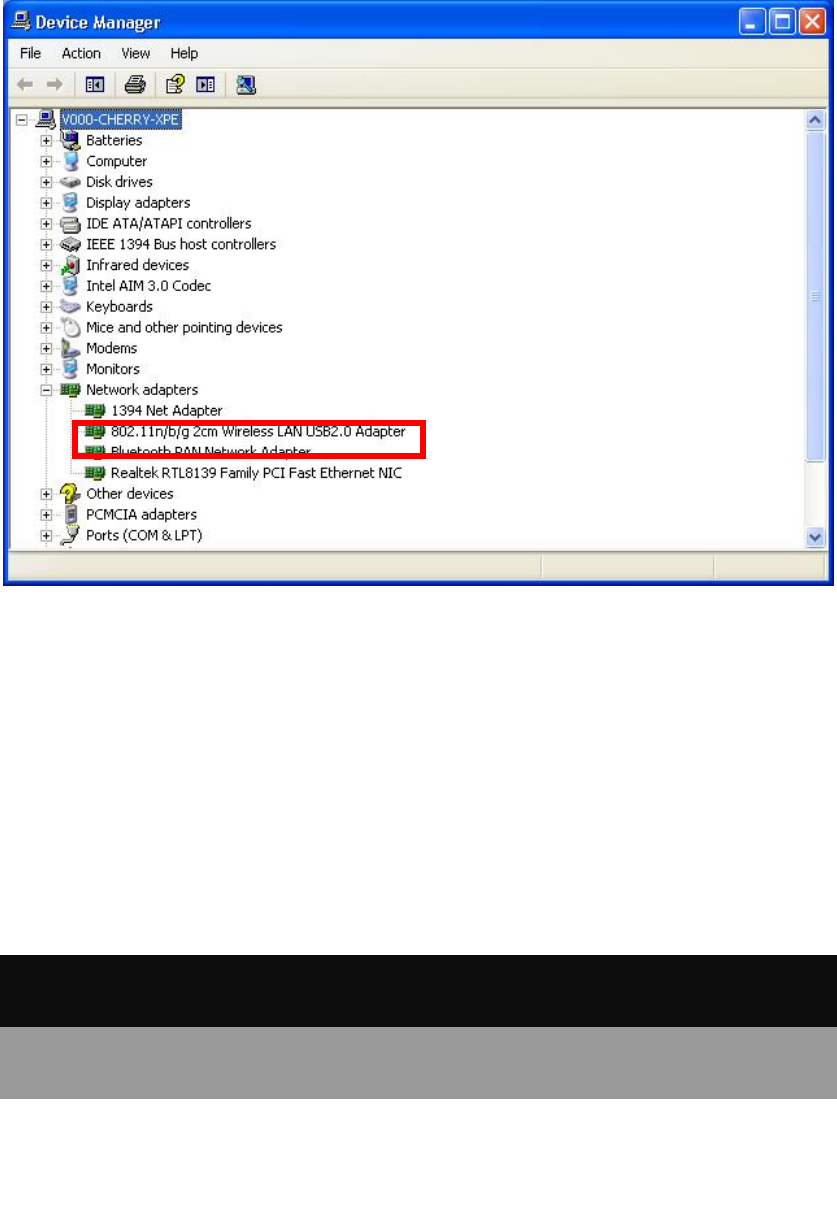

To verify the device is active in the computer. Go to Start > Control Panel > System > Hardware>
Device Manager. Expand the Network adapters category. If the 802.11n/b/g 2cm Wireless LAN
USB2.0 Adapter is listed here, it means that the device is properly installed and enabled.
- 5 -
For Windows Vista
Install Software
Note:
Do not insert the Wireless USB Adapter into the computer until the
InstallShield Wizard finished installing.

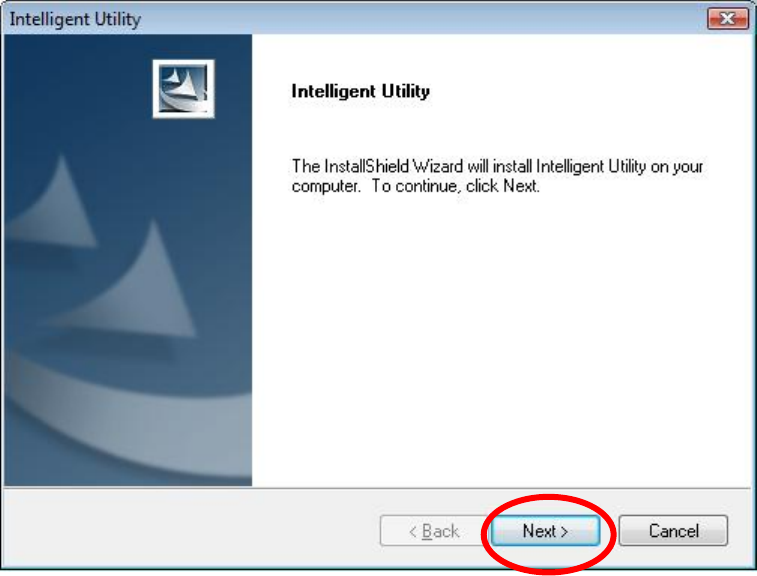

1. Exit all Windows programs. Insert the included Installation CD into the computer. The CD-ROM
will run automatically. Please click Next to process the installation.
- 6 -

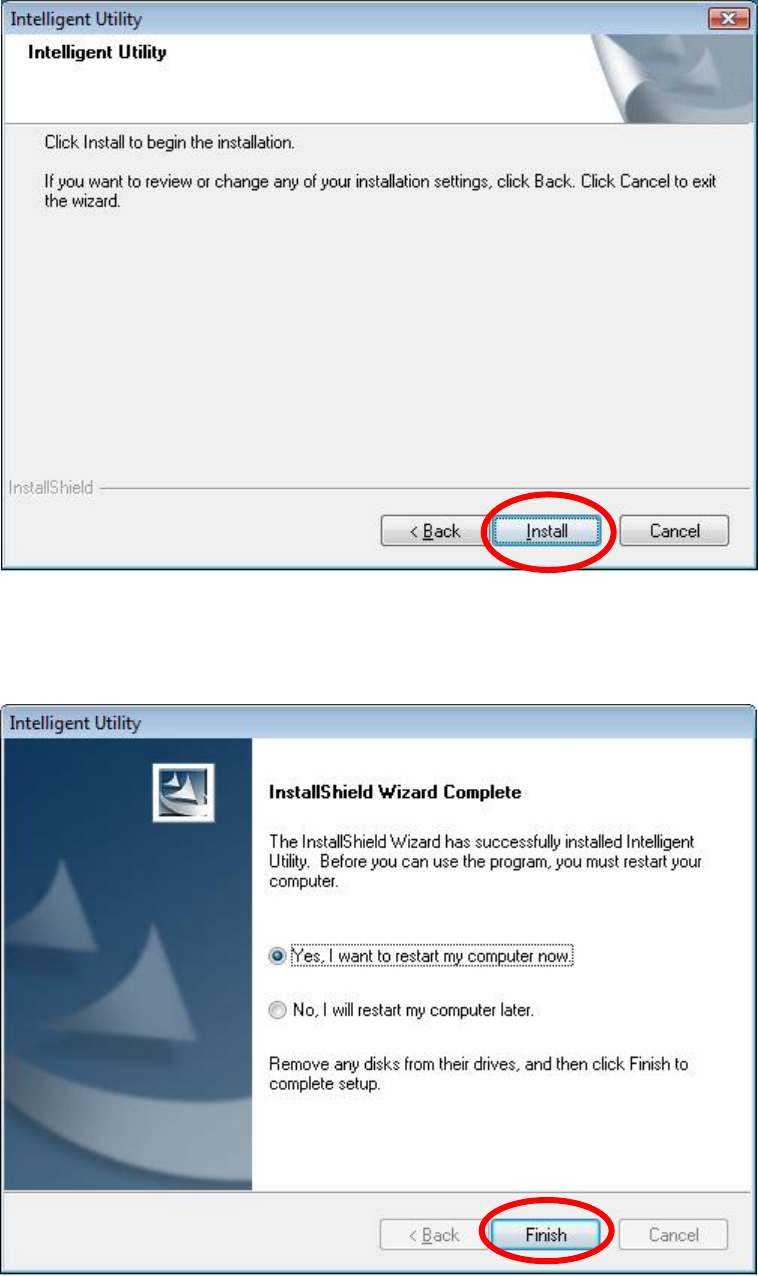

2. When prompt to the following message, please click Install to begin the installation.
- 7 -
3. When the following screen appears, click Finish to restart the computer to complete the software
installation.
- 8 -
Install Hardware
Note:
Insert the Wireless USB Adapter when finished software installation.
Insert the Wireless USB Adapter into the USB Port of the computer. The system will automatically
detect the new hardware.
Verification

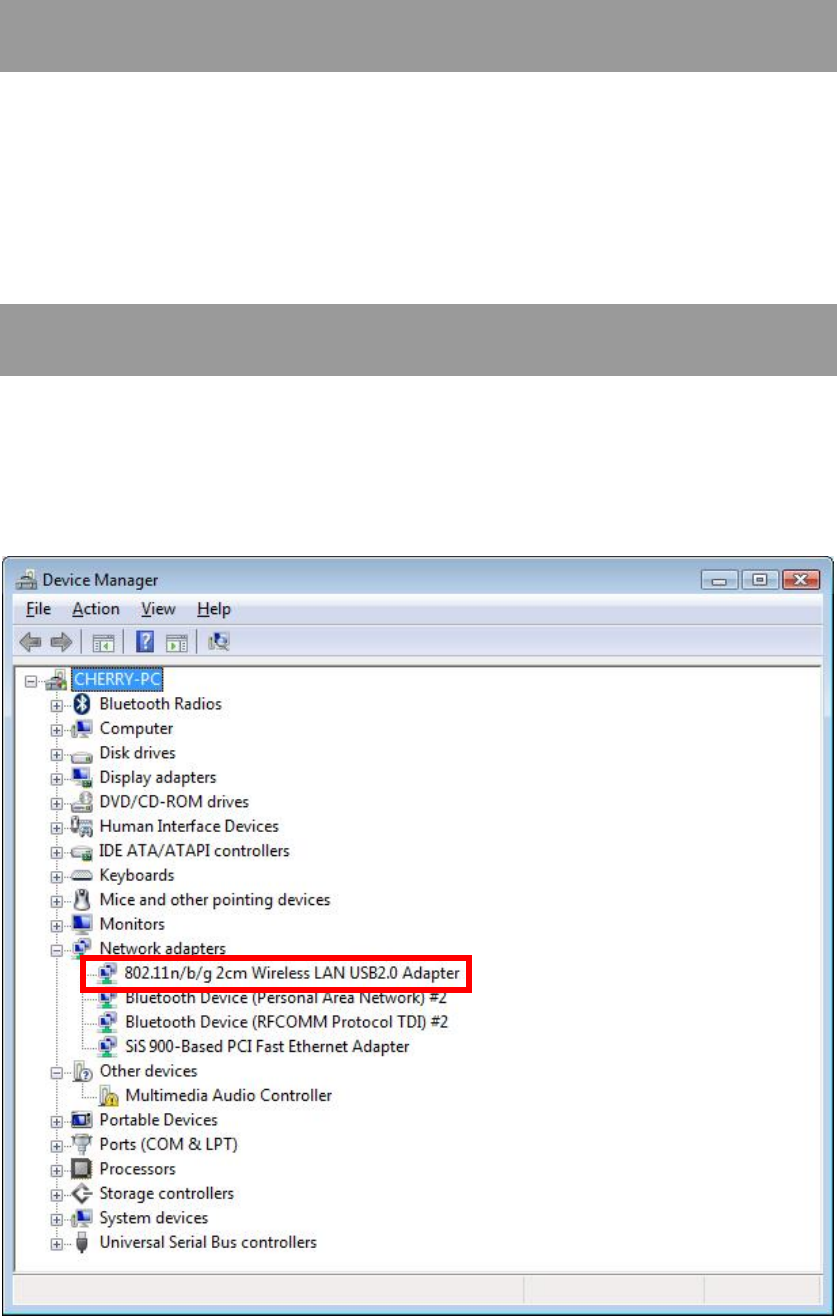

To verify the device is active in the computer. Go to Start >Control Panel > Hardware and
Sound > Device Manager. Expand the Network adapters category. If the 802.11n/b/g 2cm
Wireless LAN USB2.0 Adapter is listed here, it means that the device is properly installed and
enabled.
- 9 -
For Windows 7
Install Software
Note:
Do not insert the Wireless USB Adapter into the computer until the
InstallShield Wizard finished installing.
1. Exit all Windows programs. Insert the included Installation CD into the computer. The CD-ROM
will run automatically. Please click Next to process the installation.
- 10 -

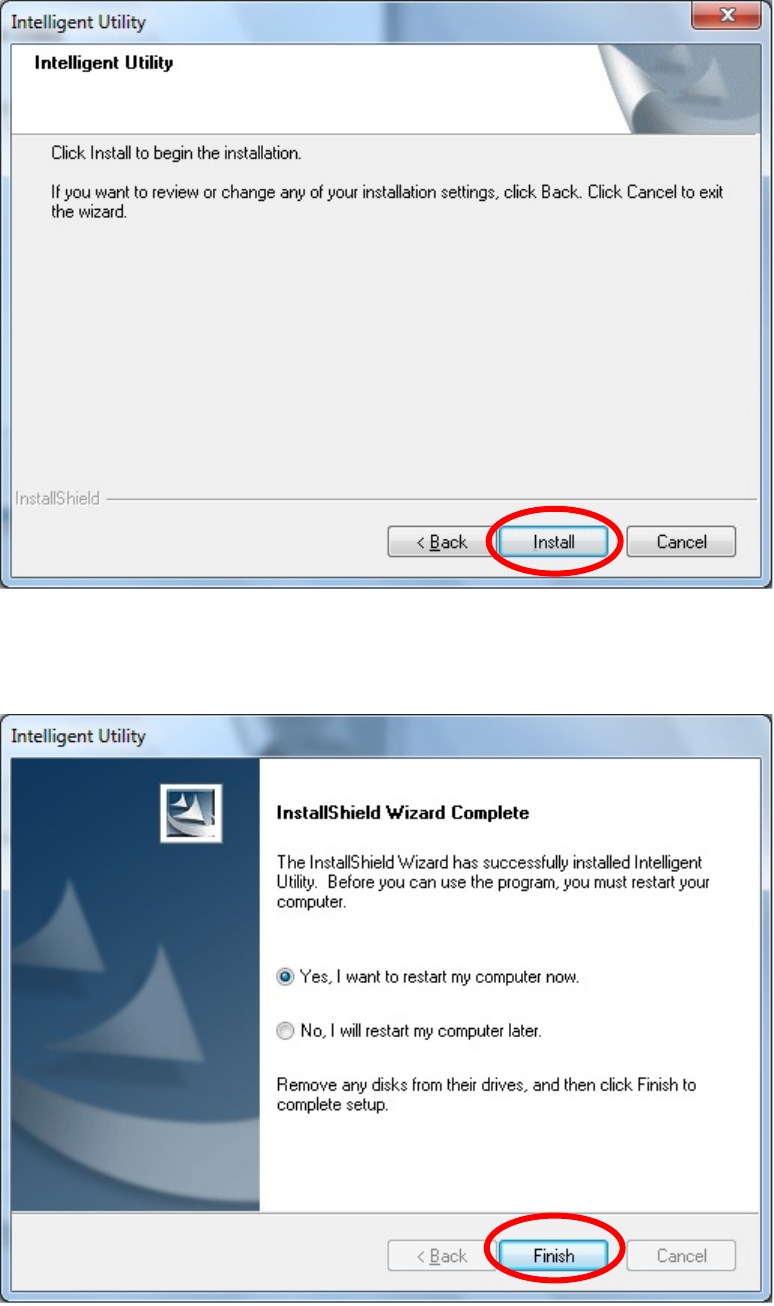

2. When prompt to the following message, please click Install to begin the installation
3. When the following screen appears, click Finish to restart the computer to complete the software
installation.
- 11 -
Install Hardware
Note:
Insert the Wireless USB Adapter when finished software installation.
Insert the Wireless USB Adapter into the USB Port of the computer. The system will automatically
detect the new hardware.
Verification

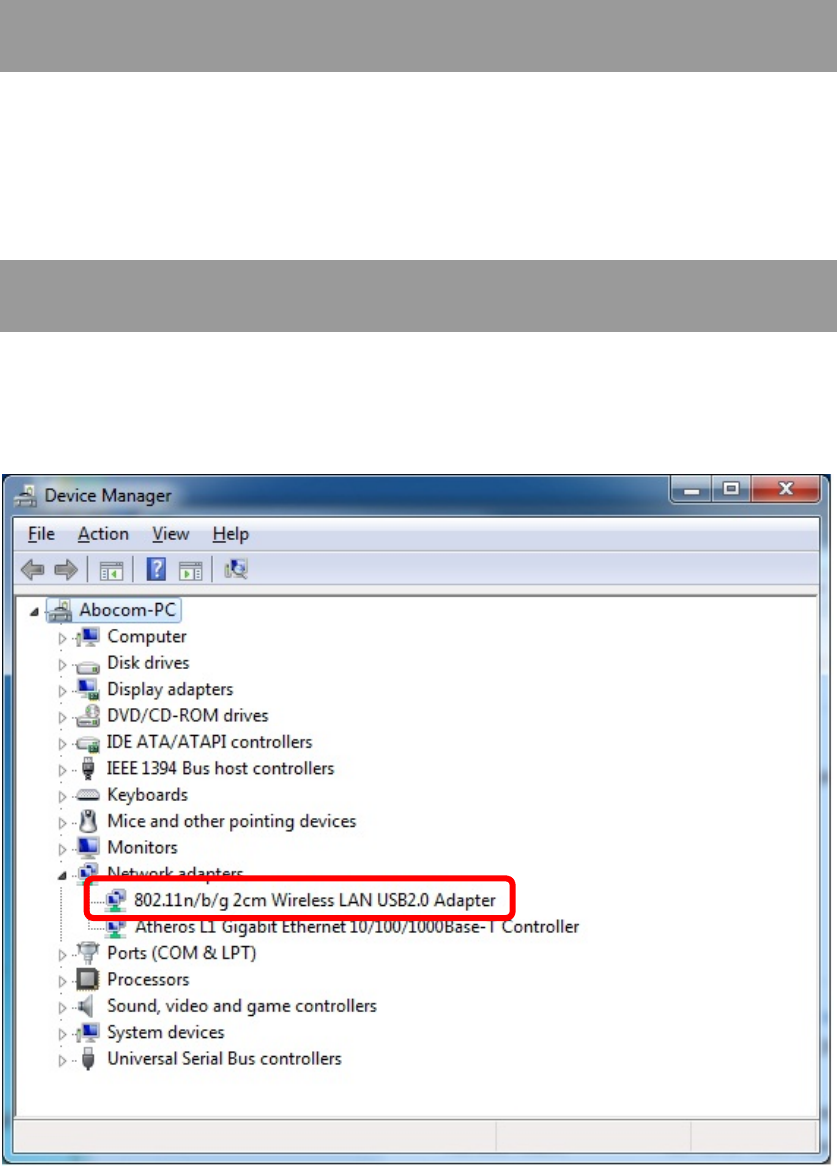

To verify the device is active in the computer. Go to Start > Control Panel > Device Manager.
Expand the Network adapters category. If the 802.11n/b/g 2cm Wireless LAN USB2.0 Adapter is
listed here, it means that the device is properly installed and enabled.
- 12 -
Chapter 3:
Network Connection
How to Make a Connection
To make a connection with an access point, please follow below steps. Here takes Windows XP OS for
example.

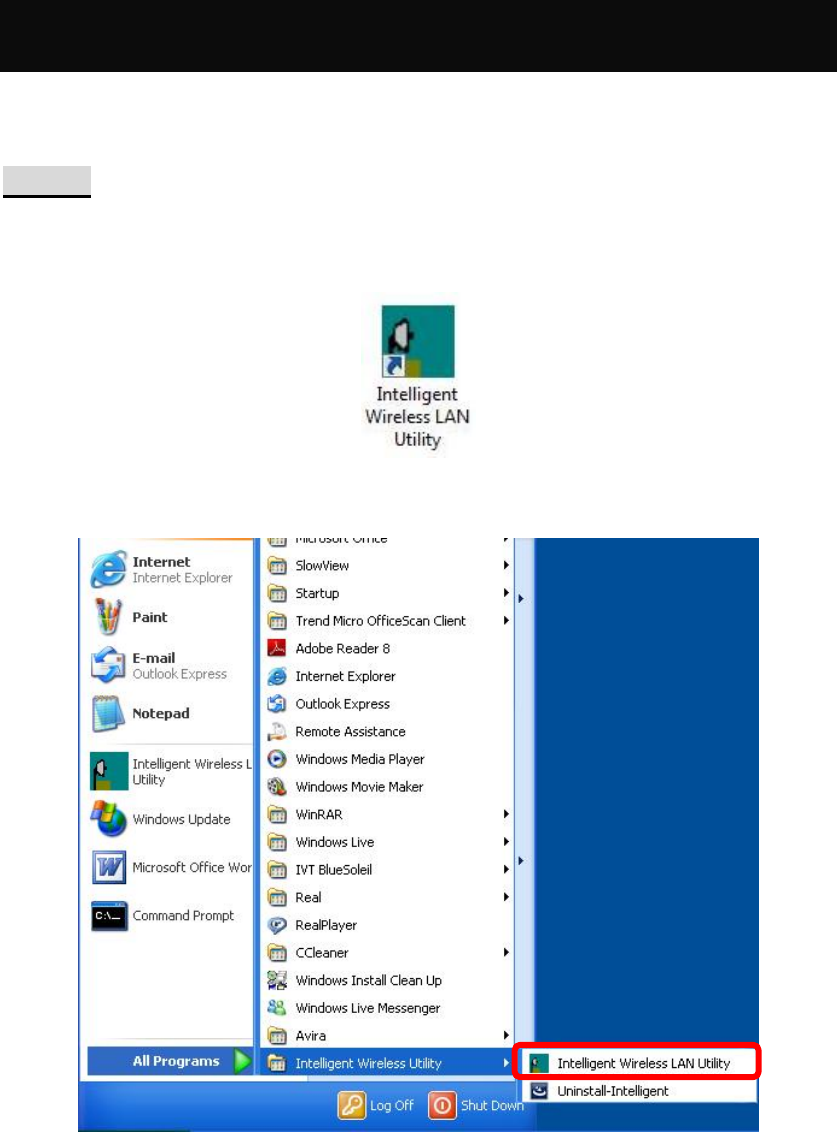

Step 1: After set up the Wireless USB Adapter successfully, please launch the Configuration
Utility. There are two ways to launch the utility by:
(1) Double clicking the Intelligent Wireless LAN Utility icon on the desktop.
(2) Or go to Start All Programs Intelligent Wireless Utility Intelligent Wireless LAN
Utility.
- 13 -

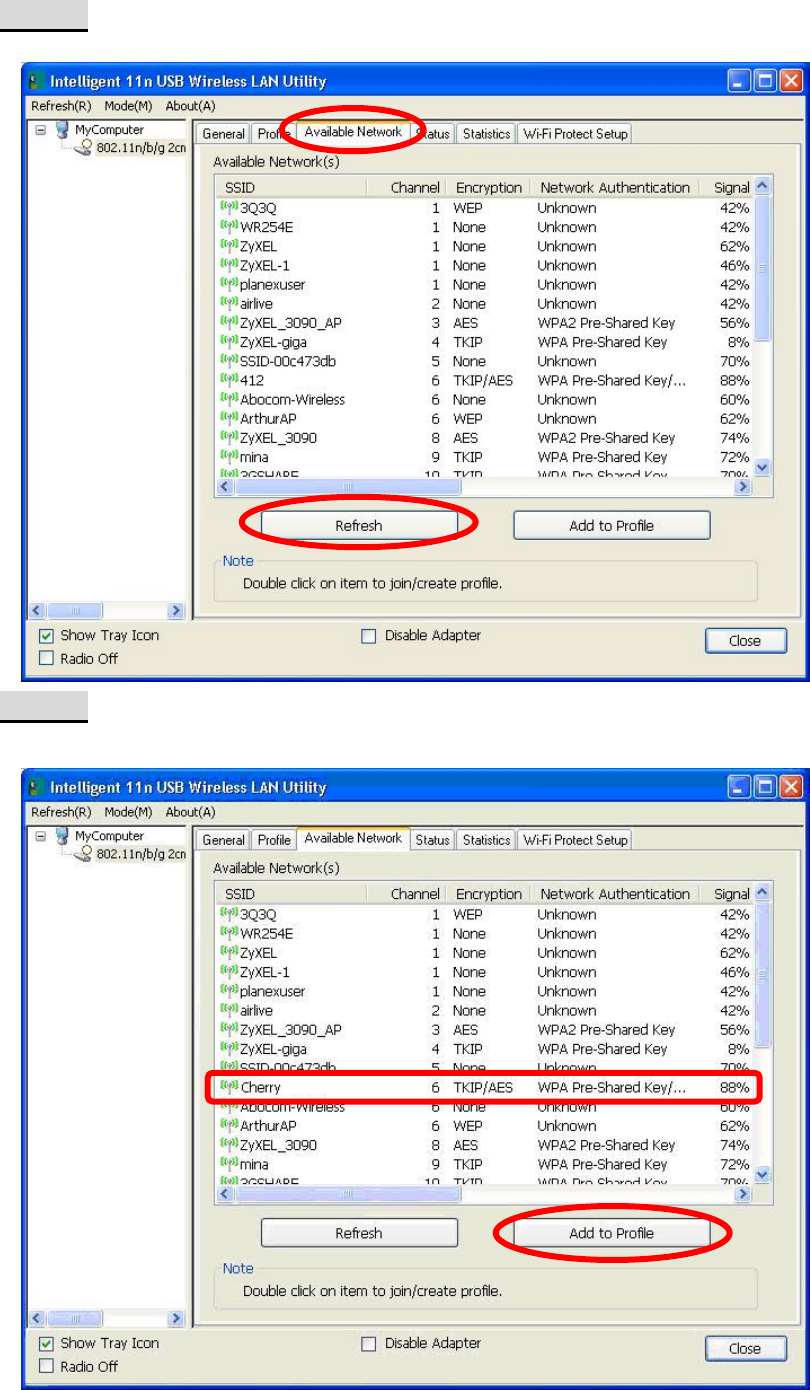

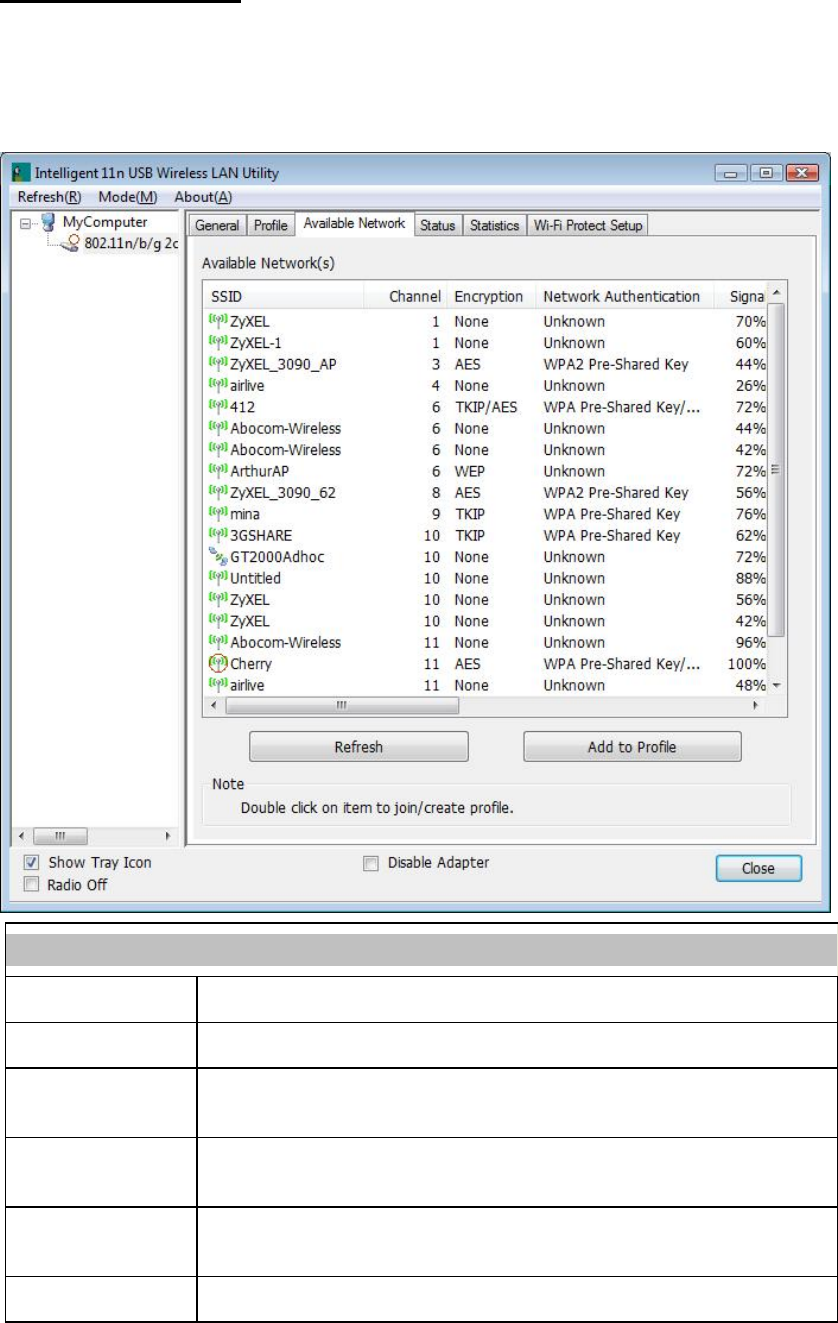

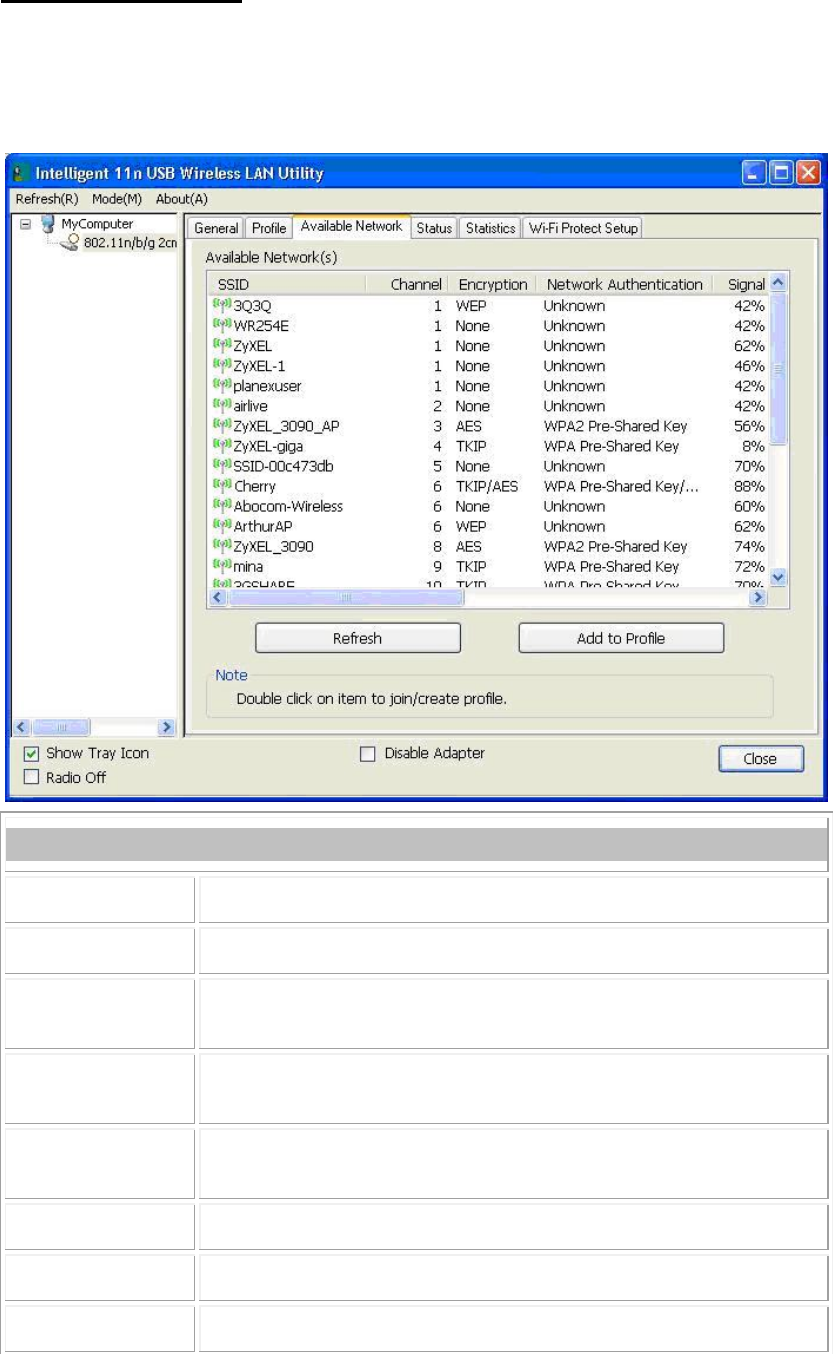

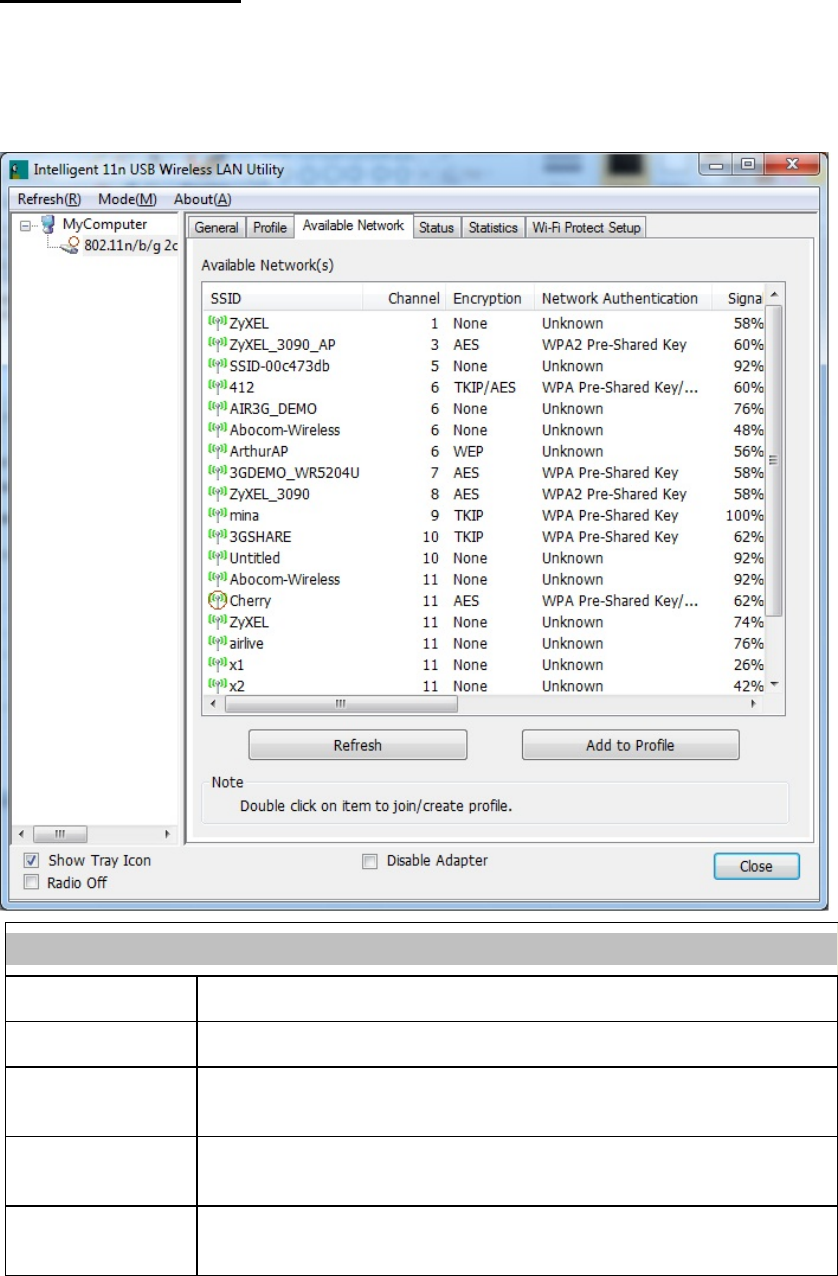

Step 2: Please go to the Available Network tab, the system will automatically scan access points
nearby, or click Refresh button to site survey again.
Step 3: Then, double click preferred access point or click Add to Profile button to make a
connection (if the access point has been set up security, please enter passwords and then click OK.)
- 14 -
How to Add a Profile

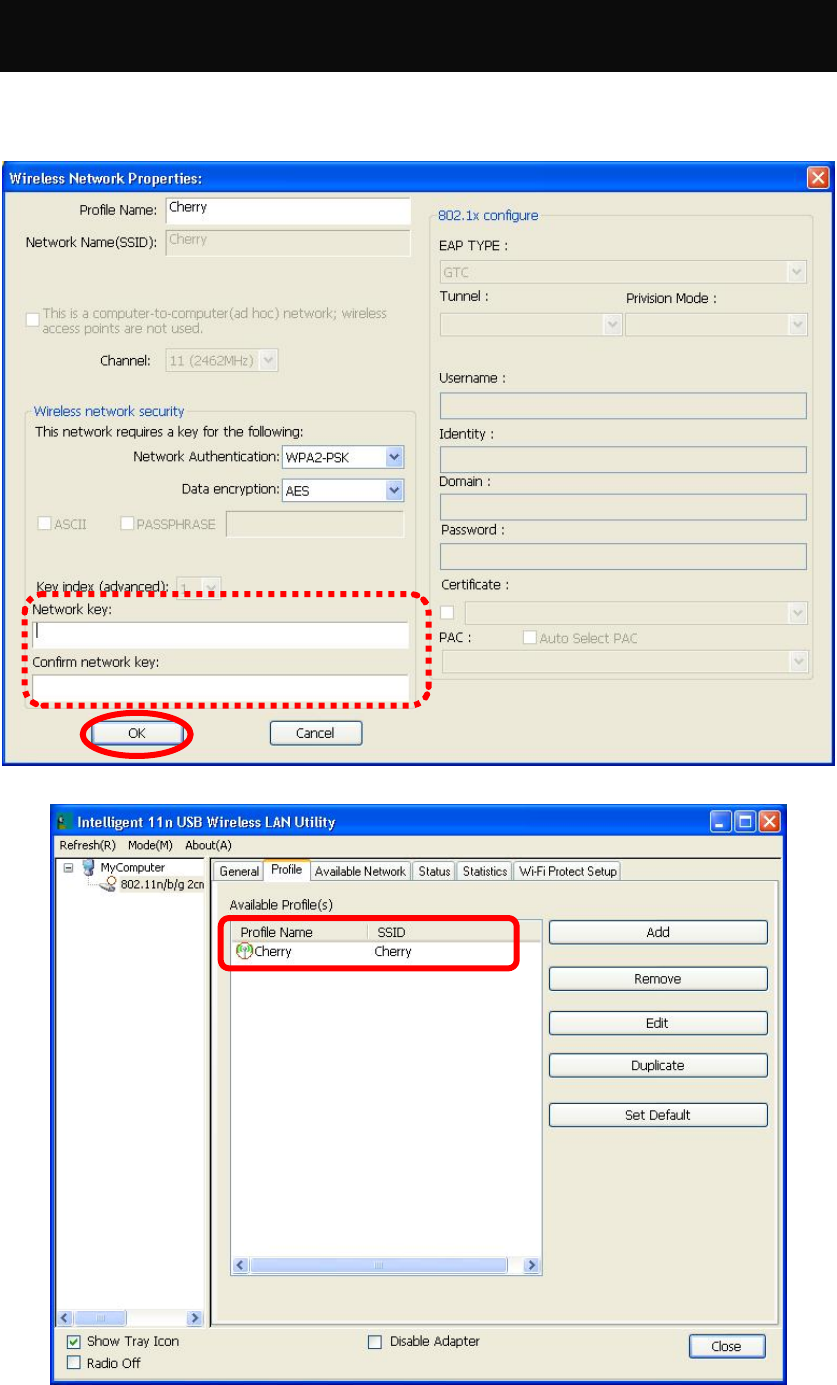

After launched Wireless LAN Utility and selected preferred access point, please click Add to Profile
button to enter Wireless Network Properties windows. If the access point has been set up security,
please enter passwords, and then click OK to save profile settings.
After finished above settings, please go to Profile tab to check the profile list (Available Profile(s)).
- 15 -
Chapter 4:
Utility Configuration
For Windows 2000/XP
Station Mode

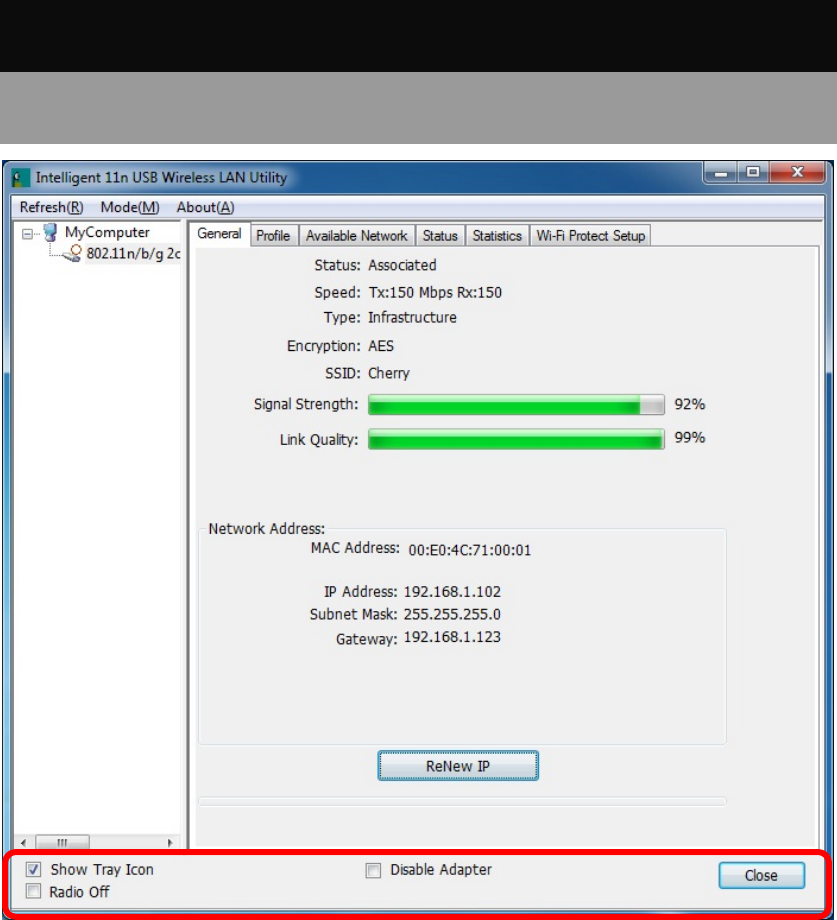

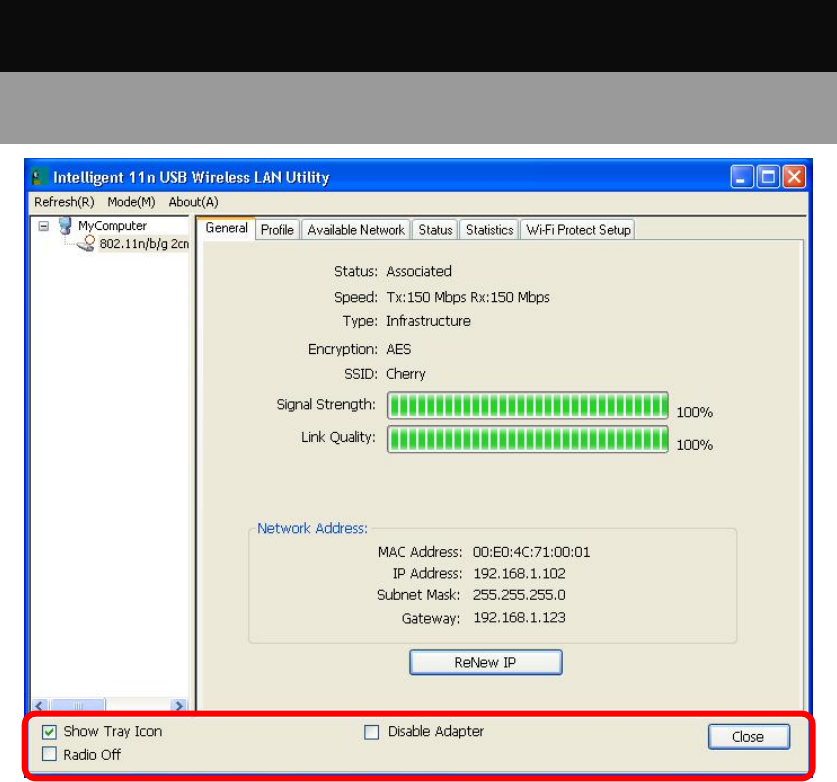

Show Tray Icon: Check to show the wireless adapter icon at the tray.
Disable Adapter: Check this to disable the wireless adapter.
Radio off: Check this to turn OFF radio function.
Close: Click to leave the Intelligent 11n USB Wireless LAN Utility.
- 16 -

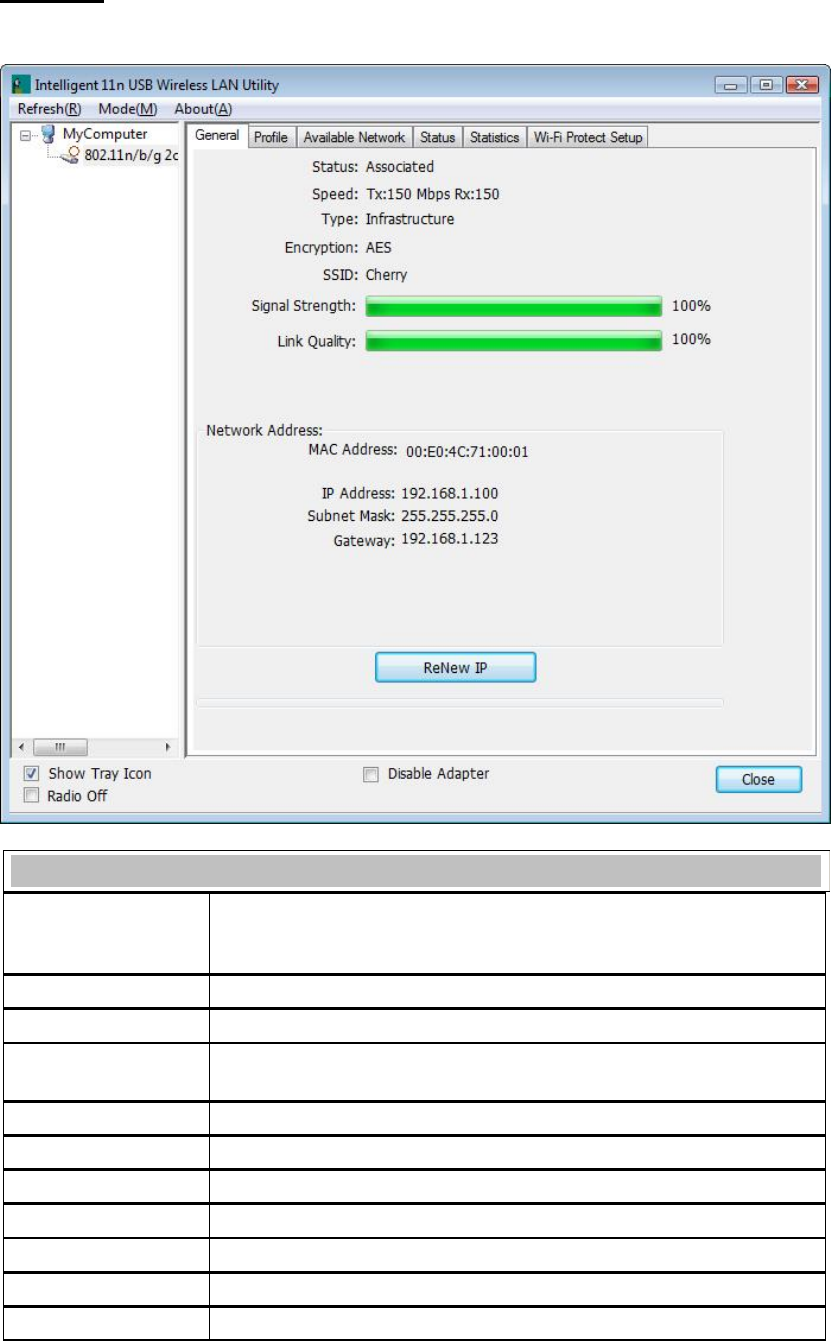

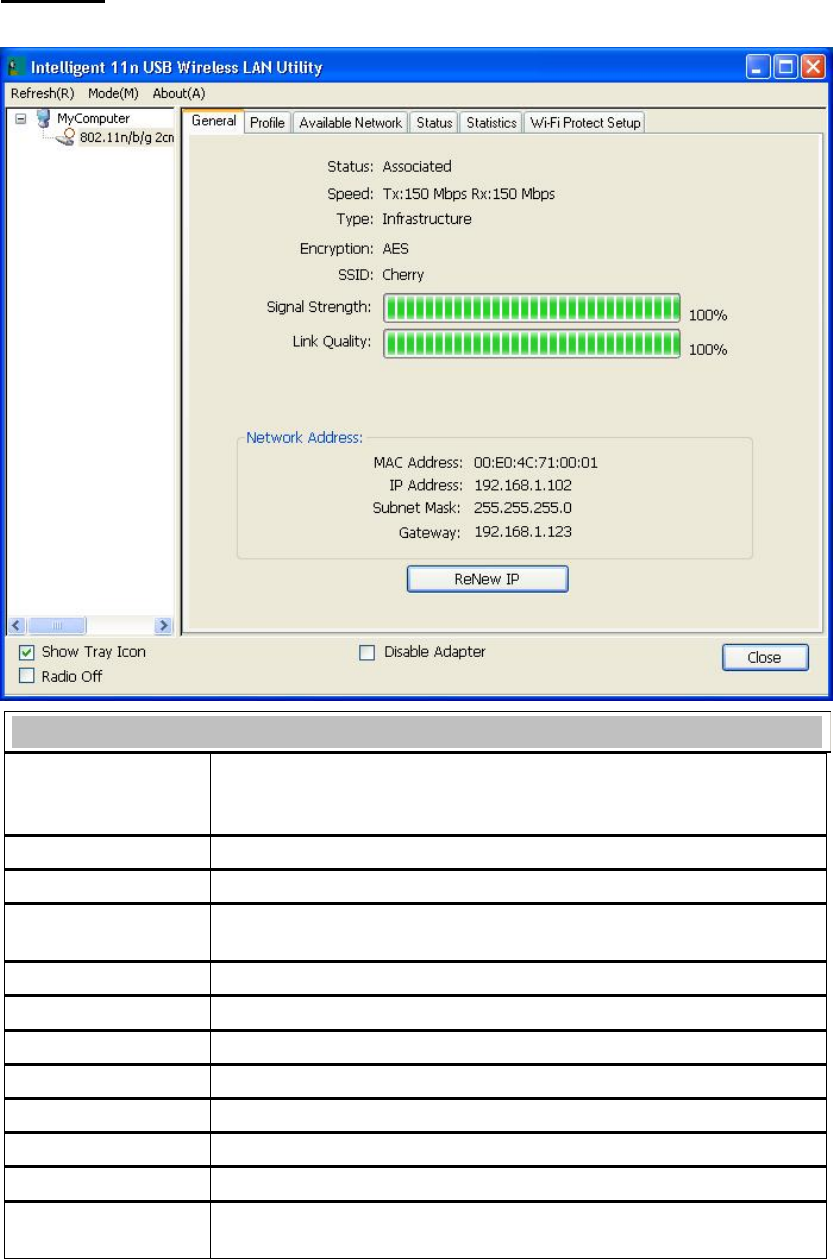

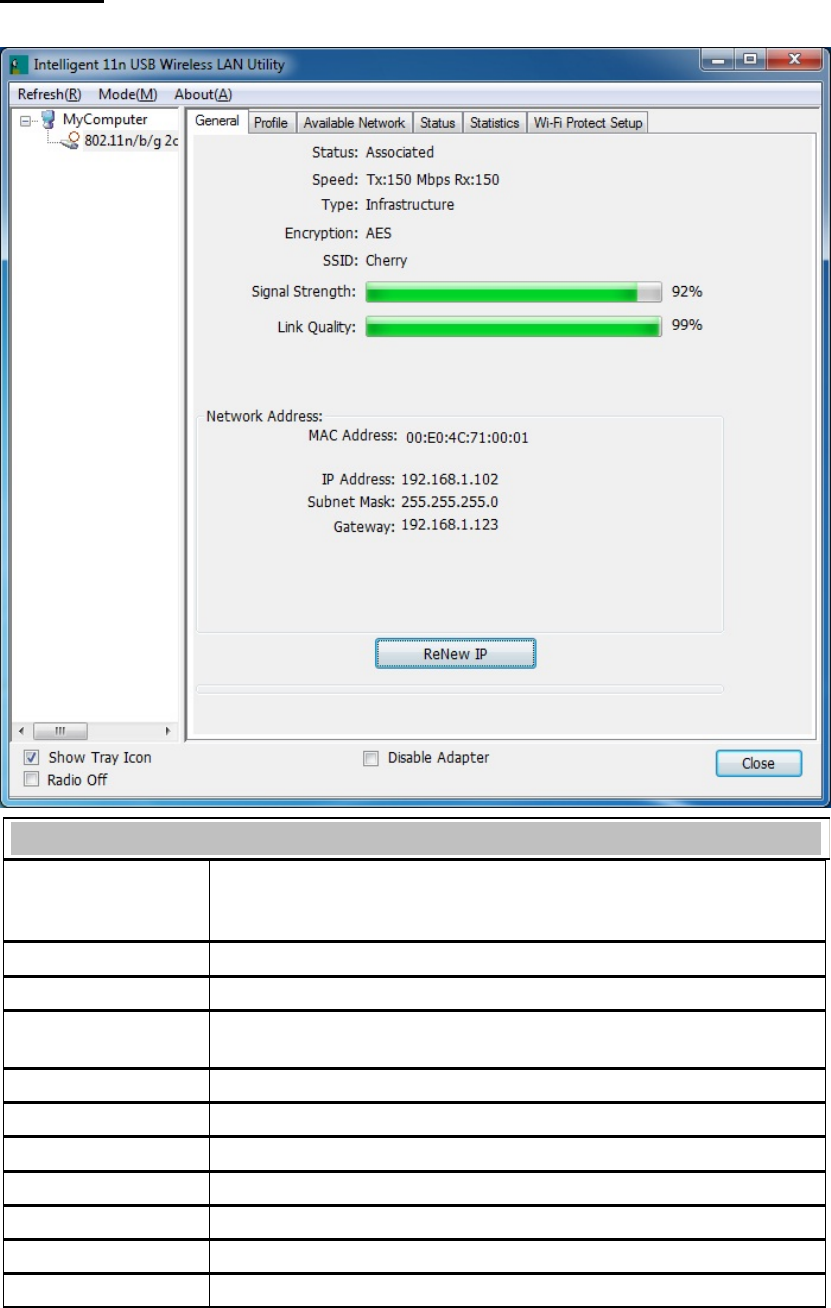

General
The General page displays the detail information of current connection.
General Tab
Status Shows the current connected status. If there is no connection, it will show
Not Associated. If been connected, the system will show Associated.
When connecting, the system will show checking Status.
Speed Shows the current transmitting rate and receiving rate.
Type Network type in use, Infrastructure or Ad-Hoc.
Encryption Shows the encryption type currently in use. Valid value includes WEP,
TKIP, AES, and Not Use.
SSID Shows the connected access point network name.
Signal Strength Shows the receiving signal strength.
Link Quality Shows the connection quality based on signal strength.
MAC Address The physical address of the Wireless USB Adapter.
IP Address Shows the IP address information.
Subnet Mask Shows the Subnet Mask information.
Gateway Shows the default gateway IP address.
Renew IP Click the Renew IP button to obtain IP address form the connected
gateway.
- 17 -

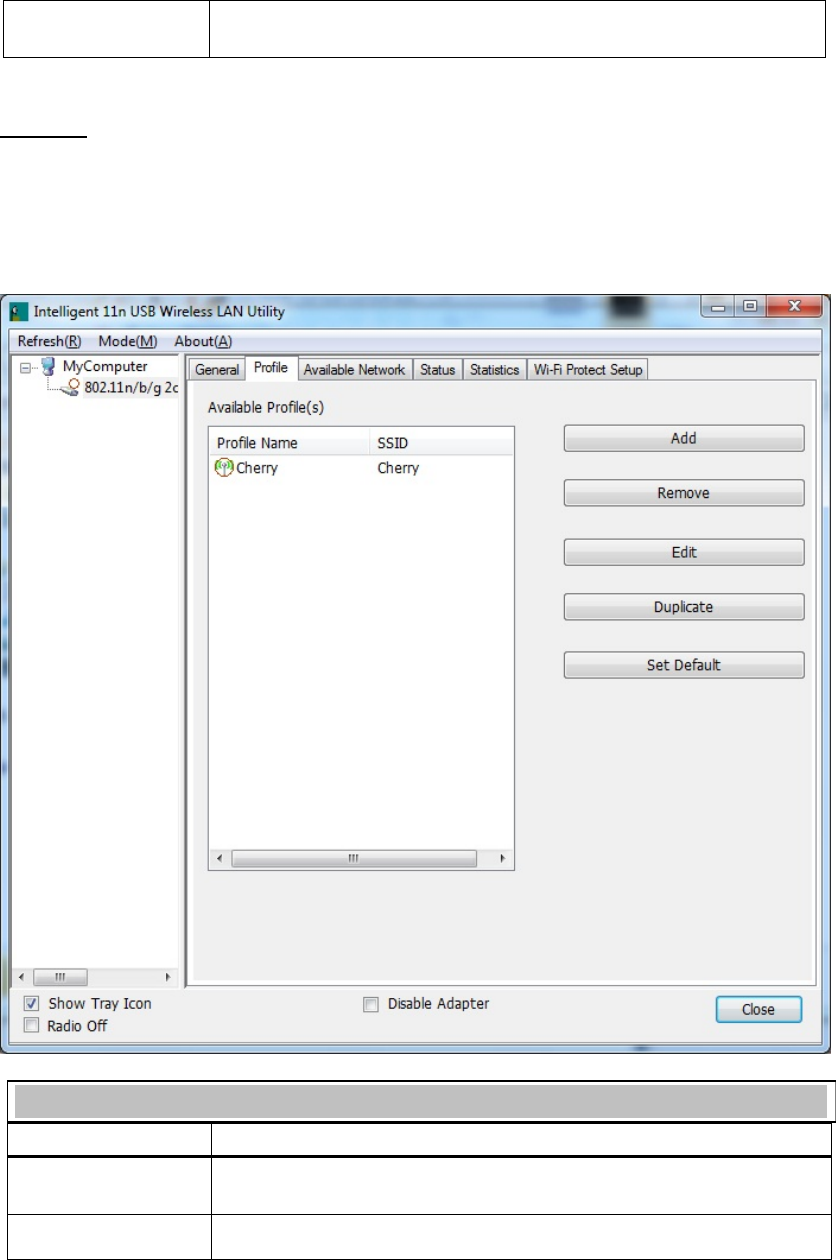

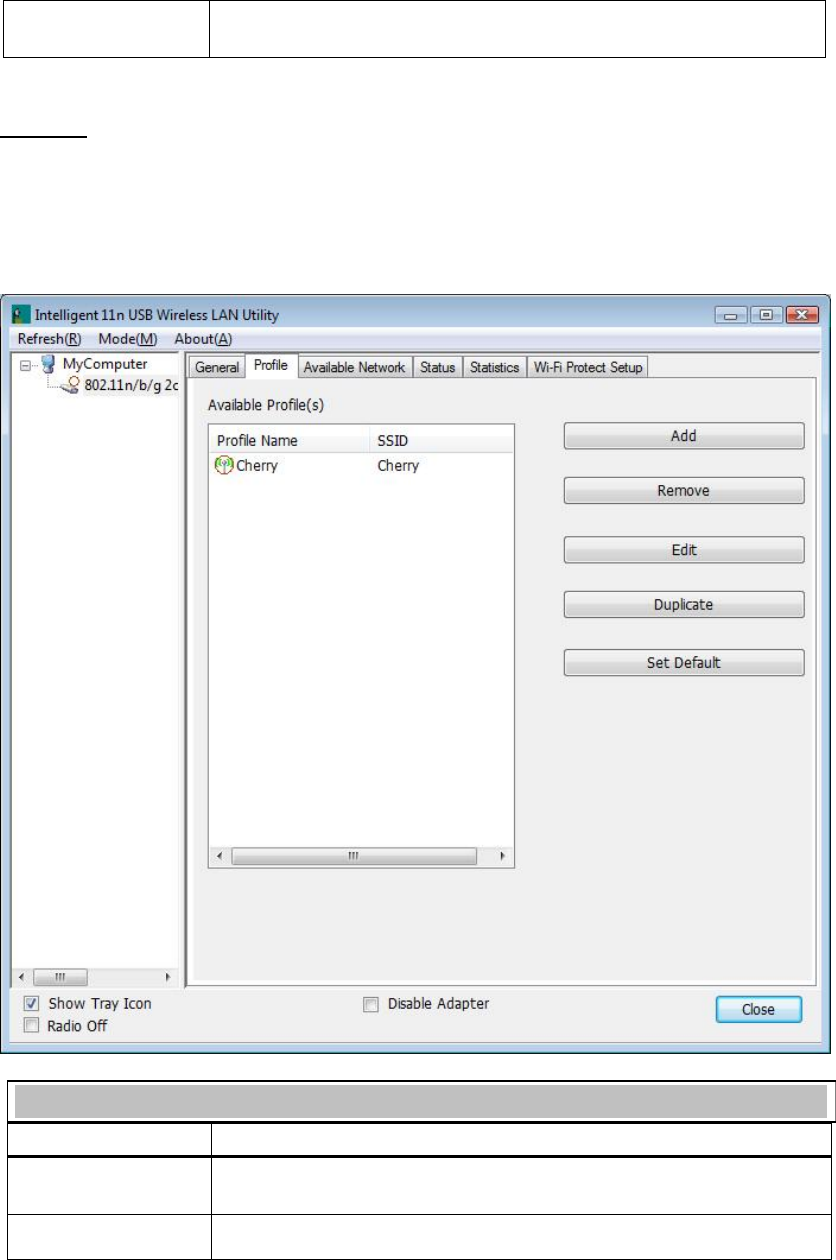

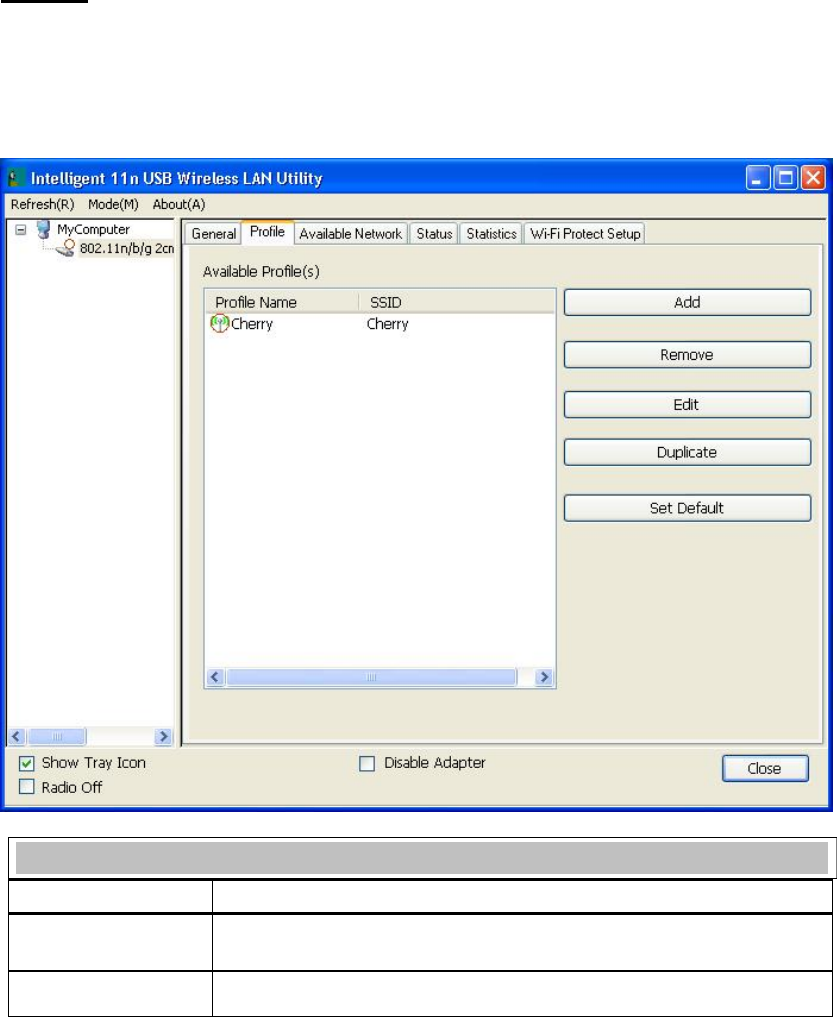

Profile
Profile can let users book keeping the favorite wireless setting among home, office, and other public
hot-spot. Users may save multiple profiles, and activate the correct one at preference. The Profile
manager enables users to Add, Remove, Edit, Duplicate and Set Default profiles.
Profile Tab
Profile Name Here shows a distinctive name of profile in this column.
SSID The SSID is the unique name shared among all wireless access points in
the wireless network.
Add Click Add button to add a profile from the drop-down screen.
- 18 -

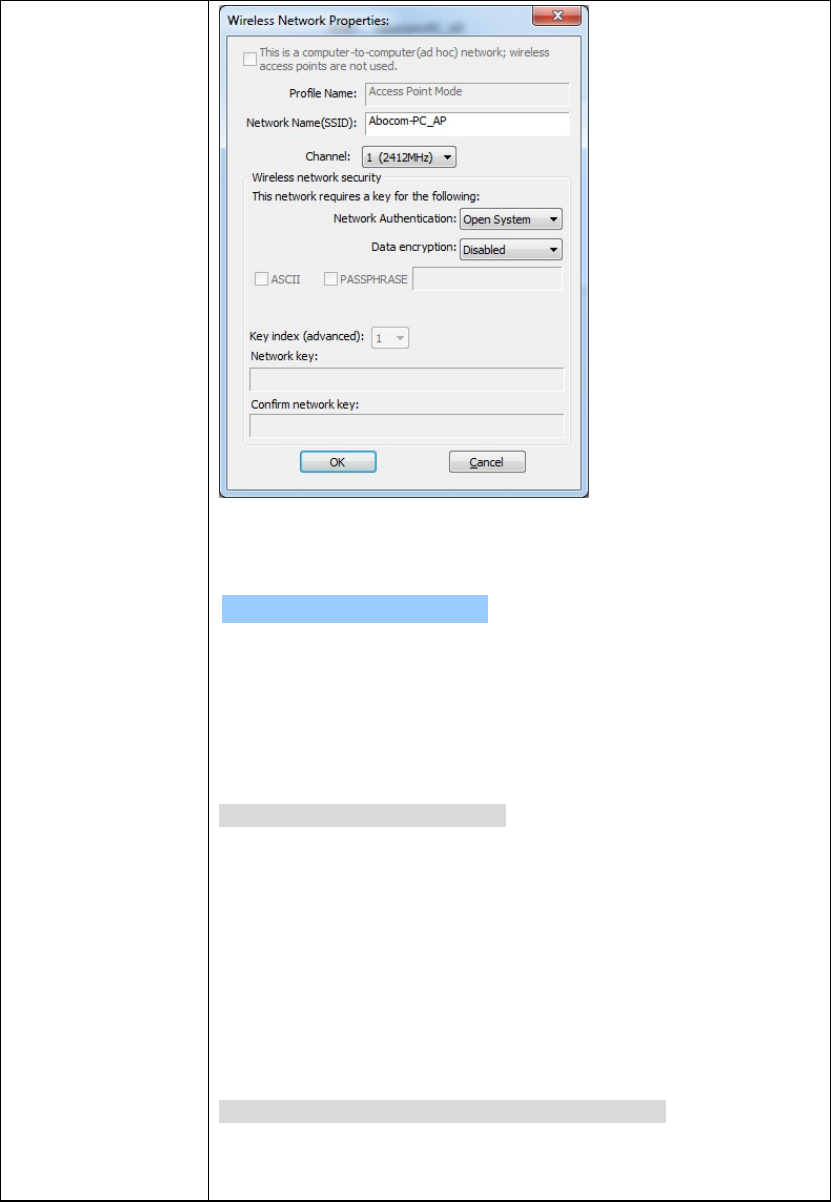

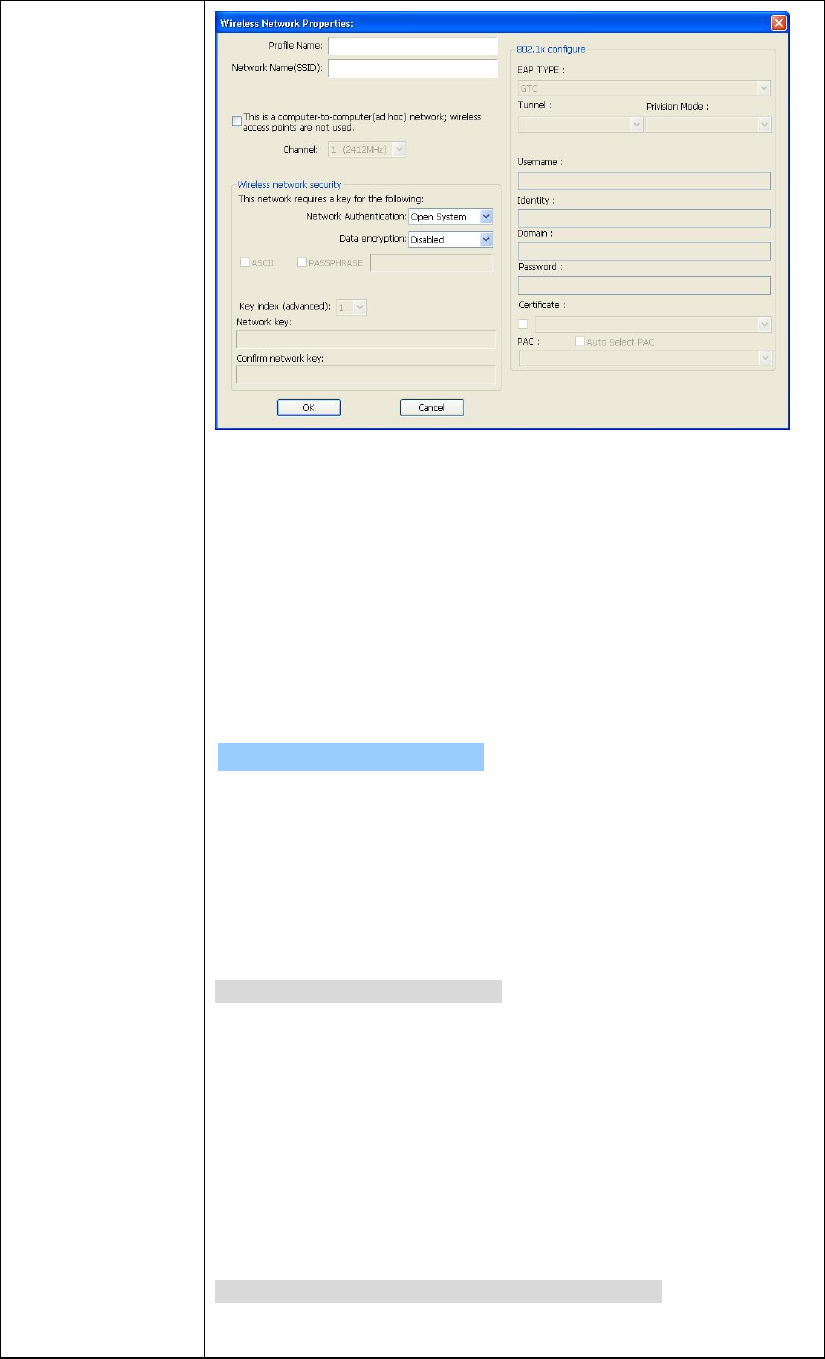

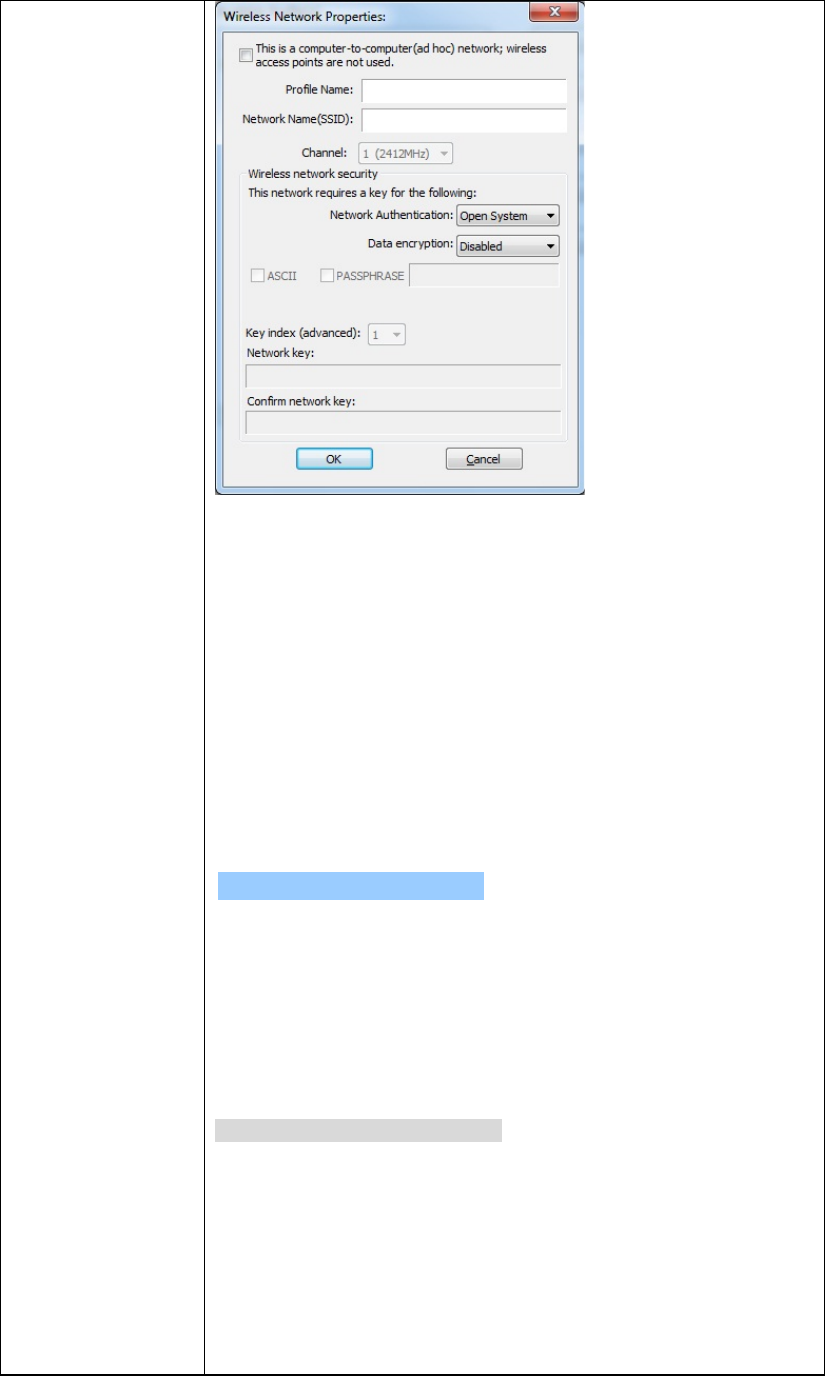

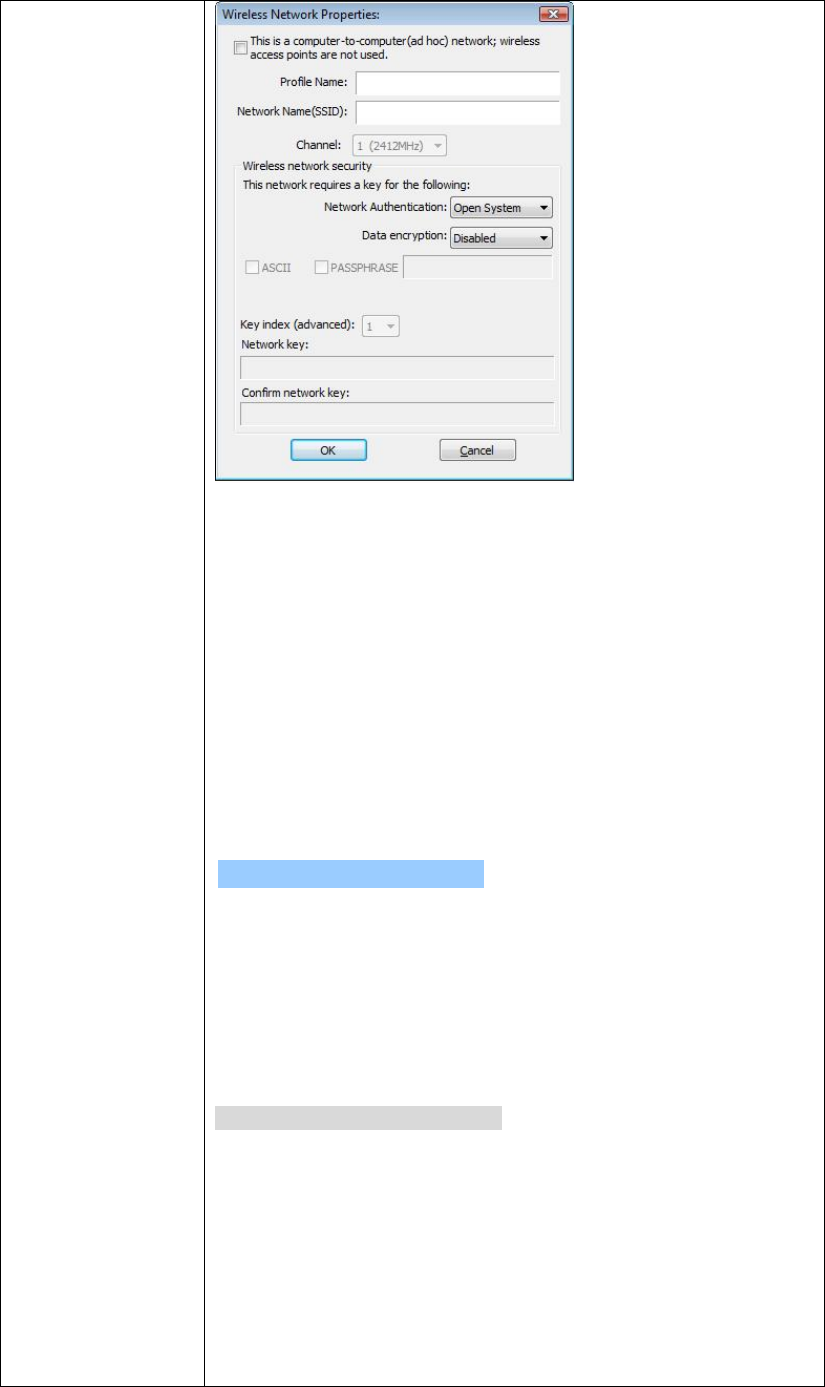

Profile Name: Users can enter profile name at will.
Network Name (SSID): The SSID is the unique network name
(case-sensitive) shared among all wireless access points in the wireless
network. The name must be identical for all devices and wireless access
points attempting to connect to the same network.
This is a computer-to-computer (ad hoc) network; wireless access
points are not used: This function is selected to enable the ad hoc
network type that computers should be setup at the same channel to
communicate to each other directly without access point, users can share
files and printers between each PC and laptop. User can select channels
form the pull-down menu.
Wireless network security
Network Authentication: There are several types of authentication
modes including Open System, Shared Key, WPA-PSK, WPA2-PSK,
WPA 802.1X, WPA2 802.1X and WEP 802.1X.
Data encryption: For Open System, Shared Key and WEP 802.1X
authentication mode, the selection of encryption type is WEP. For
WPA-PSK, WPA2-PSK, WPA 802.1X and WPA2 802.1X authentication
mode, the encryption type supports both TKIP and AES.
When encryption is set to WEP…
ASCII: Only valid when using WEP encryption algorithm. When key
length is set to 64 bits user can enter 5 ASCII characters (case sensitive),
and 128 bits for 13 ASCII characters (case sensitive).
PASS PHRASE: Only valid when using WEP encryption algorithm.
When key length is set to 64 bits user can enter 10 Hexadecimal
characters (0~9, a~f) and 128 bits for 26 Hexadecimal characters (0~9,
a~f).
Key index (advanced): Select 1~4 key index form the pull-down menu,
must match with the connected AP’s key index.
When encryption is set to WPA-PSK/ WPA2-PSK…
Network key: Enter network key at least 8 to 64 characters.
- 19 -
Confirm network key: Enter network key again to confirm.
When encryption is set to WPA 802.1X/ WPA2 802.1X/ WEP
802.1X…
When users use radius server to authenticate client certificate for WPA
authentication mode (WPA authentication do not support EAP Method-
MD5-Challenge).
EAP TYPE:
TLS: Transport Layer Security. Provides for certificate-based and
mutual authentication of the client and the network. It relies on
client-side and server-side certificates to perform authentication and
can be used to dynamically generate user-based and session-based
WEP keys to secure subsequent communications between the WLAN
client and the access point.
LEAP: Light Extensible Authentication Protocol. It is an EAP
authentication type used primarily in Cisco Aironet WLANs. It
encrypts data transmissions using dynamically generated WEP keys,
and supports mutual authentication.
TTLS: Tunnelled Transport Layer Security. This security method
provides for certificate-based, mutual authentication of the client and
network through an encrypted channel. Unlike EAP-TLS, EAP-TTLS
requires only server-side certificates.
PEAP: Protect Extensible Authentication Protocol. PEAP transport
securely authentication data by using tunnelling between PEAP clients
and an authentication server. PEAP can authenticate wireless LAN
clients using only server-side certificates, thus simplifying the
implementation and administration of a secure wireless LAN.
MD5: Message Digest Challenge. Challenge is an EAP
authentication type that provides base-level EAP support. It
provides for only one-way authentication - there is no mutual
authentication of wireless client and the network.
Tunnel: This is enabled under TTLS and PEAP type. For TTLS, the
selections of tunnel are CHAP, MSCHAP, MSCHAP-V2, PAP. For
PEAP, the selections of tunnel are MD5, GTC, TLS and MSCHAP-V2.
Username: Enter the username for server.
Identity: Enter the identity for server.
Domain: Enter the domain of the network.
Password: Enter the password for server.
Certificate: Choose server that issuer of certificates.
Remove Click Remove button to delete selected profile.
Edit Click Edit button to edit selected profile.
Duplicate Click Duplicate button to copy selected profile.
Set Default Click Set Default button to set selected profile to be connected first.
- 20 -
Available Network
This page displays the information of surrounding APs from last scan result. The tab lists the
information including SSID, Channel, Encryption, Network Authentication, Signal, Type, BSSID,
Supported Rate (s), and Mode.
Network Tab
SSID Shows the network name of the access points.
Channel Shows the currently channel in use.
Encryption Shows the encryption type currently in use. Valid value includes WEP,
TKIP, AES, None and TKIP/AES.
Network
Authentication Show the device network authentication.
Signal Shows transmit power, the amount of power used by a radio transceiver to
send the signal out.
Type Network type in use, Infrastructure or Ad-Hoc mode.
BSSID Shows Wireless MAC address.
Supported Rate(s) Shows the transmitting data rate.
- 21 -
Mode Supported wireless mode. It may support 802.11b, 802.11g and 802.11n
wireless mode.
Refresh Click Refresh button to search and rescan the available network.
Add to Profile Select an available network (SSID) on the list and then click Add to Profile
button to add it into the profile list.
Note Double click on item to join/create profile.

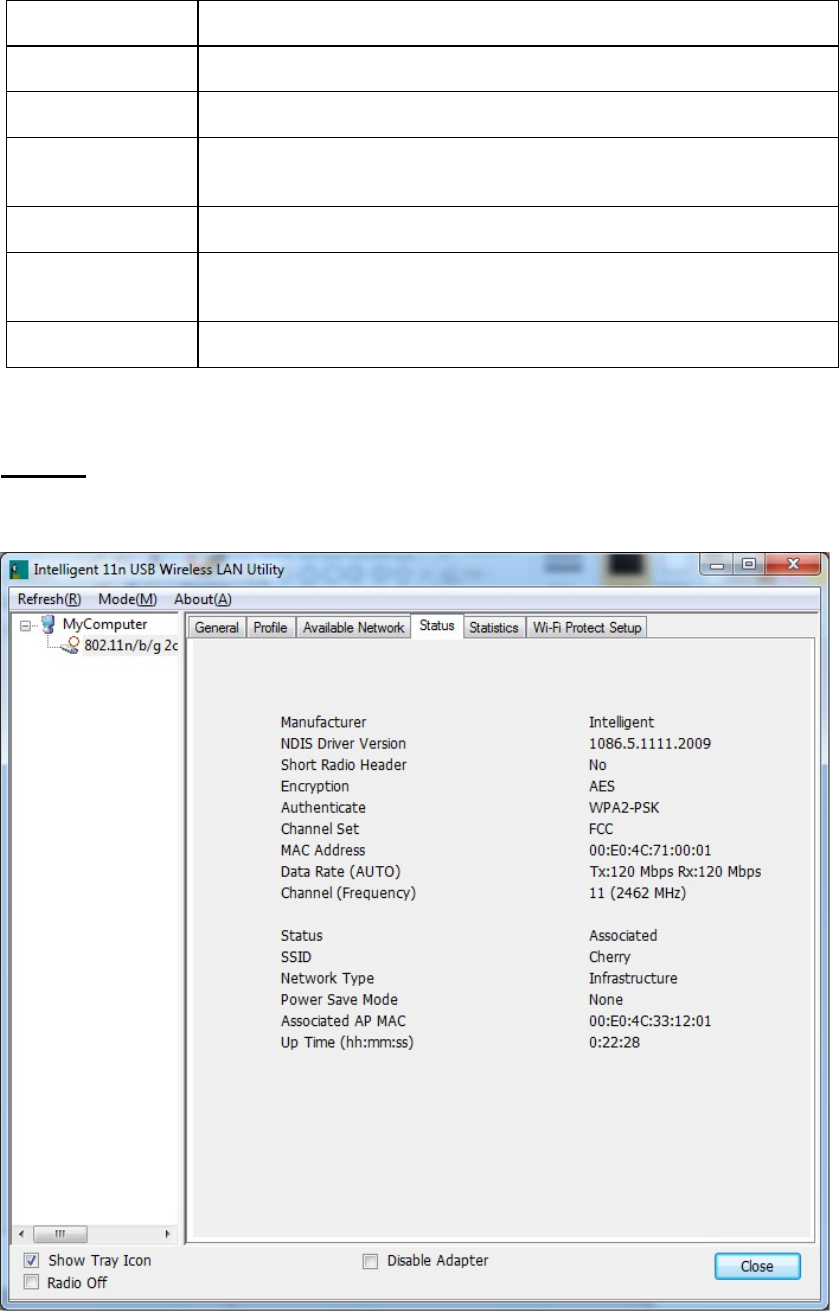

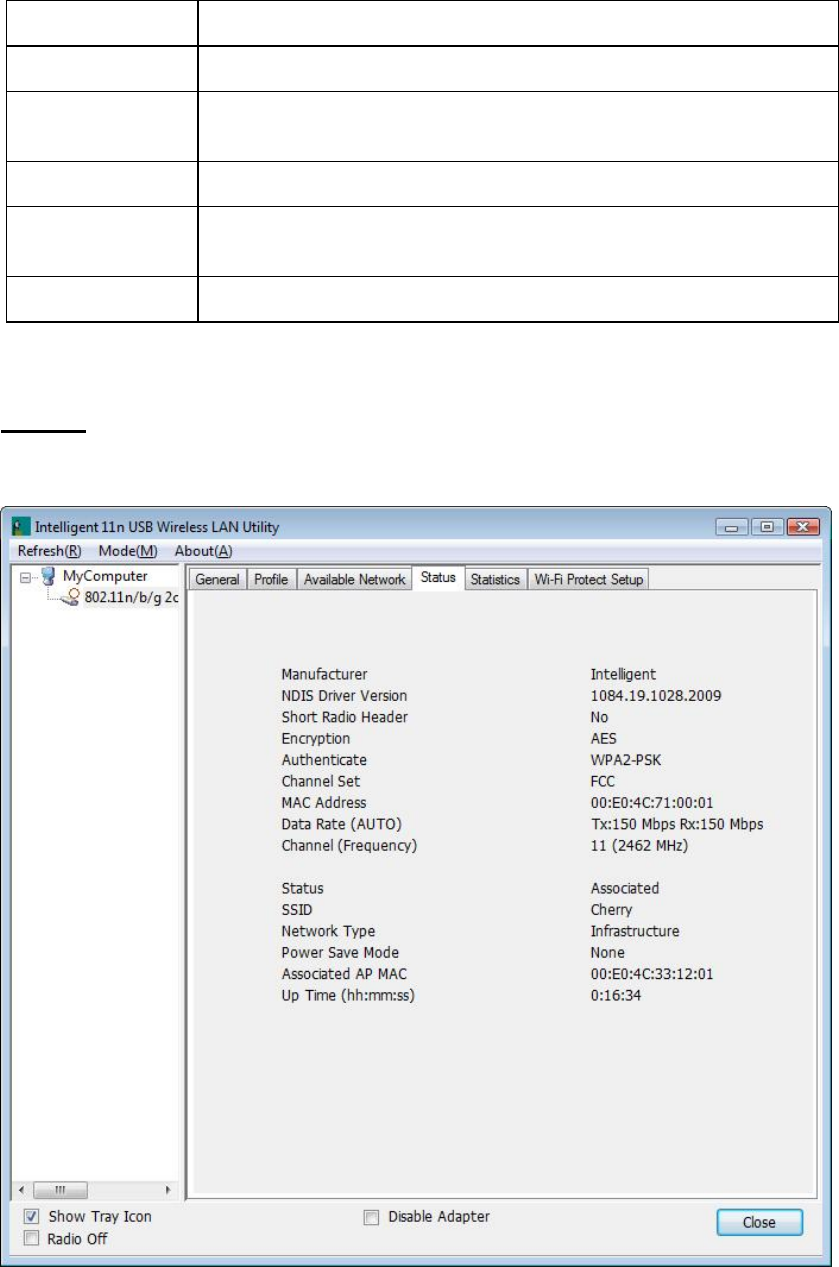

Status
This tab listed the information about the wireless USB adapter and connected access point.
- 22 -

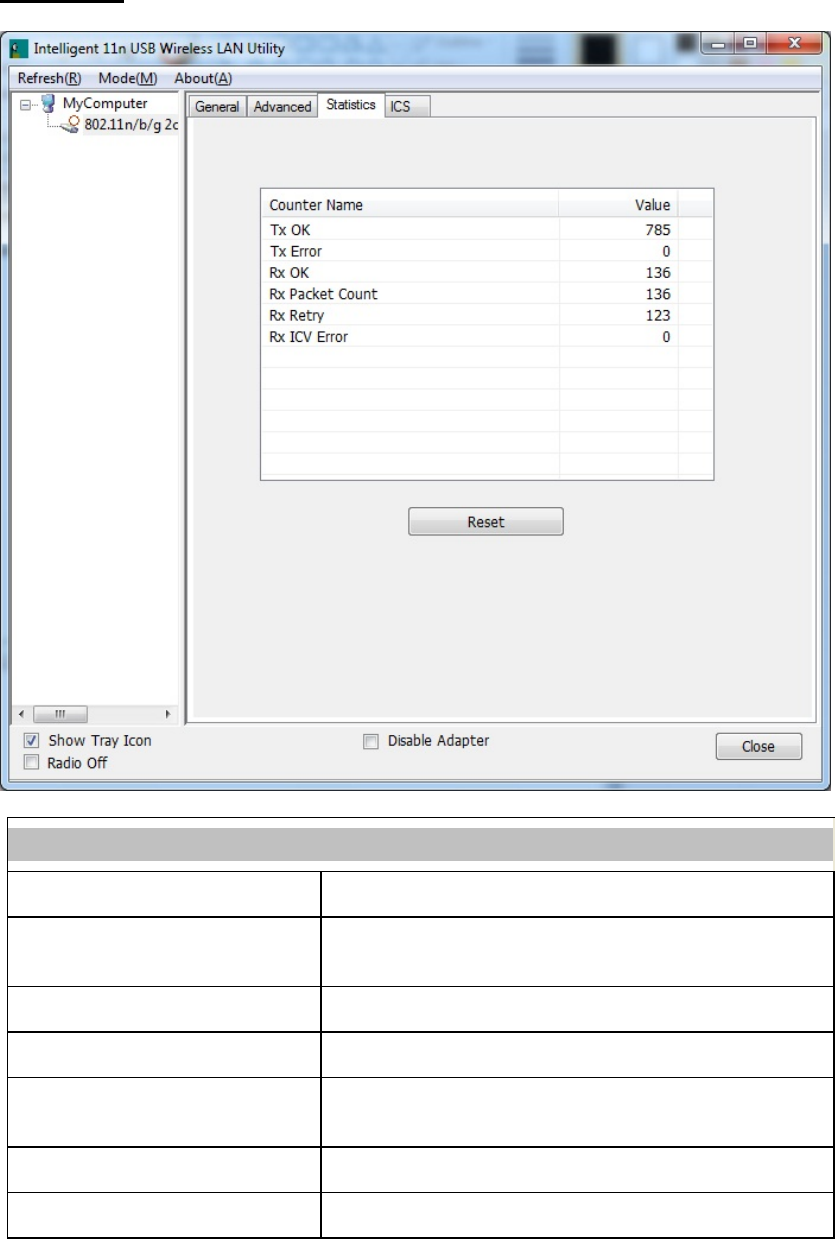

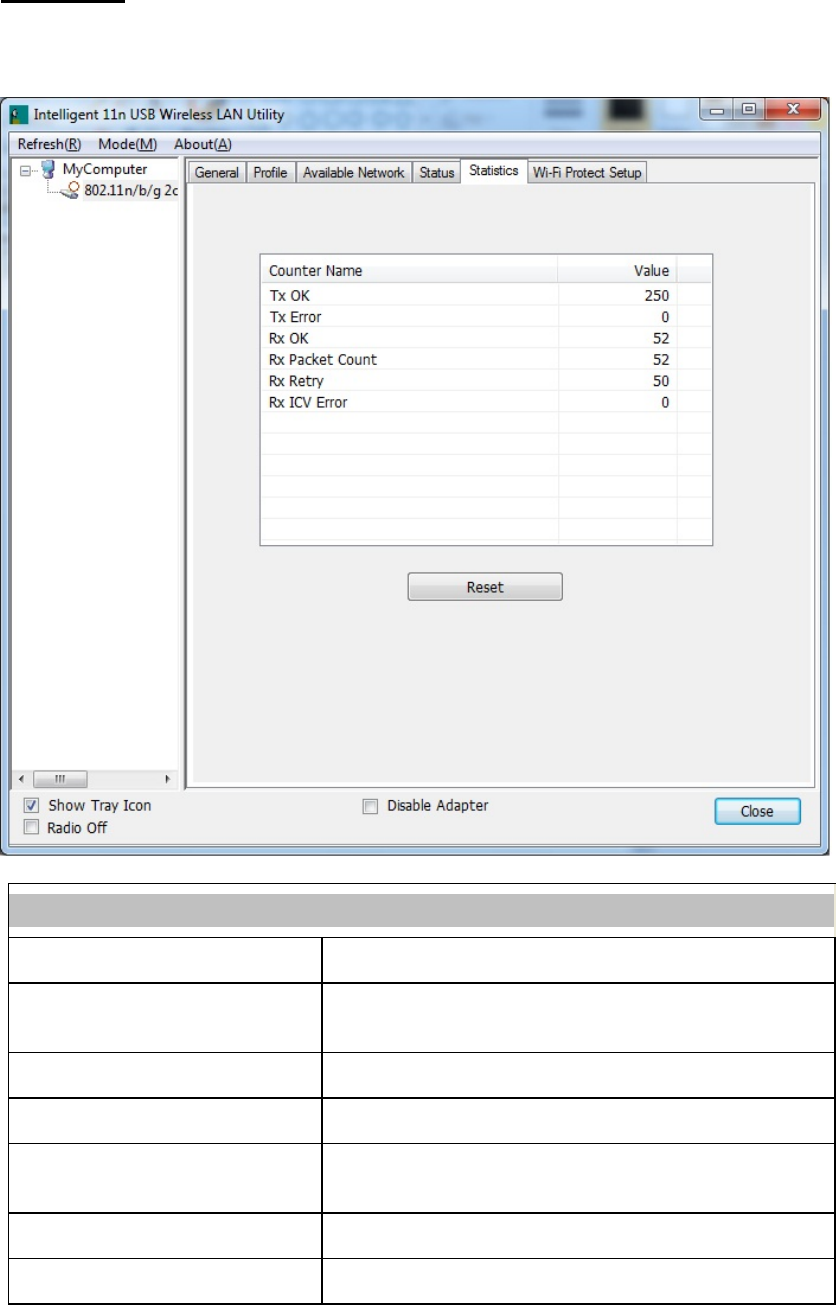

Statistics
The Statistics screen displays the statistics on the current network settings.
Statistics
Tx OK Shows information of packets successfully sent.
Tx Error Shows information of packets failed transmit after hitting retry
limit.
Rx OK Shows information of packets received successfully.
Rx Packet Count Shows information of packets received successfully.
Rx Retry Shows information of packets failed transmit after hitting retry
limit.
Rx ICV Error Shows information of packets received with ICV error.
Reset Click to reset counters to zero.
- 23 -

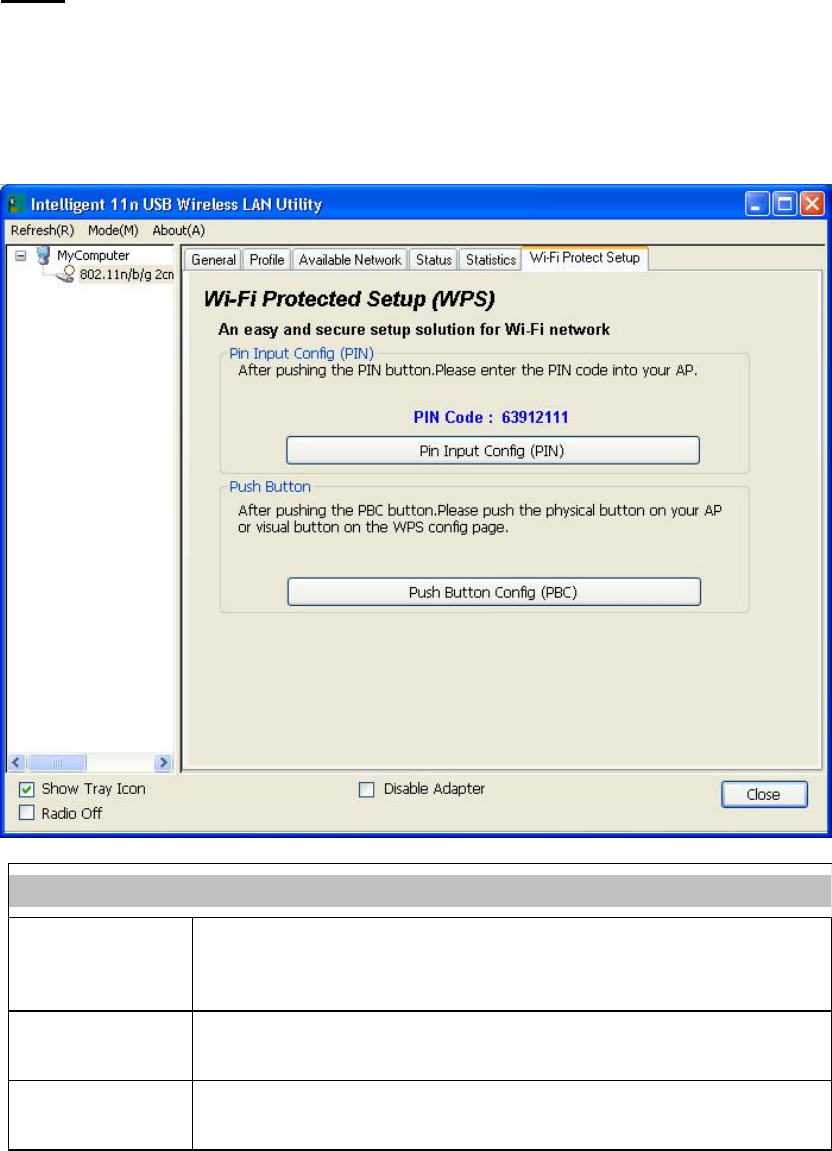

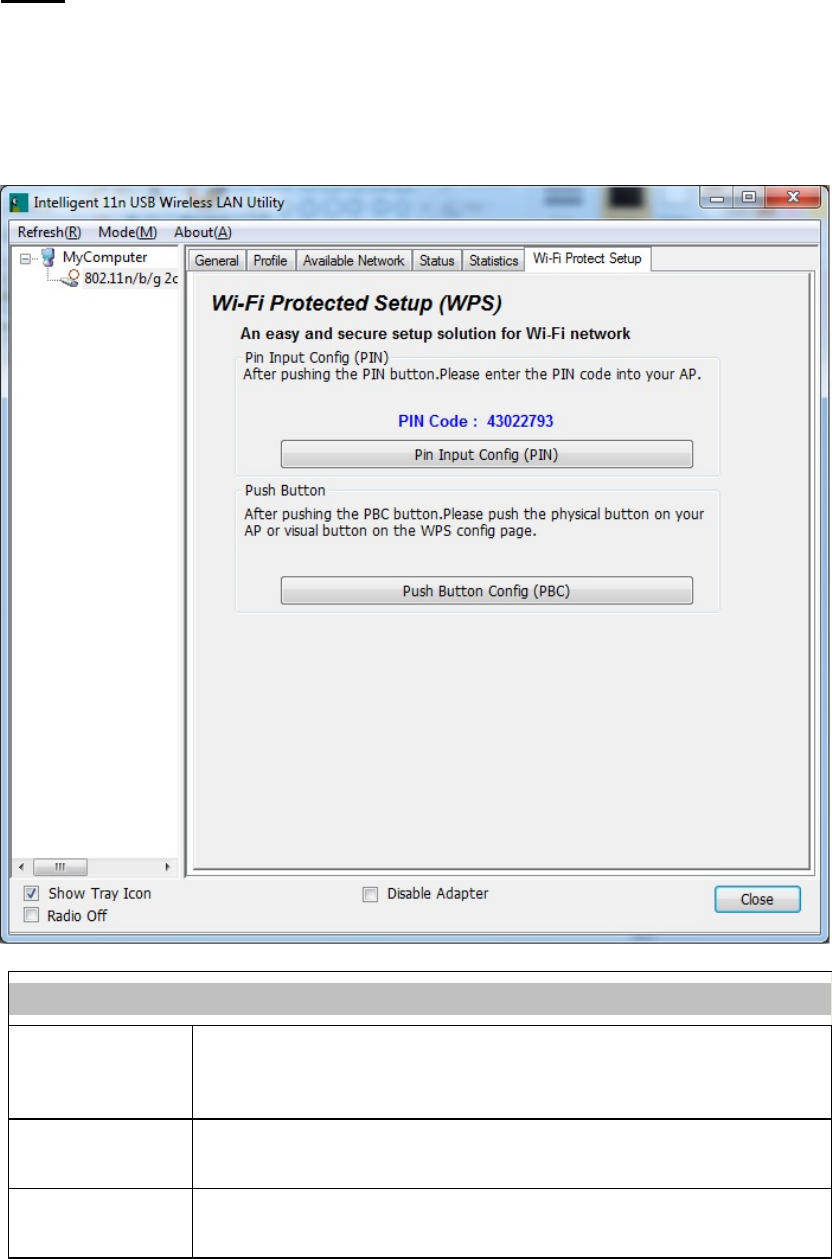

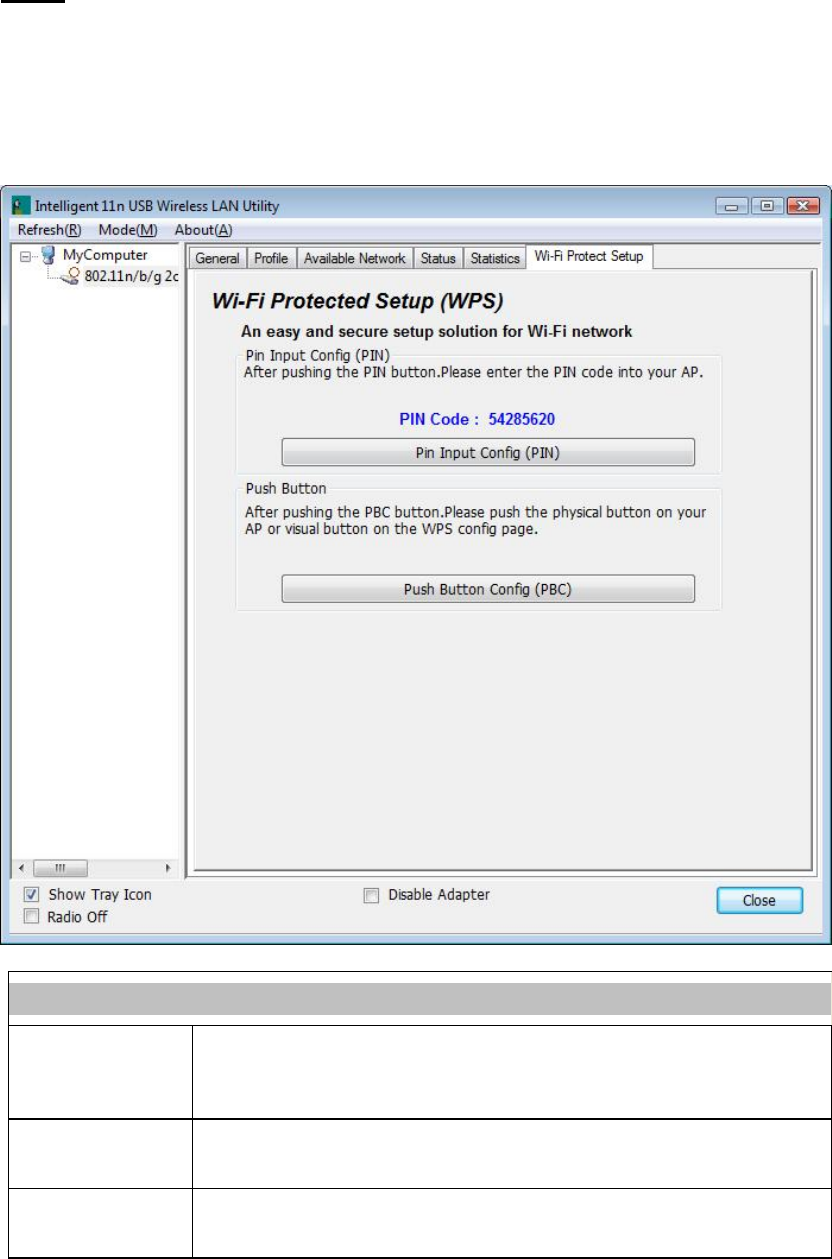

WPS
The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security
setup and management of Wi-Fi networks. The STA as an Enrollee or external Registrar supports the
configuration setup using PIN (Personal Identification Number) configuration method or PBC (Push
Button Configuration) method through an internal or external Registrar.
WPS Tab
PIN Code 8-digit numbers. It is required to enter PIN Code into Registrar when using
PIN method. When STA is Enrollee, users can use "Renew" button to
re-generate new PIN Code.
Pin Input Config
(PIN) Click the Pin Input Config (PIN) button to select specific AP to process PIN
Config.
Push Button Config
(PBC) Click this button to connect with AP that supported WPS function within two
minutes. Meanwhile, the AP should also click the PBC button simultaneously.
- 24 -

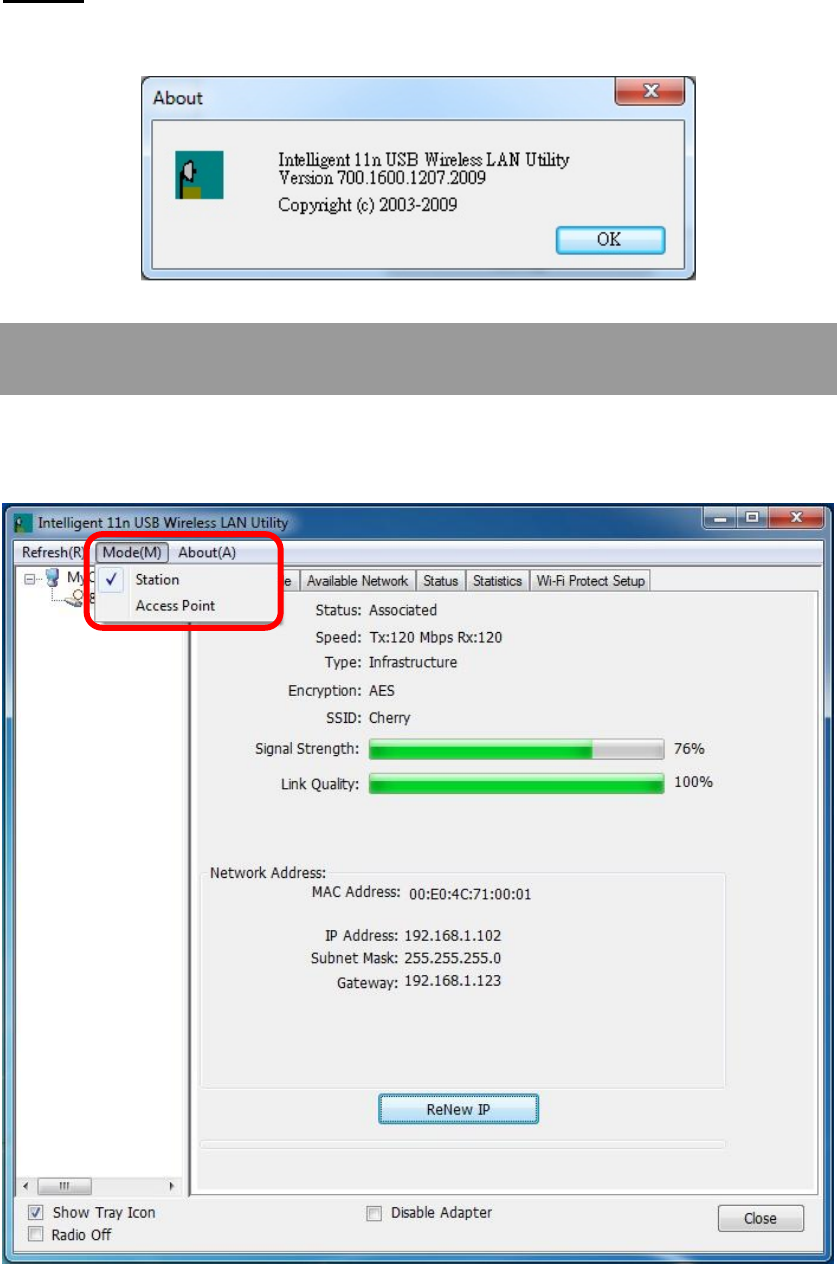

About
This page displays the information of the Wireless USB Adapter Version.
Switch to AP Mode
To access the soft AP mode, please select the Mode on the function list of the Utility to make the
Wireless USB Adapter act as a wireless AP.
- 25 -

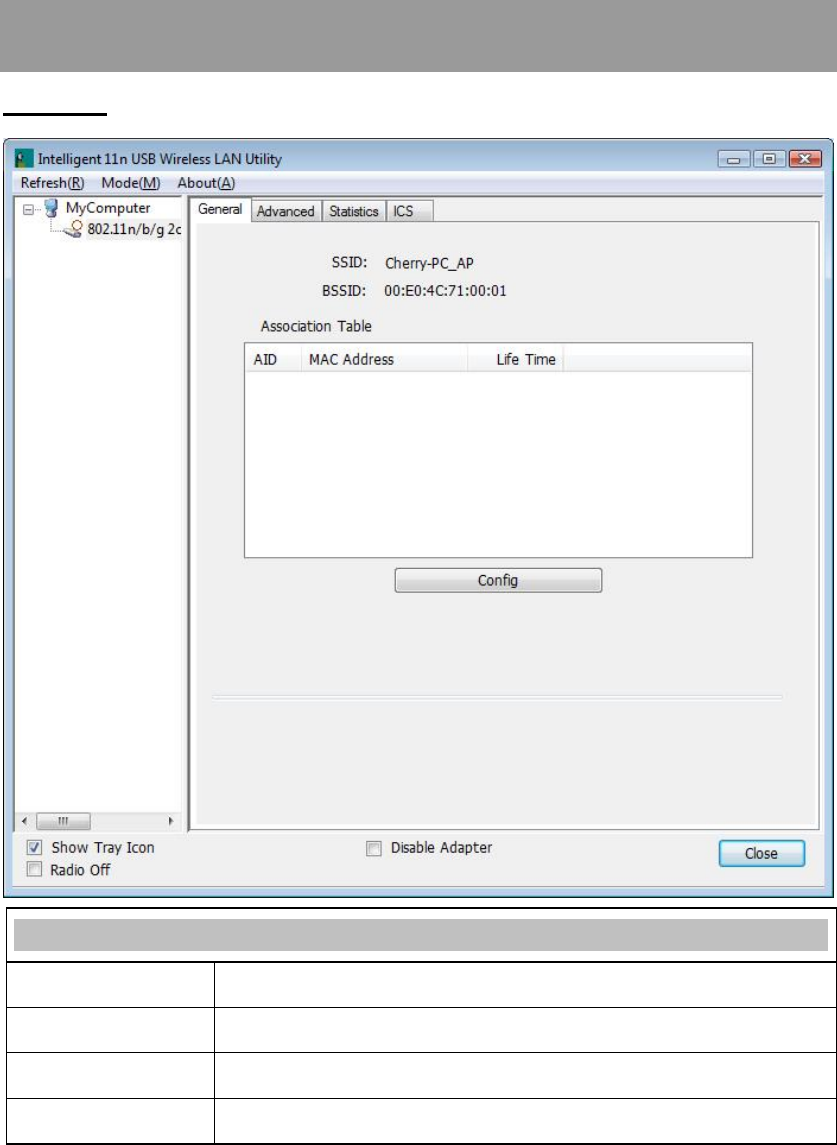

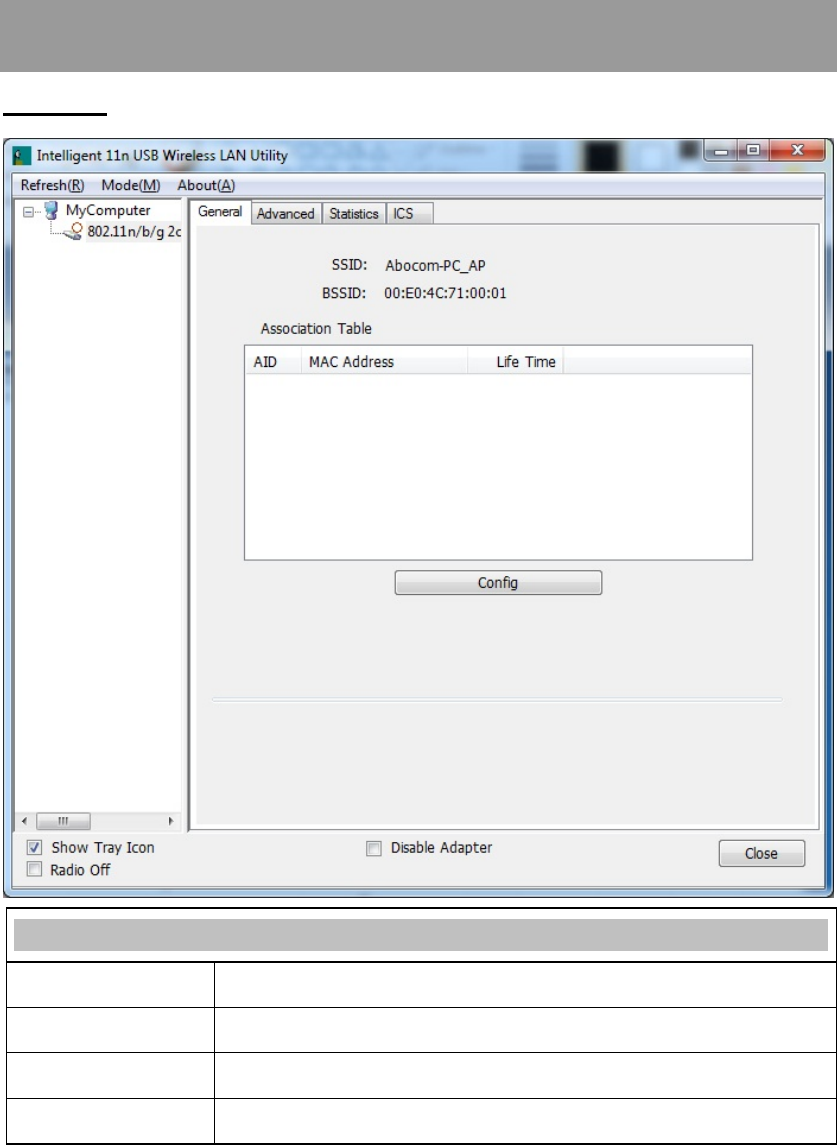

Soft AP mode
General
General
SSID Shows the network name of the AP.
BSSID Shows the MAC address of the AP.
Association Table This table shows the connected client here.
Config Click the Config button to set up the Wireless Network Properties.
- 26 -

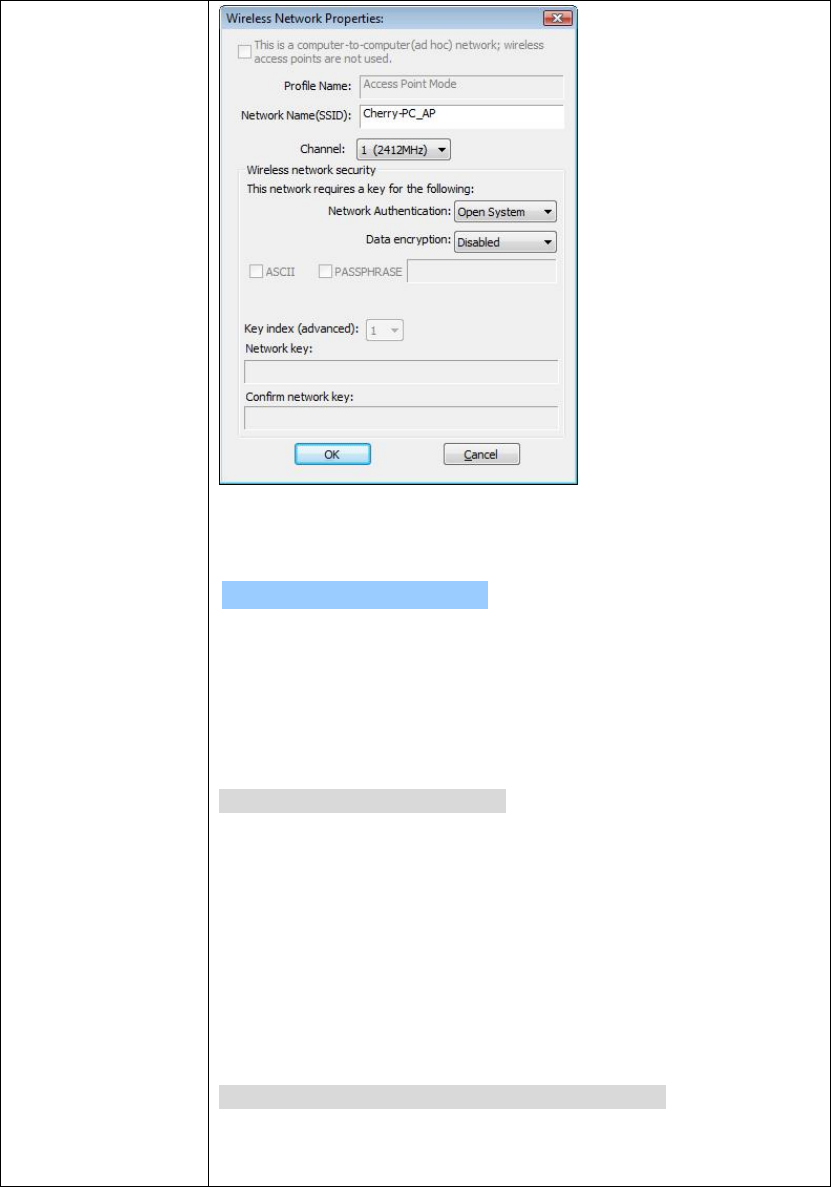

Network Name (SSID): User can change the network name of this access
point.
Channel: User can select the channel form the pull-down list.
Wireless network security
Network Authentication: There are several types of authentication
modes including Open System, Shared Key, WPA-PSK and WPA2-PSK.
Data encryption: For Open System and Shared Key authentication mode,
the selection of encryption type is WEP. For WPA-PSK, WPA2-PSK,
authentication mode, the encryption type supports both TKIP and AES.
When encryption is set to WEP…
ASCII: Only valid when using WEP encryption algorithm. When key
length is set to 64 bits user can enter 5 ASCII characters (case sensitive),
and 128 bits for 13 ASCII characters (case sensitive).
PASS PHRASE: Only valid when using WEP encryption algorithm.
When key length is set to 64 bits user can enter 10 Hexadecimal characters
(0~9, a~f) and 128 bits for 26 Hexadecimal characters (0~9, a~f).
Key index (advanced): Select 1~4 key index form the pull-down menu,
must match with the connected AP’s key index.
When encryption is set to WPA-PSK/ WPA2-PSK…
Network key: Enter network key at least 8 to 64 characters.
Confirm network key: Enter network key again to confirm.
- 27 -

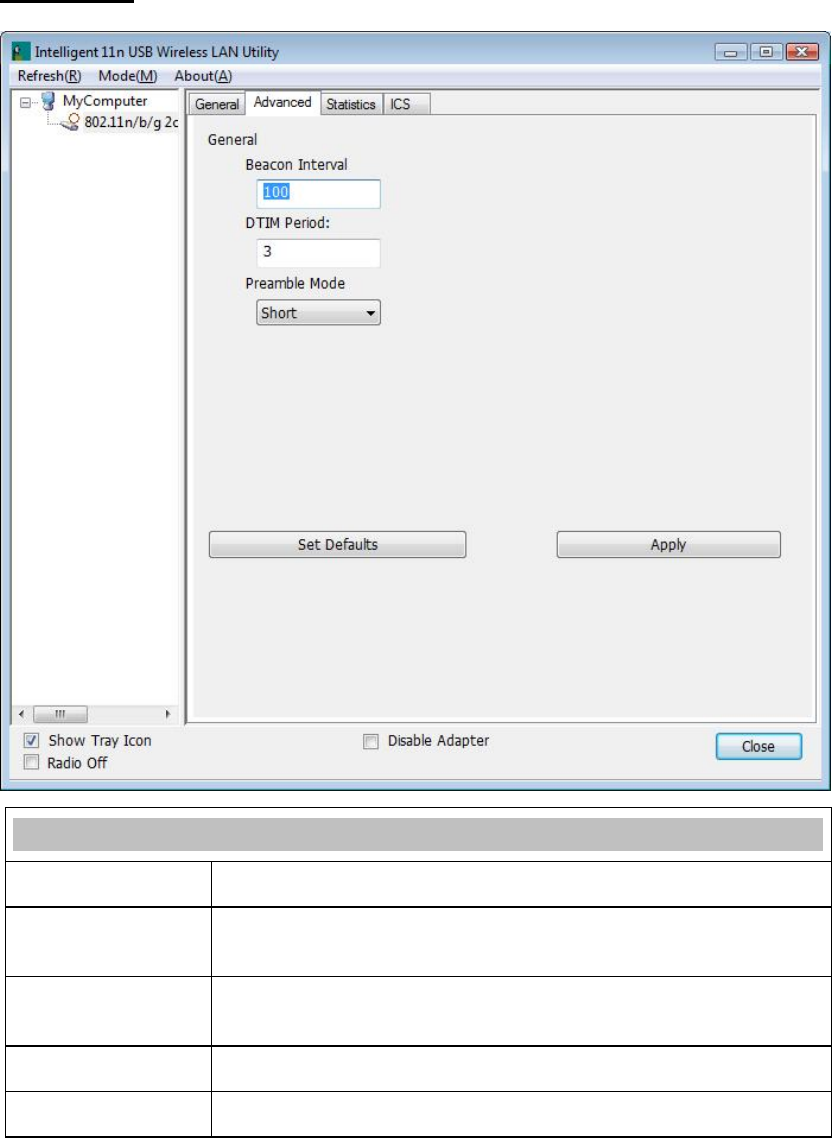

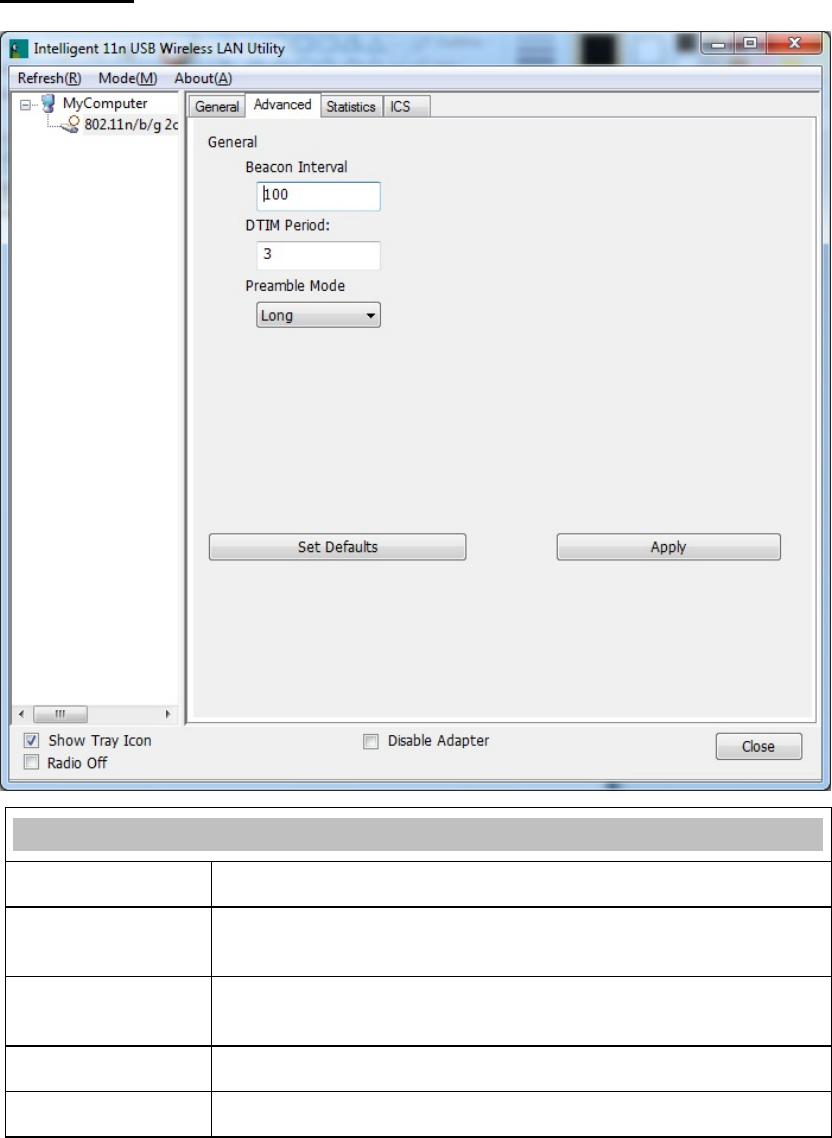

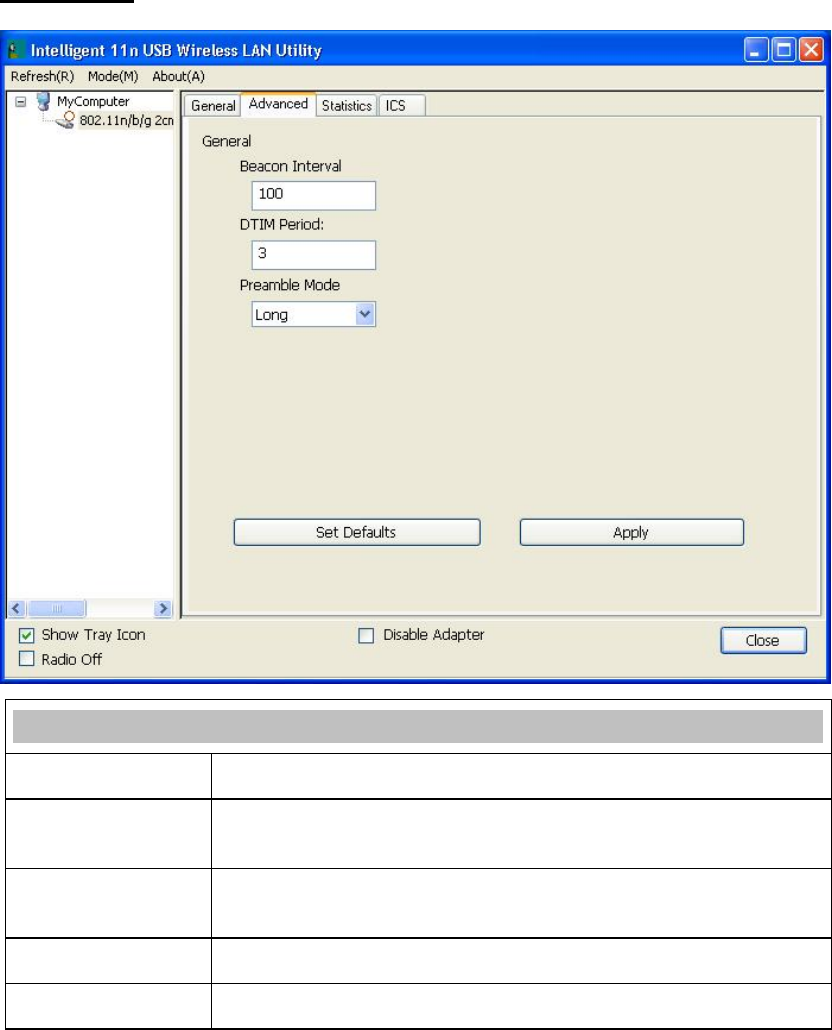

Advanced
Advanced
Beacon Interval The time between two beacons. (The system default is 100 ms.)
DTIM Period The delivery traffic indication message (DTIM) is an element included in
some beacon frames. User can specify a value from 1 to 255 beacons.
Preamble Select from the pull-down menu to change the Preamble type into Short
or Long.
Set Defaults Click to use the system default value.
Apply Click to apply the above settings.
- 28 -

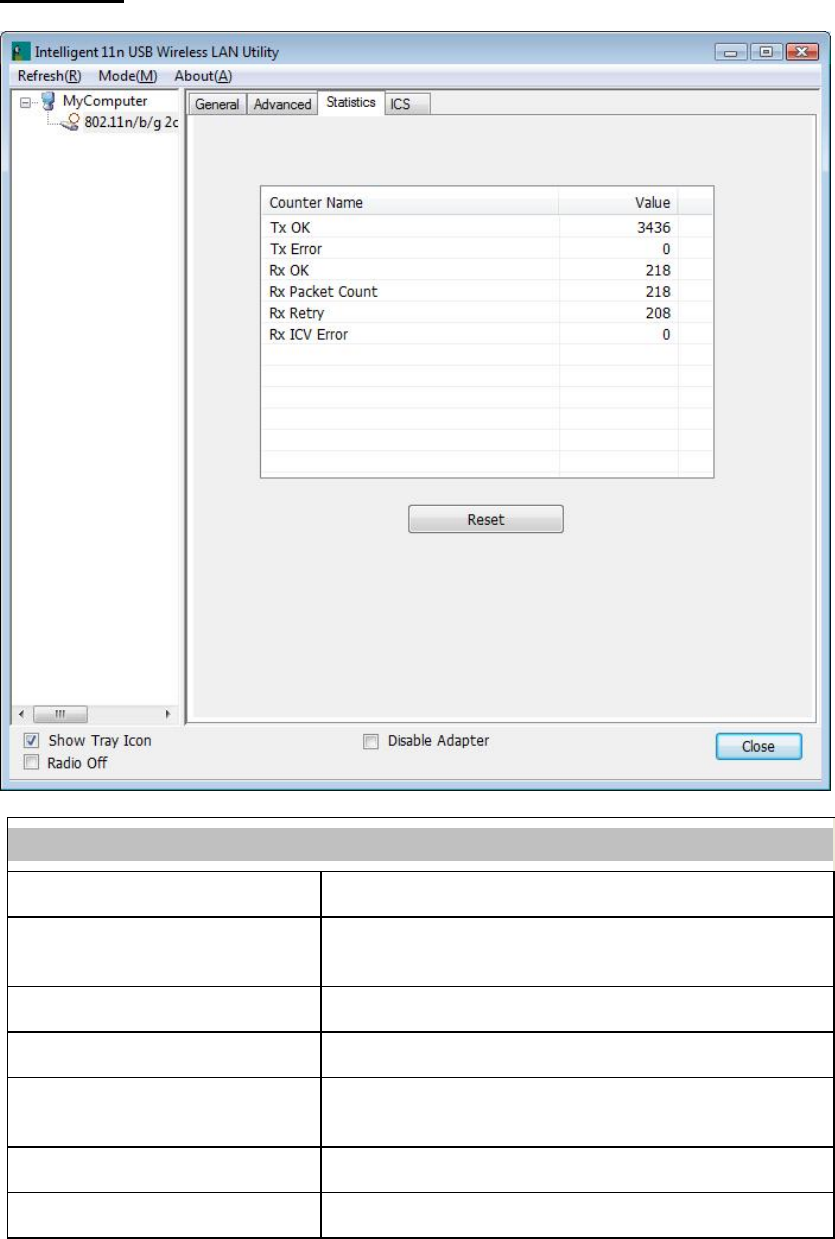

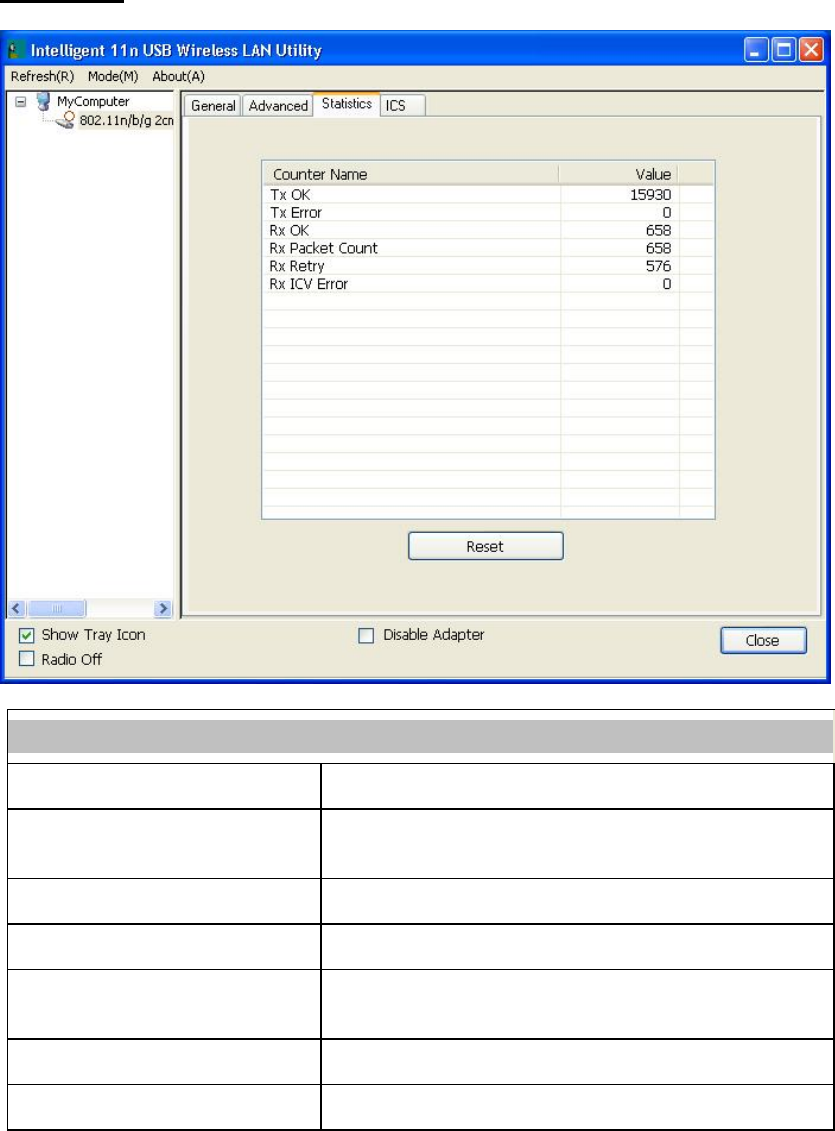

Statistics
Statistics
Tx OK Shows information of packets successfully sent.
Tx Error Shows information of packets failed transmit after hitting retry
limit.
Rx OK Shows information of packets received successfully.
Rx Packet Count Shows information of packets received successfully.
Rx Retry Shows information of packets failed transmit after hitting retry
limit.
Rx ICV Error Shows information of packets received with ICV error.
Reset Click to reset counters to zero.
- 29 -

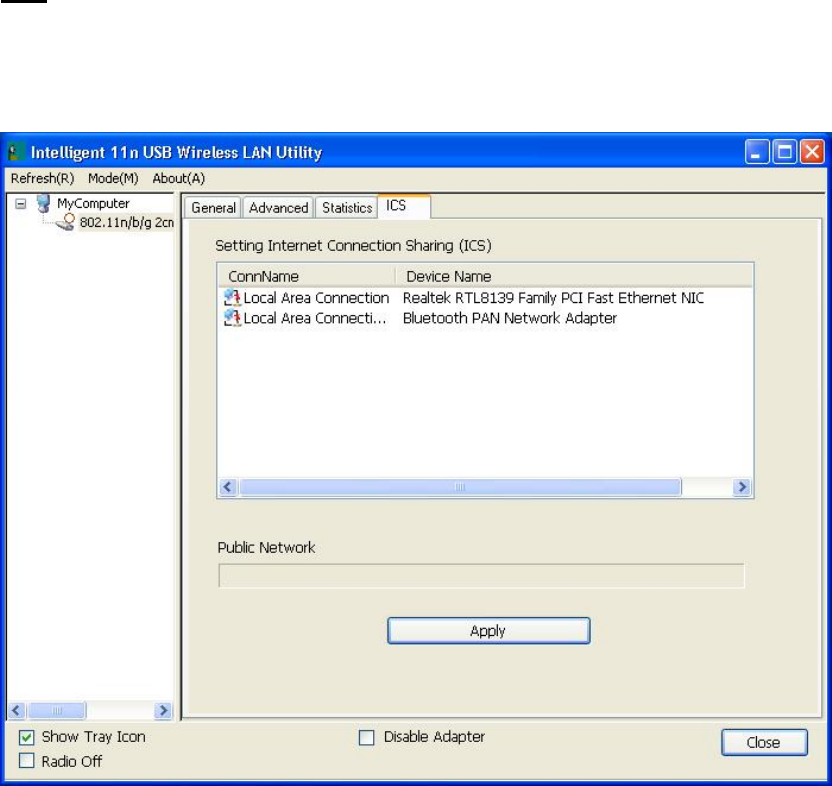

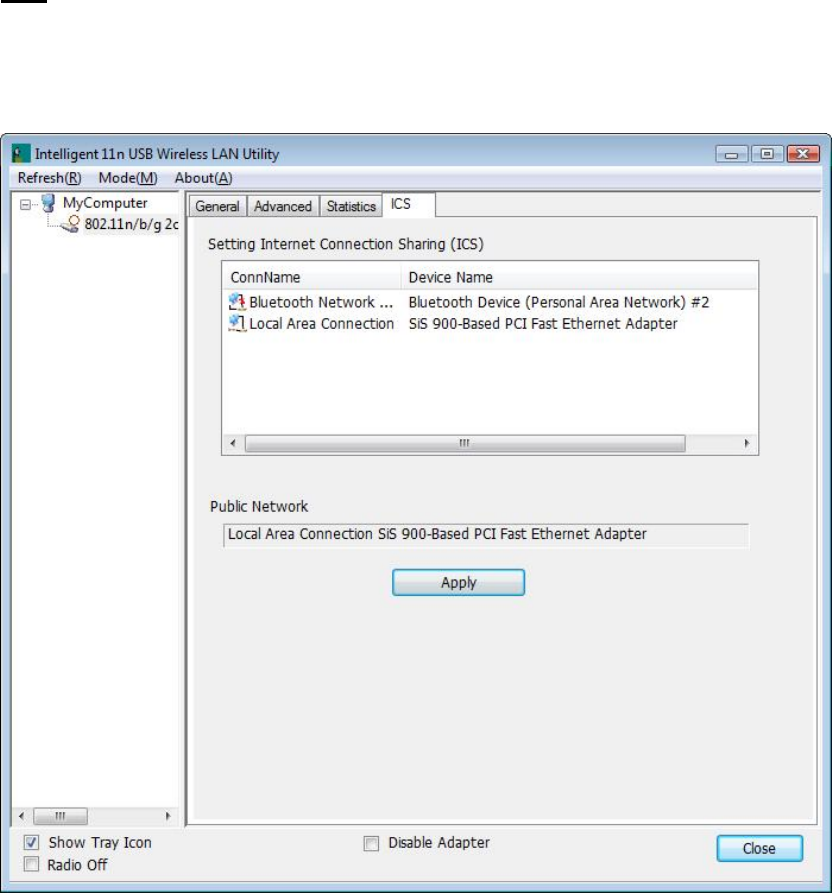

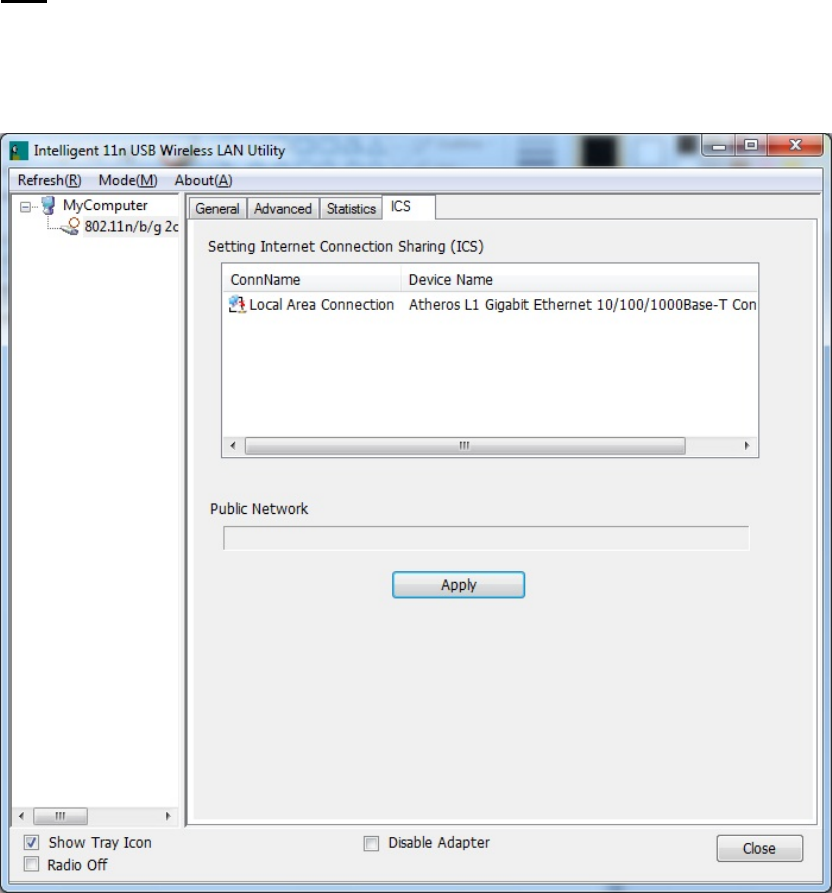

ICS
This page displays setting Internet connection sharing (ICS). Select a sharing public network and click
Apply button to make a connection.
- 30 -
For Windows Vista
Station Mode
Show Tray Icon: Check to show the wireless adapter icon at the tray.
Disable Adapter: Check this to disable the wireless adapter.
Radio off: Check this to turn OFF radio function.
Close: Click to leave the Intelligent 11n USB Wireless LAN Utility.
- 31 -
General
The General page displays the detail information of current connection.
General Tab
Status Shows the current connected status. If there is no connection, it will show
Not Associated. If been connected, the system will show Associated.
When connecting, the system will show checking Status.
Speed Shows the current transmitting rate and receiving rate.
Type Network type in use, Infrastructure or Ad-Hoc.
Encryption Shows the encryption type currently in use. Valid value includes WEP,
TKIP, AES, and Not Use.
SSID Shows the connected access point network name.
Signal Strength Shows the receiving signal strength.
Link Quality Shows the connection quality based on signal strength.
MAC Address The physical address of the Wireless USB Adapter.
IP Address Shows the IP address information.
Subnet Mask Shows the Subnet Mask information.
Gateway Shows the default gateway IP address.
- 32 -
Renew IP Click the Renew IP button to obtain IP address form the connected
gateway.
Profile
Profile can let users book keeping the favorite wireless setting among home, office, and other public
hot-spot. Users may save multiple profiles, and activate the correct one at preference. The Profile
manager enables users to Add, Remove, Edit, Duplicate and Set Default profiles.
Profile Tab
Profile Name Here shows a distinctive name of profile in this column.
SSID The SSID is the unique name shared among all wireless access points in
the wireless network.
Add Click Add button to add a profile from the drop-down screen.
- 33 -
This is a computer-to-computer (ad hoc) network; wireless access
points are not used: This function is selected to enable the ad hoc
network type that computers should be setup at the same channel to
communicate to each other directly without access point, users can share
files and printers between each PC and laptop.
Profile Name: Users can enter profile name at will.
Network Name (SSID): The SSID is the unique network name
(case-sensitive) shared among all wireless access points in the wireless
network. The name must be identical for all devices and wireless access
points attempting to connect to the same network.
Channel: If set to ad hoc network type, user can select channels form the
pull-down menu.
Wireless network security
Network Authentication: There are several types of authentication
modes including Open System, Shared Key, WPA-PSK, WPA2-PSK,
WPA 802.1X, WPA2 802.1X and WEP 802.1X.
Data encryption: For Open System, Shared Key and WEP 802.1X
authentication mode, the selection of encryption type is WEP. For
WPA-PSK, WPA2-PSK, WPA 802.1X and WPA2 802.1X authentication
mode, the encryption type supports both TKIP and AES.
When encryption is set to WEP…
ASCII: Only valid when using WEP encryption algorithm. When key
length is set to 64 bits user can enter 5 ASCII characters (case sensitive),
and 128 bits for 13 ASCII characters (case sensitive).
PASS PHRASE: Only valid when using WEP encryption algorithm.
When key length is set to 64 bits user can enter 10 Hexadecimal
characters (0~9, a~f) and 128 bits for 26 Hexadecimal characters (0~9,
a~f).
Key index (advanced): Select 1~4 key index form the pull-down menu,
must match with the connected AP’s key index.
- 34 -
When encryption is set to WPA-PSK/ WPA2-PSK…
Network key: Enter network key at least 8 to 64 characters.
Confirm network key: Enter network key again to confirm.
When encryption is set to WPA 802.1X/ WPA2 802.1X/ WEP
802.1X…
When users use radius server to authenticate client certificate for WPA
authentication mode (WPA authentication do not support EAP Method-
MD5-Challenge).
EAP TYPE:
TLS: Transport Layer Security. Provides for certificate-based and
mutual authentication of the client and the network. It relies on
client-side and server-side certificates to perform authentication and
can be used to dynamically generate user-based and session-based
WEP keys to secure subsequent communications between the WLAN
client and the access point.
LEAP: Light Extensible Authentication Protocol. It is an EAP
authentication type used primarily in Cisco Aironet WLANs. It
encrypts data transmissions using dynamically generated WEP keys,
and supports mutual authentication.
TTLS: Tunnelled Transport Layer Security. This security method
provides for certificate-based, mutual authentication of the client and
network through an encrypted channel. Unlike EAP-TLS, EAP-TTLS
requires only server-side certificates.
PEAP: Protect Extensible Authentication Protocol. PEAP transport
securely authentication data by using tunnelling between PEAP clients
and an authentication server. PEAP can authenticate wireless LAN
clients using only server-side certificates, thus simplifying the
implementation and administration of a secure wireless LAN.
MD5: Message Digest Challenge. Challenge is an EAP
authentication type that provides base-level EAP support. It
provides for only one-way authentication - there is no mutual
authentication of wireless client and the network.
Tunnel: This is enabled under TTLS and PEAP type. For TTLS, the
selections of tunnel are CHAP, MSCHAP, MSCHAP-V2, PAP. For
PEAP, the selections of tunnel are MD5, GTC, TLS and MSCHAP-V2.
Username: Enter the username for server.
Identity: Enter the identity for server.
Domain: Enter the domain of the network.
Password: Enter the password for server.
Certificate: Choose server that issuer of certificates.
Remove Click Remove button to delete selected profile.
Edit Click Edit button to edit selected profile.
Duplicate Click Duplicate button to copy selected profile.
Set Default Click Set Default button to set selected profile to be connected first.
- 35 -
Available Network
This page displays the information of surrounding APs from last scan result. The tab lists the
information including SSID, Channel, Encryption, Network Authentication, Signal, Type, BSSID,
Supported Rate(s), and Mode.
Network Tab
SSID Shows the network name of the access points.
Channel Shows the currently channel in use.
Encryption Shows the encryption type currently in use. Valid value includes WEP, TKIP,
AES, None and TKIP/AES.
Network
Authentication Show the device network authentication.
Signal Shows transmit power, the amount of power used by a radio transceiver to
send the signal out.
Type Network type in use, Infrastructure or Ad-Hoc mode.
- 36 -
BSSID Shows Wireless MAC address.
Supported Rate(s) Shows the transmitting data rate.
Mode Supported wireless mode. It may support 802.11b, 802.11g and 802.11n
wireless mode.
Refresh Click Refresh button to search and rescan the available network.
Add to Profile Select an available network (SSID) on the list and then click Add to Profile
button to add it into the profile list.
Note Double click on item to join/create profile.
Status
This tab listed the information about the wireless USB adapter and connected access point.
- 37 -
Statistics
The Statistics screen displays the statistics on the current network settings.
Statistics
Tx OK Shows information of packets successfully sent.
Tx Error Shows information of packets failed transmit after hitting retry
limit.
Rx OK Shows information of packets received successfully.
Rx Packet Count Shows information of packets received successfully.
Rx Retry Shows information of packets failed transmit after hitting retry
limit.
Rx ICV Error Shows information of packets received with ICV error.
Reset Click to reset counters to zero.
- 38 -
WPS
The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security
setup and management of Wi-Fi networks. The STA as an Enrollee or external Registrar supports the
configuration setup using PIN (Personal Identification Number) configuration method or PBC (Push
Button Configuration) method through an internal or external Registrar.
WPS Tab
PIN Code 8-digit numbers. It is required to enter PIN Code into Registrar when using
PIN method. When STA is Enrollee, users can use "Renew" button to
re-generate new PIN Code.
Pin Input Config
(PIN) Click the Pin Input Config (PIN) button to select specific AP to process PIN
Config.
Push Button Config
(PBC) Click this button to connect with AP that supported WPS function within two
minutes. Meanwhile, the AP should also click the PBC button simultaneously.
- 39 -
About
This page displays the information of the Wireless USB Adapter Version.
Switch to AP Mode
To access the soft AP mode, please select the Mode on the function list of the Utility to make the
Wireless USB Adapter act as a wireless AP.
- 40 -
Soft AP mode
General
General
SSID Shows the network name of the AP.
BSSID Shows the MAC address of the AP.
Association Table This table shows the connected client here.
Config Click the Config button to set up the Wireless Network Properties.
- 41 -
Network Name (SSID): User can change the network name of this access
point.
Channel: User can select the channel form the pull-down list.
Wireless network security
Network Authentication: There are several types of authentication
modes including Open System, Shared Key, WPA-PSK and WPA2-PSK.
Data encryption: For Open System and Shared Key authentication mode,
the selection of encryption type is WEP. For WPA-PSK, WPA2-PSK,
authentication mode, the encryption type supports both TKIP and AES.
When encryption is set to WEP…
ASCII: Only valid when using WEP encryption algorithm. When key
length is set to 64 bits user can enter 5 ASCII characters (case sensitive),
and 128 bits for 13 ASCII characters (case sensitive).
PASS PHRASE: Only valid when using WEP encryption algorithm.
When key length is set to 64 bits user can enter 10 Hexadecimal characters
(0~9, a~f) and 128 bits for 26 Hexadecimal characters (0~9, a~f).
Key index (advanced): Select 1~4 key index form the pull-down menu,
must match with the connected AP’s key index.
When encryption is set to WPA-PSK/ WPA2-PSK…
Network key: Enter network key at least 8 to 64 characters.
Confirm network key: Enter network key again to confirm.
- 42 -
Advanced
Advanced
Beacon Interval The time between two beacons. (The system default is 100 ms.)
DTIM Period The delivery traffic indication message (DTIM) is an element included in
some beacon frames. User can specify a value from 1 to 255 beacons.
Preamble Select from the pull-down menu to change the Preamble type into Short
or Long.
Set Defaults Click to use the system default value.
Apply Click to apply the above settings.
- 43 -
Statistics
Statistics
Tx OK Shows information of packets successfully sent.
Tx Error Shows information of packets failed transmit after hitting retry
limit.
Rx OK Shows information of packets received successfully.
Rx Packet Count Shows information of packets received successfully.
Rx Retry Shows information of packets failed transmit after hitting retry
limit.
Rx ICV Error Shows information of packets received with ICV error.
Reset Click to reset counters to zero.
- 44 -
ICS
This page displays setting Internet connection sharing (ICS). Select a sharing public network and click
Apply button to make a connection.
- 45 -
For Windows 7
Station Mode
Show Tray Icon: Check to show the wireless adapter icon at the tray.
Disable Adapter: Check this to disable the wireless adapter.
Radio off: Check this to turn OFF radio function.
Close: Click to leave the Intelligent 11n USB Wireless LAN Utility.
- 46 -
General
The General page displays the detail information of current connection.
General Tab
Status Shows the current connected status. If there is no connection, it will show
Not Associated. If been connected, the system will show Associated.
When connecting, the system will show checking Status.
Speed Shows the current transmitting rate and receiving rate.
Type Network type in use, Infrastructure or Ad-Hoc.
Encryption Shows the encryption type currently in use. Valid value includes WEP,
TKIP, AES, and Not Use.
SSID Shows the connected access point network name.
Signal Strength Shows the receiving signal strength.
Link Quality Shows the connection quality based on signal strength.
MAC Address The physical address of the Wireless USB Adapter.
IP Address Shows the IP address information.
Subnet Mask Shows the Subnet Mask information.
Gateway Shows the default gateway IP address.
- 47 -
Renew IP Click the Renew IP button to obtain IP address form the connected
gateway.
Profile
Profile can let users book keeping the favorite wireless setting among home, office, and other public
hot-spot. Users may save multiple profiles, and activate the correct one at preference. The Profile
manager enables users to Add, Remove, Edit, Duplicate and Set Default profiles.
Profile Tab
Profile Name Here shows a distinctive name of profile in this column.
SSID The SSID is the unique name shared among all wireless access points in
the wireless network.
Add Click Add button to add a profile from the drop-down screen.
- 48 -
This is a computer-to-computer (ad hoc) network; wireless access
points are not used: This function is selected to enable the ad hoc
network type that computers should be setup at the same channel to
communicate to each other directly without access point, users can share
files and printers between each PC and laptop.
Profile Name: Users can enter profile name at will.
Network Name (SSID): The SSID is the unique network name
(case-sensitive) shared among all wireless access points in the wireless
network. The name must be identical for all devices and wireless access
points attempting to connect to the same network.
Channel: If set to ad hoc network type, user can select channels form the
pull-down menu.
Wireless network security
Network Authentication: There are several types of authentication
modes including Open System, Shared Key, WPA-PSK, WPA2-PSK,
WPA 802.1X, WPA2 802.1X and WEP 802.1X.
Data encryption: For Open System, Shared Key and WEP 802.1X
authentication mode, the selection of encryption type is WEP. For
WPA-PSK, WPA2-PSK, WPA 802.1X and WPA2 802.1X authentication
mode, the encryption type supports both TKIP and AES.
When encryption is set to WEP…
ASCII: Only valid when using WEP encryption algorithm. When key
length is set to 64 bits user can enter 5 ASCII characters (case sensitive),
and 128 bits for 13 ASCII characters (case sensitive).
PASS PHRASE: Only valid when using WEP encryption algorithm.
When key length is set to 64 bits user can enter 10 Hexadecimal
characters (0~9, a~f) and 128 bits for 26 Hexadecimal characters (0~9,
a~f).
Key index (advanced): Select 1~4 key index form the pull-down menu,
- 49 -
must match with the connected AP’s key index.
When encryption is set to WPA-PSK/ WPA2-PSK…
Network key: Enter network key at least 8 to 64 characters.
Confirm network key: Enter network key again to confirm.
When encryption is set to WPA 802.1X/ WPA2 802.1X/ WEP
802.1X…
When users use radius server to authenticate client certificate for WPA
authentication mode (WPA authentication do not support EAP Method-
MD5-Challenge).
EAP TYPE:
TLS: Transport Layer Security. Provides for certificate-based and
mutual authentication of the client and the network. It relies on
client-side and server-side certificates to perform authentication and
can be used to dynamically generate user-based and session-based
WEP keys to secure subsequent communications between the WLAN
client and the access point.
LEAP: Light Extensible Authentication Protocol. It is an EAP
authentication type used primarily in Cisco Aironet WLANs. It
encrypts data transmissions using dynamically generated WEP keys,
and supports mutual authentication.
TTLS: Tunnelled Transport Layer Security. This security method
provides for certificate-based, mutual authentication of the client and
network through an encrypted channel. Unlike EAP-TLS, EAP-TTLS
requires only server-side certificates.
PEAP: Protect Extensible Authentication Protocol. PEAP transport
securely authentication data by using tunnelling between PEAP clients
and an authentication server. PEAP can authenticate wireless LAN
clients using only server-side certificates, thus simplifying the
implementation and administration of a secure wireless LAN.
MD5: Message Digest Challenge. Challenge is an EAP
authentication type that provides base-level EAP support. It
provides for only one-way authentication - there is no mutual
authentication of wireless client and the network.
Tunnel: This is enabled under TTLS and PEAP type. For TTLS, the
selections of tunnel are CHAP, MSCHAP, MSCHAP-V2, PAP. For
PEAP, the selections of tunnel are MD5, GTC, TLS and MSCHAP-V2.
Username: Enter the username for server.
Identity: Enter the identity for server.
Domain: Enter the domain of the network.
Password: Enter the password for server.
Certificate: Choose server that issuer of certificates.
Remove Click Remove button to delete selected profile.
Edit Click Edit button to edit selected profile.
Duplicate Click Duplicate button to copy selected profile.
Set Default Click Set Default button to set selected profile to be connected first.
- 50 -
Available Network
This page displays the information of surrounding APs from last scan result. The tab lists the
information including SSID, Channel, Encryption, Network Authentication, Signal, Type, BSSID,
Supported Rate(s), and Mode.
Network Tab
SSID Shows the network name of the access points.
Channel Shows the currently channel in use.
Encryption Shows the encryption type currently in use. Valid value includes WEP, TKIP,
AES, None and TKIP/AES.
Network
Authentication Show the device network authentication.
Signal Shows transmit power, the amount of power used by a radio transceiver to
send the signal out.
- 51 -
Type Network type in use, Infrastructure or Ad-Hoc mode.
BSSID Shows Wireless MAC address.
Supported Rate(s) Shows the transmitting data rate.
Mode Supported wireless mode. It may support 802.11b, 802.11g and 802.11n
wireless mode.
Refresh Click Refresh button to search and rescan the available network.
Add to Profile Select an available network (SSID) on the list and then click Add to Profile
button to add it into the profile list.
Note Double click on item to join/create profile.
Status
This tab listed the information about the wireless USB adapter and connected access point.
- 52 -
Statistics
The Statistics screen displays the statistics on the current network settings.
Statistics
Tx OK Shows information of packets successfully sent.
Tx Error Shows information of packets failed transmit after hitting retry
limit.
Rx OK Shows information of packets received successfully.
Rx Packet Count Shows information of packets received successfully.
Rx Retry Shows information of packets failed transmit after hitting retry
limit.
Rx ICV Error Shows information of packets received with ICV error.
Reset Click to reset counters to zero.
- 53 -
WPS
The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security
setup and management of Wi-Fi networks. The STA as an Enrollee or external Registrar supports the
configuration setup using PIN (Personal Identification Number) configuration method or PBC (Push
Button Configuration) method through an internal or external Registrar.
WPS Tab
PIN Code 8-digit numbers. It is required to enter PIN Code into Registrar when using
PIN method. When STA is Enrollee, users can use "Renew" button to
re-generate new PIN Code.
Pin Input Config
(PIN) Click the Pin Input Config (PIN) button to select specific AP to process PIN
Config.
Push Button Config
(PBC) Click this button to connect with AP that supported WPS function within two
minutes. Meanwhile, the AP should also click the PBC button simultaneously.
- 54 -
About
This page displays the information of the Wireless USB Adapter Version.
Switch to AP Mode
To access the soft AP mode, please select the Mode on the function list of the Utility to make the
Wireless USB Adapter act as a wireless AP.
- 55 -
Soft AP mode
General
General
SSID Shows the network name of the AP.
BSSID Shows the MAC address of the AP.
Association Table This table shows the connected client here.
Config Click the Config button to set up the Wireless Network Properties.
- 56 -
Network Name (SSID): User can change the network name of this access
point.
Channel: User can select the channel form the pull-down list.
Wireless network security
Network Authentication: There are several types of authentication
modes including Open System, Shared Key, WPA-PSK and WPA2-PSK.
Data encryption: For Open System and Shared Key authentication mode,
the selection of encryption type is WEP. For WPA-PSK, WPA2-PSK,
authentication mode, the encryption type supports both TKIP and AES.
When encryption is set to WEP…
ASCII: Only valid when using WEP encryption algorithm. When key
length is set to 64 bits user can enter 5 ASCII characters (case sensitive),
and 128 bits for 13 ASCII characters (case sensitive).
PASS PHRASE: Only valid when using WEP encryption algorithm.
When key length is set to 64 bits user can enter 10 Hexadecimal characters
(0~9, a~f) and 128 bits for 26 Hexadecimal characters (0~9, a~f).
Key index (advanced): Select 1~4 key index form the pull-down menu,
must match with the connected AP’s key index.
When encryption is set to WPA-PSK/ WPA2-PSK…
Network key: Enter network key at least 8 to 64 characters.
Confirm network key: Enter network key again to confirm.
- 57 -
Advanced
Advanced
Beacon Interval The time between two beacons. (The system default is 100 ms.)
DTIM Period The delivery traffic indication message (DTIM) is an element included in
some beacon frames. User can specify a value from 1 to 255 beacons.
Preamble Select from the pull-down menu to change the Preamble type into Short
or Long.
Set Defaults Click to use the system default value.
Apply Click to apply the above settings.
- 58 -
Statistics
Statistics
Tx OK Shows information of packets successfully sent.
Tx Error Shows information of packets failed transmit after hitting retry
limit.
Rx OK Shows information of packets received successfully.
Rx Packet Count Shows information of packets received successfully.
Rx Retry Shows information of packets failed transmit after hitting retry
limit.
Rx ICV Error Shows information of packets received with ICV error.
Reset Click to reset counters to zero.
- 59 -
ICS
This page displays setting Internet connection sharing (ICS). Select a sharing public network and click
Apply button to make a connection.
- 60 -
Chapter 5: Uninstall
For Windows 2000/XP
To remove the utility and driver, please refer to below steps. (When removing the utility, the driver will
be removed as well.)

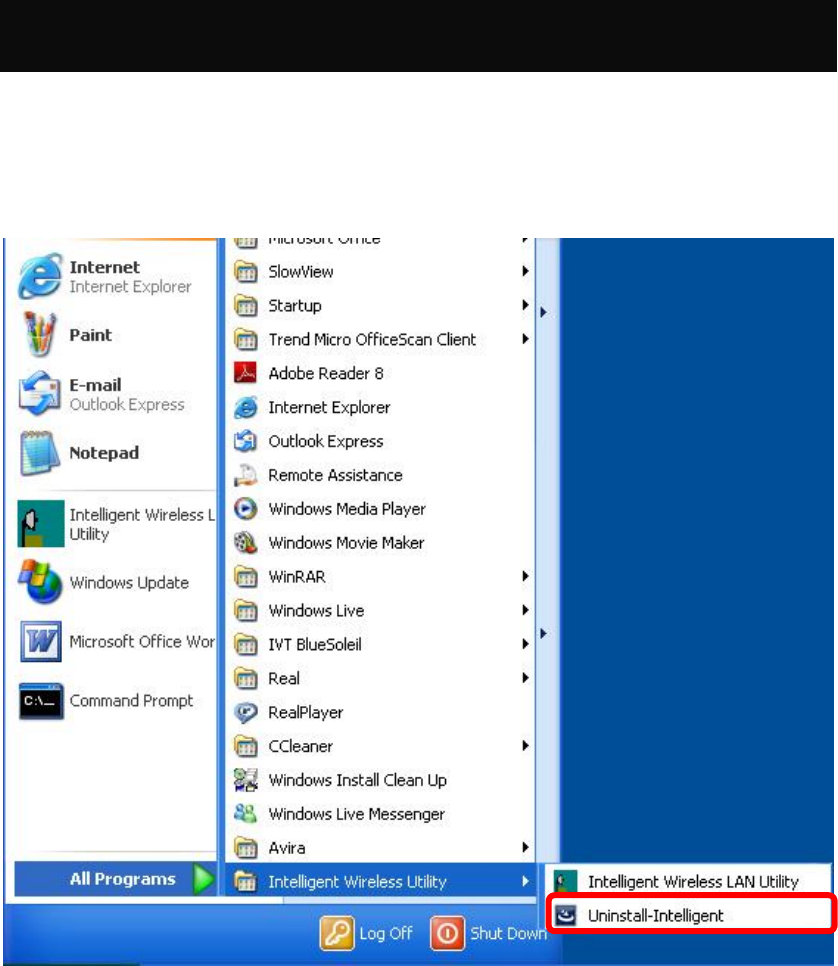

1. Go to Start All Programs Intelligent Wireless Utility Uninstall –Intelligent.
- 61 -
2. Click Yes to completely remove the selected application and all of its features.
3. Then click Finish to complete uninstall.
- 62 -
For Windows Vista
To remove the utility and driver, please refer to below steps. (When removing the utility, the driver will
be removed as well.)

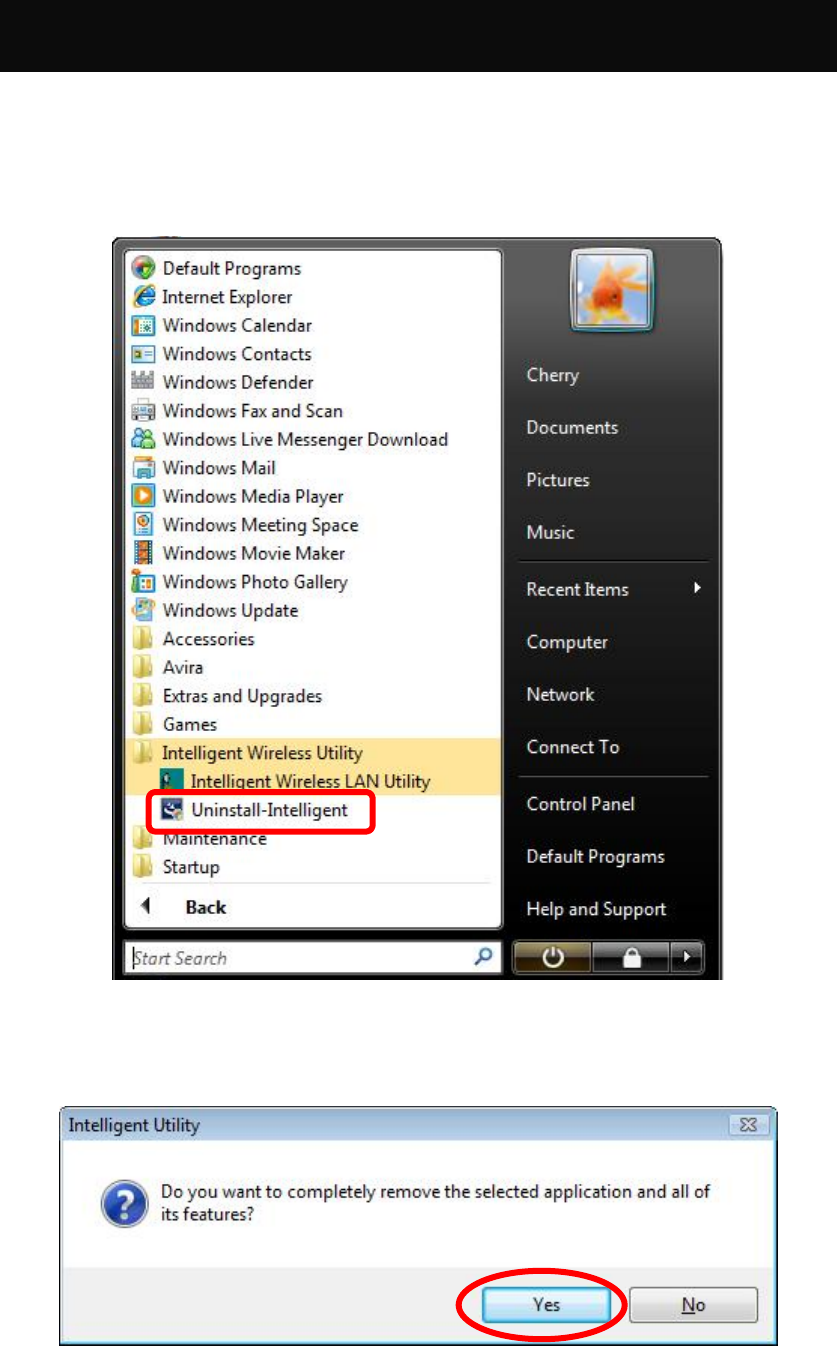

1. Go to Start Programs Intelligent Wireless LAN Utility Uninstall –Intelligent.
2. Click Yes to complete remove the selected application and all of its features.
- 63 -

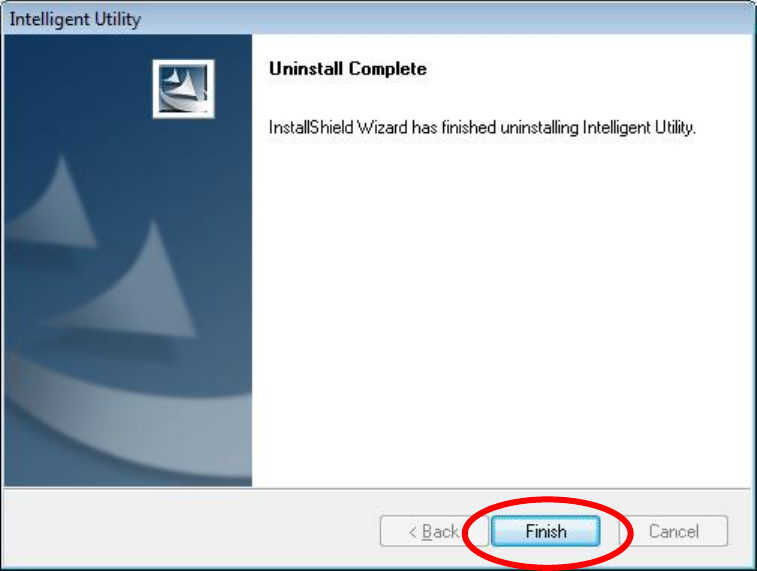

3. Finally, click Finish to complete uninstall.
- 64 -
For Windows 7
To remove the utility and driver, please refer to below steps. (When removing the utility, the driver will
be removed as well.)
1. Go to Start Programs Intelligent Wireless Utility Uninstall –Intelligent.
- 65 -

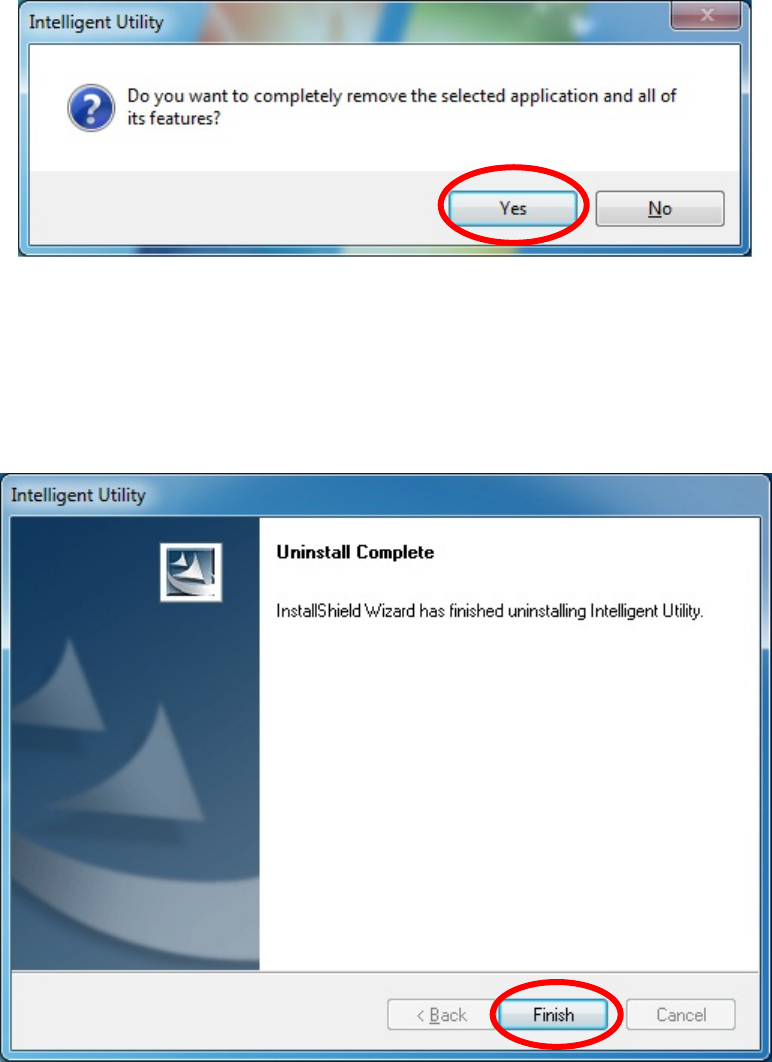

2. Click Yes to complete remove the selected application and all of its features.
3. Finally, click Finish to complete uninstall.

Navigation menu
