1. Description
AcSiP Technology Corp. introduces a low-cost and low-power consumption IoT module. This
stand-alone module is an operating system designed for wearable or internet of things (IoT) devices
with smart connection and cloud application/services.
AI7687H is a highly integrated SIP module which features an application processor, a low power 1x1
11n single-band Wi-Fi subsystem, a Bluetooth subsystem, and a Power Management Unit. The
application processor subsystem contains an ARM Cortex-M4F MCU, which has many peripherals,
including UART, I2C, SPI, I2S, PWM, IrDA, and auxiliary ADC. AI7687H also includes embedded
SRAM/ROM and a SPI 2MB serial flash.
The Wi-Fi subsystem contains the 802.11b/g/n radio, baseband, and MAC that are designed to meet
both the low power and high throughput application. It also contains a 32-bit RISC CPU that could
fully offload the application processor.
1.1. Platform Features
General
ARM Cortex M4 MCU with FPU with up to
192MHz clock speed
352KB SRAM / 64KB boot / 2MB Flash
Supports external serial flash with Quad
Peripheral Interface (QPI) mode
Supports eXecute In Place (XIP) on flash
32KB cache in XIP mode
Hardware crypto engines including AES,
DES/3DES, SHA2 for network security
Two UART interfaces with hardware flow control
and one UART for debug, all multiplexed with
GPIO
One SPI slave interface multiplexed with GPIO
Two I2C master interface multiplexed with GPIO
One I2S interface multiplexed with GPIO
Four channel 12-bit ADC multiplexed with GPIO
Dedicated high-performance 32-bit RISC CPU N9
up to 160MHz clock speed
IEEE 802.11 b/g/n compliant
Supports 20MHz,40MHz bandwidth in 2.4GHz
Dual-band 1T1R mode with data rate up to
150Mbps
Supports STBC, LDPC
Greenfield, mixed mode, legacy modes support
IEEE 802.11 d/e/h/i/k/r/w support
Security support for WFA WPA/WPA2 personal,
WPS2.0, WAPI
Supports 802.11w protected managed frames
QoS support of WFA WMM, WMM PS
Integrated LNA, PA, and T/R switch
Optional external LNA and PA support.
AI7687H
MT7687 IoT SiP Module
A
FEB 21,2017
2 of 9
Product Name
Version
Date
Page
RX diversity support with additional RX input

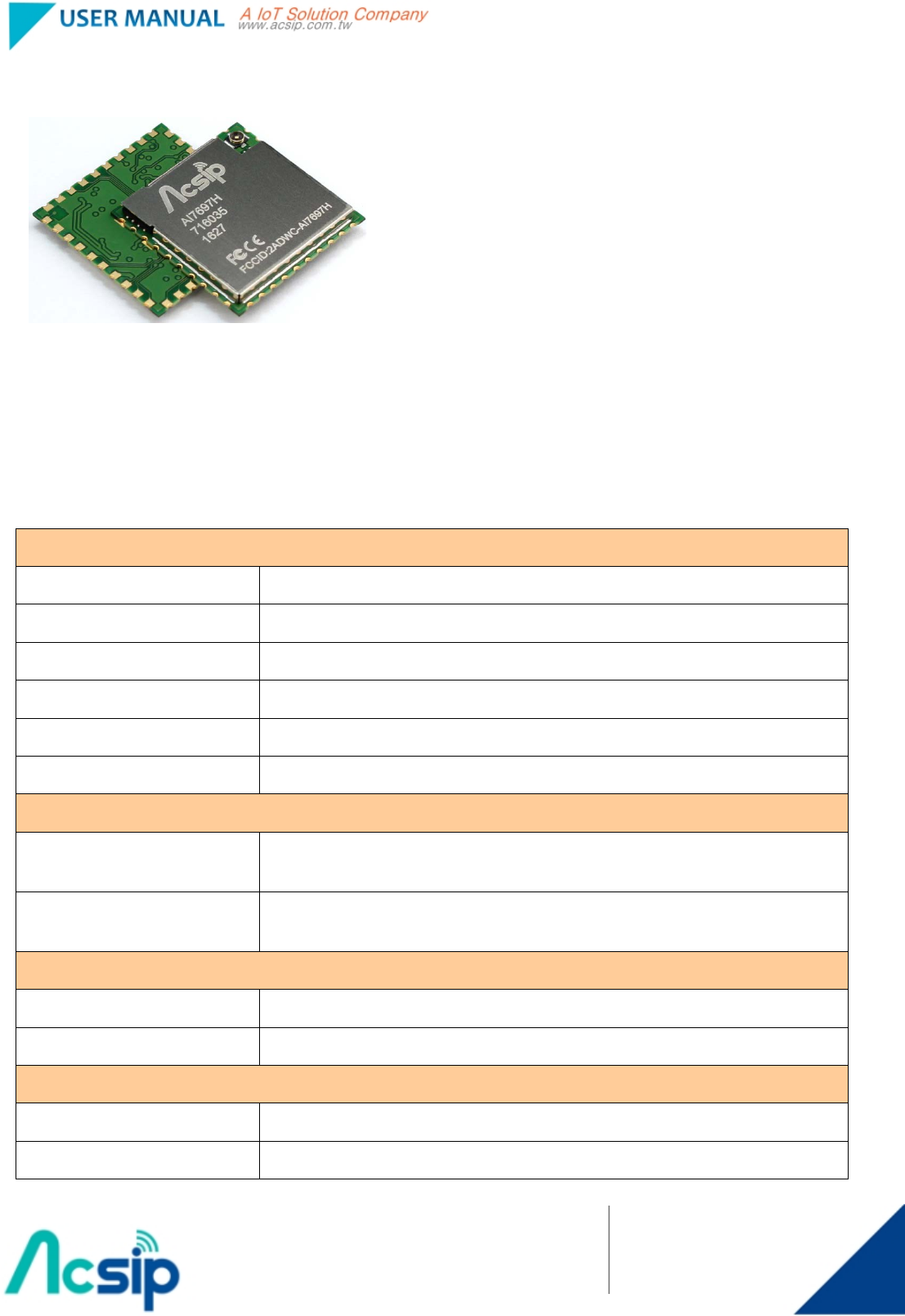

2. Specification
AI7687H
Chipset MT7687
Core ARM Cortex-M4 MCU
FPU Clock Speed 192MHz
SRAM 352KB
SPI Flash 2MB
Antenna connector MHF4 series: 20449-001E
Operation Condition
Temperature
Operating : -20
℃
~ +70
℃
Storage : -40℃ ~ +85℃
Humidity Operating : 10 ~ 95% (Non-Condensing)
Storage : 5 ~ 95% (Non-Condensing)
Mechanical Information
Dimension 18mm X 18mm X 1.7mm (Typ.)
Package LGA 44Pin – Stamp hole type
Certification
FCC ID 2ADWC-AI7687H
CE EN300328 / MPE / EN301489-1-17 / EN60950-1
AI7687H
MT7687 IoT SiP Module
A
FEB 21,2017
3 of 9
Product Name
Version
Date
Page
3. Pin Definition
AI7687H
MT7687 IoT SiP Module
A
FEB 21,2017
4 of 9
Product Name
Version
Date
Page
3.1. Detailed Pin Description
PIN no. Pin Name PIN no. Pin Name
1 GPIO29 23 GPIO0
2 GPIO30 24 GPIO1
3 GPIO28 25 GPIO2
4 GPIO27 26 GPIO3
5 PMU_EN_WF 27 GPIO6
6 GPIO60 28 GPIO7
7 GPIO59 29 GPIO5
8 GPIO58 30 GPIO24
9 GPIO57 31 GPIO25
10 GPIO39 32 GPIO26
11 SYS_RST_N 33 GPIO4
12 GPIO38 34 RTC_3V3
13 GPIO37 35 GND
14 3V3 36 PMU_EN_RTC
15 GPIO36 37 GPIO32
16 GPIO35 38 GPIO31
17 GPIO34 39 3V3
18 GPIO33 40 GND
19 GND 41 Thermal GND
20 NC 42 Thermal GND
21 GND 43 Thermal GND
22 GND 44 Thermal GND
AI7687H
MT7687 IoT SiP Module
A
FEB 21,2017
5 of 9
Product Name
Version
Date
Page
4. Operating Block
2.4GHz Antenna
AI7687H
MT7687 IoT SiP Module
A
FEB 21,2017
6 of 9
Product Name
Version
Date
Page

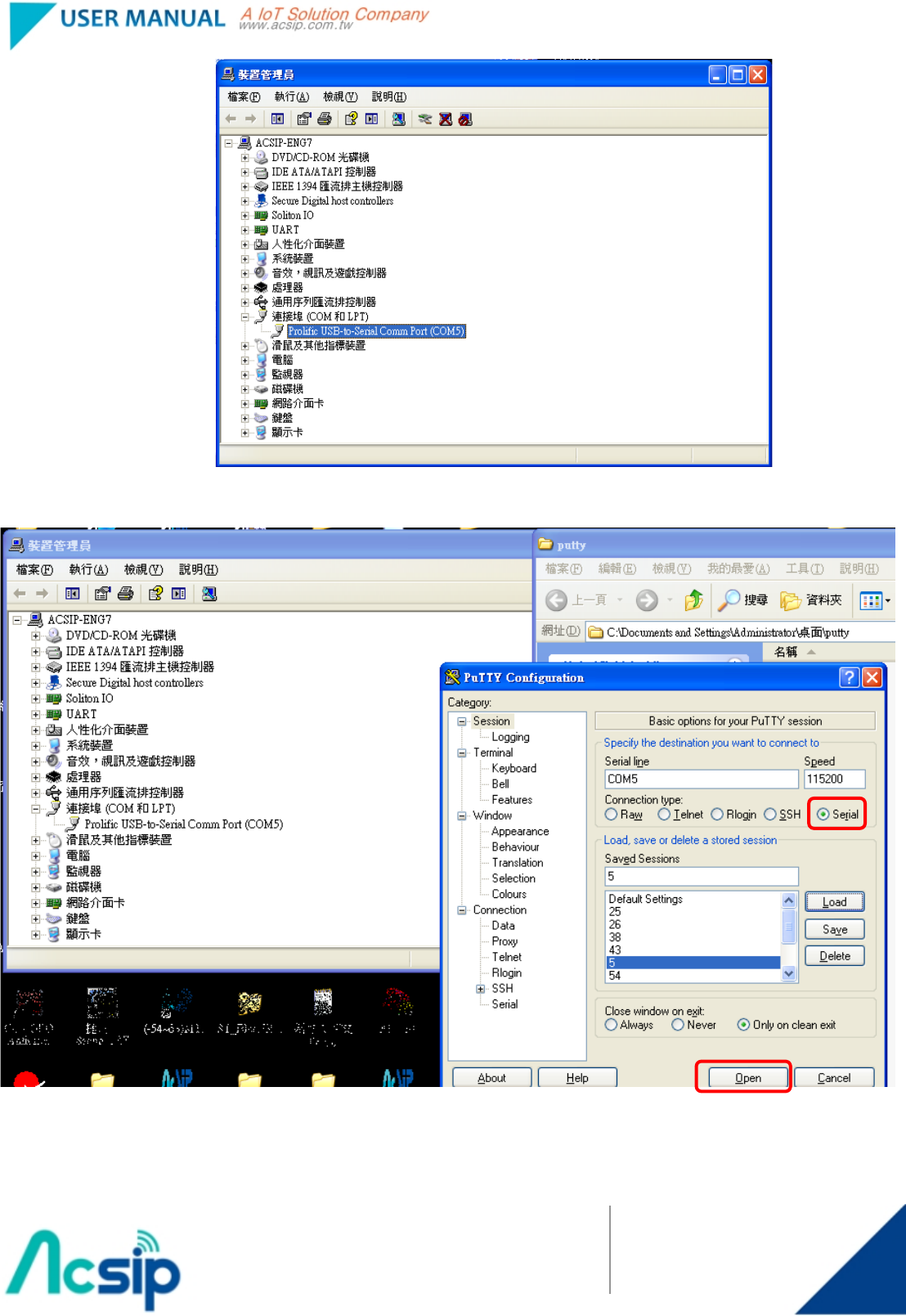

PuTTY Program
AI7687H
MT7687 IoT SiP Module
A
FEB 21,2017
7 of 9
Product Name
Version
Date
Page
1. Software operating

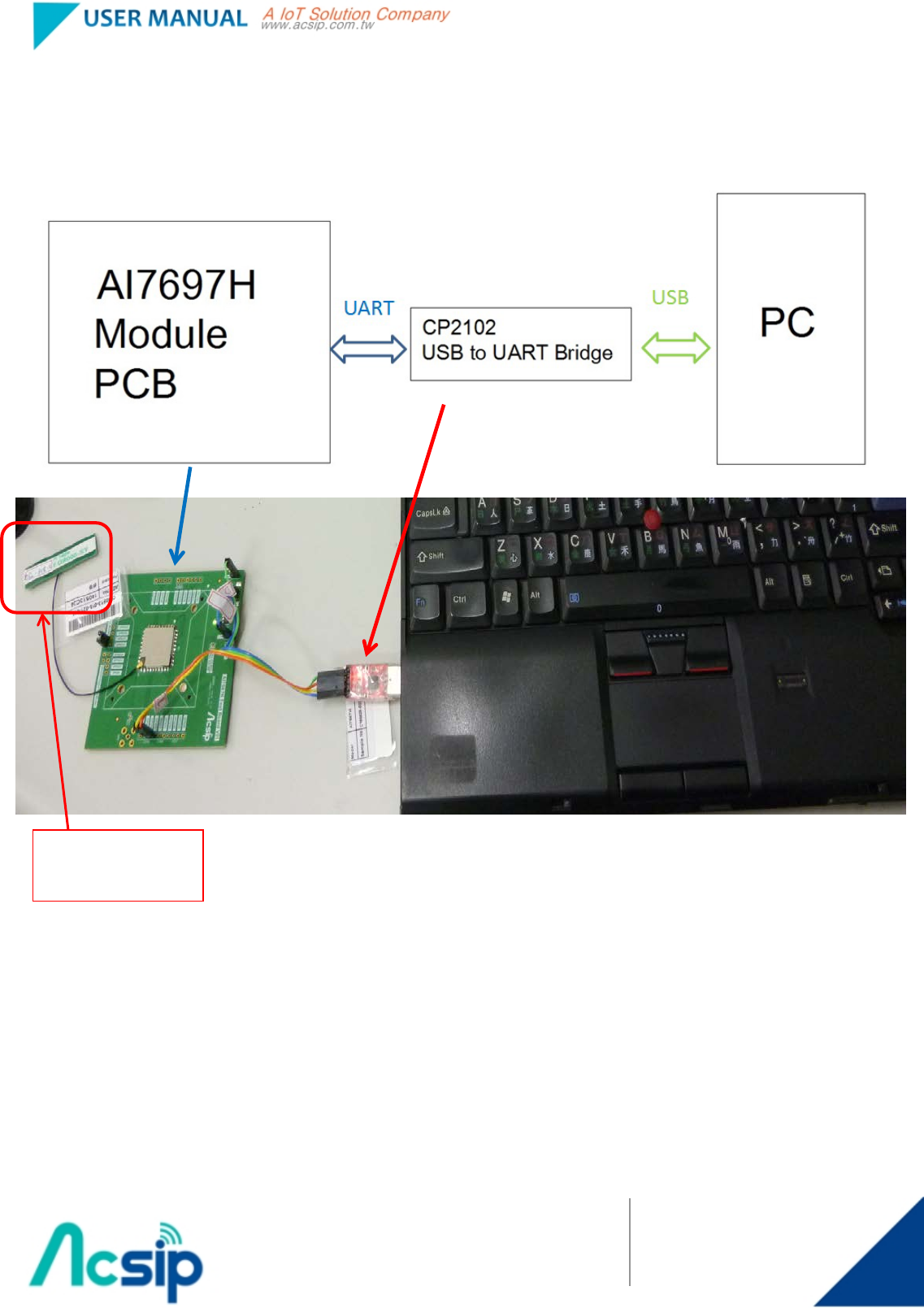

Connect the board to PC with a serial port cable.
Build the example project and download the binary file to the MT7687.

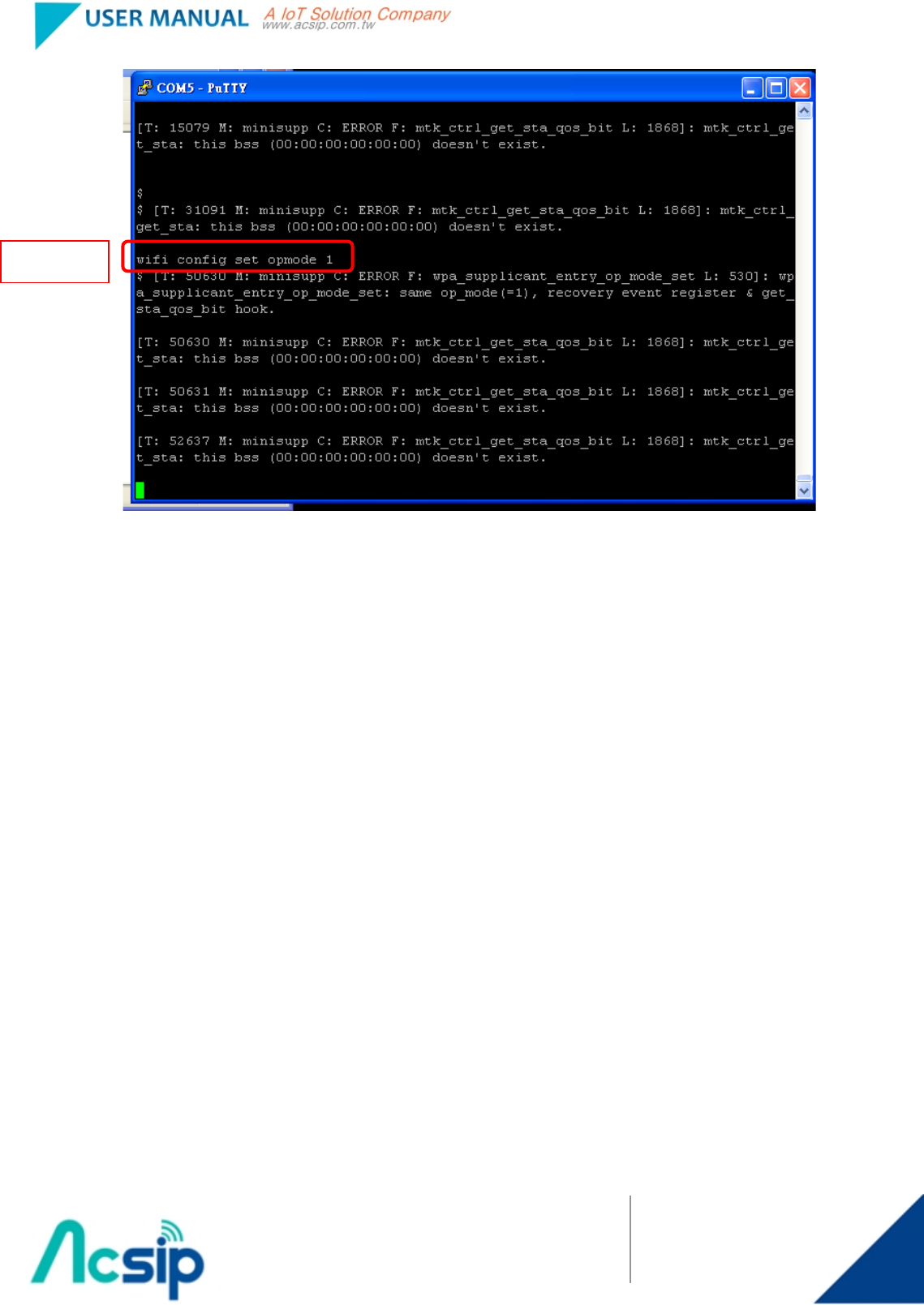

Reboot the HDK, the console will show "FreeRTOS Running" message to indicate the HDK is booting up.
Use '?' and enter to query the available command line options.
Note that the command line options are still under development and subject to change without notice.
Below are two examples to demonstrate the Wi-Fi station and Wi-Fi access point modes of MT7687.
Example 1. Wi-Fi station mode.
Find your Wi-Fi access point settings:
Before connecting to a Wi-Fi access point, the following information needs to be collected:
1. What is the SSID of your Wi-Fi access point?
2. What is the authentication mode of your Wi-Fi access point?
In general, it is WPA PSK or WPA2 PSK. If you want to use different settings, please read
the table 'Table 1. Supported AuthMode(s)' at the bottom of this example.
3. What is the password of your Wi-Fi access point?
4. What is the encryption mode of your Wi-Fi access point?
In general, AES or TKIP is used. If you want to use different settings, please read the table
'Table 2. Supported EncrypType(s)' at the bottom of this example.
Once you have this information, use the following commands to configure the HDK. This
example assumes you want to use either WPA PSK or WPA2 PSK,your packets are encrypted
Command
AI7687H
MT7687 IoT SiP Module
A
FEB 21,2017
8 of 9
Product Name
Version
Date
Page
with TKIP or AES, the access point SSID is 'myhome' (length 6), and the password of WPA or
WPA2 is '12345678' (length 8).
config write STA AuthMode 9
config write STA EncrypType 8
config write STA Ssid myhome
config write STA SsidLen 6
config write STA WpaPsk 12345678
config write STA WpaPskLen 8
config write common OpMode 1
Press the reset button on the LinkIt 7687 HDK to restart the system.
Boot up with the new configuration.
If everything is correct, similar messages will be shown in the console to notify your HDK has
received an IP address.
************************
DHCP got IP:10.10.10.101
************************
PING from the LinkIt 7687 HDK (SDK v3.1.0)
If the IP address is fetched and the network is operating, the LinkIt 7687 can ping other
devices/computer on the network with the following command in the console.
f 11 10.10.10.254 3 64
