Accton Technology 3CRSHPW796 Wireless LAN Cardbus User Manual Revised

Accton Technology Corp Wireless LAN Cardbus Users Manual Revised

Contents

Users Manual Revised

Wireless LAN PC Card User Guide
3CRSHPW796
Wireless LAN PC Card
http://www.3com.com/
Published September 2002
DUA0079-6AAA02
3Com Corporation
5400 Bayfront Plaza Santa Clara, California 95052-8145
Copyright © 2002, 3Com Technologies. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used
to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Technologies.
3Com Technologies reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part
of 3Com Technologies to provide notification of such revision or change.
3Com Technologies provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not
limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make
improvements or changes in the product(s) and/or the program(s) described in this documentation at any time.
If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as
a separate document, in the hard copy documentation, or on the removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are
unable to locate a copy, please contact 3Com and a copy will be provided to you.
UNITED STATES GOVERNMENT LEGEND
If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the
following:
All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as “Commercial
Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided
with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as
provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion
of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide.
Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries.
3Com and the 3Com logo are registered trademarks of 3Com Corporation.
IEEE and 802 are registered trademarks of the Institute of Electrical and Electronics Engineers, Inc.
Intel and Pentium are registered trademarks of Intel Corporation. Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of
Microsoft Corporation. Novell and NetWare are registered trademarks of Novell, Inc. UNIX is a registered trademark in the United States and other
countries, licensed exclusively through X/Open Company, Ltd.
Netscape Navigator is a registered trademark of Netscape Communications.
JavaScript is a trademark of Sun Microsystems.
All other company and product names may be trademarks of the respective companies with which they are associated.
ENVIRONMENTAL STATEMENT
It is the policy of 3Com Corporation to be environmentally-friendly in all operations. To uphold our policy, we are committed to:
Establishing environmental performance standards that comply with national legislation and regulations.
Conserving energy, materials and natural resources in all operations.
Reducing the waste generated by all operations. Ensuring that all waste conforms to recognized environmental standards. Maximizing the recyclable
and reusable content of all products.
Ensuring that all products can be recycled, reused and disposed of safely.
Ensuring that all products are labelled according to recognized environmental standards.
Improving our environmental record on a continual basis.
End of Life Statement
3Com processes allow for the recovery, reclamation and safe disposal of all end-of-life electronic components.
Regulated Materials Statement
3Com products do not contain any hazardous or ozone-depleting material.
Environmental Statement about the Documentation
The documentation for this product is printed on paper that comes from sustainable, managed forests; it is fully biodegradable and recyclable, and is
completely chlorine-free. The varnish is environmentally-friendly, and the inks are vegetable-based with a low heavy-metal content.
Contents
1Installing Your Wireless LAN PC Card and 3Com Wireless Card Manager 5
Installation CD 5
Windows XP, 2000, Me, and 98 SE 5
Confirming Device Installation 6
Installing 3Com Wireless Card Manager 6
Using Wireless Card Manager 6
Wireless LAN PC Card LED Indicators 6
2Troubleshooting 7
Diagnosing Problems 7
Uninstalling the PC Card 7
Uninstalling Wireless Card Manager 8
Updating the Wireless LAN PC Card Driver 9
Windows XP and 2000 9
Windows Me and 98 SE 9
ATechnical Support 11
Online Technical Services 11
World Wide Web Site 11
3Com Knowledgebase Web Services 11
3Com FTP Site 11
Support from Your Network Supplier 12
Support from 3Com 12
Returning Products for Repair 12
Regulatory
Compliance Information 13
FCC Part 15 Notice (Applicable to use within the USA) 13
Unintentional Radiator 13
Manufacturer’s Declaration of Conformity 14
Industry Canada Notice (Applicable for use within Canada) 14
Avis de conformité à la réglementation d’Industrie Canada 14
Industry Canada (IC) Emissions Compliance Statement 14
Avis de conformité à la réglementation d’Industrie Canada 14
Safety Notice 14
European Community CE Notice 15
Contents
5
1Installing Your Wireless LAN PC Card
and 3Com Wireless Card Manager
Installation CD
The Installation CD contains:
■Setup programs and drivers for Windows XP, 2000, Millennium Edition (Windows
Me), and 98 Second Edition (SE).
■3Com Wireless Card Manager
■Warranty Information
■This Wireless LAN PC Card User Guide
■Wireless LAN PC Card Installation Guide
■Adobe Acrobat Reader
Windows XP, 2000, Me, and 98 SE
If you are accessing this guide as part of your PC Card installation, skip to step 3 below.
1With the computer on and Windows running, insert the Installation CD into the
CD-ROM drive. The auto-start feature starts the installation. If nothing happens
within five seconds, click Start > Run and type d:\setup.exe (where d: is your
CD-ROM drive).

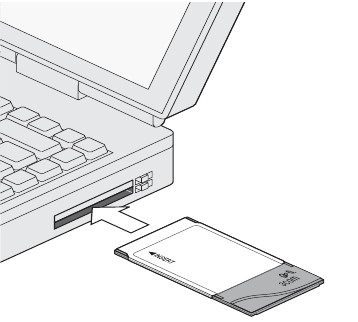

2Insert your Wireless LAN PC Card as indicated below:
3Respond to the prompts as they appear.
If you are prompted for the drivers, enter d:\ where d: is the location of the CD-ROM
drive where the Installation CD is inserted.
4During the installation process, you may receive prompts for the Windows installation
CD. Insert the CD for your Windows operating system and indicate the correct path.
Your computer goes through a brief installation process during which it displays
several windows indicating what is currently installing.
5Restart the computer whenever you are prompted.
1Installing Your Wireless LAN PC Card and 3Com Wireless Card Manager
6
Confirming Device Installation
1With your PC Card installed in the computer, double-click the My Computer icon.
If you are running Windows XP, click Start > Control Panel and go to step 3.
2Double-click the Control Panel icon.
3Double-click the System icon. The System Properties window appears, detailing your
system setup.
4Click the Device Manager tab. A list of devices appears, arranged by type.
If you are using Windows XP or 2000, click the Hardware tab and click
Device Manager.
5Double-click Network Adapters. An entry for 3CRSHPW796 will appear.
6Double-click the entry to display a description of the current status.
The device status should indicate “This device is working properly.”
7Close the windows you have opened until you return to the desktop.
Installing 3Com Wireless Card Manager
1If you restarted your computer after installing the Wireless LAN PC Card and the
install program did not start automatically, click Start > Run and type d:\setup.exe
(where d: is your CD-ROM drive).
2From the Installation CD, select Install 3Com Wireless Card Manager and follow the
prompts, removing the Installation CD and restarting your computer whenever you
are prompted.
If the 3Com icon was not placed in the system tray when you installed the Wireless LAN
PC Card, start the 3Com Launcher by selecting Start > Programs > 3Com Mobile >
3Com Wireless Card Manager.
Using Wireless Card Manager
Refer to the 3Com Wireless Card Manager help for detailed information about how to use
Wireless Card Manager.
Wireless LAN PC Card LED Indicators
Power/Activity LED
Condition Description
Off The computer does not recognise the Wireless LAN PC Card or the
computer is powered off.
Green The Wireless LAN PC Card has power.
Green Flashing Data transfer is taking place.
Link LED
Condition Description
Off The PC Card is not associated with a Wireless network.
Green The PC Card is associated with a Wireless network.
7
2Troubleshooting
Diagnosing Problems
If you have difficulty using the Wireless LAN PC Card, try the solutions in the following
table. If you continue to experience difficulty, see the next two sections,“Uninstalling the
PC Card” and “Uninstalling Wireless Card Manager”
Uninstalling the PC Card
Previous installations or interrupted installation attempts sometimes leave problems that
affect card operation. Possible problems include:
■Wireless LAN PC Card fails to function.
■Operating system does not detect the Wireless LAN PC Card.
■System issues a warning tone at start-up.
If the installation is unsuccessful, your best course may be to completely uninstall the card
and repeat the installation procedure.
Problem Solutions
Wireless LAN PC Card Power/Activity
LED is off ■Make sure the PC Card is properly inserted in the slot.
■Check the Wireless LAN PC Card icon in the Windows control panel and make sure the PC
Card type can be recognized.
■Check “Confirming Device Installation” on page 6.
Wireless LAN PC Card installs as an
unknown device Remove the unknown device from the Device Manager and repeat the installation procedure.
Make sure you insert the 3Com CD when the installation calls for it and that you wait for it to
come up to speed in the drive.
Installation program does not finish
or the driver fails to load Use the Device Manager to resolve resource conflicts that may exist. Select System from the
Control Panel, and then click the Device Manager tab.
Network association is intermittent Try reorienting the computer. For best use of the antenna:
■Keep the area around the antenna clear from materials that could block radio transmission,
such as metal objects, electronic devices, and cordless telephones.
■If the signal is weak, change the position of the computer slightly.
■If necessary, move your computer a few inches to find a better signal.
Computer operating system does not
recognize the card ■Make sure the card is properly inserted in the slot and Cardbus support is installed.
■Windows XP, 2000, Me, and 98 SE: Check whether the computer has a Plug-and-Play BIOS.
No network association exists when
the computer becomes active again
after being in sleep mode or after the
Wireless LAN PC Card is removed and
reinserted
Log out and log in again, or restart the computer to restore the connections.
CAUTION: Exit any networking applications and remove the Wireless LAN PC Card
before uninstalling the card.
2Troubleshooting
8
1Make sure you have exited any networking applications.
2Use the standard operating system procedure to remove the card driver.
The procedure for Windows XP, 2000, Windows Me, and Windows 98 SE, is
shown below.
aIf you are using Windows 2000, Me, or 98 SE, click Start > Settings >
Control Panel.
If you are using Windows XP, click Start > Control Panel.
bDouble-click the System icon.
If you are using Windows XP or 2000, click the Hardware tab.
The System Properties window appears, detailing your system setup.
cClick Device Manager.
A list of devices appears, arranged by type.
dDouble-click Network Adapters.
Select the entry for 3CRSHPW796.
eIf you are using Windows 98 SE and ME select Remove.
If you are using Windows XP or 2000, from the Action menu, select Uninstall.
fClick OK.
gClose the open windows until you return to the desktop.
3Remove the adapter.
4Restart the computer.
Uninstalling Wireless Card Manager
Normally, you would not uninstall the Wireless Card Manager software; however, in case a
problem arises, you may want to uninstall and reinstall it.
You can uninstall Wireless Card Manager any time following the installation. The uninstall
removes desktop icons, registry entry files, and files used by the adapter.
1If you are using Windows 2000, Me, or 98 SE, click Start > Settings > Control Panel.
If you are using Windows XP, click Start > Control Panel.
2Click Add/Remove Programs.
3Select 3Com Wireless Card Manager.
4Click Change/Remove.
5Click Remove.
6When the uninstall is complete, remove the adapter and restart your computer.
CAUTION: To avoid damaging the card, do not pull on the antenna. Refer to your
computer’s documentation for PC Card removal instructions.
Updating the Wireless LAN PC Card Driver
9
Updating the Wireless LAN PC Card Driver
To update your Wireless LAN PC Card driver software, find your operating system below,
then follow the procedure.
Windows XP and 2000
1Insert your Wireless LAN PC Card into the PC card slot.
2If you are using Windows 2000, select Start > Settings > Control Panel, then double-
click the System icon.
If you are using Windows XP, select Start > Control Panel, then double-click the
System icon.
3Select the Hardware tab and click Device Manager.
4Double-click Network Adapters.
5In Windows 2000, double-click the appropriate entry for 3CRSHPW796, select the
Driver tab, and click Update Driver.
In Windows XP, right-click the appropriate entry for 3CRSHPW796 and click Update
Driver.
6The Hardware Update Wizard window appears. Insert the 3Com Installation CD.
7In Windows 2000, click Display list of known drivers so that I can choose a specific
driver and click Next.
In Windows XP, select Install from a list or specific location (Advanced) and click Next.
8In Windows XP, select Don’t search. I will choose the driver to install and click Next.
9When you are prompted to select an adapter, click Have Disk… and enter the drive
letter for the 3Com Installation CD or enter the directory on your hard drive where the
updated driver is located. Click Continue.
10 Select Wireless LAN PC Card and click Next. Follow the prompts through the
remainder of the driver update.
11 When the installation has completed, click Finish.
Windows Me and 98 SE
1Insert your Wireless LAN PC Card into the PC card slot.
2From the Windows Start menu, select Settings, then select Control Panel.
3Double-click the System icon, then select Device Manager.
4In the Device Manager window, double-click the Network Adapters list.
5Select the 3CRSHPW796 entry and click Properties.
6Select Driver and click Update Driver.
7The Hardware Update Wizard window appears. Insert the 3Com Installation CD.
8In the Update Device Driver Wizard, follow the prompts to install the upgrade.
9When you are prompted to select an adapter, click Have Disk… and enter the drive
letter for the 3Com Installation CD or enter the directory on your hard drive where the
updated driver is located. Click Continue.
10 When prompted, click Restart for the changes to take effect.
2Troubleshooting
10
11
ATechnical Support
3Com provides easy access to technical support information through a variety of services.
This appendix describes these services.
Information contained in this appendix is correct at time of publication. For the most
recent information, 3Com recommends that you access the 3Com Corporation World
Wide Web site.
Online Technical Services
3Com offers worldwide product support 24 hours a day, 7 days a week, through the
following online systems:
■World Wide Web site
■3Com Knowledgebase Web Services
■3Com FTP site
World Wide Web Site
To access the latest networking information on the 3Com Corporation World Wide Web
site, enter this URL into your Internet browser:
http://www.3com.com/
This service provides access to online support information, such as technical
documentation and a software library, as well as support options that range from
technical education to maintenance and professional services.
3Com Knowledgebase Web Services
The 3Com Knowledgebase is a database of technical information to help you install,
upgrade, configure, or support 3Com products. The Knowledgebase is updated daily with
technical information discovered by 3Com technical support engineers. This
complimentary service, which is available 24 hours a day, 7 days a week to 3Com
customers and partners, is located on the 3Com Corporation World Wide Web site at:
http://knowledgebase.3com.com
3Com FTP Site
Download drivers, patches, software, and MIBs across the Internet from the 3Com public
FTP site. This service is available 24 hours a day, 7 days a week.
To connect to the 3Com FTP site, enter the following information into your FTP client:
■Hostname: ftp.3com.com
■Username: anonymous
■Password: <your Internet e-mail address>
With Web browser software, such as Netscape Navigator and Internet Explorer,
you do not need a user name and password.
ATechnical Support
12
Support from Your Network Supplier
If you require additional assistance, consult your network supplier. Many suppliers are
authorized 3Com service partners who are qualified to provide a variety of services,
including network planning, installation, hardware maintenance, application training, and
support services.
When you consult your network supplier, have the following information ready:
■Product model name, part number, and serial number
■A list of system hardware and software, including revision levels
■Diagnostic error messages
■Details about recent configuration changes, if applicable
If you are unable to consult your network supplier, see the following section on how to
contact 3Com.
Support from 3Com
If you are unable to obtain assistance from the 3Com online technical resources or from
your network supplier, 3Com offers technical telephone support services. To find out more
about your support options, go to the Web site associated with your region of the world
shown below.
When you contact 3Com for assistance, have the following information ready:
■Product model name, part number, and serial number
■A list of system hardware and software, including revision levels
■Diagnostic error messages
■Details about recent configuration changes, if applicable
Returning Products for Repair
Before you send a product directly to 3Com for repair, you must first obtain an
authorization number. Products sent to 3Com without authorization numbers will be
returned to the sender unopened, at the sender’s expense. To obtain an authorization
number, go to the Web site listed below and select your region:
http://www.3com.com/support/en_US/repair
Region URL for Regional Web Site
Asia and the Pacific Rim http://ap.3com.com/support/
Africa, Europe, and the
Middle East emea.3com.com/support/supportnumbers.html
Latin America lat.3com.com/lat/support/index.html
(Also, you can telephone 800.998.2112.)
North America 3com.com
(Also, you can telephone 847.262.0070.)
13
Regulatory
Compliance Information
NOTE: This product contains encryption. It is unlawful to export out of the U.S. without obtaining a U.S.
Export License.
FCC Part 15 Notice (Applicable to use within the USA)
CAUTION: FCC Radio-Frequency Exposure Notice
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
End-users must follow the specific operating instructions for satisfying RF exposure compliance.
This product does not contain any user serviceable components. Any unauthorized product changes or
modifications will invalidate 3Com’s warranty and all applicable regulatory certifications and approvals.
Unintentional Radiator
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device as
applicable, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
■Reorient or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2The user may find the following booklet prepared by the Federal Communications Commission helpful:The
Interference Handbook
This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Stock No. 004-
000-00345-4.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Regulatory Compliance Information
14
Manufacturer’s Declaration of Conformity
3Com Corporation, Corporate Headquarters, 5400 Bayswater Plaza, Santa Clara, CA 95052-8145, USA
Declares that the Product:
Date: January 31, 2002
Brand Name: 3Com Corporation
Model Number: 3CRSHPW796
Equipment Type: 802.11b Wireless PC Card
Complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1this device may not cause harmful interference, and
2this device must accept any interference received, including interference that may cause undesired
operation.
Industry Canada Notice (Applicable for use within Canada)
This device complies with Canadian RSS-210.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away
from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not
emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada’s website www.hc-sc.gc.ca/rpb.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil est conform à la norme CNR-210 du Canada.
Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une licence, cet appareil doit être
utilisé à l’intérieur seulement et devrait êtra placé loin des fenêtres afin de fournir un écran de blindage maximal.
L’installateur du présent matériel radio doit s’assurer que l’antenne est située ou pointée de manière à ce que
cette derniére n’émette pas de champs radioélectriques supérieurs aux limites spécifiées par Santé Canada pour
le grand public; condulter le Code de sécurité 6, disponible sur le site Web de Santé Canada, à l’adresse
suivante: www.hc-sc.gc.ca/rpb.
Industry Canada (IC) Emissions Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe B est conform à la norme NMB-003 du Canada.
Safety Notice
This device has been tested and certified according to the following safety standards and is intended for use only
in Information Technology Equipment which has been tested to these or other equivalent standards:
UL Standard 60950 (3rd Edition)/ CSA C22.2 No. 60950
IEC 60950
EN 60950
3Com Corporation 3CRSHPW796
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
European Community CE Notice
15
European Community CE Notice
Marking by the symbol
indicates compliance with the essential requirements of Directive 73/23/EC and the essential requirements of
articles 3.1(b), 3.2 and 3.3 of Directive 1999/5/EC. Such marking is indicative that this equipment meets or
exceeds the following technical standards:
■EN 300 328-2 — Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission
systems; data transmission equipment operating in the 2,4GHz ISM band and using spread spectrum
modulation techniques
■ETN 301 489-17: V.1.1.1 (09-2000) — Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific
conditions for Wideband data and HIPERLAN equipment
■EN 60950 — Safety of information technology equipment, including electrical business equipment.
Due to frequency restrictions, it is necessary to select your country before using this radio device. Refer to
your 3Com Wireless LAN Manager online help for details.
3Com Wireless LAN PC Card User Guide
3CRSHPW796
Published September 2002
Regulatory Compliance Information
16

Navigation menu
