KER25U
Quaick Installation Guide
Wireless Dual Band Router
This product is specially designed to satisfy all your wireless
demand at home, office, and small business. It’s not only
with practical functions and excellent performance, but also
easy management.
KER25U is a multi-functional network product combined
with dual band AP, 4-port switch, and NAT router, and
complied with IEEE 802.11ac with up to 867Mbps speeds.
Meanwhile, it downward complied with IEEE 802.11a/b/n.
Package Contents
One ECW5350 Wireless Dual Band Router
One 12V DC Adaptor
One Quick Installation Guide
One RJ-45 Ethernet Cable
Product Brief

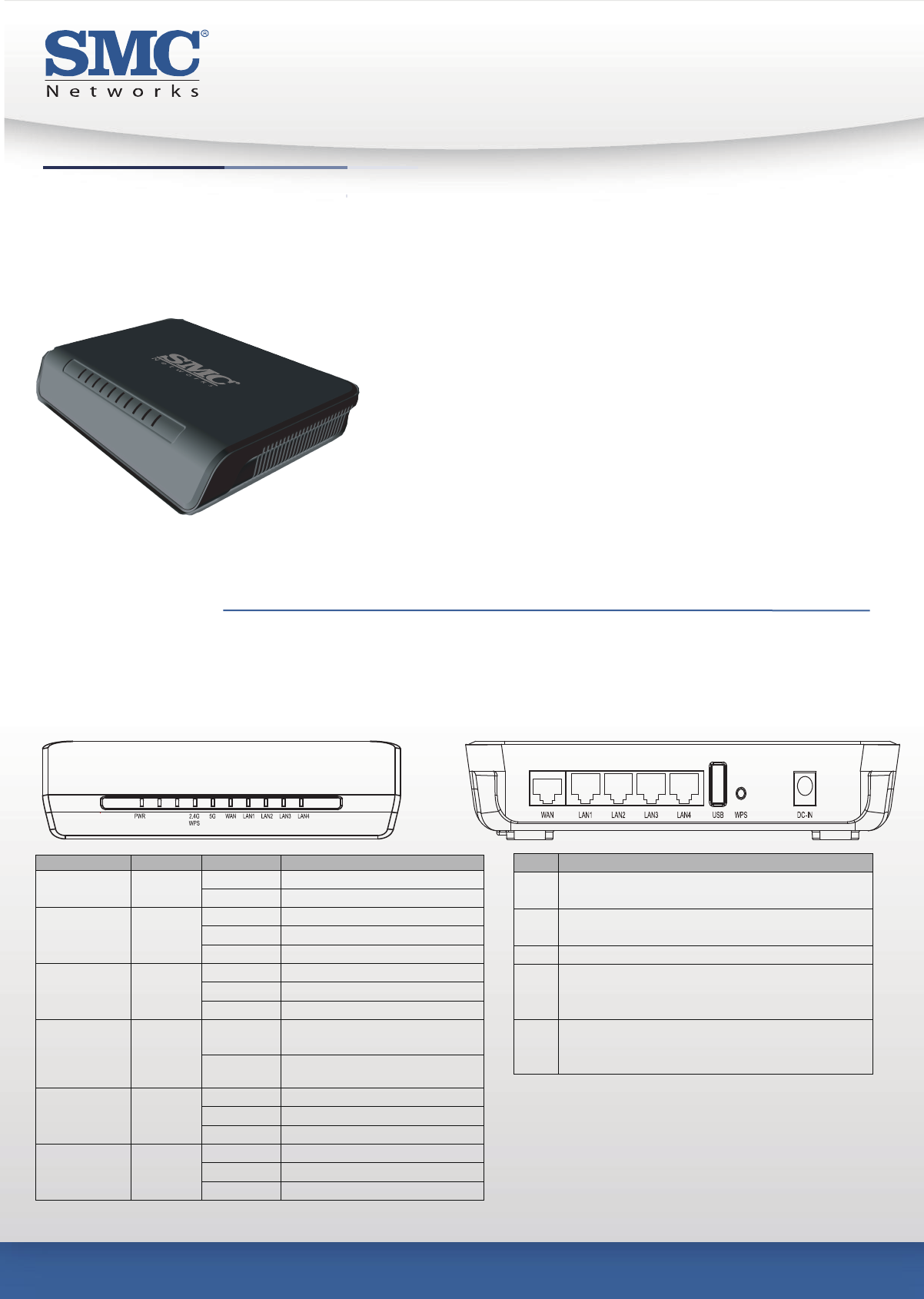

Front Panel Back Panel
1-1 1-2
LED Indicative
Color
Status
Description
POWER (PWR) Green Solid Light Power on
Light off
Power off
WAN Green
Solid Light
Link successfully
Blinking
Data transmitting
Light off
Link off
LAN 1-4 Green
Solid Light
Link successfully
Blinking
Data transmitting
Light off Link off
WPS Green
Solid Light
(one minute)
Connection succeeded under WPS
Blinking
Negotiation is in progress under
WPS
WLAN 2.4G Green
Solid Light
Wireless On
Blinking
Data transmitting
Light off
Wireless Off
WLAN 5G Green
Solid Light
Wireless On
Blinking
Data transmitting
Light off
Wireless Off
Port Function
WAN Wide Area Network port; Connect with Ethernet cable to a local
area network such as xDSL/Cable Modem or LAN network
LAN
1-4
Local Area Network port; Connect with Computer Lan card or
other Ethernet network devices
USB USB 2.0 port; Connect with USB device
WPS Wi-Fi Protected Setup; Press WPS button till WPS blinking as
negotiation with LAN card successfully, then WPS LED light goes
off. If negotiation with LAN card fails, WPS will also go off.
DC-IN Power jack; Connect with power outlet to supply power to the
router. (To avoid the risk of damage the router, please do not use
power adaptor not packaged with the router.)
-
Switches | Wireless | Broadband | Carrier Ethernet | Network Management
www.smc.com
www.smc asia.com
Connect Your World

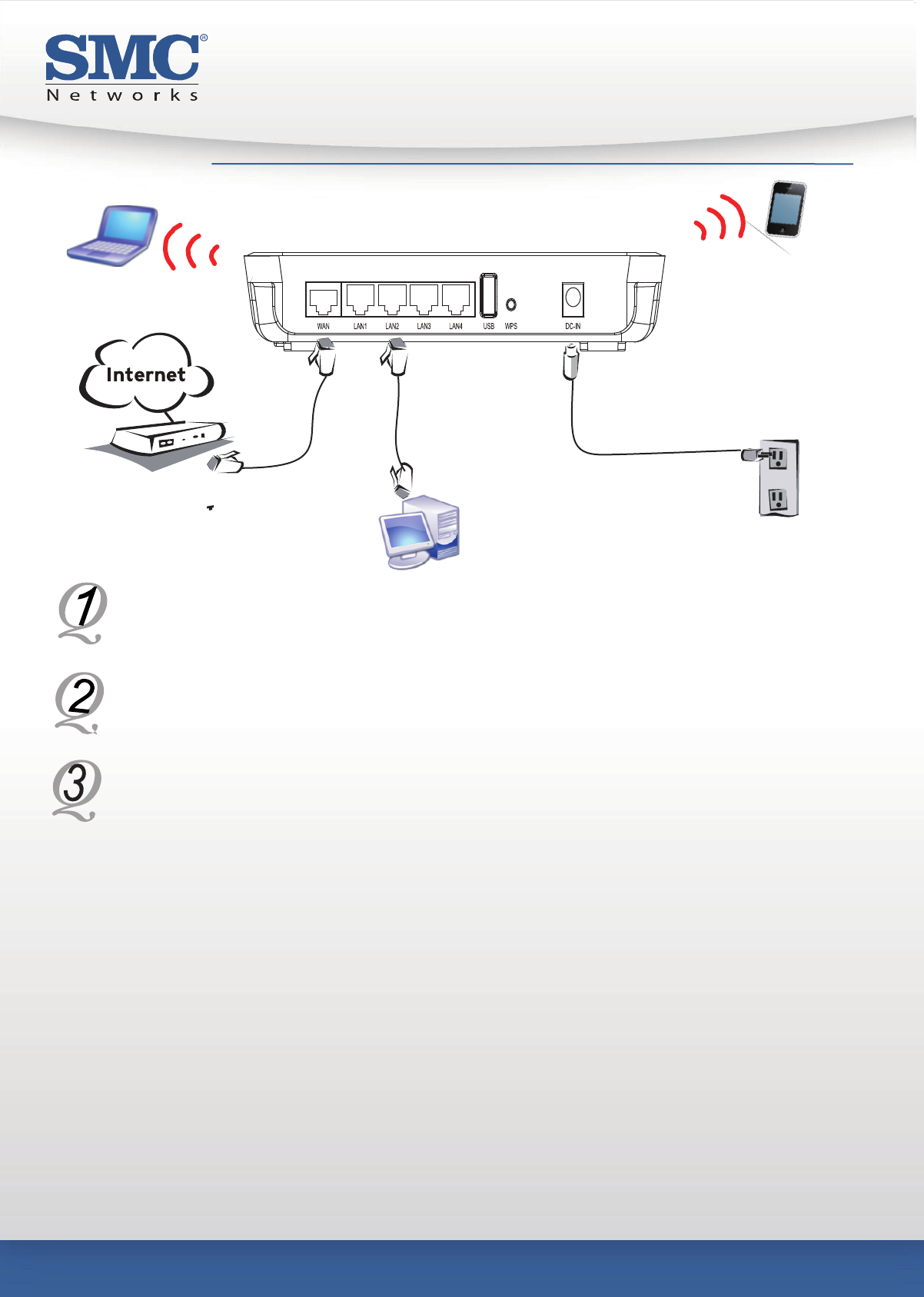

Installation 2-1
Set up WAN Connection
Plug Ethernet cable to WAN port of KER25U, and the other side of cable to xDSL/Cable
Modem or LAN network
Set up LAN Connection
Plug another Ethernet cable (not included) to your computer or other Ethernet network
devices, and the other side of Ethernet cable to any of LAN 1 to LAN4 on KER25U
Power on the Router
Connect power jack of power adaptor to the router, and plug the power adaptor into an
outlet. KER25U will be power on automatically and ready for your use.
