User Manual
– 1 –

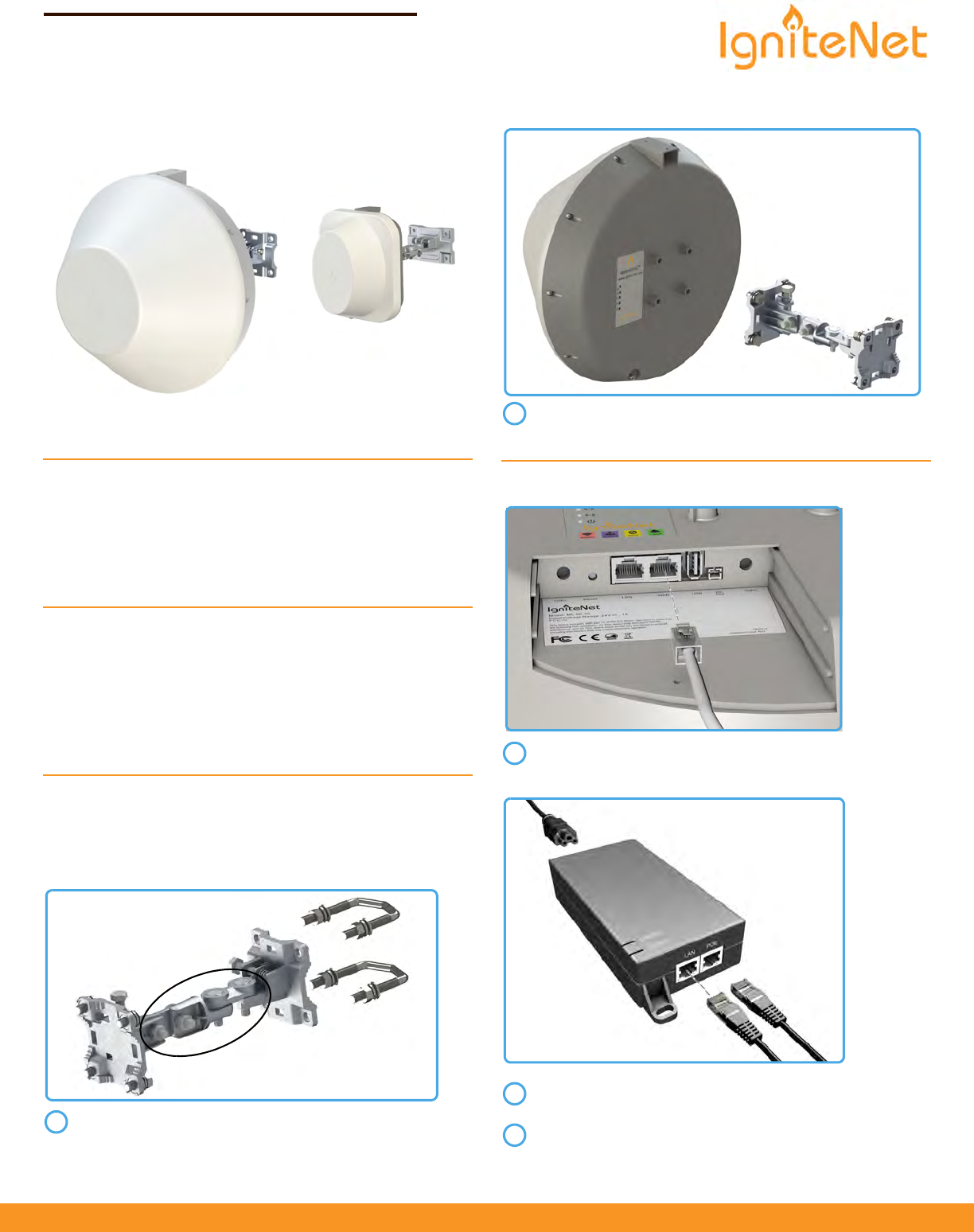

Unboxing
After opening the box, you will find…
◆MetroLinq (ML2.5-60-35 or ML2.5-60-19)
◆Bracket Kit
◆POE Power Supply
◆Power Cable
Tools/Items Required
◆13 mm Socket Wrench
◆Flat-Head Screwdriver
◆Ethernet Cables
◆(Optional) Alignment Scope ICC-SCOPE-9x50
For helpful training and user-case information, please go to
ignitenet.com/support
Assembly
The MetroLinq bracket is designed for wall and pole mounting
(25 mm - 75 mm pole diameter). Choose what is best for your
location and select hardware accordingly.
Power Up
Welcome to MetroLinq
Interference-Free Gigabit Wireless
Ensure all four position-locking bolts are tight before
installing.
1
Install the bracket onto MetroLinq using four M8 bolts,
lock washers, and flat washers.
Connect an Ethernet cable from the MetroLinq WAN port
(right-side RJ-45) to the POE port on the power supply.
Connect Ethernet cable from the “LAN” port on the power
supply to your LAN device.
Connect the power cord to a nearby AC power source.
2
1
2
3
MetroLinq 60
E042016-CS 15020000xxxxA R01
Quick Star t Guide
MetroLinq2.5 Outdoor 60GHz PTP + 5 GHz
ML2.5-60-35 / ML2.5-60-19
www.ignitenet.com
Quick Start Guide
– 2 –

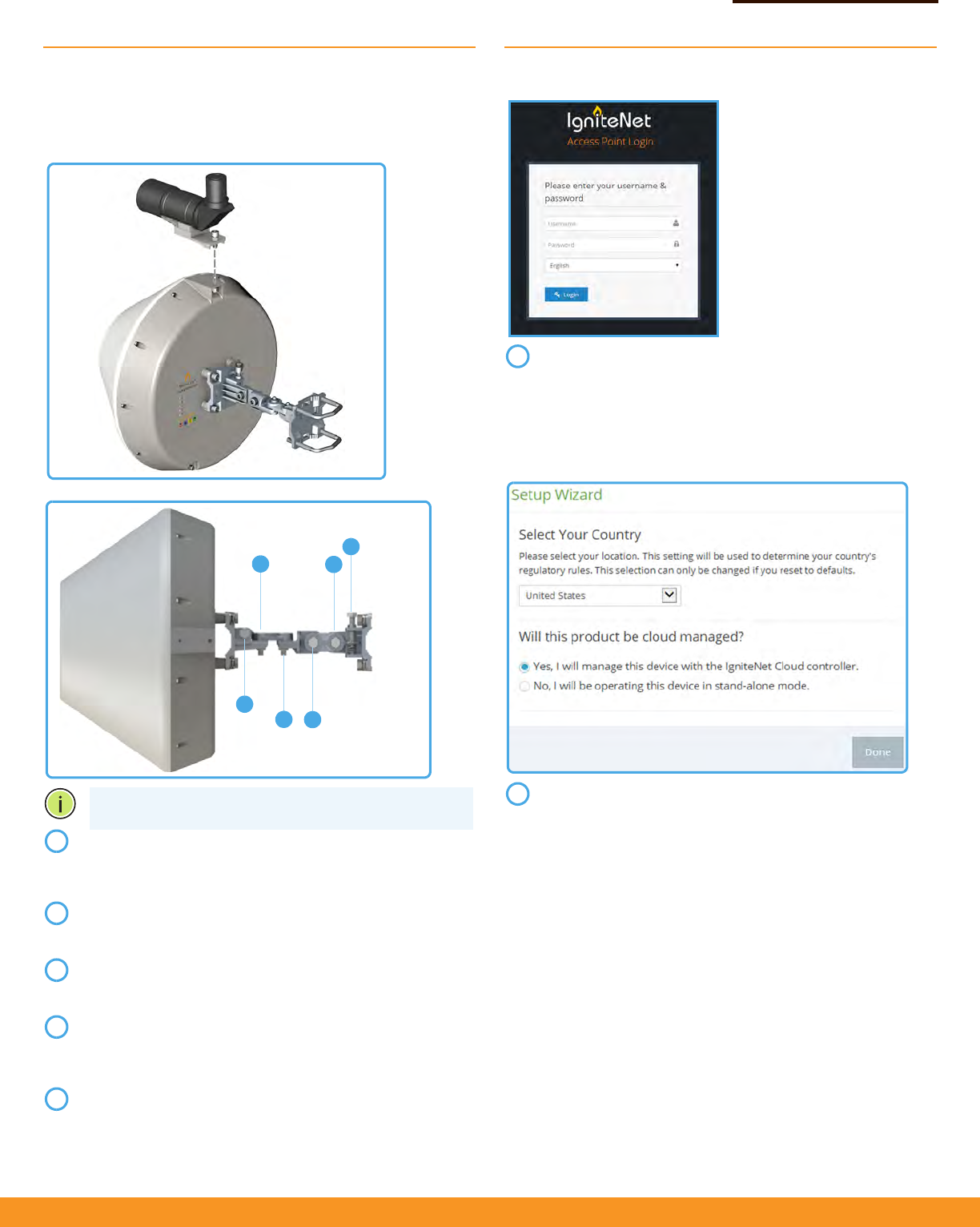

Alignment
IgniteNet strongly recommends using the ICC-SCOPE-9x50
Alignment Scope for alignment. To install, place the scope on top
of the MetroLinq housing and secure it with its thumb screw.
Software
For more configuration details and training, please go to
ignitenet.com/support
Note:
Do not adjust bolts A and B without first loosening 1
and 4 respectively.
Loosen coarse adjustment bolts 2 and 3 and set initial
alignment. Don’tworry, you don’t have to be too accurate
yet. After you have set the coarse alignment, tighten bolts 2
and 3.
Loosen the horizontal fine-tune adjustment bolt 4. Use fine-
tune bolt "B" to optimize the horizontal position. Re-tighten
bolt 4.
Loosen the vertical fine-tune adjustment bolt 1. Use fine-
tune bolt "A" to optimize the vertical position. Re-tighten
bolt 1.
Initial alignment should be based on optical or visual
alignment. After you achieve this, repeat steps 2 and 3 while
watching the 60 GHz signal strength LED. Optimize position
to the LED indicator.
Ensure all bolts are fully tightened, remove the alignment
scope (if installed), and enjoy Gigabit interference-free
wireless.
2
14
A23
B
1
2
3
4
5
To configure your MetroLinq, connect your computer to the
LAN port on the device and configure the IP subnet to
match the default IP address of 192.168.1.20 Once
configured, direct your web browser to 192.168.1.20 and log
in.
username: root
password: admin123
After you have logged in, follow the steps in the Setup
Wizard to configure the device for your network.
1
2
Quick Start Guide
– 3 –
Safety and Regulatory Information
FCC Class B
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
◆Reorient or relocate the receiving antenna
◆Increase the separation between the equipment and receiver
◆Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected
◆Consult the dealer or an experienced radio/TV technician for help
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Operation within the 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range
is restricted to an indoor environment. The 5600-5650MHz band is
disabled by software during manufacturing and cannot be changed by
the end user. This device meets all the other requirements specified in
Part 15E, Section 15.407 of the FCC Rules.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 48 cm between the radiator and your
body.
Note: The country code selection is for non-US models only and is not
available on all US models. Per FCC regulation, all Wi-Fi products
marketed in the US must be fixed to US operation channels only.
Instructions d'installation professionnelle
1. Installation
Ce produit est destiné à un usage spécifique et doit être installé par un
personnel qualifié maîtrisant les radio-fréquences et les règles s'y
rapportant. L'installation et les réglages ne doivent pas être modifiés par
l'utilisateur final.
2. Emplacement d'installation
En usage normal, afin de respecter les exigences réglementaires
concernant l'exposition aux radio-fréquences, ce produit doit être
installé de façon à respecter une distance de 69 cm entre l'antenne
émettrice et les personnes.
3. Antenne externe
Utiliser uniquement les antennes approuvées par le fabricant.
L'utilisation d'autres antennes peut conduire à un niveau de
rayonnement essentiel ou non essentiel dépassant les niveaux limites
définis par FCC/IC, ce qui est interdit.
4. Procedure d'installation
Consulter le manuel d'utilisation.
5. Avertissement
Choisir avec soin la position d'installation et s'assurer que la puissance
de sortie ne depasse pas les limites en vigueur. La violation de cette
règle peut conduire à de sérieuses pénalites fédérales.
CE Mark
CE Mark Declaration of Conformance for EMI and Safety (EEC)
This is a class B product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to take
adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and
other countries following the EU directive 1999/5/EC) without any
limitation except for the countries mentioned below:
Country Restriction Reason/Remark
Bulgaria None General authorization required for
outdoor use and public service
France Outdoor use limited
to 10 mW e.i.r.p.
within the band
2454-2483.5 MHz
Military Radiolocation use.
Refarming of the 2.4 GHz band has
been ongoing in recent years to
allow current relaxed regulation.
Full implementation planned 2012
italy None If used outside of own premises,
general authorization is required
Quick Start Guide
– 4 –
Europe - EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE
Directive 1999/5/EC. The following test methods have been applied in
order to prove presumption of conformity with the essential
requirements of the R&TTE Directive 1999/5/EC:
◆EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Safety of Information Technology Equipment.
◆EN 300 328 V1.8.1: 2012
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Wideband transmission systems; Data transmission equipment
operating in the 2,4 GHz ISM band and using wide band modulation
techniques; Harmonized EN covering essential requirements under
article 3.2 of the R&TTE Directive.
◆EN 301 489-1 V1.9.2 (2011-09)
EN 301 489-7 V1.3.1/ 2005
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment
and services; Part 17: Specific conditions for 2.4 GHz wideband
transmission systems and 5 GHz high performance RLAN
equipment.
◆EN 55022 2010 + AC: 2011
Limits and methods of measurement of radio disturbance
characteristics of information technology equipment.
◆EN 55024: 2010
Information technology equipment immunity characteristics limits
and methods of measurement.
◆EN 62311: 2008
Assessment of electronic and electrical equipment related to
human exposure restrictions for electromagnetic fields (0 Hz - 300
GHz).
This device is a 2.4 GHz wideband transmission system (transceiver),
intended for use in all EU member states and EFTA countries, except in
France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum
authorities in order to obtain authorization to use the device for setting
up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France
and in some areas the RF output power may be limited to 10 mW EIRP in
the frequency range of 2454 - 2483.5 MHz. For detailed information the
end-user should contact the national spectrum authority in France.
The Declaration of Conformity (DoC) can be obtained from
www.ignitenet.com -> support -> download -> declarations &
certifications.
This equipment may be operated in:
Luxembourg None General authorization required for
network and service supply(not for
spectrum)
Norway Implemented This subsection does not apply for
the geographical area within a
radius of 20 km from the centre of
Ny-Ålesund
Russian
Federation None Only for indoor applications
Note:
Do not use the product outdoors in France.
Country Restriction Reason/Remark
Bulgarian
Български
С настоящето, IgniteNet декларира, че това безжично
устройство е в съответствие със съществените
изисквания и другите приложими разпоредби на
Директива 1999/5/EC.
Czech
Česky
IgniteNet tímto prohlašuje, že tento Radio LAN device je ve
shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Danish
Dansk
Undertegnede IgniteNet erklærer herved, at følgende udstyr
Radio LAN device overholder de væsentlige krav og øvrige
relevante krav i direktiv 1999/5/EF
Dutch
Nederlands
Hierbij verklaart IgniteNet dat het toestel Radio LAN device in
overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EG
Bij deze IgniteNet dat deze Radio LAN device voldoet aan de
essentiële eisen en aan de overige relevante bepalingen van
Richtlijn 1999/5/EC.
English Hereby, IgniteNet, declares that this Radio LAN device is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Estonian
Eesti
Käesolevaga kinnitab IgniteNet seadme Radio LAN device
vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
Finnish
Suomi
Valmistaja IgniteNet vakuuttaa täten että Radio LAN device
tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
French
Français
Par la présente IgniteNet déclare que l'appareil Radio LAN
device est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
German
Deutsch
Hiermit erklärt IgniteNet, dass sich dieser/diese/dieses Radio
LAN device in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet. (BMWi)
Hiermit erklärt IgniteNet die Übereinstimmung des Gerätes
Radio LAN device mit den grundlegenden Anforderungen
und den anderen relevanten Festlegungen der Richtlinie
1999/5/EG. (Wien)
Greek
Ελληνική
με την παρουσα IgniteNet δηλωνει οτι radio LAN device
συμμορφωνεται προσ τισ ουσιωδεισ απαιτησεισ και τισ
λοιπεσ σχετικεσ διαταξεισ τησ οδηγιασ 1999/5/εκ.
Hungarian
Magyar
Alulírott, IgniteNet nyilatkozom, hogy a Radio LAN device
megfelel a vonatkozó alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak.
Italian
Italiano
Con la presente IgniteNet dichiara che questo Radio LAN
device è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Quick Start Guide
– 5 –
NCC Statement (Taiwan)
低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或
使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經
發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前
項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍
受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
電磁波曝露量 MPE 標準值 1mW/cm²，本產品使用時建議應距離人體:69
cm。
TELEC Statement (Japan)
5.2/5.3GHz帯の無線LAN製品は法令により屋外では使用できません。
屋內のみでご使用ください。
All wireless LAN products in the 5.2/5.3GHz band cannot be used
outdoors. Use the product only indoors.
Warnings and Cautionary Messages
Latvian
Latviski
Ar šo IgniteNet deklarē, ka Radio LAN device atbilst
Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lithuanian
Lietuvių
Šiuo IgniteNet deklaruoja, kad šis Radio LAN device atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Maltese
Malti
Hawnhekk, IgniteNet, jiddikjara li dan Radio LAN device
jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti
oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Polish
Polski
Niniejszym IgniteNet oświadcza, że Radio LAN device jest
zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Portuguese
Português
IgniteNet declara que este Radio LAN device está conforme
com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Romanian
Romană
IgniteNet declară că acest dispozitiv fără fir respectă
cerinţele esenţiale precum şi alte dispoziţii relevante ale
Directivei 1999/5/EC.
Slovak
Slovensky
IgniteNet týmto vyhlasuje, že Radio LAN device spĺňa
základné požiadavky a všetky príslušné ustanovenia
Smernice 1999/5/ES.
Slovenian
Slovensko
IgniteNet izjavlja, da je ta radio LAN device v skladu z
bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Spanish
Español
Por medio de la presente IgniteNet declara que el Radio LAN
device cumple con los requisitos esenciales y cualesquiera
otras disposiciones aplicables o exigibles de la Directiva
1999/5/CE
Swedish
Svenska
Härmed intygar IgniteNet att denna Radio LAN device står I
överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
Turkish
Turk
IgniteNet bu kablosuz cihazın temel gereksinimleri ve 1999/
5/EC yonergesindeki ilgili koşulları karşıladığını beyan eder.
Warning:
This product does not contain any serviceable user
parts.
Warning:
Installation and removal of the unit must be carried
out by qualified personnel only.
Warning:
When connecting this device to a power outlet,
connect the field ground lead on the tri-pole power plug to a
valid earth ground line to prevent electrical hazards.
Caution:
Wear an anti-static wrist strap or take other suitable
measures to prevent electrostatic discharge when handling this
equipment.
Caution:
Do not plug a phone jack connector in the RJ-45
port. This may damage this device.
Caution:
Use only twisted-pair cables with RJ-45 connectors
that conform to FCC standards.
Quick Start Guide
– 6 –
Hardware Specifications
Chassis
Size (L x W x H:)
Weight
Temperature
Humidity
ML2.5-60-35:
350 x 350 x 200 mm (13.78 x 13.78 x 7.87 in.)
ML2.5-60-19:
190 x 190 x 120 mm (7.48 x 7.48 x 4.72 in.)
ML2.5-60-35: 3.5 kg (7.72 lb)
ML2.5-60-19: 2 kg (4.41 lb)
Operating: -30 °C to 55 °C (-22 °F to 131 °F)
Storage: -40 °C to 70 °C (-40 °F to 158 °F)
Operating: 10% to 90% (non-condensing)
Network Interfaces
Ports WAN RJ-45 Port: 1000BASE-T, passive PoE
LAN RJ-45 Port: 1000BASE-T
60 GHz Radio IEEE 802.11ad
5 GHz Radio IEEE 802.11ac
Radio Frequencies 5150 ~ 5250 MHz (FCC)
5725 ~ 5850 MHz (FCC)
5745 ~ 5825 MHz (China)
5180 ~ 5320 MHz (ETSI)
5500 ~ 5700 MHz (ETSI)
58.32 ~ 64.80 GHz
Power Supply
Passive PoE 24 VDC, maximum 1 A
Power Consumption 15 W maximum
Regulatory Compliances
Radio
Emissions
Immunity
EN 300 328 V1.8.1:2012
EN 301 893 V1.7.1:2012
EN 301 489-1 V1.9.2 (2011-09)
EN 301 489-17 V2.2.1:2012
IC RSS-247 (5725 ~ 5850 MHz)
FCC Part 15E 15.407 (5.150GHz-5.250GHz,
5.725-5.850GHz)
EN 55022 2010+AC:2011
EN 61000-3-2 2006+A1:2009+A2:2009 FCC
Class B Part 15
EN 55024 : 2010
EN 61000-4-2 : 2009
FCC Statement:
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 48 cm between the radiator &
your body.
Professional installation is required
IC Statement:
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
This radio transmitter (IC: 3857A-ML2560) has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain indicated. Antenna types not included
in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
Le présent émetteur radio (IC: 3857A-ML2560) a été approuvé par Industrie Canada pour fonctionner avec les
types d'antenne énumérés ci-dessous et ayant un gain admissible maximal d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur.
5G Antenna list:
Gain (dBi)
Ant. Brand P/N Antenna Type Connector
Band 1 Band 4
1 Accton 120G00000174X Dish Antenna N/A 17.3 20
2 Accton 120G00000175X Dish Antenna N/A 9.1 13.4
60G Antenna list:
Ant. Brand P/N Antenna Type Connector Gain (dBi)
1 Accton 123400001084A Dish Ant. N/A 42
2 Accton 123400001227A Dish Ant. N/A 38
The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point
operation as appropriate.
le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5850 MHz)
doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 69 cm between
the radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de 69 cm de distance entre la source de rayonnement et votre
corps.
