Quick Start Guide
1. Unpack the MetroLinq
Package Contents
◆MetroLinq™ 60 LW (ML-60-LW)
Tools/Items Required
◆Flat-head screwdriver
◆Ethernet cables
2. Mount the MetroLinq on a Pole
Slide the pole-mount bracket onto the rails on the back of
the AP until it snaps into its secured position.
Use the included M3 screw to secure the bracket to the AP.
Feed the two steel-band clamps through the pole-mount
bracket mounting points.
Fasten the steel-band clamps around the pole to secure the
AP to the pole.
1
2
1
2
3
34
4
3
4
3. Grounding
Ensure the structure on which the unit is to be mounted is
properly grounded and in compliance with ETSI ETS 300 253.
Verify that there is a good electrical connection to a
grounding point (no paint or isolating surface treatment).
Use the included (M4) screw to attach a grounding wire (not
included) to the grounding point on the unit, and then to
ground.
Caution:
The earth connection must not be removed
unless all supply connections have been disconnected.
4. Connect Cables
Connect outdoor-rated Category 5e or better cable to the
RJ45 port. (The other end of this cable connects to the PoE
power injector.)
Install a 1G SFP transceiver in the SFP port, and then connect
fiber optic cabling to the transceiver.
The following transceivers are supported:
◆1000BASE-SX
◆1000BASE-LX
5. Connect Power
a. Using the PoE Power Injector
Connect outdoor-rated Category 5e or better cable from the
MetroLinq to the POE port on the power injector.
1
2
1
2
2
1
1
2
1
2
3
1
E012018-CS-R01
ignitenet.com
Cloud-Enabled Outdoor 60 + 5 + 2.4GHz PTP/PTMP
MetroLinq™ 60 LW
![](/img.php?id=3731652&img=bg2.png)
Quick Start Guide
– 2 –
Connect Category 5e or better cable from the LAN port on
the power injector to a LAN switch.
Connect the power cord to the power injector and to a
nearby AC power source (100-240 VAC, 50/60 Hz).
Caution:
The power injector is designed for indoor use
only. Never mount the power injector outside with the
MetroLinq unit.
b. DC Power
Warning:
Before wiring the DC block or connecting power
to the device, ensure that power to the feed lines is turned
off at the supply circuit breaker or disconnected from the
power bus.
Connect the 24 VDC power feed wire to the DC block “+” pin.
Connect the ground/return wire to the DC block “-” pin.

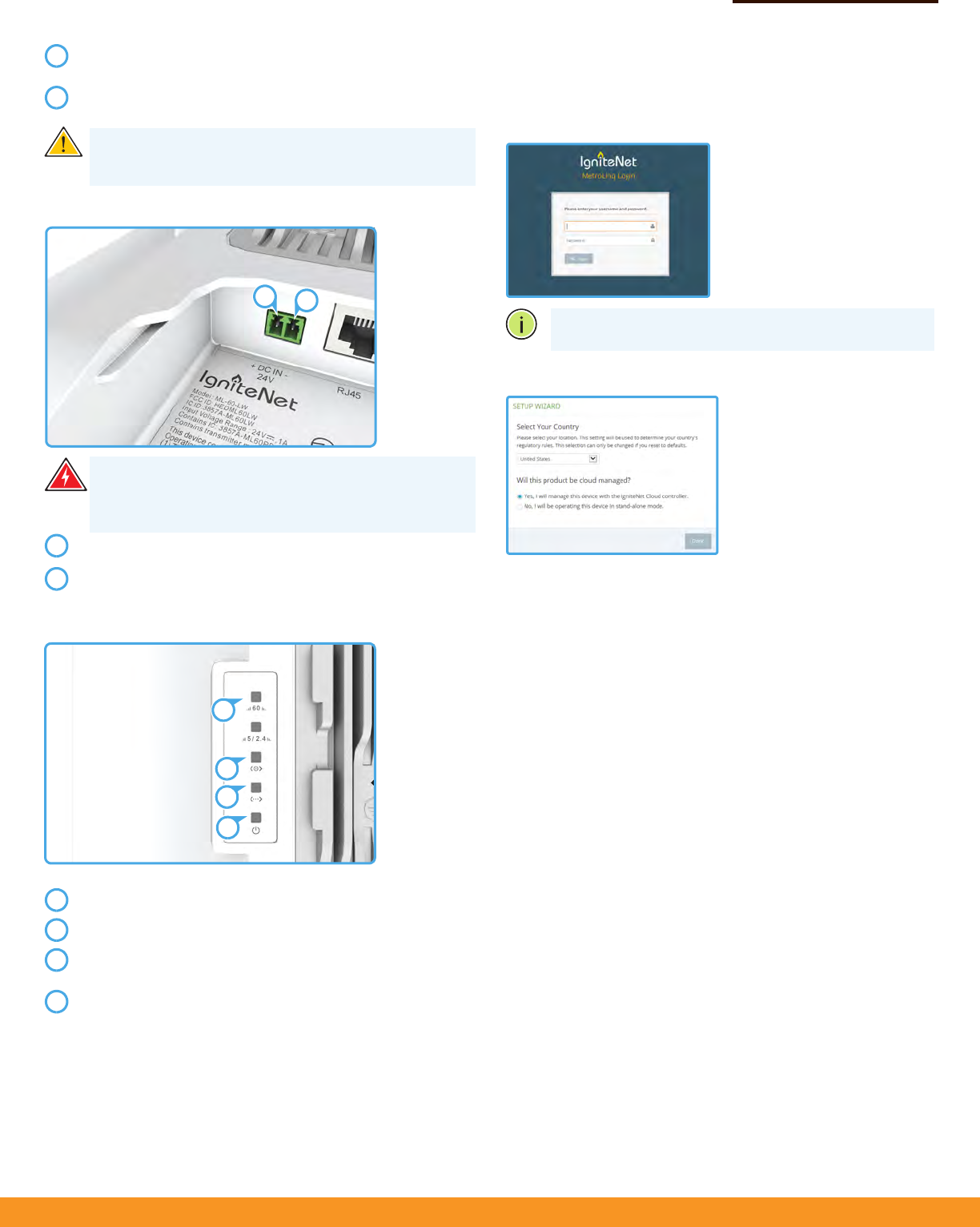

6. Verify AP Operation
The power LED should be on amber.
The RJ45 port link/activity LED should be on/blinking green.
When connected, the SFP port link/activity LEDs should also
be on/blinking green.
During normal operation, the wireless LEDs should be on/
blinking green.
2
3
12
1
2
1
2
4
3
1
2
3
4
7. Connect to the Web User Interface
To access the web interface, connect a PC directly to the MetroLinq’s
RJ45 port. In a web browser, enter the default management IP
address of 192.168.1.20 to access the web login page.
Note:
To reset the MetroLinq to factory default settings,
press and hold down the AP’s Reset button for 10 seconds.
8. Complete the Setup Wizard
Manage the MetroLinq with the IgniteNet Cloud Controller
Go to cloud.ignitenet.com to register your AP.
Log in and select Devices from the menu. Click Add Device and
enter the MetroLinq serial number and MAC address to register the
MetroLinq with your cloud network. The serial number and MAC
address can be found on the product packaging or label.
Manage the MetroLinq in Stand-Alone Mode
If you select to manage the MetroLinq in stand-alone mode, use the
web interface to manually make your configuration changes.
For more information on MetroLinq configuration in stand-alone
mode, refer to the User Manual, which can be downloaded from
ignitenet.com/support.
Log in to the web interface
using the default settings:
◆Login Name — root
◆Password — admin123
Select the country of
operation for the AP. Setting
the correct country ensures
that the radios operate within
local regulations specified for
Wi-Fi networks.
![](/img.php?id=3731652&img=bg3.png)
Quick Start Guide
– 3 –
Safety and Regulatory Information
FCC Class B
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
◆Reorient or relocate the receiving antenna
◆Increase the separation between the equipment and receiver
◆Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected
◆Consult the dealer or an experienced radio/TV technician for help
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1–11 can
be operated. Selection of other channels is not possible.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 23 cm between the radiator and your
body.
Industry Canada
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
For product available in the USA/Canada market, only channel 1–11 can
be operated. Selection of other channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le
canal 1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas
possible.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 25 cm between the
radiator and your body.
Cet équipement est conforme aux limites d'exposition aux
rayonnements IC établies pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un minimum de 25 cm de
distance entre la source de rayonnement et votre corps.
CE Statement
This equipment complies with EU radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your
body.
All operational modes:
2.4 GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40)
5 GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20),
802.11ac (VHT40), 802.11ac (VHT80)
60 GHz: 802.ad
The frequency and maximum transmitted power limit in EU are listed as
below:
2412-2472 MHz: 20 dBm
5500-5700 MHz: 30 dBm
57-66 GHz
The abbreviations of the countries, as prescribed in above table, where
any restrictions on putting into service or any requirements for
authorization of use exist.
Europe - EU Declaration of Conformity
Hereby, IgniteNet Inc. declares that the radio equipment type:
MetroLinq™ 60 LW is in compliance with Directive 2014/53/EU and
Directive 2014/35/EU.
The full text of the EU declaration of conformity is available at the
following Internet address: www.ignitenet.com -> support.
NCC Statement (Taiwan)
低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機,非經許可,公司、商號或
使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經
發現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。前
項合法通信,指依電信法規定作業之無線電通信。低功率射頻電機須忍
受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
AT BE BG CH CY CZ
DE DK EE EL ES FI
FR HR HU IE IS IT
LI LT LU LV MT NL
NO PL PT RO SE SI
SK TR UK
![](/img.php?id=3731652&img=bg4.png)
Quick Start Guide
– 4 –
電磁波曝露量 MPE 標準值 1mW/cm²,本產品使用時建議應距離人體
20 cm。
Warnings and Cautionary Messages
Hardware Specifications
Warning:
This product does not contain any serviceable user
parts.
Warning:
Installation and removal of the unit must be carried
out by qualified personnel only.
Warning:
When connecting this device to a power outlet,
connect the field ground lead on the tri-pole power plug to a
valid earth ground line to prevent electrical hazards.
Caution:
Wear an anti-static wrist strap or take other suitable
measures to prevent electrostatic discharge when handling this
equipment.
Caution:
Do not plug a phone jack connector in the RJ-45
port. This may damage this device.
Caution:
Use only twisted-pair cables with RJ-45 connectors
that conform to FCC standards.
Chassis
Size (L x W x H:) 202.7 x 239.8 x 48 mm (7.98 x 9.44 x 1.89
inch)
Weight 650 g (1.43 lb)
Temperature Operating: -30 °C to 55 °C (-22 °F to 131 °F)
Storage: -40 °C to 70 °C (-40 °F to 158 °F)
Humidity Operating: 10% to 90% (non-condensing)
Network Interfaces
Ports RJ45 Port: 1000BASE-T, passive PoE
SFP Port: 1000BASE-X
60 GHz Radio IEEE 802.11ad
2.4 GHz Radio IEEE 802.11b/g/n
5 GHz Radio IEEE 802.11a/n/ac
Radio Frequencies 2412–2472 (FCC, IC, CE, AU, MIC, NCC, SRRC)
5150–5250 (FCC, NCC)
5470–5725 (CE, MIC, AU)
5725–5850 (FCC, IC, NCC, SRRC)
58.32–64.80 GHz
Power Supply
PoE 24 VDC passive PoE
Power Consumption 24 W maximum
Regulatory Compliances
Radio EN 300 328 V2.1.1(2016-11)
EN 301 893 V2.1.1(2017-03)
EN 302 567 V2.1.1 (2017.07)
47 CFR FCC Part 15.247
47 CFR FCC Part 15.407
47 CFR FCC Part 15.255
ICES-003,Issue 6,Class B
RSS-247
RSS-102 Issue 5
RSS-Gen Issue 4
RSS-210 lssue 9
Emissions
Manufacturer
EN 301 489-1 V2.2.1 (2017-02)
EN 301 489-17 V3.1.1 (2017-02)
47 CFR FCC Rules and Regulations Part 15
Subpart B, Class B Digital Device
Canada Standard ICES-003, Issue 6, Class B
US Contact IgniteNet
20 Mason,
Irvine, CA 92618,
USA
https://www.ignitenet.com/
Accton Technology Corporation
1, Creation 3rd Rd., Hsinchu Science Park,
Hsinchu 30077,
Taiwan, R.O.C
