UserMan-SMCWBR11S-3GN-Rev
![](/img.php?id=1248095&img=bg1.png)
BarricadeTM N
150Mbps Wireless-N Mini 3G Broadband Router
SMCWBR11S-3GN
USER GUIDE
![](/img.php?id=1248095&img=bg2.png)
20 Mason
Irvine, CA 92618
Phone: (949) 679-8000
Barricade
TM
SMCWBR11S-3GN
User Guide
February 2010
Pub. # 149100000057W
E022010-CS-R01
Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.
However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or
other rights of third parties which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications
at any time without notice.
Copyright © 2010 by
SMC Networks, Inc.
20 Mason
Irvine, CA 92618
All rights reserved
Trademarks:
SMC is a registered trademark; and Barricade, EZ Switch, TigerStack, TigerSwitch, and TigerAccess
are trademarks of SMC Networks, Inc. Other product and company names are trademarks or
registered trademarks of their respective holders.
– 4 –
WARRANTY AND PRODUCT REGISTRATION
To register SMC products and to review the detailed warranty statement,
please refer to the Support Section of the SMC Website at http://
www.smc.com.
![](/img.php?id=1248095&img=bg5.png)
– 5 –
COMPLIANCES
FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
◆Reorient or relocate the receiving antenna
◆Increase the separation between the equipment and receiver
◆Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
◆Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is
firmware-limited to channels 1 through 11.
IMPORTANT NOTE:
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your
body.
![](/img.php?id=1248095&img=bg6.png)
C
OMPLIANCES
– 6 –
The following three 3G cards have passed the co-located EMC/RF exposure
test with this device and can be used with this device. Other 3G cards may
or may not comply with FCC rules, please consult the manufacturer before
purchase.
IC STATEMENT
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired
operation of the device.
This device has been designed to operate with an antenna having a
maximum gain of 2.35 dBi. Antennas having a higher gain are strictly
prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and
its gain should be so chosen that the EIRP is not more than required for
successful communication.
IMPORTANT NOTE:
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your body.
AUSTRALIA/NEW ZEALAND AS/NZS 4268
Interface Brand Product
Name
Model FCC ID NCC ID
USB Port HUAWEI
T
HSDPA USB
Stick
E169 QISE169 CCAD083G0060T5
ZTE HSDPA USB
Modem
MF626 Q78-ZTEMF622 N/A
Huawei HSDPA USB
Modem
E220 QISE220 N/A
ACN 066 352010
![](/img.php?id=1248095&img=bg7.png)
C
OMPLIANCES
– 7 –
TAIWAN NCC
根據國家通信傳播委員會低功率電波輻射性電機管理辦法規定:
第十二條 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更
頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應
立即停用,並改善至無干擾時方得繼續使用。前項合法通信,指依電信法規定作業之無線電通
信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
EC CONFORMANCE DECLARATION
Marking by the above symbol indicates compliance with the Essential
Requirements of the R&TTE Directive of the European Union (1999/5/EC).
This equipment meets the following conformance standards:
◆EN 60950-1: 2006 (IEC 60950-1) — Product Safety
◆EN 55022:2006 + A1:2007, Class B — ITE EMC
◆EN 55024:1998 + A1:2001 + A2:2003 — ITE EMC
◆EN 300 328 V1.7.1 (2006-10) — Technical requirements for 2.4 GHz
radio equipment
◆EN 301 489-1 V1.8.1 (2008-04) — EMC requirements for radio
equipment
◆EN 301 489-17 V1.3.2 (2008-04) — EMC requirements for radio
equipment
◆50385 (2002) — Country-specific SAR requirements
This device is intended for use in the following European Community and
EFTA countries:
N
OTE
:
The user must use the configuration utility provided with this
product to ensure the channels of operation are in conformance with the
spectrum usage rules for European Community countries as described
below.
◆This device will automatically limit the allowable channels determined
by the current country of operation. Incorrectly entering the country of
operation may result in illegal operation and may cause harmful
interference to other systems. The user is obligated to ensure the
device is operating according to the channel limitations, indoor/outdoor
◆Austria ◆Belgium ◆Bulgaria ◆Cyprus ◆Czech Republic
◆Denmark ◆Estonia ◆Finland ◆France ◆Germany
◆Greece ◆Hungary ◆Iceland ◆Ireland ◆Italy
◆Latvia ◆Lithuania ◆Luxembourg ◆Malta ◆Netherlands
◆Norway ◆Poland ◆Portugal ◆Romania ◆Slovakia
◆Slovenia ◆Spain ◆Sweden ◆Switzerland ◆United Kingdom
![](/img.php?id=1248095&img=bg8.png)
C
OMPLIANCES
– 8 –
restrictions and license requirements for each European Community
country as described in this document.
DECLARATION OF CONFORMITY IN LANGUAGES OF THE EUROPEAN
COMMUNITY
Czech
Česky
Manufacturer tímto prohlašuje, že tento Radio LAN device je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Estonian
Eesti
Käesolevaga kinnitab Manufacturer seadme Radio LAN device vastavust direktiivi 1999/
5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, Manufacturer, declares that this Radio LAN device is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Finnish
Suomi
Valmistaja Manufacturer vakuuttaa täten että Radio LAN device tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Dutch
Nederlands
Hierbij verklaart Manufacturer dat het toestel Radio LAN device in overeenstemming is
met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG
Bij deze Manufacturer dat deze Radio LAN device voldoet aan de essentiële eisen en aan
de overige relevante bepalingen van Richtlijn 1999/5/EC.
French
Français
Par la présente Manufacturer déclare que l'appareil Radio LAN device est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE
Swedish
Svenska
Härmed intygar Manufacturer att denna Radio LAN device står I överensstämmelse med
de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
Danish
Dansk
Undertegnede Manufacturer erklærer herved, at følgende udstyr Radio LAN device
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF
German
Deutsch
Hiermit erklärt Manufacturer, dass sich dieser/diese/dieses Radio LAN device in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)
Hiermit erklärt Manufacturer die Übereinstimmung des Gerätes Radio LAN device mit den
grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie
1999/5/EG. (Wien)
Greek
Ελληνική
με την παρουσα Manufacturer δηλωνει οτι radio LAN device συμμορφωνεται προσ τισ
ουσιωδεισ απαιτησεισ και τισ λοιπεσ σχετικεσ διαταξεισ τησ οδηγιασ 1999/5/εκ.
Hungarian
Magyar
Alulírott, Manufacturer nyilatkozom, hogy a Radio LAN device megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Italian
Italiano
Con la presente Manufacturer dichiara che questo Radio LAN device è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latvian
Latviski
Ar šo Manufacturer deklarē, ka Radio LAN device atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lithuanian
Lietuvių
Šiuo Manufacturer deklaruoja, kad šis Radio LAN device atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
Maltese
Malti
Hawnhekk, Manufacturer, jiddikjara li dan Radio LAN device jikkonforma mal-ħtiġijiet
essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Spanish
Español
Por medio de la presente Manufacturer declara que el Radio LAN device cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE
Polish
Polski
Niniejszym Manufacturer oświadcza, że Radio LAN device jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Portuguese
Português
Manufacturer declara que este Radio LAN device está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
![](/img.php?id=1248095&img=bg9.png)
C
OMPLIANCES
– 9 –
Slovak
Slovensky
Manufacturer týmto vyhlasuje, že Radio LAN device spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Slovenian
Slovensko
Manufacturer izjavlja, da je ta radio LAN device v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
![](/img.php?id=1248095&img=bga.png)
– 10 –
ABOUT THIS GUIDE
PURPOSE This guide gives specific information on how to install the Mini 3G
Broadband Router and its physical and performance related characteristics.
It also gives information on how to operate and use the management
functions of the Mini 3G Broadband Router.
AUDIENCE This guide is for users with a basic working knowledge of computers. You
should be familiar with Windows operating system concepts.
CONVENTIONS The following conventions are used throughout this guide to show
information:
N
OTE
:
Emphasizes important information or calls your attention to related
features or instructions.
C
AUTION
:
Alerts you to a potential hazard that could cause loss of data, or
damage the system or equipment.
W
ARNING
:
Alerts you to a potential hazard that could cause personal injury.
RELATED PUBLICATIONS As part of the Mini 3G Broadband Router’s software, there is an online web-
based help that describes all management related features.
REVISION HISTORY This section summarizes the changes in each revision of this guide.
FEBRUARY 2010 REVISION
This is the first revision of this guide.
![](/img.php?id=1248095&img=bgb.png)
– 11 –
CONTENTS
WARRANTY AND PRODUCT REGISTRATION 4
COMPLIANCES 5
ABOUT THIS GUIDE 10
CONTENTS 11
FIGURES 15
TABLES 18
SECTION I GETTING STARTED 19
1INTRODUCTION 20
Key Hardware Features 20
Description of Capabilities 20
Applications 21
Package Contents 22
Hardware Description 22
LED Indicators 24
Ethernet WAN Port 25
Ethernet LAN Port 25
3G Modem USB Port 25
Power Connector 25
WPS Button 25
Reset Button 25
2NETWORK PLANNING 26
Internet Gateway Router 26
LAN Access Point 27
Wireless Bridge 28
3INSTALLING THE MINI 3G ROUTER 29
![](/img.php?id=1248095&img=bgc.png)
C
ONTENTS
– 12 –
System Requirements 29
Mounting the Device 30
Mounting on a Wall 30
Mounting on a Horizontal Surface 30
Router Mode Connections 31
Bridge Mode Connections 32
4INITIAL CONFIGURATION 34
ISP Settings 34
Connecting to the Login Page 34
Home Page and Main Menu 35
Common Web Page Buttons 36
Setup Wizard 36
Step 1 - Language Selection 36
Step 2 - Time Settings 37
Step 3 - WAN Settings - DHCP 37
Step 3 - WAN Settings - Static IP 39
Step 3 - WAN Settings - PPPoE 40
Step 3 - WAN Settings - PPTP 41
Step 3 - WAN Settings - L2TP 43
Step 3 - WAN Settings - 3G 45
Step 4 - Wireless Security 47
Completion 48
SECTION II WEB CONFIGURATION 49
5OPERATION MODE 50
Logging In 51
Operation Mode 53
6NETWORK SETTINGS 54
WAN Setting 55
DHCP 56
Static IP 57
PPPoE 58
PPTP 59

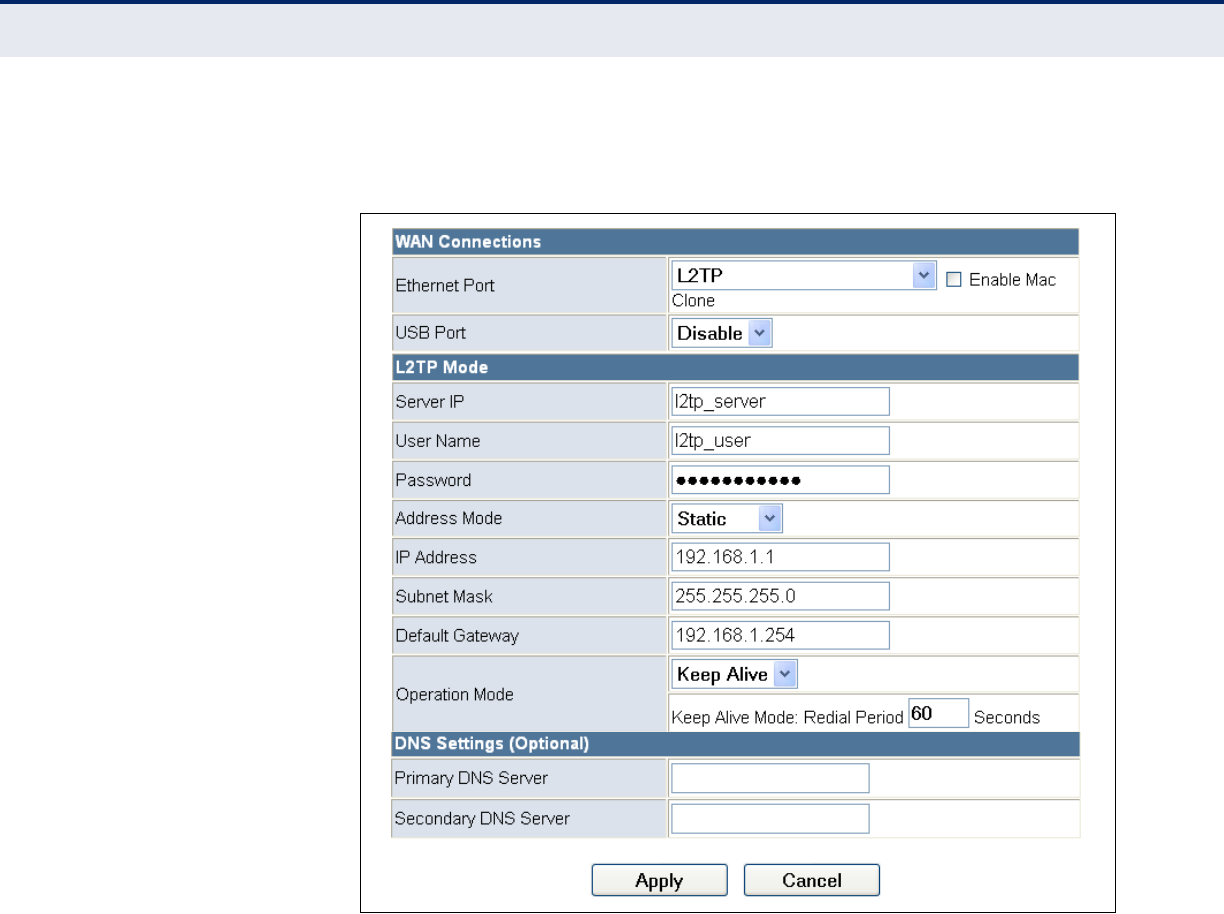

L2TP 61
![](/img.php?id=1248095&img=bgd.png)
C
ONTENTS
– 13 –
3G 62
LAN Setting 66
DHCP Clients 68
Advanced Routing 69
Advanced Routing Settings 69
Routing Table 70
Dynamic Route 71
7WIRELESS CONFIGURATION 72
Basic Settings 72
HT Physical Mode Settings 75
Advanced Settings 76
Advanced Wireless 76
Wi-Fi Multimedia 78
Multicast-to-Unicast Converter 81
WLAN Security 82

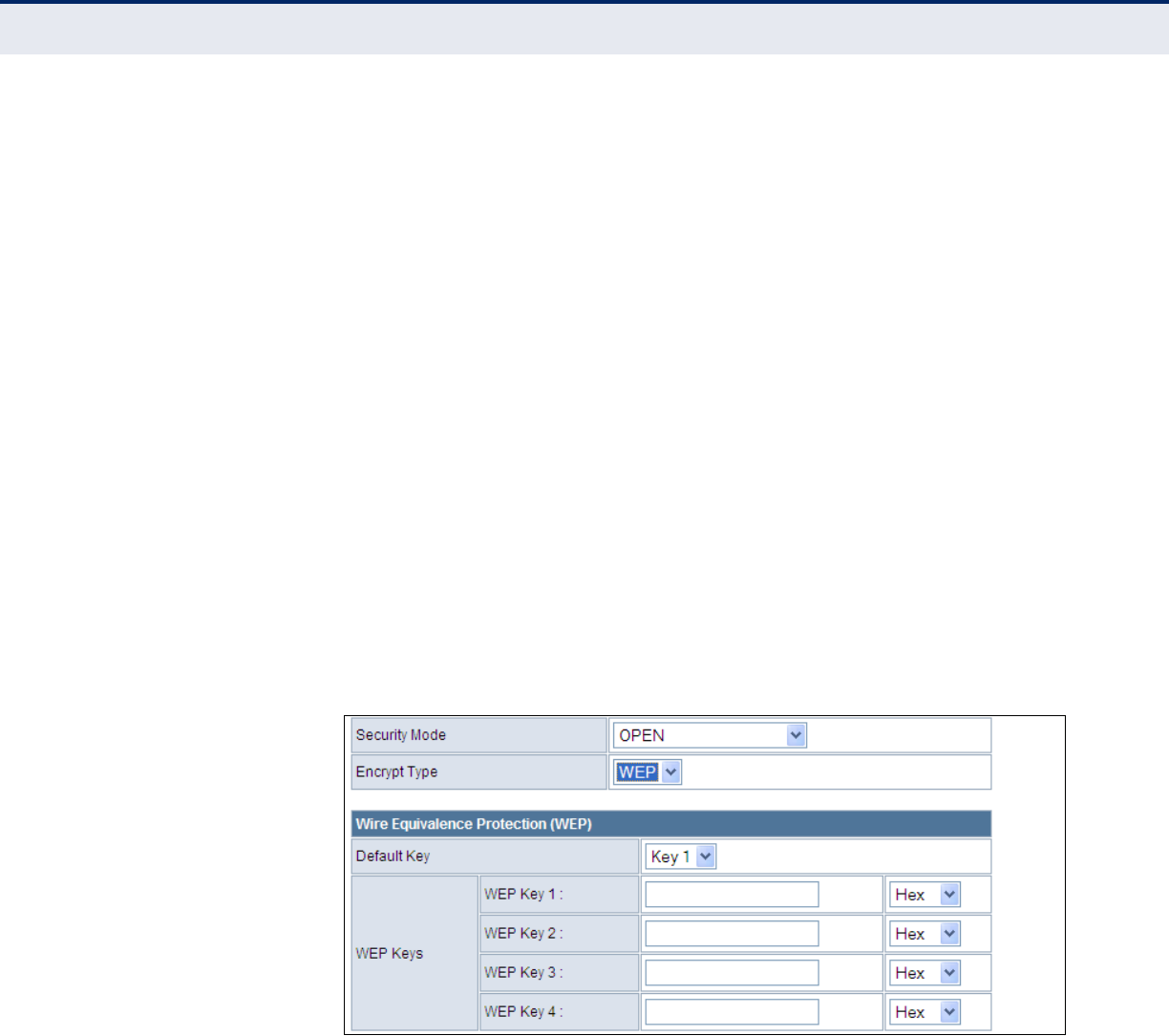

Wired Equivalent Privacy (WEP) 83
WPA Pre-Shared Key 84
WPA Enterprise Mode 85
IEEE 802.1X and RADIUS 87
Access Policy 89
Wireless Distribution System (WDS) 89

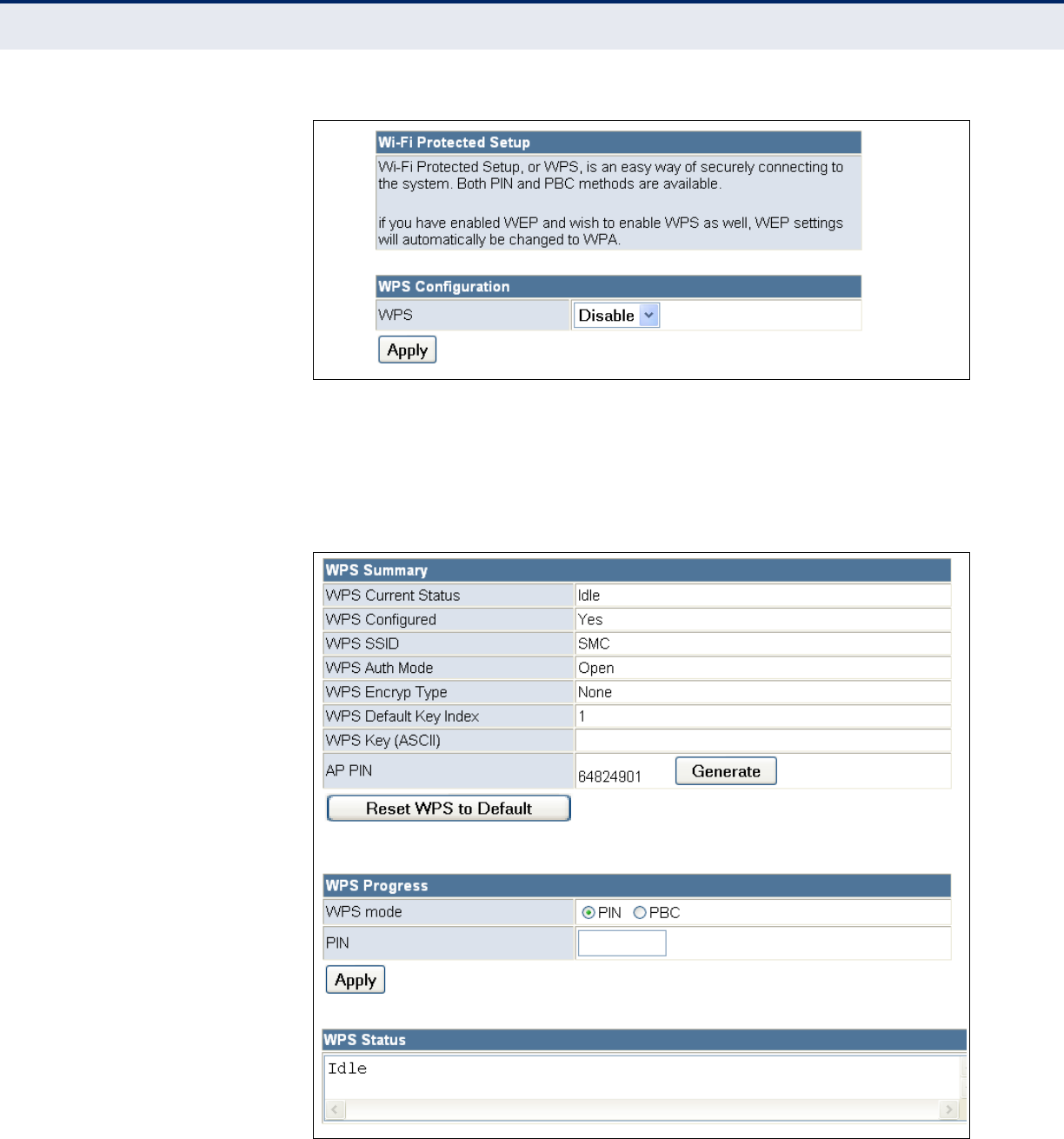

Wi-Fi Protected Setup (WPS) 92
Station List 95
8FIREWALL CONFIGURATION 96

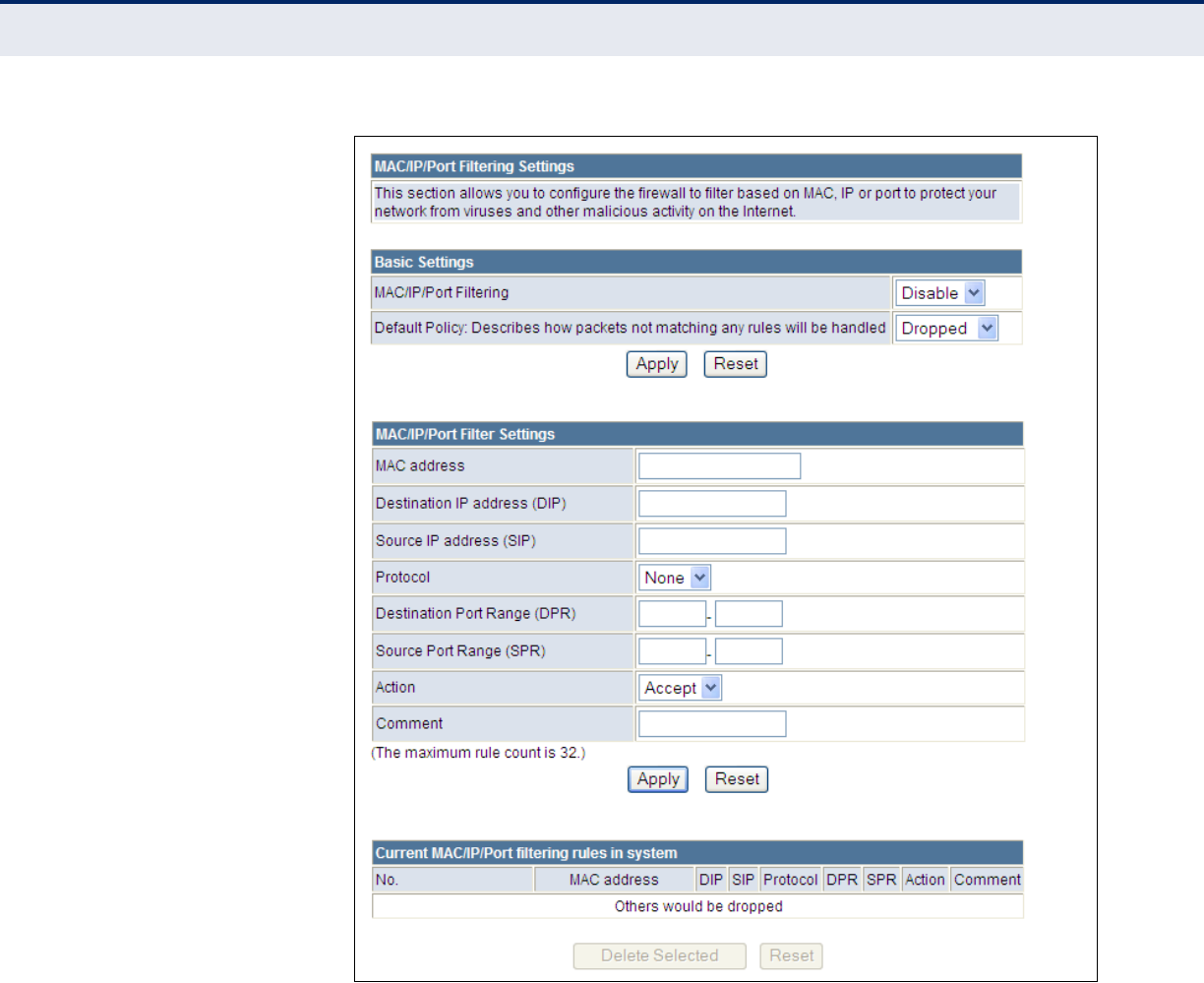

MAC/IP/Port Filtering 96
Current Filter Rules 98

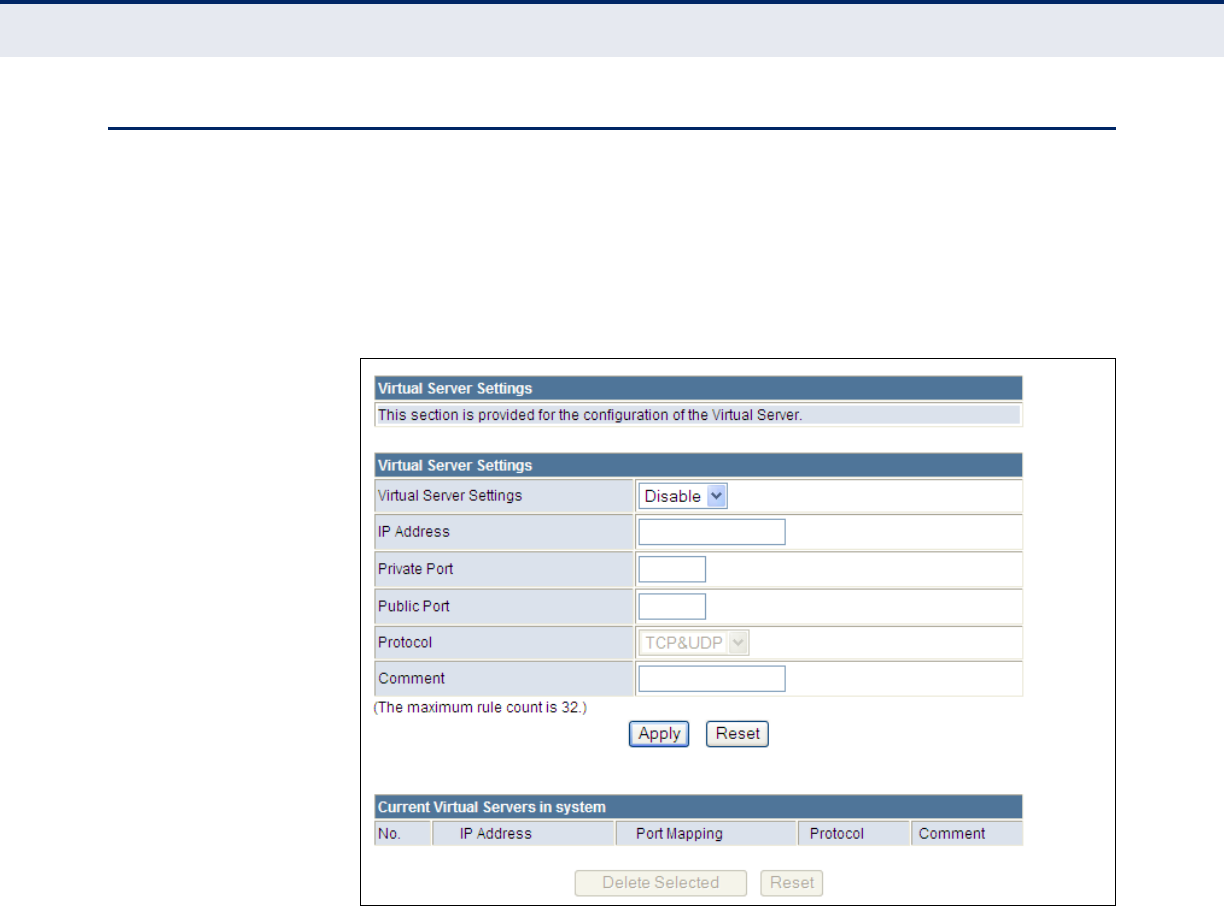

Virtual Server Settings (Port Forwarding) 99
Current Virtual Servers in system 100
DMZ 100

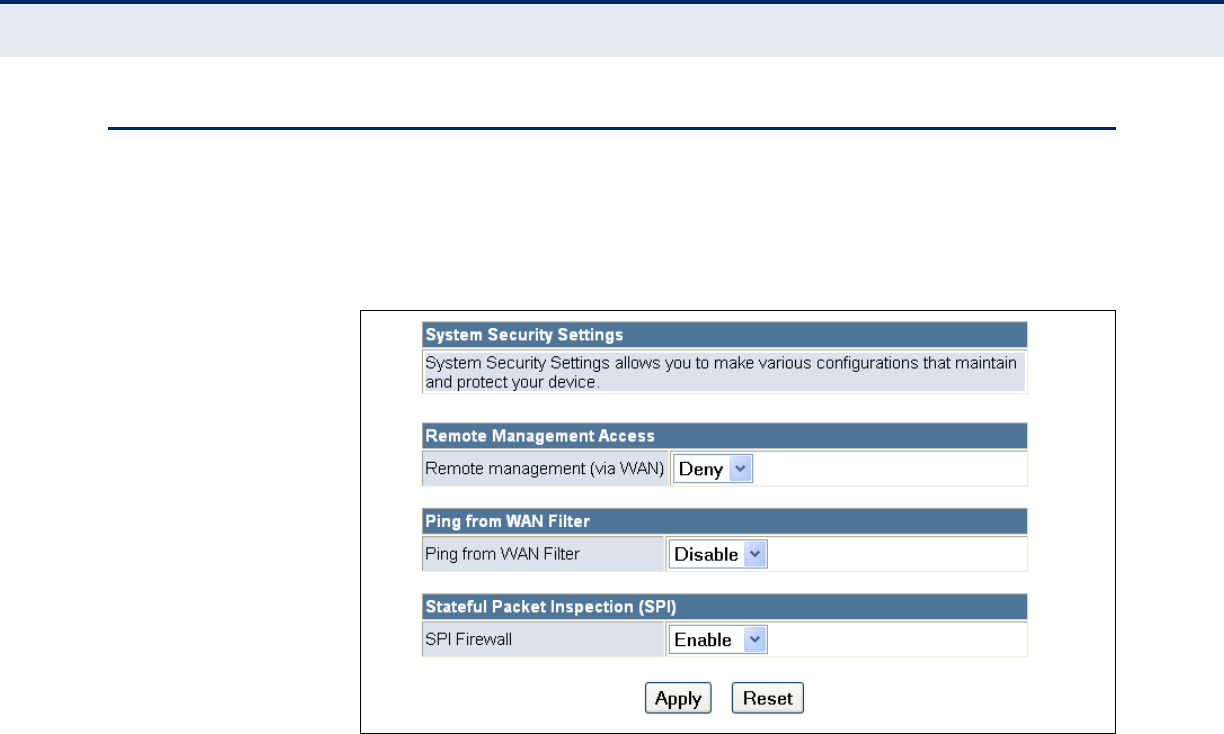

System Security 101
Content Filtering 102
9ADMINISTRATION SETTINGS 104
System Management 105
Time Zone Settings 106
DDNS Settings 107
![](/img.php?id=1248095&img=bge.png)
C
ONTENTS
– 14 –
Firmware Upgrade 108
Configuration Settings 109
System Status 110
Statistics 112

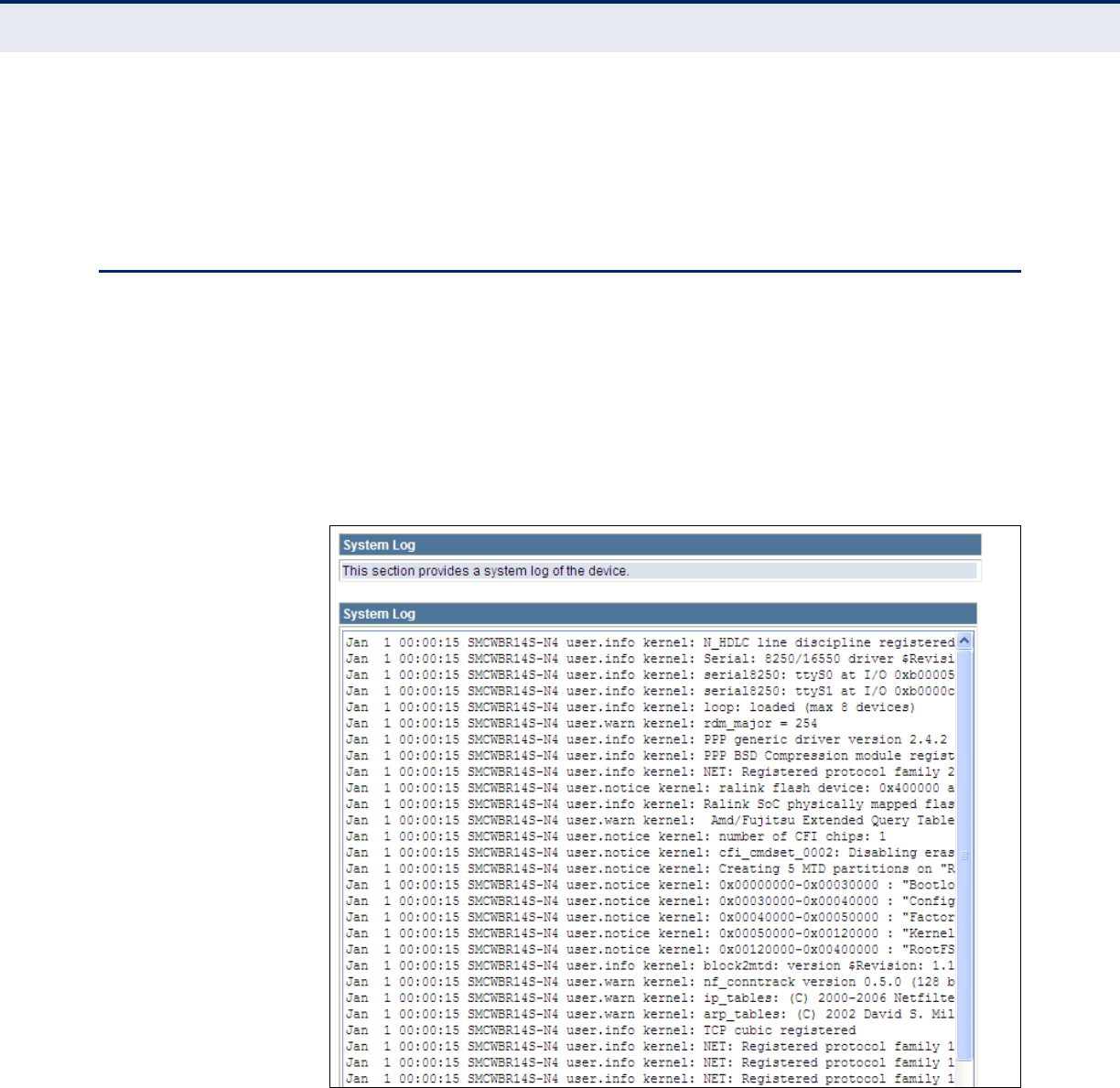

System Log 113

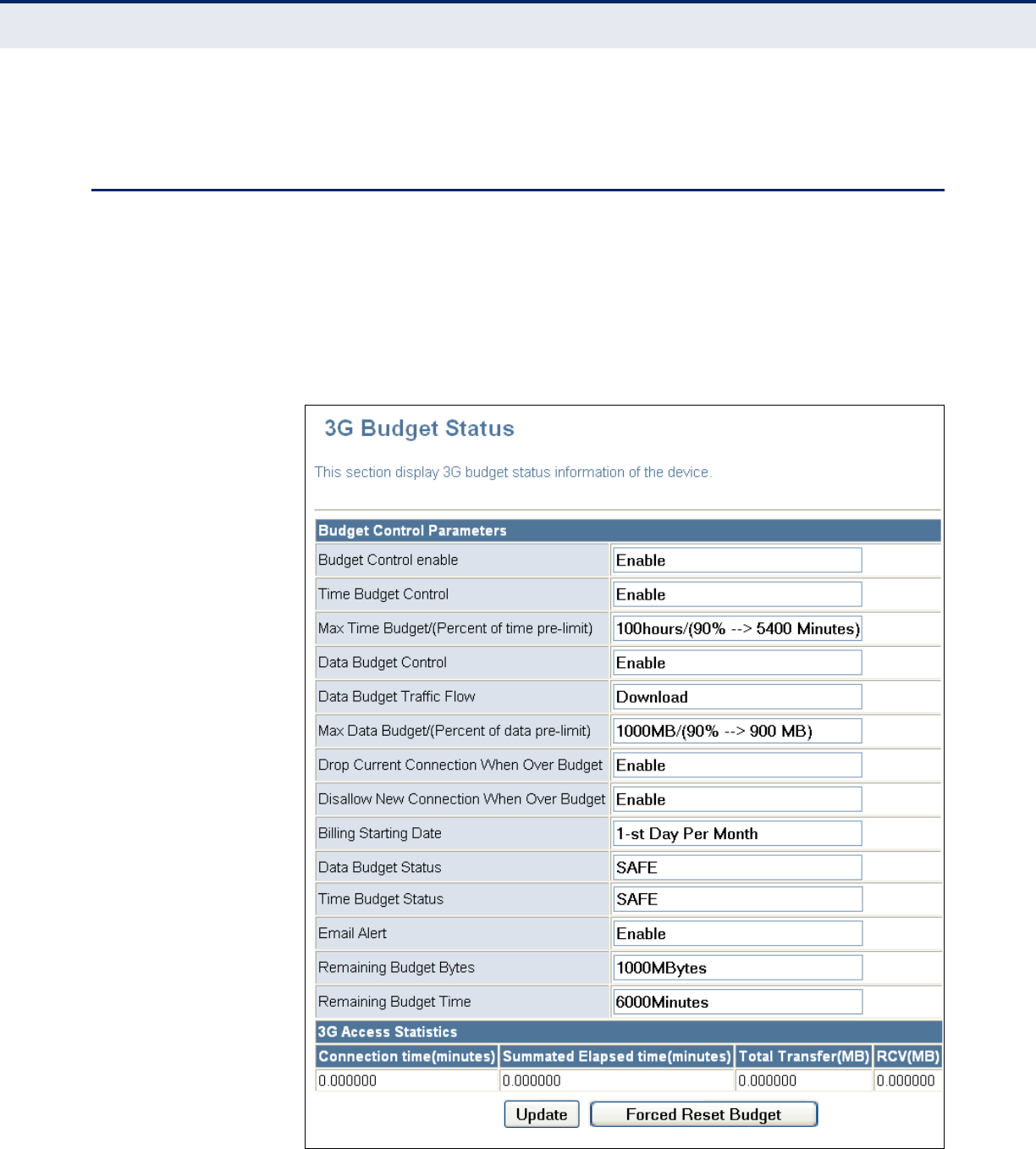

3G Budget Status 114
SECTION III APPENDICES 117
ATROUBLESHOOTING 118
Diagnosing LED Indicators 118
If You Cannot Connect to the Internet 118
Before Contacting Technical Support 119
BHARDWARE SPECIFICATIONS 120
CC
ABLES AND PINOUTS 122

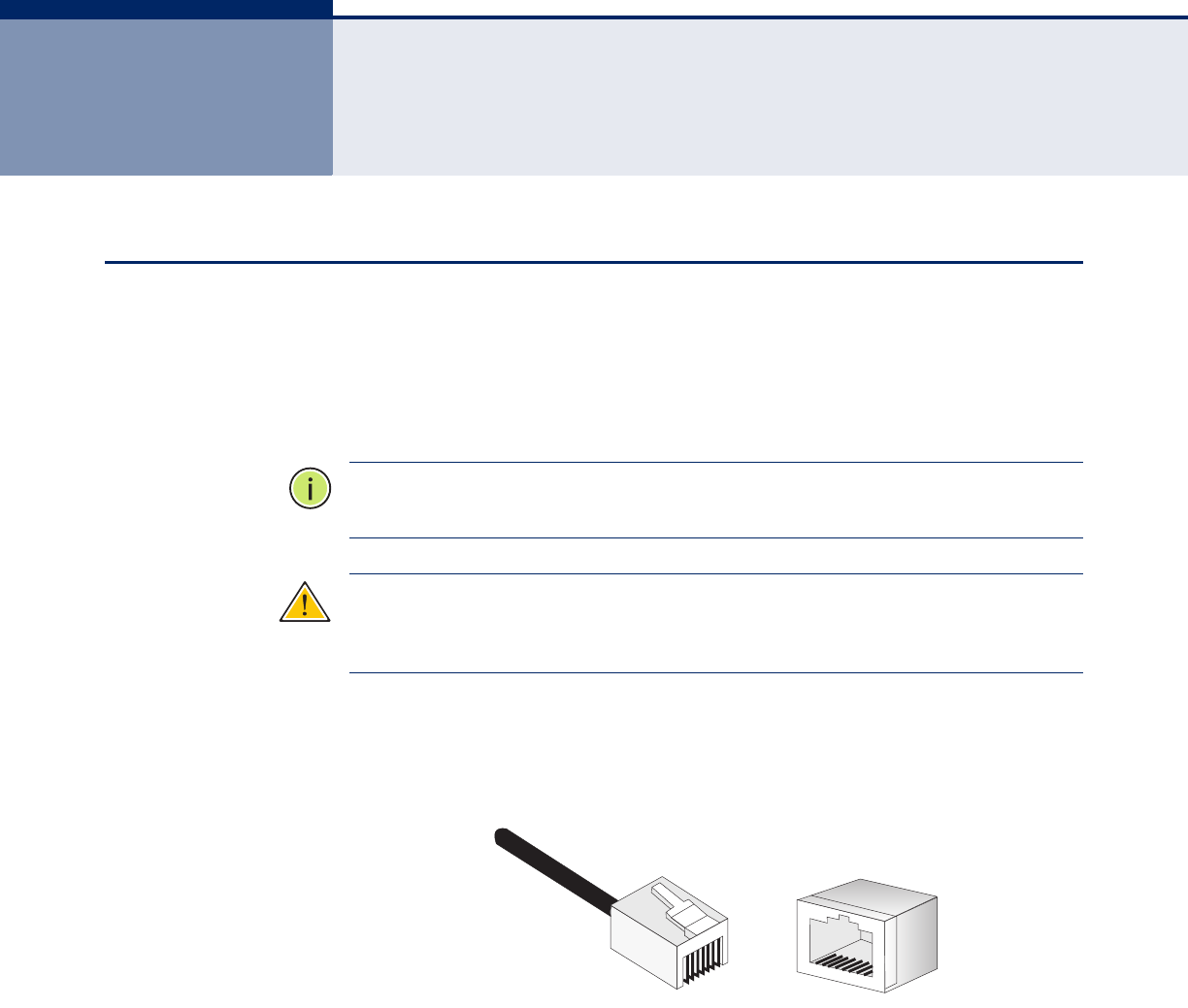

Twisted-Pair Cable Assignments 122
10/100BASE-TX Pin Assignments 123

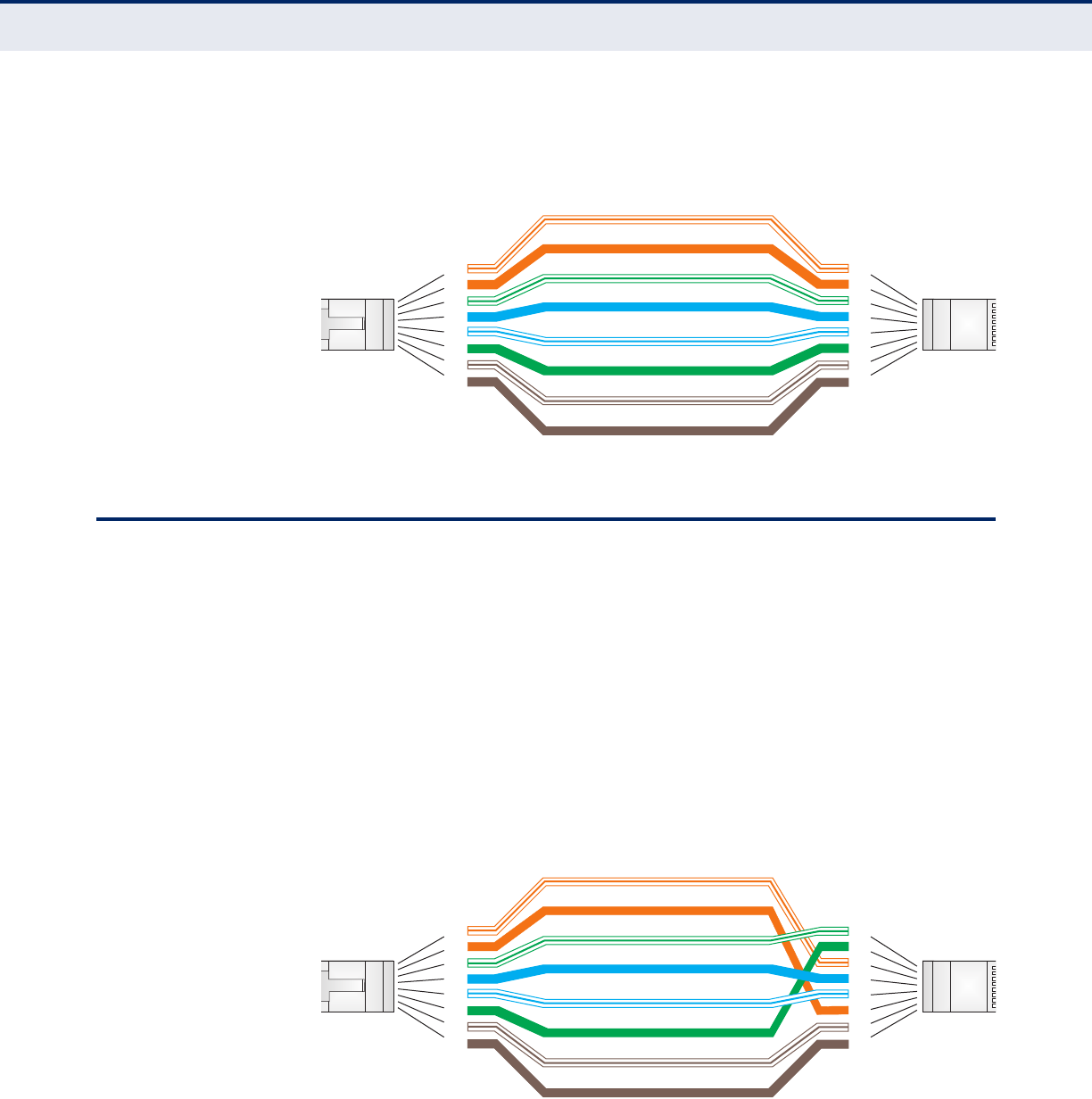

Straight-Through Wiring 123
Crossover Wiring 124
DLICENSE INFORMATION 125
The GNU General Public License 125
GLOSSARY 129
INDEX 133
![](/img.php?id=1248095&img=bgf.png)
– 15 –
FIGURES

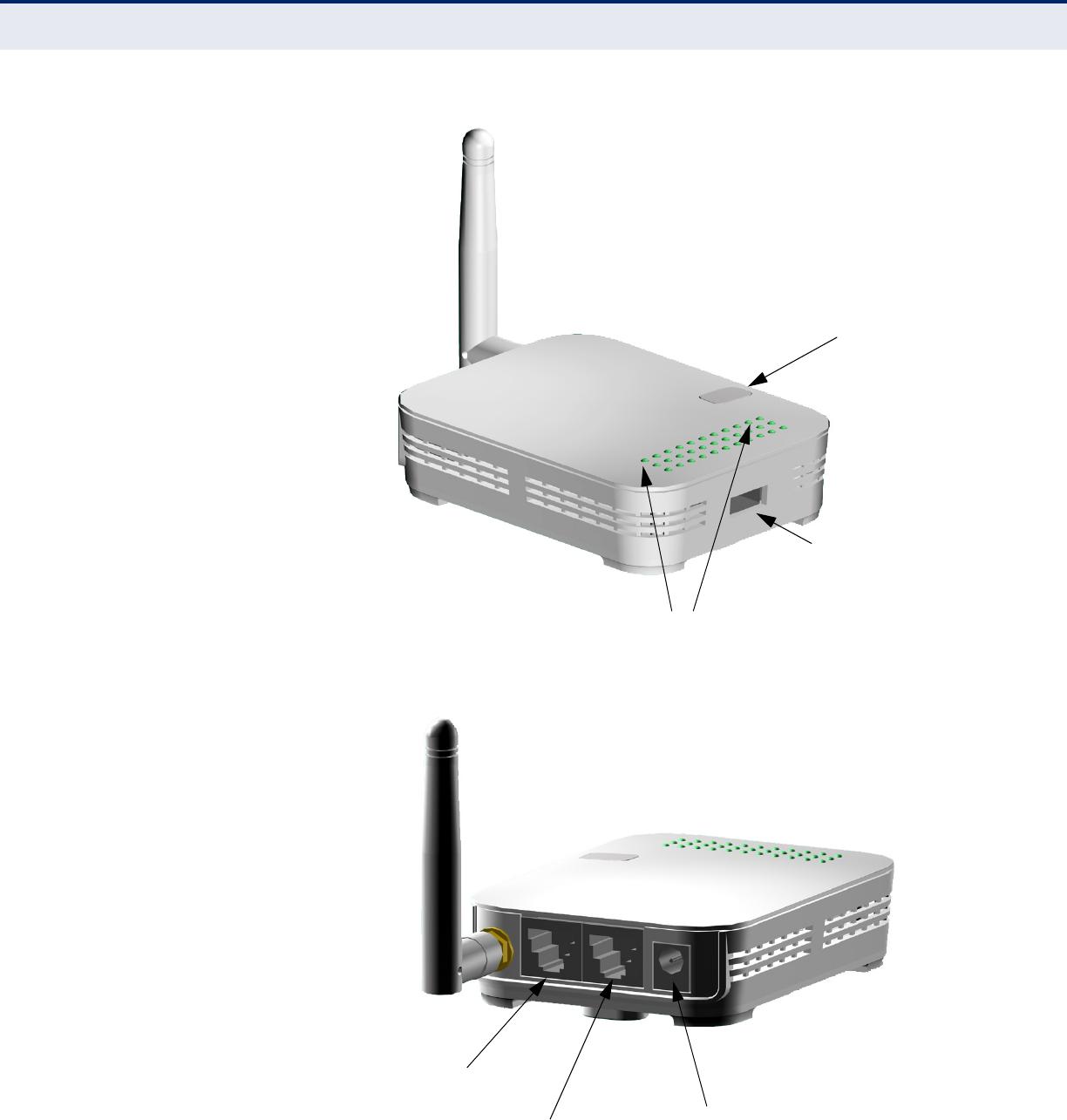

Figure 1: Top Panel 23
Figure 2: Rear Panel 23

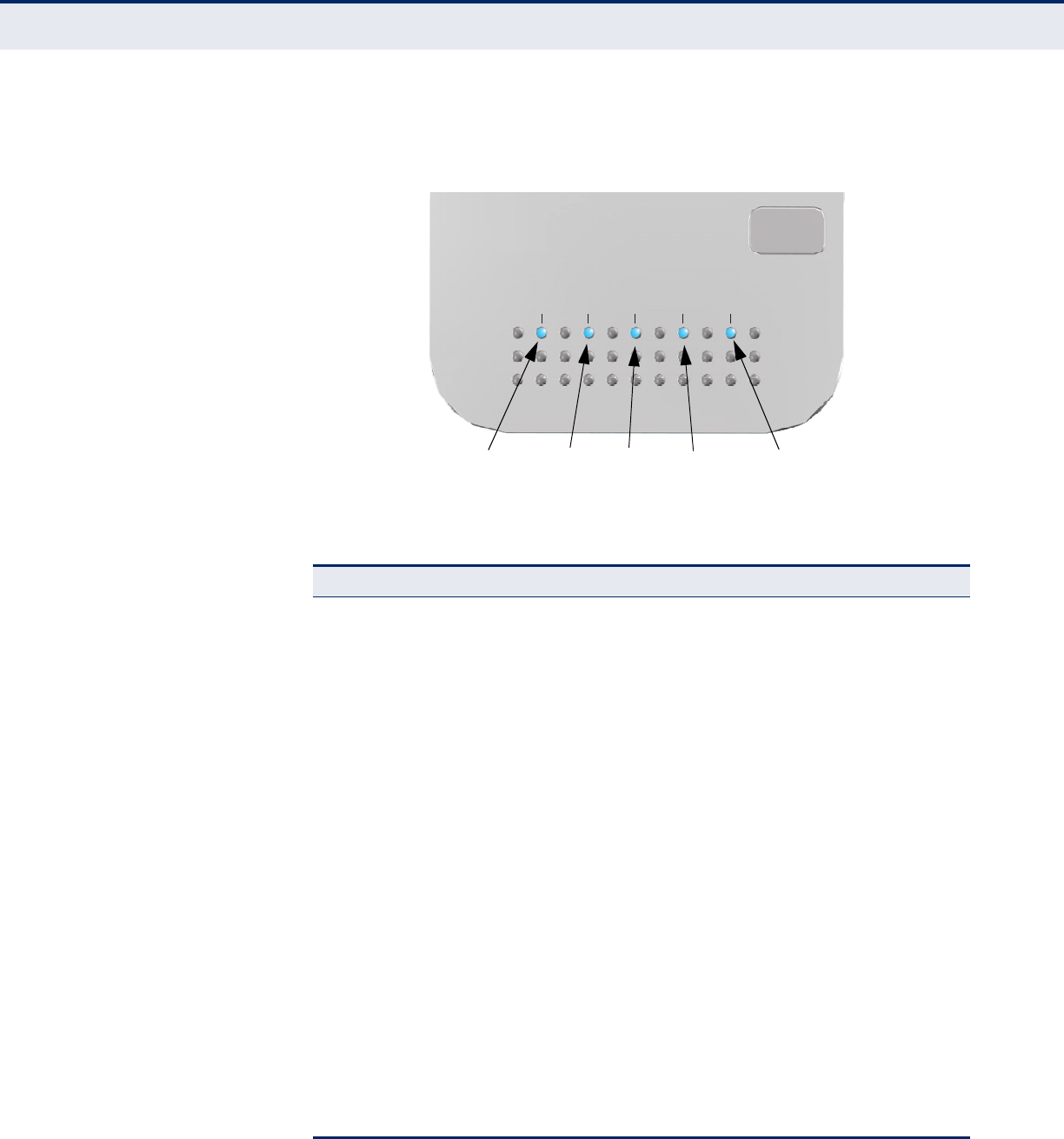

Figure 3: LEDs 24

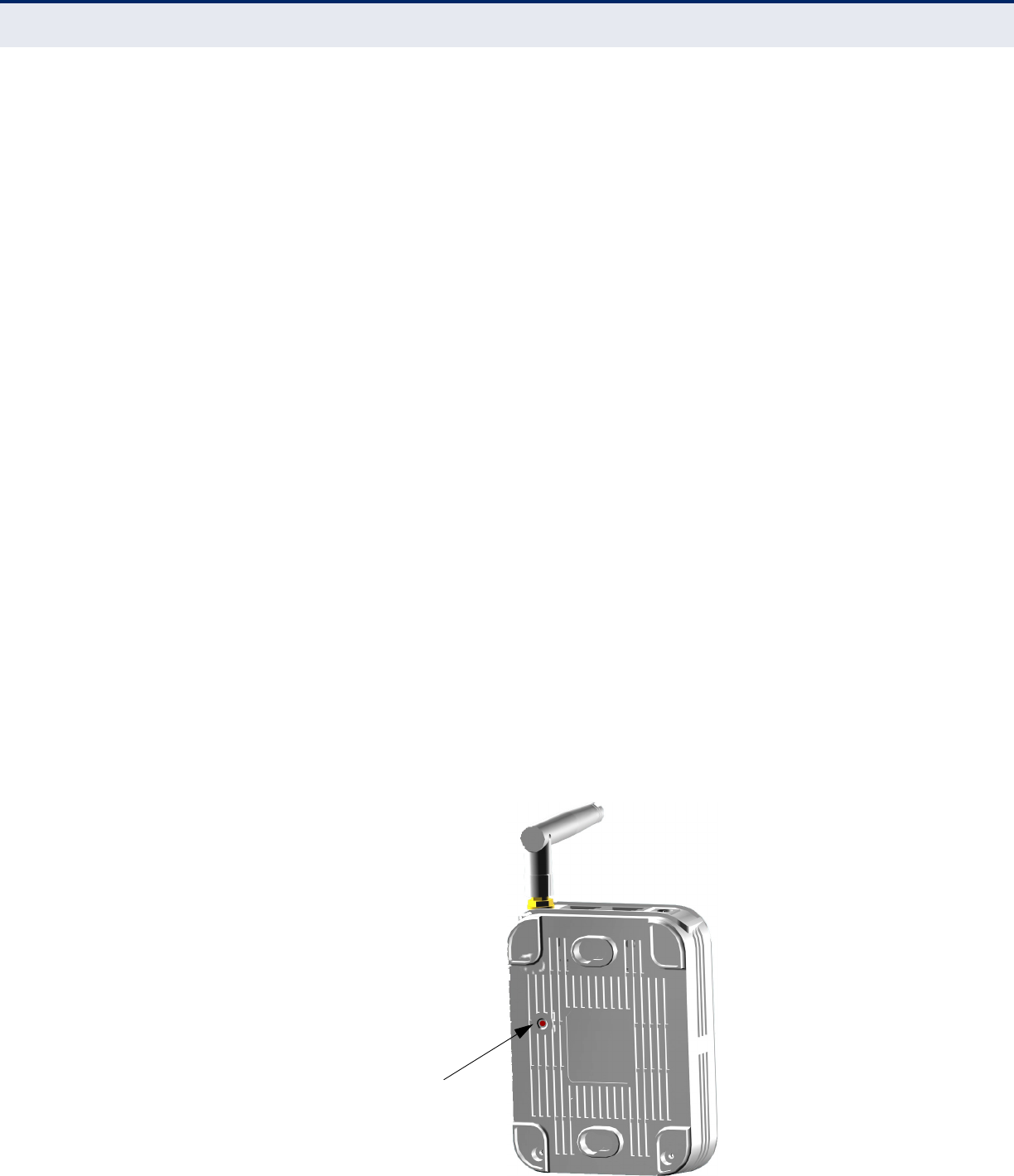

Figure 4: Bottom Panel 25

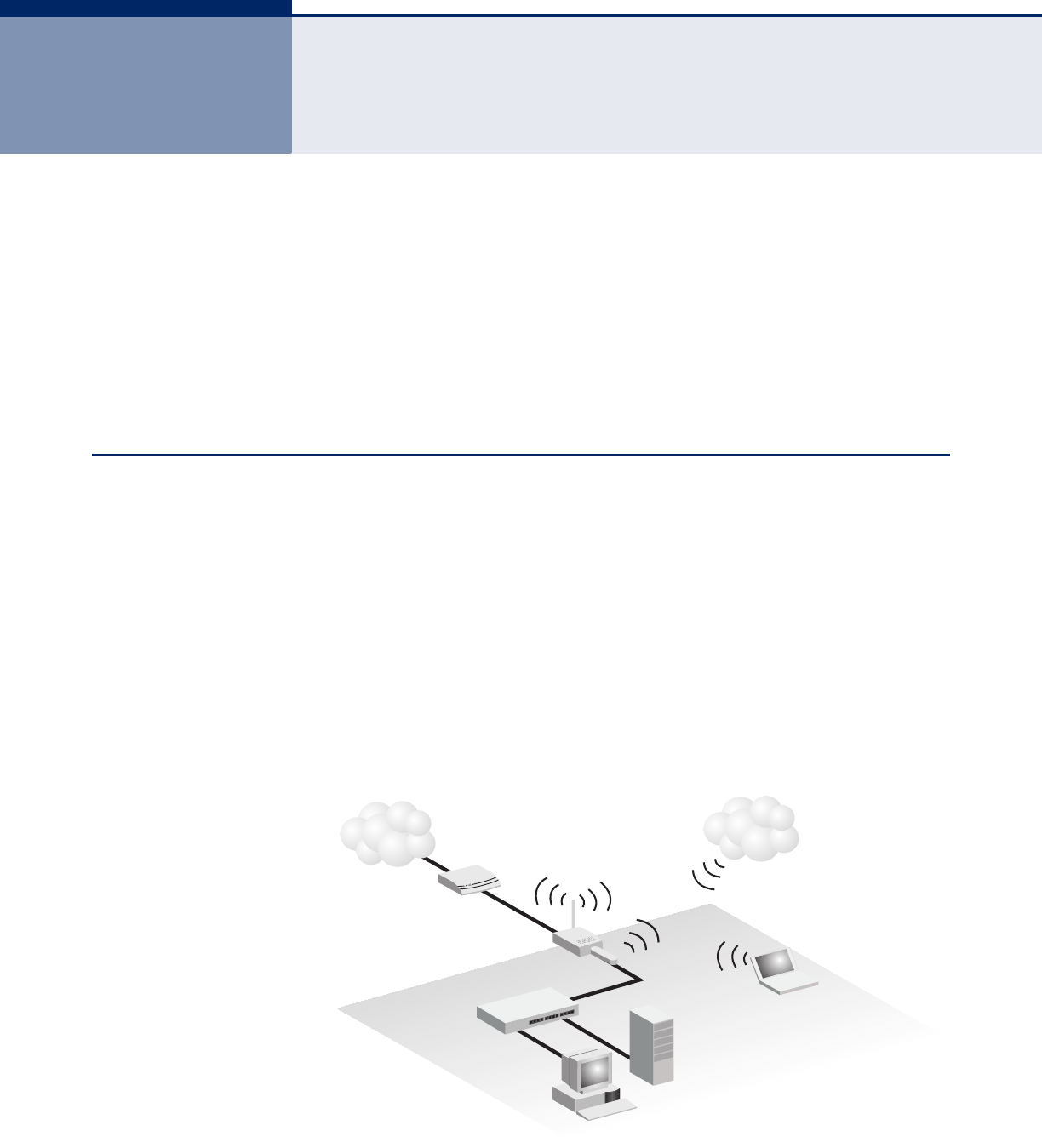

Figure 5: Operating as an Internet Gateway Router 26

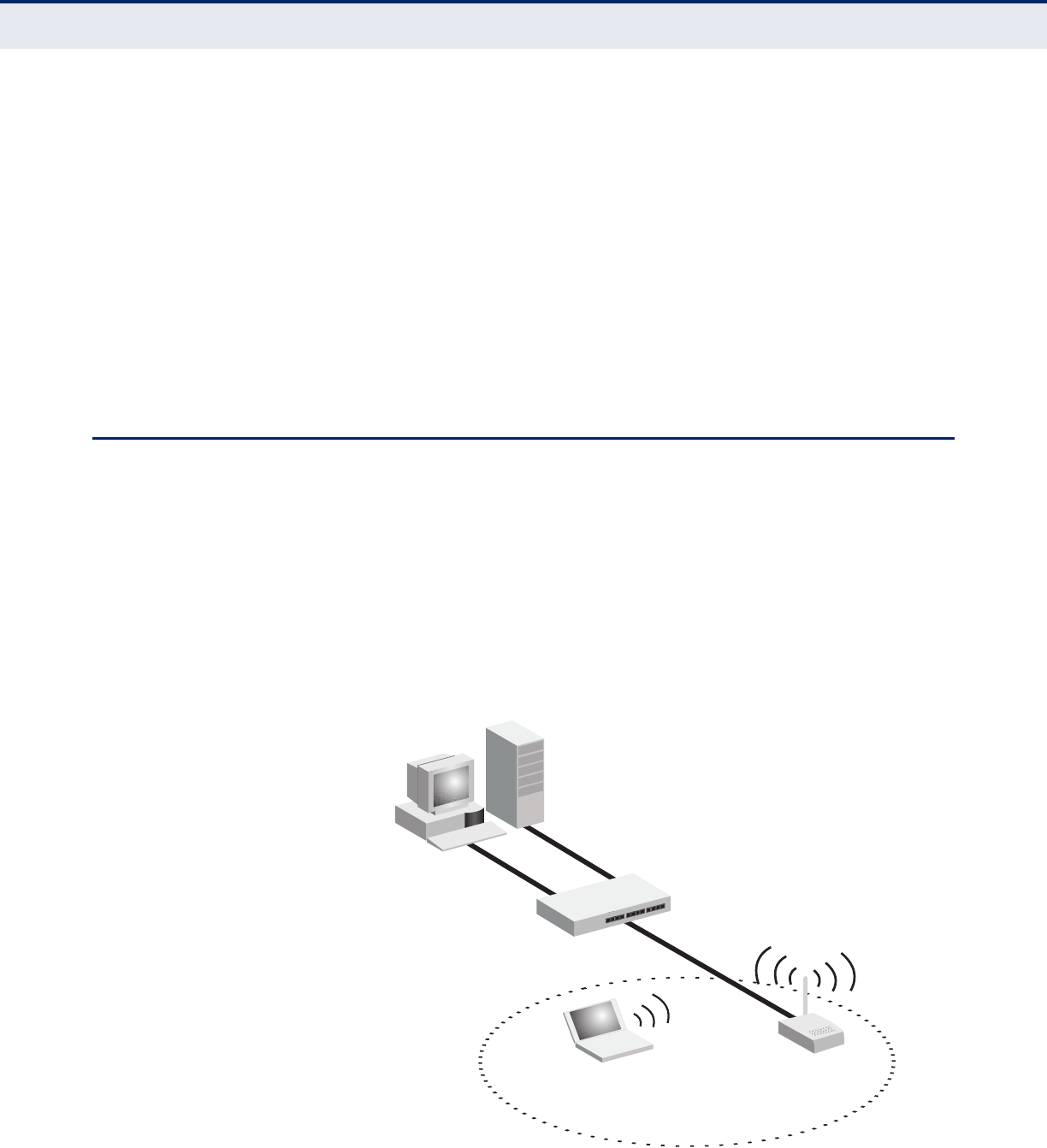

Figure 6: Operating as an Access Point 27
Figure 7: Operating as a Wireless Bridge 28
Figure 8: Operating as a Wireless Repeater 28

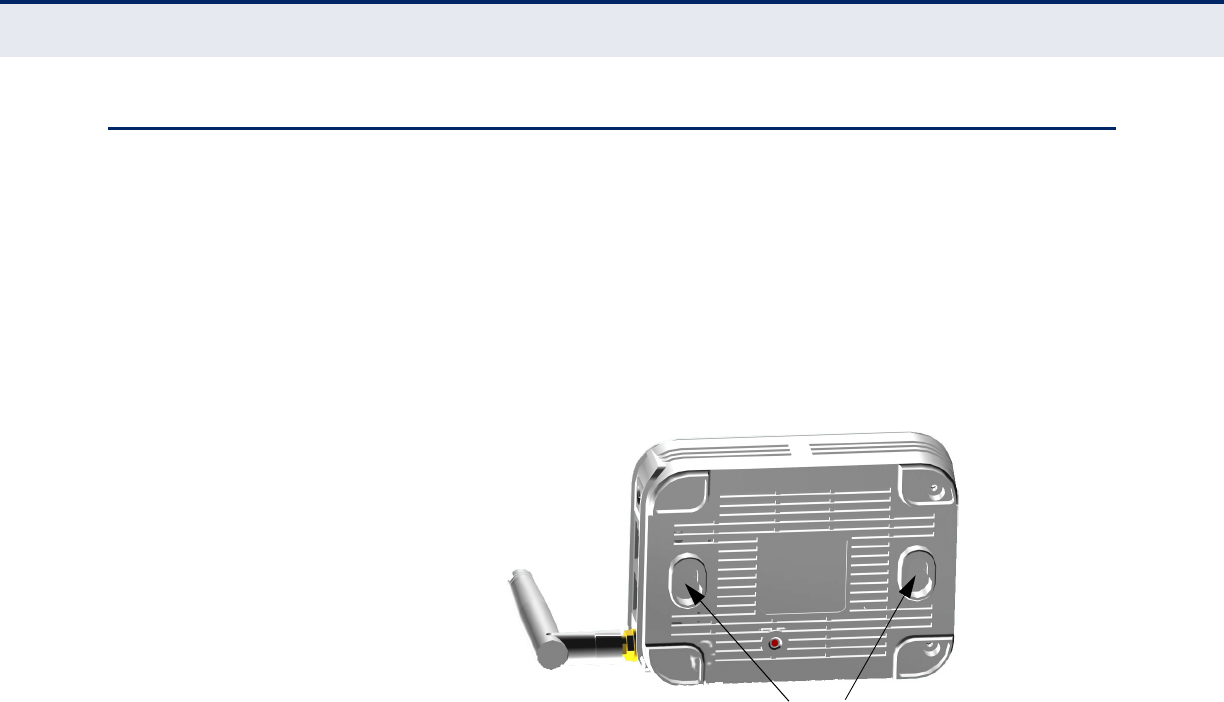

Figure 9: Wall Mounting 30

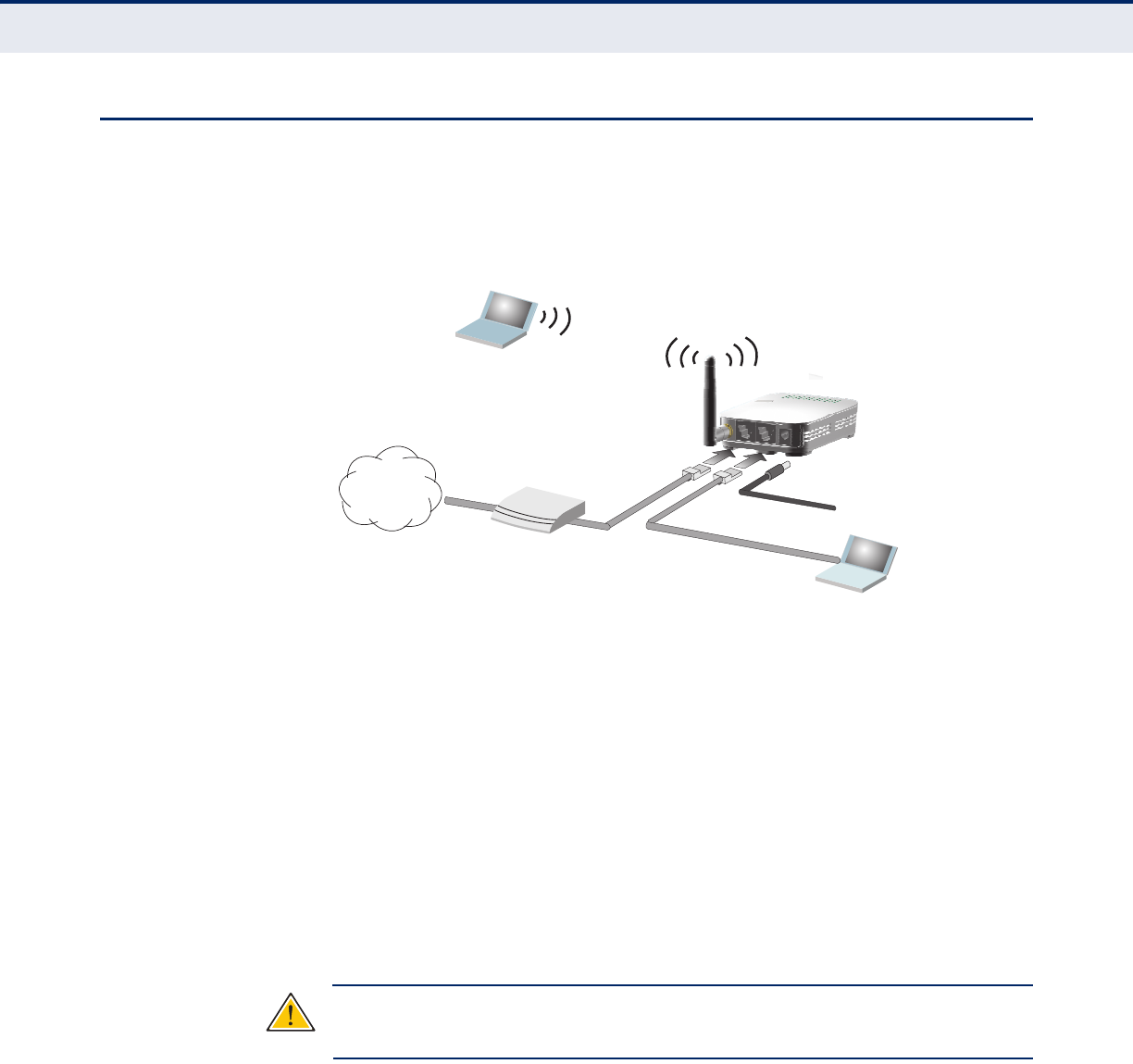

Figure 10: Router Mode Connection 31
Figure 11: Bridge Mode Connection 32
Figure 12: Login Page 35

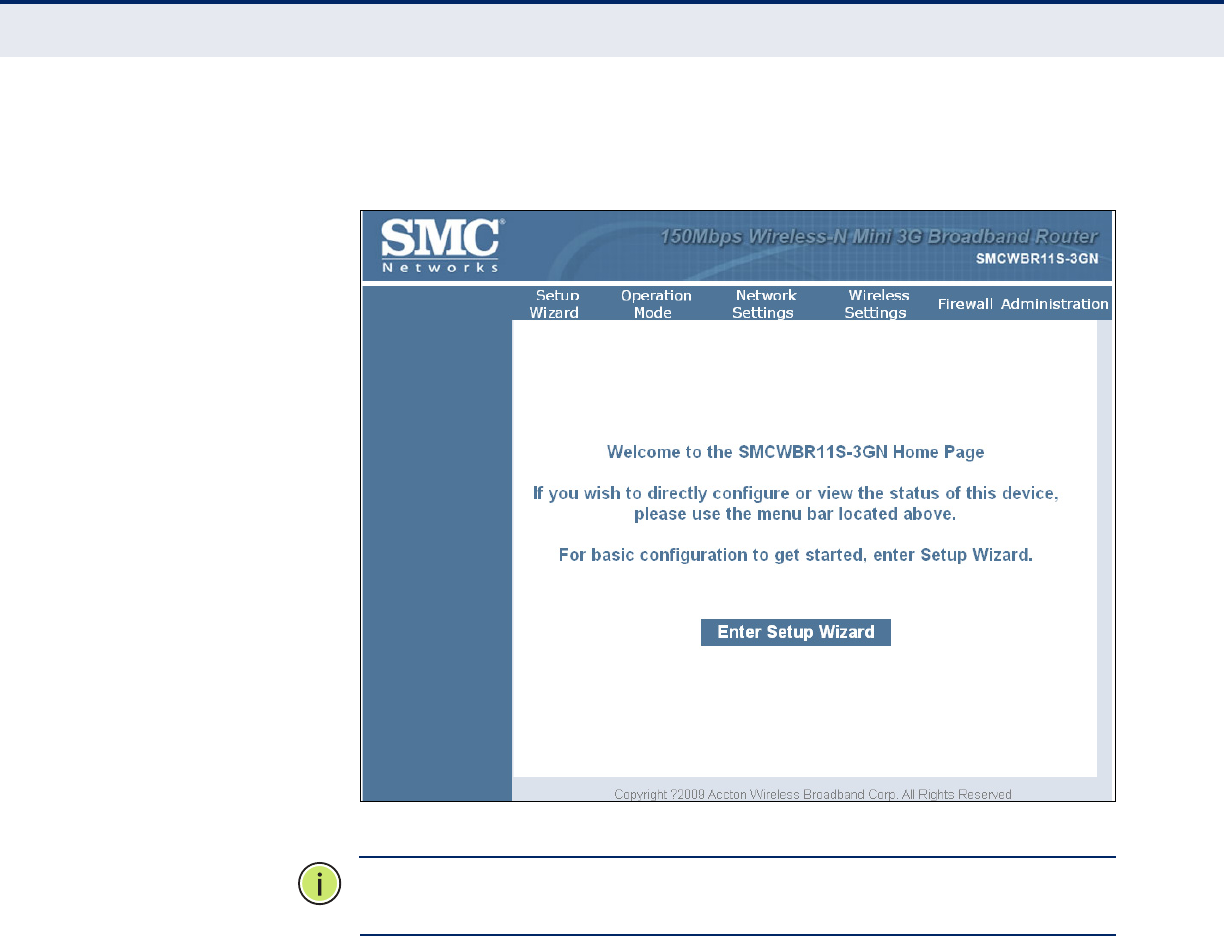

Figure 13: Home Page 35

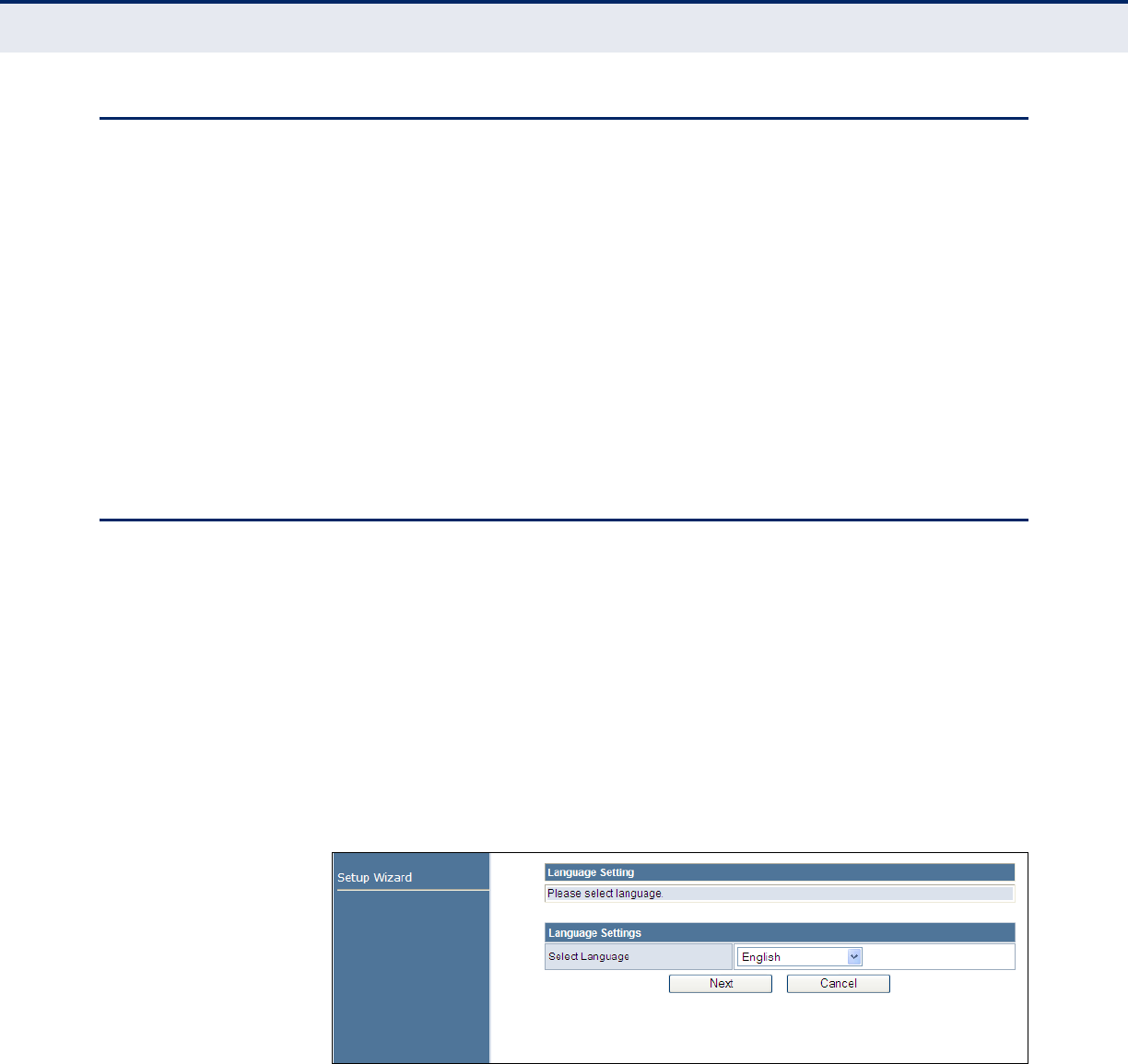

Figure 14: Wizard Step 1 - Language Selection 36

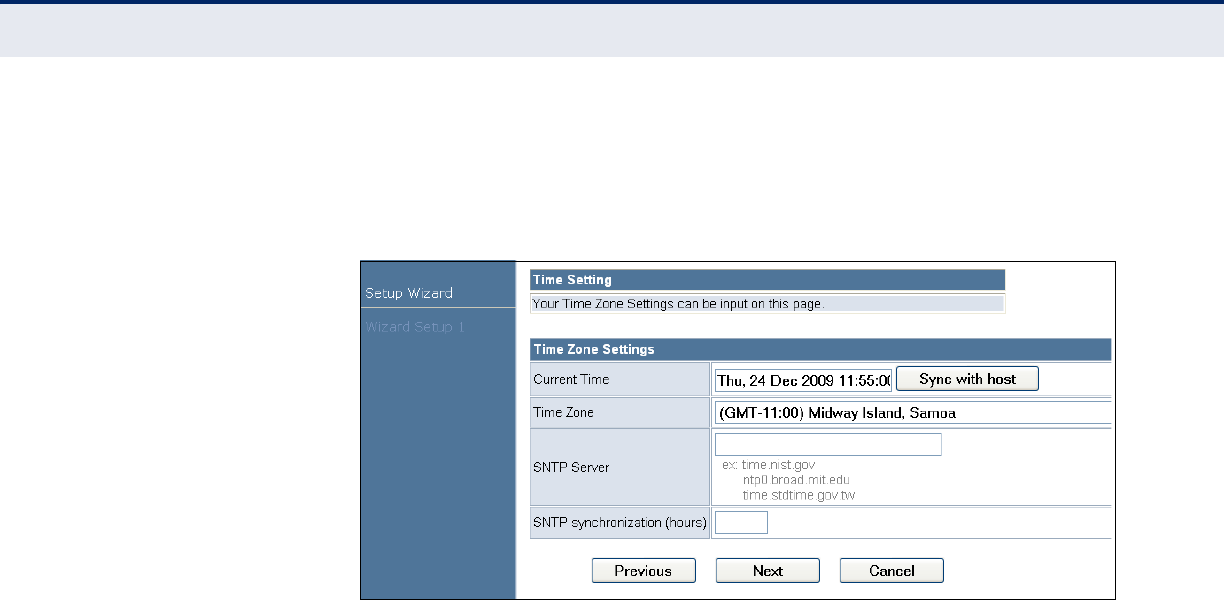

Figure 15: Wizard Step 2 - Time and SNTP Settings 37

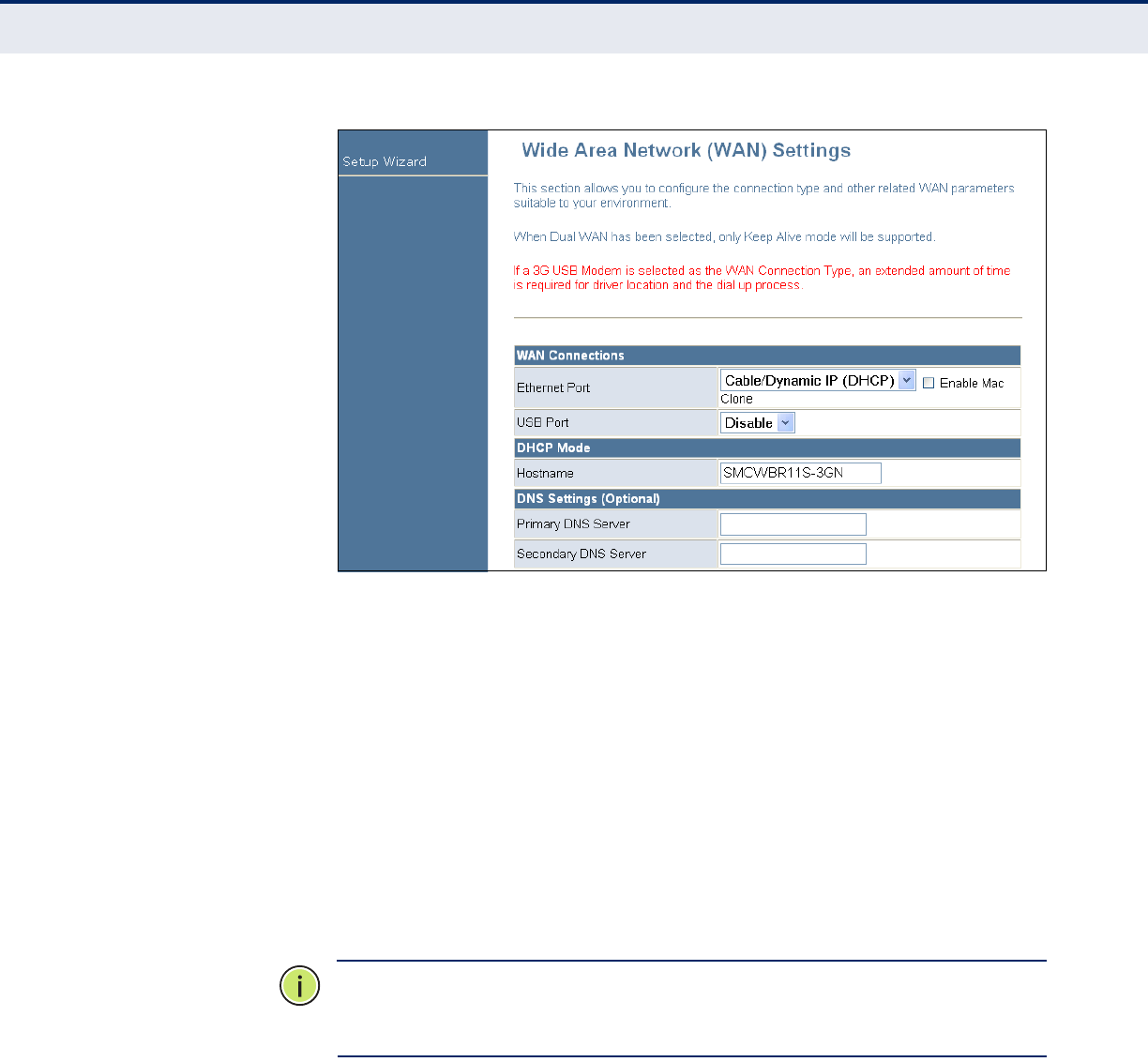

Figure 16: Wizard Step 3 - WAN Settings - DHCP 38

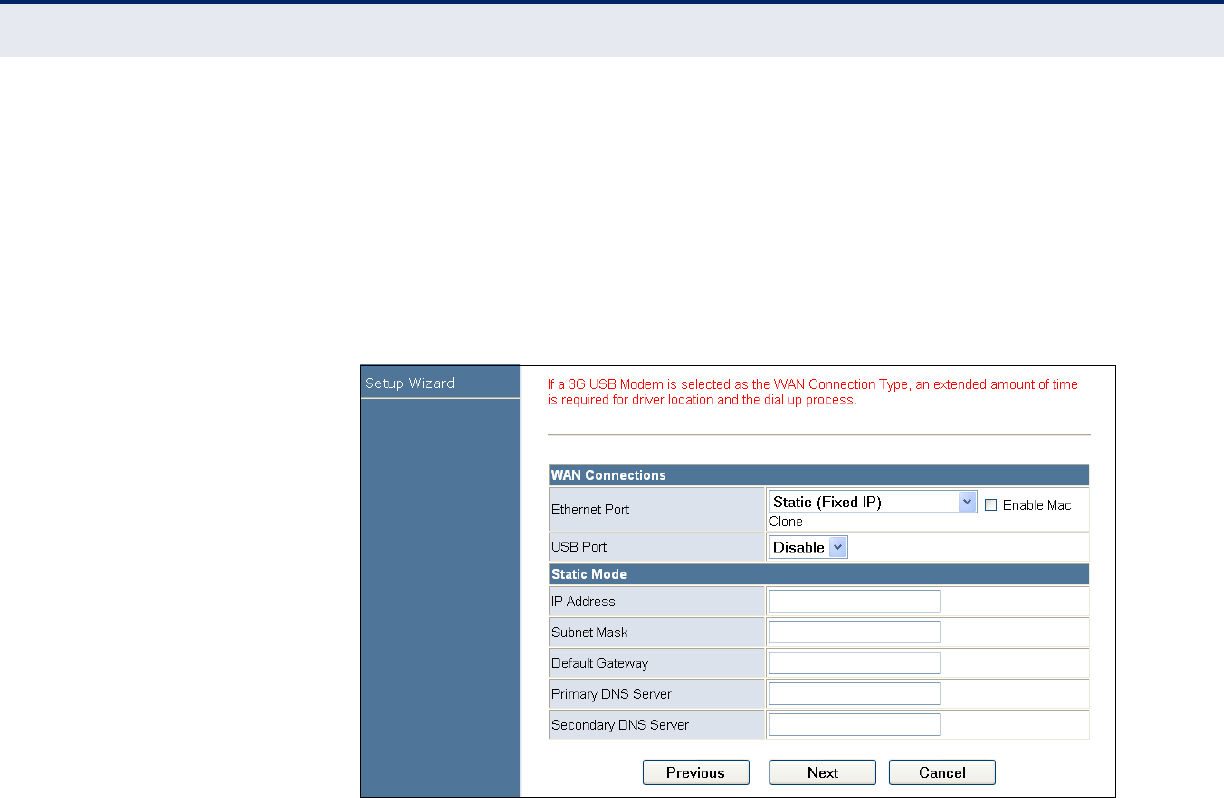

Figure 17: Wizard Step 3 - WAN Settings - Static IP 39

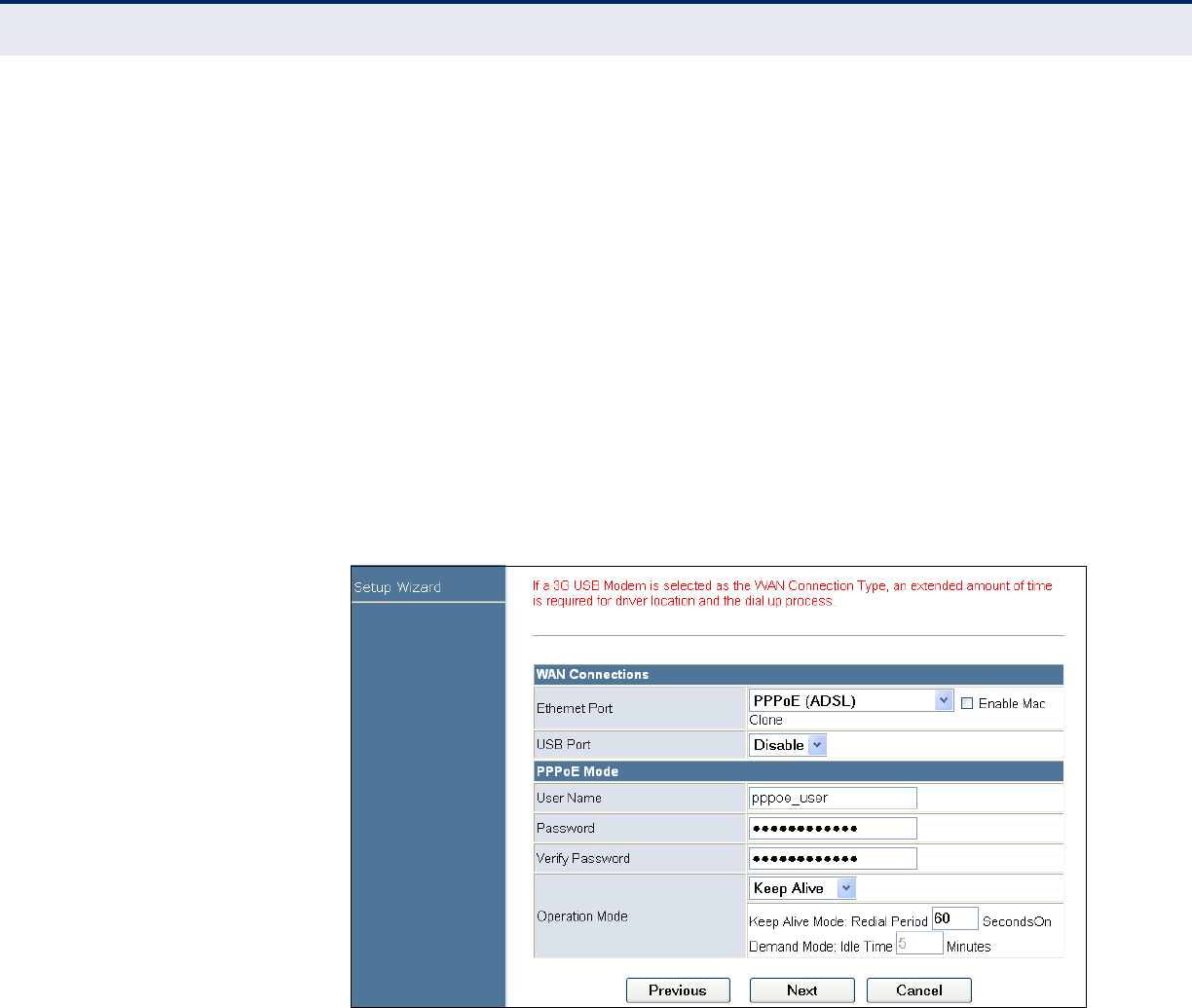

Figure 18: Wizard Step 3 - WAN Settings - PPPoE 40

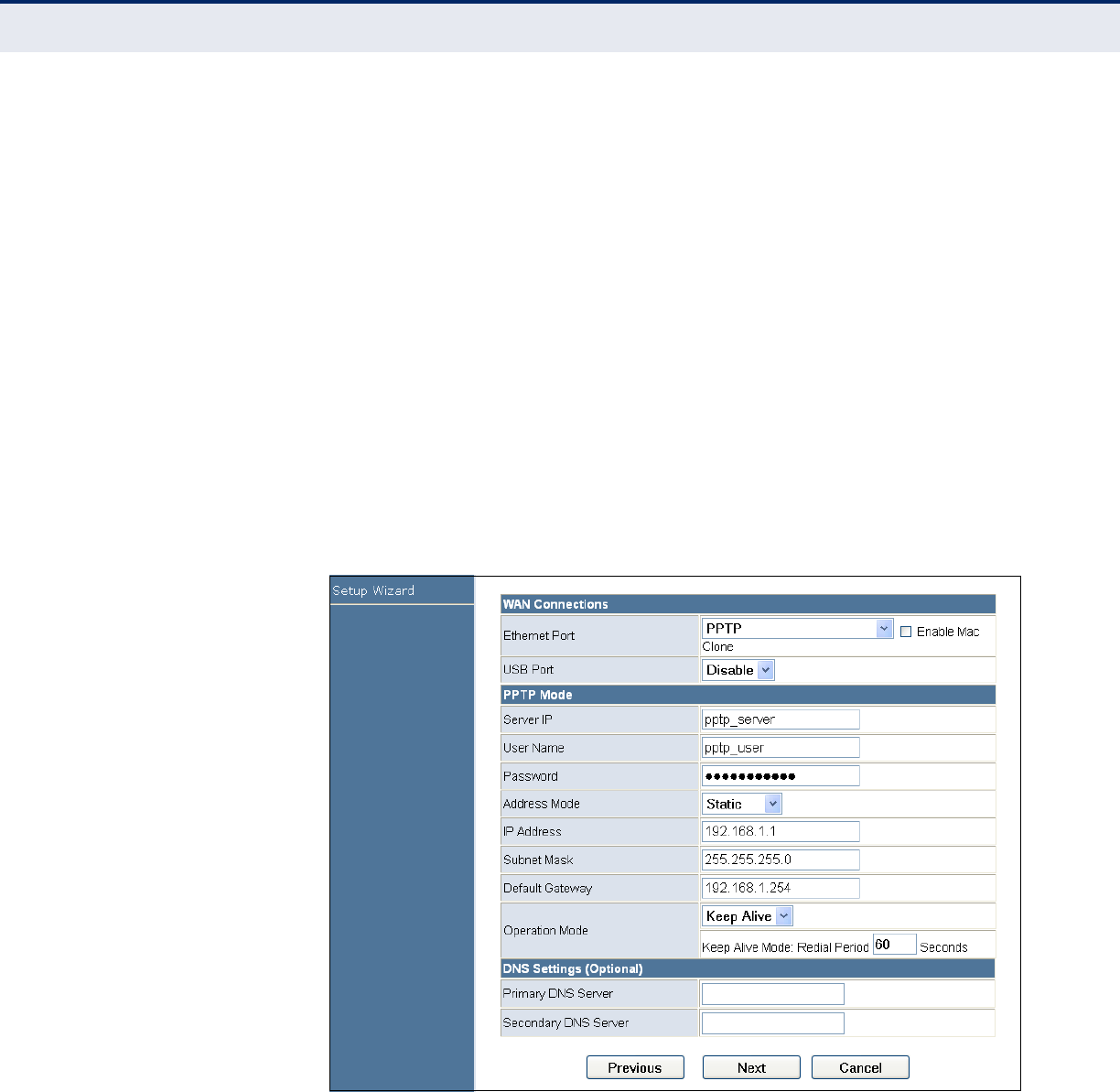

Figure 19: Wizard Step 3 - WAN Settings - PPTP 41

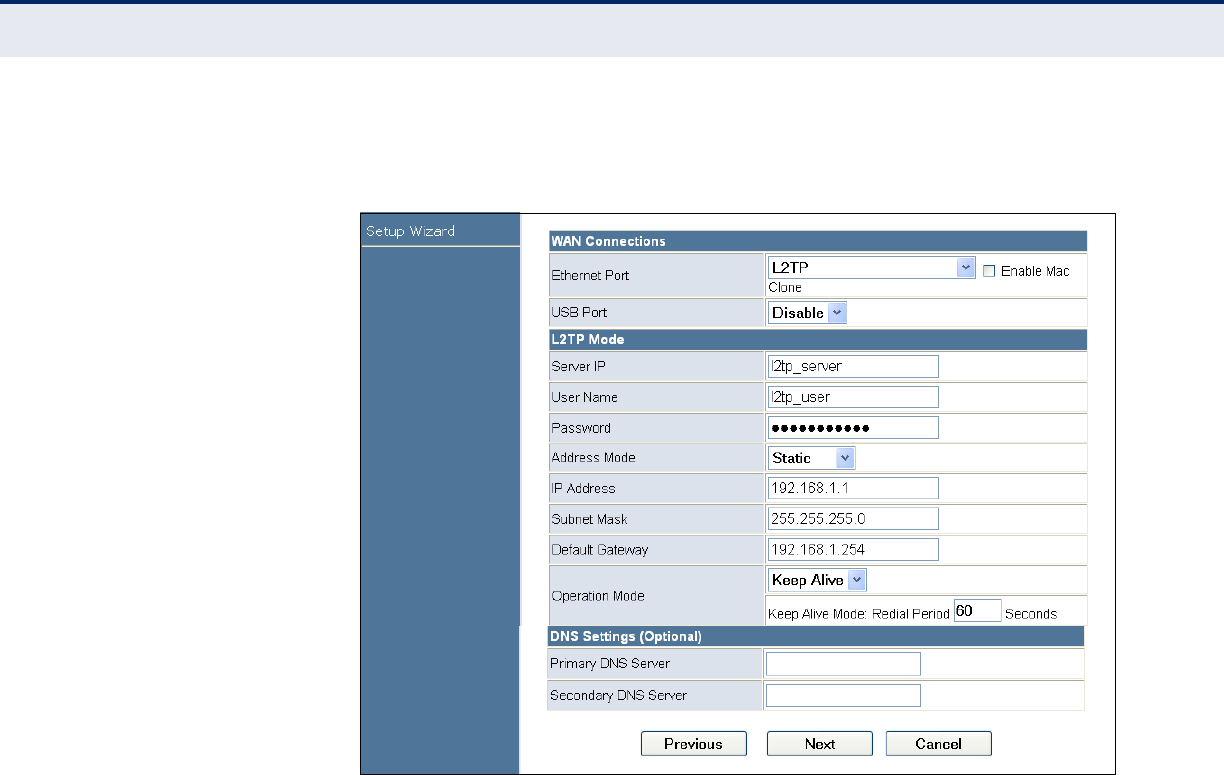

Figure 20: Wizard Step 3 - WAN Settings - L2TP 43

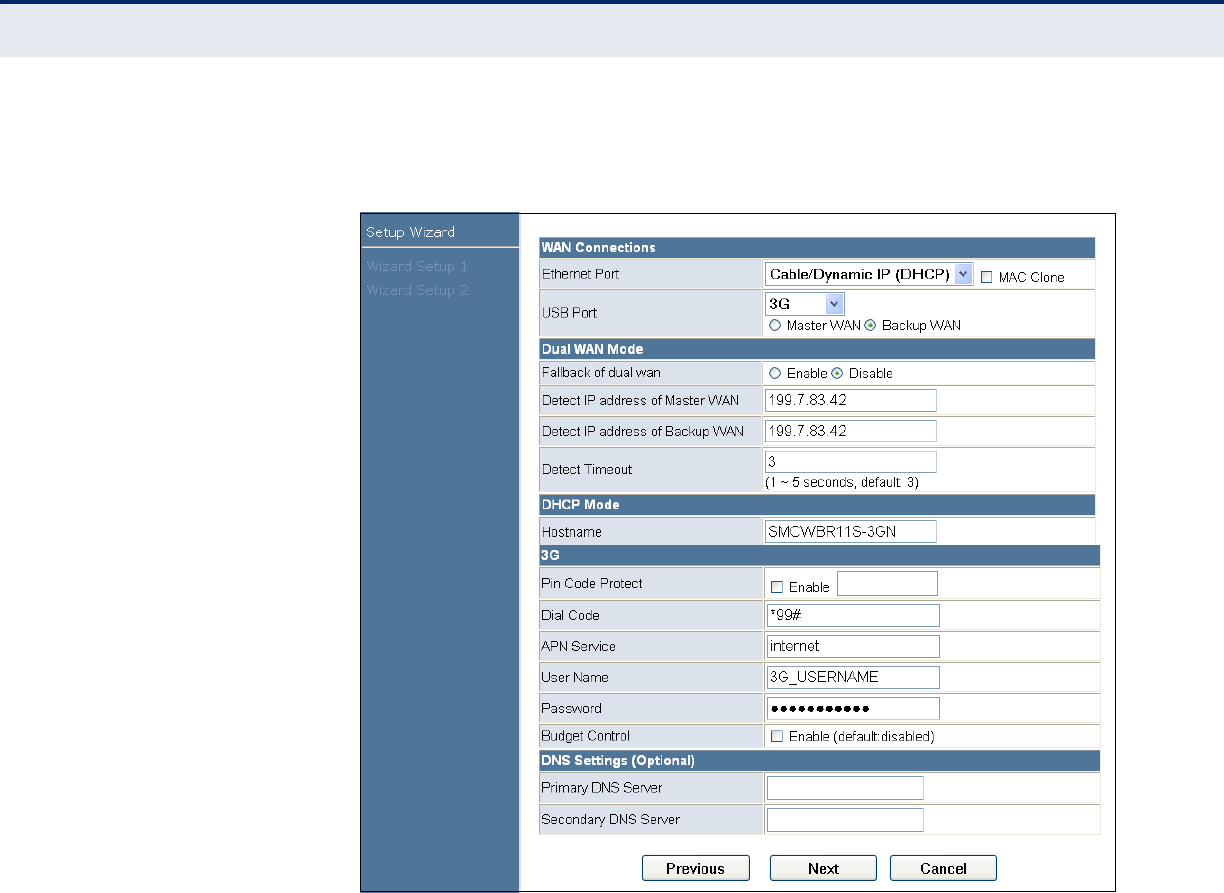

Figure 21: Wizard Step 3 - WAN Settings - 3G 45

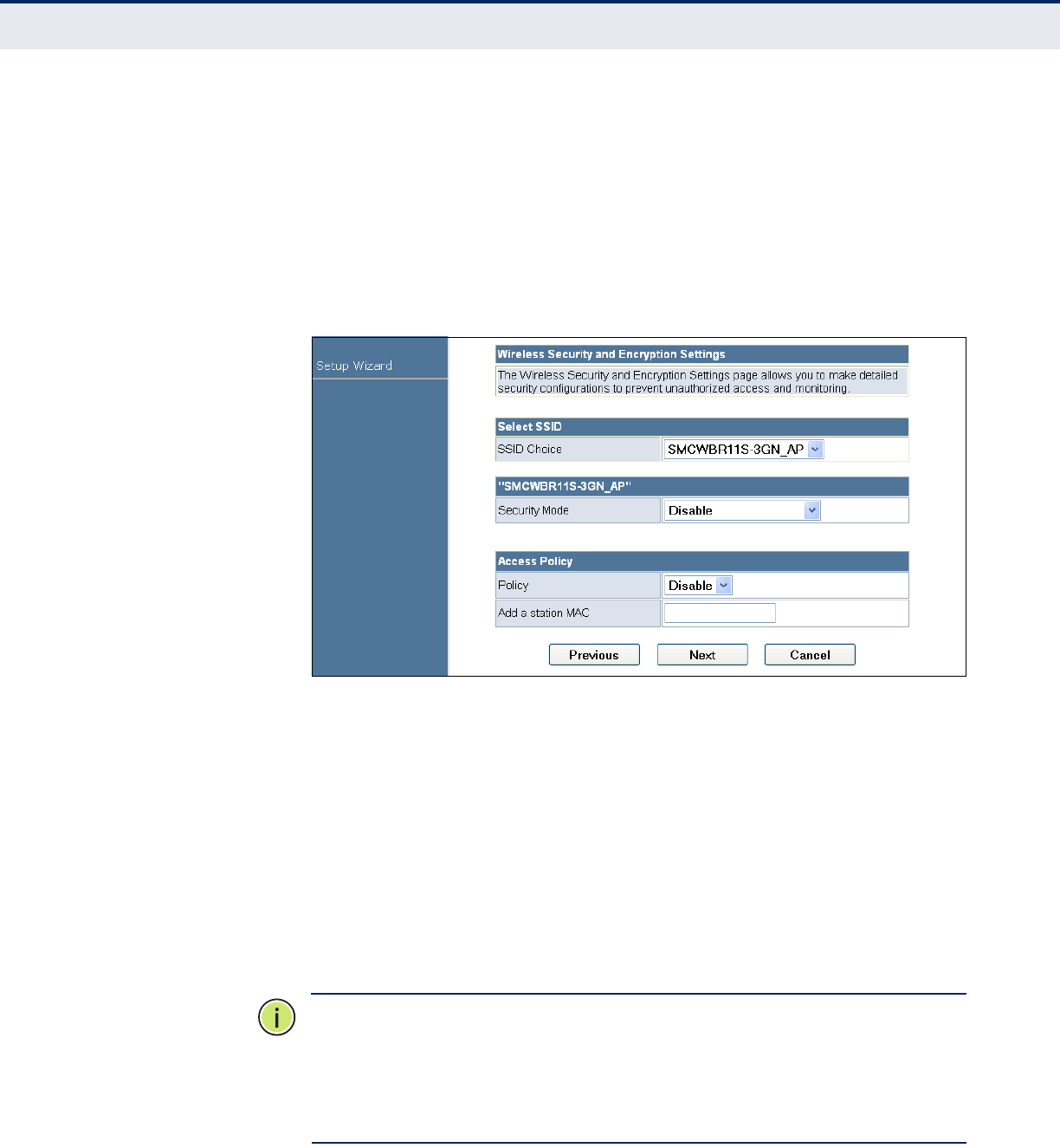

Figure 22: Wizard Step 4 - Wireless Security 47

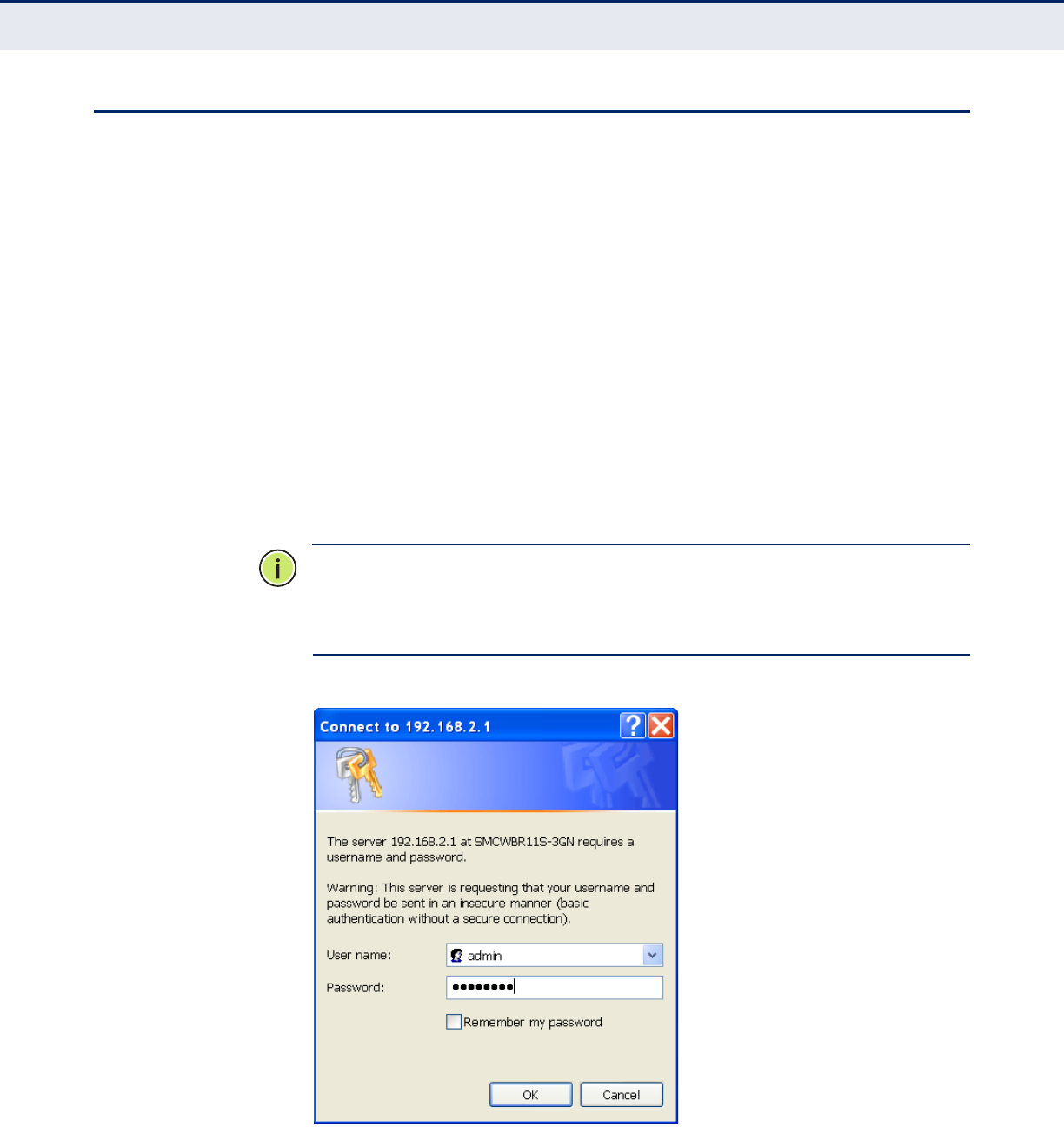

Figure 23: Logging On 51
Figure 24: Home Page 52

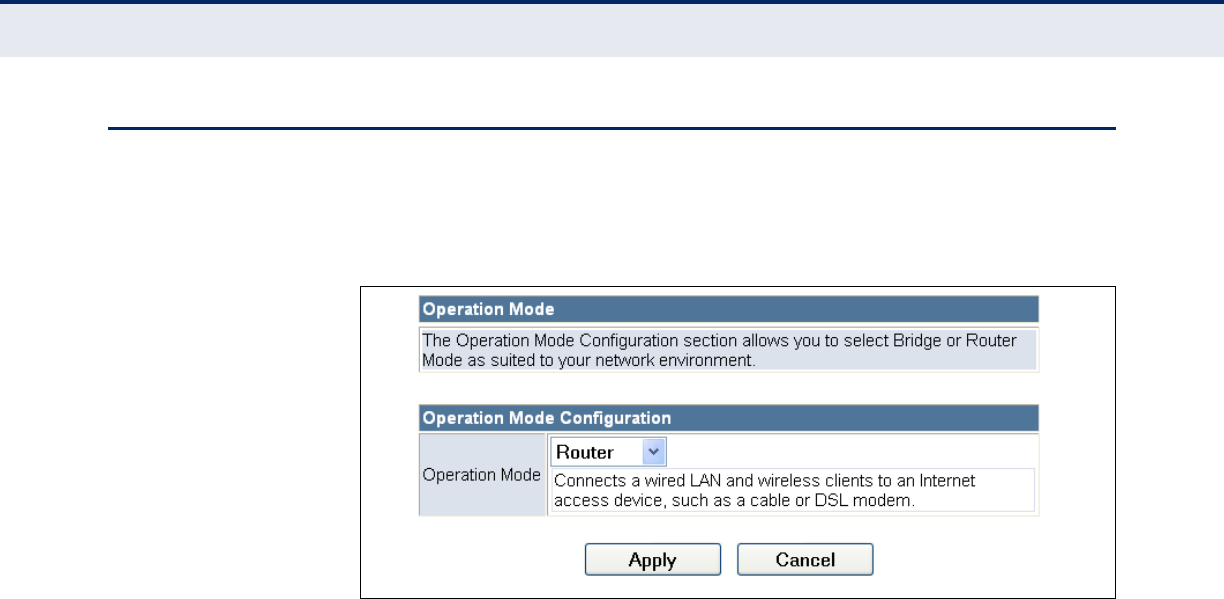

Figure 25: Operation Mode 53

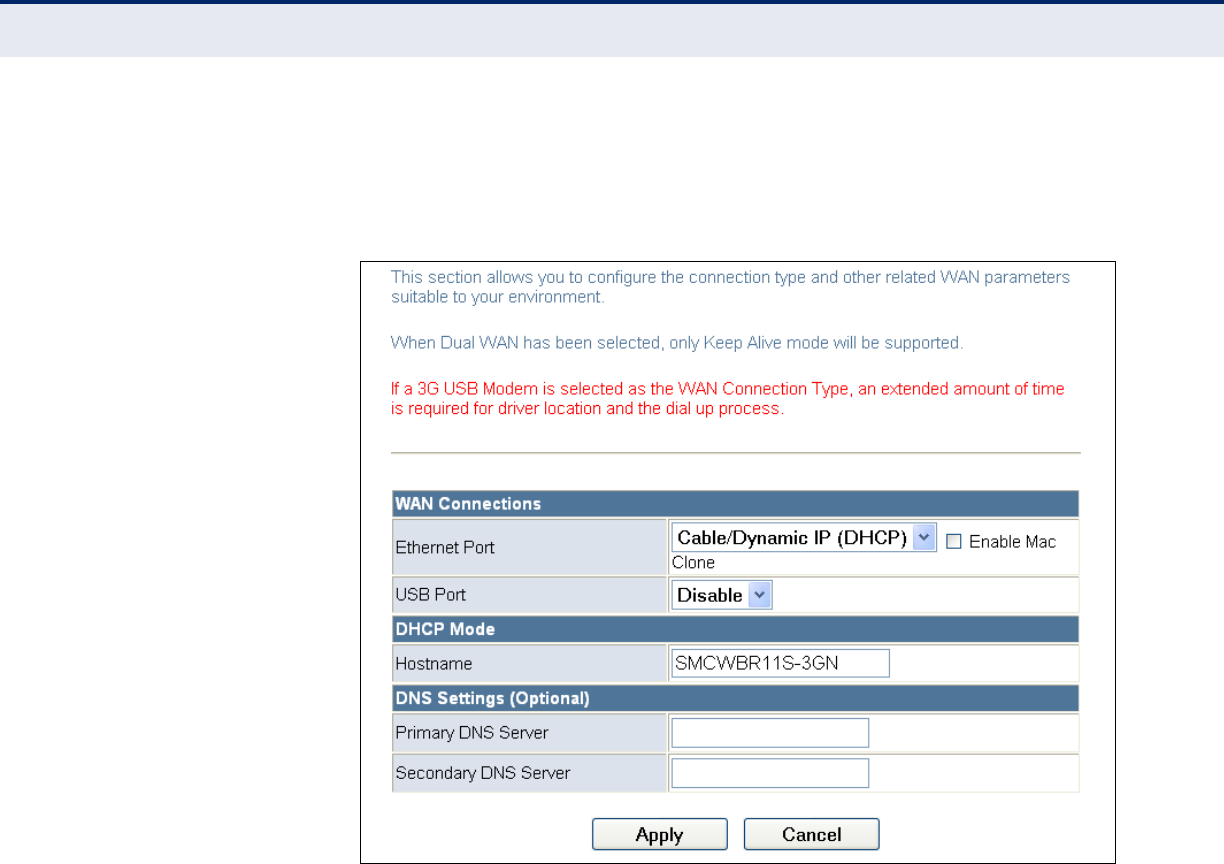

Figure 26: DHCP Configuration 56

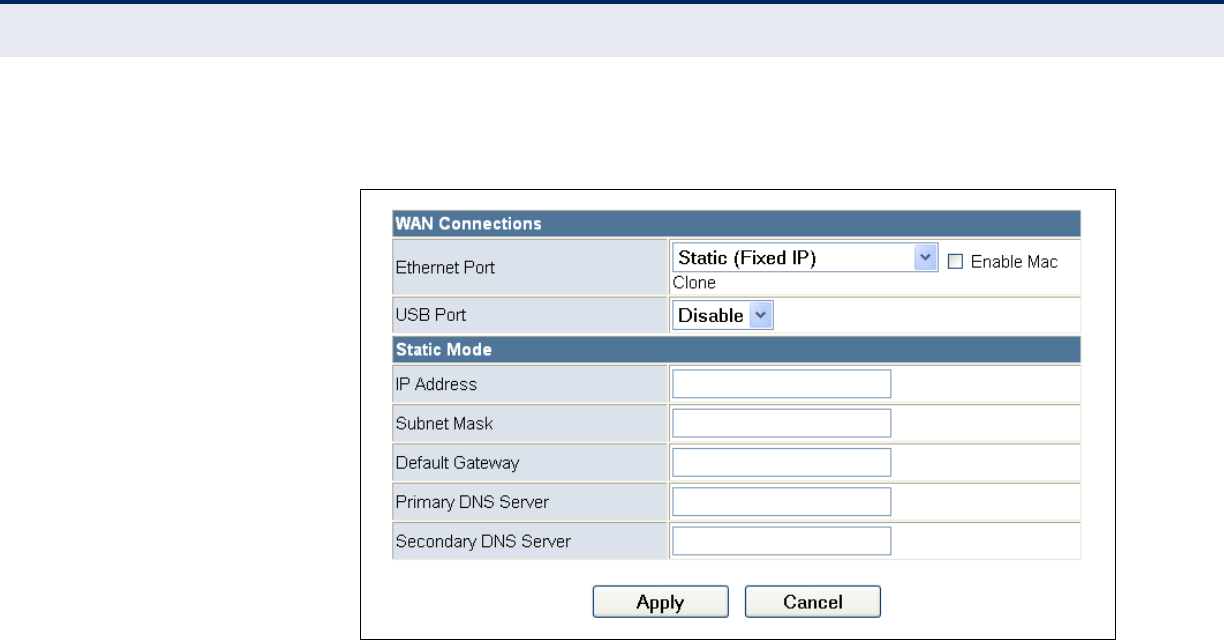

Figure 27: Static IP Configuration 57

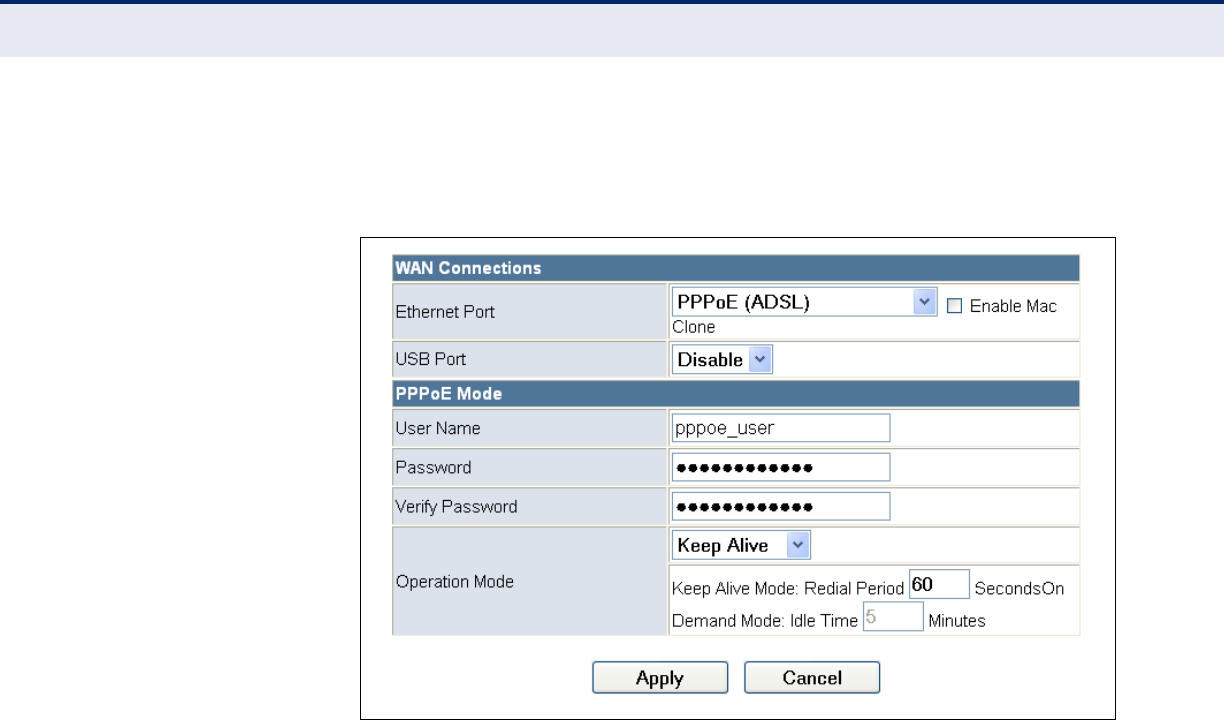

Figure 28: PPPoE Configuration 58

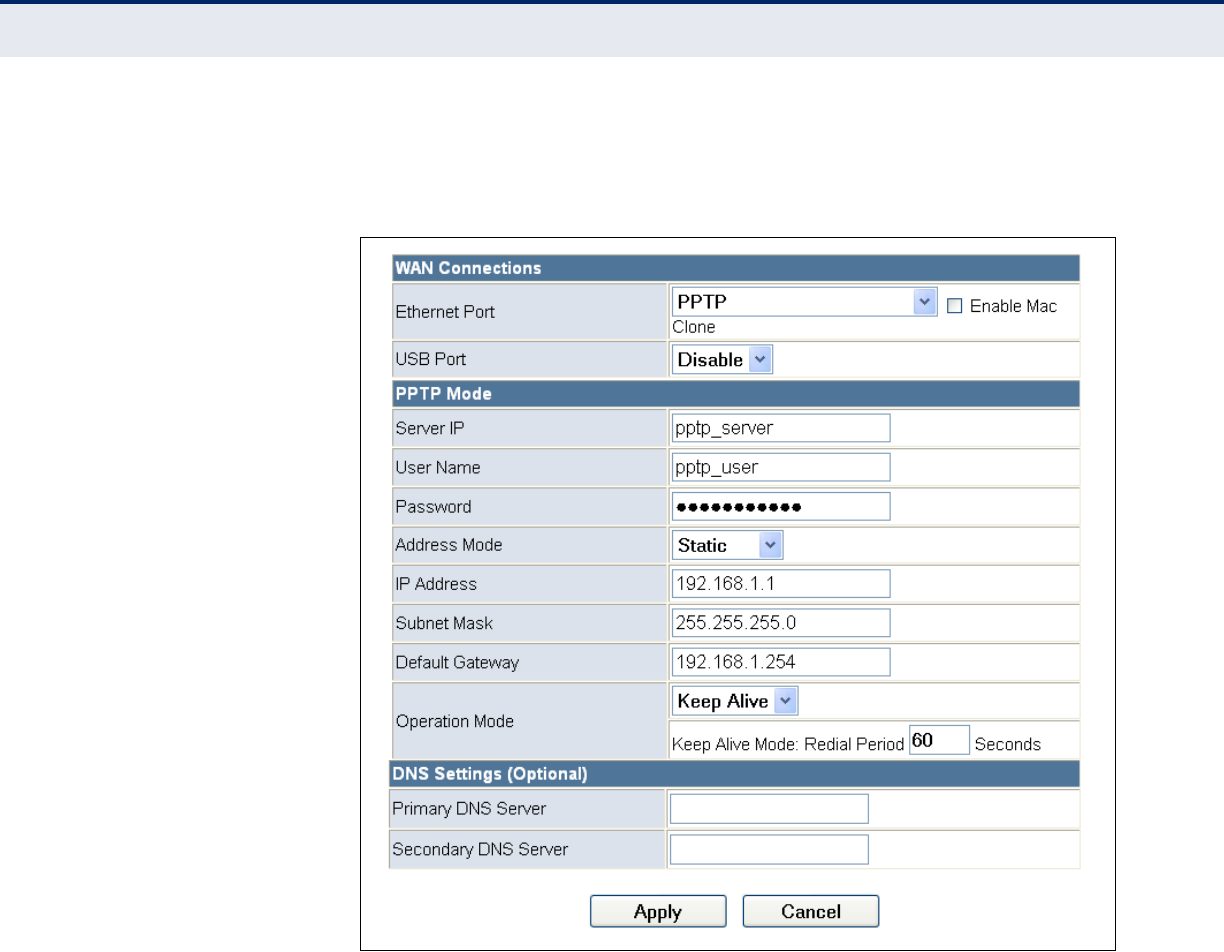

Figure 29: PPTP Configuration 59
Figure 30: L2TP Configuration 61

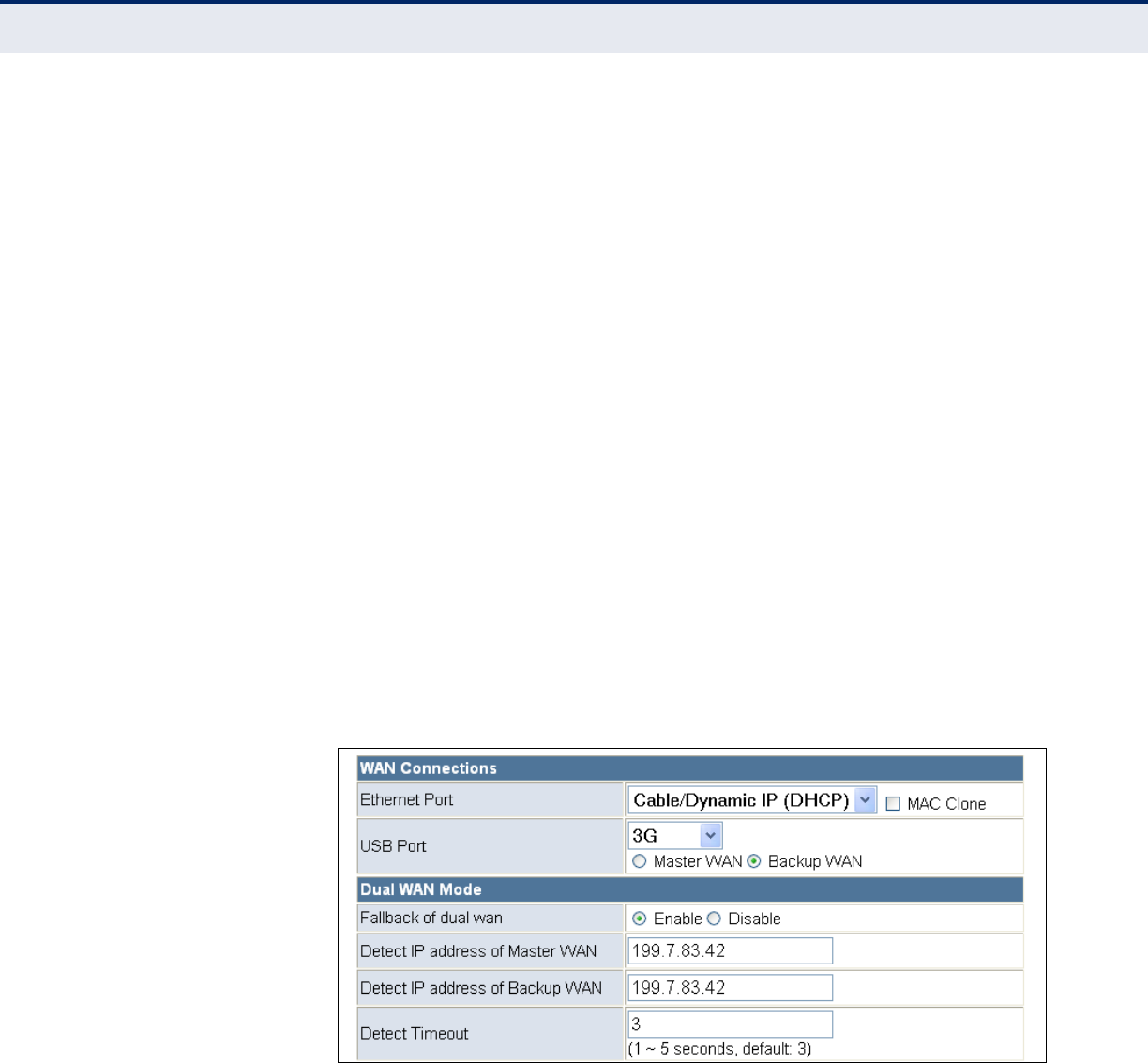

Figure 31: 3G Configuration - Dual WAN Mode 62
![](/img.php?id=1248095&img=bg10.png)
F
IGURES
– 16 –

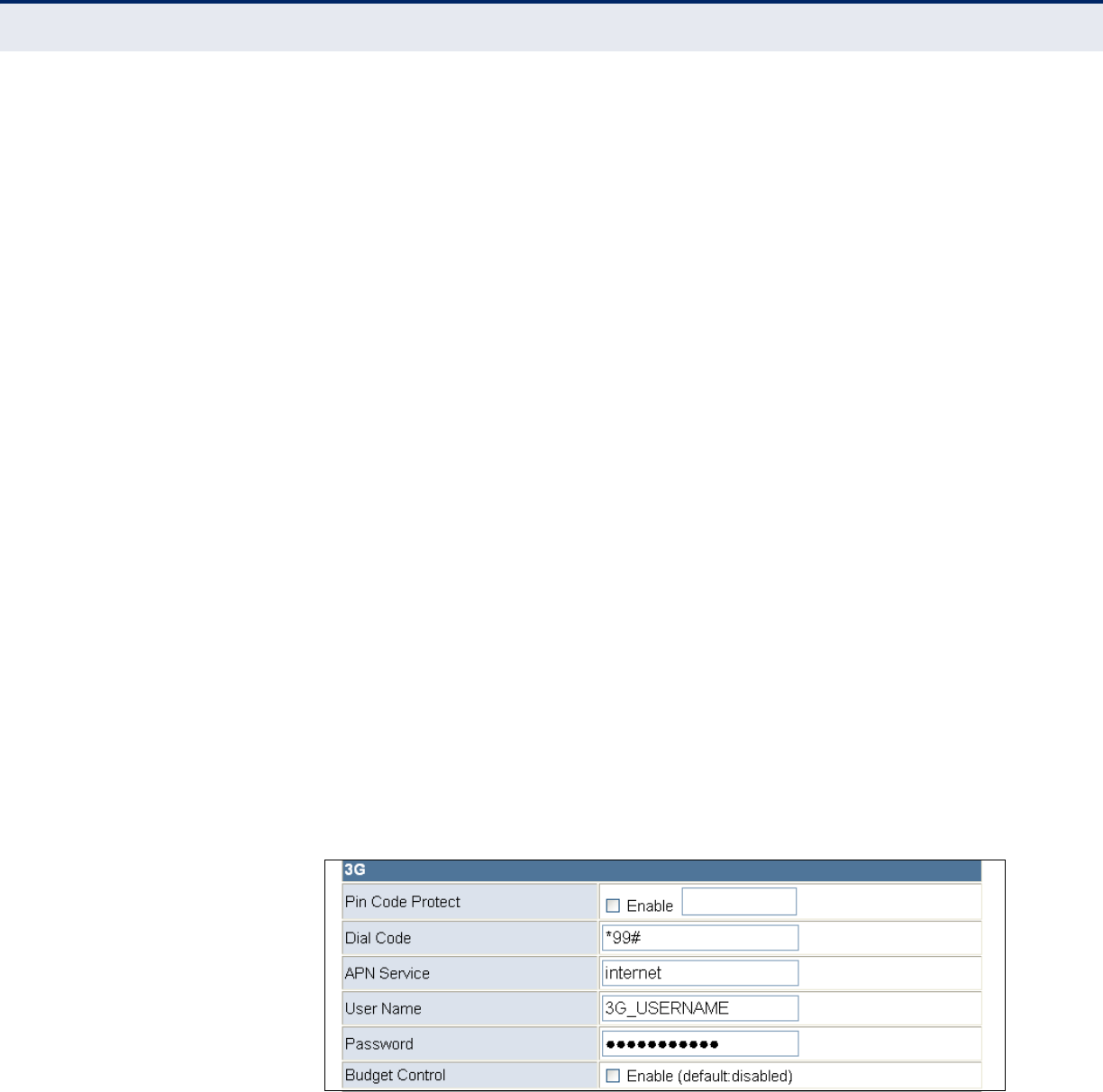

Figure 32: 3G Configuration - Account Setup 63

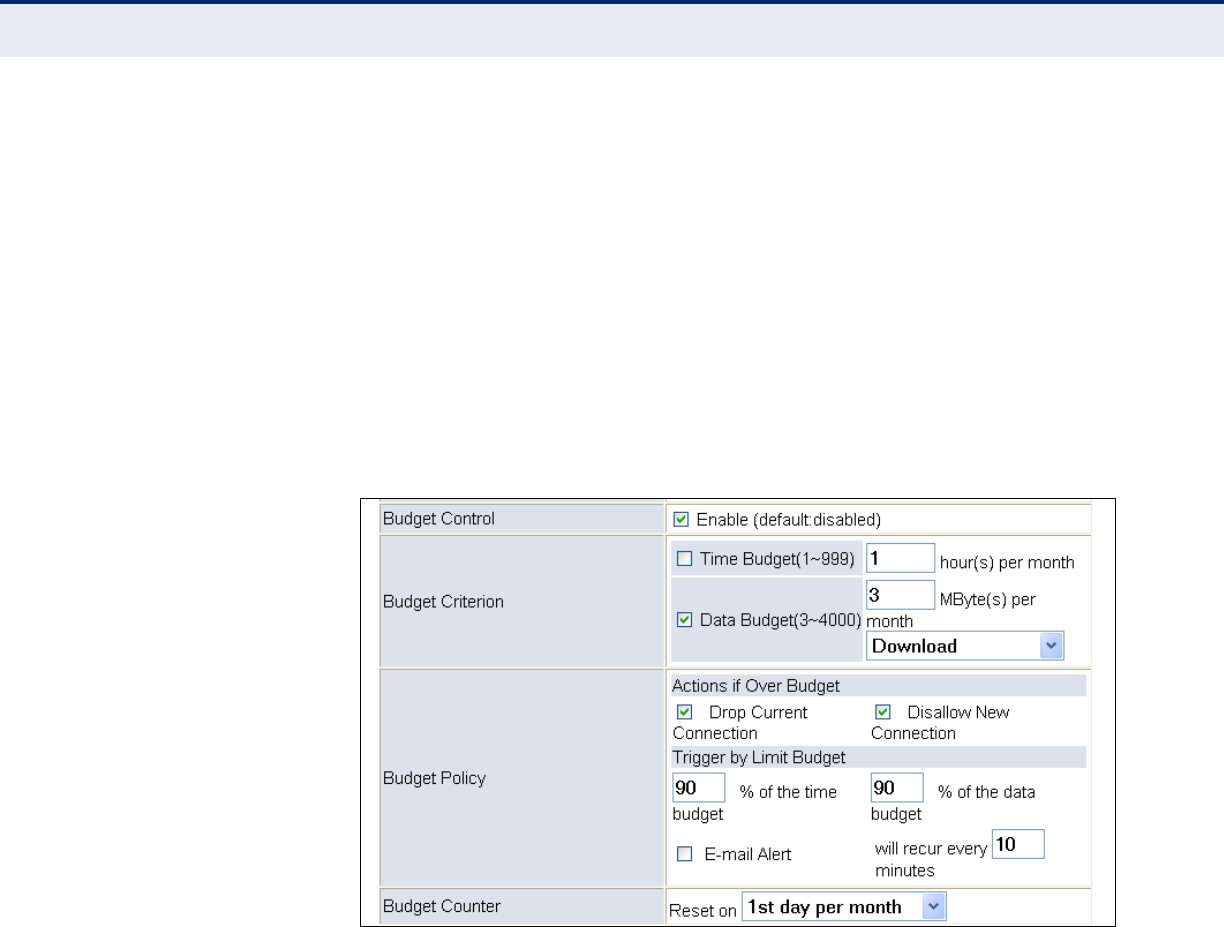

Figure 33: 3G Configuration - Budget Control 64

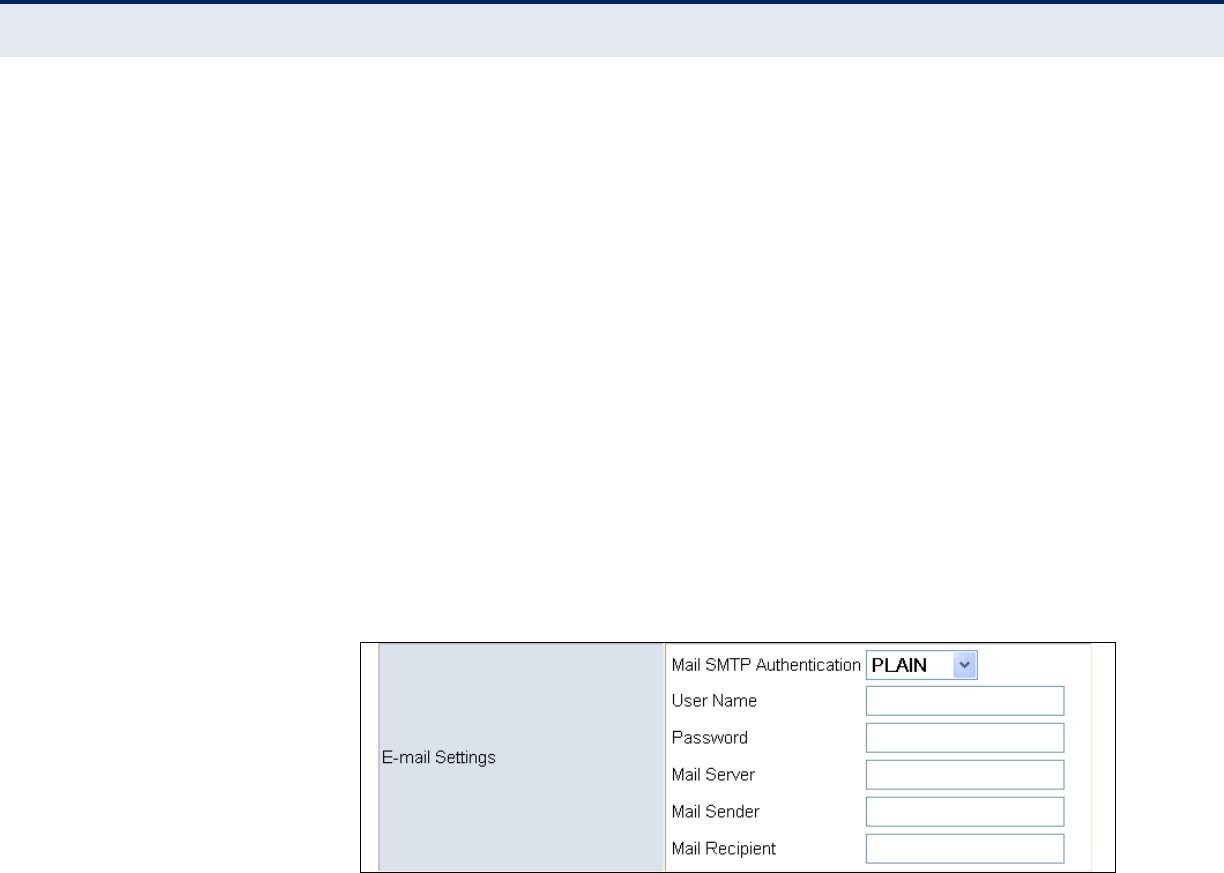

Figure 34: 3G Configuration - E-mail Settings 65

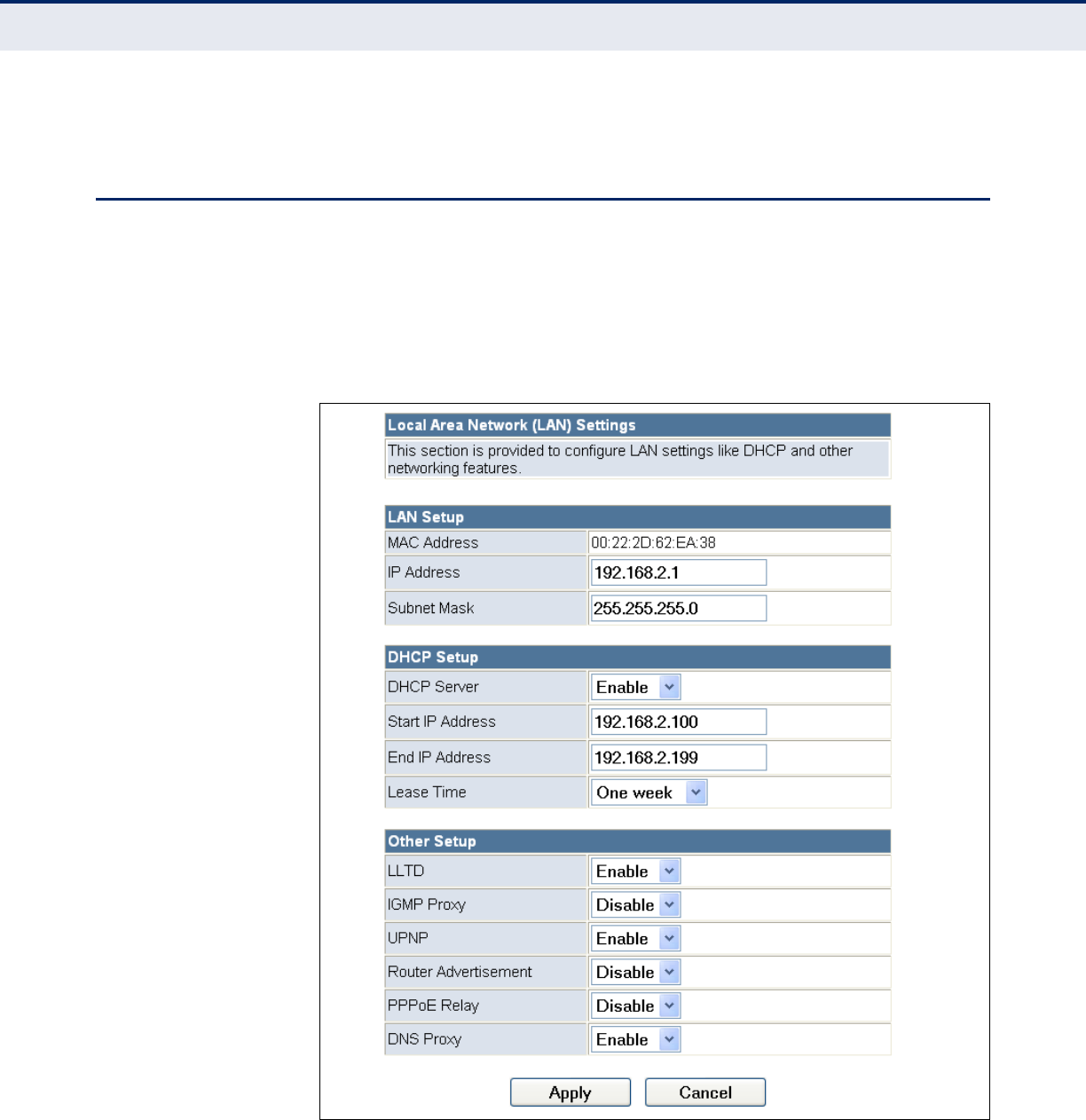

Figure 35: LAN Configuration 66

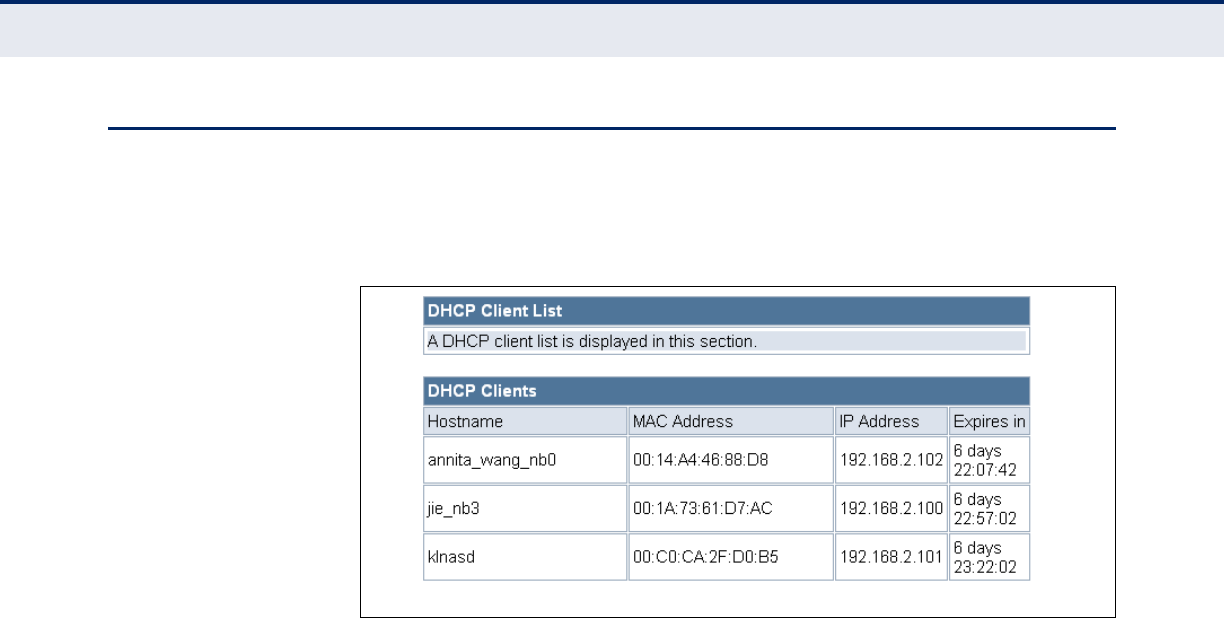

Figure 36: DHCP Clients 68

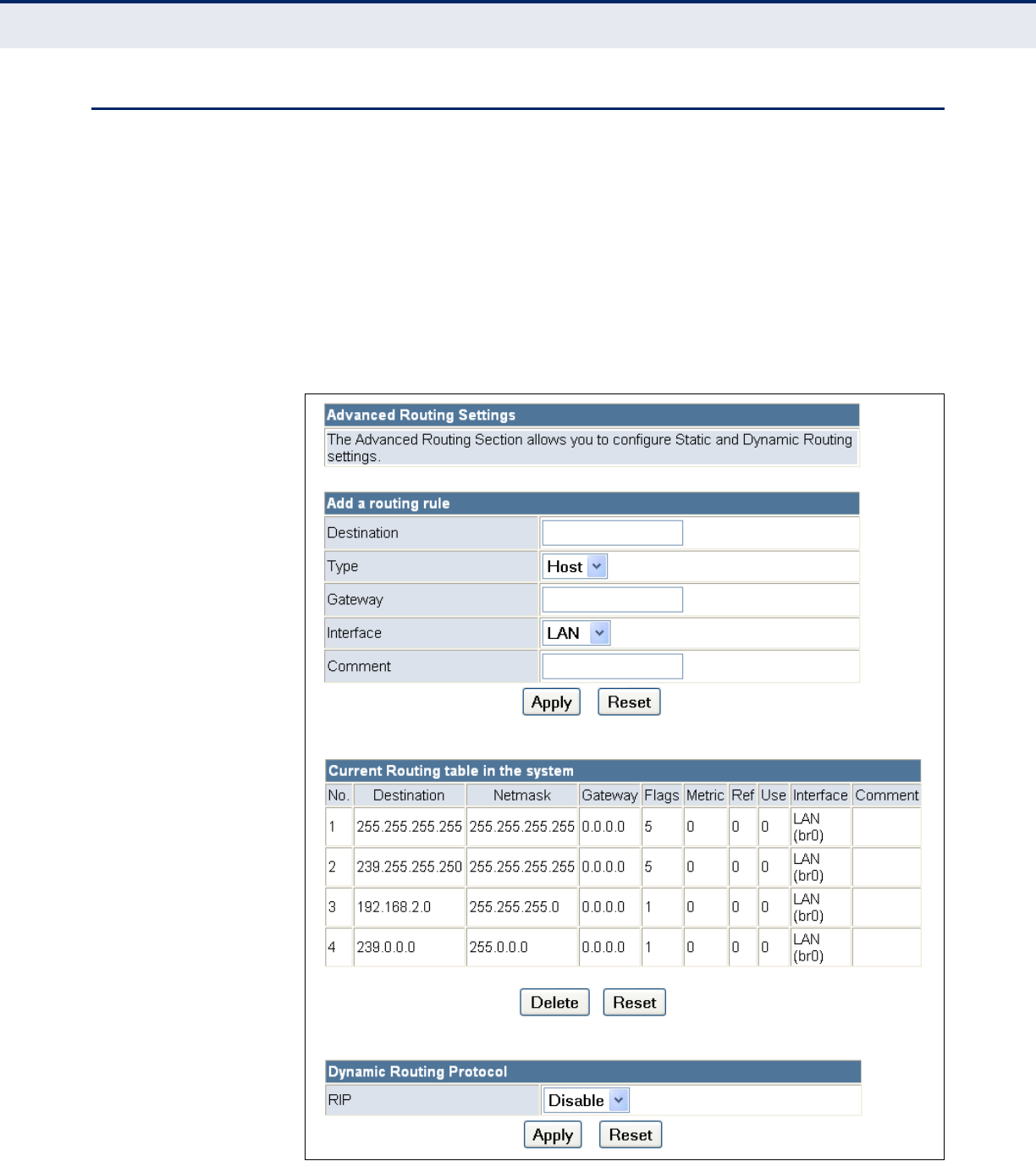

Figure 37: Advanced Routing (Router Mode) 69

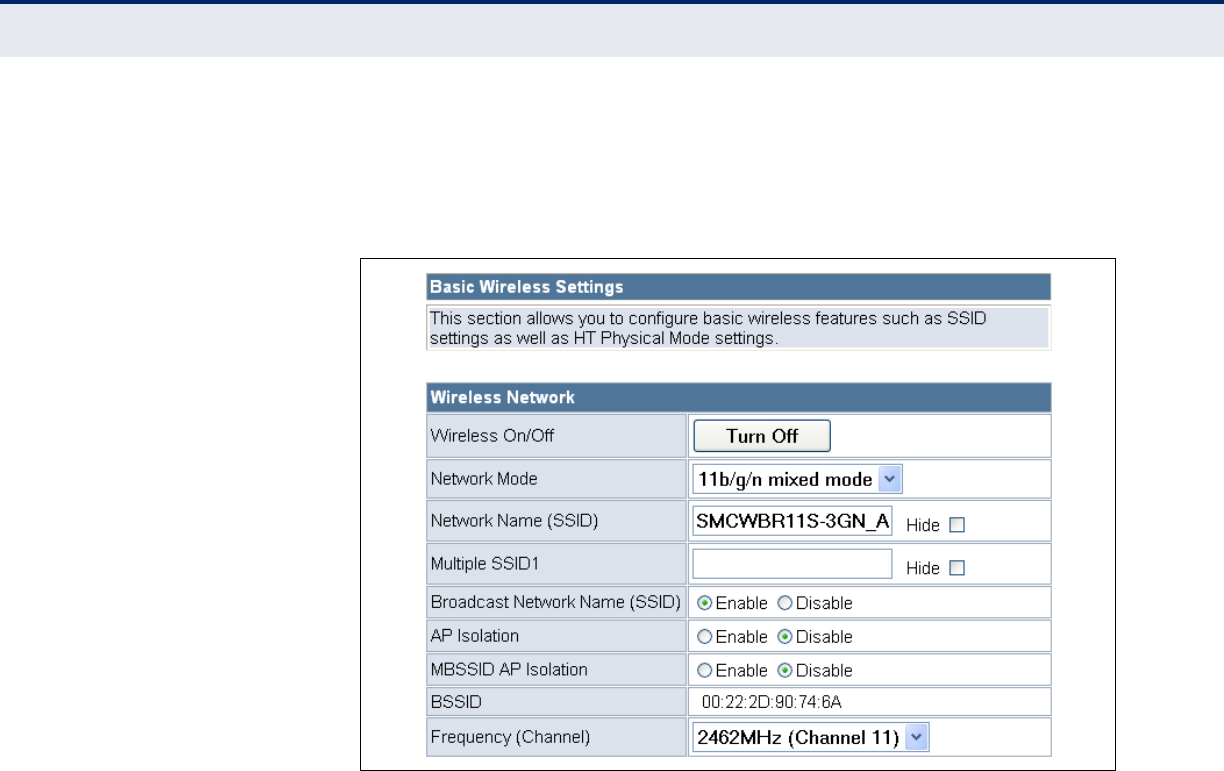

Figure 38: Basic Settings 73

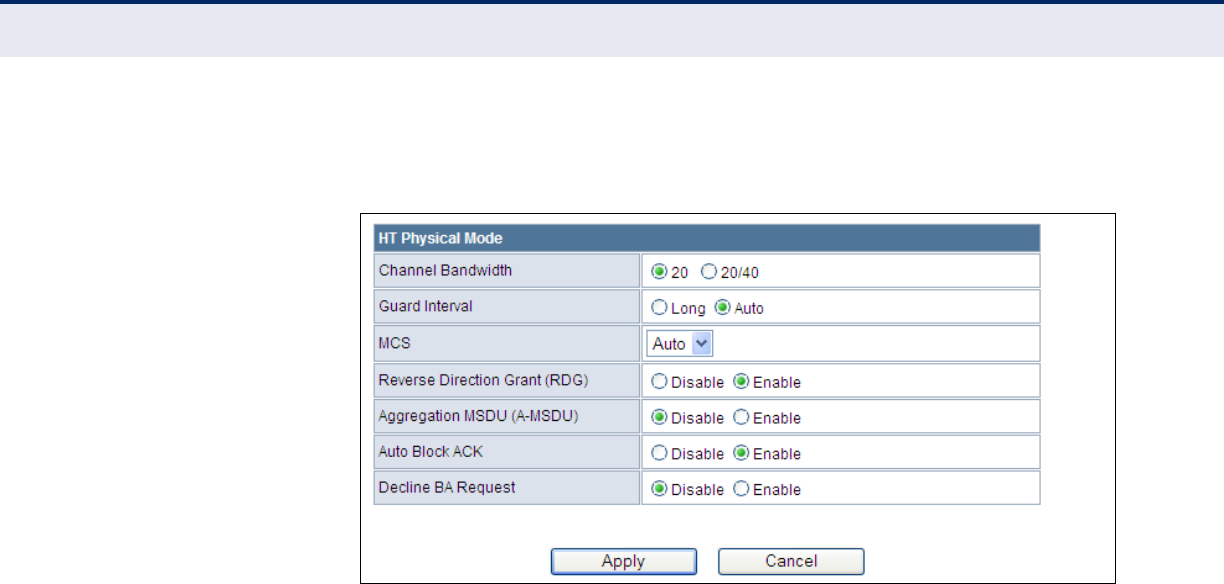

Figure 39: HT Physical Mode Settings 75

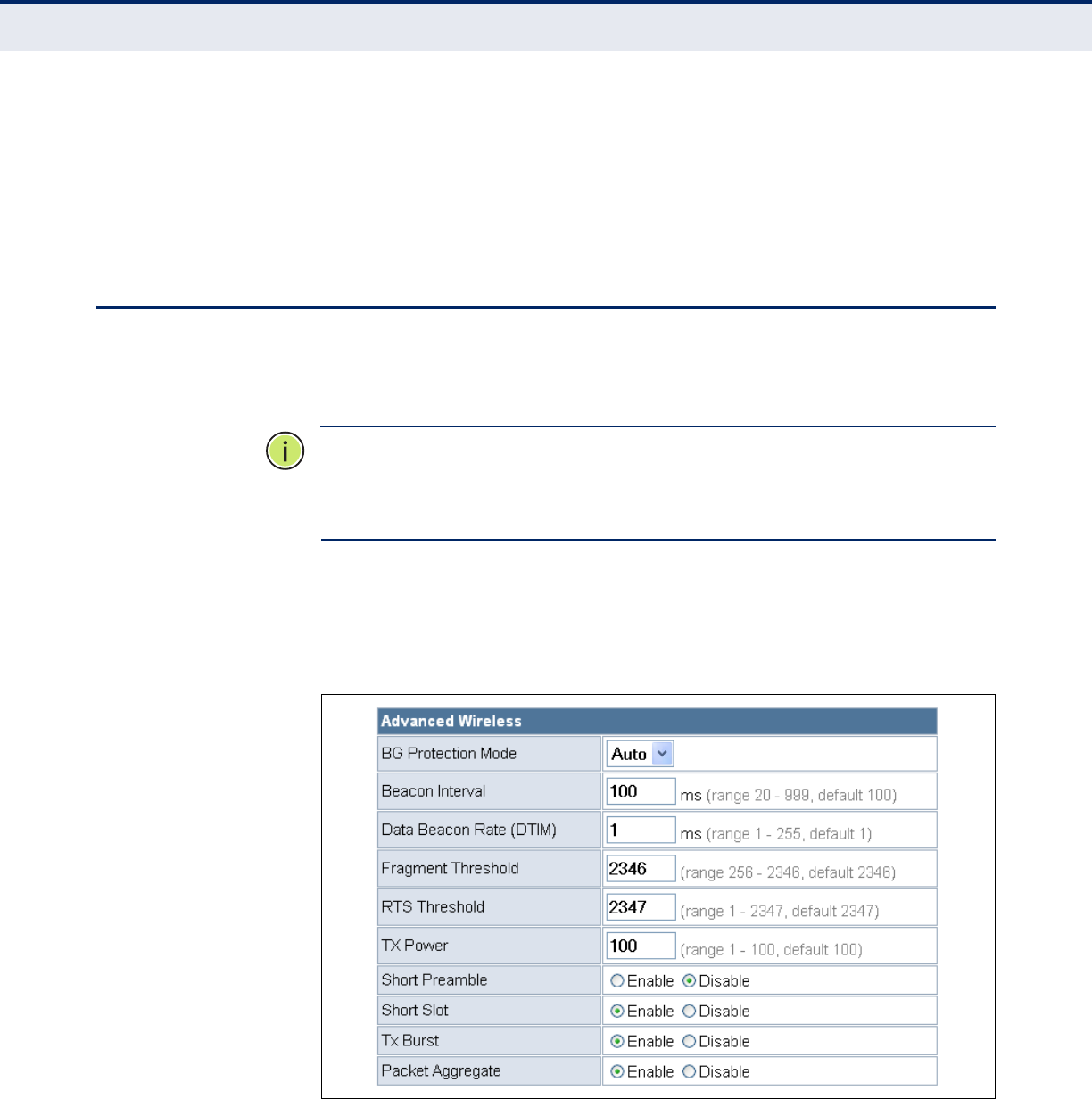

Figure 40: Advanced Wireless Settings 76
Figure 41: Wi-Fi Multimedia Settings 79

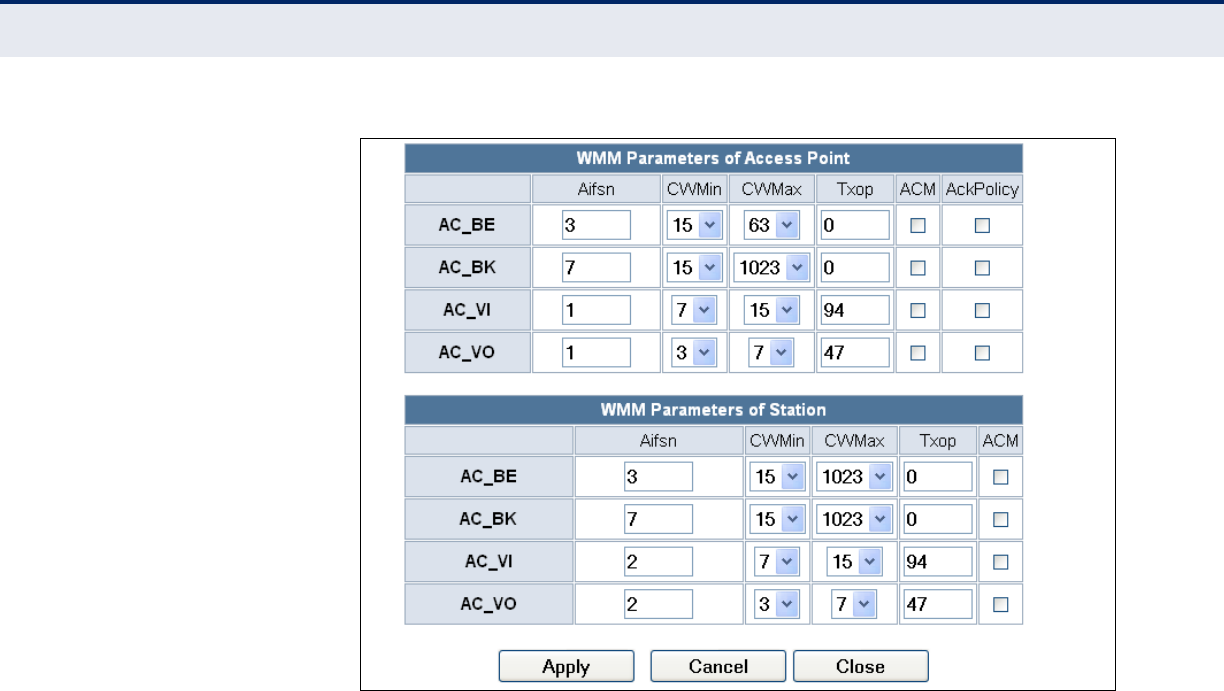

Figure 42: WMM Configuration 80

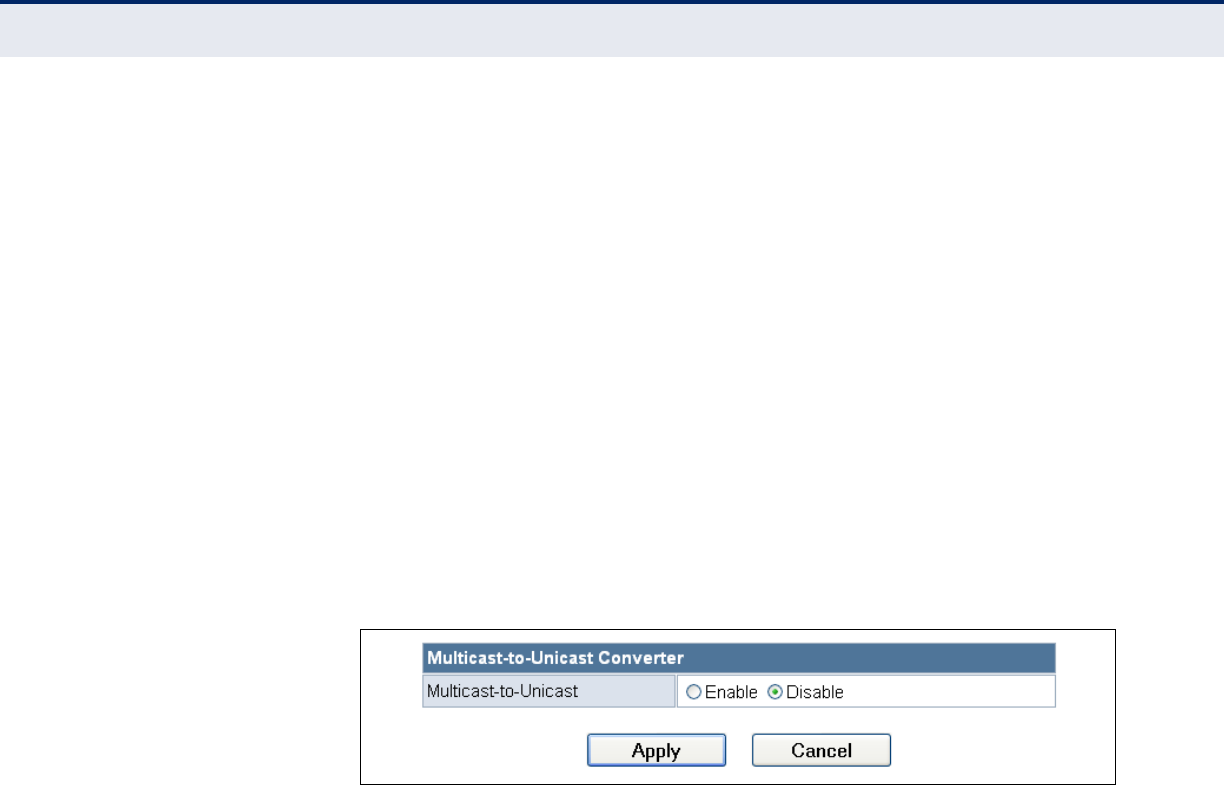

Figure 43: Multicast-to-Unicast Converter 81

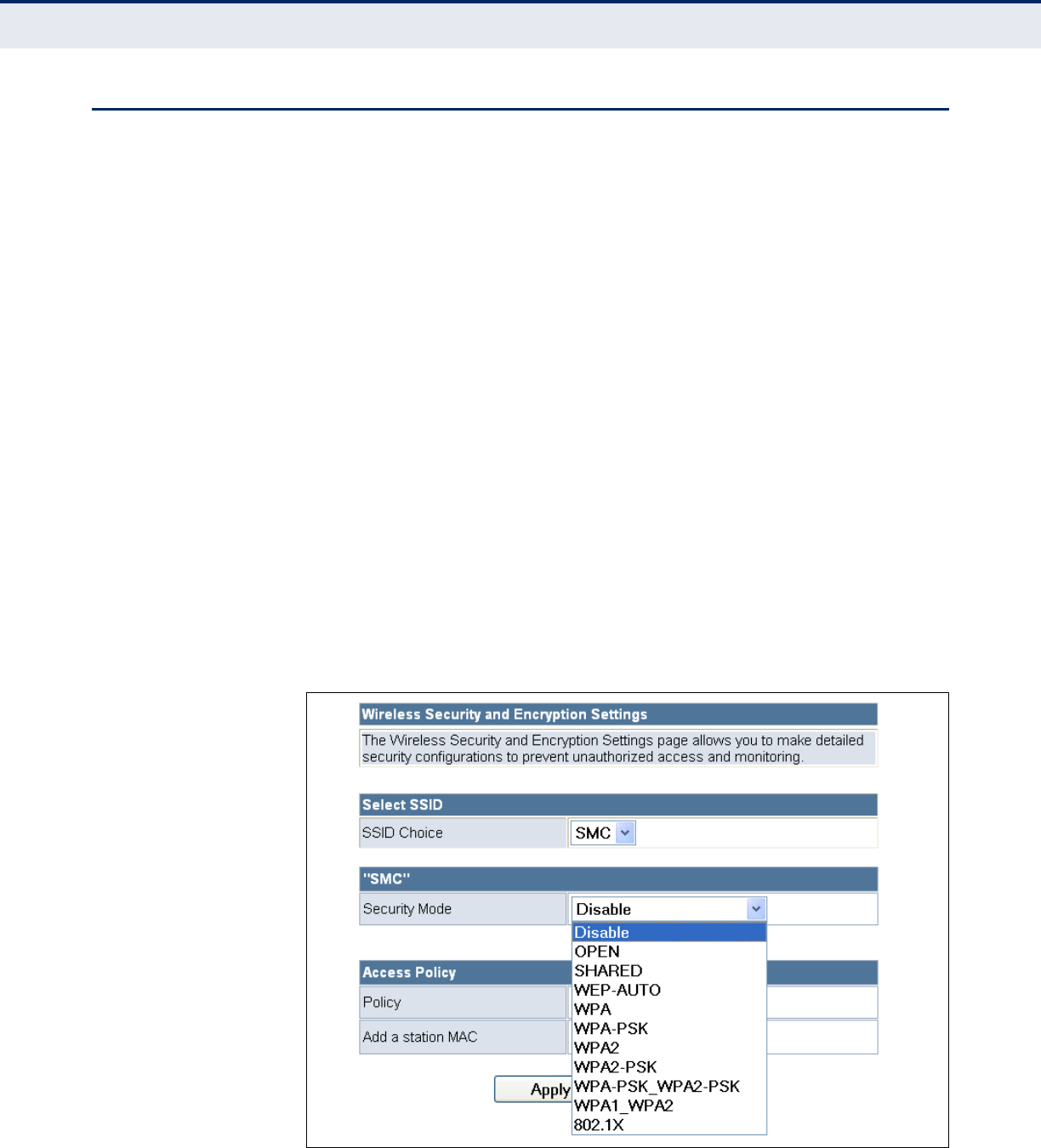

Figure 44: Security Mode Options 82
Figure 45: Security Mode - WEP 83

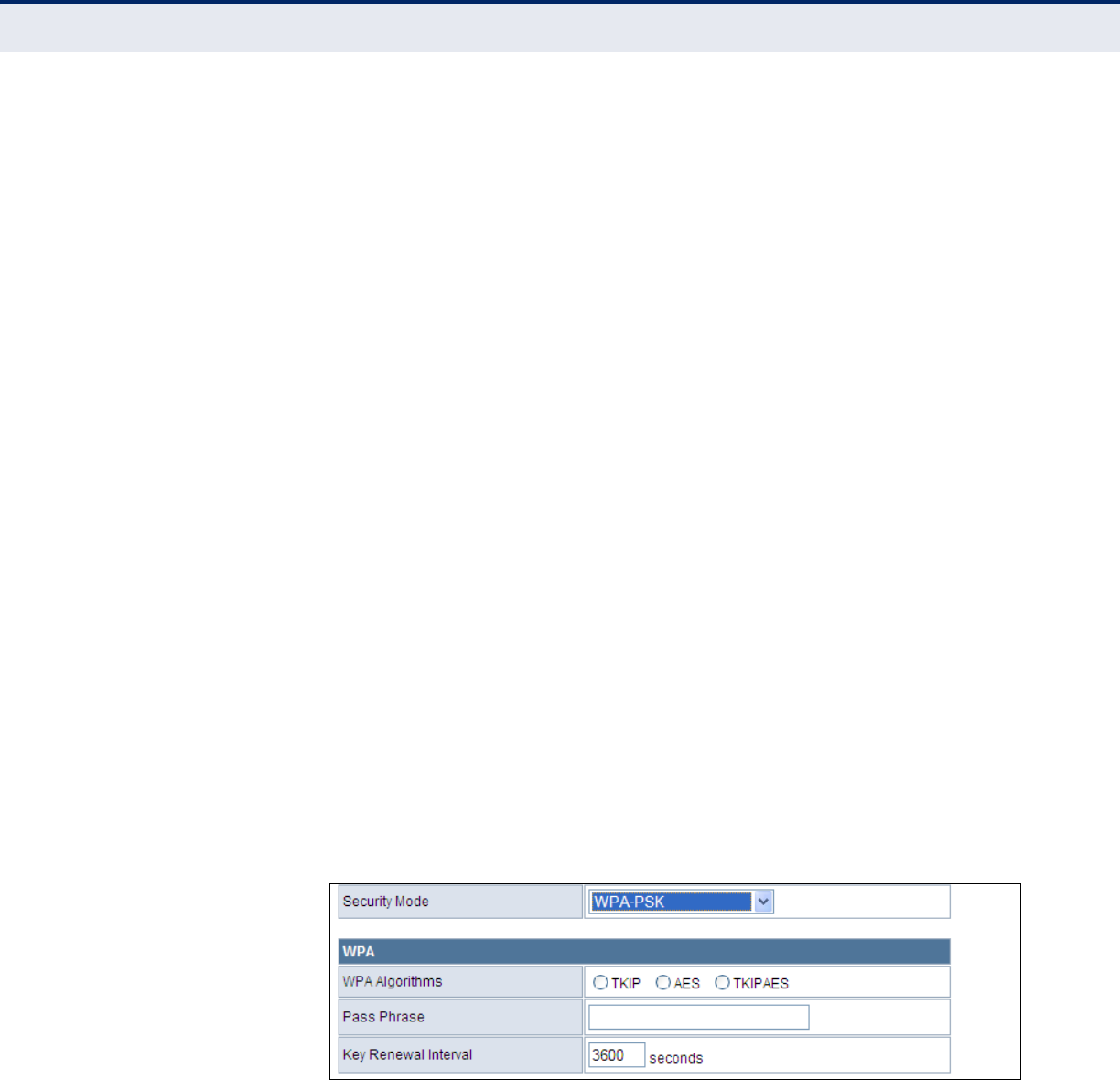

Figure 46: Security Mode - WPA-PSK 84

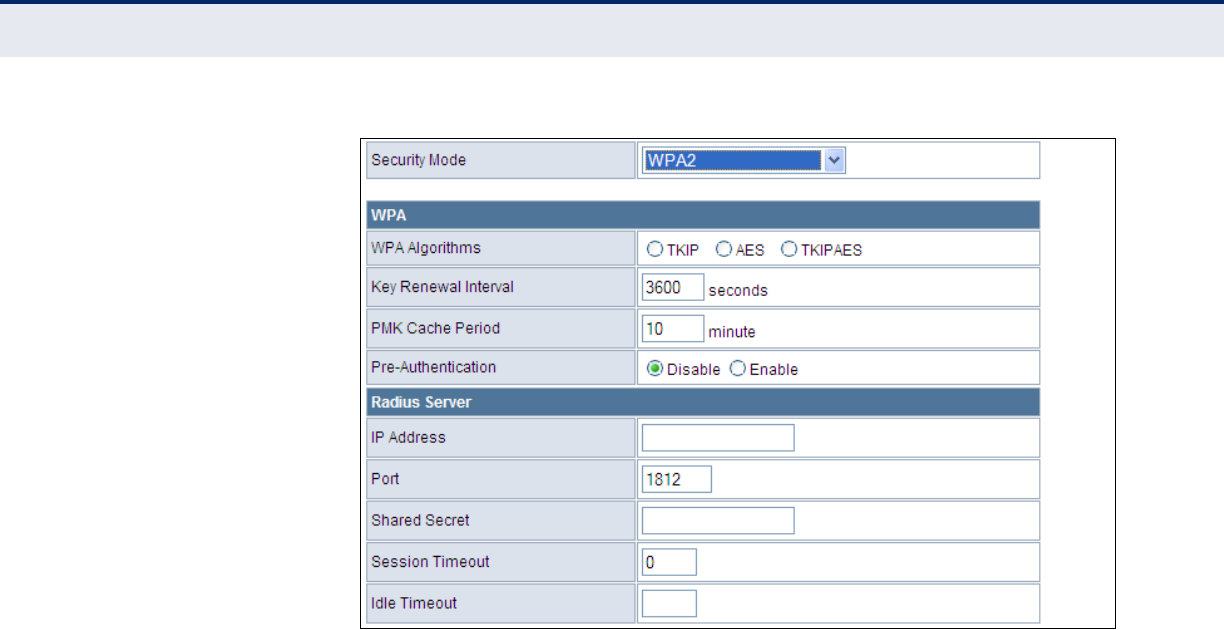

Figure 47: Security Mode - WPA 86

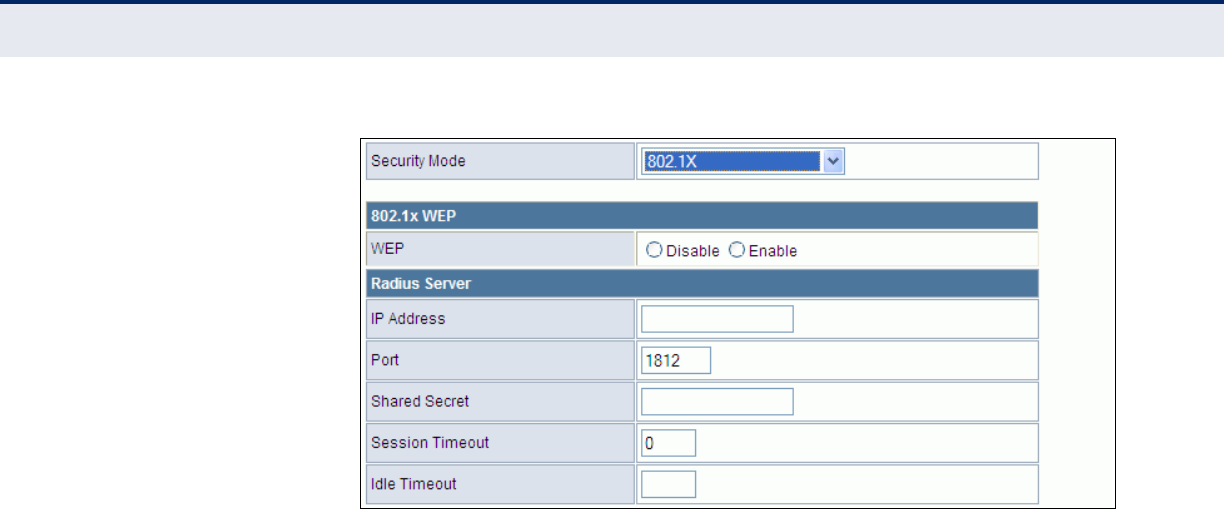

Figure 48: Security Mode - 802.1X 88
Figure 49: Access Policy 89
Figure 50: Manual WDS MAC Address Configuration 90

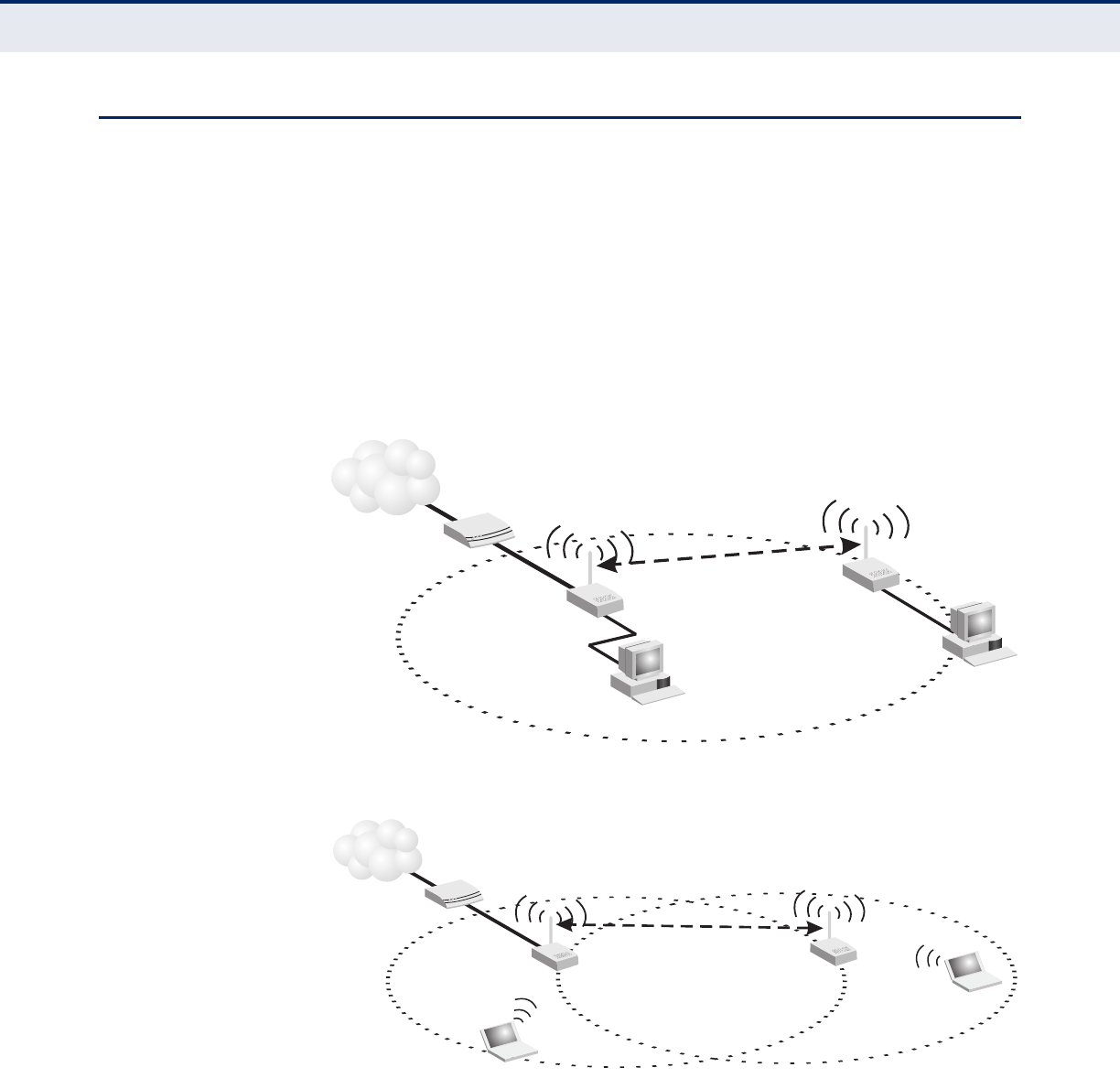

Figure 51: WDS Configuration Example 90
Figure 52: WDS Configuration 91
Figure 53: Enabling WPS 93
Figure 54: WPS Configuration 93

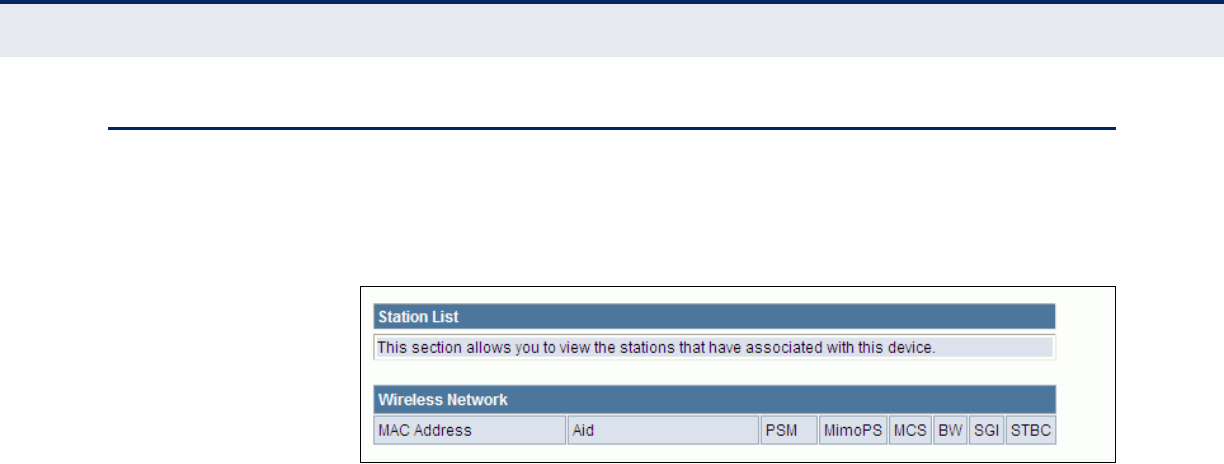

Figure 55: Station List 95
Figure 56: MAC/IP/Port Filtering 97
Figure 57: Virtual Server 99

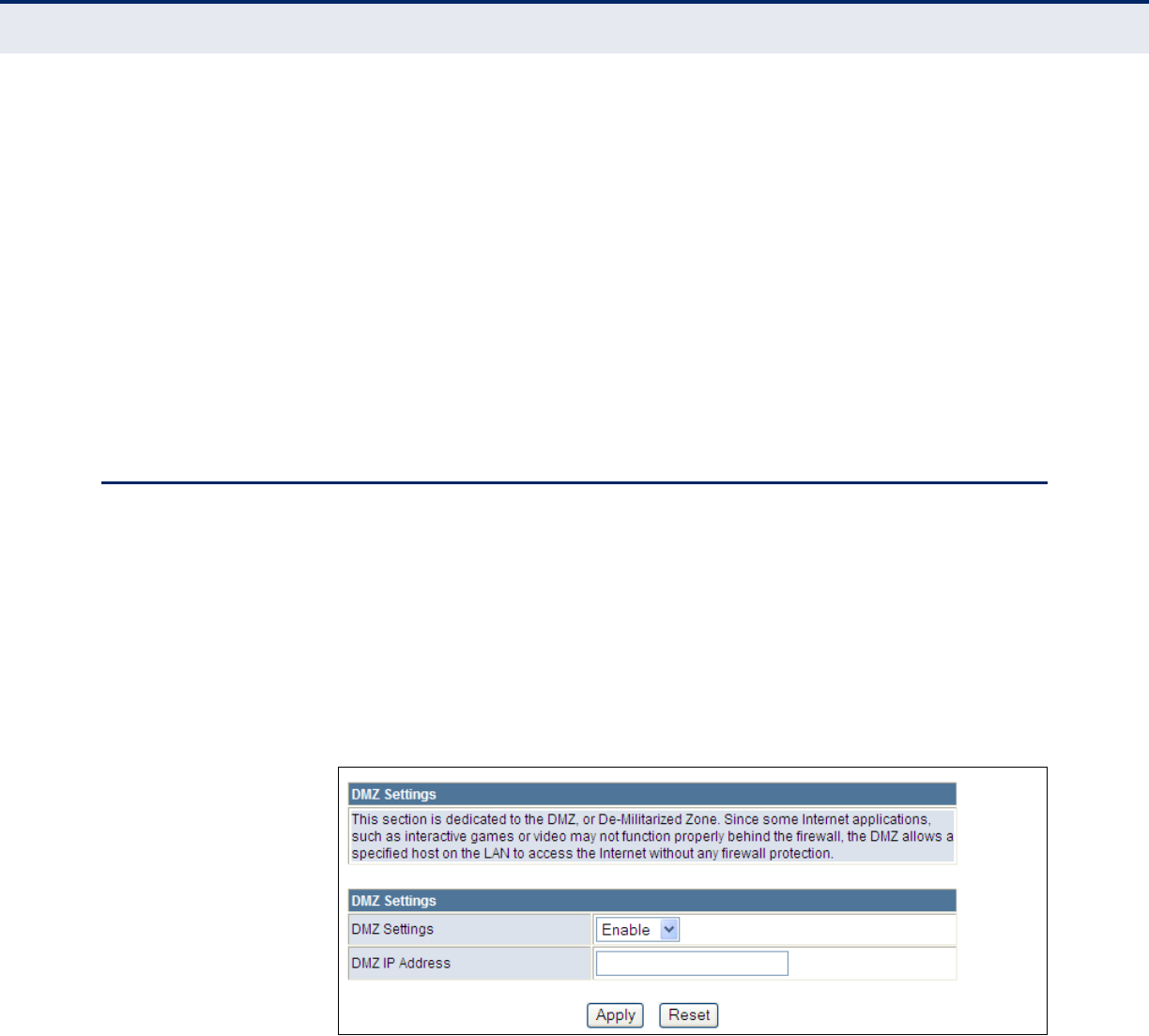

Figure 58: DMZ 100
Figure 59: System Security 101

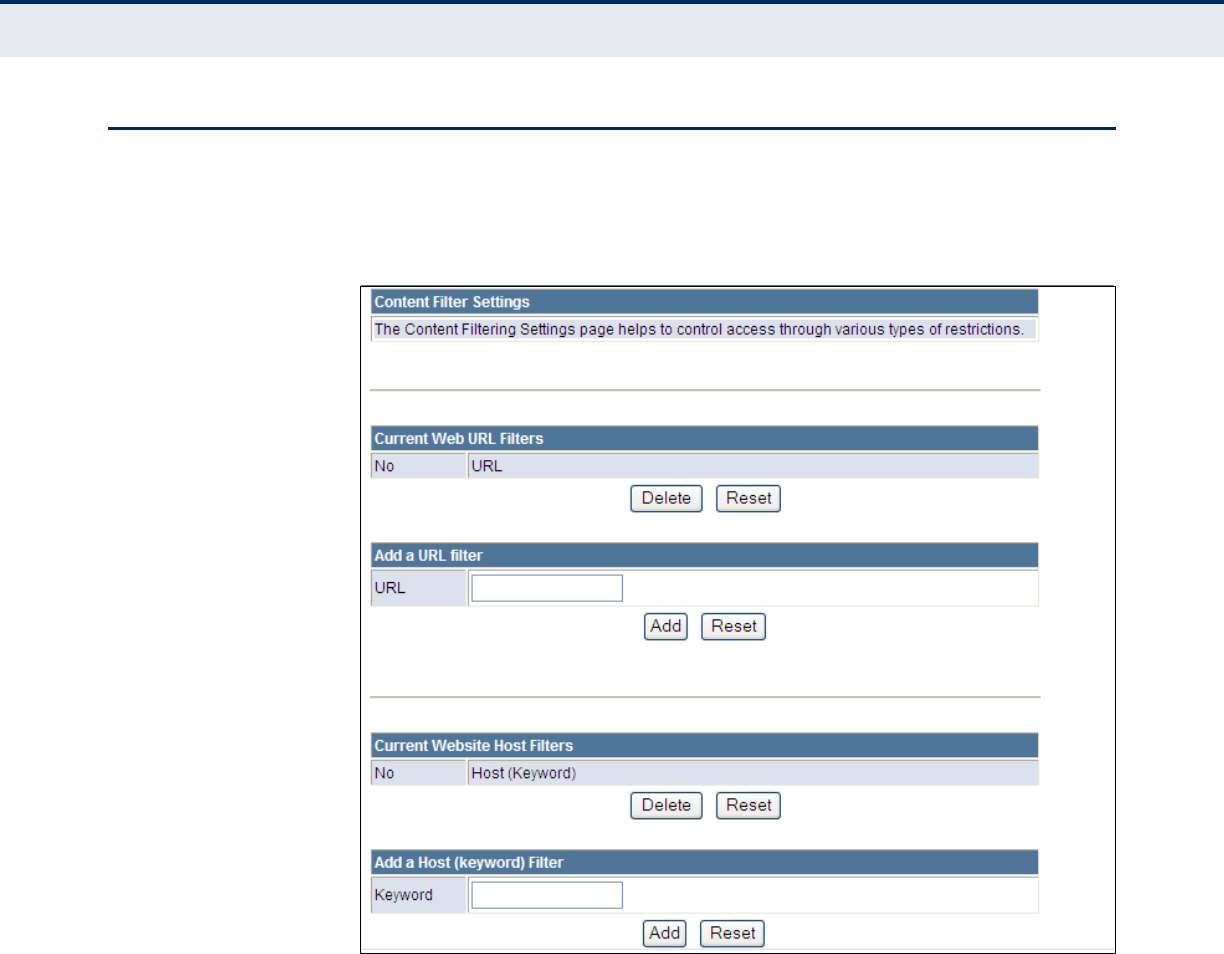

Figure 60: Content Filtering 102

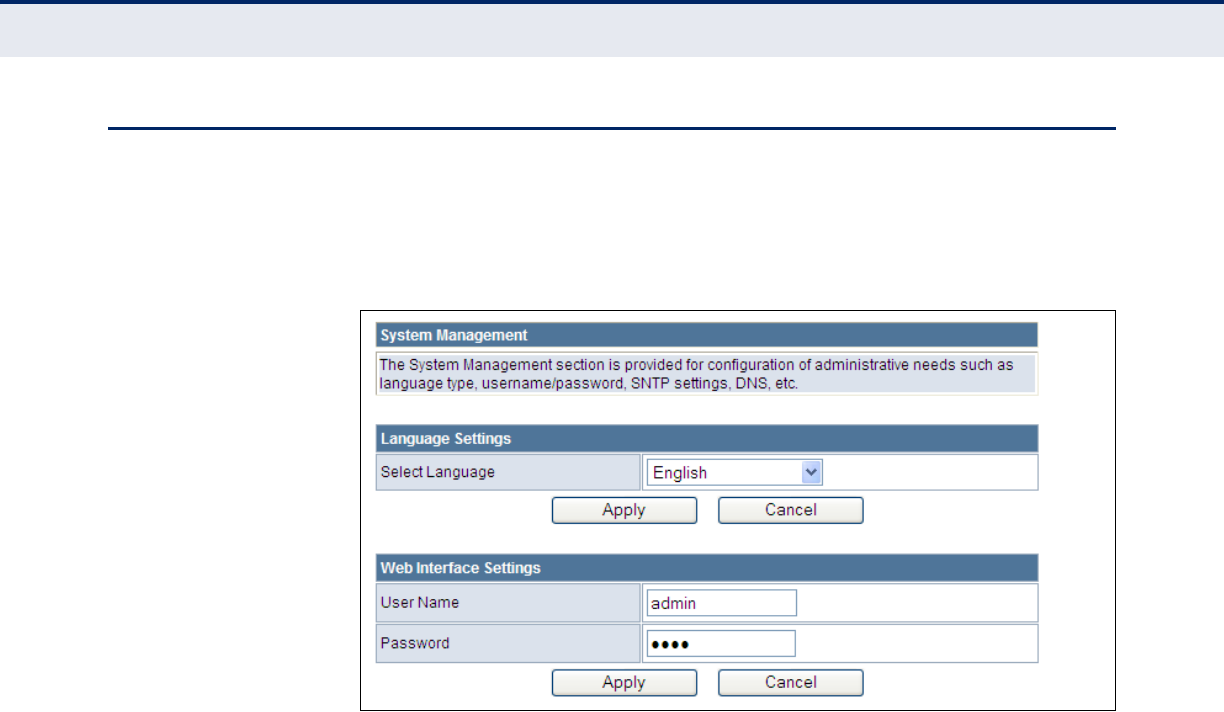

Figure 61: System Management 105

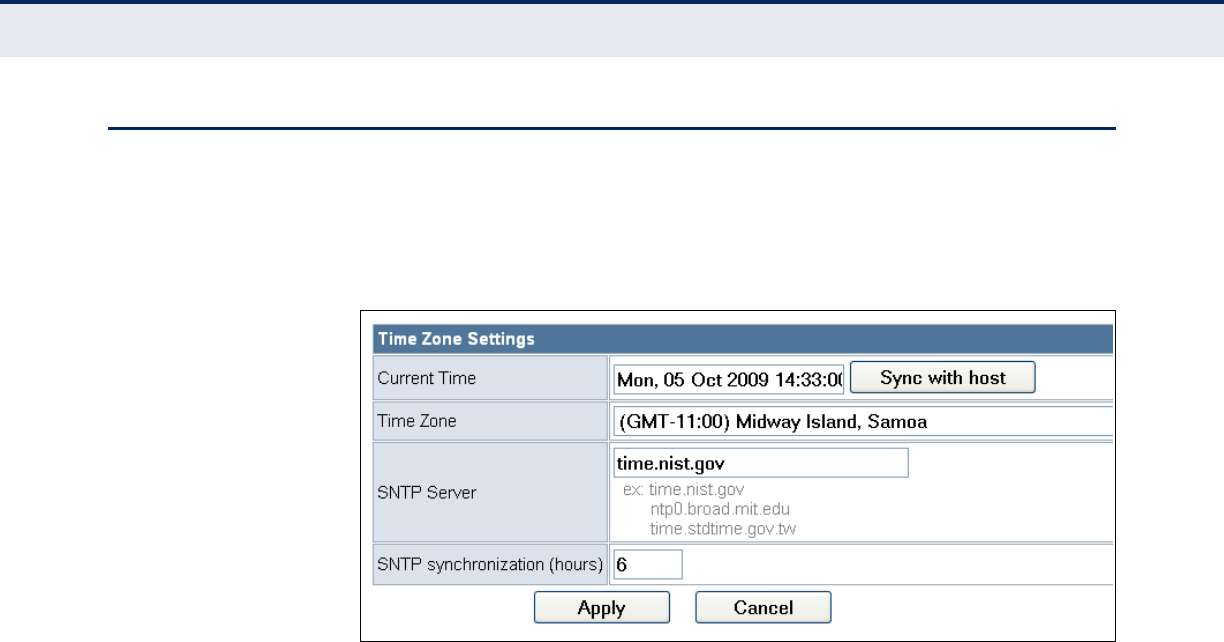

Figure 62: Time Zone Settings 106

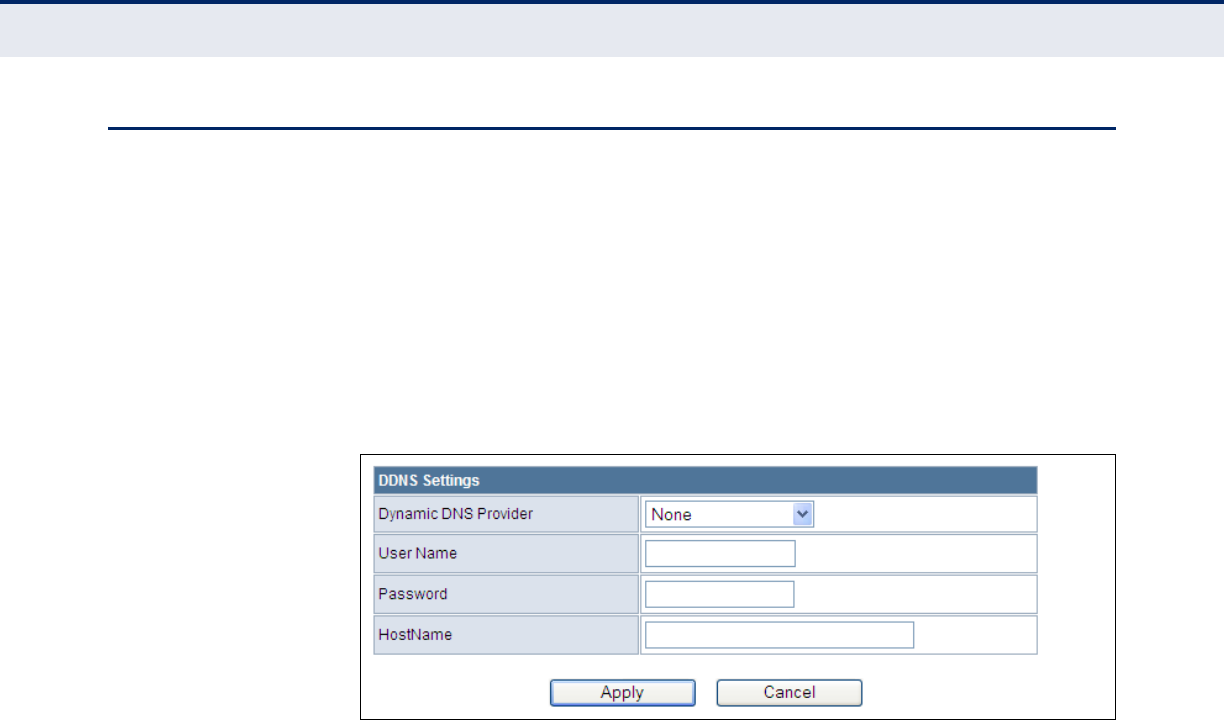

Figure 63: DDNS Settings (Router Mode) 107

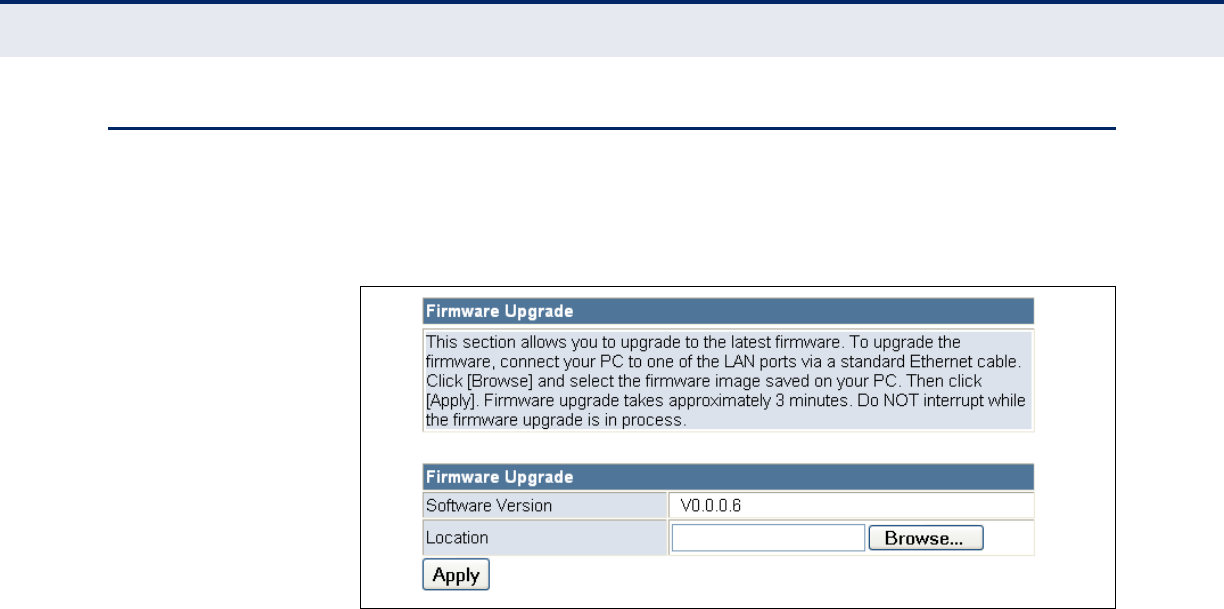

Figure 64: Firmware Upgrade 108

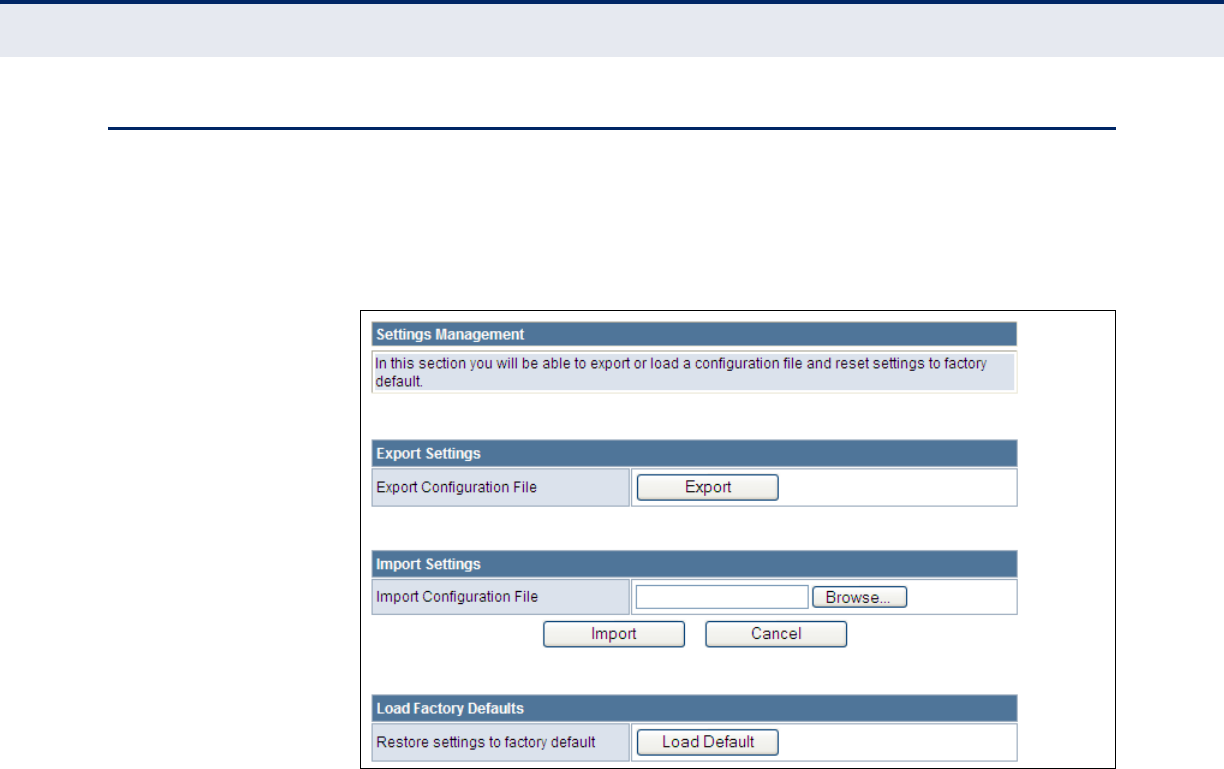

Figure 65: Configuration Settings 109

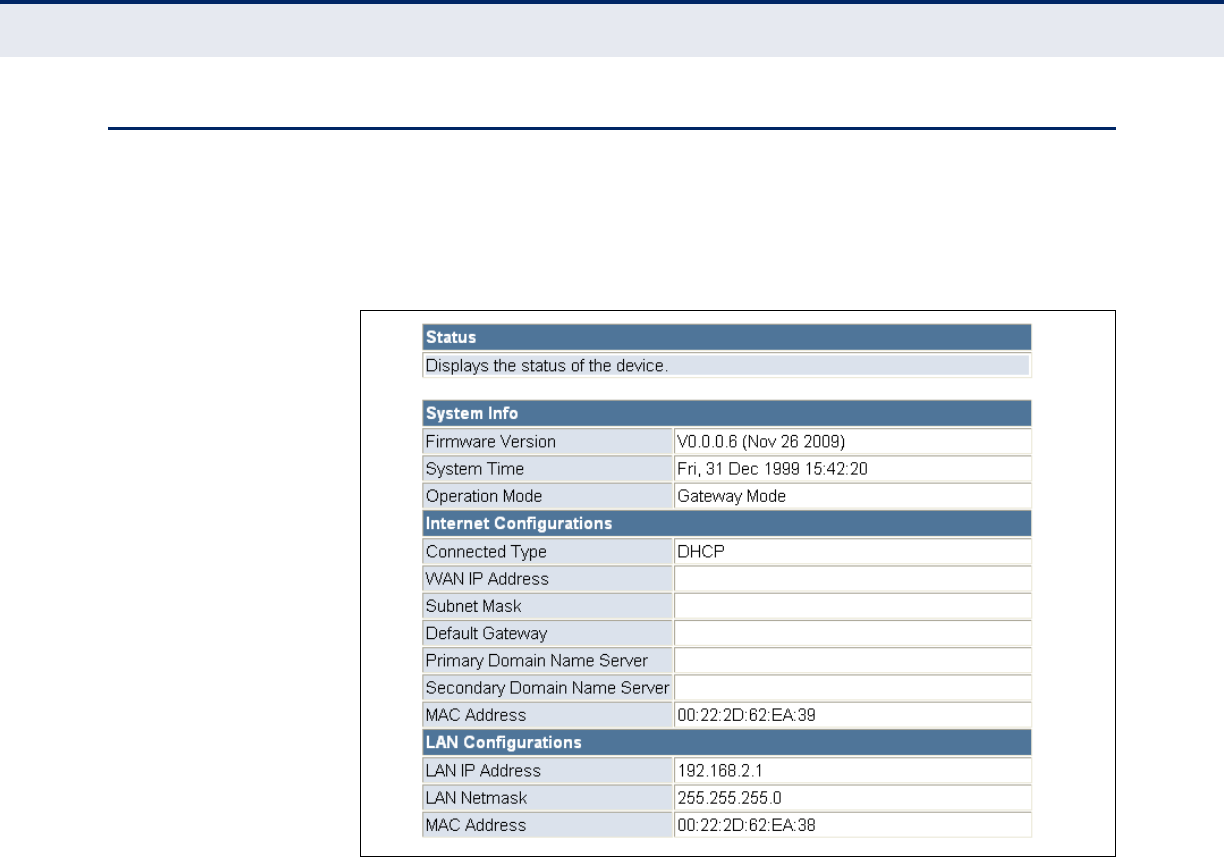

Figure 66: System Status (Router Mode) 110

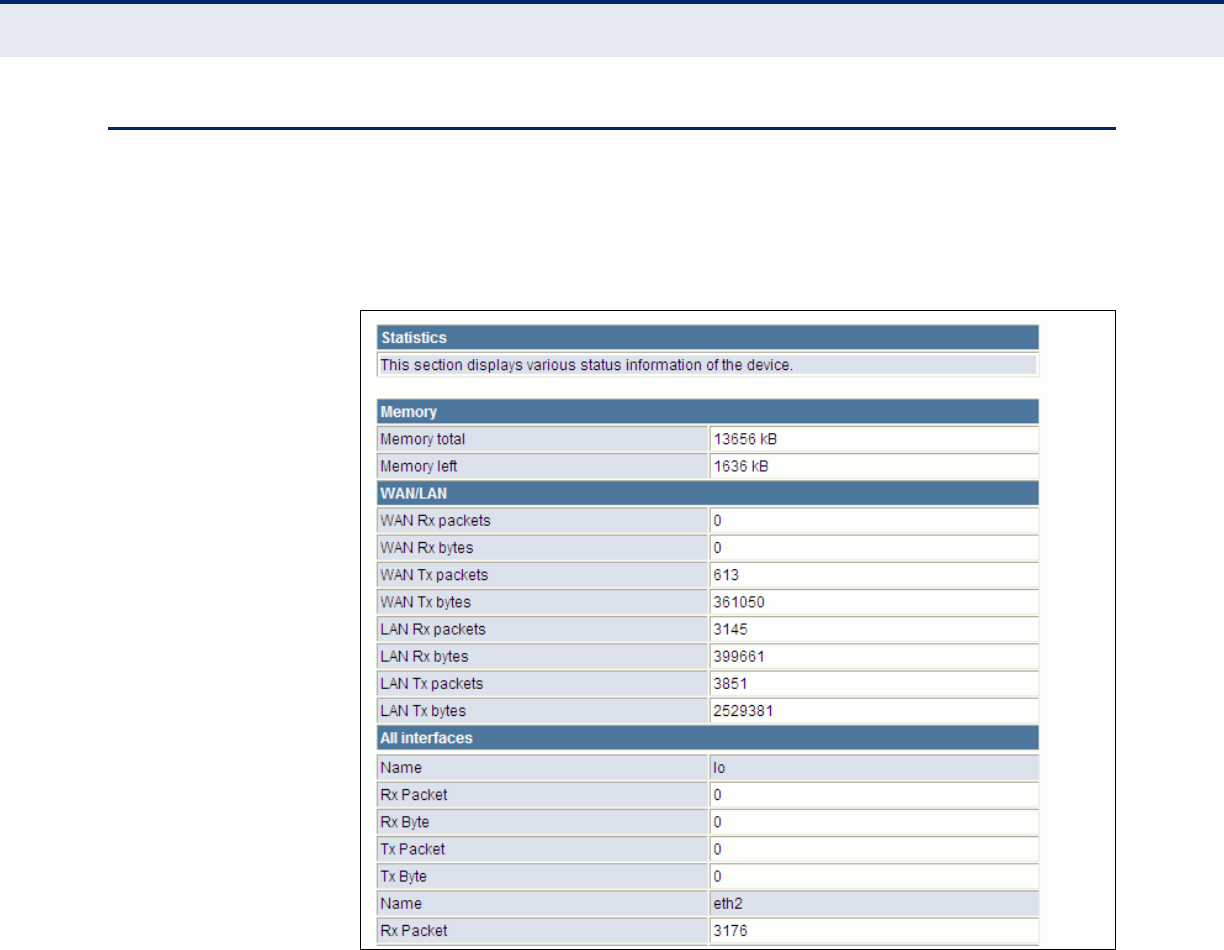

Figure 67: Statistics 112
![](/img.php?id=1248095&img=bg13.png)
– 19 –
S
ECTION
I
GETTING STARTED
This section provides an overview of the Mini 3G Broadband Router, and
describes how to install and mount the unit. It also describes the basic
settings required to access the management interface and run the setup
Wizard.
This section includes these chapters:
◆“Introduction” on page 20
◆“Network Planning” on page 26
◆“Installing the Mini 3G Router” on page 29
◆“Initial Configuration” on page 34
![](/img.php?id=1248095&img=bg14.png)
– 20 –
1INTRODUCTION
The Barricade 150Mbps Wireless-N Mini 3G Broadband Router
(SMCWBR11S-3GN) supports routing from an Internet Service Provider
(ISP) connection (DSL or cable modem) to a local network. It is simple to
configure and can be up and running in minutes.
KEY HARDWARE FEATURES
The following table describes the main hardware features of the Mini 3G
Broadband Router.
DESCRIPTION OF CAPABILITIES
◆Internet connection through an RJ-45 WAN port.
◆Local network connection through one 10/100 Mbps Ethernet port.
◆DHCP for dynamic IP configuration.
◆Firewall with Stateful Packet Inspection, client privileges, and NAT.
◆NAT also enables multi-user Internet access via a single user account,
and virtual server functionality (providing protected access to Internet
services such as Web, FTP, e-mail, and Telnet).
◆VPN passthrough (IPsec, PPTP, or L2TP).
Table 1: Key Hardware Features
Feature Description
WAN Port One 100BASE-TX RJ-45 port for connecting to the Internet.
LAN Port One 100BASE-TX RJ-45 port for local network connections.
USB Port One USB slot for a 3G or 3.5G modem.
WPS Button To set up a secure connection to a wireless device.
Reset Button For resetting the unit and restoring factory defaults.
LEDs Provides LED indicators for Power, WAN port, LAN port, and WLAN
status.
Mounting Options Can be mounted on any horizontal surface such as a desktop or
shelf, or on a wall using two screws.
![](/img.php?id=1248095&img=bg15.png)
C
HAPTER
1
| Introduction
Description of Capabilities
– 21 –
◆User-definable application sensing tunnel supports applications
requiring multiple connections.
◆Easy setup and management through an easy-to-use web browser
interface on any operating system that supports TCP/IP.
◆Compatible with all popular Internet applications.
APPLICATIONS Many advanced networking features are provided by the Mini 3G
Broadband Router:
◆Wired LAN — The Mini 3G Broadband Router provides connectivity to
wired Ethernet devices, making it easy to create a network in small
offices or homes.
◆Internet Access — This device supports Internet access through a
WAN connection. Since many DSL providers use PPPoE, PPTP, or L2TP
to establish communications with end users, the Mini 3G Broadband
Router includes built-in clients for these protocols, eliminating the need
to install these services on your computer.
◆Shared IP Address — The Mini 3G Broadband Router provides
Internet access for up to 253 users using a single shared IP address
account.
◆Virtual Server — If you have a fixed IP address, you can set the Mini
3G Broadband Router to act as a virtual host for network address
translation. Remote users access various services at your site using a
static IP address. Then, depending on the requested service (or port
number), the Mini 3G Broadband Router can route the request to the
appropriate server (at another internal IP address). This secures your
network from direct attack by hackers, and provides more flexible
management by allowing you to change internal IP addresses without
affecting outside access to your network.
◆DMZ Host Support — Allows a networked computer to be fully
exposed to the Internet. This function is used when NAT and firewall
security prevent an Internet application from functioning correctly.
◆Security — The Mini 3G Broadband Router supports security features
that deny Internet access to specified users, or filter all requests for
specific services. WPA (Wi-Fi Protected Access) and MAC filtering
provide security over the wireless network.
◆Virtual Private Network (VPN) Passthrough — The Mini 3G
Broadband Router supports the passthrough of three of the most
commonly used VPN protocols – IPsec, PPTP, and L2TP. These protocols
allow remote users to establish a secure connection to another
network. If your service provider supports VPNs, then these protocols
can be used to create an authenticated and encrypted tunnel for
passing secure data over the Internet (that is, a traditionally shared
data network). The VPN-passthrough protocols supported by the
Barricade are briefly described below.
![](/img.php?id=1248095&img=bg16.png)
C
HAPTER
1
| Introduction
Package Contents
– 22 –
■IPsec (Internet Protocol Security) — Encrypts and
authenticates entire IP packets and encapsulates them into new IP
packets for secure communications between networks.
■PPTP (Point-to-Point Tunneling Protocol) — Provides a secure
tunnel for remote client access to a PPTP security gateway. PPTP
includes provisions for call origination and flow control required by
ISPs.
■L2TP (Layer 2 Tunneling Protocol) — Merges the best features
of PPTP and the Layer 2 Forwarding (L2F) protocol. Like PPTP, L2TP
requires that the ISP’s routers support the protocol.
PACKAGE CONTENTS
The Barricade 150Mbps Wireless-N Mini 3G Broadband Router package
includes:
◆Barricade Mini 3G Broadband Router (SMCWBR11S-3GN)
◆RJ-45 Category 5 network cable
◆AC power adapter
◆SMC Warranty Information Card
◆Quick Installation Guide
◆EZ Installation & Documentation CD
Inform your dealer if there are any incorrect, missing or damaged parts. If
possible, retain the carton, including the original packing materials. Use
them again to repack the product in case there is a need to return it.
HARDWARE DESCRIPTION
The Barricade 150Mbps Wireless-N Mini 3G Broadband Router, from herein
refered to as Mini 3G Broadband Router, connects to the Internet through
its RJ-45 WAN port. It connects directly to your PC or to a local area
network using its RJ-45 Fast Ethernet LAN port.
The Mini 3G Broadband Router includes an LED display on the front panel
for system power and port indications that simplifies installation and
network troubleshooting.
![](/img.php?id=1248095&img=bg17.png)
C
HAPTER
1
| Introduction
Hardware Description
– 23 –
Figure 1: Top Panel
Figure 2: Rear Panel
LED Indicators
WPS Button
3G USB Port
RJ-45 WAN Port
RJ-45 LAN Port DC Power
Socket
![](/img.php?id=1248095&img=bg18.png)
C
HAPTER
1
| Introduction
Hardware Description
– 24 –
LED INDICATORS The Mini 3G Broadband Router includes four status LED indicators, as
described in the following figure and table.
Figure 3: LEDs
Table 2: LED Behavior
LED Status Description
Power On Blue The unit is receiving power and is operating
normally.
Off There is no power currently being supplied to
the unit.
WLAN On/Blinking Blue The 802.11n radio is enabled and
transmitting or receiving data through wireless
links.
Off The 802.11n radio is disabled.
WAN On Blue The Ethernet WAN port is aquiring an IP
address.
Blinking The Ethernet WAN port is connected and is
transmitting/receiving data.
Off The Ethernet WAN port is disconnected or has
malfunctioned.
LAN On Blue The Ethernet LAN port is connected to a PC or
server.
Blinking The Ethernet port is connected and is
transmitting or receiving data.
Off The Ethernet port is disconnected or has
malfunctioned.
3G USB On Blue The unit has established a 3G connection.
Blinking The unit is transmitting or receiving data on
the 3G link.
Off There is no connection on the 3G USB port.
WLAN LAN WAN Power
WPS SET
3G USB
LAN
WLAN Power
WAN
3G USB
![](/img.php?id=1248095&img=bg19.png)
C
HAPTER
1
| Introduction
Hardware Description
– 25 –
ETHERNET WAN PORT A 100BASE-TX RJ-45 port that can be attached to an Internet access
device, such as a DSL or Cable modem.
ETHERNET LAN PORT The Mini 3G Broadband Router has one 100BASE-TX RJ-45 port that can be
attached directly to a PC or 10BASE-T/100BASE-TX LAN segments.
This port supports automatic MDI/MDI-X operation, so you can use
straight-through cables for all network connections to PCs, switches, or
hubs.
3G MODEM USB
PORT
The 3G Modem USB Port supports connection to a wireless cellular 3G or
3.5G modem for broadband Internet access.
POWER CONNECTOR The Mini 3G Broadband Router must be powered with its supplied power
adapter. Failure to do so results in voiding of any warrantly supplied with
the product. The power adapter automatically adjusts to any voltage
between 100~240 volts at 50 or 60 Hz, and supplies 12 volts DC power to
the unit. No voltage range settings are required.
WPS BUTTON Press the WPS button to automatically configure the Mini 3G Broadband
Router with other WPS devices in the WLAN.
RESET BUTTON The Reset button is used to restore the factory default configuration. If you
hold down the button for 5 seconds or more, any configuration changes
you may have made are removed, and the factory default configuration is
restored to the Mini 3G Broadband Router.
Figure 4: Bottom Panel
Reset Button
![](/img.php?id=1248095&img=bg1a.png)
– 26 –
2NETWORK PLANNING
The Mini 3G Broadband Router is designed to be very flexible in its
deployment options. It can be used as an Internet gateway for a small
network, or as an access point to extend an existing wired network to
support wireless users. It also supports use as a wireless bridge to connect
up to four wired LANs.
This chapter explains some of the basic features of the Mini 3G Broadband
Router and shows some network topology examples in which the device is
implemented.
INTERNET GATEWAY ROUTER
The Mini 3G Broadband Router can connect directly to a cable or DSL
modem to provide an Internet connection for multiple users through a
single service provider account. Users connect to the Mini 3G Broadband
Router either through a wired connection to a LAN port, or though the
device’s own wireless network. The Mini 3G Broadband Router functions as
an Internet gateway when set to Router Mode.
An Internet gateway employs several functions that essentially create two
separate Internet Protocol (IP) subnetworks; a private internal network
with wired and wireless users, and a public external network that connects
to the Internet. Network traffic is forwarded, or routed, between the two
subnetworks.
Figure 5: Operating as an Internet Gateway Router
Mini Router
Server
(IP: 192.168.2.x)
Desktop PC
(IP: 192.168.2.x)
Cable/DSL
Modem
Internet
Service
Provider
Notebook PC
(IP: 192.168.2.x)
WAN (IP assigned from ISP)
LAN (IP: 192.168.2.x)
LAN Switch
3G Internet
Service
Provider
3G Modem
![](/img.php?id=1248095&img=bg1b.png)
C
HAPTER
2
| Network Planning
LAN Access Point
– 27 –
The private local network, connected to the LAN port or wireless interface,
provides a Dynamic Host Configuration Protocol (DHCP) server for
allocating IP addresses to local PCs and wireless clients, and Network
Address Translation (NAT) for mapping the multiple "internal" IP addresses
to one “external” IP address.
The public external network, connected to the WAN port, supports DHCP
client, Point-to-Point Protocol over Ethernet (PPPoE), PPTP (Point-to-Point
Tunneling Protocol), L2TP (Layer 2 Tunneling Protocol), and static IP for
connection to an Internet service provider (ISP) through a cable or DSL
modem.
The 3G Modem link can provide a backup Internet connection with
automatic failover and fallback to the primary WAN connection.
LAN ACCESS POINT
The Mini 3G Broadband Router can provide an access point service for an
existing wired LAN, creating a wireless extension to the local network. The
Mini 3G Broadband Router functions as purely an access point when set to
Bridge Mode. When used in this mode, there are no gateway functions
between the WAN port and the LAN and wireless interface.
A Wi-Fi wireless network is defined by its Service Set Identifier (SSID) or
network name. Wireless clients that want to connect to a network must set
their SSID to the same SSID of the network service.
Figure 6: Operating as an Access Point
Server
(IP: 192.168.2.x)
Desktop PC
(IP: 192.168.2.x)
LAN Switch
Notebook PC
(IP: 192.168.2.x)
Mini Router
![](/img.php?id=1248095&img=bg1c.png)
C
HAPTER
2
| Network Planning
Wireless Bridge
– 28 –
WIRELESS BRIDGE
The IEEE 802.11 standard defines a Wireless Distribution System (WDS)
for bridge connections between access points. The Mini 3G Broadband
Router can use WDS to forward traffic on links between units.
Up to four WDS links can be specified for the Mini 3G Broadband Router.
The WDS feature enables two basic functions to be configured in the
wireless network. Either a repeater function that extends the range of the
wireless network, or a bridge function that connects a remote LAN segment
to an Internet connection.

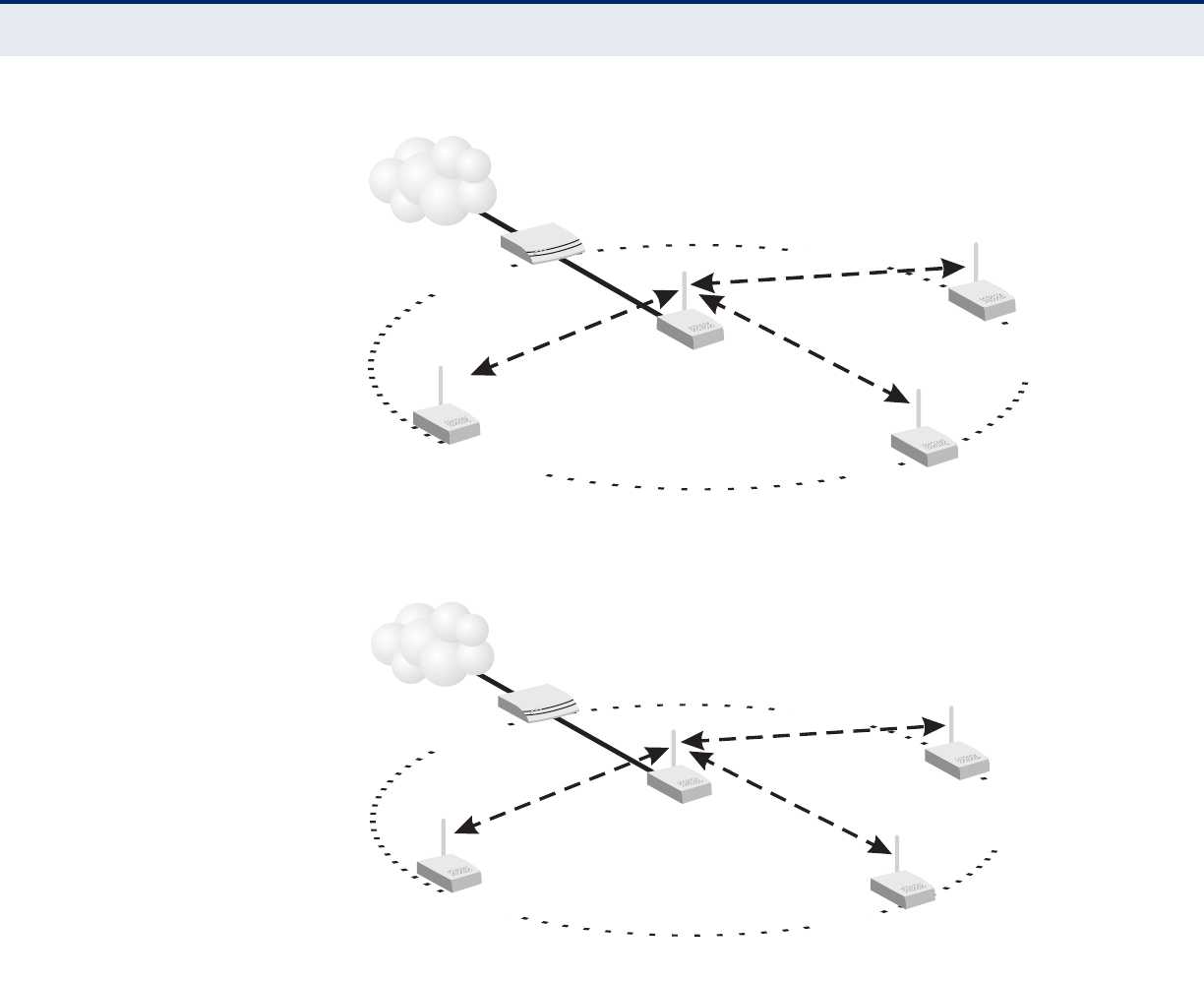

Figure 7: Operating as a Wireless Bridge
Figure 8: Operating as a Wireless Repeater
Desktop PC
Cable/DSL
Modem
Mini Router
(Bridge Mode)
WDS Link
Internet
Service
Provider
Mini Router
(Router Mode)
Desktop PC
Cable/DSL
Modem
Mini Router
(Bridge Mode)
WDS Link
Internet
Service
Provider
Notebook PC
Mini Router
(Router Mode)
Notebook PC
![](/img.php?id=1248095&img=bg1d.png)
– 29 –
3INSTALLING THE MINI 3G ROUTER
The Mini 3G Broadband Router has two basic operating modes that can be
set through the web-based management interface. For information on
setting the mode suitable for your network environment. See “Operation
Mode” on page 53.
◆Router Mode — A gateway mode that connects a wired LAN and
wireless clients to an Internet access device, such as a cable or DSL
modem. This is the factory set default mode.
◆Bridge Mode — An access point mode that extends a wired LAN to
wireless clients.
In addition to these basic operating modes, the wireless interface supports
Wireless Distribution System (WDS) links to other Mini 3G Broadband
Routers. These advanced configurations are not described in this section.
See “Network Planning” on page 26 for more information.
In a basic configuration, how the Mini 3G Broadband Router is connected
depends on the operating mode. The sections in this chapter describe
connections for basic Router Mode and Bridge Mode operation.
SYSTEM REQUIREMENTS
You must meet the following minimum requirements:
◆An Internet access device (DSL or Cable modem) with an Ethernet port
connection.
◆An up-to-date web browser: Internet Explorer 6.0 or above or Mozilla
Firefox 2.0 or above.
![](/img.php?id=1248095&img=bg1e.png)
C
HAPTER
3
| Installing the Mini 3G Router
Mounting the Device
– 30 –
MOUNTING THE DEVICE
The Mini 3G Broadband Router can be mounted on any horizontal surface,
or on a wall. The following sections describe the mounting options.
MOUNTING ON A WALL The Mini 3G Broadband Router should be mounted only to a wall or wood
surface that is at least 1/2-inch plywood or its equivalent. To mount the
unit on a wall, always use its wall-mounting slots.
Figure 9: Wall Mounting
To mount on a wall, follow the instructions below.
1. Mark the position of the two screw holes on the wall. For concrete or
brick walls, you will need to drill holes and insert wall plugs for the
screws.
2. Insert two 20-mm M4 tap screws (not included) into the holes, leaving
about 2~3 mm (0.08~0.12 inches) clearance from the wall.
3. Line up the two mounting points on the unit with the screws in the wall,
then slide the unit down onto the screws until it is in a secured position.
MOUNTING ON A
HORIZONTAL SURFACE
To keep the Mini 3G Broadband Router from sliding on the surface, the unit
has four rubber feet on its base.
It is recommended to select an uncluttered area on a sturdy surface, such
as a desktop or table. The unit can also be protected by securing all
attached cables to a table leg or other nearby fixed structure.
Mounting Slots
![](/img.php?id=1248095&img=bg1f.png)
C
HAPTER
3
| Installing the Mini 3G Router
Router Mode Connections
– 31 –
ROUTER MODE CONNECTIONS
In its default Router Mode, the Mini 3G Broadband Router forwards traffic
between an Internet connected cable or DSL modem, and wired or wireless
PCs or notebooks. The basic connections are illustrated in the figure below.
Figure 10: Router Mode Connection
To connect the Mini 3G Broadband Router in Router Mode for use as an
Internet gateway, follow these steps:
1. Connect an Ethernet cable from the Mini 3G Broadband Router’s WAN
port to your Internet connected cable or DSL modem.
2. Connect an Ethernet cable from the Mini 3G Broadband Router’s LAN
port to your PC. Alternatively, you can connect to a workgroup switch to
support more wired users. The Mini 3G Broadband Router can support
up to 253 wired and wireless users.
3. Power on the Mini 3G Broadband Router by connecting the AC power
adapter and plugging it into a power source.
C
AUTION
:
Use ONLY the power adapter supplied with the Mini 3G Broadband
Router. Otherwise, the product may be damaged.
When you power on the Mini 3G Broadband Router, verify that the
Power LED turns on and that the other LED indicators start functioning
as described under see “LED Indicators” on page 24.
4. Set up wireless devices by pressing the WPS button on the Mini 3G
Broadband Router or by using the web interface. See “Initial
Configuration” on page 34 for more information on accessing the web
interface.
4.Set up wireless
devices
Notebook PC
3.Connect AC power
adapter to power source
2.Connect LAN port
to PC
Cable/DSL Modem
1.Connect WAN port to
cable/DSL modem
Internet
![](/img.php?id=1248095&img=bg20.png)
C
HAPTER
3
| Installing the Mini 3G Router
Bridge Mode Connections
– 32 –
BRIDGE MODE CONNECTIONS
In Bridge Mode, the Mini 3G Broadband Router operates as a wireless
access point, extending a local wired network to associated wireless clients
(PCs or notebooks with wireless capability). From any nearby location, you
can then make a wireless connection to the Mini 3G Broadband Router and
access the wired network resources, including local servers and the
Internet.
In Bridge Mode, the Mini 3G Broadband Router does not support gateway
functions on its WAN port. Both the LAN port and the WAN ports can be
connected to a local Ethernet LAN.
N
OTE
:
Bridge Mode is not the factory default mode and must be manually
set using the web management interface.
Figure 11: Bridge Mode Connection
To connect the Mini 3G Broadband Router for use as an access point, follow
these steps:
1. Using Ethernet cable connect the Mini 3G Broadband Router’s LAN and
WAN ports to PCs. Alternatively, you can connect to a workgroup switch
to support more wired users.
2. Power on the Mini 3G Broadband Router by connecting the AC power
adapter and plugging it into a power source.
C
AUTION
:
Use ONLY the power adapter supplied with the Mini 3G Broadband
Router. Otherwise, the product may be damaged.
When you power on the Mini 3G Broadband Router, verify that the
Power LED turns on and that the other LED indicators start functioning
as described under “LED Indicators” on page 24.
3.Set up wireless
devices
Notebook PC
2.Connect AC power
adapter to power source
1.Connect LAN and WAN ports
to PCs or an Ethernet LAN switch
![](/img.php?id=1248095&img=bg22.png)
– 34 –
4INITIAL CONFIGURATION
The Mini 3G Broadband Router offers a user-friendly web-based
management interface for the configuration of all the unit’s features. Any
PC directly attached to the unit can access the management interface using
a web browser, such as Internet Explorer (version 6.0 or above).
ISP SETTINGS
If you are not sure of your connection method, please contact your
Internet Service Provider. There are several connection types to choose
from: Static IP, DHCP (cable connection), PPPoE (DSL connection), PPTP,
L2TP and 3G.
N
OTE
:
If using the PPPoE option, you will need to remove or disable any
PPPoE client software on your computers.
CONNECTING TO THE LOGIN PAGE
It is recommended to make initial configuration changes by connecting a
PC directly to the Mini 3G Broadband Router’s LAN port. The Mini 3G
Broadband Router has a default IP address of 192.168.2.1 and a subnet
mask of 255.255.255.0. You must set your PC IP address to be on the
same subnet as the Mini 3G Broadband Router (that is, the PC and Mini 3G
Broadband Router addresses must both start 192.168.2.x).
To access the Mini 3G Broadband Router’s management interface, follow
these steps:
1. Use your web browser to connect to the management interface using
the default IP address of 192.168.2.1.
2. Log into the interface by entering the default username “admin” and
password “smcadmin,” then click OK.
N
OTE
:
It is strongly recommended to change the default user name and
password the first time you access the web interface. For information on
changing user names and passwords, See “System Management” on
page 105.
![](/img.php?id=1248095&img=bg23.png)
C
HAPTER
4
| Initial Configuration
Home Page and Main Menu
– 35 –
Figure 12: Login Page
HOME PAGE AND MAIN MENU
After logging in to the web interface, the Home page displays. The Home
page shows the main menu and the method to access the Setup Wizard.
Figure 13: Home Page
![](/img.php?id=1248095&img=bg24.png)
C
HAPTER
4
| Initial Configuration
Common Web Page Buttons
– 36 –
COMMON WEB PAGE BUTTONS
The list below describes the common buttons found on most web
management pages:
◆Apply – Applies the new parameters and saves them to memory. Also
displays a screen to inform you when it has taken affect. Clicking
‘Apply’ returns to the home page.
◆Cancel – Cancels the newly entered settings and restores the previous
settings.
◆Next – Proceeds to the next step.
◆Previous – Returns to the previous screen.
SETUP WIZARD
The Wizard is designed to help you configure the basic settings required to
get the the Mini 3G Broadband Router up and running. There are only a few
basic steps you need to set up the the Mini 3G Broadband Router and
provide a connection.
Follow these steps:
STEP 1 - LANGUAGE
SELECTION
Select between English and Traditional Chinese. Click Next to proceed to
the next step of the wizard.
Figure 14: Wizard Step 1 - Language Selection
The following items are displayed on the first page of the Setup Wizard:
◆Select Language — Selects English or Traditional Chinese as the
interface language.
![](/img.php?id=1248095&img=bg25.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 37 –
STEP 2 - TIME
SETTINGS
The Step 2 page of the Wizard configures time zone and SNTP settings.
Select a time zone according to where the device is operated. Click Next
after completing the setup.
Figure 15: Wizard Step 2 - Time and SNTP Settings
The following items are displayed on this page:
◆Current Time — Receives a time and date stamp from an SNTP server.
◆Sync with host — Updates the unit's time from the web management
PC's system time.
◆Time Zone — Select the time zone that is applicable to your region.
◆SNTP Server — Enter the address of an SNTP server to receive time
updates.
◆SNTP synchronization (hours) — Specify the interval between SNTP
server updates.
STEP 3 - WAN
SETTINGS - DHCP
The Step 3 page of the Wizard specifies the Internet connection
parameters for the Mini 3G Broadband Router’s WAN port. Click Next after
completing the setup.
By default, the WAN port is configured with DHCP enabled. The options are
Static IP, DHCP (cable modem), PPPoE (DSL modem), PPTP, and L2TP. Each
option changes the parameters that are displayed on the page.
You can also enable support for a USB 3G modem as a WAN connection,
either as a primary (Master) link, or as a backup to the WAN port link.
![](/img.php?id=1248095&img=bg26.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 38 –
Figure 16: Wizard Step 3 - WAN Settings - DHCP
The following items are displayed on this page:
◆Ethernet Port — Select “Cable/Dynamic IP (DHCP)” for the WAN port
connection from the drop-down list. (Default: DHCP)
■Enable MAC Clone — Some ISPs limit Internet connections to a
specified MAC address of one PC, which is registered with the ISP.
This setting allows you to manually change the MAC address of the
Mini 3G Broadband Router’s WAN port to match the PC MAC address
provided to your ISP for registration. You can enter the registered
MAC address manually by typing it in the box provided. Otherwise,
connect only the PC with the registered MAC address to the Mini 3G
Broadband Router, then click the “Clone your PC’s MAC Address.”
(Default: Disabled)
N
OTE
:
If you are unsure of the PC MAC address originally registered by
your ISP, call your ISP and request to register a new MAC address for your
account. Register the MAC address of the Mini 3G Broadband Router.
◆USB Port — Enables support for a WAN connection using a USB 3G
modem. For more information, see “Step 3 - WAN Settings - 3G” on
page 45. (Default: Disabled)
◆Hostname — Specifies the host name of the DHCP client.
(Default: SMCWBR11S-3GN)
◆Primary DNS Server — The IP address of the Primary Domain Name
Server. A DNS maps numerical IP addresses to domain names and can
be used to identify network hosts by familiar names instead of the IP
![](/img.php?id=1248095&img=bg27.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 39 –
addresses. To specify a DNS server, type the IP addresses in the text
field provided. Otherwise, leave the text field blank.
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server.
STEP 3 - WAN
SETTINGS - STATIC IP
Configures a static IP for the WAN port.
Figure 17: Wizard Step 3 - WAN Settings - Static IP
The following items are displayed on this page:
◆Ethernet Port — Select “Static (Fixed IP)” for the WAN port connection
from the drop-down list.
■Enable MAC Clone — Some ISPs limit Internet connections to a
specified MAC address. This setting allows you to manually change
the MAC address of the Mini 3G Broadband Router's WAN interface
to match the PC's MAC address provided to your ISP for
registration. You can enter the registered MAC address manually by
typing it in the boxes provided. Otherwise, connect only the PC with
the registered MAC address to the Mini 3G Broadband Router, then
click the “Clone your PC’s MAC Address.” (Default: Disable)
◆USB Port — Enables support for a WAN connection using a USB 3G
modem. For more information, see “Step 3 - WAN Settings - 3G” on
page 45. (Default: Disabled)
◆IP Address — The IP address of the Mini 3G Broadband Router. Valid
IP addresses consist of four decimal numbers, 0 to 255, separated by
periods.
◆Subnet Mask — The mask that identifies the host address bits used for
routing to specific subnets.
![](/img.php?id=1248095&img=bg28.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 40 –
◆Default Gateway — The IP address of the gateway router for the Mini
3G Broadband Router, which is used if the requested destination
address is not on the local subnet.
◆Primary DNS Server — The IP address of the Primary Domain Name
Server. A DNS maps numerical IP addresses to domain names and can
be used to identify network hosts by familiar names instead of the IP
addresses. To specify a DNS server, type the IP addresses in the text
field provided. Otherwise, leave the text field blank.
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server.
STEP 3 - WAN
SETTINGS - PPPOE
Enable the Mini 3G Broadband Router IP address to be assigned
automatically from an Internet service provider (ISP) through a DSL
modem using Point-to-Point Protocol over Ethernet (PPPoE).
Figure 18: Wizard Step 3 - WAN Settings - PPPoE
The following items are displayed on this page:
◆Ethernet Port — Select “PPPoE (ADSL)” for the WAN port connection
from the drop-down list.
■Enable MAC Clone — Some ISPs limit Internet connections to a
specified MAC address. This setting allows you to manually change
the MAC address of the Mini 3G Broadband Router's WAN interface
to match the PC's MAC address provided to your ISP for
registration. You can enter the registered MAC address manually by
typing it in the boxes provided. Otherwise, connect only the PC with
the registered MAC address to the Mini 3G Broadband Router, then
click the “Clone your PC’s MAC Address.” (Default: Disable)
![](/img.php?id=1248095&img=bg29.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 41 –
◆USB Port — Enables support for a WAN connection using a USB 3G
modem. For more information, see “Step 3 - WAN Settings - 3G” on
page 45. (Default: Disabled)
◆User Name — Sets the PPPoE user name for the WAN port.
(Default: pppoe_user; Range: 1~32 characters)
◆Password — Sets a PPPoE password for the WAN port.
(Default: pppoe_password; Range: 1~32 characters)
◆Verify Password — Prompts you to re-enter your chosen password.
◆Operation Mode — Enables and configures the keep alive time and
configures the on-demand idle time.
STEP 3 - WAN
SETTINGS - PPTP
Enables the Point-to-Point Tunneling Protocol (PPTP) for implementing
virtual private networks. The service is provided in many European
countries.
Figure 19: Wizard Step 3 - WAN Settings - PPTP
The following items are displayed on this page:
◆Ethernet Port — Select “PPTP” for the WAN port connection from the
drop-down list.
■Enable MAC Clone — Some ISPs limit Internet connections to a
specified MAC address. This setting allows you to manually change
![](/img.php?id=1248095&img=bg2a.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 42 –
the MAC address of the Mini 3G Broadband Router's WAN interface
to match the PC's MAC address provided to your ISP for
registration. You can enter the registered MAC address manually by
typing it in the boxes provided. Otherwise, connect only the PC with
the registered MAC address to the Mini 3G Broadband Router, then
click the “Clone your PC’s MAC Address.” (Default: Disable)
◆USB Port — Enables support for a WAN connection using a USB 3G
modem. For more information, see “Step 3 - WAN Settings - 3G” on
page 45. (Default: Disabled)
◆Server IP — Sets the PPTP server IP Address. (Default: pptp_server)
◆User Name — Sets the PPTP user name for the WAN port.
(Default: pptp_user; Range: 1~32 characters)
◆Password — Sets a PPTP password for the WAN port. (Default:
pptp_password; Range: 1~32 characters)
◆Verify Password — Prompts you to re-enter your chosen password.
◆Address Mode — Sets a PPTP network mode. (Default: Static)
◆IP Address — Sets the static IP address. (Default: 0.0.0.0, available
when PPTP Network Mode is set to static IP.)
◆Subnet Mask — Sets the static IP subnet mask. (Default:
255.255.255.0, available when PPTP Network Mode is set to static IP.)
◆Default Gateway — The IP address of a router that is used when the
requested destination IP address is not on the local subnet.
◆Operation Mode — Enables and configures the keep alive time.
◆Primary DNS Server — The IP address of the Primary Domain Name
Server. A DNS maps numerical IP addresses to domain names and can
be used to identify network hosts by familiar names instead of the IP
addresses. To specify a DNS server, type the IP addresses in the text
field provided. Otherwise, leave the text field blank.
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server.
![](/img.php?id=1248095&img=bg2b.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 43 –
STEP 3 - WAN
SETTINGS - L2TP
Enables the Layer 2 Tunneling Protocol (L2TP) for implementing virtual
private networks. The service is provided in many European countries.
Figure 20: Wizard Step 3 - WAN Settings - L2TP
The following items are displayed on this page:
◆Ethernet Port — Select “L2TP” for the WAN port connection from the
drop-down list.
■Enable MAC Clone — Some ISPs limit Internet connections to a
specified MAC address. This setting allows you to manually change
the MAC address of the Mini 3G Broadband Router’s WAN interface
to match the PC's MAC address provided to your ISP for
registration. You can enter the registered MAC address manually by
typing it in the boxes provided. Otherwise, connect only the PC with
the registered MAC address to the Mini 3G Broadband Router, then
click the “Clone your PC’s MAC Address.” (Default: Disable)
◆USB Port — Enables support for a WAN connection using a USB 3G
modem. For more information, see “Step 3 - WAN Settings - 3G” on
page 45. (Default: Disabled)
◆Server IP — Sets the L2TP server IP Address. (Default: l2tp_server)
◆User Name — Sets the L2TP user name for the WAN port.
(Default: l2tp_user; Range: 1~32 characters)
◆Password — Sets a L2TP password for the WAN port. (Default:
l2tp_password; Range: 1~32 characters)
![](/img.php?id=1248095&img=bg2c.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 44 –
◆Verify Password — Prompts you to re-enter your chosen password.
◆Address Mode — Sets a L2TP network mode. (Default: Static)
◆IP Address — Sets the static IP address. (Default: 0.0.0.0, available
when L2TP Network Mode is set to static IP.)
◆Subnet Mask — Sets the static IP subnet mask. (Default:
255.255.255.0, available when L2TP Network Mode is set to static IP.)
◆Default Gateway — The IP address of a router that is used when the
requested destination IP address is not on the local subnet.
◆Operation Mode — Enables and configures the keep alive time.
◆Primary DNS Server — The IP address of the Primary Domain Name
Server. A DNS maps numerical IP addresses to domain names and can
be used to identify network hosts by familiar names instead of the IP
addresses. To specify a DNS server, type the IP addresses in the text
field provided. Otherwise, leave the text field blank.
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server.
![](/img.php?id=1248095&img=bg2d.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 45 –
STEP 3 - WAN
SETTINGS - 3G
Enables support for a USB 3G modem as a WAN connection, either as a
primary (Master) link, or as a backup to the WAN port link.
Figure 21: Wizard Step 3 - WAN Settings - 3G
The following items are displayed on this page:
◆Ethernet Port — Select the WAN port connection type from the drop-
down list. Alternatively, you can disable the Ethernet WAN port
connection and just use the USB 3G modem connection.
■Enable MAC Clone — Some ISPs limit Internet connections to a
specified MAC address. This setting allows you to manually change
the MAC address of the Mini 3G Broadband Router’s WAN interface
to match the PC's MAC address provided to your ISP for
registration. You can enter the registered MAC address manually by
typing it in the boxes provided. Otherwise, connect only the PC with
the registered MAC address to the Mini 3G Broadband Router, then
click the “Clone your PC’s MAC Address.” (Default: Disable)
![](/img.php?id=1248095&img=bg2e.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 46 –
◆USB Port — Enables support for a WAN connection using a USB 3G
modem. When enabled, you can select if the 3G modem connection
operates as the Master or Backup WAN link. (Default: Disabled)
■Master WAN — Enables the USB 3G modem WAN connection to
operate as the primary WAN link. The Ethernet WAN port then
operates as the backup link. (Default: Disabled)
■Backup WAN — Enables the USB 3G modem WAN connection to
operate as the backup to the Ethernet WAN port link.
(Default: Enabled)
◆Dual WAN Mode — When both the WAN port and 3G modem
connections are enabled, you can configure the following parameters:
■Fallback of Dual WAN — The operation of the fallback between
dual WAN connections is as follows: (Default: Disabled)
■Enable — The Master WAN connection is used first. Whenever
this connection is lost, the device automatically switches to the
Backup WAN. During the operation of the Backup WAN, the
Master WAN link is monitored for recovery of the lost
connection. If the Master WAN link is re-established, the WAN
connection automatically switches back to the Master from the
Backup WAN connection.
■Disable — The Master WAN connection is used first. Whenever
this connection is lost, the device automatically switches to the
Backup WAN. The device will only switch back to the Master
WAN if the Backup connection is lost.
■Detect IP Address of Master WAN — An IP address to which a
ping packet is sent to detect if the Master WAN connection is valid.
■Detect IP Address of Backup WAN — An IP address to which a
ping packet is sent to detect if the Backup WAN connection is valid.
■Detect Timeout — Sets the ping time out. (Range: 1~5 seconds;
Default: 3 seconds)
◆Pin Code Protect — Enables the use of a PIN code (personal
identification number) to encrypt access to the 3G modem connection.
Some service providers do not require PIN code authentication. If a PIN
code is not required for your 3G or 3.5G modem, disable this function.
(Default: Disabled)
◆Dial Code — A dialled access code that connects the USB device to the
service provider.
◆APN Service — The access point name (APN) that uniquely identifies
the 3G or 3.5G service provider.
◆User Name — The user name of the account registered with the 3G or
3.5G service provider.
![](/img.php?id=1248095&img=bg2f.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 47 –
◆Password — The password of the account registered with the 3G or
3.5G service provider.
◆Budget Control — Enables a monthly limit on time or total data. For
more information, see “3G” on page 62. (Default: Disabled)
STEP 4 - WIRELESS
SECURITY
The Step 4 page of the Wizard configures the wireless network name and
security options.
Figure 22: Wizard Step 4 - Wireless Security
The following items are displayed on this page:
◆SSID Choice — The name of the wireless network service provided by
the Mini 3G Broadband Router. Clients that want to connect to the
network must set their SSID to the same as that of the Mini 3G
Broadband Router. (Default: “SMCWBR11S-3GN_AP”)
◆Security Mode — Specifies the security mode for the SSID. Select the
security method and then configure the required parameters. For more
information, see “WLAN Security” on page 82. (Options: Disabled,
Open, Shared, WEP-AUTO, WPA-PSK, WPA2-PSK, WPA-PSK_WPA2-PSK,
WPA, WPA2, WPA1_WPA2, 802.1X; Default: Disabled)
N
OTE
:
To keep your wireless network protected and secure, you should
implement the highest security possible. For small networks, it is
recommended to select WPA2-PSK using AES encryption as the most
secure option. However, if you have older wireless devices in the network
that do not support AES encryption, select TKIP as the encryption
algorithm.
◆Access Policy — The Mini 3G Broadband Router provides a MAC
address filtering facility. The access policy can be set to allow or reject
specific station MAC addresses. This feature can be used to connect
![](/img.php?id=1248095&img=bg30.png)
C
HAPTER
4
| Initial Configuration
Setup Wizard
– 48 –
known wireless devices that may not be able to support the configured
security mode.
◆Add a station MAC — Enter the MAC address of the station that you
want to filter. MAC addresses must be entered in the format
xx:xx:xx:xx:xx:xx.
COMPLETION After completion of the Wizard, the screen returns to the Home Page.
![](/img.php?id=1248095&img=bg31.png)
– 49 –
S
ECTION
II
WEB CONFIGURATION
This section provides details on configuring the Mini 3G Broadband Router
using the web browser interface.
This section includes these chapters:
◆“Operation Mode” on page 50
◆“Network Settings” on page 54
◆“Wireless Configuration” on page 72
◆“Firewall Configuration” on page 96
◆“Administration Settings” on page 104
![](/img.php?id=1248095&img=bg32.png)
– 50 –
5OPERATION MODE
The Mini 3G Broadband Router offers a user-friendly web-based
management interface for the configuration of all the unit’s features. Any
PC directly attached to the unit can access the management interface using
a web browser, such as Internet Explorer (version 6.0 or above).
The following sections are contained in this chapter:
◆“Logging In” on page 51
◆“Operation Mode” on page 53
![](/img.php?id=1248095&img=bg33.png)
C
HAPTER
5
| Operation Mode
Logging In
– 51 –
LOGGING IN
It is recommended to make initial configuration changes by connecting a
PC directly to the Mini 3G Broadband Router's LAN port. The Mini 3G
Broadband Router has a default IP address of 192.168.2.1 and a subnet
mask of 255.255.255.0. If your PC is set to “Obtain an IP address
automatically” (that is, set as a DHCP client), you can connect immediately
to the web interface. Otherwise, you must set your PC IP address to be on
the same subnet as the Mini 3G Broadband Router (that is, the PC and Mini
3G Broadband Router addresses must both start 192.168.2.x).
To access the configuration menu, follow these steps:
1. Use your web browser to connect to the management interface using
the default IP address of 192.168.2.1.
2. Log into the Mini 3G Broadband Router management interface by
entering the default user name “admin” and password “smcadmin,”
then click OK.
N
OTE
:
It is strongly recommended to change the default user name and
password the first time you access the web interface. For information on
changing user names and passwords, see “Administration Settings” on
page 104.
Figure 23: Logging On
![](/img.php?id=1248095&img=bg34.png)
C
HAPTER
5
| Operation Mode
Logging In
– 52 –
The home page displays the main menu items at the top of the screen and
the Setup Wizard. See “Setup Wizard” on page 36.
Figure 24: Home Page
N
OTE
:
The displayed pages and settings may differ depending on whether
the unit is in Router or Bridge Mode. See “Operation Mode” on page 53.
![](/img.php?id=1248095&img=bg35.png)
C
HAPTER
5
| Operation Mode
Operation Mode
– 53 –
OPERATION MODE
The Operation Mode Configuration page allows you to set up the mode
suitable for your network environment.
Figure 25: Operation Mode
The following items are displayed on this page:
◆Bridge Mode — An access point mode that extends a wired LAN to
wireless clients.
◆Router Mode — The Internet gateway mode that connects a wired LAN
and wireless clients to an Internet access device, such as a cable or
DSL modem. This is the factory set default mode.
![](/img.php?id=1248095&img=bg36.png)
– 54 –
6NETWORK SETTINGS
The Network Settings pages allow you to manage basic system
configuration settings. It includes the following sections:
◆“WAN Setting” on page 55
■“DHCP” on page 56
■“Static IP” on page 57
■“PPPoE” on page 58
■“PPTP” on page 59
■“L2TP” on page 61
■“3G” on page 62
◆“LAN Setting” on page 66
◆“DHCP Clients” on page 68
◆“Advanced Routing” on page 69
N
OTE
:
In Bridge mode, the Mini 3G Broadband Router’s Network Settings
options are significantly reduced, with only LAN Settings and the Client List
being available to the user.
![](/img.php?id=1248095&img=bg37.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 55 –
WAN SETTING
The WAN Setting page specifies the Internet connection parameters. Click
on “Network Settings” followed by “WAN”.
By default, the WAN port is configured with DHCP enabled. The options are
Static IP, DHCP (cable modem), PPPoE (DSL modem), PPTP, and L2TP. You
can also enable support for a USB 3G modem as a WAN connection, either
as a primary (Master) link, or as a backup to the WAN port link. Each
option selected changes the parameters that are displayed on the page.
◆Ethernet Port — Select the connection type for the WAN port from the
drop-down list. (Default: DHCP).
■Cable/Dynamic IP (DHCP) — See “DHCP” on page 56.
■Static (Fixed IP) — See “Static IP” on page 57.
■PPPoE (ADSL) — See “PPPoE” on page 58.
■PPTP — See “PPTP” on page 59.
■L2TP — See “L2TP” on page 61.
■Disable — Disables a WAN connection on the WAN port. A single
WAN connection can still be provided using the 3G USB port (see
“3G” on page 62).
■Enable MAC Clone — Some ISPs limit Internet connections to a
specified MAC address of one PC, which is registered with the ISP.
This setting allows you to manually change the MAC address of the
Mini 3G Broadband Router’s WAN port to match the PC MAC address
provided to your ISP for registration. You can enter the registered
MAC address manually by typing it in the box provided. Otherwise,
connect only the PC with the registered MAC address to the Mini 3G
Broadband Router, then click the “Clone your PC’s MAC Address.”
(Default: Disabled)
N
OTE
:
If you are unsure of the PC MAC address originally registered by
your ISP, call your ISP and request to register a new MAC address for your
account. Register the MAC address of the Mini 3G Broadband Router.
◆USB Port — Enables support for a WAN connection using a USB 3G
modem. For more information, see “3G” on page 62. (Default:
Disabled)
![](/img.php?id=1248095&img=bg38.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 56 –
DHCP Enables Dynamic Host Configuration Protocol (DHCP) for the WAN port.
This setting allows the Mini 3G Broadband Router to automatically obtain
an IP address from a DHCP server normally operated by the Internet
Service Provider (ISP).
Figure 26: DHCP Configuration
The following items are displayed on this page:
◆Hostname (Optional) — The hostname of the DHCP client.
◆Primary DNS Server — The IP address of the Primary Domain Name
Server. A DNS maps numerical IP addresses to domain names and can
be used to identify network hosts by familiar names instead of the IP
addresses. To specify a DNS server, type the IP addresses in the text
field provided. Otherwise, leave the text field blank.
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server.
![](/img.php?id=1248095&img=bg39.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 57 –
STATIC IP Configures a static IP for the WAN port.
Figure 27: Static IP Configuration
The following items are displayed on this page:
◆IP Address — The IP address of the Mini 3G Broadband Router. Valid
IP addresses consist of four decimal numbers, 0 to 255, separated by
periods.
◆Subnet Mask — The mask that identifies the host address bits used for
routing to specific subnets.
◆Default Gateway — The IP address of the gateway router for the Mini
3G Broadband Router, which is used if the requested destination
address is not on the local subnet.
◆Primary DNS Server — The IP address of the Primary Domain Name
Server on the network. A DNS maps numerical IP addresses to domain
names and can be used to identify network hosts by familiar names
instead of the IP addresses. If you have one or more DNS servers
located on the local network, type the IP addresses in the text fields
provided. Otherwise, leave the addresses as all zeros (0.0.0.0).
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server on the network.
![](/img.php?id=1248095&img=bg3a.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 58 –
PPPOEEnables the Mini 3G Broadband Router IP address to be assigned
automatically from an Internet service provider (ISP) through a DSL
modem using Point-to-Point Protocol over Ethernet (PPPoE).
Figure 28: PPPoE Configuration
The following items are displayed on this page:
◆PPPoE User Name — Sets the PPPoE user name for the WAN port.
(Default: pppoe_user; Range: 1~32 characters)
◆PPPoE Password — Sets a PPPoE password for the WAN port.
(Default: pppoe_password; Range: 1~32 characters)
◆Verify Password — Prompts you to re-enter your chosen password.
◆Operation Mode — Selects the operation mode as Keep Alive, On
Demand or Manual. (Default: Keep Alive)
■Keep Alive Mode: The Mini 3G Broadband Router will periodically
check your Internet connection and automatically re-establish your
connection when disconnected. (Default: 60 seconds)
■On Demand Mode: The maximum length of inactive time the unit
will stay connected to the DSL service provider before
disconnecting. (Default: 5 minutes)
![](/img.php?id=1248095&img=bg3b.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 59 –
PPTP Enables the Point-to-Point Tunneling Protocol (PPTP) for implementing
virtual private networks. The service is provided in many European
countries.
Figure 29: PPTP Configuration
The following items are displayed on this page:
◆Server IP — Sets a PPTP server IP Address. (Default: pptp_server)
◆User Name — Sets the PPTP user name for the WAN port. (Default:
pptp_user; Range: 1~32 characters)
◆Password — Sets a PPTP password for the WAN port. (Default:
pptp_password; Range: 1~32 characters)
◆Verify Password — Prompts you to re-enter your chosen password.
◆Address Mode — Sets a PPTP network mode. (Default: Static)
◆IP Address — Sets the static IP address. (Default: 0.0.0.0, available
when PPTP Network Mode is set to static IP.)
![](/img.php?id=1248095&img=bg3c.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 60 –
◆Subnet Mask — Sets the static IP subnet mask. (Default:
255.255.255.0, available when PPTP Network Mode is set to static IP.)
◆Default Gateway — The IP address of the gateway router for the Mini
3G Broadband Router, which is used if the requested destination
address is not on the local subnet.
◆Operation Mode — Selects the operation mode as Keep Alive, or
Manual. (Default: Keep Alive)
■Keep Alive Mode: The Mini 3G Broadband Router will periodically
check your Internet connection and automatically re-establish your
connection when disconnected. (Default: 60 seconds)
■Manual Mode: The unit will remain connected to the Internet
without disconnecting.
◆Primary DNS Server — The IP address of the Primary Domain Name
Server. A DNS maps numerical IP addresses to domain names and can
be used to identify network hosts by familiar names instead of the IP
addresses. To specify a DNS server, type the IP addresses in the text
field provided. Otherwise, leave the text field blank.
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server.
![](/img.php?id=1248095&img=bg3d.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 61 –
L2TP Enables the Layer 2 Tunneling Protocol (L2TP) for implementing virtual
private networks. The service is provided in many European countries.
Figure 30: L2TP Configuration
The following items are displayed on this page:
◆Server IP — Sets the L2TP server IP Address. (Default: l2tp_server)
◆User Name — Sets the L2TP user name for the WAN port.
(Default: l2tp_user; Range: 1~32 characters)
◆Password — Sets a L2TP password for the WAN port. (Default:
l2tp_password; Range: 1~32 characters)
◆Verify Password — Prompts you to re-enter your chosen password.
◆Address Mode — Sets a L2TP network mode. (Default: Static)
◆IP Address — Sets the static IP address. (Default: 0.0.0.0, available
when L2TP Network Mode is set to static IP.)
◆Subnet Mask — Sets the static IP subnet mask. (Default:
255.255.255.0, available when L2TP Network Mode is set to static IP.)
![](/img.php?id=1248095&img=bg3e.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 62 –
◆Default Gateway — The IP address of the gateway router for the Mini
3G Broadband Router, which is used if the requested destination
address is not on the local subnet.
◆Operation Mode — Selects the operation mode as Keep Alive, or
Manual. (Default: Keep Alive)
■Keep Alive Mode: The Mini 3G Broadband Router will periodically
check your Internet connection and automatically re-establish your
connection when disconnected. (Default: 60 seconds)
■Manual Mode: The unit will remain connected to the Internet
without disconnecting.
◆Primary DNS Server — The IP address of the Primary Domain Name
Server. A DNS maps numerical IP addresses to domain names and can
be used to identify network hosts by familiar names instead of the IP
addresses. To specify a DNS server, type the IP addresses in the text
field provided. Otherwise, leave the text field blank.
◆Secondary DNS Server — The IP address of the Secondary Domain
Name Server.
3G Enables support for a USB 3G modem as a WAN connection, either as a
primary (Master) link, or as a backup to the WAN port link.
Figure 31: 3G Configuration - Dual WAN Mode
The following items are displayed in this section on this page:
◆USB Port — Enables support for a WAN connection using a USB 3G
modem. When enabled, you can select if the 3G modem connection
operates as the Master or Backup WAN link. (Default: Disabled)
■Master WAN — Enables the USB 3G modem WAN connection to
operate as the primary WAN link. The Ethernet WAN port then
operates as the backup link. (Default: Disabled)
![](/img.php?id=1248095&img=bg3f.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 63 –
■Backup WAN — Enables the USB 3G modem WAN connection to
operate as the backup to the Ethernet WAN port link.
(Default: Enabled)
◆Dual WAN Mode — When both the WAN port and 3G modem
connections are enabled, you can configure the following parameters:
■Fallback of Dual WAN — The operation of the fallback between
dual WAN connections is as follows: (Default: Disabled)
■Enable — The Master WAN connection is used first. Whenever
this connection is lost, the device automatically switches to the
Backup WAN. During the operation of the Backup WAN, the
Master WAN link is monitored for recovery of the lost
connection. If the Master WAN link is re-established, the WAN
connection automatically switches back to the Master from the
Backup WAN connection.
■Disable — The Master WAN connection is used first. Whenever
this connection is lost, the device automatically switches to the
Backup WAN. The device will only switch back to the Master
WAN if the Backup connection is lost.
■Detect IP Address of Master WAN — An IP address to which a
ping packet is sent to detect if the Master WAN connection is valid.
(Default: 199.7.83.42)
■Detect IP Address of Backup WAN — An IP address to which a
ping packet is sent to detect if the Backup WAN connection is valid.
(Default: 199.7.83.42)
■Detect Timeout — Sets the ping time out. (Range: 1~5 seconds;
Default: 3 seconds)
Figure 32: 3G Configuration - Account Setup
The following items are displayed in this section on this page:
◆Pin Code Protect — Enables the use of a PIN code (personal
identification number) to encrypt access to the 3G modem connection.
Some service providers do not require PIN code authentication. If a PIN
![](/img.php?id=1248095&img=bg40.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 64 –
code is not required for your 3G or 3.5G modem, disable this function.
(Default: Disabled)
◆Dial Code — A dialled access code that connects the USB device to the
service provider.
◆APN Service — The access point name (APN) that uniquely identifies
the 3G or 3.5G service provider.
◆User Name — The user name of the account registered with the 3G or
3.5G service provider.
◆Password — The password of the account registered with the 3G or
3.5G service provider.
Figure 33: 3G Configuration - Budget Control
The following items are displayed in this section on this page:
◆Budget Control — Enables a monthly limit on time or total data.
(Default: Disabled)
◆Budget Criterion — Specifies budget limits set by time or data.
■Time Budget — Specify the amount of time (in hours) that can be
used for the 3G connection per month. (Range: 1~999 hours;
Default: 1 hour)
■Data Budget — Specify how much Download/Upload data (in
MBytes) is allowed per month for the 3G connection. The drop-down
list specifies if the data budget is for download, upload, or download
and upload. (Range: 3~4000 MBytes; Default: 3 MBytes)
![](/img.php?id=1248095&img=bg41.png)
C
HAPTER
6
| Network Settings
WAN Setting
– 65 –
◆Budget Policy — Specifies the action to take when budget limits have
been reached.
■Action if Over Budget — Specifies the the action to take when a
budget limit has been exceeded:
■Drop Current Connection — Immediately drop the current
connection. (Default: Enabled)
■Disallow New Connection — Do not permit any new
connections. (Default: Enabled)
■Trigger by Limit Budget — Specifies the percentage of the time
or data budget at which to start sending E-mail alerts at the
indicated time interval. When E-mail alerts are enabled, be sure to
configure the E-mail settings. (Default: 90% of budget, E-mail
Alerts disabled, recurring every 10 minutes)
◆Budget Counter — Select the day of the month on which to reset the
time/data budget counters. (Default: 1st day per month)
Figure 34: 3G Configuration - E-mail Settings
The following items are displayed in this section on this page:
◆E-mail Settings — The unit can use SMTP (Simple Mail Transfer
Protocol) to send E-mail messages when triggered by the specified
budget policy limits.
■Mail SMTP Authentication — Specifies a user name and password
for SMTP server authentication. (Options: PLAIN, LOGIN, or
Disabled.)
■User Name — Enter the user name for the SMTP server account.
■Password — Enter the password for the SMTP server account.
■Mail Server — Specifies the URL of the SMTP mail server that will
send the alert messages.
■Mail Sender — Specifies an E-mail address on the SMTP server
that will send the alert messages.
![](/img.php?id=1248095&img=bg42.png)
C
HAPTER
6
| Network Settings
LAN Setting
– 66 –
■Mail Recipient — The E-mail address of the recipient of the alert
messages.
LAN SETTING
The Mini 3G Broadband Router must have a valid IP address for
management using a web browser and to support other features. The unit
has a default IP address of 192.168.2.1. You can use this IP address or
assign another address that is compatible with your existing local network.
Click on “Network Settings” followed by “LAN.”
Figure 35: LAN Configuration
The following items are displayed on this page:
◆MAC Address — The physical layer address for the Mini 3G Broadband
Router’s LAN port.
![](/img.php?id=1248095&img=bg43.png)
C
HAPTER
6
| Network Settings
LAN Setting
– 67 –
◆IP Address — Valid IP addresses consist of four decimal numbers, 0 to
255, separated by periods. (Default: 192.168.2.1)
◆Subnet Mask — Indicate the local subnet mask.
(Default: 255.255.255.0.)
◆DHCP Server — Enable this feature to assign IP settings to wired and
wireless clients connected to the Mini 3G Broadband Router. The IP
address, subnet mask, default gateway, and Domain Name Server
(DNS) address are dynamically assigned to clients. (Options: Enable,
Disable; Default: Enable)
◆Start/End IP Address — Specify the start and end IP addresses of a
range that the DHCP server can allocate to DHCP clients. Note that the
address pool range is always in the same subnet as the unit’s IP
setting. The maximum clients that the unit can support is 253.
◆Lease Time — Select a time limit for the use of an IP address from the
IP pool. When the time limit expires, the client has to request a new IP
address. The lease time is expressed in seconds. (Options: Forever, Two
weeks, One week, Two days, One day, Half day, Two hours, One hour,
Half hour; Default: One week)
◆LLTD — Link Layer Topology Discovery (LLTD) is a Microsoft proprietary
discovery protocol which can be used for both wired and wireless
networks. (Options: Disable/Enable, Default: Enable)
◆IGMP Proxy — Enables IGMP proxy on the Mini 3G Broadband Router.
(Options: Disable/Enable, Default: Disable)
◆UPNP — Allows the device to advertise its UPnP capabilities. (Default:
Enable)
◆Router Advertisement — Enables the sending and receiving of
routing advertisements to discover the existence of neighboring
routers. (Options: Disable/Enable, Default: Disable)
◆PPPoE Relay — When enabled, the Mini 3G Broadband Router will
forward PPPoE messages to clients. Clients are then able to connect to
the PPPoE service through the WAN port. (Options: Disable/Enable,
Default: Disable)
◆DNS Proxy — Enables DNS proxy on the LAN port. DNS Proxy receives
DNS queries from the local network and forwards them to an Internet
DNS server. (Default: Enable)
![](/img.php?id=1248095&img=bg44.png)
C
HAPTER
6
| Network Settings
DHCP Clients
– 68 –
DHCP CLIENTS
The DHCP Clients page displays information on connected client stations
that have been assigned IP addresses from the DHCP address pool.
Figure 36: DHCP Clients
The following items are displayed on this page:
Host name — The name of the connected client station.
MAC Address — The MAC address of the connected client station.
IP Address — The IP address assigned to the client from the IP pool.
Expires in — The time limit for the use of the IP address from the IP pool.
When the time limit expires, the client has to request a new IP address.
![](/img.php?id=1248095&img=bg45.png)
C
HAPTER
6
| Network Settings
Advanced Routing
– 69 –
ADVANCED ROUTING
Routing setup allows a manual method to set up routing between
networks. The network administrator configures static routes by entering
routes directly into the routing table. Static routing has the advantage of
being predictable and easy to configure.
ADVANCED ROUTING
SETTINGS
This screen is used to manually configure static routes to other IP
networks, subnetworks, or hosts. Click “Network Settings” followed by
“Advanced Routing.” (Maximum 32 entries are allowed.)
Figure 37: Advanced Routing (Router Mode)
![](/img.php?id=1248095&img=bg46.png)
C
HAPTER
6
| Network Settings
Advanced Routing
– 70 –
The following items are displayed on this page:
◆Destination — A destination network or specific host to which packets
can be routed.
◆Type — Defines the type of destination. (Options: Host/Net, Default:
Host)
◆Gateway — The IP address of the router at the next hop to which
matching frames are forwarded.
◆Interface — The selected interface to which a static routing subnet is
to be applied.
◆Comment — Enters a useful comment to help identify this route.
ROUTING TABLE This page displays the information necessary to forward a packet along the
best path toward its destination. Each packet contains information about
its origin and destination. When a packet is received, a network device
examines the packet and matches it to the routing table entry providing
the best match for its destination. The table then provides the device with
instructions for sending the packet to the next hop on its route across the
network.
N
OTE
:
The Routing Table is only available when the Mini 3G Broadband
Router is set to Router Mode.
◆Destination — Displays all destination networks or specific hosts to
which packets can be routed.
◆Netmask — Displays the subnetwork associated with the destination.
◆Gateway — Displays the IP address of the router at the next hop to
which matching frames are forwarded.
◆Flags — Flags – Possible flags identify as below
■0: reject route
■1: route is up
■3: route is up, use gateway
■5: route is up, target is a host
■7: route is up, use gateway, target is a host
◆Metric — A number used to indicate the cost of the route so that the
best route, among potentially multiple routes to the same destination,
can be selected.
![](/img.php?id=1248095&img=bg47.png)
C
HAPTER
6
| Network Settings
Advanced Routing
– 71 –
◆Ref — Number of references to this route.
◆Use — Count of lookups for the route.
◆Interface — Interface to which packets for this route will be sent.
◆Comment — Displays a useful comment to identify the routing rules.
DYNAMIC ROUTE ◆The Mini 3G Broadband Router supports RIP 1 and RIP 2 dynamic
routing protocol. Routing Information Protocol (RIP) is the most widely
used method for dynamically maintaining routing tables. RIP uses a
distance vector-based approach to routing. Routes are chosen to
minimize the distance vector, or hop count, which serves as a rough
estimate of transmission cost. Each router broadcasts its advertisement
every 30 seconds, together with any updates to its routing table. This
allows all routers on the network to build consistent tables of next hop
links which lead to relevant subnets.
◆RIP — Enables or disable the RIP protocol for the WAN or LAN
interface. (Options: Disable/v1/v2, Default: Disable)
![](/img.php?id=1248095&img=bg48.png)
– 72 –
7WIRELESS CONFIGURATION
The wireless settings section displays configuration settings for the access
point functionality of the Mini 3G Broadband Router. It includes the
following sections:
◆“Basic Settings” on page 72
◆“Advanced Settings” on page 76
◆“WLAN Security” on page 82
◆“Wireless Distribution System (WDS)” on page 89
◆“Wi-Fi Protected Setup (WPS)” on page 92
◆“Station List” on page 95
BASIC SETTINGS
The IEEE 802.11n interface includes configuration options for radio signal
characteristics and wireless security features.
The Mini 3G Broadband Router’s radio can operate in six modes, mixed
802.11b/g/n, mixed 802.11b/g, mixed 802.11g/n, 802.11n only, 802.11b
only, or 802.11g only. Note that 802.11g is backward compatible with
802.11b, and 802.11n is backward compatible with 802.11b/g at slower
data transmit rates.
The Mini 3G Broadband Router supports two virtual access point (VAP)
interfaces. One VAP is the primary (Network Name SSID), and the other
one is referred to as "Multiple SSID1." Each VAP functions as a separate
access point, and can be configured with its own Service Set Identification
(SSID) and security settings. However, most radio signal parameters apply
to all VAP interfaces.
Traffic to specific VAPs can be segregated based on user groups or
application traffic. All VAPs can have up to 64 wireless clients, whereby the
clients associate with these VAPs the same as they would with a physical
access point.
N
OTE
:
The radio channel settings for the access point are limited by local
regulations, which determine the number of channels that are available.
![](/img.php?id=1248095&img=bg49.png)
C
HAPTER
7
| Wireless Configuration
Basic Settings
– 73 –
The Basic Settings page allows you to configure the wireless network name
(Service Set Identifier or SSID) and set the wireless security method.
Click on “Wireless Settings,” followed by “Basic.”
Figure 38: Basic Settings
The following items are displayed on this page:
◆Wireless On/Off — Enables or Disable the radio. (Default: Enable)
◆Network Mode — Defines the radio operating mode. (Default: 11g/n
Mixed)
■11b/g mixed: Both 802.11b and 802.11g clients can communicate
with the Mini 3G Broadband Router (up to 108 Mbps), but data
transmission rates may be slowed to compensate for 802.11b
clients. Any 802.11n clients will also be able to communicate with
the Mini 3G Broadband Router, but they will be limited to 802.11g
protocols and data transmission rates.
■11b only: All 802.11b, 802.11g, and 802.11n clients will be able to
communicate with the Mini 3G Broadband Router, but the 802.11g
and 802.11n clients will be limited to 802.11b protocols and data
transmission rates (up to 11 Mbps).
■11g only: Both 802.11g and 802.11n clients will be able to
communicate with the Mini 3G Broadband Router, but the 802.11n
clients will be limited to 802.11g protocols and data transmission
rates (up to 54 Mbps). Any 802.11b clients will not be able to
communicate with the Mini 3G Broadband Router.
![](/img.php?id=1248095&img=bg4a.png)
C
HAPTER
7
| Wireless Configuration
Basic Settings
– 74 –
■11n only: Only 802.11n clients will be able to communicate with
the Mini 3G Broadband Router (up to 150 Mbps).
■11g/n mixed: Both 802.11g and 802.11n clients can communicate
with the Mini 3G Broadband Router (up to 150 Mbps), but data
transmission rates may be slowed to compensate for 802.11g
clients.
■11b/g/n Mixed: All 802.11b/g/n clients can communicate with the
Mini 3G Broadband Router (up to 150 Mbps), but data transmission
rates may be slowed to compensate for 802.11b/g clients.
◆Network Name (SSID) — The name of the wireless network service
provided by the Mini 3G Broadband Router. Clients that want to connect
to the network must set their SSID to the same as that of the Mini 3G
Broadband Router. (Default: “SMCWBR11S-3GN_AP”; Range: 1-32
characters)
◆Multiple SSID1 — One additional VAP interface supported on the
device. (Default: no name configured; Range: 1-32 characters)
◆Broadcast Network Name (SSID) — By default, the Mini 3G
Broadband Router always broadcasts the SSID in its beacon signal.
Disabling the SSID broadcast increases security of the network because
wireless clients need to already know the SSID before attempting to
connect. When set to disable, the Network Name SSID, and SSID1 are
automatically set to “Hide.” (Default: Enabled)
◆AP Isolation — The Mini 3G Broadband Router will isolate
communincation between all clients in order to protect them. Normally
for users who are at hotspots. (Default: Disabled)
◆MBSSID AP Isolation — The Mini 3G Broadband Router will isolate
wireless clients from different SSID.
◆BSSID — The identifier (MAC address) of the Mini 3G Broadband
Router in the Basic Service Set (BSS) network.
◆Frequency (Channel) — The radio channel that the Mini 3G
Broadband Router uses to communicate with wireless clients. When
multiple access points are deployed in the same area, set the channel
on neighboring access points at least five channels apart to avoid
interference with each other. For example, you can deploy up to three
access points in the same area using channels 1, 6, 11. Note that
wireless clients automatically set the channel to the same as that used
by the Mini 3G Broadband Router to which it is linked. Selecting Auto
Select enables the Mini 3G Broadband Router to automatically select an
unoccupied radio channel. (Default: AutoSelect)
![](/img.php?id=1248095&img=bg4b.png)
C
HAPTER
7
| Wireless Configuration
Basic Settings
– 75 –
HT PHYSICAL MODE
SETTINGS
The HT Physical Mode section on the Wireless Settings Advanced page
includes additional parameters for 802.11n operation.
Figure 39: HT Physical Mode Settings
The following items are displayed in this section on this page:
◆HT Channel Bandwidth — The Mini 3G Broadband Router provides a
channel bandwidth of 40 MHz by default giving an 802.11g connection
speed of 108 Mbps (sometimes referred to as Turbo Mode) and a
802.11n connection speed of up to 150 Mbps. Setting the HT Channel
Bandwidth to 20 MHz slows connection speed for 802.11g and 802.11n
to 54 Mbps and 74 Mbps respectively and ensures backward compliance
for slower 802.11b devices. (Default: 20MHz)
◆Guard Interval — The guard interval between symbols helps receivers
overcome the effects of multipath delays. When you add a guard time,
the back portion of useful signal time is copied and appended to the
front. (Default: Auto)
◆MCS — The Modulation and Coding Scheme (MCS) is a value that
determines the modulation, coding and number of spatial channels.
(Options: value [range] = 0~7 (1 Tx Stream), 8~15 (2 TxStream), 32
and auto (33). Default: auto)
◆Reverse Direction Grant (RDG) — When Reverse Direction Grant is
enabled, the Mini 3G Broadband Router can reduce the transmitted
data packet collision by using the reverse direction protocol. During
TXOP (Transmission Opportunity) period, the receiver could use
remaining transmission time to transmit data to a sender. The RDG
improves transmission performance and scalability in a wireless
environment.
◆Extension Channel — When 20/40MHz channel bandwidth has been
set, the extension channel option will be enabled. The extension
channel will allow you to get extra bandwidth. (Options: 2417MHz/
Channel 2, 2457MHz/Channel 10. Default: AutoSelect.)
![](/img.php?id=1248095&img=bg4c.png)
C
HAPTER
7
| Wireless Configuration
Advanced Settings
– 76 –
◆Aggregate MSDU (A-MSDU) — This option enables Mac Service Data
Unit (MSDU) aggregation. (Default: Disable)
◆Auto Block ACK — Select to block ACK (Acknowledge Number) or not
during data transferring.
◆Decline BA Request — Select to reject peer BA-Request or not.
ADVANCED SETTINGS
The Advanced Settings page includes additional parameters concerning the
wireless network and Wi-Fi Multimedia settings.
N
OTE
:
There are several variables to consider when selecting a radio mode
that make it fully functional. Simply selecting the mode you want is not
enough to ensure full compatibility for that mode. Information on these
variables may be found in the HT Physcial Mode Setting section.
ADVANCED WIRELESS The Advanced Wireless section on the Wireless Settings Advanced page
includes additional radio parameters.
Figure 40: Advanced Wireless Settings
The following items are displayed in this section on this page:
◆BG Protection Mode — Enables a backward compatible protection
mechanism for 802.11b clients. There are three modes: (Default: Auto)
![](/img.php?id=1248095&img=bg4d.png)
C
HAPTER
7
| Wireless Configuration
Advanced Settings
– 77 –
■Auto — The unit enables its protection mechanism for 802.11b
clients when they are detected in the network. When 802.11b
clients are not detected, the protection mechanism is disabled.
■On — Forces the unit to always use protection for 802.11b clients,
whether they are detected in the network or not. Note that enabling
b/g Protection can slow throughput for 802.11g/n clients by as
much as 50%.
■Off — Forces the unit to never use protection for 802.11b clients.
This prevents 802.11b clients from connecting to the network.
◆Beacon Interval — The rate at which beacon signals are transmitted
from the access point. The beacon signals allow wireless clients to
maintain contact with the access point. They may also carry power-
management information. (Range: 20-999 TUs; Default: 100 TUs)
◆Data Beacon Rate (DTIM) — The rate at which stations in sleep
mode must wake up to receive broadcast/multicast transmissions.
Known also as the Delivery Traffic Indication Map (DTIM) interval, it
indicates how often the MAC layer forwards broadcast/multicast traffic,
which is necessary to wake up stations that are using Power Save
mode. The default value of one beacon indicates that the access point
will save all broadcast/multicast frames for the Basic Service Set (BSS)
and forward them after every beacon. Using smaller DTIM intervals
delivers broadcast/multicast frames in a more timely manner, causing
stations in Power Save mode to wake up more often and drain power
faster. Using higher DTIM values reduces the power used by stations in
Power Save mode, but delays the transmission of broadcast/multicast
frames. (Range: 1-255 beacons; Default: 1 beacon)
◆Fragmentation Threshold – Configures the minimum packet size that
can be fragmented when passing through the access point.
Fragmentation of the PDUs (Package Data Unit) can increase the
reliability of transmissions because it increases the probability of a
successful transmission due to smaller frame size. If there is significant
interference present, or collisions due to high network utilization, try
setting the fragment size to send smaller fragments. This will speed up
the retransmission of smaller frames. However, it is more efficient to
set the fragment size larger if very little or no interference is present
because it requires overhead to send multiple frames. (Range: 256-
2346 bytes; Default: 2346 bytes)
◆RTS Threshold — Sets the packet size threshold at which a Request to
Send (RTS) signal must be sent to a receiving station prior to the
sending station starting communications. The access point sends RTS
frames to a receiving station to negotiate the sending of a data frame.
After receiving an RTS frame, the station sends a CTS (clear to send)
frame to notify the sending station that it can start sending data.
If the RTS threshold is set to 0, the access point always sends RTS
signals. If set to 2347, the access point never sends RTS signals. If set
to any other value, and the packet size equals or exceeds the RTS
![](/img.php?id=1248095&img=bg4e.png)
C
HAPTER
7
| Wireless Configuration
Advanced Settings
– 78 –
threshold, the RTS/CTS (Request to Send / Clear to Send) mechanism
will be enabled.
The access points contending for the medium may not be aware of each
other. The RTS/CTS mechanism can solve this “Hidden Node Problem.”
(Range: 1-2347 bytes: Default: 2347 bytes)
◆Short Preamble — Sets the length of the signal preamble that is used
at the start of a data transmission. Use a short preamble (96
microseconds) to increase data throughput when it is supported by all
connected 802.11g clients. Use a long preamble (192 microseconds) to
ensure all 802.11b clients can connect to the network.
(Default: Disabled)
◆Short Slot — Sets the basic unit of time the access point uses for
calculating waiting times before data is transmitted. A short slot time
(9 microseconds) can increase data throughput on the access point, but
requires that all clients can support a short slot time (that is, 802.11g-
compliant clients must support a short slot time). A long slot time
(20 microseconds) is required if the access point has to support
802.11b clients. (Default: Enabled)
◆TX Burst — A performance enhancement that transmits a number of
data packets at the same time when the feature is supported by
compatible clients. (Default: Enabled)
◆Packet Aggregate — A performance enhancement that combines data
packets together when the feature is supported by compatible clients.
(Default: Enabled)
WI-FI MULTIMEDIA The Mini 3G Broadband Router implements Quality of Service (QoS) using
the Wi-Fi Multimedia (WMM) standard. Using WMM, the access point is able
to prioritize traffic and optimize performance when multiple applications
compete for wireless network bandwidth at the same time. WMM employs
techniques that are a subset of the developing IEEE 802.11e QoS standard
and it enables access points to interoperate with both WMM-enabled clients
and other devices that may lack any WMM functionality.
WMM defines four access categories (ACs): voice, video, best effort, and
background. These categories correspond to traffic priority levels and are
mapped to IEEE 802.1D priority tags (see Ta b l e 3 ). The direct mapping of
the four ACs to 802.1D priorities is specifically intended to facilitate
interoperability with other wired network QoS policies. While the four ACs
are specified for specific types of traffic, WMM allows the priority levels to
be configured to match any network-wide QoS policy. WMM also specifies a
protocol that access points can use to communicate the configured traffic
priority levels to QoS-enabled wireless clients.
![](/img.php?id=1248095&img=bg4f.png)
C
HAPTER
7
| Wireless Configuration
Advanced Settings
– 79 –
The Wi-Fi Multimedia section on the Wireless Settings Advanced page
allows you to enable WMM and set detailed QoS parameters.
Figure 41: Wi-Fi Multimedia Settings
The following items are displayed in this section on this page:
◆WMM — Sets the WMM operational mode on the access point. When
enabled, the QoS capabilities are advertised to WMM-enabled clients in
the network. WMM must be supported on any device trying to
associated with the access point. Devices that do not support this
feature will not be allowed to associate with the access point.
(Default: Enabled)
◆APSD — When WMM is enabled, Automatic Power Save Delivery
(APSD) can also be enabled. APSD is an efficient power management
method that enables client devices sending WMM packets to enter a
low-power sleep state between receiving and transmitting data.
(Default: Disabled)
◆WMM Parameters — Click the WMM Configuration button to set
detailed WMM parameters.
Table 3: WMM Access Categories
Access
Category
WMM
Designation
Description 802.1D
Tags
AC_VO (AC3) Voice Highest priority, minimum delay. Time-sensitive
data such as VoIP (Voice over IP) calls.
7, 6
AC_VI (AC2) Video High priority, minimum delay. Time-sensitive
data such as streaming video.
5, 4
AC_BE (AC0) Best Effort Normal priority, medium delay and throughput.
Data only affected by long delays. Data from
applications or devices that lack QoS
capabilities.
0, 3
AC_BK (AC1) Background Lowest priority. Data with no delay or
throughput requirements, such as bulk data
transfers.
2, 1
![](/img.php?id=1248095&img=bg50.png)
C
HAPTER
7
| Wireless Configuration
Advanced Settings
– 80 –
Figure 42: WMM Configuration
The following items are displayed in the WMM Configuration window:
◆AIFSN (Arbitration Inter-Frame Space) — The minimum amount of
wait time before the next data transmission attempt. Specify the AIFS
value in the range 0-15 microseconds.
◆CWMin (Minimum Contention Window) — The initial upper limit of the
random backoff wait time before wireless medium access can be
attempted. The initial wait time is a random value between zero and
the CWMin value. Specify the CWMin value in the range 0-15
microseconds. Note that the CWMin value must be equal or less than
the CWMax value.
◆CWMax (Maximum Contention Window) — The maximum upper limit
of the random backoff wait time before wireless medium access can be
attempted. The contention window is doubled after each detected
collision up to the CWMax value. Specify the CWMax value in the range
0-15 microseconds. Note that the CWMax value must be greater or
equal to the CWMin value.
◆Txop (Transmit Opportunity Limit) — The maximum time an AC
transmit queue has access to the wireless medium. When an AC queue
is granted a transmit opportunity, it can transmit data for a time up to
the TxOpLimit. This data bursting greatly improves the efficiency for
high data-rate traffic. Specify a value in the range 0-65535
microseconds.
![](/img.php?id=1248095&img=bg51.png)
C
HAPTER
7
| Wireless Configuration
Advanced Settings
– 81 –
◆ACM — The admission control mode for the access category. When
enabled, clients are blocked from using the access category.
(Default: Disabled)
◆AckPolicy — By default, all wireless data transmissions require the
sender to wait for an acknowledgement from the receiver. WMM allows
the acknowledgement wait time to be turned off for each Access
Category (AC) 0-3. Although this increases data throughput, it can also
result in a high number of errors when traffic levels are heavy.
(Default: Acknowledge)
MULTICAST-TO-
UNICAST CONVERTER
The Multicast-to-Unicast Converter section on the Wireless Settings
Advanced page allows you to enable multicast traffic conversion.
Converting multicast traffic to unicast before sending to wireless clients
allows a longer DTIM (Data Beacon Rate) interval to be set. A longer DTIM
interval prevents clients in power-save mode having to activate their radios
to receive the multicast data, which saves battery life.
Figure 43: Multicast-to-Unicast Converter
The following items are displayed in this section on this page:
◆Multicast-to-Unicast — Enables multicast traffic streams to be
converted to unicast traffic before delivery to wireless clients.
(Default: Disabled)
![](/img.php?id=1248095&img=bg52.png)
C
HAPTER
7
| Wireless Configuration
WLAN Security
– 82 –
WLAN SECURITY
The Mini 3G Broadband Router’s wireless interface is configured by default
as an “open system,” which broadcasts a beacon signal including the
configured SSID. Wireless clients with a configured SSID of “ANY” can read
the SSID from the beacon, and automatically set their SSID to allow
immediate connection to the wireless network.
To implement wireless network security, you have to employ one or both of
the following functions:
◆Authentication — It must be verified that clients attempting to
connect to the network are authorized users.
◆Traffic Encryption — Data passing between the unit and clients must
be protected from interception and eavesdropping.
The Mini 3G Broadband Router supports supports ten different security
mechanisms that provide various levels of authentication and encryption
depending on the requirements of the network.
The Mini 3G Broadband Router supports two SSID interfaces. Each SSID
interface functions as a separate access point, and can be configured with
its own security settings.
Click on “Wireless Settings,” followed by “Basic”.
Figure 44: Security Mode Options
![](/img.php?id=1248095&img=bg53.png)
C
HAPTER
7
| Wireless Configuration
WLAN Security
– 83 –
The supported security mechanisms and their configuration parameters are
described in the following sections:
◆OPEN, SHARED, WEP-AUTO — See “Wired Equivalent Privacy (WEP)”
on page 83
◆WPA-PSK, WPA2-PSK, WPA-PSK_WPA2-PSK — See “WPA Pre-
Shared Key” on page 84
◆WPA, WPA2, WPA1_WPA2 — See “WPA Enterprise Mode” on
page 85
◆802.1X — See “IEEE 802.1X and RADIUS” on page 87
WIRED EQUIVALENT
PRIVACY (WEP)
WEP provides a basic level of security, preventing unauthorized access to
the network, and encrypting data transmitted between wireless clients and
an access point. WEP uses static shared keys (fixed-length hexadecimal or
alphanumeric strings) that are manually distributed to all clients that want
to use the network.
When you select to use WEP, be sure to define at least one static WEP key
for user authentication or data encryption. Also, be sure that the WEP
shared keys are the same for each client in the wireless network.
Figure 45: Security Mode - WEP
The following items are displayed in this section on this page:
Security Mode — Configures the WEP security mode used by clients.
When using WEP, be sure to define at least one static WEP key for the Mini
3G Broadband Router and all its clients. (Default: Disable)
◆OPEN — Open-system authentication accepts any client attempting to
connect the Mini 3G Broadband Router without verifying its identity. In
this mode the default data encryption type is “WEP.”
◆SHARED — The shared-key security uses a WEP key to authenticate
clients connecting to the network and for data encryption.
![](/img.php?id=1248095&img=bg54.png)
C
HAPTER
7
| Wireless Configuration
WLAN Security
– 84 –
◆WEP-AUTO — Allows wireless clients to connect to the network using
Open-WEP (uses WEP for encryption only) or Shared-WEP (uses WEP
for authentication and encryption).
◆Encrypt Type — Selects WEP for data encryption (OPEN mode only).
◆Default Key — Selects the WEP key number to use for authentication
or data encryption. If wireless clients have all four WEP keys configured
to the same values, you can change the encryption key to any of the
settings without having to update the client keys. (Default: 1;
Range: 1~4)
◆WEP Keys 1 ~ 4 — Sets WEP key values. The user must first select
ASCII or hexadecimal keys. Each WEP key has an index number. Enter
key values that match the key type and length settings. Enter 5
alphanumeric characters or 10 hexadecimal digits for 64-bit keys, or
enter 13 alphanumeric characters or 26 hexadecimal digits for 128-bit
keys. (Default: Hex, no preset value)
WPA PRE-SHARED
KEY
Wi-Fi Protected Access (WPA) was introduced as an interim solution for the
vulnerability of WEP pending the adoption of a more robust wireless
security standard. WPA2 includes the complete wireless security standard,
but also offers backward compatibility with WPA. Both WPA and WPA2
provide an “enterprise” and “personal” mode of operation.
For small home or office networks, WPA and WPA2 provide a simple
“personal” operating mode that uses just a pre-shared key for network
access. The WPA Pre-Shared Key (WPA-PSK) mode uses a common
password phrase for user authentication that is manually entered on the
access point and all wireless clients. Data encryption keys are
automatically generated by the access point and distributed to all clients
connected to the network.
Figure 46: Security Mode - WPA-PSK
The following items are displayed in this section on this page:
Security Mode — Configures the WPA-PSK and WPA2-PSK security modes
used by clients. When using WPA-PSK or WPA2-PSK, be sure to define the
shared key for the Mini 3G Broadband Router and all its clients.
(Default: Disable)
![](/img.php?id=1248095&img=bg55.png)
C
HAPTER
7
| Wireless Configuration
WLAN Security
– 85 –
◆WPA-PSK — Clients using WPA with a Pre-shared Key are accepted for
authentication. The default data encryption type for WPA is TKIP.
◆WPA2-PSK — Clients using WPA2 with a Pre-shared Key are accepted
for authentication. The default data encryption type for WPA is AES.
◆WPA-PSK_WPA2-PSK — Clients using WPA or WPA2 with a Pre-
shared Key are accepted for authentication. The default data encryption
type is TKIP/AES.
◆WPA Algorithms — Selects the data encryption type to use. (Default
is determined by the Security Mode selected.)
■TKIP — Uses Temporal Key Integrity Protocol (TKIP) keys for
encryption. WPA specifies TKIP as the data encryption method to
replace WEP. TKIP avoids the problems of WEP static keys by
dynamically changing data encryption keys.
■AES — Uses Advanced Encryption Standard (AES) keys for
encryption. WPA2 uses AES Counter-Mode encryption with Cipher
Block Chaining Message Authentication Code (CBC-MAC) for
message integrity. The AES Counter-Mode/CBCMAC Protocol (AES-
CCMP) provides extremely robust data confidentiality using a 128-
bit key. Use of AES-CCMP encryption is specified as a standard
requirement for WPA2. Before implementing WPA2 in the network,
be sure client devices are upgraded to WPA2-compliant hardware.
■TKIP/AES — Uses either TKIP or AES keys for encryption. WPA and
WPA2 mixed modes allow both WPA and WPA2 clients to associate
to a common SSID. In mixed mode, the unicast encryption type
(TKIP or AES) is negotiated for each client.
◆Pass Phrase — The WPA Preshared Key can be input as an ASCII
string (an easy-to-remember form of letters and numbers that can
include spaces) or Hexadecimal format. (Range: 8~63 ASCII
characters, or exactly 64 Hexadecimal digits)
◆Key Renewal Interval — Sets the time period for automatically
changing data encryption keys and redistributing them to all connected
clients. (Default: 3600 seconds)
WPA ENTERPRISE
MODE
Wi-Fi Protected Access (WPA) was introduced as an interim solution for the
vulnerability of WEP pending the adoption of a more robust wireless
security standard. WPA2 includes the complete wireless security standard,
but also offers backward compatibility with WPA. Both WPA and WPA2
provide an “enterprise” and “personal” mode of operation.
For enterprise deployment, WPA and WPA2 use IEEE 802.1X for user
authentication and require a RADIUS authentication server to be
configured on the wired network. Data encryption keys are automatically
generated and distributed to all clients connected to the network.
![](/img.php?id=1248095&img=bg56.png)
C
HAPTER
7
| Wireless Configuration
WLAN Security
– 86 –
Figure 47: Security Mode - WPA
The following items are displayed in this section on this page:
Security Mode — Configures the WPA and WPA2 security modes used by
clients. When using WPA or WPA2, be sure there is a RADIUS server in the
connected wired network, and that the RADIUS settings are configured.
See “IEEE 802.1X and RADIUS” on page 87 for more information.
(Default: Disable)
◆WPA — Clients using WPA with an 802.1X authentication method are
accepted for authentication. The default data encryption type for WPA
is TKIP.
◆WPA2 — Clients using WPA2 with an 802.1X authentication method
are accepted for authentication. The default data encryption type for
WPA is AES.
◆WPA1_WPA2 — Clients using WPA or WPA2 with an 802.1X
authentication method are accepted for authentication. The default
data encryption type is TKIP/AES.
◆WPA Algorithms — Selects the data encryption type to use. (Default
is determined by the Security Mode selected.)
■TKIP — Uses Temporal Key Integrity Protocol (TKIP) keys for
encryption. WPA specifies TKIP as the data encryption method to
replace WEP. TKIP avoids the problems of WEP static keys by
dynamically changing data encryption keys.
■AES — Uses Advanced Encryption Standard (AES) keys for
encryption. WPA2 uses AES Counter-Mode encryption with Cipher
Block Chaining Message Authentication Code (CBC-MAC) for
![](/img.php?id=1248095&img=bg57.png)
C
HAPTER
7
| Wireless Configuration
WLAN Security
– 87 –
message integrity. The AES Counter-Mode/CBCMAC Protocol (AES-
CCMP) provides extremely robust data confidentiality using a 128-
bit key. Use of AES-CCMP encryption is specified as a standard
requirement for WPA2. Before implementing WPA2 in the network,
be sure client devices are upgraded to WPA2-compliant hardware.
■TKIP/AES — Uses either TKIP or AES keys for encryption. WPA and
WPA2 mixed modes allow both WPA and WPA2 clients to associate
to a common SSID. In mixed mode, the unicast encryption type
(TKIP or AES) is negotiated for each client.
◆Key Renewal Interval — Sets the time period for automatically
changing data encryption keys and redistributing them to all connected
clients. (Default: 3600 seconds)
◆PMK Cache Period — WPA2 provides fast roaming for authenticated
clients by retaining keys and other security information in a cache, so
that if a client roams away from an access point and then returns
reauthentication is not required. This parameter sets the time for
deleting the cached WPA2 Pairwise Master Key (PMK) security
information. (Default: 10 minutes)
◆Pre-Authentication — When using WPA2, pre-authentication can be
enabled that allows clients to roam to another access point and be
quickly associated without performing full 802.1X authentication.
(Default: Disabled)
IEEE 802.1X AND
RADIUS
IEEE 802.1X is a standard framework for network access control that uses
a central RADIUS server for user authentication. This control feature
prevents unauthorized access to the network by requiring an 802.1X client
application to submit user credentials for authentication. The 802.1X
standard uses the Extensible Authentication Protocol (EAP) to pass user
credentials (either digital certificates, user names and passwords, or other)
from the client to the RADIUS server. Client authentication is then verified
on the RADIUS server before the client can access the network.
Remote Authentication Dial-in User Service (RADIUS) is an authentication
protocol that uses software running on a central server to control access to
RADIUS-aware devices on the network. An authentication server contains a
database of user credentials for each user that requires network access.
The WPA and WPA2 enterprise security modes use 802.1X as the method
of user authentication. IEEE 802.1X can also be enabled on its own as a
security mode for user authentication. When 802.1X is used, a RADIUS
server must be configured and be available on the connected wired
network.
N
OTE
:
This guide assumes that you have already configured RADIUS
server(s) to support the access point. Configuration of RADIUS server
software is beyond the scope of this guide, refer to the documentation
provided with the RADIUS server software.
![](/img.php?id=1248095&img=bg58.png)
C
HAPTER
7
| Wireless Configuration
WLAN Security
– 88 –
Figure 48: Security Mode - 802.1X
The following items are displayed in this section on this page:
Security Mode — Configures the 802.1X security mode used by clients.
When using 802.1X, either with WPA/WPA2 or on its own, be sure there is
a configured RADIUS server in the connected wired network.
(Default: Disable)
802.1X WEP: Selects WEP keys for data encryption. When enabled, WEP
encryption keys are automatically generated by the RADIUS server and
distributed to all connected clients. (Default: Disabled)
RADIUS Server — Configures RADIUS server settings.
◆IP Address — Specifies the IP address of the RADIUS server.
◆Port — The User Datagram Protocol (UDP) port number used by the
RADIUS server for authentication messages. (Range: 1024-65535;
Default: 1812)
◆Shared Secret — A shared text string used to encrypt messages
between the access point and the RADIUS server. Be sure that the
same text string is specified on the RADIUS server. Do not use blank
spaces in the string. (Maximum length: 20 characters)
◆Session Timeout — Number of seconds the access point waits for a
reply from the RADIUS server before resending a request. (Range: 1-
60 seconds; Default: 0)
◆Idle Timeout — Sets the maximum time (in seconds) of client
inactivity before a session is terminated.
![](/img.php?id=1248095&img=bg59.png)
C
HAPTER
7
| Wireless Configuration
Wireless Distribution System (WDS)
– 89 –
ACCESS POLICY The Mini 3G Broadband Router provides a MAC address filtering facility. The
access policy can be set to allow or reject specific station MAC addresses.
This feature can be used to connect known wireless devices that may not
be able to support the configured security mode.
Figure 49: Access Policy
The following items are displayed in this section on this page:
◆Access Policy — The access policy can be set to allow or reject specific
station MAC addresses.
◆Add a station MAC — Enter the MAC address of the station that you
want to filter. MAC addresses must be entered in the format
xx:xx:xx:xx:xx:xx.
WIRELESS DISTRIBUTION SYSTEM (WDS)
The radio interface can be configured to operate in a mode that allows it to
forward traffic directly to other Mini 3G Broadband Router units. This
feature can be used to extend the range of the wireless network to reach
remote clients, or to link disconnected network segments to an Internet
connection.
To set up links between units, you must configure the Wireless Distribution
System (WDS) forwarding table by specifying the wireless MAC address of
all units to which you want to forward traffic.
N
OTE
:
All units in a WDS wireless network must be configured with the
same SSID and use the same radio channel. Also each WDS link must be
configured with the same encryption key on both units in the link.
Up to four WDS links can be specified for each unit in the WDS network.
The following figures illustrate an example WDS network. Figure 50 shows
the manual set up of MAC addresses for units in the WDS network.
Figure 51 shows the basic configuration required on each unit in the WDS
network.
![](/img.php?id=1248095&img=bg5a.png)
C
HAPTER
7
| Wireless Configuration
Wireless Distribution System (WDS)
– 90 –
Figure 50: Manual WDS MAC Address Configuration
Figure 51: WDS Configuration Example
A WDS link between two units can be configured in any of the following
Operation Mode combinations:
1. Both units in a link are configured as Router Mode.
2. One unit in a link is configured in Router Mode and the other in Bridge
Mode.
3. Both units in a link are configured as Bridge Mode.
When two or more units in the WDS network are set to Router Mode, be
sure to check these settings:
◆Be sure each unit is configured with a different LAN IP address.
Internet
Service
Provider
MAC: 00-22-2D-62-EA-11
WDS MAC List:
00-22-2D-62-EA-22
00-22-2D-62-EA-33
00-22-2D-62-EA-44
MAC: 00-22-2D-62-EA-22
WDS MAC List:
00-22-2D-62-EA-11
Cable/DSL
Modem
WDS Link
MAC: 00-22-2D-62-EA-33
WDS MAC List:
00-22-2D-62-EA-11
MAC: 00-22-2D-62-EA-44
WDS MAC List:
00-22-2D-62-EA-11
WDS Link
WDS Link
Internet
Service
Provider
Operation Mode: Router
DHCP Server: Enable
LAN IP Address: 192.168.2.1
WDS Mode: Bridge
Operation Mode: Bridge
WDS Mode: Repeater
DHCP Server: Disable
LAN IP Address: 192.168.2.2
Cable/DSL
Modem
WDS Link
Operation Mode: Bridge
WDS Mode: Lazy
DHCP Server: Disable
LAN IP Address: 192.168.2.3
Operation Mode:
WDS Mode: Lazy
DHCP Server: Disable
LAN IP Address: 192.168.2.4
Router
WDS Link
WDS Link
![](/img.php?id=1248095&img=bg5b.png)
C
HAPTER
7
| Wireless Configuration
Wireless Distribution System (WDS)
– 91 –
◆Be sure that only one unit has an Internet access on its WAN port.
◆Be sure the DHCP server is enabled only on one unit. When one unit is
providing Internet access, enable the DHCP server on that unit.
N
OTE
:
When using WDS Lazy mode in the network, at least one unit must
be set to Bridge or Repeater mode.
Figure 52: WDS Configuration
The WDS settings configure WDS related parameters. Up to four MAC
addresses can be specified for each unit in the WDS network. WDS links
may either be manually configured (Bridge and Repeater modes) or auto-
discovered (Lazy mode).
The following items are displayed on this page:
◆WDS Mode — Selects the WDS mode of the SSID. (Options: Disable,
Lazy, Bridge, Repeater. Default: Disable)
■Disable: WDS is disabled.
■Lazy: Operates in an automatic mode that detects and learns WDS
peer addresses from received WDS packets, without the need to
![](/img.php?id=1248095&img=bg5c.png)
C
HAPTER
7
| Wireless Configuration
Wi-Fi Protected Setup (WPS)
– 92 –
configure a WDS MAC list entry. This feature allows the Mini 3G
Broadband Router to associate with other Mini 3G Broadband
Routers in the network and use their WDS MAC list. Lazy mode
requires one other Mini 3G Broadband Router within the wireless
network that is configured in Bridge or Repeater mode, and has a
configured MAC address list.
■Bridge: Operates as a standard bridge that forwards traffic
between WDS links (links that connect to other units in Repeater or
Lazy mode). The MAC addresses of WDS peers must be configured
on the Mini 3G Broadband Router.
■Repeater: Operates as a wireless repeater, extending the range for
remote wireless clients and connecting them to an AP connected to
the wired network. The MAC addresses of WDS peers must be
configured on the Mini 3G Broadband Router.
◆Physical — The radio media coding used on all WDS links. CCK
corresponds to 11b, OFDM corresponds to 11g, and HTMIX corresponds
to 11n.
◆Encryption Type — The data encryption used on the WDS link. Be
sure that both ends of a WDS link are configured with the same
encryption type and key. (Options: None, WEP, TKIP, AES.
Default: None)
◆Encryption Key — The encryption key for the WDS link. The key type
and length varies depending on the encryption type selected. For WEP,
enter 5 alphanumeric characters or 10 hexadecimal digits for 64-bit
keys, or 13 alphanumeric characters or 26 hexadecimal digits for 128-
bit keys. For TKIP or AES, enter a password key phrase of between 8 to
63 ASCII characters, which can include spaces, or specify exactly 64
hexadecimal digits.
◆AP MAC Address — The MAC address of the other Mini 3G Broadband
Router in the WDS link.
WI-FI PROTECTED SETUP (WPS)
Wi-Fi Protected Setup (WPS) is designed to ease installation and activation
of security features in wireless networks. WPS has two basic modes of
operation, Push-button Configuration (PBC) and Personal Identification
Number (PIN). The WPS PIN setup is optional to the PBC setup and
provides more security. The WPS button on the Mini 3G Broadband Router
can be pressed at any time to allow a single device to easily join the
network.
The WPS Settings page includes configuration options for setting WPS
device PIN codes and activating the virtual WPS button.
Click on “Wireless Settings,” followed by “WPS”.
![](/img.php?id=1248095&img=bg5d.png)
C
HAPTER
7
| Wireless Configuration
Wi-Fi Protected Setup (WPS)
– 93 –
Figure 53: Enabling WPS
The following items are displayed on this page:
◆WPS — Enables WPS, locks security settings, and refreshes WPS
configuration information. (Default: Disabled)
Figure 54: WPS Configuration
![](/img.php?id=1248095&img=bg5e.png)
C
HAPTER
7
| Wireless Configuration
Wi-Fi Protected Setup (WPS)
– 94 –
The following items are displayed on this page:
WPS Summary — Provides detailed WPS statistical information.
◆WPS Current Status — Displays if there is currently any WPS traffic
connecting to the Mini 3G Broadband Router. (Options: Start WSC
Process; Idle)
◆WPS Configured — States if WPS for wireless clients has been
configured for this device.
◆WPS SSID — The service set identifier for the unit.
◆WPS Auth Mode — The method of authentication used.
◆WPS Encryp Type — The encryption type used for the unit.
◆WPS Default Key Index — Displays the WEP default key (1~4).
◆WPS Key (ASCII) — Displays the WPS security key (ASCII) which can
be used to ensure the security of the wireless network.
◆AP PIN — Displays the PIN Code for the Mini 3G Broadband Router.
The default is exclusive for each unit. (Default: 64824901)
◆Reset WPS to Default — Resets the WPS settings to factory default
values.
WPS Config — Configures WPS settings for the Mini 3G Broadband Router.
◆WPS Mode — Selects between methods of broadcasting the WPS
beacon to network clients wanting to join the network:
■PIN: The Mini 3G Broadband Router, along with other WPS devices,
such as notebook PCs, cameras, or phones, all come with their own
eight-digit PIN code. When one device, the WPS enrollee, sends a
PIN code to the Mini 3G Broadband Router, it becomes the WPS
registrar. After configuring PIN-Code information you must press
“Apply” to send the beacon, after which you have up to two minutes
to activate WPS on devices that need to join the network.
■PBC: This has the same effect as pressing the physical WPS button
that is located on the front of the Mini 3G Broadband Router. After
checking this option and clicking “Apply” you have up to two
minutes to activate WPS on devices that need to join the network.
![](/img.php?id=1248095&img=bg5f.png)
C
HAPTER
7
| Wireless Configuration
Station List
– 95 –
STATION LIST
Displays the station information which associated to this Mini 3G
Broadband Router.
Figure 55: Station List
![](/img.php?id=1248095&img=bg60.png)
– 96 –
8FIREWALL CONFIGURATION
The Mini 3G Broadband Router provides extensive firewall protection by
restricting connection parameters to limit the risk of intrusion and
defending against a wide array of common hacker attacks.
Firewall Configuration contains the following sections:
◆“MAC/IP/Port Filtering” on page 96
◆“Virtual Server Settings (Port Forwarding)” on page 99
◆“DMZ” on page 100
◆“System Security” on page 101
◆“Content Filtering” on page 102
MAC/IP/PORT FILTERING
MAC/IP/Port filtering restricts connection parameters to limit the risk of
intrusion and defends against a wide array of common hacker attacks.
MAC/IP/Port filtering allows the unit to permit, deny or proxy traffic
through its MAC addresses, IP addresses and ports.
The Mini 3G Broadband Router allows you define a sequential list of permit
or deny filtering rules (up to 32). This device tests ingress packets against
the filter rules one by one. A packet will be accepted as soon as it matches
a permit rule, or dropped as soon as it matches a deny rule. If no rules
match, the packet is either accepted or dropped depending on the default
policy setting.
![](/img.php?id=1248095&img=bg61.png)
C
HAPTER
8
| Firewall Configuration
MAC/IP/Port Filtering
– 97 –
Figure 56: MAC/IP/Port Filtering
The following items are displayed on this page:
◆MAC/IP/Port Filtering — Enables or disables MAC/IP/Port Filtering.
(Default: Disable)
◆Default Policy — When MAC/IP/Port Filtering is enabled, the default
policy will be enabled. If you set the default policy to “Dropped”, all
incoming packets that don’t match the rules will be dropped. If the
policy is set to "Accepted," all incoming packets that don't match the
rules are accepted. (Default: Dropped)
◆MAC Address — Specifies the MAC address to block or allow traffic
from.
![](/img.php?id=1248095&img=bg62.png)
C
HAPTER
8
| Firewall Configuration
MAC/IP/Port Filtering
– 98 –
◆Destination IP Address — Specifies the destination IP address to
block or allow traffic from.
◆Source IP Address — Specifies the source IP address to block or allow
traffic from.
◆Protocol — Specifies the destination port type, TCP, UDP or ICMP.
(Default: None).
◆Destination Port Range — Specifies the range of destination port to
block traffic from the specified LAN IP address from reaching.
◆Source Port Range — Specifies the range of source port to block
traffic from the specified LAN IP address from reaching.
◆Action — Specifies if traffic should be accepted or dropped. (Default:
Accept)
◆Comment — Enter a useful comment to help identify the filtering rules.
CURRENT FILTER
RULES
The Current Filter Table displays the configured IP addresses and ports that
are permitted or denied access to and from the Mini 3G Broadband Router.
◆Select — Selects a table entry.
◆MAC Address — Displays a MAC address to filter.
◆Destination IP Address — Displays the destination IP address.
◆Source IP Address — Displays the source IP address.
◆Protocol — Displays the destination port type.
◆Destination Port Range — Displays the destination port range.
◆Source Port Range — Displays the source port range.
◆Action — Displays if the specified traffic is accepted or dropped.
◆Comment — Displays a useful comment to identify the routing rules.
![](/img.php?id=1248095&img=bg63.png)
C
HAPTER
8
| Firewall Configuration
Virtual Server Settings (Port Forwarding)
– 99 –
VIRTUAL SERVER SETTINGS (PORT FORWARDING)
Virtual Server (sometimes referred to as Port Forwarding) is the act of
forwarding a network port from one network node to another. This
technique can allow an external user to reach a port on a private IP
address (inside a LAN) from the outside through a NAT-enabled router.
(Maximum 32 entries are allowed.)
Figure 57: Virtual Server
The following items are displayed on this page:
◆Virtual Server Settings — Selects between enabling or disabling port
forwarding the virtual server. (Default: Disable)
◆IP Address — Specifies the IP address on the local network to allow
external access.
◆Port Range — Specifies the port range through which traffic is
forwarded.
◆Protocol — Specifies a protocol to use for port forwarding, either TCP,
UDP or TCP&UDP.
◆Comment — Enter a useful comment to help identify the forwarded
port service on the network.
![](/img.php?id=1248095&img=bg64.png)
C
HAPTER
8
| Firewall Configuration
DMZ
– 100 –
CURRENT VIRTUAL
SERVERS IN SYSTEM
The Current Port Forwarding Table displays the entries that are allowed to
forward packets through the Mini 3G Broadband Router’s firewall.
◆No. — The table entry number.
◆IP Address — Displays an IP address on the local network to allow
external access to.
◆Port Mapping — Displays the port the server is mapped.
◆Protocol — Displays the protocol used for forwarding of this port.
◆Comment — Displays a useful comment to identify the nature of the
port to be forwarded.
DMZ
Enables a specified host PC on the local network to access the Internet
without any firewall protection. Some Internet applications, such as
interactive games or video conferencing, may not function properly behind
the Mini 3G Broadband Router's firewall. By specifying a Demilitarized Zone
(DMZ) host, the PC's TCP ports are completely exposed to the Internet,
allowing open two-way communication. The host PC should be assigned a
static IP address (which is mapped to its MAC address) and this must be
configured as the DMZ IP address.
Figure 58: DMZ
The following items are displayed on this page:
◆DMZ Settings — Sets the DMZ status. (Default: Disable)
◆DMZ IP Address — Specifies an IP address on the local network
allowed unblocked access to the WAN.
![](/img.php?id=1248095&img=bg65.png)
C
HAPTER
8
| Firewall Configuration
System Security
– 101 –
SYSTEM SECURITY
The Mini 3G Broadband Router includes the facility to manage it from a
remote location. The unit can also be sent a ping message from a remote
location.
Figure 59: System Security
The following items are displayed on this page:
◆Remote Management — Denies or allows management access to the
Mini 3G Broadband Router through the WAN interface. (Default: Deny)
◆Ping from WAN Filter — When enabled, the Mini 3G Broadband
Router does not respond to ping packets received on the WAN port.
(Default: Disable)
◆Stateful Packet Inspection (SPI) — The Stateful Packet Inspection
(SPI) firewall protects your network and computers against attacks and
intrusions. A stateful packet firewall looks at packet contents to check if
the traffic may involve some type of security risk. (Default: Enable)
![](/img.php?id=1248095&img=bg66.png)
C
HAPTER
8
| Firewall Configuration
Content Filtering
– 102 –
CONTENT FILTERING
The Mini 3G Broadband Router provides a variety of options for blocking
Internet access based on content, URL and host name.
Figure 60: Content Filtering
The following items are displayed on this page:
Web URL Filter Settings — By filtering inbound Uniform Resource
Locators (URLs) the risk of compromising the network can be reduced.
URLs are commonly used to point to websites. By specifying a URL or a
keyword contained in a URL traffic from that site may be blocked.
◆Current URL Filters — Displays current URL filter.
◆Add a URL Filter — Adds a URL filter to the settings. For example,
myhost.example.com.
Web Host Filter Settings — The Mini 3G Broadband Router allows
Internet content access to be restricted based on web address keywords
and web domains. A domain name is the name of a particular web site. For
example, for the address www.FUNGAMES.com, the domain name is
FUNGAMES.com. Enter the Keyword then click “Add.”
![](/img.php?id=1248095&img=bg67.png)
C
HAPTER
8
| Firewall Configuration
Content Filtering
– 103 –
◆Current Host Filters — Displays current Host filter.
◆Add a Host Filter — Enters the keyword for a host filtering.
![](/img.php?id=1248095&img=bg68.png)
– 104 –
9ADMINISTRATION SETTINGS
The Mini 3G Broadband Router’s Administration Settings menu provides the
same configuration options in both Router and Bridge Mode. These settings
allow you to configure a management access password, set the system
time, upgrade the system software, display the system status and
statistics.
Administration Settings contains the following sections:
◆“System Management” on page 105
◆“Time Zone Settings” on page 106
◆“DDNS Settings” on page 107
◆“Firmware Upgrade” on page 108
◆“Configuration Settings” on page 109
◆“System Status” on page 110
◆“Statistics” on page 112
◆“System Log” on page 113
◆“3G Budget Status” on page 114
![](/img.php?id=1248095&img=bg69.png)
C
HAPTER
9
| Administration Settings
System Management
– 105 –
SYSTEM MANAGEMENT
The System Management commands allow you to change the language
settings displayed in the interface, and change the user name and
password.
Figure 61: System Management
The following items are displayed in the first two sections on this page:
◆Language Settings — You can change the language displayed in web
interface. Select the language of your choice from the drop-down list,
then click “Apply.” (Options: English or Traditional Chinese.
Default: English)
◆Web Interface Settings — To protect access to the management
interface, you need to configure a new Administrator’s user name and
password as soon as possible. If a new user name and password are
not configured, then anyone having access to the Mini 3G Broadband
Router may be able to compromise the unit's security by entering the
default values.
■User Name — The name of the user. The default name for access
to the unit is “admin.” (Length: 3-16 characters, case sensitive)
■Password — The password for management access. The default
password preset for access to the unit is “smcadmin” (Length: 3-16
characters, case sensitive)
![](/img.php?id=1248095&img=bg6a.png)
C
HAPTER
9
| Administration Settings
Time Zone Settings
– 106 –
TIME ZONE SETTINGS
The System Management page allows you to manually configure time
settings or enable the use of a Simple Network Time Protocol (SNTP) or
NTP server.
Figure 62: Time Zone Settings
The following items are displayed in this section on this page:
◆Current Time — Displays the current system time on the unit.
◆Sync with host — Updates the unit's time from the web management
PC's system time.
◆Time Zone — Specifies the time zone in relation to Greenwich Mean
Time (GMT).
◆SNTP Server — The IP address or URL of the NTP server to be used.
◆SNTP synchronization — Sets the SNTP sycnronization in hours.
![](/img.php?id=1248095&img=bg6b.png)
C
HAPTER
9
| Administration Settings
DDNS Settings
– 107 –
DDNS SETTINGS
Dynamic DNS (DDNS) provides users on the Internet with a method to tie
a specific domain name to the unit’s dynamically assigned IP address.
DDNS allows your domain name to follow your IP address automatically by
changing your DNS records when your IP address changes.
The Mini 3G Broadband Router provides access to three DDNS service
providers, DynDns.org, Non-IP.com and ZoneEdit.com. To set up an DDNS
account, visit the websites of these service providers at www.dyndns.org,
www.non-ip.com, or www.zoneedit.com.
Figure 63: DDNS Settings (Router Mode)
The following items are displayed in this section on this page:
◆Dynamic DNS Provider — Specifies the DDNS service provider,
DynDns.org, Freedns.afraid.org, ZoneEdit.com or Non-IP.com.
(Default: none)
◆User Name — Specifies your user name for the DDNS service.
◆Password — Specifies your password for the DDNS service.
◆HostName — Specifies the URL of the DDNS service.
![](/img.php?id=1248095&img=bg6c.png)
C
HAPTER
9
| Administration Settings
Firmware Upgrade
– 108 –
FIRMWARE UPGRADE
You can update the Mini 3G Broadband Router firmware by using the
Firmware Update facility.
Figure 64: Firmware Upgrade
The following items are displayed on this page:
◆Firmware Upgrade — Allows you to upload new firmware manually by
specifying a file path. Make sure the firmware you want to use is on the
local computer by clicking Browse to search for the firmware to be used
for the update.
■Software Version — The current version number of the firmware.
■Browse — Opens a directory on the local hard drive for specifying
the path of the file to upload.
■Apply — Starts the upload procedure.
![](/img.php?id=1248095&img=bg6d.png)
C
HAPTER
9
| Administration Settings
Configuration Settings
– 109 –
CONFIGURATION SETTINGS
The Configuration Setting page allows you to save the Mini 3G Broadband
Router’s current configuration or restore a previously saved configuration
back to the device.
Figure 65: Configuration Settings
The following items are displayed on this page:
◆Export Settings — Saves the current configuration to a file locally.
◆Import Settings — Allows the user to load previously saved
configuration files from a local source.
◆Load Factory Defaults — Restores the factory defaults.
![](/img.php?id=1248095&img=bg6e.png)
C
HAPTER
9
| Administration Settings
System Status
– 110 –
SYSTEM STATUS
The System Information page displays basic system information and the
displayed settings are for status information only and are not configurable
on this page. This information is split into the three sections that follow.
Figure 66: System Status (Router Mode)
The following items are displayed on this page:
◆System Info — Displays the basic system information in both Bridge
and Router Modes.
■Firmware Version — The version number of the current Mini 3G
Broadband Router software.
■System Time — Length of time the management agent has been
up, specified in hours and minutes.
■Operation Mode — Displays the mode setting of the unit.
◆Internet Configurations — Displays the basic WAN information:
■Connected Type — Displays the WAN connected mode.
■WAN IP Address — IP address of the WAN port for this device.
■Subnet Mask — The mask that identifies the host address bits
used for routing to the WAN port.
![](/img.php?id=1248095&img=bg6f.png)
C
HAPTER
9
| Administration Settings
System Status
– 111 –
■Default Gateway — The default gateway is the IP address of the
router for the Mini 3G Broadband Router, which is used if the
requested destination address is not on the local subnet.
■Primary DNS Server / Secondary DNS Server — The IP address
of Domain Name Servers. A DNS maps numerical IP addresses to
domain names and can be used to identify network hosts by familiar
names instead of the IP addresses.
■MAC Address — The shared physical layer address for the Mini 3G
Broadband Router’s LAN ports.
◆Local Network — Displays the basic LAN information.
■LAN IP Address — The IP address configured on the Mini 3G
Broadband Router.
■LAN Netmask — The mask that identifies the host address bits
used for routing to the LAN port.
■MAC Address — The shared physical layer address for the Mini 3G
Broadband Router’s LAN ports.
![](/img.php?id=1248095&img=bg70.png)
C
HAPTER
9
| Administration Settings
Statistics
– 112 –
STATISTICS
The Mini 3G Broadband Router Traffic Statistics - Interfaces window
displays received and transmitted packet statistics for all interfaces on the
Mini 3G Broadband Router.
Figure 67: Statistics
The following items are displayed on this page:
◆Memory total — The total memory of this Mini 3G Broadband Router.
◆Memory left — The available memory of this Mini 3G Broadband
Router.
◆WAN/LAN/All Interfaces — Displays the interface on which traffic is
being monitored.
◆Rx packets — Displays the total number of packets received by the
specified interface.
◆Rx bytes — Displays the total number of bytes transmitted by the
specified interface.
![](/img.php?id=1248095&img=bg71.png)
C
HAPTER
9
| Administration Settings
System Log
– 113 –
◆Tx packets — Displays the total number of packets transmitted by the
specified interfaces.
◆Tx bytes — Displays the total number of bytes transmitted by the
specified interface.
SYSTEM LOG
The Mini 3G Broadband Router supports a logging process that controls
error messages saved to memory or sent to a Syslog server. The logged
messages serve as a valuable tool for isolating Mini 3G Broadband Router
and network problems. The System Log page displays the latest messages
logged in chronological order, from the newest to the oldest. Log messages
saved in the Mini 3G Broadband Router’s memory are erased when the
device is rebooted.
Figure 68: System Log
The following items are displayed on this page:
◆System Log — Displays the latest log messages in chronological order,
from the newest to the oldest.
◆Refresh — Sends a request to add the latest entries to the System Log
Ta b l e .
![](/img.php?id=1248095&img=bg72.png)
C
HAPTER
9
| Administration Settings
3G Budget Status
– 114 –
◆Clear — Removes the current system log messages from the System
Log Table.
3G BUDGET STATUS
The 3G Budget Status page displays the current 3G budget status
information. The displayed settings are for information only and are not
configurable on this page.
Parameters on this page are only visible when budget control has been set
for the 3G WAN connection.
Figure 69: 3G Budget Status
![](/img.php?id=1248095&img=bg73.png)
C
HAPTER
9
| Administration Settings
3G Budget Status
– 115 –
The following items are displayed on this page:
◆Budget Control — Displays the current budget control status.
◆Tme Budget Control — Displays the currect time budget control
status.
◆Max Time Budget/(Percent of Time Pre-limit) — Displays the
configured monthly time budget (in hours), and the percentage of the
budget (in minutes) at which E-mail alerts are triggered (if enabled).
◆Data Budget Control — Displays the currect data budget control
status.
◆Data Budget Traffic Flow — Displays if the data budget is set for
download, upload, or download and upload traffic.
◆Max Data Budget/(Percent of Data Pre-limit) — Displays the
configured monthly data budget (in MBytes), and the percentage of the
budget at which E-mail alerts are triggered (if enabled).
◆Drop Current Connection When Over Budget — Displays the status
of this over-budget action.
◆Disallow New Connection When Over Budget — Displays the
status of this over-budget action.
◆Billing Starting Date — Displays the day of the month on which the
time/data budget counters are reset.
◆Data Budget Status — The current data budget status. (SAFE, REACH
Pre-Limit, Over)
◆Time Budget Status — The current time budget status. (SAFE, REACH
Pre-Limit, Over)
◆Email Alert — Displays the status of E-mail Alert.
◆Remaining Budget Bytes — The remaining amount of the configured
data budget.
◆Remaining Budget Time — The remaining amount of the configured
time budget.
◆3G Access Statistics — Displays the access statistics of the 3G link.
■Connection time (min) — The current connection time.
■Summated Elapsed time (min) — The total summated elapsed
time counts from the billing date.
■Total Transfer (MB) — The total amount of the transferred data
(includes download and upload).
![](/img.php?id=1248095&img=bg74.png)
C
HAPTER
9
| Administration Settings
3G Budget Status
– 116 –
■RCV (MB) — The total current download data.
■TX (MB) — The total current upload data.
![](/img.php?id=1248095&img=bg76.png)
– 118 –
ATROUBLESHOOTING
DIAGNOSING LED INDICATORS
IF YOU CANNOT CONNECT TO THE INTERNET
Check the following items:
◆Check that your computer is properly configured for TCP/IP.
◆Make sure the correct network adapter driver is installed for your PC
operating system. If necessary, try reinstalling the driver.
◆Check that the network adapter’s speed or duplex mode has not been
configured manually. We recommend setting the adapter to auto-
negotiation when installing the network driver.
Table 4: LED Indicators
Symptom Action
Power and LAN LEDs are
off
◆The AC power adapter may be disconnected. Check
connections between the Mini 3G Broadband Router, the
power adapter, and the wall outlet.
WLAN LED is off ◆The Mini 3G Broadband Router radio has been disabled
through it’s web management interface. Access the
management interface using a web browser to enable the
radio.
LAN LED is off
(when port connected)
◆Verify that the Mini 3G Broadband Router is powered on.
◆Be sure cables are plugged into both the Mini 3G Broadband
Router and corresponding PC.
◆Verify that the proper cable type is used and its length does
not exceed specified limits.
◆Check the cable connections for possible defects. Replace the
defective cable if necessary.
WAN LED is off ◆There is no detected signal from WAN port. Check
connections and the management interface.
![](/img.php?id=1248095&img=bg77.png)
A
PPENDIX
A
| Troubleshooting
Before Contacting Technical Support
– 119 –
BEFORE CONTACTING TECHNICAL SUPPORT
Check the following items before you contact local Technical Support.
1. If the Mini 3G Broadband Router cannot be configured using a web
browser:
■Be sure to have configured the Mini 3G Broadband Router with a
valid IP address, subnet mask and default gateway.
■Check that you have a valid network connection to the Mini 3G
Broadband Router and that the Ethernet port or the wireless
interface that you are using has not been disabled.
■If you are connecting to the Mini 3G Broadband Router through the
wired Ethernet interface, check the network cabling between the
management station and the Mini 3G Broadband Router. If you are
connecting to Mini 3G Broadband Router from a wireless client,
ensure that you have a valid connection.
2. If you forgot or lost the password:
■Set the Mini 3G Broadband Router to its default configuration by
pressing the reset button on the back panel for 5 seconds or more.
Then use the default user name “admin” and password “smcadmin”
to access the management interface.
3. If all other recovery measure fail, and the Mini 3G Broadband Router is
still not functioning properly, take any of these steps:
■Reset the Mini 3G Broadband Router’s hardware using the web
interface, or through a power reset.
![](/img.php?id=1248095&img=bg78.png)
– 120 –
BHARDWARE SPECIFICATIONS
PORT INTERFACES WAN: 10/100BASE-TX port, RJ-45 connector, auto MDI/X
(100-ohm, UTP cable; Category 5 or better)
LAN: 10/100BASE-TX port, RJ-45 connector, auto MDI/X
(100-ohm, UTP cable; Category 5 or better)
AC POWER ADAPTER Asian Power Devices Inc. / APD: WA-12112FG, WA-12112R
Sunny Electronics Corp.: SYS1381-1212-W2E, SYS1381-1212-W3U,
SYS1381-1212-W2
Input: 100~240 VAC, 50/60 Hz
Output: 12 VDC, 1 A
LED INDICATORS Power, WLAN (Wireless Local Area Network), WAN (Wide Area Network),
LAN (Local Area Network)
NETWORK MANAGEMENT Web browser
TEMPERATURE Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 70 °C (32 to 158 °F)
HUMIDITY 20% to 85% (non-condensing)
PHYSICAL SIZE 93 x 70 x 26 mm
WEIGHT 78 g (2.75 oz)
FREQUENCY RANGE FCC/IC/NCC: 2412MHz ~ 2462MHz
CE, AS/NZS: 2412 MHz ~ 2472MHz
MODULATION TYPE CCK, DQPSK, DBPSK for DSSS
64QAM, 16QAM, QPSK, BPSK for OFDM
![](/img.php?id=1248095&img=bg79.png)
A
PPENDIX
B
| Hardware Specifications
– 121 –
DATA RATE 802.11b: 11 / 5.5 / 2 / 1Mbps
802.11g: 54/48/36/24/18/12/9/6 Mbps
Draft 802.11n (20MHz, 800ns GI): 65/58.5/52/39/26/19.5/13/6.5 Mbps
Draft 802.11n (40MHz, 800ns GI): 135/121.5/108/81/54/40.5/27/
13.5 Mbps
Draft 802.11n (20MHz, 400ns GI): 72.2/65/57.8/43.3/28.9/21.7/14.4/
7.2 Mbps
Draft 802.11n (40MHz, 400ns GI): 150/135/120/90/60/45/30/15 Mbps
RF OUTPUT POWER 22.5 +/- 2dBm
RADIO FCC Part 15C (Section 15.247)
EN 301 489-1 V1.8.1 (2008-04)
EN 301 489-17 V1.3.2 (2008-04)
LP0002
RSS-210
AS/NZS 4268
EMC FCC Part 15B
ICES-003
EN 55022:2006 + A1:2007
EN 55024:1998 + A1:2001 + A2:2003
SAR FCC IEEE C95.1
EN 50385 (2002)
SAFETY EN 60950-1 (2006)
NRTL -TUV(cUL)
ENVIRONMENTAL ETSI EN 300 019-2-1 Class 1.2 (Storage)
ETSI EN 300 019-2-2 Class 2.3 (Packaged)
ETSI EN 300 019-2-3 Class 3.2 (Operating)
![](/img.php?id=1248095&img=bg7a.png)
– 122 –
CCABLES AND PINOUTS
TWISTED-PAIR CABLE ASSIGNMENTS
For 10/100BASE-TX connections, a twisted-pair cable must have two pairs
of wires. For 1000BASE-T connections the twisted-pair cable must have
four pairs of wires. Each wire pair is identified by two different colors. For
example, one wire might be green and the other, green with white stripes.
Also, an RJ-45 connector must be attached to both ends of the cable.
N
OTE
:
Each wire pair must be attached to the RJ-45 connectors in a specific
orientation.
C
AUTION
:
DO NOT plug a phone jack connector into the RJ-45 port. Use
only twisted-pair cables with RJ-45 connectors that conform with FCC
standards.
The following figure illustrates how the pins on the RJ-45 connector are
numbered. Be sure to hold the connectors in the same orientation when
attaching the wires to the pins.
Figure 70: RJ-45 Connector
81
1
8
![](/img.php?id=1248095&img=bg7b.png)
A
PPENDIX
C
| Cables and Pinouts
10/100BASE-TX Pin Assignments
– 123 –
10/100BASE-TX PIN ASSIGNMENTS
Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for
RJ-45 connections: 100-ohm Category 3 or better cable for 10 Mbps
connections. Also be sure that the length of any twisted-pair connection
does not exceed 100 meters (328 feet).
The RJ-45 ports on the Mini 3G Broadband Router support automatic MDI/
MDI-X operation, so you can use straight-through or crossover cables for
all network connections to PCs, switches, or hubs. In straight-through
cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight
through to pins 1, 2, 3, and 6 at the other end of the cable.
STRAIGHT-THROUGH WIRING
If the twisted-pair cable is to join two ports and only one of the ports has
an internal crossover (MDI-X), the two pairs of wires must be straight-
through. (When auto-negotiation is enabled for any RJ-45 port on this
switch, you can use either straight-through or crossover cable to connect
to any device type.)
You must connect all four wire pairs as shown in the following diagram to
support Gigabit Ethernet connections.
Table 5: 10/100BASE-TX MDI and MDI-X Port Pinouts
PIN MDI Signal Namea
a. The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
MDI-X Signal Name
1 Transmit Data plus (TD+) Receive Data plus (RD+)
2 Transmit Data minus (TD-) Receive Data minus (RD-)
3 Receive Data plus (RD+) Transmit Data plus (TD+)
6 Receive Data minus (RD-) Transmit Data minus (TD-)
4, 5, 7, 8 Not used Not used
![](/img.php?id=1248095&img=bg7c.png)
A
PPENDIX
C
| Cables and Pinouts
Crossover Wiring
– 124 –
Figure 71: Straight-through Wiring
CROSSOVER WIRING
If the twisted-pair cable is to join two ports and either both ports are
labeled with an “X” (MDI-X) or neither port is labeled with an “X” (MDI), a
crossover must be implemented in the wiring. (When auto-negotiation is
enabled for any RJ-45 port on this switch, you can use either straight-
through or crossover cable to connect to any device type.)
You must connect all four wire pairs as shown in the following diagram to
support Gigabit Ethernet connections.
Figure 72: Crossover Wiring
White/Orange Stripe
Orange
White/Green Stripe
Green
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Straight-through Cable
End A End B
Blue
White/Blue Stripe
Brown
White/Brown Stripe
White/Orange Stripe
Orange
White/Green Stripe
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Crossover Cable
End A End B
Green
Blue
White/Blue Stripe
Brown
White/Brown Stripe
![](/img.php?id=1248095&img=bg7d.png)
– 125 –
DLICENSE INFORMATION
This product includes copyrighted third-party software subject to the terms of the GNU General Public
License (GPL), GNU Lesser General Public License (LGPL), or other related free software licenses.
The GPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the
copyrights of one or more authors. For details, refer to the section "The GNU General Public License"
below, or refer to the applicable license as included in the source-code archive.
THE GNU GENERAL PUBLIC LICENSE
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it
is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By
contrast, the GNU General Public License is intended to guarantee your freedom to share and
change free software--to make sure the software is free for all its users. This General Public License
applies to most of the Free Software Foundation's software and to any other program whose authors
commit to using it. (Some other Free Software Foundation software is covered by the GNU Library
General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses
are designed to make sure that you have the freedom to distribute copies of free software (and
charge for this service if you wish), that you receive source code or can get it if you want it, that you
can change the software or use pieces of it in new free programs; and that you know you can do
these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to
ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you
distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the
recipients all the rights that you have. You must make sure that they, too, receive or can get the
source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which
gives you legal permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that
there is no warranty for this free software. If the software is modified by someone else and passed on,
we want its recipients to know that what they have is not the original, so that any problems introduced
by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger
that redistributors of a free program will individually obtain patent licenses, in effect making the
program proprietary. To prevent this, we have made it clear that any patent must be licensed for
everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
![](/img.php?id=1248095&img=bg7e.png)
A
PPENDIX
D
| License Information
The GNU General Public License
– 126 –
GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION
AND MODIFICATION
1. This License applies to any program or other work which contains a notice placed by the
copyright holder saying it may be distributed under the terms of this General Public License. The
"Program", below, refers to any such program or work, and a "work based on the Program"
means either the Program or any derivative work under copyright law: that is to say, a work
containing the Program or a portion of it, either verbatim or with modifications and/or translated
into another language. (Hereinafter, translation is included without limitation in the term
"modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they
are outside its scope. The act of running the Program is not restricted, and the output from the
Program is covered only if its contents constitute a work based on the Program (independent of
having been made by running the Program). Whether that is true depends on what the Program
does.
2. You may copy and distribute verbatim copies of the Program's source code as you receive it, in
any medium, provided that you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to
this License and to the absence of any warranty; and give any other recipients of the Program a
copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer
warranty protection in exchange for a fee.
3. You may modify your copy or copies of the Program or any portion of it, thus forming a work
based on the Program, and copy and distribute such modifications or work under the terms of
Section 1 above, provided that you also meet all of these conditions:
a). You must cause the modified files to carry prominent notices stating that you changed the
files and the date of any change.
b). You must cause any work that you distribute or publish, that in whole or in part contains or is
derived from the Program or any part thereof, to be licensed as a whole at no charge to all
third parties under the terms of this License.
c). If the modified program normally reads commands interactively when run, you must cause
it, when started running for such interactive use in the most ordinary way, to print or display
an announcement including an appropriate copyright notice and a notice that there is no
warranty (or else, saying that you provide a warranty) and that users may redistribute the
program under these conditions, and telling the user how to view a copy of this License.
(Exception: if the Program itself is interactive but does not normally print such an
announcement, your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work
are not derived from the Program, and can be reasonably considered independent and separate
works in themselves, then this License, and its terms, do not apply to those sections when you
distribute them as separate works. But when you distribute the same sections as part of a whole
which is a work based on the Program, the distribution of the whole must be on the terms of this
License, whose permissions for other licensees extend to the entire whole, and thus to each and
every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written
entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or
collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or
with a work based on the Program) on a volume of a storage or distribution medium does not
bring the other work under the scope of this License.
4. You may copy and distribute the Program (or a work based on it, under Section 2) in object code
or executable form under the terms of Sections 1 and 2 above provided that you also do one of
the following:
![](/img.php?id=1248095&img=bg7f.png)
A
PPENDIX
D
| License Information
The GNU General Public License
– 127 –
a). Accompany it with the complete corresponding machine-readable source code, which must
be distributed under the terms of Sections 1 and 2 above on a medium customarily used for
software interchange; or,
b). Accompany it with a written offer, valid for at least three years, to give any third party, for a
charge no more than your cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to be distributed under the terms
of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c). Accompany it with the information you received as to the offer to distribute corresponding
source code. (This alternative is allowed only for noncommercial distribution and only if you
received the program in object code or executable form with such an offer, in accord with
Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it.
For an executable work, complete source code means all the source code for all modules it
contains, plus any associated interface definition files, plus the scripts used to control
compilation and installation of the executable. However, as a special exception, the source code
distributed need not include anything that is normally distributed (in either source or binary form)
with the major components (compiler, kernel, and so on) of the operating system on which the
executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated
place, then offering equivalent access to copy the source code from the same place counts as
distribution of the source code, even though third parties are not compelled to copy the source
along with the object code.
5. You may not copy, modify, sublicense, or distribute the Program except as expressly provided
under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program
is void, and will automatically terminate your rights under this License. However, parties who
have received copies, or rights, from you under this License will not have their licenses
terminated so long as such parties remain in full compliance.
6. You are not required to accept this License, since you have not signed it. However, nothing else
grants you permission to modify or distribute the Program or its derivative works. These actions
are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the
Program (or any work based on the Program), you indicate your acceptance of this License to do
so, and all its terms and conditions for copying, distributing or modifying the Program or works
based on it.
7. Each time you redistribute the Program (or any work based on the Program), the recipient
automatically receives a license from the original licensor to copy, distribute or modify the
Program subject to these terms and conditions. You may not impose any further restrictions on
the recipients' exercise of the rights granted herein. You are not responsible for enforcing
compliance by third parties to this License.
8. If, as a consequence of a court judgment or allegation of patent infringement or for any other
reason (not limited to patent issues), conditions are imposed on you (whether by court order,
agreement or otherwise) that contradict the conditions of this License, they do not excuse you
from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent license would not permit royalty-
free redistribution of the Program by all those who receive copies directly or indirectly through
you, then the only way you could satisfy both it and this License would be to refrain entirely from
distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance,
the balance of the section is intended to apply and the section as a whole is intended to apply in
other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right
claims or to contest validity of any such claims; this section has the sole purpose of protecting
the integrity of the free software distribution system, which is implemented by public license
practices. Many people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute software through any other system and
a licensee cannot impose that choice.
![](/img.php?id=1248095&img=bg80.png)
A
PPENDIX
D
| License Information
The GNU General Public License
– 128 –
This section is intended to make thoroughly clear what is believed to be a consequence of the
rest of this License.
9. If the distribution and/or use of the Program is restricted in certain countries either by patents or
by copyrighted interfaces, the original copyright holder who places the Program under this
License may add an explicit geographical distribution limitation excluding those countries, so
that distribution is permitted only in or among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the body of this License.
10. The Free Software Foundation may publish revised and/or new versions of the General Public
License from time to time. Such new versions will be similar in spirit to the present version, but
may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version
number of this License which applies to it and "any later version", you have the option of
following the terms and conditions either of that version or of any later version published by the
Free Software Foundation. If the Program does not specify a version number of this License,
you may choose any version ever published by the Free Software Foundation.
11. If you wish to incorporate parts of the Program into other free programs whose distribution
conditions are different, write to the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will be guided by the two goals of preserving
the free status of all derivatives of our free software and of promoting the sharing and reuse of
software generally.
NO WARRANTY
1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY
FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES
PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH
YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL
NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING
WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING
BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO
OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
![](/img.php?id=1248095&img=bg81.png)
– 129 –
GLOSSARY
10BASE-T IEEE 802.3-2005 specification for 10 Mbps Ethernet over two pairs of
Category 3 or better UTP cable.
100BASE-TX IEEE 802.3-2005 specification for 100 Mbps Fast Ethernet over two pairs of
Category 5 or better UTP cable.
1000BASE-T IEEE 802.3ab specification for 1000 Mbps Gigabit Ethernet over four pairs
of Category 5 or better UTP cable.
ACCESS POINT An internetworking device that seamlessly connects wired and wireless
networks. Access points attached to a wired network, support the creation
of multiple radio cells that enable roaming throughout a facility.
AES Advanced Encryption Standard: An encryption algorithm that implements
symmetric key cryptography. AES provides very strong encryption using a
completely different ciphering algorithm to TKIP and WEP.
AUTHENTICATION The process to verify the identity of a client requesting network access.
IEEE 802.11 specifies two forms of authentication: open system and
shared key.
BACKBONE The core infrastructure of a network. The portion of the network that
transports information from one central location to another central location
where it is unloaded onto a local system.
BEACON A signal periodically transmitted from the access point that is used to
identify the service set, and to maintain contact with wireless clients.
BROADCAST KEY Broadcast keys are sent to stations using dynamic keying. Dynamic
broadcast key rotation is often used to allow the access point to generate a
random group key and periodically update all key-management capable
wireless clients.
DHCP Dynamic Host Configuration Protocol: Provides a framework for passing
configuration information to hosts on a TCP/IP network. DHCP is based on
![](/img.php?id=1248095&img=bg82.png)
G
LOSSARY
– 130 –
the Bootstrap Protocol (BOOTP), adding the capability of automatic
allocation of reusable network addresses and additional configuration
options.
ENCRYPTION Data passing between the access point and clients can use encryption to
protect from interception and evesdropping.
ETHERNET A popular local area data communications network, which accepts
transmission from computers and terminals.
FTP File Transfer Protocol: A TCP/IP protocol used for file transfer.
HTTP Hypertext Transfer Protocol: HTTP is a standard used to transmit and
receive all data over the World Wide Web.
IEEE 802.11BA wireless standard that supports wireless communications in the 2.4 GHz
band using Direct Sequence Spread Spectrum (DSSS). The standard
provides for data rates of 1, 2, 5.5, and 11 Mbps.
IEEE 802.11GA wireless standard that supports wireless communications in the 2.4 GHz
band using Orthogonal Frequency Division Multiplexing (OFDM). The
standard provides for data rates of 6, 9, 12, 18, 24, 36, 48, 54 Mbps. IEEE
802.11g is also backward compatible with IEEE 802.11b.
INFRASTRUCTURE An integrated wireless and wired LAN is called an infrastructure
configuration.
LAN Local Area Network: A group of interconnected computers and support
devices.
MAC ADDRESS The physical layer address used to uniquely identify network nodes.
NTP Network Time Protocol: NTP provides the mechanisms to synchronize time
across the network. The time servers operate in a hierarchical-master-
slave configuration in order to synchronize local clocks within the subnet
and to national time standards via wire or radio.
OPEN SYSTEM A security option which broadcasts a beacon signal including the access
point’s configured SSID. Wireless clients can read the SSID from the
beacon, and automatically reset their SSID to allow immediate connection
to the nearest access point.
![](/img.php?id=1248095&img=bg83.png)
G
LOSSARY
– 131 –
ODFM Orthogonal Frequency Division Multiplexing: OFDM allows multiple users to
transmit in an allocated band by dividing the bandwidth into many narrow
bandwidth carriers.
SSID Service Set Identifier: An identifier that is attached to packets sent over
the wireless LAN and functions as a password for joining a particular radio
cell; i.e., Basic Service Set (BSS).
SESSION KEY Session keys are unique to each client, and are used to authenticate a
client connection, and correlate traffic passing between a specific client and
the access point.
SHARED KEY A shared key can be used to authenticate each client attached to a wireless
network. Shared Key authentication must be used along with the 802.11
Wireless Equivalent Privacy algorithm.
SNTP Simple Network Time Protocol: SNTP allows a device to set its internal
clock based on periodic updates from a Network Time Protocol (NTP)
server. Updates can be requested from a specific NTP server, or can be
received via broadcasts sent by NTP servers.
TKIP Temporal Key Integrity Protocol: A data encryption method designed as a
replacement for WEP. TKIP avoids the problems of WEP static keys by
dynamically changing data encryption keys.
TFTP Trivial File Transfer Protocol: A TCP/IP protocol commonly used for software
downloads.
VAP Virtual Access Point: Virtual AP technology multiplies the number of Access
Points present within the RF footprint of a single physical access device.
With Virtual AP technology, WLAN users within the device.s footprint can
associate with what appears to be different access points and their
associated network services. All the services are delivered using a single
radio channel, enabling Virtual AP technology to optimize the use of limited
WLAN radio spectrum.
WI-FI PROTECTED
ACCESS
WPA employs 802.1X as its basic framework for user authentication and
dynamic key management to provide an enhanced security solution for
802.11 wireless networks.
WEP Wired Equivalent Privacy: WEP is based on the use of security keys and the
popular RC4 encryption algorithm. Wireless devices without a valid WEP
key will be excluded from network traffic.
![](/img.php?id=1248095&img=bg84.png)
G
LOSSARY
– 132 –
WPA-PSK WPA Pre-shared Key: WPA-PSK can be used for small office networks with
a limited number of users that may not need a high level of security. WPA-
PSK provides a simple security implementation that uses just a pre-shared
password for network access.
![](/img.php?id=1248095&img=bg85.png)
– 133 –
INDEX
NUMERICS
10/100BASE-TX pin assignments 123
3G modem port 25
802.11n settings 72
802.1X authentication 87
A
access categories, WMM 78
access point connections 27
access policy settings 89
address pool range, DHCP 67
advertisements, router 67
AES encryption 85
aggregate MSDU 76
AP isolation 74
Applications 21
applications, network 21
authentication options 82
B
basic setup, wizard 36
beacon interval 77
BG protection mode 76
bridge connections 28
Bridge Mode 29
connections 32
operation 27
setting 53
browser requirements 29
buttons
common web page 36
Reset 25
WPS 23, 25
C
cable modem, connections 26
capabilities, hardware 20
channel setting 74
common web page buttons 36
configuration settings 109
connections
Bridge Mode 32
repeater 28
Router Mode 31
wireless bridge 28
contents of package 22
crossover cables 124
D
data beacon rate 77
DC power socket 23
default IP address 34, 51
default Key, WEP 84
default settings, reset 25
deployment options 26
desktop mounting 30
destination, routing 70
DHCP address pool 67
DHCP clients list 68
DHCP server settings 67
DHCP, WAN setting 56
dimensions, physical 120
DMZ setting 100
DNS proxy 67
DNS Server setting 56
DSL modem, connections 26
DTIM setting 77
dynamic DNS 107
dynamic routing 71
E
encryption options 82
Ethernet port 25
export configuration 109
extension channel setting 75
F
factory defaults, resetting 25, 109
features, hardware 20
firmware upgrade 108
flags, routing 70
fragmentation threshold 77
frequency setting 74
G
gateway operation 26
guard interval 75
H
hardware capabilities 20
hardware description 22
hardware features 20
home page 35, 52
horizontal surface mounting 30
![](/img.php?id=1248095&img=bg86.png)
I
NDEX
– 134 –
HT channel bandwidth 75
I
IGMP proxy 67
import configuration 109
indicators, LED 24
information, system 110
Internet connection problems 118
Internet gateway connections 26
IP address, default 34, 51
IP Address, LAN setting 67
IP port filtering 96
IPsec 20, 22
ISP accounts 21
ISP settings 34
K
key features 20
L
L2TP 22
LAN ports 23, 25
LAN settings 66
language settings 36, 105
Lazy Mode, WDS 91
lease time, DHCP 67
LED indicators 24
troubleshooting 118
license information 125
local network settings 66
location selection 30
logging, system 113
login defaults 34, 51
login page 34
lost password 119
M
MAC address filtering 89
main menu 35, 52
management interface, login defaults 34, 51
MCS setting 75
MDI/MDI-X operation 25
messages, logging 113
metric, routing 70
modes, operating 29
mounting
horizontal surface 30
options 30
slots 30
mounting on a wall 30
multicast-to-unicast convertion 81
multiple SSID 74
N
network applications 21
network name, wireless 72, 74
network statistics 112
O
open system 82
operation mode, setting 53
P
package contents 22
password
default 34
lost 119
setting 105
PBC mode, WPS 94
physical size 120
ping filter 101
pinouts, cable 122
planning, network 26
PMK cache period 87
port filtering, IP/MAC 96
power adapter, details 25
power connector 25
power socket 23
PPPoE relay 67
PPTP 20, 22
preamble, short 78
pre-authentication 87
protection mode 76
Q
Quality of Service 78
R
radio mode 73
radio settings 72
radio standards 121
RADIUS 87
remote management 101
repeater operation 28
requirements, system 29
Reset button 25
reset button 25
restoring defaults 109
reverse direction grant 75
RIP protocol 71
RJ-45 connector pins 122
RJ-45 ports 25
router advertisements 67
Router Mode 26, 29, 31, 53
routing metric 70
RTS threshold 77
