Accton Wireless Broadband Corp. WLAN Module user guide
User Manual
![](/img.php?id=1270509&img=bg1.png)
U
SER
G
UIDE
WLAN Module
WMG623A
![](/img.php?id=1270509&img=bg2.png)
U
SER
G
UIDE
WMG623A
WLAN Module
WMG623A
E042010-CS-R01
XXXXXXXXXXXXX
![](/img.php?id=1270509&img=bg3.png)
– 3 –
COMPLIANCES
FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
◆Reorient or relocate the receiving antenna
◆Increase the separation between the equipment and receiver
◆Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
◆Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IMPORTANT NOTE:
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your
body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is
firmware-limited to channels 1 through 11.
![](/img.php?id=1270509&img=bg4.png)
C
OMPLIANCES
– 4 –
THIS DEVICE IS INTENDED ONLY FOR OEM INTEGRATORS UNDER THE
FOLLOWING CONDITIONS:
1. The antenna must be installed such that 20 cm is maintained between
the antenna and users, and
2. The transmitter module may not be co-located with any other
transmitter or antenna.
3. For all products marketed in the US, OEM has to limit the operation
channels in CH1 to CH11 for 2.4 GHz band by supplied firmware
programming tool. OEM shall not supply any tool or info to the end-user
regarding to Regulatory Domain change.
As long as the three conditions above are met, further transmitter tests will
not be required. However, the OEM integrator is still responsible for testing
their end-product for any additional compliance requirements required with
this module installed (for example, digital device emissions, PC peripheral
requirements, etc.).
IMPORTANT NOTE: In the event that these conditions cannot be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
END PRODUCT LABELING
This transmitter module is authorized only for use in device where the
antenna may be installed such that 20 cm may be maintained between the
antenna and users. The final end product must be labeled in a visible area
with the following: “Contains FCC ID: V8YFIXHI623A000W”.
MANUAL INFORMATION TO THE END USER
The OEM integrator has to be aware not to provide information to the end
user regarding how to install or remove this RF module in the user's
manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/
warning as show in this manual.
![](/img.php?id=1270509&img=bg5.png)
– 5 –
ABOUT THIS GUIDE
PURPOSE This guide details the hardware features of the WMG623A WLAN Module,
including its physical and performance-related characteristics, and how to
install the device and use its configuration software.
AUDIENCE This guide is for PC users with a working knowledge of computers. You
should be familiar with Windows operating system concepts.
CONVENTIONS The following conventions are used throughout this guide to show
information:
N
OTE
:
Emphasizes important information or calls your attention to related
features or instructions.
C
AUTION
:
Alerts you to a potential hazard that could cause loss of data, or
damage the system or equipment.
W
ARNING
:
Alerts you to a potential hazard that could cause personal injury.
RELATED PUBLICATIONS The following publication gives basic information on how to install and use
the WMG623A WLAN Module.
Quick Installation Guide
REVISION HISTORY This section summarizes the changes in each revision of this guide.
APRIL 2010 REVISION
This is the first revision of this guide.
![](/img.php?id=1270509&img=bg7.png)
– 7 –
1INTRODUCTION
The WMG623A is a Wi-Fi PCI Express Card that allows simple design-in
802.11b/g/n Wi-Fi functionality for various products, such as notebooks
and home gateways.
The WMG623A includes a built-in high-performance CPU that off-loads Wi-
Fi packet processing tasks from the main processor. The hardware form
factor follows the PCI Express standard, but the data path conforms to an
RGMII interface. The result is a card that delivers a higher data transmit
rate than conventional mini-PCI modules.
The WMG623A is compliant with IEEE 802.11n standard and operates in
the 2.4 GHz frequency band. The card’s MIMO antenna architecture is 2T3R
(two transmit, three receive), which supports up to 450 Mbps throughput
rate. The card also supports 20 MHz and 40 MHz bandwidth channels, as
specified in the 802.11n standard.
WMG623A HARDWARE DESCRIPTION

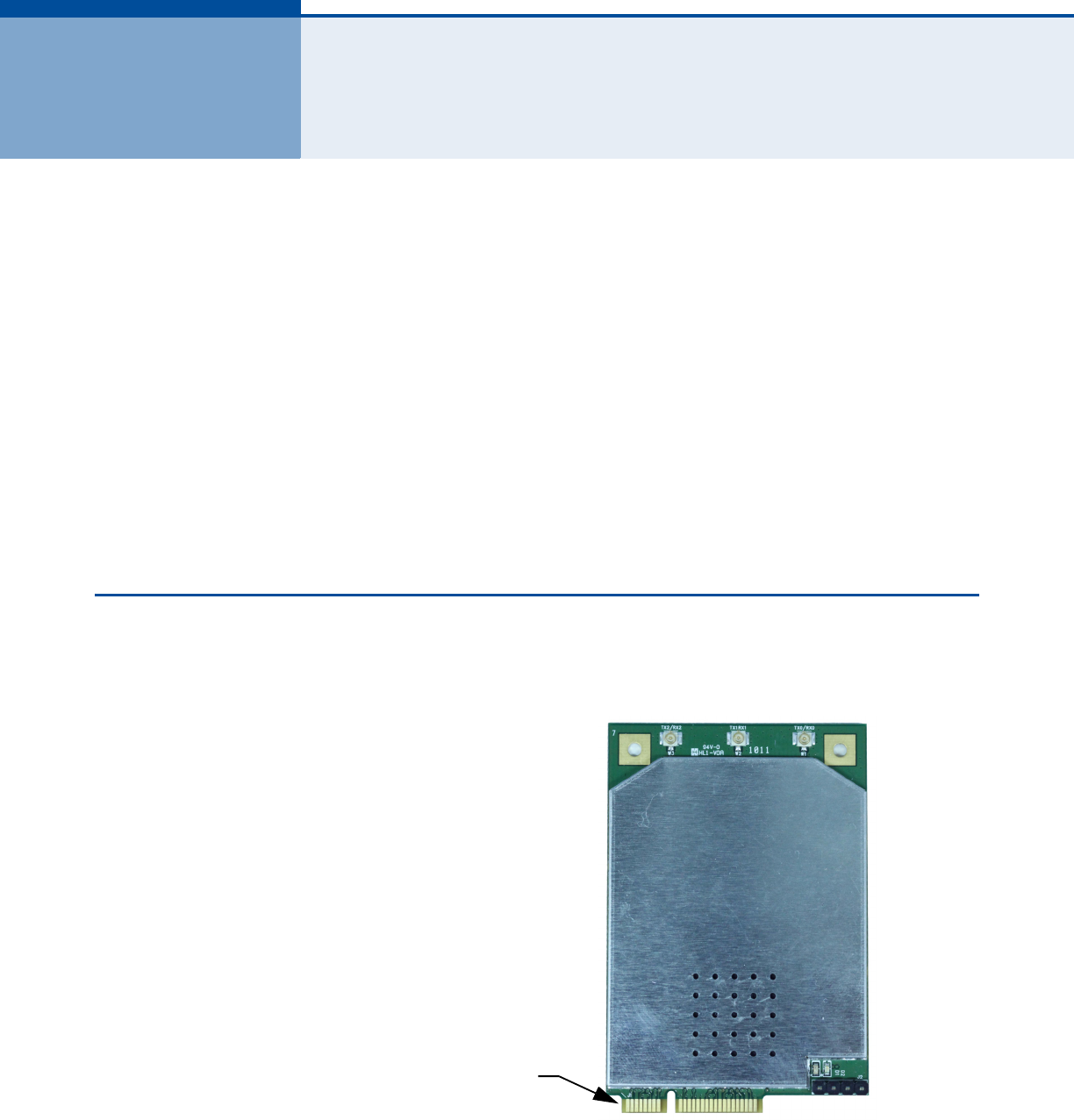

The figure below shows the WMG623A WLAN Module.
Figure 1: The WMG623A
PCI Express Card Connector
![](/img.php?id=1270509&img=bg8.png)
– 8 –
AHARDWARE SPECIFICATIONS
PHYSICAL SPECIFICATIONS
HOST INTERFACE PCI Express Card standard, 3.3 VDC
POWER CONSUMPTION 2 W maximum
PHYSICAL SIZE 72 x 48 mm (2.83 x 1.89 in)
WEIGHT 17 g (0.6 oz)
TEMPERATURE Operating: 0 to 50 °C (32 to 122 °F)
Storage: -20 to 70 °C (-4 to 158 °F)
HUMIDITY 5% to 95% (non-condensing)
WI-FI SPECIFICATIONS
FREQUENCY RANGE FCC/IC/NCC: 2412 MHz ~ 2462 MHz
CE, AS/NZS: 2412 MHz ~ 2472 MHz
MODULATION TYPE CCK, DQPSK, DBPSK for DSSS
64QAM, 16QAM, QPSK, BPSK for OFDM
DATA RATE 802.11b: 11, 5.5, 2, 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n (20 MHz, 800 ns GI): 195, 175.5, 156, 130, 117, 104, 78, 65,
58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps
802.11n (40 MHz, 800 ns GI): 405, 364.5, 324, 270, 243, 216, 162, 135,
121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps
![](/img.php?id=1270509&img=bg9.png)
A
PPENDIX
A
| Hardware Specifications
Compliances
– 9 –
802.11n (20 MHz, 400ns GI): 216.7, 195, 173.3, 144.4, 130, 115.6, 86.7,
72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 Mbps
802.11n (40 MHz, 400ns GI): 450, 405, 360, 300, 270, 240, 180, 150,
135, 120, 90, 60, 45, 30, 15 Mbps
RF OUTPUT POWER 11b mode: 20 +/- 0.5 dBm (peak)
11g mode: 23 +/- 0.5 dBm (peak)
11n mode, HT20: 22 +/- 0.5 dBm (peak)
11n mode, HT40: 22 +/- 0.5 dBm (peak)
RADIO FCC Part 15C (Section 15.247)
EN 301 489-1 V1.8.1 (2008-04)
EN 301 489-17 V1.3.2 (2008-04)
LP0002
RSS-210
AS/NZS 4268
COMPLIANCES
EMC FCC Part 15B
SAR FCC IEEE C95.1
![](/img.php?id=1270509&img=bga.png)
– 10 –
GLOSSARY
10BASE-T IEEE 802.3-2005 specification for 10 Mbps Ethernet over two pairs of
Category 3 or better UTP cable.
100BASE-TX IEEE 802.3-2005 specification for 100 Mbps Fast Ethernet over two pairs of
Category 5 or better UTP cable.
1000BASE-T IEEE 802.3ab specification for 1000 Mbps Gigabit Ethernet over four pairs
of Category 5 or better UTP cable.
ACCESS POINT An internetworking device that seamlessly connects wired and wireless
networks. Access points attached to a wired network, support the creation
of multiple radio cells that enable roaming throughout a facility.
AES Advanced Encryption Standard: An encryption algorithm that implements
symmetric key cryptography. AES provides very strong encryption using a
completely different ciphering algorithm to TKIP and WEP.
AUTHENTICATION The process to verify the identity of a client requesting network access.
IEEE 802.11 specifies two forms of authentication: open system and
shared key.
BACKBONE The core infrastructure of a network. The portion of the network that
transports information from one central location to another central location
where it is unloaded onto a local system.
BEACON A signal periodically transmitted from the access point that is used to
identify the service set, and to maintain contact with wireless clients.
BROADCAST KEY Broadcast keys are sent to stations using dynamic keying. Dynamic
broadcast key rotation is often used to allow the access point to generate a
random group key and periodically update all key-management capable
wireless clients.
DHCP Dynamic Host Configuration Protocol: Provides a framework for passing
configuration information to hosts on a TCP/IP network. DHCP is based on
![](/img.php?id=1270509&img=bgb.png)
G
LOSSARY
– 11 –
the Bootstrap Protocol (BOOTP), adding the capability of automatic
allocation of reusable network addresses and additional configuration
options.
ENCRYPTION Data passing between the access point and clients can use encryption to
protect from interception and evesdropping.
ETHERNET A popular local area data communications network, which accepts
transmission from computers and terminals.
FTP File Transfer Protocol: A TCP/IP protocol used for file transfer.
HTTP Hypertext Transfer Protocol: HTTP is a standard used to transmit and
receive all data over the World Wide Web.
IEEE 802.11BA wireless standard that supports wireless communications in the 2.4 GHz
band using Direct Sequence Spread Spectrum (DSSS). The standard
provides for data rates of 1, 2, 5.5, and 11 Mbps.
IEEE 802.11GA wireless standard that supports wireless communications in the 2.4 GHz
band using Orthogonal Frequency Division Multiplexing (OFDM). The
standard provides for data rates of 6, 9, 12, 18, 24, 36, 48, 54 Mbps. IEEE
802.11g is also backward compatible with IEEE 802.11b.
INFRASTRUCTURE An integrated wireless and wired LAN is called an infrastructure
configuration.
LAN Local Area Network: A group of interconnected computers and support
devices.
MAC ADDRESS The physical layer address used to uniquely identify network nodes.
NTP Network Time Protocol: NTP provides the mechanisms to synchronize time
across the network. The time servers operate in a hierarchical-master-
slave configuration in order to synchronize local clocks within the subnet
and to national time standards via wire or radio.
OPEN SYSTEM A security option which broadcasts a beacon signal including the access
point’s configured SSID. Wireless clients can read the SSID from the
beacon, and automatically reset their SSID to allow immediate connection
to the nearest access point.
![](/img.php?id=1270509&img=bgc.png)
G
LOSSARY
– 12 –
ODFM Orthogonal Frequency Division Multiplexing: OFDM allows multiple users to
transmit in an allocated band by dividing the bandwidth into many narrow
bandwidth carriers.
SSID Service Set Identifier: An identifier that is attached to packets sent over
the wireless LAN and functions as a password for joining a particular radio
cell; i.e., Basic Service Set (BSS).
SESSION KEY Session keys are unique to each client, and are used to authenticate a
client connection, and correlate traffic passing between a specific client and
the access point.
SHARED KEY A shared key can be used to authenticate each client attached to a wireless
network. Shared Key authentication must be used along with the 802.11
Wireless Equivalent Privacy algorithm.
SNTP Simple Network Time Protocol: SNTP allows a device to set its internal
clock based on periodic updates from a Network Time Protocol (NTP)
server. Updates can be requested from a specific NTP server, or can be
received via broadcasts sent by NTP servers.
TKIP Temporal Key Integrity Protocol: A data encryption method designed as a
replacement for WEP. TKIP avoids the problems of WEP static keys by
dynamically changing data encryption keys.
TFTP Trivial File Transfer Protocol: A TCP/IP protocol commonly used for software
downloads.
VAP Virtual Access Point: Virtual AP technology multiplies the number of Access
Points present within the RF footprint of a single physical access device.
With Virtual AP technology, WLAN users within the device.s footprint can
associate with what appears to be different access points and their
associated network services. All the services are delivered using a single
radio channel, enabling Virtual AP technology to optimize the use of limited
WLAN radio spectrum.
WI-FI PROTECTED
ACCESS
WPA employs 802.1X as its basic framework for user authentication and
dynamic key management to provide an enhanced security solution for
802.11 wireless networks.
WEP Wired Equivalent Privacy: WEP is based on the use of security keys and the
popular RC4 encryption algorithm. Wireless devices without a valid WEP
key will be excluded from network traffic.
![](/img.php?id=1270509&img=bgd.png)
G
LOSSARY
– 13 –
WPA-PSK WPA Pre-shared Key: WPA-PSK can be used for small office networks with
a limited number of users that may not need a high level of security. WPA-
PSK provides a simple security implementation that uses just a pre-shared
password for network access.
![](/img.php?id=1270509&img=bge.png)
WMG623A
E042010-CS-R01
**************
