Accutech Security IGWT-660098 Low Power Transmitter Below 1705 kHz User Manual Manual

LC 1200 Manual

800-356-2671 | Accutech | www.accutech-ics.com

LC 1200 Manual

800-356-2671 | Accutech | www.accutech-ics.com

Version 1.00 October 12, 2004

DOC.970015

i Preface LC 1200 Manual

FCC STATEMENT OF CONDITIONS

FCC ID/DOC for the LC 1200 unit:

FCC ID: JM7-IGWT-660098

IC: 2683A-660098

Compliance Statement (Part 15.19)

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference

that may cause undesired operation.

Warning (Part 15.21)

Changes or modification not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

FCC ID/DOC for the LC Sensor:

FCC ID: JM7-IGWT-662002

IC: 2683A-662002

Compliance Statement (Part 15.19)

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference

that may cause undesired operation.

LC 1200 Manual Preface ii

IMPORTANT:

Keep all Televisions, Computers, X-ray

equipment, etc. at least 10 feet away from

the LC 1200 unit. This includes equipment

located on the other side of walls and doors.

Picture the area around the monitored

zone as a big globe with the receive

antenna as the center. Keep all sources of

interference outside this globe.

IMPORTANT NOTICE:

Do not store LC Sensor(s) within 3 feet

of ANY of the sources of electrical

noise listed on this page. These

sources can induce sensor activation.

This activation can lead to possible

undesirable responses from the

system.

Common Sources of Interference

Include:

 Television Sets

 Computer Monitors

 Medical Monitoring Equipment

 Electric Motors

 Electrical Distribution Panels and

Transformers

 Fluorescent Lighting

 Some Electronic Washers and Dryers

 X-ray and other Imaging Equipment

 Unshielded Computer Cables

iii Preface LC 1200 Manual

ICS/ACCUTECH LIMITED WARRANTY

Innovative Control Systems, Inc. (ICS) warrants its Accutech™ equipment (Product) against

defect in materials and workmanship under normal use for a minimum of one (1) year and up to

four (4) years depending on contract from the date of product shipment.

Defective equipment will be either repaired or replaced at ICS’ discretion, free of charge to the

Customer during the warranty period. ICS will supply labor depending on contract to repair or

replace defective equipment, free of charge, during the warranty period only if ICS or an ICS-

certified subcontractor hired by ICS installed such equipment.

In addition, ICS warrants its Accutech™ LC 1200 System Tags against defects in materials and

workmanship under normal use and service for a period of one (1) year from the date stamp.

If a Tag fails during the warrant period due to defects in material and workmanship, ICS will

replace the Tag, free of charge, although overnight shipping charges may apply.

Furthermore, the express limited warranty of ICS shall be the sole and exclusive warranty of ICS,

and ICS hereby disclaims all other warranties, express, implied or statutory, including but not

limited, all other implied warranties of merchantability or fitness for a particular purpose. In no

way should ICS be liable for special, incidental, or consequential damages. ICS reserves the right

to change such limited warranty from time to time upon thirty (30) days written notice.

ICS assumes no responsibility if any Product shall fail to function during any warranty period by

reason of any one or more of the following causes:

 Abuse or misuse of the Product or failure to operate the Product in accordance with

operating instructions or specifications.

 Improper preventive maintenance of the Product.

 Alteration or modification of the Product not specifically approved in writing by ICS.

 Improper installation, repair, modification, or servicing the Product performed by any

unauthorized service personnel.

 Equipment or cabling damaged by unauthorized personnel knowingly or unknowingly.

 Use or operation of the Product in conjunction with any accessories or auxiliary equipment

not specifically approved in writing by ICS.

 Acts of God, including, but not limited to, natural disaster, fire, explosions, flood, accidents

and the like.

24-hour, 7-days-a-week, 365-days-a-year over the phone technical support at 1-800-356-2671

LC 1200 Manual Preface iv

How to use this manual

Thank you for purchasing the LC 1200 System.

This manual will aid you in the understanding

and installation of the LC 1200 System.

The manual is arranged to build upon the

information contained in the previous chapter.

The first three chapters will likely be the

chapters you reference most frequently after the

initial installation. They discuss how the system

works, the inside of an LC unit, activating and

deactivating Tags, monitored zones, addressing

alarms, and attaching Tags and bands.

Each chapter thereafter focuses on a particular

component that interfaces with the LC unit in

the order of the required components (Magnetic

Switch or Passive Infrared Reader, and Keypad)

to additional optional components (External

sounders, Magnetic Locks, Elevator and

Automatic Door Deactivation, Timer, and Alert

Panels).

These chapters contain the specifications,

positioning, mounting, and wiring of each

component. You may not have all the

components listed in this manual with your

initial system. However they can easily be added

at a future date as your needs warrant.

Besides basic mounting tools, the only tools

needed for installation are:

 Spanner key/bit

 Small flat screwdriver

 Wire strippers

When mounting, use mounting hardware

appropriate for the component weight and

mounting surface.

The FAQ and Troubleshooting chapter rounds

out the manual. Here you will find solutions to

common questions about the operation of the

system and remedies to common scenarios.

800-356-2671 | Accutech | www.accutech-ics.com

Contents

Chapter 1: The LC 1200 system

Overview 1-1

Features 1-1

How the system works 1-1

Single vs. Double Conditioning 1-2

Monitored zones 1-2

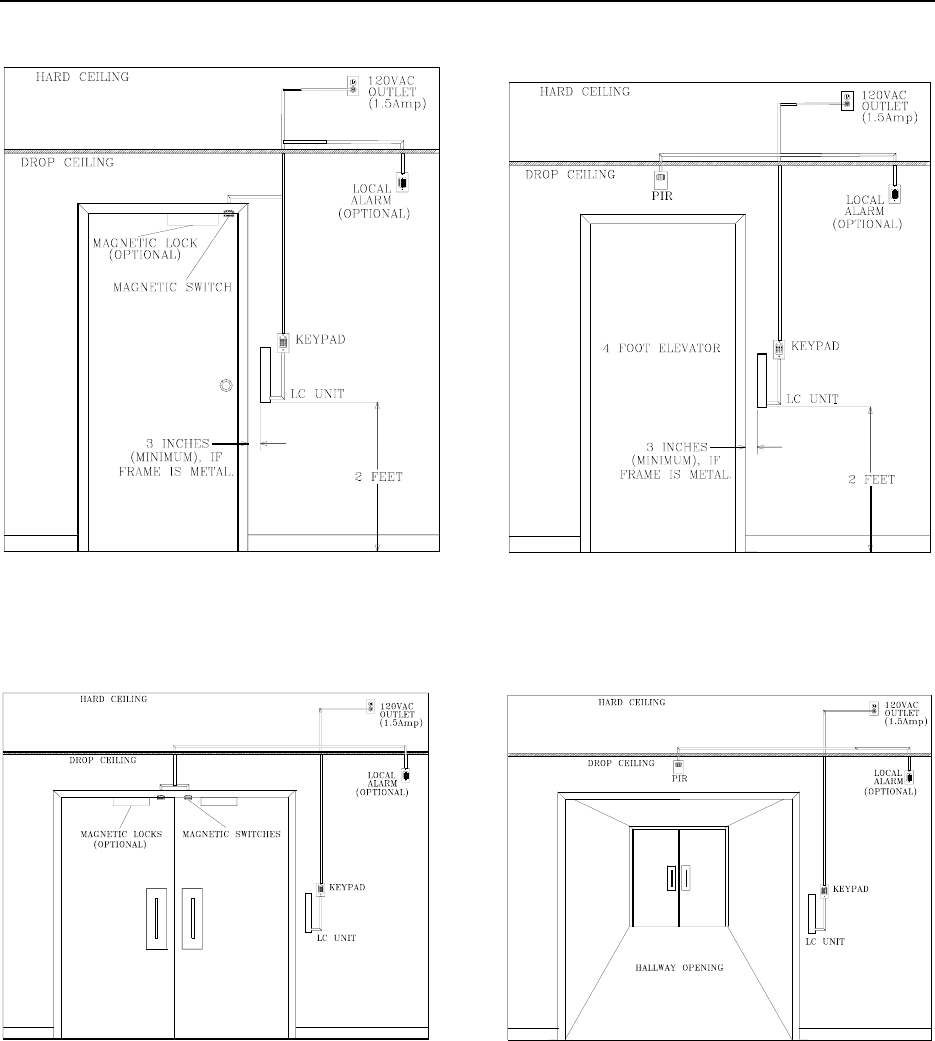

Perimeter Door application 1-3

Alarms 1-3

Internal vs. External alarms 1-4

Addressing Alarms 1-4

Escorting 1-5

Chapter 2: The LC unit

Specifications 2-1

Positioning 2-1

Mounting 2-3

Wiring 2-3

A Look Inside 2-4

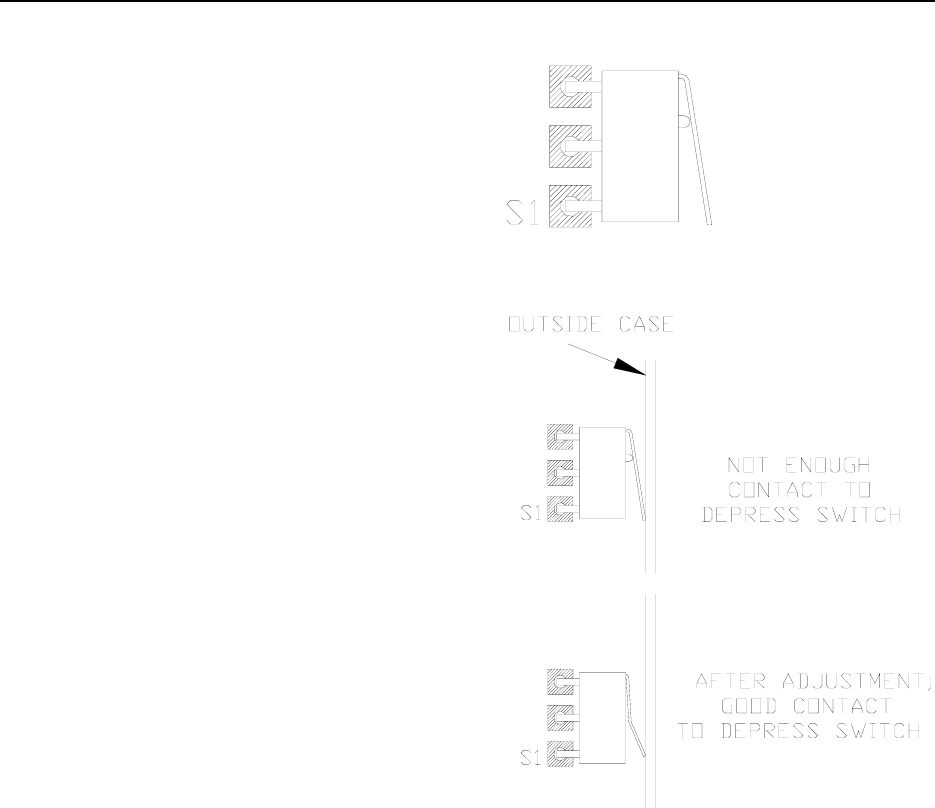

Tamper Switch adjustment 2-7

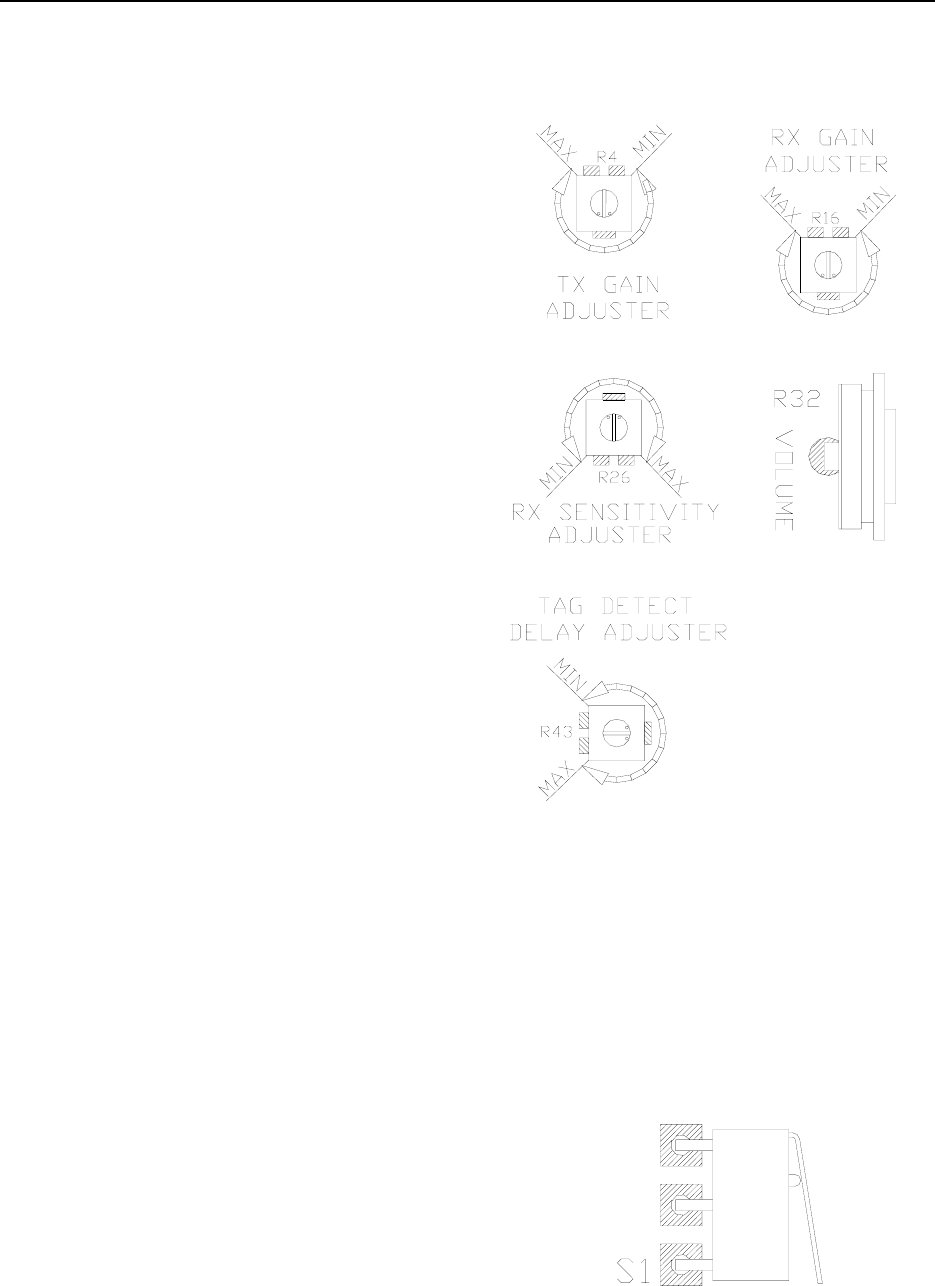

Tuning 2-8

Chapter 3: Tags & TAD

Overview 3-1

Attaching Tags 3-1

Tag and Band Maintenance 3-2

LED Tag 3-3

The TAD 3-5

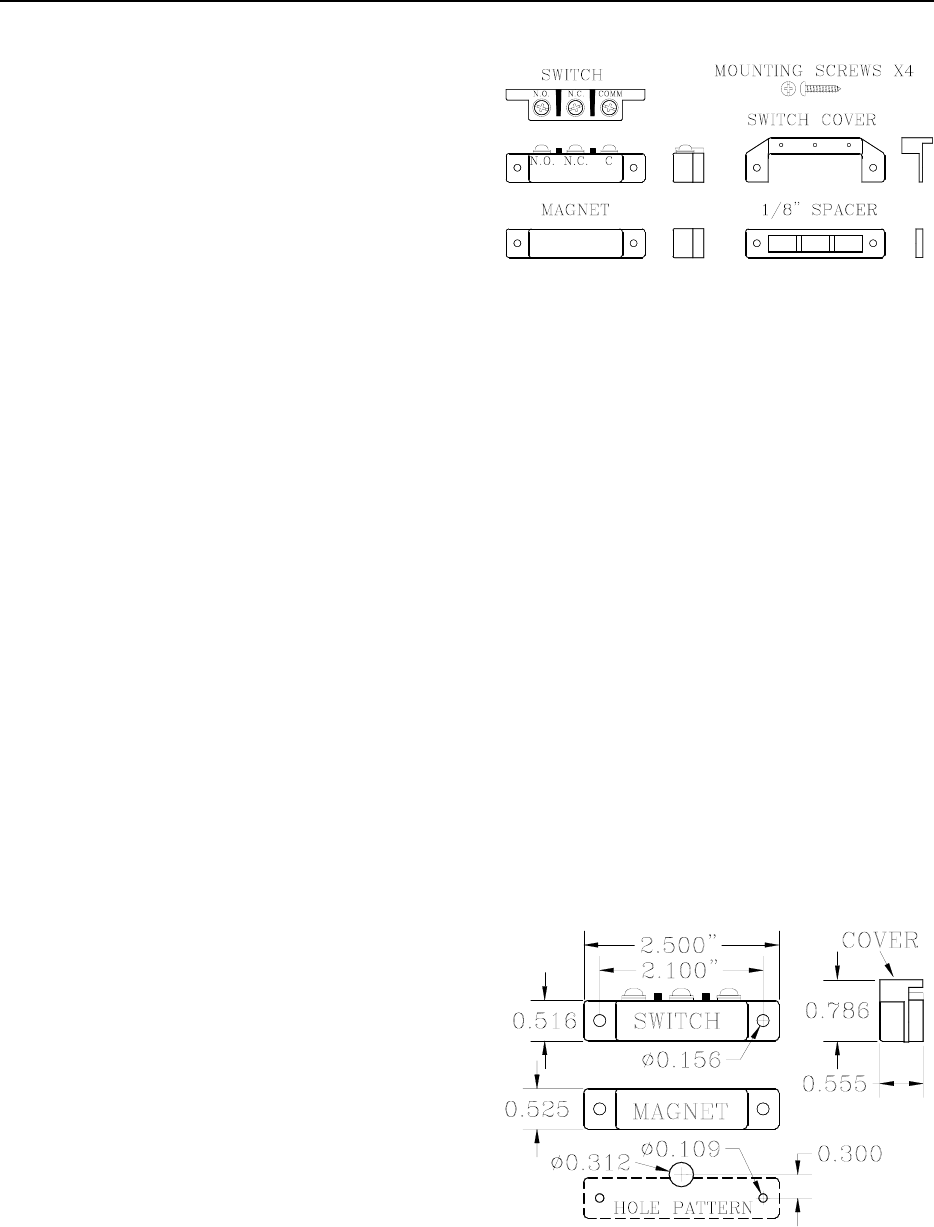

Chapter 4: The Magnetic Switch

Specifications 4-1

Positioning 4-1

Mounting 4-2

Wiring 4-3

Double Door Applications 4-3

Perimeter Door Applications 4-3

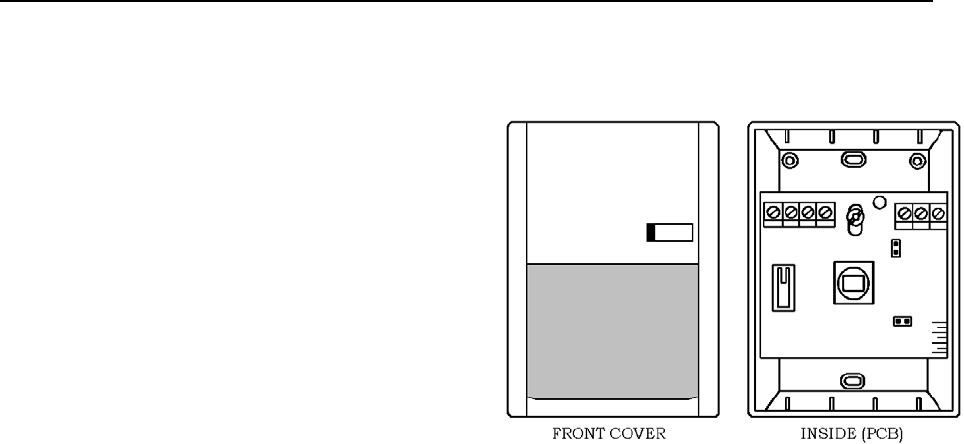

Chapter 5: Passive Infrared Reader (PIR)

Specifications 5-1

Positioning 5-2

Mounting 5-2

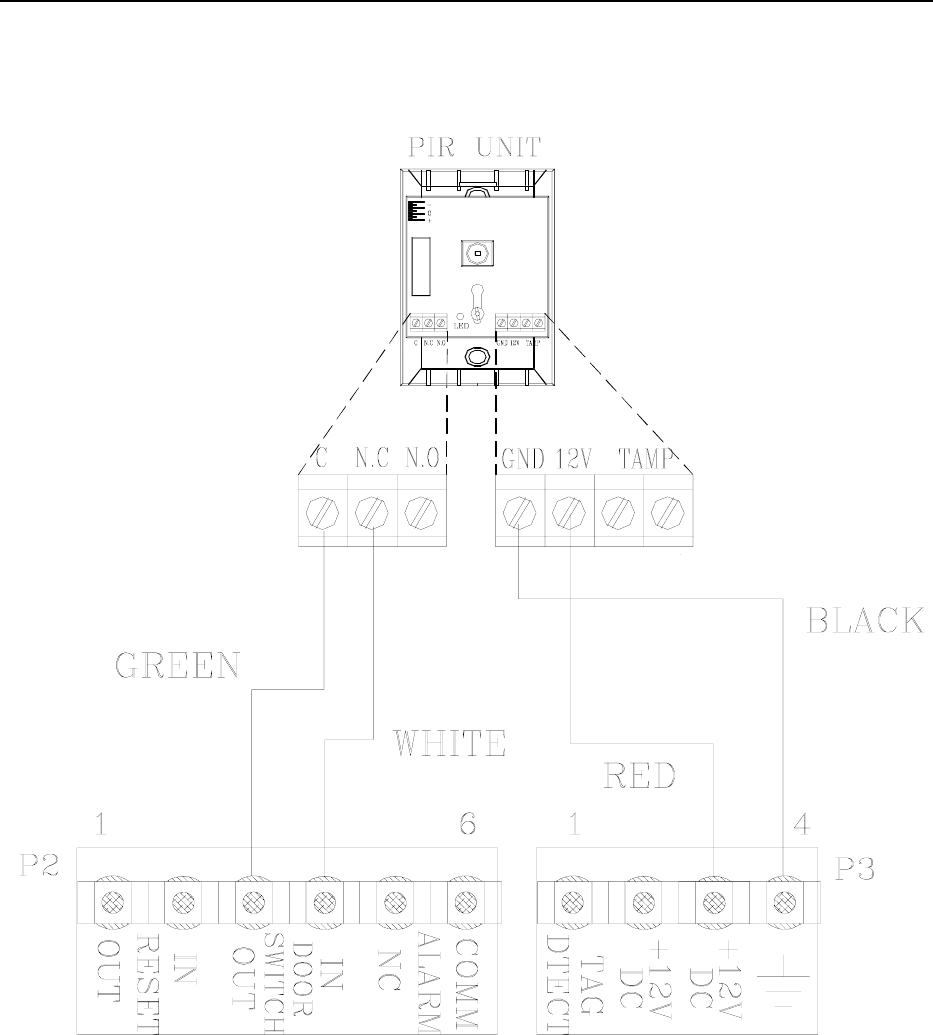

Wiring 5-3

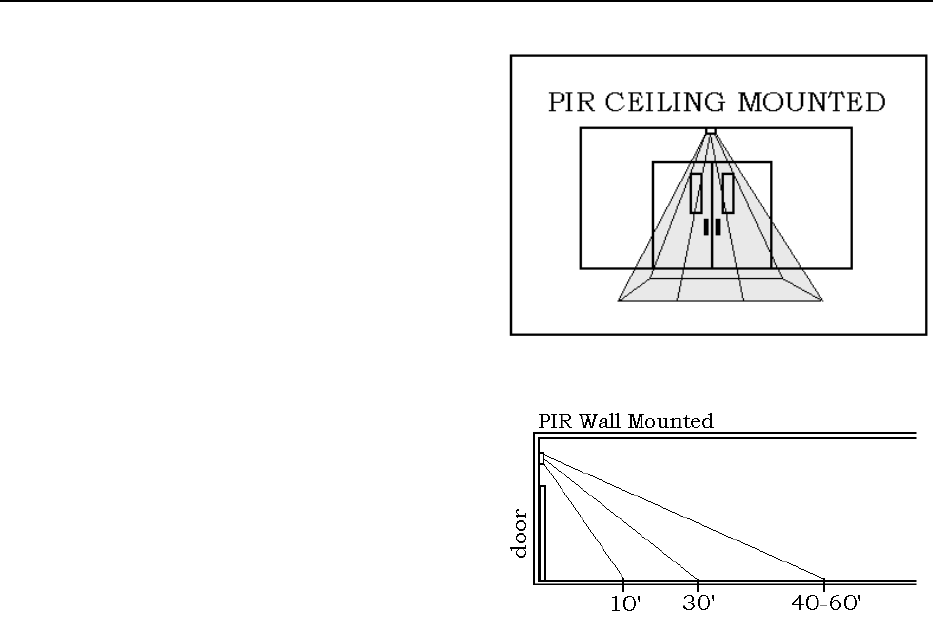

Adjusting the PIR beam angle 5-3

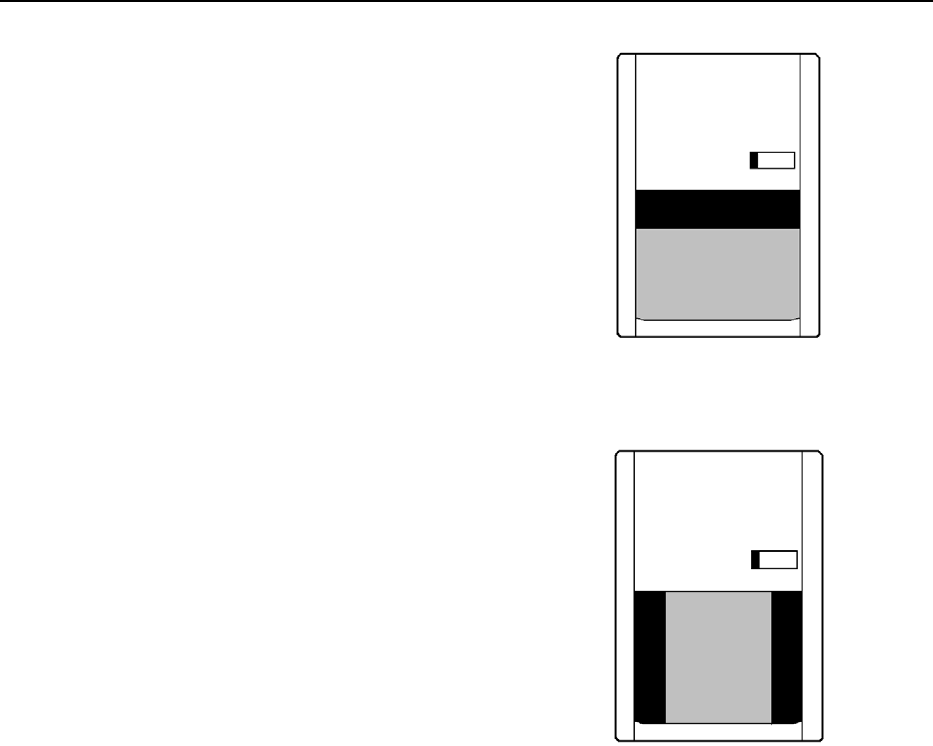

PIR “Masking” 5-5

Chapter 6: The Keypad

Specifications 6-1

Positioning 6-2

Surface Mounting 6-2

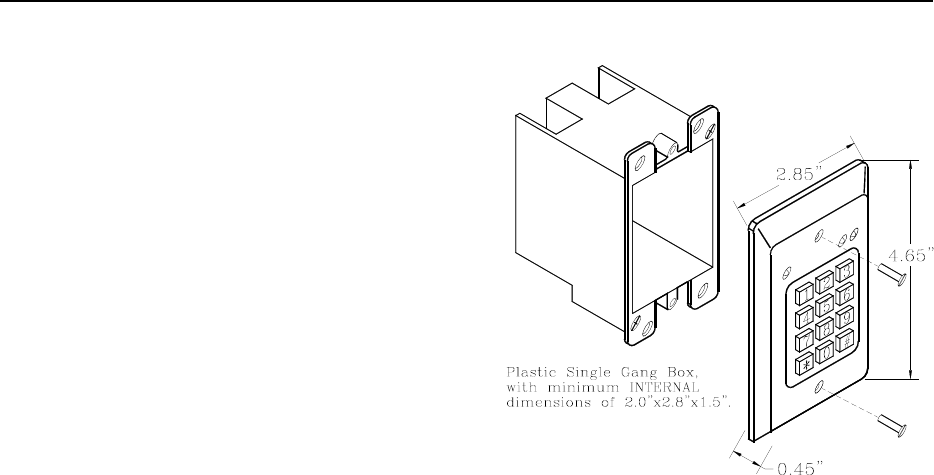

Flush Mounting 6-3

Wiring 6-4

Programming 6-6

Chapter 7: Push Button Override (PBO)

Specifications 7-1

Positioning 7-1

Mounting 7-2

Wiring to the Keypad 7-2

Wiring to the LC unit 7-3

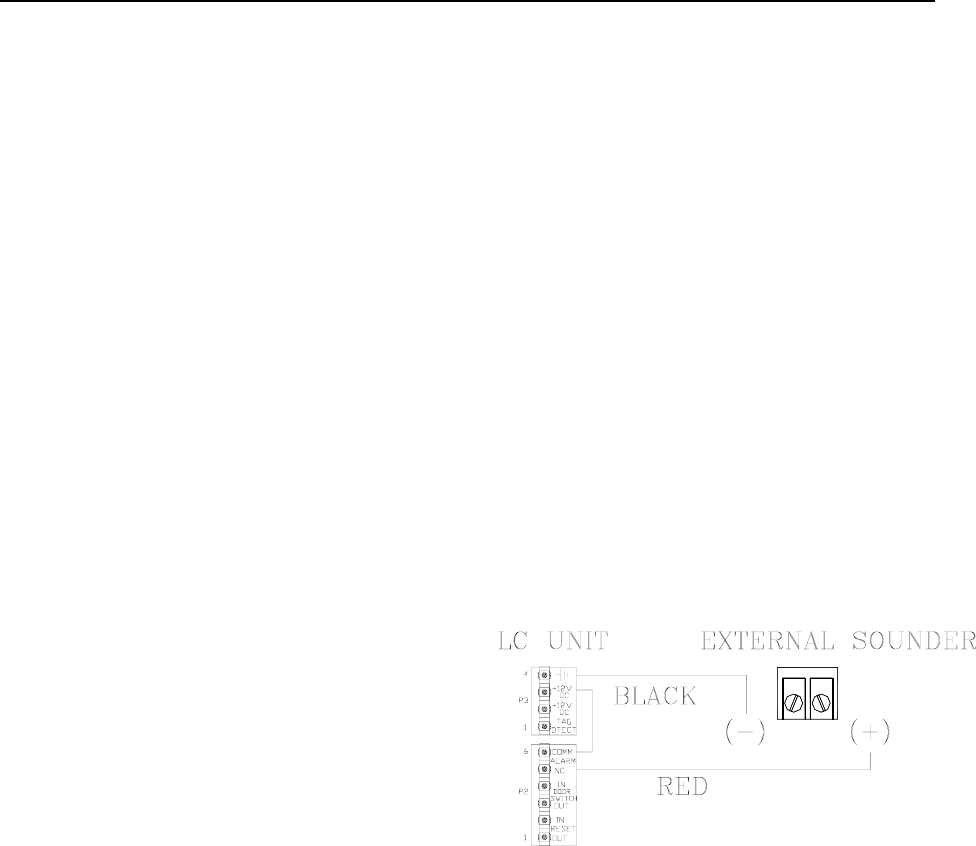

Chapter 8: External Sounders

System Sensor sounder 8-1

Multi-Tone Local Alert (MTLA) 8-2

Chapter 9: Magnetic Locks

Operation 9-1

What is Delayed Egress Circuitry? 9-2

3101 Series Magnetic Locks 9-2

3000 Series Magnetic Locks 9-8

Chapter 10: Elevator Deactivation

What to expect 10-1

Working with the Elevator Company 10-1

Specifications 10-1

Positioning 10-2

Mounting 10-2

Wiring 10-3

Summary for the Elevator Company 10-3

Chapter 11: Automatic Door Deactivation

Specifications 11-1

Positioning and Mounting 11-1

Wiring 11-1

Chapter 12: Fire Panel Interface (FPI)

Specifications 12-3

Positioning and Mounting 12-3

Verifying the Fire Alarm Dry Contacts 12-3

Wiring 12-4

Terminals 12-4

Chapter 13: Timer

Specifications 13-1

Positioning and Mounting 13-1

Wiring 13-2

Programming 13-3

Chapter 14: Alert Panels

Staff Alert Panel (SAP) 14-1

Graphic Display Panel (GDP) 14-4

Chapter 15: System Maintenance & Testing

Tag and Band Maintenance 15-1

LC units 15-1

Testing monitored zones 15-1

Chapter 16: FAQ & Troubleshooting

Tag 16-1

Tag Band 16-1

TAD 16-1

System (General) 16-2

System (Maintenance) 16-2

Troubleshooting 16-3

Appendix A: Component Cut Sheets

Glossary G-1

Index I-1

LC 1200 Manual

Chapter 1:

The LC 1200 system (Part # 800121)

IMPORTANT:

No Security System can replace human vigilance. Creating a safe environment requires the

combined efforts of personnel, physicians, security, and patients. Global policies,

procedures, and processes on patient care should be discussed and disseminated. Education,

communication, and coordination are key. No level of security can replace an informed and

knowledgeable staff. Any electronic or physical security system should be considered as a

supplemental deterrent, but by no means an end-all.

LC 1200 Manual The LC 1200 System 1-1

The LC 1200 system

 Overview

 Features

 How the system works

 Single vs. Double Conditioning

 Monitored zones

 Perimeter Door application

 Alarms

 Internal vs. External alarms

 Addressing Alarms

 Escorting

Overview

The LC 1200 system (Part # 800121) is designed

to be a turnkey, patient egress monitoring

system.

The function of the LC 1200 system is to alert

facility personnel of the possible egress of a

monitored resident and can be utilized for

special care residents suffering from wandering

malady or tendencies of straying into

unauthorized areas or leaving a facility.

The LC 1200 system consists of:

 the LC unit (Part # 800121)

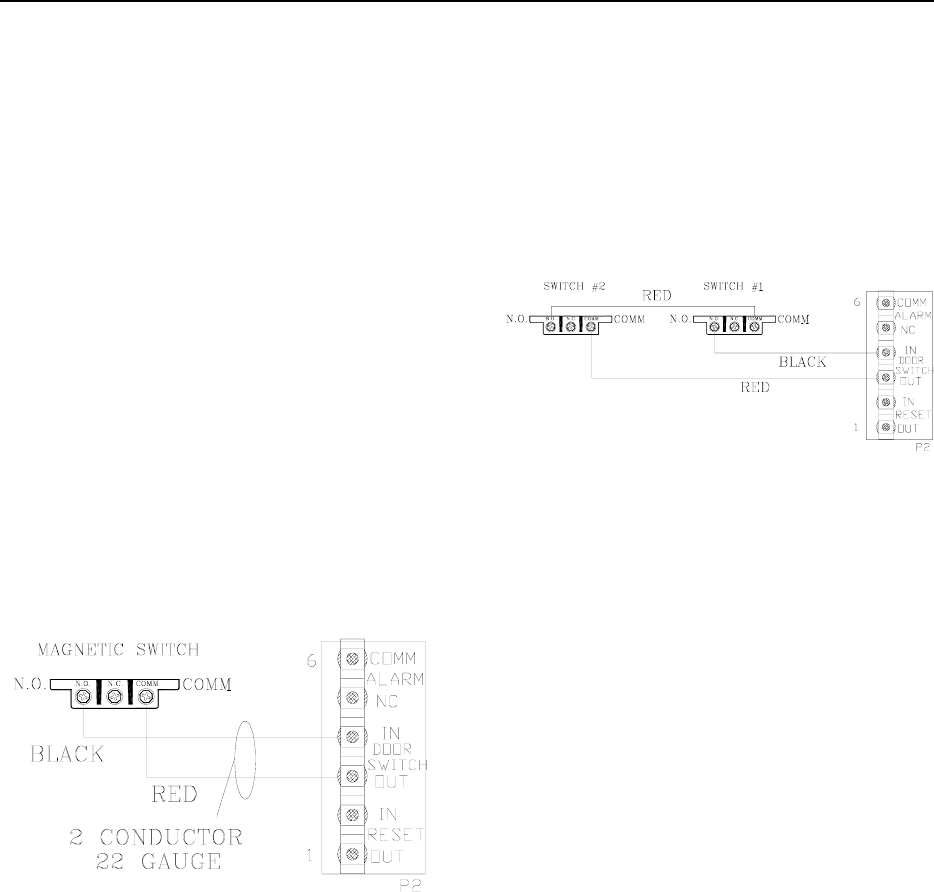

 Magnetic Switch (Part # 650514)

(for door applications) or a Passive

Infrared Reader (Part # 300302)

(for hallway and elevator applications)

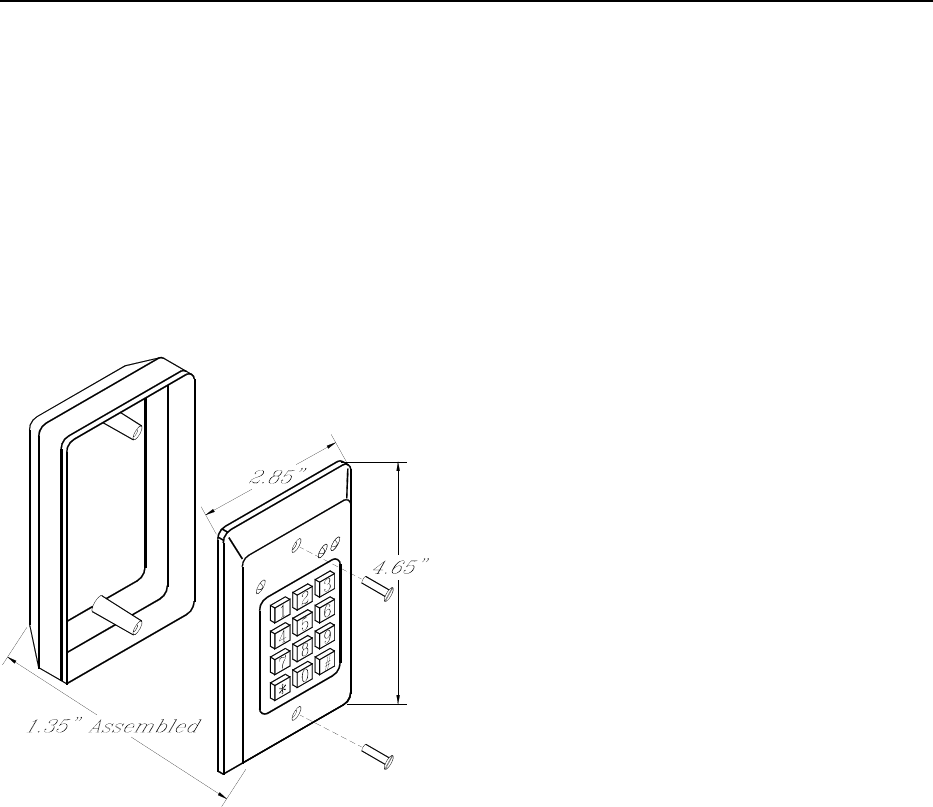

 a Keypad (Part # 650202).

Additional options for the LC unit are:

 External sounders

(Part # 700216 or 300150)

 Magnetic Locks

(Part # 700218 or 700228)

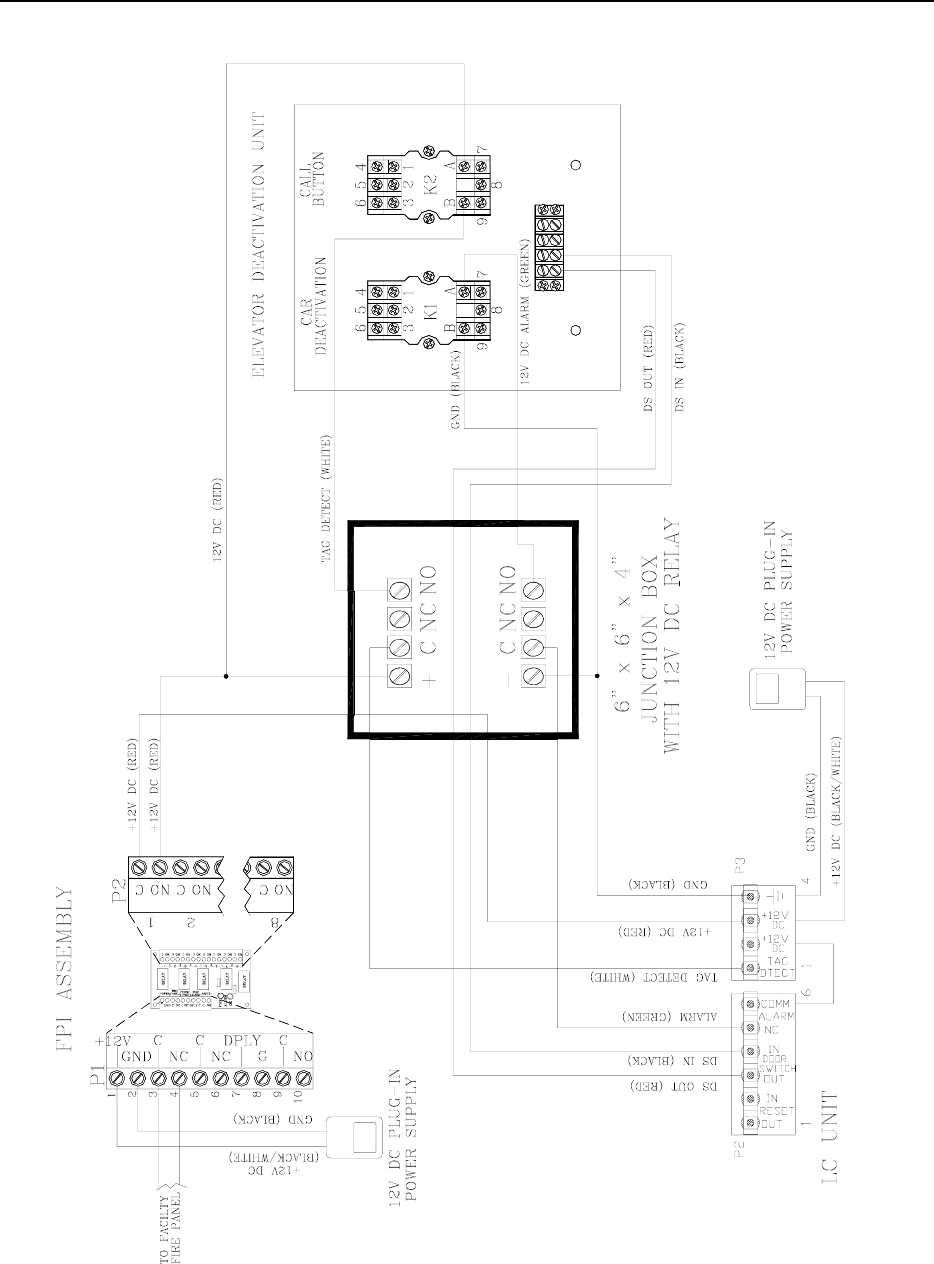

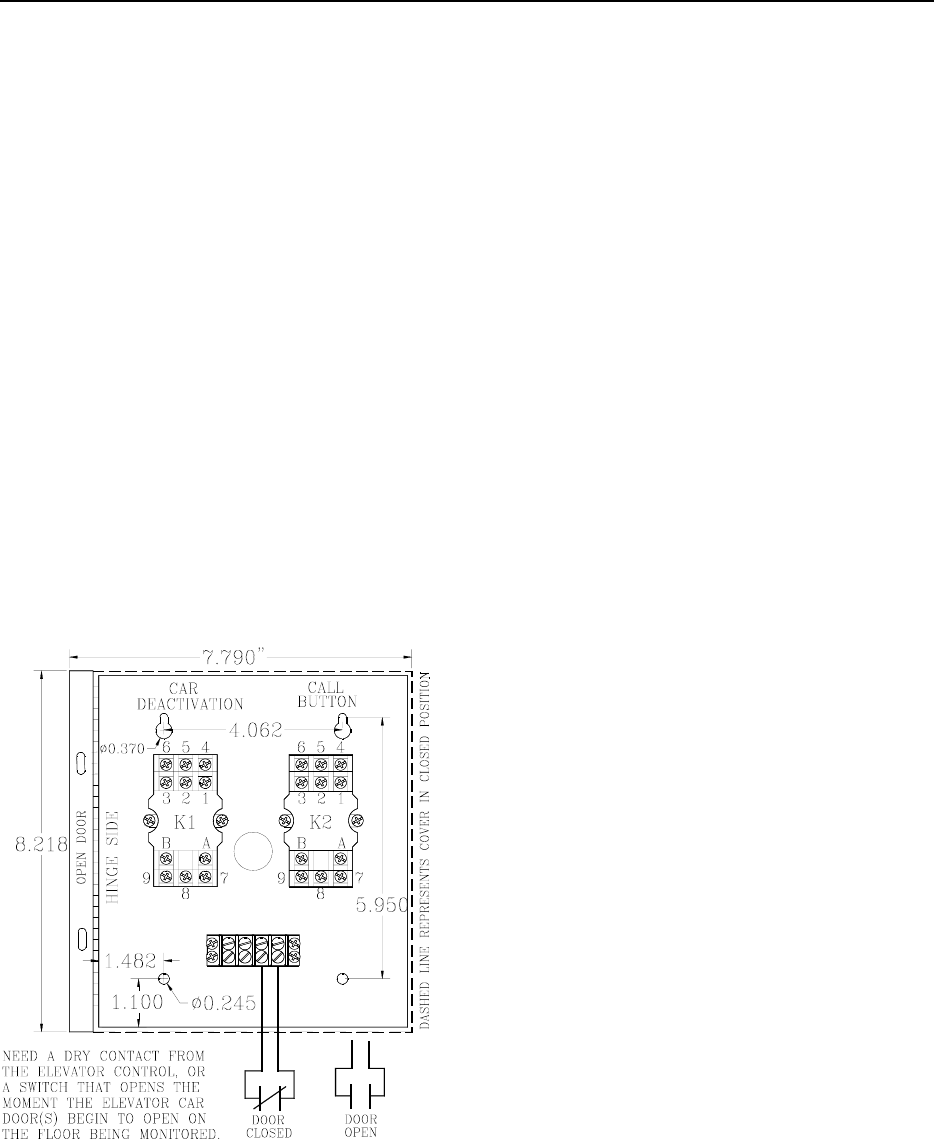

 Elevator Deactivation (Part # 700027).

 Automatic Door Deactivation

(Part # 700033).

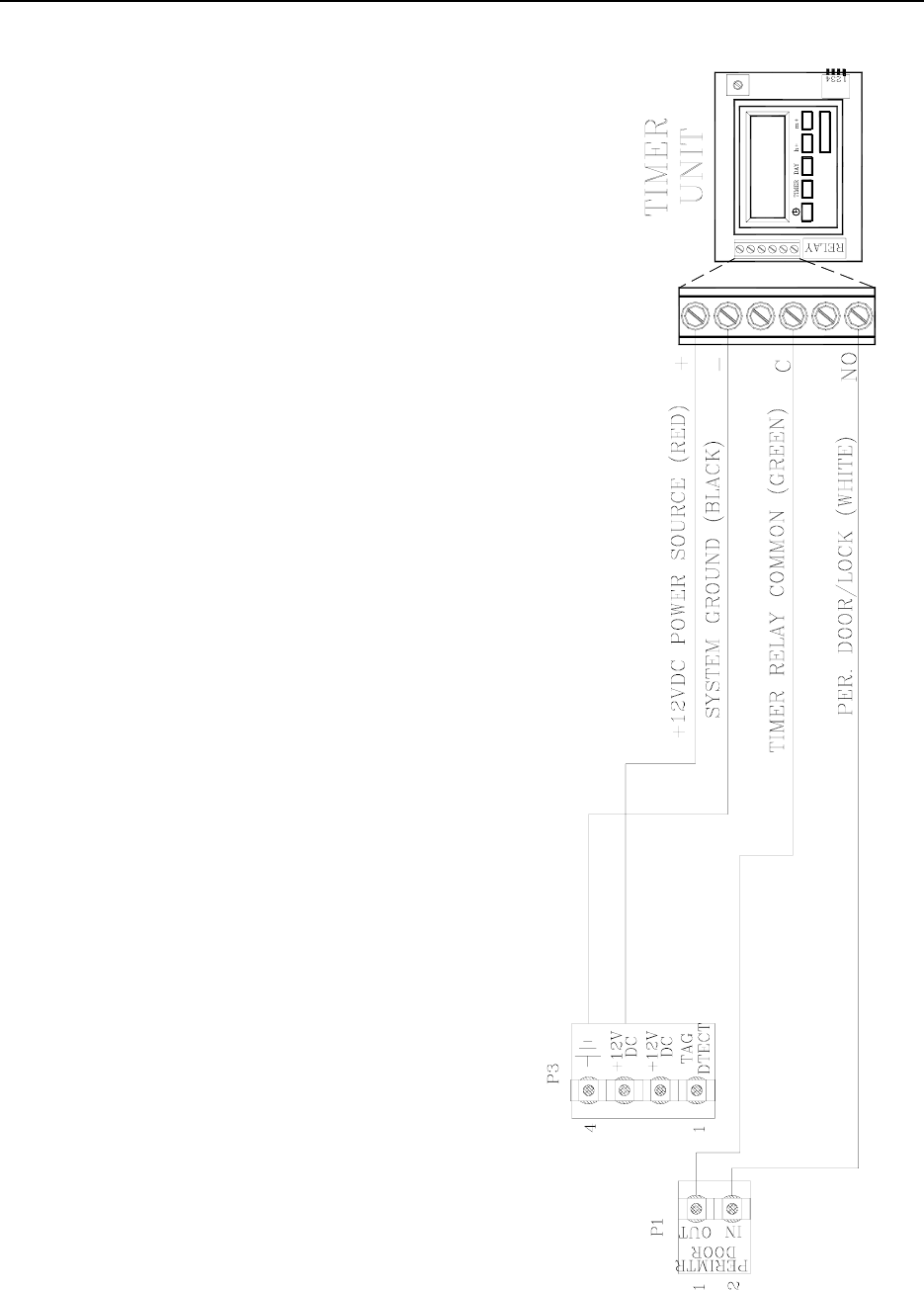

 Timer (Perimeter door function)

(Part # 7000018).

 Staff Alert Panel (Part # 700080).

 Graphic Display Panel (Part # 700050 or

700052).

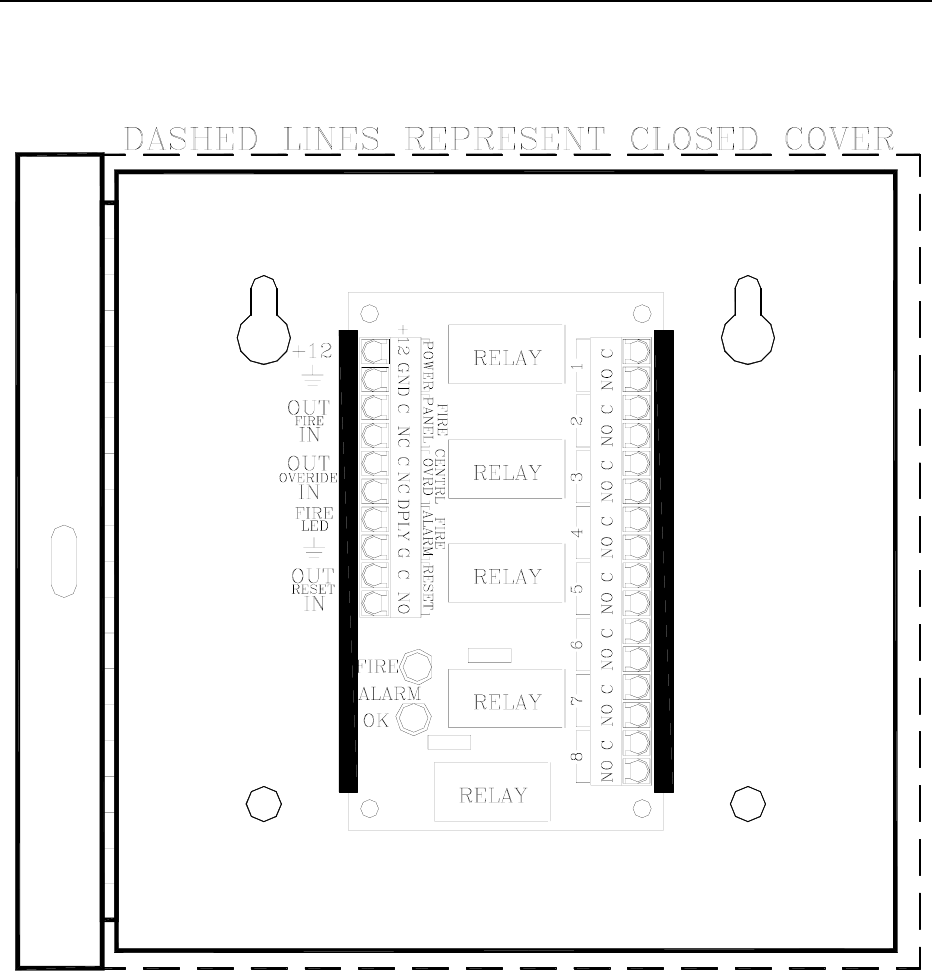

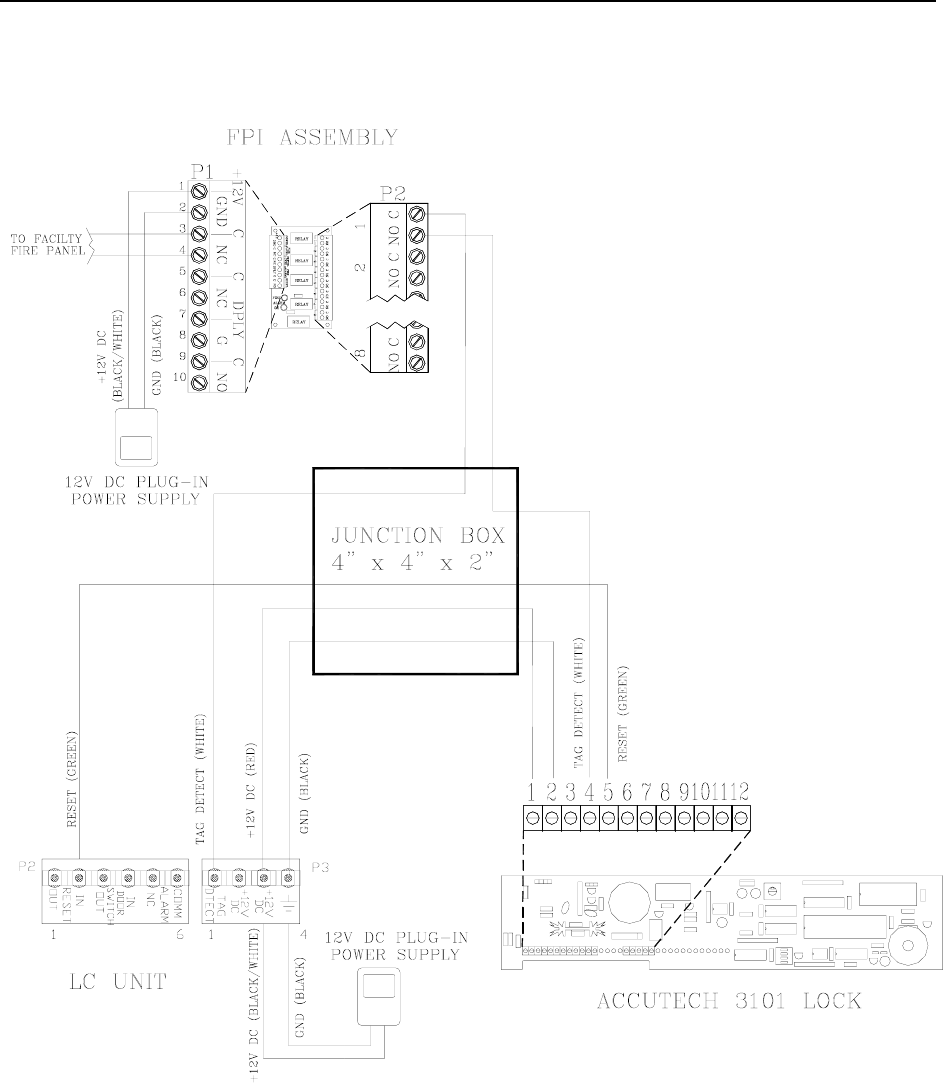

 Fire Panel Interface (Part # 700013).

Note: Since a facility may have multiple LC

units, from now on the LC 1200 system shall be

simply referred to as an LC unit.

Features

The LC unit comes with the following features:

 Single zone monitoring (Tag Detect)

 Tamper Switch

 Power Loss Supervisor

 Perimeter Door function (Timer)

 Stagger Tuning

How the system works

The LC unit uses a simple but effective concept.

A small unobtrusive Tag is banded to the

resident to be monitored and LC units are placed

at points of egress.

When a Tag enters a monitored area, the system

can automatically:

 sound alarms

 lock doors

 deactivate elevators

 flash lights

 trigger Visual Displays

(e.g., SAPs or GDPs)

Since LC units only react to Tags, the LC unit

does not restrict the movement of other

residents, staff, or visitors.

The LC unit’s range of coverage is determined

by the size of the Tx Activation Field. An LC

unit’s Tx Activation Field can be expanded or

reduced to accommodate the environmental

conditions of virtually any doorway, hallway, or

elevator you wish to monitor.

1-2 The LC 1200 System LC 1200 Manual

Single vs. Double Conditioning

Egress alarms can be set for either single or

double conditioning.

In single conditioning, one event has to happen

(i.e., a Tag being detected in the zone) to

generate an egress alarm.

In double conditioning, two events have to

happen (such as a Tag being detected in the zone

and the door opened or PIR tripped) to generate

an egress alarm.

Double conditioning is achieved when a

Magnetic Switch or Passive Infrared Reader

(PIR) is connected to the LC unit for that zone.

The “Monitored zones” section describes how

single and double conditioning is used in various

zone types.

Monitored zones

 Single Conditioning

 Double Conditioning - Door and Hallway

 Double Conditioning – Door with Lock(s)

 Double Conditioning – Elevator

 Double Conditioning – Automatic Door

Single Conditioning

Single conditioning reacts the same for all

monitored zone types (e.g., door, hallway,

elevator, and automatic door).

With single conditioning, if an active Tag enters

a monitored zone, the system will detect the Tag

and an egress alarm will be generated.

To clear this alarm, remove the Tag from the

zone and enter a valid code into the zone

Keypad.

Double Conditioning – Door and Hallway

In double conditioning, two events have to

happen to generate an egress alarm.

At a door zone, a Tag must be detected in the

zone and the door opened or PIR detection to

generate an egress alarm.

In hallway zones, a Tag must be detected in the

zone and PIR detection to generate an alarm.

To clear this alarm, remove the Tag from the

zone, and enter a valid code into the zone

Keypad.

LC 1200 Manual The LC 1200 System 1-3

Double conditioning – Door with Lock(s)

Notes: Although most locks can be interfaced

with an LC unit, the instructions hereafter are

only applicable to an Accutech supplied 3101

Magnetic Lock.

If an active Tag enters a monitored door zone,

the system will detect the Tag. At that moment

(provided the door is closed, has a Magnetic

Lock(s), and the Lock is unobstructed) the

Magnetic Lock will energize, locking the door.

The Lock will remain locked for as long as the

Tag is in the monitored zone. When the Tag

leaves the monitored zone, the door will unlock

after an adjustable period of time (02-18

seconds; set by potentiometer R43 (Tag Detect

Delay).

Accutech’s 3101 Magnetic Locks also

incorporates Delayed Egress Circuitry that

complies with N.F.P.A. 101 Life Safety Codes

5-2.1.6.1. If engaged, the Lock will release

within 15 seconds (after 1-3 second nuisance

delay) whenever a maintained force (less than 15

pounds required) is applied to the door. An

audible tone enunciates both countdown and

release. When the Lock releases, the red LED

will turn solid green and the Lock alarm will

sound continuously. However, if the door is not

opened and the Tag leaves the zone, the audible

tone will cease and the Lock will return to

normal operation.

The Lock will NOT engage (or will disengage)

when the facility’s Fire Alarm is activated or

power is lost.

Double conditioning - Elevator

Note: The use of Elevator Deactivation with the

LC unit will require a relay board.

Elevator Deactivation Circuitry restricts the

wearer of a Tag from using an elevator. If a Tag

enters a monitored elevator zone, the elevator’s

call button on that floor will be deactivated (Call

buttons on other floors are unaffected and no

one is restricted from coming to the floor).

If the elevator car is en route to the floor when a

Tag approaches the zone, the elevator will arrive

on the floor, the door(s) will open, and the

system will alarm.

When a Tag is in the zone (or approaches the

zone) and the elevator doors are open, the doors

will remain open and an alarm will sound.

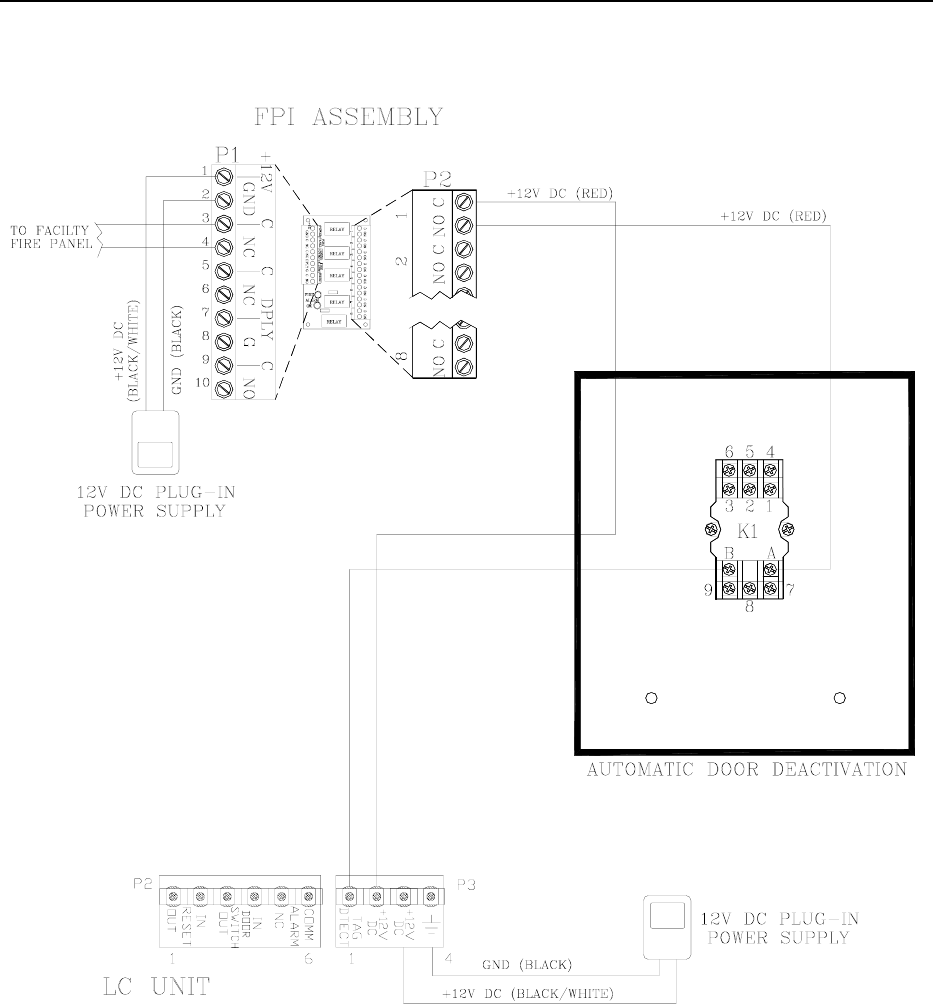

Double Conditioning - Automatic Door

If an active Tag enters a monitored automatic

door zone, the system will detect the Tag and the

automatic door operation (motion detector

and/or push paddle) will be disabled. If the door

is manually opened while the Tag is in the zone,

an egress alarm will be generated. When the Tag

leaves the zone, the door will return to normal

operation after an adjustable period of time (02-

18 seconds; set by potentiometer R43 (Tag

Detect Delay).

To clear this alarm, remove the Tag from the

zone, close the door, and enter a valid code into

the zone Keypad.

1-4 The LC 1200 System LC 1200 Manual

Perimeter Door application

If desired, the LC unit can be used as a perimeter

door system. When in this mode, the door would

alarm the instant it was opened. If the door has

Magnetic Locks, the door would remain locked

(Lock energized) at all times and would require

a valid code entered into the Keypad or

activating a PBO to open the door. Delayed

Egress Circuitry would function normally if

3101 Magnetic Locks were used.

To use the LC unit as a perimeter door full time

remove the jumper from P1-1 and P1-2

(Perimeter Door) or to use the LC unit as a

perimeter part time use a Timer.

Alarms

 Egress

 Tamper

 Power Loss Supervisor

 Perimeter Door

The LC unit has the following alarms:

Egress

An Egress alarm occurs whenever a Tag enters

an LC unit’s Tx Activation Field and contacts

P2-3 and P2-4 of the LC unit are open (usually

interfaced with a Magnetic Switch or PIR).

Tamper

A Tamper alarm occurs when the LC unit cover

is removed and the Tamper Switch (S1) is

disengaged. Remember, JP2 (Tone Enable) must

be in place for this alarm to be heard.

Power Loss Supervisor (Optional)

A Power Loss Supervisor alarm occurs when a

charged 9V NiCAD battery is installed and the

LC unit loses power. Remember, JP2 (Tone

Enable) must be in place for this alarm to be

heard.

Note: This battery does not power the LC unit.

When the battery is installed and the power is

applied to the LC unit, the battery is being

trickle-charged constantly. When power is lost

to the LC unit, a Piezo Alert of the LC unit will

sound for as long as the 9-volt battery has

enough power to drive the Piezo.

WARNING:

For the Power Loss Supervise function, use a 9-

volt Ni-Cad (nickel-cadmium) rechargeable

battery ONLY as other types of batteries may

explode or leak causing damage to the LC unit

or injury to the person(s) working on the

equipment.

If a battery is not installed, make sure that the

battery clip cover is in place over the battery

lead terminals. If you have lost the cover, then

be sure to cover the terminals of the battery clip

with electrical tape or heat shrink tubing before

you apply power to the unit. Failure to do so

can result in the terminal leads shorting to

something conductive inside the unit and

causing damage to the LC unit or electric shock.

LC 1200 Manual The LC 1200 System 1-5

Perimeter Door

A Perimeter Door alarm occurs when the LC

unit is in Perimeter Door mode (see page 1-3 for

more information) and the door is opened

(Magnetic Switch open).

Internal vs. External alarms

The LC unit comes with an internal alarm

sounder (a piezo) and the capability of triggering

external sounders.

When jumper JP2 “Tone Enable” is in place, all

four alarm types (Egress, Tamper, Power Loss

Supervisor, and Perimeter) will be announced

through the LC unit’s internal piezo.

Note: The internal peizo’s volume level is

controlled by potentiometer R32 “Volume

Control” (see page 2-5).

A charged 9-volt Ni-Cad rechargeable battery is

also required for the Power Loss Supervisor

alarm.

In addition to the internal piezo, the LC unit is

capable of triggering external sounders (see

Chapter 8: External Sounders). An external

sounder can be positioned away from the zone at

a remote location (such as a hallway intersection

or nurse station) for alarm notification. Note:

External sounders are not silenced by the

removal of jumper JP2 “Tone Enable”.

The internal piezo and an external sounder can

operate simultaneously and will be silenced by a

Keypad reset.

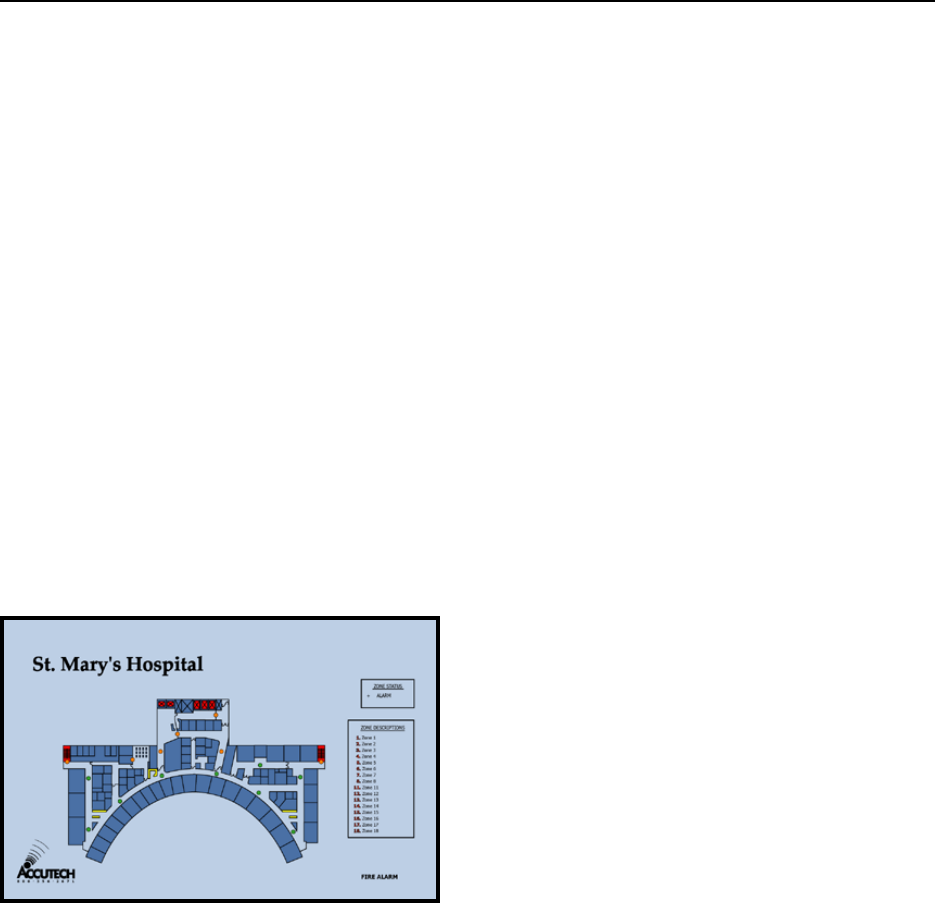

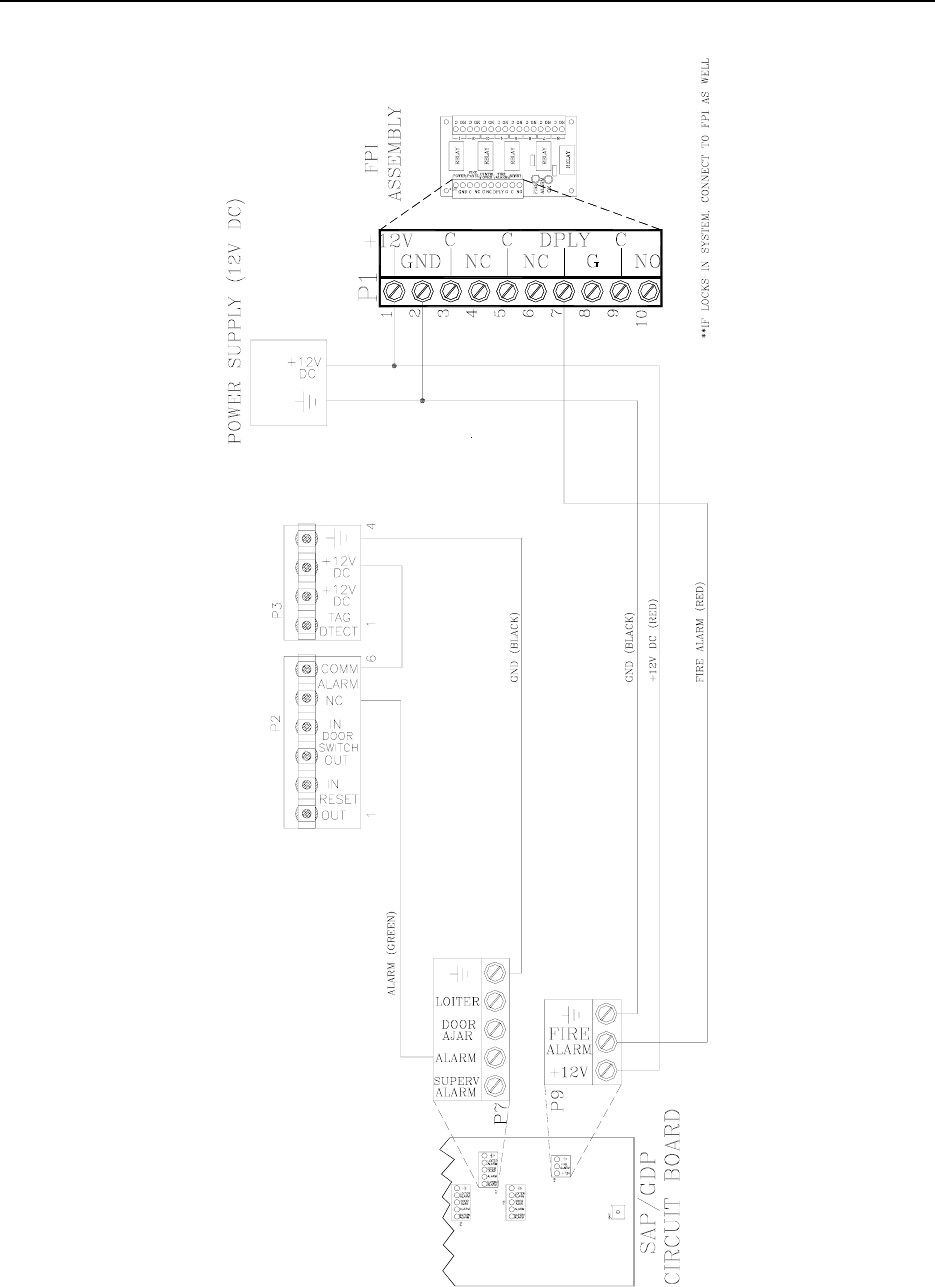

A Staff Alert Panel (SAP) or Graphic Display

Panel (GDP) is another option for remote alarm

notification (see Chapter 14: Alert Panels).

Addressing Alarms

 Egress

 Tamper

 Power Loss Supervisor

 Perimeter Door

Egress

An Egress alarm occurs whenever a Tag enters

an LC unit’s Tx Activation Field and contacts

P2-3 and P2-4 of the LC unit are open (usually

interfaced with a Magnetic Switch or PIR).

When an Egress alarm occurs:

1. Go to the alarm location and take

appropriate action to find the cause of

the alarm.

2. After taking appropriate action, you can

clear the alarm by closing the door and

entering a valid code into the zone

Keypad.

Tamper

A Tamper alarm occurs when the LC unit cover

is removed and the Tamper Switch (S1) is

disengaged.

When a Tamper alarm occurs:

1. Go to the alarm location and take

appropriate action to find the cause of

the alarm.

2. To silence the internal piezo buzzer

while you address the alarm, remove the

LC unit cover and jumper JP2 (Tone

Enable).

3. When finished, replace jumper JP2 and

the LC unit cover, then enter a valid

code into the zone Keypad.

1-6 The LC 1200 System LC 1200 Manual

Power Loss Supervisor

A Power Loss Supervisor alarm occurs when a

charged 9V NiCAD battery is installed and the

LC unit loses power (see page 1-4 for more

information).

When a Power Loss Supervisor alarm occurs:

1. Go to the alarm location and take

appropriate action to find the cause of

the alarm.

2. Check the LC unit connections.

3. Verify the power source is working.

4. To silence the internal piezo buzzer

while you address the alarm, remove the

LC unit cover and remove jumper JP2

(Tone Enable).

5. If you cannot locate an immediate cause

for the alarm. Call your service

technician for further assistance.

Perimeter Door

A Perimeter Door alarm occurs when the LC

unit is in Perimeter Door mode (see page 1-3 for

more information) and the door is opened.

When a Perimeter Door alarm occurs:

1. Go to the alarm location and take

appropriate action to find the cause of

the alarm.

2. When finished close the door, and enter

a valid code into the zone Keypad to

clear the alarm.

Escorting

From time to time, it may be necessary to escort

a monitored resident through a protected zone.

This is done using the Keypad’s Escort function.

The Keypad’s Escort function allows passage of

a monitored resident through that monitored

zone without alarm for a predetermined time

(01-98 seconds; factory default 15 seconds). To

modify the Escort time, see page 6-9.

PLEASE NOTE:

While escorting, be aware of “tailgating.”

Tailgating is the practice of residents

lingering near a monitored zone (usually an

exit point) until an authorized escort passes

through the zone then immediately following

behind through the zone.

To prevent tailgating, be aware of all traffic

near a monitored zone and once you are

through the monitored zone wait until the

escort time has timed-out before proceeding.:

To escort a monitored resident through a

monitored zone, use the following instructions

1. Enter a valid code into the zone’s

Keypad. This will invoke the Keypad’s

Escort function. The Keypad’s green

LED will illuminate.

Note: Depending on the type of zone

you are escorting through, you may have

to leave the resident just out of the Tx

Activation Field while you enter the

Keypad code and then escort them

through.

2. Escort the monitored resident through

the zone.

Note: For slower moving residents, an

alarm may sound if you move too

LC 1200 Manual The LC 1200 System 1-7

slowly and you may have to invoke the

Escort function again. Therefore, take

into consideration the Escort time

duration at that zone. If the door handles

slow moving residents often, consider

extending the Escort time or using a

wheelchair to escort residents.

3. To prevent tailgating, once you are

through the zone wait until the escort

time has timed-out before proceeding.

LC 1200 Manual

Chapter 2:

The LC unit

LC 1200 Manual The LC unit 2-1

The LC unit

 Specifications

 Positioning

 Mounting

 Wiring

 A Look Inside

 Tamper Switch adjustment

 Tuning

Specifications

 Power Requirements

 Temperature

 Weight

 Location

Power Requirements

 12V DC

 0.5A for one 3101 Magnetic Lock

1.0A for two 3101 Magnetic Locks

1.0A for one 3000 Magnetic Lock

Temperature

The LC unit and its associated peripherals

operate best in an ambient temperature between

35 and 90 degrees Fahrenheit. Operation outside

of this range may cause unexpected or

undesirable results, including premature

component or device failure.

Weight

The LC unit weighs approximately 1 U.S.

pounds, which should be considered when

choosing mounting location and hardware.

Positioning

The recommended location of the LC unit is on

the latch side of the door with its lowest point

about 2 feet above the floor (Figure 2.1)

Mount the LC unit at least 3 inches away from

any type of metal including:

 metal door frames

 metal studs

 metal lathe walls

 metal electrical box

 metal conduit

 metal pipes

In addition, the LC unit should be positioned

within 18” maximum of the monitored door or

elevator to assure proper coverage. The

recommended distance is 3 to 6 inches.

Positioning the LC unit correctly will help in

avoiding unintended activation of a Tag in a

nearby room or a passerby. The goal is to

produce a Tx Activation Field that adequately

covers the doorway but does not extend into

nearby rooms.

Figures 2.1 through 2.4 show the recommended

location of the equipment in a typical door,

double door, elevator, and hallway application.

Use them for reference during installation.

2-2 The LC unit LC 1200 Manual

Figure 2.1 Positioning the LC unit (Single door)

Figure 2.2 Positioning the LC unit (Double Door)

Figure 2.3 Positioning the LC unit (Elevator)

Figure 2.4 Positioning the LC unit (Hallway)

LC 1200 Manual The LC unit 2-3

Mounting

To mount an LC unit, refer to Figure 2.5 and use

the following instructions:

1. Remove the LC unit cover and screws.

2. Locate, align, mark-out, and drill 4

mounting holes in the wall

corresponding to the mounting holes of

the LC unit.

3. Using appropriate hardware for the

mounting surface, install the four

anchors.

4. Install the upper screws leaving about a

1/8th of an inch exposed.

5. Make any wire accommodations (such

as fishing wires through the back cover

or planning conduit/panduit interface)

that are easier completed with the LC

unit unmounted.

6. When finished, install the last two

mounting screws then tighten all 4

mounting screws.

7. Note the Tamper Switch adjustment

section on page 2-7.

8. Proceed to wiring.

Wiring

The LC unit uses a 12V DC plug-in for power.

For instructions on wiring to the LC unit, refer

to the chapter of the component you are

interfacing with.

Note: P3 pins 1 and 2 come from the factory

with a jumper wire between them (see page 2-6).

Figure 2.5 The LC unit

2-4 The LC unit LC 1200 Manual

A Look Inside

 LEDs

 Jumpers

 Potentiometers

 Tamper Switch

 Terminals

Let’s take a look at a simplified version of the

inside of the LC unit (Figure 2.6).

Figure 2.6

The LC unit PCB (modified for simplicity)

LEDs

LED1 (Tx Gain Level) (Yellow)

This LED indicates the strength of the Tx

Activation Field. The size of the Tx Activation

Field determines the “range” of the LC unit to

activate Tags and take appropriate action. LED1

should be illuminated when the LC unit has

power.

LED2 (Rx Indicator 1) (Red)

This LED indicates a 418 MHz signal is present

in the immediate area (not necessarily a valid

Tag). For Tag validation, see LED5.

LED3 (Rx Indicator 2) (Red)

This LED indicates a 418 MHz signal is present

in the general area (not necessarily a valid Tag).

For Tag validation, see LED5.

LED4 (Delayed Tag Detect) (Yellow)

This LED indicates the Delayed Tag Detect is

active. The LC unit uses Delayed Tag Detect to

assure complete coverage and prevent relay

contact damage.

LED5 (Real-time Tag Detect) (Red)

This LED indicates an active valid Tag in the

area.

Jumpers

JP1 (Frequency Select) Default position: IN 1-2

Available frequency written on sticker.

This jumper is used to select the operating

frequency of the LC unit.

JP2 (Tone Enable) Default position: IN

This jumper controls the internal peizo. This

jumper should only be removed during service

to the LC unit since it disables audible

notification of all internal alarms (i.e., Egress,

Tamper, and Power Loss Supervisor).

LC 1200 Manual The LC unit 2-5

Potentiometers

NOTE:

 Environmental conditions may cause a

need to deviate slightly from the

potentiometers’ default settings (Figure

2.7).

 Each LC unit should be tuned properly

for its environment during installation.

 All potentiometers are increased

clockwise.

C2 (Tuning capacitor)

Default setting: Varies

Looser setting yields lower frequencies

Tighter setting yields higher frequencies

This capacitor maximizes the Tx Activation

Field strength of the chosen frequency.

R4 (Tx Gain)

Default setting: Full scale

This potentiometer controls the range of the Tx

Activation Field on a properly tuned unit.

R16 (Rx Gain)

Default setting: Half scale

This potentiometer controls the gain of the

received signal amplifier.

R26 (Rx Sensitivity)

Default setting: Half scale

This potentiometer controls the sensitivity of the

internal receiver.

R32 (Volume Control)

Default setting: Full scale

This potentiometer controls the volume of the

internal peizo.

R43 (Tag Detect Delay)

Default setting: Half scale (9 seconds)

This potentiometer sets the Tag Detect Delay

time (2 to 18 seconds).

Figure 2.7 Potentiometers

Tamper Switch

The Tamper Switch (S1) (Figure 2.8) is

provided to prevent unauthorized access to the

LC unit. An alarm will be generated if the LC

unit cover is removed (power to the unit is

required).

Figure 2.8 Tamper Switch

2-6 The LC unit LC 1200 Manual

Terminals

Below is an explanation of each terminal on an

LC unit (Figure 2.9).

P1

P1-1 (Perimeter Door Out)

P1-2 (Perimeter Door In)

These contacts control the Perimeter Door

function of the LC unit:

 When a jumper is installed between these

two terminals, the Perimeter Door function

is disabled (Factory Default).

 When a jumper is not present between

these two terminals, the Perimeter Door

function is enabled and the door will

remained locked at all times. A reset-

authorizing device such as a Keypad

would be required to gain access through

the door. If present, Delayed Egress

Circuitry will function as normal. No Tag

needed for alarms. Typically used with a

Day/Night Timer (see Chapter 13).

 For more information on the Perimeter

door function, see page 4-3.

P2

P2-1 (Reset Out)

P2-2 (Reset In)

Closure across these contacts allows the unit to

be reset.

P2-3 (Door Switch Out)

P2-4 (Door Switch In)

Closure across these contacts means the door is

closed. Also used for Passive Infrared Readers.

P2-5 (Alarm NC)

P2-6 (Alarm Comm)

The dry contacts are used to interface to external

peripherals in the event of an alarm.

P3

P3-1 (Tag Detect)

The Tag Detect contact is a low going signal to

external peripherals.

P3-2 (+12V DC)

P3-3 (+12V DC)

P3-4 (Ground)

BC1 – Battery Clip Cover

If a battery is not used for the Power Loss

Supervisor function then leave the provided clip

protector on or place electrical tape over the

contacts.

Figure 2.9 Terminals (modified for simplicity)

LC 1200 Manual The LC unit 2-7

Tamper Switch adjustment

The Tamper Switch (S1) (Figure 2.10) is

provided to prevent unauthorized access to the

LC unit. An alarm is generated if the LC unit

cover is removed (i.e., the Tamper Switch clip is

open).

During normal use, the Tamper Switch clip is

held closed with pressure between the contact of

the clip and the outside case (see Figure 2.11).

After initial installation and wiring, replace the

outside cover and enter a Keypad reset. If you

receive a Tamper alarm, it may be necessary to

adjust the Tamper Switch to maintain good

contact with the outside case.

Using needle-nosed pliers, gently bend the

Tamper Switch clip slightly outward (see Figure

2.11). Make only one or two small adjustments,

as repeated bending can cause the metal to

break.

Replace the LC unit cover and enter a Keypad

reset. If a Tamper alarm persists, repeat the

procedure until a good contact is made between

the Tamper Switch clip and the outside case.

Figure 2.10 Tamper Switch

Figure 2.11 Tamper Switch with adjustment

2-8 The LC unit LC 1200 Manual

Tuning

 Notify staff and security

 Why tune the LC unit?

 Tuning an LC unit

 Adjusting the Tx Activation Field

 Stagger Tuning

Notify staff and security

Whenever making adjustments to an LC unit,

notify staff and security and remind them they

will need to pay special attention to area traffic

during this time.

Why tune the LC unit?

The LC unit comes from the factory tuned to

typical parameters that will be effective under

most circumstances. However, there are 3

possible reasons to tune:

a. During initial installation to

accommodate special environmental

conditions. This is the most likely

reason to tune since every zone should

be tested and adjusting during initial

installation to assure proper coverage.

b. The unit had to be mounted close to a

metal object during installation and was

detuned.

c. Stagger Tuning was implemented.

IMPORTANT:

A Tamper alarm will be generated when you

remove the LC unit cover or if you remove

power from the unit (and a 9V NiCAD

battery is installed) a Power Loss Supervisor

alarm will be generated.

Tuning an LC unit

To tune the LC unit, refer to Figure 2.6 and use

the following instructions:

1. Notify staff and security that you will be

adjusting the zone and they will need to

pay special attention to area traffic

during this time.

2. Open the LC unit cover by removing the

two spanner screws. A Tamper alarm

will be generated.

3. Silence the Tamper alarm by removing

jumper JP2 (Tone Enable).

4. Adjust potentiometer R4 (Tx Gain) until

LED1 is dim. This is done so that you

can detect minor light changes on LED1

while you are tuning the unit.

5. Slowly adjust C2 (Tuning capacitor)

until LED1 is as bright as possible.

6. Adjust R4 (Tx Gain) until LED1 is as

bright as possible.

7. Confirm the zone has adequate coverage

and readjust as necessary (see Chapter

15: System Maintenance & Testing).

8. Replace jumper JP2 and the LC cover

with spanner screws.

9. Reset the zone by entering a valid code

into the zone Keypad.

LC 1200 Manual The LC unit 2-9

Adjusting the Tx Activation Field

The Tx Activation Field can be reduced or

expanded to match each unique zone’s needs.

Each monitored zone may have circumstances

that require an adjustment to the range of the Tx

Activation Field. The most common reason is

that the Field is overlapping or “bleeding” into

other areas.

IMPORTANT:

A Tamper alarm will be generated when you

remove the LC unit cover or if you remove

power from the unit (and a 9V NiCAD

battery is installed) a Power Loss Supervisor

alarm will be generated.

To adjust the range of the Tx Activation Field,

refer to Figure 2.6 and use the following

instructions:

1. Notify staff and security that you will be

adjusting the zone and they will need to

pay special attention to area traffic

during this time.

2. Open the LC unit cover by removing the

two spanner screws. A Tamper alarm

will be generated.

3. Silence the Tamper alarm by removing

jumper JP2 (Tone Enable).

4. Slowly adjust potentiometer R4 (Tx

Gain) on the LC unit. Turn

counterclockwise to reduce the range of

the Field (LED1 is dim), turn clockwise

to expand the range of the Field (LED1

is bright).

5. As you adjust, use a Tag to test the

range of the Field to ensure there is

adequate coverage for the zone.

6. Replace jumper JP2 and the LC cover

with spanner screws.

7. Reset the zone by entering a valid code

into the zone Keypad.

2-10 The LC unit LC 1200 Manual

Stagger Tuning

Stagger Tuning allows monitored zones to be

located closer than the normal minimum 70 feet

distance by using different Tx operating

frequencies for adjacent zones.

When two LC units are close enough to “see” a

Tag in the other zone, you should implement

Stagger Tuning. This will help keep egress

alarms associated with the appropriate LC unit.

To implement Stagger Tuning, refer to Figure

2.6 and use the following instructions:

1. Notify staff and security that you will be

adjusting the zone and they will need to

pay special attention to area traffic

during this time.

2. Open the LC unit cover by removing the

two spanner screws. A Tamper alarm

will be generated.

3. Silence the Tamper alarm by removing

jumper JP2 (Tone Enable).

4. Remove power to the LC unit by

unplugging the unit or removing the P3

terminal block

5. The LC unit comes from the factory

with 2 different crystals, normally Y1

(130 KHZ) and Y2 (132 KHZ).

6. Jumper JP1 on the LC unit selects which

crystal frequency is in use. Position 1-2

selects crystal Y1. Position 2-3 selects

crystal Y2. Place the jumper in the

desired position.

7. Restore power to the LC unit after you

have set the jumper in place.

8. Retune the zone (see page 2-7).

9. Confirm the frequency has been

changed by testing the zone. Generate

an alarm in the adjacent zone and make

sure it does not alarm in the current zone

and then test again vice versa.

10. When finished, replace jumper JP2 and

the LC cover with spanner screws.

11. Reset the zone by entering a valid code

into the zone Keypad.

IMPORTANT:

A Tamper alarm will be generated when you

remove the LC unit cover or if you remove

power from the unit (and a 9V NiCAD

battery is installed) a Power Loss Supervisor

alarm will be generated.

LC 1200 Manual

Chapter 3:

Tags & TAD (Part #s 77L016, 67L016, 660021)

LC 1200 Manual Tags & TAD 3-1

Tags & TAD

 Overview

 Tag material

 Attaching Tags

 Tag and Band Maintenance

 LED Tag

 The TAD

Overview

The LC system uses LC 1200 System Tags

(Figure 3.1). The Tags have two styles –

 LT (Long Term) (Part # 77L016)

 SB (Slotted Back) (Part # 67L016)

The Tag band (Part # 100901) is made of

nylon-mesh-reinforced vinyl (latex-free).

The band is designed to resist tearing caused

by pulling or chewing on the band.

However, if the band becomes frayed or torn

it will need to be replaced. In long-term

applications, the band should be replaced

periodically for cleanliness.

or

LT SB

Figure 3.1

LT and SB Tag styles (bands not shown)

Tag material

The Tag case is made of FDA-approved

Lexan® plastic and the Tag band is latex-

free.

Attaching LT/SB Tags

To attach an LT/SB Tag to the resident use

the following instructions:

1. With the snaps pointing in the same

direction as the Accutech logo, slide

the plastic band through the Slot.

(Figure 3.2).

Figure 3.2 Attaching LT Tag style

2. Adjust the band length to the nearest

accommodating hole for a

comfortable fit around the resident’s

extremity.

NOTE: Once the band is secured, it

cannot be adjusted.

3. Put the male part of the Snap

through the selected hole.

4. Fold over the female part of the

Snap and secure to the male part by

squeezing until they snap together.

5. Using scissors, trim any excess band

material (Figure 3.3).

Figure 3.3 Securing the band

3-2 Tags & TAD LC 1200 Manual

6. Follow the same procedure for SB

Tags (Figure 3.4).

Figure 3.4 Attaching SB Tag style

Tag and Band Maintenance

 Testing Tags

 Cleaning Tags

 Cleaning Bands

 Storing Tags

 Storing Bands

Testing Tags

For maximum protection of residents or

assets, Accutech recommends that Tags be

tested on a weekly basis.

There are 2 ways that you can test Tags:

 Enter a monitored zone

 With a TAD (see page 3-5)

Cleaning Tags

All Tags are reusable but they must be

cleaned and sanitized between applications.

In long-term applications, periodically

replace the bands and clean the Tags.

There are a few methods that can be used to

clean and sanitize Tags:

However, DO NOT:

 Do not soak Tags in cleaning solutions

 Do not put Tags in an AutoClave

 Do not put Tags in a dishwasher

 Do not steam clean Tags

 Do not put Tags in a washing machine

or dryer

 Do not use solvents or abrasive

cleaners

Acceptable Tag Cleaning Methods:

 Antibacterial wipes

 Hydrogen peroxide (wipe, do not soak)

Cleaning Bands

All Tag bands are for one-time use only. In

long-term applications, periodically replace

the bands and clean the Tags.

Storing Tags

Ideally, to preserve battery life, Tags should

be turned off with a TAD during storage.

If for any reason your TAD is unavailable

and you have active Tags no longer in use,

store them in a metal container with lid and

away from sources of electrical noise (see

below).

Do not store Tags within 3 feet of any of the

following sources of electrical noise:

 Computer monitors

 Unshielded computer cables

 Television sets

 Medical Monitoring Equipment

 X-ray and other imaging equipment

 Fluorescent Lighting

 Wireless Communication Devices

Storing Bands

Extra Tag bands should be stored in clean

and dry environment.

LC 1200 Manual Tags & TAD 3-3

LED Tag

 Verifying Proper Zone Coverage

 Identifying Foreign Tag-Activating

Sources

DISCLAIMER: Due to each facility’s

unique environment, an LED Tag cannot

give an exact measurement of zone

coverage; it can only give an estimation of

zone coverage.

Verifying Proper Zone Coverage

An LED Tag (Part # 660008; Figure 3.5) is

used to verify proper zone coverage during

installation, adjustment, or testing of a

monitored zone.

Proper zone coverage fully protects the

intended area (door, elevator, hallway, or

any other passageway) without extending

into other areas (in front, in back, on sides,

above, and beneath the intended area).

Monitored zones emit a Tag-activating

signal called the Tx Activation Field. When

a Tag enters a zone’s Tx Activation Field,

the system will detect the Tag and take

appropriate action response.

An LED Tag can detect a zone’s Tx

Activation Field without causing alarms

making it a quick and easy way to verify

proper zone coverage. This is not only

useful in ensuring complete zone coverage

but also in locating areas where a Tx

Activation Field may be extending into

common areas and causing nuisance alarms

or locating sources of electrical noise.

To verify proper zone coverage with an

LED Tag, use the following instructions:

1. Using a TAD, activate the LED Tag.

NOTE: The Signal Strength LEDs

of the TAD will not indicate the

state of the LED Tag. Once

activated the LED Tag’s LED will

illuminate when it is in a Tx

Activation Field. Therefore, to

verify the LED Tag is active, turn

on the TAD and place the LED Tag

near it. The LED Tag’s LED should

illuminate (since a TAD has a small

Tx Activation Field associated with

it).

2. With the LED Tag in your hand,

slowly approach each zone at

various angles and orientations. The

LED Tag’s LED will illuminate

when it detects the zone’s Tx

Activation Field.

Figure 3.5 The LED Tag

3. If you find that a zone’s coverage is

at unacceptable levels (too small,

too big, extends too far in one

direction), look for factors that may

be affecting the zone (food carts,

medical equipment, and/or building

construction).

4. If you cannot locate any immediate

causes, contact your system

maintenance technician for further

assistance.

5. When finished, deactivate the LED

Tag using a TAD.

3-4 Tags & TAD LC 1200 Manual

Identifying Foreign Tag-Activating

Sources

In addition to verifying proper zone

coverage, an LED Tag (Figure 3.5) can be

used to identify foreign Tag-activating

sources to help preserve your Tags’ battery

life and prevent nuisance alarms.

Monitored zones emit a Tag-activating

signal called the Tx Activation Field. When

a Tag enters a zone’s Tx Activation Field, it

is activated. The system detects the activated

Tag and takes appropriate action response.

However, there are sources that can activate

a Tag other than a Tx Activation Field.

When Tags are activated by these “foreign”

sources, battery life is depleted and/or

nuisance alarms can be caused. Therefore,

identifying these sources will prolong Tags

battery life and prevent nuisance alarms.

To identify activating sources with an LED

Tag, use the following instructions:

1. Using a TAD, activate the LED Tag.

NOTE: The Signal Strength LEDs

of the TAD will not indicate the

state of the LED Tag. Once

activated the LED Tag’s LED will

illuminate when it is in a Tx

Activation Field. Therefore, to

verify the LED Tag is active, turn

on the TAD and place the LED Tag

near it. The LED Tag’s LED should

illuminate (since a TAD has a small

Tx Activation Field associated with

it).

2. With the LED Tag in your hand,

slowly investigate each area for

possible activating sources*. The

LED Tag’s LED will illuminate

when it detects an activating source.

3. Note each activating source and

keep Tags away from those sources.

4. When finished, deactivate the LED

Tag using a TAD.

*Some activating sources can be:

 Computer Monitors

 Unshielded computer cables

 Television Sets

 Medical Monitoring equipment

 X-ray and other imaging equipment

 Fluorescent Lighting

 Wireless Communication Devices

LC 1200 Manual Tags & TAD 3-5

The TAD

 TAD Overview

 The “Active Band Removal or Low

Battery on Tag” LED

 The “WAIT” LED

 The “Signal Strength” LEDs

 Using the TAD to activate/deactivate

Tags

 Testing Tags with a TAD

 TAD Troubleshooting Tips

 Locating Lost Tags

TAD

The TAD (Tag Activator/Deactivator)

(Part # 660021; Figure 3.6) is used to check

the functionality of an Accutech Tag.

Accutech Tags operate by internal battery.

Over the course of normal operation, Tags

eventually lose battery power and the Tags

will need to be replaced. The TAD is used to

determine if a Tag has sufficient battery

power to respond to an activating signal.

The TAD requires a 9-volt battery to

operate.

The TAD is used to activate Tags and is

compatible with LT and SB Tag styles.

Figure 3.6 The TAD

The “Active Band Removal or Low

Battery on Tag” LED

A TAD can detect the low battery bit of

Tags. Simply turn on the TAD and place a

Tag behind the TAD. If the Tag’s battery is

low (e.g., low enough that the Tag’s

operation is diminished below an acceptable

level) the “Active Band Removal or Low

Battery on Tag” LED will blink rapidly. The

Tag should then be replaced.

The Active Band Removal function of this

LED is not applicable to LC systems.

The “WAIT” LED

The “WAIT” LED illuminates briefly during

Tag activation/deactivation. Do not move

the Tag while the “WAIT” LED is

illuminated.

The “Signal Strength” LEDs

The “Signal Strength” LEDs of the TAD

indicate:

 The current state of a Tag (on or off)

(Both LEDs will illuminate)

 Tag is Very Near (within approx. 6

inches*)

(Both LEDs will illuminate)

 Tag in Area (within approx. 2 feet*)

(Left LED will illuminate)

*Inexact due to variations of the remaining Tag

battery power, remaining TAD battery power, and if

the Tag is alarming in Band Removal.

DISCLAIMER:

A TAD reading is in no way meant to be

a replacement for taking a Tag to an

active zone to test the range capability

of the Tag. When you use a TAD all you

really know is that the Tag has enough

power to respond; it is not an indication

of the range capability. In order to check

the range capability of a Tag, you must

take it to an active zone.

3-6 Tags & TAD LC 1200 Manual

Using the TAD to activate/deactivate Tags

To activate/deactivate Tags using the TAD (Figure 3.6

and 3.7), use the following instructions:

1. With no Tag in the TAD, slide the Power

switch to the On position. The TAD Power

LED illuminates. If it doesn’t, check the TAD’s

9-volt battery.

NOTE: If a Tag is in the receptacle and the

power to the TAD is cycled, the Tag may be

turned on or off unintentionally.

2. Place the Tag into the tag receptacle on the

back of the TAD unit in proper orientation for

the Tag type (Figure 3.7).

3. The Signal Strength LEDs on the TAD indicate

the current state (on or off) of the Tag.

4. The Signal Strength LEDs indicate:

a. Tag is Very Near – A Tag is very close

to the TAD (within approximately 6

inches).

b. Tag in Area – A Tag is nearby the

TAD (within approximately 2 feet)

5. To change the state of a Tag (from either on to

off or off to on), press and release the “TAD”

button. The WAIT LED will illuminate for

about a second (Do not remove Tag while

WAIT LED is on) and the Signal Strength

LEDs will change accordingly.

6. Once activated, if the “Active Band Removal

or Low Battery on Tag” LED blinks (indicating

low Tag battery), the Tag should be replaced.

7. Turn off the TAD.

Figure 3.7 Proper Tag orientation

LC 1200 Manual Tags & TAD 3-7

TAD Troubleshooting Tips:

If the Signal Strength LEDs do not illuminate

after repeated attempts to turn a Tag on with the

“TAD” button, the Tag may not be functioning.

Set it aside and try to activate another Tag. If no

Tags can be activated, consider that your TAD

may not be functioning (even if the Power LED

is on). Try another TAD unit to activate Tags.

Testing Tags with a TAD

Accutech systems respond to RF signals

generated by the Tags. When an active Tag

enters a monitored zone, the zone detects the

Tag signal and takes the appropriate response

action. A TAD is like a mini zone. It can detect

an active Tag signal.

A TAD can test the following Tag functions:

 Tag state (on or off)

 Low Battery on Tag (Tag must be

within 6 inches of the TAD to detect)

NOTE: Keep in mind when using a TAD to test

a Tag all you really know is that the Tag has

enough power to respond; it is not an indication

of the range capability. In order to check the

range capability of a Tag, you must make take

and test it at an active zone.

To test a Tag with a TAD, use the following

instructions:

1. With no Tag in the TAD, slide the

Power switch to the On position. The

TAD Power LED illuminates. If it

doesn’t, check the TAD’s 9-volt battery.

CAUTION: If a Tag is in the receptacle

and the power to the TAD is cycled, the

Tag may be turned on or off

unintentionally.

2. Place the TAD near the Tag.

3. The Signal Strength LEDs indicate the

current state (on or off) of the Tag. They

should be on. If they are not, the Tag

should be replaced.

4. The Signal Strength LEDs indicate:

Tag is Very Near – A Tag is very close

to the TAD (within approximately 6

inches).

Tag in Area – A Tag is nearby the TAD

(within approximately 2 feet).

5. If the “Active Band Removal or Low

Battery on Tag” LED blinks (indicating

low Tag battery) the Tag should be

replaced.

6. When finished, move the TAD away

from the Tag and then turn off.

Locating Lost Tags

Most lost Tags are brought to a staff’s attention

because they are causing alarms in a zone;

however, since monitored zones may cover large

areas, finding the exact location of the Tag can

be difficult. Using a TAD can help pinpoint the

location of a lost Tag.

3-8 Tags & TAD LC 1200 Manual

Accutech systems respond to RF signals

generated by the Tags. When an active Tag

enters a monitored zone, the zone detects the

Tag signal and takes the appropriate response

action. A TAD is like a mini zone. It can detect

an active Tag signal. Although not as powerful

as an actual monitored zone, a TAD can be

useful in locating active lost Tags.

In order for a TAD to detect a lost Tag, the Tag

has to be active and be in the range of a

monitored zone.

To locate an active lost Tag, use the following

instructions:

1. Turn on the TAD and observe the

“Signal Strength” LEDs as you slowly

wave the TAD side to side in front of

you. Their intensity will change as you

get closer or farther away from the

active lost Tag.

NOTE:

Initially as you search the zone you will

get the Signal Strength LED(s) to blink

once or twice. Search the zone slowly in

a systematic pattern until both LEDs are

illuminated. When searching remember

to check the backsides of walls and

doors.

2. The “Signal Strength” LEDs of the TAD

indicate*:

 Left LED - Tag in Area

(within approximately 2 feet**)

 Right LED - Tag is Very Near

(within approximately 6

inches*)

*Inexact due to variations of

the remaining Tag battery

power, remaining TAD battery

power, and if the Tag is

alarming in Band Removal.

**For a Tag to be detected by the TAD at this

range the Tag must be being activated by

another source such as at a monitored zone since

the TAD is not strong enough to activate Tags

by itself at this range.

***Furthermore, it is helpful to turn off the zone

when searching for the lost Tag. Notify staff and

security when you do this. Leaving the zone

turned on can mislead your search since the

TAD will detect the zone’s signal as well as the

Tag’s signal.

Some places to look:

 Clothes hanging on the back of doors

 Desk or cabinet drawers

 Laundry baskets

 Underneath beds, dressers, tables

 Behind doors, curtains, dividers

 Waste baskets

LC 1200 Manual

Chapter 4:

The Magnetic Switch (Part # 650514)

LC 1200 Manual The Magnetic Switch 4-1

The Magnetic Switch

 Specifications

 Positioning

 Mounting

 Wiring

 Double Door Applications

 Perimeter Door Applications

Magnetic Switches (Part #650514; Figures 4.1-4.2;

GRI 29 Series) are used on doors where alarm

activation is not desired unless the door is

opened when a Tag is in the Tx Activation Field.

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

No power required;

dry contacts rated for 175V DC

Temperature

Magnetic Switches operate best in an ambient

temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range may

cause unexpected or undesirable results,

including premature failure.

Weight

A Magnetic Switch weighs approximately 1.0

ounce.

Figure 4.1 Magnetic Switch parts

Positioning

Magnetic Switches are usually located at the top

of the monitored door on the doorstop. The part

that contains the Switch is mounted on the

header or doorframe, while the part that contains

the activating Magnet is mounted on the door

itself (see Figure 4.3). A recessed model is also

available.

For simplicity, in this manual the term

“Magnetic Switch” will reference the entire

Switch as a unit, not just the parts that contain

the contacts.

Position the Magnetic Switch so that it is nearest

the latch side of the door. If a Magnetic Lock is

used, mount the Switch closest to the latch side

and then the Lock immediately after it.

Figure 4.2 Magnetic Switch Dimensions

4-2 The Magnetic Switch LC 1200 Manual

Mounting

To mount the Magnetic Switch, refer to Figure

4.3 and use the following instructions:

1. After choosing your location, following

the hole pattern shown in Figure 4.2,

drill two 7/64” (0.109) mounting holes

in the doorframe to accommodate the

Switch. This size hole also coincides

with the self-tapping screws provided

with the Switch. Be careful not to drill

these holes oversize.

2. Drill a 5/16” (0.312) pass-through hole

in the doorframe to accommodate the

wire from the LC unit to the Switch.

NOTE: This door frame hole should be

drilled so that the wire will come up just

under the middle screw terminal (N.C.)

of the switch. This hole can be drilled a

little smaller, but not larger. If this hole

is drilled too far out from the body of

the Switch, then the Switch cover will

not be able to hide this hole. Be sure to

“de-burr” this hole.

3. Fish the 2-conductor/22-gauge wire

through the large hole and strip enough

insulation to make a good connection to

the switch.

4. Connect the RED wire to the “COM”

terminal of the Switch.

5. Connect the BLACK wire to the “N.O.”

terminal of the Switch.

6. Gently guide the excess cable back

through the hole in the frame, while

moving the Switch into position over its

mounting holes.

7. While positioning the Switch, insert a

mounting screw through each hole and

secure the Switch in place.

NOTE: Be careful not to pinch the wires

when tightening.

8. Using the spacer provided in the kit,

position the Door Magnet as shown in

Figure 4.3 and mark where the mounting

holes (7/64”) will be drilled.

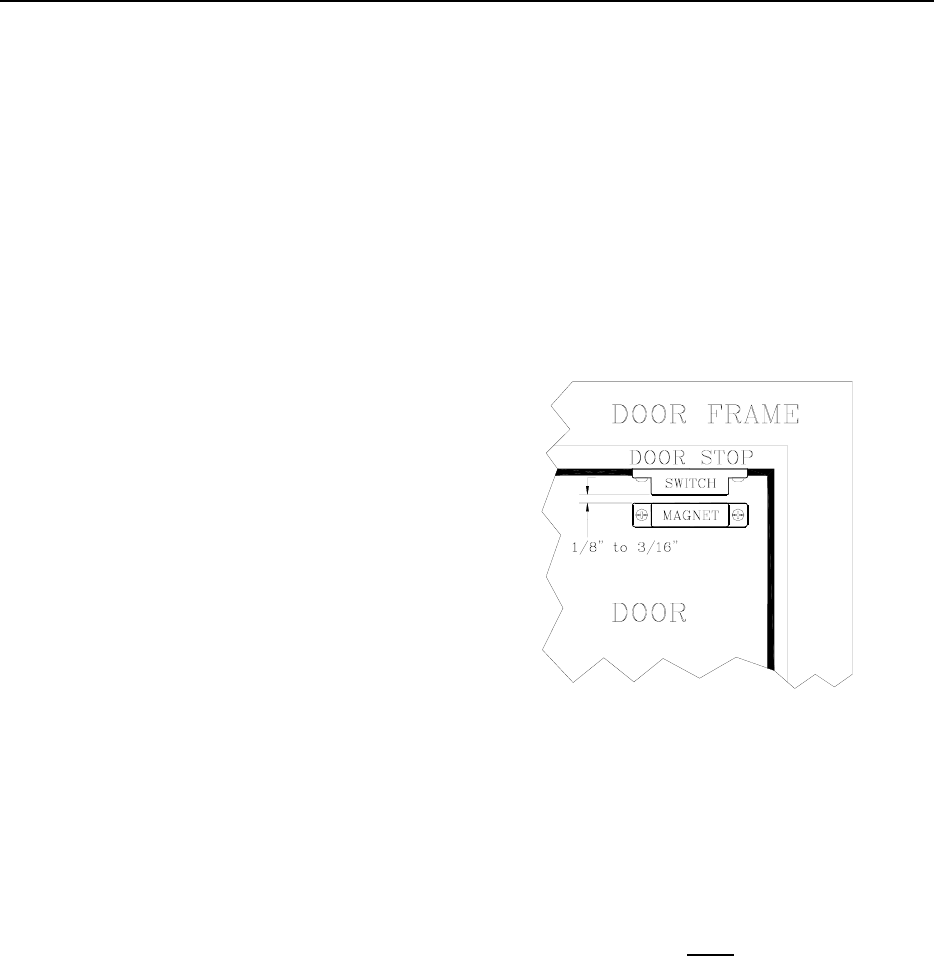

Figure 4.3 Mounting the Magnetic Switch

9. After you have marked and drilled your

holes, mount the magnet with the 1/8”

spacer in between the magnet and the

door.

NOTE: Remember, if the door frame is

metal, you must install the spacer in

between the magnet and the door or the

magnet will lose effectiveness.

LC 1200 Manual The Magnetic Switch 4-3

Wiring

You will need 22-gauge, 2-conductor plenum-

rated cable for this connection.

To wire the Magnetic Switch to the LC unit,

refer to Figure 4.4 and use the following

instructions:

1. Using the RED wire, connect “COM”

on the Switch terminal to P2-4 (Door

Switch In) of the LC unit.

2. Using the BLACK wire, connect

“N.O.” on the Switch terminal to P2-3

(Door Switch Out) of the LC unit.

Figure 4.4

Wiring the Magnetic Switch to the LC unit

Double Doors Applications

For double doors applications, connect the

Switches in series (Figure 4.5) so that one

Switch will open when either door is opened.

Figure 4.5

Wiring Two Magnetic Switches in Series

Perimeter Door Applications

 Perimeter Door (No Locks)

 Perimeter Door (Locks)

Perimeter Door (No Locks)

The LC unit can be made to function like a

perimeter door and alarm the instant a door is

opened regardless if there is a Tag in the zone.

To activate this mode, remove the jumper (or

terminal block) from P1 pins 1 and 2 (Perimeter

Door) of the LC unit. A Timer can also be used.

When in this mode, whenever the door is opened

(detected by the magnetic door position switch

or PIR tripped), the LC unit will alarm.

To reset the zone, close the door and enter a

valid code into the zone Keypad.

Perimeter Door (Locks)

The LC unit can be used as a perimeter door

access control device. When in this mode, the

door will remain locked (Magnetic Lock

energized) at all times and will require a valid

4-4 The Magnetic Switch LC 1200 Manual

Keypad code or a PBO to pass through the door.

If the zone uses a 3101 Magnetic Lock, the

Delayed Egress function would still be effect.

To use the LC unit as a perimter door access

control device, remove the jumper (or terminal

block) from P1 pins 1 and 2 of the LC unit. A

Timer can also be used.

To reset the zone, close the door and enter a

valid code into the zone Keypad.

LC 1200 Manual

Chapter 5:

Passive Infrared Reader (PIR) (Part # 300302)

LC 1200 Manual Passive Infrared Reader (PIR) 5-1

Passive Infrared Reader

(PIR)

 Specifications

 Positioning

 Mounting

 Wiring

 Adjusting the PIR beam angle

 PIR “Masking”

Passive Infrared Readers (PIRs) (Part # 300302;

Figure 5.1) are sensitive to changes in infrared

energy caused by an object moving across a

PIR’s field of view. Detection depends on the

difference between the infrared energy

trasmitted by the moving object and the

temperature of background objects.

The PIR Accutech provides (DSC Bravo Series)

is for indoor use only. Its intended use is to

detect movement through doors, corridors, and

passageways. The relay contacts provided by the

PIR (which control detect validation) can be set

to trigger on programmable timer between a

duration of 1 to 7 seconds.

A typical use for a PIR is a hallway, where there

is no door to mount a Magnetic Switch to, or an

elevator, where placing anything on the door or

frame of the car might be undesirable.

Figure 5.1 The Passive Infrared Reader (PIR)

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC; contact rating: 100 mA @ 24V DC

Temperature

A PIR operates best in an ambient temperature

between 35 and 90 degrees Fahrenheit.

Operation outside of this range may cause

unexpected or undesirable results, including

premature failure.

Weight

A PIR weighs approximately 2.8 ounces.

5-2 Passive Infrared Reader (PIR) LC 1200 Manual

Positioning

Position the PIR to have the best coverage

possible for your situation.

Accutech recommends ceiling mounting the PIR

(Figure 5.2) to assure complete and focused

coverage of the opening.

Wall mounting the PIR may result in detection

beyond the desired area (Figure 5.3). If you

decide to wall mount the PIR, “mask” the PIR to

reduce the range.

While positioning the PIR, keep in mind:

 The more precisely you place and focus

the PIR, the less likely you are to get a

nuisance alarm on a simple pass-by

instead of a true egress.

 The maximum coverage area of a PIR

wall-to-wall curtain is 50’L x 60’W.

 The PIR must be must be pointed at an

object (e.g., the floor) to be able to

detect.

 Do not point the PIR at reflective

surfaces such as mirrors or windows as

this may distort the coverage pattern or

reflect sunlight directly into the PIR.

 When mounting a PIR close to an

elevator, you can avoid nuisance

detection by locating the PIR at an

adequate distance away from the

elevator doors. The movement of air

caused by an operating elevator can

cause nuisance PIR detection.

Figure 5.2 Ceiling-mounted PIR

Figure 5.3 Wall-mounted PIR

Mounting

To mount the PIR, refer to Figure 5.1 and use

the following instructions:

1. Push in the tab at the bottom of the case

and pull the cover straight out at the

bottom.

2. Loosen the PCB screw and push the

board up as far as it will go.

3. Using a small screwdriver, remove the

appropriate knockouts for the mounting

screws.

4. Remove the left and/or right wiring

entrance knockouts located at the top of

the backplate.

LC 1200 Manual Passive Infrared Reader (PIR) 5-3

5. Mount the backplate to the wall using

the screws supplied.

NOTE: For wall and ceiling

installations, use the two knock-outs at

the back of the base. For corner or 45º

mounting use the knock-outs on the

angled sides. The unit must be fastened

securely to the mouting surface to avoid

possible vibrations.

Wiring

You will need 22-gauge, 4-conductor plenum-

rated cable for this connection.

To wire the PIR to the LC unit, refer to Figure

5.4 and use the following instructions:

1. Using the WHITE wire, connect ( C )

of the PIR to P2-3 (Door Switch Out) on

the LC unit.

2. Using the GREEN wire, connect (N.C.)

of the PIR to P2-4 (Door Switch In) on

the LC unit.

3. Using the BLACK wire, connect (GND)

of the PIR to P3-4 (Ground) on the LC

unit.

4. Using the RED wire, connect P1 (+12V)

of the PIR to P3-2 (+12V) on the LC

unit.

Adjusting the PIR beam angle

To change the angle of the PIR beam, use the

following instructions:

1. Loosen the PCB screw and move the

board up or down. The scale on the

lower right side of the board indicates

the angle.

2. Moving the PCB down will increase the

far range and move the near beams

farther out from the mounting wall.

3. Moving the PCB up will reduce the far

range and bring the near beams closer to

the mounting wall.

4. When finished adjusting, tighten the

adjustment screw in place.

5-4 Passive Infrared Reader (PIR) LC 1200 Manual

Figure 5.4 Wiring the PIR

LC 1200 Manual Passive Infrared Reader (PIR) 5-5

PIR “Masking”

If you have adjusted the PIR beam angle and the

area covered is still too large and is overlapping

into undesired areas, use the following

“masking” method to reduce the effective area

of the beams:

1. The PIR has 3 “beams.” The low beam

reaches about 10’, the middle beam

reaches about 30’, and the high beam

can reach 40-60’ (see Figure 5.3).

“Masking” a PIR means covering one or

more of the beams to reduce the PIR’s

range.

2. Place one strip of electrical tape

horizontally across the top of the PIR

lens (see Figure 5.5); this will cover the

high beam.

3. Test the range of the PIR.

4. If necessary, place another strip of tape

horizontally in the middle of the PIR

lens; this will cover the middle beam.

5. Test the range of the PIR.

6. OPTIONAL: If the PIR is extending too

far outward (to the sides), place stripes

of tape vertically on the sides of the PIR

lens (see Figure 5.6); this will cover all

outward beams producing a narrower

coverage area.

7. Test the range of the PIR.

Figure 5.5 PIR Masking horizontal example

Figure 5.6 PIR Masking vertical example

LC 1200 Manual

Chapter 6:

The Keypad (Part # 650202)

LC 1200 Manual The Keypad 6-1

The Keypad

 Specifications

 Positioning

 Surface Mounting

 Flush Mounting

 Wiring

 Programming

PLEASE NOTE:

For complete information about the Keypad,

consult the manufacturer’s manual.

The Keypad (Part # 650202; Figure 6.1) provided

by Accutech (the Visonic Ltd. CL-8A) is used to

escort residents through a monitored zone and to

reset zone equipment once an alarm has

occurred.

Figure 6.1 The Keypad

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC @ 55 mA

Temperature

The Keypad operates best in an ambient

temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range may

cause unexpected or undesirable results,

including premature failure.

Weight

The Keypad weighs approximately 4.4 ounces.

6-2 The Keypad LC 1200 Manual

Positioning

The Keypad should be located within 3 to 5 feet

of the monitored door or elevator. In hallway

applications, mount the Keypad just outside of

the zone to avoid alarm activation when

escorting a monitored resident.

Figure 6.2 Surface Mounting the Keypad

Surface Mounting

The Keypad is designed to be surface mounted

using the white back box provided.

To surface mount the Keypad, refer to Figure

6.2 and use the following instructions:

1. Using a screwdriver, separate the

Keypad from the white back box by

removing the two screws.

2. If you are using wire molding, push or

cut out the two knock-outs located on

the top and bottom of the white back

box for the wiring molding to interface

with the white back box.

3. If you are running cable behind the wall,

put or drill out the center knock-out in

the white back box to wire from behind

the wall into the white back box.

4. Drill out the four mounting knock-outs

in the white back box.

5. Using the white back box as a template,

mark all the holes that need to be drilled.

6. Drill the necessary holes in the

mounting surface.

7. Secure the white back box to the

mounting surface with appropriate

hardware.

8. Replace the Keypad to the white back

box using the two screws.

LC 1200 Manual The Keypad 6-3

Flush Mounting

If flush mounting is required, use a plastic single

gang electrical switch box, instead of the

original white back box (see Figure 6.3). A flush

mount box can be obtained from your local

building supply outlet.

CAUTION: The Keypad manual shows the use

of a standard single gang, metal electrical switch

box. Accutech does not recommend the use of

this type of box for two reasons:

1. The fit is very, very tight. If the wires

are stripped a little “long” as they enter

the terminal block they may short to the

side of the metal box.

2. If this is not new construction and an

electrical box with “zip” mounts is to be

retrofitted in the wall, these zip mount

tabs may actually protrude into the box

and then it will be impossible to fit the

Keypad circuitry inside the box.

If a metal box is required, you will need to find a

single gang box fitting the dimensions indicated

in Figure 6.3. You may find it easier to use a 4”

square metal box and then use one of the many

varieties of face plates available from your local

building supply outlet that will accommodate the

Keypad.

Figure 6.3 Flush Mounting the Keypad

6-4 The Keypad LC 1200 Manual

Wiring

You will need 22-gauge, 4-conductor plenum-

rated cable for this connection.

To wire the Keypad to the LC unit, refer to

Figures 6.4 and use the following instructions:

1. Unmount the Keypad from the white

back box and screws.

2. Remove the LC unit cover.

3. Feed the cable from the LC unit to the

Keypad through the raceway, conduit, or

wall and then through the access hole

you made in the white back box.

4. With the WHITE wire, pin 1 of the

Keypad to P2-5 (Alarm NC) of the LC

unit.

5. With the BLACK wire, connect pin 2 of

the Keypad to P3-4 (Ground) of the LC

unit.

6. With the RED wire, connect pin 10 of

the Keypad to P2-6 (Alarm Comm) of

the LC unit.

7. With the GREEN wire, connect pin 11

of the Keypad to P2-2 (Reset In) of the

LC unit.

8. Place a jumper connecting the Keypad

pins 2, 4, 6, and 10.

9. Place a jumper connecting the Keypad

pins 3 and 7.

10. Replace the LC unit cover and screws.

11. Remount the Keypad to the white back

box and screws.

12. OPTIONAL: If you wish to use the Tag

Detect feature of the Keypad, use a

separate 22-gauge, 2-condutor plenum-

rated cable to connect pin 4 of the

Keypad to P3-1 (Tag Detect) of the LC

unit (see Figure 6.5).

The Tag Detect feature of the Keypad

will cause the yellow LED of the

Keypad to illuminate when a Tag enters

the monitored zone.

LC 1200 Manual The Keypad 6-5

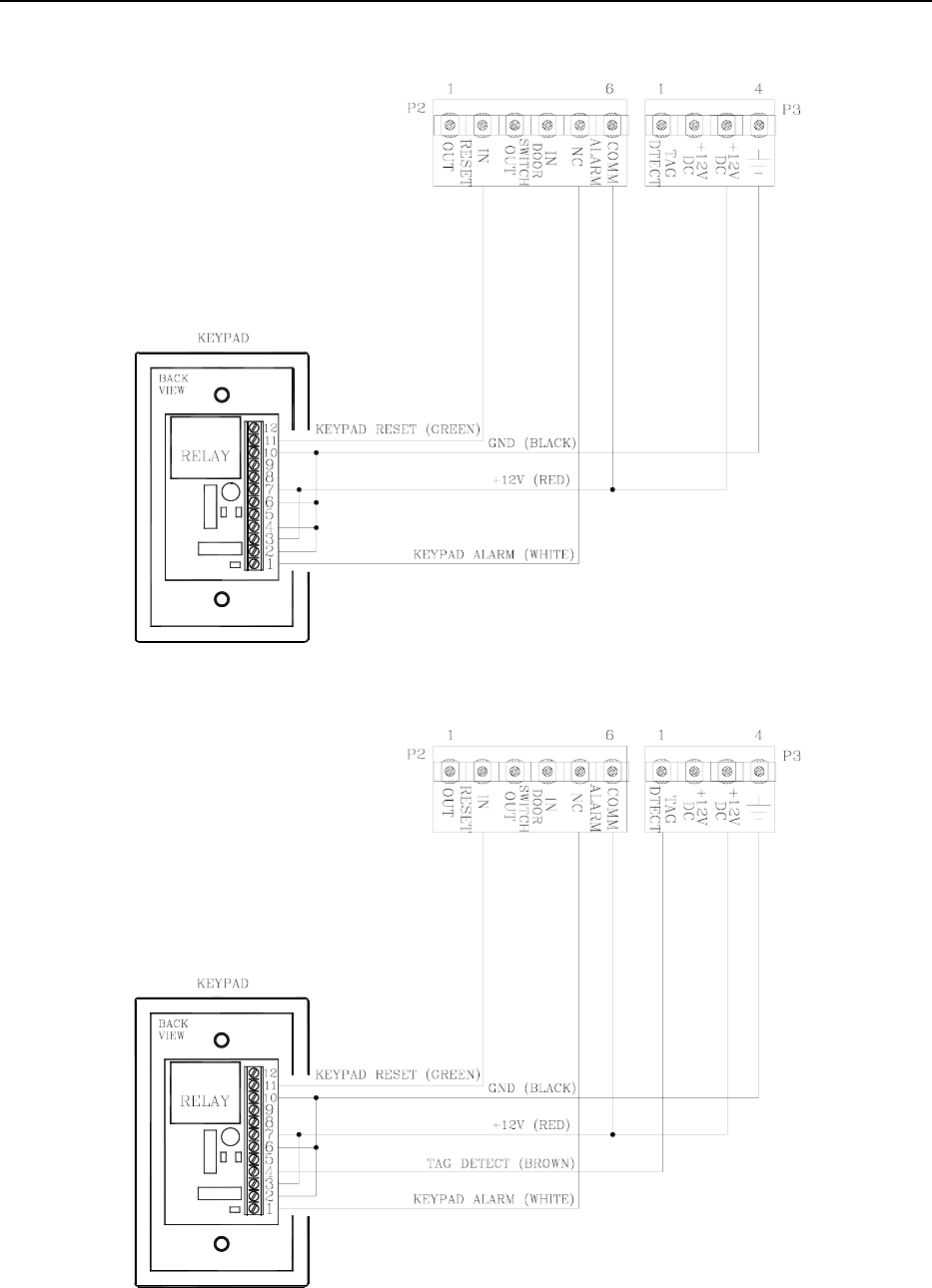

Figure 6.4 Wiring the Keypad to the LC unit

Figure 6.5 Wiring the Keypad to the LC unit with Tag Detect option

6-6 The Keypad LC 1200 Manual

Programming

 Initiating a Keypad Reset/Escort

 Programming the master code

 Programming user codes

 Deleting user codes

 Resetting the master code

 Adjusting the Keypad Escort Time

PLEASE NOTE:

For complete information about the Keypad,

consult the manufacturer’s manual.

The Keypad provided by Accutech (the Visonic

Ltd. CL-8A; Figure 6.6) is used to escort residents

through a monitored zone and to reset zone

equipment once an alarm has occurred.

Figure 6.6 The Keypad

Programming the Keypad is, in simple terms,

providing it with a set of instructions on how to

react in various contingencies. The Keypad must

be programmed as soon as all installation and

wiring have been completed. Later on, as

changes take place, partial or full

reprogramming may be carried out as many

times as necessary.

The Keypad’s EEPROM memory can store up to

56 different 1-8 digit user codes, each assigned

to an authorized individual user or to a group of

users.

The Keypad has three LED indicators. See Table

6.1 for their functions during normal operation.

Table 6.1 Keypad LED Indicators

LED Status Function

Green Off Zone Ready

On* Keypad Reset

or Escort Time

initiated

Yellow Off No Power or

No Tag

On Power

indicator or

Tag in Zone

indicator

(dependant on

installation)

Red Off Zone Normal

On Alarm

* During programming, the green LED functions

differently.

Initiating a Keypad Reset/Escort

To initiate a Keypad Reset or the Escort

function, enter a valid user code and press the

[#] key. The green LED will light.

Keypad Resets are used to reset zone equipment

after an alarm has been addressed. When you

initiate a Keypad Reset, all zone equipment and

alarms will be reset. However, if the alarm

condition is not properly corrected, the alarm

will resume.

The Keypad’s Escort function is used to escort

Tags through a monitored zone without

triggering alarms. When you initiate the Escort

function, for the duration of the Escort time, you

will be able to escort the Tag through the door,

hallway, or use an elevator without triggering

alarms.

LC 1200 Manual The Keypad 6-7

Programming the master code

The master code controls access to the Keypad’s

programming menu. The factory default master

code is [1][2][3][4], but after subsequent

programming, this default code will be

automatically superseded by user code No. 1,

which becomes the real master code.

The master code (User code No. 01) must be

tightly controlled at all times to prevent

unauthorized changes in the Keypad’s

programming; do not use this code for day-to-

day Keypad operation.

WARNING:

It is dangerous to continue using the factory

default master code [1][2][3][4] for day-to-

day Keypad operation! It is mandatory to set

a new master code, which will be used for

programming purposes only and not for

everyday requirements.

When programming note that:

 The [#] key functions like an “enter” key.

 In any Keypad operation, if any code is

entered 3 times or more incorrectly, the

Keypad will lockout for 10 minutes

(indicated by a green blinking LED).

 If you make an error while programming,

press [*] to return to the programming

menu.

To program the master code, use the following

instructions:

1. Invoke the programming menu by

entering [*][*][master code][*][*].

At this point we shall assume that the

factory default of [1][2][3][4] is still

valid (Figure 6.7). When the

programming menu is active, the green

LED flashes slowly, approximately once

every two seconds.

Figure 6.7

Entering the Programming Menu example

2. Enter [1] to select user code

programming. The green LED begins to

flash rapidly (approximately 5 times per

second) indicating that the Keypad is

ready to receive data.

3. Enter [0][1], followed by [#] for user

code number 1.

The green LED lights steadily for two

seconds and then returns to rapid

flashing indicating that the step has been

completed successfully

4. Enter the code to be used as the master

code followed by [#] (see Figure 6.8 for

example). The green LED lights steadily

for two seconds and then returns to rapid

flashing.

Figure 6.8 Code example

5. Repeat the user code followed by [#].

The green LED will acknowledge as in

the previous step.

6. Now select which outputs will be

tripped by the new master code, select

[3] for all outputs followed by [#]. The

green LED lights steadily for two

seconds and then flashes slowly,

indicating that the new master code has

been programmed successfully and that

6-8 The Keypad LC 1200 Manual

the Keypad has returned to the

programming menu.

7. Press

[#] to exit the programming menu

and return the Keypad to normal

operation.

Programming user codes

1. Prepare a list of user codes you want to

program.

2. Invoke the programming menu by

entering [*][*][master code][*][*].

When the programming menu is active,

the green LED flashes slowly,

approximately once every two seconds.

3. Press [1] to select user code

programming. The green LED begins to

flash rapidly (approximately 5 times per

second) indicating that the Keypad is

ready to receive data.

4. Enter the user number (02 through 52)

followed by [#]. For example, to

program user code number 2 you enter

[0][2] followed by [#]. The green

LED lights steadily for two seconds and

then returns to rapid flashing indicating

that the step has been completed

successfully.

5. Enter the code assigned to this user

followed by [#] (see Figure 5.3 for

example). The green LED lights steadily

for two seconds and then returns to rapid

flashing.

6. Repeat the user code followed by [#].

The green LED will acknowledge as in

the step above.

7. Now select which outputs will be

tripped by the user code, select [3] for

all outputs followed by [#]. The green

LED lights steadily for two seconds and

then flashes slowly, indicating that the

new user code has been programmed

successfully and that the Keypad has

returned to the programming menu.

8. Repeat steps 3 through 7 to program the

next user code or press [#] to exit the

programming menu and return the

Keypad to normal operation.

Deleting user codes

To delete individual or all user codes, use the

following instructions:

1. Invoke the programming menu by

entering [*][*][master code][*][*].

When the programming menu is active,

the green LED flashes slowly,

approximately once every two seconds.

2. Enter

[4] to select the user code deleting

function. The green LED will respond

by flashing rapidly indicating that the

Keypad is ready to receive data.

3. Enter the user number whose code you

wish to delete (02 through 56), or enter

[*][*] to delete all user codes and then

press [#].

The green LED will light steadily for 2

seconds and then will resume rapidly

flashing.

Note: The master code cannot be

deleted in this manner.

4. Enter the

[master code] once more,

followed by [#]. The green LED will

LC 1200 Manual The Keypad 6-9

light steadily for 2 seconds and will

return to slow flashing

5. Repeat steps 2-5 to delete another user

code or press [#] to exit the

programming menu and return the

Keypad to normal operation.

Resetting the master code

NOTE: The following operation should only be

performed by authorized personnel.

If you forget the master code, you will need to

reset the Keypad to the factory default master

code of [1][2][3][4] and then assign a new

master code.

NOTE:

This operation is time-sensitive. Please read

through all the instructions before beginning.

To reset the master code, use the following

instructions:

1. Open the Keypad’s case, revealing the

printed circuit board.

2. Install the jumper across the two pins

labeled JP2.

3. Using a screwdriver or jumper wire,

momentarily short circuit the pins

labeled JP1.

4. Wait ten seconds, remove the jumper

from JP2, and immediately enter

[1][2][3][4][#]. The green LED will

light steadily for two seconds and then

start flashing slowly, indicating that the

programming menu is active.

NOTE: The master code is temporarily

reverted to default [1][2][3][4].

However, all other data programmed

previously remains intact.

5. Program a new master code immediately

(see page 6.7) and record it in a secure

place.

Adjusting the Keypad Escort Time

To adjust the Keypad Escort Time, use the

following instructions:

1. Invoke the programming menu by

entering [*][*][master code][*][*].

When the programming menu is active,

the green LED flashes slowly,

approximately once every two seconds.

2. Enter

[2] to select the relay timer

function. The green LED will respond

by flashing rapidly, indicating that the

Keypad is ready to receive data.

3. Enter the escort time (two digits, from

01-98 seconds) and then press the [#]

key. For example to set the escort time

for 15 seconds, enter [1][5] followed

by [#].

The green LED will light steadily for 2

seconds and then will resume rapid

flashing.

4. Press [#] to exit the programming menu

and return the Keypad to normal

operation.

5. To verify the new escort time, enter a

valid user code to initiate the Escort

function. The green LED will illuminate

for the duration of the Escort time.

LC 1200 Manual

Chapter 7:

Push Button Override (PBO) (Part # 700022)

LC 1200 Manual Push Button Override (PBO) 7-1

Push Button Override

(PBO)

 Specifications

 Positioning

 Mounting

 Wiring to the Keypad

 Wiring to the LC unit

The Push Button Override (PBO) (Part # 700022;

Figure 7.1) triggers the Keypad’s Escort function;

this option overrides the presence of a Tag in the

zone to allow free access through the doorway

(no locks or alarms) from the non-Keypad side

of the door.

The PBO uses three LEDs:

 The Green LED indicates power.

 The Red LED indicates an alarm.

 The Yellow LED indicates the PBO has

been activated and the allotted escort

time is in progress. The time allotted to

pass through the doorway or zone is the

same as the Escort time on the Keypad.

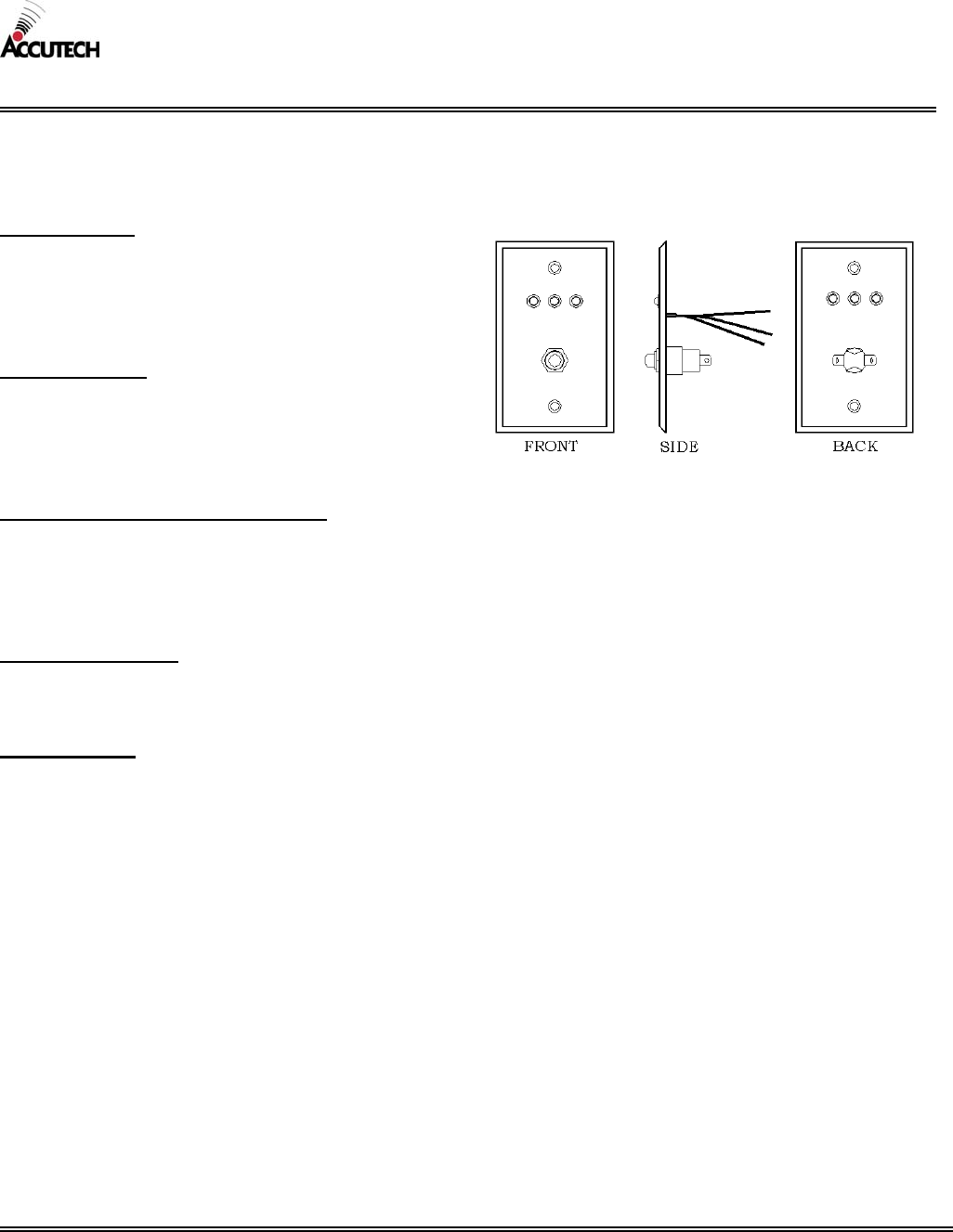

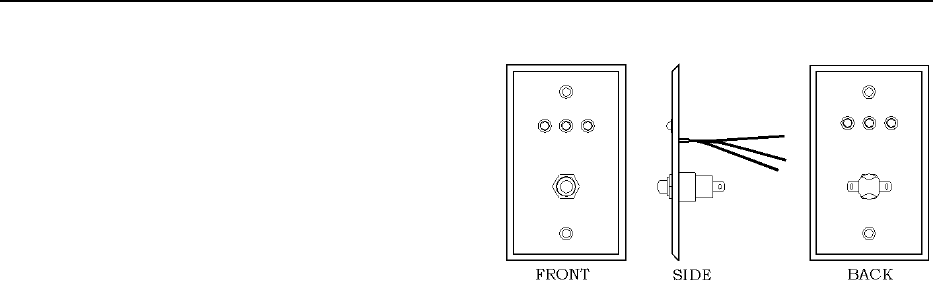

Figure 7.1 Push Button Override (PBO)

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC @ 55 mA

NOTE: The PBO triggers the Keypad; therefore,

the PBO current draw is based on the Keypad

used.

Temperature

The PBO operates best in an ambient

temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range may

cause unexpected or undesirable results,

including premature failure.

Weight

A PBO weighs approximately 4.3 ounces.

Positioning

The PBO should be positioned on the side of the

door opposite the Keypad. In other words, if the

Keypad is on the inside of the door, the PBO

should be on the outside of the door. The PBO

can be flush mounted or surface mounted using

the appropriate mounting box and hardware.

7-2 Push Button Override (PBO) LC 1200 Manual

Mounting

The PBO is designed to be surface mounted

using the back box provided.

To mount the PBO use the following

instructions:

1. Using a screwdriver, separate the PBO

from the back box.

2. Push out the back knock-out.

3. Using the back box as a template, mark

the mounting holes.

4. Drill the necessary holes in the

mounting surface.

5. Secure the back box to the mounting

surface with appropriate hardware.

6. Make any and all wire connections that

require the PBO to be unmounted.

7. Replace the PBO to the back box.

Wiring to the Keypad

You will need 22 AWG, 4 –conductor Plenum-

rated cable for installation.

NOTE: The following instructions assume that

the Keypad and LC unit are already wired. See

Chapter 6 for these instructions.

To wire the PBO to the Keypad, refer to Figure

7.2 and use the following instructions:

1. Remove the Keypad from the white

back box.

2. Remove the LC Unit cover.

3. Using the RED wire, connect (with a

spade crimp connector) the left prong of

the PBO plug to pin 5 of the Keypad.

4. Using the GREEN wire, connect (with a

butt splice) the negative (-) of the Green

LED of the PBO to pin 11 of the

Keypad which will also be connected to

“Reset In” of the LC unit.

LC 1200 Manual Push Button Override (PBO) 7-3

Wiring to the LC Unit

You will need 22-gauge, 4-conductor plenum-

rated cable for this connection.

Note:

The following instructions assume that the

Keypad and LC unit are already wired (see

Chapter 6 for these wiring instructions). If

desired, you can splice into these wires when

connecting a PBO for easier installation.

To wire the PBO to the LC unit, refer to Figure

7.2 and use the following instructions:

1. Remove the Keypad from the white

back box.

2. Remove the LC unit cover and screws.

3. Using BLACK wire, jumper the

negatives (-) of the Red and Yellow

LEDs together, then to the right prong

of the PBO plug (with a spade crimp

connector).

4. Continue from the right prong of the

PBO plug (with a spade crimp

connector) to the P3-4 “Ground” of the

LC unit).

Note: If desired, you can splice into the

BLACK wire already present from the

connection of the Keypad to the LC

unit.

5. Using RED wire, connect the positive

(+) side of the Yellow and Green LEDs

on the PBO to a Butt Splice, then to P3-

3 “+12V DC” of the LC unit.

Note: If desired, you can splice into the

RED wire already present from the

connection of the Keypad to the LC

unit.

6. Jumper P2-6 “Alarm Comm” and P3-3

“+12V DC” on the LC unit.

Note: This jumper should already be

present if the Keypad has been wired.

7. Using GREEN wire, connect the

negative (-) side of the Green LED to

P2-2 “Reset In” on the LC unit.

Note: If desired, you can splice into the

GREEN wire already present from the

connection of the Keypad to the LC

unit.

8. Using WHITE wire, connect the

positive (+) side of the Red LED to P2-5

“Alarm NC” of the LC unit.

Note: If desired, you can splice into the

WHITE wire already present from the

connection of the Keypad to the LC

unit.

9. Using RED wire and a spade crimp

connector, connect the left prong to the

PBO plug to Pin 5 of the Keypad.

10. Replace the LC unit cover and screws.

11. Replace the Keypad to its white back

box.

7-4 Push Button Override (PBO) LC 1200 Manual

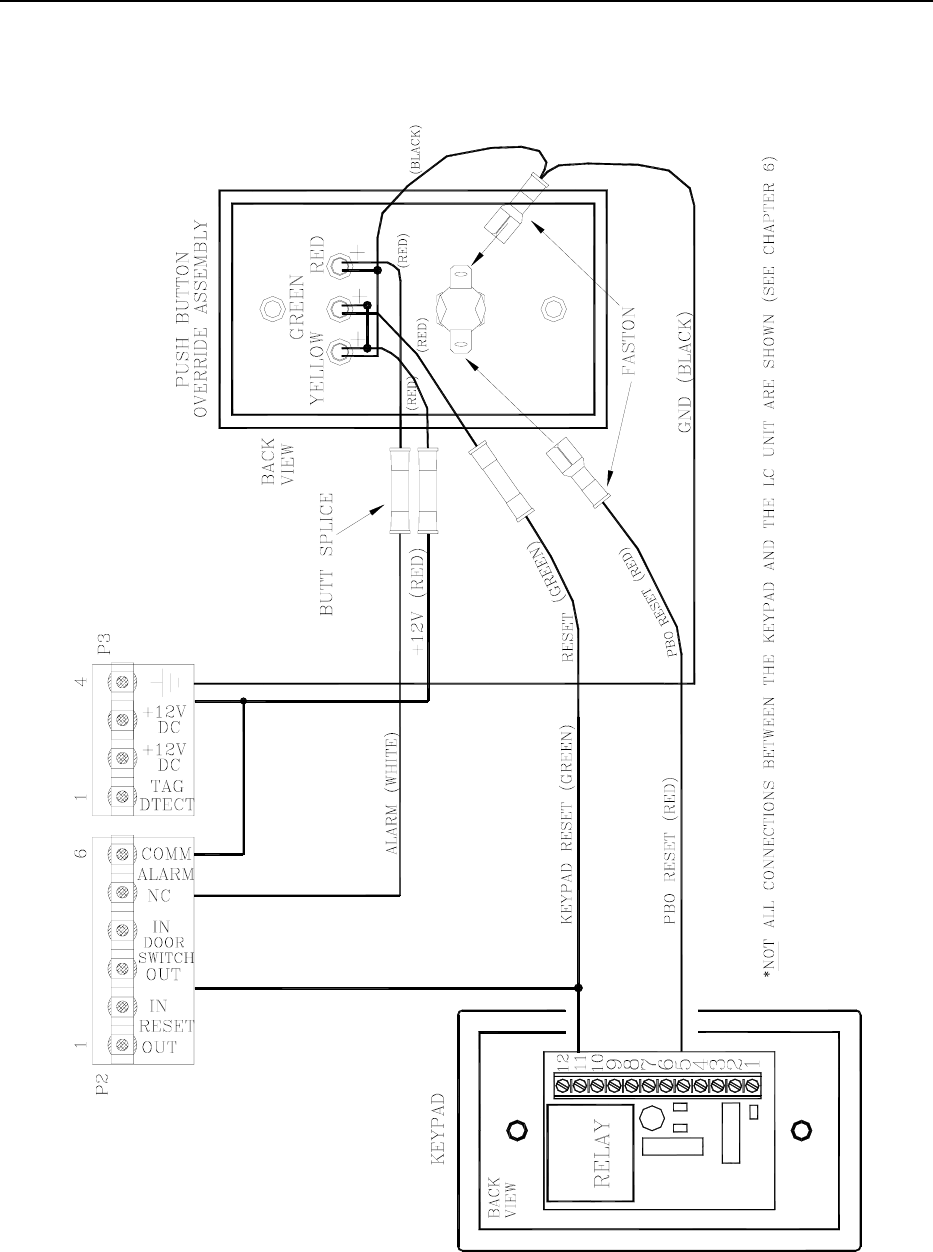

Figure 7.2 Wiring the PBO to the LC unit

LC 1200 Manual

Chapter 8:

External Sounders (Part #s 700216, 300150)

LC 1200 Manual External Sounders 8-1

External Sounders

 System Sensor sounder

 Multi-Tone Local Alert (MTLA)

PLEASE NOTE:

For complete information about an external

sounder, consult the manufacturer’s manual.

If desired, the LC unit can drive an external

sounder. Accutech provides two types of

external sounders: the System Sensor sounder

and Multi-Tone Local Alert (MLTA).

An external sounder will alarm simultaneously

with the internal peizo of the LC unit when an

alarm occurs and is silenced by a Keypad Reset.

An external sounder will not be silenced by

removing jumper JP2 (Tone Enable), however,

removing this jumper will disable audible

notification of all internal alarms (i.e., Egress,

Tamper, Power Loss Supervisor, and Perimeter).

System Sensor sounder

 Specifications

 Mounting

 Wiring

The System Sensor sounder (Part # 700216; Figure

8.1; System Sensor PA400 Series), a 90db at 10 feet

piezo-signaling device, is intended to attract

attention near the monitored zone.

Figure 8.1 System Sensor external sounder

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC

Temperature

The System Sensor sounder operates best in an

ambient temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range may

cause unexpected or undesirable results,

including premature failure.

Weight

The System Sensor sounder weighs

approximately 2.5 ounces.

8-2 External Sounders LC 1200 Manual

Mounting

Use a standard 2-1/2” deep single-gang box to

mount the System Sensor sounder with the two

mounting screws supplied at the desired

location.

Wiring

You will need 22-gauge, 2-conductor plenum-

rated cable for this connection.

To wire the System Sensor sounder to the LC

unit, refer to Figure 8.2 and use the following

instructions:

1. Using the RED wire, connect the

positive (+) terminal of the System

Sensor sounder to P2-5 (NC) of the LC

unit.

2. Using the BLACK wire, connect the

negative (-) terminal of the System

Sensor sounder to P3-4 (Ground) of the

LC unit.

3. Jumper P2-6 (Alarm Comm) to P3-3

(+12V DC) on the LC unit.

Figure 8.2 Wiring the System Sensor sounder

Multi-Tone Local Alert (MTLA)

 Specifications

 Mounting

 Wiring

The Multi-Tone Local Alert (MTLA) (Part #

300150; Figure 8.3; System Sensor Chime CH1224

Series), a wall-mount electronic chime, offers

multiple chime tones and is intended to attract

attention near the monitored zone.

The MTLA sound output is 54dBA at 12V DC

and 60dBA at 24V DC.

The chime has sixteen field-selectable tone

options, each with three volume settings. These

options are activated through the appropriate

settings on the DIP switch located on the rear of

the MTLA. Therefore, you can differentiate LC

units located in close proximity by using

separate tones.

Figure 8.3 The MTLA

LC 1200 Manual External Sounders 8-3

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12 or 24V DC

Temperature

The MTLA operates best in an ambient

temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range may

cause unexpected or undesirable results,

including premature failure.

Weight

A MTLA weighs approximately 0.5 pounds.

Mounting

A MTLA is capable of being mounted to a

standard 4” x 4” or 1-1/2” back box or a single

gang 2” x 4” 1-7/8” back box.

Wiring

You will need 22-gauge, 2-conductor plenum-

rated cable for this connection.

To wire the MTLA to the LC unit, refer to

Figure 8.4 and use the following instructions:

1. Using the RED wire, connect the

positive (+) terminal of the MTLA to

P2-5 (NC) of the LC unit.

2. Using the BLACK wire, connect the

negative (-) terminal of the MTLA to

P3-4 (Ground) of the LC unit.

3. Jumper P2-6 (Alarm Comm) to P3-3

(+12V DC) on the LC unit.

Figure 8.4 Wiring the MTLA

LC 1200 Manual

Chapter 9:

Magnetic Locks (Part #s 700218, 700228)

LC 1200 Manual Magnetic Locks 9-1

Magnetic Locks

 Operation

 What is Delayed Egress Circuitry?

 3101 Series Magnetic Locks

 3000 Series Magnetic Locks

Each Magnetic Lock is comprised of 3 basic

components: a lock housing, an electromagnetic

coil and an armature.

The coil and housing assembly mounts rigidly to

the door frame while the armature mounts to the

door in a manner that allows it to pivot slightly

to compensate for door irregularities.

When the door is closed and the lock is

energized the armature is magnetically bonded

to the lock face, thus securing the door without

utilizing any moving parts.

Operation

The Magnetic Lock will engage when a Tag is

on the Tx Activation Field. The Lock remains

engaged as long as a Tag is in the Field.

Once locked, the Lock will disengage when any

of the following conditions occur:

 All Tags leave the Field and the preset

delay times out (02-18 seconds; set by

R43 Tag Detect Delay)

 A Keypad Reset.

 A PBO is activated.

 The facility’s Fire Alarm is activated.

 The removal of power, for any reason,

will de-energize the lock allowing the

door to be opened.

 DELAYED EGRESS CIRCUITRY

(3101 SERIES LOCKS ONLY) - When

a maintained force (less than 15 pounds

required) is applied to the door for an

adjustable period of time (1 to 3

seconds).

9-2 Magnetic Locks LC 1200 Manual

What is Delayed Egress Circuitry?

In compliance with the N.F.P.A 101 Life Safety

Codes 5-2.1.6.1, Accutech’s 3101 Magnetic

Locks feature Delayed Egress Circuitry.

This means that even though the door will Lock

when an active Tag approaches, the door can

still be opened after 15 seconds (plus the 1-3

second nuisance delay) of constant pushing on

the door.

If the Lock is engaged (meaning the LC unit has

detected an active Tag in the zone) and the

person pushes on the door, the Lock will release

within 15 seconds (after a 1-3 nuisance delay)

whenever a maintained force (less than 15

pounds required) is applied to the door.

An audible tone enunciates both countdown and

release. When the Lock releases, the red Led

will turn solid green and the alarm will sound

continuously.

To reset the zone after an alarm, close the door

and enter a valid code into the zone Keypad.

3101 Magnetic Locks

 3101 Magnetic Lock Specifications

 Lock Jumper

 Mounting

 Wiring

 Terminals

 Adjusting the Sensor Pin

 Changing the Lock Nuisance delay time

 Changing the Egress Alarm delay time

The 3101 Magnetic Lock (Part # 700228) features

1200 pound holding force, Delay Egress

Circuitry, NFPA101 Life Safety Codes

conformity, a selectable nuisance delay and an

Accutech custom-designed electromagnetic coil.

Our custom-designed electromagnetic coil, only

available through Accutech, results in lower

current draw (only 12V AC/DC required).

3101 Magnetic Lock Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V AC/DC

Temperature

3101 Magnetic Locks operate best in an ambient

temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range may

cause unexpected or undesirable results,

including premature failure.

Weight

The 3101 Magnetic Lock weighs 11 U.S.

pounds.

LC 1200 Manual Magnetic Locks 9-3

Lock Jumper

The 3101 Lock has one jumper on it, the Fire

Panel Jumper (Figure 11.2). By default it is

placed in position 2-3. You must move this

jumper (and leave it) into position 1-2 (the left

two pins) before you install the Lock.

Mounting

To mount the 3101 Magnetic Lock, follow the

DynaLock Corp. Mounting and Operating

Instructions that came with the Lock.

Wiring

IMPORTANT:

Follow the wiring instructions in this manual

only. Terminal connections and functions

vary from the locks original design and

documentation.

You will need 18-gauge, 4-conductor plenum-

rated cable for this connection.

NOTE:

State codes require that all lock and elevator

deactivation circuitry be wired into the facility’s

fire alarm system (see Chapter 12: Fire Panel

Interface). This is done so that in case of a fire,

any lock or elevator deactivation unit

disengages, allowing for free egress or ingress.

To connect the 3101 Magnetic Lock, consult the

Connections and Operation section as well as

Figures 9.1 and 9.2.

Terminals

This section quickly explains the functions of

Lock pins 1-6.

Lock Power

Pins 1 and 2 require a constant 12-volt AC or

DC which is supplied DC by the LC unit power

supply.

Lock Trigger

Tag Detect of the LC Unit (P3-1) goes low when

a Tag is present. Pin 4 of the Lock needs a low

signal to energize Lock.

Lock Reset

When Lock Reset is initiated, Reset Out (P2-1)

sends a low signal to pin 5 of the Lock, which

needs a low signal to reset the Lock.

With the Lock engaged, if delayed egress is

initiated and the Tag leaves the Tx Activation

Field before the door is opened, the Lock will

automatically reset after the “Lock Hold timer”

times out. The Lock will not reset is if the door

is opened by anyone during the Lock hold time.

If the door is opened while the Lock is in

delayed egress, or during the Lock Hold time

after the egress sequence is complete, the Lock

will latch into egress and the Keypad must be

reset to return the Lock to its normal non-locked

state.

9-4 Magnetic Locks LC 1200 Manual

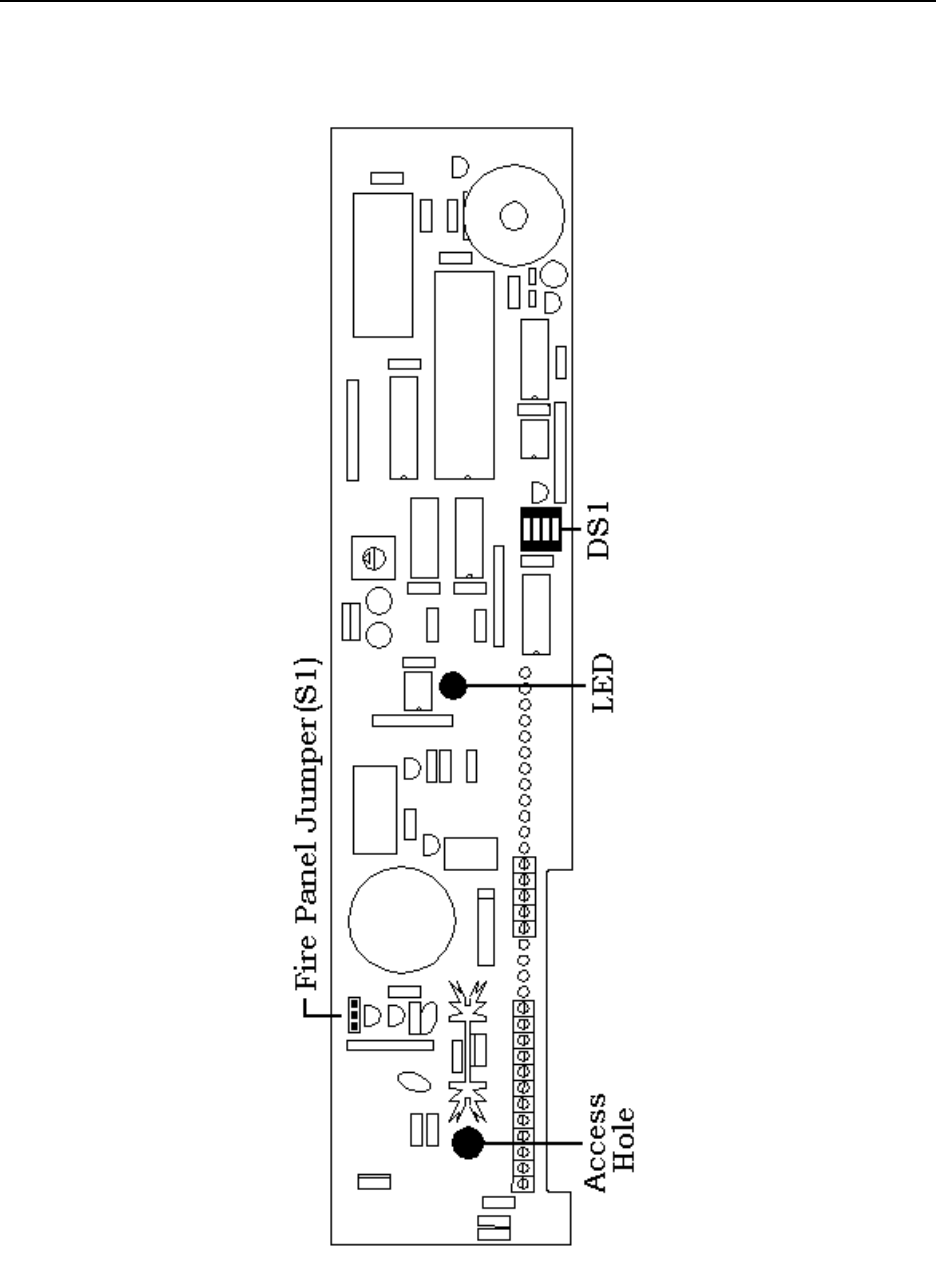

Figure 9.1 3101 Magnetic Lock PCB

LC 1200 Manual Magnetic Locks 9-5

Figure 9.2 Wiring the 3101 Magnetic Lock

9-6 Magnetic Locks LC 1200 Manual

Adjusting the Sensor Pin

Accurate adjusting of the Sensor pin will help

prevent nuisance alarms from slight disturbances

and small vibrations such as someone bumping

into the door or someone shutting a door nearby.

To adjust the Sensor pin, refer to Figure 9.1 - 9.3

and use the following instructions:

1. Remove power from the Lock by

powering down the LC unit.

2. Remove the cover to the Lock housing.

3. Remove the Fire Alarm Control jumper

from the Lock.

4. Make sure DS1 (the Lock selector

switch) Position 3 is in the OFF

position.

5. Move DS1 Position 1 to the ON position

NOTE: The ON position denotes “set-

up” mode.

6. Be certain that the Set screw in the

Sensor Ring is loose and will not make

contact with the Sensor pin (Figure 9.3)

WARNING: Failure to follow this step

can damage the threads of the Sensor

pin as you make adjustments.

7. Start with the Sensor pin adjusted out as

far as possible while still solidly

threaded into the Sensor ring.

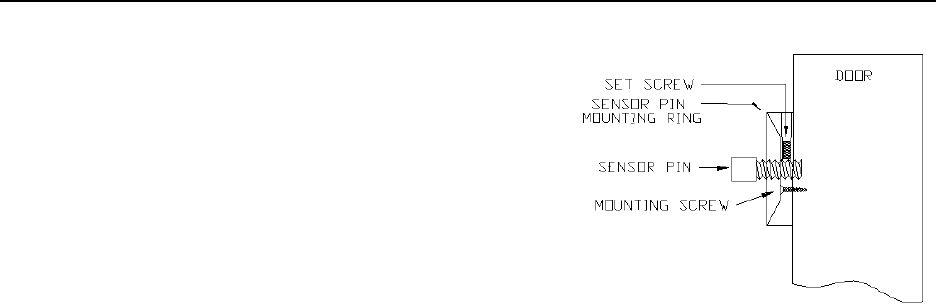

Figure 9.3 Adjusting the Lock Sensor pin

8. Apply power to the Lock by powering

up the LC unit. The Lock LED will light

up both Green and Red (kind of Yellow)

while it goes through its power up

sequence (about 5 seconds)

9. When the power up sequence is over,

the LED will either turn solid Red (Door

closed and locked) or the LED will turn

off (Door open and unlocked). You want

the door to be closed and locked.

10. With the door closed and locked, apply

as much pressure to the door as needed

to fully deflect the door, and while

holding it in this position, adjust the

Sensor pin with the included ¼ Allen

wrench until the (Red) LED goes out on

the Lock.

NOTE: For slight adjustments, there is

a Sensor pin access hole in the PCB of

the Lock. However, depending on how

the internal lock wires are situated this

may not be feasible. If this is the case, it

is recommended that you deflect the

door farther until you can adjust the

Sensor pin directly with the Allen

wrench.

LC 1200 Manual Magnetic Locks 9-7

11. When you have completed the

adjustment, gently allow the door to be

pulled by the weight of the door.

NOTE: When the door is closed the

LED will be Red, when the door is open

the LED will be Off.

12. Remove power from the Lock by

powering down the LC unit.

13. Tighten the set screw with the Allen

wrench provided. This will prevent the

Sensor pin from coming out of

adjustment.

NOTE: Be careful not to over tighten.

14. Replace the Fire Alarm Control jumper

into the N.C. position (pins 1-2).

15. Move DS1 Position 1 into the OFF

position.

NOTE: This will take the lock out of

set-up mode and into normal operation

mode.

16. Move DS1 Position 3 into the ON

position

17. Replace the cover to the Lock housing.

18. Apply power to the Lock from the LC

unit and test the function of the Lock.

Changing the Lock Nuisance delay time

The Lock Nuisance Delay time prevents

nuisance alarms by requiring a door disturbance

to be sustained for a set length of time before

registering an alarm.

The delay time is set by Position 3 on the

Selector Switch (S1) on the Lock PCB (see

Figure 9.1).

 The OFF position results in a 1-second

delay

 The ON position results in a 3-second

delay

Changing the Egress Alarm delay time

The Egress Alarm delay time requires a door

disturbance to be sustained for a set length of

time before unlocking the door and allowing

egress.

The delay time is set by Position 4 on the

Selector Switch (DS1) on the Lock PCB (see

Figure 9.1).

 The OFF position results in a 15-

second delay

 The ON position results in a 30-second

delay

9-8 Magnetic Locks LC 1200 Manual

3000 Series Magnetic Locks

 Specifications

 Mounting

 Wiring

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V or 24V AC/DC

Temperature

3000 Magnetic Locks (Part # 700218) operate

best in an ambient temperature between 35 and

90 degrees Fahrenheit. Operation outside of this

range may cause unexpected or undesirable

results, including premature failure.

Weight

The 3000 Magnetic Lock weighs 9 U.S. pounds.

Mounting

To mount the 3000 Magnetic Lock, follow the

DynaLock Corp. Mounting and Operating

Instructions that came with the Lock.

NOTE: State codes require that all lock and

elevator deactivation circuitry be wired into the

facility’s fire alarm system. This is done so that

in case of a fire, any lock or elevator

deactivation unit disengages, allowing for free

egress or ingress. Be sure to check Local, State

and Federal Codes as well as Chapter 12: Fire

Panel Interface (FPI).

Wiring

You will need 18-gauge, 2-conductor plenum-

rated cable for this connection.

The basic operation of this Lock will center on

supplying power to the Lock coil whenever a

Tag is detected in the zone, and removing that

power when there are no Tags detected in the

zone.

To connect the 3000 Series Magnetic Lock to

the LC unit, refer to Figure 9.4

LC 1200 Manual Magnetic Locks 9-9

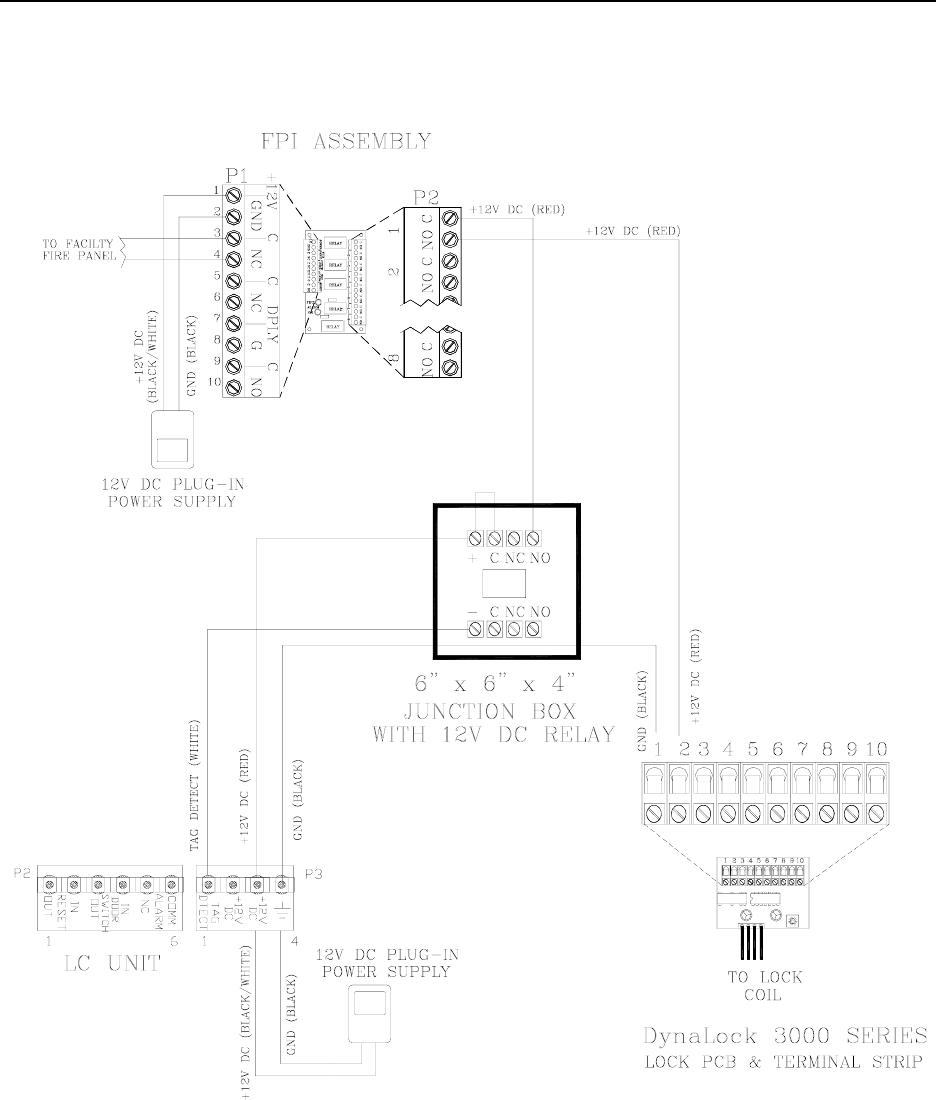

Figure 9.4 Wiring a 3000 Series Magnetic Lock

LC 1200 Manual

Chapter 10:

Elevator Deactivation (Part # 700027)

LC 1200 Manual Elevator Deactivation 10-1

Elevator Deactivation

 What to expect

 Working with the Elevator Company

 Specifications

 Positioning

 Mounting

 Wiring

 Summary for the Elevator Company

Elevator Deactivation (Part # 700027) prevents a

Tag from using an elevator.

There are two conditions where Elevator

Deactivation would be engaged.

The first condition is if the system detects a Tag

at a monitored elevator landing, the Elevator

Deactivation prevents the elevator from being

called to that floor by deactivating the elevator’s

call button at that floor.

The second condition is if the system detects a

Tag and the elevator is at the floor or en route,

the alarm will sound, the elevator doors will

remain open and the call button will be

deactivated.

What to expect

As soon as a Tag is detected, the elevator’s Call

Button for that floor/landing is deactivated. The

Call Button will remain deactivated for as long

as the Tag is in the Tx Activation Field, and for

an adjustable period of time (a delay) after the

Tag leaves.

If a delay is used with the Call Button, that delay

will “fool” the system into thinking a Tag is

present longer than it actually is. This means that

if the door is opened during this delay, the

system will go into alarm.

Once that time expires and there are no Tags in

the zone, the Call Button will resume operation.

Furthermore, if an elevator is already on its way

to that floor (because it was called before the

Tag entered the zone) the elevator will continue

to that floor. If the Tag leaves the Field before

the elevator doors open, the zone will not go into

alarm and the elevator will function as if the Tag

had never been there.

Finally, if the doors open while a Tag is present,

the system will go into “alarm” and the elevator

will be deactivated. This deactivation will take

place only for the elevator at that zone. The

alarm is “latched”, meaning that it will not

automatically reset itself once the Tag has left

the area. A reset-authorizing device (such as a

Keypad) is required to reset the zone and

reactivate the elevator.

Working with the Elevator

Company

It will be necessary to work with the facility’s

elevator company in order to connect the

Elevator Deactivation Circuitry. The Accutech

system contains most of the circuitry needed to

deactivate the elevators; however, the elevator

company will need to be provided with relays.

The Elevator Deactivation cabinet is used for

this purpose.

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC

10-2 Elevator Deactivation LC 1200 Manual

Temperature

The Elevator Deactivation unit operates best in

an ambient temperature between 35 and 90

degrees Fahrenheit. Operation outside of this

range may cause unexpected or undesirable

results, including premature failure.

Weight

The Elevator Deactivation cabinet weighs 3.5

U.S. pounds.

Positioning

The cabinet containing the relays for the

Elevator Deactivation circuitry (Figure 10.1)

should be located in the room containing the

elevator controls.

Figure 10.1 The Elevator Deactivation unit

Mounting

To mount the Elevator Deactivation cabinet, use

the following instructions:

1. Choose your location and appropriate

mounting hardware.

2. Open the Elevator Deactivation cabinet

and locate the four mounting holes.

3. Mark-out and drill four holes

corresponding to the holes in the back of

the cabinet.

4. Push out one of the knock-outs in the

cabinet for wire/conduit access.

5. Connect conduit or strain relief fittings.

6. Position the cabinet over the holes you

drilled and secure the cabinet to the

mounting surface.

NOTES:

The first condition is the presence of a Tag at a

monitored zone. The second condition, in the

case of elevator deactivation, is an indication of

an open door at a monitored zone.

If a door position switch, typically dry contacts

from the elevator control or some form of

magnetic switch, is not available, then a Passive

Infrared Reader (PIR) is focused near the

monitored opening.

Local or State Code may require the wire to be

run in conduit. Be sure to check your

requirements before beginning work.

NOTE: State codes require that all lock and

elevator deactivation circuitry be wired into the

facility’s fire alarm system. This is done so that

LC 1200 Manual Elevator Deactivation 10-3

in case of fire, any lock or elevator deactivation

unit disengages, allowing for free egress or

ingress. Be sure to check your local codes and

see Chapter 12 on Fire Panel Interface Units.

Wiring

You will need 22-gauge, 6-conductor plenum-

rated cable for this connection.

To wire the Elevator Deactivation, refer to

Figure 10.2.

At the Second Condition Source:

If the second condition source is provided by the

elevator controls, Use the previously wired

terminals on the 4- position screw terminal strip

in the Elevator Deactivation Relay cabinet to

hookup to the dry contract.

If the second condition source is a locally

mounted Magnetic Switch or a Passive Infrared

Reader (PIR) unit, wire them to the Controller.

Summary for the Elevator

Company

 Call Button Deactivation

 Elevator Car Deactivation

The following is a brief summary of Elevator

Deactivation that can be given to the Elevator

Company.

Call Button Deactivation

When a Tag is detected in the monitored

Elevator zone, the LC unit energizes Relay K2

and the Call Button for that Elevator zone is

deactivated.

When the K2 Relay is de-energized, the Call

Button is reactivated.

Elevator Car Deactivation

When a Tag is detected in the monitored

Elevator zone and the second condition is met,

the LC unit energizes Relay K1.

If the elevator car is at the floor (with doors

open) the elevator will be deactivated.

If the elevator car is on its way to that floor, it

will continue to that floor and upon arrival (with

doors open) will be deactivated.

As long as relay K1 is energized, the elevator

doors will remain open preventing the car from

leaving the floor.

When Relays K1 is de-energized, the Elevator

will return to normal operation.

10-4 Elevator Deactivation LC 1200 Manual

Figure 10.2 Wiring Elevator Deactivation

LC 1200 Manual

Chapter 11:

Automatic Door Deactivation (Part # 700033)

LC 1200 Manual Automatic Door Deactivation 11-1

Automatic Door

Deactivation

 Specifications

 Positioning and Mounting

 Wiring

In automatic door applications (doors that open

via a motion sensor or push paddle), the LC unit

can deactivate this feature when a Tag enters a

monitored zone’s Tx Activation Field.

With Automatic Door Deactivation (Part #

700033), when a Tag is detected in the Tx

Activation Field, the motion detector and/or

push paddle is disabled. When the Tag leaves

the zone, the door will function normally after

the preset delay times out (02-18 seconds; set by

R43 Tag Detect Delay).

If the door is opened manually while a Tag is the

zone, an alarm will sound.

To reset the alarm, remove the Tag from the

zone, close the door, and enter a valid code into

the zone Keypad.

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC

Temperature

The PBO operates best in an ambient

temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range may

cause unexpected or undesirable results,

including premature failure.

Weight

The Automatic Door Deactivation cabinet

weighs approximately 3 pounds.

Positioning and Mounting

Automatic Door Deactivation is enclosed in a

6”x6”x4” cabinet and should be located in the

room containing the door controls. Use hardware

appropriate for the weight, size, and mounting

surface.

Wiring

You will need 22-gauge, 2-conductor plenum-

rated cable for this connection.

To wire the LC unit for Automatic Door

Deactivation, refer to Figure 11.1 on the next

page.

11-2 Automatic Door Deactivation LC 1200 Manual

Figure 11.1 Wiring for Automatic Door Deactivation on Tag Detection

LC 1200 Manual

Chapter 12:

Fire Panel Interface (FPI) (Part # 700013)

LC 1200 Manual Fire Panel Interface (FPI) 12-1

Fire Panel Interface (FPI)

 Specifications

 Positioning and Mounting

 Verifying the Fire Alarm Dry Contacts

 Wiring

 Terminals

State codes require that all Locks, Elevator

Deactivation, and Automatic Door Deactivation

be wired into the facility’s fire alarm system.

This is done so that in case of a fire, any

restraint disengages, allowing for free egress or

ingress. For more information on this policy,

check your local codes.

For each FPI unit (Part #700013; Figure 12.1)

used, you will need one set of dry contacts from

the facility’s fire panel. Each FPI unit provides

dry contact outputs for up to 8 LC units.

In addition, the FPI unit can provide:

 An Optional Central Override, which

allows the facility to disable all Locks,

Elevator Deactivation, and Automatic

Door Deactivation units controlled by

that FPI. Each FPI requires its own

override switch.

 A Manual Reset, which will re-engage

the Locks, Elevator Deactivation, and

Automatic Door Deactivation after the

fire alarm is reset. This switch can be

replaced with a jumper that will make

the reset process automatic once the

fire alarm is reset.

 An Auxiliary Output (+12VDC) for

alerting staff that the Locks, Elevator

Deactivation, and Automatic Door

Deactivation are disengaged. This is

typically connected to the Staff Alert or

Graphic Panel(s).

12-2 Fire Panel Interface (FPI) LC 1200 Manual

Figure 12.1 The FPI with cabinet

LC 1200 Manual Fire Panel Interface (FPI) 12-3

FPI Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC

Temperature

The FPI operates best in an ambient temperature

between 35 and 90 degrees Fahrenheit.

Operation outside of this range may cause

unexpected or undesirable results, including

premature failure.

Weight

The FPI (including cabinet) weighs

approximately 1 pound.

Positioning and Mounting

The FPI is enclosed in a 6”x6”x2” cabinet can

be located and should be located in the room

containing the fire alarm controls. Use hardware

appropriate for the weight, size, and mounting

surface.

Verifying the

Fire Alarm Dry Contacts

The facility must provide an unused dry contact

in the fire alarm system for each FPI unit. (This

contact must be closed during a non-alarm state

and must OPEN in case of a fire alarm or loss of

fire alarm function.)

Verifying the Fire Alarm Dry Contacts

WARNING:

Before you test the system, notify the

facility and the local fire department that

you will be testing the fire alarm system.

To verify the operation of the fire alarm dry

contacts, use the following instructions:

1. Connect an ohmmeter across the dry

contacts. There should be continuity in

the non-alarm state. (Contact should be

closed.)

NOTE: There should never be voltage

on this contact.

2. Trip the fire alarm to verify that the

contacts change state. You should now

see an OPEN on your meter.

3. Reset the fire alarm and verify the

contacts go back to their closed state.

12-4 Fire Panel Interface (FPI) LC 1200 Manual

Wiring

For instructions on wiring the FPI, refer to the

chapter of the component you are using (e.g.,

Magnetic Locks, Elevator Deactivation, or

Automatic Door Deactivation).

Terminals

 Pins 1 and 2

 Pins 3 and 4

 Pins 5 and 6

 Pins 7 and 8

 Pins 9 and 10

Because of the variety of possible mounting

locations, and therefore distances between

signals and sources, it is recommended that you

use no less than 18-gauge plenum-rated wire and

cable for connecting the FPI unit.

You must use a separate dry contact for each LC

unit that controls a Lock, Elevator Deactivation,

or Automatic Door Deactivation.

This dry contact may come directly from the

facility’s fire panel, or from the

Accutech Fire Panel Interface (FPI) unit. The

FPI unit will allow you to connect multiple LC

units to the facility fire panel.

Pins 1 and 2 (Power)

IMPORTANT:

For fire code safety, the FPI must be powered

separately from an LC unit.

You will need a separate 2-conductor cable run

from a +12V DC supply power (Part # 500250)

and ground to the pins 1 & 2, respectively.

Pins 3 and 4 (Fire Voltage)

The dry contacts from the fire panel connect to

pins 3 (“C”) and 4 (“NC”) of P1 on the FPI. Pin

3 is simply +12V DC that is sent out through the

fire alarm contacts. Pin 4 is the return of the

voltage and should only be present when the fire

alarm system is working properly and the fire

alarm is not engaged.

Pins 5 and 6 (Central Override)

Pins 5 (“C”) & 6 (“NC”) of P1 on the FPI are for

the Central Override contacts.

 If this option is not used, you will see a

shorting jumper between these two

points or you need to place one.

 When using more than one FPI, each

FPI should have its own shorting

jumper or central override switch.

Pins 7 and 8 (Fire Alarm Indicator)

Pins 7 (“DPLY”) & 8 (“G”) of P1 on the FPI are

the Auxiliary Output that are typically used to

power a Fire Alarm indicator LED at a Staff

Alert or Graphic Panel. Pin 7 is the signal, and

pin 8 is the Ground.

Pins 9 and 10 (Reset)

Pins 9 (“C”) & 10 (“NO”) of P1 on the FPI are

the Reset pins. The push button switch in the

cover of the FPI is connected to these two

points. If an automatic reset is desired this

switch can be replaced by a jumper from pin 9 to

10.

NOTE: On the FPI, connector P2 has 8 pairs of

contacts for each of 8 LC units that can be

connected to the FPI.

LC 1200 Manual

Chapter 13:

Timer (Part # 700018)

LC 1200 Manual Timer 13-1

Timer

 Specifications

 Positioning and Mounting

 Wiring

 Programming

PLEASE NOTE:

For complete information about the Timer,

consult the manufacturer’s manual.

If desired, the LC unit can be interfaced with a

Timer. A Timer allows the user to engage or

disengage certain system functions on a time

schedule. A typical application of a Timer would

be at a perimeter door that has high traffic

during the day but almost not traffic at night.

During the day it may make sense to allow the

free ingress and egress of staff and visitors, but

at night, locking the door would mean added

security for staff and residents.

Accutech provides the AlarmSaf FT-100 Timer

(Part # 700018; Figure 13.1) which uses military

time units and can be set for daily, weekly or

block period events.

Figure 13.1 The Timer

Specifications

 Power Requirements

 Temperature

 Weight

Timer Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC

Temperature

The Timer operates best in an ambient

temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range may

cause unexpected or undesirable results,

including premature failure.

Weight

The Timer (including cabinet) weighs 2 U.S.

pounds.

Positioning and Mounting

The Timer is enclosed in a 6”x6”x4” cabinet and

should be located nearby the LC unit it will

interface with. Use hardware appropriate for the

weight, size, and mounting surface.

13-2 Timer LC 1200 Manual

Wiring

You will need 22-gauge, 4-conductor plenum-

rated cable for this connection.

To wire the Timer to the LC unit, refer to Figure

13.2 and use the following instructions:

1. Using the BLACK wire, connect the “-“

pin of the Timer to P3-pin5 (Ground) of

the LC unit.

2. Using the RED wire, connect the “+”

pin of the Timer to P3-pin4 (+12V) of

the LC unit.

3. Using the WHITE wire, connect the

“N.O” pin of the Timer to P1-pin2

(Perimeter In) of the LC unit.

4. Using the GREEN wire, connect the

“C” pin of the Timer to P1-pin1

(Perimeter Out) of the LC unit.

Figure 13.2 Wiring the Timer

LC 1200 Manual Timer 13-3

Programming

 Setting the Time

 Programming for a Day and Time

 Programming for all Week

 Setting ON/OFF times

PLEASE NOTE:

For complete information about the Timer,

consult the manufacturer’s manual.

Programming the Timer requires you to set

event times and whether to turn the system on or

off at those times.

Setting the Time

To set the Timer time, refer to Figure 13.2 and

use the following instructions:

1. Activate the Memory Backup Battery by

switching mode set dipswitch 1 to ON.

NOTE: The LCD will come on flashing

displaying: Off 00:00

2. Apply system power to the FT-100 unit.

3. Press and hold the “clock” button.

4. To set hours, use the button marked

“h+”.

5. To set minutes, use the button marked

“m+”.

6. To set day of the week, use the button

marked “Day”.

7. Release the “clock” button.

Programming for a Day and Timer

To program an ON or OFF instruction for a

particular day and time, refer to Figure 13.1 and

use the following instructions:

1. Select the desired timer (1 thru 6 ON; 1

thru 6 OFF) using the “Timer” button.

2. Program the desired time and day using

the “h+”, “m+” and “Day” buttons.

3. Press and release the “clock” button to

exit the program mode.

Programming for all week

To program an ON or OFF instruction for all

week, refer to Figure 13.1 and use the following

instructions:

1. Select the desired timer (1 thru 6 ON; 1

thru 6 OFF) using the “Timer” button.

2. Program the desired time using the “h+”

and “m+” buttons.

3. Press and release the “clock” button to

exit the program mode.

Setting ON/OFF times

To set ON/OFF times for predetermined timer

events, refer to Figure 13.1 and use the

following instructions:

1. To enter the program mode, press and

release the button marked “Timer” once.

NOTE: The LCD will show:

Timer 1 ON --:--

2. Pressing the “Timer” button a second

time will set the unit to OFF timer 1.

NOTE: This sequence will continue for

6 ON timers and 6 OFF timers for a total

of 12 timers.

3. Press and release the “clock” button to

exit the program mode.

LC 1200 Manual

Chapter 14:

Alert Panels (Part #s 700080, 700050, 700052)

LC 1200 Manual Alert Panels 14-1

Alert Panels

 Staff Alert Panel (SAP)

 Graphic Display Panel (GDP)

If desired, the LC unit can interface with a Staff

Alert Panel (SAP) or Graphic Display Panel

(GDP).

PLEASE NOTE:

When wiring, remember SAPs and GDPs

should be powered separately from LC units

so its display capability for all LC units is not

dependant upon one LC unit.

Staff Alert Panel (SAP)

 Specifications

 Mounting

 Wiring

A Staff Alert Panel (SAP) (Part # 700080; Figure

14.1), typically located at a staff station, notifies

staff when an alarm occurs in a monitored zone

through a piezo buzzer and alarm-specific LEDs.

The LEDs in the left column will flash and the

LEDs in the right column will light steady.

PLEASE NOTE:

Although labeled on the SAP, some functions

are not available when used with an LC unit.

SAPs can display these alarms (or events):

 Alarm (Egress)

 Fire Alarm

Figure 14.1 A SAP example

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC Power Supply (Part # 500250)

Temperature

A SAP operates best in an ambient temperature

between 35 and 90 degrees Fahrenheit.

Operation outside of this range may cause

unexpected or undesirable results, including

premature failure.

Weight

A SAP weighs approximately 1 pound.

14-2 Alert Panels LC 1200 Manual

Mounting

To mount a SAP, use the following instructions:

1. Remove the front panel from its frame.

2. Using the SAP frame as a template,

mark the four mounting holes on the

mounting surface.

3. Drill the mounting holes.

4. Secure the SAP frame to the mounting

surface using appropriate hardware and

replace the front panel.

Wiring

You will need 22-gauge, 6-conductor plenum-

rated cable for this connection.

To wire a SAP to an LC unit, refer to Figure

14.2 and use the following instructions:

1. Run a separate 6-conductor unshielded

cable for each SAP that is connecting to

an LC unit. The wire gauge will be

based upon the distance it will run. On

the SAP panel, P1 is for Zone 1, P2 is

for Zone 2 and so on.

2. For each zone, connect the appropriate

alarm outputs into their respective pins.

3. A SAP only needs the use of 2 of these

wires for all but one zone. That zone

will be the one that provides power to

connector labeled P9 near the bottom of

the SAP circuit board.

4. If you have locks or elevator

deactivation, you need to run a single

conductor cable from the Fire Panel

Interface (FPI) for the fire alarm

indicator.

5. For systems that do not have restraints

(Magnetic Locks, Elevator Deactivation,

or Automatic Door Deactivation) a Fire

Panel Interface (FPI) is not necessary

unless you want Fire Alarm notification

on the SAP/GDP.

6. Remember SAPs, GDPs, and FPIs must

be powered separately from an LC unit.

LC 1200 Manual Alert Panels 14-3

14.2 Wiring a SAP or GDP (FPI also shown)

14-4 Alert Panels LC 1200 Manual

Graphic Display Panel (GDP)

 Specifications

 Positioning and Mounting

 Wiring

The GDP (Graphic Display Panel) (Part # 700050

or 700052; Figure 14.3) provides the staff with a

visual representation of the floor being

monitored. GDPs are custom-made to a facility’s

floor plan and notify staff when an alarm

condition occurs in a monitored zone through a

piezo buzzer and alarm-specific LEDs. Up to 16

LC units can be linked to a single GDP.

GDPs can display these alarms (or events):

 Alarm (Egress)

 Fire Alarm

Figure 14.3 A GDP example

Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC

Temperature

A GDP operates best in an ambient temperature

between 35 and 90 degrees Fahrenheit.

Operation outside of this range may cause

unexpected or undesirable results, including

premature failure.

Weight

Dependant on facility size and floor layout.

A typical GDP weighs approximately 2 pounds.

Positioning and Mounting

Position the GDP near a centralized staff

location.

To mount a GDP, use the following instructions:

1. Open the front hinge panel.

2. Using the GDP frame as a template,

mark the mounting holes on the

mounting surface.

3. Drill the mounting holes.

4. Secure the GDP frame to the mounting

surface using appropriate hardware and

replace the front hinge panel.

Wiring

For LC units, a GDP wires the same as a SAP.

Refer to page 14-2 and Figure 14.2 for wiring

instructions.

LC 1200 Manual

Chapter 15:

System Maintenance & Testing

LC 1200 Manual System Maintenance & Testing 15-1

System

Maintenance & Testing

 Tag and Band maintenance

 LC units

 Testing monitored zones

PLEASE NOTE:

This chapter is intended as a guidance

document only. Each facility should review

these recommendations and modify as

necessary to meet their own unique security

requirements.

Tags and Bands

For information on cleaning Tag and Bands, see

page 3-2.

For information of testing a Tag’s functionality

or a Tag’s battery life, see page 3-5.

LC units

LC unit covers can be cleaned with antibacterial

wipes or hydrogen peroxide.

Testing monitored zones

 Zone Functions Tested

 Test Equipment Required

 Zone, Lock Test

 Zone, Egress Test

(3000 and 3101 Magnetic Locks)

 Zone, Delayed Egress Test

(3101 Magnetic Locks only)

 Zone, Hallway Test

 Zone, Elevator Deactivation Test

 Zone, Automatic Door Deactivation Test

 Fire Panel Interface (FPI) Test

Note: These tests should only be performed by

trained personnel.

This document defines the recommended

periodic testing procedures for the Accutech

security systems. Accutech recommends that

these tests be performed (at the minimum) on a

monthly basis.

Periodic testing of these critical performance

functions can help prevent undetected security

system failures.

Zone Functions Tested

Accutech systems respond to RF signals

generated by the Tags. Most conditions occur at

a monitored zone.

Each exit point around the area of protection

should be evaluated to determine:

 if doors lock and/or elevators disable when

a Tag approaches

 if alarms are generated due to passage of a

Tag through an exit point

Test Equipment Required

You will need to designate Tags to be used

solely for testing purposes only and a TAD.

15-2 System Maintenance & Testing LC 1200 Manual

Zone, Lock Test

When a Tag approaches a monitored door zone

equipped with Locks, the Lock should engage.

When the Tag leaves the monitored zone, the

Lock should disengage. This test will evaluate

this operation.

Note: In the event of a fire, all Locks are

disabled and the door can be opened

immediately.

Test results should be written down and kept in a

test log. Make your own, or use the included, to

ensure that every monitored zone is tested.

These test reports should become part of your

permanent quality assurance records.

1. Notify staff and security that you will be

testing zone performance and alarms

may be generated. They should pay

special attention to traffic during this

time.

2. While not in a monitored zone, use a

TAD to activate the test Tag.

3. Hold the test Tag in your hand and

approach each monitored door zone.

4. Each door should lock as you approach.

NOTE: You may be able to hear the lock

“click” as it changes states. Otherwise,

For 3000 Series Magnetic Locks, you

can push on the door to verify the Lock

is engaged. For 3101 Series Magnetic

Locks, the LED will turn from green to

red when the Lock is engaged.

However, do not open the door; this test

is intended only for verifying that a door

locks when a Tag approaches.

5. As you approach each zone, try varying

your approach angle (i.e., straight on,

from the sides, down low, etc.). Make

sure there is adequate coverage from all

angles leading to the monitored zone.

6. Record the results (pass or fail).

7. If the test fails to lock the door:

a. Notify staff and security of the

vulnerable area.

b. Check for visible damage or

tampering to the zone equipment.

c. Have a maintenance technician

verify power to the zone equipment.

d. Have a maintenance technician

verify the FPI is set properly.

e. Call your Accutech Representative.

8. To reset the Lock, deactivate the test

Tag or leave the monitored zone.

Depending upon your settings, the Lock

may disengage itself automatically.

Otherwise enter a Keypad Reset code.

LC 1200 Manual System Maintenance & Testing 15-3

Zone, Egress Test

(3000 and 3101 Magnetic Locks)

Most monitored door zones equipped with

Locks are configured to generate an alarm if a

Tag is detected in the zone and the door is open.

This test will evaluate this operation.

NOTE: In the event of a fire, all Locks are

disabled and the door can be opened

immediately.

This test should be conducted selectively; create

a rotating schedule to test a different set of zones

each time that periodic testing is conducted.

Test results should be written down and kept in a

test log. Make your own, or use the included, to

ensure that every monitored zone is tested.

These test reports should become part of your

permanent quality assurance records.

1. Notify staff and security that you will be

testing zone performance and alarms

will be generated. They should pay

special attention to traffic during this

time.

2. Prop the door open.

3. While not in the zone, use a TAD to

activate the test Tag.

4. Approach the door. An alarm should

sound.

5. Record the results (pass or fail).

6. If the test fails to cause an alarm:

a. Notify staff and security of the

vulnerable area.

b. Check for visible damage or

tampering to the zone equipment.

c. Have a maintenance technician

verify power to the zone equipment

d. Have a maintenance technician

verify the FPI is set properly

e. Call your Accutech Representative.

7. To reset the zone, enter a Keypad reset,

deactivate the test Tag, and close the

door completely, and if necessary, clear

the alarm on the PC.

Zone, Delayed Egress Test

(3101 Magnetic Locks only)

Delayed Egress Circuitry is a feature of the

Accutech 3101 Magnetic Lock that, due to fire

and life safety codes, allows free egress through

a door after 15 seconds (plus a 1 to 3 second

nuisance delay) of constant force is applied. This

test will evaluate this operation.

NOTE: In the event of a fire, Delayed Egress

Circuitry is disabled and the door can be opened

immediately.

This test should be conducted selectively; create

a rotating schedule to test a different set of zones

each time that periodic testing is conducted.

Test results should be written down and kept in a

test log. Make your own, or use the included, to

ensure that every monitored zone is tested.

These test reports should become part of your

permanent quality assurance records.

15-4 System Maintenance & Testing LC 1200 Manual

1. Notify staff and security that you will be

testing zone performance and alarms

will be generated. They should pay

special attention to traffic during this

time.

2. While not in the zone, use a TAD to

activate the test Tag.

3. Approach the door.

4. The Lock should engage.

NOTE: The LED on the Lock will turn

from green to red when the Lock is

engaged.

5. Remember once the Lock is engaged, in

order to open the door, you have invoke

the Delayed Egress Circuitry feature. To

do this, press on the door for the

duration of the nuisance delay (1 to 3

seconds) and the delayed egress

countdown (15 to 30 seconds) then the

Lock will disengage and you can open

the door.

NOTE: During the delayed egress

countdown the Lock’s piezo will beep.

After you open the door, the Lock’s

piezo will sound continuously.

6. Record the results (pass or fail).

7. If the test fails to cause an alarm:

a. Notify staff and security of the

vulnerable area.

b. Check for visible damage or

tampering to the zone equipment.

c. Have a maintenance technician

verify power to the zone equipment.

d. Have a maintenance technician

verify the FPI is set properly.

e. Call your Accutech Representative.

9. To reset the zone, enter a Keypad reset,

deactivate the test Tag, close the door

completely, and, if necessary, clear the

alarm on the PC.

Zone, Hallway Test

Two conditions are required to generate an

alarm at a hallway zone: Tag detection and PIR

detection. This test will evaluate this operation.

1. Notify staff and security that you will be

testing zone performance and alarms

will be generated. They should pay

special attention to traffic during this

time.

2. Using a TAD, activate the test Tag.

3. Enter the monitored hallway zone and

move in the path of the PIR. An alarm

should be generated and an alarm may

sound.

4. Record the results (pass or fail).

5. If the test fails to cause an alarm:

a. Notify staff and security of the

vulnerable area.

b. Check for visible damage or

tampering to the zone equipment.

c. Have a maintenance technician

verify power to the zone equipment

d. Call your Accutech Representative.

LC 1200 Manual System Maintenance & Testing 15-5

6. To reset the zone, enter a Keypad reset,

deactivate the test Tag, and, if

necessary, clear the alarm on the PC.

Zone, Elevator Deactivation Test

When a Tag approaches an elevator zone the

elevator call buttons will be disabled. This test

will evaluate this operation.

1. Notify staff and security that you will be

testing zone performance and alarms

will be generated. They should pay

special attention to traffic during this

time.

2. Using a TAD, activate the test Tag.

3. Enter the elevator zone. The zone’s

response will depend on the state of the

elevator door(s):

a. Elevators with door(s) open will

disable as you approach and an

alarm will sound. The car will not

be able to leave the floor.

b. Elevators with door(s) closed will

have their call button(s) disabled.

c. Elevators en route will arrive, open,

and then an alarm will sound. The

car will not be able to leave the

floor.

4. Record the results (pass or fail)

5. If the test fails to cause an alarm:

a. Notify staff and security of the

vulnerable area.

b. Check for visible damage or

tampering to the zone equipment.

c. Have a maintenance technician

verify power to the zone equipment

d. Have a maintenance technician

verify the FPI is set properly

e. Call your Accutech Representative.

6. To reset the zone, deactivate the test Tag

and, if necessary, enter a Keypad reset

and clear the alarm on the PC.

Zone, Automatic Door Deactivation Test

When a Tag approaches an automatic door

deactivation zone, the motion detector and/or

push paddle will be disabled be disabled. This

test will evaluate this operation.

1. Notify staff and security that you will be

testing zone performance and alarms

will be generated. They should pay

special attention to traffic during this

time.

2. Using a TAD, activate the test Tag.

3. Enter the automatic door deactivation

zone. The door’s motion sensor or push

paddle is disabled.

4. Record the results (pass or fail)

5. If the test fails to cause an alarm:

a. Notify staff and security of the

vulnerable area.

b. Check for visible damage or

tampering to the zone equipment.

15-6 System Maintenance & Testing LC 1200 Manual

c. Have a maintenance technician

verify power to the zone equipment

d. Have a maintenance technician

verify the FPI is set properly

e. Call your Accutech Representative.

7. To reset the zone, deactivate the test Tag

and, if necessary, enter a Keypad reset.

Fire Panel Interface (FPI) Test

State codes require that all Lock, Elevator

Deactivation, and Automatic Door Deactivation

be wired into a facility’s fire alarm system. In

Accutech Systems this is done via the Fire Panel

Interface (FPI).

This is done so in the case of a fire, any Lock,

Elevator Deactivation, or Automatic Door

Deactivation disengages, allowing free egress or

ingress. For more information on this policy,

check your local codes.

This test should be performed concurrently with

your facility’s fire alarm test.

WARNING!

Before you test the system, notify

the facility and the local fire

department that you will be testing

the fire alarm system.

1. Using a TAD, activate a test Tag.

2. Activate your facility’s fire alarm.

NOTE: The LED on the FPI enclosure

will blink.

3. Proceed to each zone to be tested and

verify that doors are unlocked and

egress is possible. Elevators and

automatic doors should be inoperable

due to the fire alarm.

4. Record the results (pass or fail).

5. If a zone fails to disengage during the

fire alarm, call your system service

technician immediately for further

assistance.

6. After your facility’s fire alarm has been

reset the FPI may automatically reset or

press the Reset button on the outside of

the FPI enclosure to reset the FPI and

engage all restraints.

NOTE: The Reset button on the FPI

enclosure will not work during the fire

alarm. You must reset the fire alarm first

and then reset the FPI.

7. Return to each tested zone with the test

Tag and verify that doors now lock and

elevators disable as you approach.

8. Using a TAD, deactivate the test Tag.

LC 1200 Manual System Maintenance & Testing 15-7

NOTE: Copy this form for future use.

FACILITY PERFORMANCE TEST LOG

Facility Name: Page __ of __

Date Floor Zone Name/Type Test Performed Results (P/F) Comments Signature

LC 1200 Manual

Chapter 16:

FAQ & Troubleshooting

LC 1200 Manual FAQ & Troubleshooting 16-1

FAQ &

Troubleshooting

 Tag

 Tag Band

 TAD

 System (General)

 System (Maintenance)

 Troubleshooting

Tag:

What can I use to clean Tags?

Use antibacterial wipes or hydrogen

peroxide (wipe, do not soak) to clean Tags.

How should I store Tags?

Ideally, to preserve battery life, Tags should

be turned off with a TAD. However, if you

do not have a TAD or your Tags are always

activated, Tags should be stored away from

sources of electrical noise and stored in a

metal container with lid.

How can I be sure the Tag is on and

functioning properly?

You can test that a Tag is on and functioning

properly by the testing it with a TAD or

taking the Tag to a monitored zone (this may

cause alarms). For more information on the

TAD, see chapter 3.

How often should I check a Tag’s battery

with my TAD?

Accutech recommends testing a Tag’s

battery during assignment then again during

unassignment prior to cleaning and

restocking of the Tag for new use. Periodic

weekly testing of Tags for long-term

patients is also recommended.

How long will the Tags last before I need to

replace them?

Accutech Tags operate by internal battery.

The Tags have been engineered for greater

than 12 months usage.

Can I replace or recharge the battery in the

Tag?

No. Once a Tag’s battery is drained, the Tag

will have to be replaced.

What is the Tag case made of?

The Tag case is made of FDA-approved

Lexan® plastic

Tag Band:

What is the Tag band made of?

The Tag band is nylon-mesh-reinforced

latex-free vinyl.

Are Tag bands reusable?

No. Tag bands are for one-time use only.

TAD:

How long will the 9-volt battery last in the

TAD?

The life of the 9-volt battery in the TAD is

dependant upon usage. You should always

switch off the TAD when not in use.

Can I use a rechargeable battery in the

TAD?

Yes.

16-2 FAQ & Troubleshooting LC 1200 Manual

System (General):

If you are locking the doors, what happens in the

case of a fire?

Accutech follows NFPA codes and regulations.

Therefore, in the event of a fire, all Accutech

restraints will be disabled (audial and visual

alarms remain active).

How can I reduce nuisance alarms?

Nuisance alarms are typically caused by:

 improper zone coverage (see page 3-3

“Verifying proper zone coverage” and

page 2-8 “Adjusting the Tx Activation

Field”)

 improper storage of Tags (see page 3-2)

How do I change the Keypad Escort time?

To change the Keypad Escort time, see page 6-9.

System (Maintenance):

How often should I test my zones?

Accutech recommends that performance testing

be done on a monthly basis. However, each

facility should review and modify the testing

procedures as necessary to meet their own

unique security requirements.

Who do I call about upgrading or adding to my

system?

If you would like information about upgrading

or adding to your system, contact your local area

Accutech Representative.

How do I order replacement

Tags/Bands/Components?

If you would like to order replacement

Tags/Band/Components for your system, contact

your local area Accutech Representative.

LC 1200 Manual FAQ & Troubleshooting 16-3

Troubleshooting

A Tag is not being detected by the monitored

zone.

1. Use a TAD to verify Tag is active.

2. Use a TAD to verify Tag battery is

sufficient.

3. Verify proper zone coverage (page 3-3)

4. Verify proper zone wiring of LC unit

I am getting an abundance of nuisance alarms.

A nuisance alarm is undesired alarm activation

stemming from such things improper zone

coverage and the improper storage of Tags.

1. Verify proper zone coverage. Proper

zone coverage fully protects the

intended area without extending into

other areas (see page 3-3 “Verifying

proper zone coverage” and page 2-8

“Adjusting the Tx Activation Field”).

2. Be sure proper Tag storage techniques

are followed (see page 3-2)

When I escort a patient through a zone via a

Keypad Reset, the Reset time allotted is too brief

and an alarm occurs.

Adjust the Keypad Escort time to accommodate

slower moving patients (see page 6-9)

An alarm has occurred and I am addressing the

alarm but the internal piezo buzzer will not

cease.

1. After you have identified the cause of

the alarm and are addressing it, you may

silence the internal piezo buzzer by

removing the LC unit cover and jumper

JP2 (Tone Enable).

I am getting a Tamper alarm after initial

installation or service. What am I doing wrong?

Verify the Tamper Switch (S1) is making good

contact with the outside case (see Tamper

Switch adjustment; page 2-7).

LC 1200 Manual

Appendix A:

Component Cut Sheets

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: 3000 Magnetic Lock

The 3000 Magnetic Lock will engage when the zone Controller detects a Tag in the Tx Activation Field. The Lock will

remain engaged as long as the Tag is in the Tx Activation Field. When the Tag leaves the Tx Activation Field, the Lock will

disengage after an adjustable period of time (0-120 seconds).

SAFETY FEATURES:

The Lock will NOT engage (or will disengage) when the facility’s Fire Alarm is activated or power is lost.

ELECTRICAL:

Operating Voltage: 12 or 24V AC/DC

Current Consumption at 12V: .42 amp

Current Consumption at 24V: .21 amp

Cable: non-shielded 18-gauge, 2-conductor

MECHANICAL:

Lock Size: 1-1/2” x 2-3/4” x 11”

Armature Size: 1-1/2” x 2-3/8” x 3-5/8”

Finish: US28 Satin Aluminum with clear anodize

Mounting Hardware: 5 #10 PNHD Self Tapping Screws 1” long

Weight: 9 US pounds

OPERATING CHARACTERISTICS:

Holding Force: 1500 pounds

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

3000 Magnetic Lock

UL Listed:

GWXT.R15538

Model Number: ML

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Accutech 3101 Magnetic Lock

WARNING: The Accutech 3101 Magnetic Lock is custom-designed to our specifications and should not be purchased directly

from the manufacturer.

The 3101 Magnetic Lock will engage when the zone Controller detects a Tag in the Tx Activation Field. The Lock will

remain engaged as long as the Tag is in the Tx Activation Field. When the Tag leaves the Tx Activation Field, the Lock will

disengage after an adjustable period of time (0-120 seconds).

SAFETY FEATURES:

The Lock will NOT engage (or will disengage) when the facility’s Fire Alarm is activated or power is lost.

The 3101 Magnetic Lock also incorporates Delayed Egress Circuitry that complies with N.F.P.A. 101 Life Safety Codes 5-

2.1.6.1. If engaged, the Lock will release within 15 seconds (after 1-3 second nuisance delay) whenever a maintained force

(less than 15 pounds required) is applied to the door. An audible tone enunciates both countdown and release. When the Lock

releases, the red LED will turn solid green and the alarm will sound continuously.

Accutech 3101 Magnetic Lock

Model Number: MLE

UL Listed:

 FWAX.SA9532

 Auxiliary Locks listed 2N98

 Special Arrangements listed 1M59

ELECTRICAL:

Operating Voltage: 12 V AC

Current Consumption: 450 mA

Cable: non-shielded 18-gauge, 6-conductor

MECHANICAL:

Lock Size: 3” x 2 ¾” x 11”

Armature Size ½” x 2-5/16” x 7-3/8”

Standard Finish: Satin Aluminum-US28

Mounting Hardware: 5 #10 PNHD Self Tapping Screws 1” long

Weight: 11 US pounds

OPERATING CHARACTERISITICS:

Holding Force: 1200 pounds

Once locked, the Lock will disengage when any of the

following conditions occur:

 All Tags leave the Tx Activation Field

 A Keypad Reset

 A PBO is activated

 The facility’s fire alarm is activated.

 Power is removed from the Lock.

 The Central Override is activated.

 When a maintained force (less than 15 pounds required)

is applied to the door for an adjustable period of time

(1-3 seconds).

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Lock LED status during normal operation:

 Green – Power indicator

 Red – Lock engaged (Tag detected in zone)

 Red blinking – Egress countdown (15-30 seconds adjustable)

 No Power To LED – Escort function or Reset

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Automatic Door Deactivation

In automatic door applications (doors that open via a motion sensor or push paddle), the Accutech System can deactivate this

feature when a Tag enters a monitored zone’s Tx Activation Field.

ELECTRICAL:

Operating Voltage: 12V DC

Current Consumption: 120 mA maximum

Contact Rating: 100 mA / 12V DC

Cable: need minimum 22-gauge, 6-conductor

MECHANICAL:

Construction: Metal case

Enclosure size: 6.00” x 6.00” x 4.00”

Enclosure weight: 3.85 US pounds

OPERATING CHARACTERISTICS

Dry contacts are provided for the automatic door

company’s use.

ENVIRONMENAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Automatic Door Deactivation

Model Number: ADD

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Elevator Deactivation

Elevator Deactivation Circuitry is designed to prevent someone (or an asset) wearing an Accutech Tag from using an elevator

to leave a monitored floor. Using Relays enclosed in the Elevator Deactivation Relay Cabinet, the Elevator Company is able

to interface with the Accutech System.

Therefore:

 If a Tag enters a monitored elevator zone, the elevator’s call button on that floor will be deactivated

(Call buttons on other floors are unaffected and no one is restricted from coming to the floor).

 When a Tag is in the zone (or approaches the zone) and the elevator doors are open, an alarm will sound and the

elevator doors will remain open.

 If the elevator car is en route to the floor when a Tag approaches the zone, the elevator will arrive on the floor, the

door(s) will open, and the system will alarm.

ELECTRICAL:

Operating Voltage: 12V DC

Current Consumption: 120 mA maximum

Contact Rating: 100 mA / 12V DC

Cable: need minimum 22-gauge, 6-conductor

MECHANICAL:

Construction: Metal case

Enclosure size: 7.80” x 8.25” x 3.75”

Enclosure weight: 3.5 US pounds

OPERATING CHARACTERISITICS:

 Dry Contacts supplied by Elevator Company for

door switch

 12V DC Alarm Voltage energizes K1 Relay to

deactivate the Car when a Tag is detected and the

elevator door is open.

 12V DC Tag Detect Voltage energizes K2 Relay

to deactivate the Call Button when a Tag is

detected.

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Elevator Deactivation

Model Number: ED

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Fire Panel Interface (FPI)

The Fire Panel Interface (FPI) ensures, in the event of a fire, the Magnetic Lock(s) and/or Elevator Deactivation Circuitry

will be disengaged. Accutech follows NFPA codes and regulations. Therefore, in the event of a fire, all Accutech restraints

will be disabled (audial and visual alarms remain intact).

For each FPI unit used, one set of dry contacts will be needed from the facility’s fire panel.

Each FPI unit provides dry contact outputs for up to eight Controllers.

ELECTRICAL:

Operating Voltage: 12V DC

Current Consumption: 120 mA maximum

Contact Rating: 2 amps/24V DC

Cable: needs minimum 22-gauge, 2-conductor

non-shielded to each Controller

MECHANICAL:

Enclosure size: 6.29” x 5.68” x 2.00”

Weight: 25 ounces

OPERATING CHARACTERISTICS:

Fire Panel Alarm State: Open contacts

Contact State: N.O. during alarm state

N.C. during operating state

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

Fire Panel Interface (FPI)

Model Number: FPI

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Graphic Display Panel (GDP)

A Graphic Display Panel (GDP) provides the staff with a visual representation of the floor being monitored. GDPs are

custom-made to a facility’s floor plan and notify staff when an alarm or event occurs in a monitored zone through a piezo

buzzer and alarm-specific LEDs. Each monitored zone is labeled and marked with an LED that will light to indicate that an

Alarm Condition has occurred for that particular zone. In addition, a “Fire Alarm” LED will light on the display if the fire

circuit is activated.

ELECTRICAL:

Operating Voltage: 12V DC

Current Consumption: 60 mA per 8-zone board

Cable: Dependant on number of zones + 3

MECHANICAL:

Sizes available: 11”x17”, 13”x19”, custom

Weight: dependant on size, number of zone

(approximately 5 US pounds)

OPERATING CHARACTERISTICS:

Pre-selected color themes or custom color matching

available.

Built-in Sounder

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Graphic Display Panel (GDP) example

Model Number: GDP

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Keypad

The Keypad is used to escort residents through a monitored zone and to reset zone equipment once an alarm has occurred.

Up to 56 different (3 to 8 digit) user codes can be used to reset the alarm and to activate the Escort function.

ELECTRICAL:

Operating Voltage:

UL rated at 12V DC

Manufacturer rated at 9 to 16V DC

Stand-by Current Drain: 15 mA typical

Current Drain with outputs active: 55 mA typical

Contacts: 10 A / 30V AC/DC

Cable: minimum 22-gauge, 4-conductor

MECHANICAL:

Size: 4-5/8” x 2-7/8” x 1-3/8”

Weight: 4.3 ounces

Mounting: Flush or Surface Mount

*Metal box not recommended

OPERATING CHARACTERISTICS:

Power Failure: EEPROM retains programmed data

during power failures.

Relay Control: Programmable 1-98 seconds

LED Status:

Green – Escort or Reset

Yellow – Power

Red - Alarm

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Keypad (Flush Mount)

(box not included)

Model Number: KD

Keypad (Surface Mount)

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Local Alarm

The Local alarm, a sounder, is intended to attract attention near the monitored zone.

ELECTRICAL:

Operating Voltage: 12V DC nominal

Alarm Signal Current: 12 mA

Cable: needs minimum 22-gauge, 2-conductor

MECHANICAL:

Mounting variations (not provided):

Handy box: 4” x 2-1/8” (approx.)

Switch box: 3” x 2” (approx.) with conduit knockouts.

Masonry box: 3-3/4” (approx.) with ½” and ¾”

concentric knockouts.

Nonmetallic Switch box: 3-3/4” x 2-5/16” (approx.)

OPERATING CHARACTERISTICS:

Sound Pressure Level at 10 feet: 85 db

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Local Alarm

Model Number: LA

UL Listed:

ULSZ.54011

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Magnetic Switch

The Magnetic Switch is used on doors when alarm activation is not desired unless the door is opened.

ELECTRICAL:

Operating Voltage: 150V DC maximum

Contact Rating: 3 watts

Maximum Switch Voltage: 30V AC/DC

Switching Current: 0.5 amps DC

Cable: needs minimum 22-gauge, 2-conductor

MECHANICAL:

Size: 2.50” x 0.80” x 0.60”

Weight: 1.2 ounces

Color: Brown

Surface mounted (Flush available)

OPERATING CHARACTERISITICS:

Contacts: N.O., N.C., and Common

Initial contact resistance: 100 ohms maximum

Operating Time: 1.0 ms maximum

Bounce Time: N.C. leg 1.5 ms maximum

N.O. leg 1.0 ms maximum

Release Time 0.5 ms maximum

Maximum Operating Frequency: 200 Hz

Insulation resistance: 1 x 10 ohms maximum

Electrostatic capacitance: 1.5 pF maximum

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Magnetic Switch

Model Number: MCSM

UL Listed:

AMQV.BP2343

Magnetic Switch Placement

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Passive Infrared Reader (PIR)

The Passive Infrared Reader (PIR) is a device that uses an infrared sensor to monitor elevators, hallways, corridors, and

passageways. Like the Magnetic Switch, the PIR is used in areas where alarm activation is not desired immediately upon Tag

detection. It can also be used in hallways or other areas where a Magnetic Switch would not be feasible.

ELECTRICAL:

Operating Voltage: 12V DC

Current: Stand-by 10 mA

Relay Output: N.O./N.C. 2A/28V AC/DC maximum

Cable: needs minimum 22-gauge 4-conductor stranded,

non-shielded

MECHANICAL:

Dimensions: 2.50” x 4.40” x 1.40”

Weight: 3 ounces

Color: White

OPERATING CHARACTERISTICS

Beam Coverage: Vertical curtain up to 15 x 15 feet.

*The beam is adjustable from its normal 0º setting

(perpendicular to the unit) up to 12º.

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Passive Infrared Reader (PIR)

Model Number: PIR

UL Listed:

ANSR.BP6082

PIR Ceiling Mounted Coverage Area Example

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Push Button Override (PBO)

The Push Button Override (PBO) triggers the Keypad’s Escort or Reset function; this option allows access through a

monitored door from the non-Keypad side of the door.

ELECTRICAL:

Operating Voltage Range: 2 to 13V DC

Stand-by Current Drain: 15mA typical

Current Drain with outputs active: 55 mA typical

Cable: needs minimum 22-gauge, 4-conductor

MECHANICAL:

Size: 4-5/8” x 2-7/8” x 1-3/8”

Weight: 4.3 ounces

Mounting: Flush or Surface mount

*Metal box not recommended

OPERATING CHARACTERISTICS

LEDs:

Green – Reset status

Red - Alarm status

Yellow – Power status

ENVIRONMENAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Push Button Override (PBO)

Model Number: PBO

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Staff Alert Panel (SAP)

The Staff Alert Panel (SAP) notifies staff when an alarm occurs in a monitored zone through a piezo buzzer and alarm-

specific LEDs. Each monitored zone is labeled and marked with an LED that will light to indicate that an Alarm Condition

has occurred for that particular zone. In addition, a “Fire Alarm” LED will light on the display if the fire circuit is activated.

ELECTRICAL:

Operating Voltage: 10 to 13V DC

Current Consumption: 300 mA Max

Cable: needs minimum 22-gauge, 6-conductor from

each Controller

MECHANICAL:

Size: 11” x 5-3/8” x 1-3/8”

Weight: 1 US pound

OPERATING CHARACTERISTICS

LED Alarm indicators:

Flashing Red – ALARM

Steady Red – DOOR AJAR

Flashing Yellow – CHECK SYSTEM

Steady Yellow – LOITER

Fire Alarm LED

Power LED

Built-in Piezo buzzer

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Staff Alert Panel (SAP)

Model Number: SAP

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Tag Activator/Deactivator (TAD)

DISCLAIMER: A TAD reading is in no way meant to be a replacement for taking a Tag to an active zone to test the range

capability of the Tag. When you use a TAD all you really know is that the Tag has enough power to respond; it is NOT an

indication of the range capability. In order to test the range capability of a Tag, you must take it to an active zone.

The Tag Activator/Deactivator (TAD) is used to check the functionality of an Accutech Tag. Accutech Tags operate by

internal battery. Over the course of normal operation, Tags eventually lose battery power and the Tags will need to be

replaced. The TAD is used to determine if a Tag has sufficient battery power to respond to an activating signal.

NOTE: A TAD CAN activate or deactivate Tags, preserving Tag battery life and preventing nuisance alarms.

ELECTRICAL:

A TAD requires a 9-volt battery to operate.

MECHANICAL:

Size: approximately 4.75” x 2.25” x 1.25”

Weight: 4.7 ounces

OPERATING CHARACTERISTICS:

Transmit Frequency: 128 kHz

Receive Frequency: 418 MHz

The “Active Band Removal or Low Battery on Tag” LED

A TAD can detect a BR42 Tag in active Band Removal alarm;

the “Active Band Removal or Low Battery on Tag” LED will

illuminate blink slowly. This may help locate lost BR42 Tags

that are alarming.

A TAD can also detect the low battery bit of yellow Tags.

Simply turn on the TAD and place a Tag in the Tag receptacle.

If the Tag’s battery is low (e.g., low enough that the Tag’s

operation is diminished below an acceptable level) the “Active

Band Removal or Low Battery on Tag” LED will blink rapidly.

The Tag should then be replaced.

The “WAIT” LED

The “WAIT” LED illuminates briefly during Tag

activation/deactivation.

The “Signal Strength” LEDs

The “Signal Strength” LEDs of the TAD indicate:

 The current state of a Tag (on or off)

 Tag is Very Near (within approx. 1 foot*)

 Tag in Area (within approx. 20 feet*)

*Inexact due to variations of the remaining Tag battery power, remaining

TAD battery power, and if the Tag is alarming in Band Removal.

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

Model Number: TAD

800-356-2671 | Accutech | www.accutech-ics.com

Accutech reserves the right to substitute comparable components without notice.

R051903

M090503

CUT SHEET: Timer

A Timer allows the user to engage or disengage certain system functions on a time schedule. A typical application of a Timer

would be at a perimeter door that has high traffic during the day but almost no traffic at night. During the day it may make

sense to allow the free ingress and egress of staff and visitors, but at night, locking the door would mean added security for

staff and residents.

ELECTRICAL:

Operating Voltage: 6 to 12V AC/DC

Relay Inactive: 14 mA

Relay Active: 40 mA

Contacts: N.O. & N.C.

Contact Rating: 1A @ 26V DC

0.5A @ 115V AC

MECHANICAL:

Size: 8.25” x 8.25” x 4.00” (includes enclosure

Weight: 6 US pounds (includes enclosure)

OPERATING CHARACTERISTICS

Internal 10-year Lithium Battery will provide clock

memory backup for 6 months continuously

Relay Hold in Time Adjustment: 1 to 60 seconds

Time format: 24 hour (military) format

ENVIRONMENTAL:

Operating Temperature: 32º to 120º Fahrenheit

Intended for indoor use only.

DUTY CYCLE:

Rated for continuous use.

Timer

Model Number: DNT

800-356-2671 | Accutech | www.accutech-ics.com

LC 1200 Manual Glossary G-1

Glossary

Automatic Door

Deactivation

In automatic door applications (doors that open via a motion sensor or push

paddle), the LC unit can deactivate this feature when a Tag enters a

monitored zone’s Tx Activation Field.

Delayed Egress Circuitry

A feature of the Accutech 3101 Magnetic Lock that, due to fire and life

safety codes, allows free egress through a door after 15 seconds of constant

force. In the event of a fire alarm, the Delayed Egress Circuitry is disabled.

Double conditioning A characteristic of a zone that requires two conditions to be met (such as

Tag detection and PIR detection) before an alarm is generated.

Egress alarm An alarm condition that occurs when a Tag is in the Tx Activation Field

and a door is opened (or PIR detection).

Elevator

Deactivation Circuitry

Circuitry that deactivates an elevator’s call button(s) when a Tag is a

monitored elevator zone.

Escort Function A function of the Keypad used to escort Tags through a monitored zone

without triggering alarms.

Fire Panel Interface

(FPI)

A FPI ties Accutech Security System components into the facility’s fire

panel. Required if the system includes Magnetic Locks and/or Elevator

Deactivation Circuitry. In the event of a fire, Magnetic Locks and Elevator

Deactivation Circuitry are disabled. However, if there is still power to the

system, the alarms will still sound.

Graphic Display Panel

(GDP)

A display panel, which provides staff with a representation of the floor

being monitored. GDPs are custom-made to a facility’s floor plan and

notify staff when an alarm condition occurs in a monitored zone through a

piezo buzzer and alarm-specific LEDs.

Keypad A Keypad is used to reset zone equipment once an alarm has been

addressed (Keypad Reset) or to escort Tags through a monitored zone

without triggering alarms (Keypad Escort). The Keypad is also capable of

providing visual indicators for Tag detection, alarms, and escort time.

Keypad Reset A feature of the Keypad that is used to reset zone equipment after an alarm

has been addressed.

LED Tag A Tag designed to verify proper zone coverage (without causing alarms)

during installation, adjustment, or testing of a monitored zone.

G-2 Glossary LC 1200 Manual

LT “Long Term”, a Tag classification

Magnetic Lock A device using a magnetic coil and plate to lock a door when a Tag is

detected in the monitored door zone. Accutech’s exclusive 3101 Magnetic

Lock feature Delayed Egress Circuitry.

Magnetic Switch A device that monitors a door’s position (open or closed). A Magnetic

Switch is used on a door when alarm activation is not desired unless the

door is opened when a Tag in the monitored door zone.

Masking In PIR applications, limiting the infrared beam by placing stripes of tape

over the lens. In Software applications, during text insertion into a field,

characters are replaced with symbols (usually asterisks “*”) for privacy.

Master Code User Code Number 1 for the Keypad, used for Keypad programming

purposes only.

Monitored Zone Any door, hallway, stairwell, elevator, or other passageway that has an LC

unit associated to it.

Nuisance Alarms Undesired alarm activation stemming from such things as the mishandling

of Tags, improper storage of Tags, slow patient transferring, and/or Loiter

alarm time being too brief (passersby causing alarms).

Passive Infrared Reader

(PIR)

A device that uses an infrared light to detect motion.

Perimeter Door mode If desired, the LC unit can be used as a perimeter door system. When in

this mode, the door would alarm the instant it is opened. If the door has

Magnetic Locks, the door would remain locked (Lock energized) at all

times and would require a valid code entered into the Keypad to open the

door.

Perimeter Door alarm A Perimeter Door alarm occurs when the LC unit is in Perimeter mode and

the door is opened.

Power Loss Supervisor

alarm

A Power Loss Supervisor alarm occurs when a 9V NiCAD battery is

installed and the LC unit loses power.

Push Button Override

(PBO)

A switch (push button) that triggers the Keypad’s Escort function.

SB “Slotted Back”, a Tag classification

LC 1200 Manual Glossary G-3

Staff Alert Panel

(SAP)

A display panel used to indicate to staff where an Alarm, Door Ajar, Loiter,

or Supervise warning condition has occurred; it employs bi-color LEDs, a

Piezo Buzzer, and digital logic to control its outputs.

Stagger Tuning Stagger Tuning allows monitored zones to be located closer than the

normal minimum 70 feet distance by using different Tx operating

frequencies for adjacent zones.

Tag

Activator/Deactivator

(TAD)

A device used to turn Tags on and off. A TAD can also, in short range,

detect low Tag batteries and detect Band Removal events.

Tag See ES 2200 System Tag, IS 3200 System Tag, or BR 4200 System Tag

Tag Test Station

(TTS)

A TTS is used in conjunction with the Accutech Software for Tag

assignments.

Tamper alarm A Tamper alarm occurs when the LC unit cover is removed and the

Tamper Switch (S1) is disengaged.

Tamper Switch The Tamper Switch is provided to prevent unauthorized access to the LC

unit. An alarm will be generated if the LC unit cover is removed.

Tx Activation Field A radio frequency field created by a Tx antenna to detect Tags. Doors,

hallways, elevators, stairwells, and other passageways that have a Tx

Activation Field are commonly referred to as a “monitored zone.”

I-1 Index LC 1200 Manual

Index

Alarms

Addressing 1-5

Egress 1-4

Perimeter Door 1-5

Internal vs. External alarms 1-5

Power Loss Supervisor 1-4

Tamper 1-4

Automatic Door Deactivation 11-1

Delayed Egress Circuitry 9-2

Double Conditioning 1-2

Egress alarm 1-4

Elevator Deactivation Circuitry 10-1

Escorting 1-6

FAQ 16-1

FCC Statement Preface i

Features 1-1

Fire Panel Interface (FPI) 12-1

Frequency

Operating 2-4

Changing 2-10

Graphic Display Panel (GDP) 14-4

Internal vs. External alarms 1-5

Jumpers 2-4

Keypad

Adjusting the Keypad Escort Time 6-9

Deleting user codes 6-8

Escort function 1-6

Initiating a Keypad Reset/Escort 6-6

Programming the master code 6-7

Programming user codes 6-8

Resetting the master code 6-9

LED Tag 3-3

Verifying Proper Zone Coverage 3-3

Identifying Tag-Activating Sources 3-4

Maintenance

Bands 3-2

System 15-1

Tags 3-2

Magnetic Locks 9-1

Operation 9-1

What is Delayed Egress Circuitry? 9-2

3101 Series Magnetic Locks 9-2

3101 Series Magnetic Locks 9-8

Magnetic Switch 4-1

Monitored zones 1-2

Single Conditioning 1-2

Double Conditioning – Door and Hallway 1-2

Double Conditioning – Door with Lock(s) 1-3

Double Conditioning – Elevator 1-3

Double Conditioning – Automatic Door 1-3

Multi-Tone Local Alarm (MTLA) 8-2

Nuisance Alarms 16-3

Overview 1-1

Passive Infrared Reader (PIR) 5-1

Perimeter Door application 1-4

Power Loss Supervisor 1-4

Power Requirements 2-1

Push Button Override (PBO) 7-1

Sounders 8-1

Internal vs. External alarms 1-5

Stagger Tuning 2-9

Staff Alert Panel (SAP) 14-1

System Maintenance and Testing 15-1

Fire Panel Interface (FPI) Test 15-6

Zone, Automatic Door Deactivation 15-5

Zone, Egress Test

(3000 Series Magnetic Lock)

15-3

Zone, Egress Test

(3101 Series Magnetic Lock)

15-3

Zone, Elevator Deactivation Test 15-5

Zone, Hallway Test 15-4

TAD (Tag Activator/Deactivator)

LEDs 3-5

Locating Lost Tags 3-7

Overview 3-5

Testing Tags with a TAD 3-7

Using the TAD to activate/deactivate Tags 3-6

Accutech Security IGWT-660098 Low Power Transmitter Below 1705 kHz User Manual Manual

Innovative Control Systems Inc Low Power Transmitter Below 1705 kHz Manual

Manual

Navigation menu

Namespaces

Views

Navigation
