Accutech Security IGWT-662008 S-TAD User Manual Install Manual v2 36 ES IS BR July 2007

ES 2100 / ES 2200 / IS 3200 / BR 4200

Installation Manual

800-356-2671 | Accutech | www.accutech-ics.com

Version 2.37 July 2008

DOC.970003

Installation Manual Preface i

IMPORTANT FCC & DOC INFORMATION

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an output on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

Canadian D.O.C. Statement

This digital apparatus does not exceed the Class B

limits for radio noise emissions from digital appartus

as set out in the radio interference regulations of the

Canadian Department of Communications.

Le present appareil numerique n,emet pas de bruits

radiolectriques depassant les limits appliques aux

appereils numeriques de Class B prescrites dans le

rglement sur le brouillage radiolectrique dicte par le

ministere des Communications du Canada.

FCC ID/DOC for the

Zone/Auxiliary Receiver:

FCC ID: JM7-IGWT-660076

Canada IC: 2683A-660076

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

FCC ID/DOC for the ES Sensor:

FCC ID: JM7-IGWT-662002

Canada IC: 2683A-662002

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

FCC ID/DOC for the ES Controller:

FCC ID: JM7-ITYS-700035

Canada 2683 102 312

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

FCC ID/DOC for the S-TAD:

FCC ID: JM7-IGWT-662008

Canada IC: 2683A-662008

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

ii Preface Installation Manual

IMPORTANT:

Keep all Televisions, Computers, X-ray

equipment, etc. at least 10 feet away from

the ES Receiver. This includes equipment

located on the other side of walls and doors.

Picture the area around the monitored

zone as a big globe with the receive

antenna as the center. Keep all sources of

interference outside this globe.

IMPORTANT NOTICE:

Do not store ES Sensor(s) within 3 feet

of ANY of the sources of electrical

noise listed on this page. These

sources can reduce sensor activation.

This activation can lead to possible

undesirable responses from the

system.

Common Sources of Interference

Include:

 Television Sets

 Computer Monitors

 Medical Monitoring Equipment

 Electric Motors

 Electrical Distribution Panels and

Transformers

 Fluorescent Lighting

 Some Electronic Washers and Dryers

 X-ray and other Imaging Equipment

 Unshielded Computer Cables

Installation Manual UL Addendum (UL 294, BP9480) iii

FOR UL LISTED SYSTEMS:

MODEL VOLTAGE, V FREQUENCY CURRENT

ESI, ESR, ES 120 V 50-60 HZ 1 A

ESRI, ESRR 12 DC 50 mA

TW 24 DC (RMS) 150 mA

FPI, FPIB 12 DC 120 mA

SAP 12 DC 300 mA

GDP 12 DC 500 mA

ED 12 DC 100 mA

ADD 12 DC 100 mA

PS51, PS68 PRI – 120 V

SEC – 12 V

PRI – 60 HZ

SEC - DC

PS51 = 5.1 A

PS68 = 6.8 A

MX, MXB 12 DC 500 mA

LT, SB, BR, CB 3.0 DC Standby off = 1.5 uA

Standby on = 5 uA

Transmit (BR) = 1.6 mA

Transmit activated (all) = 3 mA

TAD, PTAD 9 DC NSC = 20 mA,

Transmit = (2s)80 mA

CL-8A 12 DC NSC = 15 mA,

Alarm = 55 mA

MODEL OPERATION

ESI, ESR Controller coordinates and controls all of the devices and functions.

ES Controller PCB

ESRI, ESRR Receiver picks up signal from an activated Tag and relays it to the

Controller (ESI) and the Multiplexer (MX).

TW Transmit wand antenna generates a Tag-activating signal near a monitored

zone.

FPI, FPIB Fire Panel Interface ensures that in the event of a fire alarm, the Lock and

Elevator Deactivator will disengage.

SAP Staff Alert Panel notifies staff when an activated Tag enters a monitored

zone via a piezo and LEDs.

GDP Graphic Display Panel provides staff with a visual representation of the floor

being monitored and notifies staff when an activated Tag enters a monitored

zone via a piezo and LEDs.

ED Elevator Deactivator prevents monitored residents from using the elevator.

ADD Automatic Door Deactivator prevents monitored residents from using the

door.

PS51, PS68 Power Supply

MX, MXB Multiplexer relay event information from the Controller to Graphic Display

Panels (GDP) and to the PC.

iv UL Addendum (UL 294, BP9480) Installation Manual

LT, SB, BR, CB Long Term (LT), Slotted Back (SB), Band Removal (BR), Cut Band (CB)

Tags, small wristwatch sized device, activated Tag sends signal via receiver

to the Controller.

TAD, PTAD Tag activator/deactivator, also checks Tag’s battery and assists in finding

lost Tags. PTAD is identical to TAD except it does not activate/deactivate

tags. Testing with TAD shall be conducted before use daily.

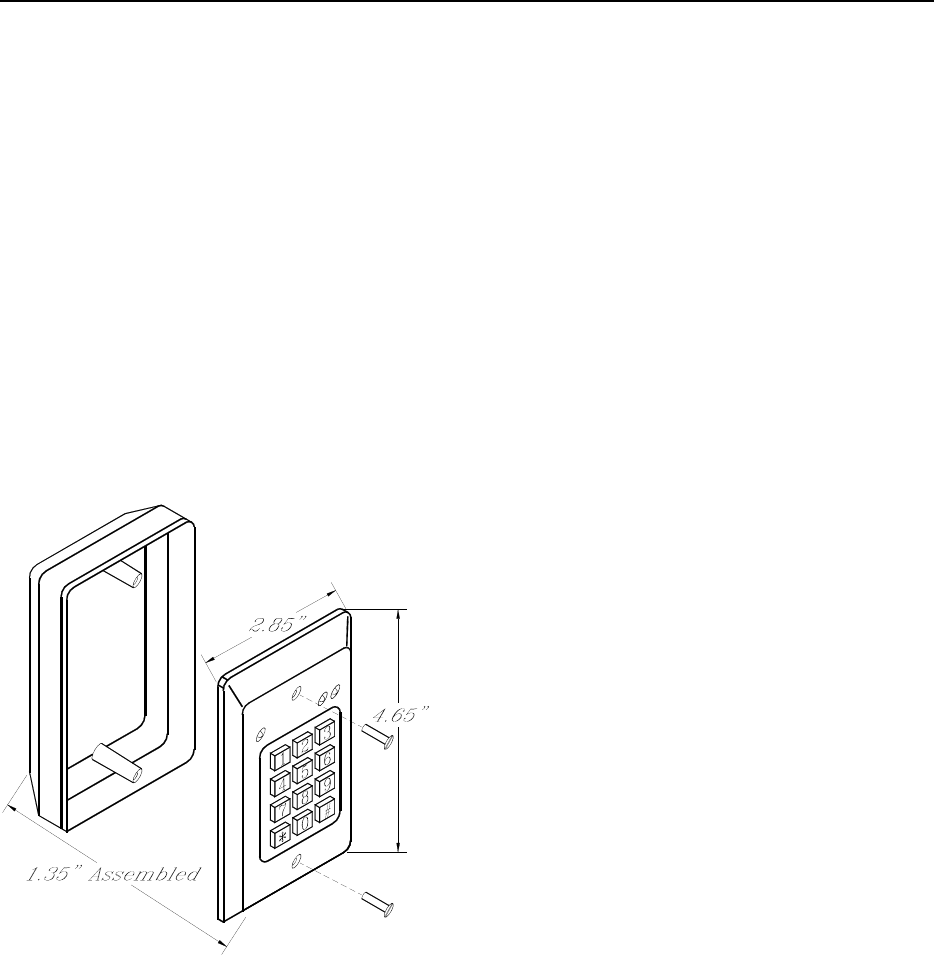

CL-8A Keypad, used to disable audible device.

Installation - The control units and accessories are intended to be installed in accordance

with the following:

1. The National Electrical Code, ANSI/NFPA 70.

2. Local Authority having Jurisdiction.

3. Manufacturer's installation instructions provided with each unit.

Access Control

1. The minimum system configuration consists of Model ESI, ESRI, TW, keypad, audible

device or magnetic lock or door/elevator deactivator, Tags LT and/or SB and/or BR and

or CB.

2. The system shall be installed in the fail-safe mode and shall release the lock upon loss of

power, loss of connection between ESI and fire alarm control panel. Loss of battery to the

TAG (LT, SB, BR, CB) shall release the lock.

3. The control unit shall be mounted in a protected area.

4. The system does not provide standby power.

5. All accessories are restricted to be installed in the same room. A room is defined as an

enclosed area bounded by walls extending from ceiling to floor, one or more of which

may contain an entranceway that is marked with an Exit sign under the requirements of

the NFPA code. An enclosed area bounded by walls from drop ceiling to floor is not

considered a room but is determined to be part of the room. Rooms having no exit, as

defined under the NFPA that are found within a room with exits, as defined by the NFPA,

are considered part of the overall room.

6. Monitoring station is not UL Listed as an access control unit accessory.

7. This equipment is not evaluated as or meant to be installed as a burglary alarm system.

8. The Model ED is not listed as elevator equipment. The fire alarm control panel shall

override the ED.

Installation Manual UL Addendum (UL 294, BP9480) v

9. The magnetic switch shall be UL Listed as a connector and switches.

10. Wiring of FPI must be wired to fail-safe in an alarm or loss of power condition.

11. The Passive Infrared Detector for use with this system is not intended to be used as an

intrusion detector. It is for monitoring use only.

12. The following components have not been evaluated as a UL Listed access control unit

accessory (although they may carry other UL listings): Local Alarm (LA), Central Alarm

CA3), Speakers (AS3), Timer (DNT), LED Tag (LED), Multi-Tone Local Alarm (MTLA),

Push Button Override (PBO), Tag Test Station (TTS) (the Tx antenna portion of the TTS

has not been tested), Voice Alarm (VA)

13. The detection range for a zone-activated Tag is approximately 8 ft. but the actual range

shall be determined by the Installation Test (Facility Performance Testing).

14. The Tag’s (LT, SB, BR, CB) battery status shall be checked with a TAD, PTAD at least

twice daily.

15. The ESRR (remote receiver) may be used if the desired signal cannot be achieved with

the internal receiver.

16. Models ESI and ESR are provided with a tamper switch.

17. Model ES has only been tested by UL for use in the ESI or ESR system.

18. The Tag Model CB’s Pod (plastic covers) has not been evaluated by UL.

19. The Tag’s (LT, SB, BR, CB) battery is not replaceable in the field.

vi Installation Manual

ICS/ACCUTECH LIMITED WARRANTY

Innovative Control Systems, Inc. (ICS) warrants its Accutech™ equipment (Product) against

defect in materials and workmanship under normal use for one (1) year from the date of product

shipment.

Defective equipment will be either repaired or replaced at ICS’ discretion, free of charge to the

Customer during the warranty period. ICS will supply labor depending on contract to repair or

replace defective equipment, free of charge, during the warranty period only if ICS or an ICS-

certified subcontractor hired by ICS installed such equipment.

In addition, ICS warrants its Accutech™ ES 2200 / IS 3200 / BR 4200 System Tags against

defects in materials and workmanship under normal use and service for a period of one (1) year

from the date of shipment.

If a Tag fails during the warranty period due to defects in material and workmanship, ICS will at

its sole discretion, repair or replace the Tag with like quality product free of charge, although

overnight shipping charges may apply.

Furthermore, the express limited warranty of ICS shall be the sole and exclusive warranty of ICS,

and ICS hereby disclaims all other warranties, express, implied or statutory, including but not

limited, all other implied warranties of merchantability or fitness for a particular purpose. In no

way should ICS be liable for special, incidental, or consequential damages. ICS reserves the right

to change such limited warranty from time to time upon thirty (30) days written notice.

Computers and monitors provided by ICS shall not be submitted for repair to ICS but instead

shall be submitted directly to their respective manufacturer and serviced under their inherent

manufacturer warranty policy present at the time of purchase. Customer shall be responsible for

registering any and all warranty requirements.

ICS assumes no responsibility if any Product shall fail to function during any warranty period by

reason of any one or more of the following causes:

 Abuse or misuse of the Product or failure to operate the Product in accordance with

operating instructions or specifications.

 Improper preventive maintenance of the Product.

 Alteration or modification of the Product not specifically approved in writing by ICS.

 Improper installation, repair, modification, or servicing the Product performed by any

unauthorized service personnel.

 Equipment or cabling damaged by unauthorized personnel knowingly or unknowingly.

 Use or operation of the Product in conjunction with any accessories or auxiliary equipment

not specifically approved in writing by ICS.

 Acts of God, including, but not limited to, natural disaster, fire, explosions, flood, accidents

and the like.

24-hour, 7-days-a-week, 365-days-a-year over the phone technical support at 1-800-356-2671

Installation Manual

Contents

Preface i

UL Addendum iii

Chapter 1: The Accutech Systems 1-1

Chapter 2: Wire and Cables 2-1

Chapter 3: The Controller 3-1

Chapter 4: The Tx wand antenna 4-1

Chapter 5: The Receiver 5-1

Chapter 6: The Tag 6-1

Chapter 7: The Keypad 7-1

Chapter 8: The Push Button Override (PBO) 8-1

Chapter 9: The Magnetic Switch 9-1

Chapter 10: The Passive Infrared Reader (PIR) 10-1

Chapter 11: Magnetic Locks 11-1

Chapter 12: Fire Panel Interface (FPI) 12-1

Chapter 13: Alarm Output Devices

(Local Alarm, Central Alarm, Speakers, SAP, GDP)

13-1

Chapter 14: Elevator Deactivation 14-1

Chapter 15: Perimeter Functions 15-1

Chapter 16: Automatic Door Deactivation 16-1

Chapter 17: The Multiplexer 17-1

Chapter 18: Power Supply 18-1

Chapter 19: The Accutech Software 19-1

Chapter 20: Tag Test Station 20-1

Chapter 21: Band Removal Lockdown 21-1

Chapter 22: User-Defined Settings 22-1

Appendix A: Discontinued Components A-1

Appendix B: Jumpers, LEDs, Pots, Switches & Fuses B-1

Appendix C: Block Diagrams C-1

Appendix D: Troubleshooting D-1

Appendix E: Product Cut Sheets E-1

Glossary G-1

Index I-1

The information, procedures, and advice contained herein is subject to change without notice.

800-356-2671 | Accutech | www.accutech-ics.com

Installation Manual

Chapter 1:

The Accutech Systems

IMPORTANT:

No Security System can replace human vigilance. Creating a safe environment requires the

combined efforts of personnel, physicians, security, and patients. Global policies,

procedures, and processes on patient care should be discussed and disseminated. Education,

communication, and coordination are key. No level of security can replace an informed and

knowledgeable staff. Any electronic or physical security system should be considered as a

supplemental deterrent, but by no means an end-all.

Installation Manual The Accutech Systems 1-1

The Accutech Systems

 ES 2200 System

 IS 3200 System

 BR 4200 System

 Cut Band System

 How Accutech Systems Work

 System Components

 Typical System Configurations

Throughout this manual, when referring to the

various applications of the system, the term

“Tag” is used to represent all possible

applications of the system (i.e., a resident, a

patient, an infant, pediatrics, or an asset, etc.)

Furthermore, the terms “ingress” and “egress”

will be encountered. They are another way of

saying “coming and going” or “entering and

exiting” respectively.

The ES 2200 System is our platform system

from which all Accutech System’s are built.

Each subsequent system adds on to the system

before. Each system can be easily upgraded as

facility needs change and technology advances.

ES 2200 System

The function of the ES 2200 System is to alert

facility personnel of the possible egress of a

monitored resident.

The ES 2200 can be utilized for special care

residents suffering from wandering malady or

tendencies of straying into unauthorized areas or

leaving a facility, pediatric patients, asset

security and/or low-cost infant security. The

system is designed so that each monitored door

is a stand-alone system.

The ES 2200 System consists of a Controller, a

Transmit (Tx) wand antenna, a Receiver, a

Magnetic Switch, a Keypad, a Local Alarm, and

an ES 2200 System Tag (LT/SB22).

When a Tag enters a monitored area, the system

can automatically:

 lock doors

 deactivate elevators

 sound alarms

 flash lights

 trigger visual displays (e.g., SAPs or GDPs)

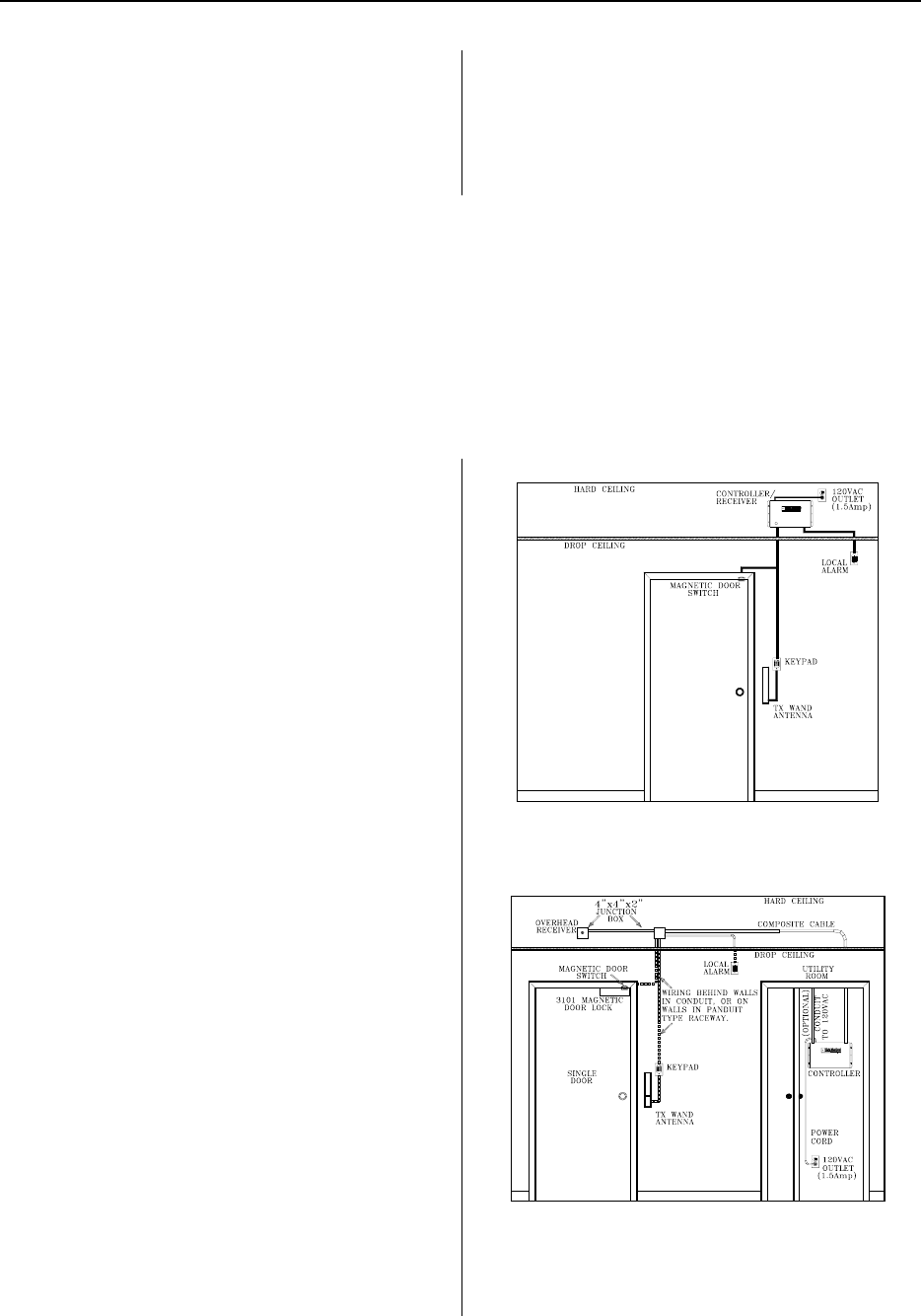

The Controller can be mounted on the wall near

the point of egress or can be mounted out of

sight in a utility or equipment closet.

A Tx wand antenna is typically mounted on the

wall at the point of egress. However, in some

cases it is possible to mount the Tx wand

antenna at the zone so that it is not seen.

The Receiver is mounted internally (inside the

Controller) when the Controller is located at the

zone or externally (near the monitored area)

when the Controller is located remotely.

Virtually any hallway, doorway or elevator can

be made to sense the approach of monitored

resident, and then trigger audial and/or visual

alarms to prompt a staff response.

By adding options, such as the Magnetic Lock or

an Elevator Deactivation Unit, most egress

opportunities can be eliminated without

restricting staff, visitors and non-monitored

residents access.

Additional options such as the Loiter alarm,

Door Ajar alarm, Local alarms, Central alarms,

Passive Infrared Readers (PIRs), Staff Alert

Panels (SAPs), and Graphic Displays Panels

(GDPs) further enhance your ability to prevent

unescorted egress.

1-2 The Accutech Systems Installation Manual

IS 3200 System

The IS 3200 System is the ES 2200 System plus

a computer with the Accutech Software

installed, a TAD, a Tag Test Station, a

Multiplexer, a Power Supply.

The IS 3200 System uses IS 3200 System Tags

(LT/SB32) that are placed on the monitored

resident or asset. Once assigned, the computer

associates a name, room number and any other

pertinent information about the resident/asset

with that Tag.

BR 4200 System

The function of the BR 4200 and System is to

alert facility personnel of the possible abduction

of an infant.

The BR 4200 System is the IS 3200 System plus

BR 4200 Auxiliary Receivers (as needed) and an

additional alarm to announce when a band

removal incident has occurred.

The BR 4200 System uses BR 4200 System

Tags (BR42) that are placed on infants. In

addition to the functionality of an IS 3200

System Tag, the BR 4200 System Tag will

trigger alarms (visual and/or audial) if the band

is removed or tampered with in any way to alert

facility personnel of a possible infant abduction

attempt.

Cut Band System

The function of the Cut Band System is to alert

facility personnel of the possible adduction of a

child. The Cut Band System is the BR 4200

System with Cut Band Tags, which will trigger

alarms (visual and/or audial) if the band is cut.

How Accutech Systems Work

 Doors

 Elevators

 Hallways

 Alarms

This section explains how Accutech Systems

react to a Tag entering a monitored door zone, a

monitored elevator zone, and other alarm events.

NOTE: In this manual, Egress alarms are

referred to as “Alarms.” Other alarm types are

referred to by name (i.e., door ajar, loiter,

supervise, band removal).

Doors

When a Tag enters a monitored door zone, the

system will detect the Tag. At that moment

(providing the door has the Magnetic Lock

option, the door is closed, and the Lock is

unobstructed) the doors will lock and will

remain locked as long as the Tag is in the

monitored door zone. When the Tag leaves the

monitored zone, the door will unlock after an

adjustable period of time.

If a Tag enters a monitored door zone (with or

without the Magnetic Lock option) and the door

is already open (or is opened while the Tag is in

the zone), the Accutech System will go into

alarm.

If you wish to escort a Tag through a monitored

zone, you will need to enter a valid code into the

zone’s Keypad to activate the Escort function.

The Keypad’s Escort function will release the

Magnetic Lock, silence alarms, and allow the

Tag to pass through the monitored door zone for

the designated Escort time. The duration of the

Escort function is adjustable from 0 to 98

seconds.

Installation Manual The Accutech Systems 1-3

An optional Loiter function is available to alert

staff personnel if a Tag is in a monitored zone

(even if the door or elevator is closed) for too

long. The time setting is adjustable (10-110

seconds) and is factory set for 15 seconds.

An optional Door Ajar function is also available

to alert staff personnel if the door in a monitored

zone has been held open for too long. The time

range can be set for immediate or from 10 to 110

seconds and is factory set for approximately 15

seconds.

Elevators

Elevator Deactivation Circuitry is needed to

restrict the operation of a monitored elevator

from a Tag.

If a Tag enters a monitored elevator zone (with

Elevator Deactivation Circuitry), the elevator’s

call button will be deactivated for as long as the

Tag is in the zone.

If the elevator car is en route to that floor and the

door(s) open (or if the elevator car door is

already open at that floor when a Tag

approaches), the system will go into alarm and

will not allow the elevator doors to close until a

valid code is entered into the zone’s Keypad.

If you wish to escort a Tag through a monitored

elevator zone, push the call button while the Tag

is out of the zone and wait for the car to arrive

(when the elevator bell rings). Enter a valid code

into the zone’s Keypad. Then escort the Tag to

the elevator door and you will be able to move

the Tag between floors using the elevator.

Hallways

If a Tag enters a monitored hallway zone, the

system will detect the Tag and the PIR will

detect motion. The system can then sound

alarms, trigger visual displays and, in special

circumstances, lock nearby doors.

If you wish to escort a Tag through a monitored

hallway zone, you will need to enter a valid code

into the zone’s Keypad to activate the Escort

function. This will silence alarm and allow the

Tag the pass through the monitored hallway

zone for the designated Escort time. The

duration of the Escort function is adjustable

from 0 to 98 seconds.

Alarms

In this manual, Egress alarms are referred to as

“Alarms.” These alarms do not automatically

reset once the Tag leaves the monitored zone or

the door has been closed. They are “latched”

once they have been triggered. This has been

done, by design, to ensure that all alarm

conditions are investigated and corrected by

facility staff.

An alarm (i.e., an Egress alarm) occurs

whenever a Tag enters a monitored zone and the

door is opened or a PIR is triggered. To clear

this alarm remove the Tag from the zone, close

the door and enter a valid code into the Keypad.

Other alarm types are referred to by name in this

manual. These alarms can be automatically reset

once the condition(s) causing the alarm have

been corrected.

A Door Ajar alarm occurs when a door is open

for longer than the preset time. The door must be

1-4 The Accutech Systems Installation Manual

closed and a Keypad Reset (or AutoReset

jumper in place) to clear.

A Loiter alarm occurs when a Tag lingers in the

Tx Activation Field. Remove all Tags from the

Field and then enter a Keypad Reset (or

AutoReset jumper in place) to clear this alarm.

A Supervisor alarm occurs when the

performance of the system has been altered due

to tampering or inadvertent acts such as cut

wires, antenna damage or interference, etc. The

alarm will reset when the condition is corrected.

Contact the person outlined in your protocol for

this type of alarm.

NOTE: Receiver-related supervise events can

be reset by the Keypad for the duration of the

supervise interval. This will silence the alarm.

A Band Alarm occurs when the BR42 Tag/band

is removed or tampered with in any way or the

Cut Band Tag/band is cut.

System Components

This section contains a brief description and a

simple graphic (not to scale) for each component

and its role in the Accutech Systems.

NOTE:

Accutech reserves the right to substitute

comparable components.

Since each facility’s system is unique to its

particular needs, check off the components that

your facility’s system has below:

Components

 The ES 2200 System Tag (LT/SB22)

 The IS 3200 System Tag (LT/SB32)

 The BR 4200 System Tag (BR42)

 Cut Band Tag

 Tag barcodes

 Visual Pulse LED

 The Tag Activator Deactivator (TAD)

 The Tag Test Station (TTS)

 The Accutech Software

 The Controller

 The Transmit (Tx) wand antenna

 The Receiver

 The Keypad

 The Push Button Override (PBO)

 The Magnetic Switch

 The Passive Infrared Reader (PIR)

 The Local Alarm

 The Central Alarm

 The Speakers

 The Multiplexer

 Power Supply

 The Staff Alert Panel (SAP)

 The Graphic Display Panel (GDP)

 Magnetic Locks

 Elevator Deactivation Circuitry

 The Fire Panel Interface (FPI)

 Timer

Installation Manual The Accutech Systems 1-5

LT22

SB22

Figure 1.1

ES 2200 System Tag

(band not shown)

The ES 2200 System Tag

The ES 2200 System Tag (Figure 1.1) is a small wristwatch-sized

device that is worn by a resident or attached to an asset.

Two models are available:

LT = Long Term resident care

SB = Slotted Back; to be used on small infants and assets

When an ES 2200 System Tag enters a Tx Activation Field (near a

monitored zone), the ES 2200 System Tag activates and responds by

sending a signal via the Receiver to the Controller. This information is

processed by the Controller for appropriate control action or response

at the zone.

ES 2200 System Tags are attached to residents/assets with a nylon-

mesh vinyl band, are activated/deactivated using a TAD unit, and

contain a visual pulse LED.

LT32

SB32

Figure 1.2

IS 3200 System Tag

(band not shown)

The IS 3200 System Tag

In addition to the look and functionality of ES 2200 System Tags, IS

3200 System Tags (Figure 1.2) are assigned to a specific resident or

asset (via the Tag Test Station and a computer with the Accutech

Software). The computer then associates the name, room number, and

any other helpful comments about the resident or asset with that Tag.

When the IS 3200 System Tag enters a Tx Activation Field (near a

monitored zone), the IS 3200 System Tag responds by sending a signal

via the Receiver to the Controller while the Multiplexer sends the

information to a computer with the Accutech Software and/or to

Graphic Display Panels (GDPs). This information is processed by the

Controller for appropriate control action or response at the zone.

IS 3200 System Tags are attached to residents/assets with a nylon-

mesh vinyl band, are activated/deactivated using a TAD unit, and

contain a visual pulse LED.

1-6 The Accutech Systems Installation Manual

Figure 1.3

BR 4200 System Tag

(band not shown)

The BR 4200 System Tag

In addition to the functionality of an IS 3200 System Tag, the BR 4200

System Tag (Figure 1.3) will alarm if the band is removed or tampered

with in any way.

BR 4200 System Tags are attached to infants with a conductive fiber

striped-cloth band, are activated/deactivated using a TAD unit, and

contain a visual pulse LED.

Figure 1.4

Cut Band Tag

(band not shown)

Cut Band Tag

Similar to the functionality of a BR 4200 System Tag, Cut Band Tags

(Figure 1.4) will alarm if the band is cut and is designed for use in

pediatrics applications.

Cut Band Tags are attached to patients with a Tyvek band (Figure 1.5)

and plastic covers (Figure 1.6), are activated/deactivated using a TAD

unit, and contain a visual pulse LED. The band contains foil adhesive

that will fray during tampering. Using plastic covers with a Cut Band

Tag will significantly reduce the need for sanitizing the Tag between

applications.

Figure 1.5 Cut Band Band Figure 1.6 Plastic Covers

Installation Manual The Accutech Systems 1-7

Tag barcodes

Tag barcodes (Figure 1.7) contain a Tag’s

manufacturing history.

Figure 1.7 Tag barcode example

The coding scheme is as follows:

M-WWYY-TSSS

”M” is the manufacturer designator.

”WWYY” is the date code.

(“1706” would mean the 17th week of 2006)

”T” is the tag type designator.

 1 is for CB (Cut Band)

 2 is for BR (Band Removal)

 3 is for LT (Long Term)

 4 is for SB (Slotted Back)

”SSS” is the serial number for that tag type

manufactured during that week.

Visual Pulse LED

The Visual Pulse LED indicates the Tag’s current mode

(see Table 1.1)

Table 1.1 Visual Pulse LED status

LED Light Pattern off on Tag LED Status

LT, SB Tags

None Tag is off.

Active, not in zone

Active, in zone

BR, CB Tags

None Tag is off.

Active, not in zone,

non-Band Alarm

Active, in zone

(may be in Band Alarm)

Active, not in zone

Band Alarm mode,

Tag base color chart

Tag tops are smoke-colored while the Tag base color will

vary based upon Tag type (see Table 1.2).

Table 1.2 Tag base color chart

Tag Type Base Color

CB White

SB Gray

LT Gray

BR Yellow

1-8 The Accutech Systems Installation Manual

Figure 1.8

The Tag Activator/Deactivator

(TAD)

The Tag Activator/Deactivator (TAD)

The Tag Activator/Deactivator (TAD) (Figure 1.8) turns

IS 3200 System and BR 4200 System Tags on and off.

In addition, the TAD checks a Tag’s battery and assists in finding lost

Tags.

Figure 1.9

Tag Test Station (TTS)

The Tag Test Station (TTS)

The Tag Test Station (TTS) (Figure 1.9) is used for Tag assignments.

Figure 1.10

Accutech Software example

The Accutech Software

The Accutech Software (Figure 1.10) displays events in real-time on a

PC using the facility’s floor plan.

Figure 1.11

The Controller

The Controller (Figure 1.11) coordinates and controls all of the devices

and functions of the Accutech Systems.

Installation Manual The Accutech Systems 1-9

Figure 1.12

Transmit (Tx) wand antenna

(shown without cover)

The Transmit (Tx) wand antenna

The Transmit (Tx) wand antenna (Figure 1.12) generates a Tag-

activating signal near a monitored zone. This signal is referred to as

the “Tx Activation Field.”

Figure 1.13

Receiver (remote shown)

The Receiver

The Receiver (Figure 1.13) picks up the signal from an activated tag

and relays it to the Controller and the Multiplexer. Receivers can be

internally or remotely mounted near a monitored zone. BR 4200 Zone

Receivers monitor both zone events and Band Removal events. BR

4200 Auxiliary Receivers only monitor Band Removal events.

Figure 1.14 Keypad

The Keypad

The Keypad (Figure 1.14) is used to escort residents through a

monitored zone and to reset zone equipment once an alarm has

occurred.

Figure 1.15

Push Button Override (PBO)

The Push Button Override (PBO)

The Push Button Override (PBO) (Figure 1.15) triggers the Keypad’s

Escort function; this option allows free access through a monitored

door from the non-Keypad side of the door.

1-10 The Accutech Systems Installation Manual

Figure 1.16 Magnetic Switch

The Magnetic Switch

The Magnetic Switch (Figure 1.16) is used on a door when alarm

activation is not desired unless the door is open when a monitored

resident is near that door.

Figure 1.17

Passive Infrared Reader (PIR)

The Passive Infrared Reader (PIR)

A Passive Infrared Reader (PIR) (Figure 1.17) is a device that uses a

infrared sensor to monitor doors, hallways, corridors and passageways.

Like the Magnetic Switch, the PIR is used in areas where alarm

activation is not desired immediately upon Tag detection. It is used in

hallways or other areas where a Magnetic Switch would not be

feasible.

Figure 1.18 Local Alarm

The Local Alarm

The Local Alarm (Figure 1.18), a piezo-signaling device, is intended to

attract attention near the monitored zone only.

Figure 1.19 Central Alarm

The Central Alarm

The Central Alarm (Figure 1.19) is a multi-tone alert. It consists of a

tone generator that operates Speakers located throughout a facility.

There are eight different tones available. You may choose to assign a

separate tone for each zone, share the same tone for adjacent zones or

use one tone for all zones.

Figure 1.20 Speakers

The Speakers

The Speakers (Figure 1.20) provided by Accutech are 8-ohm speakers

and used in conjunction with the Central Alarm.

Installation Manual The Accutech Systems 1-11

Figure 1.21 Multiplexer

The Multiplexer

The Multiplexer (Figure 1.21) relays event information from the

Controller to Graphic Display Panels (GDPs) and to a PC with the

Accutech Software.

Figure 1.22 Power Supply

Power Supply

Some installations of Accutech System peripherals require more

power than the Controller can provide. In these cases, a Power Supply

(Figure 1.22) is added to the system to meet the additional power

requirements.

Figure 1.23 SAP

The Staff Alert Panel (SAP)

The Staff Alert Panel (SAP) (Figure 1.23), typically located at a staff

station, notifies staff when an alarm condition occurs in a monitored

zone through a piezo buzzer and alarm-specific LEDs.

Figure 1.24 GDP

The Graphic Display Panel (GDP)

The Graphic Display Panel (GDP) (Figure 1.24) provides the staff with

a visual representation of the floor being monitored. GDPs are custom-

made to a facility’s floor plan and notify staff when an alarm condition

occurs in a monitored zone through a piezo buzzer and alarm-specific

LEDs.

1-12 The Accutech Systems Installation Manual

Figure 1.25

Magnetic Locks

Magnetic Locks (Figure 1.25) prevent unescorted egress.

The 3000 Series Magnetic Lock features:

 1500 pound holding force

 12V to 24V AC/DC

 Unlock instantly if facility fire panel activated

The 3101 Series Magnetic Lock features:

 1200 pound holding force

 12V AC/DC

 Unlock instantly if facility fire panel activated

 NFPA101 Life Safety Code conformity (Delay Egress Circuitry)

 a selectable nuisance delay

 an Accutech-exclusive electromagnetic coil

 an Accutech-exclusive firmware chip

Figure 1.26

Elevator Deactivation Circuitry

Elevator Deactivation Circuitry (Figure 1.26)

prevents monitored residents from using an elevator.

Figure 1.27 FPI

The Fire Panel Interface (FPI)

The Fire Panel Interface (FPI) (Figure 1.27) ensures that in the event of

a fire alarm, the Magnetic Lock and Elevator Deactivation Circuitry

will disengage. Although the restraint systems are disengaged, the

system visual and audial alarms remain active.

Figure 1.28 Timer example

Timer

A Timer (Figure 1.28) allows the user to engage/disengage certain

system functions on a time schedule.

Installation Manual The Accutech Systems 1-13

Typical System Configurations

 Single Door Example

 Remote Single Door Example

 Double Door Example

 6 to 8 foot Elevator Example

The following are lists of the components used in each of the more typical zones encountered. They are

accompanied by graphics that are intended merely as suggestions as to where the components should be

placed in relationship to the opening being covered. They are shown with a “drop” ceiling, where it is

typically easy to access an “out of the way” area.

The chapters that follow will more clearly define the parameters used to determine component locations.

As always, common sense, local codes, and consultation with your Accutech Representative will go a

long way toward answering many of your questions.

Single Door Example

(Figure 1.29)

(Controller mounted at door, above drop ceiling)

1-Accutech Controller/Receiver (Ch. 3; Ch 5)

1-Accutech Tx wand antenna (Ch. 4)

1-Magnetic Switch (Ch. 9)

1-Keypad (Ch. 7)

1-Local Alarm (Ch. 13)

1-Cable Kit (Ch. 2)

Figure 1.29 Single Door Example

Remote Single Door Example

(Figure 1.30)

(Controller mounted remotely, in utility room)

1-Accutech Controller (Ch. 3)

1-Remote Receiver (Ch. 5)

1-Accutech Tx wand antenna (Ch. 4)

1-3101 Magnetic Lock (Ch. 11)

1-Magnetic Switch (Ch. 9)

1-Keypad (Ch. 7)

1-Local Alarm (Ch. 13)

1-Cable Kit (Ch. 2)

1-Junction Box

1-Composite Cable (specify length) (Ch.2)

Figure 1.30 Remote Single Door Example

1-14 The Accutech Systems Installation Manual

Double Door Example

(Figure 1.31)

(Controller mounted at door, above drop ceiling)

1-Accutech Controller/Receiver (Ch. 3; Ch 5)

2-Accutech Tx wand antennas (Ch. 4)

2-Magnetic Switches (Ch. 9)

1-Keypad (Ch. 7)

1-Local Alarm (Ch. 13)

1-Cable Kit (Ch. 2)

Figure 1.31 Double Door Example

6 to 8 Foot Elevator Example

(Figure 1.32)

(Controller mounted at elevator, above drop ceiling)

1-Accutech Controller/Receiver (Ch. 3; Ch 5)

2-Accutech Tx wand antennas (Ch. 4)

1-PIR (Passive Infrared Reader; Ch. 10)

1-Keypad (Ch. 7)

1-Local Alarm (Ch. 13)

1-Cable Kit (Ch. 2)

Figure 1.32 6-to-8 Foot Elevator Example

Installation Manual

Chapter 2:

Wire and Cables

Installation Manual Wire and Cables 2-1

Wire and Cables

 Cable Door Kit

 SAP and GDP Cable Specifications

 Fire Panel Cable Specifications

 Composite Cable

 Wire Gauge Table

Each component in the Accutech Systems has

its own wiring requirements.

They have been determined by:

 the amount of Current they will draw

 the Voltage they require

 the type of Signal they will carry

 the Distance the signal can/will travel

 the type of environment the cables

will be exposed to

 National Fire Prevention Association

(NFPA) codes

 National Electoral Code (NEC)

All cables used by Accutech are “Plenum”

rated unless otherwise specified. This allows

them to be run in areas that other cable would

not be allowed.

Be sure you consult Local, State, and Federal

codes as well as with your Accutech

Representative before making any wiring

substitutions.

Cable Door Kit

Accutech’s Cable Door Kit (see Table 2.1) is

the building block for the installation of any

type of zone. As options are added additional

wire or cables will be required.

SAP and GDP Cable Specifications

The addition of a SAP or GDP to your system

will require additional cables. SAPs and

GDPs require a run of 22-gauge, 6-conductor

cable from each zone Controller to the

respective Panel. Consult Table 2.2 on page

2-4 to determine the necessary gauge verses

the distance from the source to the SAP or

GDP.

Furthermore, SAPs and GDPs have a fire

alarm indicator LED that is designed to

receive a signal from the Fire Panel Interface

(FPI) unit. Using 22-gauge, 2-conductor

cables should be adequate up to 1000 feet for

this task.

Table 2.1 Accutech Cable Door Kit # 700150 Contents

Accutech Part # Gauge/

Conductor Shielded? Length in Feet Used for

200302 18/6 No 30 Lock

200306 22/2 No 40 Magnetic Switch; Local Alarm

200304 22/4 No 65 Keypad

200307 18/2 Yes 50 Tx wand antenna

2-2 Wire and Cables Installation Manual

Fire Panel Cable Specifications

The addition of a Lock requires an interface to

the Fire Panel. If future expansion of the system

is a possibility, it is recommended that you use a

Fire Panel Interface (FPI) unit.

If expansion is not possible and there are only

one or two zones, a Fire Panel Relay (with 3 sets

of dry contacts) can be used instead.

If a FPI unit is used, you will need to run a

separate 2-conductor cable from one of the zone

Controllers to the FPI unit to provide power.

You may choose to run a length of 4-conductor

and include the wire for that unit's dry contacts

in the cable as well.

Furthermore, a length of 22-gauge,

2-conductor will need to go from the FPI to each

SAP’s or GDP’s Fire Alarm indicator LED.

NOTE: Some installations may allow for the FPI

to be mounted very near a SAP. You could then

include the Fire Contacts in the same run of

cable as the SAP or GDP. This can minimize

long, multiple runs of cable considering that

there are connections between each of these

three units.

Composite Cable

 Technical Specifications

NOTE: For easier installation, Accutech

Composite Cable (Part # 200355) was

replaced with Composite Cable

(Part # 200371) on June 1st, 2004. For

information on the previous composite cable,

see page A-5.

Accutech offers a “composite” cable (Figure 2.1;

Part # 200371) for wire runs from the Controller

to a Junction Box when the Controller is

mounted away from the zone.

At the zone, use the cable kits supplied with the

system to run from the Junction Box to the

individual components at the zone.

When wiring composite cable, use the same

color code throughout the Accutech System

(Figure 2.1).

Installation Manual Wire and Cables 2-3

Technical Specifications

The technical specifications for the Accutech Composite Cable (Part # 200371) are:

 A four-element Plenum-rated composite cable

 Element 1: 18 gauge 4 conductor shielded Mid-Cap (Color code: orange, yellow, white, green)

 Element 2: 18 gauge 4 conductor non-shielded (Color code: red, black, blue, brown)

 Element 3: 24 gauge 2 conductor shielded (Color code: gray, violet)

 Element 4: 25 gauge 14 conductor non-shielded (Color code: white, green, beige, brown, orange, blue,

pink, yellow, red, black, white/blue, white/brown, white/red, white/green)

 Each element is individually wrapped with a clear mylar binder and all elements are cabled together

 Jacket Material: Low Smoke Polyvinylchloride (PVC)

 Jacket color: yellow

 Jacket Ripcord: Yes

 Jacket Print: “18 AWG 4C SHIELDED + 18 AWG 4C + 24 AWG 2C + 24 AWG E171202 (UL) CL3P

OR CMP C (UL) 75 º www.accutech-ics.com 800-356-2671”

 Ascending/Descending Footage Markers

 Diameter: nominal 0.386”

 Made in accordance with UL Subject 444, NEC Type CMP

Figure 2.1

Composite Cable (Part # 200371) Conductor Uses and Color Code

2-4 Wire and Cables Installation Manual

Table 2.2 Wire Gauge Table - For common system devices

The following table indicates the recommended minimum wire gauge for a given length of cable. This table reflects

the fact that there are two conductors, power and ground, running to each device.

Note: 1000 feet of cable means the supply current travels a total of 2000 feet.

Supply

Voltage

(DC)

V

Min.

Peripheral

Device:

Current

@12V

AC/DC

1’-

25’

25’-

100’

100’-

250’

250’-

500’

500’-

1000’

1000’-

000’

12V 10V

Local Alarm 12mA 24 24 24 24 24 24

12V 9V Central

Alarm 100mA 24 24 24 22 18 16

12V 9V Keypad 55mA 24 24 24 24 22 20

12V 9V Keypad

w/ PBO 75mA 24 24 24 24 22 18

12V 6V

Magnetic

Switch 25mA 24 24 24 24 24 18

12V 9V SAP 150mA 24 24 24 24 24 18

12V 9V GDP 500mA 24 24 24 24 24 18

12V 9.5V PIR 10mA 24 24 24 24 24 18

12V 11V

Multiplexer 500mA 18 18 18 18 18 16

12V 9V

Elevator

Deactivation

Relay

100mA 18 18 18 18 18 18

12V 10.5V

3000/3101

Lock* 450mA 18 18 18 18 16 12

12V 10.5V

3000/3101

Lock** 900mA 18 18 18 16 12 10

*This is for one lock, receiving 12VAC from the Controller.

**This is for two locks, in parallel, receiving 12VAC from the same Controller.

Installation Manual

Chapter 3:

The Controller

Installation Manual The Controller 3-1

The Controller

 Controller Specifications

 Mounting the Controller at the zone

 Remote Mounting the Controller

 Hard Wiring Power

 The System Supervisor

 Tamper Switch

The Controller coordinates and controls all

of the devices and functions of the Accutech

Systems.

Controller Specifications

 Power Requirements

 Temperature

 Weight

 Location

Power Requirements

 120V AC, 1.0 amp

A dedicated 120V AC, 15-amp

circuit with emergency backup is

recommended.

 Each Controller comes with a

grounded 6-foot power cord for

ease of installation.

 A three-prong 120-Volt outlet with

emergency back up should be

located within 6 feet of each

Controller.

Temperature

The Controller and its associated peripherals

operate best in an ambient temperature

between 35 and 90 degrees Fahrenheit.

Operation outside of this range may cause

unexpected or undesirable results, including

premature component or device failure.

Weight

The Controller weighs approximately 13

U.S. pounds, which should be considered

when choosing mounting location and

hardware.

Location

The recommended location of the Controller

is out of sight above a drop ceiling near the

monitored zone. If it is not possible to

mount the Controller out of sight, place the

Controller high on the wall.

By default, the Controller is factory

configured to use an internally mounted

zone Receiver. However, if desired, a

remote mounting system can be used to

mount the Receiver at the zone allowing the

Controller to be mounted in a utility closet

or other concealed location.

3-2 The Controller Installation Manual

Mounting the Controller at the zone

To mount the Controller, refer to Figure 3.1

and use the following instructions:

1. Mark-out and drill 4 mounting holes

in the wall corresponding to the

mounting holes of the Controller.

2. Using appropriate hardware for the

mounting surface, install the four

anchors, then the upper two screws

leaving about a 1/8th of an inch

exposed.

NOTE: The hole spacing on the

Controller is 16” on centers, which

is typical wall stud spacing.

3. Remove the Controller cover.

4. Align the large “key-way” holes

with the upper screws and gently

guide the Controller base onto the

screws allowing the unit to hang

from these screws temporarily.

5. Determine which knock-outs will be

used for bringing the wires and/or

cable into the Controller. Remove

the Controller from the upper

screws, remove the appropriate

knock-outs and install the proper

fittings and/or bushings.

6. The Controller is shipped with an

internally mounted Receiver

(mounted backwards to protect the

antenna connector in shipment).

You will need to flip the Receiver

around.

7. Refer to Figure 3.1 and remove the

two mounting screws that attach the

Receiver to the Controller.

8. Flip the Receiver around and

re-mount it.

NOTE: Be sure to keep the wire

harness connections intact during

this move.

9. Make any and all conduit

connections that require the

Controller to be unmounted.

10. Position the Controller back on the

first two screws and install the last

two mounting screws then tighten

all 4 mounting screws.

11. Punch out the Receiver antenna

knock-out on the Controller cover.

12. Replace the Controller cover and

attach the Receiver antenna.

Installation Manual The Controller 3-3

Figure 3.1 Mounting the Controller

3-4 The Controller Installation Manual

Remote Mounting

of the Controller

To mount the Controller remotely, follow

the same instructions as you would to mount

the Controller locally.

However, remote mounting of the Controller

requires that a Remote Receiver be

positioned at the zone. The Receiver,

normally mounted inside of the Controller,

requires a different mounting plate and a

4”x4”x2” electrical box.

Furthermore, using a composite cable

(available from Accutech) will greatly ease

the pulling of wire from zone components to

the Controller. The composite cable is a

multi-conductor cable that is color coded to

provide ease of installation. In order to make

it easier for Accutech personnel to offer

assistance, either over the phone or in

person, please be consistent in following the

color-coding for the Composite Cable stated

on page 2-3.

Finally, a 4”x4”x2” junction box (also

available from Accutech) is recommended

to make the connections between zone

components and the Controller.

Hard Wiring Power

If installation requires that the Controller

power be hard wired, then the Controller’s

power cord must be removed.

WARNING: Before making any attempt at

hard wiring, turn off the power and unplug

the Controller.

NOTE: Only a certified electrician or

equivalent should attempt hard wiring.

To hard wire the Controller, refer to Figure

3.2 and use the following instructions:

1. Remove the Controller cover by

removing the screws.

2. Remove the Power Supply cover by

removing the 4 mounting screws.

3. On the three-position power

terminal strip, remove the 3 power

cord wires* by loosening the 3

terminal screws that hold them in

place.

*NOTE: On newer models, the

Green wire coming from the power

cord will go directly to a chassis

ground instead of a terminal block.

4. Using pliers to squeeze the cord

strain relief bushing, remove the

power cord.

NOTE: A suitable plug or cap

should be put in the power cord

hole.

Installation Manual The Controller 3-5

Figure 3.2 Hard wiring the Controller

3-6 The Controller Installation Manual

5. Punch out the ½” conduit fitting

knock-out and install a proper

conduit fitting for the connection

you are making.

6. After your conduit runs are

complete and tight, fish solid 14-

gauge conductor from the power

source through to the power

terminal strip. Be sure to leave

yourself 4-6” of excess wire to work

with.

7. Replace the Power Supply Cover.

8. Turn on the power to test the

connections.

NOTE: The Red wires from the

secondary of the transformer carry

approximately 15V AC. The Blue

wires carry approximately 30V AC.

9. Once hard wire power has been

verified, make sure the Power

Switch on the Controller is turned

off.

10. Replace the Controller cover.

The System Supervisor

 Supervisor Threshold

 Power Loss Supervise Alarm

The System Supervisor, is a built-in

self-diagnostic circuit, continuously

monitors the Tx Activation Field and

periodically simulates a Tag in the zone.

If the System Supervisor detects a problem,

the zone’s Controller will begin to alarm via

a piezo buzzer (provided jumper JP13 is in

place) and on SAPs/GDPs and the Accutech

Software.

The System Supervisor will initiate an alarm

when:

 Certain “critical” wires are

cut or broken

 Certain “critical” components fail

 The Tx Activation Field is

compromised by a metal structure

(such as a food cart) or by radio

frequency interference.

 The system loses power (battery

required).

JP5 (Table 3.1) determines how often the

System Supervisor checks each Zone

Receiver in the Accutech System.

Table 3.1 JP5 Positions and Results

Position Result

(Check system Once/Time Interval)

1 Test

(testing purposes only)

2 Demo; Once/min

(demonstration purposes only)

3 Once/ 2 Hours

4 Once/ 4 Hours

5 Once/ 8 Hours

6 Once/16 Hours

7 Disable

Installation Manual The Controller 3-7

NOTE: JP5 Positions 1 and 2 are only for

testing and demonstration purposes; they

should not be used during normal operation.

If desired, the System Supervisor can also be

wired to trigger an external alarm (e.g. Local

Alarm)

A common System Supervisor condition is

that a large metal object (such as a food cart)

has been placed very near the Tx wand

antenna and has diminished the Tx

Activation Field.

NOTE: Receiver-related supervise events

can be reset by the Keypad for the duration

of the supervise interval. This will silence

the alarm.

Supervisor Threshold

The Supervisor Threshold Level is set using

potentiometer R26 and should be set at the

second bar from the bottom of LED13. For

more information see page B-7 (for LED13),

B-10 (for R26), and B-12 (for S3).

Power Loss Supervise Alarm

The Controller also has a Power Loss

Supervise function that will indicate that the

system power has been lost.

To activate this feature a jumper must be

placed in JP13 (Piezo Enable) and a

rechargeable 9-vold NiCad (nickel-

cadmium) battery (purchased separately)

must be installed in the battery clip

connected to P12 of the Controller.

When the battery is installed and the power

is applied to the Controller, the battery is

being trickle charged constantly. When

power is lost to the Controller, the Piezo

Alert of the Controller will sound for as long

as the 9-volt battery has enough power to

drive the Piezo.

NOTE: To avoid possible damage or wear

and tear to the battery cable, connector, the

battery itself, or interference with the wiring

within the Controller case, the battery

should be secured to the inside of the

Controller case with Velcro, Double Stick

tape, or a Tie wrap.

WARNING:

For the Power Loss Supervise function, use

a 9-volt Ni-Cad (nickel-cadmium)

rechargeable battery ONLY as other types of

batteries may explode or leak causing

damage to the Controller or injury to the

person(s) working on the equipment.

WARNING:

If a battery is not installed, make sure that

the battery clip cover is in place over the

battery lead terminals. If you have lost the

cover, then be sure to cover the terminals of

the battery clip with electrical tape or heat

shrink tubing before you apply power to the

unit. Failure to do so can result in the

terminal leads shorting to the case causing

damage to the Controller or electric shock.

3-8 The Controller Installation Manual

Tamper Switch

UL 294 requirements call for the installation

of a “tamper switch” that engages the lid,

and is wired so as to cause an alarm if the lid

is removed.

When the tamper switch is installed and the

lid is removed, a Tx Supervise alarm will be

generated and LED14 will illuminate red.

To remedy the alarm, replace the lid.

The switch is mounted with #4-40, ½”

machine screws, star washer, and nut to the

Controller case (Figure 3.4).

To wire the tamper switch, use

Figures 3.3 - 3.4 and the following

instructions:

1. The BLACK wire of the tamper

switch goes to the “X” Tx wand

antenna at the “Antenna” terminal

(Figure 3.3).

2. The WHITE/BLUE wire of the

tamper switch goes to the “X”

terminal of the Controller (P1-2).

(Figure 3.4)

Figure 3.3

Tamper Switch antenna connection

Installation Manual The Controller 3-9

Figure 3.4 Connecting the Tamper Switch

Installation Manual

Chapter 4:

The Tx wand antenna

Installation Manual The Tx wand antenna 4-1

The Tx wand antenna

 Tx wand antenna Specifications

 Single Door Applications

 Double Door Applications

 Spacing Tx wand antennas

at the Same Zone

 Mounting a Tx wand antenna

 Connecting a Tx wand antenna

to the zone Controller

 Stagger Tuning

 Why Re-tune the Tx wand antenna?

 Tuning a Tx wand antenna

 Alternate Tuning Method

 Adjusting the Tx Activation Field

A Tx wand antenna (Figure 4.1 and 4.2) located

at a zone generates a Tag activating, radio

frequency signal called the “Tx Activation

Field.”

Figure 4.1

A Tx wand antenna (with cover off)

When a Tag is activated it sends a signal to the

Receiver. The Receiver then sends the signal

to the Controller, which validates the signal

before initiating any action such as locking a

door, deactivating an elevator or triggering

system alarms.

Tx wand antenna Specifications

 Power Requirements

 Temperature

 Weight

 Location

Power Requirements

Figure 4.2 Tx wand antenna PCB

Provided by Controller

Weight

Temperature

A Tx wand antenna weighs approximately 1.5

U.S. pounds, which should be considered

when choosing mounting hardware.

Tx wand antennas operate best in an ambient

temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range

may cause unexpected or undesirable results,

including premature failure. Location

Position the antenna on the latch side of the

door with its lowest point about 3 feet above

4-2 The Tx wand antenna Installation Manual

Single Door Applications

the floor and at least 3 inches away from any

metal doorframe (Figure 4.3). A 3-inch wood

or plastic spacer may be used to keep the

antenna away from a metal door frame. In

some circumstances due to a building’s

construction, it may be necessary to mount the

antenna on the hinge side of the door.

A single door application (Figure 4.3) usually

requires only one antenna for adequate

coverage.

Double Door Applications

For a double door or hallway application 6

feet or wider (Figure 4.4), two antennas are

usually required.

Furthermore, never mount any metal electrical

box or run conduit right behind the “ferrite”

bar portion of the antenna (Figure 4.1).

However, it is acceptable to mount the metal

box so that it is directly behind the circuit

board only.

If you are protecting a double door or hallway,

which is adjacent to a resident’s room, you

should turn down the Tx Activation Field on

the antenna (see page 4-14) that is nearest the

resident’s room to avoid nuisance activation.

In addition, the antenna should be positioned

within 18 inches maximum of the monitored

door to assure proper coverage. The

recommended distance is from 3 to 6 inches.

Positioning the antenna correctly will help in

avoiding unintended activation of a Tag in a

nearby room or a passerby. The goal is to

produce a Tx Activation Field that adequately

covers the doorway but does not extend into

nearby resident rooms. For more information,

see Tuning a Tx wand antenna on page 4-7.

Figure 4.4 Double Door Placement

Spacing Tx wand antennas

at the Same Zone

It is recommended that the distance between

antennas for a double door or hallway

application should not be greater than 8 feet.

If the opening is greater than 8 feet wide, then

it may be necessary to add a third antenna,

mounted in a horizontal position above the

door or hallway to assure full coverage.

Figure 4.3 Single Door Placement

Installation Manual The Tx wand antenna 4-3

NOTE: When using multiple antennas, it is

necessary to install jumper JP4 on the

Controller board. Install in position 2-3 for

two antennas, or position 1-2 for three

antennas. For more information on jumper

JP4, see Appendix B-1.

Mounting a Tx wand antenna

Use the following instructions to mount a Tx

wand antenna:

1. Select appropriate screws and wall

anchors for the mounting surface.

2. Using the spanner key supplied, take

off the antenna cover by removing

the two spanner security screws and

slipping the cover off of the base.

3. If the antenna cable is to be fished

through the wall only, decide where

you will mount the antenna and go to

step 4.

If not, consider the following before you

proceed to step 4:

 If the cable is being run through wire

molding, cut a small notch in the Tx

wand antenna plastic case where the

molding meets the antenna case to

facilitate wire entry.

 If the cable is required to run through

conduit due to building codes, then

be certain not to run any conduit

directly behind the antenna’s “ferrite”

bar.

NOTE: Running cable through

conduit is not recommended because

it may de-tune the antenna and/or the

cable thus negatively affecting the

system’s performance.

 If conduit is used, a single gang box

can be used to terminate the

connection, but it must be mounted

so that it will be directly behind the

circuit board of the antenna only and

not behind the ferrite.

4. Using the antenna as a template,

mark the four mounting holes.

NOTE: Use the antenna as a template

only for marking the holes; do not

attempt to drill while holding the

antenna to the mounting surface.

5. Drill the 4 mounting holes in the

mounting surface.

6. Fish 18-gauge, 2-conductor shielded

cable through the wall, raceway, or

conduit and out through the middle

hole at the bottom of the antenna. The

cable will be used to connect the

antenna to the zone Controller.

7. Secure the antenna to the mounting

surface with appropriate hardware.

4-4 The Tx wand antenna Installation Manual

Connecting a Tx wand antenna

to the zone Controller

To connect a Tx wand to the zone Controller,

refer to Figure 4.5 (and if applicable, Figures 4.6

and 4.7) and use the following instructions:

1. Using the RED wire, connect the

“UNREG” on the antenna (pin P1-2)

to “UNREG” on the zone Controller

(pin P1-5).

NOTE: When multiple antennas are

being used, each subsequent antenna

should have its RED wire connected

to one of the two “UNREG” positions

on the zone Controller (P1-1 or P1-5).

2. Using the BLACK wire, connect the

“ANT” on the antenna (pin P1-1) to

“X” on the zone Controller (pin P1-2).

NOTE: When multiple antennas are

being used, the second antenna’s

BLACK wire should be connected to

“Y” (pin P1-3) and the third antenna’s

BLACK wire should be connected to

“Z” (pin P1-4).

3. Regardless of how many antennas are

being used, the bare “SHIELD” wire

from each antenna cable should be

tied together and connected at the

“SHIELD” position (pin P1-6) on the

zone Controller. The shields wires are

not to be connected to the antenna.

4. After the antenna(s) are connected and

tuned properly (see page 4-7), replace

the antenna cover(s).

Installation Manual The Tx wand antenna 4-5

Figure 4.5 Connecting a Tx wand antenna to the zone Controller

Figure 4.6 Connecting two Tx wand antennas to the zone Controller

Figure 4.7 Connecting three Tx wand antennas to the zone Controller

4-6 The Tx wand antenna Installation Manual

Stagger Tuning

 Implementing Stagger Tuning

Stagger Tuning allows monitored zones to be

located closer than the normal minimum 70

feet distance by using different Tx operating

frequencies for adjacent zones so that Tags

activated in one zone do not create events

(locks, alarms, etc.) in another zone.

Implementing Stagger Tuning

The Controller comes from the factory with 3

different crystals, Y1 (130 KHZ), Y2 (131.072

KHZ) and Y3 (132 KHZ). Jumper JP1 on the

Controller selects which crystal frequency is

in use. Position 1 (the upper position) selects

crystal Y1. Position 2 selects crystal Y2, and

position 3 selects Y3. (see Figure 4.8) Be sure

to turn the unit off, and then back on when you

are done changing the frequency. You must

re-tune after changing the frequency.

The Controller and the Tx wand antennas will

come from the factory set to Y2 (131.072

KHZ). This is the primary frequency and

should be used whenever possible.

When two zones are close enough to “see”

Tags activated in the other zone, you should

implement alternate frequencies. Remember to

cycle the power.

If you are dealing with 3 or more doors close

together, you should stagger the frequencies so

that the 131.072 KHZ (Y2) frequency is used

most often (see Figure 4.9).

Figure 4.8 The Tx frequency crystals

Typically, you should not operate two doors

on the same frequency when they are closer

than 70 feet.

If you should need more than the 3 factory

installed frequency crystals, contact your

Accutech Representative about acquiring

additional alternate frequency crystals.

Keep in mind whenever you change to an

alternate frequency, you will need to re-tune

the Tx wand antenna(s) (see page 4-7).

Figure 4.9

Alternating Tx Frequencies in nearby zones

Installation Manual The Tx wand antenna 4-7

Why Re-tune a Tx wand Antenna?

Tx wand antennas come from the factory set

to Y2 (131.072 KHZ). Under most

circumstances, they will not need to be

adjusted. However, there are 3 possible

reasons to re-tune:

a. The antenna had to be mounted close

to a metal object during installation

and was detuned.

b. Stagger Tuning is implemented.

c. Someone has made an adjustment to

the Tx wand antenna and you want to

get it back to the factory setting.

Tuning a Tx wand antenna

A Tx wand antenna should only be adjusted

during initial installation or for the reasons

stated in the “Why Re-tune a Tx wand

antenna?” section.

NOTE: Make sure all connections have been

made as outlined in the previous sections.

In this manual, the term “potentiometer “ is

often shortened to “pot” for simplicity.

IMPORTANT:

Tuning procedures can cause Supervise

alarms. Notify staff and security that you will

be adjusting (and possibly weakening) the

zone and they will need to pay special

attention to area traffic during this time.

Before you start

For either tuning method, before you start note

the number of antennas in the zone and

complete the following steps to establish a

good starting point:

On the Controller:

 Verify JP14 (Bar Display Enable) is

in place.

 Verify JP15 (Tx Output LED Enable)

is in place.

 Adjust pot R6 (Tx Gain), clockwise

to the maximum.

 Verify pots R4 (Y Balance) and R12

(Z Balance) are at their maximums

(fully clockwise).

 Move Switch S3 to the right position.

 Verify JP1 (Tx Frequency Select) is

in the correct frequency for the zone.

 Verify that the Supervise Threshold

Level (the “flashing” green bar) is set

at the second bar from the bottom on

LED13 (Figure 4.10). If necessary,

adjust pot R26 (Tx Supervise

Threshold) to make it this way.

On each Tx wand antenna:

 Adjust pot R1 (LED Brightness)

clockwise to the maximum

After completing the previous steps, refer to

the appropriate section for your zone.

 One-antenna zone

 Two-antenna zone

 Three-antenna zone

4-8 The Tx wand antenna Installation Manual

One-antenna zone

To tune a one-antenna zone, refer to Figure

4.10 and use the following instructions:

1. Using the spanner key provided or a

spanner screwdriver, remove the antenna

cover by removing the spanner screws.

2. Remove the Controller cover by removing

the cover screws.

3. A “steady” and a “flashing” green bar

should be illuminating on LED13. The

“steady” green bar is the Tx Output Level

and should be above the “flashing” bar but

not off the top of the scale. The “flashing”

green bar is the Tx Supervise threshold

and should be at the second bar from the

bottom on LED13.

NOTES:

You want to have the “steady” green bar

as close to the top of LED13 as you can

get it without going off the scale (Figure

4.10). Adjust pot R6 (Tx Gain) to make it

this way. If the “steady” green bar is not

present, then you need to turn down pot

R6.

4. On the antenna, adjust C1 until LED1 is as

bright as you can make it (Figure 4.11).

NOTE: The object here is to use the

brightness of LED1 to show when C1 has

been adjusted properly. Therefore, if you

try to see a change with LED1 set too

bright you may miss that change and be

slightly off tune. If this is the case, on the

antenna, turn pot R1 (LED brightness

adjust) counterclockwise until the yellow

LED1 dims then adjust C1 again.

5. After you have finished adjusting, on the

antenna, turn pot R1 completely

counterclockwise so that LED1 is dim.

6. On the Controller, return switch S3 to the

left position.

7. Replace the antenna cover and secure it

with the spanner screws.

8. Replace the Controller cover and secure it

with the screws.

Figure 4.10

LED13 Tuning Mode (S3 to the Right)

Figure 4.11 Tx wand antenna PCB

Installation Manual The Tx wand antenna 4-9

Two-antenna zone

To tune a two-antenna zone, refer to Figure

4.10 and use the following instructions:

1. Using the spanner key provided or a

spanner screwdriver, remove both

antenna covers by removing the

spanner screws on each.

2. Remove the Controller cover.

3. A “steady” and a “flashing” green bar

should be illuminating on LED13. The

“steady” green bar is the Tx Output

Level and should be above the

“flashing” bar but not off the top of

the scale. The “flashing” green bar is

the strength of the Tx Supervise

threshold and should be at the second

bar from the bottom of LED13.

NOTES:

You want to have the “steady” green

bar as close to the top of LED13 as

you can get it without going off the

scale (Figure 4.10). Adjust pot R6 (Tx

Gain) to make it this way. If the

“steady” green bar is not present, then

you need to turn down pot R6.

4. Normally in two-antenna zones

jumper JP6 (Scan Rate) alternates

between illuminating LED1 and

LED2 as it checks the “X” and “Y”

antennas. For tuning two-antenna

zones, you want to isolate one antenna

at a time using jumper JP6. For these

instructions we will start with the “X”

antenna and then the “Y” antenna

second.

5. On the Controller, quickly remove

jumper JP6 (Scan Rate) so that only

LED1 (the “X” antenna output

indicator) is illuminating. This may

take a few attempts. You will not

leave the jumper in place while

tuning.

6. On the antenna, adjust C1 until LED1

is as bright as you can make it (Figure

4.11).

NOTE: The object here is to use the

brightness of LED1 to show when C1

has been adjusted properly. Therefore,

if you try to see a change with LED1

set too bright you may miss that

change and be slightly off tune. If this

is the case, on the antenna, turn pot R1

(LED brightness adjust)

counterclockwise until the yellow

LED1 dims then adjust C1 again.

7. After you have finished adjusting, on

the “X” antenna, turn R1

counterclockwise so that LED1 is

dim.

8. Replace jumper JP6.

9. On the Controller, quickly remove

jumper JP6 (Scan Rate) so that only

LED2 (the “Y” antenna output

indicator) is illuminating. This may

take a few attempts. You will not

leave the jumper in place while

tuning.

10. On the “Y” antenna, adjust C1 until

LED1 is as bright as you can make it

(Figure 4.11).

NOTE: The object here is to use the

brightness of LED1 to show when C1

4-10 The Tx wand antenna Installation Manual

has been adjusted properly. Therefore,

if you try to see a change with LED1

set too bright you may miss that

change and be slightly off tune. If this

is the case, on the antenna, turn pot R1

(LED brightness adjust)

counterclockwise until the yellow

LED1 dims then adjust C1 again.

11. After you have finished adjusting, on

the “Y” antenna, turn R1

counterclockwise so that LED1 is

dim.

12. On the Controller, place jumper JP6

(Scan Rate) into position 1-2.

13. On the Controller, return switch S3 to

the left position.

14. Replace both antenna covers and

secure them using the spanner screws.

15. Replace the Controller cover and

secure it with the screws.

Three-antenna zone

To tune a three-antenna zone, refer to Figure

4.10 and use the following instructions:

1. Using the spanner key provided or a

spanner screwdriver, take off all

antenna covers by removing the

spanner screws on each.

2. Take off the Controller cover.

3. A “steady” and a “flashing” green bar

should be illuminating on LED13. The

“steady” green bar is the Tx Output

Level and should be above the

“flashing” bar but not off the top of

the scale. The “flashing” green bar is

the Tx Supervise threshold and should

be at the second bar from the bottom

on LED13.

NOTES:

You want to have the “steady” green

bar as close to the top of LED13 as

you can get it without going off the

scale (Figure 4.10). Adjust pot R6 (Tx

Gain) to make it this way. If the

“steady” green bar is not present, then

you need to turn down pot R6.

4. Normally in three-antenna zones

jumper JP6 (Scan Rate) alternates

between illuminating LED1, LED2

and LED3 as it checks the “X”, “Y”

and “Z” antennas. For tuning three-

antenna zones, you want to isolate one

antenna at a time using jumper JP6.

For these instructions we will start

with the “X” antenna, then the “Y”

antenna second and finally the “Z”

antenna.

5. On the Controller, quickly remove

jumper JP6 (Scan Rate) so that only

LED1 (the “X” antenna output

indicator) is illuminating. This may

take a few attempts. You will not

leave the jumper in place while

tuning.

6. On the “X” antenna, adjust C1 until

LED1 lights brightly (Figure 4.11).

NOTE: The object here is to use the

brightness of LED1 to show when C1

has been adjusted properly. Therefore,

if you try to see a change with LED1

set too bright you may miss that

change and be slightly off tune. If this

is the case, on the antenna, turn pot R1

Installation Manual The Tx wand antenna 4-11

(LED brightness adjust)

counterclockwise until the yellow

LED1 dims then adjust C1 again.

7. After you have finished adjusting, on

the “X” antenna, turn pot R1

completely counterclockwise so that

LED1 is dim.

8. Replace jumper JP6.

9. On the Controller, quickly remove

jumper JP6 (Scan Rate) so that only

LED2 (the “Y” antenna output

indicator) is illuminating. This may

take a few attempts. You will not

leave the jumper in place while

tuning.

10. On the “Y” antenna, adjust C1 until

LED1 lights brightly (Figure 4.11).

NOTE: The object here is to use the

brightness of LED1 to show when C1

has been adjusted properly. Therefore,

if you try to see a change with LED1

set too bright you may miss that

change and be slightly off tune. If this

is the case, on the antenna, turn pot R1

(LED brightness adjust)

counterclockwise until the yellow

LED1 dims then adjust C1 again.

11. After you have finished adjusting, on

the “Y” antenna, turn R1 completely

counterclockwise so that LED1 is

dim.

12. Replace jumper JP6.

13. On the Controller, quickly remove

jumper JP6 (Scan Rate) so that only

LED3 (the “Z” antenna output

indicator) is illuminating. This may

take a few attempts. You will not

leave the jumper in place while tuning

14. On the “Z” antenna, adjust C1 until

LED1 lights brightly (Figure 4.11).

NOTE: The object here is to use the

brightness of LED1 to show when C1

has been adjusted properly. Therefore,

if you try to see a change with LED1

set too bright you may miss that

change and be slightly off tune. If this

is the case, on the antenna, turn pot R1

(LED brightness adjust)

counterclockwise until the yellow

LED1 dims then adjust C1 again.

15. After you have finished adjusting, on

the “Z” antenna, turn R1 completely

counterclockwise so that LED1 is

dim.

16. On the Controller, place jumper JP6

(Scan Rate) into position 1-2.

17. On the Controller, return switch S3 to

the left position

18. Replace all antenna covers and secure

them using the spanner screws.

19. Replace the Controller cover and

secure it using the screws.

Alternate Tuning Method

WARNING: The following alternate tuning

method requires more user knowledge about

the Controller because it includes physically

isolating each Tx wand antenna on the

Controller during tuning.

4-12 The Tx wand antenna Installation Manual

NOTE: Make sure that all connections have

been made as outlined in the previous section

and you have competed the steps in the

“Before you start” section on page 4-7.

To tune a Tx wand antenna, refer to Figures

4.11, and use the following instructions:

1. Using the spanner key provided or a

spanner screwdriver, take off all

antenna covers by removing the

spanner screws on each.

2. Take off the Controller cover.

3. A “steady” and a “flashing” green bar

should be illuminating on LED13. The

“steady” green bar is the Tx Output

Level and should be above the

“flashing” bar but not off the top of

the scale. The “flashing” green bar is

the Tx Supervise threshold and should

be at the second bar from the bottom

on LED13 (Figure 4.10).

NOTES:

You want to have the “steady” green

bar as close to the top of LED13 as

you can get it without going off the

scale (Figure 4.10). Adjust pot R6 (Tx

Gain) to make it this way. If the

“steady” green bar is not present, then

you need to turn down pot R6.Turn

off power to the system and:

a. Disable the antenna X, Y, Z

scan select by removing JP4.

(If it is not already removed.)

b. If this is a single antenna

system, skip to Step 4.e. If

this is a multi-antenna system,

one by one, remove, mark and

tape the ends of the wires that

are used in positions X, Y, &

Z of the Controller's P1

connector.

c. If this is not a 3 antenna

system, skip to Step 4.d.,

otherwise, insert the wire that

is marked "Z" into P1-pin2, or

the "X" position, and tighten

it. (Be sure that the "Unreg"

wire is also connected.)

Proceed to Step 5.

d. Insert the wire that is marked

"Y" into P1-pin2, or the "X"

position, and tighten it. (Be

sure that the "Unreg" wire is

also connected.) Proceed to

Step 5.

e. Insert the wire for the X

antenna into P1-pin2, or the

"X" position, and tighten it.

(Be sure that the "Unreg" wire

is also connected.) Proceed to

Step 5.

4. Turn on power to the system.

5. On the Tx wand antenna PCB, adjust

C1 until LED1 gets bright. If it gets

very bright, re-adjust R1, so that it just

turns on dimly.

NOTE: The object here is to use the

brightness of LED1 to show when C1

has been adjusted properly. Therefore,

if you try to see a change with LED1

set too bright you may miss that

change and be slightly off tune. If this

is the case, on the antenna, turn pot R1

(LED brightness adjust)

Installation Manual The Tx wand antenna 4-13

counterclockwise until the yellow

LED1 dims then adjust C1 again.

6. Turn off power to the system.

7. If you have not been working with

antenna "Z", go to Step 9, otherwise,

loosen the terminal screw for position

X and remove the Z wire from

position X on the Controller's P1

connector. Return it to its normal Z

position and tighten it. Go to Step 4.d.

8. If you have not been working with

antenna "Y", go to Step 10, otherwise,

loosen the terminal screw for position

X and remove the "Y" wire from

position X on the Controller’s P1

connector. Return it to its normal Y

position and tighten it. Go to Step 4.e.

9. If this is a multi antenna system, you

need to replace JP4 (the X, Y, Z scan

select jumper). It goes in the lower

position, (2-3) for a two-antenna

system. If you are using a three-

antenna system place it in the upper

position (1-2).

10. On the Controller, return switch S3 to

the left position.

11. Replace all antenna covers and secure

them using the spanner screws.

12. Replace the Controller cover and

secure it using the screws.

Adjusting the Tx Activation Field

IMPORTANT:

Adjusting the Tx Activation Field can cause

Supervise alarms. Notify staff and security

that you will be adjusting (and possibly

weakening) the zone and they will need to pay

special attention to area traffic during this

time.

The Tx Activation Field can be reduced or

expanded to match each unique zone’s needs.

Each monitored zone may have circumstances

that require an adjustment to the range of the

Tx Activation Field. The most common reason

is that the Field is overlapping or “bleeding”

into other areas.

To adjust the range of the Tx Activation Field

emanating from the Tx wand antenna slowly

adjust potentiometer R6 (Tx Gain) on the

Controller. Turn counterclockwise to reduce

the range of the Field, turn clockwise to

expand the range of the Field.

As you adjust, use a Tag to test the range of

the Field to ensure there is adequate coverage

for the zone.

Installation Manual

Chapter 5:

The Receiver

Installation Manual the Receiver 5-1

The Receiver

 Receiver Specifications

 Internal vs. External Receivers

 Receiver Mounting Options

 Receiver Positioning/Stagger Tuning

 BR 4200 Auxiliary Receivers

 Receiver Jumpers

 Connecting the Receiver

 Adjusting the Receiver

The Receiver (Figures 5.1-5.2) located at the

monitored zone, picks up the signal from an

activated Tag and relays it to the Controller.

Zone Receivers can be internally or externally

mounted near a monitored zone. BR 4200 Zone

Receivers monitor both zone events and Band

Removal events. BR 4200 Auxiliary Receivers

only monitor Band Removal events.

NOTE: For ES 2100 Receiver information, see

Appendix A.

Figure 5.1 Zone Receiver (Internal)

Receiver Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC

Temperature

Receivers operate best in an ambient

temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range may

cause unexpected or undesirable results,

including premature failure.

Weight Figure 5.2 Zone Receiver (Remote)

Internal and External Receivers weigh

approximately 5 oz. and 1 lb. 5 oz. U.S.

respectively, which should be considered when

choosing mounting hardware.

5-2 the Receiver Installation Manual

Internal vs. External Receivers Receiver Positioning/Stagger Tuning

When the Controller is positioned near the

monitored door, the Receiver is mounted

internally in the Controller housing.

Position the Receiver within approximately 6

feet of the center of the monitored zone or door

opening. It is permissible to mount it beyond 6

feet, but do not exceed 15 feet from the center of

the zone or door opening.

When the Controller is positioned away from the

monitored door, the Receiver is mounted at the

zone in a 4”x4”x2” electrical box (Figure 5.3). The recommended location for the Receiver unit

is up and out of the way such as above the

doorframe or above drop ceiling panels if

possible. Receivers monitor 40 feet outward in

every direction; therefore, they should be

positioned approximately 70 feet apart.

If the Receivers of adjacent zones need to be

closer than 70 feet (Figure 5.4), implement

Stagger Tuning (page 4-6) to avoid crosstalk

(activated Tags from one zone being detected in

another zone).

Figure 5.3 4”x4”2” electrical box

Keep in mind when the Controller is remotely

located, at least two 4”x4”x2” electrical boxes

are needed at the zone. One box is used to mount

the Receiver near the door as mentioned above

and the second box is used as a junction box for

the composite cable (where connections are

made to wires that “branch” to the individual

system components).

Receiver Mounting Options

Figure 5.4 Receiver positioning

If you receive your system equipment and

determine that the Receiver needs to be changed

from an Internal to External mounting or vice

versa, contact your Accutech Representative

about acquiring the proper faceplate.

Installation Manual the Receiver 5-3

BR 4200 Auxiliary Receivers

 Auxiliary Receivers require an external

power source (+12V and GND; see page 17-5

for connections).

BR 4200 Zone Receivers monitor both zone

events and Band Removal events. BR 4200

Auxiliary Receivers only monitor Band

Removal events. Depending upon your facility’s

physical layout, Zone Receivers may be enough

to ensure full Band Removal coverage.

 Auxiliary Receivers monitor

approximately 40 feet outward in every

direction; therefore, they should be

positioned 70 feet* apart to avoid

confusion about the location of a Band

Removal alarm.

However, to determine where Auxiliary

Receivers may be needed, a test BR42 Tag

should be used to check every potential location

in the area being covered. This includes storage

rooms, laundry rooms, restrooms, etc. The idea

is to be absolutely certain that there is no area

where a BR42 Tag can be removed without

being detected.

 Auxiliary Receivers can be positioned in

nurseries, doorways, hallways, or any

other area that coverage is desired (see

Figure 5.5).

 When choosing the exact location and

number of Auxiliary Receivers, be sure to

consider the facility’s structure (i.e.,

concrete/metal lathe as opposed to drywall

walls or foil-backed ceiling tiles). Also

keep a minimum distance of 4 feet away

from fluorescent lighting and air ducts.

When installing BR 4200 Auxiliary Receivers,

consider the following:

 BR 4200 Auxiliary Receivers are only

used in BR 4200 Systems.

 BR 4200 Auxiliary Receivers are always

mounted in 4”x4”x2” electrical boxes.

* The distances listed here are approximate. Each

facility should consider its unique environment when

positioning Receivers.

Figure 5.5 Receiver Positioning

5-4 the Receiver Installation Manual

Receiver Jumpers NOTES:

Receiver Jumpers JP1 through JP5 are set to

factory defaults when you receive them. The

default settings have been determined by the

most common usage. Some facilities may have

different requirements. Please consult your

Accutech Representative before altering jumper

positions.

 Jumper Definitions

 IS 3200 Zone Receiver jumper settings

 BR 4200 Zone Receiver jumper settings

 BR 4200 Auxiliary Receiver jumper settings

The following tables (Tables 5.1 – 5.4) contain

the Receiver jumper definitions and default

positions for each system. Refer to Figure 5.6

for the locations of the Receiver jumpers.

Jumper JP4 sends status data upon a change in a

Tag’s status. This includes Band Removal, Low

Battery, and/or Wet Band.

Table 5.1

Jumper Definitions

Jumper Sends Status Data Upon…

JP1 Any 418MHZ Signal

JP2 Rx Supervise Events

JP3 Valid Zone Tag Detections

JP4 Change in Tag status

JP5 Zone Reset Events

Connecting the Receiver

Whether internally or externally mounted, the

wire connections from the Receiver to the

Controller are the same. See Figure 5.7 for the

proper wire connections.

Table 5.2

IS 3200 Zone Receiver jumper settings

JP1 Off

JP2 Off

JP3 Off

JP4 On

JP5 On

NOTE: The internally mounted Receiver is

provided with a factory-installed interconnect

cable. There should be no reason to ever

disassemble it. If however it should need

replacement for any reason simply use an 18-

inch piece of 22 gauge 12-conductor non-

shielded cable. Follow the color code in Figure

5.7.

Table 5.3

BR 4200 Zone Receiver jumper settings

JP1 Off

JP2 Off

JP3 Off

JP4 On

JP5 On

Table 5.4

BR 4200 Auxiliary Receiver jumper settings

JP1 Off

JP2 Off

JP3 Off

JP4 On

JP5 Off

Figure 5.6 Receiver jumper locations

Installation Manual the Receiver 5-5

Figure 5.7 Connecting the Receiver to the Controller

5-6 the Receiver Installation Manual

Adjusting the Receiver

The Receiver is factory set for optimum

performance, and as such, it should NOT be

necessary for you to make any adjustments to it.

NOTE: If you are trying to eliminate crosstalk

(activated Tags from one zone being detected in

another zone), implement Stagger Tuning

(page 4-6).

However, there are a couple of exceptions:

 When protecting a wide hallway or

passageway, it may be necessary to

increase Receiver sensitivity to assure

optimum detection.

 When unavoidable background noise (such

as from permanent medical equipment or

wireless communication devices) is

present, it may be necessary to reduce

Receiver sensitivity.

IMPORTANT:

Adjusting the Receiver can cause Supervise

alarms. Notify staff and security that you will

be adjusting (and possibly weakening) the

zone and they will need to pay special

attention to area traffic during this time.

To adjust a Receiver, refer to Figure 5.1 or 5.2

and use the following instructions:

1. Around the access hole for

potentiometer R19 on a Receiver, a

decal marks the minimum and

maximum settings. The factory setting is

approximately halfway between the

minimum and maximum marks. The

Receiver will not work outside these

marks. When adjusting, it is best to stay

within 1/16” of a turn of the factory

setting.

2. As you adjust, remember to verify that

there is adequate zone coverage.

3. To decrease the Receiver’s sensitivity,

slowly turn potentiometer R19

clockwise toward the minimum setting

on the R19 decal.

4. To increase the Receiver’s sensitivity,

slowly turn potentiometer R19

counterclockwise toward the maximum

setting on the R19 decal.

Installation Manual

Chapter 6:

The Tag

6-2 The Tag Installation Manual

BR 4200 System Tags

In addition to the functionality of an IS 3200

System Tag, BR 4200 System Tags (Figure

6.3) will alarm if the band is removed or

tampered with in any way.

BR 4200 System Tags also contain a visual

pulse LED. Tags are activated/deactivated

with a TAD unit.

BR 4200 System Tags are attached to

infants with a conductive-fiber-striped cloth

band.

Figure 6.3 BR 4200 System Tag

Cut Band Tags

Similar to the functionality of a BR 4200

System Tag, Cut Band Tags (Figure 6.4) will

alarm if the band is cut and is designed for

use in pediatric applications. Cut Band Tags

also contain a visual pulse LED.

Cut Band Tags are attached to patients with

a Tyvek band and a pod.

The band (Figure 6.5) contains a foil

adhesive that will fray during tampering.

Using a pod (Figure 6.6) with a Cut Band

Tag will reduce the need for sanitizing the

Tag between applications and is water-

resistant during use.

Figure 6.4 Cut Band Tag

Figure 6.5 Cut Band Band

Figure 6.6 Cut Band Pod

Installation Manual The Tag 6-3

Tag barcodes

Tag barcodes (Figure 6.7) contain a Tag’s

manufacturing history.

Figure 6.7 Tag barcode example

The coding scheme is as follows:

M-WWYY-TSSS

”M” is the manufacturer designator.

”WWYY” is the date code.

(“1706” would mean the 17th week of 2006)

”T” is the tag type designator.

 1 is for CB (Cut Band)

 2 is for BR (Band Removal)

 3 is for LT (Long Term)

 4 is for SB (Slotted Back)

”SSS” is the serial number for that tag type

manufactured during that week.

Visual Pulse LED

The Visual Pulse LED indicates the Tag’s

current mode (see table 6.1)

Table 6.1 Visual Pulse LED status

LED Light Pattern off on Tag LED Status

LT, SB Tags

None Tag is off.

Active, not in zone

Active, in zone

BR, CB Tags

None Tag is off.

Active, not in zone,

non-Band Alarm

Active, in zone

(may be in Band Alarm)

Active, not in zone

Band Alarm mode,

Tag base color chart

Tag tops are smoke-colored while the Tag

base color will vary based upon Tag type.

Tag Type Base Color

CB White

SB Gray

LT Gray

BR Yellow

6-4 The Tag Installation Manual

LED Tag

 Verifying Proper Zone Coverage

 Identifying Foreign Tag-Activating Sources

DISCLAIMER: Due to each facility’s unique environment, an LED Tag cannot give an exact measurement of zone

coverage; it can only give an estimation of zone coverage.

Verifying Proper Zone Coverage

An LED Tag (Figure 3.8) is used to verify proper zone coverage during

installation, adjustment, or testing of a monitored zone.

Proper zone coverage fully protects the intended area (door, elevator,

hallway, or any other passageway) without extending into other areas (in

front, in back, on sides, above, and beneath the intended area).

Monitored zones emit a Tag-activating signal called the Tx Activation Field.

When a Tag enters a zone’s Tx Activation Field, the system will detect the

Tag and take appropriate action response.

An LED Tag can detect a zone’s Tx Activation Field without causing alarms

making it a quick and easy way to verify proper zone coverage. This is not

only useful in ensuring complete zone coverage but also in locating areas

where a Tx Activation Field may be extending into common areas and

causing nuisance alarms.

Figure 6.8 The LED Tag

To verify proper zone coverage with an LED Tag, use the following

instructions:

1. Using a TAD, activate the LED Tag.

NOTE: The Signal Strength LEDs of the TAD will not indicate the

state of the LED Tag. Once activated the LED Tag’s LED will

illuminate when it is in a Tx Activation Field. Therefore, to verify

the LED Tag is active, turn on the TAD and place the LED Tag near

it. The LED Tag’s LED should illuminate (since a TAD has a small

Tx Activation Field associated with it).

2. With the LED Tag in your hand, slowly approach each zone at

various angles and orientations. The LED Tag’s LED will illuminate

when it detects the zone’s Tx Activation Field.

Installation Manual The Tag 6-5

3. If you find that a zone’s coverage is at unacceptable levels (too small,

too big, extends too far in one direction), look for factors that may be

affecting the zone (food carts, medical equipment, and/or building

construction).

4. If you cannot locate any immediate causes, contact your system

maintenance technician for further assistance.

5. When finished, deactivate the LED Tag using a TAD.

Identifying Foreign Tag-Activating Sources

In addition to verifying proper zone coverage, an LED Tag (Figure 3.3) can be

used to identify foreign Tag-activating sources to help preserve your Tags’

battery life and prevent nuisance alarms.

Monitored zones emit a Tag-activating signal called the Tx Activation Field.

When a Tag enters a zone’s Tx Activation Field, it is activated. The system

detects the activated Tag and takes appropriate action response.

However, there are sources that can activate a Tag other than a Tx Activation

Field. When Tags are activated by these “foreign” sources, battery life is

depleted and/or nuisance alarms can be caused. Therefore, identifying these

sources will prolong Tags battery life and prevent nuisance alarms.

To identify activating sources with an LED Tag, use the following

instructions:

1. Using a TAD, activate the LED Tag.

NOTE: The Signal Strength LEDs of the TAD will not indicate the

state of the LED Tag. Once activated the LED Tag’s LED will

illuminate when it is in a Tx Activation Field. Therefore, to verify the

LED Tag is active, turn on the TAD and place the LED Tag near it.

The LED Tag’s LED should illuminate (since a TAD has a small Tx

Activation Field associated with it).

2. With the LED Tag in your hand, slowly investigate each area for

possible activating sources*. The LED Tag’s LED will illuminate

when it detects an activating source. Note each activating source and

keep Tags away from those sources.

3. When finished, deactivate the LED Tag using a TAD.

*Some activating sources can be:

 Computer Monitors

 Unshielded computer cables

 Television Sets

 Medical Monitoring

equipment

 X-ray and other imaging

equipment

 Fluorescent Lighting

 Wireless Communication

Devices

6-6 The Tag Installation Manual

Testing Tags

For maximum protection of residents or

assets, Accutech recommends that Tags be

tested on a weekly basis.

There are 6 ways that you can test Tags:

 Enter a monitored zone

(Software will report.)

 With a TAD

 With a PTAD

 The Keypad’s Auxiliary LED

(Yellow) will light when a Tag is

detected (Optional; additional wire

required).

 Check Visual Pulse LED if present

 BR and CB Tags only - Remove

Band Removal band or Cut Band

band (alarm will sound)

Tag and Band Maintenance

 Cleaning of Tags

 Cleaning of Bands

 Storage of Tags and Bands

Cleaning of Tags

All Tags are reusable but they must be

cleaned and sanitized between applications.

In long-term applications, periodically

replace the bands and clean the Tags.

There are a few methods that can be used to

clean and sanitize Tags:

HOWEVER, DO NOT:

 DO NOT submerge Tags in water

 DO NOT soak Tags in water

 DO NOT submerge Tags in cleaning

solutions

 DO NOT soak Tags in cleaning

solutions

 DO NOT use solvents

 DO NOT use abrasive cleaners or cloths

 DO NOT put Tags in an AutoClave

 DO NOT put Tags in a dishwasher

 DO NOT steam clean Tags

 DO NOT put Tags in a washing

machine or dryer

Acceptable Tag Cleaning Methods:

 Antibacterial wipes

(wipe only, DO NOT soak)

 Hydrogen peroxide (wipe only

from cloth, DO NOT submerge or

soak)

Cleaning of Bands

All Tag bands are one-time use only. In

long-term applications, periodically replace

the bands and clean the Tags.

Installation Manual The Tag 6-7

Storing Tags

To preserve battery life, Tags must be

turned off with a TAD during storage or

periods of non-use. CB and BR Tags must

be deactivated to prevent alarms when not

use.

However, if you do not have a TAD or your

Tags are always activated, Tags should be

stored away from sources of electrical noise

(see below) and stored in a metal container

with lid.

Furthermore, if you use a TAD to turn off

your Tags, you would not necessarily need

to follow the precautions listed above,

however, it is still good practice to do so.

Do not store Tags within 3 feet of any of the

following sources of electrical noise:

 Computer monitors

 Unshielded computer cables

 Television sets

 Medical Monitoring Equipment

 X-ray and other imaging equipment

 Fluorescent Lighting

Storing Bands

Extra Tag bands should be stored in clean

and dry environment.

6-8 The Tag Installation Manual

The S-TAD

 Powering the S-TAD On/Off

 Unlocking the S-TAD

 Activating/Deactivating Tags

The S-TAD (Secure Tag Activator/Deactivator)

is used to check the functionality of an Accutech

Tag. Accutech Tags operate by internal battery.

Over the course of normal operation, Tags

eventually lose battery power and the Tags will

need to be replaced. The S-TAD is used to

determine if a Tag has sufficient battery power

to respond to an activating signal. The S-TAD

requires a 9-volt battery to operate.

Powering the S-TAD On/Off

The S-TAD includes a built-in power saving

feature that automatically turns off the S-TAD

after a period of inactivity.

1. Press the Power/Clear button

The Power/Clear LED illuminates (solid

green with wink).

The LED will remain lit for 1 minute.

While nearing the 1 minute mark, the

LED will begin to pulse until the LED

turns faster pulsing red and then

extinguishes while powering off the S-

TAD.

To extend the length of time, press the

Power/Clear button again anytime

before the LED turns off. Each press

will extend by 1 minute (up to 5 minutes

maximum).

2. Conversely you may manually power

off the S-TAD by pressing and holding

the Power/Clear button until the LED

turns solid red.

Unlocking the S-TAD

For added security, access to

activating/deactivating Tags is locked via 4-digit

user codes.

1. Press the Power/Clear button.

The Power/Clear LED illuminates (solid

green with wink).

2. Using the number keypad, enter a valid

4-digit user code. Entering a valid code

will illuminate the Enter LED (solid

green) for about 5 seconds. Once the

Enter LED illuminates, press the Enter

button again. The WAIT LED will

illuminate (red) for 2 seconds to

confirm activation/deactivation action.

The Enter LED will then remain lit for 1

minute for the purpose of

activating/deactivating Tags.

Notes:

• Entering an invalid code will

illuminate the Enter LED red.

Verify your user code is valid. Key

Power/Clear before reentering code

to clear any inadvertent previous

entries

• Once lit, each time you press the

Enter button will extend the Enter

LED life briefly (up to 1 minute).

• Pressing the Power/Clear button will

clear out the user code. Otherwise,

after 1 minute of inactivity the Enter

LED will extinguish automatically.

Installation Manual The Tag 6-9

Activating/Deactivating Tags

The S-TAD can activate and deactivate Tags

preserving Tag battery life and preventing

nuisance alarms.

ACTIVATING

1. Unlock the S-TAD.

2. Place the inactive Tag in the correct

orientation within the Tag receptacle.

The Tag’s graphic’s LED is silent (just

like the physical Tag’s LED is silent).

3. Press the Enter button (green LED lit).

The Wait LED will illuminate (red) for

2 seconds. The Tag graphic’s LED on

the S-TAD will illuminate (pulsing

yellow) indicating the Tag is active (just

like the physical Tag’s LED will

illuminate).

4. If a low battery condition is detected,

the Low Tag Battery LED will

illuminate red.

5. If a band alarm condition is detected, the

Band LED will illuminate red.

Likewise, if a band compromise

condition is detected, the Band LED will

illuminate green/red.

Note: Band alarm and/or band

compromise conditions always take

precedence over a low tag battery

condition, therefore, be sure to handle

the BR Tag appropriately to truly check

for a low battery condition.

6. The S-TAD will still detect active Tags

in the area even after the Enter LED

extinguishes. However, you will have to

unlock the S-TAD again to be able to

activate/deactivate a Tag. Remember the

S-TAD will automatically lock after 1

minute of inactivity.

DEACTIVATING

1. Unlock the S-TAD.

2. Place the active Tag in the correct

orientation within the Tag receptacle.

The Tag graphic’s LED will be pulsing

yellow (just like the physical Tag’s LED

will be pulsing).

3. Press the Enter button (green LED lit).

The Wait LED will illuminate (red) for

2 seconds. The Tag graphic’s LED on

the S-TAD will extinguish indicating the

Tag is deactivated (just like the physical

Tag’s LED will extinguish).

Figure 6.9 S-TAD Tag Orientation

Installation Manual

Chapter 7:

The Keypad

Installation Manual The Keypad 7-1

The Keypad

 Keypad Specifications

 Positioning the Keypad

 Surface Mounting the Keypad

 Flush Mounting the Keypad

 Connecting the Keypad to the Controller

 Programming the Keypad

The Keypad is used to escort residents through a

monitored zone and to reset zone equipment

once an alarm has occurred.

The Keypad provided by Accutech (Visonic CL-

8A) is intended as an indoor Keypad only. If you

require an outdoor Keypad, contact your

Accutech Representative.

Keypad Specifications

 Power Requirements

 Temperature

 Weight

Power Requirements

12V DC @ 55 mA

Temperature

The Keypad operates best in an ambient

temperature between 35 and 90 degrees

Fahrenheit. Operation outside of this range may

cause unexpected or undesirable results,

including premature failure.

Weight

The Keypad weighs approximately 4.4 ounces.

7-2 The Keypad Installation Manual

Positioning the Keypad

The Keypad should be located within 3 to 5 feet

of the monitored door or elevator. In hallway

applications, mount the Keypad just outside of

the zone to avoid alarm activation when

escorting a monitored resident.

If your system includes the optional Push Button

Override (PBO), it is recommended to mount it

on the other side of the wall directly behind the

Keypad.

Figure 7.1 Surface Mounting the Keypad

Surface Mounting the Keypad

The Keypad is designed to be surface mounted

using the white back box provided.

To surface mount the Keypad, refer to Figure

7.1 and use the following instructions:

1. Using a screwdriver, separate the

Keypad from the white back box by

removing the two screws.

2. If you are using wire molding, push or

cut out the two knock-outs located on

the top and bottom of the white back

box for the wiring molding to interface

with the white back box.

3. If you are running cable behind the wall,

put or drill out the center knock-out in

the white back box to wire from behind

the wall into the white back box.

4. Drill out the four mounting knock-outs

in the white back box.

5. If you have a PBO and plan to mount it

on the other side of the wall of the

Keypad, push or drill out the knock-out

in the center of the back of the box.

6. Using the white back box as a template,

mark all the holes that need to be drilled.

7. Drill the necessary holes in the

mounting surface.

8. Secure the white back box to the

mounting surface with appropriate

hardware.

9. Replace the Keypad to the white back

box using the two screws.

Installation Manual The Keypad 7-5

Figure 7.3 Connecting the Keypad to the Controller

Figure 7.4 Connecting the Keypad to the Controller with Tag Detect option

Installation Manual The Keypad 7-3

Flush Mounting the Keypad

If flush mounting is required, use a plastic single

gang electrical switch box, instead of the

original white back box (see Figure 7.2). A flush

mount box can be obtained from your local

building supply outlet.

CAUTION: The Keypad manual shows the use

of a standard single gang, metal electrical switch

box. Accutech does not recommend the use of

this type of box for two reasons:

1. The fit is very, very tight. If the wires

are stripped a little “long” as they enter

the terminal block they may short to the

side of the metal box.

2. If this is not new construction and an

electrical box with “zip” mounts is to be

retrofitted in the wall, these zip mount

tabs may actually protrude into the box

and then it will be impossible to fit the

Keypad circuitry inside the box.

If a metal box is required, you will need to find a

single gang box fitting the dimensions indicated

in Figure 7.2. You may find it easier to use a 4”

square metal box and then use one of the many

varieties of face plates available from your local

building supply outlet that will accept the

Keypad.

Figure 7.2 Flush Mounting the Keypad

7-4 The Keypad Installation Manual

Connecting the Keypad

to the Controller

You will need 22-gauge 4-conductor plenum-

rated cable for installation. If you are using

composite cable, see Chapter 2 for color code.

If you are going to connect the Tag Detect signal

to the auxiliary LED of the Keypad, you will

need at least a 5-conductor cable.

To connect the Keypad to the Controller, refer to

Figures 7.3 – 7.4 and use the following

instructions:

1. Separate the Keypad from the white

back box.

2. Remove the Controller cover.

3. Feed the cable from the Controller to the

Keypad through the raceway, conduit, or

wall and then through the access hole

you made in the white back box.

4. With the WHITE wire, pin 1 of the

Keypad to P8-pin1 (Kypd Alarm) of the

Controller.

5. With the BLACK wire, connect pin 6 of

the Keypad to P8-pin2 (Ground) of the

Controller.

6. With the RED wire, connect pin 10 of

the Keypad to P8-pin3 (+12v) of the

Controller.

7. With the GREEN wire, connect pin 11

of the Keypad to P8-pin4 (Kypd Reset)

of the Controller.

8. If you are using the Tag Detect option

(Figure 7.4), with the BROWN wire,

connect pin 4 of the Keypad to P8-pin5

(Tag Detect) of the Controller.

9. Place a jumper connecting the Keypad

pins 2, 4 and 6.

NOTE: If using Tag Detect option, only

jumper Keypad pins 2 and 6.

10. Place a jumper connecting the Keypad

pins 3, 7 and 10.

11. Replace the Controller cover.

12. Replace the Keypad to the white back

box.

7-6 The Keypad Installation Manual

Programming the Keypad

 Keypad Operation

 Programming user codes

 Deleting user codes

 Resetting the master code

 Adjusting the Keypad Escort Time

NOTE: In any Keypad operation, if any code is

entered 3 times or more incorrectly, the Keypad

will lockout for 90 seconds; this lockout mode is

indicated by a green blinking LED.

Programming the Keypad is, in simple terms,

providing it with a set of instructions on how to

react in various contingencies. The Keypad must

be programmed as soon as all installation and

wiring have been completed. Later on, as

changes take place, partial or full

reprogramming may be carried out as many

times as necessary.

The first step in “telling the Keypad what to do”

is to access the programming menu, which is

accessible only by the use of the current “master

code”. The factory default master code is 1234,

but after subsequent programming, this default

code will be automatically superseded by user

code No. 1, which becomes the real master code.

The Keypad’s EEPROM memory stores up to 56

individual access codes, each assigned to an

authorized individual user or to a group of users.

CAUTION: User code No. 01, must be kept

secret at all time to prevent the introduction of

unauthorized changes in the Keypad’s

programming. Do not use this code for normal

entry into the restricted area.

Keypad Operation

The Keypad has three LED indicators. See Table

5.1 for their functions during normal operation.

Table 7.1 Keypad LED Indicators

LED Status Function

Green Off Zone Ready

On* Keypad Reset

or Escort Time

initiated

Yellow Off No Power or

No Tag

On Power

indicator or

Tag in Zone

indicator

(dependant on

installation)

Red Off Zone Normal

On Alarm

* During programming, the green LED functions

differently.

Installation Manual The Keypad 7-7

Programming user codes

Remember that user code No. 01 will become

the new master code as soon at it is

programmed, and therefore should be assigned

to the person in charge of security.

It is recommended that the master code be

composed of at least 8 digits.

To program user codes, use the following

instructions:

1. Prepare a list of user codes you want to

program and record them.

2. Invoke the programming menu by

entering **, [master code], **. At this

point we shall assume that the factory

default of 1234 is still valid. When the

programming menu is active, the green

LED flashes slowly, approximately once

every two seconds.

3. Press 1 to select user code programming

(function No. 1).

The green LED begins to flash rapidly

(approximately 5 times per second),

indicating that the Keypad is ready to

receive data.

NOTE: To prevent programming by

unauthorized people, it is dangerous to

continue using the default master code

1234. It is mandatory to set a new

master code, which will be used for

programming only and not for everyday

requirements. We recommend that the

master code be comprised of at least 8

digits.

4. Enter user number 01, followed by #.

The green LED lights steadily for two

seconds and then returns to rapid

flashing indicating that the step has been

completed successfully.

5. Enter the code assigned to this user,

followed by #.

The green LED lights steadily for two

seconds and then returns to rapid

flashing.

6. Repeat the user code followed by #. The

green LED will acknowledge as in the

step above.

7. Now select which outputs will be

tripped by the new master code, select 3

for all outputs and then press #.

This time the green LED lights steadily

for two seconds and then flashes slowly,

indicating that the new master code and

its extent of control have been

programmed successfully and that the

Keypad has returned to the

programming menu. Now you can either

program the next user code or quit

programming by pressing #.

8. Repeat these steps to assign other user

codes.

NOTES:

Do not enter new data if the green LED

responds by going out for 3 seconds after having

pressed [#]. If the Keypad detects an error, the

green LED turns off for 3 seconds and then

returns to slow flashing, thus indicating that the

data has not bee accepted. It would be necessary

to repeat the entire programming sequence for

the rejected user code.

7-8 The Keypad Installation Manual

If you make an error while programming, press

[*] and you will be instantly returned to the

programming menu. To quit programming,

ensure that the green LED is flashing slowly,

then press [#]. This will restore the Keypad to

normal operation.

Deleting user codes

To delete user codes, use the following

instructions:

1. Access the programming menu by

entering **, [master code], **.

With the programming menu active, the

green LED will flash slowly.

2. Enter 4 to select the user code deleting

function.

The green LED will respond by flashing

rapidly, indicating that the Keypad is

ready to receive data.

3. Enter the user number whose code you

wish to delete (02-56), or enter [**] to

delete all user codes, and finish off by

entering #.

The green LED will light steadily for 2

seconds and then will resume rapid

flashing.

NOTE: The master code (User Code No.

01) cannot be deleted in this manner.

4. Enter the [master code] once more,

followed by #.

The green LED will light steadily for 2

seconds and will return to slow flashing.

5. If you intend to delete another user

code, return to step 2 above. If you are

through deleting, restore the Keypad to

regular operation by pressing # while

the green LED is flashing slowly.

Resetting the master code

If you forgot or lost your master code (User

Code No. 1), you can reset the Keypad to the

factory default master code (1234).

To reset the master code to the factory default

master code (1234), use the following

instructions:

1. Open the Keypad’s case to expose the

printed circuit board.

2. Install the jumper across the two pins

labeled JP2.

3. Momentarily short circuit the pins

labeled JP1 using a screwdriver or

jumper wire.

4. Wait ten seconds, remove the jumper

from JP2, and immediately press 1234#.

The green LED will light steadily for

two seconds and then start flashing

slowly, indicating that the programming

menu is active.

NOTE: While the master code is

reverted to 1234, all other data

programmed previously remains intact.

5. Program a new master code (user code

No. 1) immediately (see “Programming

user codes section) and record it in a

secret, safe place.

Installation Manual The Keypad 7-9

6. To quit programming at this stage, press

# while the green LED is flashing

slowly.

Adjusting the Keypad Escort Time

To adjust the Keypad Escort Time, use the

following instructions:

1. Access the programming menu by

entering **, [master code], **.

With the programming menu active, the

green LED will flash slowly.

2. Enter “2” to select the relay timer

function.

The green LED will respond by flashing

rapidly, indicating that the Keypad is

ready to receive data.

3. Enter the escort time (two digits, from

1-98 seconds) followed by the # sign.

The green LED will light steadily for 2

seconds and then will resume rapid

flashing.

4. To exit, press # while the green LED is

flashing slowly.

Accutech Security IGWT-662008 S-TAD User Manual Install Manual v2 36 ES IS BR July 2007

Innovative Control Systems Inc S-TAD Install Manual v2 36 ES IS BR July 2007

Contents

User Manual 1 of 4

Navigation menu

Namespaces

Views

Navigation
