User manual 1 of 3
![](/img.php?id=1202570&img=bg1.png)
Aspire 1820PT / 1420P Series
Quick Guide
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
© 2009. All Rights Reserved.
Aspire 1820PT / 1420P Series Quick Guide
Original Issue: 10/2009
Aspire 1820PT / 1420P Series Notebook PC
![](/img.php?id=1202570&img=bg3.png)
3
First things first
We would like to thank you for making an Acer notebook your choice for
meeting your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
First off, the Just for Starters... poster helps you get started with setting up your
computer.
The Aspire Series Generic User Guide contains useful information applying to all
models in the Aspire product series. It covers basic topics such as using the
keyboard and audio, etc. Please understand that due to its nature, the Generic
User Guide as well as the AcerSystem User Guide mentioned below will
occasionally refer to functions or features which are only contained in certain
models of the series, but not necessarily in the model you purchased. Such
instances are marked in the text with language such as "only for certain
models".
The Quick Guide introduces you to the basic features and functions of your new
computer. For more on how your computer can help you to be more productive,
please refer to the AcerSystem User Guide. This guide contains detailed
information on such subjects as system utilities, data recovery, expansion
options and troubleshooting. In addition it contains warranty information and
the general regulations and safety notices for your notebook. It is available in
Portable Document Format (PDF) and comes preloaded on your notebook.
Follow these steps to access it:
1 Click on Start, All Programs, AcerSystem.
2 Click on AcerSystem User Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is not
installed on your computer, clicking on AcerSystem User Guide will run the
Adobe Reader setup program first. Follow the instructions on the screen to
complete the installation. For instructions on how to use Adobe Reader,
access the Help and Support menu.
![](/img.php?id=1202570&img=bg4.png)
4
English
Your Acer notebook tour
After setting up your computer as illustrated in the Just for Starters... poster,
let us show you around your new Acer notebook.

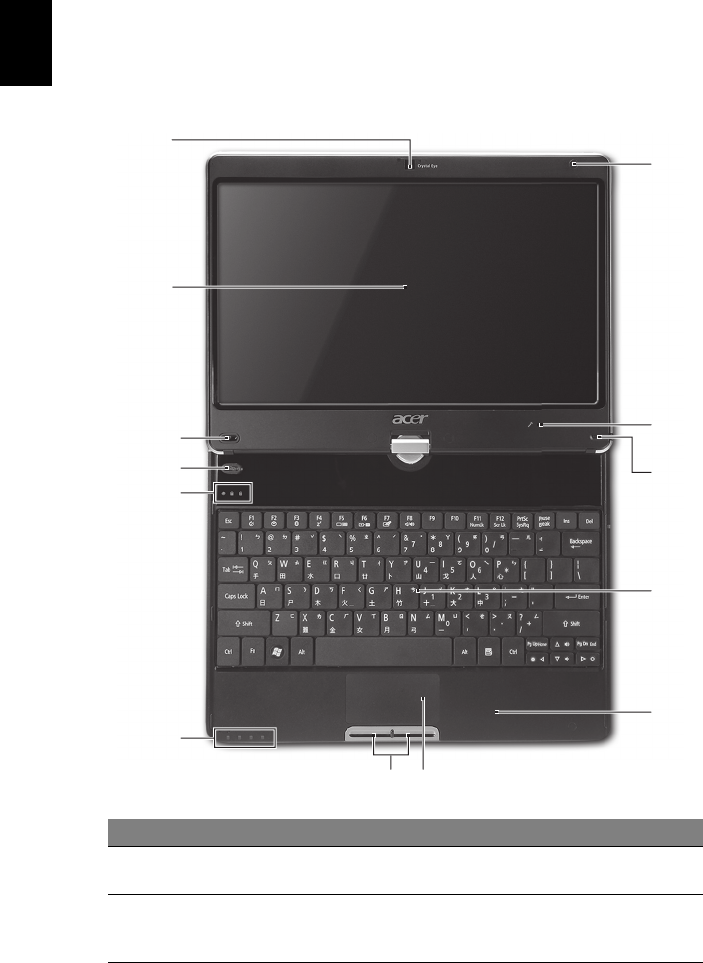

Top view
#Icon Item Description
1Acer Crystal Eye
webcam
Web camera for video communication.
2Display screen Also called Liquid-Crystal Display (LCD),
displays computer output
(Configuration may vary by models).
1
2
3
4
5
6
78
9
10
11
12
13
![](/img.php?id=1202570&img=bg5.png)
5
English
1. The front panel indicators are visible even when the computer cover is closed
up.
3 P Programmable
key
Launch predefined programs or user-
defined programs at a push of a button.
4Backup key Press to start automatic backup
procedure.
5HDD Indicates when the hard disk drive is
active.
Num Lock Lights up when Num Lock is activated.
Caps Lock Lights up when Caps Lock is activated.
6Power1Indicates the computer's power status.
Battery1Indicates the computer's battery status.
1. Charging: The light shows amber when
the battery is charging.
2. Fully charged: The light shows blue
when in AC mode.
Bluetooth
communication
indicator
Indicates the status of Bluetooth
communication. (only for certain models)
Communication
indicator
Indicates the status of WLAN / 3G
communication.
7Click buttons (left
and right)
The left and right buttons function like
the left and right mouse buttons.
8Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
9Palmrest Comfortable support area for your hands
when you use the computer.
10 Keyboard For entering data into your computer.
11 Stylus A pen tool for entering data into your
computer.
12 Microphone Internal microphone for sound recording.
13 Magnetic lock A lock that snaps into place to prevent
the screen from inadvertently rotating.
#Icon Item Description
![](/img.php?id=1202570&img=bg6.png)
6
English
Hotkeys
The computer employs hotkeys or key combinations to access most of the
computer's controls like screen brightness and volume output.
To activate hotkeys, press and hold the <Fn> key before pressing the other key
in the hotkey combination.
Note: Hotkeys are not available from the virtual keyboard.
Hotkey Icon Function Description
<Fn> + <F1> Power
management
Launch Windows power
management.
<Fn> + <F2> System
property
Starts System Property for displaying
system information.
<Fn> + <F3> Bluetooth Enables / disables the Bluetooth
function. (only for certain models)
<Fn> + <F4> Sleep Puts the computer in Sleep mode.
<Fn> + <F5> Display toggle Switches display output between the
display screen, external monitor (if
connected) and both.
<Fn> + <F6> Screen blank Turns the display screen backlight off
to save power. Press any key to
return.
<Fn> + <F7> Touchpad
toggle
Turns the internal touchpad on and
off.
<Fn> + <F8> Speaker
toggle
Turns the speakers on and off.
<Fn> + < >Brightness up Increases the screen brightness.
<Fn> + < >Brightness
down
Decreases the screen brightness.
<Fn> + < >Volume up Increases the sound volume.
<Fn> + < >Volume down Decreases the sound volume.
![](/img.php?id=1202570&img=bg7.png)
7
English
Closed front view
#Icon Item Description
1Communication key Enables / disables the WLAN / 3G
functions.
2Speakers Left and right speakers deliver stereo
audio output.
Rear view
#Icon Item Description
1Battery bay Houses the computer's battery
pack.
12
1
![](/img.php?id=1202570&img=bg8.png)
8
English

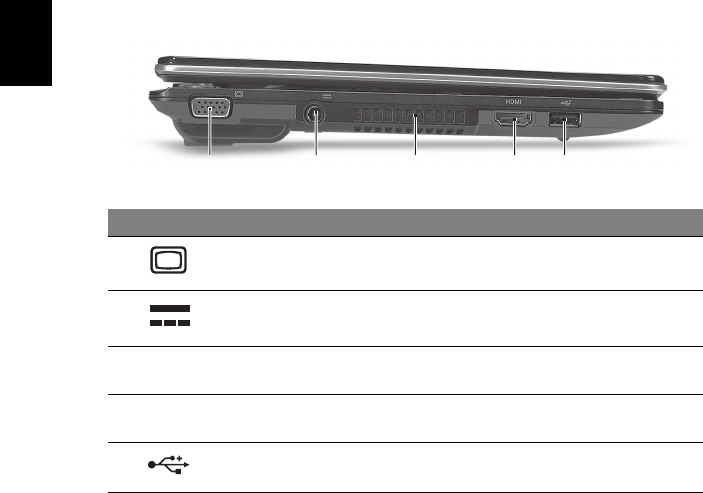

Left view
#Icon Item Description
1External display
(VGA) port
Connects to a display device (e.g.,
external monitor, LCD projector).
2DC-in jack Connects to an AC adapter.
3Ventilation slots Enable the computer to stay cool, even
after prolonged use.
4HDMI HDMI port Supports high definition digital video
connections.
5USB 2.0 port Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
12345
![](/img.php?id=1202570&img=bg9.png)
9
English
Right view
#Icon Item Description
1Multi-in-1 card
reader
Accepts Secure Digital (SD),
MultiMediaCard (MMC), Memory
Stick (MS), Memory Stick PRO (MS
PRO), xD-Picture Card (xD).
Note: Push to remove/install the card.
Only one card can operate at any
given time.
2Headphones/
speaker/line-out
jack with
S/PDIF support
Connects to audio line-out devices
(e.g., speakers, headphones).
Microphone-in jack Accepts inputs from external
microphones.
3USB 2.0 port Connects to USB 2.0 devices
(e.g., USB mouse, USB camera).
4Power button /
indicator
Slide the power button to turn the
computer on and off. / Indicates the
computer's power status.
5Kensington lock slot Connects to a Kensington-compatible
computer security lock.
Note: Wrap the computer security
lock cable around an immovable
object such as a table or handle of a
locked drawer. Insert the lock into the
notch and turn the key to secure the
lock. Some keyless models are also
available.
6Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000-
based network.
12 3456
![](/img.php?id=1202570&img=bga.png)
10
English
Base view
#Icon Item Description
1Battery bay Houses the computer's battery pack.
2Hard disk bay Houses the computer's hard disk
(secured with screws).
3Memory compartment Houses the computer's main memory.
4Ventilation slots and
cooling fan
Enable the computer to stay cool, even
after prolonged use.
Note: Do not cover or obstruct the
opening of the fan.
5Battery lock Locks the battery in position.
6Battery release latch Releases the battery for removal.
1
2
3
4
5
6
![](/img.php?id=1202570&img=bgb.png)
11
English
Specifications
Operating
system
•Genuine Windows® 7
Platform •Intel® Core™2 Duo processor*
•Intel® Pentium® mobile processor*
•Intel® Celeron® mobile processor*
•Mobile Intel® GS45 Express Chipset
System memory •Dual-Channel SDRAM support
•Up to 4 GB of DDR3 1066 MHz memory, upgradeable
to 8 GB using two soDIMM modules
Display •11.6" HD 1366 x 768
•Convertible display
Graphics •Mobile Intel® GS45 Express Chipset
Communication •Integrated Acer Crystal Eye webcam*
•WWAN: UMTS/HSPA at 850/900/1900/2100 MHz and
quad-band GSM/GPRS/EDGE (850/900/1800/1900
MHz)*
•WLAN:
•Intel® WiFi Link 5100 802.11a/b/g/Draft-N*
•Intel® WiFi Link 5100 802.11a/b/g*
•Intel® WiFi Link 1000*
•WPAN: Bluetooth® 2.1+Enhanced Data Rate (EDR)*
•LAN: Gigabit Ethernet; Wake-on-LAN ready
Audio •Optimized 2nd Generation Dolby® Sound Room®
audio enhancement
•High-definition audio support
•S/PDIF (Sony/Philips Digital Interface) support for
digital speakers
•MS-Sound compatible
•Built-in microphone
Storage
subsystem
•2.5" hard disk drive
•Multi-in-1 card reader
Privacy control •BIOS user, supervisor, HDD passwords
•Kensington lock slot
Dimensions
and weight
•285 (W) 208.9 (D) 28.5/34.5 (H) mm
(11.22 x 8.22 x 1.12/1.36 inches)
•1.72 kg (3.79 lbs.) (non-3G SKU)
![](/img.php?id=1202570&img=bgc.png)
12
English
Note: * Only for certain models.
Note: The specifications listed above are for reference only. The
exact configuration of your PC depends on the model purchased.
Power
subsystem
•ACPI 3.0
•62.16 W 5600 mAh
•3-pin 30 W AC adapter
•ENERGY STAR®*
Special keys
and controls
•84-/85-/88-key keyboard
•Multi-gesture touchpad pointing device
I/O interface •Multi-in-1 card reader (SD/MMC/MS/MS PRO/xD)
•USB 2.0 port
•HDMI™ port with HDCP support
•External display (VGA) port
•Headphones/speaker/line-out jack with S/PDIF
support
•Microphone-in jack
•Ethernet (RJ-45) port
•DC-in jack for AC adapter
Environment •Temperature:
•Operating: 5 °C to 35 °C
•Non-operating: -20 °C to 65 °C
•Humidity (non-condensing):
•Operating: 20% to 80%
•Non-operating: 20% to 80%
