1 Document Propose
This User Guide describes the basic concept and tasks necessary to use your
abTouchPhone. This document covers the topics of phone installation and making
basic calls.
Caution:
Changes or modifications to this product not expressly approved by Acer, or
operation of this product in any way other than as detailed by this User Manual,
could void your manufacturer warranty.
Warning:
Please do not use a different power adaptor with the abTouchPhone as it may
cause damage to the products and void the manufacturer warranty.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 4 (45)
2006-07-0412
Commercial in confidence
2 Product Overview
2.1 Product Feature Highlight
abTouchPhone’s Minimalism stylish design mixed with metal and anti-fingerprint
glass could be displayed sophisticatedly on an executive’s desktop.
Other features include:
Three HD voice speakers for conferencing
Built-in Bluetooth handset for private talk
An adjustable HDR wide-angle camera
Dual noise reduction microphones
A colorful anti-reflection/anti-fingerprint touchscreen
An HDMI port that allows you export screen to a projector
Supports video conferencing calls
Supports both Ethernet & Wi-Fi connection
2.2 Design Feature Highlight
Design Quality:
The user centric design of the abTouchPhone 100% reflects current user behavior
in the office; the large touchscreen on this phone is to replace multiple buttons, the
built-in beam forming microphone array collects sound around itself, so an user is
not limited to his/her seat and can move around freely in hand free mode.
Degree of Innovativeness:
abTouchPhone is the first ever all function multimedia touch screen desk phone
that supports abPBX, it replaces the traditional office desk phone which supports
voice calls only. abTouchPhone’s Minimalism stylish design mixed with metal and
anti-fingerprint glass could be displayed sophisticatedly on an executive’s desktop.
Originality:
abTouchPhone’s Minimalism stylish design mixed with metal and anti-fingerprint
glass could be displayed sophisticatedly on an executive’s desktop. It covers both
private talk and also the conferencing scenario in one sophisticated device.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 5 (45)
2006-07-0412
Commercial in confidence
2.3 Produce Specification
CPU
8 Core processor
Camera
Adjusta
ble angle
(
10° up/ 20° down
)
Wide-Angle, HDR, F2.4 lens
Panel
1280
*
800
, h
igh reliability standard,
water repellent, alcohol proof, easy clean, 200~250 nits, matt
finished glass, IPS, AR/AF
Wi
-
Fi support
Y
System suppor
t
BT
Y
RAM/Storage
2G/16G
MIC
Dual Microphones,
one in the front, one in the back
Hinge
Flat tilt angle be able to support 70~40°
I/O
USB2.0*2
HDMI
-
Out*1
DC
-
In*1 by adapter power supply
LAN Port (10/100/1000)*1
Computer port (10/100/1000)*1
General speaker output port
(3.5mm)
Handset
Wireless with battery embedded,
supports Bluetooth
calling time: 5hrs; Stand-by time: 100hr
Storage Environment -25℃-70℃, Humidity 5%~90%
Operating Environment
0℃~45℃, Humidity 5%~90%
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 6 (45)
2006-07-0412
Commercial in confidence

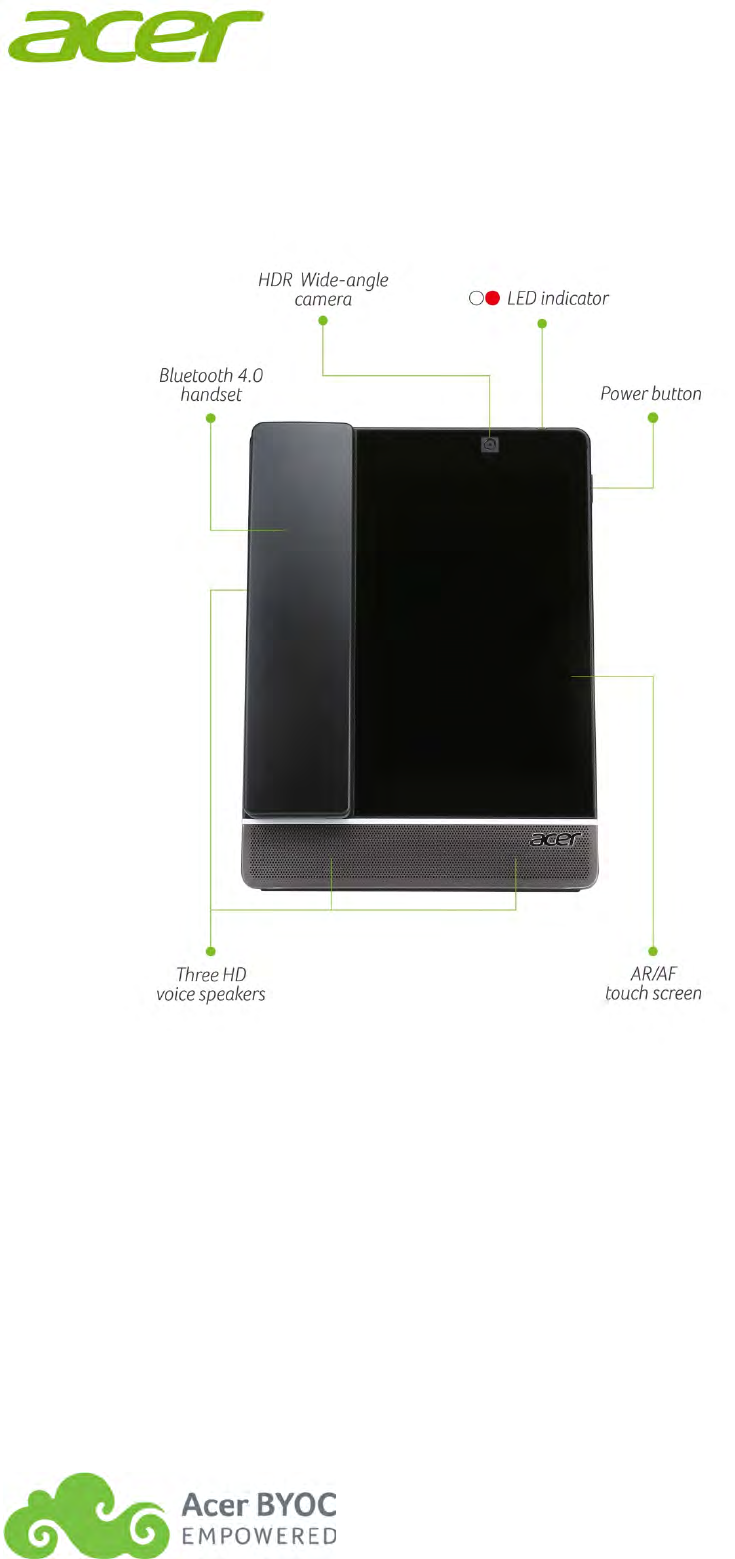

3 Connect your phone
3.1 Front View
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 7 (45)
2006-07-0412
Commercial in confidence

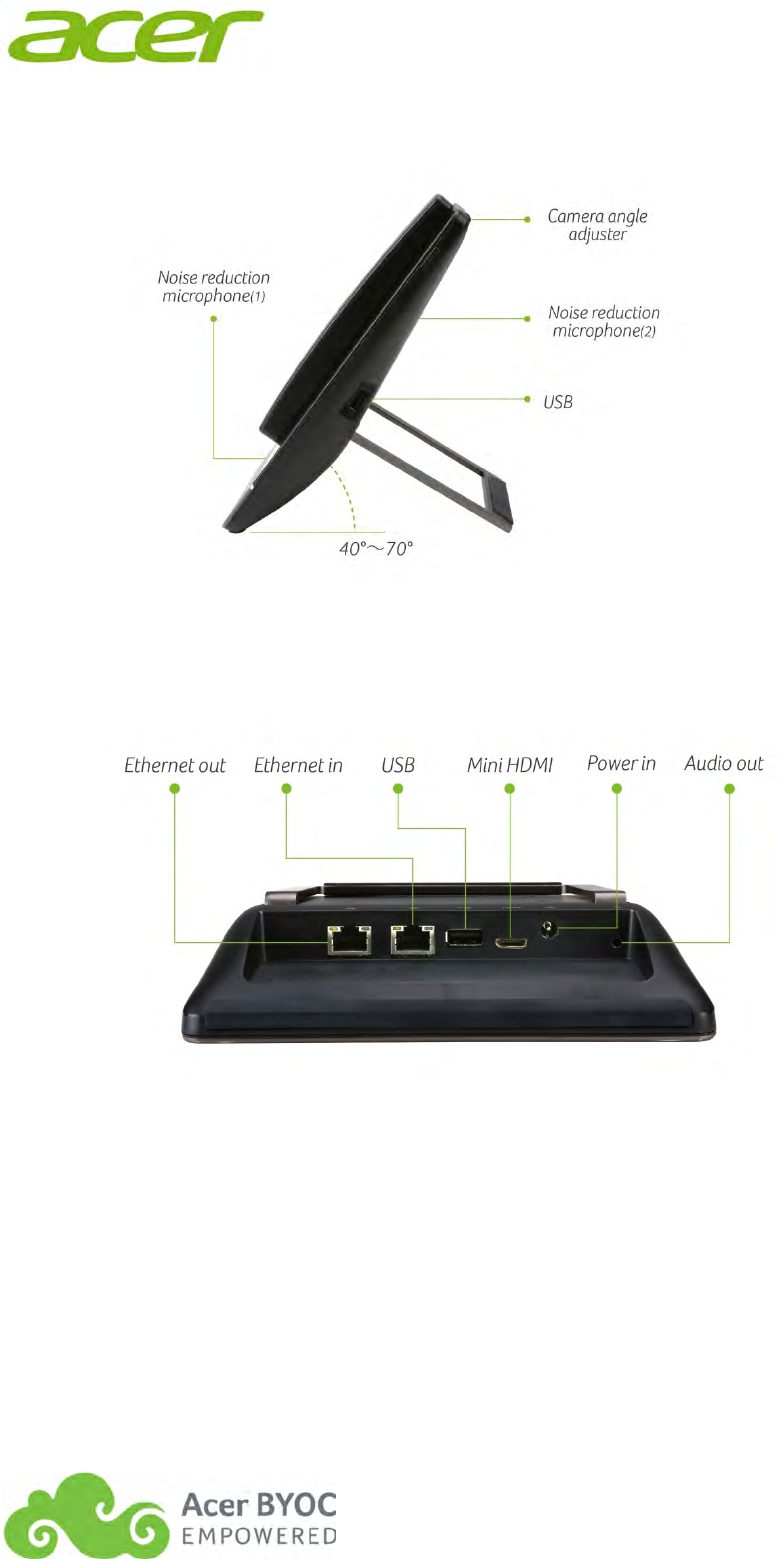

3.2 Side View
3.3 Button View
3.4 Installation Steps
To set up the abTouchPhone as your desk phone, follow the steps below:
1. Take the phone stand out on the back and adjust the angle to place the phone
steady on the desk; put the handset on to the main phone case.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 8 (45)
2006-07-0412
Commercial in confidence
2. Connect the Ethernet out port of the phone to the RJ-45 socket of a hub/switch or
a router (LAN side of the router) using the Ethernet cable.
3. Connect the 5V DC output plug to the power jack on the phone; plug the power
adapter into an electrical outlet.
4. Long press the power button and the LCD will display the booting up screen.
5. Please wait for the main screen display to show up.
Warning:
Use the power adapter provided with the phone. Do not use a different power
adapter as this may damage the phone. This type of damage is not covered under
warranty.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 9 (45)
2006-07-0412
Commercial in confidence
4 Getting started to use abTouchPhone
Allows users to monitor a busy party and automatically establish a call when the
busy party becomes idle.
4.1 Login and Dialer main page

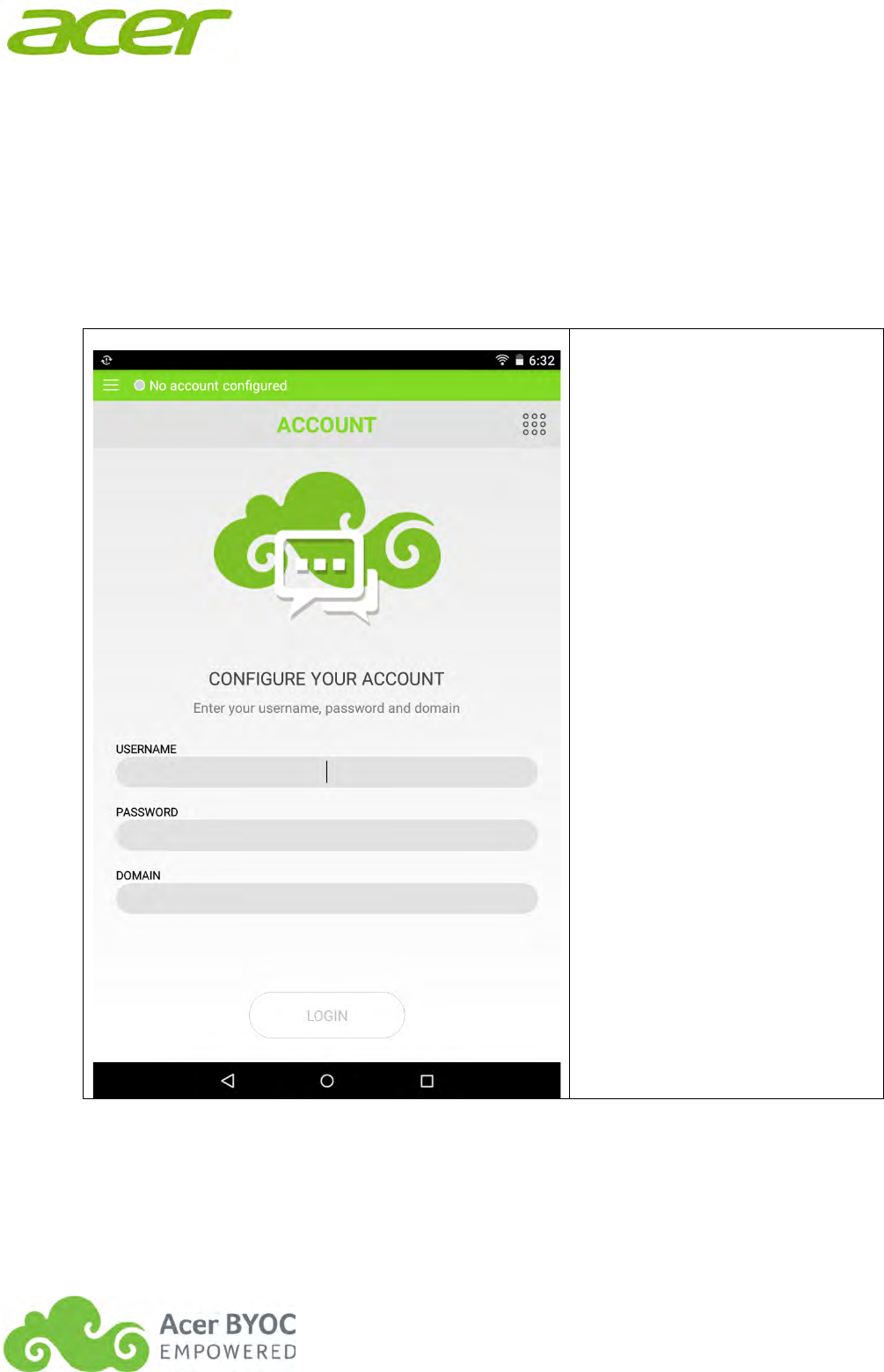

Enter your USERNAME,
PASSWORD and DOMAIN
than press LOGIN button.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 10 (45)
2006-07-0412
Commercial in confidence
After login, you will see the
dialer page.
4.2 Dialer
Make a voice call
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 11 (45)
2006-07-0412
Commercial in confidence

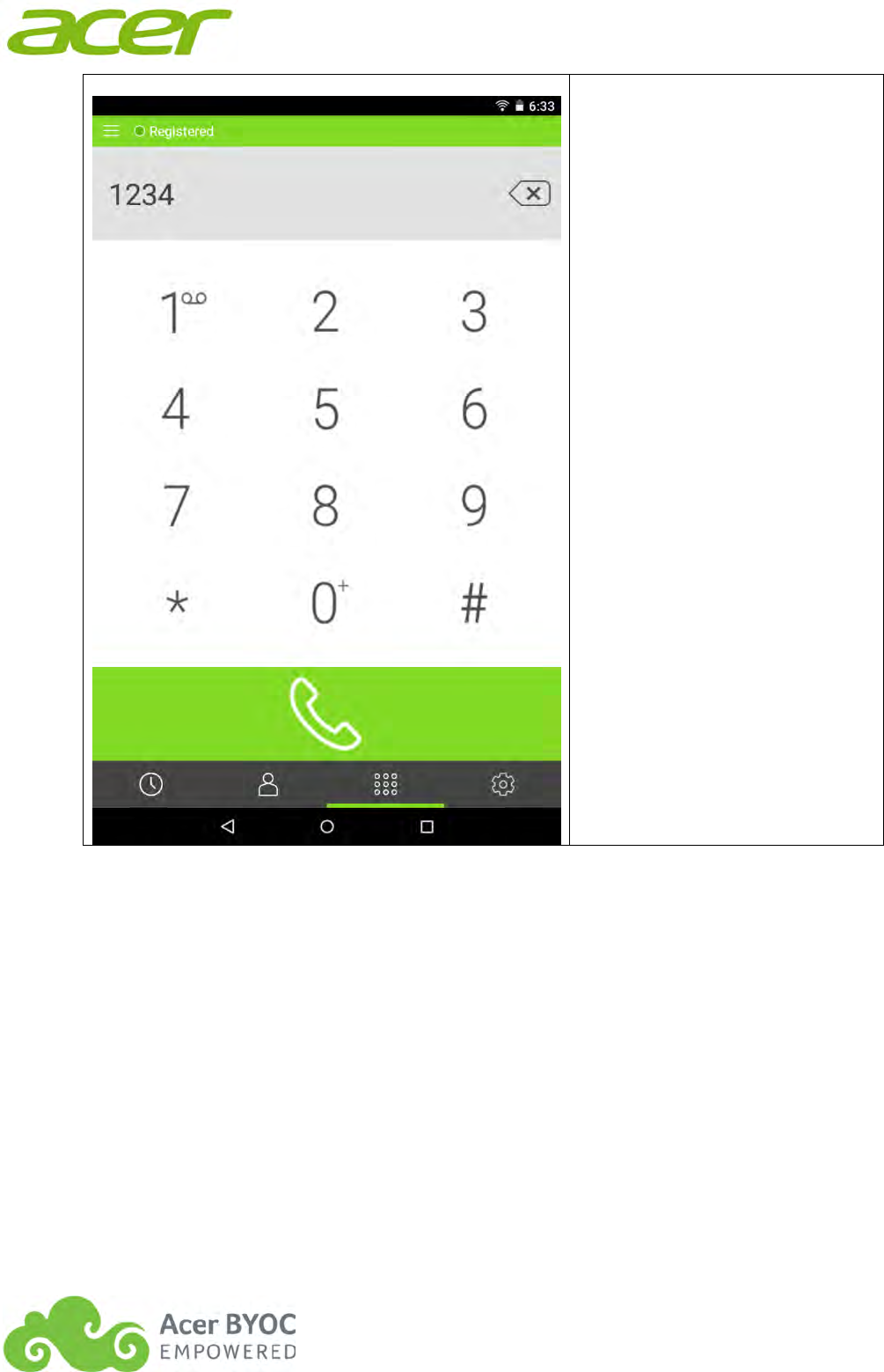

Press the number you are
going to call than press the dial
key
Pick up a voice call
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 12 (45)
2006-07-0412
Commercial in confidence

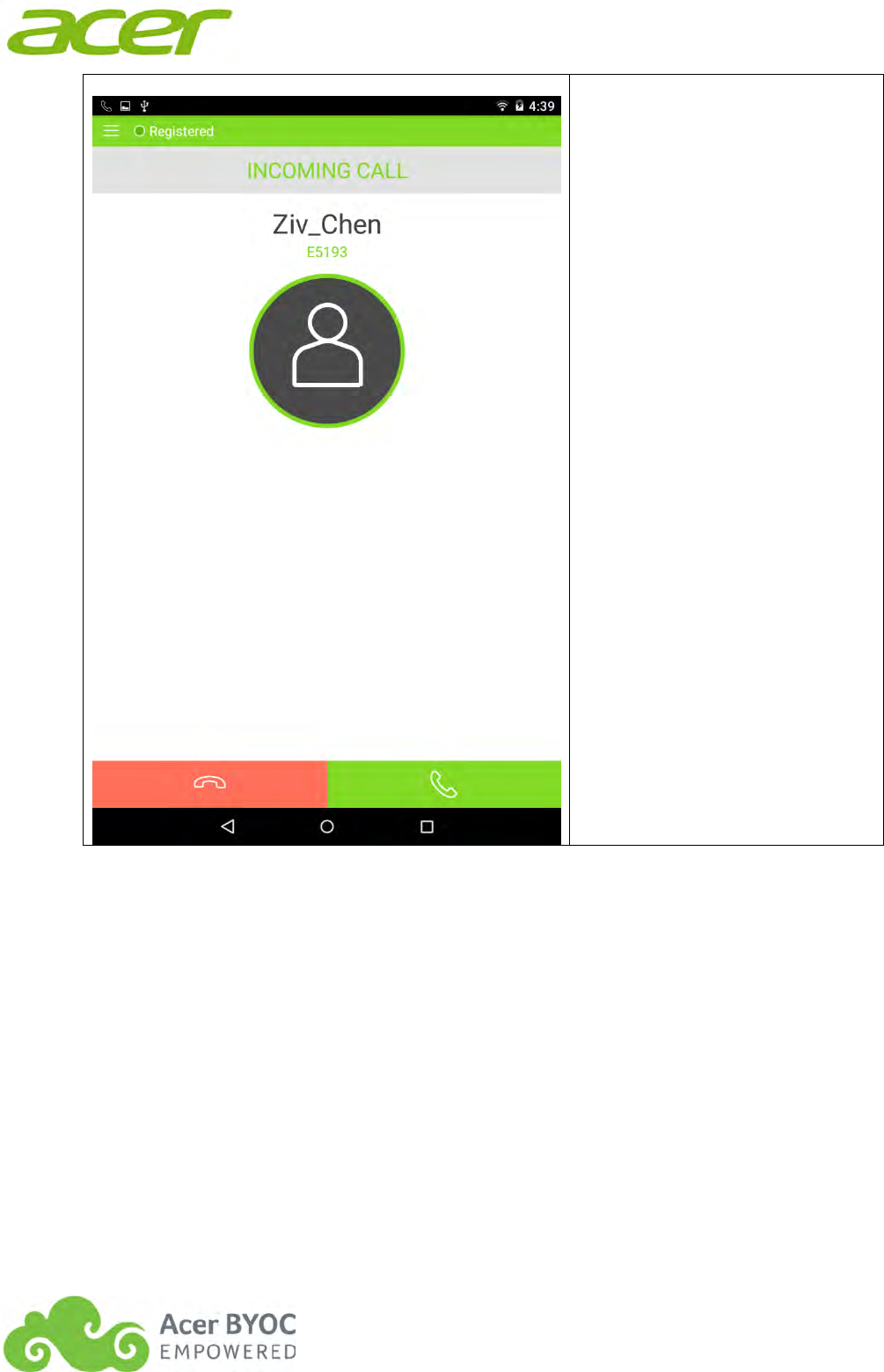

When you receive an incoming
call, you can press answer key
to pick up the call or press
deny key to hand up the call.
Hand up a voice call
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 13 (45)
2006-07-0412
Commercial in confidence

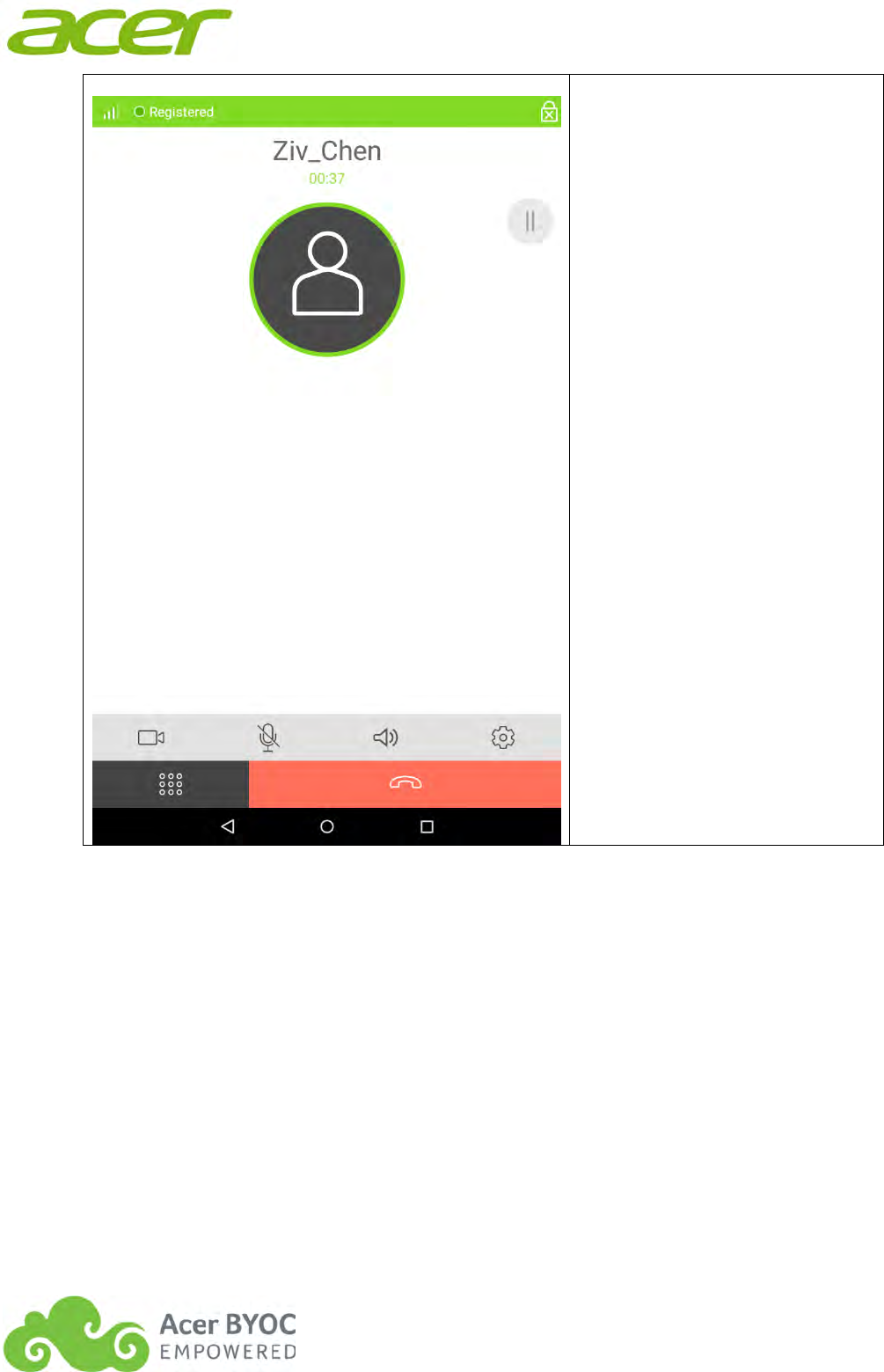

Press hand up key to hand up
the call.
Using dial pad during a call
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 14 (45)
2006-07-0412
Commercial in confidence
Press dial pad key to launch
dial pad during the call.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 15 (45)
2006-07-0412
Commercial in confidence

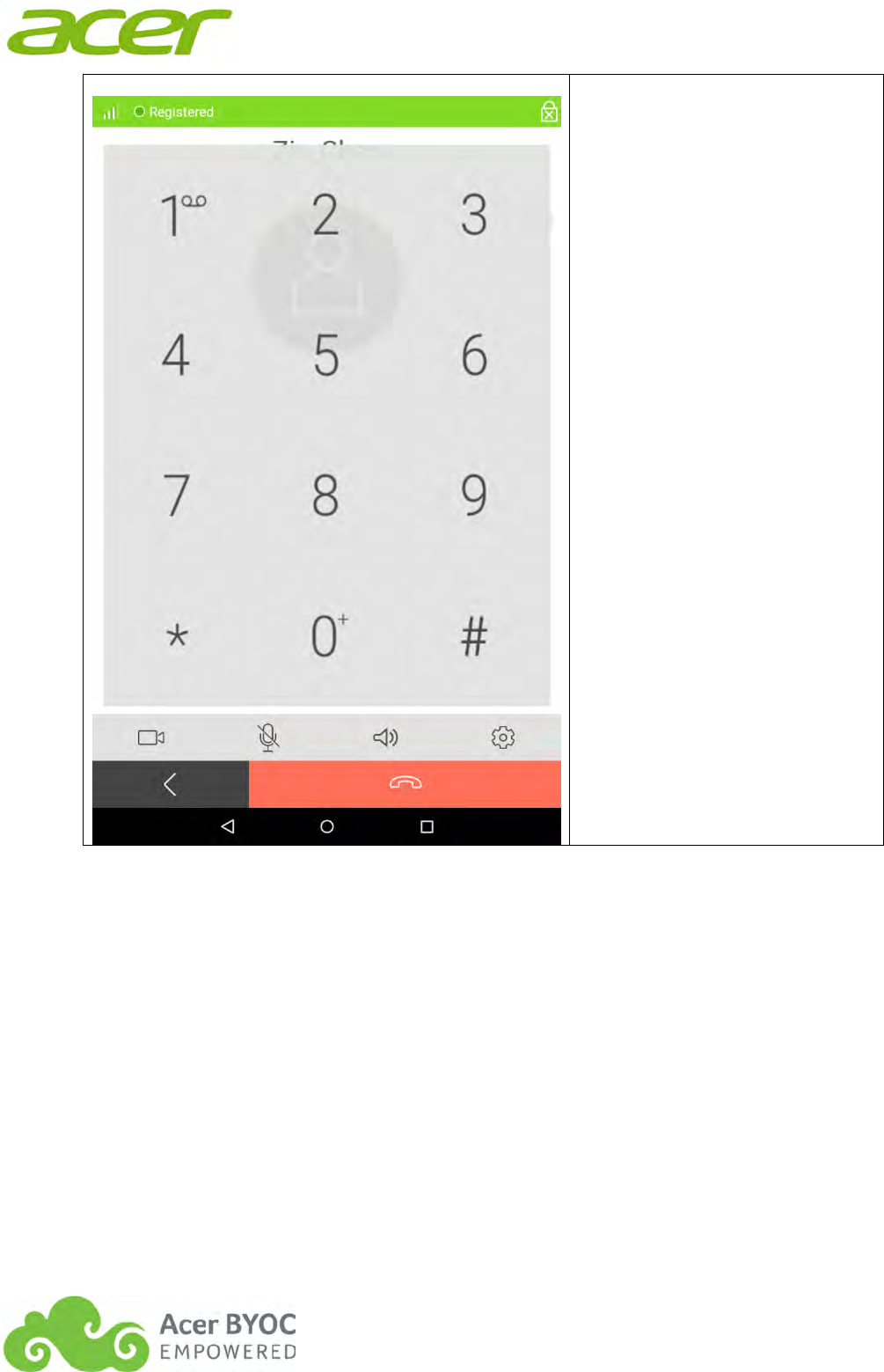

Press the back key to hide dial
pad.
Mute the call
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 16 (45)
2006-07-0412
Commercial in confidence
Press mute key to mute the
call.
Using the speaker
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 17 (45)
2006-07-0412
Commercial in confidence
Press the speaker key to
enable speaker.
Make a video call
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 18 (45)
2006-07-0412
Commercial in confidence
During the phone call, press
the video key to invite a video
call.
You may need to wait for the
recipient agree the video call.
Pick up a video call
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 19 (45)
2006-07-0412
Commercial in confidence

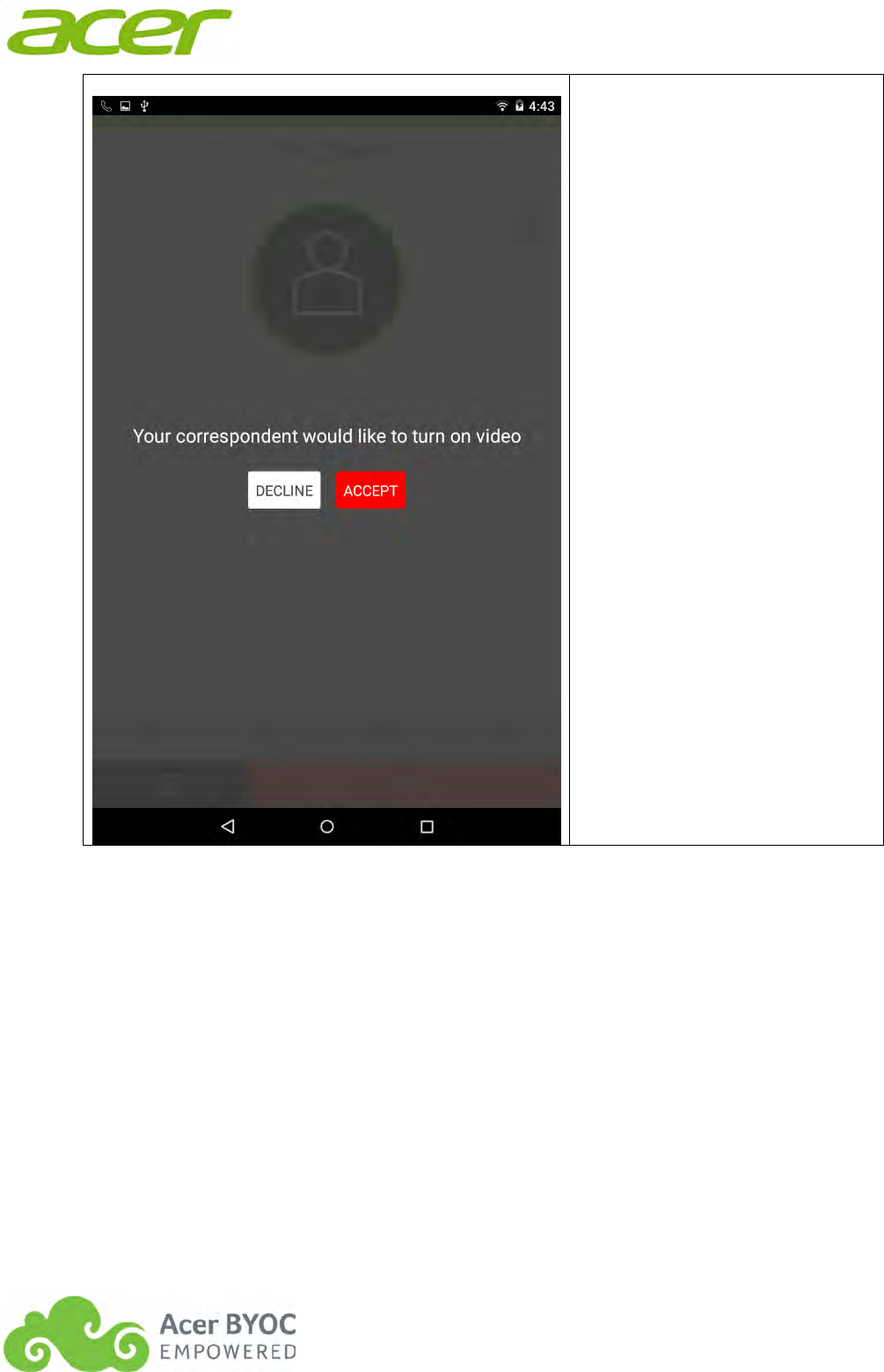

When you receive a video call
invite, press ACCEPT to agree
and turn the video call.
Call Transfer
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 20 (45)
2006-07-0412
Commercial in confidence
Press the function key to show
Call Transfer/ 3 Way Call
icons.
Press Call Transfer icon to
launch dial pad.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 21 (45)
2006-07-0412
Commercial in confidence
Press the number you are
going to transfer to than press
dial key to transfer.
3 Way Call
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 22 (45)
2006-07-0412
Commercial in confidence

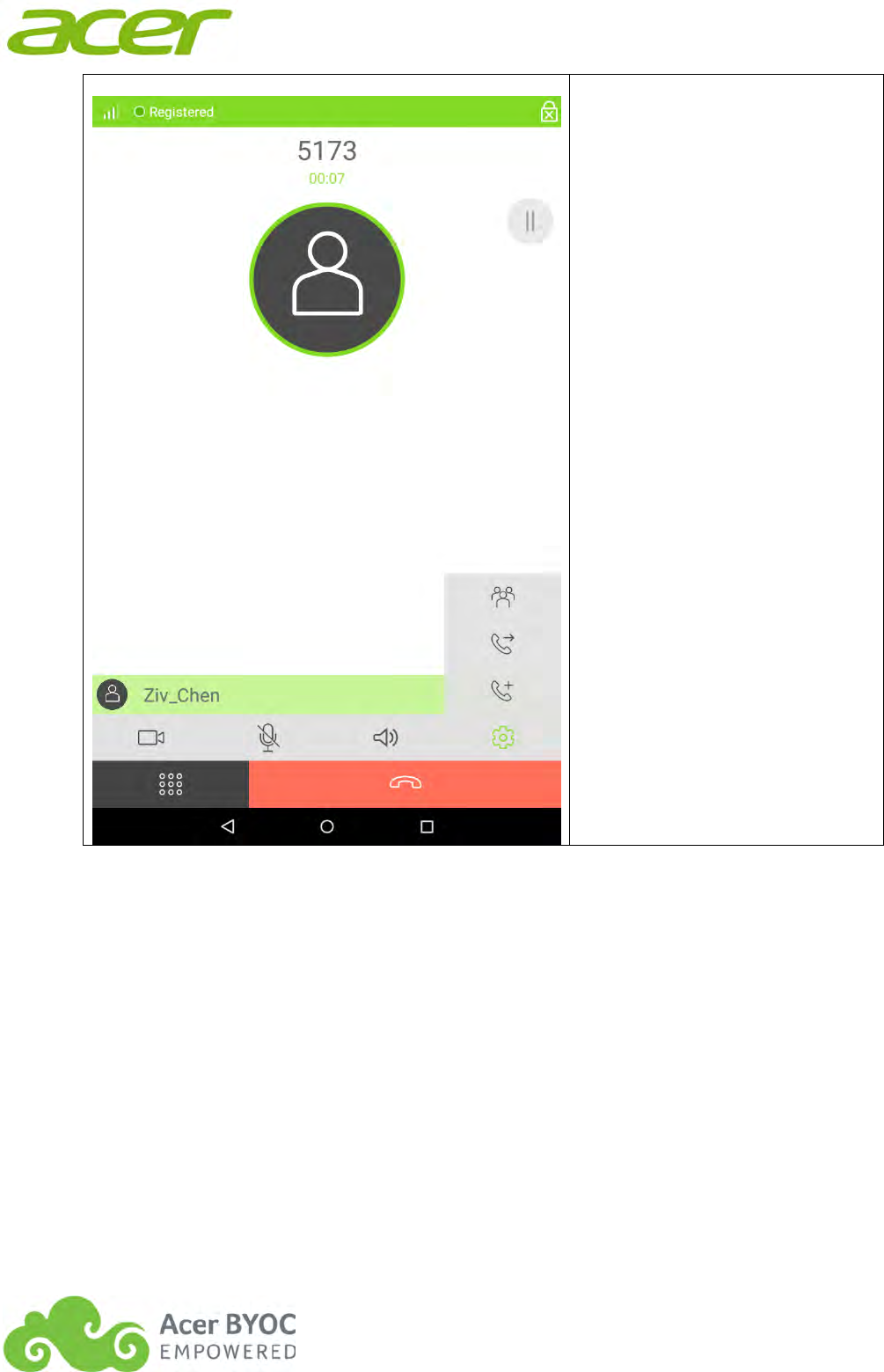

Press the function key to show
Call Transfer/ 3 Way Call
icons.
Press 3 Way Call icon to
launch dial pad.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 23 (45)
2006-07-0412
Commercial in confidence
Press the number you are
going to invite for 3 way call
than press dial key to make a
call invite.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 24 (45)
2006-07-0412
Commercial in confidence
When the invite call is picked
up, press 3 way call icon to
start 3 Way Call.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 25 (45)
2006-07-0412
Commercial in confidence

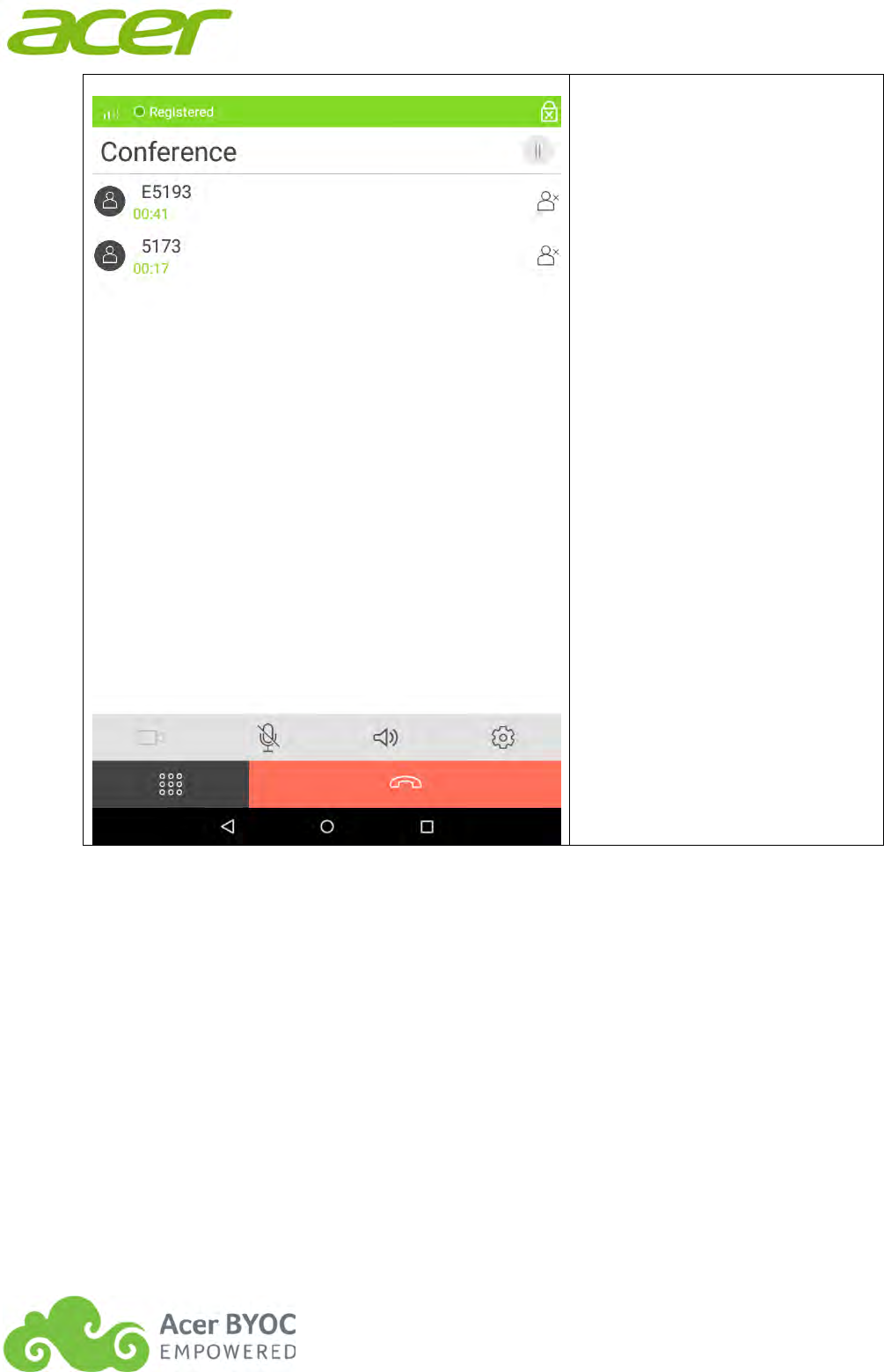

3 way call main page.
4.3 Contacts

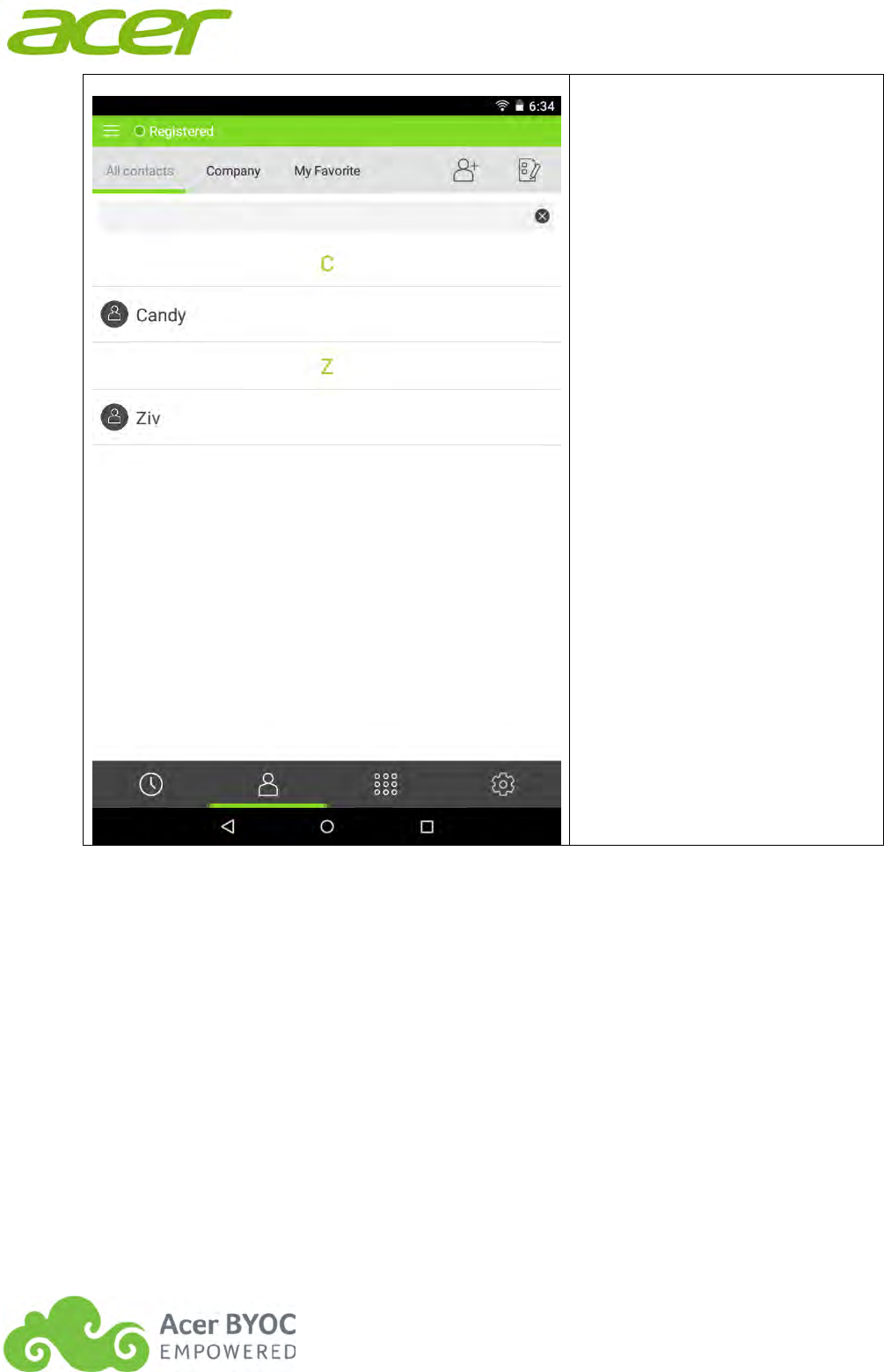

Contacts main page
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 26 (45)
2006-07-0412
Commercial in confidence
Contacts main page
Add a Personal contact
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 27 (45)
2006-07-0412
Commercial in confidence
Press add icon to add a new
Personal contact.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 28 (45)
2006-07-0412
Commercial in confidence

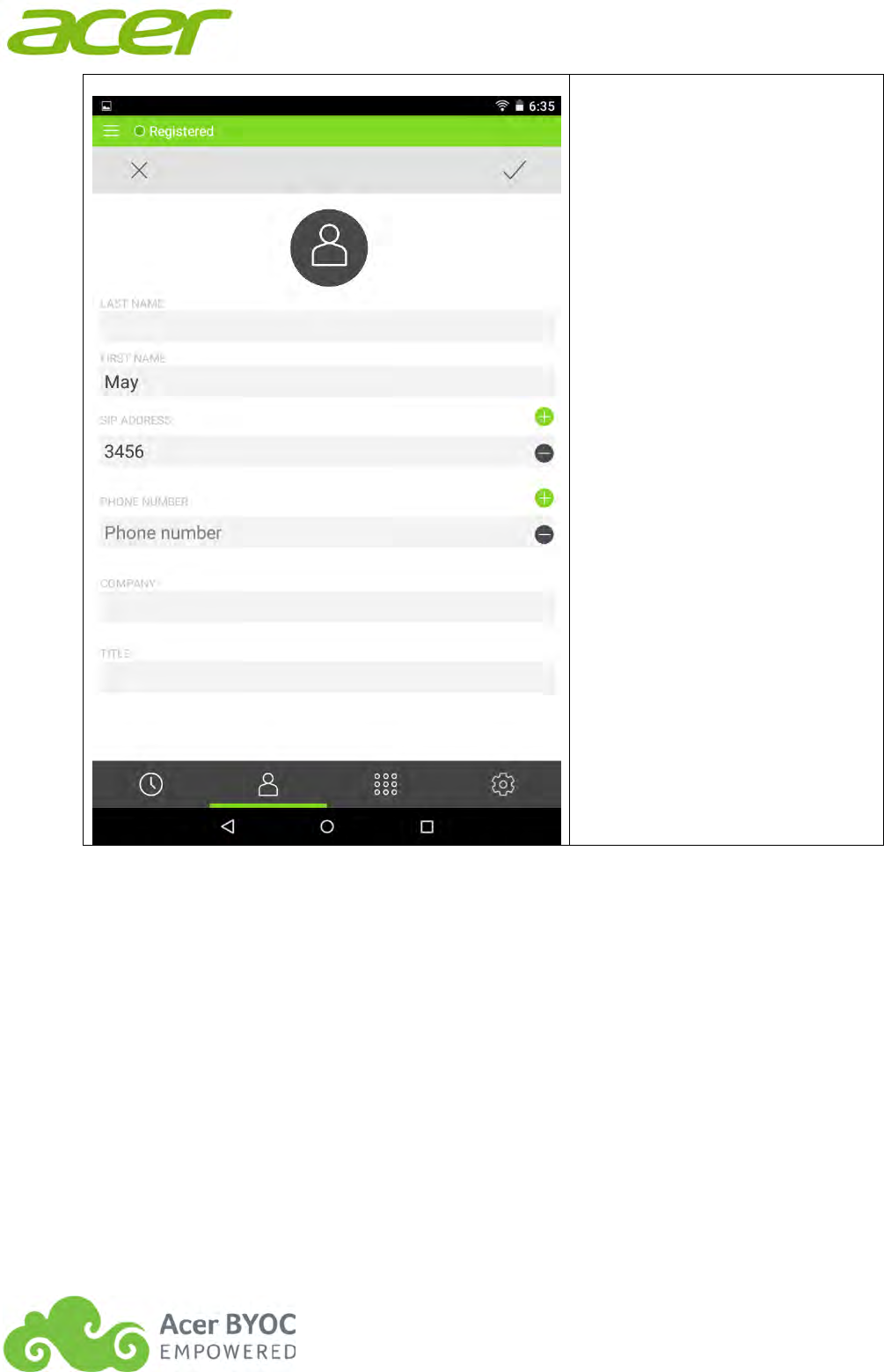

Enter the new Personal contact
information than press confirm
icon to save.
Edit a Personal contact
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 29 (45)
2006-07-0412
Commercial in confidence

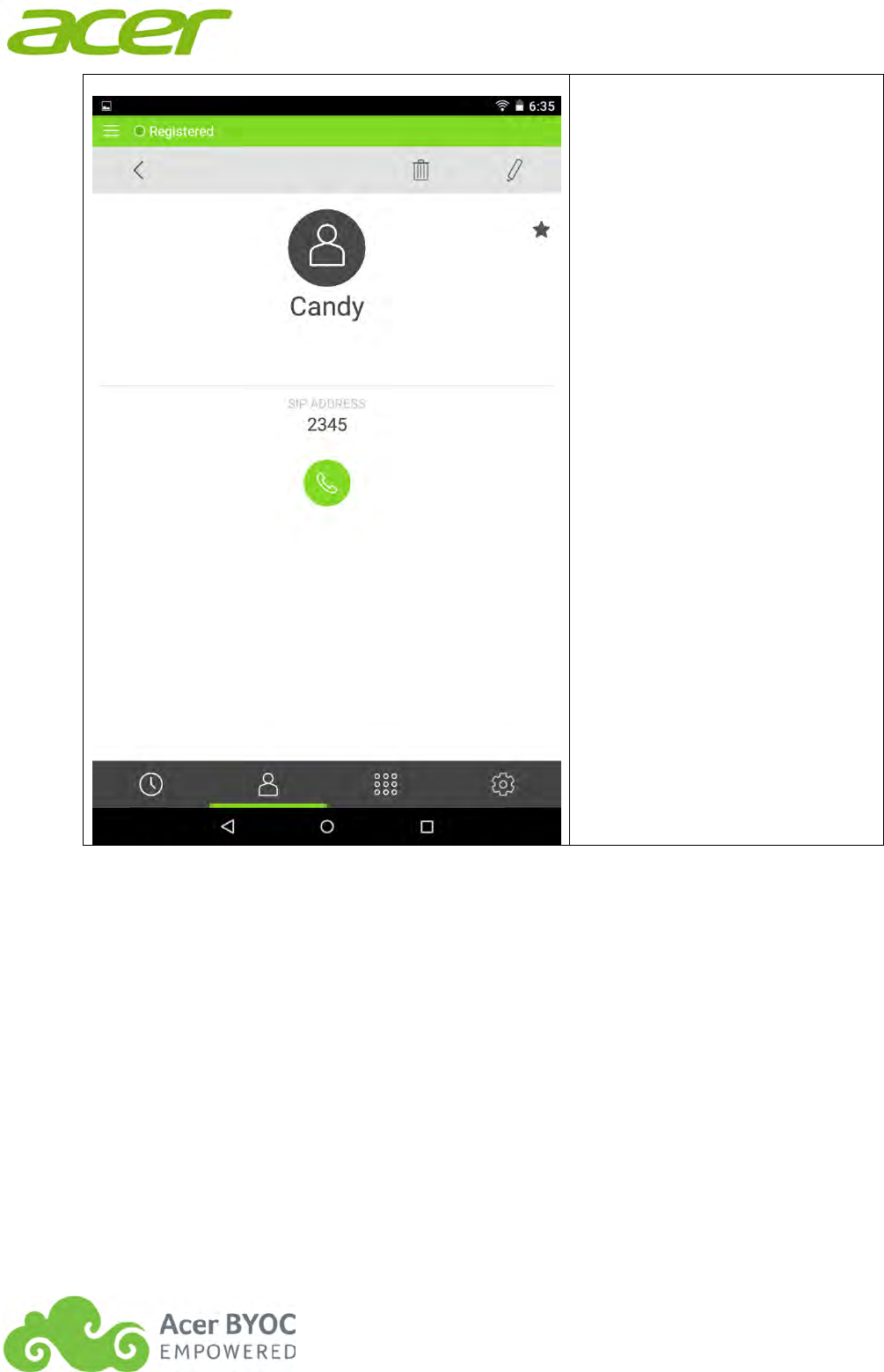

Press the contact you are
going to edit.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 30 (45)
2006-07-0412
Commercial in confidence
Press add icon to edit a new
Personal contact.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 31 (45)
2006-07-0412
Commercial in confidence
Edit the Personal contact
information than press confirm
icon to save.
Delete Personal contacts
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 32 (45)
2006-07-0412
Commercial in confidence
Press delete icon to enable
delete feature.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 33 (45)
2006-07-0412
Commercial in confidence
Select the Personal contact or
press select all icon than press
delete icon to delete contacts.
Add contacts to Favorite
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 34 (45)
2006-07-0412
Commercial in confidence
Press the contact you are
going to add to Favorite.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 35 (45)
2006-07-0412
Commercial in confidence
Press the Star icon to add the
contact to Favorite.
4.4 Call log
Call log
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 36 (45)
2006-07-0412
Commercial in confidence

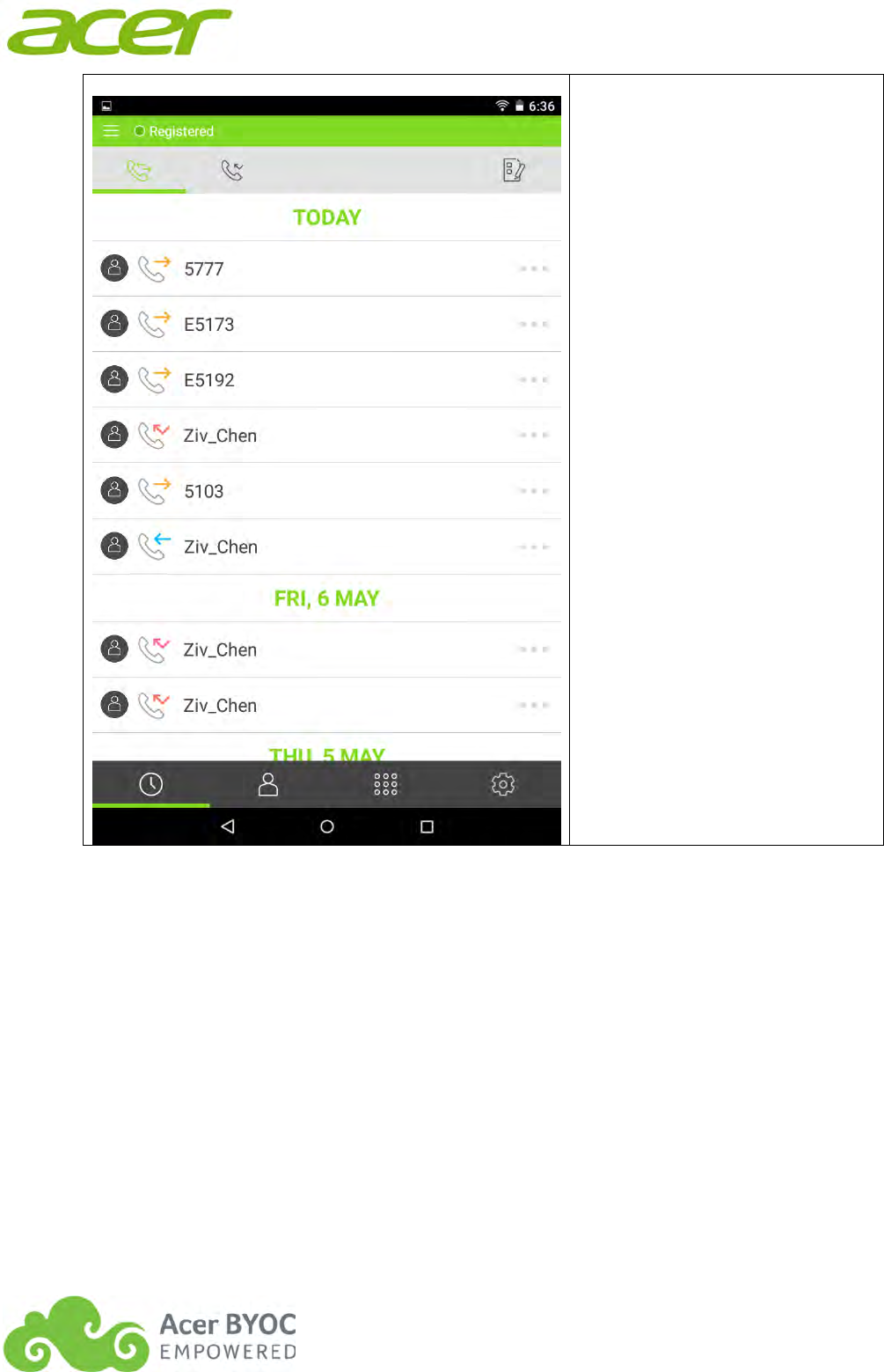

Call log main page.
View Call log detail
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 37 (45)
2006-07-0412
Commercial in confidence

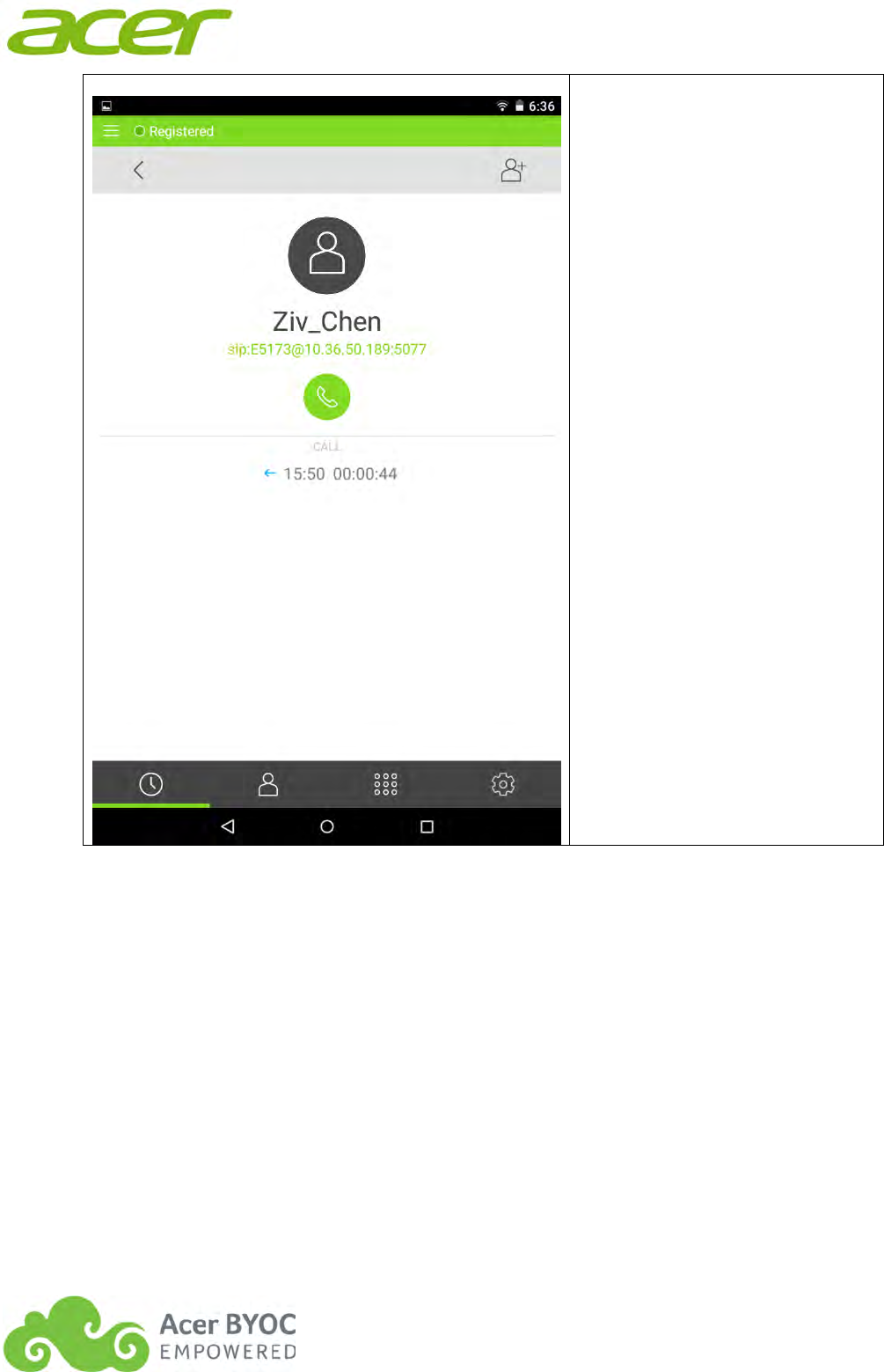

Press the more icon to enter
log detail page.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 38 (45)
2006-07-0412
Commercial in confidence
You can add or call back the
number by pressing add or call
icons.
Delete Call log
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 39 (45)
2006-07-0412
Commercial in confidence
Press delete icon to enable
delete feature.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 40 (45)
2006-07-0412
Commercial in confidence

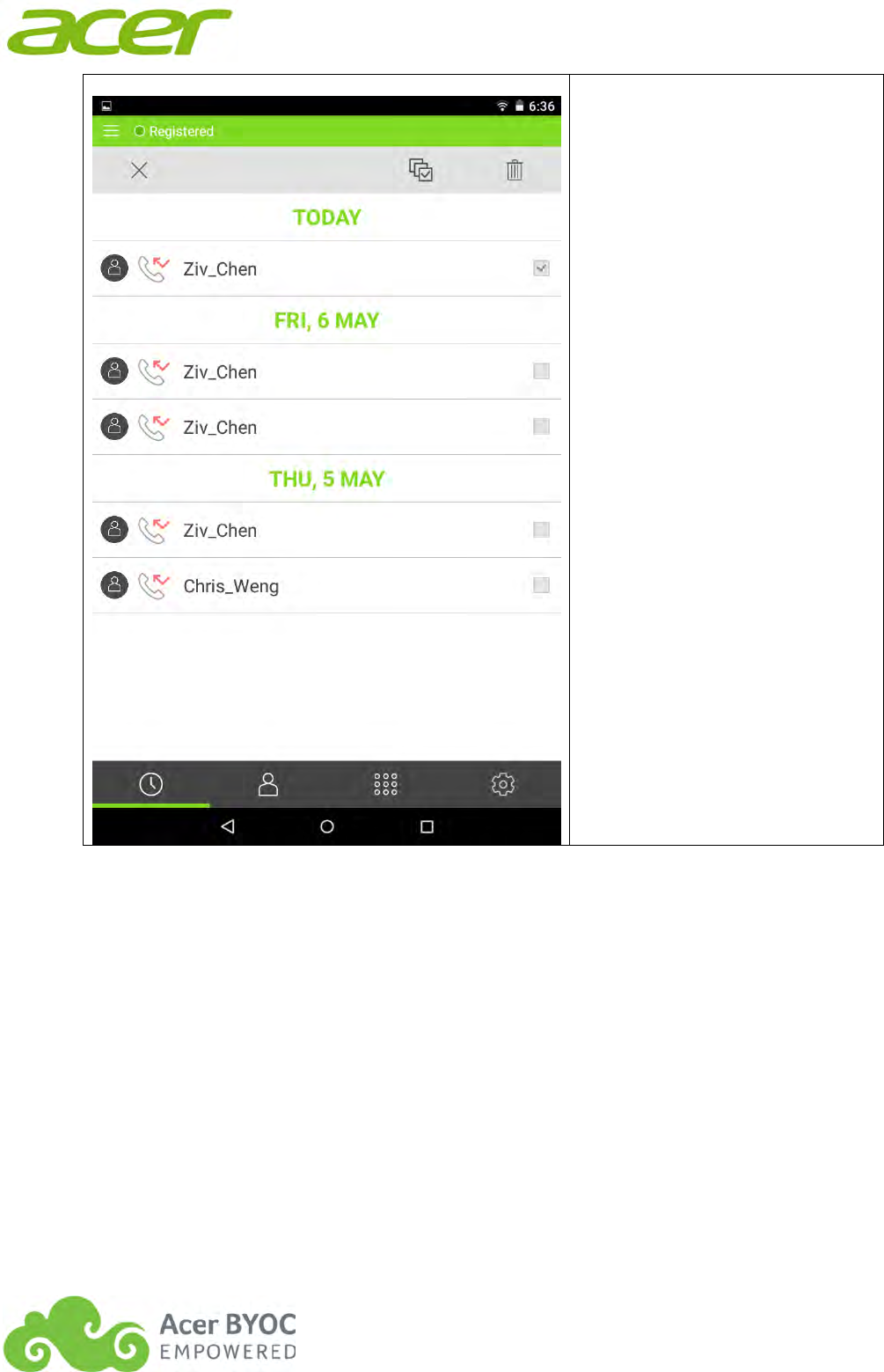

Select the call log or press
select all icon than press delete
icon to delete call logs.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 41 (45)
2006-07-0412
Commercial in confidence
4.5 Settings

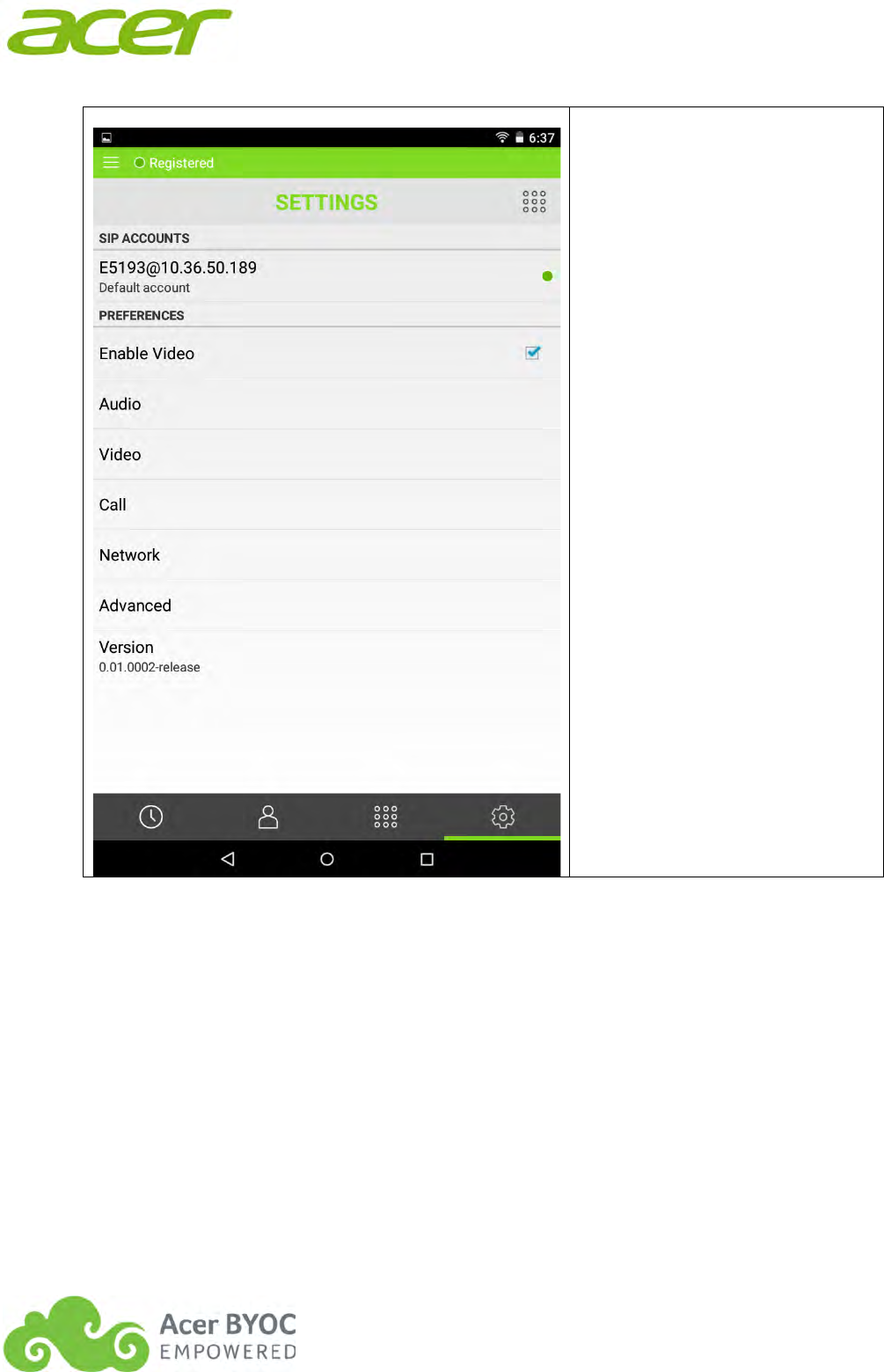

Setting main page.
Warning:
Do not change any settings except trouble shooting by MIS or IT. It may cause
function fail if make any change at the page.
All rights reserved. The information in this document is the property of Acer. Except as specifically authorized in
writing by Acer, the receiver of this document shall keep the information contained herein confidential and shall
protect the same in whole or in part from disclosure and dissemination to third parties. Disclosure and
disseminations to the receiver's employees shall only be made on a strict need to know basis. The information
in this document is subject to change without notice and Acer assumes no responsibility for factual inaccuracies
or typographical errors.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 42 (45)
2006-07-0412
Commercial in confidence
5 Regulations and safety notices
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Caution
Changes or modifications not expressly approved by the approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
RF Radiation Exposure Statement for abTouchPhone
This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment complies with FCC RF radiation exposure
limits set forth for an uncontrolled environment. This equipment should be installed
and operated with a minimum distance of 20 centimeters between the radiator and
your body.
RF Radiation Exposure Statement for Headset
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Acer abTouchPhone User Guide
Acer abTouchPhone User Guide
Acer Inc. 2015 43 (45)
2006-07-0412
Commercial in confidence
5.1 CE declaration of Conformity
Hereby, Acer Inc., declares that this device is in compliance with the essential
requirements and other relevant provisions of RED Directive, 2014/53/EU issued by
the Commission of the European Community.
5.2 NCC statement
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自
變更頻率、加大功率或變更原設計之特性及功能。低功率射頻電機之使用不得影
響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干
擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率
射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
