Acer orporated DA220HQL Smart Display User Manual q eng

Acer Incorporated Smart Display q eng

user manual

English
Acer Smart Display Quick Start Guide
Important safety instructions
Please read the following instructions carefully.
1 To clean the smart display screen:
Turn off the smart display and unplug the power cord.
Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
2 Do not place the smart display near a window. Exposing the monitor to rain, moisture or sunlight can
severely damage it.
3 Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the
display.
4 Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform
servicing of any nature.
5 Store the smart display in a room with a temperature of -20° to 60° C (-4° to140° F). Storing the smart
display outside this range may result in permanent damage.
6 Immediately unplug your monitor and call an authorized technician if any of the following circumstances
occur:
Monitor-to-PC signal cable is frayed or damaged.
Liquid spills onto the smart display or the monitor is exposed to rain.
The smart display or case is damaged.

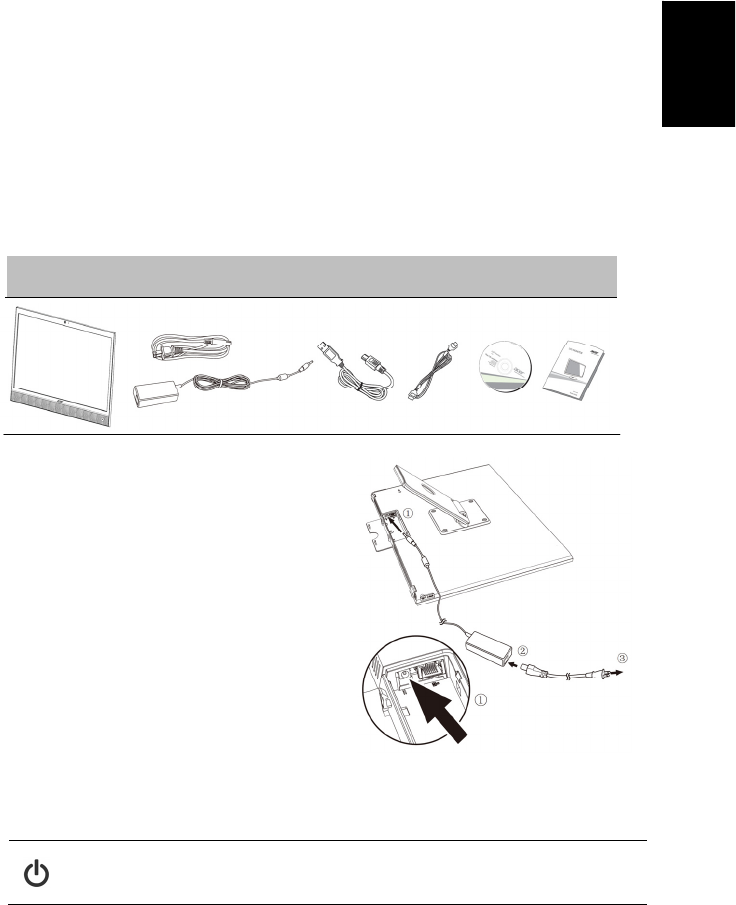

Package contents
Smart display Power cord and adapter USB cable HDMI cable User
guide
Quick start
guide
Connecting your monitor to a computer
1 Turn off your computer and unplug your computer's
power cord.
2 Connect the HDMI cable to the HDMI input socket of the
monitor, and the HDMI output socket of the graphics
card on the computer.
3 Optional: Connect the micro USB port of the smart
display and the USB-out port on the computer with the
USB cable.
4 Connect the smart display’s power adapter into the
power port at the back of the monitor.
5 Plug the power cords of your computer and your
monitor into a nearby electrical outlet.
6 Press and hold the power button until the smart
display turns on.
7 To switch to HDMI display, press and hold the power
button to view the OSD, then tap HDMI.
Please refer to the User Guide for information about
setting up your smart display.
Turning on for the first time
You will be asked some questions before you can use your monitor as a smart display.
To set up or access a Google account, connect your smart display to an Ethernet or Wi-Fi access point.
External controls
Power button
Turns the display on/off. Green indicates power on. Amber indicates standby/
power saving mode.
When using the HDMI input, press and hold the power button to view the OSD.
Use the touch screen to select or adjust an option.
To change the volume, press and hold the power button to view the OSD. Slide the Volume bar left or right, then tap
the back icon in the lower-right corner of the OSD.
English
Regulations and safety notices
FCC notices
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
CE declaration of conformity
Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements and other
relevant provisions of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, R&TTE Directive 1999/5/
EC and RoHS Directive 2002/95/EC, and Directive 2009/125/EC with regard to establishing a framework for the
setting of ecodesign requirements for energy-related product.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with
EMC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be
attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and
TV reception.
Caution
Changes or modifications not expressly approved by the manufacturer could void the user authority, which is
granted by the Federal Communications Commission, to operate this product.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisee aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est
susceptible d'en.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used
for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must
not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must
be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Disposal of waste equipment by user in private household in the European Union
This symbol on the product or on its packaging indicates that this product must not be
disposed of with your other household waste. Instead, it is your responsibility to dispose of
your waste equipment by handing it over it a designated collection point for the recycling of
waste electrical and electronic equipment. The separate collection and recycling of your
waste equipment at the time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the environment. For more
information about where you can drop off your waste equipment for recycling, please contact
your local city office, your household waste disposal service or the shop where you purchased
the product.
English

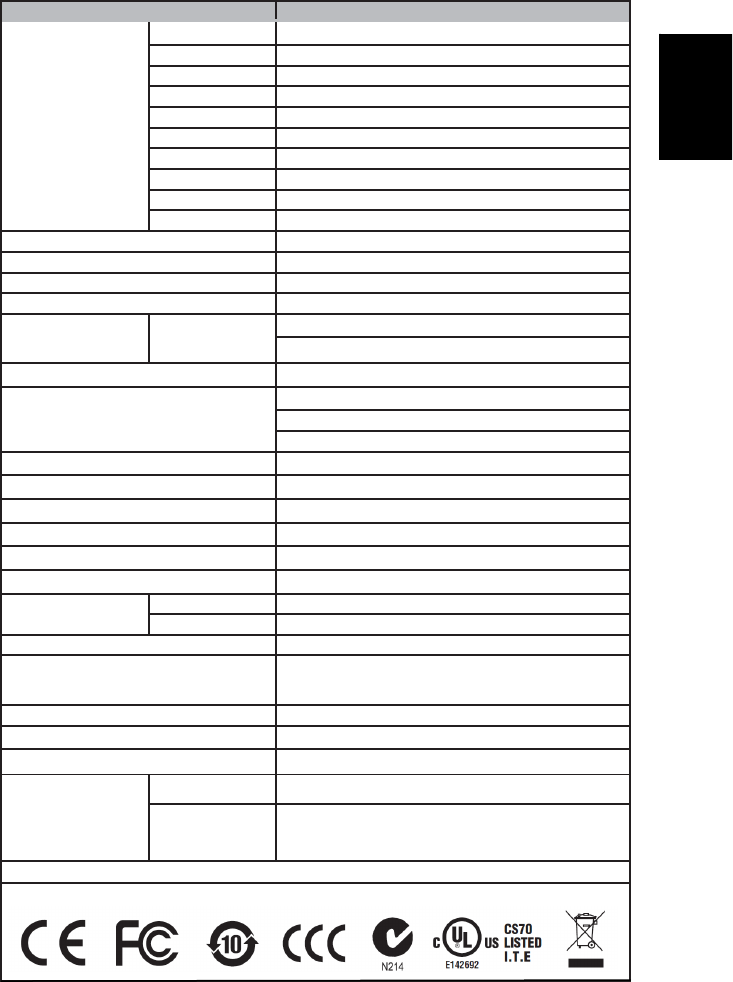

SPECIFICATIONS
Items DA220HQL
LCD Panel
Driving system TFT Color LCD
Size 21.5”W (55cm)
Pixel pitch 0.2652(H) x 0.2652(V)mm
Brightness (cd/m2 ) 200 / 250 (Min/Typ)
Contrast 100,000,000:1 Max (ACM)
Viewable angle 178°(H),178°(V)
Response time 12ms (G to G)
Panel Type VA
H-Frequency 30kHz-80kHz
V-Frequency 55Hz-75Hz
Display Colors 16.7 Million
Touch screen Optical dual-touch screen
Dot Clock 173MHz
Max. Resolution 1920 x 1080
Power consumption
(at 250 nits)
On Mode 27W(typical)
Off Mode 0.5W(typical)
Speakers 1W x 2(Only Audio-Input model)
Input Connector
HDMI 19pin
Micro USB connector (slave), Two USB connectors (host)
Headphone jack, Ethernet LAN
Input Video Signal HDMI Signal
CPU Dual-Core ARM® Cortex™-A9 processor 1 GHz
System memory 1GB of RAM, 8GB of flash memory
Operating system Google Android
Connectivity Bluetooth 2,1+EDR & A2DP support, WiFi IEEE 802.11b/g/n
Camera 1.2-megapixel
Maximum Screen Size Horizontal 476.64mm
Ve r t i c a l 248.25mm
Power Source 100-240Vac, 50-60Hz (AC adaptor)
Environmental Considerations
Operating Temperature: 0° to 40°C
Storage Temperature: -20° to 60°C
Operating Humidity: 20% to 85%
Dimensions (W x H x D) 513x360x54mm
Weight (N. W.) 4.8kg(net)
Mechanism specifications Tilt: 15° to 75°
External Controls
Buttons Power button
Functions Contrast
Brightness
ACM (On/Off)
*All specifications are subject to change without notice.
Regulatory Compliance
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
Contact Person: Mr. RU Jan, e-mail:ru_jan@acer.com.tw
And,
Acer Italy s.r.l
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: +39-02-939-921 ,Fax: +39-02 9399-2913
www.acer.it
Hereby declare that:
Product: Smart Display
Trade Name: Acer
Model Number: DA220HQL
SKU Number: DA220HQL
Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the
necessary steps have been taken and are in force to assure that production units of the same product will continue comply
with the requirements.
EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:
-. EN55022, AS/NZS CISPR22 Class B.
-. EN55024
-. EN61000-3-2
-. EN61000-3-3
R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:
-. EN300 328 V1.7.1
-. EN 301 489-1 V1.9.2; EN 301 489-17 V2.1.1
Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:
-. EN60950-1:2006+A11:2009+A1:2010+A12:2011
RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and
Electronic Equipment:
-. The maximum concentration values of the restricted substances by weight in homogenous material are:
Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-
related product.
Year to begin affixing CE marking 2012.
_______________________________ Nov. 15, 2012
RU Jan / Sr. Manager Date
Regulation, Acer Inc.
Lead 0.1% Polybrominated Biphenyls (PBB’s) 0.1%
Mercury 0.1% Polybrominated Diphenyl Ethers (PBDE’s) 0.1%
Hexavalent Chromium 0.1% Cadmium 0.01%
Acer America Corporation
333 West San Carlos St., Suite 1500
San Jose, CA 95110, U. S. A.
Tel : 254-298-4000
Fax : 254-298-4147
www.acer.com
Federal Communications Commission
Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The following local Manufacturer /Importer is responsible for this declaration:
Product: Smart Display
Model Number: DA220HQL
SKU Number: DA220HQL
Name of Responsible Party: Acer America Corporation
Address of Responsible Party: 333 West San Carlos St.
Suite 1500
San Jose, CA 95110
U. S. A.
Contact Person: Acer Representative
Phone No.: 254-298-4000
Fax No.: 254-298-4147
