DME110 User Manual HTML Version

Users Manual

Acer E110

User Guide

Acer E110 Smartphone User Guide

First issue: 02/2010

Acer E110 Smartphone

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

End User Licence

Agreement

IMPORTANT-READ CAREFULLY: THIS END USER LICENSE AGREEMENT ("AGREEMENT")

IS A LEGAL AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR A SINGLE ENTITY),

AND ACER INC. INCLUDING ITS SUBSIDIARIES ("ACER") FOR THE SOFTWARE

(WHETHER PROVIDED BY ACER OR BY ACER'S LICENSORS OR SUPPLIERS) THAT

ACCOMPANIES THIS AGREEMENT, INCLUDING ANY ASSOCIATED MEDIA, PRINTED

MATERIALS AND RELATED USER ELECTRONIC DOCUMENTATION WHICH MAY BE

BRANDED "ACER" ("SOFTWARE"). AGREEMENTS RELATING TO ANY OTHER PRODUCT

OR TOPIC ARE NEITHER INTENDED NOR SHOULD THEY BE IMPLIED. BY INSTALLING

THE ACCOMPANYING SOFTWARE OR ANY PORTION THEREOF, YOU AGREE TO BE

BOUND BY THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO NOT

AGREE TO ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT

CONTINUE THE INSTALLATION PROCESS AND IMMEDIATELY DELETE ALL INSTALLED

FILES, IF ANY, OF THE ACCOMPANYING SOFTWARE FROM YOUR PHONE.

IF YOU DO NOT HAVE A VALIDLY-LICENSED COPY OF THE APPLICABLE SOFTWARE,

YOU ARE NOT AUTHORIZED TO INSTALL, COPY OR OTHERWISE USE THE SOFTWARE,

AND HAVE NO RIGHTS UNDER THIS AGREEMENT.

The Software is protected by U.S. and international copyright laws and conventions as

well as other intellectual property laws and treaties. The Software is licensed, not sold.

GRANT OF LICENSE

Acer grants to you the following non-exclusive and non-transferable rights with

respect to the Software. Under this Agreement, you may:

1. Install and use the Software only on a single designated phone. A separate

license is required for each phone on which the Software will be used;

2. Make one copy of the Software solely for backup or archival purposes;

3. Make one hardcopy of any electronic documents included in the Software,

provided that you receive the documents electronically.

RESTRICTIONS

You may NOT:

1. Use or copy the Software except as provided in this Agreement;

2. Rent or lease the Software to any third party;

3. Modify, adapt, or translate the Software in whole or in part;

4. Reverse engineer, decompile, or disassemble the Software or create derivative

works based upon the Software;

5. Merge the Software with any other program or modify the Software, except for

your personal use; and

6. Sublicense or otherwise make the Software available to third parties, except

that you may, after prior written notification to Acer, transfer the Software as a

whole to a third party so long as you do not retain any copies of the Software

and such third party accepts the terms of this Agreement.

7. Transfer your rights under this Agreement to any third parties.

8. Export the Software in contravention of applicable export laws and regulations,

or (i) sell, export, re-export, transfer, divert, disclose technical data, or dispose

of, any Software to any prohibited person, entity, or destination including,

without limitation, Cuba, Iran, North Korea, Sudan and Syria; or (ii) use any

Software for any use prohibited by the laws or regulations of the United States.

SUPPORT SERVICES

Acer is not obligated to provide technical or other support for the Software.

ACER LIVE UPDATE

Certain of the software contains elements that enable the use of the Acer Live Update

service, which allows for updates for such software to be automatically downloaded

and installed on your phone. By installing the software, you hereby agree and consent

that Acer (or its licensors) may automatically check the version of such software that

you are using on your phone and may provide upgrades to such software that may be

automatically downloaded on to your phone.

OWNERSHIP AND COPYRIGHT

Title, ownership rights and intellectual property rights in and to the Software and all

copies thereof shall remain with Acer or Acer's licensors or suppliers (as applicable).

You do not have or shall not gain any proprietary interest in the Software (including

any modifications or copies made by or for you) or any related intellectual property

rights. Title and related rights in the content accessed through the Software is the

property of the applicable content owner and may be protected by applicable law.

This license gives you no rights to such contents. You hereby agree

1. Not to remove any copyright or other proprietary notices from the Software;

2. To reproduce all such notices on any authorized copies you make; and

3. To use best efforts to prevent any unauthorized copying of the Software.

TRADEMARKS

This Agreement does not grant to you any rights in connection with any trademarks or

service marks of Acer or of Acer's licensors or suppliers.

DISCLAIMER OF WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ACER, ITS SUPPLIERS,

AND ITS LICENSORS, PROVIDE THE SOFTWARE "AS IS" AND WITH ALL FAULTS, AND

HEREBY DISCLAIM ALL OTHER WARRANTIES AND CONDITIONS, EITHER EXPRESS,

IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED

WARRANTIES, DUTIES OR CONDITIONS OF MERCHANTABILITY, OF FITNESS FOR A

PARTICULAR PURPOSE, OF ACCURACY OR COMPLETENESS OF RESPONSES, OF

RESULTS, OF WORKMANLIKE EFFORT, OF LACK OF VIRUSES, AND OF LACK OF

NEGLIGENCE, ALL WITH REGARD TO THE SOFTWARE AND THE PROVISION OF OR

FAILURE TO PROVIDE SUPPORT SERVICES. ALSO, THERE IS NO WARRANTY OR

CONDITION OF TITLE, QUIET ENJOYMENT, QUIET POSSESSION, CORRESPONDENCE TO

DESCRIPTION OR NON-INFRINGEMENT WITH REGARD TO THE SOFTWARE.

EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL

ACER, ACER'S SUPPLIERS, OR ACER'S LICENSORS, BE LIABLE FOR ANY SPECIAL,

INCIDENTAL, INDIRECT, PUNITIVE, OR CONSEQUENTIAL DAMAGES WHATSOEVER

(INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS OR

CONFIDENTIAL OR OTHER INFORMATION, FOR BUSINESS INTERRUPTION, FOR

PERSONAL INJURY, FOR LOSS OF PRIVACY, FOR FAILURE TO MEET ANY DUTY

INCLUDING OF GOOD FAITH OR OF REASONABLE CARE, FOR NEGLIGENCE, AND FOR

ANY OTHER PECUNIARY OR OTHER LOSS WHATSOEVER) ARISING OUT OF OR IN ANY

WAY RELATED TO THE USE OF OR INABILITY TO USE THE SOFTWARE, THE PROVISION

OF OR FAILURE TO PROVIDE SUPPORT SERVICES, OR OTHERWISE UNDER OR IN

CONNECTION WITH ANY PROVISION OF THIS AGREEMENT, EVEN IN THE EVENT OF

THE FAULT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY, BREACH OF CONTRACT

OR BREACH OF WARRANTY OF ACER OR ITS SUPPLIERS OR LICENSORS, AND EVEN IF

ACER AND ITS SUPPLIERS AND LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES.

LIMITATION OF LIABILITY AND REMEDIES

NOTWITHSTANDING ANY DAMAGES THAT YOU MIGHT INCUR FOR ANY REASON

WHATSOEVER (INCLUDING, WITHOUT LIMITATION, ALL DAMAGES REFERENCED

ABOVE AND ALL DIRECT OR GENERAL DAMAGES), THE ENTIRE LIABILITY OF ACER, ITS

SUPPLIERS, AND ITS LICENSORS, UNDER ANY PROVISION OF THIS AGREEMENT, AND

YOUR EXCLUSIVE REMEDY FOR ALL OF THE FOREGOING, SHALL BE LIMITED TO THE

AGGREGATE AMOUNT PAID BY YOU FOR THE SOFTWARE. THE FOREGOING

LIMITATIONS, EXCLUSIONS AND DISCLAIMERS (INCLUDING DISCLAIMER OF

WARRANTIES AND EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN

OTHER DAMAGES ABOVE) SHALL APPLY TO THE MAXIMUM EXTENT PERMITTED BY

APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE; PROVIDED,

HOWEVER, THAT BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR

LIMITATION OR LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE

ABOVE LIMITATION MAY NOT APPLY TO YOU.

TERMINATION

Without prejudice to any other rights, Acer may immediately terminate this

Agreement without notice if you fail to comply with any terms and conditions of this

Agreement.

In such event, you must:

1. Cease all use of the Software;

2. Destroy or return to Acer the original and all copies of the Software; and

3. Delete the Software from all phones on which it was resident.

All disclaimers of warranties and limitation of liability set forth in this Agreement shall

survive termination of this Agreement.

GENERAL

This Agreement represents the complete agreement between you and Acer relating to

this license for the Software and supersedes all prior agreements, communications,

proposals and representations between the parties and prevails over any conflicting or

additional terms of any quote, order, acknowledgement or similar communication.

This Agreement may only be modified by a written document signed by both parties.

If any provision of this Agreement is held by a court of competent jurisdiction to be

contrary to law that provision will be enforced to the maximum extent permissible

and the remaining provisions of this Agreement will remain in full force and effect.

ADDITIONAL PROVISIONS APPLICABLE TO THIRD PARTY SOFTWARE AND SERVICES

Software provided hereunder by Acer's licensors or suppliers ("Third Party Software")

is made available to you for your personal, non-commercial use only. You may not use

the Third Party Software in any manner that could damage, disable, overburden, or

impair the services provided by Acer's licensors or suppliers hereunder ("Third Party

Services"). Furthermore, you may not use the Third Party Software in any manner that

could interfere with any other party's use and enjoyment of the Third Party Services,

or the services and products of Acer's licensors' or suppliers' third party licensors. Your

use of the Third Party Software and Third Party Services is also subject to additional

terms and conditions and policies which can be accessed through our global website.

During registration you will be asked to submit some information to Acer. Please refer

to Acer’s privacy policy at http://www.acer.com or your local Acer website.

Table of Contents

End User Licence Agreement

Getting to know your smartphone

Features and functions . . . . . . . . . . . . . . . . . . . . . . . . 9

Product registration . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 1: Setting Up

Unpacking your smartphone . . . . . . . . . . . . . . . . . . 11

Getting to know your smartphone . . . . . . . . . . . . . . 12

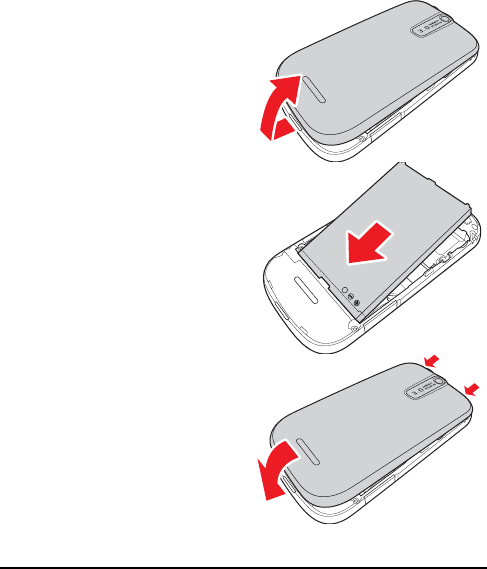

Installing or removing the battery . . . . . . . . . . . . . . 14

Installing a SIM or microSD Card . . . . . . . . . . . . . . . 16

Turning on for the first time . . . . . . . . . . . . . . . . . . . 17

Using the touchscreen . . . . . . . . . . . . . . . . . . . . . . . . 18

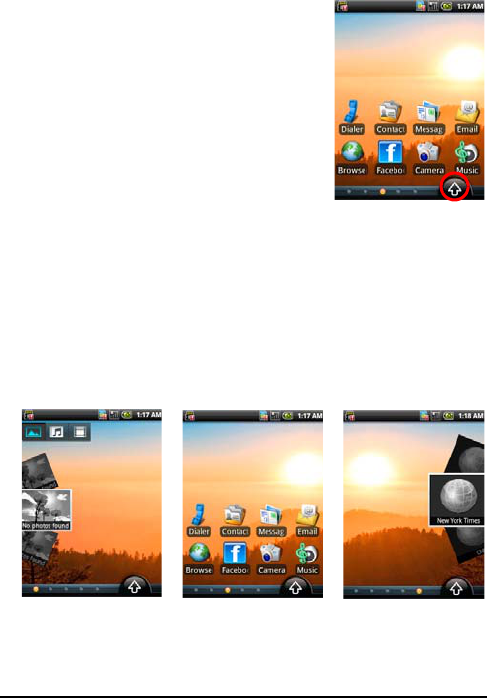

The home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Chapter 2: Making Calls

Before making a call . . . . . . . . . . . . . . . . . . . . . . . . . 23

Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

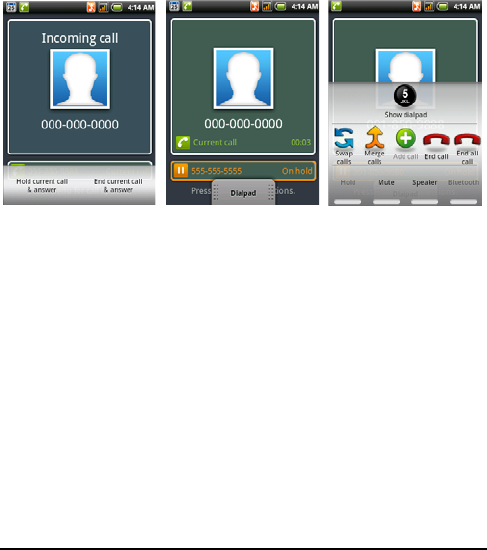

The voice call screen . . . . . . . . . . . . . . . . . . . . . . . . . 25

Onscreen call options . . . . . . . . . . . . . . . . . . . . . . . . 25

Chapter 3: Messaging

Creating a new message . . . . . . . . . . . . . . . . . . . . . . 29

Replying to a message . . . . . . . . . . . . . . . . . . . . . . . . 30

MMS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

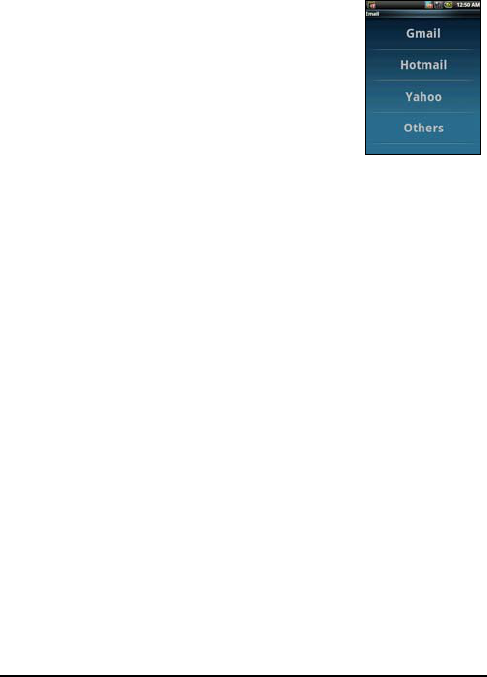

Setting up email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Chapter 4: Using the Camera

Camera icons and indicators . . . . . . . . . . . . . . . . . . . 35

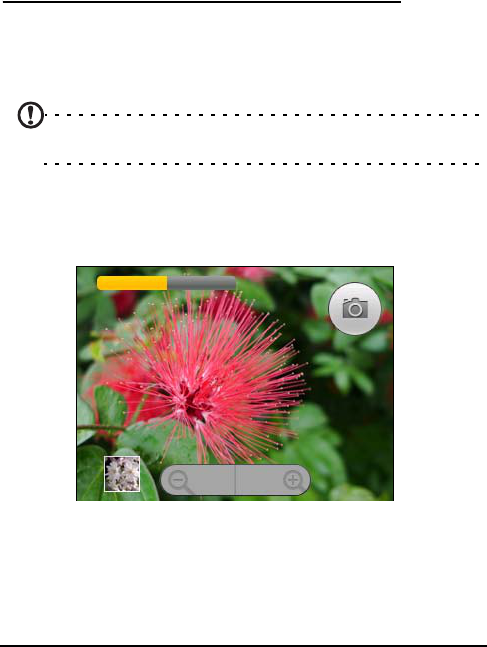

Taking a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Shooting a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Viewing photos and videos . . . . . . . . . . . . . . . . . . . . 38

Chapter 5: Advanced Settings

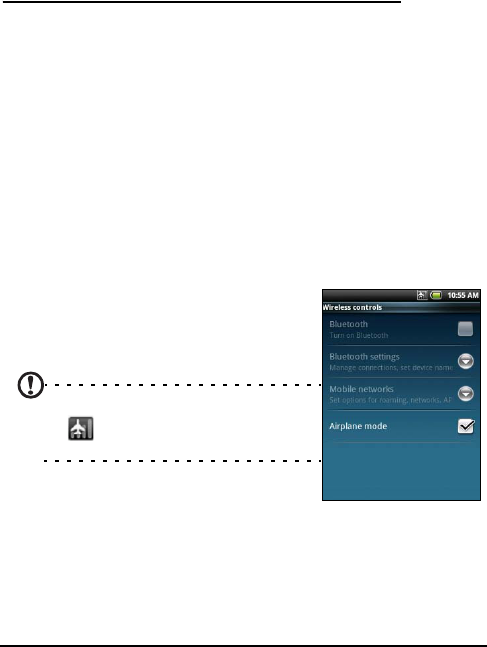

Putting your smartphone in airplane mode . . . . . . 39

Acer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Sound and display . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Setting the date and time . . . . . . . . . . . . . . . . . . . . . 43

Setting alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Changing location and text options . . . . . . . . . . . . . 43

Managing your contacts . . . . . . . . . . . . . . . . . . . . . . 44

Managing your calendar . . . . . . . . . . . . . . . . . . . . . . 46

Connecting to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Social Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Multimedia playback . . . . . . . . . . . . . . . . . . . . . . . . . 52

GPS tracker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Managing applications . . . . . . . . . . . . . . . . . . . . . . . 57

Resetting your smartphone . . . . . . . . . . . . . . . . . . . . 57

Appendix

FAQ and troubleshooting . . . . . . . . . . . . . . . . . . . . . 59

Other sources of help . . . . . . . . . . . . . . . . . . . . . . . . 60

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Warnings and precautions . . . . . . . . . . . . . . . . . . . . 62

Emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Disposal and recycling information . . . . . . . . . . . . . 69

Taking care of your smartphone . . . . . . . . . . . . . . . 70

Safety regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

9Features and functions

Getting to know your

smartphone

Features and functions

Your new smartphone offers leading, easy-to-access

multimedia and entertainment features. You can:

• Access your email while on the move.

• Connect to the Internet at high speed, via HSDPA (3.6

Mbps).

• Keep in touch with your friends via your Contacts and

social networking applications.

Product registration

When using your product for the first time, it is recommended

that you immediately register it. This will give you access to

some useful benefits, such as:

• Faster service from our trained representatives

• Membership in the Acer community: receive

promotions and participate in customer surveys

• The latest news from Acer

Hurry and register, as other advantages await you!

How to register

To register your Acer product, visit our website at

registration.acer.com. Choose your country and follow the

simple instructions.

You can also register directly from your smartphone by

tapping the Registration icon.

After we receive your product registration, you will be sent a

confirmation email with important data that you should keep

in a safe place.

11Unpacking your smartphone

Chapter 1: Setting Up

Unpacking your smartphone

Your new smartphone comes packed in a protective box.

Carefully unpack the box and remove the contents. If any of

the following items is missing or damaged, contact your dealer

immediately:

•Acer E110 Smartphone

• Battery

• Quick Guide

• Companion CD

•USB cable

• AC adapter

• Headset

Getting to know your smartphone

Views

No. Item Description

1 microSD Card slot Expansion slot for microSD Card.

2 Touchscreen 2.8-inch, 240 x 320 pixel resistive

touchscreen to display data, phone content

and enter information.

3 Home button Return to the home screen.

4 Search button Open the Google search function.

5 Call button Activate phone/dial/view recently dialed

numbers or answer a call.

6 Navigation pad 4-way navigation control to move the

cursor.

7 Selection button Activates selected item.

13Getting to know your smartphone

LED indicator

Mail, message, missed call and battery indicator:

8 Microphone Internal microphone.

9 Power/End button Press to turn the screen on/off or enter

sleep mode; press and hold for more than

three seconds to turn the smartphone off.

Press to end a call.

10 Menu button Opens the option menu.

11 Back button Go back one menu step.

12 LED indicator Indicates mail, message, missed call and

battery status.

13 Phone speaker Emits audio from your smartphone; suitable

for holding to your ear.

14 Volume up/down

button

Increase or decrease the phone volume.

15 Micro USB connector Connects to a USB cable/charger.

16 3.5 mm headphone

jack

Connects to stereo headphones.

17 Camera A 3-megapixel camera for taking high-

resolution images.

18 Handsfree speaker Emits audio from your smartphone; suitable

for handsfree use.

LED state Description

Off Battery charged; no unread mail or messages.

flashing Low battery (less than 15%); missed call, unread mail

or message.

On Phone is charging.

No. Item Description

Installing or removing the battery

Your smartphone uses a replaceable battery to provide power.

It is packed separately from your smartphone and needs to be

inserted and charged before you can use the smartphone.

Installing the battery

microSD

Insert your fingernail into the

cutout between the battery

cover and the phone. Unclip

the cover and lift off the

battery cover.

microSD

Place the battery into the

battery compartment, lining

up the battery connectors with

those at the bottom of the

compartment.

microSD

Insert the tabs on the top of

the battery cover into the

slots in the phone. Carefully

press the top of the cover

until the clips on the side of

the cover click in place.

15Installing or removing the battery

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN

INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Charging the battery

For initial use, you need to charge your smartphone for eight

hours. After that you can charge it each day to recharge the

battery to full capacity.

Connect the micro USB connector on your smartphone, then

connect the USB connector to the AC adapter. Plug the AC

adapter into any AC current outlet and charge the device.

It is normal for the phone to heat up when charging or during

long periods of use. All phones are factory tested before

release.

Removing the battery

Open the battery compartment as shown in “Installing the

battery“ on page 14. Lift the battery out of the compartment

by grasping the sides of the battery.

Replace the battery cover as described above.

Installing a SIM or microSD Card

To take full advantage of your smartphone’s telephony

capabilities, you must install a SIM card. The SIM card holder is

located in the battery bay.

Additionally, you may wish to increase your smartphone’s

storage by inserting a microSD Card into the slot provided. The

slot is located on the left side of the phone.

1. Turn off the phone by pressing and holding the power

button.

microSD

micro

Open the cover and remove

the battery as described in

“Removing the battery“ on

page 15.

3. Insert the SIM or microSD

Card as shown.

4. Replace the battery and

battery cover.

NOTE: Ensure that the microSD Card is inserted all the way into the

card slot.

17Turning on for the first time

SIM card lock

Your smartphone may come with a SIM card lock, i.e., you will

only be able to use the SIM card provided by your network

operator.

To cancel the SIM lock, contact your network provider.

Turning on for the first time

To turn on your smartphone for the first time, press and hold

the power button until the system bootup screen appears.

Entering your PIN

When you install a SIM card for the first time, you may need to

enter a PIN using the onscreen number pad.

Important: Depending on your settings, you may be required to

enter your PIN each time you switch on the phone function.

If the PIN you enter is incorrect, a warning message appears.

Activating a new SIM card

If you are using your SIM card for the first time, it may require

activation. Contact your network operator for details on how

to do this.

Using the touchscreen

Your smartphone uses a touchscreen for selecting items and

entering information. Use your finger to tap the screen.

Tap: Touch the screen once to open items and select options.

Drag: Hold your finger on the screen and drag across the

screen to select text and images.

Tap and hold: Tap and hold an item to see a list of actions

available for that item. On the pop-up menu that appears, tap

the action you want to perform.

Scroll: To scroll up or down the screen, simply drag your finger

up or down the screen in the direction that you want to scroll.

The onscreen keyboard

When you tap a text box to enter text,

the onscreen keyboard will

automatically display.

Text assistance

You can enable various features that

assist you to enter correct text. Tap Menu > Settings > Locale &

Text > TouchPal. From here you can enable or disable the

following basic settings:

Function Description

Word prediction Inserts the suggested word whenever you tap space

or a punctuation mark.

Key press sound Plays sound on key press.

Key press vibration Vibrates on key press.

19The home screen

The home screen

After rebooting, your smartphone will

display the home screen. This screen

gives you quick, icon-based access to

many of the frequently-used features of

your smartphone.

The first time you start your smartphone,

you will see some icons on the screen.

At the bottom of the screen is the

Applications tab which lists all the

applications you have installed. Tap the tab to open the

Applications tab. Tap an icon to open the application.

The extended home screen

The home screen extends to either side of the screen, giving

you more room to add icons, widgets or features. To view the

extended home screen slide your finger to the left or right of

the home screen.

Personalizing the home screen

You may personalize your home screen by adding or removing

icons, shortcuts or widgets, or changing the wallpaper.

Adding or removing icons

You can set icons for installed applications on the home

screen. Tap and hold an icon in the Applications tab to copy it

to the home screen. To remove an icon from the home screen,

tap and hold the icon and drag the icon from the home screen

to the trash tab that appears at the bottom of the screen.

Adding or removing shortcuts or widgets

To add shortcuts or widgets, tap and hold

anywhere on the home screen to open the

Add to Home screen menu. Tap Shortcuts to

open a list of available shortcut types you

can add.

Widgets are handy applications that you can

add to your home screen to display various

information.

21The home screen

You can also add folders to your home

screen. There are some pre-defined folders

available or you can add a New folder. This

will be placed on your home screen and

named Folder.

Notification area

At the top of the screen is the Notification area. This contains a

variety of icons to inform you of your phone’s status. To the

left of the Notification area are event icons that indicate a new

event. The icons on the right of the screen indicate

connectivity status. Tap, hold and drag down the Notification

area to view the new events.

Icon Description

Indicates the signal strength.

SD Card removed.

Bluetooth enabled.

Vibrate mode enabled.

SIM card not installed/invalid.

Battery status.

Missed call.

New/unread message.

Connected to the 3G data network.

Connected to the 2G data network.

Airplane mode: Wireless connectivity disconnected. Please

disable airplane mode before trying to make a call.

Incoming call or active call.

Charging has temporarily stopped to prevent overheating/

overcharging.

Icon Description

23Before making a call

Chapter 2: Making Calls

This chapter shows you how to make phone calls, and the

various options available to you during your call.

Before making a call

Check that the phone function is on before you make a call.

You can confirm the phone status from the icon on the right-

hand side of the Notification area.

Making a call

1. From the home screen tap Dialer or open

Dialer from the Applications tab to open

the onscreen number pad.

2. Enter the number you wish to dial.

3. Press the Call button to make the call.

4. To end the call, press the End button.

Note: The phone function needs to be enabled before the call can

be connected.

Icon Description

Connected: You may make a call.

Airplane mode: Wireless connectivity disconnected. Please disable

airplane mode before trying to make a call.

Dialing a number from call log

Your call history can be viewed by tapping the Call Log tab. It

displays recent received, dialed, and missed calls.

Tap a number to view the call details. To redial any number in

the call history, select the number and tap Return call. You

may also select Send SMS/MMS or Add to contacts.

Missed calls will be displayed by the call indicator on the top of

your phone and in the Notification area with the icon .

You can also view missed calls from the Notification area.

1. Open the notification list by tapping and dragging the

Notification area downwards to display the details of the

missed calls.

2. Select the call from the list and tap Return call to return the

missed call.

You can save phone numbers to your Contacts from the Call

Log. Please refer to “Adding a contact“ on page 45 for further

details.

Making a call to one of your contacts

1. Tap the Contacts tab in the dialer or Contacts from the

home screen to view your contacts.

2. Tap a contact. A dialog will open, asking if you want to call

the contact or send the contact a text message.

Dialing an international number

When dialing international numbers, there is no need to enter

the international direct dialing prefix (‘00’ etc.) before the

country code. Simply tap and hold 0+ on the onscreen number

pad until + appears onscreen.

25The voice call screen

Warning: International call rates can vary greatly depending on the

country you are calling and your network provider. We suggest you

check all call rates with your network provider, to avoid excessive

phone bills. If you are using your smartphone abroad, roaming

charges will apply. Consult your network provider for roaming

rates specific to the country you are visiting before you leave.

The voice call screen

Once you have dialed your number the voice call screen

appears, which displays the number/contact you are talking to,

the call duration and the dialpad tab.

Onscreen call options

Answering a call

Press the Call button to answer a call.

Rejecting a call

Press the End button to reject a call.

Ending a call

To end a call, press the End button.

Using the speakerphone

The speakerphone function allows you to take calls without

having to hold your smartphone. This handsfree function is

especially useful for multitasking.

To activate the speakerphone, tap Menu then tap Speaker on

the voice call screen. Tap Speaker again to disable the

speakerphone.

Muting a call

To mute a call, tap Menu, then tap Mute on the voice call

screen to switch off the microphone. Tap Mute again to switch

the microphone back on.

Saving a dialed or received call number

to contacts

You can save a number you have dialed to your contacts for

future use.

1. Select the number from the Call log tab, and tap Add to

contacts.

2. Tap Create new contact and select how to complete the

action. Please refer to “Adding a contact“ on page 45.

27Onscreen call options

Conference calls

If you have one or more calls on hold and another online, you

can combine all calls to create a conference call.

After the first call is established, press the Menu button to

bring up the dialog box. Tap Add call to add the second call.

Tap Merge calls to start the conference call.

To end the conference call, tap End call.

29Creating a new message

Chapter 3: Messaging

This chapter shows you how to set up and use the SMS and

MMS functions of your smartphone.

All SMS and MMS messages are accessed via Messaging.

Messaging automatically arranges received and sent messages

into threads.

To access messaging, tap Messaging on the home screen.

Creating a new message

You can use your phone to compose

SMS or MMS messages.

Tap New message to compose a new

message.

Enter the recipient’s phone number or

name in the To field. Suggested

contacts will be displayed in a drop-

down list below the text field. To select

a suggested contact, tap the contact’s

name.

Once you have entered the recipient,

enter your message in the text box labeled Type to compose.

You can use the navigation pad to move between fields and to

close the onscreen keyboard.

Note: SMS messages may be up to 160 characters long. If your

message is longer than 160 characters, it will be sent as multiple

linked messages. Most phones will automatically join the linked

messages to present the recipient with a single long message,

however, some older phones do not have this ability.

Press the Menu button to see what options are available when

creating a new message. The options change depending on

the status of the message.

Replying to a message

When a new text message arrives, a message icon appears in

the Notification area.

Tap Messaging on the home screen to view the message list or

expand the Notification area to see a summary of the message.

Tap the summary to open the message list.

Icon Description

Convert the SMS to an MMS, allowing you to add a subject to

the message.

View all the threads currently on your phone.

Convert the SMS to an MMS, allowing you to attach a file to the

message.

Open the Dialer to call the recipient.

Discard the message.

Insert a smiley/emoticon into your message text.

Show other available options.

Send the message.

31MMS messages

To reply to an SMS or MMS message, open the message from

the message list. Enter your text in the text box labeled Type to

compose. Press the Menu button to see available options.

MMS messages

MMS messages are similar to text messages but also allow you

to attach multimedia files such as pictures, audio or video clips.

Each MMS message can be up to 300 KB in size.

Note: You need to set up an MMS profile before you can send MMS

messages. Normally, your smartphone will set up the profile for you

based on information retrieved from your provider.

Tip: Ask your network provider for the necessary information if you

need to manually set up the MMS profile.

Icon Description

Convert the SMS to an MMS, allowing you to add a subject to

the message.

Convert the SMS to an MMS, allowing you to attach a file to the

message.

Open the Dialer to call the recipient.

Delete the thread.

Insert a smiley/emoticon into your message text.

Show other available options.

Send the message.

Receiving MMS messages

When a new MMS message arrives, a message icon appears at

the top of the screen and a notification message is displayed.

1. Open Messaging to view a summary of the message.

2. Tap Download to download the message content.

Note: Downloads can take a long time, depending on your

connection quality. If you reply or open another application, the

download will be stopped.

Important: You may be charged to download message content,

especially if you are roaming. Please contact your provider if you

have any questions.

3. Tap the message to view the content.

4. Press the Menu button and tap Reply to

reply to the message. The message

window will appear. Simple text replies

will be sent as SMS messages. If you wish

to attach a file, press the Menu button

and tap Attach. You will be presented

with a list of options.

5. When you have finished composing the

message, press the Menu button and tap

Send.

33Setting up email

Setting up email

Your smartphone enables you to access your

email. Most popular providers can be set up

in two steps. Tap the Applications tab and

then Email to start setting up your email

access.

To manually set up your email, tap Other.

1. Enter your email address and password

for the account and then tap Next.

2. Enter the Account name and Your name

and then tap Done.

Composing an email

1. Tap Email from the home screen or Applications tab.

2. From the inbox, tap Menu and then tap Compose.

3. Enter the recipients email address, subject and message.

You can use the navigation pad to move between fields

and to close the onscreen keyboard.

4. When you are finished composing your message, tap Send.

35Camera icons and indicators

Chapter 4: Using the

Camera

Your smartphone features a 3-megapixel EDOF digital camera

mounted on the rear. This section will take you through all the

steps in taking photos and videos with your smartphone.

Note: You need to have a microSD Card inserted into the microSD

slot before you can use the camera.

To activate the camera, open the Applications tab then tap

Camera.

Camera icons and indicators

In the camera window, there are three icons on the screen to

control certain features.

• Tap the yellow bar to adjust brightness.

• Use the zoom rocker at the bottom of the screen to

adjust the zoom.

• Tap the camera icon to take a picture.

To adjust the settings, press the Menu button and select

Settings. The Settings options are:

Settings Description

Jpeg Quality

Set the JPG quality:

•Best

• Better

• Good

White Balance/

Lighting

Adjust the white balance:

• Automatic

• Cloudy

• Daylight

• Fluorescent

• Incandescent

• Twilight

Color Effects Apply an effect to the photo. Effects are:

• None: No effects are applied.

• Negative: Uses negative colors.

• Black/White: Uses black and white colors.

• Sepia: Gives a brown/sepia tint.

• Greenish: Gives a green tint.

• Bluish: Gives a blue tint.

• Reddish: Gives a red tint.

Night Mode Select between:

•Normal

• Night

Resolution Set the resolution to:

• 2048 x 1536

• 1600 x 1200

• 1280 x 1024

• 640 x 480

Zoom is only available in 640 x 480.

Anti Banding Set anti banding to:

•Auto

• 50 Hz

• 60 Hz

37Taking a photo

Taking a photo

1. Ensure you have adjusted the parameters described above.

2. Frame your subject and steady your smartphone.

3. Zoom in or out as needed.

4. Tap the Camera icon or press the Selection button to take

the photo.

Shooting a video

Turn on camcorder mode by tapping the video icon from the

camera menu or by opening the Applications tab and tapping

Camcorder.

1. Ensure you have adjusted the parameters described above.

2. Frame your subject and steady your smartphone.

3. Press the film button down to begin recording.

4. Press the film button down to stop recording.

Prompt After

Capture

Set review time after picture capture:

• No preview

• 3 seconds

• 5 seconds

• 10 seconds

Grid Show grid in preview.

Shutter Sound Play shutter sound.

Prefix Set default file name prefix.

Counter Reset the counter back to 1.

Reset to Default Reset all settings to default values.

Settings Description

Supported formats

The following file formats are supported:

Viewing photos and videos

After you have taken your photo or video, it is automatically

saved.

Once you have taken a photo or video, you can view the it in

Gallery by tapping Gallery in the menu. Alternatively, open the

Applications tab and tap Gallery. From Gallery you can share

the file directly via MMS.

Type Formats

Image JPEG, BMP, PNG, GIF, DRM, WBMP

Video 3GP, MPEG-4

39Putting your smartphone in airplane mode

Chapter 5: Advanced

Settings

Putting your smartphone in

airplane mode

You can enter airplane mode (also known as flight mode) to

turn off telephone and Bluetooth and use your smartphone as

a handheld device during a flight. Check with your airline to

make sure this is permitted onboard.

Switch your smartphone off during takeoff and landing as it

may interfere with aircraft electronic systems.

Turning airplane mode on or off

1. Tap the Applications tab, then tap

Settings > Wireless controls.

2. Tap Airplane mode to switch it ON

or OFF.

Note: When Airplane mode is active,

the

icon will be displayed in the

Notification area.

Acer Settings

Acer Settings is a convenient all-in-one

place for you to adjust commonly-used

settings on your phone. Open the

Applications tab and tap Acer Settings.

From this screen you can turn

Bluetooth on or off or adjust their

settings by tapping .

You can also set your Phone network

settings, set the screen Brightness or

Screen Timeout.

Important: If your phone is in Airplane

mode, the option to turn Bluetooth on will be disabled. Please

refer to “Putting your smartphone in airplane mode“ on page 39

for instructions on turning Airplane mode on or off.

Phone network settings

Tap Phone network settings to adjust your network settings.

The following options will be available:

• Data enabled - Turn the data connection on or off.

• Data roaming - Connect to data services when

roaming.

• Use only 2G networks - Restricts data connection to 2G

networks and saves battery life.

• Network operator - Select a network operator.

• Access point names - Select APNs.

Please refer to “Selecting a network” for more information.

41Acer Settings

Selecting a network

Your phone will automatically detect your carrier/network

settings when you insert a new SIM card. However, you may

prefer to manually select a network. This may be a good idea

when roaming.

Tip: When you are traveling, manually selecting a network may

help to reduce your roaming charges. Check with your home service

provider for the network offering the most competitive rates at

your destination.

1. Open the Applications tab and tap Settings > Wireless

controls > Mobile networks > Network operators.

2. Your phone will search for available networks.

3. Select your preferred network from the list generated. You

phone will attempt to register on the selected network.

4. Tap Select automatically to connect to the available

network with the strongest signal. This may lead to your

phone jumping between networks when you move around.

Note: Contact your service provider should you have any problems

obtaining voice mail and the text message service center numbers.

Adjusting Bluetooth settings

You can use Bluetooth to exchange information between your

smartphone and other mobile devices.

Bluetooth connections

For all Bluetooth settings, open the Applications tab and tap

Settings > Wireless controls > Bluetooth settings. Here you can

switch Bluetooth on or off, set a device name and

discoverability. Tap Scan for devices to scan for available

devices.

To connect to a device, tap the device in the list of available

devices. You may be asked to enter a PIN on both devices to

establish the connection.

Sound and display

Adjust the volume of your phone using the volume button on

the side of the phone. Alternatively, you can set the Ringer

volume and Media volume by opening the Applications tab

and going to Settings > Sound & display.

Item Description

Silent mode Turn off all sounds except for alarms and media.

Ringer volume Adjust the ringer volume.

Media volume Set the playback volume for media.

Phone ringtone Set your phone’s ringtone.

Phone vibrate Turn on vibration for incoming calls.

Notification

ringtone

Set a ringtone for notifications.

Audible touch

tones

Play tones when using dial pad.

Audible

selection

Play a sound whenever a screen selection is made.

SD card

notifications

Play a sound for SD card notifications.

Animation Animate when opening or closing windows.

Brightness Adjust screen brightness.

Screen timeout Set idle time for screen timeout.

Notification LED Turn on LED notification for calls and messages.

43Setting the date and time

Setting the date and time

Set the date and time by opening the Applications tab and

going to Settings > Date & time.

Tip: If you travel frequently or live in an area that uses daylight

saving time, activate Automatic from this menu. This will enable

your smartphone to set the date and time based on information it

receives from the network.

Setting alarms

There are three predefined alarms on

your phone by default. To edit alarm

settings, tap Clock in the Applications

tab and tap on any of the predefined

alarms. You may:

• Turn the alarm on or off.

• Set the alarm time.

• Set a ringtone.

• Enable or disable vibrate.

• Set which days to repeat the alarm.

• Give it a label.

To add a new alarm, tap Menu, then

tap Add alarm.

To delete an alarm, tap an alarm, then tap Menu > Delete.

Changing location and text

options

Set your location and language input preferences by opening

the Applications tab and going to Settings > Locale & text.

Tap Select Locale to set the language you would like to use the

phone in.

Tap TouchPal to set text input preferences. Under basic

settings you may:

• Turn on word prediction.

• Turn on key press sound.

• Turn on key press vibration.

• Turn on mixed language input.

• Select Languages.

Under handwriting you may:

• Set stroke width.

• Set recognize interval.

• Set stroke color.

Managing your contacts

Your smartphone features an address

book that allows you to save contacts

to either the internal memory or onto

your SIM card.

Tap Contacts from the home screen or

the Contacts tab from the Dialer to

view your contacts.

If you don’t have any contacts stored

on your phone, you can import

contacts from your SD card, add a new

contact or import any SIM contacts.

Press the Menu button to open the

menu.

45Managing your contacts

Adding a contact

Tap New contact to add a new contact. You will be asked if

you want to create a SIM contact or a Phone contact.

To create a contact, you will be asked

to enter the contact’s:

• First and Last name.

• Phone numbers.

• Email addresses.

• Postal addresses.

You may also:

• Enter information such as

organizations the contact belongs

to.

• Any personal notes about the con-

tact.

• Set a ringtone.

• Send any calls from this contact

directly to your voicemail.

Icon Description

Search for a contact.

Add a new contact.

Display the contacts you have assigned to a group.

Export to SD card. Import from SD card.

Import contacts from SIM.

Delete contacts from phone.

Importing / exporting SIM contacts

You may import all SIM contacts, export contacts to the SIM

card, or delete multiple contacts.

1. Open Contacts from the home screen or from the Dialer.

2. Press the Menu button and tap Import. Tap a contact in the

SIM to import to the phone, or press the Menu button and

tap Import all to import all SIM contacts to the phone.

Deleting all phone contacts

You may delete all phone contacts at the same time.

1. Open Contacts from the home screen or from the Dialer.

2. Press the Menu button and tap Delete > Delete all from

phone.

Managing your calendar

The Calendar allows you to keep track of your events and

tasks. You can access it by tapping Calendar on the home

screen or in the Applications tab.

The Calendar offers a variety of

viewing modes and settings to

manage your events. Tap Menu and

you will see the following options:

•List

•Day

• Week

•Month

• New event

•New task

•Today

• Settings

These additional options are under Settings:

47Connecting to a PC

• Lunar Calendar

• Festival

• Hide Declined Events

• Hide Completed Tasks

• Event/List View Settings

• Reminder Settings

• Import/Export

• Delete Settings

Adding a new event or task

To add a new event, tap Menu and tap New event.

To add a new task, tap Menu and tap New task.

Under Event details you have the option of filling out:

• Event name

•From

Date and time

•To

Date and time

•Location

•Description

• Repetition

• Reminder intervals

Under Task details you have the option of filling out:

•Task name

•From

Date and time

•To

Date and time

•Description

•Priority

Connecting to a PC

You can connect your phone to a PC using the supplied USB

cable. Plug the USB sync cable into the micro USB connector on

your smartphone. Plug the USB client connector into an

available USB port on your computer.

Using mass storage

Open the Applications tab and tap USB

Mode Switcher.

Once in USB Mode Switcher, select

mass storage by sliding the ball to the

right. Tap the red “STORAGE” text to

activate mass storage.

Install the necessary drivers from

PCSuite.

Note: Additional help is available by swiping the screen from right

to left.

Modem Sharing

Open the Applications tab and tap USB

Mode Switcher.

Once in USB Mode Switcher, select

modem sharing by sliding the ball to

the right. Tap the red “MODEM” text

to activate modem sharing.

Install the necessary drivers from

PCSuite.

49Social Networking

Note: Additional help is available by swiping the screen from right

to left.

Browsing the Internet

In order to browse the Internet with your smartphone, you

must be connected to a data network. Please see “Phone

network settings“ on page 40 for more information.

Tap Browser on the home screen to start browsing. To open a

new website, tap Menu then tap Go to enter a URL.

Social Networking

urFooz

urFooz is your portable profile that lives where you live.

•Fooz Creator lets you create a Fooz avatar, which is your

virtual look-a-like.

•Fooz World lets you edit and manage your Fooz

avatar(s), create new avatars and share them on

Facebook, MySpace, blogs and more.

•Share it lets you post your Fooz card to Facebook,

MySpace and other social networks. You can also email it

to your friends.

You can email your Fooz card to friends, or post it to your

social networks and blogs and always be connected.

Launching urFooz

To launch urFooz, tap UrFooz from the Applications tab.

Creating your urFooz avatar

If you have not yet set up an account to urFooz, tap the Get

Started button. If you have an existing urFooz account, select

To start creating your avatar, select your Gender, Ethnicity,

Zodiac Sign, Relationship Status and Areas of Interest.

Next, start customizing your avatar. Tap Features to choose

your face shape, eyes, nose, mouth and other facial features.

Select Clothing to dress your avatar. Select Accessories to

choose other items such as earrings, headbands, and whatever

else to give your Fooz avatar your personal touch. Simply tap

the image to apply the item to your avatar and preview how it

looks on the left side of the screen.

Select SAVE and type in a name for your Fooz avatar. The next

screen will ask you for the email address, password, and

required user information. The email and password you enter

will be used to sign into your urFooz account.

51Social Networking

Managing your avatar

Now that you have created your Fooz avatar, go to Fooz World

and personalize your Fooz card, or your portable profile.

Select Profile/Apps to fill in your profile and other information

such as bookmarks of your social network profiles and favorite

websites.

Select Switch Avatar to change your default avatar, modify

existing avatars, or create a new avatar.

Sharing your Fooz card and avatar

urFooz lets you share your Fooz card with friends by posting it

to your social networks, blogs, and websites; or emailing it to

friends.

In Fooz World, select Share it. Select Post to post your Fooz

card to Facebook or other social networks, or select Email to

email your Fooz card to a friend.

Note: Fuhu, Spinlets, Spinlet, urFooz, Fooz Avatars, Fooz Creator,

Fooz Card, and Fooz World are trademarks or registered

trademarks of Fuhu, Inc. in the U.S. and/or other countries.

Multimedia playback

Your smartphone comes supplied with a variety of programs

that you can use to enjoy multimedia content.

nemoPlayer

Open nemoPlayer from the Applications tab to play media you

have stored on your phone.

nemoPlayer enables you to listen to music, view video clips and

pictures in the following formats.

Spinlets

Spinlets gives you access to your favorite music, movie and

television content. Get your favorite music, photos and videos

from your mobile phone and share your favorite Spinlets on

social networks, websites and more.

Note: Some contents may not be available in some countries.

Type Formats

Audio playback MP3, AAC, AMR

Ringtone MP3, MIDI, iMelody, WAVE

Video

recording

3GP, MPEG-4, H.263

Video playback 3GP, MPEG-4, H.263, H.264, WMV

53Multimedia playback

Launching Spinlets

To launch the Spinlets application, tap Spinlets in the

Applications tab.

Browsing Spinlets gallery

You can sort or search your media content by albums or

genres.

Browsing albums

Once Spinlets is opened, you will see a

display of featured albums. Browse this

display by sliding your finger

horizontally (left or right), and select

an album by tapping it.

Browsing genres

To browse the Gallery by genre, tap the

Genres button on the bottom left

corner of the screen. You will see a new

screen with a list of different genres.

Tap on the genre you wish to view.

Sort

To sort through Spinlets by Name, Ratings, or Newest content,

select the Sort button at the bottom of the screen.

To search the Gallery for a specific name, select the Search

button at the bottom right corner of the screen. Type the

name of an artist in the search box and find potential matches.

Exploring Spinlets widgets

When you select an album, you will see

a Spinlet.

To play the featured song, select the

red Play button.

To play selected songs, select the Music

tab and choose which songs you would

like to play.

To view artist photos, select the Photos

tab.

To visit the artist's social networks and

websites, select the icon located along

the bottom of the screen.

Sharing your Spinlets

You can share your favorite Spinlets in

two ways.

To post the Spinlet you are currently

viewing to your social networks, blogs,

or other websites, tap Share It at the

top right corner of the Spinlet. Select

Post it and tap the icon of the social

network site or blog you want to post

the widget to. Log in to your social

network account or blog page and

follow the steps.

55GPS tracker

Another way you can share Spinlets is through email. Tap

Share It at the top right corner of the Spinlet, select Send it,

and enter your name and your friend’s email address.

Note: Fuhu, Spinlets, Spinlet, urFooz, Fooz Avatars, Fooz Creator,

Fooz Card, and Fooz World are trademarks or registered

trademarks of Fuhu, Inc. in the U.S. and/or other countries.

GPS tracker

The GPS tracker will determine the precise location of the

device at regular intervals.

The tracker provides the following

information:

•GPS time

• Tracking distance

•Moving speed

• Trackers

•POIs

You can begin tracking your location

by tapping . Additionally you can

pause, mark a point of interest ( )

and save your progress by tapping on

the diskette.

Tapping menu provides additional settings:

• Saved file format

• Save to path

•Hide

• Mode (adjust data gathering intervals)

• Walk

6-second intervals

• Bicycle

4-second intervals

•Car

2-second intervals

FM radio

The FM radio allows you to listen to your favorite stations

while on the move. Headphones must be inserted to the 3.5

mm jack as it functions as an antenna.

You can access the radio by tapping

Radio from the Applications tab. Once

the application is open, turn the radio

on by tapping Menu and Turn on. You

can now leave the radio application

and use other functions of the

smartphone and listen to your station.

To turn the radio off, return to the

radio application and tap Menu and

Turn off.

Other functions are available through

the Menu such as:

•Mute

• Set frequency

•Scan

•Save

• Speaker on

•RDS

• Station list

• Send station info

57Managing applications

Managing applications

Warning! Make sure you trust the source of any program you

install. If you are not sure of the source, do not install a program.

Installing programs from unknown sources increases your risk of

virus attacks and theft of personal and private data.

You can remove programs installed on your smartphone to

free up extra storage memory. Open the Applications tab and

going to Settings > Applications.

Here you can allow programs from Unknown sources to be

installed and Manage Applications.

Warning! You should only remove programs if you are familiar

with the Android operating system.

Resetting your smartphone

You may have to perform a reset if your smartphone fails to

respond when buttons are pressed or the screen is tapped.

Note: Before performing a reset, ensure that your smartphone is

not locked. Press any key or tap the screen to see if the phone

responds.

Clean boot

Warning! You should only perform a clean boot when all other

options have failed to restore your smartphone to an operational

state.

A clean boot will restore your smartphone to the factory

settings.

Warning! This will erase all your personal information, any contacts

stored on your phone and any programs you installed.

1. Open the Applications tab and go to Settings > SD card &

Phone storage > Factory data reset.

2. On the Factory data reset screen, tap Reset Phone and then

tap Erase everything.

59FAQ and troubleshooting

Appendix

FAQ and troubleshooting

This section lists frequently asked questions that may arise

during the use of your smartphone, and gives easy answers

and solutions to these questions.

Aspect Question Answer

Audio Why is there no

sound coming

from the device?

If the headset is plugged into the

device, the speaker is automatically

shut off. Disconnect the headset.

Check that the device volume

setting is not muted.

Check that the volume control is

not at its lowest setting.

Multimedia files Why can’t I view

my picture files?

You may be trying to view an

image that is not supported. Refer

to “Multimedia” on page 61 for

more information.

Why can’t I view

my video files?

You may be trying to view a video

that is not supported. Refer to

“Multimedia” on page 61 for more

information.

Why can’t I play

my music files?

You may be trying to play a file

that is not supported. Refer to

“Multimedia” on page 61 for more

information.

System

information

and

performance

How do I check

the OS version of

my device?

Tap Menu > Settings > About

phone to check the OS version

(Kernel/build number) and other

hardware and software

information.

Other sources of help

Refer to:

Power I couldn’t turn on

the device.

The battery power may be

depleted. Recharge the device.

Refer to “Charging the battery” on

page 15 for more information.

Heat The phone heats

up when charging

or making long

duration calls.

It is normal for the phone to heat

up when charging. When charging

is complete, it will return to its

normal temperature.

It is also normal for the phone to

heat up during long periods of use,

such as watching a video or a long

phone conversation.

All Acer phones are factory tested

before release.

For information on:

Programs on your

smartphone and additional

programs that can be

installed on your smartphone

This User Guide. Included on the

smartphone companion CD, it provides

online reference for using your

smartphone.

Up-to-date information

regarding your smartphone

www.acer.com/

Service enquiries www.acer.com/support/

Aspect Question Answer

61Specifications

Specifications

Performance

• STE PNX6715, 416 MHz

• System memory:

• 256 MB of SDRAM

• 256 MB of Flash ROM

• Google Android operating system

Display

• 2.8” QVGA TFT, Resistive Touch Panel

• 320 x 240 resolution

• 65K colors support

Multimedia

• CD-quality stereo output

• Mono speaker 0.5 W (max)

• Omni-directional microphone

• Formats supported

USB connector

• 10-pin micro USB connector

• USB Client

• DC power-in (5 V, 1 A)

Type Formats

Audio playback MP3, AAC, AMR

Ringtone MP3, MIDI, DLS, iMelody, WAVE

Video recording 3GP, MPEG-4, H.263

Video playback 3GP, MPEG-4, H.263, H.264

Connectivity

• Bluetooth 2.0+EDR

• GSM 850 / 900 / 1800 / 1900

• UMTS 850 / 1900

• HSDPA / EDGE / GPRS

Camera

• 3-megapixel EDOF

• Auto-focus

Expansion

• microSD memory card (up to 32 GB)

Battery

• Rechargeable 1500 mAh Lithium-ion battery

(replaceable)

Note: Length of battery operation will depend on power

consumption which is based on system resource use. For example,

constantly using the backlight or using power-demanding

Applications will shorten battery life between charges.

Dimensions

Warnings and precautions

• Do not use this product near water.

Height 103.5 mm

Width 54 mm

Thickness 13.4 mm

Weight <105 g (with battery)

63Warnings and precautions

• Do not place this product on an unstable cart, stand or

table. If the product falls, it could be seriously

damaged.

• Never push objects of any kind into this product

through slots as they may touch dangerous voltage

points or short-out parts that could result in a fire or

electric shock. Never spill liquid of any kind onto or

into the product.

• To avoid damage of internal components and to

prevent battery leakage, do not place the product on a

vibrating surface.

• Never use this product when engaging in sporting

activities, exercising, or in any vibrating environment

which may cause a short circuit or damage, and even a

risk of explosion from the battery pack.

CAUTION when listening to music

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear

clearly and comfortably.

• Do not increase the volume level after your ears have

adjusted.

• Do not listen to music at high volumes for extended

periods.

• Do not increase the volume to block out noisy

surroundings.

• Decrease the volume if you can’t hear people speaking

near you.

Battery information

This product uses a Lithium-ion battery. Do not use it in a

humid, wet and/or corrosive environment. Do not put, store or

leave your product in or near a heat source, in a high

temperature location, in strong direct sunlight, in a microwave

oven or in a pressurized container, and do not expose it to

temperatures over 60 °C (140 °F). Failure to follow these

guidelines may cause the battery to leak acid, become hot,

explode or ignite and cause injury and/or damage. Do not

pierce, open or disassemble the battery. If the battery leaks

and you come into contact with the leaked fluids, rinse

thoroughly with water and seek medical attention

immediately. For safety reasons, and to prolong the lifetime of

the battery, charging will not occur at low (below 0 °C/32 °F) or

high (over 40 °C/104 °F) temperatures.

The full performance of a new battery is achieved only after

two or three complete charge and discharge cycles. The

battery can be charged and discharged hundreds of times, but

it will eventually wear out. When the talk and standby times

are noticeably shorter than normal, buy a new battery. Use

only Acer approved batteries, and recharge your battery only

with Acer approved chargers designated for this device.

Unplug the charger from the electrical plug and the device

when not in use. Do not leave a fully charged battery

connected to the ac charger, since overcharging may shorten

its lifetime. If left unused, a fully charged battery will lose its

charge over time. If the battery is completely discharged, it

may take a few minutes before the charging indicator appears

on the display or before any calls can be made.

Use the battery only for its intended purpose. Never use any

charger or battery that is damaged.

Do not short-circuit the battery. Accidental short-circuiting can

occur when a metallic object such as a coin, clip, or pen causes

direct connection of the positive (+) and negative (-) terminals

of the battery. (These look like metal strips on the battery.)

This might happen, for example, when you carry a spare

battery in your pocket or purse. Short-circuiting the terminals

may damage the battery or the connecting object.

65Warnings and precautions

Leaving the battery in hot or cold places, such as in a closed car

in summer or winter conditions, will reduce the capacity and

lifetime of the battery. Always try to keep the battery between

15 °C and 25 °C (59 °F and 77 °F). A device with a hot or cold

battery may not work temporarily, even when the battery is

fully charged. Battery performance is particularly limited in

temperatures well below freezing.

Do not dispose of batteries in a fire as they may explode.

Batteries may also explode if damaged. Dispose of batteries

according to local regulations. Please recycle when possible.

Do not dispose as household waste.

Replacing the battery pack

Your smartphone uses lithium batteries. Replace the battery

with the same type as that which came bundled with your

product. Use of another battery may present a risk of fire or

explosion.

Warning! Batteries may explode if not handled properly. Do not

disassemble or dispose of them in fire. Keep them away from

children. Follow local regulations when disposing of used batteries.

Additional safety information

Your device and its enhancements may contain small parts.

Keep them out of the reach of small children.

Operating environment

Warning! For safety reasons, turn off all wireless or radio

transmitting devices when using your smartphone device under the

following conditions. These devices may include, but are not

limited to: Bluetooth and/or 3G.

Remember to follow any special regulations in force in any

area, and always switch off your device when its use is

prohibited or when it may cause interference or danger. Use

the device only in its normal operating positions. Do not cover

the antenna with metal and you should position the device at

the above-stated distance from your body. To successfully

transmit data files or messages, this device requires a good

quality connection to the network. In some cases, transmission

of data files or messages may be delayed until such a

connection is available. Parts of the device are magnetic.

Metallic materials may be attracted to the device, and persons

with hearing aids should not hold the device to the ear with

the hearing aid. Do not place credit cards or other magnetic

storage media near the device, because information stored on

them may be erased.

Medical devices

Operation of any radio transmitting equipment, including

wireless phones, may interfere with the functionality of

inadequately protected medical devices. Consult a physician or

the manufacturer of the medical device to determine if they

are adequately shielded from external RF energy or if you have

any questions. Switch off your device in health care facilities

when any regulations posted in these areas instruct you to do

so. Hospitals or health care facilities may be using equipment

that could be sensitive to external RF transmissions.

Pacemakers. Pacemaker manufacturers recommend that a

minimum separation of 15.3 cm (6") be maintained between

wireless devices and a pacemaker to avoid potential

interference with the pacemaker. These recommendations are

consistent with the independent research by and

recommendations of Wireless Technology Research. Persons

with pacemakers should do the following:

67Warnings and precautions

• Always keep the device more than 15.3 cm (6") from

the pacemaker.

• Not carry the device near your pacemaker when the

device is switched on. If you suspect interference,

switch off your device, and move it.

Hearing aids. Some digital wireless devices may interfere with

some hearing aids. If interference occurs, consult your service

provider.

Vehicles

RF signals may affect improperly installed or inadequately

shielded electronic systems in motor vehicles such as electronic

fuel injection systems, electronic antiskid (antilock) braking

systems, electronic speed control systems, and air bag systems.

For more information, check with the manufacturer, or its

representative, of your vehicle or any equipment that has been

added. Only qualified personnel should service the device, or

install the device in a vehicle. Faulty installation or service may

be dangerous and may invalidate any warranty that may apply

to the device. Check regularly that all wireless equipment in

your vehicle is mounted and operating properly. Do not store

or carry flammable liquids, gases, or explosive materials in the

same compartment as the device, its parts, or enhancements.

For vehicles equipped with an air bag, remember that air bags

inflate with great force. Do not place objects, including

installed or portable wireless equipment in the area over the

air bag or in the air bag deployment area. If in-vehicle wireless

equipment is improperly installed, and the air bag inflates,

serious injury could result. Using your device while flying in

aircraft is prohibited. Switch off your device before boarding

an aircraft. The use of wireless teledevices in an aircraft may be

dangerous to the operation of the aircraft, disrupt the wireless

telephone network, and may be illegal.

Potentially explosive environments

Switch off your device when in any area with a potentially

explosive atmosphere and obey all signs and instructions.

Potentially explosive atmospheres include areas where you

would normally be advised to turn off your vehicle engine.

Sparks in such areas could cause an explosion or fire resulting

in bodily injury or even death. Switch off the device at

refueling points such as near gas pumps at service stations.

Observe restrictions on the use of radio equipment in fuel

depots, storage, and distribution areas; chemical plants; or

where blasting operations are in progress. Areas with a

potentially explosive atmospheres are often, but not always,

clearly marked. They include below deck on boats, chemical

transfer or storage facilities, vehicles using liquefied petroleum

gas (such as propane or butane), and areas where the air

contains chemicals or particles such as grain, dust or metal

powders.

Follow any restrictions. Do not use the device where blasting is

in progress.

Emergency calls

Important: Wireless phones, including this device, operate

using radio signals, wireless networks, landline networks, and

user-programmed functions. Because of this, connections in all

conditions cannot be guaranteed. You should never rely solely

on any wireless device for essential communications like

medical emergencies.

If certain features are in use, you may first need to turn those

features off before you can make an emergency call. Consult

this guide or your service provider for more information.

When making an emergency call, give all the necessary

information as accurately as possible. Your wireless device may

69Disposal and recycling information

be the only means of communication at the scene of an

accident. Do not end the call until given permission to do so.

Disposal and recycling

information

Do not throw this electronic device into the trash when

discarding.

To minimize pollution and ensure utmost protection of the

global environment, please recycle. For more information on

the Waste from Electrical and Electronics Equipment (WEEE)

regulations, visit

www.acer-group.com/public/Sustainability/

sustainability01.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT

monitor or display:

Lamp(s) inside this product contain mercury and must be

recycled or disposed of according to local, state or federal

laws. For more information, contact the Electronic Industries

Alliance at www.eiae.org. For lamp-specific disposal

information, check www.lamprecycle.org.

Taking care of your smartphone

1. DO take care not to scratch the screen of your smartphone.

Keep the screen clean. When working with your smart-

phone, use your finger or fingernail. Never use an actual

pen or pencil or other sharp object on the screen surface.

2. DO NOT expose your smartphone to rain or moisture. Do

not let water enter the circuitry through the front panel

buttons or expansion slots. In general, treat your

smartphone as you would a mobile phone or other small

electronic device.

3. DO be careful not to drop your smartphone or subject it to

any strong impact. Do not place your smartphone in your

back pocket.

4. DO NOT expose your smartphone to extreme temperatures.

For example, do not leave your smartphone on the dash-

board of a car on a hot day or when temperatures are

below freezing point. Also, keep it away from heaters and

other sources of heat.

5. DO NOT use or store your smartphone in any location that

is dusty, damp or wet.

6. DO use a soft, damp cloth to clean your smartphone. If the

surface of the screen becomes soiled, clean it with a soft

cloth moistened with diluted window-cleaning solution.

7. DO NOT press down on the screen with force, otherwise

you may crack the screen.

71Safety regulations

Safety regulations

LCD pixel statement

The LCD unit is produced with high-precision manufacturing

techniques. Nevertheless, some pixels may occasionally misfire

or appear as black or red dots. This has no effect on the

recorded image and does not constitute a malfunction.

FCC regulations

This mobile phone complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference

that may cause undesired operation.

This mobile phone has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiated

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV

technician for help.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to

operate the equipment.

The antenna(s) used for this transmitter must not be co-

located or operating in conjunction with any other antenna or

transmitter.

RF exposure information (SAR)

This mobile phone meets the government's requirements for

exposure to radio waves.

This phone is designed and manufactured not to exceed the

emission limits for exposure to radio frequency (RF) energy set

by the Federal Communications Commission of the U.S.

Government.

The exposure standard for wireless mobile phones employs a

unit of measurement known as the Specific Absorption Rate,

or SAR. The SAR limit set by the FCC is 1.6W/kg.

Tests for SAR are conducted using standard operating

positions accepted by the FCC with the phone transmitting at

its highest certified power level in all tested frequency bands.

Although the SAR is determined at the highest certified power

level, the actual SAR level of the phone while operating can be

well below the maximum value. This is because the phone is

designed to operate at multiple power levels so as to use only

the poser required to reach the network. In general, the closer

you are to a wireless base station antenna, the lower the

power output.

The highest SAR value for the model phone as reported to the

FCC when tested for use at the ear is 1.09 W/kg and when

worn on the body, as described in this user guide, is

0.662 W/kg.

73Safety regulations

Important: Body-worn measurements differ among phone models,

depending upon available enhancements and FCC requirements.

While there may be differences between the SAR levels of

various phones and at various positions, they all meet the

government requirements.

The FCC has granted an Equipment Authorization for this

model phone with all reported SAR levels evaluated as in

compliance with the FCC RF exposure guidelines. SAR

information on this model phone is on file with the FCC and

can be found under the Display Grant section of

www.fcc.gov/oet/ea/fccid after searching on FCC ID:

HLZDME110.

For body worn operation, this phone has been tested and

meets the FCC RF exposure guidelines for use with accessories

that contain no metal and that position the handset a mini-

mum of 1.5 cm from the body. Use of other accessories may

not ensure compliance with FCC RF exposure guidelines. If you

do not use a body-worn accessory and are not holding the

phone at the ear, position the handset a minimum of 1.5 cm

from your body when the phone is switched on.

Lithium-ion battery warning

ATTENZIONE! Rischio di esplosione della batteria se sostituita in

modo errato. Sostituire la batteria con un una di tipo uguale o

equivalente consigliata dalla fabbrica. Non disperdere le batterie

nell’ambiente.

VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der

Batterie. Ersatz nur durch denselben oder einem vom Hersteller

empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien

nach Angaben des Herstellers.

ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig

håndtering. Udskiftning må kun ske med batteri af samme

fabrikat og type. Levér det brugte batteri tilbage til leverandøren.

VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma

batterityp eller en ekvivalent typ som rekommenderas av

apparattillverkaren. Kassera använt batteri enligt fabrikantens

instruktion.

VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu.

Vaihda paristo ainoastaan laitevalmistajan sousittelemaan

tyyppiin. Hävitä käytetty paristo valmistagan ohjeiden mukaisesti.

ATTENTION ! Il y a danger d’explosion s’il y a remplacement

incorrect de la batterie. Remplacer uniquement avec une batterie

du mêre type ou d’ un type équivalent recommandé par le

constructeur. Mettre au rebut les batteries usagées conformément

aux instructions du fabricant.

ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri. Benytt

samme batteritype eller en tilsvarende type anbefalt av

apparatfabrikanten. Brukte batterier kasseres i henhold til

fabrikantens instruksjoner.

battery

charging ............................ 15

information ....................... 62

Bluetooth

connections ....................... 41

browsing the internet ............. 49

call history ............................. 24

calls

answering .......................... 25

ending ............................... 25

onscreen options ................ 25

camera

icons and indicators ............ 35

information ....................... 62

shooting a video ................ 37

supported formats .............. 38

taking a photo ................... 37

conference calls ...................... 27

connectivity ........................... 62

contacts

adding and editing ............. 45

making calls to a contact ..... 24

display ................................... 61

email ..................................... 33

FAQs ..................................... 59

FM radio ................................ 56

GPS Tracker ........................... 55

help

sources .............................. 60

international numbers .............24

LED indicators .........................13

managing your calandar ..........46

MMS messages .......................31

modem sharing ......................48

onscreen keyboard ..................18

performance ..........................61

phone

connections ........................41

safety regulations ...................62

setting alarms .........................43

social networking ...................49

speakerphone .........................25

specifications ..........................60

spinlets ..................................52

troubleshooting ......................59

turning on ..............................17

urFooz ...................................49

USB connector ........................61

views

left ....................................13

voice calls

the voice call screen ............25

volume

adjusting ............................55

Acer orporated DME110 SMART HANDHELD User Manual Acer E110 UM EN 2009

Acer Incorporated SMART HANDHELD Acer E110 UM EN 2009

Users Manual

Navigation menu

Namespaces

Views

Navigation
