Users Manual 1

Acer beTouch E130

User Guide

Acer beTouch E130 Smartphone User Guide

Original issue: 06/2010

Acer beTouch E130 Smartphone

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

End User Licence Agreement

IMPORTANT-READ CAREFULLY: THIS END USER LICENSE AGREEMENT ("AGREEMENT") IS A LEGAL AGREEMENT BETWEEN

YOU (EITHER AN INDIVIDUAL OR A SINGLE ENTITY), AND ACER INC. INCLUDING ITS SUBSIDIARIES ("ACER") FOR THE

SOFTWARE (WHETHER PROVIDED BY ACER OR BY ACER'S LICENSORS OR SUPPLIERS) THAT ACCOMPANIES THIS

AGREEMENT, INCLUDING ANY ASSOCIATED MEDIA, PRINTED MATERIALS AND RELATED USER ELECTRONIC

DOCUMENTATION WHICH MAY BE BRANDED "ACER" ("SOFTWARE"). AGREEMENTS RELATING TO ANY OTHER PRODUCT

OR TOPIC ARE NEITHER INTENDED NOR SHOULD THEY BE IMPLIED. BY INSTALLING THE ACCOMPANYING SOFTWARE OR

ANY PORTION THEREOF, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO

NOT AGREE TO ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT CONTINUE THE INSTALLATION

PROCESS AND IMMEDIATELY DELETE ALL INSTALLED FILES, IF ANY, OF THE ACCOMPANYING SOFTWARE FROM YOUR

PHONE.

IF YOU DO NOT HAVE A VALIDLY-LICENSED COPY OF THE APPLICABLE SOFTWARE, YOU ARE NOT AUTHORIZED TO

INSTALL, COPY OR OTHERWISE USE THE SOFTWARE, AND HAVE NO RIGHTS UNDER THIS AGREEMENT.

The Software is protected by U.S. and international copyright laws and conventions as well as other intellectual property

laws and treaties. The Software is licensed, not sold.

GRANT OF LICENSE

Acer grants to you the following non-exclusive and non-transferable rights with respect to the Software. Under this

Agreement, you may:

1. Install and use the Software only on a single designated phone. A separate license is required for each phone on

which the Software will be used;

2. Make one copy of the Software solely for backup or archival purposes;

3. Make one hardcopy of any electronic documents included in the Software, provided that you receive the

documents electronically.

RESTRICTIONS

You may NOT:

1. Use or copy the Software except as provided in this Agreement;

2. Rent or lease the Software to any third party;

3. Modify, adapt, or translate the Software in whole or in part;

4. Reverse engineer, decompile, or disassemble the Software or create derivative works based upon the Software;

5. Merge the Software with any other program or modify the Software, except for your personal use; and

6. Sublicense or otherwise make the Software available to third parties, except that you may, after prior written

notification to Acer, transfer the Software as a whole to a third party so long as you do not retain any copies of the

Software and such third party accepts the terms of this Agreement.

7. Transfer your rights under this Agreement to any third parties.

8. Export the Software in contravention of applicable export laws and regulations, or (i) sell, export, re-export,

transfer, divert, disclose technical data, or dispose of, any Software to any prohibited person, entity, or destination

including, without limitation, Cuba, Iran, North Korea, Sudan and Syria; or (ii) use any Software for any use

prohibited by the laws or regulations of the United States.

SUPPORT SERVICES

Acer is not obligated to provide technical or other support for the Software.

ACER LIVE UPDATE

Certain of the software contains elements that enable the use of the Acer Live Update service, which allows for updates

for such software to be automatically downloaded and installed on your phone. By installing the software, you hereby

agree and consent that Acer (or its licensors) may automatically check the version of such software that you are using on

your phone and may provide upgrades to such software that may be automatically downloaded on to your phone.

OWNERSHIP AND COPYRIGHT

Title, ownership rights and intellectual property rights in and to the Software and all copies thereof shall remain with Acer

or Acer's licensors or suppliers (as applicable). You do not have or shall not gain any proprietary interest in the Software

(including any modifications or copies made by or for you) or any related intellectual property rights. Title and related

rights in the content accessed through the Software is the property of the applicable content owner and may be protected

by applicable law. This license gives you no rights to such contents. You hereby agree

1. Not to remove any copyright or other proprietary notices from the Software;

2. To reproduce all such notices on any authorized copies you make; and

3. To use best efforts to prevent any unauthorized copying of the Software.

TRADEMARKS

This Agreement does not grant to you any rights in connection with any trademarks or service marks of Acer or of Acer's

licensors or suppliers.

DISCLAIMER OF WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ACER, ITS SUPPLIERS, AND ITS LICENSORS, PROVIDE THE

SOFTWARE "AS IS" AND WITH ALL FAULTS, AND HEREBY DISCLAIM ALL OTHER WARRANTIES AND CONDITIONS, EITHER

EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES, DUTIES OR

CONDITIONS OF MERCHANTABILITY, OF FITNESS FOR A PARTICULAR PURPOSE, OF ACCURACY OR COMPLETENESS OF

RESPONSES, OF RESULTS, OF WORKMANLIKE EFFORT, OF LACK OF VIRUSES, AND OF LACK OF NEGLIGENCE, ALL WITH

REGARD TO THE SOFTWARE AND THE PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES. ALSO, THERE IS NO

WARRANTY OR CONDITION OF TITLE, QUIET ENJOYMENT, QUIET POSSESSION, CORRESPONDENCE TO DESCRIPTION OR

NON-INFRINGEMENT WITH REGARD TO THE SOFTWARE.

EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACER, ACER'S SUPPLIERS, OR ACER'S

LICENSORS, BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, PUNITIVE, OR CONSEQUENTIAL DAMAGES

WHATSOEVER (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS OR CONFIDENTIAL OR OTHER

INFORMATION, FOR BUSINESS INTERRUPTION, FOR PERSONAL INJURY, FOR LOSS OF PRIVACY, FOR FAILURE TO MEET ANY

DUTY INCLUDING OF GOOD FAITH OR OF REASONABLE CARE, FOR NEGLIGENCE, AND FOR ANY OTHER PECUNIARY OR

OTHER LOSS WHATSOEVER) ARISING OUT OF OR IN ANY WAY RELATED TO THE USE OF OR INABILITY TO USE THE

SOFTWARE, THE PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES, OR OTHERWISE UNDER OR IN CONNECTION

WITH ANY PROVISION OF THIS AGREEMENT, EVEN IN THE EVENT OF THE FAULT, TORT (INCLUDING NEGLIGENCE), STRICT

LIABILITY, BREACH OF CONTRACT OR BREACH OF WARRANTY OF ACER OR ITS SUPPLIERS OR LICENSORS, AND EVEN IF

ACER AND ITS SUPPLIERS AND LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

LIMITATION OF LIABILITY AND REMEDIES

NOTWITHSTANDING ANY DAMAGES THAT YOU MIGHT INCUR FOR ANY REASON WHATSOEVER (INCLUDING, WITHOUT

LIMITATION, ALL DAMAGES REFERENCED ABOVE AND ALL DIRECT OR GENERAL DAMAGES), THE ENTIRE LIABILITY OF

ACER, ITS SUPPLIERS, AND ITS LICENSORS, UNDER ANY PROVISION OF THIS AGREEMENT, AND YOUR EXCLUSIVE REMEDY

FOR ALL OF THE FOREGOING, SHALL BE LIMITED TO THE AGGREGATE AMOUNT PAID BY YOU FOR THE SOFTWARE. THE

FOREGOING LIMITATIONS, EXCLUSIONS AND DISCLAIMERS (INCLUDING DISCLAIMER OF WARRANTIES AND EXCLUSION OF

INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES ABOVE) SHALL APPLY TO THE MAXIMUM EXTENT

PERMITTED BY APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE; PROVIDED, HOWEVER, THAT

BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OR LIABILITY FOR CONSEQUENTIAL OR

INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

TERMINATION

Without prejudice to any other rights, Acer may immediately terminate this Agreement without notice if you fail to

comply with any terms and conditions of this Agreement.

In such event, you must:

1. Cease all use of the Software;

2. Destroy or return to Acer the original and all copies of the Software; and

3. Delete the Software from all phones on which it was resident.

All disclaimers of warranties and limitation of liability set forth in this Agreement shall survive termination of this

Agreement.

GENERAL

This Agreement represents the complete agreement between you and Acer relating to this license for the Software and

supersedes all prior agreements, communications, proposals and representations between the parties and prevails over

any conflicting or additional terms of any quote, order, acknowledgement or similar communication. This Agreement may

only be modified by a written document signed by both parties. If any provision of this Agreement is held by a court of

competent jurisdiction to be contrary to law that provision will be enforced to the maximum extent permissible and the

remaining provisions of this Agreement will remain in full force and effect.

ADDITIONAL PROVISIONS APPLICABLE TO THIRD PARTY SOFTWARE AND SERVICES

Software provided hereunder by Acer's licensors or suppliers ("Third Party Software") is made available to you for your

personal, non-commercial use only. You may not use the Third Party Software in any manner that could damage, disable,

overburden, or impair the services provided by Acer's licensors or suppliers hereunder ("Third Party Services").

Furthermore, you may not use the Third Party Software in any manner that could interfere with any other party's use and

enjoyment of the Third Party Services, or the services and products of Acer's licensors' or suppliers' third party licensors.

Your use of the Third Party Software and Third Party Services is also subject to additional terms and conditions and policies

which can be accessed through our global website.

During registration you will be asked to submit some information to Acer. Please refer to Acer’s privacy policy at

www.acer.com or your local Acer website.

Table of Contents

End User Licence Agreement

Getting to know your smartphone

Features and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Product registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Setting Up

Unpacking your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Getting to know your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Installing or removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Installing a SIM and microSD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Removing the microSD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using your Smartphone

Turning on for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Using the touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

The QWERTY keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

The Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Managing contacts

Managing your contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Making Calls

Before making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

The voice call screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

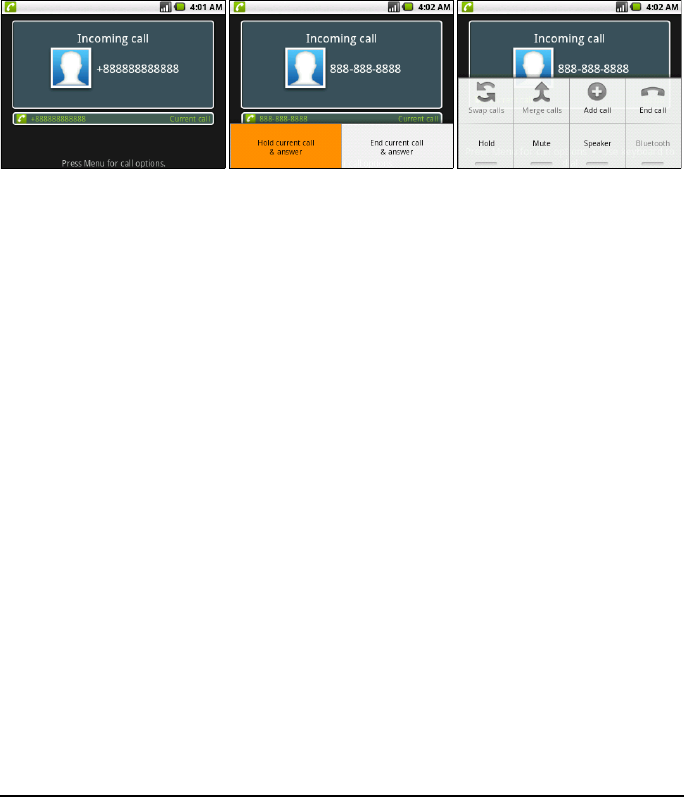

Onscreen call options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Messaging

Creating a new message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Replying to a message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

MMS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Going online

Browsing the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Setting up Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Online applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using the Camera

Camera icons and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Taking a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Shooting a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Viewing photos and videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Advanced Settings

Putting your smartphone in Airplane mode . . . . . . . . . . . . . . . . . . . . . . .29

Activating or deactivating connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Acer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Adjusting connection settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Phone settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

urFooz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Connecting to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Managing your calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

GPS tracker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Multimedia playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Resetting your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Accessories and Tips

Using the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using a Bluetooth headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using your smartphone as a modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Setting up the modem on your PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Inserting a microSD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Appendix

FAQ and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Other sources of help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Aux ADB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Warnings and precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Disposal and recycling information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Taking care of your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Regulatory information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

7Features and functions

Getting to know your smartphone

Features and functions

Your new smartphone offers leading, easy-to-access multimedia and

entertainment features. You can:

• Access your email while on the move.

• Connect to the Internet at high speed, via HSDPA (3.6 Mbps) or Wi-Fi.

• Keep in touch with your friends via your Contacts and social networking

applications.

Product registration

When using your product for the first time, it is recommended that you

immediately register it. This will give you access to some useful benefits, such

as:

• Faster service from our trained representatives.

• Membership in the Acer community: receive promotions and participate

in customer surveys.

• The latest news from Acer.

Hurry and register, as other advantages await you!

How to register

To register your Acer product, please visit http://mobile.acer.com. Click Product

Registration and follow the simple instructions.

You can also register directly from your smartphone by tapping the Acer

Registration icon.

After we receive your product registration, you will be sent a confirmation

email with important data that you should keep in a safe place.

Chapter 1: Setting Up

Unpacking your smartphone

Your new smartphone comes packed in a protective box. Carefully unpack the

box and remove the contents. If any of the following items is missing or

damaged, contact your dealer immediately:

•Acer beTouch E130 Smartphone

• Battery

• Quick Guide

• USB cable

• AC adapter

• Headset

Getting to know your smartphone

Views

13 14

12 16

No. Item Description

1 3.5 mm headphone jack Connect to stereo headphones.

2 Phone speaker Emits audio from your smartphone; suitable for

holding to your ear.

3 Touchscreen 2.6-inch, 320 x 240 pixel resistive touchscreen to

display data, phone content and enter information.

4 Home button Return to the Home screen; press and hold to view

recently-used applications, tap an icon to open the

associated program.

9Getting to know your smartphone

LED indicators

5 Call button Activate phone/dial/view recently dialed numbers/

answer a call.

6 Menu button Open the option menu; press and hold to display the

keyboard.

7 Keyboard QWERTY keyboard.

8 Microphone Internal microphone.

9 Search button Open the Google search function.

10 End button / Power button Press to end a call. / Press to turn the screen on/off or

enter sleep mode; press and hold to turn the

smartphone off.

11 Back button Go back one menu step; close the keyboard.

12 Trackball Roll to move around the screen; Press to activate the

selected item.

13 LED indicator Indicates battery level and event status.

14 Camera A 3-megapixel camera for taking high-resolution

images.

15 Handsfree speaker Emits audio from your smartphone; suitable for

handsfree use.

16 Volume up / down button Increase or decrease the phone volume.

17 Micro USB connector Connect to a USB cable/charger.

No. Item Description

Red Steady Battery is charging.

Slow flashing Battery level is low.

Flashes twice rapidly Battery level is critically low.

Flashes rapidly Battery level is too low to start the phone.

Flashes every 10

seconds

New event (missed call, new message, voicemail, etc.)

No. Item Description

Installing or removing the battery

Your smartphone uses a replaceable battery to provide power. It is packed

separately from your smartphone and needs to be inserted and charged before

you can use the smartphone.

Installing the battery

1-1

1-2

Insert your fingernail into the cutout between

the battery cover and the phone. Unclip the cover

and lift off the battery cover.

Place the battery into the battery compartment,

lining up the battery connectors with those at the

bottom of the compartment.

Insert the tabs on the bottom of the battery cover

into the slots in the phone. Carefully press the top

of the cover until the clips on the side of the

cover click in place.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Charging the battery

For initial use, you need to charge your smartphone for eight hours. After that

you can recharge the battery as needed.

Connect the AC adapter cord to the micro USB connector on your smartphone.

Removing the battery

Open the battery compartment as shown in “Installing the battery“. Lift the

battery out of the compartment using the clip on the top of the battery.

Replace the battery cover as described above.

11Installing a SIM and microSD Card

Installing a SIM and microSD Card

To take full advantage of your smartphone’s telephony capabilities, you must

install a SIM card. The SIM card holder is located at the bottom of the battery

bay.

Additionally, you may wish to increase your smartphone’s storage by inserting a

microSD Card into the slot provided. This is next to the SIM card slot.

1. Turn off the phone by pressing and holding

the power button.

2. Open the cover and remove the battery.

3. Insert the SIM and microSD Card as shown.

4. Replace the battery and battery cover.

Note: Ensure that the microSD Card is inserted all the way into the card slot.

Removing the microSD Card

To remove the microSD Card, press the tab down

(1), and slide the microSD Card out (2).

Caution: Turn off your smartphone and remove the battery before installing or

removing the SIM or microSD card. You may damage the card or your smartphone if

the battery is still installed.

SIM card lock

Your smartphone may come with a SIM card lock, i.e., you will only be able to

use the SIM card provided by your network operator.

To cancel the SIM lock, contact your network provider.

Chapter 2: Using your Smartphone

Turning on for the first time

To turn on your smartphone for the first time, press and hold the power button

until the screen turns on. You will then be asked to configure some settings

before you can use your smartphone.

Follow the onscreen instructions to complete setup.

If you have Internet access, your smartphone allows you to synchronize

information with a google account.

During the start-up process, you may create or sign in to your account, which

will be used to synchronise your contact list, email, calendar and other

information. If you do not yet have Internet access then tap Try Again, but then

tap Back and then Skip the connection step.

Entering your PIN

When you install a SIM card for the first time, you may need to enter a PIN

using the onscreen number pad.

Important: Depending on your settings, you may be required to enter your PIN each

time you switch on the phone function.

Activating a new SIM card

If you are using your SIM card for the first time, it may require activation.

Contact your network operator for details on how to do this.

Using the touchscreen

Your smartphone uses a touchscreen for selecting items and entering

information. Use your finger to tap the screen.

Tap: Touch the screen once to open items and select options.

Drag: Hold your finger on the screen and drag across the screen to select text

and images.

Tap and hold: Tap and hold an item to see a list of actions available for that

item. On the pop-up menu that appears, tap the action you want to perform.

Scroll: To scroll up or down the screen, simply drag your finger up or down the

screen in the direction that you want to scroll.

13The QWERTY keyboard

The QWERTY keyboard

The Home screen

After rebooting, your smartphone will display

the Home screen. This screen gives you quick,

icon-based access to many of the frequently

used features of your smartphone.

The first time you start your smartphone, you

will see some icons on the screen.

At the bottom of the screen is the Applications

tab which lists all the applications you have

installed. Tap the tab to open the Applications tab. Tap an icon to open the

application.

No. Item Description

Caps

Enables typing in upper case.

2 Fn Enables typing the numbers / symbols indicated in the upper

right-hand corner of each key.

3 Sym Opens the symbols table.

4Mail

5 Enter key Moves the cursor to the next line.

6 Delete key

Deletes the character to the left of the cursor.

Press once (abc mode) Type the next character in upper case.

Press twice (abc mode)

Switch to ABC mode.

Press once (ABC mode)

Switch to abc mode.

Press once (abc mode)

Type a number or symbol for the next

character.

Press twice (abc mode)

Switch to numbers and symbols mode.

Press once (123 mode)

Switch to the previous character mode.

Short press

Enter messaging. This is customizable in

Settings > Mail Key Setting

Long press

Enable and disable silent mode.

Multitasking

You can have multiple applications open at the same time. To open a new

application, press the Home button to return to the Home screen, then start the

new application.

To view your active applications, press and hold the Home button. Then tap an

icon to go to the application.

Tip: To prolong battery life, it is better to close an application when you’ve finished

using it. Do this by either pressing the Back key or the Menu button and selecting Exit

(if available).

The extended Home screen

The Home screen extends to either side of the screen, giving you more room to

add icons, widgets or features. To view the extended Home screen slide your

finger to the left or right of the Home screen.

Notification area

The Notification area is at the top of the screen.

This area contains a variety of icons to inform you of your phone’s status. The

left side of the Notification area displays event icons that indicate a new event

(such as a new message). The icons on the right side indicate signal strength,

connection, battery status and the time.

Drag the Notification area down the screen, or tap the area, to view more

information about new events.

Icon Description

Indicates that storage is running low. Remove programs or files to increase the

available storage.

SD Card removed.

WLAN signal strength.

Vibrate mode enabled.

SIM card is invalid or not installed.

Battery status.

15The Home screen

Personalizing the Home screen

You may personalize your Home screen by adding or removing icons, shortcuts

or widgets, or changing the wallpaper.

Adding or removing icons

You can set icons for installed applications on the Home screen. Tap and hold

an icon in the Applications tab to copy it to the Home screen. To remove an

icon from the Home screen, tap and drag the icon from the Home screen to the

trash tab that appears at the bottom of the screen.

Adding or removing shortcuts or widgets

To add shortcuts or widgets, tap and hold anywhere on the Home screen to

open the Add to Home screen menu.

Tap Shortcuts to open a list of quick links to

applications and settings you can add to the

Home screen.

Missed call.

New/unread SMS.

New/unread MMS.

New/unread email.

HSDPA connected: Downloading data.

3G connected: You may make a call.

Connected to a 2G network: You may make a call.

Airplane mode: Wireless connectivity disconnected. Please disable airplane

mode before trying to make a call.

Incoming call or active call.

Icon Description

Tap Widgets to open a list of small applications

that you can add to your Home screen.

Widgets are handy applications that you can

add to your Home screen to display various

information.

You can also add folders to your Home screen.

There are some pre-defined folders available

or you can add a New folder. This will be

placed on your Home screen and named

Folder. To change the name of the folder, tap

to open it. Tap and hold the name bar at the

top of the folder window to open a dialog box

that will allow you to rename the folder.

17Managing your contacts

Chapter 3: Managing contacts

Managing your contacts

Your smartphone features an address book that allows you to save contacts to

either the internal memory or onto your SIM card.

Tap Contacts from the Home screen or the Contacts tab from the Dialer to view

your contacts.

If you don’t have any contacts stored on your phone, you can import your

Google account contacts, add a new contact or import any SIM contacts. Press

the Menu button to open the menu.

Adding a contact

Tap New to add a new contact. You will be asked if you want to create a SIM

contact or a Phone contact.

To create a contact, you will be asked to enter

the contact’s:

• Given and Family name.

• Phone numbers.

• Email addresses.

•IM addresses.

• Postal addresses.

You may also:

• Enter information such as organizations the

contact belongs to.

• Any personal notes about the contact.

• Set a ringtone.

• Send any calls from this contact directly to your voicemail.

Icon Description

Search for a contact.

Add a new contact.

Display the contacts you have assigned to a group.

Delete contacts.

Import contacts.

Export contacts.

Chapter 4: Making Calls

This chapter shows you how to make phone calls, and the various options

available to you during your call.

Before making a call

Check that the phone function is on before you make a call. You can confirm

the phone status from the icon on the right-hand side of the Notification area.

Making a call

Note: The phone function needs to be enabled before the call can be connected.

1. From the Home screen tap Dialer or open

Dialer from the menu.

2. Enter the number you wish to dial.

3. Press the Call button to make the call.

4. To end the call, press the End button.

Dialing a number from Call Log

Your call history can be viewed by tapping the

Call Log tab. It displays recent received, dialed,

and missed calls.

Tap a number to view the call details. To redial any number in the call history,

select the number and tap . You may also tap and hold the number to open

a menu with other options: Call <the number>; View contact; Edit number

before call; Send SMS/MMS; Add to contacts or Remove from call log.

Missed calls will be displayed by the call indicator on the top of your phone and

in the Notification area with the icon .

You can also view missed calls from the Notification area.

1. Open the notification list by tapping and dragging the Notification area

downwards to display the details of the missed calls.

2. Select the call from the list and tap to return the missed call.

You can save phone numbers to your Contacts from the Call Log. Please refer to

“Adding a contact“ on page 17 for further details.

Icon Description

Connected: You may make a call.

Airplane mode: Wireless connectivity disconnected. Please disable airplane mode

before trying to make a call.

19The voice call screen

Making a call to one of your contacts

1. Tap the Contacts tab in the dialer or Contacts from the Home screen to view

your contacts.

2. Tap a contact. A dialog will open, asking if you want to Call the contact or

send the contact an SMS.

Dialing an international number

When dialing international numbers, there is no need to enter the

international direct dialing prefix (‘00’ etc.) before the country code. Simply tap

and hold 0+ on the onscreen number pad until + appears onscreen.

Warning: International call rates can vary greatly depending on the country you are

calling and your network provider. We suggest you check all call rates with your

network provider, to avoid excessive phone bills. If you are using your smartphone

abroad, roaming charges will apply. Consult your network provider for roaming rates

specific to the country you are visiting before you leave.

The voice call screen

Once you have dialed your number the voice call screen appears, which displays

the number/contact you are talking to, the call duration and the dialpad tab.

Onscreen call options

Answering a call

Press the Call button to answer a call.

Rejecting a call

Press the End button to reject a call.

Ending a call

To end a call, press the End button.

Using the speakerphone

The speakerphone function allows you to make calls without having to hold

your smartphone. This handsfree function is especially useful for multitasking.

To activate the speakerphone, tap Speaker on the voice call screen. Tap Speaker

again to disable the speakerphone.

Muting a call

To mute a call, tap Mute on the voice call screen to switch off the microphone.

Tap Mute again to switch the microphone back on.

Saving a dialed number to contacts

You can save a number you have dialed to your contacts for future use.

1. Select the number from the Call log tab, and tap Add to contacts.

2. Tap Create new contact and select how to complete the action. Please refer

to “Adding a contact“ on page 17.

Conference calls

If you have one call on hold and another online, you can combine both calls to

create a conference call.

After the first call is established, tap Add call to add a second call. Tap Merge

calls to start the conference call.

21Creating a new message

Chapter 5: Messaging

This chapter shows you how to set up and use the SMS and MMS functions of

your smartphone.

All SMS and MMS messages are accessed via Messaging. Messaging

automatically arranges received and sent messages into threads.

To access Messaging tap Messaging on the Home screen.

Creating a new message

You can use your phone to compose SMS or

MMS messages.

Tap New message to compose a new message.

Enter the recipient’s phone number or name in

the To field. Suggested contacts will be

displayed in a drop-down list below the text

field. To select a suggested contact, tap the

contact’s name.

Once you have entered the recipient, enter

your message in the text box labeled Type to compose.

Note: SMS messages may be up to 160 characters long. If your message is longer than

160 characters, it will be sent as multiple linked messages. Most phones will

automatically join the linked messages to present the recipient with a single long

message, however, some older phones do not have this ability.

Press the Menu button to see what options are available when creating a new

message.The options change depending on the status of the message.

Icon Description

Convert the SMS to an MMS, allowing you to add a subject to the message.

Convert the SMS to an MMS, allowing you to attach a file to the message.

Discard the message.

View all the threads currently on your phone.

Replying to a message

When a new text message arrives a message icon appears in the Notification

area and the message icon on the top of the phone lights up.

Tap Messaging on the Home screen to view the message list or expand the

Notification area to see a summary of the message. Tap the summary to open

the message list.

To reply to an SMS or MMS message, open the message from the message list.

Enter your text in the text box labeled Type to compose. Press the Menu button

to see available options.

MMS messages

MMS messages are similar to text messages but also allow you to attach

multimedia files such as pictures, audio or video clips. Each MMS message can

be up to 300 kB in size.

Note: You need to set up an MMS profile before you can send MMS messages.

Normally, your smartphone will set up the profile for you based on information

retrieved from your provider.

Tip: Ask your network provider for the necessary information if you need to manually

set up the MMS profile.

Icon Description

Open the Dialer to call the recipient.

Convert the SMS to an MMS, allowing you to add a subject to the message.

Convert the SMS to an MMS, allowing you to attach a file to the message.

Send the message.

Insert a smiley/emoticon into your message text.

Show other available options.

23MMS messages

Receiving MMS messages

When a new MMS message arrives, a message icon appears at the top of the

screen and a notification message is displayed.

1. Open Messaging to view a summary of the message.

2. Tap Download to download the message content.

Note: Downloads can take a long time, depending on your connection quality. If you

reply or open another application, the download will be stopped.

Important: You may be charged to download message content, especially if you are

roaming. Please contact your provider if you have any questions.

3. Tap the message to view the content.

4. To reply to the message, enter your text in

the text box labeled Type to compose and

tap Send. Simple text replies will be sent as

SMS messages. If you wish to attach a file,

press the Menu button and tap Attach. You

will be presented with a menu of options.

5. When you have finished composing the

message, press the Menu button and tap

Send.

Chapter 6: Going online

Browsing the Internet

In order to browse the Internet with your smartphone, you must be connected

to a data or wireless network.

Using the browser

Tap Browser on the Home screen to start browsing. To open a new website, tap

the address box at the top of the page. Enter the address using the keyboard

and tap Go.

To view your browsing history, bookmarks or frequently visited sites, open the

browser then press and hold the back button.

You may open multiple pages. When a page is open, press the Menu button

and tap New window from the menu that opens. Tap Windows to view all the

windows that are open.

You can zoom in or out of pages using the zoom bar that appears when you

tap the screen. Tap and hold an item on a page to open a contextual menu.

Voice Search

Note: Voice search is available only in some regions.

You can search the Internet using your voice. Open Voice Search from the

applications tab, or press and hold the Search button. State your query when

you see the “Speak now” prompt.

25Setting up Email

Setting up Email

Your smartphone enables you to access your

email. Most popular ISPs can be set up in two

steps. Tap the Applications tab and then Email

to start setting up your email access.

If necessary, enter your email address and tap

Manual setup to enter the parameters

manually. Tap Next to finish the setup process.

Online applications

Your smartphone has a variety of applications installed on it from the factory.

Note: Applications installed may vary according to your region.

These applications may include:

•Facebook: View your Facebook profile and keep up-to-date with friends.

•Maps:Get easy-to-follow directions using Google Maps.

•YouTube: View the Most viewed and Most discussed video clips on

YouTube.

Android market

Note: The Android Market may not be available in all countries and regions.

Note: You need to have a Google account set up and active on your phone before you

can use the Android Market.

Tap Market from the applications tab to open

the Android Market. Here you can obtain a

variety of add-on programs and applications to

enhance the functionality of your smartphone.

The first time you access the Android Market,

you will need to read and accept the Terms of

Service.

You can browse the market by category or tap

the search icon to search for a specific

application.

Once you have selected an application, tap the Install button to download and

install the application. You will be told which services on your phone that the

application has access to. Tap OK to proceed with the installation.

You may keep track of the download progress from the Notification Area.

Important: Some applications may require payment before you can download them.

You will need to have a Google Checkout account in order to pay for these

applications.

Uninstalling downloaded applications

Once you’ve downloaded and installed an application, you may uninstall the

application by tapping Settings from the Applications tab. Select Applications >

Manage applications. Tap the application you wish to uninstall, tap Uninstall

and confirm the uninstall.

27Camera icons and indicators

Chapter 7: Using the Camera

Your smartphone features a 3-megapixel digital camera mounted on the rear.

This section will take you through all the steps in taking photos and videos with

your smartphone.

Note: You need to have a microSD Card inserted into the microSD Card slot before

using the camera.

To activate the camera, open the Applications tab and tap Camera.

Camera icons and indicators

In the camera window, use the zoom slider at the bottom of the screen to

adjust the zoom. Tap to take a picture.

Icon Description

Indicates the last photo taken.

Slide to adjust brightness.

Slide to switch between camcorder and photo mode.

Tap to focus or take the photo. Changes to Record or Stop in video

mode.

Tap to zoom in or out.

Camera settings menu

Tap the Menu button to open the Camera settings menu.

•Store location picture

• Jpeg quality

• Prompt after capture

•Grid

• Enable shutter sound

• Antibanding

• Resolution

• White balance / lighting

• Select effect

• Scene mode

• Flash mode

Taking a photo

1. Ensure you have adjusted the parameters described above.

2. Frame your subject and steady your smartphone.

3. Zoom in or out as needed.

4. Tap to take a picture.

Shooting a video

Turn on camcorder mode by sliding the mode switch to camcorder mode.

1. Frame your subject and steady your smartphone and zoom in or out as

needed.

2. Tap the Record button to begin recording. Tap again to stop recording.

Supported formats

Viewing photos and videos

After you have taken your photo or video, it is automatically saved.

Once you have taken a photo or video, you can view it in Gallery by tapping the

thumbnail icon in the upper right corner. Alternatively, open the Applications

tab and tap Gallery. From Gallery you can share the file directly using various

services.

Note: Share options vary depending on the file type.

Type Formats

Image JPEG

Video MPEG-4, H.263

29Putting your smartphone in Airplane mode

Chapter 8: Advanced Settings

Putting your smartphone in Airplane mode

You can enter Airplane mode (also known as flight mode) to turn off telephone

and Bluetooth functions and use your smartphone as a handheld device during

a flight. Check with your airline to make sure this is permitted onboard.

Switch your smartphone off during takeoff and landing as it may interfere with

aircraft electronic systems.

Turning Airplane mode on or off

Note: When Airplane mode is active, the

icon will be displayed in the Notification

area.

1. Press and hold the power button until you

get the phone options menu.

2. Tap Airplane mode to switch it ON or OFF.

Activating or deactivating connections

Open the Applications tab and tap Settings > Wireless controls to manage your

connection settings.

Each connection icon will be highlighted when turned on.

Acer Settings

Acer Settings is a convenient all-in-one place for you

to adjust commonly-used settings on your phone.

Open the Applications tab and tap Acer Settings.

From this screen you can turn Bluetooth on or off or

adjust their settings by tapping .

You can also set your Phone network settings, set

the screen Brightness or Screen Timeout.

Important: If your phone is in Airplane mode, the option to turn Bluetooth on will be

disabled. Please refer to “Putting your smartphone in Airplane mode“ on page 29 for

instructions on turning Airplane mode on or off.

Phone network settings

Tap Mobile networks to adust your network settings. You can turn data

connection on or off when roaming, restrict the connection to 2G networks

only, specify a network operator and define access point names. Please refer to

“Selecting a network“ on page 31.

Adjusting connection settings

This section will show you how to adjust detailed settings for your phone, data,

Wi-Fi and Bluetooth connections.

Sound & display

You can adjust your phone settings by tapping Settings > Sound & display.

Item Description

Wi-Fi Turn the Wi-Fi function on or off.

Wi-Fi settings Set up and manage your wireless access points.

Bluetooth Turn the Bluetooth function on or off.

Bluetooth settings Manage your Bluetooth connections, set a device name and

discoverability.

VPN settings Set up and manage Virtual Private Networks.

Mobile networks Set your options for connecting to mobile networks.

Airplane mode Disable all wireless connections so you can safely use this device

onboard an aircraft.

Item Description

Silent mode Turn off all sounds except for alarms and media.

Ringer volume Adjust the ringer volume.

Media volume Set the playback volume for media.

Phone ringtone Set your phone’s ringtone.

Phone vibrate Turn the vibrate function on.

Notification ringtone Set a ringtone for notifications.

Audible touch tones Play tones when using dial pad.

Audible selection Play a sound whenever a screen selection is made.

SD card notifications Play a sound for SD card notifications.

Audible dial pad tones Play tones when using dial pad.

Audible keypad sound Play tones when using QWERTY keyboard.

Orientation Switch screen orientation when the smartphone is rotated.

Animation Animate when opening or closing windows.

Brightness Adjust screen brightness.

Screen timeout Set a delay before the screen will be turned off.

Notification LED Turns notification LED indicators on or off.

31Phone settings

Selecting a network

Your phone wil automatically detect your carrier/network settings when you

insert a new SIM card. However, you may prefer to manually select a network.

This may be a good idea when roaming.

Tip: When you are traveling, manually selecting a network may help to reduce your

roaming charges. Check with your home service provider for the network offering the

most competitive rates at your destination.

1. Open the Applications tab and tap Settings > Wireless controls > Mobile

networks > Network operators.

2. Your phone will search for available networks.

3. Select your preferred network from the list generated. You phone will

attempt to register on the selected network.

4. Tap Select automatically to connect to the available network with the

strongest signal. This may lead to your phone jumping between networks

when you move around.

Note: Contact your service provider should you have any problems obtaining voice

mail and the text message service center numbers.

Adjusting Bluetooth settings

You can use Bluetooth to exchange information between your smartphone and

other mobile devices.

Bluetooth connections

For all Bluetooth settings, open the Applications tab and tap Settings > Wireless

controls > Bluetooth settings. Here you can switch Bluetooth on or off, set a

device name and discoverability. Tap Scan for devices to scan for available

devices.

To connect to a device, tap the device in the list of available devices. You may

be asked to enter a PIN on both devices to establish the connection.

Phone settings

Many phone settings are automatically configured by your smartphone when

you insert a SIM card. The device will communicate with your provider and

automatically obtain all necessary settings, such as network name, voice mail

and text message center numbers.

You can also view and modify these settings manually through the Phone

Settings screen.

Open the Applications tab and tap Settings > Call settings.

urFooz

urFooz is your portable profile that lives where you live.

•Fooz Creator lets you create a Fooz avatar, which is your virtual look-a-like.

•Fooz World lets you edit and manage your Fooz

avatar(s), create new avatars and share them on Facebook, MySpace, blogs and

more.

•Share it lets you post your Fooz card to Facebook,

MySpace and other social networks. You can also email it to your friends.

You can email your Fooz card to friends, or post it to your social networks and

blogs and always be connected.

Launching urFooz

To launch urFooz, tap UrFooz from the applications tab.

Creating your urFooz avatar

If you have not yet set up an account to urFooz,

tap the Get Started button. If you have an

existing urFooz account, select Sign in and login

with your email and password.

To start creating your avatar, select your Gender,

Ethnicity, Zodiac Sign, Relationship Status and

Areas of Interest.

Next, start customizing your avatar. Tap Features

to choose your face shape, eyes, nose, mouth and

other facial features. Select Clothing to dress your

svatar. Select Accessories to choose other items

such as earrings, headbands, and whatever else to

give your Fooz avatar your personal touch. Simply

tap the image to apply the item to your avatar

and preview how it looks on the left side of the

screen.

Select SAVE and type in a name for your Fooz avatar. The next screen will ask

you for the email address, password, and required user information. The email

and password you enter will be used to sign into your urFooz account.

Managing your avatar

Now that you have created your Fooz avatar, go

to Fooz World and personalize your Fooz card, or

your portable profile.

Select Profile/Apps to fill in your profile and other

information such as bookmarks of your social

network profiles and favorite websites.

Select Switch Avatar to change your default

avatar, modify existing avatars, or create a new

avatar.

33Connecting to a PC

Sharing your Fooz card and avatar

urFooz lets you share your Fooz card with friends

by posting it to your social networks, blogs, and

websites; or emailing it to friends.

In Fooz World, select Share it. Select Post to post

your Fooz card to Facebook or other social

networks, or select Email to email your Fooz card

to a friend.

Note: Fuhu, Spinlets, Spinlet, urFooz, Fooz Avatars, Fooz Creator, Fooz Card, and Fooz

World are trademarks or registered trademarks of Fuhu, Inc. in the U.S. and/or other

countries.

Connecting to a PC

If you wish to transfer information between the microSD Card in your phone

and your computer, you can connect your phone to a PC using the supplied USB

cable. Plug the USB sync cable into the micro USB connector on your

smartphone. Plug the USB client connector into an available USB port on your

computer.

Pull down the notification bar, and tap USB Connected. Click Mount.

You will now be able to see the microSD Card in your phone as a drive in your

computer’s file explorer.

Note: After mounting, you will not be able to access the files in the microSD card or

applications such as Gallery or Music.

Synchronizing your calendar

You can sync your calendar on your phone with your Google calendar. Tap

Calendar from the Applications tab to connect to your Google calendar and

sync appointments.

Note: You need a Google account to sync your calendar and appointments.

Managing your calendar

The Calendar allows you to keep track of your events and tasks. You can access it by

tapping Calendar on the home screen or in the Applications tab.

The Calendar offers a variety of viewing modes and settings to manage your events. Tap

Menu and you will see the following options:

•Agenda

•Day

• Week

•Month

• New event

• Today

•More

Tap More > Settings to view additional options:

• Hide declined events

• Set alerts & notifications

• Select ringtone

• Vibrate

• Set default reminder

Adding a new event

To add a new event, tap Menu and tap New event. Under Event details you have the

option of filling out:

•Event name

•From

Date and time

•To

Date and time

•Location

•Description

• Repetition

• Reminder intervals

GPS tracker

The GPS tracker will determine the precise location of the device at regular intervals.

The tracker provides information on GPS time, tracking distance, moving speed, trackers,

and point of interest (POI).

You can track your location by tapping . You can

also pause, mark a POI ( ) and save your progress

by tapping on the diskette.

Tapping Menu provides additional settings:

•Mode

(adjust data gathering intervals)

• Walk

6-second intervals

• Bicycle

4-second intervals

•Car

2-second intervals

•Format

Saved file format

• Save to path

•Hide

FM radio

The FM radio allows you to listen to your favorite stations while on the move.

Headphones must be inserted to the 3.5 mm jack as it functions as an antenna.

You can access the radio by tapping Radio from the Applications tab. Once the

application is open, turn the radio on by tapping Menu and Turn on. You can now leave

35Multimedia playback

the radio application and use other functions of the smartphone and listen to your

station.

To turn the radio off, return to the radio application

and tap Menu and Turn off.

Other functions are available through the Menu

such as:

•Mute

• Set frequency

•Scan

•Save

• More (Speaker on, RDS, Station list, Send station

info)

Multimedia playback

Your smartphone comes supplied with a variety of programs that you can use

to enjoy multimedia content.

nemoPlayer

Open nemoPlayer from the applications tab to play media you have stored on

your phone.

nemoPlayer enables you to listen to music, view video clips and pictures in the

following formats.

Note: Music recognition technology and related data are provided by Gracenote®.

Gracenote®, Gracenote logo and logotype, and the "Powered by Gracenote" logo are

either a registered trademark or a trademark of Gracenote, Inc. in the United States

and/or other countries.

Spinlets

Spinlets gives you access to your favorite music, movie and television content.

Get your favorite music, photos and videos from your mobile phone and share

your favorite Spinlets on social networks, websites and more.

Note: Some contents may not be available in some countries.

Launching Spinlets

To launch the Spinlets application, tap Spinlets in the applications tab.

Type Formats

Audio playback MP3, AMR, WMA

Ringtone MP3, MIDI, iMelody, WAVE, WMA

Video recording 3GP, MPEG-4, H.263

Video playback 3GP, MPEG-4, H.263, H.264, WMV

Browsing Spinlets gallery

You can sort or search your media content by albums or genres.

Browsing albums

Once Spinlets is opened, you will see a display

of featured albums. Browse this display by

sliding your finger horizontally (left or right),

and select an album by tapping it.

Browsing genres

To browse the Gallery by genre, tap the Genres

button on the bottom left corner of the

screen. You will see a new screen with a list of

different genres. Tap on the genre you wish to

view.

Sort

To sort through Spinlets by Name, Ratings, or

Newest content, select the Sort button at the

bottom of the screen.

To search the Gallery for a specific name, select the Search button at the

bottom right corner of the screen. Type the name of an artist in the search box

and find potential matches.

Exploring Spinlets widgets

When you select an album, you will see a

Spinlet.

To play the featured song, select the red Play

button.

To play selected songs, select the Music tab

and choose which songs you would like to

play.

To view artist photos, select the Photos tab.

To visit the artist's social networks and

websites, select the icons located along the bottom of the screen.

37Multimedia playback

Sharing your Spinlets

You can share your favorite Spinlets in two

ways.

To post the Spinlet you are currently viewing

to your social networks, blogs, or other

websites, tap Share It at the top right corner of

the Spinlet. Select Post it and tap the icon of

the social network site or blog you want to

post the widget to. Log in to your social

network account or blog page and follow the steps.

You can also share Spinlets through email. Tap Share It at the top right corner,

select Send it, and enter your name and your friend’s email address.

Note: Fuhu, Spinlets, Spinlet, urFooz, Fooz Avatars, Fooz Creator, Fooz Card, and Fooz

World are trademarks or registered trademarks of Fuhu, Inc. in the U.S. and/or other

countries.

Adjusting the volume

Adjust the volume of your phone using the volume button on the side of the

phone. Alternatively, you can set the Ringer volume and Media volume by

opening the Applications tab and going to Settings > Sound & display.

Setting the date and time

To set the date and time, open the Applications tab and tap Settings > Date &

time.

Tip: If you travel frequently or live in an area that uses daylight saving time, activate

Automatic from this menu. This will enable your smartphone to set the date and time

based on information it receives from the network.

Setting alarms

There are three predefined alarms on your

phone by default. To edit alarm settings, tap

Alarm clock in the Applications tab. You may:

• Turn the alarm on or off.

• Set the alarm time.

• Set a ringtone.

• Enable or disable vibrate.

• Set which days to repeat the alarm.

• Give it a label.

Changing location and text options

Set your location and language input preferences by opening the Applications

tab and going to Settings > Locale & text.

Managing applications

Warning! Make sure you trust the source of any program you install. If you are not

sure of the source, do not install a program. Installing programs from unknown

sources increases your risk of virus attacks and theft of personal and private data.

You can remove programs installed on your smartphone to free up extra

storage memory. Open the Applications tab and go to Settings > Applications.

Here you can allow programs from Unknown sources to be installed and

Manage applications.

Warning! You should only remove programs if you are familiar with the Android

operating system.

Resetting your smartphone

You may have to perform a reset if your smartphone fails to respond when

buttons are pressed or the screen is tapped.

Note: Before performing a reset, ensure that your smartphone is not locked. Press any

key or tap the screen to see if the phone responds.

Clean boot

A clean boot will restore your smartphone to the factory settings.

Warning! You should only perform a clean boot when all other options have failed to

restore your smartphone to an operational state.

Warning! This will erase all your personal information, any contacts stored on your

phone and any programs you installed.

If your phone is responding to screen input

Open Settings from the Applications tab, then tap Privacy > Factory data reset;

click Reset phone and then Erase everything to format your phone.

If your phone is not responding to screen input

Turn off your phone, then press and hold the Power until you feel your

smartphone vibrate and/or you see the Acer logo screen. Press and hold the

Volume up and Volume down buttons. Use the Volume up button to select

Clean boot:YES. Press the camera button to confirm.

39Using the headset

Chapter 9: Accessories and Tips

This chapter shows you how to use accessories with your smartphone, as well as

provide useful tips for when you are using your smartphone.

Using the headset

Your smartphone comes packaged with a headset with built-in microphone for

handsfree use when making calls.

To use the headset, plug it into the 3.5 mm headphone jack at the top of the

phone.

When the headset is plugged in, all audio is routed to the headset, and the

speakers are turned off.

• To answer an incoming call, press the button on the microphone.

• Adjust the volume using the volume up/down button on the

smartphone.

• End the call by pressing the button again.

Using a Bluetooth headset

Your smartphone’s Bluetooth functions make it fully compatible with all

Bluetooth headsets. This allows you to use the unit handsfree when making

calls, without the inconvenience of wires.

Using your smartphone as a modem

When connected to the PC, your smartphone can function as a modem via GPRS

or 3G connection.

When you insert your SIM card, please ensure the data connection setting is

enabled. Click Settings > Wireless controls > Mobile networks > Data enabled.

Your phone will automatically configure itself to use your provider’s GPRS/3G/

EDGE service.

Note: You may incur additional charges depending on your data plan.

Setting up the modem on your PC

Connect your smartphone to a PC via USB, and do the following steps:

1. Install Acer PC Suite on your PC or notebook.

2. After the installation is complete, click Start > All Programs > Acer > Acer PC

Suite > Acer PC Suite to launch the application.

3. Click Easylink to run Easy link.

4. Click Select Device.

5. Click Refresh in the Select Device window to detect a standard modem port.

Select the port and click Select.

6. Click Connect to start dialing up to data network.

Note: If the connection fails, restart and reconnect your smartphone to your PC, and

then repeat the installation.

Note: Updates are available at the Acer website. Visit http://mobile.acer.com.

Creating a new access point

When you need to add another GPRS/3G/EDGE connection on your phone,

obtain the access point name and settings (including username and password if

required) from your wireless service provider.

1. Open the Applications tab and tap Settings > Wireless controls > Mobile

networks > Access Point Names.

2. Press the Menu button and tap New APN.

3. Enter the APN settings. Tap an item to adjust it.

4. When you have finished press the Menu button and tap Save.

Important: Some providers and countries do not allow the use of a smartphone as a

modem over HSDPA. Please check with your provider before attempting to do so.

Inserting a microSD Card

Your smartphone features a memory expansion slot that accepts a microSD

Card to expand memory and storage capacity.

Please refer to “Installing a SIM and microSD Card“ on page 11 for instructions

on installing a microSD Card.

41FAQ and troubleshooting

Chapter 10: Appendix

FAQ and troubleshooting

This section lists frequently asked questions that may arise during the use of

your smartphone, and gives easy answers and solutions to these questions.

Other sources of help

Refer to:

Aspect Question Answer

Audio Why is there no sound

coming from the

device?

If the headset is plugged into the device,

the speaker is automatically shut off.

Disconnect the headset.

Check that the device volume setting is not

muted.

Check that the volume control is not at its

lowest setting.

Multimedia files Why can’t I view my

picture files?

You may be trying to view an image that is

not supported. Refer to “Multimedia” on

page 47 for more information.

Why can’t I view my

video files?

You may be trying to view a video that is

not supported. Refer to “Multimedia” on

page 47 for more information.

Why can’t I play my

music files?

You may be trying to play a file that is not

supported. Refer to “Multimedia” on

page 47 for more information.

System information

and performance

How do I check the OS

version of my device?

Tap Menu > Settings > About phone to

check the OS version (Kernel/build number)

and other hardware and software

information.

Power I couldn’t turn on the

device.

The battery power may be depleted.

Recharge the device. Refer to “Charging the

battery” on page 10 for more information.

Heat The phone heats up

when charging or

making long duration

calls.

It is normal for the phone to heat up when

charging. When charging is complete, it will

return to its normal temperature.

It is also normal for the phone to heat up

during long periods of use, such as

watching a video or a long phone

conversation.

All Acer phones are factory tested before

release.

For information on:

Up-to-date information regarding

your smartphone

www.acer.com/

http://mobile.acer.com

Service enquiries www.acer.com/support/

Aux ADB

1. Set up the network configuration for the USB Ethernet device:

• IP address: 192.168.239.5

• Subnet mask: 255:255:255:0

2. Add ADBHOST to the PC environment variable.

• Variable name: ADBHOST

• Variable value: 192.168.239.4

3. Connect the smartphone via USB to the PC. Execute the following commands

before running adb.

• adb kill-server

• adb devices

Warnings and precautions

• Do not use this product near water.

• Do not place this product on an unstable cart, stand or table. If the product falls,

it could be seriously damaged.

• Slots and openings are provided for ventilation to ensure reliable operation of

the product and to protect it from overheating. These openings must not be

blocked or covered. The openings should never be blocked by placing the product

on a bed, sofa, rug or other similar surface. This product should never be placed

near or over a radiator or heat register, or in a built-in installation unless proper

ventilation is provided.

• Never push objects of any kind into this product through cabinet slots as they

may touch dangerous voltage points or short-out parts that could result in a fire

or electric shock. Never spill liquid of any kind onto or into the product.

• To avoid damage of internal components and to prevent battery leakage, do not

place the product on a vibrating surface.

• Never use this product when engaging in sporting activities, exercising, or in any

vibrating environment which may cause a short circuit or damage, and even a risk

of explosion from the battery pack.

CAUTION when listening to music

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.

• Do not increase the volume level after your ears have adjusted.

• Do not listen to music at high volumes for extended periods.

• Do not increase the volume to block out noisy surroundings.

• Decrease the volume if you can’t hear people speaking near you.

Battery information

This product uses a Lithium-ion battery. Do not use it in a humid, wet and/or corrosive

environment. Do not put, store or leave your product in or near a heat source, in a high

temperature location, in strong direct sunlight, in a microwave oven or in a pressurized

container, and do not expose it to temperatures over 60 °C (140 °F). Failure to follow

these guidelines may cause the battery to leak acid, become hot, explode or ignite and

cause injury and/or damage. Do not pierce, open or disassemble the battery. If the battery

leaks and you come into contact with the leaked fluids, rinse thoroughly with water and

43Warnings and precautions

seek medical attention immediately. For safety reasons, and to prolong the lifetime of the

battery, charging will not occur at low (below 0 °C/32 °F) or high (over 40 °C/104 °F)

temperatures.

The full performance of a new battery is achieved only after two or three complete

charge and discharge cycles. The battery can be charged and discharged hundreds of

times, but it will eventually wear out. When the talk and standby times are noticeably

shorter than normal, buy a new battery. Use only Acer approved batteries, and recharge

your battery only with Acer approved chargers designated for this device.

Unplug the charger from the electrical plug and the device when not in use. Do not leave

a fully charged battery connected to the ac charger, since overcharging may shorten its

lifetime. If left unused, a fully charged battery will lose its charge over time. If the battery

is completely discharged, it may take a few minutes before the charging indicator

appears on the display or before any calls can be made.

Use the battery only for its intended purpose. Never use any charger or battery that is

damaged.

Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic

object such as a coin, clip, or pen causes direct connection of the positive (+) and negative

(-) terminals of the battery. (These look like metal strips on the battery.) This might

happen, for example, when you carry a spare battery in your pocket or purse. Short-

circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter

conditions, will reduce the capacity and lifetime of the battery. Always try to keep the

battery between 15 °C and 25 °C (59 °F and 77 °F). A device with a hot or cold battery may

not work temporarily, even when the battery is fully charged. Battery performance is

particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire as they may explode. Batteries may also explode if

damaged. Dispose of batteries according to local regulations. Please recycle when

possible. Do not dispose as household waste.

Replacing the battery pack

Your smartphone uses lithium batteries. Replace the battery with the same type as that

which came bundled with your product. Use of another battery may present a risk of fire

or explosion.

Warning! Batteries may explode if not handled properly. Do not disassemble or

dispose of them in fire. Keep them away from children. Follow local regulations when

disposing of used batteries.

Additional safety information

Your device and its enhancements may contain small parts. Keep them out of the reach of

small children.

Operating environment

Warning! For safety reasons, turn off all wireless or radio transmitting devices when

using your smartphone device under the following conditions. These devices may

include, but are not limited to: Bluetooth and/or 3G.

Remember to follow any special regulations in force in any area, and always switch off

your device when its use is prohibited or when it may cause interference or danger. Use

the device only in its normal operating positions. Do not cover the antenna with metal

and you should position the device at the above-stated distance from your body. To

successfully transmit data files or messages, this device requires a good quality connection

to the network. In some cases, transmission of data files or messages may be delayed until

such a connection is available. Ensure that the above separation distance instructions are

followed until the transmission is completed. Parts of the device are magnetic. Metallic

materials may be attracted to the device, and persons with hearing aids should not hold

the device to the ear with the hearing aid. Do not place credit cards or other magnetic

storage media near the device, because information stored on them may be erased.

Medical devices

Operation of any radio transmitting equipment, including wireless phones, may interfere

with the functionality of inadequately protected medical devices. Consult a physician or

the manufacturer of the medical device to determine if they are adequately shielded

from external RF energy or if you have any questions. Switch off your device in health

care facilities when any regulations posted in these areas instruct you to do so. Hospitals

or health care facilities may be using equipment that could be sensitive to external RF

transmissions.

Pacemakers. Pacemaker manufacturers recommend that a minimum separation of 15.3

cm (6") be maintained between wireless devices and a pacemaker to avoid potential

interference with the pacemaker. These recommendations are consistent with the

independent research by and recommendations of Wireless Technology Research. Persons

with pacemakers should do the following:

• Always keep the device more than 15.3 cm (6") from the pacemaker.

• Not carry the device near your pacemaker when the device is switched on. If you

suspect interference, switch off your device, and move it.

Hearing aids. Some digital wireless devices may interfere with some hearing aids. If

interference occurs, consult your service provider.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in

motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock)

braking systems, electronic speed control systems, and air bag systems. For more

information, check with the manufacturer, or its representative, of your vehicle or any

equipment that has been added. Only qualified personnel should service the device, or

install the device in a vehicle. Faulty installation or service may be dangerous and may

invalidate any warranty that may apply to the device. Check regularly that all wireless

equipment in your vehicle is mounted and operating properly. Do not store or carry

flammable liquids, gases, or explosive materials in the same compartment as the device,

its parts, or enhancements. For vehicles equipped with an air bag, remember that air bags

inflate with great force. Do not place objects, including installed or portable wireless

equipment in the area over the air bag or in the air bag deployment area. If in-vehicle

wireless equipment is improperly installed, and the air bag inflates, serious injury could

result. Using your device while flying in aircraft is prohibited. Switch off your device

before boarding an aircraft. The use of wireless teledevices in an aircraft may be

dangerous to the operation of the aircraft, disrupt the wireless telephone network, and

may be illegal.

45Emergency calls

Potentially explosive environments

Switch off your device when in any area with a potentially explosive atmosphere and

obey all signs and instructions. Potentially explosive atmospheres include areas where you

would normally be advised to turn off your vehicle engine. Sparks in such areas could

cause an explosion or fire resulting in bodily injury or even death. Switch off the device at

refueling points such as near gas pumps at service stations. Observe restrictions on the use

of radio equipment in fuel depots, storage, and distribution areas; chemical plants; or

where blasting operations are in progress. Areas with a potentially explosive atmospheres

are often, but not always, clearly marked. They include below deck on boats, chemical

transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or

butane), and areas where the air contains chemicals or particles such as grain, dust or

metal powders.

Follow any restrictions. Do not use the device where blasting is in progress.

Emergency calls

Important: Wireless phones, including this device, operate using radio signals, wireless

networks, landline networks, and user-programmed functions. Because of this,

connections in all conditions cannot be guaranteed. You should never rely solely on any

wireless device for essential communications like medical emergencies.

If certain features are in use, you may first need to turn those features off before you can

make an emergency call. Consult this guide or your service provider for more information.

When making an emergency call, give all the necessary information as accurately as

possible. Your wireless device may be the only means of communication at the scene of

an accident. Do not end the call until given permission to do so.

Disposal and recycling information

Do not throw this electronic device into the trash when discarding.

To minimize pollution and ensure utmost protection of the global

environment, please recycle. For more information on the Waste from Electrical

and Electronics Equipment (WEEE) regulations, visit

www.acer-group.com/public/Sustainability/sustainability01.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display:

Lamp(s) inside this product contain mercury and must be recycled or disposed of

according to local, state or federal laws. For more information, contact the

Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal

information, check www.lamprecycle.org.

Taking care of your smartphone

1. DO take care not to scratch the screen of your smartphone. Keep the screen clean.

When working with your smartphone, use your finger or fingernail. Never use an

actual pen or pencil or other sharp object on the screen surface.

2. DO NOT expose your smartphone to rain or moisture. Do not let water enter

the circuitry through the front panel buttons or expansion slots. In general,

treat your smartphone as you would a mobile phone or other small

electronic device.

3. DO be careful not to drop your smartphone or subject it to any strong

impact. Do not place your smartphone in your back pocket.

4. DO NOT expose your smartphone to extreme temperatures. For example, do not leave

your smartphone on the dashboard of a car on a hot day or when temperatures are

below freezing point. Also, keep it away from heaters and other sources of heat.

5. DO NOT use or store your smartphone in any location that is dusty, damp or

wet.

6. DO use a soft, damp cloth to clean your smartphone. If the surface of the screen

becomes soiled, clean it with a soft cloth moistened with diluted window-cleaning

solution.

7. DO NOT press down on the screen with force, otherwise you may crack the screen.

47Specifications

Specifications

Performance

• ST Ericsson PNX6715, 416 MHz

• System memory:

• 256 MB of SDRAM

• 512 MB of Flash ROM

• Google Android operating system

Display

• 2.6” TFT-LCD resistive touchscreen

• 320 x 240 resolution

• 65K colors support

Multimedia

• CD-quality stereo output

• Mono speaker 0.5 W (max)

• Omni-directional microphone

• Formats supported

USB connector

• Micro USB connector

• USB Client

• DC power-in (5 V, 1 A)

Connectivity

• Bluetooth 2.0+EDR

• IEEE Wi-Fi 802.11 b/g WLAN

• GSM 850 / 900 / 1800 / 1900

• UMTS 900 / 2100 (EU models)

• UMTS 850 / 1900 (US models)

• HSDPA / GPRS / EDGE

Camera

• 3-megapixel EDOF

Expansion

• microSD memory card (up to 32 GB)

Type Formats

Audio playback MP3, AMR, WMA

Ringtone AMR, AAC/AAC+/EAAC+, MP3, MIDI, WAV

Video recording 3GP, MPEG-4, H.263

Video playback MPEG-4, H.263, H.264

GPS

•Built-in GPS

• Supports AGPS

Battery

• High density, rechargeable 1500 mAh Lithium-Ion battery (replaceable)

Note: Length of battery operation will depend on power consumption which is based

on system resource use. For example, constantly using the backlight or using power-

demanding applications will shorten battery life between charges.

Dimensions

Height 115 mm

Width 63 mm

Thickness 11.5 mm

Weight <109 g (with battery)

49Regulatory information

Regulatory information

Compliant with Russian regulatory certification

RoHS compliance

This product is in compliance with Directive 2002/95/EC of the European Parliament and

of the Council of 27 January 2003, on the restriction of the use of certain hazardous

substances in electrical and electronic equipment (RoHS) and its amendments.

LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques. Nevertheless,

some pixels may occasionally misfire or appear as black or red dots. This has no effect on

the recorded image and does not constitute a malfunction.

Radio device regulatory notice

Note: Regulatory information below is for models with wireless LAN and/or Bluetooth

only.

General

This product complies with the radio frequency and safety standards of any country or

region in which it has been approved for wireless use. Depending on configuration, this

product may or may not contain wireless radio devices (such as wireless LAN and/or

Bluetooth modules). Information below is for products with such devices.

Preventing hearing loss

Caution: Permanent hearing loss may occur if earphones or headphones are used at

high volume for prolonged periods of time.

This device has been tested to comply with the Sound Pressure Level requirement laid down

in the applicable EN 50332-1 and/or EN 50332-2 standards.

Note: For France, mobile headphones or earphones for this device have

been tested to comply with the Sound Pressure requirement laid done in the

applicable NF EN 50332-1:2000 and/or NF EN 50332-2:2003 standards as

required by French Article L. 5232-1.

Wireless operation channels for different domains

France: Restricted wireless frequency bands

Some areas of France have a restricted frequency band. The worst case maximum

authorized power indoors is:

N. America 2.412-2.462 GHz Ch01 through Ch11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

• 10 mW for the entire 2.4 GHz band (2400 MHz - 2483.5 MHz)

• 100 mW for frequencies between 2446.5 MHz and 2483.5 MHz

Note: Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5

MHz.

There are few possibilities for outdoor use: On private property or on the private

property of public persons, use is subject to a preliminary authorization procedure by the

Ministry of Defense, with maximum authorized power of 100 mW in the 2446.5 - 2483.5

MHz band. Use outdoors on public property is not permitted.

In the departments listed below, for the entire 2.4 GHz band:

• Maximum authorized power indoors is 100 mW

• Maximum authorized power outdoors is 10 mW

Departments in which the use of the 2400 - 2483.5 MHz band is permitted with an EIRP of

less than 100 mW indoors and less than 10 mW outdoors:

This requirement is likely to change over time, allowing you to use your wireless LAN card

in more areas within France.

Please check with ART for the latest information (www.art-telecom.fr).

Note: Your WLAN Card transmits less than 100 mW, but more than 10 mW.

List of National Codes

This equipment may be operated in the following countries:

Country

Austria

Belgium

Cyprus

Czech Republic

Denmark

Estonia

Finland

France

Germany

Greece

Hungary

Ireland

Italy

Latvia

Lithuania

Luxembourg

ISO 3166 (2 letter code)

Country

Malta

Netherlands

Poland

Portugal

Slovakia

Slovenia

Spain

Sweden

United Kingdom

Iceland

Liechtenstein

Norway

Switzerland

Bulgaria

Romania

Turkey

ISO 3166 (2 letter code)

01 Ain Orientales

02 Aisne

03 Allier

05 Hautes Alpes

08 Ardennes

09 Ariege

11 Aude

12 Aveyron

16 Charente

24 Dordogne

25 Doubs

26 Drome

32 Gers

36 Indre

37 Indre et Loire

41 Loir et Cher

45 Loret

50 Manche

55 Meuse

58 Nievre

59 Nord

60 Oise

61 Orne

63 Puy Du Dome

64 Pyrenees Atlantique

66 Pyrenees

67 Bas Rhin

68 Haut Rhin

70 Haute Saone

71 Saone et Loire

75 Paris

82 Tarn et Garonne

84 Vaucluse

88 Vosges

89 Yonne

90 Territoire de Belfort

94 Val de Marne

51Regulatory information

FCC regulations

This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause

undesired operation.

This mobile phone has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiated radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

RF exposure warning

The equipment complies with FCC RF exposure limits set forth for an uncontrolled

environment.

The antenna(s) used for this transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

RF exposure information (SAR)

This mobile phone meets the government's requirements for exposure to radio waves.

This phone is designed and manufactured not to exceed the emission limits for exposure

to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.

Government.

The exposure standard for wireless mobile phones employs a unit of measurement known

as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.

Tests for SAR are conducted using standard operating positions accepted by the FCC with

the phone transmitting at its highest certified power level in all tested frequency bands.

Although the SAR is determined at the highest certified power level, the actual SAR level

of the phone while operating can be well below the maximum value. This is because the

phone is designed to operate at multiple power levels so as to use only the poser required

to reach the network. In general, the closer you are to a wireless base station antenna,

the lower the power output.

The highest SAR value for US model phones as reported to the FCC when tested for use at

the ear is 0.818 W/kg and when worn on the body, as described in this user guide,

is 0.827 W/kg.

Important: Body-worn measurements differ among phone models, depending upon

available enhancements and FCC requirements.

While there may be differences between the SAR levels of various phones and at various

positions, they all meet the government requirements.

The FCC has granted an Equipment Authorization for this model phone with all reported

SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR

information on this model phone is on file with the FCC and can be found under the

Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: HZLDME130

(for US models).

For body worn operation, this phone has been tested and meets the FCC RF exposure

guidelines for use with accessories that contain no metal and that position the handset a

minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance

with FCC RF exposure guidelines. If you do not use a body-worn accessory and are not

holding the phone at the ear, position the handset a minimum of 1.5 cm from your body

when the phone is switched on.

Using your phone with a hearing aid device (US models)

Your device is compliant with the FCC Hearing Aid Compatibility (HAC) requirements.

When some wireless phones are used near some hearing devices (hearing aids and

cochlear implants) users may detect a buzzing, humming, or whining noise. Some hearing

devices are more immune than others to this interference noise, and phones also vary in

the amount of interference they generate. The wireless telephone industry has developed

ratings for some of their mobile phones, to assist hearing-device users in finding phones

that may be compatible with their hearing devices. Not all phones have been rated.

Phones that have been rated have a label on the box. Your device has been tested for

hearing aid device compatibility and has an M3 and/or T3 rating.

These ratings are not guarantees. Results will vary, depending on the level of immunity of

your hearing device and the degree of your hearing loss. If your hearing device happens

to be vulnerable to interference, you may not be able to use a rated phone successfully.

Trying out the phone with your hearing device is the best way to evaluate it for your

personal needs.

M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less

interference with hearing devices than phones that are not labeled. M4 is the better/

higher of the two ratings.

T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable

with a hearing device's telecoil ("T Switch" or "Telephone Switch") than unrated phones.

T4 is the better/higher of the two ratings.

Important: This device does not support VoIP. WLAN and Bluetooth do not have voice

capability for held-to-the-ear phone service.

Note: Not all hearing devices contain telecoils.

The more immune your hearing aid device is, the less likely you are to experience

interference noise from your wireless phone. Hearing aid devices should have ratings

53Regulatory information

similar to those of phones. Ask your hearing health-care professional for the rating of

your hearing aid.

Hearing devices may also be measured for immunity to this type of interference. Your

hearing device manufacturer or hearing health professional may help you find results for

your hearing device. The more immune your hearing aid is, the less likely you are to

experience interference noise from wireless devices.

For additional information about the FCC's actions with regard to hearing aid compatible

wireless devices and other steps the FCC has taken to ensure that individuals with

disabilities have access to telecommunications services, please go to

www.fcc.gov/cgb/dro.

Turning on Hearing Aid Compatibility mode

To turn on HAC, open the Applications menu and tap Settings > Call settings > Hearing

aids.

For Canadian users

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that

may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

This Category II radiocommunication device complies with Industry Canada Standard RSS-

310.

Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310

d'Industrie Canada.

Important note

IC radiation exposure statement

This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC

RSS-102 and had been tested in accordance with the measurement methods and

procedures specified in IEEE 1528. This equipment should be installed and operated with

minimum distance 1.5cm between the radiator and your body.

This device and its antenna(s) must not be co-located or operating in conjunction with

any other antenna or transmitter.

Note: The county code selection feature is disabled for products marketed in the US/Canada.

Certificate Information (SAR)

This device meets the EU requirements (1999/519/EC) on the limitation of exposure of the

general public to electromagnetic fields by way of health protection.

The limits are part of extensive recommendations for the protection of the general

public. These recommendations have been developed and checked by independent

scientific organizations through regular and thorough evaluations of scientific studies. To

guarantee the safety of all persons, regardless of age and health, the limits include a

significant safety buffer.

Before radio devices can be put in circulation, their agreement with European laws or

limits must be confirmed; only then may the CE symbol be applied.

The unit of measurement for the European Council's recommended limit for mobile

telephones is the "Specific Absorption Rate" (SAR). This SAR limit is 2.0 W/kg, averaged

over 10 g of body tissue. It meets the requirements of the International Commission on

Non-Ionizing Radiation Protection (ICNIRP) and was included in the European Standard

EN 50360 for mobile radio devices. The SAR regulation for mobile telephones is in line

with European Standard EN 62209-1. The maximum SAR value is calculated at the highest

output level in all frequency bands of the mobile telephone. During use, the actual SAR

level is usually much lower than the maximum value, because the mobile telephone

works in different output levels. It only transmits with as much output as is required to

reach the network. In general the following applies: The closer you are to a base station,

the lower the transmission output of your mobile telephone. The tested SAR of this

device is as follows:

NCC warning

䄺䁲

㍧ൟᓣ䁡䄝ড়ḐПԢࡳ⥛ᇘ丏䳏″Δ䴲㍧䀅ৃΔ݀ৌΕଚ㰳៪Փ⫼㗙ഛϡᕫ᪙㞾䅞᳈丏⥛Δࡴ໻ࡳ⥛៪

䅞᳈ॳ䀁㿜П⡍ᗻঞࡳ㛑Ԣࡳ⥛ᇘ丏䳏″ПՓ⫼ϡᕫᕅ䷓亯㟾ᕅ䷓ᅝܼঞᑆ᫒ড়⊩䗮ֵΔ㍧ⱐ⧒᳝ᑆ

᫒⧒䈵ᰖΔឝゟेذ⫼ΔϺᬍ୘㟇⛵ᑆ᫒ᰖᮍᕫ㑐㑠Փ⫼ࠡ䷙ড়⊩䗮ֵΔᣛϔ䳏ֵ⊩㽣ᅮ԰ὁП⛵㎮

䳏䗮ֵԢࡳ⥛ᇘ丏䳏″䳔ᖡফড়⊩䗮ֵ៪ᎹὁΔ⾥ᅌঞ䝿Ⱆ⫼䳏⊶䔏ᇘᗻ䳏″䀁٭Пᑆ᫒Δ⏯ᇥ䳏⺕⊶

ᕅ䷓Δ䂟ཹ䘽Փ⫼

Lithium-ion battery warning

CE NCC

Head (W/kg 10g) Body (W/kg 10g) Head (W/kg 10g) Body (W/kg 10g)

0.478 0.419 0.478 N/A

ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo

errato. Sostituire la batteria con un una di tipo uguale o equivalente

consigliata dalla fabbrica. Non disperdere le batterie nell’ambiente.

VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der Batterie.

Ersatz nur durch denselben oder einem vom Hersteller empfohlenem

ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des

Herstellers.

ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering.

Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det

brugte batteri tilbage til leverandøren.

VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma

batterityp eller en ekvivalent typ som rekommenderas av

apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda

paristo ainoastaan laitevalmistajan sousittelemaan tyyppiin. Hävitä käytetty

paristo valmistagan ohjeiden mukaisesti.

ATTENTION ! Il y a danger d’explosion s’il y a remplacement incorrect de la

batterie. Remplacer uniquement avec une batterie du mêre type ou d’ un

type équivalent recommandé par le constructeur. Mettre au rebut les

batteries usagées conformément aux instructions du fabricant.

ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme

batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte

batterier kasseres i henhold til fabrikantens instruksjoner.

Acer Incorporated

Date: June 15, 2010

Declaration of Conformity

We, Acer Incorporated,

of 8F., No. 88, Sec. 1, Hsin Tai Wu Rd. Hsichih Taipei Hsien 221, Taiwan

Declare under sole responsibility that the product:

Model: E130

Description: Smart HandHeld

To which this declaration relates, is in conformity with the following standards and/ or other

normative documents:

zEN 301 511 V9.0.2

zEN 300 328 V1.7.1

zEN 301 908-1/ -2 V3.2.1

zEN 300 440-1 V1.5.1/ EN300 440-2 V1.3.1

zEN 301 489-1 V1.8.1/ -3 V1.4.1/ -7 V1.3.1/ -17 V2.1.1/ -24 V.1.4.1

zEN 55022:2006/A1:2007 Class B; EN 55024:1998/A1:2001/A2:2003

zEN 55013:2001/A1:2003/A2:2006;

zEN 60950-1: 2006+A11:2009

zEN 50332-1:2000/ -2: 2003

zEN 50360:2001/ EN 62209-1:2006/ EN62311:2008/ OET65C

We hereby declare that the above named product is in conformance to all the essential requirements

of the R&TTE Directive (99/5/EC) issued by the Commission of the European Community.

The conformity assessment procedure referred to in Article 10 and detailed in Annex [IV] of

directive 1999/5/EC has been followed related to Articles

z R&TTE Article 3.1 (a) Health and Safety

z R&TTE Article 3.1 (b) EMC

z R&TTE Article 3.2 Spectrum Usage

with the involvement of the following Notified Body:

CETECOM, Untertuerkheimer Str. 6 – 10 66117 Saarbruecken

Identification mark: 0682 (Notified Body) CE

The technical documentation relevant to the above equipment will be held at:

Acer Incorporated

8F., No. 88, Sec. 1, Hsin Tai Wu Rd. Hsichih Taipei Hsien 221, Taiwan

Authorized Person:

_________________

Name: Harriot S.L. Lee

battery

charging ............................................ 10

information ....................................... 48

Bluetooth

connections ....................................... 31

headset .............................................. 39

call history .............................................. 18

calls

answering ......................................... 19

ending ............................................... 19

onscreen options .............................. 19

rejecting ............................................ 19

camera

icons and indicators .......................... 27

information ....................................... 47

shooting a video ............................... 28

supported formats ............................ 28

taking a photo .................................. 28

conference calls ..................................... 20

connectivity ............................................ 47

contacts

adding ............................................... 17

making calls to a contact ................. 19

saving a dialed number .................... 20

display .................................................... 47

email ....................................................... 25

FAQs ....................................................... 41

FM radio ................................................. 34

Google .................................................... 12

GPS tracker ............................................. 34

help

sources ............................................... 41

international numbers ........................... 19

LED indicators .......................................... 9

managing your calendar ....................... 33

MMS messages ....................................... 22

performance ........................................... 47

phone

connections .......................................31

settings .............................................. 31

QWERTY keyboard ................................ 13

safety regulations .................................. 42

speakerphone ........................................ 19

spinlets .................................................... 35

troubleshooting ..................................... 41

turning on .............................................. 12

urFooz ..................................................... 32

USB connector ........................................ 47

voice calls

the voice call screen .......................... 19

voice search ............................................ 24

volume

adjusting ............................................ 37

Acer orporated DME130 SMART HANDHELD User Manual Acer E130 UM EN

Acer Incorporated SMART HANDHELD Acer E130 UM EN

Users Manual 1

Navigation menu

Namespaces

Views

Navigation
