Acer orporated DME310SC Smart Handheld User Manual
Acer Incorporated Smart Handheld
Manual
Acer Liquid Mini E310
User Guide
© 2010 All Rights Reserved
Acer Liquid Mini E310 User Guide
First issue: 12/2010
Acer Liquid Mini E310 Smartphone
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
![](/img.php?id=1403400&img=bg3.png)
3
Table of Contents
End User License Agreement
Features and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Product registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Setting Up
Unpacking your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Getting to know your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Installing or removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Installing a SIM or microSD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Using your Smartphone
Turning on for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Locking your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
The onscreen keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
The home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Managing contacts
Managing your contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Making Calls
Before making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
The voice call screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Voice call options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Messaging
Creating a new message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Replying to a message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MMS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Going online

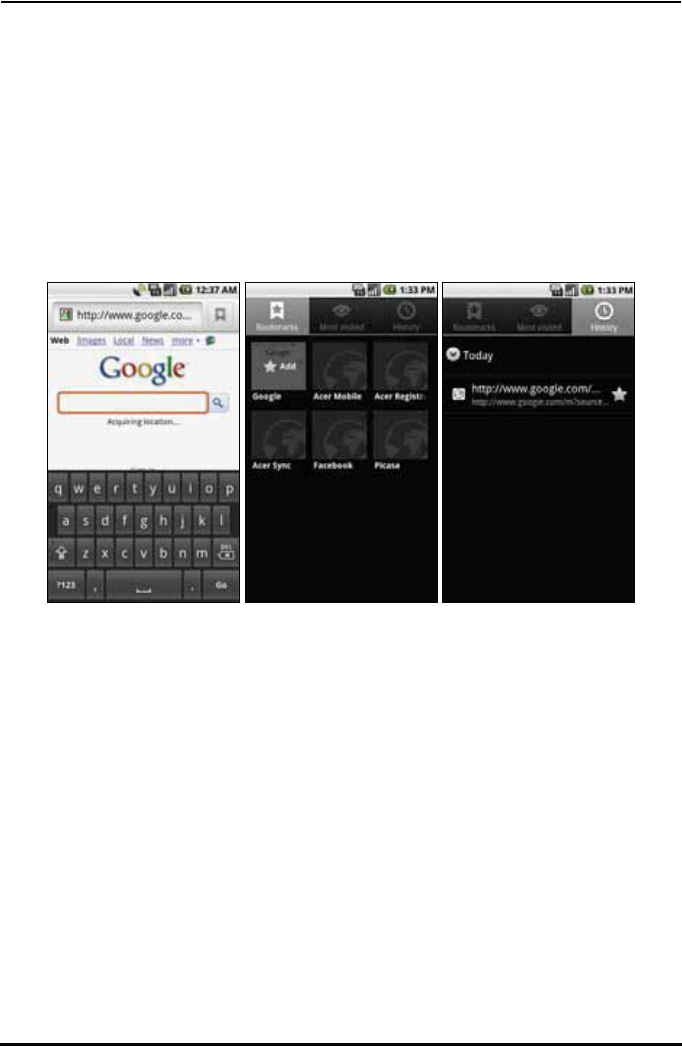

Browsing the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Setting up your Google email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Composing an email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Setting up Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Online applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Acer SocialJogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
![](/img.php?id=1403400&img=bg4.png)
4
Using the Camera
Camera icons and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Taking a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Shooting a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Viewing photos and videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Advanced Settings
Putting your smartphone in Airplane mode . . . . . . . . . . . . . . . . . . . . . . . . .40
Activating or deactivating connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Adjusting connection settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Phone settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Connecting to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Multimedia playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Updating your phone’s operating system . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Reset to factory defaults (clean boot) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Accessories and Tips
Using the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Using a Bluetooth headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Inserting a microSD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Appendix
FAQ and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Other sources of help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Warnings and precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Disposal and recycling information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Taking care of your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Regulatory information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
![](/img.php?id=1403400&img=bg5.png)
5
End User License Agreement
IMPORTANT-READ CAREFULLY: THIS END USER LICENSE AGREEMENT ("AGREEMENT") IS A LEGAL AGREEMENT BETWEEN
YOU (EITHER AN INDIVIDUAL OR A SINGLE ENTITY), AND ACER INC. INCLUDING ITS SUBSIDIARIES ("ACER") FOR THE
SOFTWARE (WHETHER PROVIDED BY ACER OR BY ACER'S LICENSORS OR SUPPLIERS) THAT ACCOMPANIES THIS
AGREEMENT, INCLUDING ANY ASSOCIATED MEDIA, PRINTED MATERIALS AND RELATED USER ELECTRONIC
DOCUMENTATION WHICH MAY BE BRANDED "ACER" ("SOFTWARE"). AGREEMENTS RELATING TO ANY OTHER PRODUCT
OR TOPIC ARE NEITHER INTENDED NOR SHOULD THEY BE IMPLIED. BY INSTALLING THE ACCOMPANYING SOFTWARE OR
ANY PORTION THEREOF, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO
NOT AGREE TO ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT CONTINUE THE INSTALLATION
PROCESS AND IMMEDIATELY DELETE ALL INSTALLED FILES, IF ANY, OF THE ACCOMPANYING SOFTWARE FROM YOUR
PHONE.
IF YOU DO NOT HAVE A VALIDLY-LICENSED COPY OF THE APPLICABLE SOFTWARE, YOU ARE NOT AUTHORIZED TO
INSTALL, COPY OR OTHERWISE USE THE SOFTWARE, AND HAVE NO RIGHTS UNDER THIS AGREEMENT.
The Software is protected by U.S. and international copyright laws and conventions as well as other intellectual property
laws and treaties. The Software is licensed, not sold.
GRANT OF LICENSE
Acer grants to you the following non-exclusive and non-transferable rights with respect to the Software. Under this
Agreement, you may:
1. Install and use the Software only on a single designated phone. A separate license is required for each phone on
which the Software will be used;
2. Make one copy of the Software solely for backup or archival purposes;
3. Make one hardcopy of any electronic documents included in the Software, provided that you receive the
documents electronically.
RESTRICTIONS
You may NOT:
1. Use or copy the Software except as provided in this Agreement;
2. Rent or lease the Software to any third party;
3. Modify, adapt, or translate the Software in whole or in part;
4. Reverse engineer, decompile, or disassemble the Software or create derivative works based upon the Software;
5. Merge the Software with any other program or modify the Software, except for your personal use; and
6. Sublicense or otherwise make the Software available to third parties, except that you may, after prior written
notification to Acer, transfer the Software as a whole to a third party so long as you do not retain any copies of the
Software and such third party accepts the terms of this Agreement.
7. Transfer your rights under this Agreement to any third parties.
8. Export the Software in contravention of applicable export laws and regulations, or (i) sell, export, re-export,
transfer, divert, disclose technical data, or dispose of, any Software to any prohibited person, entity, or destination
including, without limitation, Cuba, Iran, North Korea, Sudan and Syria; or (ii) use any Software for any use
prohibited by the laws or regulations of the United States.
SUPPORT SERVICES
Acer is not obligated to provide technical or other support for the Software.
ACER LIVE UPDATE
Certain of the software contains elements that enable the use of the Acer Live Update service, which allows for updates
for such software to be automatically downloaded and installed on your phone. By installing the software, you hereby
agree and consent that Acer (or its licensors) may automatically check the version of such software that you are using on
your phone and may provide upgrades to such software that may be automatically downloaded on to your phone.
OWNERSHIP AND COPYRIGHT
Title, ownership rights and intellectual property rights in and to the Software and all copies thereof shall remain with Acer
or Acer's licensors or suppliers (as applicable). You do not have or shall not gain any proprietary interest in the Software
(including any modifications or copies made by or for you) or any related intellectual property rights. Title and related
rights in the content accessed through the Software is the property of the applicable content owner and may be protected
by applicable law. This license gives you no rights to such contents. You hereby agree
1. Not to remove any copyright or other proprietary notices from the Software;
2. To reproduce all such notices on any authorized copies you make; and
3. To use best efforts to prevent any unauthorized copying of the Software.
TRADEMARKS
This Agreement does not grant to you any rights in connection with any trademarks or service marks of Acer or of Acer's
licensors or suppliers.
DISCLAIMER OF WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ACER, ITS SUPPLIERS, AND ITS LICENSORS, PROVIDE THE
SOFTWARE "AS IS" AND WITH ALL FAULTS, AND HEREBY DISCLAIM ALL OTHER WARRANTIES AND CONDITIONS, EITHER
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES, DUTIES OR
CONDITIONS OF MERCHANTABILITY, OF FITNESS FOR A PARTICULAR PURPOSE, OF ACCURACY OR COMPLETENESS OF
RESPONSES, OF RESULTS, OF WORKMANLIKE EFFORT, OF LACK OF VIRUSES, AND OF LACK OF NEGLIGENCE, ALL WITH
REGARD TO THE SOFTWARE AND THE PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES. ALSO, THERE IS NO
![](/img.php?id=1403400&img=bg6.png)
6
WARRANTY OR CONDITION OF TITLE, QUIET ENJOYMENT, QUIET POSSESSION, CORRESPONDENCE TO DESCRIPTION OR
NON-INFRINGEMENT WITH REGARD TO THE SOFTWARE.
EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACER, ACER'S SUPPLIERS, OR ACER'S
LICENSORS, BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, PUNITIVE, OR CONSEQUENTIAL DAMAGES
WHATSOEVER (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS OR CONFIDENTIAL OR OTHER
INFORMATION, FOR BUSINESS INTERRUPTION, FOR PERSONAL INJURY, FOR LOSS OF PRIVACY, FOR FAILURE TO MEET ANY
DUTY INCLUDING OF GOOD FAITH OR OF REASONABLE CARE, FOR NEGLIGENCE, AND FOR ANY OTHER PECUNIARY OR
OTHER LOSS WHATSOEVER) ARISING OUT OF OR IN ANY WAY RELATED TO THE USE OF OR INABILITY TO USE THE
SOFTWARE, THE PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES, OR OTHERWISE UNDER OR IN CONNECTION
WITH ANY PROVISION OF THIS AGREEMENT, EVEN IN THE EVENT OF THE FAULT, TORT (INCLUDING NEGLIGENCE), STRICT
LIABILITY, BREACH OF CONTRACT OR BREACH OF WARRANTY OF ACER OR ITS SUPPLIERS OR LICENSORS, AND EVEN IF
ACER AND ITS SUPPLIERS AND LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
LIMITATION OF LIABILITY AND REMEDIES
NOTWITHSTANDING ANY DAMAGES THAT YOU MIGHT INCUR FOR ANY REASON WHATSOEVER (INCLUDING, WITHOUT
LIMITATION, ALL DAMAGES REFERENCED ABOVE AND ALL DIRECT OR GENERAL DAMAGES), THE ENTIRE LIABILITY OF
ACER, ITS SUPPLIERS, AND ITS LICENSORS, UNDER ANY PROVISION OF THIS AGREEMENT, AND YOUR EXCLUSIVE REMEDY
FOR ALL OF THE FOREGOING, SHALL BE LIMITED TO THE AGGREGATE AMOUNT PAID BY YOU FOR THE SOFTWARE. THE
FOREGOING LIMITATIONS, EXCLUSIONS AND DISCLAIMERS (INCLUDING DISCLAIMER OF WARRANTIES AND EXCLUSION OF
INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES ABOVE) SHALL APPLY TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE; PROVIDED, HOWEVER, THAT
BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OR LIABILITY FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
TERMINATION
Without prejudice to any other rights, Acer may immediately terminate this Agreement without notice if you fail to
comply with any terms and conditions of this Agreement.
In such event, you must:
1. Cease all use of the Software;
2. Destroy or return to Acer the original and all copies of the Software; and
3. Delete the Software from all phones on which it was resident.
All disclaimers of warranties and limitation of liability set forth in this Agreement shall survive termination of this
Agreement.
GENERAL
This Agreement represents the complete agreement between you and Acer relating to this license for the Software and
supersedes all prior agreements, communications, proposals and representations between the parties and prevails over
any conflicting or additional terms of any quote, order, acknowledgement or similar communication. This Agreement may
only be modified by a written document signed by both parties. If any provision of this Agreement is held by a court of
competent jurisdiction to be contrary to law that provision will be enforced to the maximum extent permissible and the
remaining provisions of this Agreement will remain in full force and effect.
ADDITIONAL PROVISIONS APPLICABLE TO THIRD PARTY SOFTWARE AND SERVICES
Software provided hereunder by Acer's licensors or suppliers ("Third Party Software") is made available to you for your
personal, non-commercial use only. You may not use the Third Party Software in any manner that could damage, disable,
overburden, or impair the services provided by Acer's licensors or suppliers hereunder ("Third Party Services").
Furthermore, you may not use the Third Party Software in any manner that could interfere with any other party's use and
enjoyment of the Third Party Services, or the services and products of Acer's licensors' or suppliers' third party licensors.
Your use of the Third Party Software and Third Party Services is also subject to additional terms and conditions and policies
which can be accessed through our global website.
Privacy policy
During registration you will be asked to submit some information to Acer. Please refer to Acer’s privacy policy at h
h
ttp://
www.acer.com or your local Acer website.
![](/img.php?id=1403400&img=bg7.png)
7Features and functions
Getting to know your smartphone
Features and functions
Your new smartphone offers leading, easy-to-access multimedia and
entertainment features. You can:
• Access your email while on the move.
• Connect to the Internet at high speed, via HSDPA (7.2 Mbps), HSUPA (2
Mbps) or Wi-Fi.
• Keep in touch with your friends via your Contacts and social networking
applications.
Product registration
When using your product for the first time, it is recommended that you
immediately register it. This will give you access to some useful benefits, such
as:
• Faster service from our trained representatives.
• Membership in the Acer community: receive promotions and participate
in customer surveys.
• The latest news from Acer.
Hurry and register, as other advantages await you!
How to register
To register your Acer product, please visit m
m
obile.acer.com/. Click P
P
RODUCT
REGISTRATION and follow the simple instructions.
You can also register directly from your smartphone by tapping the
Registration icon.
After we receive your product registration, you will be sent a confirmation
email with important data that you should keep in a safe place.
![](/img.php?id=1403400&img=bg8.png)
8Unpacking your smartphone
Setting Up
Unpacking your smartphone
Your new smartphone comes packed in a protective box. Carefully unpack the
box and remove the contents. If any of the following items is missing or
damaged, contact your dealer immediately:
• Acer Liquid Mini E310 Smartphone
• Battery
• Quick Guide
• USB cable
• AC adapter
• Headset
Getting to know your smartphone
Views
No. Item Description
1 Power button Press to turn the screen on/off or enter sleep mode;
press and hold to turn the smartphone off.
2 3.5 mm headphone jack Connect to stereo headphones.
3 Phone speaker Emits audio from your smartphone; suitable for
holding to your ear.
4 Charge indicator Indicates battery charge status.
5 Touchscreen 3.2-inch, 320 x 480 pixel capacitive touchscreen to
display data, phone content and enter information.
6 Home button Return to the Home screen; press and hold to view
recently-used applications, tap an icon to open the
associated program.
5
67 89
12
3
4
10
13
14
15
11
12
![](/img.php?id=1403400&img=bg9.png)
9Getting to know your smartphone
LED indicators
Charge indicator:
7 Search button Open the Google search function.
8 Back button Go back one menu step; close the keyboard.
9 Menu button Open the option menu; press and hold to display the
keyboard.
10 Volume up/down buttons Increase or decrease the phone volume.
11 Camera button Activate the camera or take a picture.
12 Micro USB connector Connect to a USB cable/charger.
13 Microphone Internal microphone.
14 Handsfree speaker Emits audio from your smartphone; suitable for
handsfree use.
15 Camera A 5-megapixel camera for taking high-resolution
images.
LED state Description
Off Normal status.
Constantly on Battery is fully charged and the device is plugged in.
Slow flashing Device plugged in: Battery is charging.
Device unplugged: Battery is low and should be charged.
Fast flashing Battery is critically low and needs to be charged urgently.
No. Item Description
![](/img.php?id=1403400&img=bga.png)
10Installing or removing the battery
Installing or removing the battery
Your smartphone uses a replaceable battery to provide power. It is packed
separately from your smartphone and needs to be inserted and charged before
you can use the smartphone.
Installing the battery
12
Insert your fingernail into the cutout between
the battery cover and the phone. Unclip the
cover and lift off the battery cover.
Place the battery into the battery compartment,
lining up the battery connectors with those at
the bottom of the compartment.
Align the tabs on the cover into the slots on the
phone. Gently press the cover until it snaps in
place.
C
C
AUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Charging the battery
For initial use, you need to charge your smartphone for eight hours. After that
you can recharge the battery as needed.
Connect the AC adapter cord to the micro USB connector on your smartphone.
Removing the battery
1
2
Open the battery compartment as shown in
“
“
Installing the battery“ on page 10. Lift the battery
out of the compartment using the clip on the top of
the battery.
Replace the battery cover as described above.
![](/img.php?id=1403400&img=bgb.png)
11Installing a SIM or microSD Card
Installing a SIM or microSD Card
To take full advantage of your smartphone’s telephony capabilities, you must
install a SIM card. The SIM card holder is located at the bottom of the battery
bay.
Additionally, you may wish to increase your smartphone’s storage by inserting a
microSD Card into the slot provided. This is next to the SIM card slot.
1. Turn off the phone by pressing and holding the power button.
2. Open the cover and remove the battery as
described in “
“
Removing the battery“ on
page 10.
3. Insert the SIM or microSD Card as shown.
4. Replace the battery and battery cover.
Note: Ensure that the microSD Card is inserted all the way into the card slot.
SIM card lock
Your smartphone may come with a SIM card lock, i.e., you will only be able to
use the SIM card provided by your network operator.
To cancel the SIM lock, contact your network provider.
![](/img.php?id=1403400&img=bgc.png)
12Turning on for the first time
Using your Smartphone
Turning on for the first time
To turn on your smartphone for the first time, press and hold the power button
until the screen turns on. You will then be asked to configure some settings
before you can use your smartphone.
To start, tap to select your language, then tap the green android on the next
screen. Follow the rest of the instructions as they are displayed.
Sign in to or create a Google account
If you have Internet access, your smartphone allows you to synchronize
information with a google account.
During the start-up process, you may create or sign in to your account, which
will be used to synchronize your contact list, email, calendar and other
information. If you do not yet have Internet access, or do not want to use this
feature, then tap S
S
kip.
Creating multiple Google accounts
You can create and easily access multiple Google accounts. Tap S
S
ettings >
Accounts & sync settings > Add account.
Activating a new SIM card
If you are using your SIM card for the first time, it may require activation.
Contact your network operator for details on how to do this.
Entering your PIN
When you install a SIM card for the first time, you may need to enter a PIN
using the onscreen number pad.
Important: Depending on your settings, you may be required to enter your PIN each
time you switch on the phone function.
Locking your smartphone
If you will not use your smartphone for a while, briefly press the power button
to lock access. This saves power and ensures your smartphone does not
unintentionally use any services. Your smartphone will lock automatically if it is
not used after a while. To set the delay, tap M
M
enu > S
S
ettings > D
D
isplay > S
S
creen
timeout.
![](/img.php?id=1403400&img=bgd.png)
13Using the touchscreen
Waking your smartphone
If the screen is off and the smartphone does not react to any taps on the screen,
then it has been locked and is in sleep mode.
To wake your smartphone, press the power button.
Your smartphone will display the lock screen. Tap and
drag starting from the bottom left corner to peel the
screen and unlock the smartphone.
For additional security, you may set a screen lock
pattern, a set of dots that must be tapped in the
correct order to access the phone. Open the
applications menu and tap S
S
ettings > L
L
ocation &
security > Set up screen lock.
Note: If you forget your unlock pattern, please refer to “
“
Unlock pattern“ on page 51.
Using the touchscreen
Your smartphone uses a touchscreen for selecting items and entering
information. Use your finger to tap the screen.
Tap: Touch the screen once to open items and select options.
Drag: Hold your finger on the screen and drag across the screen to select text
and images.
Tap and hold: Tap and hold an item to see a list of actions available for that
item. On the pop-up menu that appears, tap the action you want to perform.
Scroll: To scroll up or down the screen, simply drag your finger up or down the
screen in the direction that you want to scroll.
The onscreen keyboard
When you tap a text box to enter text, an onscreen keyboard will appear.
Simply tap on keys to enter text. If you require a larger keyboard, turn your
smartphone 90 degrees to the left to use landscape mode.
The layout of the keyboard varies slightly, depending on the application and
information that is required.
Changing the text input method
To change the input method, tap and hold a text box, then select I
I
nput
method. This will open a menu listing the text input methods available on your
phone. Tap your preferred input method. Typically two options are available:
XT9 Text input and A
A
ndroid Keyboard.
![](/img.php?id=1403400&img=bge.png)
14The onscreen keyboard
Predictive text
Both XT9 Text Input and Android keyboard provide a keyboard with predictive
text. As you tap the letters of the word, a selection of words are displayed
above the keyboard that would continue the sequence of letters tapped, or are
a close match allowing for errors. The word list changes after every key press. If
the word you need is displayed, you can tap on it to insert it into your text.
XT9 Text Input
The XT9 Text Input keyboard has various features that
assist you to enter correct text.
Tap the ?
?
123 button to see numbers and special
characters, and then tap the A
A
lt key to see even more.
Tap and hold a key to select alternative characters,
such as letters with accents.
Additional keys vary depending on the type of text you enter. E.g. a key to add
a smiley is available when typing a text message. Like other keys, tap and hold
for additional options.
A key to change the language used for the dictionary and keyboard is
also available.
Tap and hold the ?
?
123 key and select X
X
T9 Text Input settings, or from the Home
screen tap M
M
enu > S
S
ettings > L
L
anguage & keyboard > X
X
T9 Text Input, to enable
or disable the following:
Android keyboard
The standard Android keyboard has various features
that assist you to enter correct text.
Function Description
Languages Set the languages that will be available.
Keyboard layouts Select the keyboard layout you prefer. There are three layouts
available:
• Keyboard: A full QWERTY (or language specific)
keyboard.
• Reduced keyboard: Two letters are available on each
key. The predictive text options will display possible
words from the combination of keys you have selected.
• Phone keypad: Three or more letters are available on
each key. The predictive text options will display
possible words from the combination of keys you have
selected.
Preferences Change your text input preferences; such as vibration to indicate
a keypress, or text correction.
![](/img.php?id=1403400&img=bgf.png)
15The home screen
Tap the ?
?
123 button to see numbers and special characters, and then tap the
Alt key to see even more. Tap and hold a key to select alternative characters,
such as letters with accents.
Additional keys vary depending on the type of text you enter. E.g. a key to add
a smiley is available when typing a message. Like other keys, tap and hold for
additional options.
Tap and hold the ?
?
123 key and select A
A
ndroid keyboard settings, or from the
Home screen tap M
M
enu > S
S
ettings > L
L
anguage & keyboard > A
A
ndroid keyboard,
to enable or disable the following:
Multilingual input
Switch between multiple input languages by swiping
across the space bar. The keyboard layout will change
accordingly. To select your preferred languages, tap
Menu > S
S
ettings > L
L
anguage & keyboard > A
A
ndroid
keyboard > I
I
nput languages.
The home screen
When you unlock your smartphone it will display the home screen. This screen
gives you quick, icon-based access to many of the frequently-used features of
your smartphone.
The Home screen already features some useful icons, application history and
media panel.
Application history
Notification bar
Application dock
Media panel
The top of the screen is empty when you first start using your smartphone.
Later it shows the a
a
pplication history, allowing you to access applications you
have recently used, and a m
m
edia panel, allowing you access to your pictures,
music and videos from your microSD card.
Function Description
Quick fixes Corrects commonly typed mistakes.
Show suggestions Shows suggested words while you are typing.
Auto-complete Inserts the suggested word whenever you tap space or a
punctuation mark.
![](/img.php?id=1403400&img=bg10.png)
16The home screen
At the bottom of the screen is the a
a
pplication dock which shows favorite or
recommended applications. Tap an icon to open the application. Tap the menu
button or drag the application dock towards the top of the screen to see the
application menu.
Application history
The application history shows recently opened
applications.
If the history thumbnails are not displayed, drag the tab
on the left of the screen towards the right. Scroll through
the thumbnails of applications until you find the
application you want to open, then tap the thumbnail to
open the application.
Tap the C
C
lear History button to remove all the history
thumbnails. Tap and hold a thumbnail, then drag it to the
trash to remove a single entry.
Multitasking
You can have multiple applications open at the same time. To open a new
application, press the H
H
ome button to return to the Home screen, then start the
new application.
To view your recent applications, access the application history and tap a
thumbnail to open the application.
Tip: To prolong battery life, it is better to close an application when you’ve finished
using it. Do this by either pressing the M
M
enu button and selecting E
E
xit (if available).
The application menu
The application menu displays groups of applications in a
series of pages. Up to sixteen applications may be displayed
per page.
The number of pages is displayed at the bottom of the
screen. Drag the menu to the left or right to switch pages.
You may also tap and hold the page numbers at the
bottom of the screen to go directly to any page.
Tap and hold an icon to move or delete it; you may change
the order of icons or reorganize the pages to suit your
needs. Drag an icon to the edge of the screen, or one of
the page numbers, to change the page.
Notification area
The Notification area is between the application history and application dock.
![](/img.php?id=1403400&img=bg11.png)
17The home screen
This area contains a variety of icons to inform you of your phone’s status. The
left side of the Notification area displays the time and event icons. The icons on
the right side indicate connectivity and battery status.
Tap the N
N
otification area to view more information about new events and
connectivity.
While viewing notifications, tap a category to see more information or buttons
to settings, if available. If more than one column of notifications are available,
drag the notifications to the side to view them.
Icon Description
An alarm has been set.
Application notification.
New/unread message.
Incoming call or active call.
Missed call.
Wi-Fi signal strength.
Bluetooth enabled.
Vibrate mode enabled.
Cellular signal strength.
Airplane mode: Wireless signals disconnected. Disable airplane mode before
trying to make a call.
SIM card not installed/error.
3G connected: You may make a call.
2G connected: You may make a call.
Battery status.
![](/img.php?id=1403400&img=bg12.png)
18The home screen
Personalizing the screen
You may personalize your screen by adding or removing icons, shortcuts or
widgets, or changing the wallpaper.
Changing application dock icons
You can set icons for installed applications in the application dock. Open the
application menu and find application you want to add. Tap and hold the icon,
then drag it to a position in the dock, it will be added in place of the existing
application.
To remove an icon from the dock, open the application menu, then tap and
hold an icon to select it. Either drag the icon to a different page in the
application menu, or to the trash icon that appears at the bottom left corner of
the screen.
Shortcuts and Folders
You can add shortcuts and folders to a free space in the
application dock or menu, for example, to display contacts
or shortcuts to specific tasks or settings.
Pre-defined Shortcuts are available or you can add a
Folder. Tap and hold a space on the dock or the
application menu. Tap either Shortcuts or Folders;
Shortcuts provides a list of specific contacts, addresses and
settings, Folders provides a list of contacts or document
types.
Widget overlay
The widget overlay allows you to bring up the widget screen and access
installed widgets while working on another process.
To access the widget overlay, press and hold the home button or tap the widget
icon .
![](/img.php?id=1403400&img=bg13.png)
19The home screen
Adding or removing widgets
To add widgets, press and hold the home button to open the widget overlay.
Tap the +
+
button in the bottom left corner to open a list of available widgets.
Scroll down the list to see all options.
To reposition a widget, tap and hold the widget for a second. You may then
drag the widget to any point on the grid.
A red background indicates that the widget may not be placed in the chosen
position, usually because widgets may not overlap. The background is green
when the position can be used.
Drag the widget to the left or right edge of the screen to add it to either
extended screen. Drag it to the trash icon to remove it from the screen.
Acer Widget Settings
From the widget overlay screen, tap the menu button and select Acer Widget
Settings to see settings for Acer-designed widgets.
![](/img.php?id=1403400&img=bg14.png)
20The home screen
Changing the wallpaper
On the home screen, simply tap and hold the current
wallpaper. A screen showing alternative wallpapers and
sounds will be displayed.
Select a wallpaper from the first row, or open your own
pictures from the second row. Tap the image you wish to
use as your smartphone’s wallpaper. If you choose an
image that is not the correct size, you will be asked to crop
the image to the correct size. Tap and drag the box until
you have selected the part of the image you want.
![](/img.php?id=1403400&img=bg15.png)
21Managing your contacts
Managing contacts
Managing your contacts
Your smartphone features an address book that
allows you to save contacts to the internal memory,
SIM card or Google.
Tap C
C
ontacts from the application dock or the
Contacts tab from the Phone to view your contacts.
If you don’t have any contacts stored on your phone,
you can sync your Google account contacts, add a new
contact or import any SIM contacts. Press the Menu
button to open the menu options.
Adding a contact
Tap A
A
dd contact to add a new contact. You will be asked if you want to create
a SIM, Phone, or Google contact.
To create a contact, you will be asked to enter the
contact’s:
• First and Last name.
• Phone numbers.
• Email addresses.
• IM addresses.
• Postal addresses.
To assign an image to your contact, tap the silhouette
and select an images from your smartphone’s picture
gallery (select G
G
allery if requested). You may also take
a new photo: tap G
G
allery, then the camera icon in the
corner of the screen.
Icon Description
Add a new contact.
Search for a contact.
![](/img.php?id=1403400&img=bg16.png)
22Managing your contacts
Tip: Set the phone number to match the type of network as this can determine some
functions. I.e. certain applications only recognise ‘Mobile’ numbers as they require a
mobile network.
Tip: You may also create a contact from an already dialed or received number, see
“Saving a dialed number to contacts“ on page 25.
Creating a group
In Contacts, tap M
M
enu > M
M
ore > M
M
anage Groups > A
A
dd Group and enter in a
group name.
Assigning a contact to a group
To assign a contact to a group, tap M
M
enu > E
E
dit Contacts > G
G
roups and select
which groups to join.
Opening a contact
To see the information stored for a contact, tap on the contact’s name. Then to
add the contact to your Favorites list, tap the star next to the contact’s name.
Favorites
You may quickly access you favorite contacts by adding them to the
Favorites tab. First open the contact, then tap the star next to the
contact’s name. Tap the F
F
avorites tab to see your favorite contacts.
Editing a contact
First open the contact you want to edit, then tap M
M
enu then E
E
dit contact to add
or change information. Tap the green plus sign to add an entry, then enter the
information in the new text box. You may enter multiple entries in each
category, such as multiple phone numbers or addresses.
Additional options are available under the options drop down. Tap O
O
ptions to
set special entries for your smartphone.
• Assign the contact to one or more groups.
• Set a ringtone for calls received from the contact.
• Send any calls from the contact directly to your voicemail.
Tap D
D
one to save the changes, or C
C
ancel to discard them.
Editing a contact on your computer
If you have synchronised your Google account and contacts, you can use your
computer to access and edit your contact list. Open the Internet browser on
your computer and go to m
m
ail.google.com. Sign in to your account and click
Contacts. Select and edit contacts from the list; the next time your smartphone
synchronizes with your computer, these changes will also be made to your
smartphone’s contact list.
![](/img.php?id=1403400&img=bg17.png)
23Managing your contacts
Warning: Backup your contacts before making any changes. You may do this from
the Contacts tab: Tap Menu and select Import/Export. You may then Export your
contact list to the SD card in your smartphone.
![](/img.php?id=1403400&img=bg18.png)
24Before making a call
Making Calls
This chapter shows you how to make phone calls, and the various options
available to you during your call.
Before making a call
Check that the phone function is on before you make a call. You can confirm
the phone status from the icon on the right-hand side of the Notification area.
Making a call
Note: The phone function needs to be enabled before the call can be connected.
1. From the Home screen tap P
P
hone to open the
onscreen number pad.
2. Enter the number you wish to dial.
3. Tap to make the call.
4. To end the call, tap E
E
nd.
Dialing an international number
When dialing international numbers, there is no need
to enter the international direct dialing prefix (‘00’
etc.) before the country code. Simply tap and hold 0
0
+
on the onscreen number pad until +
+
appears
onscreen.
Warning: International call rates can vary greatly depending on the country you are
calling and your network provider. We suggest you check all call rates with your
network provider, to avoid excessive phone bills. If you are using your smartphone
abroad, roaming charges will apply. Consult your network provider for roaming rates
specific to the country you are visiting before you leave.
Smart search
Smart search allow you to quickly find a contact from the phone keypad. As you
enter a number, if it is already known, it will find appropriate contacts and
display them in the list above the keypad. Also, instead of typing a phone
number, you may enter the contact name using the predictive text letters (2 for
Icon Description
Connected to the network: You may make a call.
Airplane mode: Wireless connectivity disconnected (Wi-Fi, Bluetooth, 2G and 3G).
Please disable airplane mode before trying to make a call.
![](/img.php?id=1403400&img=bg19.png)
25The voice call screen
‘a’, ‘b’ or ‘c’; 3 or ‘d’, ‘e’ or ‘f’; etc.). If the letter combinations match a contact
name, it will be displayed.
If the contact you need is displayed, simply tap the contact name to make a call.
Dialing a number from Call Log
Your call history can be viewed by tapping the C
C
all Log tab. It displays recent
received, dialed, and missed calls.
Tap a number to redial. To view details of the call, tap . You may also tap
and hold the number to open a menu with other options: C
C
all <the number>;
Edit number before call; S
S
end text message; A
A
dd to contacts or R
R
emove from
call log.
Saving a dialed number to contacts
You can save a number you have dialed to your contacts for future use.
1. Tap the C
C
all log tab in the phone application, or C
C
ontacts from the Home
screen, to view your contacts.
2. Select the number from the C
C
all log tab, and tap A
A
dd to contacts.
Making a call to one of your contacts
1. Tap the C
C
ontacts tab in the onscreen number pad or C
C
ontacts from the Home
screen to view your contacts.
2. Tap a contact. A dialog will open, asking if you want to call the contact, send
the contact an SMS or see the contact’s details.
Speed Dial
You may add a contact to a Speed Dial number on the phone keypad. Open the
Phone tab, then tap and hold any number from 2 through 9 (1 is reserved for
the voicemail service).
Select O
O
K, then select a contact from the list. If the contact has more than one
phone number, select the number to use.
If a key has a speed dial contact defined, it will show a small contact image as a
reminder. Tap and hold the key to call the speed dial number.
If you want to remove or change a speed dial number, tap M
M
enu and select
Speed dial. Tap an entry to remove or change the assigned telephone number.
The voice call screen
Once you have dialed your number the voice call screen appears, which displays
the number/contact you are talking to, the call duration and the dialpad tab.
![](/img.php?id=1403400&img=bg1a.png)
26Voice call options
Answering or declining a call
When you have an incoming call, the number will be shown
on the screen. To accept or decline the call, slide the
appropriate bar.
Ending a call
To end a call, press E
E
nd from the voice call screen.
Voice call options
Using the speakerphone
The speakerphone function allows you to make calls
without having to hold your smartphone. This handsfree
function is especially useful for multitasking.
To activate the speakerphone, tap S
S
peaker. Tap
Speaker again
to disable the
speakerphone.
Accessing the keypad
To access the keypad while in a call, tap the dialpad icon . Tap B
B
ack to return
to the voice call screen.
Accessing your phonebook
To access your phonebook while in a call, tap A
A
dd call .
Muting a call
To mute a call, tap M
M
ute on the voice call screen to switch off the microphone.
Tap M
M
ute again to switch the microphone back on.
Putting a call on hold
To put a call on hold, tap H
H
old . To return to the call, tap U
U
nhold .
Conference calls
If you have one call on hold and another online, you can
combine both calls to create a conference call.
After the first call is established, tap A
A
dd call to add a
second call. When both calls are connected, tap M
M
erge calls
to start the conference call.
![](/img.php?id=1403400&img=bg1b.png)
27Voice call options
Viewing missed calls
Missed calls will be displayed by the call indicator in the Notification area with
the icon .
You can also view missed calls from the Notification area.
1. Open the notification list by tapping the Notification area to display the
details of the missed calls.
2. Select the call from the list to enter the Call log.
You can save phone numbers to your Contacts from the Call log. Please refer to
“Adding a contact“ on page 21 for further details.
![](/img.php?id=1403400&img=bg1c.png)
28Creating a new message
Messaging
This chapter shows you how to set up and use the SMS and MMS functions of
your smartphone.
All SMS and MMS messages are accessed via Messaging. Messaging
automatically arranges received and sent messages into threads.
To access Messaging tap M
M
essaging on the Home screen.
Creating a new message
You can use your phone to compose SMS or MMS
messages.
Tap N
N
ew message to compose a new message.
Enter the recipient’s phone number or name in the T
T
o
field. Suggested contacts will be displayed in a drop-
down list below the text field. To select a suggested
contact, tap the contact’s name.
Once you have entered the recipient, enter your
message in the text box labeled T
T
ype to compose.
Note: SMS messages may be up to 160 characters long. If your message is longer than
160 characters, it will be sent as multiple linked messages. Most phones will
automatically join the linked messages to present the recipient with a single long
message, however, some older phones do not have this ability.
Press the Menu button to see what options are available when creating a new
message. The options change depending on the status of the message.
Icon Description
Select receiver from contacts.
Convert the SMS to an MMS, allowing you to add a subject to the message.
View all the threads currently on your phone.
Convert the SMS to an MMS, allowing you to attach a file to the message.
Call the current contact.
Insert a smiley/emoticon into your message text.
![](/img.php?id=1403400&img=bg1d.png)
29Replying to a message
Replying to a message
When a new text message arrives a message icon appears in the Notification
area and the message icon on the top of the phone lights up.
Tap M
M
essaging on the Home screen to view the message list or expand the
Notification area to see a summary of the message. Tap the summary to open
the message list.
To reply to an SMS or MMS message, open the message from the message list.
Enter your text in the text box labeled T
T
ype to compose. Press the Menu button
to see available options.
MMS messages
MMS messages are similar to text messages but also allow you to attach
multimedia files such as pictures, audio or video clips. Each MMS message can
be up to 300 kB in size.
Note: You need to set up an MMS profile before you can send MMS messages.
Normally, your smartphone will set up the profile for you based on information
retrieved from your provider.
Tip: Ask your network provider for the necessary information if you need to manually
set up the MMS profile.
Icon Description
Call selected contact.
Convert the SMS to an MMS, allowing you to add a subject to the message.
Convert the SMS to an MMS, allowing you to attach a file to the message.
Delete the thread.
Insert a smiley/emoticon into your message text.
![](/img.php?id=1403400&img=bg1e.png)
30MMS messages
Receiving MMS messages
When a new MMS message arrives, a message icon appears on the notification
bar and a notification message is displayed.
1. Open Messaging to view a summary of the message.
2. Tap D
D
ownload to download the message content.
Note: Downloads can take a long time, depending on your connection quality. If you
reply or open another application, the download will be stopped.
Important: You may be charged to download message content, especially if you are
roaming. Please contact your provider if you have any questions.
3. Tap the message to view the content.
4. Press the Menu button and tap R
R
eply to reply to
the message. The message window will appear.
Simple text replies will be sent as SMS messages. If
you wish to attach a file, press the Menu button
and tap A
A
ttach. You will be presented with a menu
of options.
5. When you have finished composing the message,
press the Menu button and tap S
S
end.
![](/img.php?id=1403400&img=bg1f.png)
31Browsing the Internet
Going online
Browsing the Internet
In order to browse the Internet with your smartphone, you must be connected
to a data or wireless network.
Using the browser
Tap B
B
rowser on the Home screen to start browsing. To open a new website, tap
the address box at the top of the page. Enter the address using the keyboard
and tap G
G
o.
To view your browsing history, bookmarks or frequently visited sites, open the
browser then press and hold the back button.
You may open multiple pages. When a page is open, press the Menu button
and tap N
N
ew window from the menu that opens. Tap W
W
indows to view all the
windows that are open.
You can zoom in or out of pages using the zoom bar that appears when you
tap the screen. Tap and hold an item on a page to open a contextual menu.
![](/img.php?id=1403400&img=bg20.png)
32Setting up your Google email
Voice Search
With voice actions, you can send text messages, place calls, send emails, find
directions of establishments, automatically call establishments, search the
Internet and even send a note to yourself using your voice. Open V
V
oice Search
from the application menu, or press and hold the Search button. Press and hold
the Search button again to display the “Speak now” prompt, and state your
command.
Setting up your Google email
1. Make sure your smartphone is connected to a data or Wi-Fi connection.
2. From the Home screen tap G
G
mail.
If you did not enter your Gmail account address and password when you first
started your phone, follow the on screen instructions.
Composing an email
1. Make sure your smartphone is connected to a data or Wi-Fi connection.
2. From the Home screen tap G
G
mail.
3. Press the M
M
enu button and then tap C
C
ompose.
4. Enter the recipient's email address, the subject and message.
5. When you are finished composing your message, tap S
S
end.
![](/img.php?id=1403400&img=bg21.png)
33Setting up Email
Setting up Email
Your smartphone enables you to access your email.
Most popular ISPs can be set up in two steps. Pull up
the applications menu and then tap E
E
mail to start
setting up your email access.
If necessary, enter your email address and tap M
M
anual
setup to enter the parameters manually. Tap N
N
ext to
finish the setup process.
The combined inbox feature of your smartphone
allows you to view emails from multiple accounts in a
single inbox.
Online applications
Your smartphone has a variety of applications installed on it from the factory.
Note: Applications installed may vary according to your region.
These applications may include:
•A
A
cer Sync: Sync your data between your computer and the Google
servers.
•S
S
ocialJogger:
View updates to your social networks in one location.
•F
F
acebook: View your Facebook profile and keep up-to-date with your
friends.
•M
M
aps: Get easy-to-follow directions using Google Maps.
•N
N
avigation: Turn-by-turn navigation with live traffic, multiple visible
layers and text-to-speech take you where you want to go.
• Latitude: View where your friends are on Google Maps.
• Places: View places of interest and local businesses on Google Maps.
•Y
Y
ouTube: View the Most viewed and Most discussed video clips on
YouTube.
Acer SocialJogger
Acer SocialJogger combines your social network
updates in one location, allowing you to quickly
follow what your friends are doing across several
platforms.
From the application menu, tap Acer SocialJogger to
launch the program.
Select S
S
ign in to enter your account information.
When you are finished press S
S
tart.
![](/img.php?id=1403400&img=bg22.png)
34Acer SocialJogger
Slide the disc, located on the right, up and down to cycle through the
notification updates.
Tap on a notification to view more details and make a comment.
Tap the left and right arrows, located on the top, to cycle between the
categories: My Page, Photos, Link and any added pages.
Tap the M
M
enu button to access account settings, refresh the page, auto play,
and add or remove custom pages.
Location Plus: If you upload a picture with the SocialJogger uploader through
the gallery or from the camera review screen, the uploaded picture will display
its geotag.
Note: For geotag to display, pictures must be taken with S
S
tore Location activated in
the camera settings.
![](/img.php?id=1403400&img=bg23.png)
35Acer SocialJogger
Android market
Note: The Android Market may not be available in all countries and regions.
Note: You need to have a Google account set up and active on your phone before you
can use the Android Market.
Tap M
M
arket from the applications menu to open the
Android Market. Here you can obtain a variety of
add-on programs and applications to enhance the
functionality of your smartphone. The first time you
access the Android Market, you will need to read and
accept the Terms of Service.
You can browse the market by category or tap the
search icon to search for a specific application.
Once you have selected an application, tap the I
I
nstall
button to download and install the application. You
will be told which services on your phone that the
application has access to. Tap O
O
K to proceed with the
installation.
You may keep track of the download progress from
the Notification Area.
Important: Some applications may require payment before you can download them.
You will need to have a Google Checkout account in order to pay for these
applications.
Uninstalling downloaded applications
Once you’ve downloaded and installed an application, you may uninstall the
application by long pressing the application icon and dragging it to the trash
can located on the bottom left-hand corner of the screen.
Alternatively, you can go to S
S
ettings from the application menu and select
Applications > M
M
anage applications. Tap the application you wish to uninstall,
tap U
U
ninstall and confirm the uninstall.
urFooz
urFooz is a portable avatar that lets you share
information across your favorite social networks,
blogs and more.
Easily organize your Web favorites, such as photos,
videos, bookmarks and more, with a urFooz ID.
urFooz gives you:
• One identity for all your online activities;
![](/img.php?id=1403400&img=bg24.png)
36Acer SocialJogger
• An avatar that represents the "virtual" you; and
• A single connection for all your Web favorites.
To start urFooz, open the application menu and tap u
u
rFooz.
Additional tools on the urFooz Internet site let you edit and manage your Fooz
avatar(s), create new avatars and share them on Facebook, MySpace, blogs and
more. Go to w
w
ww.urfooz.com.
Note: urFooz, Fooz Avatars, Fooz Creator, Fooz Card, and Fooz World are trademarks
or registered trademarks of Fuhu, Inc. in the U.S. and/or other countries.
![](/img.php?id=1403400&img=bg25.png)
37Camera icons and indicators
Using the Camera
Your smartphone features a 5-megapixel digital camera mounted on the rear.
This section will take you through all the steps in taking photos and videos with
your smartphone.
Note: You need to have a microSD Card inserted into the microSD slot before using
the camera.
To activate the camera, press and hold the camera button until the phone
vibrates, or open the applications tab and tap C
C
amera.
Camera icons and indicators
In the camera window, the three icons on the left allow you to switch between
camera and camcorder, and view the gallery of pictures or videos. Use the zoom
slider at the bottom of the screen to adjust the zoom.
The number in the top right corner shows how many more photos can be
stored, or the maximum duration for a video.
To adjust the settings, tap M
M
enu. The menu options are:
Icon Description
Takes you to the gallery.
Activates the camera.
Activates the video recorder.
Icon Description
Set the photo quality.
![](/img.php?id=1403400&img=bg26.png)
38Taking a photo
Taking a photo
1. Ensure you have adjusted the parameters described above.
2. Frame your subject and steady your smartphone.
3. Zoom in or out as needed.
4. Press the camera button down to take the photo.
Shooting a video
Turn on camcorder mode by tapping the mode switch to camcorder mode.
1. Ensure you have adjusted the parameters described above.
2. Frame your subject and steady your smartphone and zoom in or out as
needed.
3. Press the camera button down fully to begin recording.
4. Press the camera button down fully to stop recording.
Supported formats
Set brightness, contrast, saturation, and sharpness.
Set white balance.
Set timer.
Access camera settings menu.
Type Formats
Image JPEG
Video MPEG-4, H.263
Icon Description
![](/img.php?id=1403400&img=bg27.png)
39Viewing photos and videos
Viewing photos and videos
After you have taken your photo or video, it is automatically saved.
Once you have taken a photo or video, you can view it in Gallery by tapping the
thumbnail icon in the upper right corner. Alternatively, open the applications
tab and tap G
G
allery. From Gallery you can share the file directly using various
services.
Note: Share options vary depending on the file type.
![](/img.php?id=1403400&img=bg28.png)
40Putting your smartphone in Airplane mode
Advanced Settings
Putting your smartphone in Airplane mode
You can enter Airplane mode (also known as flight mode) to turn off telephone
and Bluetooth functions and use your smartphone as a handheld device during
a flight. Check with your airline to make sure this is permitted onboard.
Switch your smartphone off during takeoff and landing as it may interfere with
aircraft electronic systems.
Turning Airplane mode on or off
Note: When Airplane mode is active, the
icon will be displayed in the Notification
area.
1. Press and hold the power button until you get the
phone options menu.
2. Tap the switch next to A
A
irplane Mode to switch it
ON or OFF.
Activating or deactivating
connections
Open the application menu and tap S
S
ettings >
Wireless & networks to manage your connection
settings.
Each connection will have a green check when turned
on.
Alternatively, you can tap on the right side of the
notification bar to manage connection settings.
Important: If your phone is in Airplane mode, the option to turn Bluetooth on will be
disabled. Please refer to “
“
Putting your smartphone in Airplane mode“ on page 40 for
instructions on turning Airplane mode on or off.
Phone network settings
Tap S
S
ettings > W
W
ireless & networks >
Mobile networks to adjust your network
settings. You can turn data connection on or off when roaming, restrict the
connection to 2G networks only, specify a network operator and define access
point names. Please refer to “Selecting a network“ on page 42.
![](/img.php?id=1403400&img=bg29.png)
41Adjusting connection settings
Adjusting connection settings
This section will show you how to adjust detailed settings for your phone, data,
Wi-Fi and Bluetooth connections.
Sound
Adjust the volume of your phone using the volume buttons on the side of the
phone. Alternatively, you can adjust your phone sound settings by tapping
Settings > S
S
ound.
Display
You can adjust your phone display settings by tapping S
S
ettings > D
D
isplay.
Item Description
Airplane mode Disable all wireless connections so you can safely use this device
onboard an aircraft.
Wi-Fi Turn the Wi-Fi function on or off.
Wi-Fi settings Set up and manage your wireless access points.
Bluetooth Turn the Bluetooth function on or off.
Bluetooth settings
Manage your Bluetooth connections, set a device name and discoverability.
Tethering &
portable hotspot
Share your phone’s mobile data connection via USB or as a portable
Wi-Fi hotspot.
VPN settings Set up and manage Virtual Private Networks.
Mobile networks Set your options for connecting to mobile networks.
Item Description
Silent mode Turns off all sounds except for alarms and media.
Vibrate Sets vibration options.
Volume Sets volume for Ringtone, Media, Alarm, and Notifications.
Phone ringtone Sets your phone’s ringtone.
Notification ringtone Sets a ringtone for notifications.
Audible touch tones Plays tones when using dial pad.
Audible selection Plays a sound whenever a screen selection is made.
Screen lock sounds Plays a sound when locking and unlocking the screen.
Haptic feedback Vibrates when pressing soft keys and on certain UI interactions.
Item Description
Brightness Adjust screen brightness.
Auto-rotate screen Enable rotation of the screen when device is tilted.
Animation Enable window animations.
Screen timeout Set a delay before the screen will be turned off.
Touch panel sensitivity Adjust the touch panel sensitivity.
Keypad sensitivity Adjust the keypad sensitivity.
![](/img.php?id=1403400&img=bg2a.png)
42Phone settings
Selecting a network
Your phone will automatically detect your carrier/network settings when you
insert a new SIM card. However, you may prefer to manually select a network.
This may be a good idea when roaming.
Tip: When you are traveling, manually selecting a network may help to reduce your
roaming charges. Check with your home service provider for the network offering the
most competitive rates at your destination.
1. Open the applications menu and tap S
S
ettings > W
W
ireless & networks >
Mobile networks > Network operators.
2. Your phone will search for available networks.
3. Select your preferred network from the list generated. You phone will
attempt to register on the selected network.
4. Tap S
S
elect automatically to connect to the available network with the
strongest signal. This may lead to your phone jumping between networks
when you move around.
Note: Contact your service provider should you have any problems obtaining voice
mail and the text message service center numbers.
Adjusting Bluetooth settings
You can use Bluetooth to exchange information between your smartphone and
other mobile devices.
Bluetooth connections
For all Bluetooth settings, open the applications menu and tap S
S
ettings >
Wireless & networks > Bluetooth settings. Here you can switch Bluetooth on or
off, set a device name and discoverability. Tap S
S
can for devices to scan for
available devices.
To connect to a device, tap the device in the list of available devices. You may
be asked to enter a PIN on both devices to establish the connection.
Phone settings
Many phone settings are automatically configured by your smartphone when
you insert a SIM card. The device will communicate with your provider and
automatically obtain all necessary settings, such as network name, voice mail
and text message center numbers.
You can also view and modify these settings manually through the Phone
Settings screen.
Open the applications menu and tap S
S
ettings > C
C
all settings.
![](/img.php?id=1403400&img=bg2b.png)
43Connecting to a PC
Connecting to a PC
If you wish to transfer information between the microSD Card in your phone
and your computer, you can connect your phone to a PC using the supplied USB
cable. Plug the USB sync cable into the micro USB connector on your
smartphone. Plug the USB client connector into an available USB port on your
computer.
Tap the U
U
SB icon in the notification bar and next to
“Use as a USB Drive”, tap O
O
n.
You will now be able to see the microSD Card in your
phone as a drive in your computer’s file explorer.
Internet sharing
Tethering via USB
If you wish to share your mobile Internet connection with a computer, you can
connect your phone to a PC using the supplied USB cable.
1. Plug the USB sync cable into the micro USB connector on your smartphone.
2. Plug the USB client connector into an available USB port on your computer.
3. Tap the U
U
SB icon in the notification bar and next to “Mobile network
sharing”, tap O
O
n.
4. Alternatively, you can tap M
M
enu > S
S
ettings > W
W
ireless & network settings >
Tethering & portable hotspot and then tap U
U
SB tethering.
Wi-Fi hotspot
You can turn your smartphone into a portable Wi-Fi hotspot to share your
mobile Internet connection with up to 8 clients.
1. Tap the notification bar and swipe to the left until you see Portable hotspot.
2. Tap P
P
ortable hotspot and tap O
O
n.
3. Tap the icon to access the Tethering & portable hotspot page. Tap
Portable Wi-Fi hotspot settings.
4. Tap C
C
onfigure Wi-Fi hotspot.
5. Set the Network SSID and adjust security between Open and WPA2 PSK. Tap
Save to finish.
Note: When your smartphone is serving as a Wi-Fi hotspot, you can’t use your phone’s
applications to access the internet via its Wi-Fi connection.
![](/img.php?id=1403400&img=bg2c.png)
44Multimedia playback
Synchronization
You can sync your calendar, email and contacts on your
phone and never worry about losing them again. Sync
in real time or adjust it as you please. Tap M
M
enu >
Settings > Accounts & sync to access the
synchronization settings.
To have your smartphone auto-sync, make sure
Background data and A
A
uto-sync are checked.
To manage synchronization of individual accounts, tap
an account to see their settings.
Google Sync
In Google, you can set synchronization for contacts,
email and calendar. Tap to checkmark an item you
would like to have auto-sync. Tap again to uncheck any
for manual synchronization.
To manually synchronize an item, tap the item.
Note: You need a Google account to sync your calendar and appointments.
Acer Sync
Acer Sync allows you to easily synchronize your contacts, calendar, photos and
videos between your smartphone, PC and corresponding Google services.
Download and install Acer Sync and Acer PIM for the PC from
http://mobile.acer.com/.
Multimedia playback
Your smartphone comes supplied with a variety of programs that you can use
to enjoy multimedia content.
nemoPlayer
Open n
n
emoPlayer from the applications menu to play media you have stored
on your phone.
nemoPlayer enables you to listen to music, view video clips and pictures in the
following formats.
Type Formats
Audio playback MP3, AMR, WMA
Ringtone MP3, MIDI, iMelody, WAVE, WMA
Video recording 3GP, MPEG-4, H.263
Video playback 3GP, MPEG-4, H.263, H.264, WMV
![](/img.php?id=1403400&img=bg2d.png)
45Multimedia playback
Spinlets
Spinlets gives you access to your favorite music, movie and television content.
Get your favorite music, photos and videos from your mobile phone and share
your favorite Spinlets on social networks, websites and more.
Note: Some contents may not be available in some countries.
Launching Spinlets
To launch the Spinlets application, tap S
S
pinlets in the
applications menu.
Browsing Spinlets gallery
You can sort or search your media content by albums or
genres.
Browsing albums
Once Spinlets is opened, you will see a display of featured
albums. Browse this display by sliding your finger
horizontally (left or right), and select an album by tapping it.
Browsing genres
To browse the Gallery by genre, tap the G
G
enres button on the bottom left
corner of the screen. You will see a new screen with a list of different genres.
Tap on the genre you wish to view.
Sort
To sort through Spinlets by Name, Ratings, or Newest
content, select the Sort button at the bottom of the
screen.
Search
To search the Gallery for a specific name, select the Search
button at the bottom right corner of the screen. Type the
name of an artist in the search box and find potential
matches.
![](/img.php?id=1403400&img=bg2e.png)
46Multimedia playback
Exploring Spinlets widgets
When you select an album, you will see a Spinlet.
To play the featured song, select the red P
P
lay button.
To play selected songs, select the Music tab and choose
which songs you would like to play.
To view artist photos, select the Photos tab.
To visit the artist's social networks and websites, select the
icons located along the bottom of the screen.
Sharing your Spinlets
You can share your favorite Spinlets in two ways.
To post the Spinlet you are currently viewing to your social
networks, blogs, or other websites, tap S
S
hare It at the top
right corner of the Spinlet. Select Post it and tap the icon of
the social network site or blog you want to post the widget
to. Log in to your social network account or blog page and
follow the steps.
Another way you can share Spinlets is through email. Tap
Share It at the top right corner of the Spinlet, select Send it,
and enter your name and your friend’s email address.
Note: Fuhu, Spinlets, Spinlet, urFooz, Fooz Avatars, Fooz Creator, Fooz Card, and Fooz
World are trademarks or registered trademarks of Fuhu, Inc. in the U.S. and/or other
countries.
Media server
Your phone can act as a digital media server using
UPnP technology. This means that you can use it to
send media content to other UPnP-enabled home
entertainment devices that are connected to a home
wireless network.
To set up the media server, open the applications
menu and tap M
M
edia server.
You will need to enable S
S
hare contents before you
can start using the service.
You may select to share your V
V
ideo, P
P
hoto or M
M
usic
content from S
S
hared content settings.
![](/img.php?id=1403400&img=bg2f.png)
47Multimedia playback
Adjusting the volume
Adjust the volume of your phone using the volume buttons on the side of the
phone. Alternatively, you can set the R
R
inger volume and M
M
edia volume by
opening the applications menu and going to S
S
ettings > S
S
ound.
Setting the date and time
To set the date and time, open the application menu and tap S
S
ettings > D
D
ate &
time.
Tip: If you travel frequently or live in an area that uses daylight saving time, activate
Automatic from this menu. This will enable your smartphone to set the date and time
based on information it receives from the network.
Setting alarms
There is one predefined alarm on your phone by default. To add or edit alarm
settings, tap A
A
larm Clock in the application menu and tap the preset alarm to:
• Turn the alarm on or off.
• Set the alarm time.
• Set a ringtone.
• Enable or disable vibrate.
• Set which days to repeat the alarm.
• Give it a label.
Changing language and text options
Set your location and language input preferences by opening the applications
menu and going to S
S
ettings > L
L
anguage & keyboard.
Managing applications
App-2-SD
When installing an application, you may have a choice
to install the program to the internal memory or
installed memory card.
Move an installed application by going to S
S
ettings >
Applications > M
M
anage applications. Select an
application and tap M
M
ove to SD card.
Note: Not all programs support App-2-SD. Please see application specifications for
compatibility.
Warning! Make sure you trust the source of any program you install. If you are not
sure of the source, do not install a program. Installing programs from unknown
sources increases your risk of virus attacks and theft of personal and private data.
![](/img.php?id=1403400&img=bg30.png)
48Updating your phone’s operating system
Closing an application
To close an active application, go to s
s
ettings > A
A
pplications > M
M
anage
applications. Tap the r
r
unning tab, then tap the program you wish to close.
Select F
F
orce stop to close the program.
Uninstalling an application
You can remove programs installed on your smartphone to free up extra
storage memory. Tap and hold a program icon from the applications menu and
drag it into the trash can on the bottom left hand corner.
Alternatively, you can go to S
S
ettings from the Application menu and select
Applications > M
M
anage applications. Tap the application you wish to uninstall,
tap U
U
ninstall and confirm the uninstall.
Here you can allow programs from U
U
nknown sources to be installed and
Manage applications.
Warning! You should only remove programs if you are familiar with the Android
operating system.
Updating your phone’s operating system
Your phone is able to retrieve system updates via wireless connections, allowing
you to upgrade the firmware without needing a PC. To check for updates, or
enable automatic updates, tap M
M
enu > U
U
pdate Notification.
Reset to factory defaults (clean boot)
A clean boot will restore your smartphone to the factory settings.
Warning! You should only perform a clean boot when all other options have failed to
restore your smartphone to an operational state.
Warning! This will erase all your personal information, any contacts stored on your
phone and any programs you installed.
If your phone is responding to screen input
Open S
S
ettings from the application menu, then tap P
P
rivacy > F
F
actory data reset;
click R
R
eset phone and then E
E
rase everything to format your phone.
If your phone is not responding to screen input
Turn off your phone, then press and hold the power and volume down buttons
until you feel your smartphone vibrate and/or you see the Acer logo screen,
then release the buttons and wait for the phone to boot.
![](/img.php?id=1403400&img=bg31.png)
49Using the headset
Accessories and Tips
This chapter shows you how to use accessories with your smartphone, as well as
provide useful tips for when you are using your smartphone.
Using the headset
Your smartphone comes packaged with a headset with built-in microphone for
handsfree use when making calls.
To use the headset, plug it into the 3.5 mm headphone jack at the top of the
phone.
When the headset is plugged in, all audio is routed to the headset, and the
speakers are turned off.
• To answer an incoming call, press the button on the microphone.
• Adjust the volume using the volume up/down button on the
smartphone.
• End the call by pressing the button again.
Using a Bluetooth headset
Your smartphone’s Bluetooth functions make it fully compatible with all
Bluetooth headsets. This allows you to use the unit handsfree when making
calls, without the inconvenience of wires.
Creating a new access point
When you need to add another GPRS/3G/EDGE connection on your phone,
obtain the access point name and settings (including username and password if
required) from your wireless service provider.
1. Open the applications tab and tap S
S
ettings > W
W
ireless & networks > M
M
obile
networks > A
A
ccess Point Names.
2. Press the Menu button and tap N
N
ew APN.
3. Enter the APN settings. Tap an item to adjust it.
4. When you have finished press the Menu button and tap S
S
ave.
Important: Some providers and countries do not allow the use of a smartphone as a
modem over HSDPA. Please check with your provider before attempting to do so.
Inserting a microSD Card
Your smartphone features a memory expansion slot that accepts a microSD
Card to expand memory and storage capacity.
Please refer to “
“
Installing a SIM or microSD Card“ on page 11 for instructions on
installing a microSD Card.
![](/img.php?id=1403400&img=bg32.png)
50FAQ and troubleshooting
Appendix
FAQ and troubleshooting
This section lists frequently asked questions that may arise during the use of
your smartphone, and gives easy answers and solutions to these questions.
Aspect Question Answer
Audio Why is there no sound
coming from the
device?
If the headset is plugged into the device,
the speaker is automatically shut off.
Disconnect the headset.
Check that the device volume setting is not
muted.
Check that the volume control is not at its
lowest setting.
Multimedia files Why can’t I view my
picture files?
You may be trying to view an image that is
not supported. Refer to “
“
Multimedia” on
page 57 for more information.
Why can’t I view my
video files?
You may be trying to view a video that is
not supported. Refer to “
“
Multimedia” on
page 57 for more information.
Why can’t I play my
music files?
You may be trying to play a file that is not
supported. Refer to “
“
Multimedia” on
page 57 for more information.
System information
and performance
How do I check the OS
version of my device?
Tap M
M
enu > S
S
ettings > A
A
bout phone to
check the OS version (Kernel/build number)
and other hardware and software
information.
Power I couldn’t turn on the
device.
The battery power may be depleted.
Recharge the device. Refer to “
“
Charging the
battery” on page 10 for more information.
RAM / ROM How do I check the
RAM and ROM
memory status?
To check the ROM status, go to S
S
ettings >
SD card & phone storage.
To check RAM status, go to S
S
ettings >
Applications > R
R
unning services.
![](/img.php?id=1403400&img=bg33.png)
51Other sources of help
Other sources of help
Warnings and precautions
• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product falls,
it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable operation of
the product and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the product
on a bed, sofa, rug or other similar surface. This product should never be placed
near or over a radiator or heat register, or in a built-in installation unless proper
ventilation is provided.
• Never push objects of any kind into this product through cabinet slots as they
may touch dangerous voltage points or short-out parts that could result in a fire
or electric shock. Never spill liquid of any kind onto or into the product.
• To avoid damage of internal components and to prevent battery leakage, do not
place the product on a vibrating surface.
Unlock pattern I forgot my unlock
pattern.
After a certain number of wrong entries,
you will be presented with an option to
reset your pattern. Tap F
F
orgot pattern? and
enter your google account username and
password.
Note: You must have an active Google
account on the smartphone.
Alternatively, you can clean boot the
smartphone and erase all data. See “
“
Reset
to factory defaults (clean boot)“ on page
48.
Heat The phone heats up
when charging or
making long duration
calls.
It is normal for the phone to heat up when
charging. When charging is complete, it will
return to its normal temperature.
It is also normal for the phone to heat up
during long periods of use, such as watching
a video or a long phone conversation.
All Acer phones are factory tested before
release.
For information on: Refer to:
Up-to-date information regarding your
smartphone
www.acer.com
mobile.acer.com
Service enquiries w
w
ww.acer.com/support/
Aspect Question Answer
![](/img.php?id=1403400&img=bg34.png)
52Warnings and precautions
• Never use this product when engaging in sporting activities, exercising, or in any
vibrating environment which may cause a short circuit or damage, and even a risk
of explosion from the battery pack.
CAUTION when listening to music
To protect your hearing, follow these instructions.
• Increase the volume gradually until you can hear clearly and comfortably.
• Do not increase the volume level after your ears have adjusted.
• Do not listen to music at high volumes for extended periods.
• Do not increase the volume to block out noisy surroundings.
• Decrease the volume if you can’t hear people speaking near you.
Battery information
This product uses a Lithium Polymer battery. Do not use it in a humid, wet and/or
corrosive environment. Do not put, store or leave your product in or near a heat source,
in a high temperature location, in strong direct sunlight, in a microwave oven or in a
pressurized container, and do not expose it to temperatures over 60 qC (140 qF). Failure to
follow these guidelines may cause the battery to leak acid, become hot, explode or ignite
and cause injury and/or damage. Do not pierce, open or disassemble the battery. If the
battery leaks and you come into contact with the leaked fluids, rinse thoroughly with
water and seek medical attention immediately. For safety reasons, and to prolong the
lifetime of the battery, charging will not occur at low (below 0 qC/32 qF) or high (over 40
qC/104 qF) temperatures.
The full performance of a new battery is achieved only after two or three complete
charge and discharge cycles. The battery can be charged and discharged hundreds of
times, but it will eventually wear out. When the talk and standby times are noticeably
shorter than normal, buy a new battery. Use only Acer approved batteries, and recharge
your battery only with Acer approved chargers designated for this device.
Unplug the charger from the electrical plug and the device when not in use. Do not leave
a fully charged battery connected to the ac charger, since overcharging may shorten its
lifetime. If left unused, a fully charged battery will lose its charge over time. If the battery
is completely discharged, it may take a few minutes before the charging indicator
appears on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any charger or battery that is
damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic
object such as a coin, clip, or pen causes direct connection of the positive (+) and negative
(-) terminals of the battery. (These look like metal strips on the battery.) This might
happen, for example, when you carry a spare battery in your pocket or purse. Short-
circuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter
conditions, will reduce the capacity and lifetime of the battery. Always try to keep the
battery between 15 qC and 25 qC (59 qF and 77 qF). A device with a hot or cold battery may
not work temporarily, even when the battery is fully charged. Battery performance is
particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also explode if
damaged. Dispose of batteries according to local regulations. Please recycle when
possible. Do not dispose as household waste.
![](/img.php?id=1403400&img=bg35.png)
53Warnings and precautions
Replacing the battery pack
Your smartphone uses lithium batteries. Replace the battery with the same type as that
which came bundled with your product. Use of another battery may present a risk of fire
or explosion.
Warning! Batteries may explode if not handled properly. Do not disassemble or
dispose of them in fire. Keep them away from children. Follow local regulations when
disposing of used batteries.
Additional safety information
Your device and its enhancements may contain small parts. Keep them out of the reach of
small children.
Operating environment
Warning! For safety reasons, turn off all wireless or radio transmitting devices when
using your smartphone device under the following conditions. These devices may
include, but are not limited to: wireless LAN (WLAN), Bluetooth and/or 3G.
Remember to follow any special regulations in force in any area, and always switch off
your device when its use is prohibited or when it may cause interference or danger. Use
the device only in its normal operating positions. To successfully transmit data files or
messages, this device requires a good quality connection to the network. In some cases,
transmission of data files or messages may be delayed until such a connection is available.
Ensure that the above separation distance instructions are followed until the transmission
is completed. Parts of the device are magnetic. Metallic materials may be attracted to the
device, and persons with hearing aids should not hold the device to the ear with the
hearing aid. Do not place credit cards or other magnetic storage media near the device,
because information stored on them may be erased.
Medical devices
Operation of any radio transmitting equipment, including wireless phones, may interfere
with the functionality of inadequately protected medical devices. Consult a physician or
the manufacturer of the medical device to determine if they are adequately shielded
from external RF energy or if you have any questions. Switch off your device in health
care facilities when any regulations posted in these areas instruct you to do so. Hospitals
or health care facilities may be using equipment that could be sensitive to external RF
transmissions.
Pacemakers. Pacemaker manufacturers recommend that a minimum separation of 15.3
cm (6") be maintained between wireless devices and a pacemaker to avoid potential
interference with the pacemaker. These recommendations are consistent with the
independent research by and recommendations of Wireless Technology Research. Persons
with pacemakers should do the following:
• Always keep the device more than 15.3 cm (6") from the pacemaker.
• Not carry the device near your pacemaker when the device is switched on. If you
suspect interference, switch off your device, and move it.
Hearing aids.
Some digital wireless devices may interfere with some hearing aids. If
interference occurs, consult your service provider.
![](/img.php?id=1403400&img=bg36.png)
54Emergency calls
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in
motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock)
braking systems, electronic speed control systems, and air bag systems. For more
information, check with the manufacturer, or its representative, of your vehicle or any
equipment that has been added. Only qualified personnel should service the device, or
install the device in a vehicle. Faulty installation or service may be dangerous and may
invalidate any warranty that may apply to the device. Check regularly that all wireless
equipment in your vehicle is mounted and operating properly. Do not store or carry
flammable liquids, gases, or explosive materials in the same compartment as the device,
its parts, or enhancements. For vehicles equipped with an air bag, remember that air bags
inflate with great force. Do not place objects, including installed or portable wireless
equipment in the area over the air bag or in the air bag deployment area. If in-vehicle
wireless equipment is improperly installed, and the air bag inflates, serious injury could
result. Using your device while flying in aircraft is prohibited. Switch off your device
before boarding an aircraft. The use of wireless teledevices in an aircraft may be
dangerous to the operation of the aircraft, disrupt the wireless telephone network, and
may be illegal.
Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere and
obey all signs and instructions. Potentially explosive atmospheres include areas where you
would normally be advised to turn off your vehicle engine. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death. Switch off the device at
refueling points such as near gas pumps at service stations. Observe restrictions on the use
of radio equipment in fuel depots, storage, and distribution areas; chemical plants; or
where blasting operations are in progress. Areas with a potentially explosive atmospheres
are often, but not always, clearly marked. They include below deck on boats, chemical
transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or
butane), and areas where the air contains chemicals or particles such as grain, dust or
metal powders.
Follow any restrictions. Do not use the device where blasting is in progress.
Emergency calls
Important: Wireless phones, including this device, operate using radio signals, wireless
networks, landline networks, and user-programmed functions. Because of this,
connections in all conditions cannot be guaranteed. You should never rely solely on any
wireless device for essential communications like medical emergencies.
If certain features are in use, you may first need to turn those features off before you can
make an emergency call. Consult this guide or your service provider for more information.
When making an emergency call, give all the necessary information as accurately as
possible. Your wireless device may be the only means of communication at the scene of
an accident. Do not end the call until given permission to do so.
Disposal and recycling information
Do not throw this electronic device into the trash when discarding.
To minimize pollution and ensure utmost protection of the global
environment, please recycle. For more information on the Waste from
![](/img.php?id=1403400&img=bg37.png)
55Disposal and recycling information
Electrical and Electronics Equipment (WEEE) regulations, visit
www.acer-group.com/public/Sustainability/sustainability01.htm
Mercury advisory
For projectors or electronic products containing an LCD/CRT monitor or display:
Lamp(s) inside this product contain mercury and must be recycled or disposed of
according to local, state or federal laws. For more information, contact the
Electronic Industries Alliance at w
w
ww.eiae.org. For lamp-specific disposal
information, check w
w
ww.lamprecycle.org.
![](/img.php?id=1403400&img=bg38.png)
56Taking care of your smartphone
Taking care of your smartphone
1. D
D
O take care not to scratch the screen of your smartphone. Keep the screen clean.
When working with your smartphone, use your finger or fingernail. Never use an
actual pen or pencil or other sharp object on the screen surface.
2. D
D
O NOT expose your smartphone to rain or moisture. Do not let water enter the
circuitry through the front panel buttons or expansion slots. In general, treat your
smartphone as you would a mobile phone or other small electronic device.
3. D
D
O be careful not to drop your smartphone or subject it to any strong impact. Do not
place your smartphone in your back pocket.
4. D
D
O NOT expose your smartphone to extreme temperatures. For example, do not leave
your smartphone on the dashboard of a car on a hot day or when temperatures are
below freezing point. Also, keep it away from heaters and other sources of heat.
5. D
D
O NOT use or store your smartphone in any location that is dusty, damp or wet.
6. D
D
O use a soft, damp cloth to clean your smartphone. If the surface of the screen
becomes soiled, clean it with a soft cloth moistened with diluted window-cleaning
solution.
7. D
D
O NOT press down on the screen with force, otherwise you may crack the screen.
![](/img.php?id=1403400&img=bg39.png)
57Specifications
Specifications
Performance
• Qualcomm MSM7227-1, 600 MHz
• System memory:
• 512 MB of SDRAM
• 512 MB of Flash ROM
• Google Android operating system
Display
• 3.2” TFT-LCD capacitive touchscreen
• 320 x 480 resolution
• 262K colors support
Multimedia
• CD-quality stereo output
• Mono speaker 0.5 W (max)
• Omni-directional microphone
• Formats supported
USB connector
• Micro USB connector
• USB Client
• DC power-in (5 V, 1 A)
Connectivity
• Bluetooth 2.1+EDR
• IEEE 802.11 b/g WLAN
• GSM 850 / 900 / 1800 / 1900
• UMTS 900 / 2100 (EU models)
• UMTS 850 / 1900 (US models)
• HSDPA / HSUPA* / EDGE / GPRS
Note: * For select models only.
Camera
• 5-megapixel
Type Formats
Audio playback MP3, AMR, WMA
Ringtone MP3, MIDI, iMelody, WAVE, WMA
Video recording 3GP, MPEG-4, H.263
Video playback 3GP, MPEG-4, H.263, H.264, WMV
![](/img.php?id=1403400&img=bg3a.png)
58Specifications
Expansion
• microSD memory card (up to 32 GB)
Battery
• High density, rechargeable 1300 mAh Lithium-ion battery (replaceable)
Note: Length of battery operation will depend on power consumption which is based
on system resource use. For example, constantly using the backlight or using power-
demanding applications will shorten battery life between charges.
Dimensions
• Stylish, light and robust design
Height 110.4 mm
Width 57.5 mm
Thickness 13.0 mm
Weight <108 g (with battery)
![](/img.php?id=1403400&img=bg3b.png)
59Regulatory information
Regulatory information
Compliant with Russian regulatory certification
RoHS compliance
This product is in compliance with Directive 2002/95/EC of the
European Parliament and of the Council of 27 January 2003, on the restriction of the use
of certain hazardous substances in electrical and electronic equipment (RoHS) and its
amendments.
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques. Nevertheless,
some pixels may occasionally misfire or appear as black or red dots. This has no effect on
the recorded image and does not constitute a malfunction.
Radio device regulatory notice
Note: Regulatory information below is for models with wireless LAN and/or Bluetooth
only.
General
This product complies with the radio frequency and safety standards of any country or
region in which it has been approved for wireless use. Depending on configuration, this
product may or may not contain wireless radio devices (such as wireless LAN and/or
Bluetooth modules). Information below is for products with such devices.
Preventing hearing loss
Caution: Permanent hearing loss may occur if earphones or headphones are used at
high volume for prolonged periods of time.
This device have been tested to comply with the Sound Pressure Level requirement laid
down in the applicable EN 50332-1 and/or EN 50332-2 standards.
Note: For France, mobile headphones or earphones for this device have
been tested to comply with the Sound Pressure requirement laid done in the
applicable NF EN 50332-1:2000 and/or NF EN 50332-2:2003 standards as
required by French Article L. 5232-1.
Wireless operation channels for different domains
France: Restricted wireless frequency bands
Some areas of France have a restricted frequency band. The worst case maximum
authorized power indoors is:
N. America 2.412-2.462 GHz Ch01 through Ch11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
![](/img.php?id=1403400&img=bg3c.png)
60Regulatory information
• 10 mW for the entire 2.4 GHz band (2400 MHz - 2483.5 MHz)
• 100 mW for frequencies between 2446.5 MHz and 2483.5 MHz
Note: Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5
MHz.
There are few possibilities for outdoor use: On private property or on the private
property of public persons, use is subject to a preliminary authorization procedure by the
Ministry of Defense, with maximum authorized power of 100 mW in the 2446.5 - 2483.5
MHz band. Use outdoors on public property is not permitted.
In the departments listed below, for the entire 2.4 GHz band:
• Maximum authorized power indoors is 100 mW
• Maximum authorized power outdoors is 10 mW
Departments in which the use of the 2400 - 2483.5 MHz band is permitted with an EIRP of
less than 100 mW indoors and less than 10 mW outdoors:
This requirement is likely to change over time, allowing you to use your wireless LAN card
in more areas within France.
Please check with ART for the latest information (http://www.art-telecom.fr).
Note: Your WLAN Card transmits less than 100 mW, but more than 10 mW.
List of National Codes
This equipment may be operated in the following countries:
01 Ain Orientales
02 Aisne
03 Allier
05 Hautes Alpes
08 Ardennes
09 Ariege
11 Aude
12 Aveyron
16 Charente
24 Dordogne
25 Doubs
26 Drome
32 Gers
36 Indre
37 Indre et Loire
41 Loir et Cher
45 Loret
50 Manche
55 Meuse
58 Nievre
59 Nord
60 Oise
61 Orne
63 Puy Du Dome
64 Pyrenees Atlantique
66 Pyrenees
67 Bas Rhin
68 Haut Rhin
70 Haute Saone
71 Saone et Loire
75 Paris
82 Tarn et Garonne
84 Vaucluse
88 Vosges
89 Yonne
90 Territoire de Belfort
94 Val de Marne
Country
Austria
Belgium
Cyprus
Czech Republic
Denmark
Estonia
Finland
France
Germany
Greece
Hungary
Ireland
Italy
Latvia
Lithuania
Luxembourg
ISO 3166
2 letter code
AT
BE
CY
CZ
DK
EE
FI
FR
DE
GR
HU
IE
IT
LV
LT
LU
Country
Malta
Netherlands
Poland
Portugal
Slovakia
Slovenia
Spain
Sweden
United Kingdom
Iceland
Liechtenstein
Norway
Switzerland
Bulgaria
Romania
Turkey
ISO 3166
2 letter code
MT
NT
PL
PT
SK
SL
ES
SE
GB
IS
LI
NO
CH
BG
RO
TR
![](/img.php?id=1403400&img=bg3d.png)
61Regulatory information
FCC regulations
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
RF exposure information (SAR)
This mobile phone meets the government's requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
Government.
The exposure standard for wireless mobile phones employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.
Tests for SAR are conducted using standard operating positions accepted by the FCC with
the phone transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR level
of the phone while operating can be well below the maximum value. This is because the
phone is designed to operate at multiple power levels so as to use only the poser required
to reach the network. In general, the closer you are to a wireless base station antenna,
the lower the power output.
The highest SAR value for US model phones as reported to the FCC when tested for use at the
ear is 0.637 W/kg and when worn on the body, as described in this user guide,
is 1.360 W/kg.
![](/img.php?id=1403400&img=bg3e.png)
62Regulatory information
Important: Body-worn measurements differ among phone models, depending upon
available enhancements and FCC requirements.
While there may be differences between the SAR levels of various phones and at various
positions, they all meet the government requirements.
The FCC has granted an Equipment Authorization for this model phone with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/oet/ea/fccid after searching on FCC ID:
HLZDME310SC (for US models).
For body worn operation, this phone has been tested and meets the FCC RF exposure
guidelines for use with accessories that contain no metal and that position the handset a
minimum of 1 cm from the body. Use of other accessories may not ensure compliance
with FCC RF exposure guidelines. If you do not use a body-worn accessory and are not
holding the phone at the ear, position the handset a minimum of 1 cm from your body
when the phone is switched on.
Using your phone with a hearing aid device (US models)
Your device is compliant with the FCC Hearing Aid Compatibility (HAC) requirements.
When some wireless phones are used near some hearing devices (hearing aids and
cochlear implants) users may detect a buzzing, humming, or whining noise. Some hearing
devices are more immune than others to this interference noise, and phones also vary in
the amount of interference they generate. The wireless telephone industry has developed
ratings for some of their mobile phones, to assist hearing-device users in finding phones
that may be compatible with their hearing devices. Not all phones have been rated.
Phones that have been rated have a label on the box. Your device has been tested for
hearing aid device compatibility and has an M3 and/or T3 rating.
These ratings are not guarantees. Results will vary, depending on the level of immunity of
your hearing device and the degree of your hearing loss. If your hearing device happens
to be vulnerable to interference, you may not be able to use a rated phone successfully.
Trying out the phone with your hearing device is the best way to evaluate it for your
personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less
interference with hearing devices than phones that are not labeled. M4 is the better/
higher of the two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable
with a hearing device's telecoil ("T Switch" or "Telephone Switch") than unrated phones.
T4 is the better/higher of the two ratings.
Important: This device does not support VoIP. WLAN and Bluetooth do not have voice
capability for held-to-the-ear phone service.
Note: Not all hearing devices contain telecoils.
The more immune your hearing aid device is, the less likely you are to experience
interference noise from your wireless phone. Hearing aid devices should have ratings
![](/img.php?id=1403400&img=bg3f.png)
63Regulatory information
similar to those of phones. Ask your hearing health-care professional for the rating of
your hearing aid.
Hearing devices may also be measured for immunity to this type of interference. Your
hearing device manufacturer or hearing health professional may help you find results for
your hearing device. The more immune your hearing aid is, the less likely you are to
experience interference noise from wireless devices.
For additional information about the FCC's actions with regard to hearing aid compatible
wireless devices and other steps the FCC has taken to ensure that individuals with
disabilities have access to telecommunications services, please go to www.fcc.gov/cgb/dro
Turning on Hearing Aid Compatibility mode
To turn on HAC, open the Applications tab and tap Settings > Call settings > Advanced
settings > Hearing aids.
Certificate Information (SAR)
This device meets the EU requirements (1999/519/EC) on the limitation of exposure of the
general public to electromagnetic fields by way of health protection.
The limits are part of extensive recommendations for the protection of the general
public. These recommendations have been developed and checked by independent
scientific organizations through regular and thorough evaluations of scientific studies. To
guarantee the safety of all persons, regardless of age and health, the limits include a
significant safety buffer.
Before radio devices can be put in circulation, their agreement with European laws or
limits must be confirmed; only then may the CE symbol be applied.
The unit of measurement for the European Council's recommended limit for mobile
telephones is the "Specific Absorption Rate" (SAR). This SAR limit is 2.0 W/kg, averaged
over 10 g of body tissue. It meets the requirements of the International Commission on
Non-Ionizing Radiation Protection (ICNIRP) and was included in the European Standard
EN 50360 for mobile radio devices. The SAR regulation for mobile telephones is in line
with European Standard EN 62209-1. The maximum SAR value is calculated at the highest
output level in all frequency bands of the mobile telephone. During use, the actual SAR
level is usually much lower than the maximum value, because the mobile telephone
works in different output levels. It only transmits with as much output as is required to
reach the network. In general the following applies: The closer you are to a base station,
the lower the transmission output of your mobile telephone. The tested SAR of this
device is as follows:
For Canadian users
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
EU model US model
CE NCC FCC
Head (W/kg) Body (W/kg) Head (W/kg) Head (W/kg) Body (W/kg)
0.719 0.674 0.719 0.637 1.360
FCC ID_US model HLZDME310SC
![](/img.php?id=1403400&img=bg40.png)
64Regulatory information
This Class B digital apparatus complies with Canadian ICES-003.
This Category II radiocommunication device complies with Industry Canada
Standard RSS-310.
Important note
IC radiation exposure statement
This EUT is compliance with SAR for general population/uncontrolled exposure
limits in IC RSS-102 and had been tested in accordance with the measurement
methods and procedures specified in IEEE 1528. This equipment should be
installed and operated with minimum distance 1.5 cm between the radiator
and your body.
This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
Note: The county code selection feature is disabled for products marketed in the US/
Canada.
NCC warning
巵崭
倢⨚㆞崜巘⚗㫋⃚⇝┮䘖⺓櫊榊㳮᧨槭倢峀♾᧨⏻⚇ᇬ⟕壮㒥∎䞷劔⧖ₜ㈦㝔呹帙㦃櫊䘖ᇬ┯⮶┮䘖
㒥帙㦃☮岼岗⃚䔈㊶♙┮厌ᇭ
⇝┮䘖⺓櫊榊㳮⃚∎䞷ₜ㈦㈀檎歪咹⸘⏷♙㞍⚗㽤抩≰᧷倢䤋䚍㦘㞍䚍廰㣑᧨㑘䵚☂⋫䞷᧨₵㟈
⠓咂䎰㞍㣑㡈㈦儋儛∎䞷ᇭ
ⓜ檔⚗㽤抩≰᧨㖖∬榊≰㽤尞⸩⇫㯼⃚䎰偩榊抩≰ᇭ
⇝┮䘖⺓櫊榊㳮檗㉜♦⚗㽤抩≰㒥ぴ㯼ᇬ䱠⸇♙携䣑䞷榊㽱懊⺓㊶榊㳮岼⌨⃚㞍᧨䂪⺠榊䭐㽱㈀
檎᧨嵚ⰴ⠓∎䞷ᇭ
6$5㲨䄥⋋:NJ抐䂻䞱❐䂻⋋䍉719:NJ
![](/img.php?id=1403400&img=bg41.png)
65Regulatory information
Lithium-ion battery warning
ATTENZIONE! Rischio di esplosione della batteria se sostituita in
modo errato. Sostituire la batteria con un una di tipo uguale o
equivalente consigliata dalla fabbrica. Non disperdere le batterie
nell’ambiente.
VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der
Batterie. Ersatz nur durch denselben oder einem vom Hersteller
empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien
nach Angaben des Herstellers.
ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig
håndtering. Udskiftning må kun ske med batteri af samme
fabrikat og type. Levér det brugte batteri tilbage til leverandøren.
VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma
batterityp eller en ekvivalent typ som rekommenderas av
apparattillverkaren. Kassera använt batteri enligt fabrikantens
instruktion.
VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan sousittelemaan
tyyppiin. Hävitä käytetty paristo valmistagan ohjeiden mukaisesti.
ATTENTION ! Il y a danger d’explosion s’il y a remplacement
incorrect de la batterie. Remplacer uniquement avec une batterie
du mêre type ou d’ un type équivalent recommandé par le
constructeur. Mettre au rebut les batteries usagées conformément
aux instructions du fabricant.
ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri. Benytt
samme batteritype eller en tilsvarende type anbefalt av
apparatfabrikanten. Brukte batterier kasseres i henhold til
fabrikantens instruksjoner.
![](/img.php?id=1403400&img=bg42.png)
0682
Acer Incorporated
Date: December 21, 2010
Declaration of Conformity
We, Acer Incorporated,
Of 8 F., No. 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei hsien, 221, Taiwan
Declare under sole responsibility that the product:
Model: E310
Description: Smart Handheld
To which this declaration relates, is in conformity with the following standards
and/or other normative documents:
• EN 301 511 V9.0.2
• EN 300 328 V1.7.1
• EN 301 908-1 /-2 V3.2.1
• EN 300 440-1 V1.5.1 / EN 300 440-2 V1.3.1:2009
• EN 301 489-1 V1.8.1 /-3 V1.4.1 /-7 V1.3.1 /-17 V2.1.1 /-24 V1.4.1
• EN 55022:2006/ A1:2007 Class B; EN55024:1998/A1:2001/A2:2003
• EN 55013:2001/A1:2003/A2:2006; EN55020:2007
• EN 60950-1:2006+A11:2009
• EN 50332-1:2000/-2:2003
• EN 50360:2001/ EN 62209-1:2006/ EN 62311:2008/ OET65C
All R&TTE related features of Acer E310 containing the RF technology as below:
GSM 900: TX: 880 MHz – 915 MHz, RX: 925 MHz – 960 MHz
DCS 1800: TX: 1710 MHz – 1785 MHz, RX: 1805 MHz – 1880 MHz
IEEE 802.11b/g: 2412 ~ 2462 MHz
BT EDR: 2402 ~ 2480 MHz
WCDMA / HSDPA
Band I: TX: 1920 MHz ~ 1980 MHz, RX: 2110 MHz ~ 2170 MHz
Band VIII: TX: 882.4 MHz - 912.6MHz MHz, RX: 927.4 MHz - 957.6 MHz
GPS: 1575 MHz
We hereby declare that the above named product is in conformance to all the
essential requirements of the R&TTE Directive (99/5/EC) issued by the
Commission of the European Community.
The conformity assessment procedure referred to in Article 10 and detailed in
Annex [IV] of directive 1999/5/EC has been followed related to Articles:
• R&TTE Article 3.1 (a) Health and Safety
• R&TTE Article 3.1 (b) EMC
![](/img.php?id=1403400&img=bg43.png)
• R&TTE Article 3.2 Spectrum Usage
with the involvement of the following Notified Body:
CETECOM, Untertuerkheimer Str. 6 - 10 66117 Saarbruecken
Identification mark: 0682 (Notified Body) CE
The technical documentation relevant to the above equipment will be held at:
Acer Incorporated
8 F., No. 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei hsien, 221, Taiwan
Authorized person:
Jerry Lee / Project Manager, Acer Inc.
