Manual

2 -

Acer Liquid E600 User’s Manual

Model: E600

This revision: August 2014

Acer Liquid E600 Smartphone

Model number:_______________________________________________

Serial number: _______________________________________________

Date of purchase: ____________________________________________

Place of purchase: ___________________________________________

Important

This manual contains proprietary information that is protected by

change without notice. Images provided herein are for reference only

and may contain information or features that do not apply to your

computer. Acer Group shall not be liable for technical or editorial errors

or omissions contained in this manual.

Open the Acer Portal app from the Start screen to sign up for an Acer ID or

There are three great reasons for you to get an Acer ID:

• Build Your Own Cloud with Acer BYOC.

• Get the latest offers and product information.

• Register your device for warranty service.

For more information, please visit the AcerCloud website:

www.acer.com/byoc-start

Table of contents - 3

TABLE OF CONTENTS

Setting up 5

Unpacking your smartphone.................... 5

Getting to know your smartphone............ 5

Views .......................................................... 5

Charging the battery ................................... 7

Installing a SIM or microSD card............. 7

SIM card lock .............................................. 8

Using your smartphone 9

Turning on for the first time...................... 9

Entering your PIN........................................ 9

Activating a new SIM card .......................... 9

Locking your smartphone ........................ 9

Waking your smartphone ......................... 10

Navigating through menus and options. 10

Using the touchscreen........................... 11

Onscreen keyboards ............................. 12

Google keyboard....................................... 12

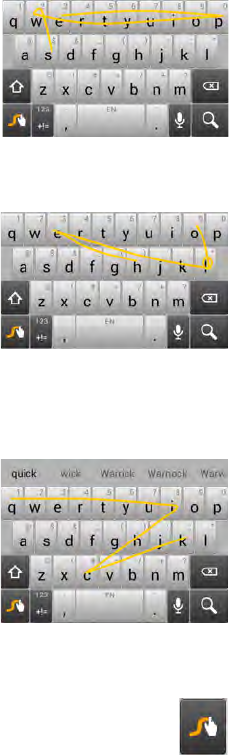

Swype ....................................................... 13

Predictive text ........................................... 14

The Home screen.................................. 14

Search....................................................... 15

The extended Home screen...................... 15

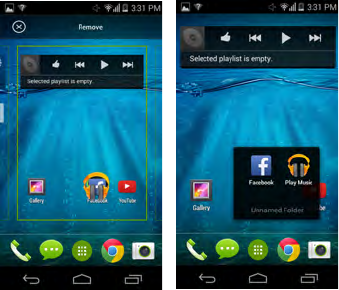

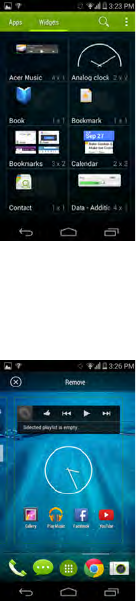

Personalizing the Home screen................ 15

The Application (Apps) menu.................... 18

Notification and status area ...................... 18

Multitasking ............................................... 19

Managing contacts 20

Managing your contacts ........................ 20

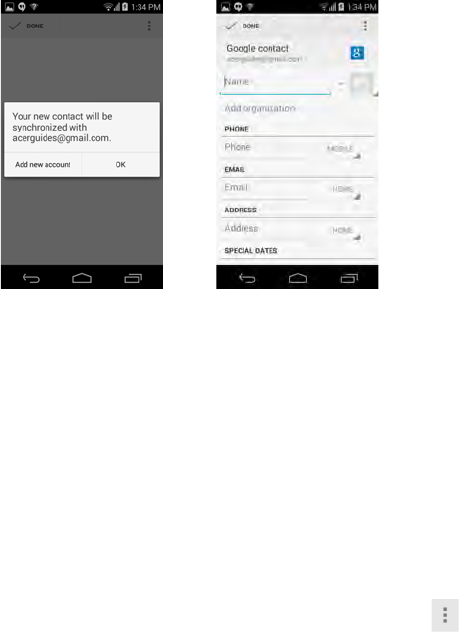

Adding a contact ....................................... 20

Making calls 22

Before making a call.............................. 22

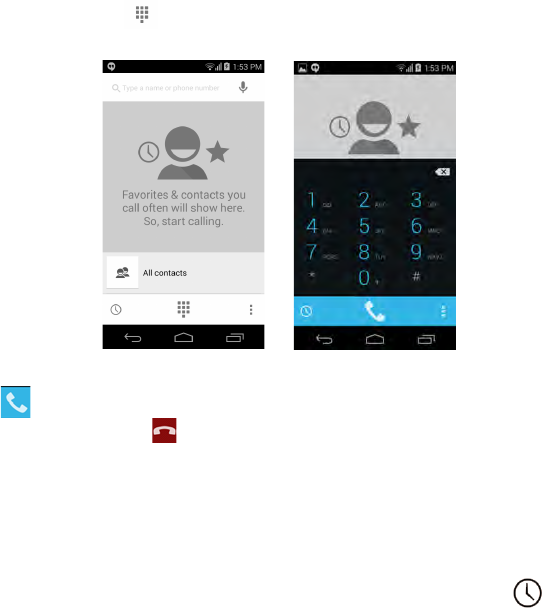

Making a call.......................................... 23

Dialing a number from Call History ........... 23

Viewing missed calls................................. 24

Making a call to one of your contacts........ 24

Dialing an international number ................ 24

Direct dial widget....................................... 25

The voice call screen............................. 25

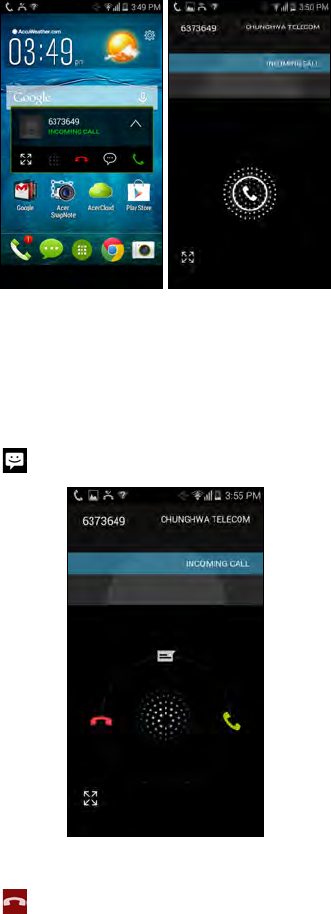

Answering or declining a call .................... 26

Conference calls ....................................... 27

Internet calling 28

Adding an internet calling account......... 28

Editing or removing an internet calling

account.................................................. 28

Using internet calling ............................. 28

Receiving internet calls.......................... 28

Calling a contact’s internet calling

address.................................................. 29

Calling a phone number using internet

calling..................................................... 29

Messaging 30

Creating a new message ....................... 30

Replying to a message .......................... 31

Multimedia messages ............................ 32

Receiving multimedia messages .............. 32

Going online 34

Browsing the internet ............................. 34

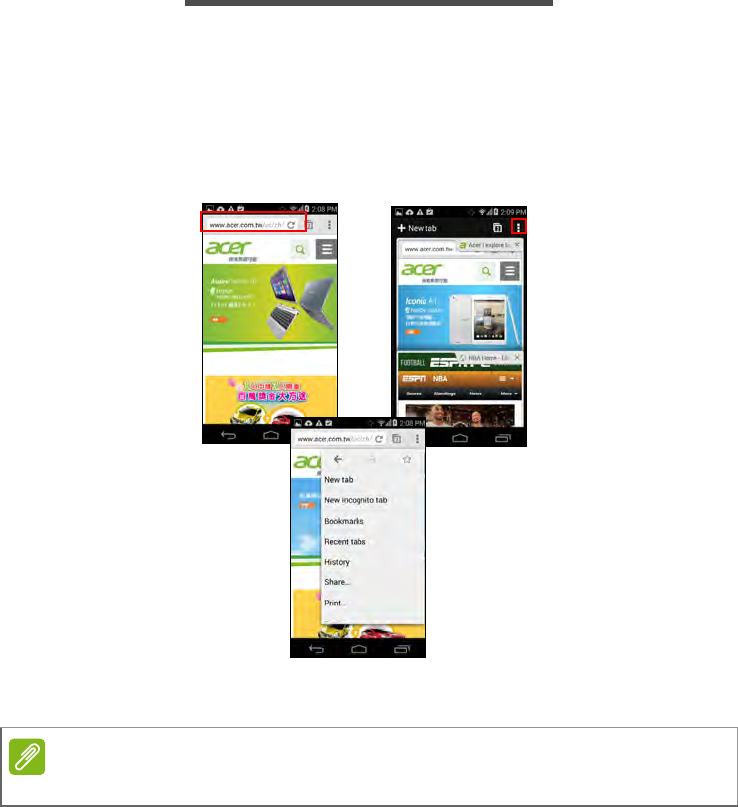

Using the browser .................................... 34

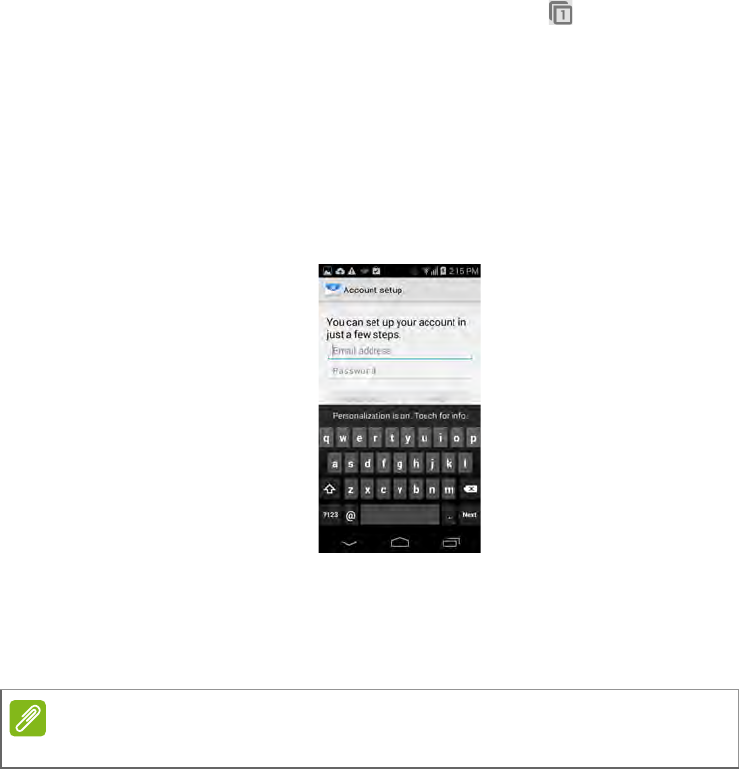

Setting up Email..................................... 35

Google services..................................... 35

Setting up your Google email ................... 36

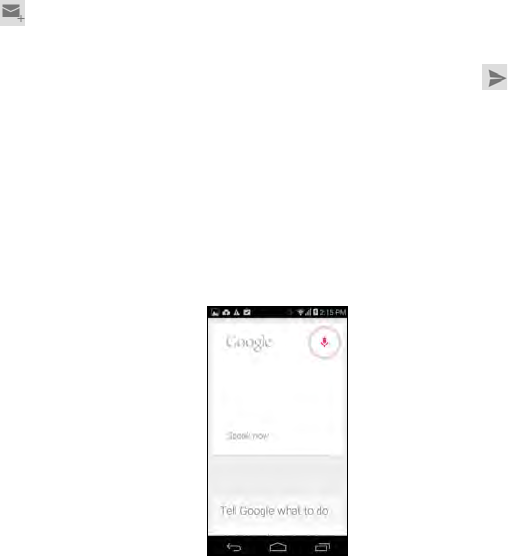

Voice search............................................. 36

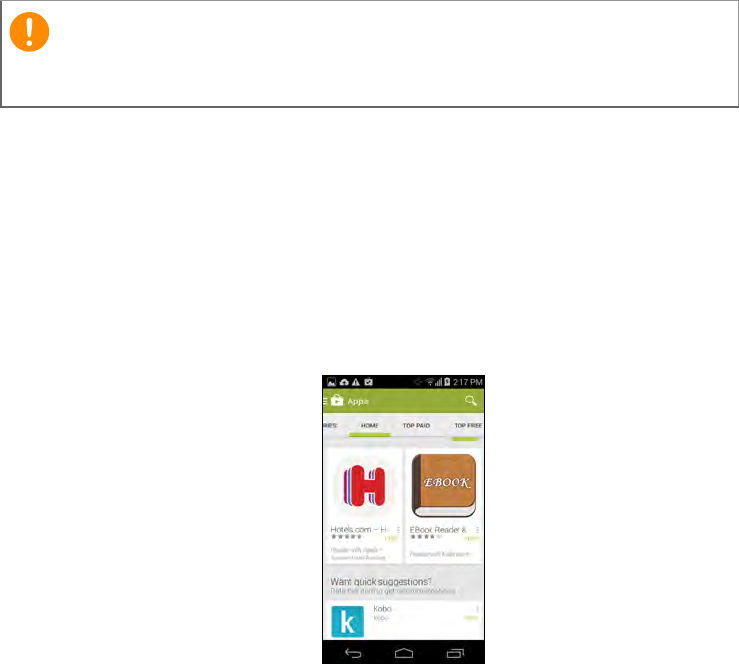

Play Store ................................................. 37

Google Hangouts...................................... 38

Maps, Navigation, Places and Latitude .... 39

Using the Camera 40

Camera/camcorder icons and indicators 40

Settings menus......................................... 42

Taking a photo ....................................... 43

Taking a panoramic photo ........................ 43

Shooting a video .................................... 44

Supported formats .................................... 44

Viewing photos and videos .................... 44

Geotagging ............................................ 44

Advanced settings 45

Putting your smartphone in Airplane

mode...................................................... 45

Turning Airplane mode on or off ............... 45

Restarting your phone ........................... 46

Adjusting settings................................... 46

Activating or deactivating connections...... 46

Phone network settings ............................ 48

Phone settings.......................................... 49

Sound ....................................................... 50

Audio profiles............................................ 50

Display...................................................... 51

Setting the date and time.......................... 51

Setting alarms........................................... 51

Changing language and text options ........ 52

Connecting to a PC................................ 52

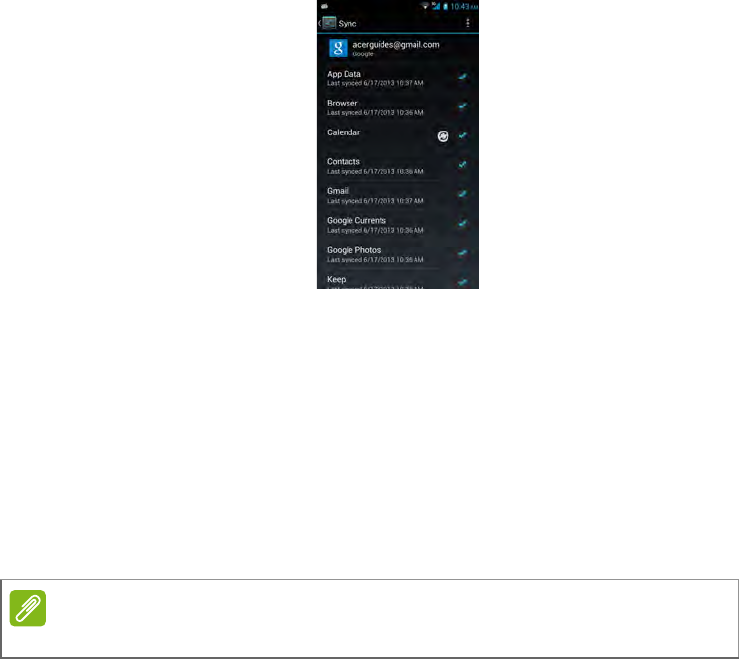

Synchronization ........................................ 53

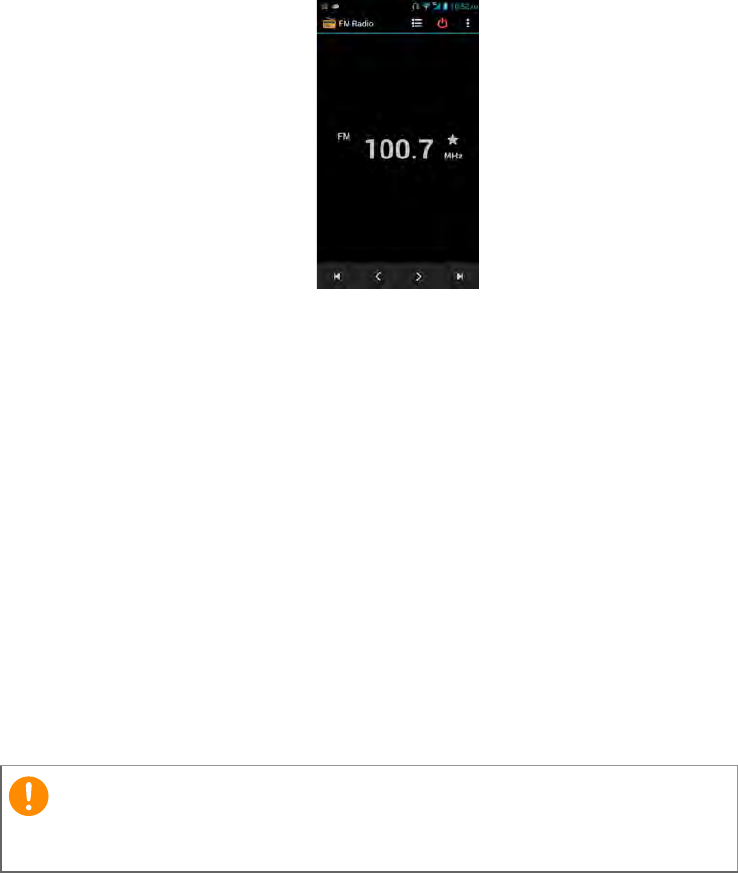

FM radio................................................. 53

Applications (apps) ................................ 54

Closing an app.......................................... 54

Uninstalling an app ................................... 54

Restoring to factory settings .................. 55

Accessories and tips 56

Using the headset.................................. 56

4 - Table of contents

Using a Bluetooth headset..................... 56

Creating a new access point.................... 56

Inserting a microSD card ....................... 57

Appendix 58

FAQ and troubleshooting....................... 58

Other sources of help............................. 60

Warnings and precautions 61

Medical devices ....................................... 62

Vehicles ................................................... 63

Potentially explosive environments.......... 63

Emergency calls..................................... 64

Taking care of your smartphone............. 64

Specifications ......................................... 66

Performance ............................................. 66

Display ...................................................... 66

Multimedia ................................................ 66

USB connector.......................................... 66

Connectivity .............................................. 67

Camera ..................................................... 67

Expansion ................................................. 67

Battery ...................................................... 67

Dimensions ............................................... 68

End User License Agreement 69

Setting up - 5

SETTING UP

Unpacking your smartphone

Your new smartphone comes packed in a protective box. Carefully

unpack the box and remove the contents. If any of the following items

is missing or damaged, contact your dealer immediately:

• Your Acer E600 smartphone

•Quick Guide

• USB cable

• AC adapter

• Headset

Getting to know your smartphone

Views

Note

In-box content varies depending on country and region.

6 - Setting up

No. Item Description

1 Volume up/down button Increases or decreases the phone volume.

2 3.5 mm headphone jack Connects to stereo headphones.

3 Power button Press to turn the screen on/off or enter sleep

mode; press and hold to turn the smartphone on

or off.

4 Phone speaker Emits audio from your smartphone; suitable for

holding to your ear.

5 Front-facing camera Fixed-focus 0.3 MP camera for video chats and

self-portrait images.

6 LED indicator Indicates when the phone is connected as a

media device.

7 Touchscreen 5-inch, 854 x 480 pixel capacitive touchscreen to

display data, phone content and enter information.

8 Micro USB connector Connects to a USB cable/charger.

9 Flash LED flash for camera.

10 Camera Auto-focus 8 MP camera for taking high-resolution

images.

11 Microphone Internal microphone.

12 AcerRAPID button Shortcut button to answer incoming calls. Long

press to launch the camera app; short press to

launch a designated app (default app is Google

Play Music).

Setting up - 7

Charging the battery

For initial use, you need to charge your smartphone for eight hours. After

that you can recharge the battery as needed.

Connect the AC adapter cord to the micro USB connector on your

smartphone.

Installing a SIM or microSD card

To take full advantage of your smartphone’s telephony capabilities,

you must install a SIM card.

Additionally, you may wish to increase your smartphone’s storage by

inserting a microSD card into the labeled slot.

1.Turn off the phone by pressing and holding the power button.

Note

The information in this UM may vary according to the number of SIMs you are

using.

8 - Setting up

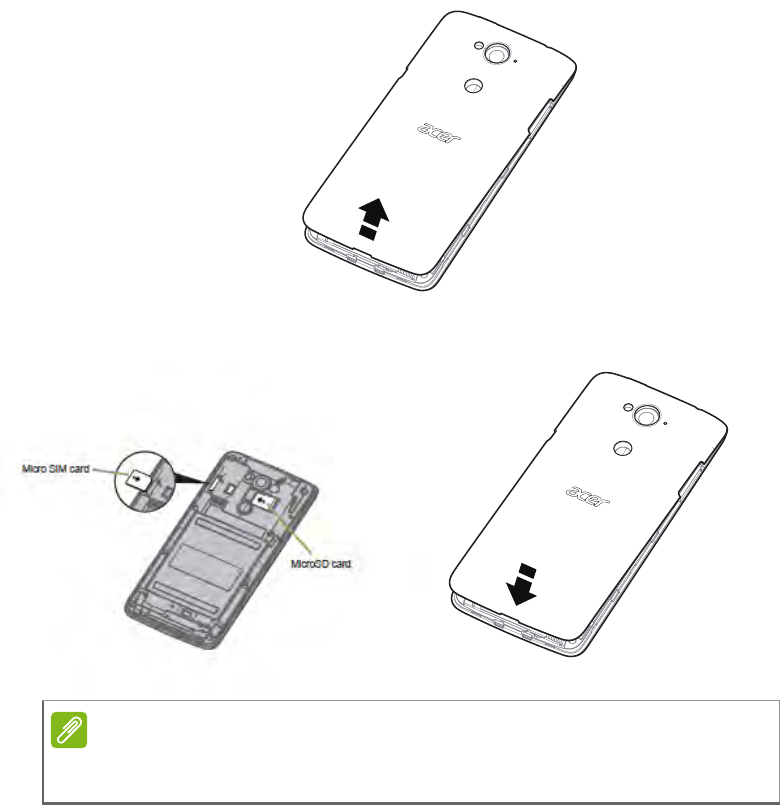

2.Insert your fingernail into the notch located at the bottom of the

phone and remove the cover as illustrated.

3.Ensure the microSD card and SIMs are inserted all the way and

gently snap the cover back in place..

SIM card lock

Your smartphone may come with a SIM card lock, i.e., you will only be

able to use the SIM card provided by your network operator.

To cancel the SIM lock, contact your network provider.

Note

Your smartphone may be equipped with one or two SIM slots depending on

model.

Using your smartphone - 9

USING YOUR SMARTPHONE

Turning on for the first time

To turn on your smartphone for the first time, press and hold the

power button until the screen turns on. You will then be asked to

configure some settings before you can use your smartphone.

Follow the onscreen instructions to complete setup.

If you have Internet access, your smartphone allows you to

synchronize information with a Google account.

You may create or sign in to an existing Google account, which will be

used to synchronize your contact list, email, calendar and other

information.Open the Application menu and then tap Settings > Add

account. Tap the type of account you want to add (e.g. Google). You

will need internet access to complete the synchronization process.

You can create and easily access multiple Google accounts.

Entering your PIN

When you install a SIM card for the first time, you may need to enter a

PIN using the onscreen number pad.

Activating a new SIM card

If you are using your SIM card for the first time, it may require

activation. Contact your network operator for details on how to do this.

Locking your smartphone

If you will not use your smartphone for a while, briefly press the power

button to lock access. This saves power and ensures your

Important

Depending on your settings, you may be required to enter your PIN

each time you switch on the phone function.

10 - Using your smartphone

smartphone does not unintentionally use any services. Your

smartphone will lock automatically if it is not used for one minute.

Waking your smartphone

If the screen is off and the smartphone does not react to any taps on

the screen or front panel button, then it has been locked and is in

sleep mode.

Press the power button to wake your smartphone. Unlock your

smartphone by sliding your finger from one side of the screen to the

other (it works both ways).

For additional security, you may set an unlock pattern, a set of dots

that must be touched in the correct order to access the phone. Open

the Application menu and then tap Settings > Security > Screen

lock. If you forget your unlock pattern, please refer to Unlock pattern

on page 60.

You may also directly enter the lock screen apps. Tap and hold the

lock screen icon, move your finer slightly in any direction, and release.

The phone unlocks and opens that app.

Navigating through menus and options

To navigate through menus and options,

there are three buttons beneath the

screen.

Back Home Menu

Using your smartphone - 11

Back

Tap this button to go to the previous page, or to go up one level in a

menu.

Home

Tap this button to go directly to the Home screen. Tap and hold this

button to open Search.

Tap this button to see recently opened apps. Tap an app to open it. At

the bottom of the Menu screen are Acer Float apps. Tap a Float app

to open the app in its own window while keeping what you were doing

visible. You can customize which apps appear. Swipe to the right in

the Acer Float apps bar and tap the gear icon. Choose from float

Browser, Buttons, Calculator, Camera, Maps, Notes, Stopwatch, and

Text.

Tap and hold the Menu button to open a menu of actions that are valid

for the current app or screen. Tap anywhere on the screen to return to

the Home screen. See Multitasking on page 19.

Using the touchscreen

Your smartphone uses a touchscreen for selecting items and entering

information. Use your finger to tap the screen.

Tap: Touch the screen once to open items and select options.

Drag: Hold your finger on the screen and drag across the screen to

select text and images.

Tap and hold: Tap and hold an item to see a list of actions available

for that item. On the pop-up menu that appears, tap the action you

want to perform.

Scroll: To scroll up or down the screen, simply drag your finger up or

down the screen in the direction that you want to scroll.

12 - Using your smartphone

Onscreen keyboards

Google keyboard

This is a standard onscreen QWERTY

keyboard that allows you to enter text. Tap

and hold a key with numbers at the top to

select alternative characters, such as letters

with accents.

Tap the ?123 button to see numbers and

special characters, and then tap the =\< key to see even more.

You can choose another input language by tapping and holding the

forward slash key. Alternatively, you can open the Application menu

and then tap Settings > Language & input. Then tap the Settings

button next to Google keyboard > Input languages. The keyboard

layout changes according to the selected language.

After setting up more than one language, the world button

appears next to the space bar. Tap this button to quickly toggle

between multiple input languages.

Text assistance

The Google keyboard has various features that assist you to enter

correct text. In the Application menu, tap Settings > Language &

input. Then tap the Settings button next to Google keyboard. From

here you can enable or disable several keyboard-related settings.

Changing the text input method

To change the input method, in the Application menu tap Settings >

Language & input > Default and then select your preferred input

method.

Note

The keyboard layout varies slightly, depending on the application and

information that is required.

Using your smartphone - 13

Swype

Swype is a fast way to enter text. It allows

you to type with one continuous motion

across the screen keyboard; you create a

word by drawing through letters.

Put your finger on the first letter of the word

and draw a path from letter to letter, lifting up

only after the last letter. Swype will insert

spaces where necessary.

Swype will usually add a double letter in a

word when needed, but you can help Swype

recognize you want a double letter by

scribbling slightly or making a loop on the

letter. For example, to get the "ll" in "hello", scribble (or make a loop)

on the "l" key.

When there are multiple suggestions for the

word you want to enter, Swype displays a

Word Choice List. To accept the default

word in the Word Choice List, just keep

Swyping. Otherwise, scroll through the list by

dragging your finger, and tap the word you

want.

Press and hold the Swype key to access settings, features,

updates, preferences, and help.

Tap the +!= button to see numbers and special characters; tap

the page (shift) key to see even more.

Additional keys vary depending on the type of text you enter, e.g. a

key to add a smiley is available when typing a text message. Like

other keys, tap and hold for additional options.

14 - Using your smartphone

Text assistance

The Swype keyboard has various features that assist you to enter

correct text. In the Application menu, tap Settings > Language &

input and then tap the Settings button to the right of Swype. You can

also tap and hold the Swype key .

Predictive text

Both Swype and Google keyboard provide predictive text input for the

browser. As you tap the letters of a word, a selection of words are

displayed above the keyboard that continue the sequence of letters

tapped, or are a close match allowing for errors. The word list

changes after every key press. If the word you need is displayed, you

can tap on it to insert it into your text.

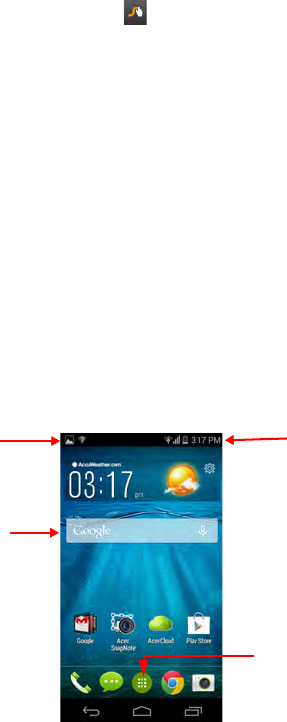

The Home screen

The Home screen gives you quick access to information and simple

controls with widgets or shortcuts. These display information such as

the time and weather, or provide additional controls and direct access

to apps and other frequently used features of your smartphone.

At the bottom of the screen is the application dock which displays

default apps. Tap an icon to open the app. Tap the Application menu

icon in the middle of the application dock to view your apps. To

change apps, see Changing application dock icons on page 17.

Time and Status

Widgets

Application (Apps) menu

Using your smartphone - 15

To search for apps, files or for information on the Internet,

tap the Google icon.

Simply enter the text you want to find and tap or tap one of the

suggestions, apps or files shown in the list.

In order to search or browse the Internet, you must be connected to a

cellular data (if available) or wireless network. See Going online on

page 34.

Voice search

If voice search is available, tap the microphone and speak your

search request. See Voice search on page 36.

The extended Home screen

The Home screen extends to either side of the screen, giving you

more room to add icons, widgets or features. To view the extended

screen, slide your finger to the left or right.

Personalizing the Home screen

You may personalize your Home screen by adding or removing app

shortcuts or widgets, and by changing the wallpaper.

Adding and removing shortcuts and widgets

To add shortcuts or widgets, tap the Application menu icon in the

bottom-center of the Home screen.

Tap Apps to see a list of shortcuts to apps you can drag to a Home

screen.

16 - Using your smartphone

Tap Widgets to see small apps and links (such as custom shortcuts,

contacts or bookmarks) that you can add to a Home screen. Widgets

are small apps that display constantly-updated information or quick

shortcuts to apps or special functions.

To move an app or widget to the Home screen, tap and hold an item

until it is selected. The Home screen will open. Drag the item to any

free area on the screen. To view information about the app or widget,

drag it to the icon at the top of the screen.

To move the item to a different Home screen, drag it to the side of the

screen, the Home scre en will switch to the

screen in that direction. Release the item when it is positioned

correctly.

To remove a shortcut or widget from the Home screen, tap and drag it

to Remove at the top of the screen.

Resizing widgets

Some widgets can be resized. As soon as you place a widget on the

Home screen, you can resize it by dragging the corners.

Using your smartphone - 17

To resize a widget that is already on the Home screen, tap and hold

the widget. Once the Remove icon appears, release the widget. If the

widget is resizable, you will be able to drag the sides of the widget to

resize it.

Adding or removing folders

You can also add folders to your Home screen. To create a new folder

drag and drop an app icon onto another app icon in the Home screen.

This will create an Unnamed Folder. Tap the folder icon and then tap

the name of the folder to rename it.

To delete an app shortcut from a folder, tap on the folder icon to

display the apps inside and then tap and hold the app icon that you

want to remove. Drag and drop the icon on Remove that will appear

at the top of the screen.

To delete a folder, tap and hold on the folder and then drag and drop

the folder on Remove that will appear at the top of the screen.

Changing application dock icons

You can set icons for installed apps in the application dock. Open the

Application menu and find the app you want to add. Tap and hold the

icon, then drag it to any open position in the dock. Dragging the new

app to an existing dock icon will create a folder for both icons.

To remove an icon from the dock, tap and hold the icon to select it.

Either drag the icon to a different location outside the dock or to

Remove at the top of the screen.

18 - Using your smartphone

Changing the wallpaper

In the Application menu, tap Settings > Display > Wallpaper.

Choose from images stored in the Gallery, Live Wallpapers (featuring

animated or interactive backgrounds), Photos, or Wallpapers.

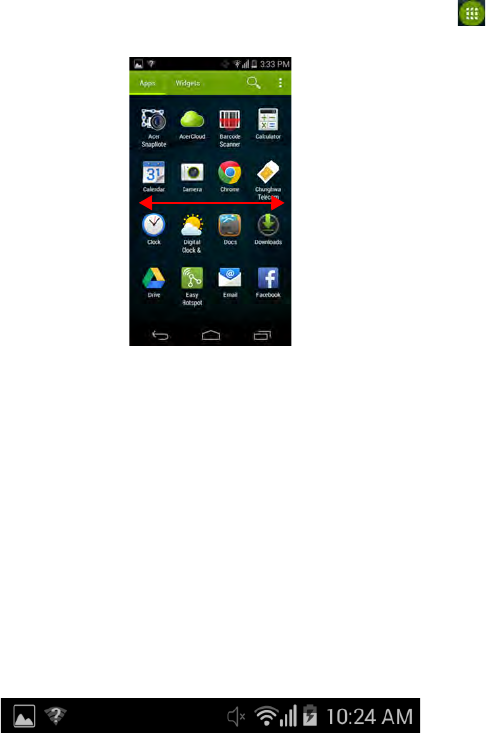

The Application (Apps) menu

To access the Application menu, on the Home screen tap in the

center of the dock.

Apps are displayed in alphabetical order. Swipe the page to the left or

right to see more apps.When you are on the last page of apps, swipe

to the left to see widgets available on your tablet, or tap Widgets at

the top of the page.

To quickly jump to apps or widgets, tap Apps or Widgets at the top of

the Application menu.

Notification and status area

Notification and status icons are shown at the top of the screen. The

top-right area displays a variety of status information, such as Wi-Fi

connectivity, signal strength, battery status, and time. The top-left

area displays event icons, such as a new message.

Using your smartphone - 19

Drag the Notification area down the screen to view more information

about new events and access Quick Settings.

Multitasking

You can have multiple apps open at the same time. To open a new

app, tap the home button to return to the Home screen, then start the

new app. Tap the Menu button to quickly navigate back and forth

between previously-opened apps.

Note

To prolong battery life, it is better to close an app when you’ve finished using

it. Do this by either pressing the Back key or the Menu button and selecting

Exit (if available).

20 - Managing contacts

MANAGING CONTACTS

Managing your contacts

Your smartphone features an address book that allows you to save

contacts to either the internal memory or onto your SIM card.

Tap the People app from the Application menu or tap All contacts

from the Dialer to view your contacts.

If you don’t have any contacts stored on your phone, you can import

your Google account contacts, add a new contact or import contacts

from your SIM or SD card. Open the People app from the Application

menu and then tap to add a contact, to search for a contact, or

tap the Menu button to open the menu.

Adding a contact

Tap to add a new contact. You may also scan a person’s profile

barcode to add the person to your contact list or group.

Managing contacts - 21

To create a contact, first choose where you want to store the contact’s

information. You will then be asked to enter the contact’s information,

such as name, address, and phone number.

You may scroll down the page and tap Add another field to add

things such as:

• IM addresses.

• Add any personal notes about the contact.

• Phonetic name

• Link a website

To assign an image to your contact, tap the silhouette and select

whether to take a photo or select an image from your smartphone’s

picture gallery.

When done, click Done at the top of the screen.

Tapping on the contacts name will bring up their profile. Tap while

viewing a contact’s profile to edit, share, delete, or print the contact.

You may also set a ringtone for the contact, block incoming calls from

this contact, or place the contact on your Home screen.

You may also create a contact from an already dialed or received

number, see Saving a dialed number to contacts on page 27.

22 - Making calls

MAKING CALLS

This chapter shows you how to make phone calls, and the various

options available to you during your call.

Before making a call

Check that the phone function is on before you make a call. You can

confirm the phone status from the Notification area.

Note

Status and notification icon colors may vary.

Icon Description

Not connected to the network: You are unable to make a

call.

Connected to the network: You may make a call.

Airplane mode: Wireless connectivity disconnected (Wi-Fi,

Bluetooth, 2G and 3G). Please disable airplane mode

before trying to make a call.

Making calls - 23

Making a call

1.From the Home screen tap Phone to access your contacts and

recent calls. Tap to open the onscreen number pad.

2.Enter the number you wish to dial.

3.Tap to make the call.

4.To end the call, tap .

If the contact you need is displayed, simply tap the contact name to

make a call.

Dialing a number from Call History

Your call history can be viewed by tapping the Call History button.

It displays recent received, dialed, and missed calls.

Tap the phone icon to redial. To view call details and other options,

tap the number or contact’s name.

24 - Making calls

Viewing missed calls

Missed call notifications are displayed in the following three areas:

1.The Notification area with the missed call icon. Open the

Notification area and tap the missed call notification to display the

missed call details.

2.By the Phone icon (the number in the box is the number of

missed calls). Tap Phone from either the Home screen or the

Application menu to directly display the missed call details.

3.On your phone’s lock screen. Tap the

notification and slide to the left or right to

display the missed call details.

Making a call to one of your contacts

Calling a contact from the Contacts tab

1.Tap the All contacts to view your contacts.

2.Tap on a contact to call them.

Calling a contact from the Contacts app

1.Tap the People icon the Application menu to view your contacts.

2.Tap on a contact to open their profile.

3.Tap on the contact’s phone number to call them.

Dialing an international number

When dialing international numbers, there is no need to enter the

international direct dialing prefix (’00’ etc.) before the country code.

Making calls - 25

Simply tap and hold 0+ on the onscreen number pad until + appears

onscreen.

Direct dial widget

You may add a direct dial widget for a contact on your Home screen.

Open the Application menu, then tap the Widgets tab. Tap and hold

Direct dial and you will be able to place the widget on your Home

screen. Once placed, you will be able to select a contact to associate

with that particular widget on your Home screen.

The voice call screen

You can minimize the call window to appear as a movable dialog

instead of a whole screen by tapping the icon. You can even set

this "floating" dialog box as the default voice call screen. To do so,

open the Notification area and tap the down arrow to display more

Quick Settings options(see Notification and status area on

Important

International call rates can vary greatly depending on the country you

are calling and your network provider. We suggest you check all call

rates with your network provider, to avoid excessive phone bills. If you

are using your smartphone abroad, roaming charges will apply.

Consult your network provider for roaming rates specific to the country

you are visiting before you leave.

26 - Making calls

page 18). Tap the Float caller button to activate (green means Float

caller is "ON").

Answering or declining a call

When you have an incoming call, the number will be shown on the

screen. To accept or decline the call, tap the appropriate icon and

slide your finger across the screen. To decline the call with a text

message, tap the icon and select a message.

Ending a call

To end a call, tap from the voice call screen.

Making calls - 27

Voice call options

Icon Description

Activate Float caller window.

Access the keypad while a call is in progress.

Speakerphone.

Mute a call.

Place the call on hold.

Add a second call.

Saving a dialed number to contacts

You can save a number you have dialed to your contacts for future

use.

1.From the Call History , tap the number and then tap Add to

contacts .

2.Tap Create new contact and enter the information. See Adding a

contact on page 20.

Conference calls

If you have one call on hold and another on line, you can combine

both calls to create a conference call.

After the first call is established, tap to add a second call. Tap

to start the conference call.

28 - Internet calling

INTERNET CALLING

You can place and receive internet calls over a wireless network.

Adding an internet calling account

From the Home screen, tap Phone. If open, tap the Back button to

close the onscreen number pad. Tap the Settings button at the

bottom-right of the call screen. Tap SIP Accounts > ADD ACCOUNT

to add an internet calling account.

Enter the Username, Password, and Server information and if you

want this new account to be your primary internet calling account, tap

Set as primary account. You can also configure optional settings

such as Display name, Outbound proxy address, Port number,

Transport type, and Send keep-alive.

Editing or removing an internet calling account

Open an existing internet calling account and make the edits you want

on the SIP account details. Tap Save to save your changes, tap

Discard to discard the changes, or tap the Menu button and then

select Remove account to delete the existing account.

Using internet calling

You can configure your phone to use internet calling (when you’re

connected to Wi-Fi) for all calls, only for internet calls, or to ask each

time you place a call.

Receiving internet calls

Once your have created an internet calling account, you can toggle off

and on the internet calling feature on your phone. From the Home

screen, tap Phone. If open, tap the Back button to close the onscreen

number pad. Tap the Settings > Internet Call button at the bottom-

right of the call screen. Enable internet calling by tapping Use

Internet calling.

Internet calling - 29

Calling a contact’s internet calling address

You must add an internet calling address to a contact to be able to

place an internet call to them.

To make an internet call, from the Application menu tap People. Tap

on the contact to open their profile, and then tap on their internet

calling address to place the call.

Calling a phone number using internet calling

If you have configured your phone to place all calls using internet

calling or to ask for each call, you may also call a phone number using

internet call, whenever you are connected to a wireless network.

Dial the number and tap , or select the contact you wish to place a

call to, then tap the internet call account you want to use to make the

call.

Note

Many modern internet calling apps automatically "connect" to any of your

Android contacts who also have that service. Any connected services will be

listed under "connections" in the contact’s profile.

Important

Calling a phone number using internet calling requires that your

service provider supports it, and may incur additional charges. Please

contact your service provider if you have any questions.

30 - Messaging

MESSAGING

This chapter shows you how to set up and use the Phone messages,

Social messages and Social events functions of your smartphone.

All SMS and MMS messages are accessed via Messaging.

Messaging automatically arranges received and sent messages into

threads.

To access Messaging, open the Application menu and tap

Messaging on the Home screen.

Creating a new message

You can use your phone to compose text (SMS) and multimedia

(MMS) messages.

Tap to compose a new message.

Tap the To field to enter the recipient’s phone number or name

directly. Suggested contacts will be displayed in a drop-down list

below the text field. To select a suggested contact, tap the contact’s

name.

Note

If you have multiple SIMs inserted in the phone, you will be asked which SIM

to use before the message is sent. To select a SIM, just tap the name of the

carrier.

Messaging - 31

Enter your message in the text box labeled Type message.

Tap the Menu button to see what options are available when creating

a new message. The options change depending on the status of the

message.

Replying to a message

When a new text message arrives a message icon appears in the

Notification area and the message icon at the bottom of the phone

displays the number of unread text messages.

Tap Messaging from the Application menu to view the message list

or open the Notification area to see a summary of the message. Tap

the summary to open the message list.

To reply to an SMS or MMS message, open the message from the

message list. Enter your text in the text box labeled Type text

message. Tap the Menu button to see available options.

Note

Text messages may be up to 160 characters long. If your message is longer

than 160 characters, it will be sent as multiple linked messages. Most phones

will automatically join the linked messages to present the recipient with a

single long message, however, some older phones do not have this ability.

Option Description

Insert quick

text Insert pre-defined text content.

Insert contact Add a contact to the recipients list.

Add subject Add a subject to the message.

Discard Discard the message.

Option Description

Select

message Select multiple messages.

Insert quick

text Insert pre-defined text content.

Insert contact Add a contact to the recipients list.

Add subject Add a subject to the message.

32 - Messaging

Multimedia messages

Multimedia messages are similar to text messages but also allow you

to attach files such as pictures, audio or video clips. Each message

can be up to 300 kB in size.

Receiving multimedia messages

When a new multimedia message arrives, a message icon appears at

the top of the screen and a notification message is displayed.

1.The notification message displays a summary of the message. Tap

View to view a summary of the message.

2.Tap Download to download the message content. Downloads can

take a long time, depending on your connection quality. If you reply

or open another app, the download will be stopped.

Add to

contacts Add the other contact to your contacts list.

Chat settings Modify various messaging settings.

Option Description

Note

You need to set up an MMS profile before you can send MMS messages.

Normally, your smartphone will set up the profile for you based on information

retrieved from your provider.

Ask your network provider for the necessary information if you need to

manually set up the MMS profile.

Important

You may be charged to download message content, especially if you

are roaming. Please contact your provider if you have any questions.

Messaging - 33

3.Tap the message to view the content.

4.To reply to the message, enter your text in the text box labeled

Type message and tap the Send icon. Simple text replies will be

sent as SMS messages. If you wish to attach a file, tap . You will

be presented with a menu of options.

5.When you have finished composing the message, tap Send.

34 - Going online

GOING ONLINE

Browsing the internet

In order to browse the internet with your smartphone, you must be

connected to a data or wireless network.

Using the browser

To start browsing, open the Application menu and tap the Chrome or

Browser icon.

To open a new website, tap the address box at the top of the page.

Enter the address using the keyboard and tap Go. You can zoom in or

out of pages by pinching or reverse pinching.

Note

Reference images use the Chrome browser.

Going online - 35

To navigate forward and backward in your browser’s history, view

your bookmarks, adjust browser settings, and perform other tasks, tap

the Menu button.

Chrome enables you to open multiple pages. Tap at the top of any

webpage to display all of your open tabs (tap again to close). Tap a

tab from the list to open it. To open a new tab, tap New tab. The

number in the icon represents the number of open tabs.

Setting up Email

Your smartphone enables you to access your email. Most popular

ISPs can be set up in two steps. In the Application menu tap Email to

start setting up your email account.

If necessary, enter your email address and tap Manual setup to enter

the parameters manually. Tap Next to finish the setup process.

Google services

You must activate a Google account before using Google services.

The first time you access Google services, you must read and accept

the Terms of Service.

Note

Apps may not be available in all countries and regions.

36 - Going online

Setting up your Google email

1.Make sure your smartphone is connected to a data or Wi-Fi

connection.

2.From the Application menu tap Gmail.

If you did not enter your Gmail account address and password when

you first started your phone, follow the onscreen instructions.

Composing an email

1.Make sure your smartphone is connected to a data or Wi-Fi

connection.

2.From the Application menu tap Gmail.

3.Tap .

4.Enter the recipient's email address, the subject and message.

5.When you are finished composing your message, tap .

Voice search

With voice actions, you can send text messages, place calls, send

emails, find directions of establishments, automatically call

establishments, search the internet and even send a note to yourself

using your voice. Tap Voice Search from the Application menu, or tap

the microphone icon on the Home screen.

Going online - 37

Play Store

Tap Play Store from the Application menu to open the Google Play.

Here you can obtain a variety of add-on programs and apps to

enhance the functionality of your smartphone.

The contents and design of Google Play varies by region. For

example, in some regions, you can also browse for and purchase

movies, books, magazines, or music. Updates may add new

categories or change how to navigate Google Play at any time.

You can browse the store by category or tap the search icon to search

for a specific app.

Once you have selected an app, tap the Install button to download

and install the app. You will be told which services the app requires

access in order to function correctly (e.g. contact information, wireless

access, GPS). If none of these services seem unusual, tap Accept &

download to proceed with the installation.

Important

For connection issues with Play Store, see FAQ and troubleshooting

on page 58

38 - Going online

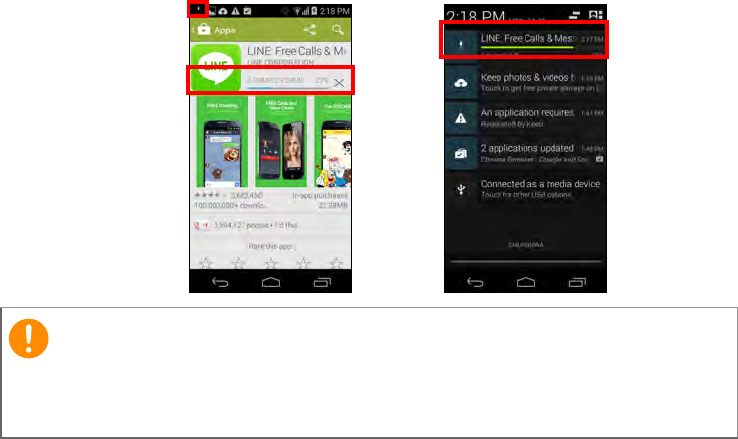

You may keep track of the download progress from both the app’s

page and the notification area.

Using downloaded apps

Once you’ve downloaded and installed an app, you may find it in the

Apps or Widgets sections of the Application menu.

Certain apps provide both an App and widget, or only provide a widget

(with no app icon). See Personalizing the Home screen on

page 15.

Uninstalling downloaded apps

Once you’ve downloaded and installed an app, you may uninstall the

app by opening the Application menu and tapping Settings > Apps.

In the downloaded tab, select the the app you wish to uninstall and tap

Uninstall. Deleting an app icon from the Home screen only deletes

the shortcut.

Google Hangouts

Tap Hangouts from the Application menu to open Google Hangouts.

Here you can see a list of your contacts connected to Google

Hangouts services. Tap on a contact to open a chat session. After you

Important

Some apps may require payment before you can download them. You

will need to have a Google Wallet account in order to pay for these

apps, or a credit card number associated with your Google account.

Going online - 39

have connected, you can open a video chat session.

Maps, Navigation, Places and Latitude

Get easy-to-follow directions using Google Maps, view real-time traffic

condition and navigate by using spoken, turn-by-turn driving

instructions. Also, view where your friends are, places of interest, and

local businesses.

Using the map

Tap the Maps icon in the Application menu. Drag the map with your

finger to move the map around.

To zoom in or out:

1.Double tap a location on the map to zoom in on the location, and tap

once to zoom out, or

2.Touch an area with two fingers at once and spread them apart to

zoom in, and pinch them together to zoom out.

Note

Maps does not have information about every location.

Some locations may not have all zoom levels.

40 - Using the Camera

USING THE CAMERA

Your smartphone features two digital cameras mounted on the front

and on the rear. This section will take you through all the steps in

taking photos and videos with your smartphone.

To activate the camera, open the Application menu and tap Camera.

Camera/camcorder icons and indicators

Flash

Last picture/

Shutter button

Switch camera

Settings

Zoom in/out

Camcorder

video taken

Favorite shot

The camera window provides multiple controls on the image screen.

Tap the area of the image you want to be the point of focus for the

auto-focus lens (only available on the rear camera). Pinch and

reverse pinch the area of the screen you want to zoom in or zoom out,

respectively.

Tap the Shutter button or press the volume key to take a picture. Tap

the thumbnail in the bottom-right corner to open the gallery. Tap the

flash button to cycle the settings between off, automatic, and on.

Using the Camera - 41

Tap the Camcorder button and the camcorder immediately begins

filming. While filming, you are unable to access camera/camcorder

settings; however, you can still take pictures.

Tap the Stop recording button to stop filming.

Tap the Settings icon to open the Settings menu.

Time elapsed

Stop recording

Shutter button

Zoom in/out

42 - Using the Camera

Settings menus


You may adjust the following:

•Resolution: Choose between 4:3 and 16:9, then select the pixels.

•ISO: Set the ISO value.

•Favorite Shot: Choose between Panorama, HDR and Presentation

capturing.

• Turn Continuous Shutter on or off: Set the maximum number of

photos taken in a single burst.

• Turn Touch to Capture on or off: Touch anywhere on the screen to

take a picture.

• Turn Face Detection on or off: The camera automatically detects

faces and focuses on them.

• Turn ZSL (Zero Shutter Lag) on or off: Immediately takes the picture

with no lag time.

Video

• Turn Video stabilizer on or off: Reduces camera shaking.

• Adjust the Resolution of the video to HD 1080p, HD 720p, SD

480p, QVGA or QCIF.

• Set the Audio mode to Normal or Mute.

Other

• Turn Location on or off: Stores location information in the image

information.

•Storage: Choose between Internal storage and SD card.

•Reset to default: Reset camera configurations back to default

settings.

Tap for additional configurations:

Note

Some of the following settings are not available for the front camera.

Using the Camera - 43

Capture mode: Choose between Normal, HDR and Presentation

capturing.

Scene mode: Choose between Night, Night portrait, BackLight,

BackLight portrait and Portrait.

Effect: Choose between None, Mono, Sepia, Negative and Aqua.

Record mode: Choose between Normal and Time lapse.

White Balance: Choose between Auto, Daylight, Cloudy, Fluorescent

and Incandescent.

Adjust the Timer: Choose between Off, 5 seconds, 10 seconds and

15 seconds.

Taking a photo

1.Ensure you have adjusted the settings described above.

2.Frame your subject and steady your smartphone.

3.Zoom in or out as needed.

4.Tap the Shutter button to take a picture.

Taking a panoramic photo

Panoramic mode allows you to take a series of up to nine photos that

the camera app will ‘stitch’ together to make a single extended image.

1.To take a panoramic photo, select Panorama mode.

2.Align the camera to take a photo of one end of the panoramic scene

(the furthest left, right, top or bottom).

3.Press the camera button to take the first image; then slowly and

smoothly turn the camera to the other end of the image.

• Two lines display on the screen: a flashing white line and a solid

blue line. As you move the camea, align the blue line to the

unmoving white line.

Note

If your photo needs fewer than nine images, tap the tick icon to stop the

selection process and process the captured images.

Panoramic images work best with static outdoor scenes. Objects too close to

the camera or large straight edges may confuse the detection process.

44 - Using the Camera

The camera app will process the images and save a single extended

image to your smartphone’s gallery.

Shooting a video

1.Frame your subject and steady your smartphone and zoom in or out

as needed.

2.Tap the Camcorder button to start taking a video. The icon will turn

red to indicate that recording is in progress. Tap the icon again to

stop recording.

Supported formats

Viewing photos and videos

After you have taken your photo or video, it is automatically saved.

Once you have taken a photo or video, you can view it in Gallery by

tapping the thumbnail in the corner of the image screen. Alternatively,

open the Application menu and tap Gallery. From Gallery you can

share the file directly using various services. Services vary depending

on the file type.

You may also edit individual photos you have taken by tapping the

icon in the lower left-hand corner of the image.

Geotagging

Geotagging allows you to store the location where a photo or video

was taken right in the photo or video itself.

For the geotag to display, pictures must be taken with GPS location

info turned on.

Note

To see supported image, video, and audio formats, see Multimedia on

page 66.

Advanced settings - 45

ADVANCED SETTINGS

Putting your smartphone in Airplane mode

You can enter Airplane mode (also known as flight mode) to turn off

telephone and Bluetooth functions and use your smartphone as a

handheld device during a flight. Check with your airline to make sure

this is permitted onboard.

Switch your smartphone off during takeoff and landing as it may

interfere with aircraft electronic systems.

Turning Airplane mode on or off

1. Open the Notification area.

2. Tap .

-OR-

1.Press and hold the power button until you get the phone options

menu.

2.Tap Airplane mode to switch it ON or OFF.

Note

When Airplane mode is active, the

icon will be displayed in the Notification

area.

46 - Advanced settings

Restarting your phone

You can restart (reboot) your phone if you find apps are not

responding.

1.Press and hold the power button until you get the phone options

menu.

2.Tap Restart.

Adjusting settings

Activating or deactivating connections

Open the Application menu and tap Settings to manage your

connection settings.

Item Description

SIM management Turn the data connection on or off and set

roaming preferences.

Wi-Fi Turn the Wi-Fi function on or off.

Bluetooth Turn the Bluetooth function on or off.

Data usage View an estimate of the mobile data used for

your SIM.

Advanced settings - 47

If your phone is in Airplane mode, the option to turn Bluetooth on will

be disabled. Please refer to Putting your smartphone in Airplane

mode on page 45 for instructions on turning Airplane mode on or off.

Adjusting Bluetooth settings

You can use Bluetooth to exchange information between your

smartphone and other mobile devices.

Bluetooth connections

For all Bluetooth settings, open the Application menu and tap

Settings > Bluetooth. Here you can switch Bluetooth on or off, set a

device name and discoverability. Tap SEARCH FOR DEVICES to

scan for available devices.

To connect to a device, tap the device in the list of available devices.

You may be asked to enter a PIN on both devices to establish the

connection.

To simply turn on or off Bluetooth, open the Notification area and tap

the Bluetooth button.

More...

Access additional connection settings:

Airplane mode: Disable all wireless

connections so you can safely use this device

onboard an aircraft.

Default SMS app: Choose which app serves

as the default SMS app.

Tethering & portable hotspot: Share your

phone’s mobile data connection via USB or as

a portable Wi-Fi hotspot.

VPN: Set up and manage Virtual Private

Networks.

Mobile networks: Set your options for

connecting to mobile networks.

USB Internet: Share your computer’s internet

connection via a USB cable. See Internet

sharing on page 48.

Item Description

48 - Advanced settings

Internet sharing

Tethering via USB

If you wish to share your mobile internet connection with a computer,

you can connect your phone to a PC using the supplied USB cable.

1.Plug the USB sync cable into the micro USB connector on your

smartphone.

2.Plug the USB client connector into an available USB port on your

computer.

3.Push the Menu button and then tap Settings > More.. > USB

Internet.

Wi-Fi hotspot

You can turn your smartphone into a portable Wi-Fi hotspot to share

your mobile internet connection with up to 8 clients.

1.Push the Menu button and then tap Settings > More... > Tethering

& portable hotspot. Turn Wi-Fi hotspot ON.Tap Wi-Fi hotspot >

Set up Wi-Fi hotspot.

2.Set the Network SSID and adjust security between None and WPA2

PSK. Tap Save to finish.

Phone network settings

In the Application menu tap Settings > More... > Mobile networks to

adjust your network settings. You can turn data connection on or off

when roaming, choose a preferred network mode, specify a network

operator and define access point names.

Note

When your smartphone is serving as a Wi-Fi hotspot, you can’t use your

phone’s apps to access the internet via its Wi-Fi connection.

Advanced settings - 49

Selecting a network

Your phone will automatically detect your carrier/network settings

when you insert a new SIM card. However, you may prefer to

manually select a network. This may be a good idea when roaming.

1.Open the Application menu and tap Settings > More... > Mobile

networks > Network operators > Select Manually.

2.Your phone will search for available networks.

3.Select your preferred network from the list generated. You phone

will attempt to register on the selected network.

4.Tap Select automatically to connect to the available network with

the strongest signal. This may lead to your phone jumping between

networks when you move around.

Data usage control settings

Data usage controls let you monitor total usage by network type and

app and then set limits if needed.

Ensure Wi-Fi or mobile data is enabled before setting a limit. Access

data usage settings from the Application menu by tapping Settings >

Data usage.

Phone settings

Many phone settings are automatically configured by your

smartphone when you insert a SIM card. The device will communicate

with your provider and automatically obtain all necessary settings,

such as network name, voice mail and text message center numbers.

You can also view and modify these settings manually through the

Call settings screen.

Note

When you are traveling, manually selecting a network may help to reduce

your roaming charges. Check with your home service provider for the

network offering the most competitive rates at your destination.

Note

Contact your service provider should you have any problems obtaining voice

mail and the text message service center numbers.

50 - Advanced settings

From the Application menu, tap Settings, then tap More... under

WIRELESS & NETWORKS, then tap Call settings.

Sound

To adjust your phone’s sound settings, in the Application menu tap

Settings > Sound.

Adjusting the volume

Adjust the volume of your phone using the volume button on the side

of the phone. Alternatively, you can set the Ringtone, Notifications,

and Alarms volume by opening the Application menu and tapping

Settings > Sound > Volumes.

Audio profiles

To adjust your phone’s sound settings, in the Application menu tap

Settings > Audio profiles. Choose from General, Silent, Meeting, or

Outdoor.

Item Description

Vibrate Vibrates the device for incoming calls.

Volumes Adjust the Ringtone, Notifications, and Alarm

volumes.

Phone ringtone Sets your default voice calls ringtone.

Default notification Set your phone’s default notification sound.

Dial pad touch tones Play tones when using dial pad.

Touch sounds Play sounds when touching certain UI

elements.

Screen lock sound Play sound when locking and unlocking the

screen.

Vibrate on touch Vibrate when pressing soft keys and on

certain UI interactions.

Advanced settings - 51

Display

To adjust your phone’s display settings, in the Application menu tap

Settings > Display.

Setting the date and time

To set the date and time, open the Application menu and tap Settings

> Date & time.

If you travel frequently or live in an area that uses daylight saving

time, activate Automatic date & time > Use network-provided time

from this menu. This will enable your smartphone to set the date and

time based on information it receives from the network.

Setting alarms

There are two predefined alarms on your phone by default. Tap Clock

in the Application menu, and then tap to edit alarm settings. You

may:

Item Description

Wallpaper Change the Home screen’s wallpaper.

Glove Operation Enable use of the touchscreen even when

wearing gloves.

Brightness Adjust screen brightness.

Auto-rotate screen Enable rotation of the screen when device is

tilted.

Sleep Adjust the delay before the screen

automatically turns off.

Daydream Controls what happens when the phone is

docked and/or sleeping.

Font size Change the default font size for the UI.

Wireless Display

Mirrors your phone’s display on a compatible

monitor or display.

Pairing your phone to the display is required

before use and may require a dongle. See the

instructions that came with your display or

dongle to pair.

52 - Advanced settings

• Turn the alarm on or off.

• Set the alarm time.

• Set which days to repeat the alarm.

• Set a ringtone.

• Enable or disable vibrate.

• Give it a label.

Changing language and text options

Set your location and language input preferences by opening the

Application menu and going to Settings > Language & input.

Connecting to a PC

If you wish to transfer information between your

device and your computer (either the microSD

card in your device or the device’s internal

memory), you can connect your device to a PC

using the supplied USB cable.

1.Plug the USB sync cable into the micro USB

connector on your phone.

2.Plug the USB client connector into an available

USB port on your computer.

3.Open the notification area and tap Connected

as a media device to choose whether to

connect as a Media device (MTP) (the default

option) or Camera (PTP).

Your device will now be available as a drive in your computer’s file

explorer.

Note

After turning on USB storage, you will not be able to access the files in the

microSD card or apps such as Gallery or Music.

Advanced settings - 53

Synchronization

You can sync your calendar, email and contacts on your phone and

never worry about losing them again. Sync in real time or adjust it as

you please. In the Application menu, tap Settings. Under

ACCOUNTS, tap the appropriate account and again under

ACCOUNTS tap that account’s email address to access the

synchronization settings.

To add a new account, tap Add account. Select the type of account

and then follow the onscreen instructions.

Google Sync

In Google, you can set synchronization for Google services. In your

Google account’s synchornization settings menu, tap the checkmark

next to the item you would like to have auto-sync. Tap again to

uncheck any for manual synchronization.

To manually synchronize an item, make sure the item is checked, tap

the Menu button and then tap Sync now.

FM radio

The FM radio allows you to listen to your favorite stations while on the

move. Headphones must be inserted to the 3.5 mm jack as it

functions as an antenna.

Note

You need a Google account to sync your calendar and appointments.

54 - Advanced settings

You can access the radio by tapping FM Radio from the Application

menu.

Tap the back icon to turn the radio off.

Applications (apps)

Closing an app

To close an active app, in the Application menu tap Settings > Apps.

Swipe over to the Running tab, then tap the program you wish to

close. Select Stop to close the program.

Uninstalling an app

You can remove programs installed on your smartphone to free up

extra storage memory.

1.In the Application menu tap Settings > Apps.

2.Swipe over to the Downloaded tab.

3.Find the app in the list and tap on it.

4.Tap the Uninstall button and then tap OK.

Important

You should only remove programs if you are familiar with the Android

operating system.

Advanced settings - 55

Restoring to factory settings

You may perform a clean boot to restore your smartphone to the

factory settings. Before performing a clean boot, ensure that your

smartphone is not locked. Press any key or tap the screen to see if

the phone responds.

If your phone is responding to screen input, then open Settings from

the Application menu. Tap Backup & reset > Factory data reset >

Reset phone and then Erase everything to format your phone.

Important

You should only perform a clean boot when all other options have failed

to restore your smartphone to an operational state.

This will erase all your personal information, any contacts stored on

your phone and any programs you installed.

56 - Accessories and tips

ACCESSORIES AND TIPS

This chapter shows you how to use accessories with your

smartphone, as well as provide useful tips for when you are using

your smartphone.

Using the headset

Your smartphone is compatible with headsets with built-in microphone

for handsfree use when making calls.

To use the headset, plug it into the 3.5 mm headphone jack at the top

of the phone.

When the headset is plugged in, all audio is routed to the headset,

and the speakers are turned off.

• To answer an incoming call, press the button on the microphone.

• Adjust the volume using the volume up/down button on the

smartphone.

• End the call by pressing the button again.

Using a Bluetooth headset

Your smartphone’s Bluetooth functions make it fully compatible with

all Bluetooth headsets. This allows you to use the unit handsfree

when making calls, without the inconvenience of wires.

Creating a new access point

When you need to add another GPRS/3G/EDGE connection on your

phone, obtain the access point name and settings (including

username and password if required) from your wireless service

provider.

1.Open the Application menu and tap Settings > More... > Mobile

networks > Access Point Names, and select an operator.

2.Tap the Menu button and then tap New APN.

3.Enter the APN settings. Tap an item to adjust it.

Accessories and tips - 57

4.When you have finished tap the Menu button and then tap Save.

Inserting a microSD card

Your smartphone features a memory expansion slot that accepts a

microSD card to expand memory and storage capacity.

Please refer to Installing a SIM or microSD card on page 7 for

instructions on installing a microSD card.

Important

Some providers and countries do not allow the use of a smartphone as

a modem over HSDPA. Please check with your provider before

attempting to do so.

58 - Appendix

APPENDIX

FAQ and troubleshooting

This section lists frequently asked questions that may arise during the

use of your smartphone, and gives easy answers and solutions to

these questions.

Aspect Question Suggestions

Audio Why is there no

sound coming

from the device?

If the headset is plugged into the

device, the speaker is

automatically shut off. Disconnect

the headset.

Check that the device volume

setting is not muted.

Check that the volume control is

not at its lowest setting.

Multimedia

files

Why can’t I view

my picture files?

You may be trying to view an

image that is not supported. See

Multimedia on page 66.

Why can’t I view

my video files?

You may be trying to view a video

that is not supported. See

Multimedia on page 66.

Why can’t I play

my music files?

You may be trying to play a file that

is not supported. See Multimedia

on page 66.

Appendix - 59

Google Play

Store

Why can’t I

connect to the

Play Store?

1.First check that you have a Wi-Fi

or data connection (some Wi-Fi

"hotspots" require you to log in

before accessing the internet)

and then try again.

2.If you still cannot connect, try

adjusting your date/time settings.

Open the Application menu and

tap Settings > Date & time >

Automatic date & time set to

off.

3.Manually adjust the time and

then try to reconnect to the Play

Store.

System

information

and

performance

How do I check

the OS version

of my device?

Tap Settings > About phone to

check the OS version (Build

number) and other hardware and

software information.

Power I can’t turn on

the device.

The battery power may be

depleted. Recharge the device.

See Charging the battery on

page 7 for more information.

RAM / ROM

How do I check

the RAM and

ROM memory

status?

To check the ROM status, tap

Settings > Storage.

To check RAM status, tap Settings

> Apps > RUNNING.

Internal

storage

My device’s

available

internal storage

is full or almost

full.

Uninstall apps to increase available

storage. See Uninstalling an app

on page 54.

Aspect Question Suggestions

60 - Appendix

Other sources of help

For information on Refer to ...

Up-to-date information regarding

your smartphone www.acer.com

mobile.acer.com

Service enquiries www.acer.com/support

Unlock pattern I forgot my

unlock pattern.

After a certain number of wrong

entries, you will be presented with

an option to reset your pattern. Tap

Forgot pattern? and enter your

Google account username and

password.

You must have an active Google

account on the smartphone.

Alternatively, you restore your

smartphone to factory settings. See

Restoring to factory settings on

page 55.

Heat

The phone

heats up when

charging or

making long

duration calls.

It is normal for the phone to heat up

when charging. When charging is

complete, it will return to its normal

temperature.

It is also normal for the phone to

heat up during long periods of use,

such as watching a video or a long

phone conversation.

Aspect Question Suggestions

Warnings and precautions - 61

WARNINGS AND PRECAUTIONS

• Do not use this product near water.

• Do not place this product on an unstable cart, stand or table. If the

product falls, it could be seriously damaged.

• Slots and openings are provided for ventilation to ensure reliable

operation of the product and to protect it from overheating. These

openings must not be blocked or covered. The openings should

never be blocked by placing the product on a bed, sofa, rug or other

similar surface. This product should never be placed near or over a

radiator or heat register, or in a built-in installation unless proper

ventilation is provided.

• Never push objects of any kind into this product through cabinet

slots as they may touch dangerous voltage points or short-out parts

that could result in a fire or electric shock. Never spill liquid of any

kind onto or into the product.

• To avoid damage of internal components and to prevent battery

leakage, do not place the product on a vibrating surface.

• Never use this product when engaging in sporting activities,

exercising, or in any vibrating environment which may cause a short

circuit or damage, and even a risk of explosion from the battery

pack.

Protecting your hearing

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and

comfortably.

• Do not increase the volume level after your ears have adjusted.

• Do not listen to music at high volumes for extended periods.

• Do not increase the volume to block out noisy surroundings.

• Decrease the volume if you can’t hear people speaking near you.

Additional safety information

Your device and its enhancements may contain small parts. Keep

them out of the reach of small children.

62 - Warnings and precautions

Operating environment

Remember to follow any special regulations in force in any area, and

always switch off your device when its use is prohibited or when it

may cause interference or danger. Use the device only in its normal

operating positions. To successfully transmit data files or messages,

this device requires a good quality connection to the network. In some

cases, transmission of data files or messages may be delayed until

such a connection is available. Ensure that the above separation

distance instructions are followed until the transmission is completed.

Parts of the device are magnetic. Metallic materials may be attracted

to the device, and persons with hearing aids should not hold the

device to the ear with the hearing aid. Do not place credit cards or

other magnetic storage media near the device, because information

stored on them may be erased.

Medical devices

Operation of any radio transmitting equipment, including wireless

phones, may interfere with the functionality of inadequately protected

medical devices. Consult a physician or the manufacturer of the

medical device to determine if they are adequately shielded from

external RF energy or if you have any questions. Switch off your

device in health care facilities when any regulations posted in these

areas instruct you to do so. Hospitals or health care facilities may be

using equipment that could be sensitive to external RF transmissions.

Pacemakers. Pacemaker manufacturers recommend that a minimum

separation of 15.3 cm (6") be maintained between wireless devices

and a pacemaker to avoid potential interference with the pacemaker.

These recommendations are consistent with the independent

research by and recommendations of Wireless Technology Research.

Persons with pacemakers should do the following:

Important

For safety reasons, turn off all wireless or radio transmitting devices

when using your smartphone device under the following conditions.

These devices may include, but are not limited to: wireless LAN

(WLAN), Bluetooth and/or 3G.

Warnings and precautions - 63

• Always keep the device more than 15.3 cm (6") from the pacemaker.

• Not carry the device near your pacemaker when the device is

switched on. If you suspect interference, switch off your device, and

move it.

Hearing aids. Some digital wireless devices may interfere with some

hearing aids. If interference occurs, consult your service provider.

Vehicles

RF signals may affect improperly installed or inadequately shielded

electronic systems in motor vehicles such as electronic fuel injection

systems, electronic anti-skid (anti-lock) braking systems, electronic

speed control systems, and air bag systems. For more information,

check with the manufacturer, or its representative, of your vehicle or

any equipment that has been added. Only qualified personnel should

service the device, or install the device in a vehicle. Faulty installation

or service may be dangerous and may invalidate any warranty that

may apply to the device. Check regularly that all wireless equipment

in your vehicle is mounted and operating properly. Do not store or

carry flammable liquids, gases, or explosive materials in the same

compartment as the device, its parts, or enhancements. For vehicles

equipped with an air bag, remember that air bags inflate with great

force. Do not place objects, including installed or portable wireless

equipment in the area over the air bag or in the air bag deployment

area. If in-vehicle wireless equipment is improperly installed, and the

air bag inflates, serious injury could result. Using your device while

flying in aircraft is prohibited. Switch off your device before boarding

an aircraft. The use of wireless teledevices in an aircraft may be

dangerous to the operation of the aircraft, disrupt the wireless

telephone network, and may be illegal.

Potentially explosive environments

Switch off your device when in any area with a potentially explosive

atmosphere and obey all signs and instructions. Potentially explosive

atmospheres include areas where you would normally be advised to

turn off your vehicle engine. Sparks in such areas could cause an

explosion or fire resulting in bodily injury or even death. Switch off the

device at refueling points such as near gas pumps at service stations.

64 - Warnings and precautions

Observe restrictions on the use of radio equipment in fuel depots,

storage, and distribution areas; chemical plants; or where blasting

operations are in progress. Areas with a potentially explosive

atmospheres are often, but not always, clearly marked. They include

below deck on boats, chemical transfer or storage facilities, vehicles

using liquefied petroleum gas (such as propane or butane), and areas

where the air contains chemicals or particles such as grain, dust or

metal powders.

Follow any restrictions. Do not use the device where blasting is in

progress.

Emergency calls

If certain features are in use, you may first need to turn those features

off before you can make an emergency call. Consult this guide or your

service provider for more information.

When making an emergency call, give all the necessary information

as accurately as possible. Your wireless device may be the only

means of communication at the scene of an accident. Do not end the

call until given permission to do so.

Taking care of your smartphone

1.DO take care not to scratch the screen of your smartphone. Keep

the screen clean. When working with your smartphone, use your

finger or fingernail. Never use an actual pen or pencil or other sharp

object on the screen surface.

2.DO NOT expose your smartphone to rain or moisture. Do not let

water enter the circuitry through the front panel buttons or expansion

slots. In general, treat your smartphone as you would a mobile

Important

Wireless phones, including this device, operate using radio signals,

wireless networks, landline networks, and user-programmed functions.

Because of this, connections in all conditions cannot be guaranteed.

You should never rely solely on any wireless device for essential

communications like medical emergencies.

Warnings and precautions - 65

phone or other small electronic device.

3.DO be careful not to drop your smartphone or subject it to any

strong impact. Do not place your smartphone in your back pocket.

4.DO NOT expose your smartphone to extreme temperatures. For

example, do not leave your smartphone on the dashboard of a car

on a hot day or when temperatures are below freezing point. Also,

keep it away from heaters and other sources of heat.

5.DO NOT use or store your smartphone in any location that is dusty,

damp or wet.

6.DO use a soft, damp cloth to clean your smartphone. If the surface

of the screen becomes soiled, clean it with a soft cloth moistened

with diluted window-cleaning solution.

7.DO NOT press down on the screen with force, otherwise you may

crack the screen.

66 -

Specifications

Performance

• 1.2 GHz quad-core processor

• System memory:

• 1 GB or 2 GB of RAM (depending on SKU)

• 4 GB or 16 GB of ROM (depending on SKU)

• Android 4.4 KitKat operating system

Display

• 5" IPS TFT LCD, capacitive touchscreen

• FWVGA 854 x 480 resolution

Multimedia

Formats supported:

USB connector

• Micro USB connector

• USB client

• DC power-in (5 V, 2 A)

Note

Specifications may vary depending on region and configuration.

Type Formats

Image JPEG, GIF, PNG, BMP

Audio playback MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,

MIDI, WMA, WAVE

Ringtone MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,

MIDI, WMA, WAVE

Video recording H.263, H.264, MPEG4

Video playback H.263, H.264, MPEG4, VP8, WMV

- 67

Connectivity

• Bluetooth 4.0

• IEEE 802.11b/g/n

• * GSM 850 / 900 / 1800 / 1900 MHz

• * WCDMA: 850 / 1900 / 2100 MHz

• HSPA+ / GPRS / EDGE

•aGPS

*Frequencies depend on model.

Camera

• 8 MP rear camera

•Auto-focus

•LED flash

• 0.3 MP front camera

• Fixed focus

Expansion

• microSD memory card slot (up to 32 GB)

Battery

• 2500 mAh Lithium-ion battery (not user-replaceable)

Note

Length of battery operation will depend on power consumption which is

based on system resource use. For example, constantly using the backlight

or using power-demanding apps will shorten battery life between charges.

•4G LTE US Band: 2100/ 190/ 1800/ AWS/ 2600 MHz

68 -

Dimensions

Height 147 mm

Width 71.8 mm

Thickness 9.3 mm

Weight 158 g

End User License Agreement - 69

END USER LICENSE AGREEMENT

IMPORTANT-READ CAREFULLY: THIS END USER LICENSE AGREEMENT ("AGREEMENT") IS A

LEGAL AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR A SINGLE ENTITY), AND ACER

INC. INCLUDING ITS SUBSIDIARIES ("ACER") FOR THE SOFTWARE (WHETHER PROVIDED BY

ACER OR BY ACER'S LICENSORS OR SUPPLIERS) THAT ACCOMPANIES THIS AGREEMENT,

INCLUDING ANY ASSOCIATED MEDIA, PRINTED MATERIALS AND RELATED USER ELECTRONIC

DOCUMENTATION WHICH MAY BE BRANDED "ACER" ("SOFTWARE"). AGREEMENTS RELATING

TO ANY OTHER PRODUCT OR TOPIC ARE NEITHER INTENDED NOR SHOULD THEY BE IMPLIED.

BY INSTALLING THE ACCOMPANYING SOFTWARE OR ANY PORTION THEREOF, YOU AGREE TO

BE BOUND BY THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO

ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT CONTINUE THE

INSTALLATION PROCESS AND IMMEDIATELY DELETE ALL INSTALLED FILES, IF ANY, OF THE

ACCOMPANYING SOFTWARE FROM YOUR PHONE.

IF YOU DO NOT HAVE A VALIDLY-LICENSED COPY OF THE APPLICABLE SOFTWARE, YOU ARE

NOT AUTHORIZED TO INSTALL, COPY OR OTHERWISE USE THE SOFTWARE, AND HAVE NO

RIGHTS UNDER THIS AGREEMENT.

The Software is protected by U.S. and international copyright laws and conventions as well as other

intellectual property laws and treaties. The Software is licensed, not sold.

GRANT OF LICENSE

Acer grants to you the following non-exclusive and non-transferable rights with respect to the Software.

Under this Agreement, you may:

1. Install and use the Software only on a single designated phone. A separate license is required for

each phone on which the Software will be used;

2. Make one copy of the Software solely for backup or archival purposes;

3. Make one hardcopy of any electronic documents included in the Software, provided that you receive

the documents electronically.

RESTRICTIONS

You may NOT:

1. Use or copy the Software except as provided in this Agreement;

2. Rent or lease the Software to any third party;

3. Modify, adapt, or translate the Software in whole or in part;

4. Reverse engineer, decompile, or disassemble the Software or create derivative works based upon the

Software;

5. Merge the Software with any other program or modify the Software, except for your personal use; and

6. Sublicense or otherwise make the Software available to third parties, except that you may, after prior

written notification to Acer, transfer the Software as a whole to a third party so long as you do not

retain any copies of the Software and such third party accepts the terms of this Agreement.

7. Transfer your rights under this Agreement to any third parties.

8. Export the Software in contravention of applicable export laws and regulations, or (i) sell, export, re-

export, transfer, divert, disclose technical data, or dispose of, any Software to any prohibited person,

entity, or destination including, without limitation, Cuba, Iran, North Korea, Sudan and Syria; or (ii) use

any Software for any use prohibited by the laws or regulations of the United States.

70 - End User License Agreement

SUPPORT SERVICES

Acer is not obligated to provide technical or other support for the Software.

ACER LIVE UPDATE

Certain of the software contains elements that enable the use of the Acer Live Update service, which

allows for updates for such software to be automatically downloaded and installed on your phone. By

installing the software, you hereby agree and consent that Acer (or its licensors) may automatically check

the version of such software that you are using on your phone and may provide upgrades to such software

that may be automatically downloaded on to your phone.

OWNERSHIP AND COPYRIGHT

Title, ownership rights and intellectual property rights in and to the Software and all copies thereof shall

remain with Acer or Acer's licensors or suppliers (as applicable). You do not have or shall not gain any

proprietary interest in the Software (including any modifications or copies made by or for you) or any

related intellectual property rights. Title and related rights in the content accessed through the Software is

the property of the applicable content owner and may be protected by applicable law. This license gives

you no rights to such contents. You hereby agree

1. Not to remove any copyright or other proprietary notices from the Software;

2. To reproduce all such notices on any authorized copies you make; and

3. To use best efforts to prevent any unauthorized copying of the Software.

TRADEMARKS

This Agreement does not grant to you any rights in connection with any trademarks or service marks of

Acer or of Acer's licensors or suppliers.

DISCLAIMER OF WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ACER, ITS SUPPLIERS, AND ITS

LICENSORS, PROVIDE THE SOFTWARE "AS IS" AND WITH ALL FAULTS, AND HEREBY DISCLAIM

ALL OTHER WARRANTIES AND CONDITIONS, EITHER EXPRESS, IMPLIED OR STATUTORY,

INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES, DUTIES OR CONDITIONS OF

MERCHANTABILITY, OF FITNESS FOR A PARTICULAR PURPOSE, OF ACCURACY OR

COMPLETENESS OF RESPONSES, OF RESULTS, OF WORKMANLIKE EFFORT, OF LACK OF

VIRUSES, AND OF LACK OF NEGLIGENCE, ALL WITH REGARD TO THE SOFTWARE AND THE

PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES. ALSO, THERE IS NO WARRANTY

OR CONDITION OF TITLE, QUIET ENJOYMENT, QUIET POSSESSION, CORRESPONDENCE TO

DESCRIPTION OR NON-INFRINGEMENT WITH REGARD TO THE SOFTWARE.

EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACER,

ACER'S SUPPLIERS, OR ACER'S LICENSORS, BE LIABLE FOR ANY SPECIAL, INCIDENTAL,

INDIRECT, PUNITIVE, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, BUT NOT

LIMITED TO, DAMAGES FOR LOSS OF PROFITS OR CONFIDENTIAL OR OTHER INFORMATION,

FOR BUSINESS INTERRUPTION, FOR PERSONAL INJURY, FOR LOSS OF PRIVACY, FOR FAILURE

TO MEET ANY DUTY INCLUDING OF GOOD FAITH OR OF REASONABLE CARE, FOR NEGLIGENCE,

AND FOR ANY OTHER PECUNIARY OR OTHER LOSS WHATSOEVER) ARISING OUT OF OR IN ANY

WAY RELATED TO THE USE OF OR INABILITY TO USE THE SOFTWARE, THE PROVISION OF OR

FAILURE TO PROVIDE SUPPORT SERVICES, OR OTHERWISE UNDER OR IN CONNECTION WITH

ANY PROVISION OF THIS AGREEMENT, EVEN IN THE EVENT OF THE FAULT, TORT (INCLUDING

NEGLIGENCE), STRICT LIABILITY, BREACH OF CONTRACT OR BREACH OF WARRANTY OF ACER

OR ITS SUPPLIERS OR LICENSORS, AND EVEN IF ACER AND ITS SUPPLIERS AND LICENSORS

HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

LIMITATION OF LIABILITY AND REMEDIES

End User License Agreement - 71

NOTWITHSTANDING ANY DAMAGES THAT YOU MIGHT INCUR FOR ANY REASON WHATSOEVER

(INCLUDING, WITHOUT LIMITATION, ALL DAMAGES REFERENCED ABOVE AND ALL DIRECT OR

GENERAL DAMAGES), THE ENTIRE LIABILITY OF ACER, ITS SUPPLIERS, AND ITS LICENSORS,

UNDER ANY PROVISION OF THIS AGREEMENT, AND YOUR EXCLUSIVE REMEDY FOR ALL OF

THE FOREGOING, SHALL BE LIMITED TO THE AGGREGATE AMOUNT PAID BY YOU FOR THE

SOFTWARE. THE FOREGOING LIMITATIONS, EXCLUSIONS AND DISCLAIMERS (INCLUDING

DISCLAIMER OF WARRANTIES AND EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND

CERTAIN OTHER DAMAGES ABOVE) SHALL APPLY TO THE MAXIMUM EXTENT PERMITTED BY

APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE; PROVIDED,

HOWEVER, THAT BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR

LIMITATION OR LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE

LIMITATION MAY NOT APPLY TO YOU.

TERMINATION

Without prejudice to any other rights, Acer may immediately terminate this Agreement without notice if you

fail to comply with any terms and conditions of this Agreement.

In such event, you must:

1. Cease all use of the Software;

2. Destroy or return to Acer the original and all copies of the Software; and

3. Delete the Software from all phones on which it was resident.

All disclaimers of warranties and limitation of liability set forth in this Agreement shall survive termination

of this Agreement.

GENERAL

This Agreement represents the complete agreement between you and Acer relating to this license for the

Software and supersedes all prior agreements, communications, proposals and representations between

the parties and prevails over any conflicting or additional terms of any quote, order, acknowledgement or

similar communication. This Agreement may only be modified by a written document signed by both

parties. If any provision of this Agreement is held by a court of competent jurisdiction to be contrary to law

that provision will be enforced to the maximum extent permissible and the remaining provisions of this

Agreement will remain in full force and effect.

ADDITIONAL PROVISIONS APPLICABLE TO THIRD PARTY SOFTWARE AND SERVICES

Software provided hereunder by Acer's licensors or suppliers ("Third Party Software") is made available

to you for your personal, non-commercial use only. You may not use the Third Party Software in any

manner that could damage, disable, overburden, or impair the services provided by Acer's licensors or

suppliers hereunder ("Third Party Services"). Furthermore, you may not use the Third Party Software in

any manner that could interfere with any other party's use and enjoyment of the Third Party Services, or

the services and products of Acer's licensors' or suppliers' third party licensors. Your use of the Third Party

Software and Third Party Services is also subject to additional terms and conditions and policies which

can be accessed through our global website.

During registration you will be asked to submit some information to Acer. Please refer to Acer’s privacy

policy at www.acer.com or your local Acer website.

72 - End User License Agreement

TRADEMARK INFORMATION

DTS Studio Sound™

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited.

DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Studio Sound is

Acer orporated DME600 Smart HandHeld User Manual lqE600 E600 duo UM date EN

Acer Incorporated Smart HandHeld lqE600 E600 duo UM date EN

Contents

Manual

Navigation menu

Namespaces

Views

Navigation
