Acer Liquid Z220, Liquid M220 Quick Guide
Model: Z220, M220
This revision: 01/2015
Acer Liquid Z220, Liquid M220 Smartphone
Model number:____________________________________
Serial number: ____________________________________
Date of purchase: _________________________________
Place of purchase: ________________________________
Android is a trademark of Google Inc. Use of this trademark is
subject to Google Permissions.
Unpacking your smartphone
Your new smartphone comes packed in a protective box. Carefully
unpack the box and remove the contents. If any of the following items
is missing or damaged, contact your dealer immediately:
• Your new Acer smartphone
• USB cable
• AC adapter
• Headset
Getting to know your smartphone

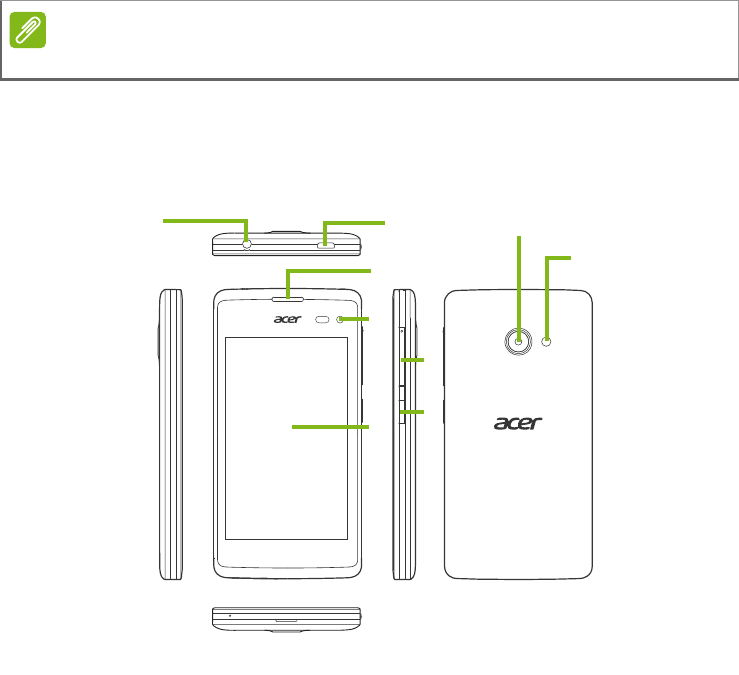

Views
3
2
6
7
9
1
5
4
8
Note
In-box content varies depending on country and region.
Charging the battery
For initial use, you need to charge your smartphone for eight hours.
After that you can recharge the battery as needed.
Connect the AC adapter cord to the micro USB connector on your
smartphone.
No. Item Description
1 3.5 mm headphone jack Connects to stereo headphones.
2 Micro USB connector Connects to a USB cable/charger.
3 Smartphone speaker Emits audio from your smartphone; suitable for
holding to your ear.
4 Front-facing camera Use for self-portrait images and online video chat.
5 Touchscreen 4-inch capacitive touchscreen to display data,
smartphone content and enter information.
6 Volume up/down button Increases or decreases the smartphone volume.
7 Power button Press to turn the screen on/off or enter sleep
mode; press and hold to turn the smartphone on
or off.
8 Camera A camera for taking high-resolution images.
9 Flash LED flash for camera.
Specifications
Performance
• 1.2 GHz dual-core processor
• System memory:
• ROM 8 GB eMMC + RAM 1 GB
• Android operating system
Display
• 4" TFT LCD, capacitive touchscreen
• 480 x 800 resolution
Multimedia
Formats supported:
USB connector
• Micro USB connector
• USB client
• DC power-in (5 V, 0.5 A)
Note
Specifications may vary depending on region and configuration.
Type Formats
Image JPEG, GIF, PNG, BMP
Audio playback MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Ringtone MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Video recording H.263, H.264, MPEG4
Video playback H.263, H.264, MPEG4, VP8
Connectivity
• Bluetooth 4.0
• IEEE 802.11b/g/n
• GSM 850 / 900 / 1800 / 1900 MHz
•HSPA / WCDMA
•850 MHz (B5) / 1900 MHz (B2)
• HSPA+ / GPRS / EDGE
•GPS
*Frequency depends on model.
Camera
• 5 MP rear camera (Auto focus)
• 2 MP front camera (Fixed focus)
Expansion
• microSD memory card slot (up to 32 GB)
Battery
• 1300 mAh Lithium-ion battery
Note
Length of battery operation will depend on power consumption which is
based on system resource use. For example, constantly using the backlight
or using power-demanding apps will shorten battery life between charges.
Dimensions
Height 125.3 mm
Width 64 mm
Thickness 9.57 mm
Weight 120 g (with battery)
Setting up for the first time
Inserting the SIM cards and microSD card
1. Turn off the phone by pressing and holding the
power button.
2. Insert your fingernail into the notch located at
the bottom of the phone and remove the
cover as illustrated.

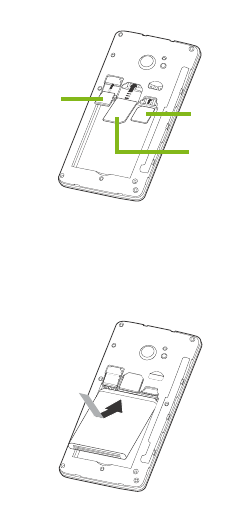

3. Insert the SIM or microSD card as shown.
4. Align the gold-colored connectors on the
battery with the connectors at the top of the
battery compartment and insert the battery.
microSD card
SIM 1
Micro SIM 2
5. Replace the cover by aligning the tabs on the
cover into the slots on the phone. Gently
press the cover until it snaps in place.
Charging your phone
For initial use, you need to charge your smartphone for
eight hours. After that you can recharge the battery as
needed.

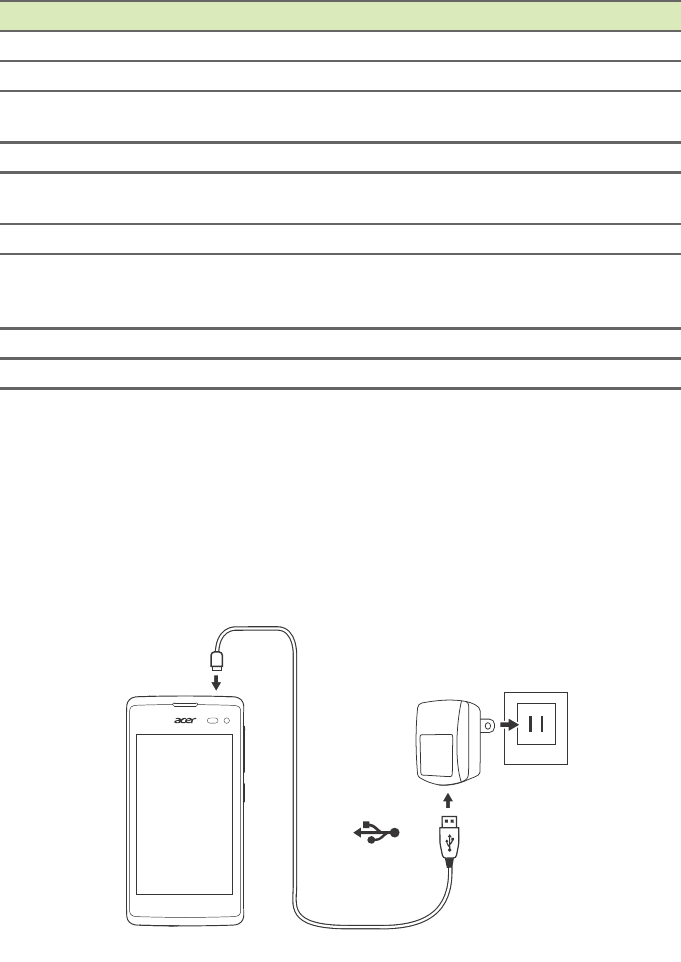

Connect the AC adapter cord to the micro USB
connector on your smartphone. Plug the AC adapter
into any AC outlet and charge the device.
It is normal for the phone to heat up when charging or
during long periods of use.
All phones are factory tested before release.
Resetting and restarting the phone
Open Settings from the Applications menu, then tap
Backup & reset. Tap Factory data reset and then tap
Reset phone. Tap Erase everything to format your
phone.
If your phone is no longer responding, press and hold
the power button and volume up button simultaneously
for 8 to 10 seconds to reset the phone.
Replacing the battery
Replace the battery with the same type as that which came bundled with
your product. Use of another battery may present a risk of fire or explosion.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Warning! Batteries may explode if not handled properly. Do not
disassemble or dispose of them in fire. Keep them away from children.
Follow local regulations when disposing of used batteries.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Disposal and recycling information
Do not throw this electronic device into the trash when discarding.
To minimize pollution and ensure utmost protection of the global
environment, please recycle. For more information on the Waste
from Electrical and Electronics Equipment (WEEE) regulations,
visit
www.acer- group.com/public/Sustainability
It is compliant with WEEE regulation
RoHS compliance
This product is in compliance with Directive 2011/65/EU of the European
Parliament and of the Council of 8 June 2011, on the restriction of the use of
certain hazardous substances (RoHS) in electrical and electronic equipment
and its amendments.
FCC regulations
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
IC regulations
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement."
CAN ICES-3(B)/NMB-3(B)
RF exposure information (SAR)
This device meets the FCC/IC requirements on the limitation of exposure of
the general public to electromagnetic fields by way of health protection.
The unit of measurement for the FCC/IC limit is the "Specific Absorption
Rate" (SAR). The SAR limit set by the FCC/IC is 1.6 W/kg, averaged over 1
g of tissue. The FCC and IC have granted an Equipment Authorization for
this device with all reported SAR levels evaluated as in compliance with the
FCC and IC RF exposure guidelines. SAR information on this device is on
file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on the FCC ID for your device,
which can be found on the product labeling of your device.
For body-worn operation, this device has been tested use with accessories
that contain no metal and that position the handset a minimum of 1.0 cm
from the body. Use of other accessories may not ensure compliance with
RF exposure. If you do not use a body-worn accessory and are not holding
the device at the ear, position the handset a minimum of 1.0 cm from your
body when the device is switched on.
During use, the actual SAR level is usually much lower than the maximum
value. In general, the closer you are to a base station, the lower the
transmission output of your device. To reduce exposure to RF energy, use a
hands-free accessory or other similar option to keep this device away from
your head and body.
This phone meets the FCC and IC requirements on the limitation of
exposure of the general public to electromagnetic fields by way of health
protection.
The highest SAR value of this device is listed below:
FCC (W/kg @1g)
IC (W/kg @1g)
Head
Body
0.77
1.13
0.77
1.13
