Acer orporated DMZ320 Smart HandHeld User Manual lqZ520 project name QG region date EN
Acer Incorporated Smart HandHeld lqZ520 project name QG region date EN
User Manual
![](/img.php?id=2816998&img=bg1.png)
1
English
Product information
For detailed product information, please go to www.acer.com.
For service and support information, or to download the User
Guide, drivers and applications, please follow the instructions
below:
1. Go to www.acer.com and click Support > DRIVERS AND
MANUALS.
2. Select appropriate items from Group > Series > Products.
3. Select the operating system from the drop-down menu.
© 2015 All Rights Reserved
Acer Liquid Z320 Quick Guide
Model: T012
This revision: 07/2015
Acer Liquid Z320 Smartphone
Model number:____________________________________
Serial number: ____________________________________
Date of purchase: _________________________________
Place of purchase: ________________________________
Android is a trademark of Google Inc. Use of this trademark is
subject to Google Permissions.
![](/img.php?id=2816998&img=bg2.png)
Your smartphone
No. Item Description
1 3.5 mm headphone jackConnects to stereo headphones.
2 Micro USB connector Connects to a USB cable/charger.
3 Smartphone speaker Emits audio from your smartphone; suitable for
holding to your ear.
4 Front-facing cameraUse for self-portrait images and online video chat.
5 Touchscreen 4-inch capacitive touchscreen to display data,
smartphone content and enter information.
6 Volume up/down button Increases or decreases the smartphone volume.
7 Power button Press to turn the screen on/off or enter sleep
mode; press and hold to turn the smartphone on
or off.
8 Camera A camera for taking high-resolution images.
9 FlashLED flash for camera.
17 8
2
4
3
9
5
6
Note:
For more on how your computer can help you to be more
productive, please refer to the User’s Manual. The User’s
Manual can be downloaded from the Acer support website
by going to: http://go.acer.com/?id=17883
![](/img.php?id=2816998&img=bg3.png)
Specifications
Performance
• 1.1 GHz quad-core processor
•System memory (8 GB) :
•8 GB
• Android operating system
Display
• 4.5” IPS LCD,FWVGA 480 x 854 16:9 ratio resolution
Multimedia
Formats supported:
USB connector
• Micro USB connector
• USB client
• DC power-in (5V, 1A)
Note
Specifications may vary depending on region and configuration.
Type Formats
Image JPEG, GIF, PNG, BMP
Audio playback MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Ringtone MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Video recording H.263, H.264, MPEG4
Video playback H.263, H.264, MPEG4, VP8
Frequencies depend on model.
•
Connectivity
•
Bluetooth 4.0 + EDR
•
IEEE 802.11b/g/n
•86:&'0$%5%1700%0+]
*600+]
•
HSPA / GPRS / EDGE
GPS
![](/img.php?id=2816998&img=bg5.png)
Dimensions
Height 136 mm
Width 66.5 mm
Thickness 9.8 mm
Weight 142 g (with battery)
Note
Length of battery operation will depend on power consumption which is
based on system resource use. For example, constantly using the backlight
or using power-demanding apps will shorten battery life between charges.
Camera
• 5 MP rear camera
•LED flash
• 2 MP front camera
• Fixed focus
Expansion
• microSD memory card slot (up to 32 GB)
Battery
• 2000 mAh Li-Polymer battery (replaceable)
![](/img.php?id=2816998&img=bg6.png)
2
English
Setting up for the first time
Inserting the SIM cards and microSD card
1. Turn off the phone by pressing and holding
the power button.

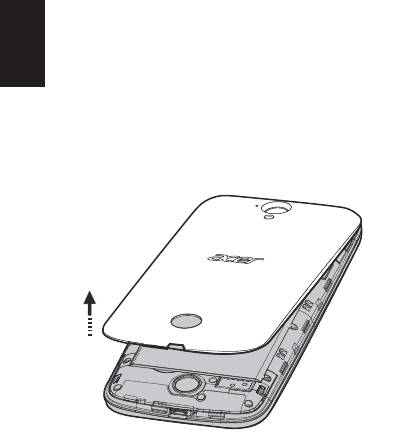

2. Insert your fingernail into the notch located at
the bottom of the phone and remove the
cover as illustrated.
![](/img.php?id=2816998&img=bg7.png)
3
English
3. Insert the SIM or microSD card as shown.
4. Align the gold-colored connectors on the
battery with the connectors at the top of the
battery compartment and insert the battery.
SIM 2 SIM 1 SD
Micro SIM 2
Micro SIM 1
microSD card
![](/img.php?id=2816998&img=bg8.png)
4
English

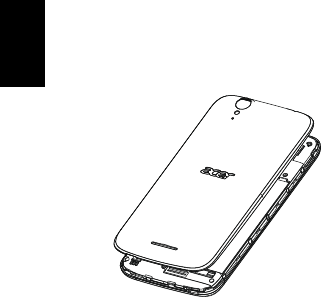

5. Replace the cover by aligning the tabs on the
cover into the slots on the phone. Gently
press the cover until it snaps in place.
![](/img.php?id=2816998&img=bg9.png)
5
English

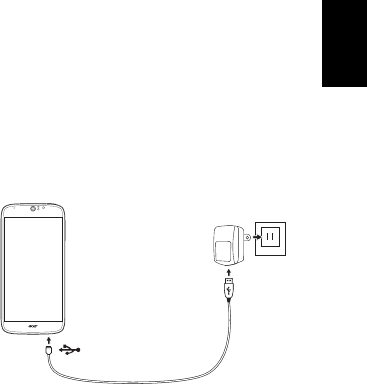

Charging your phone
For initial use, you need to charge your smartphone for
eight hours. After that you can recharge the battery as
needed.
Connect the AC adapter cord to the micro USB
connector on your smartphone. Plug the AC adapter
into any AC outlet and charge the device.
It is normal for the phone to heat up when charging or
during long periods of use.
All phones are factory tested before release.
Resetting and restarting the phone
Open Settings from the Applications menu, then tap
Backup & reset. Tap Factory data reset and then tap
Reset phone. Tap Erase everything to format your
phone.
If your phone is no longer responding, press and hold
the power button for 10 seconds to restart the phone.
![](/img.php?id=2816998&img=bga.png)
3
Safety
Battery information
This product uses a Lithium-polymer battery. Do not use it
in
a
humid, wet and/or corrosive environment. Do not put,
st
or
e
or leave your product in or near a heat source, in a
hi
gh
temperature location, in strong direct sunlight, in a m
i
cro
w
a
v
e
oven or in a pressurized container, and do not expose it
to
temperatures over 60 °C
(
140
°F).
Failure to follow these
guidelines may cause the battery to leak acid, become
h
o
t,
explode or ignite and cause injury and/or damage. Do
n
o
t
pierce, open or disassemble the battery. If the battery leaks
and you come into contact with the leaked fluids, rinse
thoroughly with water and seek medical attention
immediately. For safety reasons, and to prolong the lifetime of
the battery, charging will not occur at low
(
b
elow 0 °C/
32
°F)
or high (over 45 °C /113
°F)
t
e
mperatur
es.
The full performance of a new battery is achieved only
af
ter
two or three complete charge and discharge cycles. The
battery can be charged and discharged hundreds of
t
imes,
but it will eventually wear out. When the talk and standby
times are noticeably shorter than normal, buy a new
batt
ery.
Use only manufacturer approved batteries, and recharge your
battery only with manufacturer approved chargers de
signa
t
ed
for this device.
Unplug the charger from the electrical plug and the de
vi
ce
when not in use. Do not leave a fully charged ba
tte
ry
connected to the AC charger, since overcharging may shorten
its lifetime. If left unused, a fully charged battery will lose its
charge over time. If the battery is completely discharged,
it
may take a few minutes before the charging indicator appears
on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any
charger or battery that is da
ma
ged.
Do not short-circuit the battery. Accidental
sh
ort-
cir
c
ui
ting
can occur when a metallic object such as a coin, clip, or pen
![](/img.php?id=2816998&img=bgb.png)
4
causes direct connection of the positive
(+)
and negative
(-
)
terminals of the battery. These look like metal strips on the
battery. This might happen, for example, when you carry a
spare battery in your pocket or purse. Short-circuiting
t
h
e
terminals may damage the battery or the connecting objec
t
.
Leaving the battery in hot or cold places, such as in a clos
e
d
car in summer or winter conditions, will reduce the capacity
and lifetime of the battery. Always try to keep the ba
tte
ry
between 15 °C and 25 °C (59 °F and 77
°F).
A device with a
hot or cold battery may not work temporarily, even when
t
h
e
battery is fully charged. Battery performance is pa
rtic
ularly
limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may
e
xplode.
Batteries may also explode if damaged. Dispose of ba
tte
ri
e
s
according to local regulations. Please recycle when possible
.
Do not dispose as household
w
a
st
e.
Replacing the
b
a
ttery
Your smartphone uses a Lithium-polymer battery. Replace
the battery with the same type as that which came bundle
d
with your product. Use of another battery may present a
ri
sk
of fire or
e
xplo
s
io
n.
Warning!
Batteries may explode if not handled
properly. Do not disassemble or dispose of them in
fire. Keep them away from children. Follow local
regulations when
disposing
of used batter
i
es.
Disposal and recycling info
r
m
a
t
ion
Do not throw this electronic device into the trash
when
di
sc
ar
di
n
g
.
To minimize pollution and ensure utmost pr
ot
ection
of the global environment, please recycle. For more
information on the Waste from Electrical and
Electronics Equipment
(WEEE)
regulations, visit
www
.
acer
-
gro
u
p.com
/
public
/
Sus
tainability/
sus
tainability01.htm
This device has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
FCC regulations
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement."
CAN ICES-3(B)/NMB-3(B)
IC regulations
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes:
![](/img.php?id=2816998&img=bge.png)
The highest SAR value of this device is listed below:
RF exposure information (SAR)
This device meets the FCC/IC requirements on the limitation of exposure of
the general public to electromagnetic fields by way of health protection.
The unit of measurement for the FCC/IC limit is the "Specific Absorption
Rate" (SAR). The SAR limit set by the FCC/IC is 1.6 W/kg, averaged over 1
g of tissue. The FCC and IC have granted an Equipment Authorization for
this device with all reported SAR levels evaluated as in compliance with the
FCC and IC RF exposure guidelines. SAR information on this device is on
file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on the FCC ID for your device,
which can be found on the product labeling of your device.
For body-worn operation, this device has been tested use with accessories
that contain no metal and that position the handset a minimum of 1.0 cm
from the body. Use of other accessories may not ensure compliance with
RF exposure. If you do not use a body-worn accessory and are not holding
the device at the ear, position the handset a minimum of 1.0 cm from your
body when the device is switched on.
During use, the actual SAR level is usually much lower than the maximum
value. In general, the closer you are to a base station, the lower the
transmission output of your device. To reduce exposure to RF energy, use a
hands-free accessory or other similar option to keep this device away from
your head and body.
This phone meets the FCC and IC requirements on the limitation of
exposure of the general public to electromagnetic fields by way of health
protection.
1.31
0.54
IC (W/kg @1g)
31
.1
Body
54
.
0Head
FCC (W/kg @1g)
![](/img.php?id=2816998&img=bgf.png)
Informationssurl’expositionàlaradiofréquence(DAS)
CetappareilestconformeauxexigencesdelaICsurlalimitationd’exposition
dupublicgénéralauxchampsélectromagnétiquespourprotégerlasanté.
L’unitédemesuredelalimiterecommandéeparlaICestle«débit
d’absorptionspécifique»(DAS).LalimiteDASdéfinieparlaICest1,6W/kg,
surunemoyennede1gdepeau.LaIContaccordéuneautorisation
d’équipementpourcemodèled’appareilavectouslesniveauxdeDAS
indiquéscommerespectantlesrecommandationsd’expositionRFdelaIC.
Pourl’utilisationsurlecorps,cetappareilaététestépouruneutilisation
avecdesaccessoiresnecontenantaucunmétaletquipositionnentl’appareil
auminimumà1,0cmducorps.L’utilisationd’autresaccessoirespeutnepas
assurerlaconformitéàl’expositionàlaradiofréquence.Sivousn’utilisezpas
unaccessoireportésurlecorpsetnetenezpasl’appareilàl’oreille,
positionnezl’appareilauminimumà1,0cmducorpslorsqueletéléphoneest
allumé.
Pendantl’utilisation,leniveauDASestbieninférieuràlavaleurmaximale.
Engénéral,plusvousêtesprochedelastationdebase,pluslasortiede
transmissiondevotreappareilestfaible.Pourréduirel’expositionàl’énergie
deradiofréquence,utilisezunaccessoiremainslibresouuneautreoption
similairepouréloignercetappareildevotretêteetdevotrecorps.
CetéléphoneestconformeauxexigencesICsurlalimitationd’expositiondu
publicgénéralauxchampsélectromagnétiquespourprotégerlasanté.
LavaleurDASlaplusélevéedecetappareilestlistéeci‐dessous.
1.31
Corps
0.54Tête
@1g)(W/kg
IC
