Acer Liquid Z530 Quick Guide
Model: T02
This revision: 09/2015
Acer Liquid Z530 Smartphone
Model number:____________________________________
Serial number: ____________________________________
Date of purchase: _________________________________
Place of purchase: ________________________________
Android is a trademark of Google Inc. Use of this trademark is
subject to Google Permissions.
Your smartphone
No. Item Description
1 3.5 mm
headphone
jack
Connects to stereo
headphones.
2 Micro USB
connector
Connects to a USB cable/
charger.
3 Front camera Front-facing camera suitable for
video chats and self-portraits.
4 Phone
speaker
Emits audio from your
smartphone; suitable for holding
to your ear.
5 Touchscreen Touchscreen to display data,
phone content and enter
information.
1
7
8
9
11
10
2
3
4
5
6
English
6 Handsfree
speaker
Emits audio from your
smartphone; suitable for
handsfree use.
7 Power button Press to turn the screen on/off
or enter sleep mode; press and
hold to turn the smartphone on
or off.
8 Volume up/
down button
Increases or decreases the
phone volume.
9 Flash LED flash for taking photos in
low-light environments.
10 Spaker Internal Spaker.
11 Camera A camera for taking high-
resolution images.
No. Item Description
Note:
For more on how your computer can help you to be more
productive, please refer to the User’s Manual. The User’s
Manual can be downloaded from the Acer support website
by going to: http://go.acer.com/?id=17883
Specifications
Performance
• 1.3 GHz quad-core processor
•System memory (8 GB or 16 GB) :
•8 GB 內建主記憶體硬體容量：8 GB，使用者可使用主記憶體容量至少：4.61 GB。
• Android operating system
Display
•5.0" TFT LCD,1280 x 720 resolution
Multimedia
Formats supported:
USB connector
• Micro USB connector
• USB client
• DC power-in (5 V, 1 A)
Note
Specifications may vary depending on region and configuration.
Type Formats
Image JPEG, GIF, PNG, BMP
Audio playback MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Ringtone MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Video recording H.263, H.264, MPEG4
Video playback H.263, H.264, MPEG4, VP8
•16 GB 內建主記憶體硬體容量：16 GB，使用者可使用主記憶體容量至少：11.89 GB。
Connectivity
• Bluetooth 4.0 + EDR
• IEEE 802.11b/g/n
•GSM 850 / 900 / 1800 / 1900 MHz
HSPA / GPRS / EDGE
Frequencies depend on model.
「因應各地區/國家所屬之規範、頻道及開放時程等服務細項的不同，請
依據當地主管機關與電信業者實際公告資訊為主。如服務細則有所變更，
請自行洽詢電信業者，恕不另行通知。」
WCDMA 850(B5) / 900(B8) / 1900(B2) / 2100(B1) MHz
LTE Band 3 (1710-1770 MHz)
LTE Band 8 (885-915 MHz)
LTE Band 28 (703-748 MHz)
•
• GPS
Dimensions
Height 144 mm
Width 70.3 mm
Thickness 8.9 mm
Weight 150 g (with battery)
Note
Length of battery operation will depend on power consumption which is
based on system resource use. For example, constantly using the backlight
or using power-demanding apps will shorten battery life between charges.
Camera
•8 MP rear camera
•Auto-focus
•LED flash
•8 MP front camera
• Fixed focus
Expansion
• microSD memory card slot (up to 32 GB)
Battery
•2500 mAh Li-Polymer battery (replaceable)
2
English
Setting up for the first time
Inserting the SIM cards and microSD card
1. Turn off the phone by pressing and holding
the power button.
2. Insert your fingernail into the notch located at
the bottom of the phone and remove the
cover as illustrated.
3
English
3. Insert the SIM or microSD card as shown.
4. Align the gold-colored connectors on the
battery with the connectors at the top of the
battery compartment and insert the battery.
* Note: Your smartphone may be equipped with one or two SIM slots
depending on model.
SIM1
or
SIM2
Micro SD
4
English
5. Replace the cover by aligning the tabs on the
cover into the slots on the phone. Gently
press the cover until it snaps in place.
5
English
Charging your phone
For initial use, you need to charge your smartphone for
eight hours. After that you can recharge the battery as
needed.

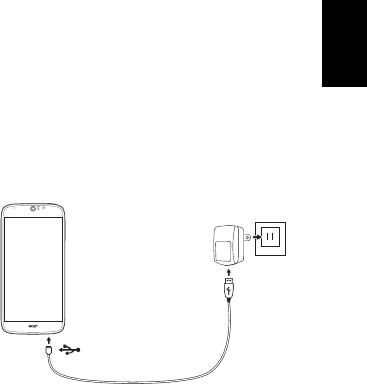

Connect the AC adapter cord to the micro USB
connector on your smartphone. Plug the AC adapter
into any AC outlet and charge the device.
It is normal for the phone to heat up when charging or
during long periods of use.
All phones are factory tested before release.
Resetting and restarting the phone
Open Settings from the Applications menu, then tap
Backup & reset. Tap Factory data reset and then tap
Reset phone. Tap Erase everything to format your
phone.
If your phone is no longer responding, press and hold
the power button for 10 seconds to restart the phone.
3
Safety
Battery information
This product uses a Lithium-polymer battery. Do not use it
in
a
humid, wet and/or corrosive environment. Do not put,
st
or
e
or leave your product in or near a heat source, in a
hi
gh
temperature location, in strong direct sunlight, in a m
i
cro
w
a
v
e
oven or in a pressurized container, and do not expose it
to
temperatures over 60 °C
(
140
°F).
Failure to follow these
guidelines may cause the battery to leak acid, become
h
o
t,
explode or ignite and cause injury and/or damage. Do
n
o
t
pierce, open or disassemble the battery. If the battery leaks
and you come into contact with the leaked fluids, rinse
thoroughly with water and seek medical attention
immediately. For safety reasons, and to prolong the lifetime of
the battery, charging will not occur at low
(
b
elow 0 °C/
32
°F)
or high (over 45 °C /113
°F)
t
e
mperatur
es.
The full performance of a new battery is achieved only
af
ter
two or three complete charge and discharge cycles. The
battery can be charged and discharged hundreds of
t
imes,
but it will eventually wear out. When the talk and standby
times are noticeably shorter than normal, buy a new
batt
ery.
Use only manufacturer approved batteries, and recharge your
battery only with manufacturer approved chargers de
signa
t
ed
for this device.
Unplug the charger from the electrical plug and the de
vi
ce
when not in use. Do not leave a fully charged ba
tte
ry
connected to the AC charger, since overcharging may shorten
its lifetime. If left unused, a fully charged battery will lose its
charge over time. If the battery is completely discharged,
it
may take a few minutes before the charging indicator appears
on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any
charger or battery that is da
ma
ged.
Do not short-circuit the battery. Accidental
sh
ort-
cir
c
ui
ting
can occur when a metallic object such as a coin, clip, or pen
4
causes direct connection of the positive
(+)
and negative
(-
)
terminals of the battery. These look like metal strips on the
battery. This might happen, for example, when you carry a
spare battery in your pocket or purse. Short-circuiting
t
h
e
terminals may damage the battery or the connecting objec
t
.
Leaving the battery in hot or cold places, such as in a clos
e
d
car in summer or winter conditions, will reduce the capacity
and lifetime of the battery. Always try to keep the ba
tte
ry
between 15 °C and 25 °C (59 °F and 77
°F).
A device with a
hot or cold battery may not work temporarily, even when
t
h
e
battery is fully charged. Battery performance is pa
rtic
ularly
limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may
e
xplode.
Batteries may also explode if damaged. Dispose of ba
tte
ri
e
s
according to local regulations. Please recycle when possible
.
Do not dispose as household
w
a
st
e.
Replacing the
b
a
ttery
Your smartphone uses a Lithium-polymer battery. Replace
the battery with the same type as that which came bundle
d
with your product. Use of another battery may present a
ri
sk
of fire or
e
xplo
s
io
n.
Warning!
Batteries may explode if not handled
properly. Do not disassemble or dispose of them in
fire. Keep them away from children. Follow local
regulations when
disposing
of used batter
i
es.
Disposal and recycling info
r
m
a
t
ion
Do not throw this electronic device into the trash
when
di
sc
ar
di
n
g
.
To minimize pollution and ensure utmost pr
ot
ection
of the global environment, please recycle. For more
information on the Waste from Electrical and
Electronics Equipment
(WEEE)
regulations, visit
www
.
acer
-
gro
u
p.com
/
public
/
Sus
tainability/
sus
tainability01.htm
5
Wireless operation channels for different dom
a
ins
N. America 2.412-2.462 GHz Ch01 through Ch11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
This device has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
FCC regulations
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The highest SAR value of this device is listed below:
FCC (W/kg @1g)
Head
0.70
Body
1.19
RF exposure information (SAR)
This device meets the FCC requirements on the limitation of exposure of
the general public to electromagnetic fields by way of health protection.
The unit of measurement for the FCC limit is the "Specific Absorption
Rate" (SAR). The SAR limit set by the FCC is 1.6 W/kg, averaged over 1
g of tissue. The FCC have granted an Equipment Authorization for
this device with all reported SAR levels evaluated as in compliance with the
FCC RF exposure guidelines. SAR information on this device is on
file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on the FCC ID for your device,
which can be found on the product labeling of your device.
For body-worn operation, this device has been tested use with accessories
that contain no metal and that position the handset a minimum of 1.0 cm
from the body. Use of other accessories may not ensure compliance with
RF exposure. If you do not use a body-worn accessory and are not holding
the device at the ear, position the handset a minimum of 1.0 cm from your
body when the device is switched on.
During use, the actual SAR level is usually much lower than the maximum
value. In general, the closer you are to a base station, the lower the
transmission output of your device. To reduce exposure to RF energy, use a
hands-free accessory or other similar option to keep this device away from
your head and body.
This phone meets the FCC and requirements on the limitation of
exposure of the general public to electromagnetic fields by way of health
protection.
1
繁
體
中
文
安全
電池資訊
請勿在潮濕及 ( 或) 具腐蝕性的環境中使用本產品。請
勿將本產品置於或存放於，或接近熱源、高溫、陽光直
射、微波爐或加壓容器，以及勿放置在超過 60°C
(140°F) 之處。若未遵守上述規定，可能會導致電池漏
出酸液、發熱、爆炸或燃燒，而造成受傷及 ( 或) 損
壞。請勿穿刺、開啟或拆解電池，若您在電池漏液時接
觸到漏出的液體，請以清水徹底清洗，並立即就醫。為
了安全及延長電池的使用壽命，請勿在低溫 ( 低於 0°C/
32°F) 或高溫 ( 超過 45°C/113°F) 處進行充電。
新電池要經過兩到三次完整的充放電過程後，才能發揮
完整的效能。電池可充放電數百次，但是電力會逐漸下
降。若發現通話與待機時間顯著低於平常使用的情況
時，請購買新的電池。請僅使用製造商授權的電池，並
使用製造商指定授權的充電器。
不使用充電器時，請從電源插座及裝置上取下。勿將充
滿電的電池連接至充電器上，因為過度充電可能會縮短
使用壽命。而充滿電的電池若未使用，其電力亦會隨時
間經過而減少。若電池電力已完全耗盡，可能要等幾分
鐘後才會顯示充電指示符號，或者您才能夠撥打電話。
請僅按照使用目的使用電池。勿使用損壞的充電器或
電池。
勿使電池發生短路。以硬幣、迴紋針或筆等金屬物體直
接接觸電池正極 (+) 和負極 (-) 時，可能會發生意外短路
的情況。電極接點看起來就像電池上的金屬條。尤其當
您將備用電池放置於口袋或皮包內時，就可能發生這種
情形。電池正負極發生短路可能會損壞電池或相連的
物體。
夏天或冬天，若將電池放置在密閉車輛等高溫或低溫
處，會降低電池的容量與使用壽命。請永遠試著讓電池
2
繁
體
中
文
溫度保持在 15°C 和 25°C (59°F 和 77°F) 之間。置入高
溫或低溫電池，可能會暫時無法使用，即使在充滿電的
情況下亦同。在低於零度的環境中，電池效能將極為
有限。
勿將電池丟棄到火中，以免引起爆炸。損壞的電池也可
能會爆炸。請根據當地法規棄置電池，若有可能請回收
電池，勿以家庭廢棄物進行棄置。
更換電池
更換與隨附電池相同型號的電池。若使用其他型號的電
池可能會發生火災或爆炸。
警告！未正確處理電池可能會爆炸。請勿拆解電
池或將電池丟棄到火中。請將電池放在孩童拿不
到的地方。請根據當地法規棄置用過的電池。
棄置與回收資訊
丟棄此電子裝置時，請勿丟入垃圾桶中。為
減少汙染及確保能保護全球環境，請回收本
產品。如需更多廢電機電子設備 (WEEE) 規
定的資訊，請至 www.acer-group.com/
public/Sustainability
符合 WEEE 規定。
3
繁
體
中
文
NCC 警語
經型式認證合格之低功率射頻電機，非經許可，公司、
商號或使用者均不得擅自變更頻率、加大功率或變更原
設計之特性及功能。低功率射頻電機之使用不得影響飛
航安全及干擾合法通信；經發現有干擾現象時，應立即
停用，並改善至無干擾時方得繼續使用。前項合法通
信，指依電信法規定作業之無線電通信。低功率射頻電
機須忍受合法通信或工業、科學及醫療用電波輻射性電
機設備之干擾。
減少電磁波影響，請妥善使用。
無線電波暴露資訊 (SAR)
此產品符合電磁波暴露的相關規定
SAR 標準值 2.0 W/kg; 送測產品實測值為：x.xxx W/kg。
．使用過度恐傷害視力。
．使用30 分鐘請休息10 分鐘。
．2 歲以下幼兒不看螢幕，2 歲以上每天看螢幕不要超過1小時。
