Acer orporated SHS200EU SMART HANDHELD User Manual Acer F1 UM EN CERT
Acer Incorporated SMART HANDHELD Acer F1 UM EN CERT
Users Manual
![](/img.php?id=1208215&img=bg1.png)
1
Acer S200
User Guide
![](/img.php?id=1208215&img=bg2.png)
Acer S200 Smartphone User Guide2
© 2009 All Rights Reserved
Acer S200 Smartphone User Guide
First issue: 08/2009
Acer S200 Smartphone
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
![](/img.php?id=1208215&img=bg3.png)
3
Table of Contents
Getting to know your smartphone
Features and functions . . . . . . . . . . . . . . . . . . . . . . . . 5
Other sources of help . . . . . . . . . . . . . . . . . . . . . . . . . 6
Product registration . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 1: Setting Up
Unpacking your smartphone . . . . . . . . . . . . . . . . . . . 9
Getting to know your smartphone . . . . . . . . . . . . . . 10
Installing or removing the battery . . . . . . . . . . . . . . 12
Installing a SIM card or microSD card . . . . . . . . . . . . 14
Turning on for the first time . . . . . . . . . . . . . . . . . . . 15
Chapter 2: Making Calls
Before making a call . . . . . . . . . . . . . . . . . . . . . . . . . 19
The onscreen number pad . . . . . . . . . . . . . . . . . . . . 20
The voice call screen . . . . . . . . . . . . . . . . . . . . . . . . . 22
Onscreen call options . . . . . . . . . . . . . . . . . . . . . . . . 23
Chapter 3: Input Devices
The stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
The onscreen keyboard . . . . . . . . . . . . . . . . . . . . . . . 27
Chapter 4: Messaging
The messaging screen . . . . . . . . . . . . . . . . . . . . . . . . 31
Text (SMS) messages . . . . . . . . . . . . . . . . . . . . . . . . . 32
MMS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Chapter 5: Using the Camera
Camera icons and indicators . . . . . . . . . . . . . . . . . . . 39
Taking a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Shooting a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Photo and video options . . . . . . . . . . . . . . . . . . . . . . 42
![](/img.php?id=1208215&img=bg4.png)
Acer S200 Smartphone User Guide4
Chapter 6: Advanced Operation
Putting your smartphone in flight mode . . . . . . . . . 45
Comm. Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Adjusting connection settings . . . . . . . . . . . . . . . . . 46
Phone settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Managing your phonebook . . . . . . . . . . . . . . . . . . . 51
SIM Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Connecting to a PC and synchronizing . . . . . . . . . . . 55
Other functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Multimedia playback . . . . . . . . . . . . . . . . . . . . . . . . . 58
Satellite Data Update . . . . . . . . . . . . . . . . . . . . . . . . 60
Updating your smartphone . . . . . . . . . . . . . . . . . . . . 67
Resetting your smartphone . . . . . . . . . . . . . . . . . . . . 68
Chapter 7: Accessories and Tips
Using the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Using a Bluetooth headset . . . . . . . . . . . . . . . . . . . . 71
Using your smartphone as a modem . . . . . . . . . . . . 72
Inserting a microSD card . . . . . . . . . . . . . . . . . . . . . . 75
Appendix
FAQ, troubleshooting and error messages . . . . . . . 77
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Warnings and precautions . . . . . . . . . . . . . . . . . . . . 82
Emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Disposal and recycling information . . . . . . . . . . . . . 89
Taking care of your smartphone . . . . . . . . . . . . . . . 89
Safety regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
![](/img.php?id=1208215&img=bg5.png)
5Features and functions
Getting to know your
smartphone
Features and functions
Your new smartphone is a multi-functional tool packed with
intuitive features and powerful applications that make orga-
nizing your information and synchronizing it with your per-
sonal activities an easy, efficient task. Your smartphone lets
you:
• Access your email while on the move.
• Make calls when connected to a 3G/EDGE/GPRS/
HSUPA/HSDPA network.
• Connect wirelessly to your local cellular network to
access the Internet and other network features.
• Exchange information between devices that have
Bluetooth/WLAN capabilities.
• Easily manage your contacts and social networking
interaction.
Product features
• Qualcomm 8250 1 GHz processor
• 512 MB of ROM, 256 MB of RAM
• 3.8” WVGA TFT-LCD touchscreen
• MicroSD memory card slot with SDHC support
• High-density, rechargeable 1350 mAh Lithium Polymer
battery (changeable)
• Windows Mobile 6.5 Professional
• Easy-to-use Acer features: Phonebook, Agenda, Phone
Dialer with Favorites and Call History, Social
Networking, Notification Manager, and Preferences.
![](/img.php?id=1208215&img=bg6.png)
Acer S200 Smartphone User Guide6
Other sources of help
To help you use your smartphone, we have designed a set of
guides:
Refer to:
Accessing the help menus
Your smartphone features detailed help menus to aid you in
making connections and using the embedded applications.
1. Tap Start > Help to access the Help menus.
Tap Contents to view all help topics or Search to find help on
specific topics.
For information on:
Programs on your smart-
phone and additional pro-
grams that can be installed on
your smartphone.
This User Guide. Included on the smart-
phone Companion CD, it provides online
reference for using your smartphone.
Up-to-date information
regarding your smartphone.
www.acer.com/
Service enquiries www.acer.com/support/
![](/img.php?id=1208215&img=bg7.png)
7Product registration
Product registration
When using your product for the first time, it is recommended
that you immediately register it. This will give you access to
some useful benefits, such as:
• Faster service from our trained representatives
• Membership in the Acer community: receive promo-
tions and participate in customer surveys
• The latest news from Acer
Hurry and register, as other advantages await you!
How to Register
To register your Acer product, visit our website at
registration.acer.com. Choose your country and follow the sim-
ple instructions.
You can also click Start > Registration to register using your
smartphone.
After we receive your product registration, you will be sent a
confirmation email with important data that you should keep
in a safe place.
![](/img.php?id=1208215&img=bg9.png)
9Unpacking your smartphone
Chapter 1: Setting Up
Unpacking your smartphone
Your new smartphone comes packed in a protective box.
Carefully unpack the box and remove the contents. If any of
the following items is missing or damaged, contact your dealer
immediately:
•Acer S200 Smartphone
•Stylus
• Battery
• Quick Start Guide
• Companion CD

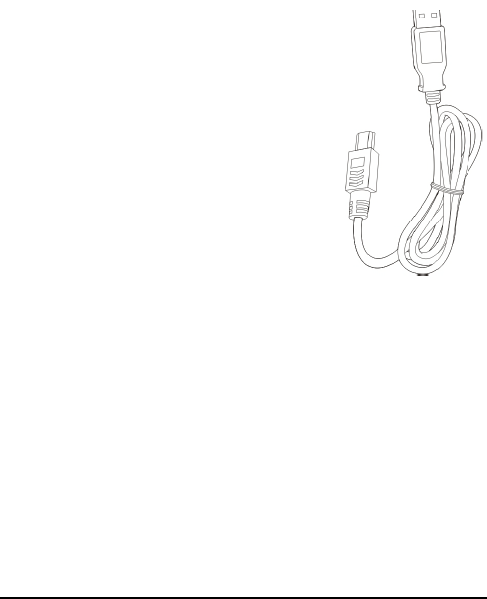

•USB cable
• AC adapter
• Headset
• Screen protective film
![](/img.php?id=1208215&img=bga.png)
Acer S200 Smartphone User Guide10
Getting to know your smartphone
Views
12
3456
7
8
9
10
11
12
13
14
15
16
17
18 19
20
No. Item Description
1 Power button Press to turn the screen on/off or enter
sleep mode; press and hold to turn the
smartphone off.
2 Touchscreen 3.8-inch, 480 x 800 pixel touchscreen to
display data, phone content and enter
information.
3 Call button Activate phone/dial/view recently dialed
numbers/answer a call.
4 Home button Return to the Today screen.
5 Back button Go back one menu step.
6 End button Press to end a call.
![](/img.php?id=1208215&img=bgb.png)
11Getting to know your smartphone
7 IR LED Works in conjunction with the Proximity
sensor.
8 Proximity and ambi-
ent light sensor
Dims the display and deactivates the
touchscreen when the device is brought
near the face during a call. Adjusts the dis-
plays brightness depending on lighting
conditions.
9 Phone speaker Emits audio from your smartphone; suit-
able for normal use.
10 LED indicators Indicates battery charge and event status.
11 Stylus Use to enter information or select items
on the touch screen.
12 3.5 mm headset jack Connect to headset.
13 Mini USB connector Connect to a USB cable/headset/charger.
14 Microphone Internal microphone.
15 Volume up/down
button
Increases or decreases the phone volume
during calls.
16 Reset button
Clear your smartphone’s memory.
17 Camera button
Activate the camera or take a picture. Press
down halfway to auto-focus.
18 Camera
A 5-megapixel Auto-Focus camera.
19 Flash
Provides illumination for low light picture
taking.
20 Handsfree Speaker
Emits audio from your smartphone; suitable
for handsfree use.
No. Item Description
![](/img.php?id=1208215&img=bgc.png)
Acer S200 Smartphone User Guide12
LED indicator
Installing or removing the battery
Your smartphone uses a replaceable battery to provide power.
It is packed seperately from your smartphone and needs to be
inserted and charged before you can use the smartphone.
Installing the battery
Slide your fingernail
into the gap between
the battery cover and
the smartphone.
Gently apply pressure
upwards to remove
the battery cover.
Color State Description
Red Steady Battery is charging.
Slow
flashing
Battery level is low.
Flashes
twice rap-
idly
Battery level is critically low.
Flashes
rapidly
Battery level is too low to start the
smartphone.
Blue Slow
flashing
New event (missed call, new SMS/MMS/
email, appointment, etc).
Green Steady Battery is fully charged; you should
unplug the charger.
![](/img.php?id=1208215&img=bgd.png)
13Installing or removing the battery
Place the battery into
the battery
compartment, lining
up the battery
connectors with those
at the middle of the
compartment.
1
2
Insert the tabs on the
bottom of the battery
cover into the slots in
the smartphone.
Carefully press the top
of the cover until the
cover snaps in place.
CAUTION: Risk of explosion if battery is replaced by an iccorrect
type. Dispose of used batteries according to the manufacturer’s
instructions.
Charging the battery
For initial use, you need to charge your smartphone for eight
hours. After that you can charge it each day to recharge the
battery to full capacity.
Connect the AC adapter cord to the mini USB connector on
your smartphone.
![](/img.php?id=1208215&img=bge.png)
Acer S200 Smartphone User Guide14

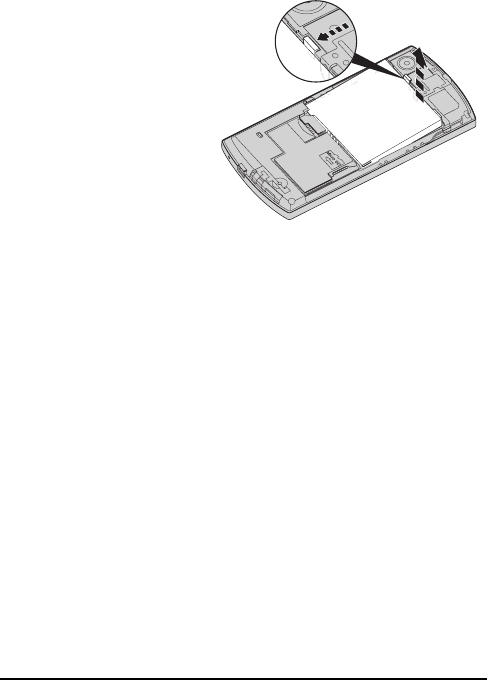

Removing the battery
12
Open the battery
compartment as shown
in Installing the battery
on page 12. Lift the
battery out of the
compartment using the
clip on the top of the
battery.
Replace the battery
cover as described
above.
Installing a SIM card or microSD
card
To take full advantage of your smartphone’s telephony
capabilities, you must install a SIM card. The SIM card holder is
located at above the battery bay.
Additionally, you may wish to increase your smartphone’s
storage by inserting a microSD card into the slot provided. This
is next to the SIM card slot.
1. Turn off the smartphone by pressing and holding the
power button.
![](/img.php?id=1208215&img=bgf.png)
15Turning on for the first time
2. Open the cover and
remove the battery as
described in Installing or
removing the battery on
page 12.
3. Insert the SIM or
microSD card as shown.
4. Replace the battery and
battery cover.
SIM card lock
Your smartphone may come with a SIM card lock, i.e., you will
only be able to use the SIM card provided by your network
operator.
To cancel the SIM lock, contact your network provider.
Turning on for the first time
To turn on your smartphone for the first time, press and hold
the power button until the system bootup screen appears. The
smartphone will vibrate during the boot sequence. Follow the
setup screens to set up your smartphone.
Entering your PIN
When you install a SIM card for the first time, you will have to
enter a PIN using the onscreen number pad.
Important: Depending on your PIN settings, you may be asked to
enter the PIN each time you switch on the phone function.
If the PIN you enter is incorrect, a warning message appears.
![](/img.php?id=1208215&img=bg10.png)
Acer S200 Smartphone User Guide16
Activating a new SIM card
If you are using your SIM card for the first time, it may require
activation. Contact your network operator for details on how
to do this.

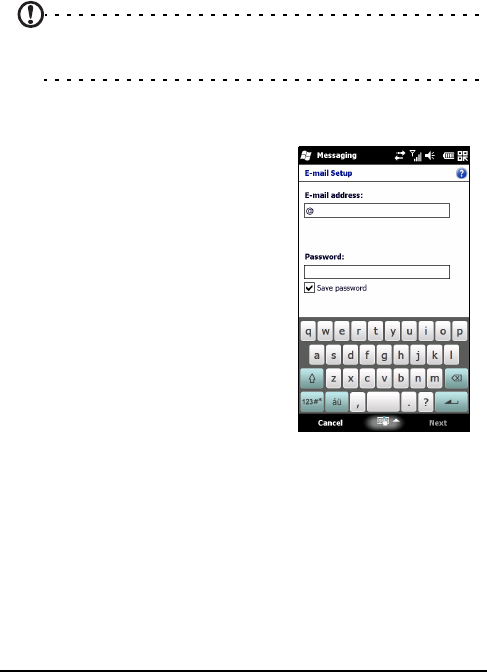

The Today screen
After rebooting, your smartphone will
display the Today screen. This screen
gives you quick, icon-based access to
many of the frequently-used features
of your smartphone.
The first time you start your
smartphone, you will see shortcuts and
function icons on the screen.
Some of them can be changed, others
not.
Icon Description Changeable
Opens the phone dialer to make a call. No
Opens the Windows Messaging program
so you can send an email, SMS or MMS.
No
![](/img.php?id=1208215&img=bg11.png)
17Turning on for the first time
Opens the Phonebook. No
Opens Internet Explorer so you can surf
the Internet.
Yes
Opens Windows Media Player so that
you can enjoy audio or video files.
Yes
Opens the Facebook application so that
you can interact with other people on
this popular Social Networking site.
Yes
Locks the screen: Swipe the Lock icon to
the left or right to unlock the screen.
No
Opens the Windows Home screen. No
Allows you to change or add icons (you
can add three more icons) to the Today
screen.
No
Icon Description Changeable
![](/img.php?id=1208215&img=bg12.png)
Acer S200 Smartphone User Guide18
Changing or removing shortcuts
Tap to add, change or delete the
changeable shortcuts.
If you tap the + on a shortcut
placeholder that is not occupied, you
will be taken directly to a screen that
lists all the applications available on
your smartphone.
If you tap on an already-defined
shortcut, you will be asked if you want
to change the shortcut or if you want
to remove the shortcut. Tap Cancel to
retain the shortcut.
Tap to save your changes and exit.
Connecting to your PC and
synchronizing data
You can synchronize the data on your smartphone with the
data on your PC using the supplied USB sync cable and the
Windows Vista Sync Center or ActiveSync.
Refer to Connecting to a PC and synchronizing on page 55 for
more details on connecting and synchronizing.
![](/img.php?id=1208215&img=bg13.png)
19Before making a call
Chapter 2: Making Calls
This chapter shows you how to make phone calls, and the vari-
ous options available to you during your call.

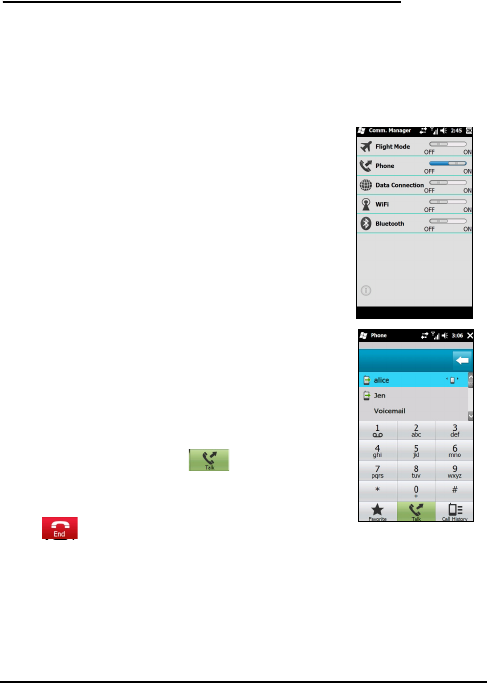

Before making a call
The phone function needs to be turned on
before you can make a call; you can acti-
vate the phone from the Comm. Manager
(refer to Comm. Manager on page 45).
1. To access the Comm. Manager, tap Start
> Settings > Connections > Comm. Man-
ager.
2. Tap the phone connection icon so it dis-
plays On.
Making a call
1. From the Today screen, press the Call
button to open the onscreen number
pad.
2. Enter the number you wish to dial.
3. Press Call button or to make the
call.
4. To end the call, press the End button or
.
![](/img.php?id=1208215&img=bg14.png)
Acer S200 Smartphone User Guide20
The onscreen number pad
The onscreen number pad allows you to
enter numbers to dial.
To access the onscreen number pad press
the Call button or tap Phone ( ) and
press Show Keypad.
Making a call to one of
your contacts
1. Your contacts will be displayed above the onscreen number
pad.
2. Tap a contact to pull up their detailed information.
3. Tap Call ( ), to call the displayed contact.
Dialing a number from Call History
Your Call History is also displayed above the onscreen number
pad, and displays recent received, dialed, and missed calls.
Tap a number to view the call details. To redial any number in
the call history, select the number and press the Call button or
tap Talk ( ).
Missed calls will be displayed in the telephone icon on the
Today screen as well as at the top of the screen using the
icon.
![](/img.php?id=1208215&img=bg15.png)
21The onscreen number pad
Dialing from other applications
You can dial numbers quickly and easily even when using
other applications.
1. Press Start > Phone.
2. Make your call.
3. When you have finished your call, tap X in the top right cor-
ner of the screen, to return to the application you were
using before you made the call.
Dialing an international number
When dialing international numbers, there is no need to enter
the international direct dialing prefix (‘00’ etc.) before the
country code. Simply tap and hold +0 until + appears onscreen.
Warning: International call rates can vary greatly depending on the
country you are calling and your network provider. We suggest you
check all call rates with your network provider, to avoid excessive
phone bills. If you are using your Acer S200 Smartphone abroad,
roaming charges will apply. Consult your network provider for
roaming rates specific to the country you are visiting before you
leave.
![](/img.php?id=1208215&img=bg16.png)
Acer S200 Smartphone User Guide22
The voice call screen
Once you have dialed your number the voice call screen
appears, where several options are available.
Record the call.
Mute the call.
Put the current call on hold.
Add a note.
Enter the Phonebook.
Turn the speaker phone on.
End the call.
Display the keypad.
Item Description
![](/img.php?id=1208215&img=bg17.png)
23Onscreen call options
Note: Certain options are only available during a call. These menu
items are greyed out when not in a call.
Onscreen call options
Answering a call
Press to answer a call.
Rejecting a call
Press the End button or to decline the call.
Ending a call
To end a call press .
Recording a call
To record a call, press .
Putting a call on hold
To put a call on hold, tap Hold ( ) on the voice call screen.
Tap again to resume the call.
Swapping between calls
When you receive a second call while already on a call, a notifi-
cation message will appear.
1. Press Swap ( ) to answer the incoming call and the first
call will be put on hold.
2. Tap Swap ( ) on the voice call screen to switch between
calls.
![](/img.php?id=1208215&img=bg18.png)
Acer S200 Smartphone User Guide24
Conference calls
If you have one or more calls on hold and another online, you
can combine all calls to create a conference call.
1. Tap Merge Call ( ). All calls are combined.
2. Tap End ( ) and all participants will be disconnected.
Using the speakerphone
The speakerphone function allows you to make calls without
having to hold the Acer S200 Smartphone. This handsfree
function is especially useful for multitasking.
To activate the speakerphone, tap the Speaker On ( ) on
the voice call screen. Tap Speaker Off to disable the speaker-
phone.
Adding notes
You can write or type notes during a call to record important
information and view it at a later date.
1. Tap Note ( ), on the voice call screen.
2. Use the onscreen keyboard to enter letters and characters
or the stylus to write handwritten notes.
3. Tap OK when you have finished to save the note.
To view the notes at a later date, tap Start > Notes. Tap the
note you want to open and view.
Muting a call
To mute a call, tap Mute ( ) on the voice call screen to switch
off the microphone. Tap Unmute ( ) to switch the micro-
phone back on.
![](/img.php?id=1208215&img=bg19.png)
25Onscreen call options
Saving a dialed number to contacts
You can save a number you have dialed to your contacts for
future use.
1. Select the number from the Call History list, and tap Save to
contacts
2. Select to save it in the SIM Card or Phone.
3. Enter the contact’s information and tap Save.
Redialing a missed call
When you have a missed call, the icon appears at the
Today screen, while the number will display how many calls
were missed.
1. Tap Phone to display the missed call details.
2. Select the call from the list and press or tap Call.
Call History
View recent calls by accessing Call History: open the onscreen
number pad by the Call button; then tapping Call History
().
Call History Menu options
There are various options available in the Call History Menu.
•Tap (, ) to organize the call history view. For
example, tap (, ) to cycle through All, Missed,
Dialed, and Received calls.
![](/img.php?id=1208215&img=bg1b.png)
27The stylus
Chapter 3: Input
Devices
This section will take you through the various input methods
available to you on your Acer S200 Smartphone.
The stylus
The stylus is used to select items and enter information. Care-
fully remove the stylus from its holder to use.
Tap: Touch the screen once with the stylus to open items and
select options.
Drag: Hold the stylus on the screen and drag across the screen
to select text and images. Drag on a scroll bar to scroll up and
down the screen.
Tap and hold: Tap and hold the stylus on an item to see a list
of actions available for that item. On the pop-up menu that
appears, tap the action you want to perform.
The stylus is also used for handwritten input. Refer to The
onscreen keyboard on page 27 for more details.
The onscreen keyboard
You can activate an onscreen key-
board in certain applications when
entering data.
Tap the keyboard icon at the bottom
of the screen to display the keyboard.
Tap again to hide the keyboard.
![](/img.php?id=1208215&img=bg1c.png)
Acer S200 Smartphone User Guide28
Tap the arrow next to the keyboard symbol to select different
input options.
Note: The handwriting function can take some practice getting
used to. Tap the ? symbol, visible when one of the handwriting
options (*) is active, to view writing demonstrations and access the
Help menus.
Tap Options from the keyboard menu to adjust options and
settings for each input mode.
Enabling word completion
Your smartphone makes writing emails, messages and docu-
ments more efficient with the help of the word completion
feature. This feature suggests words as you type.
1. Tap Start > Settings > Personal > Input > Word
Completion tab.
2. Select the options you want to activate.
3. Tap OK to confirm and save.
Mode Description
Block Recognizer* Write using letters, numbers, symbols and punc-
tuation marks to be converted to text.
Easy Keyboard
(Default)
Displays a standard keyboard. Tap to enter
letters, numbers and use function keys.
Keyboard Displays a compact keyboard.
Letter Recognizer* Write uppercase letters, lowercase letters,
numbers and punctuation marks to be converted
into text.
Transcriber* Use the stylus to write in cursive, mixed or print
handwriting to be converted into text.
![](/img.php?id=1208215&img=bg1d.png)
29The onscreen keyboard
Other input options
You can also configure voice recording options, zoom levels
and grammar rules on the Input Settings screen.
1. Tap Start > Settings > Personal tab > Input > Options tab.
2. Select and configure the settings as appropriate.
3. Tap OK to confirm and save.
Note: Refer to the Help menus for more information on adjusting
input settings.
![](/img.php?id=1208215&img=bg1f.png)
31The messaging screen
Chapter 4: Messaging
This chapter shows you how to set up and use the SMS, MMS
and email functions of your smartphone.
The messaging screen
All SMS, MMS, and email messages are accessed via the mes-
saging screen.
To access the messaging screen, tap Text ( ). Then tap the
drop-down menu in the top left corner of the messaging
screen to view the folder list.
All email accounts, SMS and MMS fold-
ers are displayed here. Tap on the plus
sign next to each folder to view the sub
folder list. Each folder features the fol-
lowing subfolders:
• Deleted Items: Displays all messages
you have selected to delete.
Note: To completely erase messages, you
will need to delete them from the
Deleted Items folders as well. Tap Menu >
Tools > Empty Deleted Items to accom-
plish this.
• Drafts: Displays all draft messages.
• Inbox: Displays all received messages.
• Outbox: Displays messages in the process of being
sent.
• Sent Items: Displays all sent messages.
![](/img.php?id=1208215&img=bg20.png)
Acer S200 Smartphone User Guide32
Tap a subfolder to open it. Tap Inbox to return to the main
messaging screen. Tap Menu for a list of options appropriate
to the selected folder.
Managing your folders
You can select synchronization, download and other settings
for certain folders. To manage your folders, tap Menu > Tools
> Manage Folders, tap and hold on the folder name to open a
menu of action items. Tap Folder Options to open and modify
the settings for that folder.
Text (SMS) messages
You can use your smartphone to send and receive text mes-
sages to other mobile phones. Each text message can contain
up to 160 characters.
Creating and sending text messages
1. Tap Text ( ). Then tap the drop-down menu in the top
left corner of the messaging screen.
2. Tap the Messages folder and the Inbox appears.
3. Tap Menu > New > Text Message. The message composition
window appears.
4. Enter a recipient, enter your message and then tap Send.
Tip: You can request delivery notification to ensure that your mes-
sage has reached its recipient. To do this, tap Menu > Tools >
Options > Accounts tab from the Text Messages folder. Tap * Mes-
sages and check the Request delivery notifications checkbox.
![](/img.php?id=1208215&img=bg21.png)
33MMS messages
Replying to text messages
When a new text message arrives a message icon appears at
the top of the screen and a notification message is
displayed.
1. Tap Text ( ) to view your inbox.
2. Tap a message to open it.
3. Tap Reply to reply to the message and the message compo-
sition window appears.
4. Enter your text and tap Send.
Sorting text messages
You can sort your text messages by message type, sender,
received messages and message subject.
Tap the Sort by drop-down menu in the top-right of the mes-
saging screen, and select an option from the list.
MMS messages
MMS messages are similar to text messages but also allow you
to attach multimedia files such as pictures, audio or video clips.
Each MMS message can be up to 300 kB in size.
Setting up MMS messaging
Before you can send MMS messages, you have to set up a con-
nection and profile. Ask your network provider for the infor-
mation required to complete the setup procedure.
1. Tap Start > Settings > Connections > Connections.
2. Tap Add a new modem connection.
section.
3. The Make New Connection screen appears.
4. Enter a name for the connection.
![](/img.php?id=1208215&img=bg22.png)
Acer S200 Smartphone User Guide34
5. Select Cellular Line (GPRS) from the Select a modem list and
tap Next.
6. Enter the access point name provided by your network
provider.
7. Enter your user name, password and domain.
8. Tap Finish to save and complete setup.
Setting up MMS profiles
You can select and configure several MMS messaging profiles
for different networks and environments.
1. Tap Text ( ) , then tap the drop-down menu in the top
left corner of the messaging screen.
2. Tap the Messages folder and the Inbox appears.
3. Tap Menu > MMS Settings > MMS Profiles tab.
4. Tap a profile from the list. Tap Edit to view the selected
profile settings.
5. Tap each field to adjust its setting. These fields should be
automatically configured by your network provider. If so,
we recommend you leave them as they are.
6. Tap Done once you have finished editing the profile.
7. Tap Select to select the profile from the list and tap OK.
Note: For further information on options available to you when
editing or creating MMS profiles, refer to the Help menus.
Creating MMS messages
1. Tap Text ( ) , then tap the drop-down menu in the top
left corner of the messaging screen.
2. Tap the Messages folder and the Inbox appears.
![](/img.php?id=1208215&img=bg23.png)
35MMS messages
3. Tap Menu > New > Multimedia Message and the message
composition window appears.
4. Enter the recipient (along with other recipients in the Cc
and Bcc fields if necessary) and subject of the MMS.
5. To attach a picture or video clip, tap Insert Picture/
Video( ) and select the file you want to attach.
6. To attach an audio file, tap Insert Audio and select the file
you want to attach. The audio file will be displayed in the
message.
7. To insert text, tap Insert Text and enter your message.
All attachments and text will now be displayed in the mes-
sage window.
8. Tap Send.
Replying to MMS messages
When a new MMS message arrives, a message icon appears at
the top of the Today screen and a notification message is
displayed.
1. Tap Text ( ), then tap the drop-down menu in the top
left corner of the messaging screen.
2. Tap the Messages folder and the Inbox appears.
3. Tap a message to open it.
4. Tap Menu > Reply to reply to the message. The message
window will appear.
5. Follow the steps described in Creating MMS messages on
page 34 to compose your reply.
6. Tap Send.
Sorting MMS messages
You can sort your MMS messages by message type, sender,
received messages and message subject.
![](/img.php?id=1208215&img=bg24.png)
Acer S200 Smartphone User Guide36
Tap the Sort by drop-down menu in the top-right of the mes-
saging screen, and select an option from the list.
Note: For further information on options available to you when
creating, replying to and sorting SMS and MMS messages, refer to
the Help menus.
Email
Your smartphone uses Outlook
Mobile to manage email accounts.
Tap Start > E-mail to access the
account setup. Tap Setup E-mail to
set up your email account.
![](/img.php?id=1208215&img=bg25.png)
37Email
Enter your email address and pass-
word to set up the account. Select
if you want to save your password
or not.
When you’ve finished entering the
information, tap Next. Your smart-
phone has pre-set definitions for a
variety of popular ISPs and will rec-
ommend settings if your email
address is recognized. Otherwise
your smartphone will try to con-
nect to the Internet to find the set-
tings.
![](/img.php?id=1208215&img=bg27.png)
39Camera icons and indicators
Chapter 5: Using the
Camera
Your smartphone features a 5-megapixel digital camera
mounted on the rear. This section will take you through all the
steps in taking photos and videos with your smartphone.
To activate the camera, press the camera button.
Camera icons and indicators
Icon Description
Adjust the camera mode.
• Photo - Take a photograph.
• Video - Shoot a video.
• Continuous 3/5/9 - Take three, five or nine
photos in a burst (select the number of photos
by tapping the icon repeatedly).
• Anti-shaking
• POI Photo
• MMS
![](/img.php?id=1208215&img=bg28.png)
Acer S200 Smartphone User Guide40
Taking a photo
1. Frame your subject and steady your smartphone.
2. Adjust any settings you require, such as brightness and
scene mode. To zoom in or out, press the (+/-) volume keys.
Turn the time stamp on or off.
Adjust the image resolution.
Apply an effect to photos taken:
• Normal - No effect is applied.
• Greyscale - Takes black and white photos.
• Negative - Uses negative colors when taking
the photo.
• Sepia - The photo is given a Sepia appearance.
• Solarize - The photo is solarized
Enter the advanced settings page.
Exit and return to the previous screen.
Set the white-balance mode.
Turn the flash on or off.
Open the album to view thumbnails of stored pictures
and videos.
Displays the storage being used and approximately
how many photos you can still take.
Displays the battery charge status.
Displays the current magnification. Magnification is not
available in all resolutions.
Icon Description
![](/img.php?id=1208215&img=bg29.png)
41Shooting a video
3. Press the camera button down halfway until the image
comes into focus. Push down fully to take the photo.
Shooting a video
1. Frame your subject and steady your smartphonel.
2. Press the camera button down fully to begin recording.
3. Press the camera button down fully to stop recording.
Supported formats
The following file formats are supported:
Save photos and videos to a micro SD
card
Tap Start > File Explorer > My Documents > My Pictures (or My
Videos). Tap and hold on the file you want to save to your
micro SD card, select Copy or Cut from the pop-up menu.
Navigate to your microSD card in File Explorer, tap and hold in
the folder you want to save the image/video to, and select
Paste from the pop-up menu.
Tip: Use the Advanced Settings screen in Camera to set the storage
to the microSD card so you can easily transfer pictures to your
computer.
Type Formats
Image JPEG
Video MP4
![](/img.php?id=1208215&img=bg2a.png)
Acer S200 Smartphone User Guide42
Photo and video options
After you have taken your photo or video, it is automatically
saved.
Note: The default locations for saving photos and videos are My
Documents/My Pictures and My Documents/My Videos respectively.
This can be changed from the Settings page.

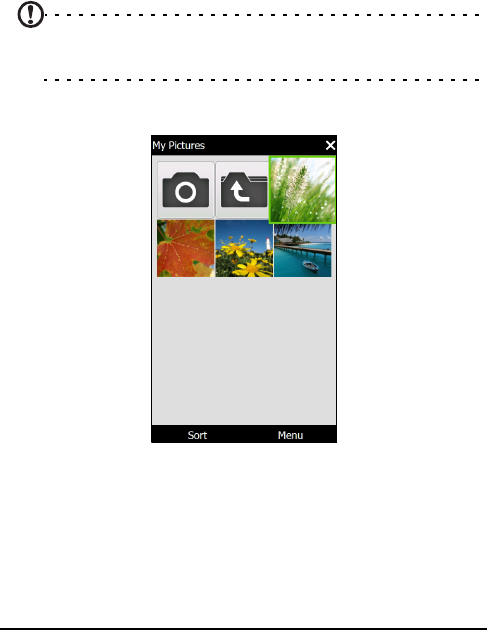

Tap the Album icon and select a photo to view. Tap the photo
to display the option icons.
From this interface, you can start a slideshow with all the pic-
tures in the folder, send the current picture to a contact as an
MMS or email message, view the picture’s information, delete
the picture or return to the thumbnail view.
You can also zoom into the picture or zoom out and navigate
to the previous or following file.
![](/img.php?id=1208215&img=bg2b.png)
43Photo and video options
Editing photos
You can crop or rotate your saved photos.
1. Tap Start > Multimedia > Pictures & Videos.
2. All your photos and videos are displayed as thumbnails.
Select a photo to edit.
3. Tap Menu to view the list of editing options.
![](/img.php?id=1208215&img=bg2d.png)
45Putting your smartphone in flight mode
Chapter 6: Advanced
Operation
Putting your smartphone in flight
mode
You can enter flight mode to turn off telephone, Bluetooth
and WLAN functions and use the smartphone as a handheld
device during a flight. Check with your airline to make sure
this is permitted onboard.
Some airlines may provide wireless Internet services on board
that can be accessed via the WLAN feature. Check prior to your
departure whether this service is available on your flight.
Switch your smartphone off during takeoff and landing as it
may interfere with aircraft electronic systems.
Entering flight mode
1. Access the Comm. Manager (refer to Comm. Manager on
page 45).
2. Tap Flight Mode ON to turn off
all phone, Bluetooth and WLAN
functions.
Comm. Manager
Your smartphone features phone,
Bluetooth and WLAN functions. This
section will explain how to activate
and set basic phone, Bluetooth and
![](/img.php?id=1208215&img=bg2e.png)
Acer S200 Smartphone User Guide46
wireless network (WLAN) connection settings through the
Comm. Manager screen.
Tip: Tap and hold the name of any communication type to open its
associated Settings page.
Using the Comm. Manager
To access the Comm. Manager, tap any of the communication
icons at the top of the screen or Start > Settings > Connections
> Comm. Manager.
Activating or deactivating connections
You can choose to activate one or all connections from the
Comm. Manager window.
Each connection icon will be highlighted when turned on.
Adjusting connection settings
This section will show you how to adjust detailed settings for
your phone, wireless and Bluetooth connections.
Phone connections
Once you have inserted a SIM card, the smartphone will auto-
matically detect your network provider.
For all phone settings, tap Start > Settings > Personal > Phone.
Here you can adjust ringtone, security, services, network and
CB (Cell Broadcast) settings.
Selecting a network
You can set the smartphone to detect your network automati-
cally or set it manually.
![](/img.php?id=1208215&img=bg2f.png)
47Adjusting connection settings
Detecting a network automatically
1. Tap Start > Settings > Personal > Phone > Network tab.
2. Select Automatic from the Network Selection list.
3. Tap Find Network. Your network will be automatically
detected.
Selecting a network manually
1. Tap Start > Settings > Personal >Phone > Network tab.
2. Select Manual from the Network Selection list. A list of
available networks will appear.
3. Select a network from the list and tap OK.
When your current network is unavailable, tap Select to select
another network to use.
Note: Contact your service provider should you have any problems
obtaining voice mail and the text message service center numbers.
Adjusting wireless network settings
You can use your smartphone to connect to a wireless local
area network (WLAN) to exchange information with your PC
or network and access the Internet.
If there are multiple WLANs available, your smartphone will
prompt you to choose a network when you activate the WLAN
function. Select a network and specify whether it will be used
primarily for Work or The Internet. The smartphone will save
your settings and connect to your chosen
network.
![](/img.php?id=1208215&img=bg30.png)
Acer S200 Smartphone User Guide48
Wireless power management
When activated, wireless connections use considerable battery
power so we recommend customizing power management
options to get the most out of your battery.
Note: When battery power is lower than 20 percent, a notification
message will appear asking if you want to continue using wireless
functions or not.
You can create, view and edit all available wireless networks in
your area, and configure network adapter card settings.
Viewing wireless networks
1. Tap Start > Settings > Connections > Wi-Fi > Wireless tab.
2. Scroll through the list to view all available networks.
3. Tap the Networks to access list to sort by All available, Only
access points or Only computer-to-computer connections.
Creating new wireless network
connections
1. Tap the Start > Settings > Connections > Wi-Fi > Wireless
tab.
2. Tap Menu > Add New... from the list.
3. Enter all required information to configure the wireless
network. Refer to the Help menus to guide you through the
configuration screens for each setting.
Editing wireless network connections
1. Tap the Start > Settings > Connections > Wi-Fi > Wireless
tab.
2. Select a connection from the list.
3. Tap Menu > Edit.
![](/img.php?id=1208215&img=bg31.png)
49Adjusting connection settings
4. Enter all required information to configure the wireless
network. Refer to the Help menus to guide you through the
configuration screens for each setting.
Adjusting network adapter settings
1. Tap Start > Settings > Connections > Wi-Fi > Network
Adapters tab.
2. Select a network adapter from the list.
3. Tap Edit.
4. Select to use a server-assigned IP address or enter a specific
IP address.
5. Tap OK to confirm and save.
Adjusting Bluetooth settings
You can use Bluetooth to exchange information between your
smartphone and other mobile devices.
Bluetooth connections
For all Bluetooth settings, tap Start > Settings > Bluetooth.
Here you can adjust Bluetooth profiles, status, accessibility,
and services settings. You can also view version information.
Creating new Bluetooth connections
The simplest way to set up and configure a new Bluetooth
connection is through the Bluetooth Manager.
1. Tap Start > Settings > Bluetooth. You will be asked to turn
on Bluetooth, then tap Settings > Add a device.
2. Alternatively tap Start > Settings > Bluetooth > My Devices
> Add.
3. Your smartphone will search for devices in range.
4. Select the device you want to connect to.
5. Tap Select and follow all onscreen instructions to set up the
connection.
![](/img.php?id=1208215&img=bg32.png)
Acer S200 Smartphone User Guide50
Adjusting Bluetooth settings
1. Tap the Start > Settings > Bluetooth > Settings.
2. Select whether to Enable or Disable the Bluetooth function
and whether the device should be Discoverable or not.
3. You can also define a Name for your smartphone.
4. Tap Advanced... to change additional Connectivity, Serial
Ports, File Transfer, Audio, Object Exchange, Synchroniza-
tion and SIM Accessories.
Phone settings
Many phone settings are automatically configured by your
smartphone when you insert a SIM card. The device will com-
municate with your service provider and automatically obtain
all necessary settings, such as network name, voice mail and
text message center numbers.
You can, however, view and modify these settings yourself if
necessary, through the Phone Settings screen.
Tap Start > Settings > Personal > Phone.
Configuring caller options
You can configure certain caller options to keep control over
your incoming and outgoing calls.
Bar outgoing or incoming calls using call barring; choose who
to display your identity to with caller ID; specify a number to
which calls can be forwarded if you are unavailable using call
forwarding; choose to be notified if an incoming call is waiting
using call waiting.
Setting up caller ID
1. Tap Start > Settings > Personal > Phone > Services tab.
2. Select Caller ID from the list and tap Get Settings.
3. Select who to provide your caller ID to.
![](/img.php?id=1208215&img=bg33.png)
51Managing your phonebook
4. Tap OK to confirm and save.
Setting up call forwarding
1. Tap Start > Settings > Personal > Phone > Services tab.
2. Select Call Forwarding from the list and tap Get Settings.
3. Specify whether to forward all calls or only under certain
conditions. Tap the checkboxes to select the option you
require and enter number(s) to which the calls will be
forwarded.
4. Tap OK to confirm and save.
Setting up call waiting
1. Tap Start > Settings > Personal > Phone > Services tab.
2. Select Call Waiting from the list and tap Get Settings.
3. Select whether to be notified or not when a call is waiting.
4. Tap OK to confirm and save.
Note: Refer to the Help menus for more detailed information on
adjusting phone settings.
Managing your phonebook
Your smartphone features an address book that allows you to
save contacts to either the internal memory or onto your SIM
card.
Adding and editing contacts
To add a new contact:
1. Enter the telephone number with the onscreen number
pad.
2. The phone will recognize a new number. Select Save as a
new contact.
3. Select whether this is a SIM Contact or Phone Contact.
![](/img.php?id=1208215&img=bg34.png)
Acer S200 Smartphone User Guide52
4. Enter the required information.
5. Tap Save.
You can choose to save contacts directly to your SIM card. This
is useful if you use your SIM card with multiple phones and you
always need your address book to hand.
Note: You can only enter a contact name and telephone number
when creating a new SIM contact. If more information is required,
create a regular phone contact.
Editing a contact
1. Tap Phonebook from the Today screen or Start > Phone-
book.
2. Select and open the contact you want to edit.
3. Tap Menu > Edit this contact.
4. Edit the contact information and tap Save.
Copying contacts
You can copy contacts stored in internal memory to your SIM
card, and vice versa.
Copying a contact from internal memory
to the SIM card
Note: Copying a contact from internal memory to your SIM will only
copy the contact’s name and phone number. Names longer than 14
characters will be truncated.
1. Tap Phonebook from the Today screen or Start > Phone-
book.
2. Select the contact you want to copy by using the up and
down navigation buttons.
![](/img.php?id=1208215&img=bg35.png)
53Managing your phonebook
3. Tap Menu > Copy to SIM.
Copying a contact from the SIM card to
internal memory
1. Tap Phonebook from the Today screen or Start > Phone-
book.
2. Select the contact you want to copy by using the up and
down navigation buttons.
3. Tap Menu > Copy to Phone.
Sending contacts via text
You can send your contacts details to other phones using text
messaging or via beam.
Sending contacts via message
1. Tap Start > Contacts.
2. Select a contact.
3. Tap Menu > Send Contact > Messages.
4. Select the contact information you want to send and tap
Done.
5. Specify a recipient and tap Send.
Deleting contacts
To free up space on either the internal memory or on your SIM
card, you can delete contacts from your address book.
1. Tap Phonebook from the Today screen or Start > Phone-
book.
2. Select the contact you want to delete.
3. Tap Menu > Delete Contact.
4. Tap Yes to permanently delete the contact.
![](/img.php?id=1208215&img=bg36.png)
Acer S200 Smartphone User Guide54
Assigning a ring tone and picture to
specific contacts in your phone
You can assign a specific ringtone and picture to a particular
phone contact so they are easily identifiable when they call.
1. Tap Phonebook from the Today screen or Start > Phone-
book.
2. Tap on the contact you wish to assign a ringtone/picture to.
3. Tap Menu > Edit this contact.
4. Tap New pictures to open My Pictures. Tap the desired pic-
ture to assign a picture to the contact.
5. Tap More to view more options.
6. Tap Ringtone and select a ringtone from the list.
SIM Manager
SIM Manager allows you to manage your SIM phonebook and
to copy the phonebook entries to Contacts. To start SIM Man-
ager, tap Start > Utilities > SIM Manager.
The standard display mode is to show your SIM contacts and
Contacts entries at the same time. You may change this by tap-
ping SIM, Contact or Standard at the bottom of the screen.
You can sort your contacts by tapping Name or Pos (only for
SIM contacts) at the top of the list of contacts.
In the SIM phonebook, tap and hold on a contact to Dial that
contact’s number, Send SMS, Edit, Delete or Copy to Contact.
In the Contact list, tap and hold on a contact to Dial that con-
tact’s number or Copy to SIM.
Tap Menu at the bottom of the screen to reveal:
New SIM Contact: Add a new phonebook entry to the SIM
card.
![](/img.php?id=1208215&img=bg37.png)
55Connecting to a PC and synchronizing
Refresh: Refresh the contact lists.
SIM Information: View your SIM card information.
My Phone Numbers: Displays the information of the inserted
SIM card
About: View the version and copyright information of SIM
Manager.
Copying contact information
You can copy contact information to/from the Contacts list
from/to the SIM card. You may copy individual contacts, multi-
ple contacts or all contacts.
• To copy all contacts, tap the box alongside Name: Tap
and hold any contact and select Copy to Contact/SIM.
• To copy multiple contacts, tap the box alongside each
contact: Tap and hold any contact and select Copy to
Contact/SIM.
• To copy a single contact, tap and hold any contact, and
select Copy to Contact/SIM.
Connecting to a PC and
synchronizing
You can use Microsoft ActiveSync (on Windows XP) or the Win-
dows Mobile Device Center (on Windows Vista and Windows
7) to synchronize the information on your computer with the
information on your smartphone, comparing and updating
data on both locations. This serves as backup data in case
something happens to your smartphone.
Connecting to a PC
The packaged mini USB sync cable enables you to synchronize
the information on your smartphone with the data on your
![](/img.php?id=1208215&img=bg38.png)
Acer S200 Smartphone User Guide56
computer using Windows Mobile Device Center, Windows Sync
Center or ActiveSync.
Plug the mini USB sync cable into the mini USB connector on
your smartphone. Plug the USB client connector into an avail-
able USB port on your computer.
After a short delay, your smartphone
should be recognised and the program to
synchronize your smartphone files will
open. Please check the help files for the
program installed on your computer for
more information.
Configuring USB to PC
settings
You can enable advanced networking to
enhance your USB to PC connection,
should you be experiencing any problems
synchronizing your data with ActiveSync.
1. Tap Start > Settings > Connections >
USB to PC.
2. Check the Enable advanced network functionality checkbox
to enable.
3. Tap OK to confirm and save.
Other functions
Managing your agenda
You can set appointments and anniversary reminders with the
agenda feature.
Setting a new appointment
1. Tap Start > Agenda.
![](/img.php?id=1208215&img=bg39.png)
57Other functions
2. Tap Add an agenda entry.
3. Enter appointment information and recurrance frequency.
4. Tap OK to confirm and save.
To edit an appointment, tap the entry to edit the appoint-
ment.
Creating tasks
Tasks can be set to remind you of specific things you must do
and the completion deadlines.
Creating a new task
1. Tap Start > Tasks.
2. Tap Menu > New Task.
3. Enter all task information, start and due dates and how
often to be reminded.
4. Tap OK to confirm and save.
To edit a task, tap the entry and then tap Menu > Edit to open
the task entry screen.
Note: For more information on other options available in the
agenda and task screens, refer to the Help menus.
Browsing the Internet
In order to browse the Internet with your smartphone, you
must be connected to a 3G or wireless network or to a com-
puter with an Internet connection via ActiveSync.
Tap Start > Internet Explorer to open the browser.
To adjust your browser settings, tap > > Tools >
Options.
![](/img.php?id=1208215&img=bg3a.png)
Acer S200 Smartphone User Guide58
Starting Windows Live
1. Tap Start > Windows Live.
2. Sign in with your email address and password and your con-
tacts list appears.
Multimedia playback
Your smartphone comes supplied with a variety of programs
that you can use to enjoy multimedia content.
FM Tuner
FM Tuner allows you to listen to your favorite local radio sta-
tions and save them to an easily-accessible list of favorites.
To start FM Tuner tap Start > Multimedia > FM Tuner.
Note: You can listen to the radio with the included headset or
handsfree speaker.
The FM Tuner screen indicates the
frequency the tuner is receiving (1), volume
level (2) and your defined favorites (3).
Tap the frequency display to open a
number pad that allows you to enter a
different frequency.
Tap My Favorite to manage your list of
favorite radio stations. To add a favorite,
select the position in the list that you’d like
![](/img.php?id=1208215&img=bg3b.png)
59Multimedia playback
to add the favorite at, and tap to open the frequency allo-
cation window. Enter the frequency using the keyboard.
Important: There are restrictions on the range of frequencies that
may be legally listened to in many countries. The FM Tuner on your
smartphone has three predefined geographical regions: EUROPE,
JAPAN and USA. You may only set a frequency within the range
specified for each region.
Media Player
Tap the Media player icon on the Today screen, or Start > Mul-
timedia > Windows Media. The Media Player will search for all
supported media files on your smartphone. Tap the Play icon
to start playback immediately.
Tap Sort By to sort your media files according to Album, Artist,
Genre, Folder or Favorites.
Using Windows Media Player
You can use Windows Media Player to play videos you have
taken with your smartphone as well as other media files, such
as MP3 music files.
![](/img.php?id=1208215&img=bg3c.png)
Acer S200 Smartphone User Guide60
The following formats are supported:
Playing video or audio files
1. Tap Start > File Explorer.
2. Locate the file to playback, and tap once to play it in Win-
dows Media Player.
Streaming Media
Steaming Media allows you to view
streamed video off the Internet directly on
your phone.
If you try to open an audio or movie video
that is not supported by Microsoft
Windows Media Player, for example RTSP
or HTTP, the system will automatically
switch to Streaming Media.
Alternatively tap Start > Multimedia >
Streaming Media to manually launch the
player. You can enter the address of the
content you wish to access in the address bar.
Tap anywhere on the playback window to display the content
full-screen. Tap the screen again to return to the normal dis-
play mode.
Satellite Data Update
Warning: Satellite Data Update is not supported in the USA.
Type Formats
Audio WMA, MP3, WAV, AAC, AMR
Video 3GP, MPEG-4, WMV, H.263, H.264
![](/img.php?id=1208215&img=bg3d.png)
61Satellite Data Update
Tap Start > Utilities > Satellite Data Update.
You may need to log into your provider’s server to download
instant satellite data and enable the GPS function.
Note: All the following connections allow your smartphone to
download the latest GPS data. If there is more than one connection
available, the system will automatically select the best connection,
in the following order: Sync connection to PC; WLAN; GPRS (not
supported when roaming).
The system will update GPS data automatically based on a
schedule.
Check the automatic update checkbox.
Set the date and time.
You will see the expiration date of the GPS data. On the due
date, a warning message will appear to remind you.
Alternatively, tap Download to update the GPS data manually.
Important: You may be charged additional fees when connecting
over GPRS.
![](/img.php?id=1208215&img=bg3e.png)
Acer S200 Smartphone User Guide62
Personalizing your smartphone
You can enter your personal informa-
tion to easily identify your smartphone.
This is especially useful if it should ever
be lost or stolen. To enter owner infor-
mation, tap Start > Settings > Personal
> Owner Information.
Enter your name along with any other
information you want to store.
Tap the Notes tab to add any
additional notes.
Tap the Options tab to configure how
this information is displayed.
Tap OK to confirm and save.
Naming your smartphone
Your smartphone uses a name to iden-
tify itself when connected to other
computers. To specify a name, tap Start
> Settings > System > About > Device ID
tab.
Enter a name for your device. Add a
description if necessary.
Tap OK to confirm and save.
![](/img.php?id=1208215&img=bg3f.png)
63Satellite Data Update
The application button
Your smartphone has three default application buttons set to
run the following:
Button 1 - Today
Button 2 - OK/Close
Button 3 - Camera
We recommend that you use this default whenever possible.
Tip: The application buttons can be
configured to launch applications that
you use the most.
To configure which applications to launch
with each button, tap Start > Settings >
Personal > Buttons.
Select the button you wish to configure
from the list, then select the program to
assign to the button from the drop-down
list below.
Tap OK to confirm and save.
As the buttons have icons printed on
them, Acer strongly recommends
retaining the default settings. This avoids
confusion when using your smartphone.
Adjusting the volume
To adjust the volume, tap at the top of the screen. The vol-
ume control appears.
• Use the right slider to adjust the ring volume.
• Use the left slider to adjust system volume.
• Use the icons at the top of the screen to turn all sounds
on, set to vibrate only or mute all sounds.
![](/img.php?id=1208215&img=bg40.png)
Acer S200 Smartphone User Guide64
• If you adjust the volume during a call, the speaker vol-
ume will be adjusted.
Configuring shortcut programs
You can select the programs you most frequently use and put
them in the Today screen as shortcuts.
1. Tap ( ) to bring up the edit screen.
2. Select the programs that you want to appear in the Today
screen from the list.
3. Tap Save ( ) to confirm and save.
Configuring sounds and notifications
You can specify sounds to play for certain events or when cer-
tain actions are performed.
1. Tap Start > Settings > Sounds & Notifications > Sounds tab.
2. Select to enable sounds for events or programs. You can
also specify to enable sounds when tapping the screen or
pressing buttons.
3. Tap the Notifications tab.
4. Select an event from the list and the notification options
for that event are displayed.
5. Adjust the settings.
6. Repeat steps 4 and 5 to adjust notification options for other
events.
7. Tap OK to confirm and save.
Configuring backlight settings
You can specify the appearance and conditions under which
the screen backlight will be on or off.
1. Tap Start > Settings > System > Backlight > Battery Power
tab.
![](/img.php?id=1208215&img=bg41.png)
65Satellite Data Update
2. Select the timing for the backlight to turn on and off when
your smartphone is running on battery power.
3. Tap the External Power tab. Select the timing of the back-
light to turn on or off when your smartphone is running on
external power.
4. Tap the Backlight Level tab. Adjust the backlight brightness
level and automatic level selection options.
5. Tap OK to confirm and save.
Tip
: Backlight settings greatly affect battery life. Configure these set-
tings carefully to ensure that you get the most out of your battery.
Managing system certificates
System certificates are used to positively identify your smart-
phone to other systems.
Tap Start > Settings > System > Certificates to view all
certificates.
Setting the date and time
To set the date and time, tap Start > Set-
tings > Clock & Alarms > Time tab.
Select your time zone from the drop-down
menu. Set the time by tapping the up and
down arrows. Select the date from the
drop-down calendar.
Tap OK when you have finished.
Setting alarms
1. Tap Start > Settings > Clock & Alarms >
Alarms tab.
2. Tap the checkbox to activate an alarm.
3. Tap Description and enter a name for the alarm.
![](/img.php?id=1208215&img=bg42.png)
Acer S200 Smartphone User Guide66
4. Select the day and time for the alarm.
5. Tap OK to confirm and save.
Configuring regional settings
You can adjust regional settings for number, currency, date
and time formats to match those used in your country.
1. Tap Start > Settings > System > Regional Settings.
2. Tap the Region, Number, Currency, Date and Time tabs to
view information for your region. Adjust any if necessary.
3. Tap OK to confirm and save.
Power saving options
1. Tap Start > Settings > System > Power > Advanced tab.
2. Select the interval after which your smartphone will turn
off if not in use. You can specify two intervals: one for
when on battery power, and one for when on external
power.
Viewing power status
Tap Start > Settings > System > Power > Battery tab to view
battery power status.
Removing programs
You can remove programs you have installed on your smart-
phone to free up extra storage memory.
Note: You can only remove programs you have installed, you can-
not remove programs installed during manufacture.
1. Tap Start > Settings > System tab > Remove Programs.
2. Tap the program you want to remove from the list.
3. Tap Remove and the program will be uninstalled.
![](/img.php?id=1208215&img=bg43.png)
67Updating your smartphone
Configuring screen options
You can change orientation, align the screen, enable
ClearType and adjust text size to make viewing your smart-
phone as comfortable as possible.
1. Tap Start > Settings > System > Screen > General tab.
2. Select screen orientation and tap Align Screen if you need
to re-align the screen.
3. Tap the ClearType tab. Select to enable ClearType.
4. Tap the Text Size tab. Move the slider to adjust text size.
5. Tap OK to confirm and save.
Updating your smartphone
You may use the Notification Manager to check for updates
for your smartphone’s software.
1. Tap Start > Notification Manager.
2. Tap Check now to see if an update is available.
Important: You may be charged additional fees when connecting
over GPRS.
If updates are available, brief information about each update
will be displayed. Tap an update to see download options.
Some updates may be donwloaded directly to your smart-
phone, others must be run from a computer.
Tap Generate URL to create a download link. You may then
transfer this link to your PC in order to download and run the
update. See Connecting to a PC on page 55.
The link may be found in the My Documents folder. Tap Start >
File Explorer > NotificationManager. You may transfer this
shortcut to your computer and use your computer’s internet
![](/img.php?id=1208215&img=bg44.png)
Acer S200 Smartphone User Guide68
connection to download the update. Install this update cor-
rectly by following the instructions provided with the files.
Setting a schedule
It is also possible to set schedule to check for updates.
1. Tap Menu, then Settings.
2. Enable the scheduled notification update and set either a
daily or weekly check.
3. Tap OK to confirm and save.
Resetting your smartphone
You may have to perform a reset if your smartphone fails to
respond when buttons are pressed or the screen is tapped.
Note: Before performing a reset, ensure that your smartphone is
not locked. Press any key or tap the screen to see if the phone
responds.
Reset
A reset will clear the RAM of your smartphone. It is similar to
turning a computer off and then turning it back on.
Important: To reduce risking damage to your smartphone, only use
the supplied stylus to reset the device.
Use the tip of your stylus to lightly press the Reset button
inside the hole on the side of your smartphone.
![](/img.php?id=1208215&img=bg45.png)
69Resetting your smartphone
Clean boot
Warning! You should only perform a clean boot when all other
reset options have failed to restore your smartphone to an opera-
tional state.
A clean boot will restore your smartphone to the state it was
when you got it from the factory.
Warning! This will erase all your personal information, any contacts
stored on your smartphone and any programs you installed.
If your screen is responding to stylus input: Go to Start > Utili-
ties > Default Settings. Read the warning information and
enter the security code in the empty textbox. Tap OK to pro-
ceed.
If your screen is not responding to stylus input: Hold the Vol-
ume up and Volume down buttons while pressing reset until
the screen shows “Clean Boot”.
![](/img.php?id=1208215&img=bg47.png)
71Using the headset
Chapter 7: Accessories
and Tips
This chapter shows you how to use accessories with your smart-
phone, as well as provide useful tips for when you are using
your smartphone.
Using the headset
Your smartphone comes packaged with a 3.5 mm headset with
built-in microphone for handsfree use when making calls.
To use the headset, plug it into the 3.5 mm jack on the top of
the smartphone.
When the headset is plugged in, all audio is routed to the
headset, and the speakers are turned off.
• To answer an incoming call, press the button on the
microphone.
• Adjust the volume using the volume up/down button
on the smartphone.
• End the call by pressing the button on the microphone
again.
Using a Bluetooth headset
Your smartphone Bluetooth functions make it fully compatible
with all Bluetooth headsets. This allows you to use the unit
handsfree when making calls, without the inconvenience of
wires.
To set up your Bluetooth headset:
1. Turn on Bluetooth using the Comm. Manager (please see
Comm. Manager on page 45).
![](/img.php?id=1208215&img=bg48.png)
Acer S200 Smartphone User Guide72
2. Connect to the headset as described in Creating new Blue-
tooth connections on page 49.
3. Tap the icon for your Bluetooth headset.
4. Enter your headset passkey and tap OK.
5. Tap Finish to complete setup.
When you want to answer an incoming call, press the
“answer” button on your Bluetooth headset. Press to
end the call.
Tip: As well as being essential for handsfree operation when driv-
ing, you can also use your Bluetooth headset when at home or in
the office, to avoid carrying your smartphone around with you at
all times. In ideal conditions, Bluetooth range is up to 10 metres, or
30 feet.
Using your smartphone as a
modem
When connected to your PC, your smartphone can function as
a modem via GPRS or UMTS.
You can also use a USB connection or the Bluetooth function
of your smartphone to connect to your PC or laptop and act as
a modem. You must first set up an ISP connection on your PC
or laptop.
1. Click Start > Settings > Control Panel.
2. Click Network Connections > Create a new connection.
3. Click Next to begin the New Connection Wizard.
4. Select Connect to the Internet and click Next.
5. Select Set up my connection manually and click Next.
6. Select Connect to a dial-up modem and click Next.
7. Enter the name of your ISP (Internet Service Provider) and
click Next.
![](/img.php?id=1208215&img=bg49.png)
73Using your smartphone as a modem
8. Enter your ISP’s phone number. The number must begin
with ‘*99#’. Click Next.
9. Select one option from the Connection Availability screen
and click Next.
10.Enter your username and password and click Next.
11.Click Finish to complete the setup.
You can now establish a Bluetooth connection between your
PC and your smartphone. When you attempt to access the
Internet on your PC, the smartphone will dial the ISP number
specified to establish a connection.
Using a USB connection
1. Close ActiveSync if it is running. This helps Internet sharing
to function properly.
2. Tap Start > Programs > Internet Sharing.
3. Select USB from the PC connection drop-down menu.
4. Select your network connection type from the network con-
nection drop-down menu.
5. Tap Connect.
Your Acer S200 Smartphone will now act as a modem.
Using a Bluetooth connection
You can also use Bluetooth to link your PC to your smartphone
to connect to the Internet. Ensure that Bluetooth is enabled
from the Comm. Manager (refer to Comm. Manager on
page 45), and that other devices can discover your smart-
phone. To do this, open the Comm. Manager, tap Settings >
Bluetooth > Mode tab, and check Make this device visible to
other devices.
Ensure that your computer’s Bluetooth adapter is switched on.
• Open Bluetooth Places and click Add..., then follow
the steps of the Add Bluetooth Device Wizard.
![](/img.php?id=1208215&img=bg4b.png)
75Inserting a microSD card
• Windows will automatically connect to your
smartphone and detect what services are available.
Inserting a microSD card
Your smartphone features a memory expansion slot that
accepts a micro SD card to expand memory and storage capac-
ity.
Please refer to Installing a SIM card or microSD card on page
14 for proper instructions on installing a microSD card.
![](/img.php?id=1208215&img=bg4d.png)
77FAQ, troubleshooting and error messages
Appendix
FAQ, troubleshooting and error
messages
This section lists frequently asked questions that may arise dur-
ing the use of your smartphone, and gives easy answers and
solutions to these questions.
Aspect Question Answer
Audio Why is there no
sound coming
from the device?
If the headset is plugged into the
device, the speaker is automati-
cally shut off. Disconnect the
headset.
Check that the device volume set-
ting is not muted. Tap any two
communication icons at the top of
the screen.
Check that the volume control is
not at its lowest setting.
Multimedia
files
Why can’t I view
my picture files?
You may be trying to view an
image that is not supported. Refer
to Multimedia on page 79 for
more information.
Why can’t I view
my video files?
You may be trying to view a video
that is not supported. Refer to
Multimedia on page 79 for more
information.
Why can’t I play
my music files?
You may be trying to play a file
that is not supported. Refer to
Multimedia on page 79 for more
information.
![](/img.php?id=1208215&img=bg4e.png)
Acer S200 Smartphone User Guide78
Error messages
System infor-
mation and
performance
How do I check
the OS version of
my device?
Tap Menu > Settings > About
phone to check the OS version
(Kernel/build number) and other
hardware and software informa-
tion.
Power I couldn’t turn on
the device.
The battery power may be
depleted. Recharge the device.
Refer to Charging the battery on
page 13 for more information.
Error message Description
Connection canceled Operation canceled by the user.
Service unavailable -
please try again later
The network is not stable, or server has not
responded. Try again later.
Connection unavailable -
please check your network
settings
No path to the destination is available.
Please check the settings in Start > Settings
> Connections.
1. If your Smartphone is connected to
your PC via USB, check both the PC's
network settings and ActiveSync set-
tings (when connected via USB,
GPRS/3G is not used).
Notes:
1. Try using Internet Explorer to connect
to a website to verify your network
connection.
Aspect Question Answer
![](/img.php?id=1208215&img=bg4f.png)
79Specifications
Specifications
Performance
• Qualcomm 8250, 1 GHz
• System memory:
• 256 MB of SDRAM
• 512 MB of Flash ROM
• Windows Mobile 6.5 Professional
Display
• 3.8” WVGA TFT-LCD touchscreen
• 480 x 800 resolution
• 262K color support
Multimedia
• CD-quality stereo output
• Mini USB microphone input
• Mono speaker 0.5 W (max)
• Omni-directional microphone
• Formats supported
USB connector
• 10-pin mini USB connector
Type Formats
Audio
playback
MP3, AAC, AMR
Ringtone SP-MIDI, MIDI, MMF, AMR, MP3, AAC
Video
recording
3GP, MPEG-4, H.263, AVI
Video
playback
3GP, MPEG-4, H.263, H.264
![](/img.php?id=1208215&img=bg50.png)
Acer S200 Smartphone User Guide80
• USB Client
• DC power-in (5 V, 1 A)
Connectivity
• Bluetooth 2.1+EDR
• IEEE Wi-Fi 802.11 b/g WLAN
• GSM 850 / 900 / 1800 / 1900
• UMTS 900 / 1900 / 2100
• HSDPA / HSUPA / EDGE / GPRS
Camera
• 5-megapixel
• Auto-focus
Expansion
• MicroSD memory card support
• SDHC support
Battery
• High density, rechargeable 1350 mAh Lithium Polymer
battery (replaceable)
Note: Length of battery operation will depend on power consump-
tion which is based on system resource use. For example, constantly
using the backlight or using power-demanding applications will
shorten battery life between charges.
Dimensions
• Stylish, light and robust design
Height 118.6 mm
Width 63 mm
![](/img.php?id=1208215&img=bg51.png)
81Specifications
Thickness 12 mm
Weight 130 g (with battery)
![](/img.php?id=1208215&img=bg52.png)
Acer S200 Smartphone User Guide82
Warnings and precautions
• Do not use this product near water.
• Do not place this product on an unstable cart, stand or
table. If the product falls, it could be seriously dam-
aged.
• Slots and openings are provided for ventilation to
ensure reliable operation of the product and to pro-
tect it from overheating. These openings must not be
blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or
other similar surface. This product should never be
placed near or over a radiator or heat register, or in a
built-in installation unless proper ventilation is pro-
vided.
• Never push objects of any kind into this product
through cabinet slots as they may touch dangerous
voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind onto
or into the product.
• To avoid damage of internal components and to pre-
vent battery leakage, do not place the product on a
vibrating surface.
• Never use this product when engaging in sporting
activities, exercising, or in any vibrating environment
which may cause a short circuit or damage, and even a
risk of explosion from the battery pack.
CAUTION when listening to music
To protect your hearing, follow these instructions.
• Increase the volume gradually until you can hear
clearly and comfortably.
• Do not increase the volume level after your ears have
adjusted.
![](/img.php?id=1208215&img=bg53.png)
83Warnings and precautions
• Do not listen to music at high volumes for extended
periods.
• Do not increase the volume to block out noisy sur-
roundings.
• Decrease the volume if you can’t hear people speaking
near you.
Battery information
This product uses a Lithium Polymer battery. Do not use it in a
humid, wet and/or corrosive environment. Do not put, store or
leave your product in or near a heat source, in a high tempera-
ture location, in strong direct sunlight, in a microwave oven or
in a pressurized container, and do not expose it to tempera-
tures over 60 °C (140 °F). Failure to follow these guidelines may
cause the battery to leak acid, become hot, explode or ignite
and cause injury and/or damage. Do not pierce, open or disas-
semble the battery. If the battery leaks and you come into con-
tact with the leaked fluids, rinse thoroughly with water and
seek medical attention immediately. For safety reasons, and to
prolong the lifetime of the battery, charging will not occur at
low (below 0 °C/32 °F) or high (over 40 °C/104 °F) temperatures.
The full performance of a new battery is achieved only after
two or three complete charge and discharge cycles. The bat-
tery can be charged and discharged hundreds of times, but it
will eventually wear out. When the talk and standby times are
noticeably shorter than normal, buy a new battery. Use only
Acer approved batteries, and recharge your battery only with
Acer approved chargers designated for this device.
Unplug the charger from the electrical plug and the device
when not in use. Do not leave a fully charged battery con-
nected to the AC adapter, since overcharging may shorten its
lifetime. If left unused, a fully charged battery will lose its
charge over time. If the battery is completely discharged, it
![](/img.php?id=1208215&img=bg54.png)
Acer S200 Smartphone User Guide84
may take a few minutes before the charging indicator appears
on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any
charger or battery that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can
occur when a metallic object such as a coin, clip, or pen causes
direct connection of the positive (+) and negative (-) terminals
of the battery. (These look like metal strips on the battery.)
This might happen, for example, when you carry a spare bat-
tery in your pocket or purse. Short-circuiting the terminals may
damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car
in summer or winter conditions, will reduce the capacity and
lifetime of the battery. Always try to keep the battery between
15 °C and 25 °C (59 °F and 77 °F). A device with a hot or cold
battery may not work temporarily, even when the battery is
fully charged. Battery performance is particularly limited in
temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Bat-
teries may also explode if damaged. Dispose of batteries
according to local regulations. Please recycle when possible.
Do not dispose as household waste.
Replacing the battery pack
Your smartphone uses lithium batteries. Replace the battery
with the same type as that which came bundled with your
product. Use of another battery may present a risk of fire or
explosion.
CAUTION! Risk of explosion if battery is replaced by an incorrect
type. Dispose of used batteries according to the instructions.
![](/img.php?id=1208215&img=bg55.png)
85Warnings and precautions
Additional safety information
Your device and its enhancements may contain small parts.
Keep them out of the reach of small children.
Operating environment
Warning! For safety reasons, turn off all wireless or radio transmit-
ting devices when using your smartphone device under the follow-
ing conditions. These devices may include, but are not limited to:
wireless LAN (WLAN), Bluetooth and/or 3G.
Remember to follow any special regulations in force in any
area, and always switch off your device when its use is prohib-
ited or when it may cause interference or danger. Use the
device only in its normal operating positions. This device meets
RF exposure guidelines when used normally, and it and its
antenna are positioned at least 1.5 cm (5/8") away from your
body. Do not cover the antenna with metal and you should
position the device at the above-stated distance from your
body. To successfully transmit data files or messages, this
device requires a good quality connection to the network. In
some cases, transmission of data files or messages may be
delayed until such a connection is available. Ensure that the
above separation distance instructions are followed until the
transmission is completed. Parts of the device are magnetic.
Metallic materials may be attracted to the device, and persons
with hearing aids should not hold the device to the ear with
the hearing aid. Do not place credit cards or other magnetic
storage media near the device, because information stored on
them may be erased.
![](/img.php?id=1208215&img=bg56.png)
Acer S200 Smartphone User Guide86
Medical devices
Operation of any radio transmitting equipment, including
wireless phones, may interfere with the functionality of inade-
quately protected medical devices. Consult a physician or the
manufacturer of the medical device to determine if they are
adequately shielded from external RF energy or if you have
any questions. Switch off your device in health care facilities
when any regulations posted in these areas instruct you to do
so. Hospitals or health care facilities may be using equipment
that could be sensitive to external RF transmissions.
Pacemakers. Pacemaker manufacturers recommend that a min-
imum separation of 15.3 cm (6") be maintained between wire-
less devices and a pacemaker to avoid potential interference
with the pacemaker. These recommendations are consistent
with the independent research by and recommendations of
Wireless Technology Research. Persons with pacemakers
should do the following:
• Always keep the device more than 15.3 cm (6") from
the pacemaker.
• Not carry the device near your pacemaker when the
device is switched on. If you suspect interference,
switch off your device, and move it.
Hearing aids. Some digital wireless devices may interfere with
some hearing aids. If interference occurs, consult your service
provider.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles such as electronic
fuel injection systems, electronic antiskid (antilock) braking
systems, electronic speed control systems, and air bag systems.
For more information, check with the manufacturer, or its rep-
resentative, of your vehicle or any equipment that has been
![](/img.php?id=1208215&img=bg57.png)
87Warnings and precautions
added. Only qualified personnel should service the device, or
install the device in a vehicle. Faulty installation or service may
be dangerous and may invalidate any warranty that may apply
to the device. Check regularly that all wireless equipment in
your vehicle is mounted and operating properly. Do not store
or carry flammable liquids, gases, or explosive materials in the
same compartment as the device, its parts, or enhancements.
For vehicles equipped with an air bag, remember that air bags
inflate with great force. Do not place objects, including
installed or portable wireless equipment in the area over the
air bag or in the air bag deployment area. If in-vehicle wireless
equipment is improperly installed, and the air bag inflates,
serious injury could result. Using your device while flying in air-
craft is prohibited. Switch off your device before boarding an
aircraft. The use of wireless teledevices in an aircraft may be
dangerous to the operation of the aircraft, disrupt the wireless
telephone network, and may be illegal.
Potentially explosive environments
Switch off your device when in any area with a potentially
explosive atmosphere and obey all signs and instructions.
Potentially explosive atmospheres include areas where you
would normally be advised to turn off your vehicle engine.
Sparks in such areas could cause an explosion or fire resulting
in bodily injury or even death. Switch off the device at refuel-
ing points such as near gas pumps at service stations. Observe
restrictions on the use of radio equipment in fuel depots, stor-
age, and distribution areas; chemical plants; or where blasting
operations are in progress. Areas with a potentially explosive
atmospheres are often, but not always, clearly marked. They
include below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such as pro-
pane or butane), and areas where the air contains chemicals or
particles such as grain, dust or metal powders.
![](/img.php?id=1208215&img=bg58.png)
Acer S200 Smartphone User Guide88
Follow any restrictions. Do not use the device where blasting is
in progress.
Emergency calls
Important: Wireless phones, including this device, operate
using radio signals, wireless networks, landline networks, and
user-programmed functions. Because of this, connections in all
conditions cannot be guaranteed. You should never rely solely
on any wireless device for essential communications like medi-
cal emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate sig-
nal strength. Some networks may require that a valid SIM
card is properly inserted in the device.
2. Press the End button as many times as needed to clear the
display and ready the device for calls.
3. Enter the official emergency number for your present loca-
tion. Emergency numbers vary by location.
4. Press the Call button.
If certain features are in use, you may first need to turn those
features off before you can make an emergency call. Consult
this guide or your service provider for more information.
When making an emergency call, give all the necessary infor-
mation as accurately as possible. Your wireless device may be
the only means of communication at the scene of an accident.
Do not end the call until given permission to do so.
![](/img.php?id=1208215&img=bg59.png)
89Disposal and recycling information
Disposal and recycling
information
Do not throw this electronic device into the trash when
discarding.
To minimize pollution and ensure utmost protection of the
global environment, please recycle. For more information on
the Waste from Electrical and Electronics Equipment (WEEE)
regulations, visit
www.acer-group.com/public/Sustainability/
sustainability01.htm
Mercury advisory
For projectors or electronic products containing an LCD/CRT
monitor or display:
Lamp(s) inside this product contain mercury and must be recy-
cled or disposed of according to local, state or federal laws. For
more information, contact the Electronic Industries Alliance at
www.eiae.org. For lamp-specific disposal information, check
www.lamprecycle.org.
Taking care of your smartphone
1. DO take care not to scratch the screen of your smartphone.
Keep the screen clean. When working with your smart-
phone, use your finger or fingernail. Never use an actual
pen or pencil or other sharp object on the screen surface.
![](/img.php?id=1208215&img=bg5a.png)
Acer S200 Smartphone User Guide90
2. DO NOT expose your smartphone to rain or moisture. Do
not let water enter the circuitry through the front panel
buttons or expansion slots. In general, treat your smart-
phone as you would a mobile phone or other small elec-
tronic device.
3. DO be careful not to drop your smartphone or subject it to
any strong impact. Do not place your smartphone in your
back pocket.
4. DO NOT expose your smartphone to extreme temperatures.
For example, do not leave your smartphone on the dash-
board of a car on a hot day or when temperatures are
below freezing point. Also, keep it away from heaters and
other sources of heat.
5. DO NOT use or store your smartphone in any location that
is dusty, damp or wet.
6. DO use a soft, damp cloth to clean your smartphone. If the
surface of the screen becomes soiled, clean it with a soft
cloth moistened with diluted window-cleaning solution.
7. DO NOT press down on the screen with force, otherwise
you may crack the screen.
![](/img.php?id=1208215&img=bg5b.png)
91Safety regulations
Safety regulations
Compliant with Russian regulatory
certification
LCD pixel statement
The LCD unit is produced with high-precision manufacturing
techniques. Nevertheless, some pixels may occasionally misfire
or appear as black or red dots. This has no effect on the
recorded image and does not constitute a malfunction.
Radio device regulatory notice
Note: Regulatory information below is for models with wireless
LAN and/or Bluetooth only.
General
This product complies with the radio frequency and safety
standards of any country or region in which it has been
approved for wireless use. Depending on configuration, this
product may or may not contain wireless radio devices (such as
wireless LAN and/or Bluetooth modules). Information below is
for products with such devices.
![](/img.php?id=1208215&img=bg5c.png)
Acer S200 Smartphone User Guide92
Wireless operation channels for
different domains
France: Restricted wireless frequency bands
Some areas of France have a restricted frequency band. The
worst case maximum authorized power indoors are:
• 10 mW for the entire 2.4 GHz band (2400 MHz - 2483.5
MHz)
• 100 mW for frequencies between 2446.5 MHz and
2483.5 MHz
Note: Channels 10 through 13 inclusive operate in the band 2446.6
MHz to 2483.5 MHz.
There are few possibilities for outdoor use: On private prop-
erty or on the private property of public persons, use is subject
to a preliminary authorization procedure by the Ministry of
Defense, with maximum authorized power of 100 mW in the
2446.5 - 2483.5 MHz band. Use outdoors on public property is
not permitted.
In the departments listed below, for the entire 2.4 GHz band:
• Maximum authorized power indoors is 100 mW
• Maximum authorized power outdoors is 10 mW
Departments in which the use of the 2400 - 2483.5 MHz band is
N. America 2.412-2.462 GHz Ch01 through Ch11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
![](/img.php?id=1208215&img=bg5d.png)
93Safety regulations
permitted with an EIRP of less than 100 mW indoors and less
than 10 mW outdoors:
This requirement is likely to change over time, allowing you to
use your wireless LAN card in more areas within France. Please
check with ART for the latest information (www.art-tele-
com.fr).
Note: Your WLAN Card transmitts less than 100 mW, but more than
10 mW.
01 Ain Orientales 02 Aisne 03 Allier
05 Hautes Alpes 08 Ardennes 09 Ariege
11 Aude 12 Aveyron 16 Charente
24 Dordogne 25 Doubs 26 Drome
32 Gers 36 Indre 37 Indre et Loire
41 Loir et Cher 45 Loret 50 Manche
55 Meuse 58 Nievre 59 Nord
60 Oise 61 Orne 63 Puy Du Dome
64 Pyrenees Atlantique 66 Pyrenees 67 Bas Rhin
68 Haut Rhin 70 Haute Saone 71 Saone et Loire
75 Paris 82 Tarn et Garonne 84 Vaucluse
88 Vosges 89 Yonne 90 Territoire de Belfort
94 Val de Marne
![](/img.php?id=1208215&img=bg5e.png)
Acer S200 Smartphone User Guide94
Certificate Information (SAR)
This device meets the EU requirements (1999/519/EC) on the
limitation of exposure of the general public to electromag-
netic fields by way of health protection.
The limits are part of extensive recommendations for the pro-
tection of the general public. These recommendations have
been developed and checked by independent scientific organi-
zations through regular and thorough evaluations of scientific
studies. To guarantee the safety of all persons, regardless of
age and health, the limits include a significant safety buffer.
Before radio devices can be put in circulation, their agreement
with European laws or limits must be confirmed; only then
may the CE symbol be applied.
The unit of measurement for the European Council's recom-
mended limit for mobile telephones is the "Specific Absorption
Rate" (SAR). This SAR limit is 2.0 W/kg, averaged over 10 g of
body tissue. It meets the requirements of the International
Commission on Non-Ionizing Radiation Protection (ICNIRP) and
was included in the European Standard EN 50360 for mobile
radio devices. The SAR regulation for mobile telephones is in
line with European Standard EN 62209-1.The maximum SAR
value is calculated at the highest output level in all frequency
bands of the mobile telephone. During use, the actual SAR
level is usually much lower than the maximum value, because
the mobile telephone works in different output levels. It only
transmits with as much output as is required to reach the net-
work. In general the following applies: The closer you are to a
![](/img.php?id=1208215&img=bg5f.png)
95Safety regulations
base station, the lower the transmission output of your mobile
telephone. The tested SAR of this device is as follows:
CE NCC
Head (W/kg 10g) Body (W/kg 10g) Head (W/kg 10g) Body (W/kg 10g)
0.433 0.901 (1.5 cm) 0.433 NA
![](/img.php?id=1208215&img=bg60.png)
Acer S200 Smartphone User Guide96
FCC regulations
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
This mobile phone has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
The antenna(s) used for this transmitter must not be co-
located or operating in conjunction with any other antenna or
transmitter.
![](/img.php?id=1208215&img=bg61.png)
97Safety regulations
RF exposure information (SAR)
This mobile phone meets the government's requirements for
exposure to radio waves.
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the U.S.
Government.
The exposure standard for wireless mobile phones employs a
unit of measurement known as the Specific Absorption Rate,
or SAR. The SAR limit set by the FCC is 1.6 W/kg.
Tests for SAR are conducted using standard operating
positions accepted by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be
well below the maximum value. This is because the phone is
designed to operate at multiple power levels so as to use only
the poser required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the
power output.
The highest SAR value for the model phone as reported to the
FCC when tested for use at the ear is 0.713 W/kg and when
worn on the body, as described in this user guide, is 1.23 W/kg.
Important: Body-worn measurements differ among phone models,
depending upon available enhancements and FCC requirements.
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirements.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
![](/img.php?id=1208215&img=bg62.png)
Acer S200 Smartphone User Guide98
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
HLZSHS200EU.
For body worn operation, this phone has been tested and
meets the FCC RF exposure guidelines for use with accessories
that contain no metal and that position the handset a
minimum of 1.5 cm from the body. Use of other accessories
may not ensure compliance with FCC RF exposure guidelines. If
you do not use a body-worn accessory and are not holding the
phone at the ear, position the handset a minimum of 1.5 cm
from your body when the phone is switched on.
Using your phone with a hearing aid
device
Your S200 device is compliant with the FCC Hearing Aid
Compatibility (HAC) requirements. When some wireless
phones are used near some hearing devices (hearing aids and
cochlear implants) users may detect a buzzing, humming, or
whining noise. Some hearing devices are more immune than
others to this interference noise, and phones also vary in the
amount of interference they generate. The wireless telephone
industry has developed ratings for some of their mobile
phones, to assist hearing-device users in finding phones that
may be compatible with their hearing devices. Not all phones
have been rated. Phones that have been rated have a label on
the box. Your S200 has been tested for hearing aid device
compatibility and has an M4 rating.
These ratings are not guarantees. Results will vary, depending
on the level of immunity of your hearing device and the
degree of your hearing loss. If your hearing device happens to
be vulnerable to interference, you may not be able to use a
![](/img.php?id=1208215&img=bg63.png)
99Safety regulations
rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference with hearing devices
than phones that are not labeled. M4 is the better/higher of
the two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and
are likely to be more usable with a hearing device's telecoil ("T
Switch" or "Telephone Switch") than unrated phones. T4 is the
better/higher of the two ratings.
Note: Not all hearing devices contain telecoils.
The more immune your hearing aid device is, the less likely you
are to experience interference noise from your wireless phone.
Hearing aid devices should have ratings similar to those of
phones. Ask your hearing health-care professional for the
rating of your hearing aid.
Hearing devices may also be measured for immunity to this
type of interference. Your hearing device manufacturer or
hearing health professional may help you find results for your
hearing device. The more immune your hearing aid is, the less
likely you are to experience interference noise from wireless
devices.
For additional information about the FCC's actions with regard
to hearing aid compatible wireless devices and other steps the
FCC has taken to ensure that individuals with disabilities have
access to telecommunications services, please go to
www.fcc.gov/cgb/dro
![](/img.php?id=1208215&img=bg64.png)
Acer S200 Smartphone User Guide100
NCC warning
䄺䁲
㍧ൟᓣ䁡䄝ড়ḐПԢࡳ⥛ᇘ丏䳏″Δ䴲㍧䀅ৃΔ݀ৌΕଚ㰳Փ⫼㗙ഛϡᕫ
᪙㞾䅞丏⥛Δࡴࡳ⥛䅞ॳ䀁㿜П⡍ᗻঞࡳ㛑
Ԣࡳ⥛ᇘ丏䳏″ПՓ⫼ϡᕫᕅ䷓亯㟾ᕅ䷓ᅝܼঞᑆড়⊩䗮ֵΔ㍧ⱐ⧒᳝ᑆ
⧒䈵ᰖΔឝゟेذ⫼ΔϺᬍ㟇⛵ᑆᰖᮍᕫ㑐㑠Փ⫼
ࠡ䷙ড়⊩䗮ֵΔᣛϔ䳏ֵ⊩㽣ᅮὁП⛵㎮䳏䗮ֵԢࡳ⥛ᇘ丏䳏″䳔ᖡফড়
⊩䗮ֵᎹὁΔ⾥ᅌঞ䝿Ⱆ⫼䳏⊶䔏ᇘᗻ䳏″䀁٭ПᑆΔ⏯ᇥ䳏⺕⊶ᕅ䷓Δ
䂟ཹ䘽Փ⫼
Lithium-ion battery warning
ATTENZIONE! Rischio di esplosione della batteria se sostituita in
modo errato. Sostituire la batteria con un una di tipo uguale o
equivalente consigliata dalla fabbrica. Non disperdere le batterie
nell’ambiente.
VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der
Batterie. Ersatz nur durch denselben oder einem vom Hersteller
empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien
nach Angaben des Herstellers.
ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig
håndtering. Udskiftning må kun ske med batteri af samme
fabrikat og type. Levér det brugte batteri tilbage til leverandøren.
VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma
batterityp eller en ekvivalent typ som rekommenderas av
apparattillverkaren. Kassera använt batteri enligt fabrikantens
instruktion.
VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan sousittelemaan
tyyppiin. Hävitä käytetty paristo valmistagan ohjeiden mukaisesti.
ATTENTION ! Il y a danger d’explosion s’il y a remplacement
incorrect de la batterie. Remplacer uniquement avec une batterie
du mêre type ou d’ un type équivalent recommandé par le
constructeur. Mettre au rebut les batteries usagées conformément
aux instructions du fabricant.
ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri. Benytt
samme batteritype eller en tilsvarende type anbefalt av
apparatfabrikanten. Brukte batterier kasseres i henhold til
fabrikantens instruksjoner.
![](/img.php?id=1208215&img=bg65.png)
Acer Incorporated
Date: August 26, 2009
Declaration of Conformity
We, Acer Incorporated,
of 8F., No. 88, Sec. 1, Hsin Tai Wu Rd. Hsichih Taipei Hsien 221, Taiwan
Declare under sole responsibility that the product:
Model: S200
Description: Smart HandHeld
To which this declaration relates, is in conformity with the following standards and/or
other normative documents:
EN 301 511 V9.0.2
EN 300 328 V1.7.1
EN 301 908-1/ -2 V3.2.1
EN 300 440-1 V1.4.1/ EN300 440-2 V1.2.1
EN 301 489-1 V1.8.1/ -3 V1.4.1/ -7 V1.3.1/ -17 V1.3.2/ -24 V.1.4.1
EN 55022:2006+ A1:2007 Class B; EN 55024:1998/A1:2001/A2:2003
EN 55013:2001/A1:2003/A2:2006; EN 55020:2007
EN 60950-1: 2001+A11:2004
EN 50332-1:2000/ -2: 2003
EN 50360:2001/ EN 62209-1:2006/ EN62311:2008/ OET65C
We hereby declare that the above named product is in conformance to all the essential
requirements of the R&TTE Directive (99/5/EC) issued by the Commission of the
European Community.
The conformity assessment procedure referred to in Article 10 and detailed in Annex
[IV] of directive 1999/5/EC has been followed related to Articles
R&TTE Article 3.1 (a) Health and Safety
R&TTE Article 3.1 (b) EMC
R&TTE Article 3.2 Spectrum Usage
with the involvement of the following Notified Body:
CETECOM, Untertuerkheimer Str. 6 – 10 66117 Saarbruecken
Identification mark: 0682 (Notified Body) CE
The technical documentation relevant to the above equipment will be held at:
Acer Incorporated
8F., No. 88, Sec. 1, Hsin Tai Wu Rd. Hsichih Taipei Hsien 221, Taiwan
Authorized Person:
_________________
Name: Harriot Lee
101Safety regulations
![](/img.php?id=1208215&img=bg67.png)
99
A
agenda .................................. 56
application buttons ................ 63
B
backlight settings ................... 64
battery
charging ........................ 13
information ................... 80
Bluetooth
connections ................... 49
headset ......................... 71
sending contacts ............ 53
C
call forwarding ...................... 51
call history ............................. 20
options .......................... 25
call waiting ............................ 51
caller ID ................................. 50
calls
answering ..................... 23
ending .......................... 23
from other applications .. 21
onscreeen options .......... 23
putting on hold ............. 23
rejecting ........................ 23
swapping between ......... 23
camera
editing photo ................ 43
icons and indicators ........ 39
information ................... 80
shooting a video ............ 41
supported formats ......... 41
taking a photo ............... 40
connecting to a PC ................. 55
connectivity ........................... 80
contacts
adding and editing ......... 51
assigning ring tones ....... 54
deleting ........................ 53
making calls to a contact 20
D
dimensions ............................ 80
display ................................... 79
E
error messages ....................... 78
F
FAQs ..................................... 77
features ................................... 5
flight mode ............................ 45
G
GPRS ..................................... 72
H
help
menus ............................. 6
sources ............................ 6
I
input options ......................... 29
international numbers ............ 21
L
LED indicators .................. 12, 14
M
MMS messages ....................... 33
N
naming .................................. 62
network
selecting ........................ 46
O
onscreen keyboard ................. 27
onscreen number pad ............. 20
P
performance .......................... 79
phone
connections ................... 46
photos & videos
editing .......................... 43
power management ............... 48
R
regional settings .................... 66
S
safety regulations ................... 82
screen options ........................ 67
SD card .................................. 75
information ................... 80
SIM manager .......................... 54
![](/img.php?id=1208215&img=bg68.png)
Acer S200 Smartphone100
software
removing ....................... 66
sounds and notifications ......... 64
speakerphone ........................ 24
specifications ......................... 79
stylus ..................................... 27
system certificates .................. 65
T
tasks ...................................... 57
troubleshooting ..................... 77
turning on ............................. 15
U
unpacking ............................... 9
USB connector ........................ 79
V
views ..................................... 10
voice calls
the voice call screen ........ 22
volume
adjusting ....................... 63
W
windows media player ............ 59
WLAN
settings ......................... 47
word completion .................... 28
