First things first
We would like to thank you for making the TravelMate series of notebook PC
your choice for meeting your mobile computing needs.
Your guides
To help you use your TravelMate, we have designed a set of guides:
Basic care and tips for using your computer
Turning your computer on and off
To turn on the computer, simply press and release the power switch on the LCD
screen. See "Top View" on page 9 for the location of the power button.
First off, the Just for Starters... poster helps you get started with
setting up your computer.
The printed User's Guide introduces you to the basic features and
functions of your new computer. For more on how your computer
can help you to be more productive, please refer to the
AcerSystem User's Guide. This guide contains detailed
information on such subjects as system utilities, data recovery,
expansion options and troubleshooting. In addition it contains
warranty information and the general regulations and safety
notices for your notebook. It is available in Portable Document
Format (PDF) and comes preloaded on your notebook. Follow
these steps to access it:
1 Click on Start, All Programs, AcerSystem.
2 Click on AcerSystem User's Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is
not installed on your computer, clicking on AcerSystem User's
Guide will run the Adobe Reader setup program first. Follow the
instructions on the screen to complete the installation. For
instructions on how to use Adobe Reader, access the Help and
Support menu.
![](/img.php?id=583648&img=bg5.png)
v
To turn the power off, do any of the following:
•Use the Windows shutdown command
Click on Start, Turn Off Computer, then click on Turn Off.
•Use the power button
You can also shut down the computer by closing the display cover, or by
pressing the sleep hotkey <Fn> + <F4>.
Note: If you cannot power off the computer normally, press and
hold the power button for more than four seconds to shut down
the computer. If you turn off the computer and want to turn it on
again, wait at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it near sources
of heat, such as a radiator.
•Do not expose the computer to temperatures below 0 ºC (32 ºF) or above
50 ºC (122 ºF).
•Do not subject the computer to magnetic fields.
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock or vibration.
•Do not expose the computer to dust or dirt.
•Never place objects on top of the computer.
•Do not slam the computer display when you close it.
•Never place the computer on uneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
•Do not connect the adapter to any other device.
•Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from foot traffic.
•When unplugging the power cord, do not pull on the cord itself but pull
on the plug.
•The total ampere ratings of the equipment plugged in should not exceed
the ampere rating of the cord if you are using an extension cord. Also, the
total current rating of all equipment plugged into a single wall outlet
should not exceed the fuse rating.
![](/img.php?id=583648&img=bg6.png)
vi
Taking care of your battery pack
Here are some ways to take care of your battery pack:
•Use only batteries of the same kind as replacements. Turn the power off
before removing or replacing batteries.
•Do not tamper with batteries. Keep them away from children.
•Dispose of used batteries according to local regulations. Recycle if possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1 Turn off the computer and remove the battery pack.
2 Disconnect the AC adapter.
3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners.
If either of the following occurs:
•the computer has been dropped or the body has been damaged;
•the computer does not operate normally
please refer to "Frequently asked questions" on page 33.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user's authority, which is granted by the Federal Communications
Commission, to operate this computer.
For more information about our products, services, and support information,
please visit our website: http://global.acer.com.
Disposal instructions iii
First things first iv
Your guides iv
Basic care and tips for using your computer iv
Turning your computer on and off iv
Taking care of your computer v
Taking care of your AC adapter v
Taking care of your battery pack vi
Cleaning and servicing vi
Acer Empowering Technology 1
Acer eDataSecurity Management 2
Acer eLock Management 3
Acer ePerformance Management 4

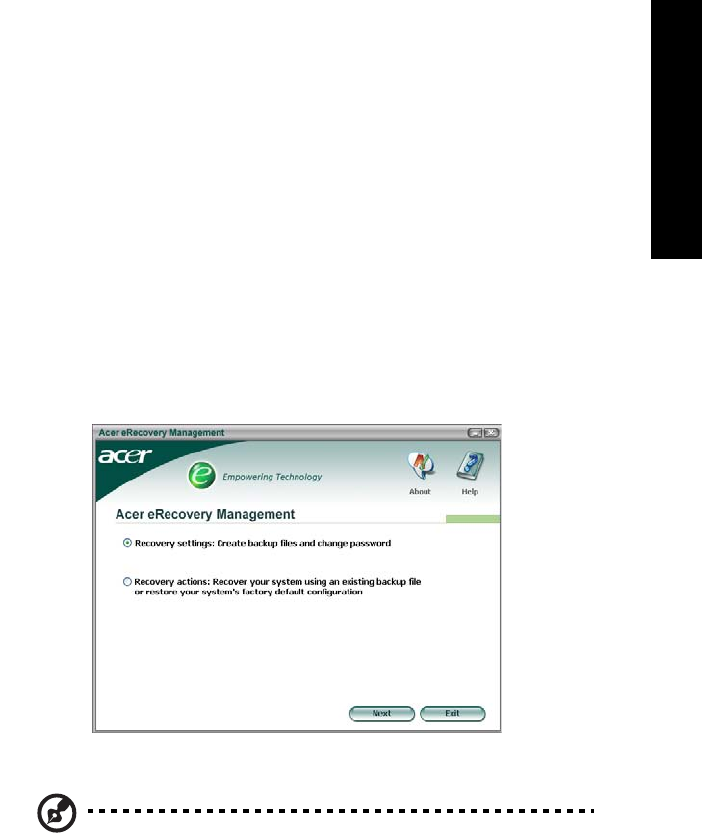

Acer eRecovery Management 5
Acer eSettings Management 6
Acer ePower Management 6
Acer ePresentation Management 8
A TravelMate tour 9

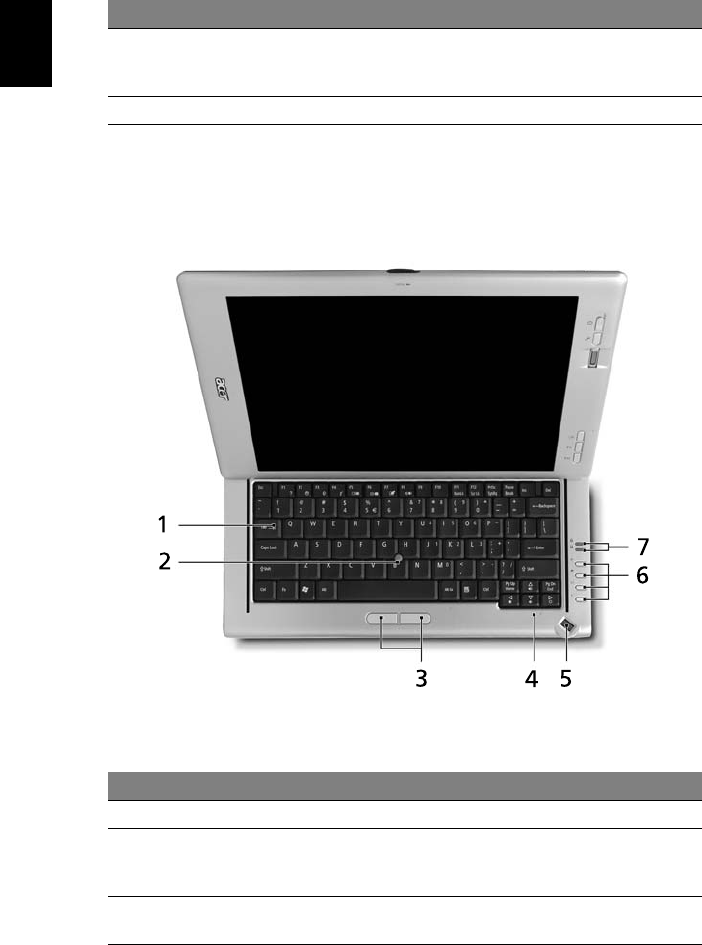

Top View 9
Open front view 10
Closed front view 11
Left view 12
Right view 13
Rear view 14

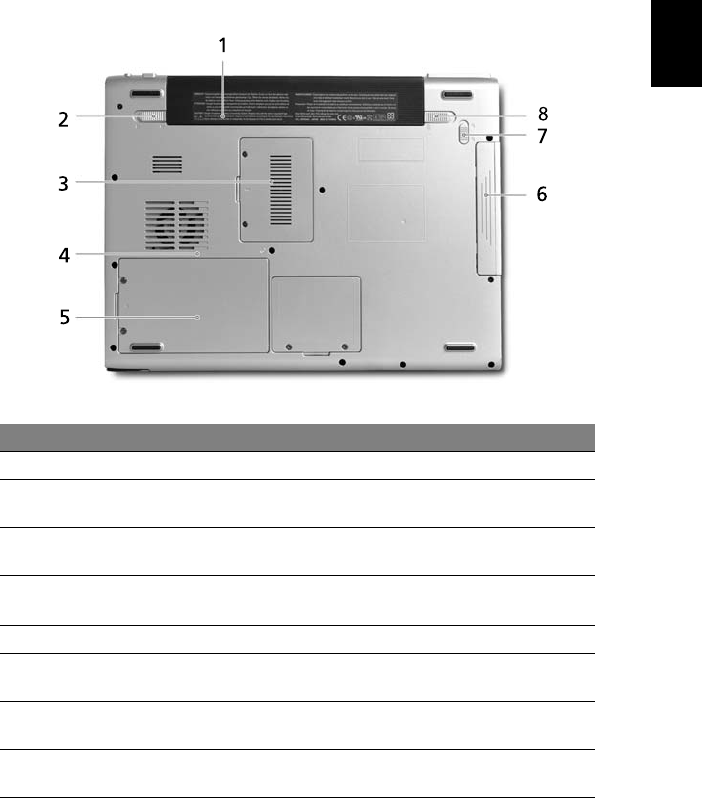

Base view 15
Specifications 16
Indicators 19
Easy-launch buttons 20
Trackpoint and click buttons 21
Trackpoint basics 21
Scrolling basics 21
Using the keyboard 23
Lock keys and embedded numeric keypad 23
Windows keys 24
Hotkeys 24
Special keys 26
Ejecting the optical (CD or DVD) disk 27
Using a computer security lock 27

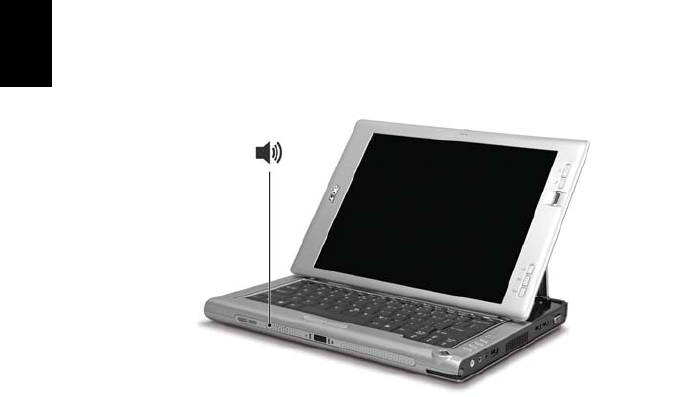

Audio 28
Adjusting the volume 28
Using the system utilities 29
Acer Protector Suite QL fingerprint utility 29
Password choice 29
Correct scanning procedure 29
User’s Fingers 30
User Enrollment 30
Launch Manager 31
Contents
![](/img.php?id=583648&img=bg9.png)
1
Empowering Technology
Acer Empowering Technology
Acer's innovative Empowering Technology makes it easy for you to access
frequently used functions and manage your new Acer notebook. It features the
following handy utilities:
•Acer eDataSecurity Management protects data with passwords and
advanced encryption algorithms.
•Acer eLock Management limits access to external storage media.
•Acer ePerformance Management improves system performance by
optimizing disk space, memory and registry settings.
•Acer eRecovery Management backs up/recovers data flexibly, reliably
and completely.
•Acer eSettings Management accesses system information and adjusts
settings easily.

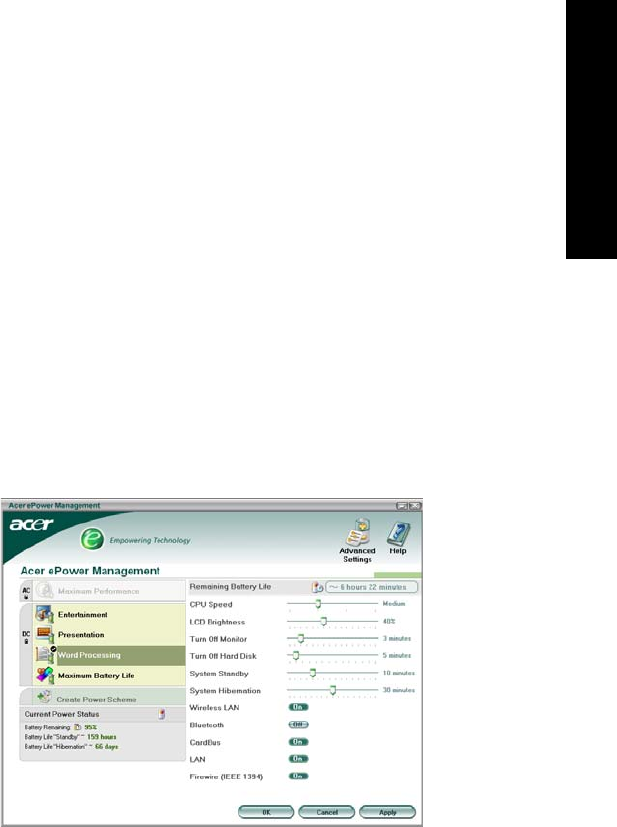

•Acer ePower Management extends battery power via versatile usage
profiles.
•Acer ePresentation Management connects to a projector and adjusts
display settings conveniently.
![](/img.php?id=583648&img=bga.png)
2
Empowering Technology

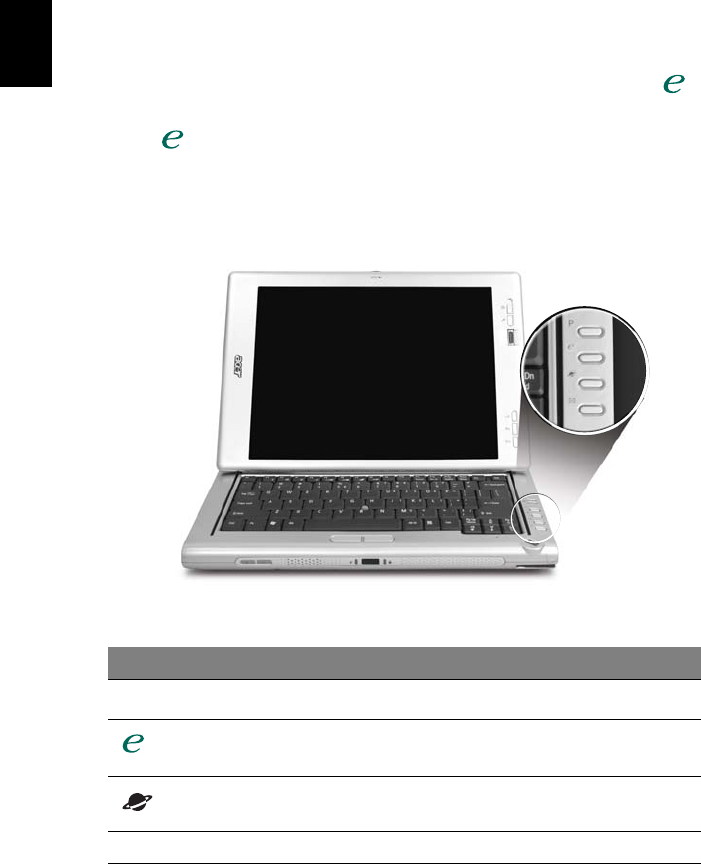

For more information, press the < > key to launch the Empowering
Technology menu, then click on the appropriate utility and select the Help
function.
Acer eDataSecurity Management

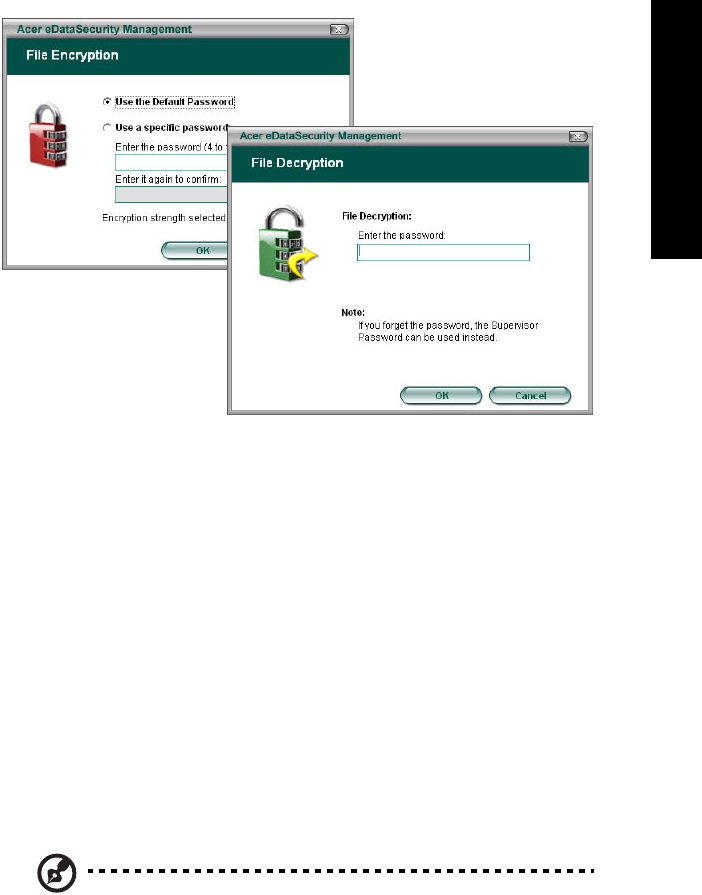

Acer eDataSecurity Management is a handy file encryption utility that protects
your files from being accessed by unauthorized persons. It is conveniently
integrated with Windows Explorer as a shell extension for quick and easy data
encryption/decryption and also supports on-the-fly file encryption for MSN
Messenger and Microsoft Outlook.
There are two passwords that can be used to encrypt/decrypt a file: the
supervisor password and the file-specific password. The supervisor password is a
"master" password that can decrypt any file on your system; the file-specific
password is assigned when you encrypt each individual file.
The Acer eDataSecurity Management setup wizard will prompt you for a
supervisor password and default file-specific password. This file-specific
password will be used to encrypt files by default, or you can choose to enter
your own file-specific password when encrypting a file.

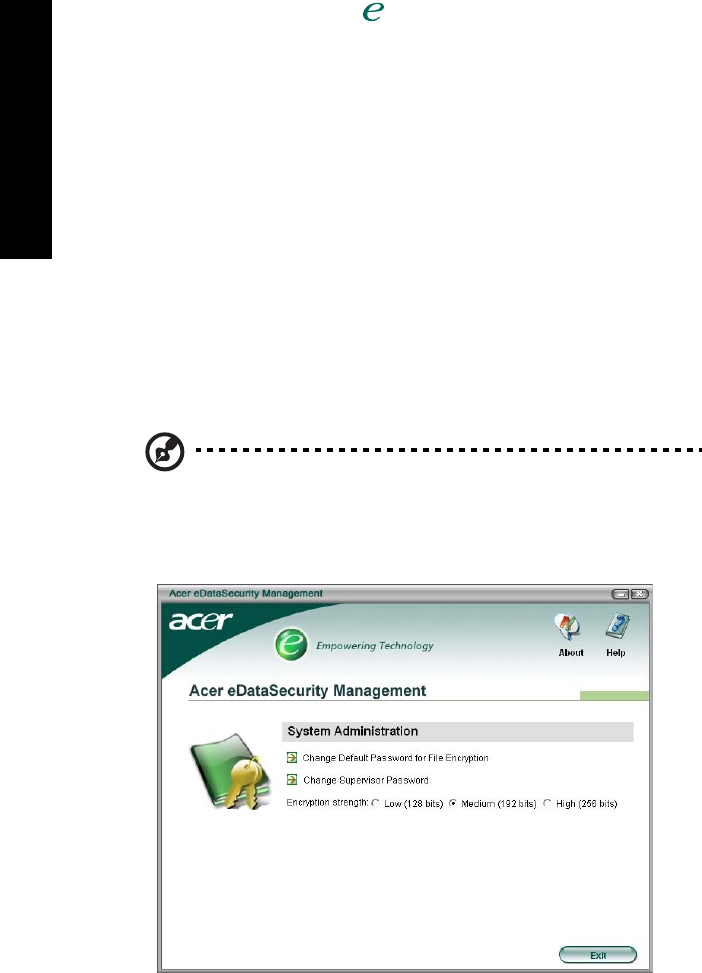

Note: The password used encrypt a file is the unique key that the
system needs to decrypt it. If you lose the password, the supervisor
password is the only other key capable of decrypting the file. If
you lose both passwords, there will be no way to decrypt your
encrypted file! Be sure to safeguard all related passwords!
![](/img.php?id=583648&img=bgb.png)
3
Empowering Technology

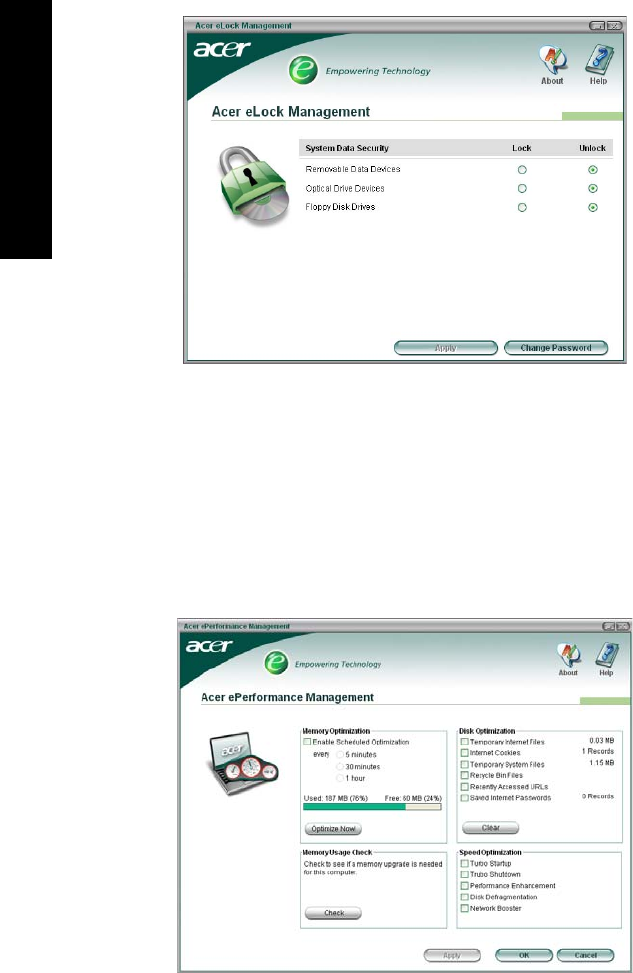

Acer eLock Management
Acer eLock Management is a security utility that allows you to lock up your
removable data, optical and floppy drives to ensure that data can't be stolen
while your notebook is unattended.
•Removable data devices — includes USB disk drives, USB pen drives, USB
flash drives, USB mp3 drives, USB memory card readers, IEEE 1394 disk
drives and any other removable disk drives that can be mounted as a file
system when plugged into the system.
•Optical drive devices — includes any kind of CD-ROM or DVD-ROM drives.
•Floppy disk drives — 3.5-inch disks only.
To activate Acer eLock Management, a password must be set first. Once set, you
may apply locks to any of the three kinds of devices. Lock(s) will immediately
be set without any reboot necessary, and will remain locked after rebooting,
until unlocked.
If you do not set a password, Acer eLock Management will reset back to the
initial status with all locks removed.
Note: If you lose your password, there is no method to reset it
except by reformatting your notebook or taking your notebook
to an Acer Customer Service Center. Be sure to remember or write
down your password.
![](/img.php?id=583648&img=bgc.png)
4
Empowering Technology
Acer ePerformance Management
Acer ePerformance Management is a system optimization tool that boosts the
performance of your Acer notebook. It provides you with the following options
to enhance overall system performance:
•Memory optimization — release unused memory and check usage.
•Disk optimization — remove unneeded items and files.
•Speed optimization — improve the usability and performance of your
Windows XP system.
![](/img.php?id=583648&img=bgd.png)
5
Empowering Technology
Acer eRecovery Management
Acer eRecovery Management is a powerful utility that does away with the need
for recovery disks provided by the manufacturer. The Acer eRecovery
Management utility occupies space in a hidden partition on your system's HDD.
User-created backups are stored on D:\ drive. Acer eRecovery Management
provides you with:
•Password protection.
•Recovery of applications and drivers.
•Image/data backup:
•Backup to HDD (set recovery point).
•Backup to CD/DVD.
•Image/data recovery tools:
•Recover from a hidden partition (factory defaults).
•Recover from the HDD (most recent user-defined recovery point).
•Recover from CD/DVD.
For more information, please refer to "Acer eRecovery Management" on page
53 in the AcerSystem User's Guide.
Note: If your computer did not come with a Recovery CD or
System CD, please use Acer eRecovery Management's "System
backup to optical disk" feature to burn a backup image to CD or
DVD. To ensure the best results when recovering your system
using a CD or Acer eRecovery Management, detach all peripherals
(except the external Acer ODD, if your computer has one),
including your Acer ezDock.
![](/img.php?id=583648&img=bge.png)
6
Empowering Technology
Acer eSettings Management
Acer eSettings Management allows you to inspect hardware specifications and
to monitor the system health status. Furthermore, Acer eSettings Management
enables you to optimize your Windows operating system, so your computer
runs faster, smoother and better.
Acer eSettings Management also:
•Provides a simple graphical user interface for navigating through the
program effortlessly.
•Displays general system status and advanced monitoring for power users.
•Logs when a hardware component has been removed or replaced.
•Permits you to migrate personal settings.
•Keeps a history log of all alerts that were previously issued.
Acer ePower Management
Acer ePower Management features a straightforward user interface. To launch
it, select Acer ePower Management from the Empowering Technology
interface, or double-click the Acer ePower Management icon in the task tray.
![](/img.php?id=583648&img=bgf.png)
7
Empowering Technology
AC mode
The default setting is "Maximum Performance." You can adjust CPU speed, LCD
brightness and other settings, or click on buttons to turn the following
functions on/off: Wireless LAN, CardBus, Memory Card, Audio, and Wired LAN.
DC mode
To suit your usage, there are four pre-defined profiles — Entertainment,
Presentation, Word Processing, and Maximum Battery. Or, you can define up to
three of your own profiles.
Create new power scheme
1 Assign a name for the new scheme.
2 Choose existing scheme to use as a template.
3 Select whether used for mains (AC) or battery mode.
4 Choose which power options best fit your needs, then click OK.
5 The new profile will appear on the main screen.
Battery status
For real-time battery life estimates based on current usage, refer to the panel
on the lower left-hand side of the window.
You can also click "Advanced Settings" to:
•Set alarms.
•Re-load factory defaults.
•Select what actions will be taken when the cover is closed, and set
passwords for accessing the system after Hibernation or Standby.
![](/img.php?id=583648&img=bg10.png)
8
Empowering Technology
•View information about Acer ePower Management.
Acer ePresentation Management
Acer ePresentation Management lets you select from two of the most common
projector resolutions: XGA and SVGA.
![](/img.php?id=583648&img=bg11.png)
9
EnglishEnglish
A TravelMate tour
After setting up your computer as illustrated in the Just for Starters... poster,
let us show you around your new TravelMate computer.
Top View
#Item Description
1 Display screen Also called Liquid-Crystal Display (LCD), it displays
computer output.
2 Tablet-mode
button
Escape button for use in tablet PC mode.
3 Tablet-mode
button
Function button for use in tablet PC mode.
4 Tablet-mode
button
Screen rotate button for use in tablet PC mode.
5 Biometric
fingerprint
reader
Provides fingerprint-verified access to operating system
applications (manufacturing option). For details, refer to
"Acer Protector Suite QL fingerprint utility" on page 29.
![](/img.php?id=583648&img=bg12.png)
10
English
Open front view
6 Windows
Security lock
button
A tablet-mode button, it functions like CTL-ALT-DEL to
lock access to the operating system.
7 Power switch Turns the computer on and off.
#Item Description
1 Keyboard For entering data in notebook PC mode.
2 Built-in
trackpoint
Touch-sensitive pointing device which functions like a
computer mouse when used together with the click
buttons.
3 Click buttons
(left and right)
Function like the left and right mouse buttons when
used together with the center-keyboard trackpoint.
#Item Description
![](/img.php?id=583648&img=bg13.png)
11
EnglishEnglish

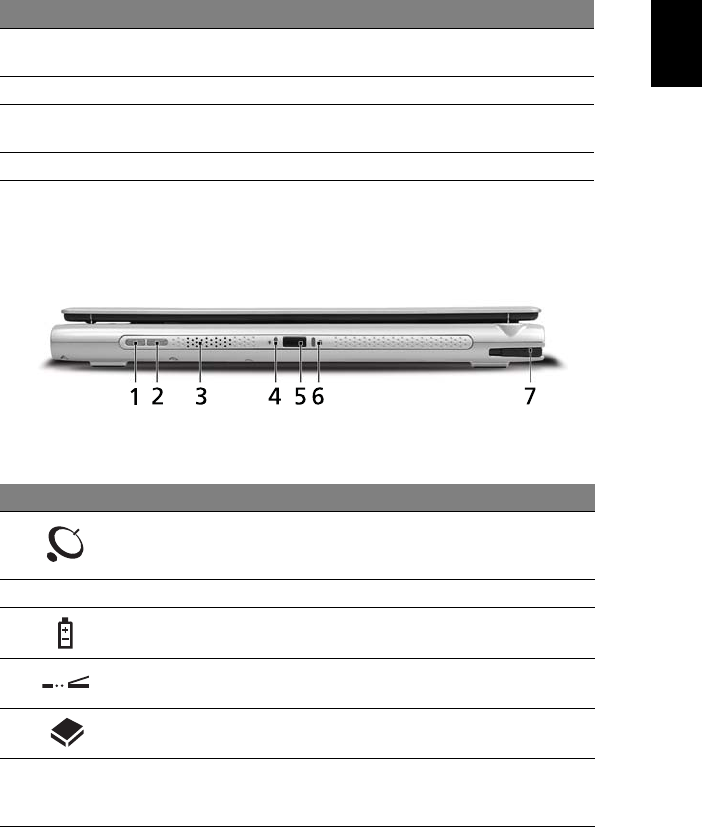

Closed front view
4 Built-in
microphone
Internal microphone for sound recording.
5 Scroll wheel For up, down and enter functions.
6 Easy-launch
buttons
Buttons for launching frequently used programs.
See "Easy-launch buttons" on page 20 for more details.
7 Indicator lights Light up when Caps Lock or Num Lock are activated.
#Icon Item Description
1 Wireless
communication
button/indicator
Press to enable/disable the wireless
function. Lights to indicate the status of
wireless LAN communication.
3 Speaker Provides sound.
4 Battery indicator Lights up when battery is being charged.
5 Fast infrared (FIR) port Interfaces with infrared printers,
computers and other FIR-aware devices.
6 HDD indicator Indicates when the hard disk drive is
active.
7 Electromagnetic
resonance (EMR) pen
with eraser
For entering data in tablet PC mode.
#Item Description
![](/img.php?id=583648&img=bg14.png)
12
English
Left view
#Icon Item Description
1 Ethernet (RJ-45)
port
Connects to a gigabit Ethernet network.
2Modem (RJ-11)
port
Connects to a phone line.
3 Optical drive Accepts recordable CDs and DVDs,
depending on the drive type.
4 LED indicator Lights up when the optical drive is active.
5 Optical drive eject
button
Ejects the optical drive tray.
6 Emergency eject
hole
Ejects the optical drive tray when the
computer is turned off.
7 PC Card slot Accepts one Type II PC Card.
8 PC Card slot eject
button
Ejects the PC Card from the slot.
9 4-in-1 card reader Accepts Memory Stick, Memory Stick Pro,
MultiMediaCard (MMC), Secure Digital (SD).
Note: Only one card can operate at any
given time.
![](/img.php?id=583648&img=bg15.png)
13
EnglishEnglish
Right view
#Icon Item Description
1 Headphone/
speakers
line-out jack
Connects to audio line-out devices.
2 Microphone/
line-in jack
Accepts audio line-in devices (e.g.
microphone or audio CD player).
3 IEEE 1394
port
Connects to IEEE 1394 devices.
4 USB 2.0 port Connects to USB 2.0 devices (e.g. USB
mouse or camera).
5 Ventilation
slots
Keep computer cool during use.
6 USB 2.0 ports Connect to USB 2.0 devices (e.g. USB
mouse or camera).
7External
display
(VGA) port
Connects to a display device (e.g. monitor
or projector).
![](/img.php?id=583648&img=bg16.png)
14
English
Rear view
#Icon Item Description
1 Kensington lock slot Connects to a Kensington-compatible
computer security lock.
2 DC-in jack Connects to an AC adapter.
3 Latch Push to the right for releasing the LCD unit
to convert from tablet to notebook mode.
4 Acer ezDock port Connects to an Acer ezDock (optional).
![](/img.php?id=583648&img=bg17.png)
15
EnglishEnglish
Base view
#Item Description
1 Battery bay Houses the computer’s battery pack.
2 Battery lock
latch
Locks the battery in place.
3Memory
compartment
Houses the computer’s main memory (secured with
screws).
4 Cooling fan Cools computer during use.
Note: Do not cover or obstruct the opening of the fan.
5 Hard disk bay Houses the computer’s hard disk (secured with screws).
6 Optical drive Internal optical drive (hot-swappable Acer MediaBay
drive module is optional).
7 Optical drive
release latch
Releases the optical drive module for removal.
8 Battery release
latch
Releases the battery for removal.
![](/img.php?id=583648&img=bg18.png)
16
English
Specifications
Operating
system Microsoft® Windows® XP Tablet PC Edition 2005
Platform Intel® Centrino™ Mobile Technology, featuring:
•Intel® Pentium® M processor 725/730/740/750/
760/770 (2 MB L2 cache, 1.60/1.73/1.86/2/2.13
GHz, 533 MHz FSB)
•Intel® 915PM/915GM/910GML chipset
•Intel® PRO/Wireless network connection (dual-
band tri-mode 802.11b/g) Wi-Fi CERTIFIED™
solution, supporting Acer SignalUp™ wireless
technology
Intel® Celeron® M Processor 350/360/370/380 (1 MB L2
cache, 1.30/1.40/1.50/1.60 GHz, 400 MHz FSB)
System memory 256/512 MB of DDR2 533 MHz memory, upgradeable to 2
GB using two soDIMM modules (dual-channel support)
Display and
graphics
12.1" XGA TFT LCD,1024 x 768 resolution
LCD slides to convert from notebook to tablet mode
NVIDIA® GeForce™ Go 6200 with 32 MB of VRAM,
supporting NVIDIA® TurboCache™ technology up to 128
MB, PCI Express™ and Microsoft® DirectX® 9.0
DualView™ support
MPEG-2/DVD hardware-assisted capability
Storage
subsystem
40/60/80/100 GB (4200 rpm) ATA/100 hard disk drive
Acer MediaBay weight-saver module
Acer MediaBay hot-swappable optical drive modules:
• 8X DVD-Dual double layer
• DVD/CD-RW combo
4-in-1 card reader supporting Secure Digital (SD),
MultiMediaCard (MMC), Memory Stick® (MS) and Memory
Stick PRO™ (MS PRO)
Dimensions
and weight
315 (W) x 238 (D) x 35.3 (H) mm, (12.4 x 9.37 x 1.39 inches)
2.5 kg (5.5 lbs.) with 6-cell battery
Power
subsystem
ACPI 2.0 power management standard: supports Standby
and Hibernation power-saving modes
6 cell battery pack
2.5-hour rapid charge, 3.5-hour charge-in-use
3-pin 65 W AC adapter
![](/img.php?id=583648&img=bg19.png)
17
EnglishEnglish
Input devices 84-/85-key keyboard with inverted "T" cursor layout
Built-in trackpoint with two buttons
12 function keys, four cursor keys, two Windows® keys,
hotkey controls, embedded numeric keypad, international
language support
Four easy-launch buttons: user-programmable button,
Empowering Key, Internet, email
Four tablet-mode buttons: Windows Security, Screen
Rotate, Function, Escape
3-way scroll wheel (up/down/enter)
Electromagnetic Resonance (EMR) pen with eraser
Audio Audio system with one built-in speaker and microphone
Sound Blaster Pro™ and MS-Sound compatible
Communication Modem: 56K ITU V.92 with PTT approval;
Wake-on-Ring ready
LAN: gigabit Ethernet; Wake-on-LAN ready
WLAN: Intel® PRO/Wireless network connection (802.11b/
g) Wi-Fi CERTIFIED™ solution, supporting Acer SignalUp™
wireless technology
WPAN: (manufacturing option)
I/O interface 124-pin Acer ezDock connector
Three USB 2.0 ports
4-in-1 card reader (MS/MS PRO/MMC/SD)
PC Card slot (Type II)
IEEE 1394 port
Fast infrared (FIR) port
External display (VGA) port
Ethernet (RJ-45) port
Modem (RJ-11) port
Microphone/line-in jack
Headphones/speaker/line-out jack
DC-in jack for AC adapter
Security Kensington lock slot
BIOS user and supervisor passwords
Biometric fingerprint identification (manufacturing
option)
![](/img.php?id=583648&img=bg1a.png)
18
English
Note: The specifications listed above are for reference only. The
exact configuration of your PC depends on the model purchased.
Software Acer Empowering Technology (eDataSecurity / eLock /
ePerformance / eRecovery / ePower / eSettings /
ePresentation Management)
Acer Soft Button
Microsoft® Education Pack for Tablet PC (English version)
Microsoft® Reader
Acer Protector Suite QL fingerprint utility
Acer Launch Manager
Acer System Recovery CD
Norton AntiVirus™
CyberLink® PowerDVD™
NTI CD-Maker™
Adobe® Reader®
Options and
accessories
Acer ezDock
Acer MediaBay DVD-Dual double-layer drive module
Acer MediaBay 2nd battery pack
512 MB or 1 GB DDR2 533 MHz soDIMM modules
External USB floppy disk drive
Environment Temperature:
• Operating: 5° C to 35° C
• Non-operating: -20° C to 65° C
Humidity (non-condensing):
• Operating: 20% to 80%
• Non-operating: 20% to 80%
System
compliance
Mobile PC 2001
ACPI 2.0
DMI 2.0
Wi-Fi®
Cisco Compatible Extensions (CCX)
Warranty One-year International Travelers Warranty (ITW)
![](/img.php?id=583648&img=bg1b.png)
19
English
Indicators
The computer has two easy-to-read status indicators to the right of the
keyboard, and four on the front panel.
The battery, media and wireless communication status indicators are visible
even when the LCD display is closed.
1. Charging: The light shows amber when the battery is charging.
2. Fully charged: The light shows green when in AC mode.
Icon Function Description
Caps Lock Lights up when Caps Lock is activated.
Num Lock Lights up when Num Lock is activated.
HDD Indicates when the hard disk drive is active
Battery Lights up when battery is being charged.
Wireless LAN Indicates the status of wireless LAN communication.
![](/img.php?id=583648&img=bg1c.png)
20
English
Easy-launch buttons
Located to the right of the keyboard are four buttons. These buttons are called
easy-launch buttons. They are: mail, Web browser, Acer Empowering Key < >
and one user-programmable button.
Press < > to run the Acer Empowering Technology. Please see "Acer
Empowering Technology" on page 1. The mail and Web browser buttons are
pre-set to email and Internet programs, but can be reset by users. To set the

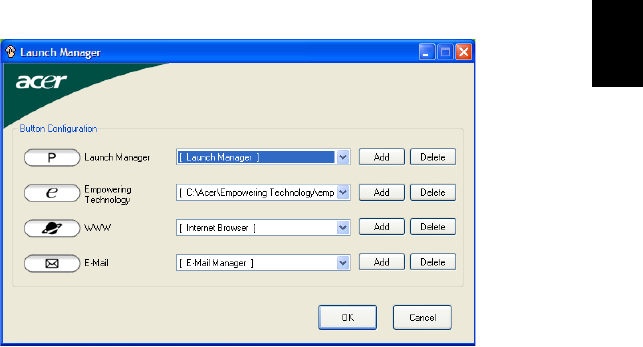

Web browser, mail and programmable buttons, run the Acer Launch Manager.
See "Launch Manager" on page 31.
Easy-launch button Default application
PUser-programmable
Acer Empowering Technology (user-programmable)
Internet browser (user-programmable)
Mail Email application (user-programmable)
![](/img.php?id=583648&img=bg1d.png)
21
English
Trackpoint and click buttons

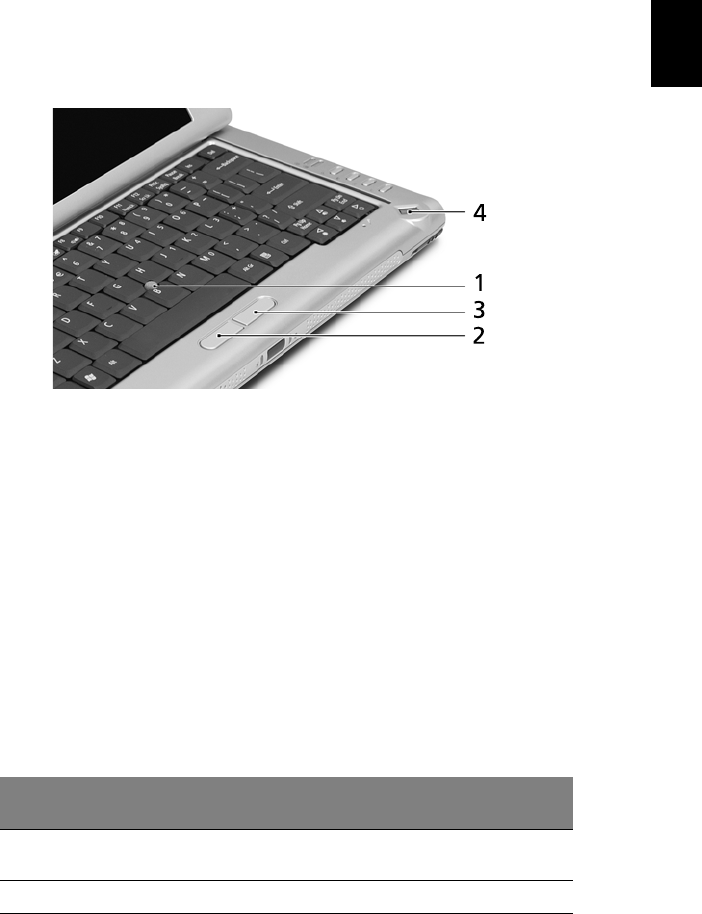

The built-in trackpoint is a pointing device that senses movement on its surface.
This means the cursor responds as you use your finger to move the trackpoint.
Its central location on the keyboard provides optimum comfort and support.
Trackpoint basics
The following items show you how to use the trackpoint and click buttons:
•Using your finger, apply light, steady pressure on the trackpoint (1) to
move the cursor.
•Press the left (2) and right (3) buttons located below the keyboard to
perform selection and execution functions. These two buttons are similar
to the left and right buttons on a mouse.
Scrolling basics
The 3-way scroll wheel is enabled for tablet- and keyboard-mode use.
•Use the jog wheel (4) to scroll up or down on a page. A click on the jog
wheel executes the Enter function, similar to double-clicking a mouse.
Function Left button Right
button Scroll wheel
Execute Quickly click
twice.
Click on the jog wheel.
Select Click once.
![](/img.php?id=583648&img=bg1e.png)
22
English
Note: When using these inputs, keep them — and your fingers —
dry and clean. The scroll wheel is sensitive to finger movement;
hence, the lighter the touch, the better the response. Tapping
harder will not increase click button responsiveness.
Drag Click and hold,
then use finger
on the
trackpoint to
drag the cursor.
Access
context
menu
Click
once.
Scroll Use finger to roll scroll wheel
lightly up or down in tablet or
notebook mode.
Function Left button Right
button Scroll wheel
![](/img.php?id=583648&img=bg1f.png)
23
English
Using the keyboard
The keyboard has full-sized keys with an embedded numeric keypad, as well as
separate lock, cursor and Windows keys, and hotkey controls.

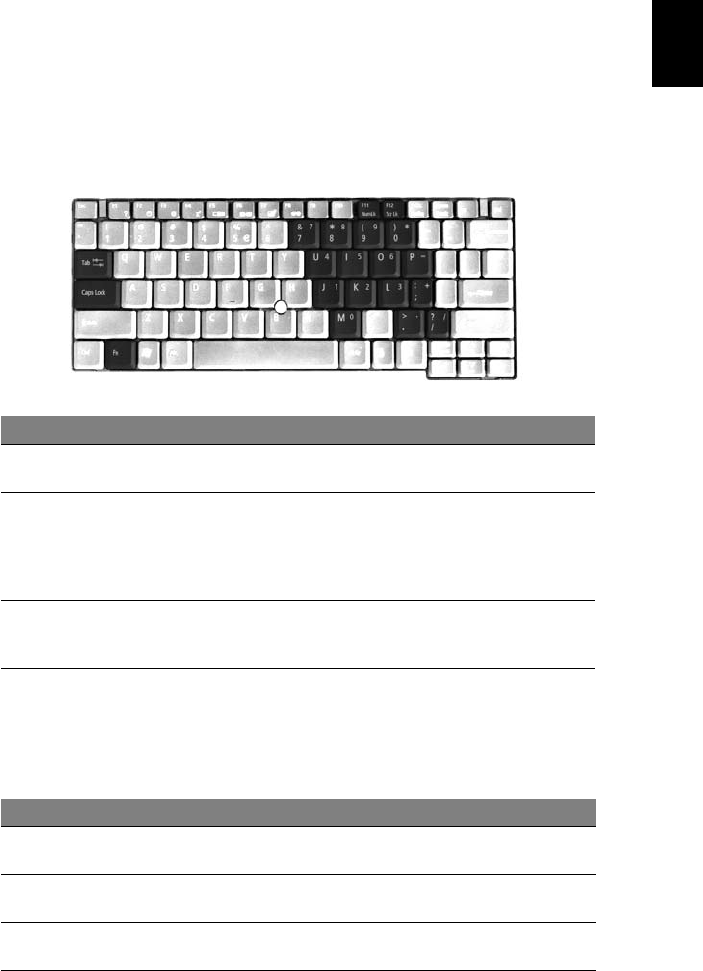

Lock keys and embedded numeric keypad
The keyboard has three lock keys which you can toggle on and off.
The embedded numeric keypad functions like a desktop numeric keypad. It is
indicated by small characters located on the upper right corner of the keycaps.
To simplify the keyboard legend, cursor-control key symbols are not printed on
the keys.
Lock key Description
Caps Lock When Caps Lock is on, all alphabetic characters typed are
in uppercase.
Num Lock
<Fn> + <F11>
When Num Lock is on, the embedded keypad is in numeric
mode. The keys function as a calculator (complete with the
arithmetic operators +, -, *, and /). Use this mode when you
need to do a lot of numeric data entry. Another solution
would be to connect an external keypad.
Scroll Lock
<Fn> + <F12>
When Scroll Lock is on, the screen moves one line up or down
when you press the up or down arrow keys respectively.
Scroll Lock does not work with some applications.
Desired access Num Lock on Num Lock off
Number keys on
embedded keypad
Type numbers in a normal
manner.
Cursor-control keys
on embedded keypad
Hold <Shift> while using
cursor-control keys.
Hold <Fn> while using
cursor-control keys.
Main keyboard keys Hold <Fn> while typing
letters on embedded keypad.
Type the letters in a
normal manner.
![](/img.php?id=583648&img=bg20.png)
24
English
Windows keys
The keyboard has two keys that perform Windows-specific functions.
Hotkeys
The computer employs hotkeys or key combinations to access many computer
controls, including screen brightness, volume output and the BIOS utility.
To activate hotkeys, press and hold the <Fn> key before pressing the other key
in the hotkey combination.

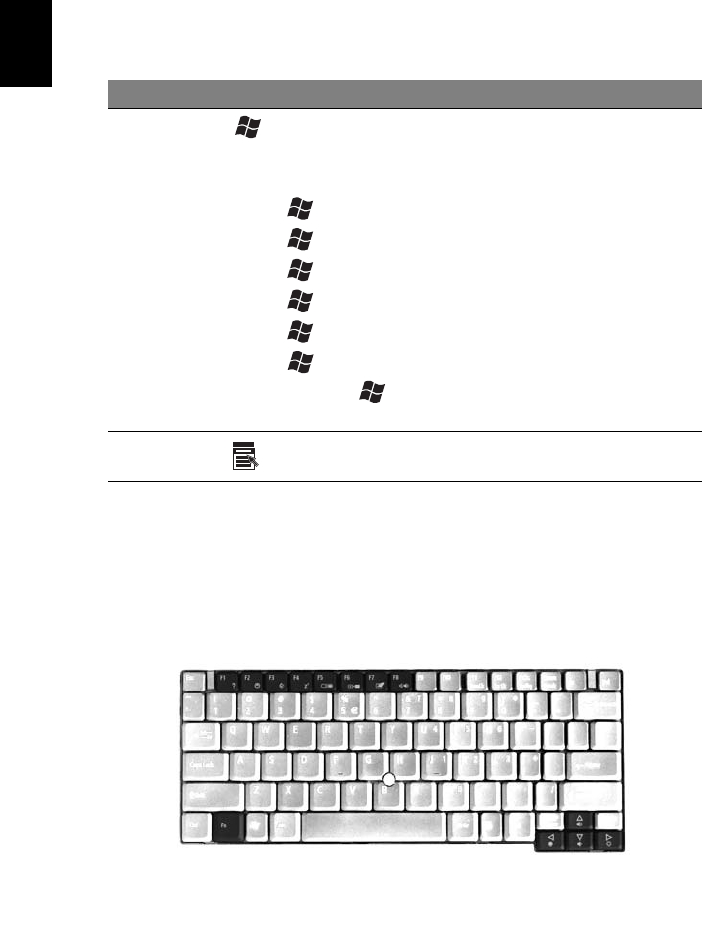

Key Description
Windows key Pressed alone, this key has the same effect as clicking on
the Windows Start button; it launches the Start menu.
It can also be used with other keys to provide a variety
of functions:
< > + <Tab>: Activates the next Taskbar button.
< > + <E>: Opens the My Computer window.
< > + <F1>: Opens Help and Support Center.
< > + <F>: Opens the Search Results window.
<> + <R>: Opens the Run dialog box.
< > + <M>: Minimizes all windows.
<Shift> + < > + <M>: Undoes the minimize all
windows action.
Application
key
This key has the same effect as clicking the right mouse
button; it opens the application's context menu.
![](/img.php?id=583648&img=bg21.png)
25
English
Hotkey Icon Function Description
<Fn> + <F1> Hotkey help Displays help on hotkeys.
<Fn> + <F2> Acer eSettings Launches Acer eSettings in Acer
Empowering Technology. See
"Acer Empowering Technology"
on page 1.
<Fn> + <F3> Acer ePower
Management
Launches Acer ePower
Management. See "Acer
Empowering Technology" on
page 1.
<Fn> + <F4> Sleep Puts the computer in Sleep
mode.
<Fn> + <F5> Display toggle Switches display output
between the display screen,
external monitor
(if connected) and both.
<Fn> + <F6> Screen blank Turns the display screen
backlight off to save power.
Press any key to return.
<Fn> + <F7> Touchpad toggle Turns the internal touchpad on
and off.
<Fn> + <F8> Speaker toggle Turns the speakers on and off.
<Fn> + <↑>Volume up Increases the sound volume.
<Fn> + <↓>Volume down Decreases the sound volume.
<Fn> + <→>Brightness up Increases the screen brightness.
<Fn> + <←>Brightness down Decreases the screen brightness.
![](/img.php?id=583648&img=bg22.png)
26
English
Special keys
You can locate the Euro symbol and the US dollar sign at the upper-center
and/or bottom-right of your keyboard.
The Euro symbol
1 Open a text editor or word processor.
2Hold <Alt Gr> and then press the <5> key at the upper-center of the
keyboard.
Note: Some fonts and software do not support the Euro symbol.
Please refer to www.microsoft.com/typography/faq/faq12.htm for
more information.
The US dollar sign
1 Open a text editor or word processor.
2Hold <Shift> and then press the <4> key at the upper-center of the
keyboard.
Note: This function varies according to the language settings.
![](/img.php?id=583648&img=bg23.png)
27
English
Ejecting the optical (CD or DVD)
disk
To eject the optical disk from the slot-load / tray-in optical drive when the
computer is turned on, press the drive eject button.
When the power is off, you can eject an optical disk by inserting a pin or paper
clip into the emergency eject hole.
Using a computer security lock
A security keylock notch, located on the chassis of the computer, lets you
connect a Kensington-compatible computer security lock.
Wrap the computer security lock cable around an immovable object such as a
table or handle of a locked drawer. Insert the lock into the notch and turn the
key to secure the lock. Some keyless models are also available.
![](/img.php?id=583648&img=bg25.png)
29
English
Using the system utilities
Note: The system utilities work under Microsoft Windows XP only.
Acer Protector Suite QL fingerprint utility
Note: This feature is only available on certain models.
Acer Protector Suite QL provides fingerprint-based biometric identification to
control access to your computer’s drives. The utility is accessed via the Protector
Suite icon on the taskbar. Below is a brief description of the steps for
fingerprint scanning and user enrollment. For full details of Protector Suite QL’s
programmable functions, open the utility and follow the step-by-step guide.
Password choice
To enter Protector Suite QL, enter your password. If you are using the utility for
the first time, you may choose your own password. Do not share your password
with others. Make sure to remember your password.
Correct scanning procedure
1 Position the first joint of the finger you are scanning beyond the sensor
edge.
![](/img.php?id=583648&img=bg26.png)
30
English
2 Maintain finger contact with the sensor while sliding the finger across it in
a straight line.
3 The application window will indicate a successful scan. If the scan quality is
poor, repeat the procedure.
Note: Make sure to keep the finger flat throughout the scanning
procedure.
User’s Fingers
You can use Protector Suite QL to create fingerprint samples to identify a user.
The application can record prints of up to all 10 fingers, depending on the level
of security required.
•Follow the "User’s Fingers" screen commands to record the fingerprints of
authorized users. The utility must record three successful scans of each
print before it can be accepted into the system.
User Enrollment
1 Boot Security protects your computer by subjecting boot-ups to fingerprint
identification. To use this function, select "Enable Boot Security" in the
User Enrollment application window
2 Boot Security can also be enabled at a later date via the Settings menu.
![](/img.php?id=583648&img=bg27.png)
31
English
Launch Manager
Launch Manager allows you to set the four easy-launch buttons located above
the keyboard. See "Easy-launch buttons" on page 20 for the location of the
easy-launch buttons.
You can access the Launch Manager by clicking on Start > All Programs, and
then Launch Manager to start the application.
Norton AntiVirus
Norton AntiVirus is an anti-virus software that finds and repairs infected files,
and protects against viruses to keep your computer data safe and secure.
How do I check for viruses?
A Full System Scan scans all files on your computer. To perform a system scan:
1 Start Norton AntiVirus.
Double click on the Norton AntiVirus Icon on the desktop or click on the
Start menu in the Windows taskbar, highlight Programs, and select
Norton AntiVirus.
![](/img.php?id=583648&img=bg28.png)
32
English
2 In the Norton AntiVirus main window, click Scan for Viruses.
3In the Scan for Viruses panel, click Scan My Computer.
4Under Actions, click Scan.
5 When the scan is complete, a scan summary appears. Click Finished.
You can schedule customized virus scans that run unattended on specific dates
and times or at periodic intervals. If you are using the computer when the
scheduled scan begins, it runs in the background so that you do not have to
stop working.
For more information, refer to the Norton AntiVirus Help menu.
![](/img.php?id=583648&img=bg29.png)
33
English
Frequently asked questions
The following is a list of possible situations that may arise during the use of
your computer. Easy solutions are provided for each one.
I pressed the power button, but the computer doesn’t start or
boot up.
Look at the power indicator:
•If it is not lit, no power is being supplied to the computer. Check the
following:
•If you are using the battery, it may be low and unable to power the
computer. Connect the AC adapter to recharge the battery pack.
•Make sure that the AC adapter is properly plugged into the computer
and to the power outlet.
•If it is lit, check the following:
•Is a non-bootable (non-system) disk in the external USB floppy drive?
Remove or replace it with a system disk and press <Ctrl> + <Alt> +
<Del> to restart the system.
Nothing appears on the screen.
The computer's power management system automatically blanks the screen to
save power. Press any key to turn the display back on.
If pressing a key does not turn the display back on, three things might be
the cause:
•The brightness level might be too low. Press <Fn> + <→> (increase) to
adjust the brightness level.
•The display device might be set to an external monitor. Press the display
toggle hotkey <Fn> + <F5> to toggle the display back to the computer.
•If the Sleep indicator is lit, the computer is in Sleep mode. Press and release
the power button to resume.
Image is not full-screen.
Each computer display has a different native resolution depending on the
screen. If you set the resolution lower than this native resoution, the screen
expands to fill the computer display. Right-click on your Windows desktop and
select Properties to bring up the "Display Properties" dialog box. Then click on
the Settings tab to make sure that the resolution is set to the appropriate
resolution. Resolutions lower than the specified resolution are not full-screen
on the computer or on an external monitor.
![](/img.php?id=583648&img=bg2a.png)
34
English
No audio is heard from the computer.
Check the following:
•The volume may be muted. In Windows, look at the volume control
(speaker) icon on the taskbar. If it is crossed out, click on the icon and
deselect the Mute all option.
•The volume level may be too low. In Windows, look at the volume control
icon on the taskbar. You can also use the volume control buttons to adjust
the volume. See "Hotkeys" on page 24 for more detail.
•If headphones, earphones or external speakers are connected to the line-
out port on the computer, the internal speakers automatically turn off.
I want to eject the optical drive tray without turning on the
power.
There is a mechanical eject hole on the optical drive. Simply insert the tip of a
pen or paperclip into the hole and push to eject the tray. (If your computer’s
optical drive is a slot-load model, it will not have an eject hole).
The keyboard does not respond.
Try attaching an external keyboard to a USB port on the computer. If it works,
contact your dealer or an authorized service center as the internal keyboard
cable may be loose.
The infrared port does not work.
Check the following:
•Make sure that the infrared ports of the two devices are facing each other
(+/- 15 degrees) a maximum of one meter apart.
•Make sure there is a clear path between the two infrared ports. Nothing
should be blocking the ports.
•Make sure you have the appropriate software running on both devices (for
file transfers) or you have the appropriate drivers (for printing to an
infrared printer).
•During the POST, press <F2> to access the BIOS utility and verify that the
infrared port is enabled.
•Make sure both devices are IrDA-compliant.
The printer does not work.
Check the following:
•Make sure that the printer is connected to a power outlet and that it is
![](/img.php?id=583648&img=bg2b.png)
35
English
turned on.
•Make sure that the printer cable is connected securely to the computer's
parallel port or a USB port and the corresponding port on the printer.
I want to set up my location to use the internal modem.
To properly use your communication software (e.g. HyperTerminal), you need
to set up your location:
1 Click on Start > Settings > Control Panel.
2 Double-click on Phone and Modem Options.
3 Click on Dialing Rules and begin setting up your location.
Refer to the Windows manual.
Note: Please note, on first booting your notebook, that you can
skip the Internet Connection setup, as it is not necessary to
complete the installation of your Operating System. After the
Operating System is set up, you can proceed with the Internet
Connection setup.
I want to restore my computer to its original settings without
recovery CDs.
Note: If your system is the multilingual version, the operating
system and language you choose when you first turn on the
system will be the only option for future recovery operations.
This recovery process helps you restore the C: drive with the original software
content that is installed when you purchase your notebook. Follow the steps
below to rebuild your C: drive. (Your C: drive will be reformatted and all data
will be erased.) It is important to back up all data files before using this option.
Before performing a restore operation, please check the BIOS settings.
1 Check to see if Acer disk-to-disk recovery is enabled or not.
2 Make sure the D2D Recovery setting in Main is Enabled.
3 Exit the BIOS utility and save changes. The system will reboot.
Note: To activate the BIOS utility, press <F2> during POST.
![](/img.php?id=583648&img=bg2c.png)
36
English
To start the recovery process:
1 Restart the system.
2 While the Acer logo is showing, press <Alt> + <F10> at the same time to
enter the recovery process.
3 Refer to the onscreen instructions to perform system recovery.
Important! This feature occupies 2 to 3 GB in a hidden partition
on your hard disk.
Requesting service
International Travelers Warranty (ITW)
Your computer is backed by an International Travelers Warranty (ITW) that
gives you security and peace of mind when traveling. Our worldwide network
of service centers is there to give you a helping hand.
An ITW passport comes with your computer. This passport contains all you need
to know about the ITW program. A list of available, authorized service centers is
in this handy booklet. Read this passport thoroughly.
Always have your ITW passport on hand, especially when you travel, to receive
the benefits from our support centers. Place your proof-of-purchase in the flap
located inside the front cover of the ITW passport.
If the country you are traveling in does not have an Acer-authorized ITW service
site, you can still get in contact with our offices worldwide. Please consult
http://global.acer.com.
Before you call
Please have the following information available when you call Acer for online
service, and please be at your computer when you call. With your support, we
can reduce the amount of time a call takes and help solve your problems
efficiently. If there are error messages or beeps reported by your computer,
write them down as they appear on the screen (or the number and sequence in
the case of beeps).
You are required to provide the following information:
Name: _____________________________________________
Address: ___________________________________________
Telephone number: _________________________________
Machine and model type: ____________________________
Serial number: ______________________________________
Date of purchase: ___________________________________
![](/img.php?id=583648&img=bg2d.png)
37
English
Using your computer in tablet mode
Your computer is designed for convenience, ergonomic use and portability.
Running the Windows XP Tablet PC Edition 2005 operating system, your
TravelMate utilizes an EMR stylus for pen-based input. Software developed
specifically for the computer allows for both handwriting recognition converted
to application text, or handwriting captured as rich digital ink for manipulation,
editing and formatting.

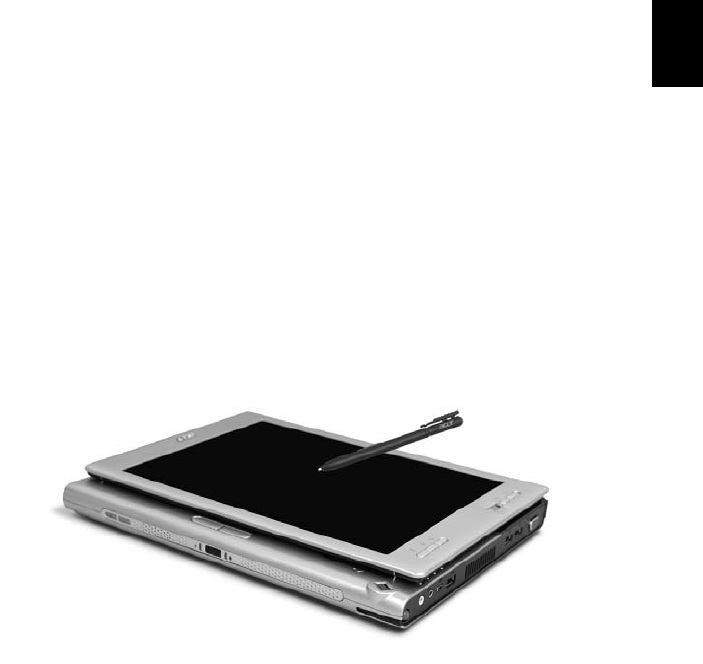

Writing in tablet mode
Your Acer TravelMate C200 comes ready for use in tablet mode. Just remove the
EMR stylus from the slot to begin pen-based input.
![](/img.php?id=583648&img=bg2e.png)
38
English
Converting to notebook mode
1) Slide the LCD latch to the right.
2) Gently pull the display unit from the bottom until it locks into the upright
position and use the keyboard to enter data.
![](/img.php?id=583648&img=bg2f.png)
39
English
Converting to tablet mode
1) To return to tablet mode, slide down the display unit from both sides.
2) Push down on the LCD gently with both hands on the top corners until it
clicks shut.
Warning: Make sure that the detachable band of the protective
screen cover is not bunched underneath the LCD unit before
converting to tablet mode. Never use excessive pressure to shut
the LCD unit.
![](/img.php?id=583648&img=bg30.png)
40
English
Taking your notebook PC with you
This section gives you tips and hints to consider when moving around or
traveling with your computer.
Disconnecting from the desktop
Follow these steps to disconnect your computer from external accessories:
1 Save any open files.
2 Remove any media, floppy disks or compact disks from the drive(s).
3 Shut down the computer.
4 Close and latch the display unit.
5 Disconnect the cord from the AC adapter.
6 Disconnect the keyboard, pointing device, printer, external monitor and
other external devices.
7 Disconnect the Kensington lock if you are using one to secure the
computer.
Moving around
When you are just moving within short distances, for example, from your office
desk to a meeting room.
Preparing the computer
Click on Start, Turn Off Computer, then click on Turn Off (Windows XP).
Or:
You can put the computer in Sleep mode by pressing <Fn> + <F4>. Then close
and latch the display.
When you are ready to use the computer again, press and release the power
button.
Note: If the Sleep indicator is off, the computer has entered
Hibernation mode and is turned off. If the power indicator is off
but the Sleep indicator is on, the computer has entered Sleep
mode. In both cases, press and release the power button to turn
the computer back on. Note that the computer may enter
Hibernation mode after being in Sleep mode for a period of time.
![](/img.php?id=583648&img=bg31.png)
41
English
What to bring to meetings
If your meeting is relatively short, you probably do not need to bring anything
with you other than your computer. If your meeting will be longer, or if your
battery is not fully charged, you may want to bring the AC adapter with you to
plug in your computer in the meeting room.
If the meeting room does not have an electrical outlet, reduce the drain on the
battery by putting the computer in Sleep mode. Press <Fn> + <F4> whenever
you are not actively using the computer. To resume, press and release the
power button.
Taking the computer home
When you are moving from your office to your home or vice versa.
Preparing the computer
After disconnecting the computer from your desktop, follow these steps to
prepare the computer for the trip home:
•Check that you have removed all media and compact disks from the
drive(s). Failure to remove the media can damage the drive head.
•Pack the computer in a protective case that can prevent the computer from
sliding around and cushion it if it should fall.
Caution: Avoid packing items closely next to the top of the
computer. Pressure against the display unit can damage the
screen.
What to take with you
Unless you have the items at home, take the following with you:
•AC adapter and power cord
•The printed User's Guide
Special considerations
Follow these guidelines to protect your computer while traveling to and
from work:
•Minimize the effects of temperature changes by keeping the computer
with you.
•If you need to stop for an extended period of time and cannot carry the
![](/img.php?id=583648&img=bg32.png)
42
English
computer with you, leave the computer in the trunk of the car to avoid
exposing the computer to excessive heat.
•Changes in temperature and humidity can cause condensation. Allow the
computer to return to room temperature, and inspect the screen for
condensation before turning on the computer. If the temperature change
is greater than 10 °C (18 °F), allow the computer to come to room
temperature slowly. If possible, leave the computer for 30 minutes in an
environment with a temperature between outside and room temperature.
Setting up a home office
If you frequently work on your computer at home, you may want to purchase a
second AC adapter for use at home. With a second AC adapter, you can avoid
carrying the extra weight to and from home.
If you use your computer at home for significant periods of time, you might also
want to add an external keyboard, monitor or mouse.
Traveling with the computer
When you are moving within a larger distance, for instance, from your office
building to a client's office building or traveling locally.
Preparing the computer
Prepare the computer as if you were taking it home. Make sure that the battery
in the computer is charged. Airport security may require you to turn on your
computer when carrying it into the gate area.
What to take with you
Take the following items with you:
•AC adapter
•Spare, fully-charged battery pack(s)
•Additional printer driver files if you plan to use another printer
Special considerations
In addition to the guidelines for taking the computer home, follow these
guidelines to protect your computer while traveling:
•Always take the computer as carry-on luggage.
•If possible, have the computer inspected by hand. Airport security X-ray
machines are safe, but do not put the computer through a metal detector.
![](/img.php?id=583648&img=bg33.png)
43
English
•Avoid exposing floppy disks to hand-held metal detectors.
Traveling internationally with the computer
When you are moving from country to country.
Preparing the computer
Prepare the computer as you would normally prepare it for traveling.
What to bring with you
Bring the following items with you:
•AC adapter
•Power cords that are appropriate for the country to which you
are traveling
•Spare, fully-charged battery packs
•Additional printer driver files if you plan to use another printer
•Proof of purchase, in case you need to show it to customs officials
•International Travelers Warranty passport
Special considerations
Follow the same special considerations as when traveling with the computer. In
addition, these tips are useful when traveling internationally:
•When traveling in another country, check that the local AC voltage and the
AC adapter power cord specifications are compatible. If not, purchase a
power cord that is compatible with the local AC voltage. Do not use
converter kits sold for appliances to power the computer.
•If you are using the modem, check if the modem and connector is
compatible with the telecommunications system of the country you are
traveling in.
Securing your computer
Your computer is a valuable investment that you need to take care of. Learn
how to protect and take care of your computer.
Security features include hardware and software locks — a security notch
and passwords.
![](/img.php?id=583648&img=bg34.png)
44
English
Using a computer security lock
A security keylock notch, located on the chassis of the computer, lets you
connect a Kensington-compatible computer security lock.
Wrap a computer security lock cable around an immovable object such as a
table or handle of a locked drawer. Insert the lock into the notch and turn the
key to secure the lock. Some keyless models are also available.
Using passwords
Passwords protect your computer from unauthorized access. Setting these
passwords creates several different levels of protection for your computer
and data:
•Supervisor Password prevents unauthorized entry into the BIOS utility.
Once set, you must enter this password to gain access to the BIOS utility.
See "BIOS utility" on page 51.
•User Password secures your computer against unauthorized use. Combine
the use of this password with password checkpoints on boot-up and
resume from Hibernation for maximum security.
•Password on Boot secures your computer against unauthorized use.
Combine the use of this password with password checkpoints on boot-up
and resume from Hibernation for maximum security.
Important! Do not forget your Supervisor Password! If you forget
your password, please get in touch with your dealer or an
authorized service center.
![](/img.php?id=583648&img=bg35.png)
45
English
Entering passwords
When a password is set, a password prompt appears in the center of the
display screen.
•When the Supervisor Password is set, a prompt appears when you press
<F2> to enter the BIOS utility at boot-up.
•Type the Supervisor Password and press <Enter> to access the BIOS utility.
If you enter the password incorrectly, a warning message appears. Try
again and press <Enter>.
•When the User Password is set and the password on boot parameter is
enabled, a prompt appears at boot-up.
•Type the User Password and press <Enter> to use the computer. If you
enter the password incorrectly, a warning message appears. Try again and
press <Enter>.
Important! You have three chances to enter a password. If you fail
to enter the password correctly after three tries, the system halts.
Press and hold the power button for four seconds to shut down
the computer. Then turn on the computer again, and try again.
Setting passwords
You can set passwords using the BIOS utility.
![](/img.php?id=583648&img=bg36.png)
46
English
Expanding through options
Your notebook PC offers you a complete mobile computing experience.
Connectivity options
Ports allow you to connect peripheral devices to your computer as you would
with a desktop PC. For instructions on how to connect different external devices
to the computer, read the following section.

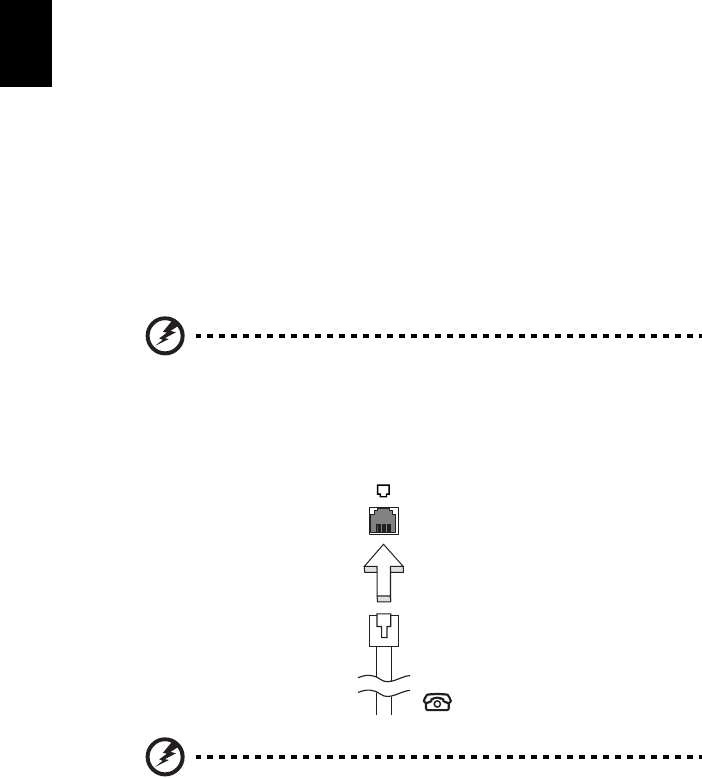

Fax/data modem
Your computer has a built-in V.92 56 Kbps fax/data modem.
Warning! This modem port is not compatible with digital phone
lines. Plugging this modem into a digital phone line will damage
the modem.
To use the fax/data modem port, connect a phone cable from the modem port
to a telephone jack.
Warning! Please make sure that the cable you use is appropriate
for the country in which you are working.
![](/img.php?id=583648&img=bg37.png)
47
English

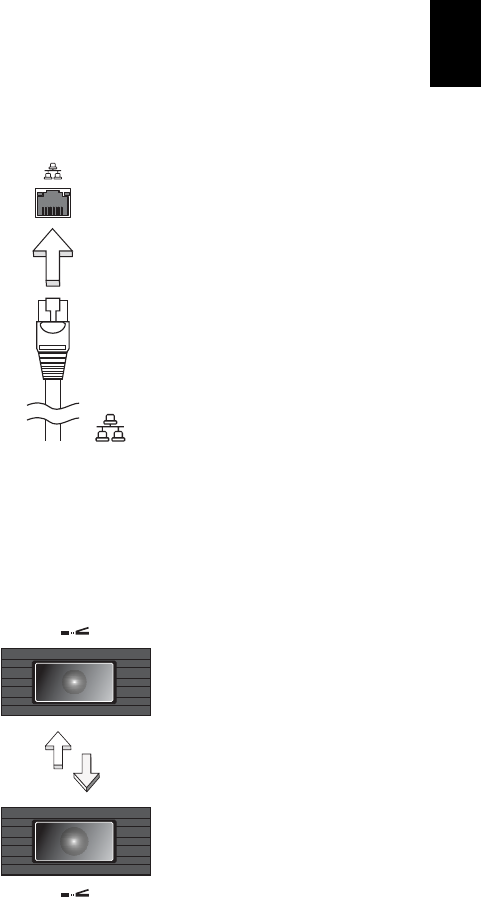

Built-in network feature
The built-in network feature allows you to connect your computer to an
Ethernet-based network.
To use the network feature, connect an Ethernet cable from the Ethernet
(RJ-45) port on the chassis of the computer to a network jack or hub on
your network.
Fast Infrared (FIR)
The computer's Fast Infrared (FIR) port allows you to do wireless data transfer
with other IR-aware computers and peripherals such as PDAs, mobile phones,
and infrared printers. The infrared port can transfer data at speeds of up to 4
Mbps at a distance of up to one meter.
![](/img.php?id=583648&img=bg38.png)
48
English

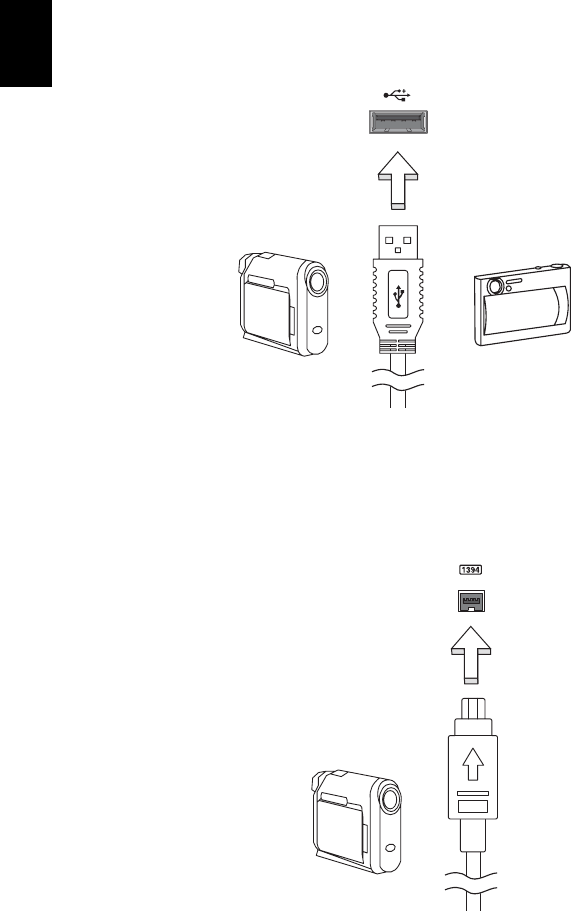

Universal Serial Bus (USB)
The USB 2.0 port is a high-speed serial bus which allows you to connect USB
peripherals without taking up precious system resources.
IEEE 1394 port
The computer's IEEE 1394 port allows you to connect to an IEEE 1394-
compatible device like a video camera or digital camera. See your video or
digital camera's documentation for details.
![](/img.php?id=583648&img=bg39.png)
49
English

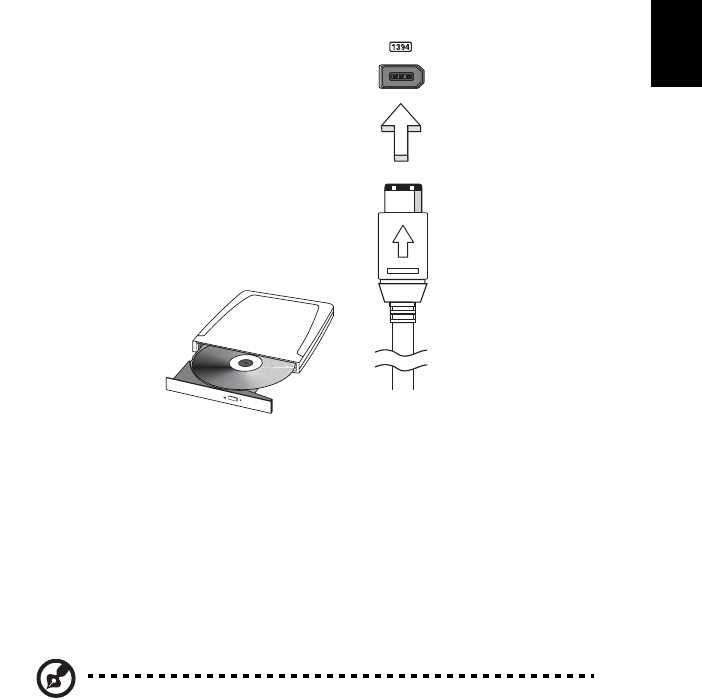

The computer's IEEE 1394 port allows you to connect to an IEEE 1394 supported
devices like a DVD/CD-RW combo or DVD-Dual drive.
PC Card slot
The computer’s Type II PC Card slot accepts PC Cards that enhance the usability
and expandability of the computer. These cards should have a PC Card logo on
them.
PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving
you expansion possibilities long afforded by desktop PCs. Popular PC Cards
include flash, fax/data modem, wireless LAN and SCSI cards. CardBus improves
on 16-bit PC card technology by expanding the bandwidth to 32 bits.
Note: Refer to your card's manual for details on how to install and
use the card, and its functions.
![](/img.php?id=583648&img=bg3a.png)
50
English

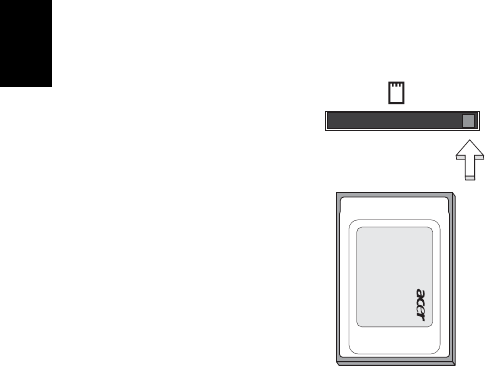

Inserting a PC Card
Insert the card into the slot and make the proper connections (e.g., network
cable), if necessary. See your card manual for details.
Ejecting a PC Card
Before ejecting a PC Card:
1 Exit the application using the card.
2 Left-click on the PC Card icon on the taskbar and stop the card operation.
3 Press the slot eject button to pop out the eject button; then press it again
to eject the card.
Installing memory
Follow these steps to install memory:
1 Turn off the computer, unplug the AC adapter (if connected) and remove
the battery pack. Then turn the computer over to access its base.
2 Remove the screws from the memory cover; then lift up and remove the
memory cover.
![](/img.php?id=583648&img=bg3b.png)
51
English
3(a) Insert the memory module diagonally into the slot, then (b) gently press
it down until it clicks into place.
4 Replace the memory cover and secure it with the screw.
5 Reinstall the battery pack, and reconnect the AC adapter.
6 Turn on the computer.
The computer automatically detects and reconfigures the total memory size.
Please consult a qualified technician or contact your local Acer dealer.
BIOS utility
The BIOS utility is a hardware configuration program built into your
computer's BIOS.
Your computer is already properly configured and optimized, and you do not
need to run this utility. However, if you encounter configuration problems, you
may need to run it.
To activate the BIOS utility, press <F2> during the POST; while the notebook PC
logo is being displayed.
Boot sequence
To set the boot sequence in the BIOS utility, activate the BIOS utility, then select
Boot from the categories listed at the top of the screen.
Enable disk-to-disk recovery
To enable disk-to-disk recovery (hard disk recovery), activate the BIOS utility,
then select Main from the categories listed at the top of the screen. Find D2D
Recovery at the bottom of the screen and use the <F5> and <F6> keys to set this
value to Enabled.
![](/img.php?id=583648&img=bg3c.png)
52
English
Password
To set a password on boot, activate the BIOS utility, then select Security from
the categories listed at the top of the screen. Find Password on boot: and use
the <F5> and <F6> keys to enable this feature.
Using software
Playing DVD movies
When the DVD drive module is installed in the optical drive bay, you can play
DVD movies on your computer.
1 Eject the DVD tray and insert a DVD movie disk; then close the DVD tray.
Important! When you launch the DVD player for the first time, the
program asks you to enter the region code. DVD disks are divided
into 6 regions. Once your DVD drive is set to a region code, it will
play DVD disks of that region only. You can set the region code a
maximum of five times (including the first time), after which the
last region code set will remain permanent. Recovering your hard
disk does not reset the number of times the region code has been
set. Refer to the table below for DVD movie region code
information.
2 The DVD movie will automatically play after a few seconds.
Note: To change the region code, insert a DVD movie of a
different region into the DVD drive. Please refer to the online
help for more information.
Region code Country or region
1 USA, Canada
2 Europe, Middle East, South Africa, Japan
3 Southeast Asia, Taiwan, South Korea
4 Latin America, Australia, New Zealand
5 Former USSR, parts of Africa, India
6 People's Republic of China
![](/img.php?id=583648&img=bg3d.png)
53
English
Power management
This computer has a built-in power management unit that monitors system
activity. System activity refers to any activity involving one or more of the
following devices: keyboard, mouse, hard disk, peripherals connected to the
computer, and video memory. If no activity is detected for a period of time
(called an inactivity timeout), the computer stops some or all of these devices in
order to conserve energy.
This computer employs a power management scheme that supports the
advanced configuration and power interface (ACPI), which allows for maximum
power conservation and maximum performance at the same time. Windows
handles all power-saving chores for your computer.
Acer eRecovery Management
Acer eRecovery Management is a tool to quickly backup and restore the system.
You can create and save a backup of the current system configuration to hard
disk, CD or DVD.
Acer eRecovery Management consists of the following functions:
1 Create backup
2 Restore from backup
3 Create factory default image CD
4 Re-install bundled software without CD
5 Change Acer eRecovery Management password
This chapter will guide you through each process.
Note: This feature is only available on certain models. For systems
that do not have a built-in optical disk burner, plug in an external
USB or IEEE 1394-compatible optical disk burner before entering
Acer eRecovery Management for optical disk-related tasks.
![](/img.php?id=583648&img=bg3e.png)
54
English
Create backup
You can create and save backup images to hard disk, CD or DVD.
1 Boot to Windows XP
2 Press <Alt> + <F10> to open the Acer eRecovery Management utility.
3 Enter the password to proceed. The default password is six zeros.
4 In the Acer eRecovery Management window, select Recovery settings and
click Next.
5 In the Recovery settings window, select Backup snapshot image and
click Next.
6 Select the backup method.
aUse Backup to HDD to store the backup disk image on drive D:.
bBackup to optical device to store the backup image on CD or DVD.
7 After choosing the backup method, click Next.
Follow the instructions on screen to complete the process.
Restore from backup
You can restore backups previously created (as stated in the Create backup
section) from hard disk, CD or DVD.
1 Boot to Windows XP.
2 Press <Alt> + <F10> to open the Acer eRecovery Management utility.
3 Enter the password to proceed. The default password is six zeros.
4 In the Acer eRecovery Management window, select Recovery actions and
click Next.
5 Select the desired restore action and follow the onscreen instructions to
complete the restore process.
Note: The "Restore C:" item is enabled only if there is a user
backup stored on the hard disk (D:\). Please refer to the Create
backup section.
![](/img.php?id=583648&img=bg3f.png)
55
English
Create factory default image CD
When the System CD and Recovery CD are not available, you can create them by
using this feature.
1 Boot to Windows XP.
2 Press <Alt> + <F10> to open the Acer eRecovery Management utility.
3 Enter the password to proceed. The default password is six zeros.
4 In the Acer eRecovery Management window, select Recovery settings and
click Next.
5 In the Recovery settings window, select Burn image to disk and click Next.
6 In the Burn image to disk window, select 01. Factory default image and
click Next.
7 Follow the instructions on screen to complete the process.
Re-install bundled software without CD
Acer eRecovery Management stores pre-loaded software internally for easy
driver and application re-installation.
1 Boot to Windows XP.
2 Press <Alt> + <F10> to open the Acer eRecovery Management utility.
3 Enter the password to proceed. The default password is six zeros.
4 In the Acer eRecovery Management window, select Recovery actions and
click Next.
5 In the Recovery settings window, select Reinstall applications/drivers and
click Next.
6 Select the desired driver/application and follow the instructions on screen
to re-install.
At first launch, Acer eRecovery Management prepares all the needed software
and may take few seconds to bring up the software content window.
Change password
Acer eRecovery Management and Acer disk-to-disk recovery are protected by a
password that can be changed by the user. Follow the steps below to change
the password in Acer eRecovery Management.
1 Boot to Windows XP.
2 Press <Alt> + <F10> to open the Acer eRecovery Management utility.
3 Enter the password to proceed. The default password is six zeros.
![](/img.php?id=583648&img=bg40.png)
56
English
4 In the Acer eRecovery Management window, select Recovery settings and
click Next.
5 In the Recovery settings window, select Password: Change Acer eRecovery
Management password and click Next.
6 Follow the instructions on screen to complete the process.
Note: If the system crashes, and will not boot to Windows, you can
run Acer disk-to-disk recovery to restore the factory default image
under DOS mode.
![](/img.php?id=583648&img=bg41.png)
57
English
English
Troubleshooting
This chapter shows you how to deal with common system problems.
Read it before calling a technician if a problem occurs. Solutions to more
serious problems require opening up the computer. Do not attempt to open
the computer yourself; contact your dealer or authorized service center
for assistance.
Troubleshooting tips
This notebook PC incorporates an advanced design that delivers onscreen error
message reports to help you solve problems.
If the system reports an error message or an error symptom occurs, see "Error
messages" below. If the problem cannot be resolved, contact your dealer. See
"Requesting service" on page 36.
Error messages
If you receive an error message, note the message and take the corrective
action. The following table lists the error messages in alphabetical order
together with the recommended course of action.
Error messages Corrective action
CMOS battery bad Contact your dealer or an authorized service center.
CMOS checksum error Contact your dealer or an authorized service center.
Disk boot failure Insert a system (bootable) disk into the floppy drive
(A:), then press <Enter> to reboot.
Equipment
configuration error
Press <F2> (during POST) to enter the BIOS utility,
then press Exit in the BIOS utility to reboot.
Hard disk 0 error Contact your dealer or an authorized service center.
Hard disk 0 extended
type error
Contact your dealer or an authorized service center.
I/O parity error Contact your dealer or an authorized service center.
Keyboard error or no
keyboard connected
Contact your dealer or an authorized service center.
Keyboard interface
error
Contact your dealer or an authorized service center.
Memory size mismatch Press <F2> (during POST) to enter the BIOS utility,
then press Exit in the BIOS utility to reboot.
![](/img.php?id=583648&img=bg42.png)
58
English
If you still encounter problems after going through the corrective measures,
please contact your dealer or an authorized service center for assistance. Some
problems may be solved using the BIOS utility.
![](/img.php?id=583648&img=bg43.png)
59
English
English
Regulations and safety notices
ENERGY STAR guidelines compliance
As an ENERGY STAR partner, Acer Inc. has determined that this product meets
the ENERGY STAR guidelines for energy efficiency.
FCC notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the device and receiver.
•Connect the device into an outlet on a circuit different from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables
to maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to
comply with the Class B limits may be attached to this equipment. Operation
with non-certified peripherals is likely to result in interference to radio and TV
reception.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user's authority, which is granted by the Federal Communications
Commission, to operate this computer.
![](/img.php?id=583648&img=bg44.png)
60
English
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numérique de la classe B est conforme a la norme NMB-003 du
Canada.
Declaration of Conformity for EU countries
Hereby, Acer, declares that this notebook PC series is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
(Please visit http://global.acer.com/products/notebook/reg-nb/index.htm for
complete documents.)
Compliant with Russian regulatory certification
Modem notices
Notice for USA
This equipment complies with Part 68 of the FCC rules. Located on the modem is
a label that contains, among other information, the FCC Registration Number
and Ringer Equivalence Number (REN) for this equipment. Upon request, you
must provide this information to your telephone company.
If your telephone equipment causes harm to the telephone network, the
telephone company may discontinue your service temporarily. If possible, they
will notify you in advance. But, if advance notice is not practical, you will be
notified as soon as possible. You will also be informed of your right to file a
complaint with the FCC.
![](/img.php?id=583648&img=bg45.png)
61
English
English
Your telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the proper functioning of your
equipment. If they do, you will be notified in advance to give you an
opportunity to maintain uninterrupted telephone service.
If this equipment should fail to operate properly, disconnect the equipment
from the phone line to determine if it is causing the problem. If the problem is
with the equipment, discontinue use and contact your dealer or vendor.
Caution: To reduce the risk of fire, use only No. 26 AWG or larger
UL Listed or CSA Certified Telecommunication Line Cord.
TBR 21
This equipment has been approved [Council Decision 98/482/EC - "TBR 21"] for
single terminal connection to the Public Switched Telephone Network (PSTN).
However, due to differences between the individual PSTNs provided in different
countries, the approval does not, of itself, give an unconditional assurance of
successful operation on every PSTN termination point. In the event of problems,
you should contact your equipment supplier in the first instance.
List of applicable countries
EU member states as of May 2004 are: Belgium, Denmark, Germany, Greece,
Spain, France, Ireland, Italy, Luxembourg, the Netherlands, Austria, Portugal,
Finland, Sweden, United Kingdom Estonia, Latvia, Lithuania, Poland, Hungary,
Czech Republic, Slovak Republic, Slovenia, Cyprus and Malta. Usage allowed in
the countries of European Union, as well as Norway, Switzerland, Iceland and
Liechtenstein. This device must be used in strict accordance with the regulations
and constraints in the country of use. For further information, please contact
local office in the country of use.
Notice for Australia
For safety reasons, only connect headsets with a telecommunications
compliance label. This includes customer equipment previously labelled
permitted or certified.
![](/img.php?id=583648&img=bg46.png)
62
English
Notice for New Zealand
For modem with approval number PTC 211/03/008
1 The grant of a Telepermit for any item of terminal equipment indicates
only that Telecom has accepted that the item complies with minimum
conditions for connection to its network. It indicates no endorsement of
the product by Telecom, nor does it provide any sort of warranty. Above
all, it provides no assurance that any item will work correctly in all respects
with another item of Telepermitted equipment of a different make or
model, nor does it imply that any product is compatible with all of
Telecom's network services.
2 This equipment is not capable, under all operating conditions, of correct
operation at the higher speeds for which it is designed. Telecom will accept
no responsibility should difficulties arise in such circumstances.
3 Some parameters required for compliance with Telecom's Telepermit
requirements are dependent on the equipment (PC) associated with this
device. The associated equipment shall be set to operate within the
following limits for compliance with Telecom's Specifications:
a There shall be no more than 10 call attempts to the same number
within any 30 minute period for any single manual call initiation, and
b The equipment shall go on-hook for a period of not less than 30
seconds between the end of one attempt and the beginning of the
next call attempt.
4 Some parameters required for compliance with Telecom's Telepermit
requirements are dependent on the equipment (PC) associated with this
device. In order to operate within the limits for compliance with Telecom's
specifications, the associated equipment shall be set to ensure that
automatic calls to different numbers are spaced such that there is not less
than 5 seconds between the end of one call attempt and the beginning
of another.
5 This equipment shall not be set up to make automatic calls to Telecom's
111 Emergency Service.
For modem with approval number PTC 211/01/030
1 The grant of a Telepermit for any item of terminal equipment indicates
only that Telecom has accepted that the item complies with minimum
conditions for connection to its network. It indicates no endorsement of
the product by Telecom, nor does it provide any sort of warranty. Above
all, it provides no assurance that any item will work correctly in all respects
with another item of Telepermitted equipment of a different make or
model, nor does it imply that any product is compatible with all of
Telecom's network services.
2 This equipment is not capable, under all operating conditions, of correct
operation at the higher speeds for which it is designed. Telecom will accept
no responsibility should difficulties arise in such circumstances.
![](/img.php?id=583648&img=bg47.png)
63
English
English
3 This device is equipped with pulse dialing while the Telecom standard is
DTMF tone dialing. There is no guarantee that Telecom lines will always
continue to support pulse dialing.
4 Use of pulse dialing, when this equipment is connected to the same line as
other equipment, may give rise to bell tinkle or noise and may also cause a
false answer condition. Should such problems occur, the user should NOT
contact the telecom Fault Service.
5 This equipment may not provide for the effective hand-over of a call to
another device connected to the same line.
6 Under power failure conditions this appliance may not operate. Please
ensure that a separate telephone, not dependent on local power, is
available for emergency use.
7 Some parameters required for compliance with Telecom's Telepermit
requirements are dependent on the equipment (PC) associated with this
device. The associated equipment shall be set to operate within the
following limits for compliance with Telecom's specifications, the
associated equipment shall be set to ensure that calls are answered
between 3 and 30 seconds of receipt of ringing.
8 This equipment shall not be set up to make automatic calls to Telecom's
111 Emergency Service.
Important safety instructions
Read these instructions carefully. Save them for future reference.
1 Follow all warnings and instructions marked on the product.
2 Unplug this product from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a water-moistened cloth
for cleaning.
3 Do not use this product near water.
4 Do not place this product on an unstable cart, stand or table. If the product
falls, it could be seriously damaged.
5 Slots and openings are provided for ventilation; to ensure reliable
operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should never be placed near or over a radiator or heat
register, or in a built-in installation unless proper ventilation is provided.
6 This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
7 Do not allow anything to rest on the power cord. Do not locate this
product where people will walk on the cord.
![](/img.php?id=583648&img=bg48.png)
64
English
8 If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the
fuse rating.
9 Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind onto or into
the product.
10 Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks. Refer all
servicing to qualified service personnel.
11 Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a When the power cord or plug is damaged or frayed.
b If liquid has been spilled into the product.
c If the product has been exposed to rain or water.
d If the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are covered
by the operating instructions, since improper adjustment of other
controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal condition.
e If the product has been dropped or the case has been damaged.
f If the product exhibits a distinct change in performance, indicating a
need for service.
12 The notebook PC series uses lithium batteries.
Replace the battery with the same type as the product's battery we
recommend in the product specification list. Use of another battery may
present a risk of fire or explosion.
13 Warning! Batteries may explode if not handled properly. Do not
disassemble or dispose of them in fire. Keep them away from children and
dispose of used batteries promptly.
14 To avoid hazard of unexpected electrical shock, use the AC adapter only
when the wall socket is properly grounded.
15 Use only the proper type of power supply cord set (provided in your
accessories box) for this unit. It should be a detachable type: UL listed/CSA
certified, type SPT-2, rated 7 A 125 V minimum, VDE approved or its
equivalent. Maximum length is 4.6 meters (15 feet).
16 Always disconnect all telephone lines from the wall outlet before serving
or disassembling this equipment.
17 Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
![](/img.php?id=583648&img=bg49.png)
65
English
English
Laser compliance statement
The CD or DVD drive used with this computer is a laser product.
The CD or DVD drive's classification label (shown below) is located on the drive.
CLASS 1 LASER PRODUCT
CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE
TO BEAM.
APPAREIL A LASER DE CLASSE 1 PRODUIT
LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS
D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.
LUOKAN 1 LASERLAITE LASER KLASSE 1
VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET
NICHT DEM STRAHLL AUSSETZEN
PRODUCTO LÁSER DE LA CLASE I
ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE EXPONERSE
A LOS RAYOS.
ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.
VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.
VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA
SÅTEESEENSTIRRA EJ IN I STRÅLEN
VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I
STRÅLEN
ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques.
Nevertheless, some pixels may occasionally misfire or appear as black or
red dots. This has no effect on the recorded image and does not constitute
a malfunction.
Macrovision copyright protection notice
This product incorporates copyright protection technology that is protected by
U.S. patents and other intellectual property rights. Use of this copyright
protection technology must be authorized by Macrovision, and is intended for
home and other limited viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is prohibited.
![](/img.php?id=583648&img=bg4a.png)
66
English
Radio device regulatory notice
Note: Below regulatory information is for models with wireless
LAN and/or Bluetooth only.
General
This product complies with the radio frequency and safety standards of any
country or region in which it has been approved for wireless use. Depending on
configurations, this product may or may not contain wireless radio devices (such
as wireless LAN and/or Bluetooth modules). Below information is for products
with such devices.
European Union (EU)
This device complies with the essential requirements of the European Council
Directives listed below:
73/23/EEC Low Voltage Directive
•EN 60950
89/336/EEC Electromagnetic Compatibility (EMC) Directive
•EN 55022
•EN 55024
•EN 61000-3-2/-3
99/5/EC Radio & Telecommunications Terminal Equipment (R&TTE) Directive
•Art.3.1a) EN 60950
•Art.3.1b) EN 301 489 -1/-17
•Art.3.2) EN 300 328-2
•Art.3.2) EN 301 893 *applies to 5 GHz only
![](/img.php?id=583648&img=bg4b.png)
67
English
English
List of applicable countries
EU member states as of May 2004 are: Belgium, Denmark, Germany, Greece,
Spain, France, Ireland, Italy, Luxembourg, the Netherlands, Austria, Portugal,
Finland, Sweden, United Kingdom Estonia, Latvia, Lithuania, Poland, Hungary,
Czech Republic, Slovak Republic, Slovenia, Cyprus and Malta. Usage allowed in
the countries of European Union, as well as Norway, Switzerland, Iceland and
Liechtenstein. This device must be used in strict accordance with the regulations
and constraints in the country of use. For further information, please contact
local office in the country of use.
FCC Warning statement:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•-Reorient or relocate the receiving antenna.
•-Increase the separation between the equipment and receiver.
•-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•-Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement:
1, This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
2, This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. To maintain compliance with FCC RF exposure
compliance requirements, avoid direct contact to the transmitting antenna
during transmitting.
![](/img.php?id=583648&img=bg4c.png)
68
English
IC Warning statement:
a.WLAN
To prevent radio interference to the licensed service, this device is intended to
be operated indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing.
b.For LPD
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canada RSS-210.
Cet appareil numrique de la classe B est conforme la norme CNR-210 du Canada
The abbreviation, IC, before the registration number signifies that registration
was performed based on a Declaration of Conformity indicating that Industry
Canada technical specifications were met. It does not imply that Industry
Canada approved the equipment. (DoC)
The term IC: before the certification/registration number only signifies that the
Industry Canada technical specifications were met.
![](/img.php?id=583648&img=bg4d.png)
69
English
English
![](/img.php?id=583648&img=bg4e.png)
70
English
![](/img.php?id=583648&img=bg4f.png)
71
English
Index
A
AC adapter
caring for v
audio 28
adjusting the volume 28
troubleshooting 34
B
battery pack
caring for vi
BIOS utility 51
brightness
hotkeys 25
C
caps lock 23
on indicator 19
care
AC adapter v
battery pack vi
computer v
CD-ROM
ejecting 27
ejecting manually 34
troubleshooting 34
cleaning
computer vi
computer
caring for v
cleaning vi
disconnecting 40
features 9, 29
indicators 19
keyboards 23
on indicator 11, 19
security 43
setting up a home office 42
taking home 41
traveling internationally 43
traveling on local trips 42
troubleshooting 57
turning off v
connections
network 47
D
display
hotkeys 25
troubleshooting 33
DVD 52
DVD movies
playing 52
E
error messages 57
Euro 26
F
FAQ. See frequently-asked questions
frequently-asked questions 33
front view 11
H
Hibernation mode
hotkey 25
hotkeys 24
I
IEEE 1394 port 48
indicator lights 19
infrared 47
K
keyboard 23
embedded numeric keypad 23
hotkeys 24
lock keys 23
troubleshooting 34
Windows keys 24
L
LEDs 19
left view 11
M
media access
on indicator 19
memory
installing 50– 51
messages
error 57
modem 46
N
network 47
![](/img.php?id=583648&img=bg50.png)
72
English
Notebook Manager
hotkey 25
num lock 23
on indicator 19
numeric keypad
embedded 23
P
password 44
types 44
PC Card 49
ejecting 50
inserting 50
ports 46
printer
troubleshooting 34
problems 33
CD-ROM 34
display 33
keyboard 34
printer 34
startup 33
troubleshooting 57
Q
questions
setting location for modem use
35
S
safety
CD or DVD 65
FCC notice 59
general instructions 63
modem notices 60
scroll lock 23
security
keylock 27, 44
passwords 44
speakers
hotkey 25
troubleshooting 34
status indicators 19
support
information 36
T
touchpad 21
hotkey 25
using 21– 22
travel
international flights 43
local trips 42
troubleshooting 57
tips 57
U
universal serial bus 48
V
view
front 12
left 12
rear 14
right 13
volume
adjusting 28
W
Windows keys 24
