Quick Guide

BA01_QG.indd 1 2009/2/27 下午 05:22:31

2

Series

Copyright © 2009. Acer Incorporated.

All Rights Reserved.

Aspire one Series Quick Guide

Original Issue: 02/2009

Changes may be made periodically to the information in this publication without obligation to notify any person of such

revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and

publications.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The

serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit

should include the serial number, model number and purchase information.

Acer’s liability with respect to this booklet is subject to any limitation of liability set out in the applicable product warranty.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,

electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for

identification purposes only and belong to their respective companies.

Aspire one Series Notebook PC

BA01_QG.indd 2 2009/2/27 下午 05:22:31

3

Quick Guide

Federal Communications Commission

Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) This device must accept any interference received, including interference that may cause

undesired operation.

The following local manufacturer/importer is responsible for this declaration:

Product name: Notebook PC

Model number: ZG8

Machine type: Aspire one

SKU number: Aspire one-xxxxx ("x" = 0 - 9, a - z, or A - Z)

Name of responsible party: Acer America Corporation

Address of responsible party: 333 West San Carlos St. San Jose, CA 95110 USA

Contact person: Acer Representative

Tel: 1-254-298-4000

Fax: 1-254-298-4147

BA01_QG.indd 3 2009/2/27 下午 05:22:31

4

Series

CE Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan

Contact Person: Mr. Easy Lai

Tel: 886-2-8691-3089 Fax: 886-2-8691-3120

E-mail: easy_lai@acer.com.tw

Hereby declare that:

Product: Notebook PC Trade name: Acer

Model number: ZG8 Machine type: Aspire one

SKU number: Aspire one-xxxxx ("x" = 0 - 9, a - z, or A - Z)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the

necessary steps have been taken and are in force to assure that production units of the same product will continue comply with

the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022:2006,AS/NZSCISPR22:2006,ClassB

• EN55024:1998+A1:2001+A2:2003

• EN55013:2001+A1:2003+A2:2006(ApplicabletoproductbuiltwithTVtunermodule)

• EN55020:2007(ApplicabletoproductbuiltwithTVtunermodule)

• EN61000-3-2:2006,ClassD

• EN61000-3-3:1995+A1:2001+A2:2005

LowVoltageDirective2006/95/ECasattestedbyconformitywiththefollowingharmonizedstandard:

• EN60950-1:2001+A11:2004

• EN60065:2002+A1:2006(ApplicabletoproductbuiltwithTVtunermodule)

BA01_QG.indd 4 2009/2/27 下午 05:22:32

5

Quick Guide

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article3.1(a)HealthandSafety

- EN60950-1:2001+A11:2004

- EN50371:2002

• Article3.1(b)EMC

- EN301489-1V1.6.1

- EN301489-3V1.4.1(Applicabletonon-bluetoothwirelesskeyboardmouseset).

- EN301489-17V1.2.1

• Article3.2SpectrumUsages

- EN300440-2V1.1.2(Applicabletonon-bluetoothwirelesskeyboardmouseset).

- EN300328V1.7.1

- EN301893V1.4.1(Applicableto5GHzhighperformanceRLAN).

Easy Lai /Manager

Regulation Center, Acer Inc.

Feb. 20, 2009

Date

Year to begin affixing CE marking 2009.

BA01_QG.indd 5 2009/2/27 下午 05:22:32

6

Series

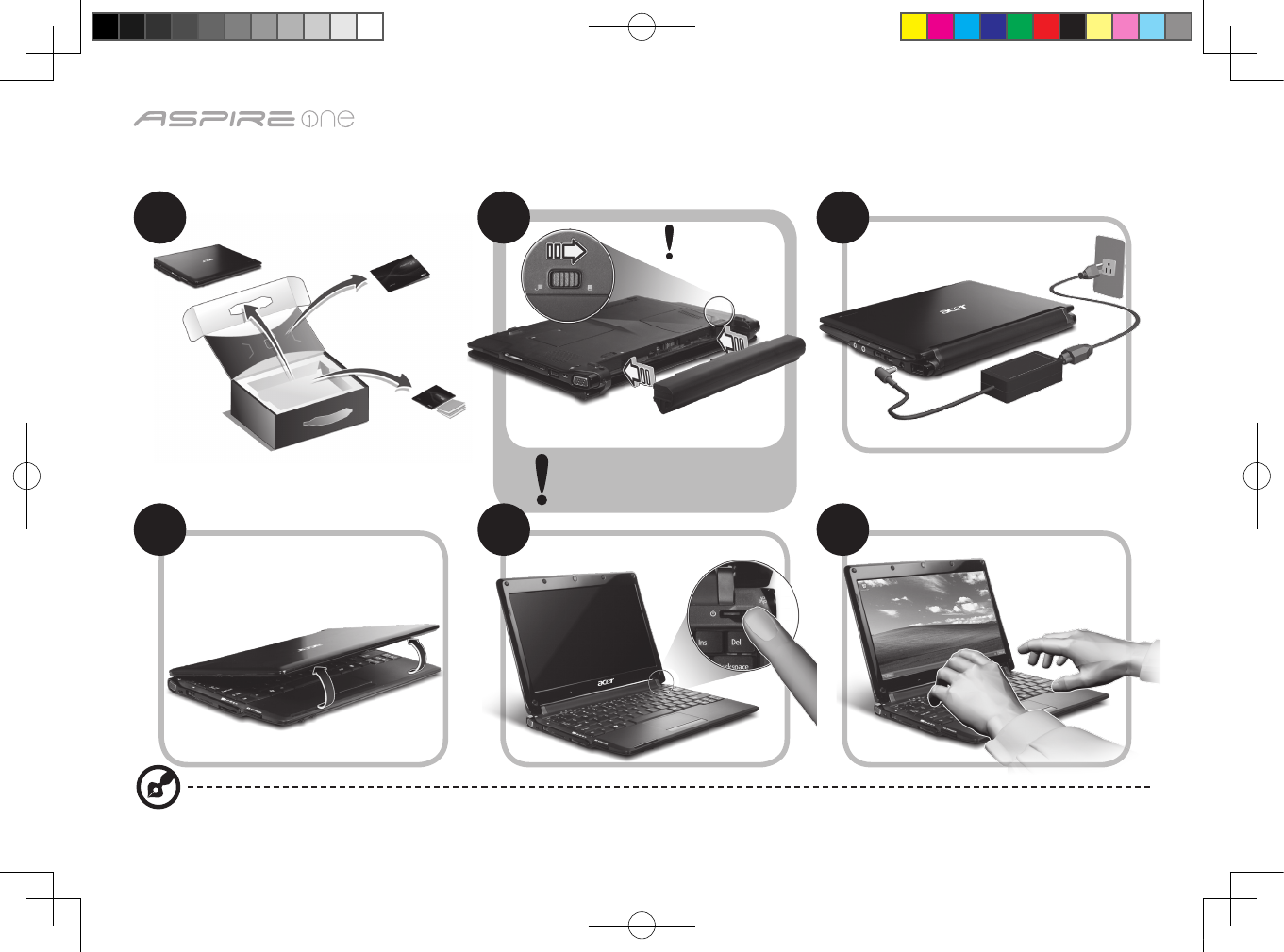

Just for starters

1 2 3

4 5 6

3-1 3-2

3-3

2-1

2-2

Illustrations are for reference only. Actual product specifications may vary.

Ensure that the battery is

probably locked in place, as

illustrated in 2-2.

BA01_QG.indd 6 2009/2/27 下午 05:22:38

7

Quick Guide

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides*:

First off, the Quick Guide helps you get started with setting up your computer.

For more on how your computer can help you to be more productive, please refer to the AcerSystem User Guide. This guide

contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In

addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in

Portable Document Format (PDF) and comes preloaded on your notebook.

Note:ViewingthefilerequiresAdobeReader.IfAdobeReaderisnotinstalledonyourcomputer,clickingonAcerSystem

User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the

installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

* IMPORTANT NOTICE: Please note that the guides mentioned herein, whether in printed or electronic form, are for your

reference only and except as provided in the specific warranty information contained in the AcerSystem User Guide

nothing contained in these guides shall constitute a representation or warranty by Acer with regard to the product you

purchased. Acer expressly disclaims any liability for errors contained in the guides.

BA01_QG.indd 7 2009/2/27 下午 05:22:38

8

Series

Network configuration

This guide will help you configure your LAN and wireless network settings to enable you to connect to the Internet.

Setting up LAN connection

Simply plug in the LAN cable to the Ethernet (RJ-45) port. Please refer to "Right view" on page 11 for the location of the

Ethernet port.

Setting up wireless connection

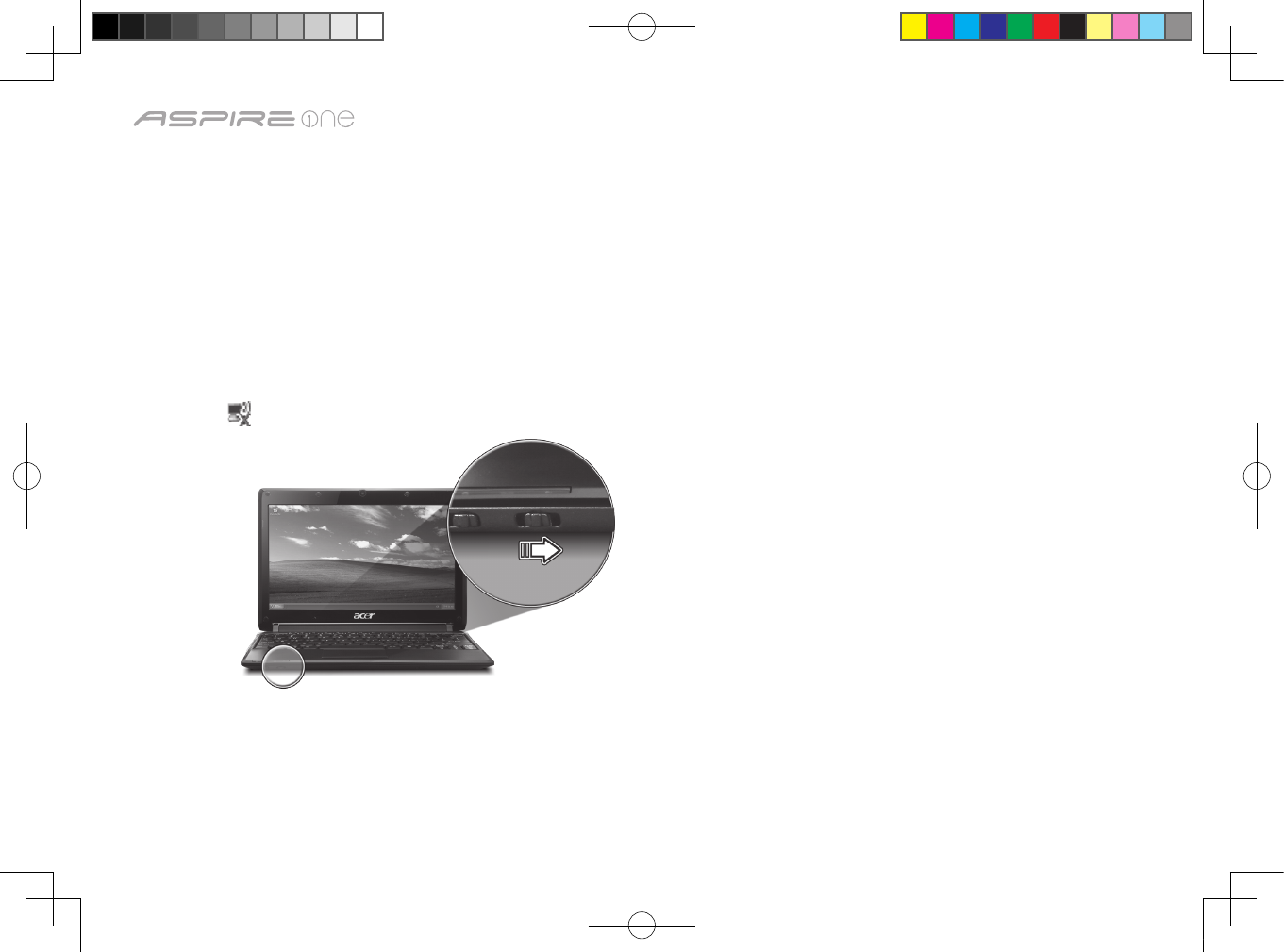

1. Please switch on the wireless LAN using the switch on the front of your Aspire one.

2. Click the icon on your system tray and choose the wireless access point you want to connect to.

Insert a 3G SIM card (only for certain models)

Remove the battery and carefully insert a 3G SIM card into the 3G SIM card slot. Please refer to "Base view" on page 11 for the

location of the 3G SIM card slot.

BA01_QG.indd 8 2009/2/27 下午 05:22:39

Quick Guide

9

Your Aspire one tour

After setting up your computer as illustrated in the Just

for Starters section, let us show you around your new Acer

notebook.

Top view

# Icon Item Description

1Acer Crystal Eye

webcam

Web camera for video

communication

2Display screen Also called Liquid-Crystal Display

(LCD), displays computer output.

3Microphone Internal microphone for sound

recording.

4Status indicators Light-Emitting Diodes (LED) that

light up to show the status of

the computer's functions and

components.

5Keyboard For entering data into your

computer.

6Touchpad Touch-sensitive pointing device

which functions like a computer

mouse.

7Battery/

Bluetooth/3G/

Wireless LAN

communication

indicator

IndicatesthestatusofBattery/

Bluetooth/3G/WirelessLAN

communication.

(only for certain models)

8Click buttons

(left, and right)

The left and right buttons function

like the left and right mouse

buttons.

9Power button/

indicator

Turns the computer on and off.

BA01_QG.indd 9 2009/2/27 下午 05:22:44

10

Series

Closed front view

# Icon Item Description

1Bluetooth

communication

switch

Enables/disablestheBluetoothfunction.

23G/Wireless LAN

communication

switch

Enables/disables the 3G/Wireless LAN

function.

Left view

3External display

(VGA)port

Connects to a display device (e.g., external

monitor, LCD projector).

4Kensington lock slot Connects to a Kensington-compatible

computer security lock.

5USB2.0port ConnectstoUSB2.0devices(e.g.,USB

mouse).

6Ventilationslotsand

cooling fan

Enable the computer to stay cool, even

after prolonged use.

Note: Do not cover or obstruct the opening

of the fan.

7Multi-in-one card

reader

Accepts Secure Digital (SD),

MultiMediaCard (MMC), Memory Stick

(MS), Memory Stick PRO (MS PRO), xD-

Picture Card (xD).

Note: Push to remove/install the card. Only

one card can operate at any given time.

8SD Expansion slot Accepts Secure Digital (SD) Card.

Note: Push to remove/install the card.

BA01_QG.indd 10 2009/2/27 下午 05:22:48

Quick Guide

11

Right view

# Icon Item Description

9Headphone/speaker/

line-out jack

Connects to line-out audio devices (e.g.,

speakers, headphones).

10 Microphone-in jack Accepts input from external microphones.

11 USB2.0port ConnectstoUSB2.0devices(e.g.,USB

mouse).

12 DC-in jack Connects to an AC adapter.

13 Ethernet (RJ-45) port Connects to an Ethernet 10/100-based

network.

Rear & Base view

14 Batterybay Houses the computer's battery pack.

Note: The battery shown is for reference

only. Your PC may have a different battery,

depending on the model purchased.

15 3G SIM card slot Accepts a 3G SIM card for 3G connectivity.

Note: Insert a 3G SIM card to enable 3G

communication. The SIM card connectors

need to face away from the cover.

(Only for certain models)

16 Batteryreleaselatch Releases the battery for removal.

17 WirelessLANBay Houses the computer's Wireless LAN

module.

18 Ventilationslotsand/

or cooling fan

Enables the computer to stay cool, even

after prolonged use.

Note: Do not cover or obstruct the opening

of the fan.

19 Memory

compartment

Houses the computer's main memory.

20 Batterylock Locks the battery in position.

BA01_QG.indd 11 2009/2/27 下午 05:22:55

12

Series

Specifications

Item Description

Operating system Genuine Windows® XP Home (Service Pack 3)

Platform Intel® Atom™ processor

Mobile Intel® 945GSE Express Chipset

Mobile Intel®82801GBMChipset

Acer InviLink™ 802.11b/g

System memory Single channel with one soDIMM slot

•DDR2533/667MHzSDRAMmemory

interface design

•soDIMMslot:Supports512MB/1GB/2

GBsoDIMMsfortotalsystemmemoryof

upto2GB

Display 10.1"WSVGAhigh-brightness (typical 180-nit)

AcerCrystalBrite™ TFT LCD, 1024 x 600 pixel

resolution

Graphics Mobile Intel® 945GSE Express Chipset

Storage 2.5"9.5mm160GBorlargerharddisk

drive

Multi-in-1 card reader

SD card reader

Audio High-definition audio support

Two built-in stereo speakers

MS-Sound compatible

Built-indigitalmicrophone

Communication Integrated Acer Crystal Eye webcam,

supporting 0.3-megapixel resolution

WLAN: Acer InviLink™ 802.11b/g Wi-Fi

CERTIFIED® network connection, supporting

Acer SignalUp™ wireless technology

LAN: 10/100 Mbps Fast Ethernet

WPAN:Bluetooth®2.0+EDR

Communication WWAN: UMTS/HSPA at 900 /2100 MHz and

quad-band GSM/GPRS/EDGE (850/900/1800/1900

MHz)(for 3G models with the GTM382E module)

WWAN: UMTS/HSPA at 850/1900/2100

MHz and quad-band GSM/GPRS/EDGE

(850/900/1800/1900 MHz)(for 3G models with the Gobi™

1000 module)

Privacy control BIOSuser,supervisor,HDDpasswords

Kensington lock slot

Dimensions and

weight

255 (W) x 183 (D) x 19/26.9 (H) mm (10.04 x

7.2x 0.75 / 1.06 inches)

1 kg (2.2 lbs.) with 3-cell battery pack

1.15 kg (2.53 lbs.) with 6-cell battery pack

Power 24.4 W 2200 mAh 3-cell Li-ion battery pack

•3-hourbatterylife

57.7 W 5200 mAh 6-cell Li-ion battery pack

•7-hourbatterylife

ENERGY STAR® 4.0

Input devices 84-key keyboard with 1.6 mm (minimum) key

travel

Touchpad pointing device with two buttons

I/O Multi-in-1 card reader

ThreeUSB2.0ports

Externaldisplay(VGA)port

Headphone/speaker/line-out jack

Microphone-in jack

Ethernet (RJ-45) port

DC-in jack for AC adapter

Environment Temperature:

Operating: 5 °C to 35 °C

Non-operating: -20 °C to 65 °C

Humidity (non-condensing):

Operating: 20% to 80%

Non-operating: 20% to 80%

Note: The specifications listed above are for reference only. The exact configuration of your

PC depends on the model purchased.

BA01_QG.indd 12 2009/2/27 下午 05:22:55
