Preface

This manual is designed to assist users in setting up and using the LCD Monitor. Information in

this document has been carefully checked for accuracy; however, no guarantee is given to the

correctness of the contents. The information in this document is subject to change without notice.

This document contains proprietary information protected by copyright. All rights are reserved. No

part of this manual may be reproduced by any mechanical, electronic or other means, in any form,

without prior written permission of the manufacturer.

FCC Statement Warning

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy, and if not installed and used in accordance with the instruction, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the manufacturers may void the user's

authority to operate this equipment.

NOTE

A shielded-type signal cord is required in order to meet the FCC emission limits and also to prevent

interference to the radio and television reception. It is essential that only the supplied signal cord be

used.

Canadian DOC Notice

3

ENGLISH

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la classe B repecte toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

Important Safety Instructions

Please read the following instructions carefully. This manual should be retained for future use.

1. To clean LCD Monitor screen;

-- Power off LCD Monitor and unplug the AC Cord.

-- Spray a non-solvent cleaning solution onto a rag.

-- Gently clean the screen with dampened rag.

2. Do not place the LCD Monitor near a window. Exposing the monitor to rain water, moisture or

sunlight can severely damage it.

3. Do not apply pressure to the LCD screen. Excess pressure may cause permanent damage to the

display.

4. Do not remove the cover or attempt to service this unit by yourself. Servicing of any nature

should be performed by an authorized technician.

5. Store LCD Monitor in a room with a room temperature of -20° ~ 60°C (or -4° ~ 140°F). Storing

the LCD Monitor outside this range could result in permanent damage.

6. If any of the following occurs, immediately unplug your monitor and call an authorized

technician.

* Monitor to PC signal cable is frayed or damaged.

* Liquid spilled into LCD Monitor or the monitor has been exposed to rain.

* LCD Monitor or the case is damaged.

7. A certified line is required to connect this device to a power outlet. For a nominal current up to

6A and a device weight above 3 kg, a line not lighter than H05VV-F, 3G, 0.75 mm2 must be used.

8. For use only with power supply type: Li-shin, LSE 9802A1240

4

ENGLISH

Chapter 1 Installation

Unpacking

Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer.

You need a stable and clean surface near a wall power outlet. Make sure that LCD Monitor has

enough space around it for sufficient airflow. Though the LCD Monitor uses very little power,

some ventilation is needed to ensure that the Monitor does not become too hot.

After you unpack the LCD Monitor, make sure that the following items were included in the box:

* LCD Monitor * AC Adapter

* 1.5M Monitor-to-PC signal Cable * 1.8M Power Cord

* User's Manual * Base

If you find that any of these items is missing or appears damaged, contact your dealer immediately.

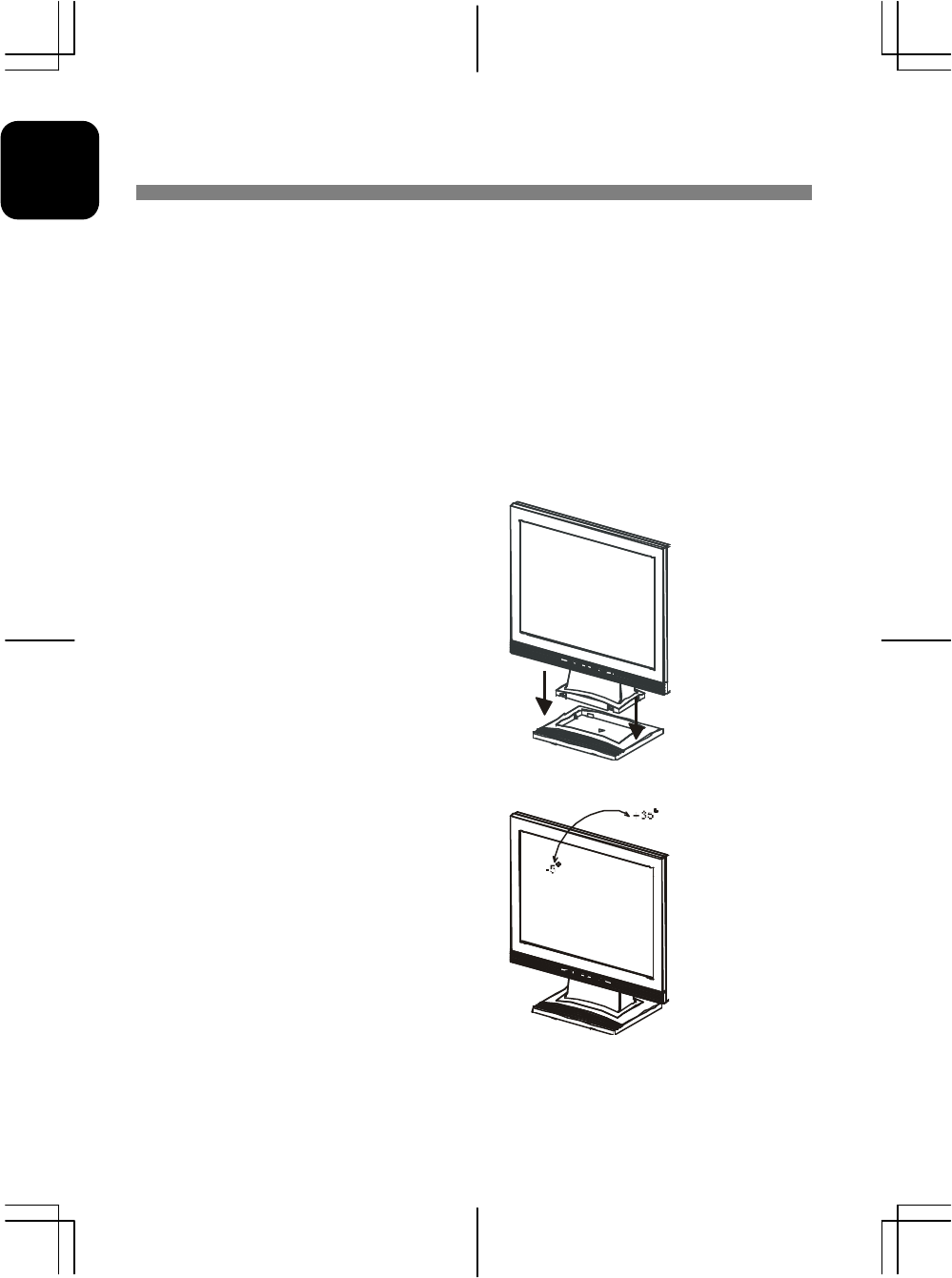

Connecting the LCD Monitor and Base

When you open the box to take the base

and put on the desk first. Then connect

the LCD Monitor and base please.(See

fig.1-1 )

Figure 1-1

Viewing Angle Adjustment

The LCD Monitor is designed to allow

users to have a comfortable viewing

angle. The viewing angle can be adjusted

from -5°to +35°.(See fig. 1-2)

Figure 1-2

Warning

Do not force the LCD Monitor over its maximum viewing angle settings as stated above. Attempting

this will result in damaging the Monitor and Monitor stand.

5

ENGLISH

Detaching LCD Monitor from Its Stand

1. Unscrew screws of the hinge bracket

2. Remove the stand from LCD monitor

(See fig. 1-3)

Figure 1-3

Interface for Arm Applications

Before installing to mounting device, please refer

to Fig.1-3.

The rear of this LCD display has four integrated

4 mm, 0.7 pitches threaded nuts, as well as four

5 mm access holes in the plastic covering as

illustrated in Figure 1-4. These specifications

meet the VESA Flat Panel Monitor Physical

Mounting Interface Standard (paragraphs 2.1

and 2.1.3, version 1, dated 13 November 1997).

Figure 1-4

Connecting the Display to your Computer

1. Power off your computer.

2.

Connect one end of the signal cable to the

LCD Monitor's VGA port. (See Fig. 1-5)

3.

Connect the other end of the signal cable to

the VGA port on your PC.

4. Make sure both connections are secure.

Figure 1-5

Attention

This device must be connected to an off-the-shelf video cable in order to comply with FCC

regulations. A ferrite-core interface cable is included in the LCD Monitor package.

This device will not be in compliance with FCC regulations when a non-ferrite-core video cable is

6

ENGLISH

used.

7

ENGLISH

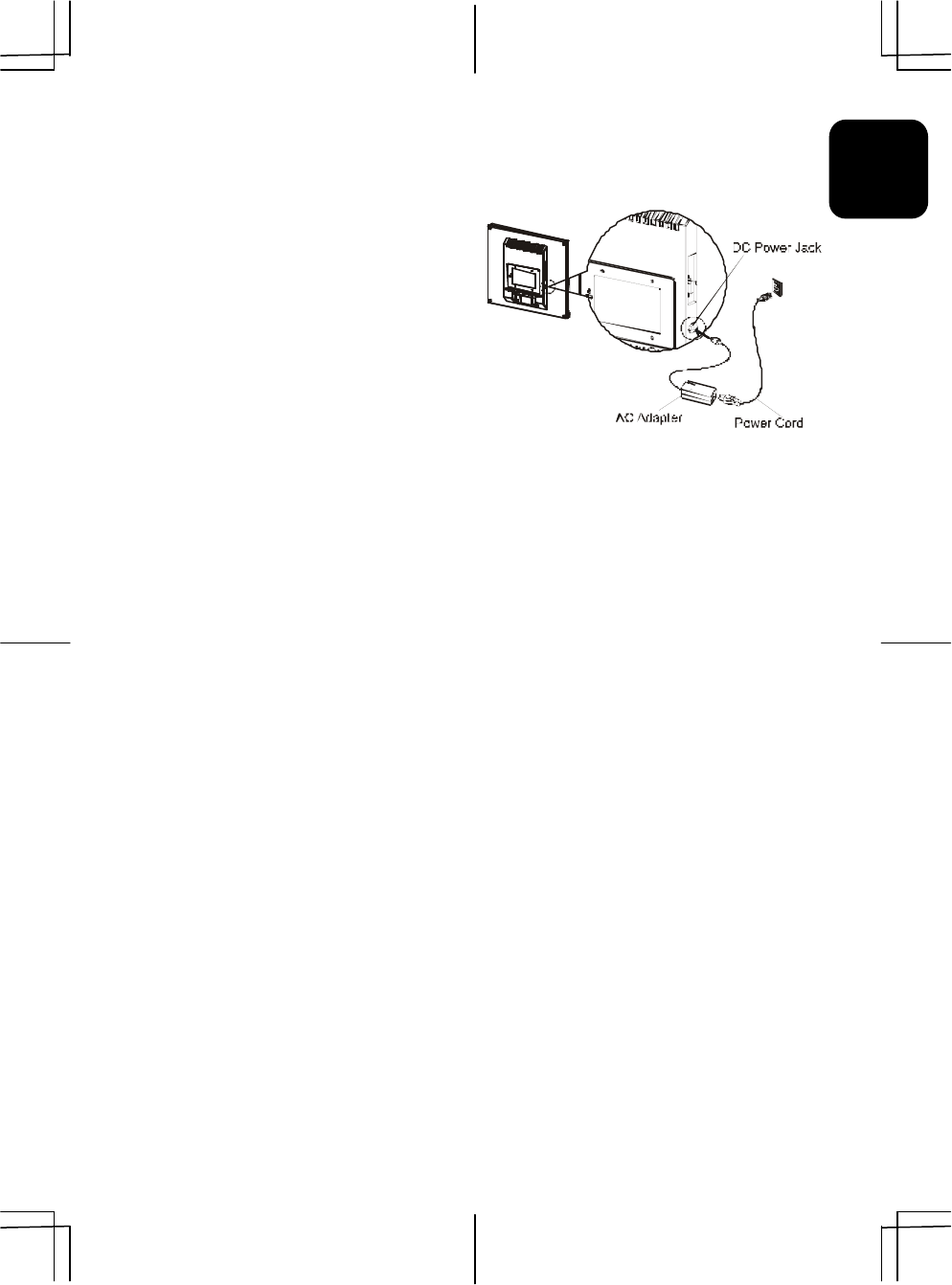

Connecting the AC Power

1. Connect the power cord to the AC adapter.

(See Fig. 1-6)

2. Connect the AC adapter's DC output

connector to the DC Power Jack of the

monitor.

3. Connect the power cord to an AC power

source.

Figure 1-6

Warning

We recommand to install a "Surge Protector" device between the AC Adapter and the electrical wall

outlet for adding protection against power surges to prevent the effects of sudden voltage variations

from reaching the LCD Monitor. Sudden power surges may damage your monitor.

Setting Up the LCD Monitor

1. Make sure the AC Adapter is connected to the LCD Monitor.

2. Turn on the LCD Monitor's power switch, located on the bezel of the monitor.

Power Management System

This LCD Monitor complies with the VESA DPMS (version 1.0) Power Management guidelines.

The VESA DPMS provides four power saving modes through detecting a horizontal or vertical

sync. signal.

When the LCD Monitor is in power saving mode, the monitor screen will be blank and the power

LED indicator will light yellow.

8

ENGLISH

Chapter 2 Display Controls

User Controls

A brief description and the location of all LCD Monitor function controls and indicators:

Figure 2-1

1

DC Power Switch Press the power switch to switch the monitor ON/OFF.

2

DC Power-On

Indicator

LED lights Green color --- Power is ON.

LED lights Yellow --- Monitor is in "Power Saving Mode".

LED is off --- Power is OFF.

3

Function Select

Buttons

Press either left or right control button for OSD (On Screen

Display) menu selection.

4

Adjustment Control

Buttons

Press the left button to decrease the OSD setting and press the

right button to increase the OSD setting.

Adjusting the Monitor's Display

The monitor has four function control buttons to select among functions shown on

OSD menu, designed for easy user-viewing environments.

OSD Function Menu

To access OSD Main menu, simply press

one of the Function Select c

ontrol buttons,

and the menu diagram will pop up on the

screen as shown on Fig. 2-2:

Continue pressing the Function Select

buttons to scroll through the entire menu

items ,then press Adjustment Control

buttons to adjust content of selected item.

Figure 2-2

Attention

Firmware revision may have been updated into a latest version while the version number shown on

9

ENGLISH

all OSD menus in this manual will stay as Ver. 1.00.

10

ENGLISH

Function Description

Icon

Function Function Description

Brightness This function increases or decreases the brightness of the image.

Contrast This function increases or decreases the difference between the dark

and light color.

H-Position This function shifts the entire display image left or right.

V-Position This function shifts the entire display image up or down.

Phase A total of 32 scales (0 to 31) are available to adjust the focus and

clarity of the display.

Clock

This function carries a frequency tracking feature that offers the user

to have better stability and clarity. Increasing Clock value can be up to

+50 scales. The number of decreasing Clock (minus) is depend on the

input timing.

Auto Adjustment

This function will adjust the display size automatically to fit full

screen.

OSD H-Position

This function moves the OSD menu window left or right.

OSD V-Position

This function moves the OSD menu window up or down.

Graph Text

This function is to choose a display that allows maximum graphics text

quality. The resolution selection can either be 640 x 400 or

720 x 400. Please refer to Chapter 3 “ Standard Timing” Table for of

different timing modes.

Recall The recall function will return all adjusted parameters to factory preset

values.

Language

Five OSD language options are available:

English, German, French, Spanish and Italian.

Press the left or right Adjustment Control button to select other

language.

Color management

Hue:100 scales of hue are available to adjust hue from green to red.

Saturation:100 scales of saturation are available to choose from 0 to

100. Color Temp.: Push the (+ -) button to select a different color

temperature. Please see the diagram below for function and description.

Save Exit Saves the values of this setting and exits the OSD menu function.

Icon Function Description

9300

CIE coordinated Color Temperature of

9300°K

Sets the CIE coordinate color

temperature to 9300°K

6500

CIE coordinated Color Temperature of

6500°K

Sets the CIE coordinate color

temperature to 6500°K

11

ENGLISH

User

Three colors (Red, Green, Blue) can be

adjusted from the OSD menu

Sets the settings to a by user defined

CIE Temperature.

12

ENGLISH

Chapter 3 Technical Information

Specifications

LCD Panel Hannstar AU

Size 15.0" (38 cm) 15.0" (38 cm)

Display Type Active matrix color TFT LCD

Active matrix color TFT LCD

Resolution 1024 x 768 1024 x 768

Display Dot 1024 x (RGB) x 768 1024 x (RGB) x 768

Display Area (mm) 304 x 228 (H x V) 304 x 228 (H x V)

Display Color 262K 262K

Brightness 200 cd/m2 (typical) 200 cd/m2 (typical)

Contrast Ratio 300: 1 (typical) 350: 1 (typical)

Response Time (15 + 35) ms (typical) 30 ms (Tr+Tf) (typical)

Lamp Voltage 640 Vrms (typical) 630 Vrms (typical)

Lamp Current 6.0 mA rms. (typical) 6.5 mA rms. (typical)

Viewing Angle

Vertical: -45° ~ +40°

Horizontal: -60° ~ +60°

Vertical: -60° ~ +40°

Horizontal: -60° ~ +60°

Display Colors 16.7M with FRC or Dithering

Video

Input Signal

Input Impedance

Polarity

Amplitude

Multi-mode Supported

Analog RGB 0.7Vp -p

75 Ohm ± 2%

Positive

0 - 0.7 ± 0.05 Vp

Horizontal Frequency: 24 ~ 61 KHz

Vertical Frequency: 56 ~ 75 Hz

Control

Power On/Off switch with LED indicator

OSD

Brightness

Contrast

Horizontal Position

Vertical Position

Phase

Clock

Display Mode Setup

Digital

Digital

Digital

Digital

Digital

Digital

Use EEPROM to save settings in memory

13

ENGLISH

OSD Format 20 characters x 9 rows

14

ENGLISH

Power Management

Mode Power

Consumption* AC Input LED Color

On 25W maximum 240 VAC Green

Standby 5W maximum 240 VAC Yellow

Suspend 5W maximum 240 VAC Yellow

Off 5W maximum 240 VAC Yellow

DC Power Off 5W maximum 240 VAC Dark

Disconnected 5W maximum 240 VAC Yellow: Standby, Suspend, Off

Dark: DC Power off

* Meeting VESA DPMS requirements measured from AC Input end of AC adapter.

Sync Input

Signal Separate TTL compatible horizontal and vertical synchronization

Polarity Positive and negative

Plug & Play Supports VESA DDC1 and DDC2B functions

External Connection

Power Input (DC input) +12 VDC / 2.5A min. input through AC/DC adapter

Video Cable 1.5M with 15-pin D-sub connector

Environment

Operating Condition:

Temperature 5°C to 40°C/41°F to 104°F

Relative Humidity 20% to 80%

Storage Condition:

Temperature -20°C to 60° C/-4°F to140° F

Relative Humidity 5% to 85%

Power Supply (AC Adapter)

Input Voltage Single phase, 100 ~ 240VAC, 50 / 60 Hz

Input Current 1.5 A maximum

Size and Weight

Dimensions 349.6 (W) x 371.5 (H) x 158 (D) mm

15

ENGLISH

Net Weight 3.2 ± 0.3 kg

Gross Weight 4.7 ± 0.3 kg

Pin Assignment

Signal Signal

PIN

Description PIN Description

1

5

6

10

11

15

1

2

3

4

5

6

7

8

Red

Green

Blue

Digital GND

Digital GND

Red Rtn

Green Rtn

Blue Rtn

9

10

11

12

13

14

15

+5V

NC

Digital GND

SDA

H. Sync.

V. Sync.

SCL

Standard Timing Table

If the selected timing is NOT included in table below, this LCD monitor will use the most suitable

available timing.

Resolution H. Freq.

(KHz)

V. Freq.

(Hz)

Pixel Freq.

(MHz)

H/V Sync.

Polarity Mode

640 x 350 31.469 70.087 25.175 +/- VGA-350

640 x 400 24.830 56.420 21.050 -/- NEC PC9801

640 x 400 31.469 70.087 25.175 -/+,-/- VGA-400-GRAPH

NEC PC9821

640 x 480 31.469 59.940 25.175 -/- VGA-480

640 x 480 37.861 72.809 31.500 -/- VESA - 480 - 72Hz

640 x 480 37.500 75.000 31.500 -/- VESA - 480 - 75Hz

720 x 400 31.469 70.087 28.322 -/+ VESA-400-TEXT

800 x 600 35.156 56.250 36.000 +/+ SVGA

800 x 600 37.879 60.317 40.000 +/+ VESA-600-60 Hz

800 x 600 48.077 72.188 50.000 +/+ VESA-600-72 Hz

800 x 600 46.875 75.000 49.500 +/+ VESA-600-75 Hz

832 x 624 49.725 74.55 57.2832 -/- APPLE MAC-800

1024x 768 48.363 60.004 65.000 -/- XGA

16

ENGLISH

1024x 768 53.964 66.132 71.664 +/+ COMPAQ-XGA

1024x 768 56.476 70.069 75.000 -/- VESA-768-70 Hz

1024x 768 60.023 75.029 78.750 +/+ VESA-768-75 Hz

17

ENGLISH

Troubleshooting

This LCD Monitor has pre-adjusted using factory standard VGA timings. Due to the output timing

differences among various VGA cards in the market, users may initially experience an unstable or

unclear display whenever a new display mode or new VGA card is selected.

Attention

This LCD Monitor Supports Multiple VGA Modes.

Refer to the Standard Timing Table for a listing of modes supported by this LCD Monitor.

PROBLEM Picture is unclear and unstable

The picture is unclear and unstable, please perform the following steps :

1. Enter PC to “Shut Down Windows” status while you’r e in MS-Windows environment.

2. Check the screen to see if there’s any black vertical stripes appear. If there are, take advantage of

the “Clock” function in OSD menu and adjust (by increment or decrement numbers) until those

bars disappear.

3. Move to “Phase” function in OSD menu again and adjust the monitor screen to its most clear

display.

4. Click “No” on “Shut Down Windows” and back to the normal PC operating environment.

PROBLEM There is no picture on LCD Monitor

If there’s no picture on the LCD Monitor, please perform the following steps:

1. Make sure the power indicator on the LCD Monitor is ON, all connections are secured, and the

system is running on the correct timing. Refer to Chapter 3 for information on timing.

2. Turn off the LCD Monitor and then turn it back on again. If there is still no picture, press the

Adjustment Control button several times.

3. If step 2 doesn’t work, connect your PC system to another external CRT. If your PC system

Functions properly with a CRT Monitor but it does not function with the LCD Monitor, the

output timing of the VGA card may be out of the LCD’s synchronous range. Please change to

an alternative mode listed in the Standard Timing Table or replace the VGA card, and then repeat

steps 1 and 2.

PROBLEM There is no picture on LCD Monitor

If you have chosen an output timing that is outside of the LCD Monitor’s synchronous range

(Horizontal: 24 ~ 61 KHz and Vertical: 56 ~ 75 Hz), the OSD will display a “Out of Range”

message. Choose a mode that is supported by your LCD Monitor.

Also, if the signal cable is not connected to LCD monitor at all or properly, the monitor screen will

display a message “No Input Signal”.
