Travel Mate 720

Service Guide

PART NO.: 49.42C01.001

DOC. NO.: SG295-9803A PRINTED IN TAIWAN

Service guide files and updates are available

on the AIPG/CSD web; for more information,

please refer to http://csd.acer.com.tw

720.book Page I Saturday, March 6, 1999 10:00 AM

II

Copyright

Copyright © 1999 by Acer Incorporated. All rights reserved. No part of this

publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language, in any form or

by any means, electronic, mechanical, magnetic, optical, chemical, manual or

otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed

or implied, with respect to the contents hereof and specifically disclaims any

warranties of merchantability or fitness for any particular purpose. Any Acer

Incorporated software described in this manual is sold or licensed "as is".

Should the programs prove defective following their purchase, the buyer (and

not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of

all necessary servicing, repair, and any incidental or consequential damages

resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks

of their respective holders.

720.book Page II Saturday, March 6, 1999 10:00 AM

III

Conventions

The following conventions are used in this manual:

Screen messages Denotes actual messages that appear on-

screen.

NOTE Gives bits and pieces of additional informa-

tion related to the current topic.

WARNING Alerts you to any damage that might result

from doing or not doing specific actions.

CAUTION Gives precautionary measures to avoid pos-

sible hardware or software problems.

IMPORTANT Reminds you to do specific actions relevant

to the accomplishment of procedures.

720.book Page III Saturday, March 6, 1999 10:00 AM

IV

Preface

Before using this information and the product it supports, please read the fol-

lowing general information!

1 This Service Guide provides you with all technical information relating to

the BASIC CONFIGURATION decided for Acer's "global" product offering.

To better fit local market requirements and enhance product competitive-

ness, your regional office MAY have decided to extend the functionality of

a machine (e.g. add-on card, modem, or extra memory capability). These

LOCALIZED FEATURES will NOT be covered in this generic service

guide. In such cases, please contact your regional offices or the responsi-

ble personnel/channel to provide you with further technical details.

2 Please note WHEN ORDERING FRU PARTS, that you should check the

most up-to-date information available on your regional web or channel. If,

for whatever reason, a part number change is made, it will not be noted in

the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVID-

ERS, your Acer office may have a DIFFERENT part number code to those

given in the FRU list of this printed Service Guide. You MUST use the list

provided by your regional Acer office to order FRU parts for repair and

service of customer machines.

720.book Page IV Saturday, March 6, 1999 10:00 AM

V

Chapter 1 System Specifications

Major Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Video Performance . . . . . . . . . . . . . . . . . . . . . 2

Simultaneous Display . . . . . . . . . . . . . . . . . . . 2

Dual Display . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Power Management . . . . . . . . . . . . . . . . . . . . 2

Opening and Closing the Display . . . . . . . . . . 3

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Special Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 5

I/O Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Rear Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Right Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Bottom Port . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Hardware Configuration and Specifications . . . . . 14

Power Management . . . . . . . . . . . . . . . . . . . . . . . 27

Power Management Modes . . . . . . . . . . . . . . 27

Advanced Power Management . . . . . . . . . . . 30

Advanced Configuration and Power Interface 30

Chapter 2 System Utilities

PhDISK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Notebook Manager . . . . . . . . . . . . . . . . . . . . . . . . 33

Information Viewer . . . . . . . . . . . . . . . . . . . . . 34

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . 35

Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Power Management . . . . . . . . . . . . . . . . . . . 38

Display Device . . . . . . . . . . . . . . . . . . . . . . . 39

Line-in/Microphone . . . . . . . . . . . . . . . . . . . . 40

Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Navigating the Setup Utility . . . . . . . . . . . . . . 41

Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table of Contents

720.book Page V Saturday, March 6, 1999 10:00 AM

VI

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

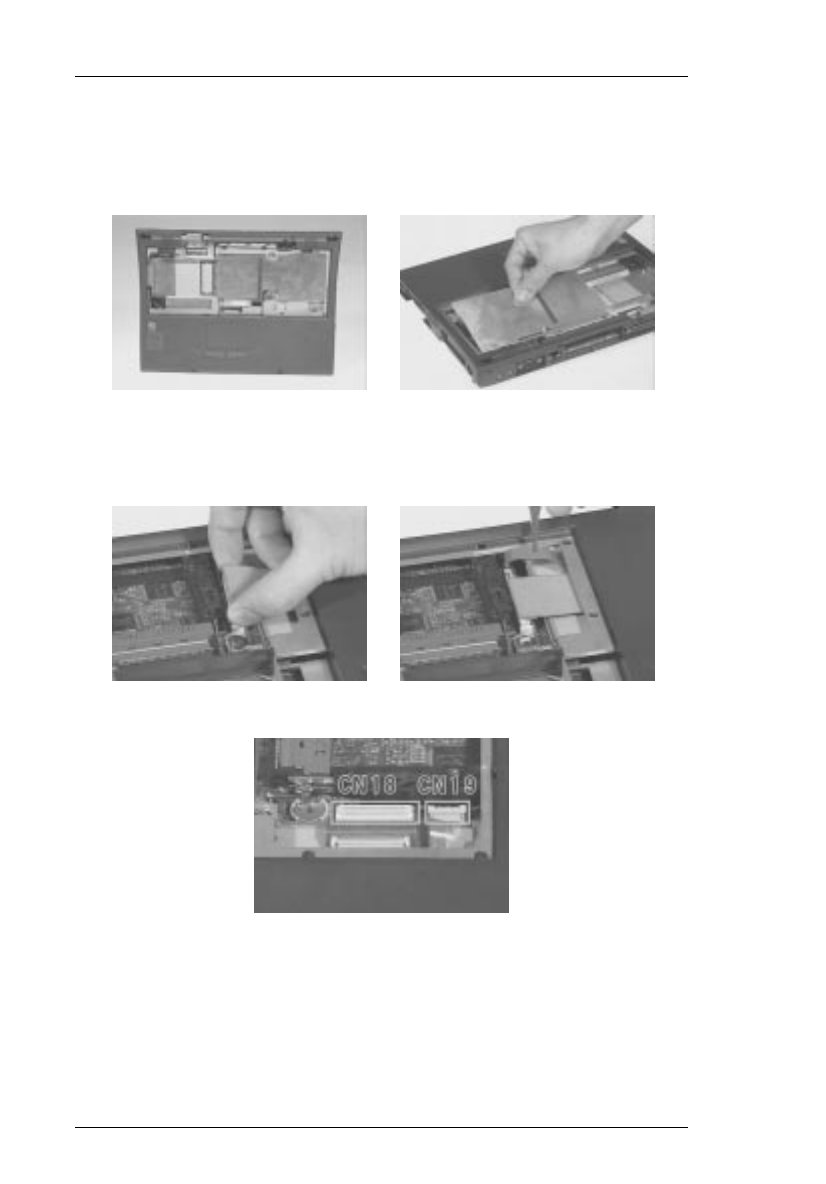

Chapter 3 Removal and Replacement

External Module Replacement . . . . . . . . . . . . . . . .57

Reassembling the Modem Board . . . . . . . . . .57

Installing Memory . . . . . . . . . . . . . . . . . . . . . .57

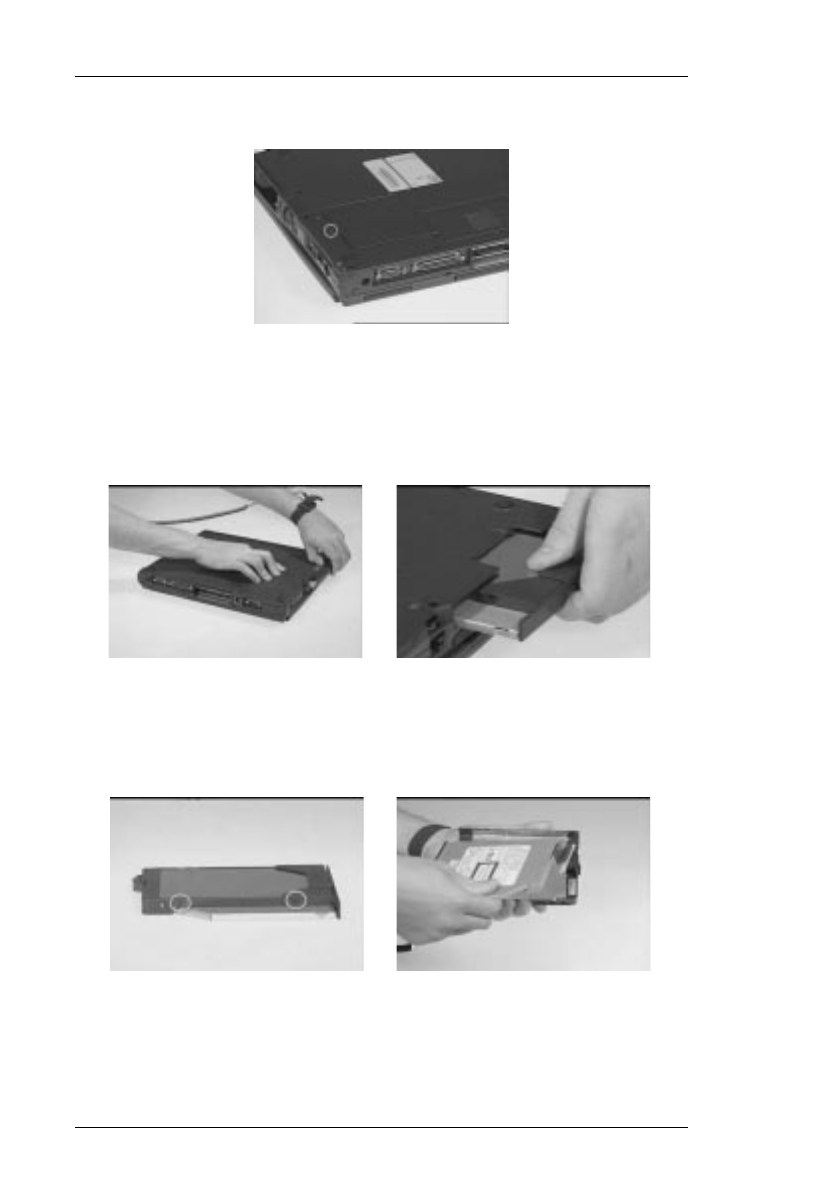

Disassembling the CD-ROM Drive . . . . . . . . .58

Removing the Hard Disk Drive . . . . . . . . . . . .59

Disassembling the Hard Disk Drive . . . . . . . .59

Removing and Replacing the Battery Pack . .60

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . .62

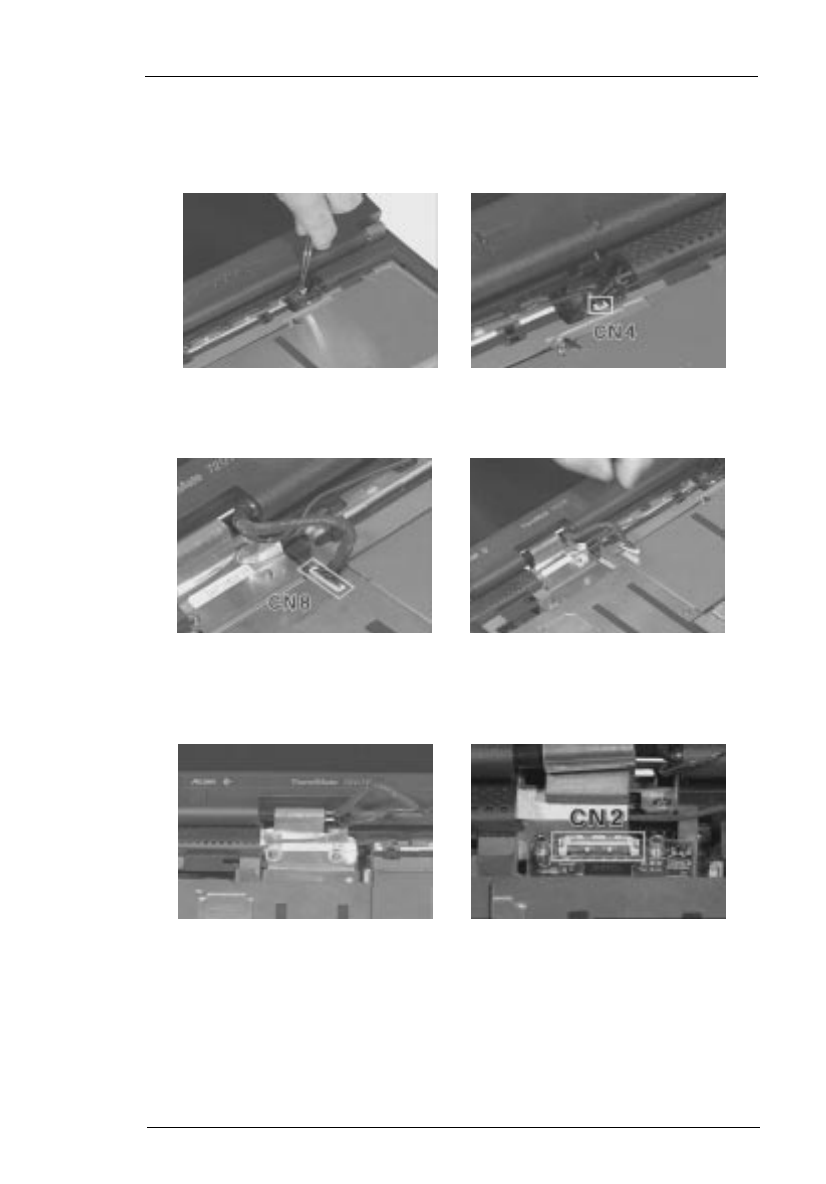

Removing the LCD . . . . . . . . . . . . . . . . . . . . . . . . .65

Removing the CPU . . . . . . . . . . . . . . . . . . . . . . . . .68

Disassembling the Upper Case . . . . . . . . . . . . . . .70

Removing the Speakers . . . . . . . . . . . . . . . . .72

Removing the Touchpad Bracket . . . . . . . . . .73

Disassembling the Lower Case . . . . . . . . . . . . . . .74

Removing the Floppy Disk Drive . . . . . . . . . .74

Disassembling the Fan . . . . . . . . . . . . . . . . . .75

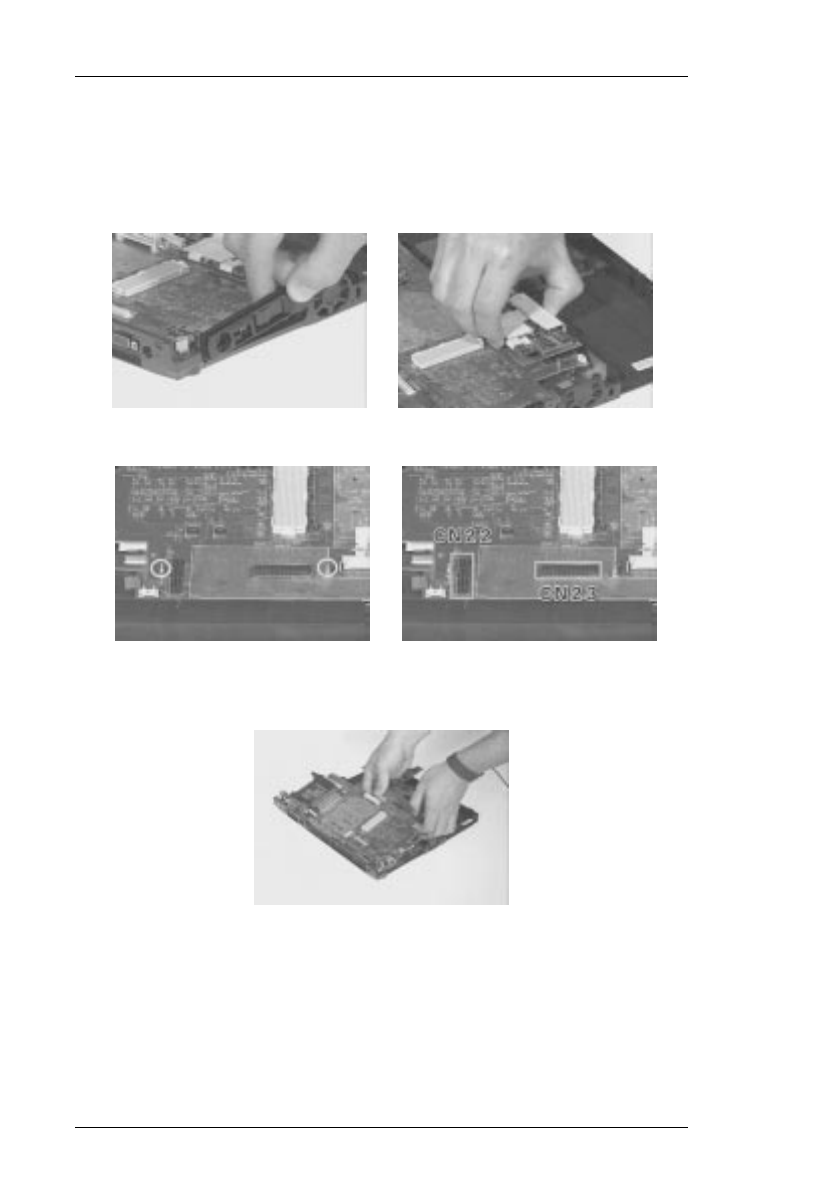

Removing the System Board . . . . . . . . . . . . .76

Removing the IDE Board . . . . . . . . . . . . . . . .77

Removing the PCMCIA Card . . . . . . . . . . . . .77

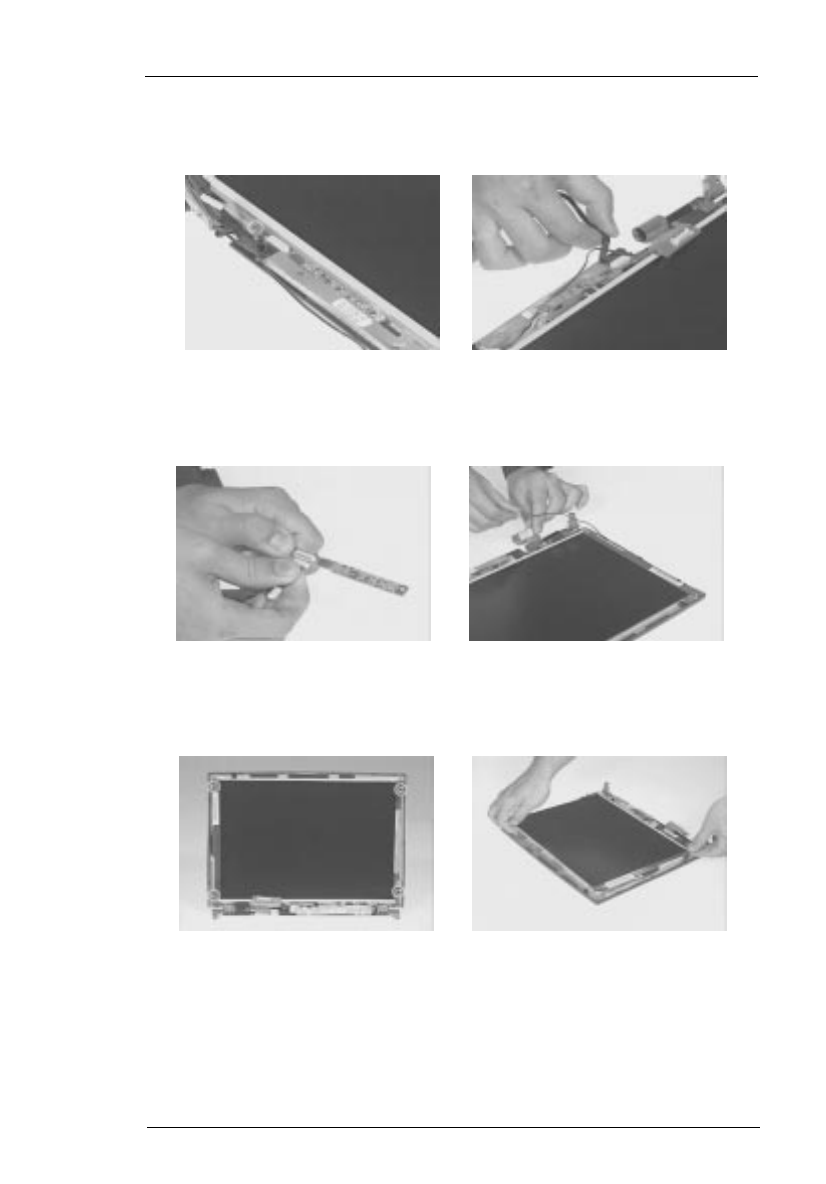

Disassembling the LCD . . . . . . . . . . . . . . . . . . . . .78

Chapter 4 Troubleshooting

Diskette Drive Checkout . . . . . . . . . . . . . . . . .83

CD-ROM Driver Test . . . . . . . . . . . . . . . . . . .83

Keyboard or Auxiliary Input Device Checkout 84

Memory Checkout . . . . . . . . . . . . . . . . . . . . .85

Power System Checkout . . . . . . . . . . . . . . . .86

TouchPad Checkout . . . . . . . . . . . . . . . . . . . .88

Symptom-to-FRU Index . . . . . . . . . . . . . . . . . . . . .89

Numeric Error Codes . . . . . . . . . . . . . . . . . . .89

Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . .95

Undetermined Problems . . . . . . . . . . . . . . . . . . . . .96

Utility Program Diskette . . . . . . . . . . . . . . . . . . . . .97

Setting LCD Panel ID . . . . . . . . . . . . . . . . . . .97

Table of Contents

720.book Page VI Saturday, March 6, 1999 10:00 AM

VII

Setting Thermal Sensor Utility . . . . . . . . . . . . 97

Running the Diagnostics . . . . . . . . . . . . . . . . 98

Chapter 5 Jumper and Connector Information

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

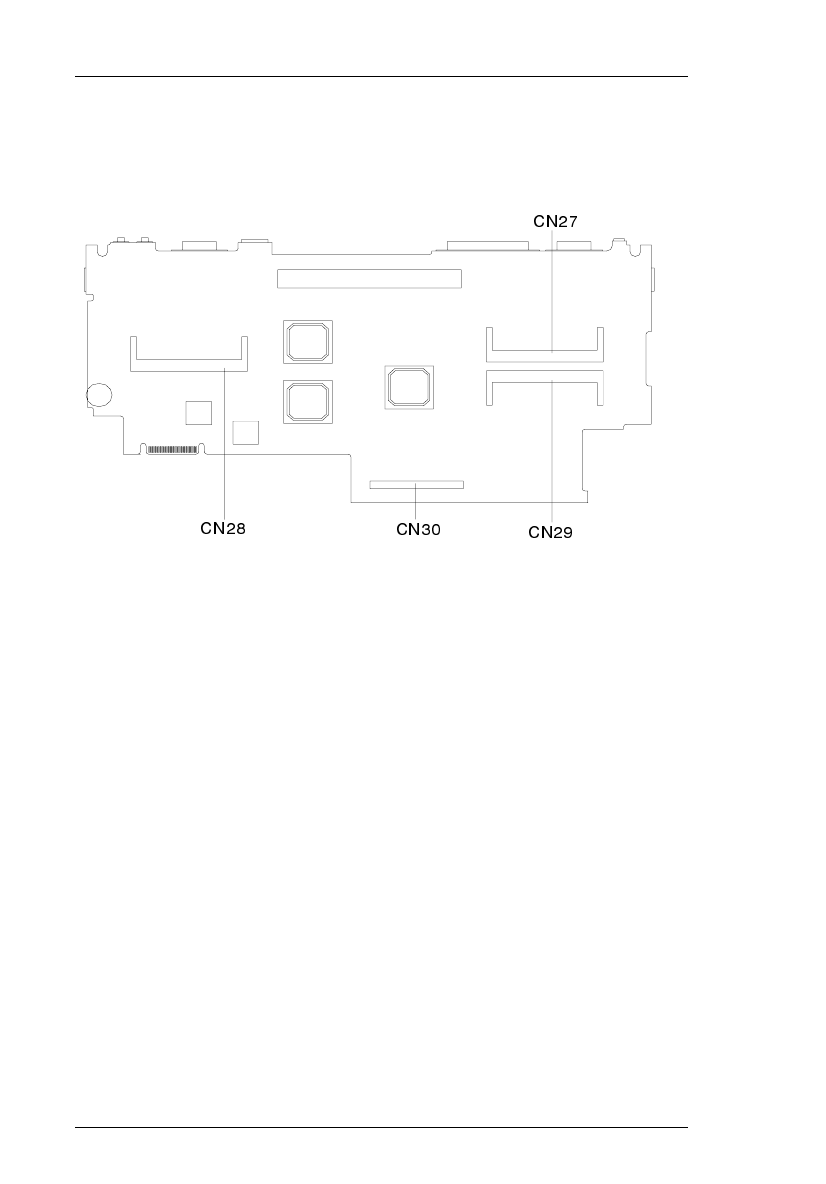

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Chapter 6 FRU (Field Replaceable Unit) List

Appendix A Model Definition and Configuration

Appendix B Test Compatible Components List

PCMCIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

PCMCIA Cards Tested for Year2000 Compliance 125

Long Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Year2000 Compliance Test . . . . . . . . . . . . . . . . . 126

Appendix C Online Support Information

Index

Table of Contents

720.book Page VII Saturday, March 6, 1999 10:00 AM

VIII

Table of Contents

720.book Page VIII Saturday, March 6, 1999 10:00 AM

Chapter 1 1

Major Features

System

Intel Pentium® II processor

64-bit main memory and on-die1 L2 cache memory

Large and vibrant Thin-Film-Transistor (TFT) Extended Graphics Array

(XGA) Liquid Crystal Display (LCD)

256-bit PCI/AGP graphics acceleration with 2.5MB graphics memory

Internal, Ultra-slim, high-speed and removable CD-ROM drive

(AcerMedia Bay)

Internal 3.5-inch floppy drive

High-capacity, Enhanced-IDE removable hard disk

Lithium-Ion battery pack

Power management system

16-bit high-fidelity PCI stereo audio with 3-D sound and wavetable

synthesizer

Built-in dual speakers and echo-cancelling microphone

S-video output

Dual display capability

Connectivity

High-speed fax/data PCI modem

Fast infrared(FIR) wireless communication

Universal Serial Bus (USB) port

Sleek, smooth and stylish design

Full-sized keyboard

Wide and curved palm rest

Ergonomically-centered touchpad pointing device

CardBus PC Card (formerly PCMCIA) slots (two type II/I or one type III)

with Zoomed Video (ZV) support

DockMate V mini docking station option for one-step connection and

disconnection of peripherals

Upgradeable memory and hard disk

1“on-die” means “on chip”

System Specifications

Chapter 1

720.book Page 1 Saturday, March 6, 1999 10:00 AM

2 System Specifications

Display

The large graphics display offers excellent viewing, display quality and

desktop performance graphics. The computer supports a Thin-Film Transistor

(TFT) liquid crystal display (LCD) displaying 16-bit hi-color at 1024x768

Extended Graphics Array (XGA) resolution.

Video Performance

PCI local bus video with industry-leading 256-bit graphics acceleration and

high-speed 2.5MB Synchronous Graphics Random Access Memory

(SGRAM) boost video performance.

Simultaneous Display

The computer’s large display and multimedia capabilities are great for giving

presentations. If you prefer, you can also connect an external monitor when

giving presentations. This computer supports simultaneous LCD and CRT

display. Simultaneous display allows you to control the presentation from

your computer and at the same time face your audience. With the built-in S-

video output jack, you can even connect other output display devices such as

LCD projection panels for large-audience presentations.

Dual Display

The computer’s unique graphics chip takes advantage of Windows 98’s multi-

display capability, allowing you to extend your desktop to an external display

device, such as an external monitor or projector. With this feature enabled,

you can move program windows to/from the computer LCD and the external

monitor.

Power Management

The power management system incorporates an "automatic LCD dim"

feature that automatically decides the best settings for your display and at the

same time conserves power.

720.book Page 2 Saturday, March 6, 1999 10:00 AM

Chapter 1 3

Opening and Closing the Display

To open the display, slide the display cover latch to the left and lift up the

cover. Then tilt it to a comfortable viewing position. The computer employs a

microswitch that turns off the display (and enters standby mode) to conserve

power when you close the display cover, and turns it back on when you open

the display cover.

Note: If an external monitor is connected, the computer turns off the

display (but does not enter standby mode) when you close the

display cover.

To close the display cover, fold it down gently until the display cover latch

clicks into place.

Warning: To avoid damaging the display, do not slam it when you close

it. Also, do not place any object on top of the computer when

the display is closed.

720.book Page 3 Saturday, March 6, 1999 10:00 AM

4 System Specifications

Indicators

The computer has six easy-to-read status indicators (LEDs) under the display

screen.

The Power and Standby indicators are visible even when you close the

display cover so you can see the status of the computer while the cover is

closed.

Icon Function Description

Power Lights when the computer is on.

Standby Lights when the computer enters Standby mode.

Media Activity Lights when the floppy drive, hard disk or CD-ROM

drive (or other AcerMedia Bay module) is active.

Battery

Charge

Lights when the battery is being charged.

Caps Lock Lights when Caps Lock is activated

Num Lock Lights when Numeric Lock is activated

720.book Page 4 Saturday, March 6, 1999 10:00 AM

Chapter 1 5

Keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor

keys, two Windows keys and twelve function keys.

Special Keys

Lock Keys

The keyboard has three lock keys which you can toggle on and off.

Lock Key Description

Caps Lock When Caps Lock is on, all alphabetic characters typed are in

uppercase.

Num Lock

(Fn-F11)

When Num Lock is on, the embedded keypad is in numeric

mode. The keys function as a calculator (complete with the

arithmetic operators +, -, *, and /). Use this mode when you

need to do a lot of numeric data entry. A better solution would be

to connect an external keypad.

Scroll Lock

(Fn-F12)

When Scroll Lock is on, the screen moves one line up or down

when you press ↑ or ↓ respectively. Scroll Lock does not work

with some applications.

720.book Page 5 Saturday, March 6, 1999 10:00 AM

6 System Specifications

Embedded Numeric Keypad

The embedded numeric keypad functions like a desktop numeric

keypad. It is indicated by small characters located on the upper right

corner of the keycaps. To simplify the keyboard legend, cursor-control

key symbols are not printed on the keys.

Note: If an external keyboard or keypad is connected to the computer,

the Num Lock feature automatically shifts from the internal

keyboard to the external keyboard or keypad.

Desired Access Num Lock On Num Lock Off

Number keys on

embedded keypad

Type numbers in a normal

manner.

Cursor-control keys on

embedded keypad

Hold Shift while using

cursor-control keys.

Hold Fn while

using cursor-

control keys.

Main keyboard keys Hold Fn while typing letters

on embedded keypad.

Type the letters in

a normal manner.

720.book Page 6 Saturday, March 6, 1999 10:00 AM

Chapter 1 7

Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Key Description

Windows logo key Start button. Combinations with this key performs

special functions. Below are a few examples:

+ Tab (Activates next Taskbar button)

+ E (Explores My Computer)

+ F (Finds a Document)

+ M (Minimizes All)

Shift + + M (Undoes Minimize All)

+ R (Displays the dialog box)

Application key Opens the application’s context menu (same as

right-click).

720.book Page 7 Saturday, March 6, 1999 10:00 AM

8 System Specifications

Hot Keys

The computer employs hot keys or key combinations to access most of the

computer’s control like screen contrast and brightness, volume output and

the BIOS setup utility.

To activate hot keys, press and hold the Fn key before pressing the other key

in the hot key combination

Hot Key Icon Function Description

Fn+F1 Hot key help Displays a list of the hotkeys and

their functions.

Fn+F2 Setup Accesses the notebook

configuration utility.

Fn+F3 Standby Puts the computer in Standby

mode. Press any key to return.

Fn+F4 Hibernation Puts the computer in Hibernation

mode (if PHDISK, the

hibernation utility, is installed,

valid and enabled). Press the

power switch to resume.

Otherwise, the computer enters

Standby mode.

Note: If ACPI support is enabled,

pressing this key puts the

computer in sleep mode.

Fn+F5 Screen blank Turns the display screen

backlight off to save power.

Press any key to return.

Fn+F6 Display toggle Switches display output between

the display screen, external

monitor (if connected) and both

the display screen and external

monitor.

720.book Page 8 Saturday, March 6, 1999 10:00 AM

Chapter 1 9

Fn+F7 Touchpad on/

off

Turns the internal touchpad on

and off.

Fn+F8 Speaker on/off Turns the speakers on and off;

mutes the sound.

Fn+→Brightness up Increases the screen brightness.

Fn+←Brightness

down

Decreases the screen

brightness.

Hot Key Icon Function Description

720.book Page 9 Saturday, March 6, 1999 10:00 AM

10 System Specifications

I/O Ports

Rear Ports

Icon Port Connects to...

Speaker-out jack Speakers or headphones

Line-in/Microphone-in

jack

Audio line-in device with a 3.5mm

minijack (e.g., condenser microphone,

audio CD player, stereo walkman).

Serial port Serial device (e.g., serial mouse)

Modem jack Phone line

Parallel port Parallel device (e.g., parallel printer)

External monitor port Display monitor (up to 1024x768

resolution, 64K-colors)

720.book Page 10 Saturday, March 6, 1999 10:00 AM

Chapter 1 11

Fax/Data Modem

Some models have a built-in V.90 56Kbps PCI fax/data modem.

Note: This modem port is not compatible with digital phone lines. Plugging this

modem into a digital phone line will damage the modem.

To use the fax/data modem port, connect a phone cable from the modem port

to a telephone jack.

DC-in jack AC adapter and power outlet

Icon Port Connects to...

720.book Page 11 Saturday, March 6, 1999 10:00 AM

12 System Specifications

Right Ports

Icon Port Connects to...

PC Card slots 16-bit PC Cards and 32-bit CardBus PC

Cards (ZV- support)

PS/2 port PS/2-compatible device (e.g., PS/2

keyboard/mouse/keypad).

720.book Page 12 Saturday, March 6, 1999 10:00 AM

Chapter 1 13

Bottom Port

Icon Port Connects to...

Mini docking

connector

DockMate V mini docking station

720.book Page 13 Saturday, March 6, 1999 10:00 AM

14 System Specifications

Hardware Configuration and Specifications

Memory Address Map

Address Range Definition Function

000000-09FFFF 640 KB memory Base memory

0A0000-0BFFFF 128 KB video RAM Reserved

0C0000-0CBFFF Video BIOS Video BIOS

0F0000-0FFFFF 64 KB system BIOS System BIOS

100000-top limited Extended memory SIMM memory

FE0000-FFFFFF 256 KB system ROM Duplicate of code

assignment at 0E0000-

0FFFFF

Interrupt channel default assignment

Channel Default setting mode Remarks

NMI System errors

IRQ0 System timer Edge trigger

IRQ1 Keyboard Edge trigger

IRQ2 (cascade) Edge trigger

IRQ3 Modem/COM1

(can be disable)

Edge trigger Dynamically

programmable

IRQ4 Infrared Edge trigger Dynamically

programmable

IRQ5 SoundBlaster

Audio (PCI

device)

Level trigger PCI interrupt

sharing

IRQ6 Floppy Edge trigger

IRQ7 Printer Edge trigger Dynamically

programmable

IRQ8 Real time clock Edge trigger

IRQ9 (SCI for ACPI

OS) PCI device

Level trigger PCI interrupt

sharing

IRQ10 Modem Edge trigger Dynamically

programmable

IRQ11 PCI device Level trigger PCI interrupt

sharing

IRQ12 Pointing device Edge trigger

IRQ13 Math

coprocessor

Edge trigger

IRQ14 Hard disk driver

720.book Page 14 Saturday, March 6, 1999 10:00 AM

Chapter 1 15

IRQ15 CD-ROM driver

DMA channel default assignment

Channel Default setting Mode

DRQ/DACK0 Reserved 8-bit

DRQ/DACK1 ECP 8-bit

DRQ/DACK2 Floppy 8-bit

DRQ/DACK3 Fast Infrared 8-bit

DRQ/DACK5 Reserved 16-bit

DRQ/DACK6 Reserved 16-bit

DRQ/DACK7 Reserved 16-bit

I/O address map

Address Device

000-00F DMA controller-1

020-021 Interrupt controller-1

040-043 Timer 1

048-04B Timer 2

060-06E Keyboard controller 8742 chip select

070-071 Real-time clock and NMI mask

080-08F DMA page register

0A0-0A1 Interrupt controller-2

0C0-0DF DMA controller-2

1F0-1F7 Hard disk select

220-22F Audio (option)

230-23F Audio (option)

240-24F Audio (option)

250-25F Audio (option)

278-27F Parallel port 3

2E8-2EF COM4

2F8-2FF COM2

378, 37A Parallel port 2

3BC-3BE Paraller port 1

3B4, 3B5, 3BA Video subsystem

3C0-3C5 Video subsystem

Interrupt channel default assignment

Channel Default setting mode Remarks

720.book Page 15 Saturday, March 6, 1999 10:00 AM

16 System Specifications

3C6-3C9 Video DAC

3C0-3CF Enhanced graphics adapter

3E0-3E1 PCMCIA controller

3E8-3EF COM3

3F0-3F7 Floppy disk controller

3F8-3FF COM1

CF8-Cff PCI configuration register

Processor

Item Specification

Processor type Intel Dixson (300/333Mhz) MMC-2 module

1. Intel Pentium II architecture

2. 16 KB instruction cache and 16 KB data cache with

MMX Technology

3. Quick Start for low power, low exit latency clock

throttling"

Processor package IMM module, 512KB L2 cache

Processor core voltage 1.8V

Processor I/O voltage 2.5V

BIOS

Item Specification

BIOS vendor Phoenix

BIOS Version V1.0

BIOS ROM type ROM

BIOS ROM size 256KB

BIOS package 32 PIn PLCC

Support protocol PCI 2.1, APM 1.2, DMI 2.00.1, E-IDE, ACPI 1.0, ESCD

1.03, ANSI ATA 3.0, PnP 1.1a, Bootable CD-ROM 1.0,

ATAPI

BIOS password control RTC battery

System Memory

Item Specification

Memory controller MTXC

Onboard memory size 0MB

DIMM socket number 2 sockets (2 banks)

I/O address map

Address Device

720.book Page 16 Saturday, March 6, 1999 10:00 AM

Chapter 1 17

Supported memory size per DIMM 16/32/64/128 MB

Supported maximum memory size 256MB (128MB x 2)

Supported DIMM type Synchronous DRAM

Supported DIMM Speed SDRAM: With SPD without parity

Supported DIMM voltage 3.3V

Supported DIMM package 144-pin DIMM

DIMM Memory Combinations

Slot 1 Slot 2 Total Memory

16MB 0 16MB

0 16MB 16MB

0 32MB 32MB

0 64MB 64MB

16MB 16MB 32MB

16MB 32MB 48MB

16MB 64MB 80MB

16MB 128MB 144MB

32MB 32MB 64MB

32MB 64MB 96MB

32MB 128MB 160MB

64MB 64MB 128MB

64MB 128MB 192MB

128MB 128MB 256MB

Second-Level Cache

Item Specification

Cache controller MTXC

Tag RAM location IMM

Tag RAM size 32K*8x1

Tag RAM voltage 3.3V

SRAM type PBSRAM

SRAM size 256K/512K

SRAM location IMM

SRAM configuration 32K*64 or 64K*32

SRAM speed Cycle time = 7ns

System Memory

Item Specification

720.book Page 17 Saturday, March 6, 1999 10:00 AM

18 System Specifications

SRAM voltage 3.3V

1st level cache control always enabled

2st level cache control always enabled

Cache scheme control Fixed in Write-back

Video memory

Item Specification

Fixed or upgradeable Fixed, built-in NM2200 video controller

Memory size 2.5 MB

Video

item Specification

Chip vendor NeoMagic

Chip name NM2200

Chip voltage 3.3 Volts

ZV port support (Y/N) Yes

Graph interface (ISA/VESA/PCI) PCI bus

Max. resolution (LCD) 1024x768 (64K colors) True Color

Max. resolution (Ext. CRT) 1024x768 (64K colors) True Color

External CRT Resolutions and Modes

Resolution CRT Refresh Rate Simultaneous

on TFT LCD

CRT only LCD SVGA

640x480x256 60,75,85 Y Y

640x480x64K 60,75,85 Y Y

640x480x16M 60,75,85 Y Y

800x600x256 60,75,85 Y Y

800X600X64K 60,75,85 Y Y

800x600x16M 60,75,85 Y Y

1024x768x256 60,70,75 Y Y

1024X768X64K 60,70,75 Y Y

Parallel Port

Item Specification

Parallel port controller NS PC97338

Second-Level Cache

Item Specification

720.book Page 18 Saturday, March 6, 1999 10:00 AM

Chapter 1 19

Number of parallel ports 1

Location Rear side

Connector type 25-pin D-type

Parallel port function control Enable/Disable by BIOS Setup

ECP support Yes (set by BIOS setup)

Selectable ECP DMA channel (in BIOS

Setup)

DMA channel 1

DMA channel 3

Selectable parallel port I/O address

(via BIOS Setup)

3E8h, 2E8h, 378h, 278h, Disabled

Selectable parallel port IRQ (via BIOS

Setup)

IRQ5, IRQ7

Serial Port

Item Specification

Serial port controller NS PC97338

Number of serial ports 1

16550 UART support Yes

Connector type 9-pin D-type

Location Rear side

Serial port function control Enable/disable by BIOS Setup

Selectable serial port (via BIOS Setup) 3F8h, 2F8h, 3E8h, 2E8h, Disabled

Selectable serial port IRQ (via BIOS

Setup)

IRQ3, IRQ4, IRQ10, IRQ11

FIR

Item Specification

Vendor & model name IBM 31T1100

Input power supply voltage 5V

Transfer data rate 4 Mbps

Transfer distance SIR mode--Min 2.0, Typ 2.6

1.2 Mbps--Min 1.4, Typ 2.0

4 Mbps--Min 1.1, Typ 1.5

Compatible standard IrDA (Infrared Data Association) 1.1,

HP-SIR and Sharp ASK

Output Radiant Intensity Half Angle +-15

Number of Irda ports 1

16550 UART support Yes

Parallel Port

Item Specification

720.book Page 19 Saturday, March 6, 1999 10:00 AM

20 System Specifications

FIR location Left side

Selectable serial port (by BIOS Setup) 2F8h, IRQ3, Disabled

Audio

Item Specification

Audio Controller NeoMagic NMG5 + NMA2

Audio onboard or optional Built-in

Mono or Stereo Stereo

Resolution 16-bit

Compatibility SB-16, Windows Sound System

Mixed sound source Voice, Synthesizer, Line-in,

Microphone, CD

Voice channel 8-/16-bit, mono/stereo

Voice control location Right side

Sampling rate 44.1 KHz

Internal microphone Yes, on the left-higher corner of LCD

panel

Internal speaker / Quantity Yes / 2 pieces, on both hinge sides

MPU-401 UART support Yes

PCMCIA

Item Specification

PCMCIA controller TI PCI1251A

PCMCIA voltage controller TI TPS2206

Supported card type Type-II / Type-III

Number of slots Two Type-II or one type-III

Access location Right side

ZV (Zoomed Video) port support Yes*2

32 bit CardBus support Yes

Fax/Modem

Item Specification

Chipset Lucent

Fax modem data baud rate (bps) 56K

Data modem data baud rate (bps) 56K

FIR

Item Specification

720.book Page 20 Saturday, March 6, 1999 10:00 AM

Chapter 1 21

Support modem protocol V.34 data modem, V.17 fax modem,

voice/audio mode, and digital

simultaneous voice and data (DSVD)

operation over a dial-up telephone line

PCI

Modem connector type RJ11 & RJ45 combo phone jack

Modem connector location Back side

Keyboard

Item Specification

Keyboard controller M38867

Keyboard vendor & model name API

Total number of keypads 84-/85-/88-key

Windows 95 keys Yes

Internal & external keyboard work

simultaneously

Yes

Disk drives

Item Specification

Vendor & model name MITSUMI D353F3

Floppy Disk Specifications

Media recognition 2DD (720K) 2HD (1.2M,

3mode)

2HD (1.44M)

Sectors / track 9 15 18

Tracks 80 80 80

Data transfer rate

(Kbit/s)

250 300 500 500

Rotational speed (RPM) 300 360 360 300

Read/write heads 2

Encoding method MFM

Power Requirement

Input Voltage (V) +5 +-10%

Hard disk drives

Item Specification

Vendor & Model Name IBM DCXA-

210000

IBM DADA-

26480

Fax/Modem

Item Specification

720.book Page 21 Saturday, March 6, 1999 10:00 AM

22 System Specifications

Drive Format

Capacity (MB) 10050 6480

Bytes per sector 512 512

Logical heads 15 15

Logical sectors 63 63

Logical cylinders 16383 13424

Physical read/write heads 6 6

Disks 3 3

Spindle speed (RPM) 4200 4200

Buffer size (KB) 512 512

Interface IDE IDE

Data transfer rate (disk-buffer, Mbytes/s) 11.5~14.7 7.7~12.8

Data transfer, rate (host~buffer, Mbytes/s) 16.6/33.3 16.6/33.3

DC Power Requirements

Voltage tolerance 5+-5% 5+-5%

CD-ROM

Item Specification

Vendor & Model Name KMEUJDA150L 24X

Performance Specification

Speed (KB/sec) 2100 (ave.speed), 3600 (max)

Access time (ms) 150 (Typ.)

Buffer memory (KB) 128

Interface Enhanced IDE compatible

Applicable disc format CD-DA, CD-ROM, CD-ROM XA (except

ADPCM), CD-I, Photo CD (Multisession), Video

CD, CD+

Loading mechanism Soft eject (with emergency eject hole)

Power Requirement

Input Voltage (V) 5

Battery

Item Specification

Vendor & model name Sony BTP-1931

Battery Type Li-ion (Graphite)

Hard disk drives

Item Specification

720.book Page 22 Saturday, March 6, 1999 10:00 AM

Chapter 1 23

Pack capacity (mAH) 3200

Cell voltage (V) 3.7

Number of battery call 8

Package configuration 2P-4S

Package voltage (V) 14.8V

Charger

Item Specification

Vendor & model name T62.085.C.00

Input voltage (from adapter, V) 7V-24V

Output current (to DC/DC converter, A) 3.5

Battery Low Voltage Li-ion

Battery Low 1 level (V) 11.41V

Battery Lower 2 level (V) 10.94V

Battery Low 3 level (V) 9.9V

Charge Current

Backgound charge (charge even system is still

operative)

Constant power 30W

Normal charge (charge while system is not

operative)

Constant power 45W

Charging Protection

Maximum temperature protection 60

DC-DC Converter

Item Specification

Vendor & model name Ambit T62.085.C.00

Input voltage (Vdc) 8~21

Output rating 5V 3.3V +12V 6V 3.3VS

B

Current (w/load, A) 0~5.8 0~3.3 0~0.12 0~0.1 0.01

Voltage ripple (max.,

mV)

50 50 100 300 75

Voltage noise (max.,

mV)

100 100 200 500 200

OVP (Over Voltage

Protection, V)

5.52~5

.55

3.642~

3.693

15~17 7~9 -

Battery

Item Specification

720.book Page 23 Saturday, March 6, 1999 10:00 AM

24 System Specifications

DC-AC inverter is used to generate very high AC voltage, to support the LCD

CCFT backlight user, and it is also responsible for the control of LCD

brightness. Avoid touching the DC-AC inverter area while the system unit is

turned on.

OCP (Over Current

Protection, A)

4~6 4~6 0.3~0.

4

--

DC-AC Inverter

Item Specification

Vendor & model

name

Ambit T62.086.C(12.1”) T622.087.C.00 (13.3” &14.1”)

Input voltage (V) 7.3 (min) - 22 (max)

Input current

(mA)

- - 700 (max)

Output voltage

(Vrms, no load)

1300 (min) 155 1600 (max)

Output voltage

frequency (kHz)

40 (min) - 65 (max)

Output current

(mArms)

(T62.087.C.00)

0.7~5.9 (min) 1.0~6.5 (typ) 1.3~7.1 (max)

Output current

(mArms)

(T62.086.C.00)

0.6~5.4 (min) 1.0~6.0 (typ) 1.4~6.6 (max)

LCD

Item Specification

Vendor & model name LG LP141X3 Hitachi

TX34D62VC1CAC

Mechanical Specifications

LCD display area (diagonal,

inch)

14.1 13.3

Display technology TFT TFT

Resolution XGA

(1024x768)

XGA (1024x768)

Support colors 66i

Optical Specification

Contrast ration 150 (typ) 100 (typ)

Brightness (cd/m2) 130 (typ) 100 (typ)

DC-DC Converter

Item Specification

720.book Page 24 Saturday, March 6, 1999 10:00 AM

Chapter 1 25

Brightness control Keyboard hotkey Keyboard hotkey

Contrast control None None

Electrical Specification

Supply voltage for LCD display

(V)

3.3 (typ) 3.3 (typ)

Supply voltage for LCD

backlight (Vrms)

730 (typ) 650 (typ)

AC Adapter

Item Specification

Vendor & model name Delta ADP-60HB

Lite-On PA-1600-19

Input Requirements

nominal voltages

(Vrms)

90~270

Frequency variation

range (Hz)

47~63

Maximum input current

(A, @90Vac, full load)

1.5A

Inrush current The maximum inrush current will be less than 50A and

100A when the adapter is connected to 115Vac (60Hz)

and 230Vac(50Hz) respectively.

Efficiency It should provide an efficiency of 83% minimum, when

measured at maximum load under 115V (60Hz) &

230Vac (60Hz)

Output Ratings (CV mode)

DC output voltage (V) +19.0V~20.5V

Noise + Ripple (mV) 300mvp-pmax (20Mhz bandwidth)

Output Ratings (CC mode)

Load (A) 0 (min) 3.16 (max)

Dynamic output Characteristics

Turn-on delay time (s,

@115Vac)

2

Hold up time (ms;

@115 Vac input, full

load)

8 (min)

Over voltage protection

(OVP, V)

26

Short circuit protection Output can be shorted without damage

LCD

Item Specification

720.book Page 25 Saturday, March 6, 1999 10:00 AM

26 System Specifications

Weights and Dimension

Electrostatic discharge

(ESD, kV)

+-15 (at air discharge)

Dielectric withstand voltage

Primary to secondary 3000 Vac (or 4242 Vdc), 10mA for 1 second

Leakage current 0.25 mA maximum @ 254 Vac, 60Hz

Regulatory Requirements

Internal filter meets:

FCC class B requirements. (USA)

VDE 243/1991 class B requirements. (German)

CISPR 22 Class B requirements. (Scandinavia)

VCCI class II requirements. (Japan)

Item Specification

Weight 3.27 kg.

Dimension 315~317 x 251~ 257 x 44~47 mm.

AC Adapter

Item Specification

720.book Page 26 Saturday, March 6, 1999 10:00 AM

Chapter 1 27

Power Management

This computer has a built-in power management unit that monitors system

activity. System activity refers to any activity involving one or more of the

following devices: keyboard, mouse, drive, hard disk, peripherals connected

to the serial and parallel ports, and video memory. If no activity is detected for

a period of time (called an inactivity time-out), the computer stops some or all

of these devices in order to conserve energy.

This computer employs a power management scheme that supports APM

(Advanced Power Management) or ACPI (Advanced Configuration and

Power Interface) which allows for maximum power conservation and

maximum performance at the same time.

If your computer is set for APM, you can set time-out values for your

computer’s devices before power-saving methods are applied to these

devices. If your computer is set for ACPI, Windows 98 handles all power-

saving chores for your computer.

Note: Power management (APM or ACPI) greatly prolongs your battery

life.

Power Management Modes

Display Standby Mode

Screen activity is determined by the keyboard, the built-in touchpad, and an

external PS/2 pointing device. If these devices are idle for the period

specified by the LCD backlight Time-out value, the display shuts off until you

press a key or move the touchpad or external mouse.

"Automatic Dim" Feature

The computer has a unique "automatic dim" power-saving feature. When the

computer is using AC power and you disconnect the AC adapter from the

computer, it automatically dims the LCD backlight to save power. If you

reconnect AC power to the computer, it automatically adjusts the LCD

backlight to a brighter level.

Hard Disk Standby Mode

The hard disk enters Standby mode when there are no disk read/write

operations within the period of time specified by the Hard Disk Time-out

value. In this state, the power supplied to the hard disk is reduced to a

minimum. The hard disk returns to normal once the computer accesses it.

720.book Page 27 Saturday, March 6, 1999 10:00 AM

28 System Specifications

Standby Mode

The computer consumes very low power in Standby mode. Data remain

intact in the system memory until the battery is drained.

There are four ways to enter Standby mode:

Pressing the Standby hot key Fn-F3

Allowing the waiting time specified by the Standby Time-out value or the

operating system to elapse without any system activity

Closing the display cover

When the computer is about to enter Hibernation mode (e.g., during a

battery low condition), but the Hibernation file is invalid or not present

Note: If the computer beeps but does not enter Standby mode after

pressing the Standby hot key, it means the operating system will

not allow the computer to enter the power-saving mode.

The following signals indicate that the computer is in Standby mode:

The buzzer beeps

The Standby indicator lights

Warning: Unstored data is lost when you turn off the computer power in

Standby mode or when the battery is drained.

To leave Standby mode and return to normal mode:

Press any key

Move the active pointing device (internal or external, PS/2 or serial)

Have the resume timer set and let it be matched

Open the display cover

Experience an incoming PC card modem event

720.book Page 28 Saturday, March 6, 1999 10:00 AM

Chapter 1 29

Hibernation Mode

In Hibernation mode, all power shuts off (the computer does not consume

any power). The computer saves all system information onto the hard disk

before it enters Hibernation mode. Once you turn on the power, the computer

restores this information and resumes where you left off upon leaving

Hibernation mode.

There is one necessary condition for the computer to enter Hibernation

mode:

The Hibernation file created by PhDISK must be present and valid.

In this situation, there are four ways to enter Hibernation mode:

Pressing the Hibernation hot key Fn-F4

Allowing the waiting time specified by the S2D Time-out value to elapse

without any system activity

When a battery low condition occurs and the Battery Low Suspend

parameter in Setup is set to [ENABLED].

Invoked by the operating system power-saving modes

Note: If the computer beeps but does not enter Hibernation mode after

pressing the Hibernation hot key, it means the operating system

will not allow the computer to enter the power-saving mode.

To exit Hibernation mode, press the power switch. The computer also

resumes from Hibernation mode if the resume timer is set and matched. The

computer also resumes via the network if the Wake on LAN Access

parameter is enabled.

Warning: Do not change any devices (such as add memory or swap

hard disks) when the computer is in Hibernation mode.

Sleep Mode (ACPI)

If ACPI is installed, all power management functions are handled by the

Windows 98 operating system. In this set-up, you do not need to set time-out

values for devices before they enter a power-saving mode.

Sleep mode may be one of three computer power-saving modes: Standby,

Hibernation or power off. Windows 98 automatically determines which of

these modes to enter in.

To enter Sleep mode under ACPI:

Pressing the Sleep hot key Fn-F4

Allowing idle times for devices and the computer determined by

Windows 98 elapses

Exiting sleep mode depends on which power-saving mode the computer is

currently in.

720.book Page 29 Saturday, March 6, 1999 10:00 AM

30 System Specifications

Advanced Power Management

This computer supports the APM standard designed to further reduce power

consumption. APM is a power-management approach defined jointly by

Microsoft and Intel. An increasing number of software packages support APM

to take advantage of its power-saving features and to allow greater system

availability without degrading performance.

For more information about APM under Windows 98, refer to your Windows

98 user’s manual.

Advanced Configuration and Power Interface

Advanced Configuration and Power Interface (ACPI) is a power management

specification jointly developed by Intel, Microsoft, and Toshiba. ACPI enables

Windows 98 to control the amount of power given to each device attached to

the computer. With ACPI, Windows 98 can turn off peripheral devices when

they are not in use, thereby saving power.

720.book Page 30 Saturday, March 6, 1999 10:00 AM

Chapter 2 31

The computer comes preloaded with the following softwares:

Windows 98 or Windows NT operating system

Hardware BIOS setup utility

Support for LDCM (LANDesk Client Manager)

System utilities, drivers and application software

Note: To access Windows 98 or Windows NT software applications,

click on the Start button and select the application folder. Then

click on the application icon to run the selected application. To

learn about the software and utility, make use of the on-line help

provided by the software.

Your computer is also compliant with the following:

DMI (Desktop Management Interface) 2.1

WfM (Wired for Management) 2.0

APM (Advanced Power Management) or ACPI (Advanced Configuration

and Power Interface)

System Utilities

Chapter 2

720.book Page 31 Saturday, March 6, 1999 10:00 AM

32 System Utilities

PhDISK

The PhDISK utility allows your computer to enter Hibernation mode. Before

entering Hibernation mode, your computer saves all necessary information

into a file or partition created by PhDISK, then shuts off power to all system

components. On the next start-up, the computer reloads the information from

the PhDISK file or partition and resumes from where you left off.

Note: By default, this utility program is automatically loaded and set up

on your computer, so you do not need to run it by yourself. You

only need to run this program if you upgrade your memory. You

can find PhDISK in the \windows\command\ directory.

Syntax

PHDISK [options]

where options:

/CREATE (/FILE or /PARTITION) creates the hibernation file or partition

/DELETE (/FILE or /PARTITION) deletes the hibernation file or partition

/INFO displays information on the hibernation file or partition

/REFORMAT PARTITION reformats the existing hibernation file or

partition

Caution: The Hibernation file is a hidden file named SAVE2DSK.BIN; DO

NOT delete or alter this file in any way except by using the

PhDISK utility. Improper deletion or alteration of this file could

cause you to lose all access to your computer.

720.book Page 32 Saturday, March 6, 1999 10:00 AM

Chapter 2 33

Notebook Manager

The computer has a built-in system setup program called Notebook Manager.

The Windows-based Notebook Manager allows you to set passwords, the

start-up sequence of the drives, and power management settings. It also

shows current hardware configurations.

Note: Certain hot key functions are disabled when you access the

notebook manager, because these functions are also found in the

notebook manager.

To start the Notebook Manager, press Fn-F2 or follow these steps:

1. Click on Start, Programs, then Notebook Manager.

2. Select the Notebook Manager application to run the program.

Note: Changes made to most settings in the Notebook Manager take

effect the next time the computer restarts. However changes

made in the Power Management, Display Device or Line-in/

Microphone screens will take effect immediately.

Notebook Manager consists of six sections:

Information Viewer

Boot Sequence

Password

Power Management

Display Device

Line-in/Microphone

To select a section, click on the tab of the section you want to view.

720.book Page 33 Saturday, March 6, 1999 10:00 AM

34 System Utilities

Information Viewer

Information Viewer summarizes and lists information about the specifications

and settings of the different components of your computer.

Note: Items in this table may differ slightly from the ones on-screen.

The current version of the computer’s BIOS shows before the Device-

Configuration table.

Item Description

CPU Brand, type and clock speed of the CPU (Central Processing

Unit)

Total Memory Total amount of main memory (in megabytes)

Video RAM Total amount of video memory (in megabytes)

Hard Disk Size of hard disk (in megabytes)

Serial Port 1 Resource settings of serial port 1

Parallel Port Resource settings of the parallel port

External Cache Total amount of external cache memory (in kilobytes)

Touchpad Setting of the internal pointing device

Pointing Device Type(s) of the pointing device(s) detected, internal and

external

720.book Page 34 Saturday, March 6, 1999 10:00 AM

Chapter 2 35

Boot Sequence

Boot Sequence defines the boot sequence to follow when your computer

boots up.

The Boot Sequence screen displays the bootable devices in your computer

and the order in which the booting sequence will occur. The devices include

the following:

Floppy Drive

IDE Hard Drive

CD-ROM/DVD-ROM Drive (for bootable AcerMedia Bay modules)

Simply drag and drop the devices to change the booting order. Then click on

Apply to set the new sequence.

720.book Page 35 Saturday, March 6, 1999 10:00 AM

36 System Utilities

Password

Password is used to set, modify or delete the password(s) for your computer.

There are two passwords used in the system:

Supervisor Password. The Supervisor Password prevents unauthorized

access to sensitive parameters in the Notebook Manager and BIOS

Utility. It also prevents unauthorized access to your computer at system

start-up and at resume from Standby/Hibernation or Sleep mode.

User Password. The User Password prevents unauthorized access to

your computer at system start-up and at resume from Standby/

Hibernation or Sleep mode.

Setting the Supervisor Password

Note: Before you can set the User Password, you need to set the

Supervisor Password.

To set the Supervisor Password, follow these steps:

1. Click on the Change Supervisor Password button. The

following dialog box displays:

2. Click on the Enable Supervisor Password checkbox.

3. Click in the New Password textbox and type in up to seven

alphanumeric characters (A-Z, a-z, 0-9) which you want to be

720.book Page 36 Saturday, March 6, 1999 10:00 AM

Chapter 2 37

your Supervisor Password.

4. Click in the Confirm Password textbox and retype the

password.

5. Click on OK to set the new password.

Note: To change a password, follow the same steps used to set a

password. To remove a password, follow the same steps used to

set a password but leave both textboxes blank.

Setting the User Password

To set the User Password, follow these steps:

1. Click on the Change User Password button.

2. Click on the Enable User Password checkbox.

3. Click in the New Password textbox and type in up to seven

alphanumeric characters (A-Z, a-z, 0-9) which you want to be

your User Password.

4. Click in the Confirm Password textbox and retype the

password.

5. Click on OK to set the new password.

Note: To change a password, follow the same steps used to set a

password. To remove a password, follow the same steps used to

set a password but leave both textboxes blank.

You can also set password checks when the computer boots up and/or when

the computer resumes from Hibernation mode. Simply click on the desired

checkbox(es) and click on Apply.

720.book Page 37 Saturday, March 6, 1999 10:00 AM

38 System Utilities

Power Management

Power Management is used to set various settings related to power

management.

This includes the following power-saving-related features:

Item Description

Enable modem ring

resume on indicator

Select to allow the computer to wake up from Standby

mode when an incoming modem ring is detected.

Enable wake on LAN Select to allow the computer to wake up from Standby

mode by a remote computer.

Enable battery low

warning beep

Select to allow the computer to give off warning beeps

when the computer runs low on battery.

Enable sleep upon

battery low

Select to allow the computer to enter Standby or

Hibernation mode when the computer runs low on

battery.

Enable system resume

timer

Select to set the system resume timer which allows the

computer to wake up from Standby mode if the resume

timer is set and matched.

Click the System Resume Timer button to set it.

720.book Page 38 Saturday, March 6, 1999 10:00 AM

Chapter 2 39

Display Device

Display Device is used to control various settings related to display device(s),

such as the display brightness level.

The items in this screen include:

Boot Display Device. Sets the default display device on boot-up.

Switching Display Device. Sets the current display device.

Note: Make sure an external monitor is connected before External

monitor is selected.

Brightness for LCD Panel. Click and drag to set the LCD screen

brightness levels.

Click on the radio button of the desired item, then click on Apply to accept

the setting. To modify the brightness level, click and hold the slider control

and move it to the right to increase or to the left to decrease the setting. You

can also click on the item, and use the cursor keys to set the desired level.

720.book Page 39 Saturday, March 6, 1999 10:00 AM

40 System Utilities

Line-in/Microphone

Line-in/Microphone is used to set the input source from the computer’s line-

in/microphone-in jack.

Click on the radio button of the desired item, then click on Apply to accept

the setting.

720.book Page 40 Saturday, March 6, 1999 10:00 AM

Chapter 2 41

Setup Utility

The Setup Utility is a hardware configuration program built into your

computer’s BIOS (Basic Input/Ouput System).

Your computer is already properly configured and optimized, and you do not

need to run this utility. However, if you encounter configuration problems, you

may need to run Setup. Please also refer to Chapter 6, Troubleshooting when

a problem arises.

To activate the Setup Utility, press F2 during POST (while the TravelMate

logo is being displayed).

Navigating the Setup Utility

There are five menu options: Main, Advanced, Security, Power Saving and

Exit. To navigate the Setup Utility:

Press the cursor right/left keys to move between the main menu items.

Press Esc while you are in any of the menu options to display the Exit

menu.

Press the cursor up/down keys to move between parameters.

Press the plus/minus keys (+-) to change the value of a parameter.

Note: You can change the value of a parameter if it is enclosed in

square brackets.

Press the Enter key to access a submenu. A > symbol in front of a

parameter denotes an item with a submenu.

Note: Parameter explanations are displayed in the Item-Specific Help

section of the Setup Utility (right panel). Navigation keys are

shown on the bottom of the screen.

720.book Page 41 Saturday, March 6, 1999 10:00 AM

42 System Utilities

Main

The Main screen contains parameters involving basic computer settings and

hardware information.

720.book Page 42 Saturday, March 6, 1999 10:00 AM

Chapter 2 43

The table below describes the parameters in this screen. Settings in boldface

are the default and suggested parameter settings.

Note: The BIOS versions are important information about your

computer. If you experience computer problems and need to

contact technical support, this data helps our service personnel

know more about your computer.

Parameter Description

System Time Sets the system time.

Format: HH:MM:SS (hour:minute:second)

System Date Sets the system date.

Format: DD/MM/YYYY (day/month/year)

Floppy Disk A Selects the floppy disk drive type.

Options: 1.44MB 3.5” or Disabled

Hard Disk 0 Shows the hard disk size.

Press Enter to access the Hard Disk 0 submenu.

CD-ROM Sets the AcerMedia Bay module type installed.

Press Enter to access the CD-ROM submenu.

Boot sequence Press Enter to access the Boot sequence submenu.

System Memory Shows the main memory size.

Video Memory Shows the video memory size.

CPU Type Shows the CPU type.

CPU Speed Shows the CPU speed.

Serial Number Shows the serial number of the computer.

Asset Number Shows the asset number of the computer.

BIOS Version Shows the version number of the BIOS.

Format: Vx Rx (version and release numbers)

VGA BIOS Version Shows the version number of the VGA BIOS.

Format: Vx (version mumbers)

720.book Page 43 Saturday, March 6, 1999 10:00 AM

44 System Utilities

Hard Disk 0 Submenu

The Hard Disk 0 submenu allows you to set parameters related to your hard

disk. Press Enter to access this submenu.

The table below describes the parameters in this screen. Settings in boldface

are the default and suggested parameter settings.

Note: The values in this screen are automatically set to their optimal

values when Type is set to Auto. We suggest you set Type to

Auto for hassle-free and correct hard disk detection.

Parameter Description

Type Sets the hard disk type.

Options: Auto, User, CD-ROM, ATAPI Removable, IDE

Removable or None

Cylinder Shows the number of cylinders of the hard disk.

Heads Shows the number of heads of the hard disk.

Sectors/Track Shows the number of sectors per track of the hard disk.

Maximum

Capacity

Shows the maximum capacity of the hard disk.

720.book Page 44 Saturday, March 6, 1999 10:00 AM

Chapter 2 45

CD-ROM Submenu

The CD-ROM submenu allows you to set parameters related to the CD-ROM

drive (or other drive installed in the AcerMedia Bay). Press Enter to access

this submenu.

The table below describes the parameters in this screen. Settings in boldface

are the default and suggested parameter settings.

Note: We suggest you set Type to Auto for hassle-free and correct

AcerMedia Bay drive detection.

Parameter Description

Type Sets the hard disk type.

Options: Auto, User, CD-ROM, ATAPI Removable, IDE

Removable or None

720.book Page 45 Saturday, March 6, 1999 10:00 AM

46 System Utilities

Boot Sequence Submenu

The Boot Sequence submenu allows you to set the boot sequence of the

bootable devices in your computer. Press Enter to access this submenu.

The computer boots-up using the sequence specified in this submenu. To set

the boot sequence, use the plus/minus (+-) keys.

Boot Devices Description

Removable Devices Computer boots from a bootable diskette in

the floppy drive.

Hard Drive Computer boots from the hard disk.

ATAPI CD-ROM Drive Computer boots from a bootable CD-ROM in

the CD-ROM drive.

720.book Page 46 Saturday, March 6, 1999 10:00 AM

Chapter 2 47

Advanced

Caution: The parameters in this screen are for advanced users only. You do

not need to change the values in this screen because these values

are already optimized.

The Advanced screen contains parameters that are related to computer

hardware.

The table below describes the parameters in this screen. Settings in boldface

are the default and suggested parameter settings.

Parameter Description

Serial Port Enables or disables the serial port.

Options: Enabled or Disabled

IrDA Port Enables or disables the infrared port.

Options: Enabled or Disabled

Parallel Port Enables or disables the parallel port.

Options: Enabled or Disabled

Mode Sets the operation mode of the parallel port.

Options: ECP, Bi-directional, or Output only

Speaker Default Enables or disables the internal speakers on boot-up. You

can override this by toggling Fn-F8 during computer

operation.

Options: Enabled or Disabled

Microphone/

Line-In

Specifies the function of the microphone/line-in audio jack.

Options: Microphone or Line-In

720.book Page 47 Saturday, March 6, 1999 10:00 AM

48 System Utilities

Security

The Security screen contains parameters that help safeguard and protect

your computer from unauthorized use.

Boot Display Sets the display on boot-up.

When set to Auto, the computer automatically determines the

display device. If an external display device (e.g., monitor) is

connected, it becomes the boot display; otherwise, the

computer LCD is the boot display. When set to Both, the

computer outputs to both the computer LCD and an external

display device if one is connected.

Options: Auto or Both

Parameter Description

720.book Page 48 Saturday, March 6, 1999 10:00 AM

Chapter 2 49

The table below describes the parameters in this screen. Settings in boldface

are the default and suggested parameter settings.

Note: To set the User Password, the Password on boot or Password

Check During Resume parameters, you need to set the

Supervisor Password first.

Parameter Description

Supervisor

Password is

When set, this password protects the computer and this Setup

Utility from unauthorized entry. It also protects certain

parameters in the Setup Utility.

When Password on boot and/or Password Check During

Resume is enabled, you need to enter this password to continue

operation.

Options: Disabled or Enabled

User

Password is

When set, this password protects the computer from

unauthorized entry.

When Password on boot and/or Password Check During

Resume is enabled, you need to enter this password to continue

operation.

Before setting the User Password, you need to set the

Supervisor Password.

Options: Disabled or Enabled

Set

Supervisor

Password

Press Enter to set the Supervisor Password.

Set User

Password

Press Enter to set the User Password.

Password on

boot

When enabled, the computer prompts you for a password when

the computer boots up.

Options: Enabled or Disabled

Password

Check During

Resume

When enabled, the computer prompts you for a password when

the computer resumes from Hibernation mode.

Options: Disabled or Enabled

720.book Page 49 Saturday, March 6, 1999 10:00 AM

50 System Utilities

Setting a Password

Follow these steps:

1. Set Password parameter (Supervisor or User) and press the

Enter key. The set password box appears:

2. Type a password. The password may consist of up to seven

alphanumeric (A-Z, a-z, 0-9) characters.

Important: Be very careful when typing your password because the

characters do not appear on the screen.

3. Press Enter. Retype the password to verify your first entry and

press Enter.

4. After setting the password, the computer automatically sets the

chosen password parameter to Enabled.

5. Press F10 to save the changes and exit the Setup Utility.

To change a password, follow the same steps above, but enter and confirm a

new password.

Removing a Password

Should you want to remove a password, do the following:

1. Set Password parameter (Supervisor or User) and press the

Enter key. The Set Password box appears:

2. Type the current password and press Enter.

3. Press Enter twice without entering anything in the password

box to remove the existing password.

4. Press F10 to save the changes and exit the Setup Utility.

720.book Page 50 Saturday, March 6, 1999 10:00 AM

Chapter 2 51

Power

The Power Saving screen contains parameters that are related to power-

saving and power management.

The table below describes the parameters in this screen. Settings in boldface

are the default and suggested parameter settings.

Note: If your system has ACPI, all power management functions are

taken care of by Windows 98.

Parameter Description

LCD backlight

Time-out

Sets the time-out value before the display enters power

saving mode.

Options: Disabled or time values

Hard Disk Time-

out

Sets the time-out value before the hard disk enters power

saving mode.

Options: Disabled or time values

Standby Time-

out

Sets the time-out value before the computer enters Standby

mode.

Options: Disabled or time values

S2D Time-out Sets the time-out value before the computer enters

Hibernation mode.

Options: Disabled or time values

Resume on LAN

access

When enabled, the computer resumes operation when

accessed via LAN using a remote computer.

Options: Disabled or Enabled

720.book Page 51 Saturday, March 6, 1999 10:00 AM

52 System Utilities

Resume On

Time

When enabled and the system resume date and time are

valid, the computer resumes (wakes up) at the set time and

date.

Options: Disabled or Enabled

When enabled, the Resume Time and Resume Date

parameters appear. Set the time and date the computer

resumes at.

Format: HH:MM:SS (hour:minute:second);

DD/MM/YYYY (day/month/year)

Hotkey Beep Enables or disables a beep when over a hot key is pressed.

Options: Enabled or Disabled

Battery Low

Warning

Enables or disables warning beeps during a battery-low

condition.

Options: Enabled or Disabled

Battery Low

Suspend

Enables or disables the Hibernation function during a battery-

low condition.

When the computer is very low on battery power, the

computer will enter Hibernation mode if PhDISK is installed

and the hibernation file is valid.

Options: Enabled or Disabled

Parameter Description

720.book Page 52 Saturday, March 6, 1999 10:00 AM

Chapter 2 53

Exit

When you select the Exit menu or press Esc from any screen, the Exit

options screen displays.

The table describes the parameters in this screen.

Note: If you wish to keep any changes you make to parameters, select

Exit Saving Changes or Save Changes.

Parameter Description

Exit Discarding

Changes

Discards any changes made, exits the Setup utility and

reboots.

Exit Saving

Changes

Saves any changes made, exits the Setup utility and

reboots.

Load Setup

Defaults

Resets all parameters to their factory-default values.

Discard Changes Disregards any changes made in the current session and

reloads their previous values.

Save Changes Saves any changes made.

720.book Page 53 Saturday, March 6, 1999 10:00 AM

54 System Utilities

720.book Page 54 Saturday, March 6, 1999 10:00 AM

Chapter 3 55

This chapter contains procedures on how to disassemble the notebook

computer for maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

Wrist grounding strap and conductive mat for preventing electrostatic

discharge

Two flat-bladed screwdrivers

Phillips screwdriver

Hexagonal screwdriver

Tweezers

Plastic stick

Special tool for CPU

The flowchart on the following page gives a clearer and more graphic

representation of the entire disassembly sequence. Please refer to it from

time to time, together with the screw list below. For a more detailed

disassembly procedure, please refer to the Service CD kit.

The screws for the different components vary in size. During the disassembly

process, group the screws together with the corresponding components to

avoid mismatches when replacing the components.

Chapter 3

Removal and Replacement

720.book Page 55 Saturday, March 6, 1999 10:00 AM

56 Removal and Replacement

SCREW LIST

A: M2 x 4L (B/ZN) (Nylok)

E: M2 x 4L (NI)

F: M2.5 x 13.5L (B/ZN) (Nylok)

G:M2.5 x 8L (B/ZN) (Nylok)

H: M2.5 x 6L (B/ZN) (Nylok)

I: M2.5 x 18L (B/ZN)

J: M2 x 4L (Round washer head)

L: M2 x 18L (NI)

N: M2.5 x 15L (B/ZN) x1

O: M3 x 4L

P:M2 x 2.5L (NI)

Q:M2 x 8L (NI)

HDD

Module

HDD and

HDD Shield

HDD

Connector

Board

HDD

Hinge Cap

L x 2

F x 2

G x 2

LCD Module

LCD Bezel

LED Board LCD and

Inverter

Board

Internal

Microphone

E x 2

H x 5

LCD Pannel

Battery Pack/

CD-ROM

Module

Middle

Cover

Upper Heat Sink

Upper Case

MMO

Heatsink

MMO

Bracket FDD

Module

Touchpad

Bracket

Mainboard

DC-DC

Charger

IDE

Board

PCMCIA

Card

Push

Touchpad

Cable

Touchpad

Board

G x 5 (On the back)

I x2 (On the back)

G x 1 (On the top)

J x 1 (On the top)

H x 2 (On the top)

H x 4

O x 4

TravelMate 720 Disassembly Flowchart (13.3 LCD)

Middle Cover

Inverter

Board

LCD Cable

CPU

module

(MMO)

H x 1

P x 2

J x 2

Q x 1

H x 1

E x 4

Speaker E x 4

Fan

A x 1

DIMM Cover

DIMM Module

A x 1

Modem Cover

Modem

Module

Keyboard

E x 4

L x 1

N x 1

J x 1

720-ch3.fm Page 56 Saturday, March 6, 1999 8:30 AM

Chapter 3 57

External Module Replacement

Reassembling the Modem Board

1. Connect the modem cable to the system board.

2. Insert the modem board back into its socket.

3. Put on the modem board cover.

4. Secure the modem board cover with its original screw.

Installing Memory

1. Insert the DIMM module into its socket.

2. Put on the DIMM cover.

720.book Page 57 Saturday, March 6, 1999 10:00 AM

58 Removal and Replacement

3. Secure the DIMM cover with its original screw.

Disassembling the CD-ROM Drive

1. Push the CD-ROM drive locker forward and carefully pull out the CD-ROM

module.

2. To disassemble the CD-ROM module, remove the 2 screws from both

sides of the CD-ROM module and the screw on the CD-ROM chassis.

3. Remove the CD-ROM drive from the CD-ROM chassis.

720.book Page 58 Saturday, March 6, 1999 10:00 AM

Chapter 3 59

4. Disconnect the cable of the CD-ROM drive.

Removing the Hard Disk Drive

1. Use a flat-bladed screwdriver to remove the screw of the hard disk drive.

2. Carefully, pull out the hard disk drive to remove it.

Disassembling the Hard Disk Drive

1. To disassemble the hard disk drive, remove the 2 screws on both sides of

the hard disk drive.

2. Separate the hard disk drive from its bezel.

720.book Page 59 Saturday, March 6, 1999 10:00 AM

60 Removal and Replacement

3. Remove the hard disk drive from it’s shield plate.

4. Disconnect the hard disk cable from the hard disk drive.

5. To reconnect the hard disk cable, be sure that the 1st pin is aligned up as

indicated.

Removing and Replacing the Battery Pack

1. To remove the battery pack, press the battery compartment cover latch

and slide the cover out.

720.book Page 60 Saturday, March 6, 1999 10:00 AM

Chapter 3 61

2. Pull out the battery pack.

3. Reinsert the battery pack by sliding it back in.

4. Slide the battery compartment cover into its place.

720.book Page 61 Saturday, March 6, 1999 10:00 AM

62 Removal and Replacement

Removing the Keyboard

1. Slide out the hinge covers on both sides of the notebook.

2. To remove the middle cover, use a flatbladed screwdriver to release the

latches as shown.

3. Lift the middle cover away

.

720.book Page 62 Saturday, March 6, 1999 10:00 AM

Chapter 3 63

4. Lift the keyboard up and outward to expose the keyboard connector at

CN20.

.

5. Remove the keyboard by carefully releasing the connector.

6. In reassembling the keyboard, be sure that the latches are lined up as

indicated blew.

720.book Page 63 Saturday, March 6, 1999 10:00 AM

64 Removal and Replacement

7. To replace the middle cover, be sure that the latches are lined up with the

upper case as indicated below.

8. Press the middle cover to lock it in place.

720.book Page 64 Saturday, March 6, 1999 10:00 AM

Chapter 3 65

Removing the LCD

1. Disconnect the internal microphone cable at CN4 from the system board.

2. Remove the LED cable at CN8 from the system board.

3. Remove the two screws of the LCD FPC cable at CN2 from the LVDS

board.

720.book Page 65 Saturday, March 6, 1999 10:00 AM

66 Removal and Replacement

4. Remove the LCD FPC cable cover from the system board.

5. Disconnect the LCD FPC cable from the LVDS board.

6. Use two flatbladed screwdrivers to remove the LVDS board at CN13 from

the system board.

720.book Page 66 Saturday, March 6, 1999 10:00 AM

Chapter 3 67

7. Remove the two screws at the base and at the back of the lower case.

.

8. Carefully, detach the LCD module from the main unit.

720.book Page 67 Saturday, March 6, 1999 10:00 AM

68 Removal and Replacement

Removing the CPU

1. To remove the CPU board, first remove the five screws of the CPU heat

sink.

2. Lift the heat sink away.

3. Use this special tool placing it under the CPU board and aligning it with the

white line, then lift up the CPU board to bring it out from the system board.

4. To reinsert the CPU board, first insert the upper heat sink back into the

upper case.

720.book Page 68 Saturday, March 6, 1999 10:00 AM

Chapter 3 69

5. Reinsert the CPU board at CN17 of the system board by aligning the CPU

board with the two pillars of the MMO shield as shown below.

6. Use this special tool to press down and completely connect the CPU

board to its socket.

720.book Page 69 Saturday, March 6, 1999 10:00 AM

70 Removal and Replacement

Disassembling the Upper Case

1. To detach the upper case, first remove the two screws from the upper heat

sink then lift the upper heat sink up and out.

2. Remove the floppy cable at CN18 from the system board.

3. Remove the mouse cable at CN19 from the system board.

720.book Page 70 Saturday, March 6, 1999 10:00 AM

Chapter 3 71

4. Remove the 11 screws from the upper case and the base of the unit.

5. Disconnect the suspend cable at CN9, the left channel speaker at CN10

and the right channel speaker at CN11.

6. Remove the upper case from the lower case.

7. To reinsert the upper case into the lower case, be sure that the latches on

the lower case are aligned to the latches on the upper case.

720.book Page 71 Saturday, March 6, 1999 10:00 AM

72 Removal and Replacement

Removing the Speakers

1. Remove the two screws of the right channel speaker, then lift it away.

2. To remove the right channel speaker from the upper case, release its

cable from the latches.

3. Remove the two screws from the left channel speaker, then lift it away.

720.book Page 72 Saturday, March 6, 1999 10:00 AM

Chapter 3 73

Removing the Touchpad Bracket

1. Remove the four screws of the touchpad bracket.

2. Detach the bracket from the side latches.

3. Detach the touchpad cable from the touchpad board.

4. Remove the touchpad board from the upper case.

720.book Page 73 Saturday, March 6, 1999 10:00 AM

74 Removal and Replacement

Disassembling the Lower Case

Removing the Floppy Disk Drive

1. Remove the three screws of the floppy disk drive.

2. Lift the floppy disk drive from the lower case.

.

3. Remove the two screws from the floppy frame.

4. Separate the floppy disk drive from its frame.

.

5. Carefully, disconnect the floppy cable from the floppy drive.

.

720.book Page 74 Saturday, March 6, 1999 10:00 AM

Chapter 3 75

Disassembling the Fan

1. Disconnect the fan cable from the system board.

2. Remove the four screws of the MMO shield.

3. Lift the MMO shield away from the lower case.

4. Remove the two screws of the fan.

5. Separate the fan from the MMO shield.

720.book Page 75 Saturday, March 6, 1999 10:00 AM

76 Removal and Replacement

Removing the System Board

1. Remove the FIR lens from the lower case.

2. Disconnect the DC-DC charger between the two pins at CN22 and CN23

from the system board.

3. Remove the system board away from the lower case.

720.book Page 76 Saturday, March 6, 1999 10:00 AM

Chapter 3 77

Removing the IDE Board

1. Remove the IDE board at CN30 from the system board.

Removing the PCMCIA Card

1. Remove the four screws of the PCMCIA card.

2. Remove the PCMCIA card at CN16 from the system board.

3. This completes the disassembly procedure of the lower case.

720.book Page 77 Saturday, March 6, 1999 10:00 AM

78 Removal and Replacement

Disassembling the LCD

1. Remove the two cushions and three mylar stickers from the LCD bezel.

2. Remove the five screws on the LCD bezel.

3. Carefully, pull out the display bezel.

.

720.book Page 78 Saturday, March 6, 1999 10:00 AM

Chapter 3 79

4. Remove the two screws of the LED board.

5. Pull out the LED board from the LCD.

6. Disconnect the LED board cable from the LED board.

7. Remove the internal microphone from the LCD.

8. Remove the six screws from the inverter board.

9. Lift the LCD and inverter board from the LCD panel.

720.book Page 79 Saturday, March 6, 1999 10:00 AM

80 Removal and Replacement

10. Remove the inverter board by disconnecting the LCD FPC cable.

11. Remove the LCD power cable.

.

12. Peel the tape off.

13. Disconnect the LCD FPC cable from the LCD.

720.book Page 80 Saturday, March 6, 1999 10:00 AM

Chapter 4 81

TravelMate 720 has system checkouts, a list of error codes and messages

with corresponding actions, and procedures for undetermined problems to

help with troubleshooting.

Note: The diagnostic tests are intended to test only Acer products. Non-

Acer products, prototype cards, or modified options can give false

errors and invalid system responses.

When troubleshooting, it is important to:

Obtain the failing symptoms in as much detail as possible.

Verify the symptoms by attempting to re-create the failure by running the

diagnostic test or by repeating the same operation.

Note: To run the diagnostics, refer to “Running the Diagnostics”.

Troubleshooting

Chapter 4

720.book Page 81 Saturday, March 6, 1999 10:00 AM

82 Troubleshooting

Use the following table with the verified symptom to determine which page in

this chapter to go to. Search the symptoms column and find the description

that best matches your symptom; then go to the page shown in the “Go To”

column.

Symptoms (Verified) Go To

Power failure. (The power indicator

does not go on or stay on.)

“Power System Checkout”.

POST does not complete. No beep or

error codes are indicated.

“Symptom-to-FRU Index”, and then

use the No Beep Symptoms table.

POST beeps, but no error codes are

displayed.

“Symptom-to-FRU Index”, and then

use the Beep Symptoms table.

POST detected an error and displayed

numeric error codes.

“Symptom-to-FRU Index”, and then

use the Numeric Error Codes table.

The diagnostic test detected an error

and displayed an FRU code.

“Running the Diagnostics”.

Other symptoms (such as LCD display

problems).

“Symptom-to-FRU Index”, and then

use the Other Symptoms table.

Symptoms cannot be re-created

(intermittent problems).

Use the customer-reported symptoms

and go to “Symptom-to-FRU Index”.

720.book Page 82 Saturday, March 6, 1999 10:00 AM

Chapter 4 83

Diskette Drive Checkout

Do the following to isolate the problem to a controller, driver, or diskette. A

write-enabled, diagnostic diskette is required.

Note: Make sure that the diskette does not have more than one label

attached to it. Multiple labels can cause damage to the drive or

cause the drive to fail.

Do the following to select the test device. See “Running the Diagnostics” for

details.

1. Boot from the diagnostics diskette and start the PQA program (please

refer to “Running PQA Diagnostics Program”).

2. Go to the diagnostic Diskette Drive in the test items.

3. Press F2 in the test items.

4. Follow the instructions in the message window.

If an error occurs with the internal diskette drive, reseat the connector on the

System board.

If the error still remains:

1. Reseat the diskette drive.

2. Replace the diskette driver cable.

3. Replace the diskette.

4. Replace the IDE board

5. Replace the System board.

CD-ROM Driver Test

Do the following to isolate the problem to a controller, drive, or CD-ROM.

Make sure that the CD-ROM does not have any label attached to it. The label

can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1. Boot from the diagnostics diskette and start the PQA program (please

refer to “Running PQA Diagnostics Program”.

2. Go to the diagnostic CD-ROM in the test items.

3. Press F2 in the test items.

4. Follow the instructions in the message window.

If an error occurs, reseat the connector on the System board. If the error still

remains:

1. Reseat the CD-ROM drive.

2. Replace the CD-ROM drive.

3. Replace the IDE board.

4. Replace the System board.

720.book Page 83 Saturday, March 6, 1999 10:00 AM

84 Troubleshooting

Keyboard or Auxiliary Input Device Checkout

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears,

make sure that the flexible cable extending from the keyboard is correctly

seated in the connector on the sub card.

If the keyboard cable connection is correct, run the Keyboard Test. See

“Running the Diagnostics” for details.

If the tests detect a keyboard problem, do the following one at a time to

correct the problem. (Do not replace a nondefective FRU):

1. Reseat the keyboard cables.

2. Replace the keyboard.

3. Replace the System board.

The following auxiliary input devices are supported for this computer:

Numeric keypad

External keyboard (with keyboard/mouse cable)

If any of these devices do not work, reseat the cable connector and repeat

the failing operation.

If the problem does not recur, recheck the connector. If the problem is not

corrected, replace the device and then the System board.

720.book Page 84 Saturday, March 6, 1999 10:00 AM

Chapter 4 85

Memory Checkout

DIMM cards are available for increasing memory capacity.

Memory errors might stop system operations, show error messages on the

screen, or hang the system.

1. Boot from the diagnostics diskette and start the PQA program (please

refer to “Running PQA Diagnostics Program”).

2. Go to the diagnostic Memory in the test items.

3. Press F2 in the test items.

4. Follow the instructions in the message window.

Note: Make sure that the DIMM is fully installed into the connector. A

loose connection can cause an error.

Slot 1 (MB) Slot 2 (MB) Total Memory (MB)

32 0 32

83240

32 8 40

16 32 48

32 16 48

32 32 64

64 0 64

86472

64 8 72

16 64 80

64 16 80

32 64 96

64 32 96

64 64 128

64 128 160

128 128 256

720.book Page 85 Saturday, March 6, 1999 10:00 AM

86 Troubleshooting

Flash Memory Update:

The flash memory update is required for the following conditions:

New versions of system programs

New features or options

Power System Checkout

To verify the symptom of the problem, power on the computer using each of

the following power sources:

1. Remove the battery pack and diskette drive.

2. Connect the AC Adapter and check that power is supplied.

3. Disconnect the AC Adapter and install the charged battery pack; then

check that power is supplied by the battery pack.

If you suspect a power problem, see the appropriate power supply checkout

in the following list:

“Checking the AC Adapter”

“Checking Operational Charging”

“Checking the Battery Pack”

Checking the AC Adapter:

If the power problem occurs only when the port replicator is used,

replace the port replicator.

If the power-on indicator does not turn on, check the power cord of the

AC Adapter for correct continuity and installation.

If the operational charge does not work, go to “Checking Operational

Charging.”

720.book Page 86 Saturday, March 6, 1999 10:00 AM

Chapter 4 87

Checking Operational Charging:

To check operational charging, use a discharged battery pack or a battery

pack that has less than 50% of the total power remaining when installed in

the computer.

Perform operational charging. If the battery status indicator does not turn on,

remove the battery pack and let it return to room temperature. Reinstall the

battery pack.

If the charge indicator still does not turn on, replace the battery pack. If the

charge indicator still does not turn on, replace the System board. Then

reinstall the battery pack. If the reinstalled battery pack is not charged, go to

the next section.

Checking the Battery Pack:

Battery charging will not start until the Fuel-Gauge shows that less than 95%

of the total power remains; with this condition the battery pack can charge to

100% of its capacity. This protects the battery pack from being overcharged

or having a shortened life.

Do the following:

1. Power off the computer.

2. Remove the battery pack and measure the voltage between battery

terminals 1 (+) and 7. See the following figure:

If the voltage is still less than +10.0 Vdc after recharging, replace the battery.

720.book Page 87 Saturday, March 6, 1999 10:00 AM

88 Troubleshooting

TouchPad Checkout

If the TouchPad does not work, check the configuration in the BIOS program.

If the configuration of the TouchPad is disabled, select Enable to enable it.

If this does not correct the TouchPad problem, continue with the following.

After you use the TouchPad, the pointer drifts on the screen for a short time.

This self-acting pointer movement can occur when a slight, steady pressure

is applied to the TouchPad pointer. This symptom is not a hardware problem.

No service actions are necessary if the pointer movement stops in a short

period of time.

If a click button problem or the pointing stick problem occurs, do the following:

1. Boot from the diagnostics diskette and start the PQA program (please

refer to “Running PQA Diagnostics Program”).

2. Go to the diagnostic Pointing Dev. in the test items.

3. Press F2 in the test items.

4. Follow the instructions in the message window.

If either the pointing stick or the click button do not work, do the following

actions one at a time to correct the problem do not replace a nondefective

FRU:

1. Reseat the TouchPad cables.

2. Replace the TouchPad cables.

3. Replace the TouchPad.

720.book Page 88 Saturday, March 6, 1999 10:00 AM

Chapter 4 89

Symptom-to-FRU Index

The symptom-to-FRU index lists the symptoms and errors and their possible

causes. The most likely cause is listed first.

Note: Perform the FRU replacement or actions in the sequence shown

in the “FRU/Action” columns. If a FRU replacement did not solve

the problem, put the original part back in the computer. Do not

replace a nondefective FRU.

This index can also help you determine the next possible FRU to be replaced

when servicing a computer.

Numeric error codes show the errors detected in POST or system operation.

If no codes are available, use narrative symptoms.

If the symptom is not listed, go to “Undetermined Problems”.

Numeric Error Codes

The following is a list of the messages that the BIOS can display. Most of

them occur during POST. Some of them display information about a hardware

device, e.g., the amount of memory installed. Others may indicate a problem

with a device, such as the way it has been configured. Following the list are

explanations of the messages and remedies for the reported problems.

Note: If the system fails after you make changes in the Setup menus,

reset the computer, enter Setup and install Setup defaults or

correct the error.

Symptom / Error FRU / Action in Sequence

0200

Failure Fixed Disk

1. Reseat Hard disk driver.

2. “Load Setup Defaults” in BIOS Setup Utility.

3. Hard disk driver

4. System board

0211

Stuck Key

Go to “Keyboard or Auxiliary Input Device

Checkout”.

0211

Keyboard error

Go to “Keyboard or Auxiliary Input Device

Checkout”.

0212

Keyboard Controller Failed

Go to “Keyboard or Auxiliary Input Device

Checkout”.

0213

Keyboard locked - Unlock

key switch

Unlock external keyboard

720.book Page 89 Saturday, March 6, 1999 10:00 AM

90 Troubleshooting

0220

Monitor type does not

match CMOS - Run Setup

Run “Load Setup Defaults” in BIOS Setup Utility.

0230

Shadow RAM Failed at

offset: nnnn

1. BIOS ROM

2. System board

0231

System RAM Failed at

offset: nnnn

1. DIMM

2. System board

0232

Extended RAM Failed at

offset:nnnn

1. DIMM

2. System board

0250

System battery is dead -

Replace and run Setup

Replace backup battery (RTC) and Run SETUP

to reconfigure System time, then reboot system.

0251

System CMOS checksum

bad - Default configuration

used

1. Backup battery (RTC)

2. Run SETUP to reconfigure System, then reboot

system.

0260

System timer error

1. Backup battery (RTC)

2. Run SETUP to reconfigure System, then reboot

system.

3. System board

0270

Real time clock error

1. Backup battery (RTC)

2. Run SETUP to reconfigure System, then reboot

system.

3. System board

0280

Previous boot incomplete -

Default configuration used

1. Run “Load Setup Defaults” in BIOS Setup

Utility.

2. Backup battery (RTC)

3. System board

0281

Memory size found by

POST differed from CMOS

1. Run “Load Setup Defaults” in BIOS Setup

Utility.

2. DIMM

3. System board

02B0

Diskette driver A error

1. Check that the drive is defined with the proper

diskette type in Setup.

2. Go to “Diskette Drive Checkout”.

02B2

Incorrect Drive A type - run

SETUP

1. Check that the drive is defined with the proper

diskette type in Setup.

2. Go to “Diskette Drive Checkout”.

Symptom / Error FRU / Action in Sequence

720.book Page 90 Saturday, March 6, 1999 10:00 AM

Chapter 4 91

02D0

System cache error - Cache

disabled

1. IMM (CPU board)

2. System board

02F0

CPU ID:

1. IMM (CPU board)

2. System board

02F5

DMA Test Failed

1. DIMM

2. IMM (CPU board)

3. System board

02F6

Software NMI Failed

1. DIMM

2. IMM (CPU board)

3. System board

02F7

Fail-Safe Timer NMI Failed

1. DIMM

2. IMM (CPU board)

3. System board

Device Address Conflict 1. Run “Load Setup Defaults” in BIOS Setup

Utility.

2. Backup battery (RTC)

3. System board

Allocation Error for: device 1. Run “Load Setup Defaults” in BIOS Setup

Utility.

2. Backup battery (RTC)

3. System board

Failing Bits: nnnn 1. DIMM

2. BIOS ROM

3. System board

Fixed Disk n None

Invalid System

Configuration Data

1. BIOS ROM

2. System board

I/O device IRQ conflict 1. Run “Load Setup Defaults” in BIOS Setup

Utility.

2. Backup battery (RTC)

3. System board

Operating system not found 1. Enter Setup and see if fixed disk and drive A:

are properly identified.

2. Diskette Driver

3. Hard Disk

4. System board

Symptom / Error FRU / Action in Sequence

720.book Page 91 Saturday, March 6, 1999 10:00 AM

92 Troubleshooting

Power-on indicator on, and

a blank LCD not POST

1. Ensure every connection is correct.

2. DIMM

3. Reseat IMM (CPU board)

4. IMM (CPU board)

5. System board

Power-on indicator not on,

and a blank LCD during

POST

1. Reseat LCD connectors.

2. LCD inverter ID

3. LCD FPC cable

4. LCD inverter

5. LCD

6. LED board

7. System board

Power-on indicator on, and

a blank LCD during POST.

1. Reseat the LCD connectors.

2. LCD inverter ID

3. LCD FPC Cable

4. LCD inverter

5. LCD

6. System board

• LCD backlight not working

• LCD too dark

• LCD brightness can not be

adjusted

• LCD contrast cannot be

adjusted

1. Reseat the LCD connectors.

2. Keyboard (if control is from the keyboard)

3. LCD inverter ID

4. LCD FPC Cable

5. LCD inverter

6. LCD

7. System board

• LCD screen unreadable

• Characters missing pels

• Screen abnormal

• Wrong color displayed

1. Reseat the LCD connectors.

2. LCD inverter ID

3. LCD FPC Cable

4. LCD inverter

5. LCD

6. System board

LCD has extra horizontal or

vertical lines displayed.

1. LCD inverter ID

2. LCD inverter

3. LCD FPC Cable

4. LCD

5. System board

Keyboard (one or more keys)

does not work.

1. Reseat the keyboard cable.

2. Keyboard

3. System board

TouchPad does not work. 1. Reseat TouchPad cable.

2. TouchPad board

3. System board

Symptom / Error FRU / Action in Sequence

720.book Page 92 Saturday, March 6, 1999 10:00 AM

Chapter 4 93

Keyboard (one or more keys)

does not work.

1. Reseat the keyboard cable.

2. Keyboard

3. System board

Power shuts down during

operation.

1. Battery

2. AC Adapter

3. DC/DC & Charge board

4. System board

The system will not power-

on.

1. Battery

2. AC adapter

3. DC/DC & Charge boar

4. System board

The system will not power-

off.

1. DC/DC & Charge board

2. System board

Battery can’t be charged. 1. Battery

2. DC/DC & Charge board

3. IDE board

4. System board

System cannot detect the

PCMCIA.

PCMCIA slots assembly

System board

Memory count (size)

appears different from actual

size.

1. Enter BIOS Utility to execute load setup default

settings, then reboot system.

2. DIMM

3. System board

Speakers have noise or no

sound comes from system.

1. Speaker

2. System board

The system will not enter

Hibernation.

1. Keyboard (if control is from the keyboard)

2. Hard disk

3. System board

The system will not enter

Standby after closing the

LCD.

1. LCD cover switch

2. System board

Battery fuel gauge does not

go higher than 90%.

1. Remove battery pack and let it cool for 2 hours.

2. Refresh battery (continue to use battery until

power off, then charge battery).

3. Battery

4. DC/DC & charge board

5. System board

System configuration does

not match the installed

devices.

1. Enter BIOS Utility to execute load setup default

settings, then reboot system.

2. Reseat CD-ROM/DVD module.

System hangs intermittently. 1. Hard Disk/CD-ROM/DVD drive connector

2. Fan

3. System board

Symptom / Error FRU / Action in Sequence

720.book Page 93 Saturday, March 6, 1999 10:00 AM

94 Troubleshooting

In DOS or Windows

multimedia programs, no

sound comes from the

computer.

1. Speaker

2. System board

External display does not

work correctly.

System board

USB does not work correctly. System board

Print problems 1. Run printer self-test.

2. Printer driver

3. Printer cable

4. System board

Serial or parallel port device

problems

1. Device driver

2. Device cable

3. Device

4. System board

Symptom / Error FRU / Action in Sequence

720.book Page 94 Saturday, March 6, 1999 10:00 AM

Chapter 4 95

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons

that have nothing to do with a hardware defect, such as: cosmic radiation,

electrostatic discharge, or software errors. FRU replacement should be

considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1. Run the advanced diagnostic test for the System board in loop mode at

least 10 times.

2. If no error is detected, do not replace any FRU.

3. If any error is detected, replace the FRU shown by the FRU code. Rerun

the test to verify that no more errors exist.

720.book Page 95 Saturday, March 6, 1999 10:00 AM

96 Troubleshooting

Undetermined Problems

You are here because the diagnostic tests did not identify which adapter or

device failed, installed devices are incorrect, a short circuit is suspected, or

the system is inoperative. Follow these procedures to isolate the failing FRU

(do not isolate a nondefective FRU).

Note: Verify that all attached devices are supported by the computer.

Note: Verify that the power supply being used at the time of the failure is

operating correctly (See “Power Systems Checkout”).:

1. Power off the computer.

2. Visually check them for damage. If any problems are found, replace the

FRU.

3. Remove or disconnect all of the following devices:

a. Non-Acer devices

b. Devices attached to the port replicator

c. Printer, mouse, and other external devices

d. Battery pack

e. Hard disk drive

f. DIMM

g. CD-ROM

h. Diskette drive

i. PC Cards

4. Power on the computer.

5. Determine if the problem has changed.

6. If the problem does not recur, reconnect the removed devices one at a

time until you find the failing FRU.

7. If the problem remains, replace each following FRU one at a time. Do not

replace a nondefective FRU:

a. System board

b. LCD assembly

c. CPU card

720.book Page 96 Saturday, March 6, 1999 10:00 AM

Chapter 4 97

Utility Program Diskette

Setting LCD Panel ID

There is an EEPROM in the inverter which stores its supported LCD type ID

code. If you replace an LCD with one of a different brand or use a new

inverter, the ID information in the inverter EEPROM should be updated.

Follow the steps below to see the LCD Panel ID:

1. Follow the instructions on-screen to read current or to set new LCD Panel

ID code.

Note: When you set a new LCD Panel ID and the new LCD is not yet

enabled (to function), connect an external CRT to see the

program execution process.

Note: Make sure the new ID code you choose corresponds with the LCD

brand and type. If you write a wrong ID into the inverter, just

reboot and re-execute the program and input the correct ID code.

2. Restart the computer - the new LCD should work normally.

Note: If LCD cannot display after changing the ID code, make sure you

write the correct ID code, or try reseating the LCD FPC cable

connectors.

Setting Thermal Sensor Utility

The system is equipped with sensors to protect against system overheating.

By setting System and processor thermal thresholds, the system can turn on

the cooling fan or shut down automatically when temperatures reach the

defined threshold parameters.

720.book Page 97 Saturday, March 6, 1999 10:00 AM

98 Troubleshooting

Running the Diagnostics

Running PQA Diagnostics Program

Note: Before running the PQA Diagnostics Program, make sure that the

write enable tab of the Diagnostic Program Diskette is set to

enabled.

Press -> or <- to move around the main menu. Press enter to enable the

selected option. The main options are Diag, Result, SysInfo, Option and Exit.

The Diag option lets you select testing items and times.

The following screen appears when you select Diag from the main menu:

This screen allows you to specify the number of tests to perform. The options

are as follows:

Manual Test performs a single test and manually checks the selected test

items in sequence.

PQA Vx_x xx-xx-xx

Diag Result SysInfo Option Exit

PQA Vx_x xx-xx-xx

Diag Result SysInfo Option Exit

Diag

MANUAL TEST

AUTO TEST

720.book Page 98 Saturday, March 6, 1999 10:00 AM

Chapter 4 99

Auto Test performs multiple tests of the selected items and automatically

checks the selected test items in sequence.

Note: PCMCIA Diagnostic Supports the Manual test only. Do not select

PCMCIA Diagnostic in Auto Test.

720.book Page 99 Saturday, March 6, 1999 10:00 AM

100 Troubleshooting

The screen below appears if you select AUTO Test.

Specify the desired number of tests and press Enter. After you specify the

number of tests to perform, the screen shows a list of test items (see below):

.

Move the highlight bar from one item to another. Press space to enable or

disable the item. Press Enter to view the available suboptions of each

selected item. Press Esc to close the submenu.

The right corner screen information gives you the available function keys and

the specified test number.

• Space Enables/disables the item

• ESC Exits the program

• F1 Help

• F2 Tests the selected item(s)

• Enter Opens the available suboptions

• Test Times Indicates the number of tests to perform.

Note: The F1 and F2 keys function only after you finish configuring the

Test option.

PQA Vx_x xx-xx-xx

Diag Result SysInfo Option Exit

Diag

MANUAL TEST

AUTO TEST

TEST COUNT VALUE (1...9999) 1

PQA Vx_x xx-xx-xx

Diag Resoult SysInfo Option Exit

Diag

MANUAL TEST

AUTO TEST

Test Items

[ ] Sytem Board

[ ] Memory

[ ] Keyboard

[ ] Video

[ ] Parallel Port

[ ] Serial Port

[ ] Diskette Drive

[ ] Hard Disk

[ ] CD-ROM

[ ] Coprocessor

[ ] Pointing Dev.

[ ] Cache

SPACE: mark/ummark selecting item

ESC : return to upper menu

F2 : test the marked item(s)

ENTER: open subitem’s menu

Test Times = 1

720.book Page 100 Saturday, March 6, 1999 10:00 AM

Chapter 4 101

PQA Diagnostics Program Error Codes and Messages

Error Code Message FRU/Action in Sequence

System

16XX Backup battery error Backup battery

1XXX CPU or System board

error

1. Reload BIOS default setting.

2. CPU

3. System board

2XXX Memory error 1. Reseat CPU (IMM module).

2. DIMM

3. System board

3XXX Keyboard error 1. Reseat Keyboard.

2. Keyboard

3. System board

4XXX Video error System board

5XXX Parallel Port error System board

6XXX Serial port or System

board error

System board

7XXX Diskette drive error 1. Diskette drive

2. System board

8XXX Hard disk error 1. Reload BIOS default setting.

2. Hard disk

3. System board

9XXX CD-ROM error 1. Reseat CD-ROM cable.

2. CD-ROM drive

3. System board

10XXX CPU or System board

error

1. CPU

2. System board

11XXX Pointing device error 1. Reseat Keyboard.

2. Keyboard

3. System board

720.book Page 101 Saturday, March 6, 1999 10:00 AM

102 Troubleshooting

720.book Page 102 Saturday, March 6, 1999 10:00 AM

Chapter 5 103

Top View

PCB No. 97143

CN13 LCD Connector CN8 LED Connector

CN9 Cover Switch Connector CN10 Left Speaker Connector

CN4 MIC Connector CN11 Right Speaker Connector

CN21 HDD Connector CN18 FDD Coneector

CN17 IMM Connector (MMC 2) CN19 Touchpad Connector

CN22& CN23

DC/DC & Charger board Connector

CN20 Keyboard Connector

CN24 Fan Connector

SW1

1 2 3 4

1 2 3 4

ON

ON

Acer OEM

BIOS Keyboard

En

g

lish

ON

1 2 3 4

US En

g

lish

ON

1 2 3 4

Japanese

ON

1 2 3 4

European

ON

1 2 3 4

Jumper and Connector Information

Chapter 5

720.book Page 103 Saturday, March 6, 1999 10:00 AM

104 Jumper and Connector Information

Bottom View

CN27 & CN29

DIMM Module Connector

CN28 Modem Module Connector

CN30 IDE Board Connector

720.book Page 104 Saturday, March 6, 1999 10:00 AM

Chapter 6 105

This chapter gives you the FRU (Field Replaceable Unit) listing in global

configurations of TravelMate 720. Refer to this chapter whenever ordering for

parts to repair or for RMA (Return Merchandise Authorization).

Please note WHEN ORDERING FRU PARTS, that should check the most up-

to-date information available on your regional web or channel. If for whatever

reason a part number change is made, it will not be noted on the printed

Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer

office may have DIFFERENT part number codes to those given in the FRU

list of this printed Service Guide. You MUST use the local FRU list provided

by your regional Acer office to order FRU parts for repair and service of

customer machines.

Note: To scrap or to return defective parts, you should follow the local

government ordinance or regulations on how to dispose of them

properly, or follow the rules set by your regional Acer office on

how to return them.

Note: The number indicates the location shown on exploded diagrams

or “NS” indicates “Not Shown” on it.

Picture No. Part name Description Part No.

CD-ROM

NS CD-ROM ASSY CD-ROM

MODULE

6M.47A01.001

17 CD-ROM

FPC

CABLE

CABLE

ASSEMBLY

FPC CD-ROM

700

50.47A02.001

NS 16 CD-ROM CD DRV KME/

UJDA-150L W/

BZL 700

56.10019.071

NS NS CD-ROM DVD 12.7 KME

UJDA510 700

56.22021.001

FRU (Field Replaceable Unit) List

Chapter 6

720.book Page 105 Saturday, March 6, 1999 10:00 AM

106 FRU (Field Replaceable Unit) List

18 CD-ROM

BRACKET

ASSY CD ROM

CHASSIS 700

60.47A02.001

Processor

44 CPU P II-

300 MHZ

IC CPU MOBI

PII-300 W/AGP

IMM

01.I0MP2.U0B

CPU P II-

333MHZ

IC CPU MPII-

333 DIXON

MMC2 256

01.I0MP2.X3A

CPU P II-

333MHZ

IC CPU MPII-

333 DIXON

MMC1 256

01.I0MP2.X30

CPU P II-

366MHZ

IC CPU MPII-

366 DIXON

MMC2 256

01.I0MP2.36A

DIMM

NS SO-DIMM

32MB

DIMM KMM

466S424AT-F0

100NS 32M

72.46424.04E

SO-DIMM

64MB NEC

S0-DIMM

253509-

10(64MB)NEC

72.25359.00N

SO-DIMM

64MB

SDIMM 64M

4564163G5-

A10B-9JF B

72.25359.A0N

DIMM

32MB

Mitsubishi

S0-DIMM

M5M4V64S40A

TP-10L 32MB

72.54644.A0N

SO-DIMM

64MB

SDIMM 64M

M5M4V64S40B

TP-8L B

72.54644.C0N

FDD

13 FDD FDD MIT/

D353F3 3

MODE 700

56.01051.351

Picture No. Part name Description Part No.

720SG-6.fm Page 106 Saturday, March 6, 1999 10:21 AM

Chapter 6 107

14 FDD FPC

CABLE

C.A FPC FDD

720

C.A FPC FDD

720

HDD

NS HDD

MODULE

6GB

HDD MODULE

6GB IBM

6M.42C01.001

HDD

MODULE

4GB

HDD MODULE

4GB IBM

6M.47A03.021

20 HDD 6GB HDD 2.5

6480MB IBM/

DADA26480

56.02A04.002

HDD 4GB HDD 4090MB

IBM/DTCA

20490 IDE

56.02834.071

21 HDD FPC

CABLE

CABLE

ASSEMBLY

FPC HDD

2.5"700

50.47A01.001

22 HDD shield ASSY HDD

SHIELD PLT

700

60.47A03.001

19 HDD BZL ASSY HDD

BZL 700

60.47A04.002

Picture No. Part name Description Part No.

720.book Page 107 Saturday, March 6, 1999 10:00 AM

108 FRU (Field Replaceable Unit) List

Keyboard

37 KEY

BOARD US

NSK-84A41 91.78S07.041

13.3“ LCD

NS LCD

MOUDLE

13.3" TFT

ASSY LCD

MODULE 13.3"

6M.47A05.021

10 LCD

INVERTER

13.3" TFT

INVERTER

T62.087.C 700

19.21030.191

NS LED

CABLE

13.3" TFT

C.A 15P 2C

100MM LED

AN700

50.47A09.002

NS LED

CABLE

13.3" TFT

C.A 15P 2C

100MM LED

AN700

50.47A09.003

12 LED

BOARD

13.3" TFT

EXTENSA 700

LED BOARD

55.47A03.001

64 LVDS

BOARD

FOR

13.3"TFT

EXTENSA 700

LVDS BOARD

55.47A05.001

Picture No. Part name Description Part No.

720.book Page 108 Saturday, March 6, 1999 10:00 AM

Chapter 6 109

5 LCD

13.3"TFT

LCD

TX34D62VC1C

AC 13.3 TFT

XGA

56.0747A.001

6 LCD FPC

CABLE

13.3"TFT

ASSY LCD

FPC 13.3TFT

700

60.47A07.093

9 LCD

PANEL

13.3" TFT

ASSY LCD

PNL(HIT13.3"T

FT) 700

60.42C10.021

1 LCD

BAZEL

13.3" TFT

ASSY LCD

BEZEL(13.3")

700

60.47A09.003

NS LCD

HINGE

SUPPORT

PACK

ASSY LCD

HINGE

SUPPORT

PACK 700

6M.47A04.021

NS LCD

HINGE

PACK 13.3"

ASSY HINGE

13.3"TFT(710T

E)

6M.47A04.011

14.1” LCD

NS LCD

MODULE

14.1" TFT

ASSY LCD

MODULE 14.1"

720

6M.42C02.001

N LCD

INVERTER

14.1" TFT

INVERTER

T62.087.C 700

19.21030.191

Picture No. Part name Description Part No.

720.book Page 109 Saturday, March 6, 1999 10:00 AM

110 FRU (Field Replaceable Unit) List

NS LCD LED

CABLE

14.1"

C.A 15P 2C

100MM LED

AN700

50.47A09.002

O LED

BOARD

14.1" TFT

14.1 LDE

BOARD

PLATINUM

55.49A05.001

64 LVDS

BOARD

FOR14.1"

TFT

EXTENSA 700

LVDS BOARD

55.47A05.001

G LCD

14.1"TFT

LCD 14.1" TFT

LG/LP141X3-

ABT

56.0743B.041

F LCD FPC

CABLE

14.1"TFT

ASSY LCD

FPC 720

60.42C14.001

F LCD FPC

CABLE

14.1"TFT

ASSY LCD

FPC 720

60.42C14.002

L LCD

PANEL

14.1" TFT

ASSY LCD PNL

14.1" 720

60.42C10.001

L LCD

PANEL

14.1" TFT

ASSY LCD PNL

14.1" 720

60.42C10.002

B LCD

BAZEL

14.1" TFT

ASSY LCD

BAZEL (ACER)

14.1" 720

60.42C12.011

B LCD

BAZEL

14.1" TFT

ASSY LCD

BAZEL (ACER)

14.1" 720

60.42C12.012

Picture No. Part name Description Part No.

720.book Page 110 Saturday, March 6, 1999 10:00 AM

Chapter 6 111

NS LCD

HINGE

PACK 14.1"

ASSY HINGE

PACK 14.1 EXT

720

6M.42C03.001

SYSTEM BOARD

23 MAIN

BOARD

720 MAIN

BOARD

55.42C01.001

NS NS PCMCIA

SOCKET

SKT CARDBUS

IC10S-136PL-

PEJL

22.10172.051

MECHANICAL PARTS

15 FDD

BRACKET

BRACKET FDD

SECC T-0.8

33.47A03.002

38 HEAT SINK

UP

ASSY U HSINK

720

60.42C08.001

43 MMO HEAT

SINK

ASSY HSINK

MMO 720

60.42C02.001

46 MMO

BRACKET

ASSY MMO

SHIELD 720

60.42C03.001

NS MMO

BRACKET

ASSY MMO

SHIELD 720

60.42C03.002

Picture No. Part name Description Part No.

720.book Page 111 Saturday, March 6, 1999 10:00 AM

112 FRU (Field Replaceable Unit) List

34 HINGE

COVER (R)

CAP HINGE (R)

PC

42.47A14.001

35 HINGE

COVER (L)

CAP HINGE

CAP (L) PC

42.47A15.001

36 MIDDLE

COVER

WITHOUT

NAME

PLATE

ASSY MIDDLE

CVR 700

60.47A22.001

29 BATTERY

DOOR

COVER

BATTERY PC

42.47A17.002

27 SIR

COVER

ASSY SIR-

LENS 700

60.47A10.002

26 LOWER

CASE

ASSY L CASE

720

60.42C09.001

26 LOWER

CASE

ASSY L CASE

720

60.42C09.002

Picture No. Part name Description Part No.

720.book Page 112 Saturday, March 6, 1999 10:00 AM

Chapter 6 113

39 UPPER

CASE

ASSY U CASE

720

60.42C06.001

39 UPPER

CASE

ASSY U CASE

720

60.42C06.002

NS NS COVER

SWITCH

W.A CVR SW/

2P 45MM

AN700

50.47A10.001

NS SPEAKER

MODULE

SPK 1W 3520-

7CC W/CABLE

700DX

6M.47A09.001

NS NS POWER

SWITCH

CABLE

W.A CVR SW/

2P 45MM

AN700

50.47A10.001

30 DIMM

COVER

ASSY DIMM

DOOR 720

60.47A05.002

31 MODEM

COVER

DOOR MODEM

AL T-.8 720

34.42C06.001

63 LVDS

BOARD

COVER

CVR LVDS

SHIELD CU

700

34.47A43.001

PCB

NS IDE

TRANSFER

BOARD

EXTENSA 700

IDE

TRANSFER

BOARD

55.47A04.001

Picture No. Part name Description Part No.

720.book Page 113 Saturday, March 6, 1999 10:00 AM

114 FRU (Field Replaceable Unit) List

25 DC-DC

CHARGER

BOARD

DC-DC

CHARGER

T62.085.C V.6

19.21030.331

NS MODEM

BOARD

(AMBIT)

MODEM 56K

AMBIT/

J07.017.C.00

54.09011.211

NS MODEM

BOARD

MODEM PCI

CIS/BM-

5614BMDG

BT2

54.09232.011

POWER

NS ADAPTER ADT 90-264V

60W ADP-

60HB V.A2

25.10064.021

NS ADAPTER ADT 90-270V

ADP-60JB V.A

720

25.10064.031

28 BATTERY

PACK

ASSY BTY

PACK

LIP848NLA

60.47A01.001

28 BATTERY

PACK

ASSY BTY

PACK

LIP860FLACP

720

60.47A01.021

NS POWER

CORE

CORD SPT-2

#18*2C

7A125V1830MM

27.01618.001

TOUCHPAD

40 TOUCH

PAD

TOUCHPAD

SYNAPTICS/

TM4-220

56.1748A.001

Picture No. Part name Description Part No.

720.book Page 114 Saturday, March 6, 1999 10:00 AM

Chapter 6 115

42 TOUCH

PAD

BRACKET

ASSY

TOUCHPAD

BRKT 720

60.42C07.001

41 TOUCH

PAD FPC

CABLE

ASSY

TOUCHPAD

FPC 720

60.42C11.001

OTHERS

45 FAN FAN 30*30*10

U12QFB3E65

23.10033.001

FAN FAN 30*30*10

UDPFFMH01H

BT2

23.10033.031

7 MICROPH

ONE

MODULE

MICROPHONE

ACER 700DX

6M.47A08.001

NS SPEAKER

MODULE

SPK 1WV3520-

7CC W/CABLE

700DX

6M.47A09.001

NS RTC

BATTERY

BTY LI 3V

CR1220

36MAH

23.20004.091

NS NS SCREW SCREW SPC

COIN

M2.5*0.45 H-

6.5

86.00074.330

Picture No. Part name Description Part No.

720.book Page 115 Saturday, March 6, 1999 10:00 AM

116 FRU (Field Replaceable Unit) List

NS 55 SCREW SCREW

M2.5*L15 BLW

ZN

86.1A323.150

NS 56 SCREW SCREW

M2.5*18L (B/

ZN) 700

86.1A323.180

NS 49 SCREW SCREW MACH

PAN M2*8L

86.1A522.8R0

NS 57 SCREW SCREW NUT

MMO HEX

STEEL

87.00010.320

NS NS SCREW NUT MMO HEX

STEEL

87.00010.321

NS 58 SCREW SCREW MACH

M2*4 NI SHIGA

XB6-7200-407

NS NS SCREW SCREW

STEEL NI

M2*5L

86.9A522.5R0

NS J SCREW SCRW MACH

PAN NYLOK

M2*4 ZN

86.1A352.4R0

NS 50 SCREW SCRW MACH

PAN M2*18L NI

86.1A522.180

NS 61 SCREW SCRW MACH

FL M3*4L NI

86.5A524.4R0

NS 47 SCREW SCRW MACH

PAN M2*4L C-

ZN

86.9A522.4R0

NS 52, K SCREW SCRW WAFER

NYLO M2.5*6L

B-ZN

86.9A353.6R0

NS 48 SCREW SCRW MACH

PAN NYLOK

M2*4 ZN

86.1A352.4R0

NS 54 SCREW SCR

M2.5*13.5L B/

ZN NYLOK 700

86.1A353.135

NS NS SCREW SCRW PAN

M2*12L NI

86.1A522.120

NS 53 SCREW SRW M2.5*8L

B/ZN NYLOK

700

86.9A353.8R0

Picture No. Part name Description Part No.

720.book Page 116 Saturday, March 6, 1999 10:00 AM

Chapter 6 117

NS 51 SCREW SCREW

M2.5*4L (NI)

700

86.9A553.4R0

MISCELLANEOUS PARTS

NS NS LCD

LATCH

SPRING

SPRING EJ-

KNOB SWP

300

34.47604.001

NS NS LCD

LATCH

LATCH LCD

700

42.47A01.002

NS 2, C LCD

SCREW

CAP

(LOWER)

MYLAR FOR

HINGE PC 390

40.43A01.081

NS 3 LCD

SCREW

CAP

(UPPER)

CSN SCRW

SILICON 050

6*3H 800

47.49A02.001

NS NS PLATE

NAME

PLT NAME

(721TX)PC

31.7*5.6 720

40.42B01.071

NS 11, M LOGO PLATE

NAME(LOGO)

PC AN390

40.43A02.001

NS NS PLATE

NAME

PLT NAME

(720TE ACER)

PC 720

40.48406.721

NS NS BASE

GRIP

FOOT PU

BLACK 350P

47.45001.001

NS NS PCMCIA

DOOR

SPRING

UPPER

SPRING

PCMCIA

DOOR SWP

700

34.47A40.001

NS NS POWER

SWITCH

KNOB

KNOB POWER

PC

42.47A18.002

NS NS PCMCIA

DOOR

UPPER

DOOR

PCMCIA ABS

050 370

42.46913.001

NS NS PCMCIA

DOOR

SPRING

LOWER

SPRING PCM

DOOR-L SUS

PEACH

34.46928.001

Picture No. Part name Description Part No.

720.book Page 117 Saturday, March 6, 1999 10:00 AM

118 FRU (Field Replaceable Unit) List

NS NS PCMCIA

DOOR

LOWER

DOOR(L)

PCMCIA ABS

050 AN370

42.46919.001

RECOVERY CD

NS NS W98

English-ST

Recovery CD

W98 (ENG)

TM720

90.42C39.103

NS NS W98

German

Recovery CD

W98 (GER)

TM720

90.42C39.G04

NS NS W98 Italian Recovery CD

W98 (ITA)

TM720

90.42C39.I03

NS NS W98 Sp/

Por

Recovery CD

W98 (SP/Por)

TM720

90.42C39.S02

NS NS W98

French

Recovery CD

W98 (FRE)

TM720

90.42C39.F02

NS NS W98 G/F/I Recovery CD

W98 G/F/I

TM720

90.42C39.G03

NS NS W98

Traditional

Chinese

Recovery CD

W98 T-C

TM720

90.42C39.C02

NS NS W98

Simplified

Chinese

Recovery CD

W98 S-C

TM720

90.42C39.C01

NS NS W98 Eng/F/

Dut

Recovery CD

W98 (E/F/Dut)

TM720

90.42C39.102

NS NS W98 Eng/

Sp/Br

Recovery CD

W98 (E/SP/BR)

TM720

90.42C39.SB1

NS NS W98

Danish

Recovery CD

W98 (Dan)

TM720

90.42C39.D01

NS NS W98

Norwegian

Recovery CD

W98 (NOR)

TM720

90.42C39.N01

NS NS W98

Swedish/

Finnish

Recovery CD

W98 (SWE/

FIN) TM720

90.42C39.SF1

Picture No. Part name Description Part No.

720.book Page 118 Saturday, March 6, 1999 10:00 AM

Chapter 6 119

NS NS W98

Traditional

Chinese-

H.K

Recovery CD

W98 (TC-HK)

TM720

90.42C39.HK1

NS NS W98

Russian

Recovery CD

W98 (RUS)

TM720

90.42C39.R01

NS NS W98

Turkish

Recovery CD

W98 (TUR)

TM720

90.42C39.T01

NS NS W98 Thai Recovery CD

W98 (THAI)

TM720

90.42C39.L01

NS NS NT4

English-

STD

Recovery CD

NT4 (ENG)

TM720

90.42C39.101

NS NS NT4

German

Recovery CD

NT4 (GER)

TM720

90.42C39.G02

NS NS NT4 Italian Recovery CD

NT4 (ITA)

TM720

90.42C39.I02

NS NS NT4 French Recovery CD

NT4 (FRE)

TM720

90.42C39.F01

NS NS NT4

Spanish

Recovery CD

NT4 (SPA)

TM720

90.42C39.S01

NS NS NT4

Traditional

Chinese

Recovery CD

NT4 (T-C)

TM720

90.42C39.C03

NS NS W95

German

Recovery CD

W95 (GER)

TM720

90.42C39.G01

NS NS W95 Italian Recovery CD

W95 (ITA)

TM720

90.42C39.I01

Picture No. Part name Description Part No.

720.book Page 119 Saturday, March 6, 1999 10:00 AM

120 FRU (Field Replaceable Unit) List

720.book Page 120 Saturday, March 6, 1999 10:00 AM

Appendix A 121

TravelMate 720 Model Number Define

Model

Number LCD

Type CPU Memory HDD

CD-

ROM/

DVD

Speed

Battery

720TX 14.1”

TFT

PII-300/

AGP

64MB 6GB 24x Li-Ion

721TX 14.1”

TFT

PII-333/

AGP

64MB 6GB 24x Li-Ion

721TXV 14.1”

TFT

PII-333/

AGP

64MB 6GB 2XDVD Li-Ion

722TX 14.1”

TFT

PII-366/

AGP

64MB 10GB 24x Li-Ion

722TXV 14.1”

TFT

PII-366/

AGP

64MB 10GB 2XDVD Li-Ion

Model Definition and Configuration

Appendix A

720.book Page 121 Saturday, March 6, 1999 10:00 AM

122 Model Definition and Configuration

720.book Page 122 Saturday, March 6, 1999 10:00 AM

Appendix B 123

TravelMate720 compatibility is tested and verified by Acer's internal testing

department. The PCMCIA functions are tested under Windows®95

(4.00.950C), Windows®98 and Windows®NT 4.0 environments. In addition

to these tests, Long Run tests and Year 2000 Compliancy have been verified,

too.

Refer to the following lists for components, cards, and peripherals which have

passed these tests. Regarding configuration, combination and test

procedures, please refer to the "720 Compatibility Test Report" released by

the Acer Notebook System Testing Department.

Test Compatible Components List

Appendix B

720.book Page 123 Saturday, March 6, 1999 10:00 AM

124 Test Compatible Components List

PCMCIA

PCMCIA, PM Test

Cards Win95 Win98 WinNT4.0

Memory cards Pass Pass Pass

LAN cards Pass Pass Pass

Modem cards Pass Pass Pass

Combo cards Pass Pass Pass

ZV cards Pass Pass -

Capture cards Pass Pass -

SCSI cards Pass Pass Pass

Cardbus cards Pass Pass -

PCMCIA, Integration/Application Test

Item Win95 Win98 WinNT4.0

Two R2 cards Pass Pass Pass

Two CardBus cards Pass Pass -

R2 & ZV cards Pass Pass -

CardBus & ZV cards Pass Pass -

R2 & CardBus cards Pass Pass -

4 cards Pass Pass Pass

720.book Page 124 Saturday, March 6, 1999 10:00 AM

Appendix B 125

PCMCIA Cards Tested for Year2000 Compliance

Type Name Model No.

ATA Flash Viking ATA Flash Card 16MB

ATA Flash Viking ATA Flash Card 4MB

ATA Flash Epson 5MB Flash ATA 502SD00

ATA Flash Epson 1MB Flash

CardBus 3COM/Megaherts 10/100 LAN

CardBus

3CCFE575BT

CardBus Xircom CardBus Ethernet 10/100 CBE-10/100BTX

CD-ROM Panasonic 8x CD-ROM KLX-783A

Ethernet Xircom CreditCard Ethernet Adapter

IIps

PS-CE2-10

Ethernet 3COM Etherlink III LAN1 3C589D

Ethernet IBM Ethernet II

Ethernet 3COM Fast Etherlink 16-bit PC Card 3C574-TX

Ethernet/Modem Xircom CreditCard Ethernet

+Modem 33.6

CEM-33BC

Ethernet/Modem 3COM Etherlink III LAN+33.6

Modem

3C562D/3C563D

Modem Cardinal V.34 33.6 Fax Modem MVPV34PC

Modem Xircom CreditCard Modem 56 CM56

Modem Hayes Accura 56k

Modem USR Worldport 14.4

MPEG LiveGear MPEG R1-7001

MPEG2 Margi DVD-to-Go

Slim SCSI Adaptec Slim SCSI 1460A

Slim SCSI Adapter Slim SCSI 1460

Token Ring 3COM Token Ring LAN 3C389

720.book Page 125 Saturday, March 6, 1999 10:00 AM

126 Test Compatible Components List

Long Run

Item Win95 Win98 WinNT4.0

Long Run 4 hr Pass Pass Pass

Year2000 Compliance Test

Item Description Result

RTC test Pass Pass

720.book Page 126 Saturday, March 6, 1999 10:00 AM

Appendix C 127

This appendix describes online technical support services available to help

you repair your Acer systems.

If you are a distributor, dealer, ASP or TPM, please refer your technical

queries to your local Acer branch office. Acer Branch Offices, Regional

Offices and Regional Groups may access our website. However, some

information sources will require a user I.D. and password. These can be

obtained directly from Acer CSD Taiwan.

Acer's website offers you convenient and valuable support resources

whenever you need them.

You can find information on all of Acer's Notebook, Desktop and Server

models including;

Service guides for all models

User's manuals

Training materials

BIOS updates

Software utilities

Also contained on this website is

Detailed information on Acer's International Traveler's Warranty (ITW)

An overview of all the support services we offer, accompanied by a list of

telephone, fax and e-mail contacts for all of your technical queries.

Here is the Acer headquarters' Customer Service Division Internet address

for your support information:

http://csd.acer.com.tw

If you have any suggestions or comments, please do not hesitate to

communicate these to TerryMasi@acer.com.tw, or fax to (886) 2 86911799.

Online Support Information

Appendix C

720.book Page 127 Saturday, March 6, 1999 10:00 AM

128 Online Support Information

720.book Page 128 Saturday, March 6, 1999 10:00 AM

Index 129

16550 UART 19

A

AC Adapter 25

ACPI 30

ACPI. See Advanced Configura-

tion and Power Interface

Advanced 47

Advanced Configuration and

Power Interface 30

Advanced Power

Management 30

and 31

APM 31

APM. See Advanced Power

Management

Application key 7

ASP 127

Audio 20

Mixed sound source 20

Resolution 20

Sampling rate 20

Voice channel 20

audio

setting input source in Note-

book Manager 40

Audio Controller 20

B

Battery 22

battery pack

charging indicator 4

Boot Device Priority Submenu 46

boot order

setting in Notebook Manager

35

setting in Setup Utility 46

Boot Sequence 35

brightness

hot keys 9

setting in Notebook

Manager 39

C

caps lock 5

on indicator 4

CardBus PC Card 1

CCFT 24

CD-ROM Drive

Disassembly 58

Charger 23

Checkout

Auxiliary Input Device 84

Diskette Drive 83

Keyboard 84

Memory 85

Power System 86

TouchPad 88

computer

features 1

information 34

on indicator 4

power management 27

Connectivity 1

Connectors 103

contrast

setting in Notebook

Manager 39

CPU

Removing the CPU 68

D

datesetting in Setup Utility 43

DC-AC Inverter 24

Index

720.book Page 129 Saturday, March 6, 1999 10:00 AM

130 Index

DC-DC Converter 23

DC-in jack 11

Desktop Management

Interface 31

Diagnostics 98

Disk Drives

Read/write heads 21

Disk drives 21

Read/write heads 21

Rotational speed (RPM) 21

Tracks 21

Display 2

Opening and Closing the

Display 3

display 2

auto-dim feature 27

dual 2

hot keys 8

opening and closing 3

performance 2

power management 2, 27

setting boot device in Note-

book Manager 39

setting boot device in Setup

Utility 48

setting in Notebook

Manager 39

simultaneous 2

switching device in Note-

book Manager 39

Display Device 39

Driver Test

CD-ROM 83

DSVD 21

Dual Display 2

E

EEPROM 97

Extended Graphics Array

(XGA) 1

External CRT Resolutions

and Modes 18

External Module

Replacement 57

Disassembling the CD-ROM

Drive 58

Disassembling the Hard

Disk Drive 59

Installing Memory 57

Reassembling the Modem

Board 57

Removing and Replacing

the Battery Pack 60

Removing the Hard Disk

Drive 59

External monitor port 10

F

Fast infrared(FIR) 1

Fax/Data Modem 11

fax/data PCI modem 1

Fax/Modem 20

baud rate 20

Field Replaceable Unit 105

FIR 19

Flash Memory Update 86

FRU 89, 105

CD-ROM 105

DIMM 106

FDD 106

HDD 107

LCD 108

Mechanical Parts 111

Miscellaneous Parts117

Others 115

PCB 113

Power 114

Recovery CD 118

Touchpad 114

Fuel-Gauge 87

H

hard disk

power management 27

720.book Page 130 Saturday, March 6, 1999 10:00 AM

Index 131

Hard Disk 0 Submenu 44

Hard Disk Drive

Disassembly 59

Hard disk drives 21

Hibernation mode 29

conditions 29

entering 29

hot key 8

resuming from 29

utility 32

Hot Keys 8

I

I/O Ports 10

I/O ports

bottom ports 13

rear ports 10

right ports 12

indicator lights 4

Indicators 4

Information Viewer 34

infrared

turning on and off 47

Intermittent Problems 95

Internal microphone 20

Internal speaker 20

J

Jumpers 103

Bottom View 104

Top View 103

K

Keyboard 5, 21

Keyboard controller 21

Removing the keyboard 62

Special Keys 5

keyboard 5

embedded numeric

keypad 6

hot keys 8

lock keys 5

Windows keys 7

L

LCD 24

Removing the LCD 65

Resolution 24

LCD Panel ID

Setting 97

LEDs 4

Line-in Jack 10

Line-in/Microphone 40

Lithium-Ion battery 1

Lock Keys 5

Long Run 126

Lower Case

Disassembly 74

Lower Case Disassembly

Fan 75

Floppy Disk Drive 74

IDE Board 77

LCD 78

PCMCIA Card 77

System Board 76

M

Main screen 42

Major 1

Major Features 1

System 1

media access

on indicator 4

Microphone-in jack 10

Mini docking connector 13

MMO 75

Model Definition 121

modem 11

Modem jack 10

MPU-401 UART 20

N

Navigating the Setup Utility 41

Notebook Manager 33, 33–40

720.book Page 131 Saturday, March 6, 1999 10:00 AM

132 Index

Boot Sequence 35

Display Device 39

Hot key 8

Information Viewer 34

Password 36

Power Management 38

starting 33

Num lock 5

on indicator 4

Numeric Error Codes 89

numeric keypad

embedded 6

O

On-die L2 cache 1

Online Support Information 127

Operational Chargin 87

P

Parallel Port 18

Parallel port 10

parallel port

setting in Setup Utility 47

Password 36

password

changing in Setup Utility 50

checking during boot 49

checking during resume 49

removing in Setup Utility 50

setting in Notebook

Manager 36–37

setting in Setup Utility 50

PC Card slots 12

PCMCIA 20

voltage controller 20

PCMCIA controller 20

PhDISK 32

PhDisk

Syntax 32

Power

managing in Notebook

Manager 38

managing in Setup Utility 51

Power and Standby Indicators 4

Power Management 2, 27, 38

power management 27

ACPI 30

advanced 30

Power Management Modes 27

Hard Disk Standby Mode 27

Hibernation mode 29

Peripheral Standby

Modes 28

Sleep Mode (ACPI) 29

power management modes

display standby mode 27

hard disk standby mode 27

Hibernation mode 29

sleep mode (ACPI) 29

Standby mode 28

Power Saving 51

PQA Diagnostics 98

Error Codes and

Messages 101

PS/2 port 12

R

Reassembling the Modem

Board 57

Removal and Replacement 55

Removing a Password 50

RJ45 combo phone jack 21

RMA 105

S

Security 48

Serial Port 19, 10

serial port

setting in Setup Utility 47

Setting a Password 50

Setup Utility 41, 41–53

Advanced menu 47

Boot Device Priority sub-

menu 46

720.book Page 132 Saturday, March 6, 1999 10:00 AM

Index 133

CD-ROM submenu 45

entering 41

Exit menu 53

Hard Disk 0 submenu 44

Main menu 42

navigating 41

Power menu 51

Security menu 48

SGRAM 2

Simultaneous Display 2

sleep mode 29

software

bundled 31

Speaker-out jack 10

Speakers

Removal 72

speakers

hot key 9

Standby mode 28

entering 28

hot key 8

resuming from 28

signals 28

status indicator 4

status indicators 4

Stereo 20

Supervisor Password 36

S-video output 1

Symptom-to-FRU Index 89

System Specification 1

System Utilities 31

T

Tag RAM 17

Test Compatible Components

List 123

PCMCIA 124

Thermal Sensor Utility

Setting 97

Thin-Film-Transistor (TFT) 1

timesetting in Setup Utility 43

touchpad

hot key 9

Touchpad Bracket

Removal 73

TPM 127

Troubleshooting 81

U

Undetermined Problems 96

Universal Serial Bus (USB) 1

Upper Case

Disassembly 70

User Password 37

utility

BIOS Setup 41–53

Notebook Manager 33–40

PhDISK 32

Utility Program Diskette 97

V

V.17 fax modem 21

V.34 data modem 21

Video memory 18

Video Performance 2

voltage controller 20

W

Wavetable synthesizer 1

Weights and Dimension 26

WfM 31

Windows 95 Keys 7

Windows keys 7

Windows logo key 7

Y

Year2000 125

Compliance Test 126

PCMCIA Cards 125

Z

Zoomed Video (ZV) 1

ZV (Zoomed Video) port 20

720.book Page 133 Saturday, March 6, 1999 10:00 AM

134 Index

720.book Page 134 Saturday, March 6, 1999 10:00 AM
