Aspire 4736/4736Z/4336 Series

Aspire 4736/4736Z/4336 Series

Quick Guide

Changes may be made periodically to the information in this publication without obligation

to notify any person of such revisions or changes. Such changes will be incorporated in new

editions of this manual or supplementary documents and publications.

Record the model number, serial number, purchase date and place of purchase information in

the space provided below. The serial number and model number are recorded on the label

affixed to your computer. All correspondence concerning your unit should include the serial

number, model number and purchase information.

This booklet has been reviewed for accuracy. Although Acer makes all reasonable attempts for

this booklet to be printed in an accurate manner, Acer takes no responsibility for any

inadvertent errors or misprints. Acer’s liability with respect to this booklet is subject to any

limitation of liability set out in the applicable product warranty.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in

any form or by any means, electronically, mechanically, by photocopy, recording or otherwise,

without the prior written permission of Acer Incorporated.

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

Aspire 4736/4736Z/4336 Series Quick Guide

Original Issue: 03/2009

Aspire 4736/4736Z/4336 Series Notebook PC

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies'

product names or trademarks are used herein for identification purposes only and belong to

their respective companies.

First things first

We would like to thank you for making an Acer notebook your choice for

meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Just for Starters... poster helps you get started with setting up your

computer.

The Aspire Series Generic User Guide contains useful information applying to all

models in the Aspire product series. It covers basic topics such as Acer's

Empowering Technology, using the keyboard, audio, etc. Please understand

that due to its nature, the Generic User Guide as well as the AcerSystem User

Guide mentioned below will occasionally refer to functions or features which

are only contained in certain models of the series, but not necessarily in the

model you purchased. Such instances are marked in the text with language such

as "only for certain models".

The Quick Guide introduces you to the basic features and functions of your new

computer. For more on how your computer can help you to be more productive,

please refer to the AcerSystem User Guide. This guide contains detailed

information on such subjects as system utilities, data recovery, expansion

options and troubleshooting. In addition it contains warranty information and

the general regulations and safety notices for your notebook. It is available in

Portable Document Format (PDF) and comes preloaded on your notebook.

Follow these steps to access it:

1 Click on Start, All Programs, AcerSystem.

2 Click on AcerSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not

installed on your computer, clicking on AcerSystem User Guide will run the

Adobe Reader setup program first. Follow the instructions on the screen to

complete the installation. For instructions on how to use Adobe Reader,

access the Help and Support menu.

English

Your Acer notebook tour

After setting up your computer as illustrated in the Just for Starters... poster,

let us show you around your new Acer notebook.

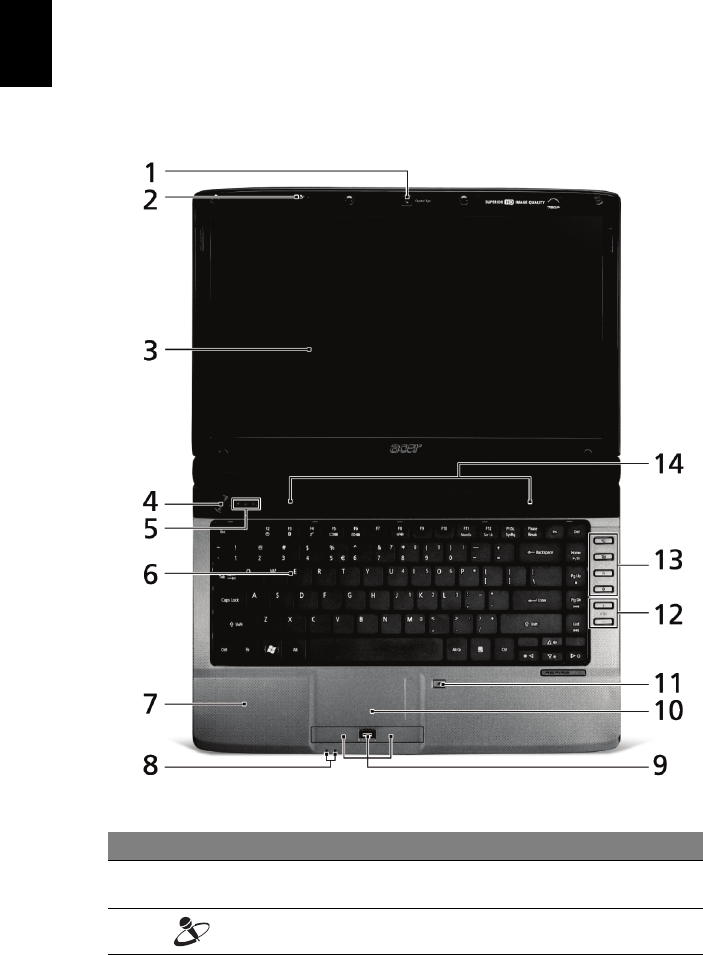

Top view

#Icon Item Description

1 Acer Crystal Eye

webcam

Web camera for video communication.

(only for certain models)

2 Microphone Internal microphone for sound recording.

English

3 Display screen Also called Liquid-Crystal Display (LCD),

displays computer output (Configuration

may vary by models).

4 Power button Turns the computer on and off.

5 HDD Indicates when the hard disk drive is

active.

Num Lock Lights up when Num Lock is activated.

Caps Lock Lights up when Caps Lock is activated.

6 Keyboard For entering data into your computer.

7 Palmrest Comfortable support area for your hands

when you use the computer.

8Power1Indicates the computer's power status.

Battery1Indicates the computer's battery status.

1. Charging: The light shows amber when

the battery is charging.

2. Fully charged: The light shows blue

when in AC mode.

9 Click buttons (left,

center* and right)

The left and right buttons function like

the left and right mouse buttons. *The

center button serves as Acer Bio-

Protection fingerprint reader supporting

Acer FingerNav 4-way control function

(only for certain models).

10 Touchpad Touch-sensitive pointing device which

functions like a computer mouse.

11 Touchpad toggle Turns the internal touchpad on and off.

12 +/- Volume Up/

Volume Down

Increase system volume/decrease system

volume.

#Icon Item Description

English

1. The front panel indicators are visible even when the computer cover is closed

up.

Hotkeys

The computer employs hotkeys or key combinations to access most of the

computer's controls like screen brightness, volume output.

To activate hotkeys, press and hold the <Fn> key before pressing the other key

in the hotkey combination.

13 Acer PowerSmart

key

Puts your computer into power-saving

mode.

Backup key Launches Acer Backup Management for

three-step data backup.

Wireless LAN

communication

button/indicator

Enables/disables the wireless LAN

function. Indicates the status of wireless

LAN communication.

Bluetooth

communication

button/indicator

Enables/disables the Bluetooth function.

Indicates the status of Bluetooth

communication. (only for certain models)

14 Speakers Left and right speakers deliver stereo

audio output.

Hotkey Icon Function Description

<Fn> + <F2> System property Starts System Property for displaying

system information.

<Fn> + <F3> Bluetooth Enables/disables the Bluetooth function.

<Fn> + <F4> Sleep Puts the computer in Sleep mode.

<Fn> + <F5> Display toggle Switches display output between the

display screen, external monitor (if

connected) and both.

<Fn> + <F6> Screen blank Turns the display screen backlight off to

save power. Press any key to return.

<Fn> + <F8> Speaker toggle Turns the speakers on and off.

<Fn> + < > Brightness up Increases the screen brightness.

#Icon Item Description

English

Closed front view

Rear view

<Fn> + < > Brightness down Decreases the screen brightness.

<Fn> + < > Volume up Increases the sound volume

(only for certain models).

<Fn> + < > Volume down Decreases the sound volume

(only for certain models).

#Icon Item Description

1 5-in-1 card reader Accepts Secure Digital (SD),

MultiMediaCard (MMC), Memory

Stick (MS), Memory Stick Pro (MS

PRO), and xD-Picture Card.

Note: Push to remove/install the

card. Only one card can operate at

any given time.

#Item Description

1 Ventilation slots Enable the computer to stay cool, even after

prolonged use.

Hotkey Icon Function Description

English

Left view

#Icon Item Description

1 DC-in jack Connects to an AC adapter.

2 Ethernet (RJ-45)

port

Connects to an Ethernet 10/100/1000-

based network.

3 External display

(VGA) port

Connects to a display device (e.g.,

external monitor, LCD projector).

4 USB 2.0 port Connects to USB 2.0 devices (e.g., USB

mouse, USB camera).

5 HDMI HDMI port Supports high definition digital video

connections (only for certain models).

6 USB 2.0 port Connects to USB 2.0 devices (e.g., USB

mouse, USB camera).

7 Headphones/

speaker/line-out

jack with

S/PDIF support

Connects to audio line-out devices

(e.g., speakers, headphones).

Microphone jack Accepts inputs from external

microphones.

Line-in jack Accepts audio line-in devices (e.g., audio

CD player, stereo walkman, mp3 player)

English

Right view

#Icon Item Description

1 USB 2.0 port Connects to USB 2.0 devices

(e.g., USB mouse, USB camera).

2 Optical drive Internal optical drive; accepts CDs or

DVDs.

3 Optical disk access

indicator

Lights up when the optical drive is

active.

4 Optical drive eject

button

Ejects the optical disk from the drive.

5 Emergency eject

hole

Ejects the optical drive tray when the

computer is turned off.

Note: Insert a paper clip to the

emergency eject hole to eject the

optical drive tray when the computer

is off.

6Modem

(RJ-11) port

Connects to a phone line.

7 Kensington lock slot Connects to a Kensington-compatible

computer security lock.

English

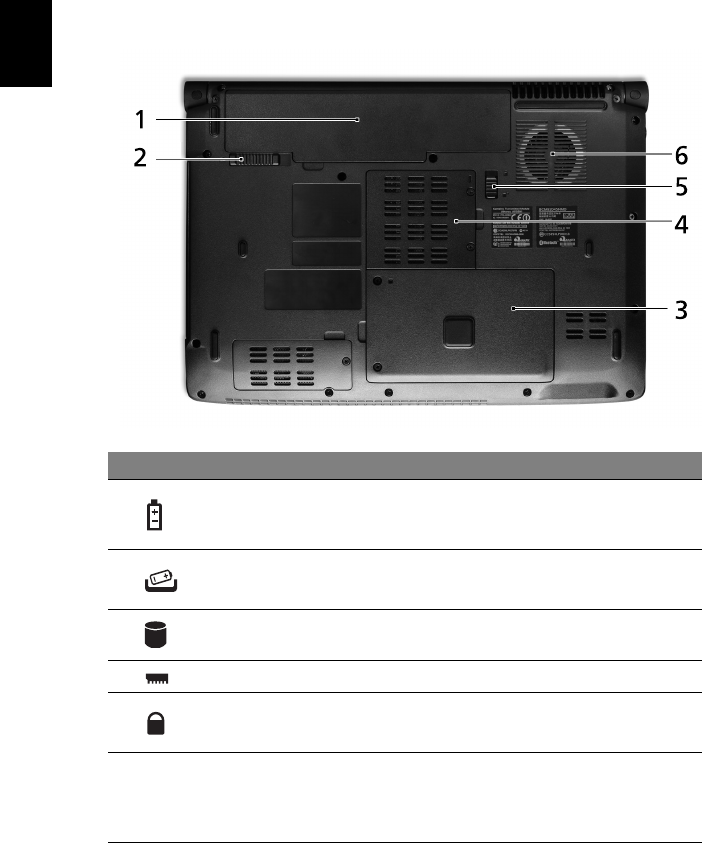

Base view

#Icon Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery release latch Releases the battery for removal.

3 Hard disk bay Houses the computer's hard disk (secured

with screws).

4 Memory compartment Houses the computer's main memory.

5 Battery lock Locks the battery in position.

6 Ventilation slots and

cooling fan

Enable the computer to stay cool, even

after prolonged use.

Note: Do not cover or obstruct the

opening of the fan.

English

Specifications

Operating

system

•Genuine Windows Vista®

Platform •Intel® Centrino® 2 processor technology, featuring:

•Intel

® Core™2 Duo processor

• Mobile Intel® PM45/GM45 Express Chipset*

•Intel

® Wireless WiFi Link 5100/5300*

•Intel

® Wireless WiFi Link 5150/5350*

•Intel

® Pentium® mobile processor*

•Intel

® Celeron® mobile processor*

• Mobile Intel® PM45/GM45/GL40 Express Chipset*

• Acer InviLink™ Nplify™ 802.11b/g/Draft-N*

• Acer InviLink™ 802.11b/g*

System memory •Dual-Channel SDRAM support

•Up to 2 GB of DDR3 800 MHz memory, upgradeable

to 4 GB using two soDIMM modules*

•Up to 2 GB of DDR3 1066 MHz memory, upgradeable

to 4 GB using two soDIMM modules*

•Up to 4 GB of DDR3 1066 MHz memory, upgradeable

to 8 GB using two soDIMM modules*

Display •16:9 aspect ratio

•14" HD 1366 x 768

Graphics •Mobile Intel® GL40 Express Chipset*

•Mobile Intel® GM45 Express Chipset*

•NVIDIA® GeForce® G105M*

Audio •Dolby®-optimized surround sound system with two

built-in stereo speakers

•True5.1-channel surround sound output

•High-definition audio support

•S/PDIF (Sony/Philips Digital Interface) support for

digital speakers

•Acer PureZone technology with two built-in stereo

microphones

•MS-Sound compatible

English

Storage

subsystem

•2.5" hard disk drive

•Optical drive options:

•Blu-ray Disc

™/DVD-Super Multi double-layer

drive*

• DVD-Super Multi double-layer drive*

•5-in-1 card reader

Communication Acer Video Conference, featuring:

• Integrated Acer Crystal Eye webcam*

• Acer PureZone technology

•Wi-Fi/WiMAX: Intel® Wireless WiFi Link 5150/5350*

•WLAN:

•Intel

® Wireless WiFi Link 5100/5300*

• Acer InviLink™ Nplify™ 802.11b/g/Draft-N*

• Acer InviLink™ 802.11b/g*

•WPAN: Bluetooth® 2.0+Enhanced Data Rate (EDR)*

•LAN: Gigabit Ethernet; Wake-on-LAN ready

•Modem: 56K ITU V.92; Wake-on-Ring ready

Privacy control •Acer Bio-Protection fingerprint solution*

•BIOS user, supervisor, HDD passwords

•Kensington lock slot

Dimensions

and weight

•342 (W) x 239 (D) x 23/38.6 (H) mm

(13.4 x 9.4 x 0.9/1.5 inches)

•2.3 kg (5.07 lbs.) with 6-cell battery pack

Power

subsystem

•ACPI 3.0

•48.8 W 4400 mAh

•3-pin 65 W AC adapter

•ENERGY STAR®*

Special keys

and controls

•86-/87-/91-key keyboard

•Touchpad pointing device

I/O interface •Acer Bio-Protection fingerprint reader*

•5-in-1 card reader (SD/MMC/MS/MS PRO/xD)

•USB 2.0 port

•HDMI™ port with HDCP support

•External display (VGA) port

•Headphones/speaker/line-out jack with S/PDIF

support

•Microphone-in jack

•Line-in jack

•Ethernet (RJ-45) port

•Modem (RJ-11) port

•DC-in jack for AC adapter

English

Note: * Only for certain models

Note: The specifications listed above are for reference only. The

exact configuration of your PC depends on the model purchased.

Environment •Temperature:

• Operating: 5 °C to 35 °C

• Non-operating: -20 °C to 65 °C

•Humidity (non-condensing):

• Operating: 20% to 80%

• Non-operating: 20% to 80%

Acer As 4736 4736Z 4336 Qg Eng AS4736_4736Z_4336_QG

Navigation menu

Versions of this User Manual:

Views

Navigation
