X223W
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitor and do not indicate a
problem.
NOTES
·Due to the nature of the fluorescent light, the screen may flicker during
initial use. Turn off the Power Switch and then turn it on again to make
sure the flicker disappears.
·You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
·The LCD screen has effective pixels of 99.99% or more. It may include
blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the
time.
·Due to the nature of the LCD screen, an afterimage of the previous screen
may remain after switching the image, when the same image is displayed
for hours. In this case, the screen is recovered slowly by changing the
image or turning off the Power Switch for hours.
X223W
EN-2
Information for your safety and
comfort
Safety instructions
Read these instructions carefully. Keep this document for future reference. Follow all
warnings and instructions marked on the product.
CAUTION for plug as disconnecting device
Observe the follwing guidelines when connecting and disconnecting power to the
power supply unit:
Install the power supply unit before connecting the power cord to the AC power outlet.
Unplug the power cord before removing the power supply unit from the product.
If the system has multiple sources of power, disconnect power from the system by
unplugging all power cords from the power supplies.
CAUTION for accessibility
Be sure that the power outlet you plug the power cord into is easily accessible and
located as close to the equipment operator as possible. When you need to disconnect
power to the equipment, be sure to unplug the power cord from the electrical outlet.
Warnings
•Do not use this product near water.
•Do not place this product on an unstable cart, stand or table. If the
product falls, it could be seriously damaged.
•Slots and openings are provided for ventilation to ensure reliable operation of
the product and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug or other similar surface. This product should never
be placed near or over a radiator or heat register, or in a built-in installation
unless proper ventilation is provided.
•Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind onto or into the
product.
•To avoid damage of internal components and to prevent battery leakage, do
not place the product on a vibrating surface.
•Never use it under sporting, exercising, or any vibrating environ ment which
will probably cause unexpected short current or damage rotor devices, HDD,
Optical drive, and even exposure risk from lithium battery pack.
Safe listening
Follow these instructions, suggested by hearing experts,to protect your earing.
•Gradually increase the volume until you can hear it clearly and comfortably and
without distortion.
•After setting the volume level, do not increase it afteryour ears adjust.
•Limit the amount of time listening to music at high volume.
•Avoid turning up the volume to block out noisy surroundings.
•Turn the volume down if you can’t hear people speaking near you.
EN-3
X223W
Product servicing
Do not attempt to service this product yourself, as opening or removing covers may
expose you to dangerous voltage points or other risks. Refer all servicing to qualified
service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service person-
nel when:
•the power cord or plug is damaged, cut or frayed
•liquid was spilled into the product
•the product was exposed to rain or water
•the product has been dropped or the case has been damaged
•the product exhibits a distinct change in performance, indicating a need for service
•the product does not operate normally after following the operating instructions
-----------------------------------------------------------------------------------------------------
Note: Adjust only those controls that are covered by the operating instructions,
since improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to
normal condition.
LCD Pixel Statement
The LCD unit is produced with high-precision manufacturing techniques. Nevertheless,
some pixels may occasionally misfire or appear as black or red dots. This has no effect on
the recorded image and does not constitute a malfunction.
Tips and information for comfortable use
Computer users may complain of eyestrain and headaches after prolonged use. Users are
also at risk of physical injury after long hours of working in front of a computer. Long
work periods, bad posture, poor work habits, stress, inadequate working conditions,
personal health and other factors greatly increase the risk of physical injury.
Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis
or other musculoskeletal disorders. The following symptoms may appear in the hands,
wrists, arms, shoulders, neck or back:
•numbness, or a burning or tingling sensation
•aching, soreness or tenderness
•pain, swelling or throbbing
•stiffness or tightness
•coldness or weakness
If you have these symptoms, or any other recurring or persistent discomfort and/or pain
related to computer use, consult a physician immediately and inform your company’s
health and safety department.
The following section provides tips for more comfortable computer use.
Finding your comfort zone
Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest,
or raising your sitting height to achieve maximum comfort. Observe the following tips:
•refrain from staying too long in one fixed posture
•avoid slouching forward and/or leaning backward
•stand up and walk around regularly to remove the strain on your leg muscles
X223W
EN-4
-----------------------------------------------------------------------------------------------------
Warning! We do not recommend using the product on a couch or bed. If this is
unavoidable, work for only short periods, take breaks regularly, and do some
stretching exercises.
-----------------------------------------------------------------------------------------------------
For more information and help in recycling, please visit the following websites:
Worldwide:
http://global.acer.com/about/sustainability.htm
•take short rests to relax your neck and shoulders
•avoid tensing your muscles or shrugging your shoulders
•install the external display, keyboard and mouse properly and within comfort
able reach
•if you view your monitor more than your documents, place the display at the
center of your desk to minimize neck strain
Taking care of your vision
Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room
lighting, poorly focused screens, very small typefaces and low-contrast displays could
stress your eyes. The following sections provide suggestions on how to reduce eyestrain.
Eyes
•Rest your eyes frequently.
•Give your eyes regular breaks by looking away from the monitor and focusing
on a distant point.
•Blink frequently to keep your eyes from drying out.
Display
•Keep your display clean.
•Keep your head at a higher level than the top edge of the display so your eyes
point downward when looking at the middle of the display.
•Adjust the display brightness and/or contrast to a comfortable level for enhanced
text readability and graphics clarity.
•Eliminate glare and reflections by:
•placing your display in such a way that the side faces the window or any light
source
•minimizing room light by using drapes, shades or blinds
•using a task light
•changing the display’s viewing angle
•using a glare-reduction filter
•using a display visor, such as a piece of cardboard extended from the display’s
top front edge
•Avoid adjusting your display to an awkward viewing angle.
•Avoid looking at bright light sources, such as open windows, for extended
periods of time.
Developing good work habits
Develop the following work habits to make your computer use more relaxing and
productive:
•Take short breaks regularly and often.
•Perform some stretching exercises.
•Breathe fresh air as often as possible.
•Exercise regularly and maintain a healthy body.
EN-5
X223W
·LCD Monitor
UNPACKING

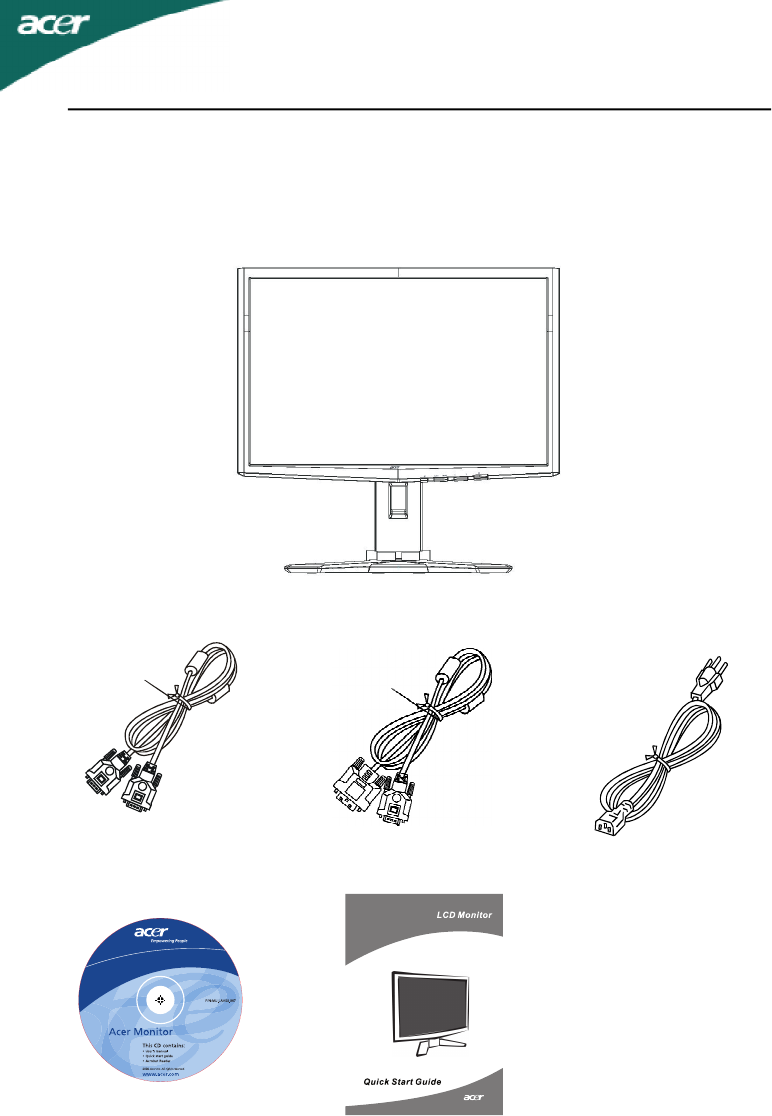

Please check the following items are present when you unpack the box,
and save the packing materials in case you will need to ship or transport
the monitor in future.
·User Manual
·AC Power Cord·15-pin D-Sub Cable
·Quick Start Guide
·DVI Cable
(Only Dual-Input Model)
X223W
X223W
X223W
EN-6

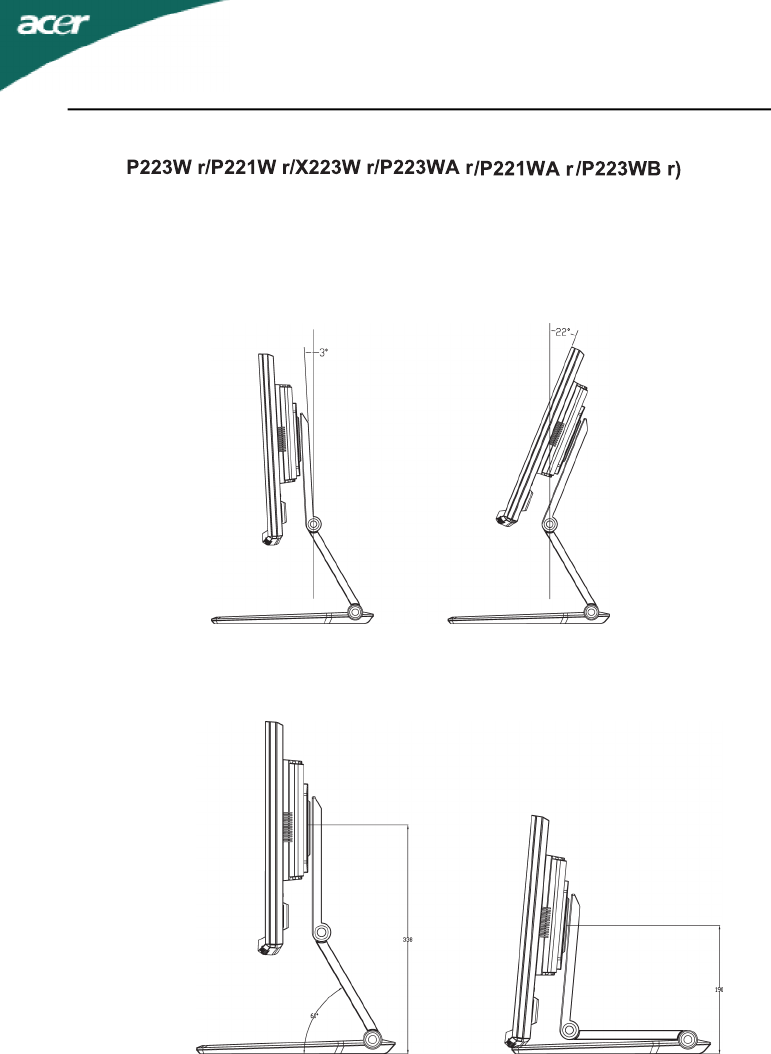

In oder to optimize the best viewing position, you can adjust the tilt of
the monitor by using both of your hands to hold the edges of the monitor
as shown in the figure below.
up/down (height adjustment).
cated by arrow below.
SCREEN POSITION ADJUSTMENT
(Only
The monitor can be adjusted to 3 degrees Forward or 22 degrees backward as indi-
Your monitor features a multi-adjustable stand that will enable it move 148mm
X223W
CONNECTING THE POWER CORD
·Check first to make sure that the power cord you use is the correct type
required for your area.
·This monitor has a universal power supply that allows operation in either
100/120V AC or 220/240 V AC voltage area. No user-adjustment is required.
EN-7

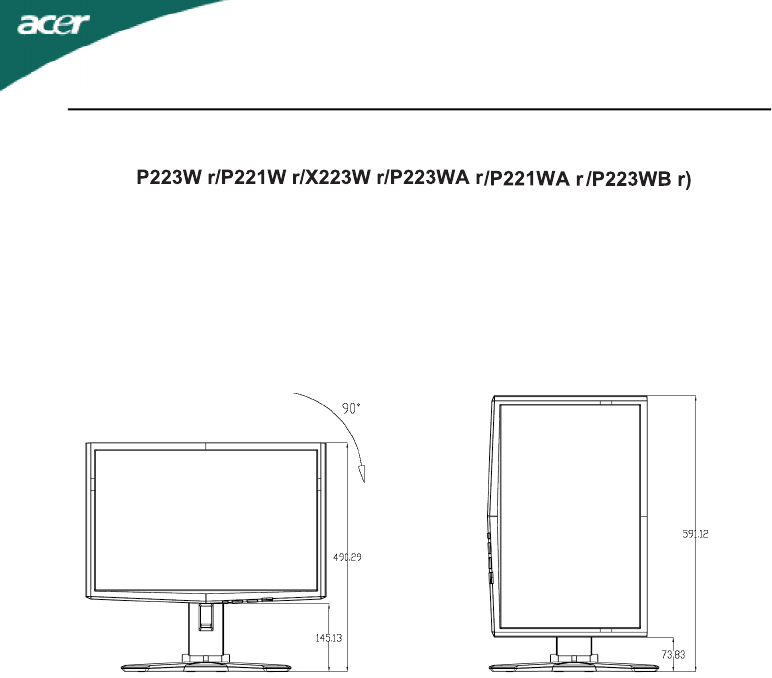

Rotate Adjustment
To rotate the screen
Hold the left and right sides of screen with both hands and then turn 90
degrees in clockwise direction.
After rotation is complete, adjust the screen
height to suit your own position.To return to original position, turn 90 degress
in counter clockwise direction.
After rotation is complete, adjust the screen
height to suit your own position.
NOTES
Do not touch the LCD screen when you change the angle. It may cause damage or
break the LCD screen.
Careful attention is required not to catch your fingers or hand
installed.
change the angle.
s when you
In order to use the Rotate function, the included ADM Software
must be
(Only
X223W
EN-8
CLEANING YOUR MONITOR
Please carefully follow the below guidelines when cleaning the monitor.
Always unplug the monitor before cleaning.
Use a soft cloth to wipe the screen and cabinet front and sides.
•
•
Power saving
The monitor will be driven into Power Saving” mode by the control signal
from the display controller, as indicated by the amber-color power LED.
The power saving states will be kept until a control signal has been detected
or the keyboard or mouse is activated. The recovery time from Active OFF
state back to ON state is around 3 seconds.
State LED
Light
ONBlue
Power Saving
Mode Amber
·Avoid placing the monitor against a bright background or where sun-
light or other light sources may reflect on the face of the monitor. Place
the monitor just below eye level.
·Handle with care when transporting the monitor.
·Refrain from giving shock or scratch to the screen, as screen is fragile.
SAFETY PRECAUTION
·Avoid placing the monitor, or any other heavy object, on the power cord
to avoid damage to the cable.
·Do not expose the monitor to rain, excessive moisture, or dust.
·Do not cover the ventilation slots or openings of the monitor. Always
put the monitor in a place where there is adequate ventilation.
·Plug one end of the power cord to the AC Inlet, plug another end to a
proper AC outlet.
·For unit using at 120 V AC:
Use a UL Listed Cord Set, Type SVT wire and plug rated 10 A/125 V.
·For unit using at 220/240 V AC (outside of U.S.):
Use a Cord Set consisting of H05VV-F cord and plug rated 10 A, 250 V. The
cord set should have the appropriate safety approvals for the country in
which the equipment will be installed.
EN-9
X223W
PIN NO.DESCRIPTIONPIN NO.DESCRIPTION
1.Red9.+5V
2.Green10.Logic Ground
3.Blue11.Monitor Ground
4.Monitor Ground12.DDC-Serial Data
5.DDC-return13.H-Sync
6.R-Ground14.V-Sync
7.G-Ground15.DDC-Serial Clock
8.B-Ground

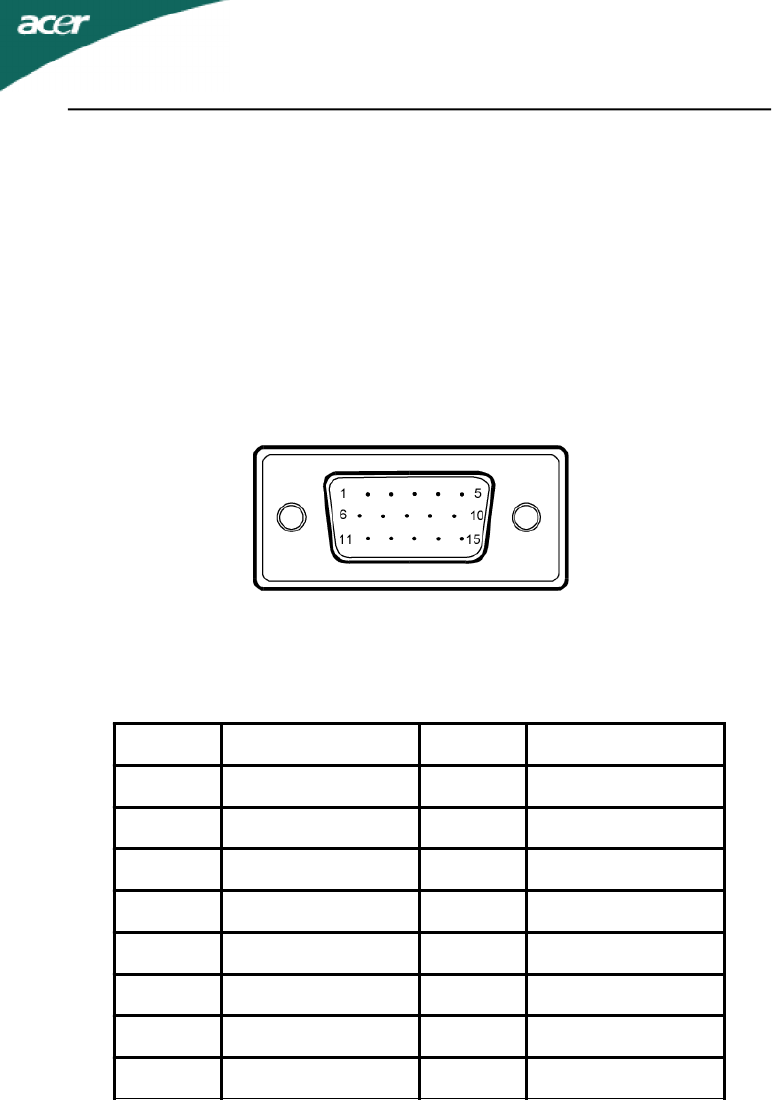

CONNECTOR PIN ASSIGNMENT
15-Pin Color Display Signal Cable
DDC
To make your installation easier, the monitor is able to Plug and Play with
your system if your system also supports DDC protocol. The DDC (Display
Data Channel) is a communication protocol through which the monitor
automatically informs the host system about its capabilities, for example,
supported resolutions and corresponding timing. The monitor supports
DDC2B standard.
X223W
EN-10
24-Pin Color Display Signal Cable
PINMeaningPINMeaning
1.TMDS Data2-13.TMDS Data3+
2.TMDS Data2+14.+5V Power
3. TMDS Data 2/4
Shield 15. GND(return for
+5V hsync.vsync)
4.TMDS Data4-16.Hot Plug Detect
5.TMDS Data4+17.TMDS Data0-
6.DDC Clock18.TMDS Data0+
7.DDC Data19. TMDS Data 0/5
Shield
8. Analogue Vertical
Sync 20.TMDS Data5-
9.TMDS Data1-21.TMDS Data5+
10.TMDS Data1+22.TMDS Clock Shield
11. TMDS Data 1/3
Shield 23.TMDS Clock+
12.TMDS Data3-24.DDC TMDS Clock-
EN-11
X223W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
XGA
SXGA
XGA
VGA
SVGA
WSXGA+
EGA
SXGA
SXGA+
UXGA
WXGA
WXGA+
XGA
SVGA
VGA 640*480@60Hz
640*480@72Hz
640*480@75Hz
800*600@56Hz
800*600@60Hz
800*600@72Hz
800*600@75Hz
1024*768@60Hz
1024*768@70Hz
1024*768@75Hz
1152*864@75Hz
1280*960@60Hz
1152*720@60Hz
1280*1024@60Hz
1280*1024@75Hz
1400x1050@60Hz
1600*1200@60Hz
1360*768@60Hz
1440*900(Red)@60Hz
1440*900@75Hz
1680*1050@60Hz
640*350@70Hz
720x400@70Hz
640*480@66.7Hz
832*624@75Hz
1024*768@75Hz
1152*870@75Hz
1024*768@72Hz
1280*1024@70Hz
To reduce the need for adjustment for different modes, the monitor has
default setting modes that are most commonly used as given in the table
below. For optimum adjustment, the user is suggested to perform the
Auto Setup under Windows “Full Screen“ pattern or using the pattern in
the floppy disk provided. When none of the mode is matched, the user can
store their preferred modes in the user modes. The monitor is capable of
storing up to 9 user modes. The only condition to store as a user mode is
the new display information must have 1 KHz difference for horizontal
frequency or 1 Hz for vertical frequency or the sync signal polarities are
different from the default modes.
Standard Timing Table
ModeResolution
X223W
EN-12

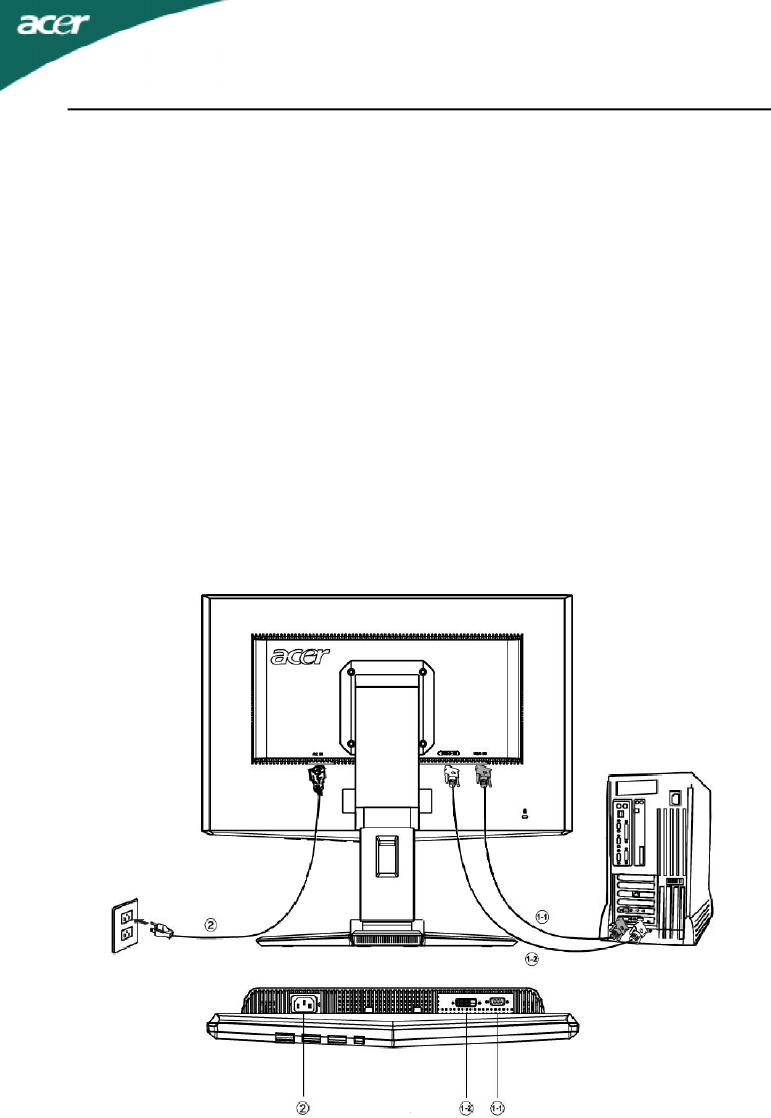

INSTALLATION
To install the monitor to your host system, please follow the steps as given
below:
Steps
1.1-1Connect Video Cable
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the VGA video cable to the computer.
1-2Digital Cable (Only Dual-Input Model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the 24-pin DVI cable to the back of the
monitor and connect the other end to the computer’s port.
2.Connect power cord
Connect the power cord to the monitor, then to a properly grounded AC
outlet.
3.Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer.
This sequence is very important.
4.If the monitor still does not function properly, please refer to the
troubleshooting section to diagnose the problem.
EN-13
X223W
USER CONTROLS

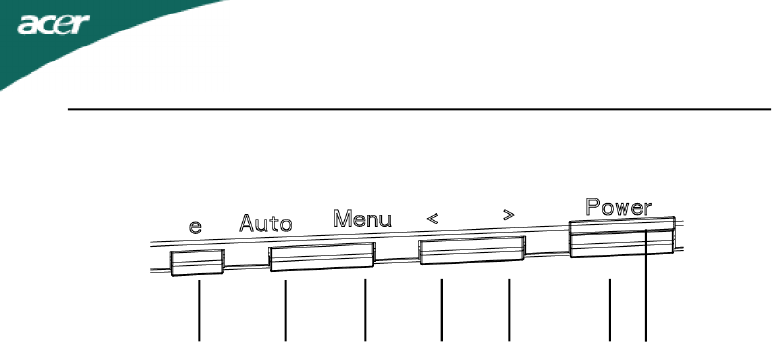

Front Panel Controls
1.Power Switch:
To turn ON or OFF the power.
2.Power LED:
Lights up to indicate the power is turned ON.
3.Empowering / Exit:
1) When OSD menu is in active status, this button will act as EXIT-KEY(EXIT
OSD menu).
2) When OSD menu is in off status, press this button to select scenario
mode.
4.Auto Adjust button / Exit:
1)When OSD menu is in active status, this button will act as EXIT-KEY (EXIT
OSD menu).
2)When OSD menu is in off status, press this button for 2 seconds to
activate the AutoAdjustment function.The Auto Adjustment function is
used to set the HPos, VPos, Clock and Focus.
5.< / >
Press < or > to select the desired function.Press < or > to change the
settings of the current function.
6.MENU / ENTER:
Activate OSD menu when OSD is OFF or activate/de-activate adjustment
function whenOSD is ON or Exit OSD menu when in Volume Adjust OSD
status.
13456 25
X223W
EN-14

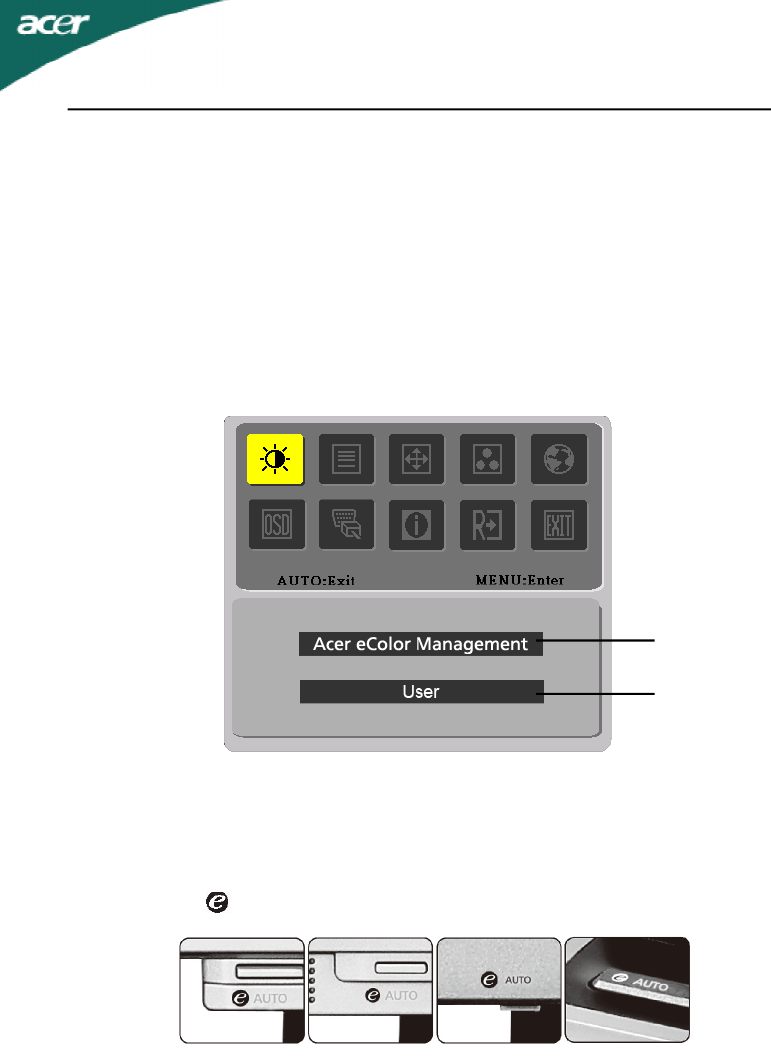

1.Acer eColor Management
If selected to “Acer eColor Management “ item, will appear the
Acer eColor” OSD
HOW TO ADJUST A SETTING
1.Press the MENU-button to activate the OSD window.
2.Press < or > to select the desired function.
3.Press the MENU-button to select the function that you want to adjust.
4.Press < or > to change the settings of the current function.
5.To exit and save, select the exit function. If you want to adjust any other
function, repeat steps 2-4.
·P/X Series OSD behave
When user press “MENU” button on front bezel
·OSD and” Key “ locations
Value LinePerformance
Line and
Gamer Line
Value Line
w/speaker
Office Line
1
2
EN-15
X223W

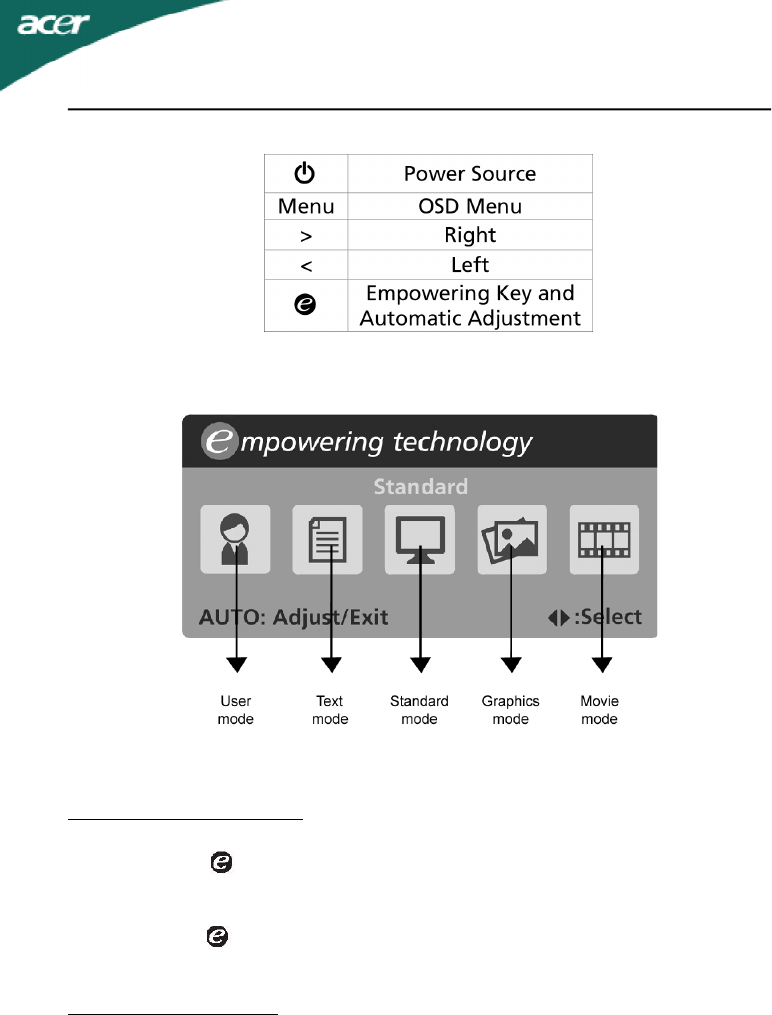

·Acer eColor Management OSD
Acer eColor Management
Step 1: Press “ Key “ to open the Acer eColor Management OSD and
access the scenario modes
Step 2:Press “<“ or “>” to select the mode
Step 3:Press “ Key “ to confirm the mode and run Auto Adjust
Automatic Adjustment
Step 1:Press “ Auto Key “to initial scenario mode
Step 2:Press “ Auto Key “ again to perform an Auto Adjust
·Operation instructions
X223W
EN-16
I. Only Analog Input Model
2.USER
If selected to “USER” item, will appear the Standard OSD

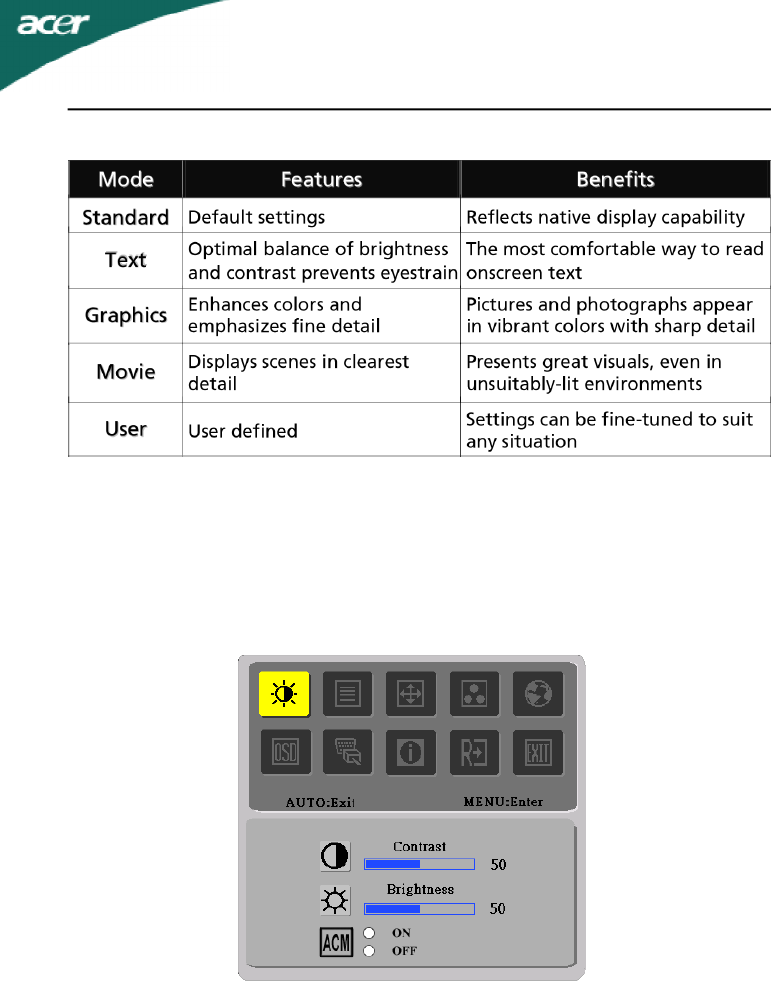

·Features and Benefits
EN-17
X223W

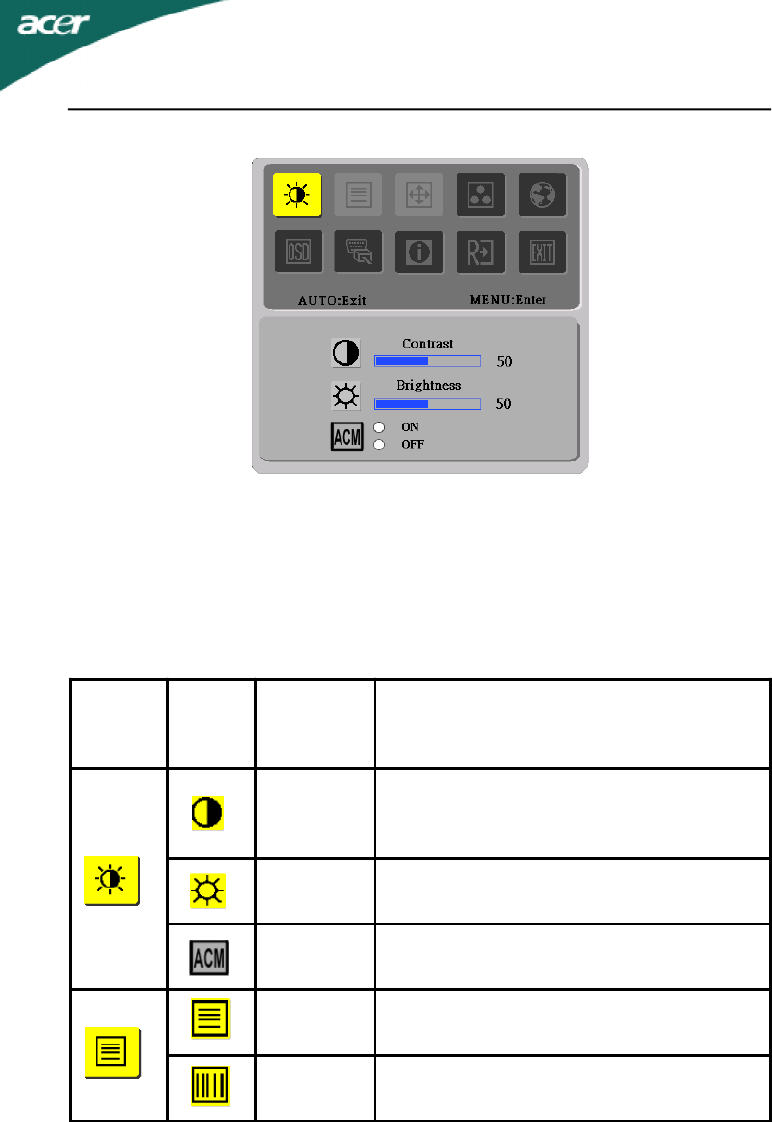

·ADJUSTING THE PICTURE
The descriptions for function control LEDS
II. Only Dual Input Model

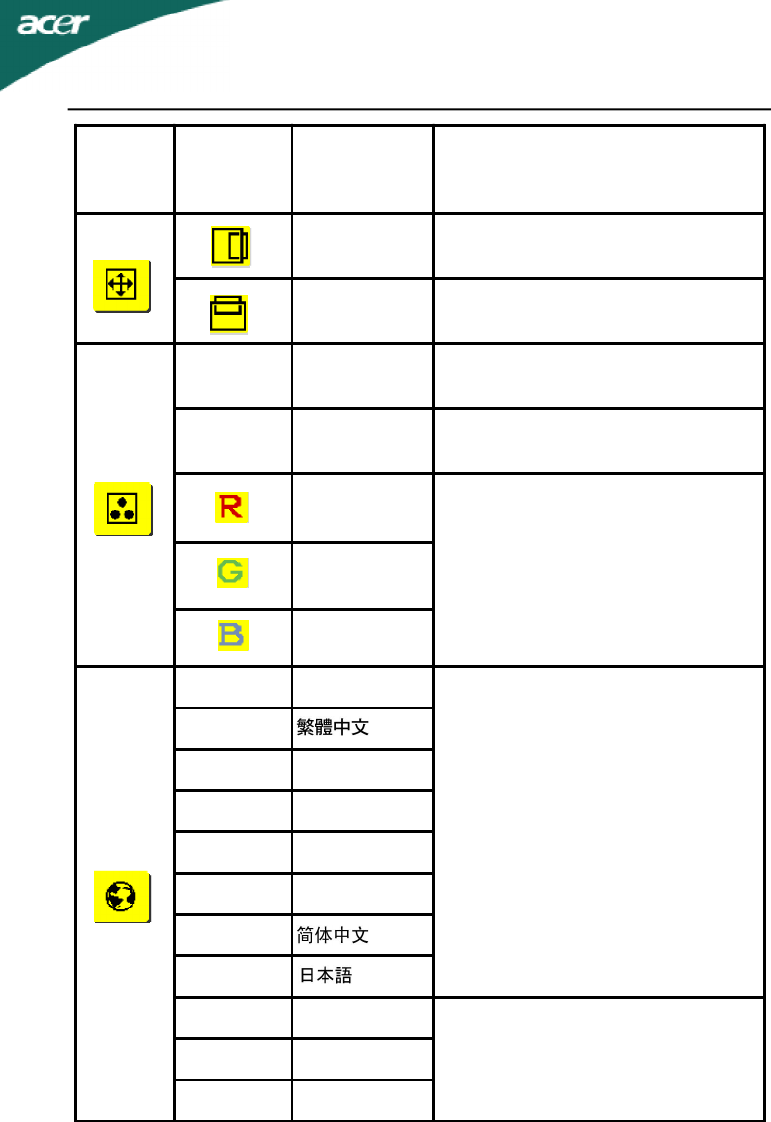

Main
Menu
icon
Sub
Menu
icon
Sub
Menu
item
Description
Contrast
Adjusts the contrast between the
foreground andbackground of the
screen image.
Brightness Adjusts the background brightness of
the screenimage.
ACM ACM (Adaptive Contrast Management):
ACM ON/OFF Switch, default is "OFF"
Focus Adjusts picture Focus.(available in
Analog mode only)
Clock Adjusts picture Clock.(available in
Analog mode only)
X223W
EN-18

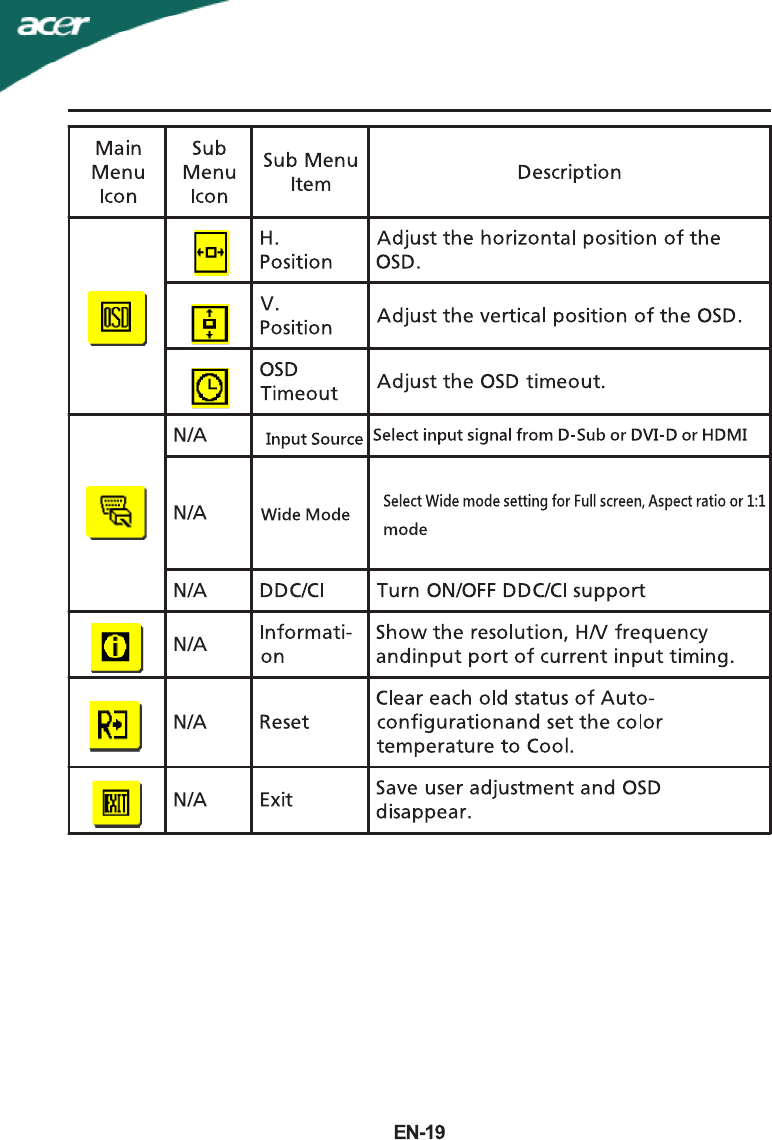

Main
Menu
Icon
Sub Menu
Icon
Sub Menu
Item Description
H. Position Adjust the horizontal position.
(available in Analog mode only)
V. Position Adjust the vertical position.
(available in Analog mode only)
N/AWarm Set the color temperature to warm
white.
N/ACool Set the color temperature to cool
white.
User /Red
Adjusts Red/Green/Blue intensity.
User /Green
User /Blue
N/AEnglish
Multi-language selection.
N/A
N/ADeutsch
N/AFrancais
N/AEspanol
N/AItaliano
N/A
N/A
N/ASuomi
EMEA version OSD onlyN/ANederlands
N/APyccknn
X223W
X223W
EN-20
(VGA Mode)
TROUBLESHOOTING
Before sending your LCD monitor for servicing, please check the trouble-
shooting list below to see if you can self-diagnose the problem.
ProblemsCurrent StatusRemedy
No Picture
LED ON·Using OSD, adjust brightness and contrast
to maximum or reset to their default
settings.
LED OFF·Check the power switch.
·Check if AC power cord is properly
connected to the monitor.
LED displays
amber color
·Check if video signal cable is properly
connected at the back of monitor.
·Check if the power of computer system is
ON.
Abnormal
Unstable
·Check if the specification of graphics
adapter and monitor is in compliance
which may be causing the input signal
frequency mismatch.
Display is
missing, center
shift, or too
small or too
large in display
size
·Using OSD, adjust RESOLUTION, CLOCK,
CLOCK-PHASE, H-POSITION and V-
POSITION with non-standard signals.
·Using OSD, in case of missing full-screen
image, please select other resolution or
other vertical refresh timing.
·Wait for a few seconds after adjusting the
size of the image before changing or
disconnecting the signal cable or powering
OFF the monitor.
EN-21
X223W
(DVI Mode)
ProblemsCurrent StatusRemedy
No Picture
LED ON·Using OSD, adjust brightness and
contrast to maximum or reset to their
default settings.
LED OFF·Check the power switch.
·Check if AC power cord is properly
connected to the monitor.
LED displays
amber color
·Check if video signal cable is properly
connected at the back of monitor.
·Check if the power of computer system
is ON.
Acer America Corporation
333 West San Carlos St., San Jose
CA 95110, U. S. A.
Tel : 254-298-4000
Fax : 254-298-4147
www.acer.com
Federal Communications Commission
Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The following local Manufacturer /Importer is responsible for this declaration:
Product: 22” LCD Monitor
Model Number: X223W
SKU Number: X223W xxx
(“x” = 0~9, a ~ z, or A ~ Z)
Name of Responsible Party: Acer America Corporation
Address of Responsible Party: 333 West San Carlos St.
San Jose, CA 95110
U. S. A.
Contact Person: Acer Representative
Phone No.: 254-298-4000
Fax No.: 254-298-4147
X223W
EN-22
Acer Computer (Shanghai) Limited
3F, No. 168 Xizang medium road, Huangpu District,
Shanghai, China
Declaration of Conformity
We,
Acer Computer (Shanghai) Limited
3F, No. 168 Xizang medium road, Huangpu District,
Shanghai, China
Contact Person: Mr. Easy Lai
Tel: 886-2-8691-3089 Fax: 886-2-8691-3000
E-mail: easy_lai@acer.com.tw
Hereby declare that:
Product: 22” LCD Monitor
Trade Name: Acer
Model Number: X223W
SKU Number: X223W xxx (“x” = 0~9, a ~ z, A ~ Z or Blank)
Is compliant with the essential requirements and other relevant provisions of the following EC directives,
and that all the necessary steps have been taken and are in force to assure that production units of the
same product will continue comply with the requirements.
EMC Directive 89/336/EEC, amended by 92/31/EEC and 93/68/EEC as attested by
conformity with the following harmonized standards:
-. EN55022:1998 + A1:2000 + A2:2003, AS/NZS CISPR22:2002, Class B
-. EN55024:1998 + A1:2001 + A2:2003
-. EN61000-3-2:2000, Class D
-. EN61000-3-3:1995 + A1:2001
harmonized standard:
-. EN60950-1:2001
RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous
Substances in Electrical and Electronic Equipment
Aug. 22, 2007
Date
X223W
EN-23
X223W
EN-24

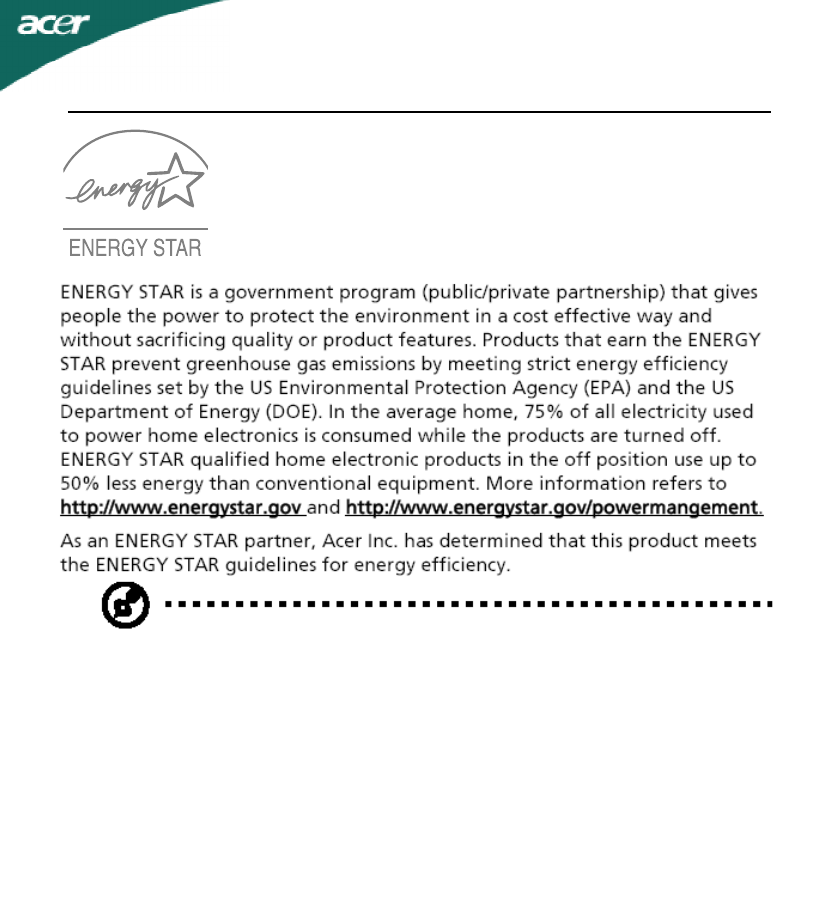

Note:
The statement above is applicable only to Acer LCD Monitor with an
ENERGY STAR logo.
This product has been shipped enabled for power management:
* Activate display’ Sleep mode within 15 minutes of user inactivity.
* Activate computer’s Sleep mode within 30 minutes of user inactivity.
* Wake the computer from Sleep mode by pushing power button.
