Acom AA2000 ACOM2000A Automatic HF Linear Amplifier User Manual 1
ACOM International, Inc. ACOM2000A Automatic HF Linear Amplifier 1
Acom >
OITAA2000 Users Manual
International, Inc.
Exhibit 7: User’s Manual
External Radio Frequency
Power Amplifier ACOM 2000A
Model 2000A
157 Horse Pond Road, Sudbury, MA 01776
Tel: (978) 440-7555
Fax: (978) 440-9080
e-mail: aa1nd@aol.com
1
Table of Contents
1. GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1-1. Introduction and Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1-2. Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1-3. Equipment Supplied and Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1-4. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1-5. Safety Considerations, Explicit Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2-1. Unpacking and Initial Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-2. Line Voltage Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-3. Transformer Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2-4. Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2-5. Installation of Optional Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. POWER ON, RCU CONTROLS, INDICATORS AND MENUS . . . . . .11
4. MAIN MENU, FREQUENCY AND ANTENNA SELECTION . . . . . . .13
4-1. AUTO TUNE sub-menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4-2. MANUAL TUNE sub-menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4-3. MEASURE sub-menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4-4. SERVICE sub-menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4-5. Erasing USR segments (return to DEF- tunings) . . . . . . . . . . . . . . . . . . . . . 20
5. OFF-MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
5-1. HELP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5-2. CALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5-3. INFO (INFO BOX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5-4. LOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2
5-5. CLR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5-6. DEF (Defaults) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5-7. Erasing Nonvolatile Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
6-1. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6-2. Backup Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6-3. Fuses Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6-4. Tubes Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6-5. The ACOM2000A Simplified Schematic Diagram . . . . . . . . . . . . . . . . . . . . . 25
6-6. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
7-1. Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7-2. Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7-3. Storage and Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8. BRIEF MENU GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
9. ACOM WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
3
1. GENERAL INFORMATION
1-1. Introduction and Description
This manual explains the installation, operation and maintenance of the ACOM2000A automatic HF
linear amplifier.
The ACOM2000A is a complete and self-contained linear amplifier which covers all amateur bands
from 1.8 through 30MHz, has automatic self-tune capability, and provides up to 1500W output power
with less than 60W exciter drive. In addition, it has automatic antenna impedance matching capability
for loads up to 3:1 VSWR (2:1 on 160 meters). It features a Remote Control Unit (RCU), contains
nonvolatile memory for settings on up to ten different antennas per frequency segment, and offers
command capability for use with an external automatic antenna selector and/or automatic antenna
tuner. Transmit / receive switching is capable of full break-in operation (QSK) via an internal vacuum
relay.
All indicators and controls (except the primary mains switch and indicator) are available via the RCU.
All command input to the RCU is menu-driven.
1-2. Owner Assistance
If assistance is needed, you should contact your local dealer first. If you still have an issue you need to
discuss with one of ACOM's specialists. The contact information is as follows: fax + 359 2 276 190, e-
mail acom@aster.net or by mail: ul.3011-9, complex Lyulin, 1336 Sofia, Bulgaria.
1-3. Equipment Supplied and Options
The ACOM 2000A amplifier is shipped in two cardboard cartons. One carton contains the power
transformer; the second carton contains the amplifier. The remote control unit (RCU) is shipped inside
the amplifier in the area where the power transformer will be mounted.
There are three separably-purchasable options available. They are an auxiliary EXTERNAL FAN for
continuous modes of operation (rear panel mount), a DOS APPLICATION for program control via
personal computer and the TECHNICAL SUPPLEMENT to this manual, containing electrical diagrams,
technical details on operation and maintenance, as well as a list of command set and local network rules
for RS232 operation.
1-4. Features
lEasy to operate. No operator intervention is required when matching antennas or when changing
frequency. Thus the risk of inadvertant errors, such as incorrect antenna selection or failure to change
band switch, is eliminated.
lLCD comment display. All amplifier status indicators are explained via detailed text diplayed on the
dot-matrix, back-lighted liquid crystal display (LCD) on the RCU. The HELP sub-menu gives on-board
technical assistance and troubleshooting suggestions, power-on hours etc. LED strips readout direct
peak forward and reflected power. LED indicators are provided for OPERATE/STANDBY and for fault
conditions.
lEasy maintenance. Information on the amplifier internal status is stored in an "INFO BOX" for the
12 most recent protection faults. This information can be forwarded automatically via telephone to
4
your dealer for phone-line remote diagnostics. Using the DOS APPLICATION option and a PC you can
read the INFO BOX in a file and send it via INTERNET as well.
lLess QRM, improved Electro Magnetic Compatibility during tuning. Retuning can be achieved in two
ways: without any transmission, manually via the RCU; or with a very short transmission - a single word
on SSB or a dot (even at 40 wpm) on the new frequency is enough to change bands or segments
automatically. Antenna matching is completed in less than 3 seconds at a quarter of nominal output
power.
lSaves space on the operating table. Since the amplifier is controlled by the RCU, the main unit can
be located up to 3 meters from the operating position.
lOperates automatically without special signals from the transceiver - ground on TX and 60W RF
drive power are sufficient.
lBroadband input matching circuit resulting in very good load to the transceiver over the entire short
wave spectrum.
lUses two 4CX800A (GU74B) Svetlana high performance ceramic-metal tetrodes with plate dissipa-
tion of 800W each (forced air cooling, grid-driven).
lACOM maintains strict adherence to the tube manufacturers specifications for cooling and for the
sequence of applying and removing the different tube voltages. Starting filament current is limited, and
there is constant monitoring and protection of all supply voltages and currents. The Bias Optimizer
decreases the heat dissipated from the tubes, and there is automatic protection against overheating or
insufficient air flow.
lA novel and innovative output RF Arc protection is employed. It safeguards the amplifier, antenna,
antenna selector and tuner against severe damage in case of possible break down.
lHigh voltage power supply inrush current protection which eliminates the danger of affecting sensi-
tive devices, connected to the same mains circuit. The amplifier can be configured for 5 nominal line
voltages: 100, 120, 200, 220 and 240VAC (50 or 60Hz).
lContinuous measuring and/or monitoring of 20 most important parameters of the amplifier, exciter
and antennas via RCU and/or PC as described in the TECHNICAL SUPPLEMENT.
lPassword protection against unauthorized access to the amplifier can be selectively enabled. In
addition, the amplifier can be shipped with 10 meters and 12 meters capability disabled as required by
the FCC for US users. Contact your dealer about the way of enabling.
lAll functions are accessible from a PC via serial port connection. Also, local networking capability
exists for more than one set of amplifier / antenna units working in a system. DOS applications are
available on request.
1-5. Safety Considerations, Explicit Definitions
The ACOM2000A Automatic HF Linear Amplifier is a Safety Class I unit, i.e. the third grounding lead of
its mains cord (which is colored yellow with two green stripes) and the ground stud on the rear panel
of the amplifier, marked GND, both must be connected to the station's grounding system for safe
operation. The amplifier is designed to meet international safety standards and complies with CE safety
and electromagnetic compatibility requirements, as well as FCC regulations.
5
This operating manual contains information, precautions, indications for cautions and warnings which
must be followed by the user to ensure safe operation and to keep the ACOM2000A in safe operating
condition.
PRECAUTIONS:
The EXPLICIT DEFINITIONS described below apply to this operating manual:
W A R N I N G notes call attention to a procedure which, if not correctly performed, could result in
personal injury, fire hazard or electric shock.
C A U T I O N notes call attention to a procedure which, if not correctly performed, could result in
equipment damage, not only in the amplifier.
N O T E notes call attention to a procedure which, if not correctly performed, could result in inconve-
nience only.
W A R N I N G HIGH VOLTAGE!
The amplifier works with high voltages up to 3000V, which is LETHAL! Also,
for your safety, pull the amplifier power plug out of the mains wall outlet
and WAIT AT LEAST 30 minutes EACH TIME BEFORE you remove the
cover of the amplifier. Do not touch any part inside while the amplifier is
open because some residual voltages may still be present.
W A R N I N G HIGH VOLTAGE!
NEVER ALLOW ANYONE, ESPECIALLY CHILDREN,
to push anything into holes in the case - this will cause electric shock. NEVER
TOUCH AN ANTENNA during transmission - this may result in an electric
shock or burn. NEVER EXPOSE the amplifier to rain, snow or any liquids.
AVOID placing the amplifier in excessively dusty environments or in direct
sunlight. DO NOT OBSTRUCT AIR INTAKE (rear panel) and EXHAUST
(top cover) areas of the amplifier. Keep a minimum distance of 10cm (4
inches) to the intake and 50cm (20 inches) to the exhaust.
W A R N I N G
Do not undertake on your own repairs or changes in hardware or software
of the amplifier in order not to endanger your or others health and life and
not to damage the amplifier and the equipment connected with it, not cov-
ered by warranty. The manufacturer is not liable for anothers actions and
responsibility shall be assumed by the doer.
C A U T I O N
To avoid damage (not covered under warranty) read the Installation - Section 2 of
this operating manual carefully. If you have any doubts about the installation, opera-
tion or safety of the amplifier, please consult your dealer.
6
2. INSTALLATION
2-1. Unpacking and Initial Inspection
N O T E
Before you start any action on installing the amplifier, thoroughly read through this
manual. First carefully inspect both cardboard cartons and their contents for physi-
cal damage. If damage is noticed, notify your dealer immediately. Delay may infringe
carrier's warranty conditions. Keep all packing for possible future transportation!
In order to take the RCU out of the amplifier, remove the cover by removing all screws except the eight
located in the tube exhaust areas.
W A R N I N G HIGH VOLTAGE!
Check the HV Crowbar (Fig. 2-2) - it must reliably shorten the HV lead to
the chassis when cover is open.
Take the RCU out and free the compartment for installing the transformer. Carefully inspect the RCU
and the amplifier main components for any possible shipping damage.
N O T E
Check carefully the serial numbers of amplifier and tubes with the Table of Indi-
vidual Data (Table 2-1). If you find any discrepancies notify your dealer immediately
to have your warranty information corrected.
n/sPMA
n/sebuttnorF
n/sebutraeR
noitisoProtceleSegatloV CAV
egatloVtuptuOnaFlanoitpO CDV
Table 2-1. ACOM 2000A Individual Data
2-2. Line Voltage Selection
C A U T I O N
To avoid damage (not covered under warranty), check carefully if the voltage for
which the amplifier is set corresponds to your mains nominal voltage. Most 120V
and especially 100V domestic mains installations may not withstand the current con-
sumption and you will have to reduce the output power to about 1000W PEP.
7
Normally the amplifier is supplied with Voltage Selector set for a nominal mains voltage of 240V. There
might be exceptions in cases of special delivery and then the voltage set is noted in the Table of Indi-
vidual Data (Table 2-1). If your mains has a different nominal voltage, it will be necessary for you to
contact your dealer or see the TECHNICAL SUPPLEMENT for details.
2-3. Transformer Installation
C A U T I O N
After installing the transformer, the weight of the unit is about 35kg, which should
preferably be handled by two persons. An assistant may be needed to hold the
amplifier steady during transformer installation.
Position the amplifier, with the transformer not yet installed, flat on a table near the place where it will
be used. During the process described below, when the amplifier cover is removed, take care not to
torque or twist the chassis nor let the amplifier stand on edge. Do not lift the unit by only one corner.
Orient the amplifier on the table so that the transformer compartment is in front of you (Fig.2-2):
2).
HV PCB HV Crowbar A
C
HV Connector Motor Voltage Connector
Fig.2-2 Transformer Installation
Take the transformer out of the carton and remove the shipping board. Keep the board together with
the four long bolts and all packing for possible future transportation. For transformer mounting, four
shorter bolts (M8x16mm) are provided in a polyethylene envelope inside the same carton.
8
Move the transformer, using its rope sling handle, into the compartment. Take care not to damage the
wiring or components and position the transformer so that the captive nuts are aligned with the corre-
sponding chassis holes. Make sure that the transformer is centered. The transformer bolts must be
installed NOW for safe operation.
Holding its two sides (front and back) simultaneously, pull the amplifier towards you just far enough that
the two outside transformer captive nuts appear off the table edge. Support the amplifier until your
assistant loosely screws in the two outside transformer-mounting bolts. Pull the amplifier a further 12-
13 cm (about 5 inches) until the other two captive nuts appear off the table edge. Keep supporting the
amplifier until your assistant loosely screws them in. After checking that the transformer is centered,
tighten all 4 bolts. Now move the amplifier back over the table.
The transformer's Mains Connector plugs into the AC power console (Fig.2-2). The other three con-
nectors (HV, Motors Voltage & SG Voltage) plug into the HIGH VOLTAGE PCB, clearly seen on top.
Replace the cover and carefully reinstall all screws. Look at the rear panel and follow the instruction:
"Remove the above two screws before use. Replace before shipment"(Fig.2.3).
2-4. Connections
The amplifier is now ready to be connected to your station. Connection must be accomplished in the
order described below, before you apply mains voltage to the amplifier.
W A R N I N G
Have in mind that the grounding system may have to withstand currents
over 20A with insignificant voltage drop on it. Therefore it may be neces-
sary to improve it considerably (to become lower-resistive, i.e. with heavier
leads and lower-resistive ground path). The grounding leads should be at
least 8mm2 (AWG 8 or SWG 10).

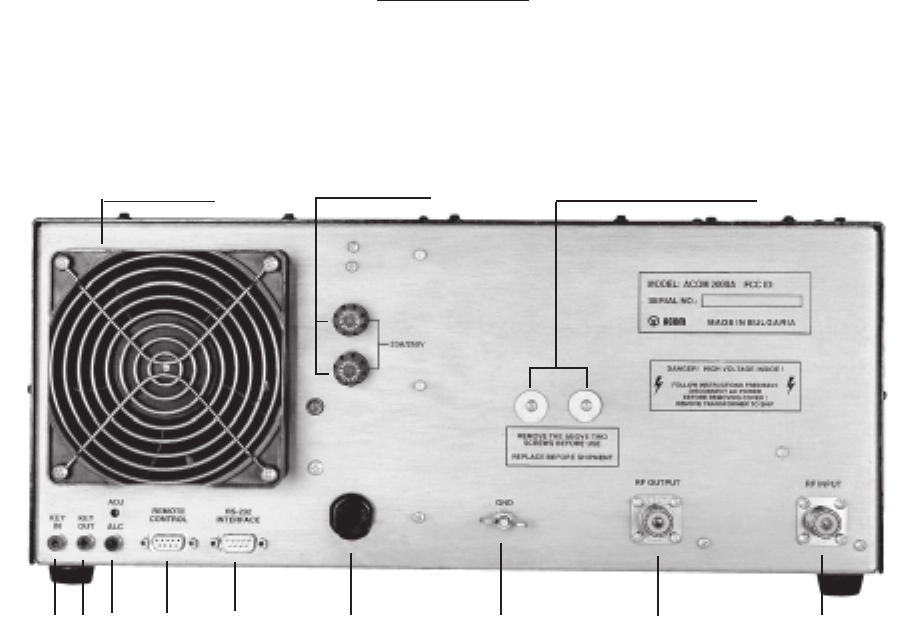

Fig.2-3 Connections
Optional Fan Primary Fuses Blower shipment screws
d e g f h i a c b
9
a) First connect the ground stud of the amplifier (on the rear panel, marked GND) to the station's
grounding system (Fig.2-3).
b) Connect a coaxial cable with a PL-259 plug from the transceiver output to the amplifier rear panel RF
INPUT socket.
C A U T I O N
If this is the first time you will use a high power ampllifier in your station, pay atten-
tion to the coaxial cable type from the amplifiers output. It must handle the in-
creased power safely, particularly on the higher frequency bands. We recommend
you use RG213 or better. Check the same about the antenna selector and tuner as
well as the antenna itself (especially multiband trap antennas).
c) Connect a coaxial cable from the amplifier output (on the rear panel, marked RF OUTPUT) with a
PL-259 plug to the antenna selector or tuner or to the antenna for the respective band.
d) Run a cable terminated in a Phono connector from the transceiver socket providing ground on
transmit to the amplifier rear panel KEY-IN socket.
N O T E
Your amplifier will not work if KEY-IN is not connected properly.
Transceiver producers give different names to this output and they are for instance TX-GND, SEND,
T/R-LINE, etc. Some transceivers require that ground on transmit is implemented via a software
command, or by changing the setting of a switch on the rear panel, or interior of the transceiver. Check
your transceivers manual.
e) The KEY-OUT socket on the rear panel provides an extra control signal from the amplifier to the
transceiver. It could be used to improve the transmit/receive switching.
If your transceiver has a suitable input which disables transmission, we recommend that you connect it
with a cable terminated in a Phono connector to the KEY-OUT socket of the amplifier. Transceiver
producers give different names to this input and they are for instance TX-INHIBIT, MUTE, LINEAR,
etc. Check your transceivers manual. Consult your dealer or see the TECHNICAL SUPPLEMENT for
details.
If your transceiver has not such an input dont worry - the amplifier will function normally as well and
then the KEY-OUT may remain unused.
f) Connect the RCU cable to the respective D-9 type connector on the amplifier rear panel, marked
REMOTE CONTROL, and screw in the knurled screws.
g) The ALC output of the amplifier normally remains unused. In case of need of ALC for your trans-
ceiver, which we do not recommend, you may contact your dealer or see the TECHNICAL SUPPLE-
MENT.
h) The connector on the rear panel, marked INTERFACE, remains unused until you decide to use the
amplifier with a personal computer or in a local network as described in the TECHNICAL SUPPLE-
MENT.
10
C A U T I O N
Do not connect to the connector, marked INTERFACE a "standard" cable because
this may result in damage in both - amplifier or connected equipment. In order to
use PC, a special cable must be prepared. Contact your dealer or see TECHNICAL
SUPPLEMENT for details.
i) Mains plug and fuses.
W A R N I N G
If your amplifier is only fitted with one mains fuse, it is suitable for 0-220/
240 VAC electricity supplies ONLY (these supplies are standard in the Eu-
ropean Community). Your dealer will check that your amplifier is correctly
fused before it is shipped to you. Customers should check with a qualified
electrician if the amplifier is to be used outside the country in which it was
purchased.
Due to the different standards in different countries, the mains plug is supplied and mounted by the
dealer. He connects to the mains cord end a standard mains plug which meets the Safety Class I units
standard in your country. The ground lead of the amplifier's mains cord is colored yellow with two
green stripes and the blue and brown leads are active. When the amplifier is to be used with only one
mains fuse, it is connected in series with the brown lead which must be the active. If you have any
doubts about the correct way of connecting the wires, consult your dealer.
j) Preparation of wall outlet for the amplifier.
W A R N I N G
Before connecting the amplifier to your mains supply, be sure that the sup-
ply is correctly wired, and is adequate for the current drawn by the ampli-
fier. Make certain that the grounding lead is connected properly in the wall
outlet for the amplifier.
It is preferable that you use the wall outlet closest to the source. The installation leads should be at least
2.5mm2 (AWG 13 or SWG 15). Check if the respective fuses can handle current up to 20A, as well as if
the voltage corresponds to the voltage for which the amplifier is set (S.2-2). If you connect the amplifier
to a different mains outlet, be sure that you check it, too.
Make sure the main Power Switch on the front panel is in OFF position (so that the red strip on the
switch is hidden) and insert amplifier's mains plug into the wall outlet prepared for it. The amplifier
remains switched off.
2-5. Installation of Optional Fan
This fan is not necessary in SSB and CW modes, nor in continuous carrier modes (RTTY, SSTV etc.)
with carrier down times of maximum 15 minutes and a subsequent pause of 3 minutes. For higher
duties the fan is recommended. The auxiliary fan (119x119mm) is supplied as an option with a set of 8
screws, nuts and washers. It may be mounted by the manufacturer on request (Fig. 2.3). Contact your
dealer or see the TECHNICAL SUPPLEMENT for details.
11
3. POWER ON, RCU CONTROLS, INDICATORS AND MENUS
C A U T I O N
Before you turn the amplifier on, at least 2 hours should have expired since it was
brought in and unpacked in the room where it will be used. Pay particular attention
when you move it from a very cold into a very warm place - condensation is likely
and this could result in damage to the high voltage circuits. In such a case, wait at
least 4 hours. A similar effect can occur after a rapid warming of the operating room
(for instance after switching on a powerful heater).
C A U T I O N
To avoid damage (not covered under warranty) carefully check that the voltage for
which the amplifier is set corresponds to your mains nominal voltage (see S.2-2 and
table 2-1).
After following all instructions in S.2, you can turn ON the Main power switch on the front panel. The
red LED indicator above it must light and a black inscription "ACOM2000A" (or the distributor's name)
will appear on the RCU LCD (Fig.3-1):

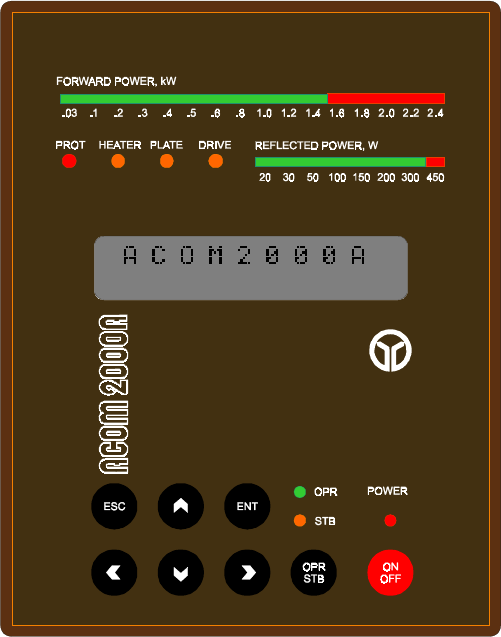

Fig.3-1 Remote Control Unit (RCU)
N O T E
LCD contrast and BEEP level regulators are available on the rear of the RCU. For
adjustment use a small insulated screwdriver.
12
In this position only the RCU is operational, while the amplifier itself is still turned off. The control of the
amplifier is structured in two menus - OFF and MAIN, each having several sub-menus :
OFF MENU MAIN M
INFO sub-menu
HELP sub-menu
CLR sub-menu
CALL sub-men
LOCK sub-menu
DEF sub-menu
POWER ON
S.5
S.5-1
S.5-2
S.5-3
S.5-4
S.5-5
S.5-6
S.3

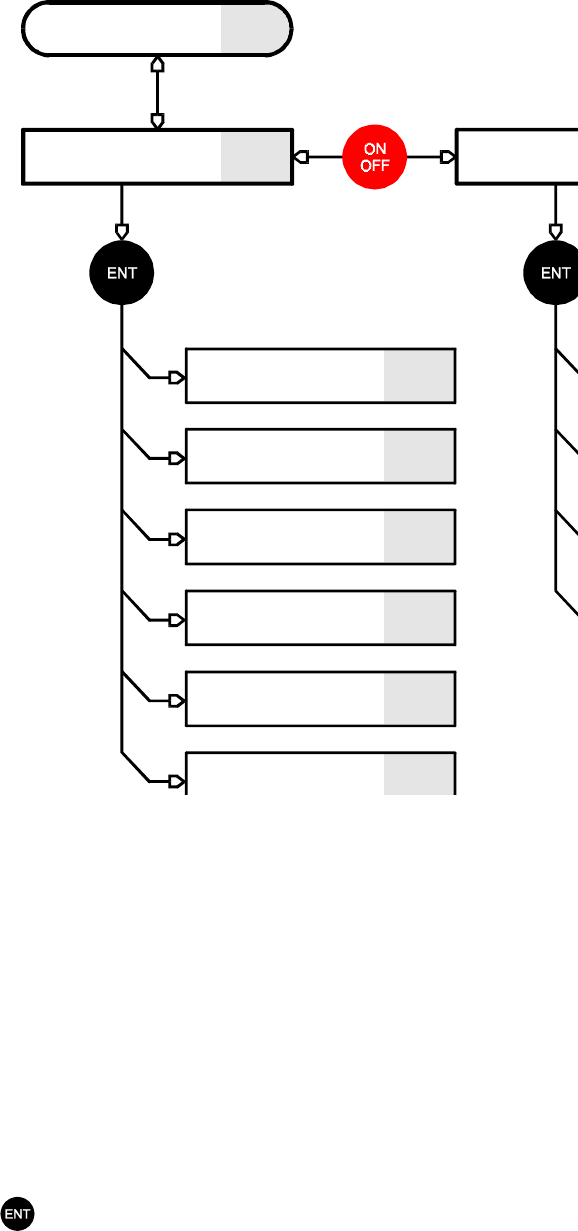

Fig.3-2 Menu Structure (see also S.8)
You can proceed in one of two directions:
a) you can enter the OFF menu (see below) or:
b) you can turn on the amplifier and begin the warm-up sequence. After 2.5 minutes you may start
operating the amplifier or you may enter the MAIN menu (see S.4).
We recommend that for the time being you examine partly the functions of the RCU in the OFF menu
and thus acquaint yourself with the basic ideas. The control and indications via the RCU are analogous
in OFF and MAIN menus.

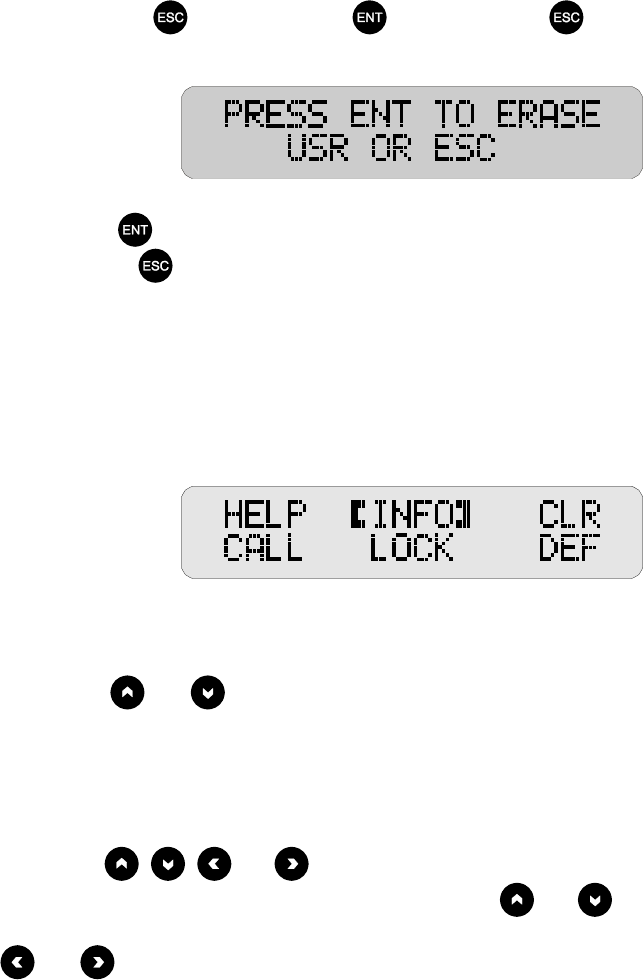

The OFF-menu (see also section 5) consists of six sub-menus, which can be reached by pressing the
(Enter) button:
13

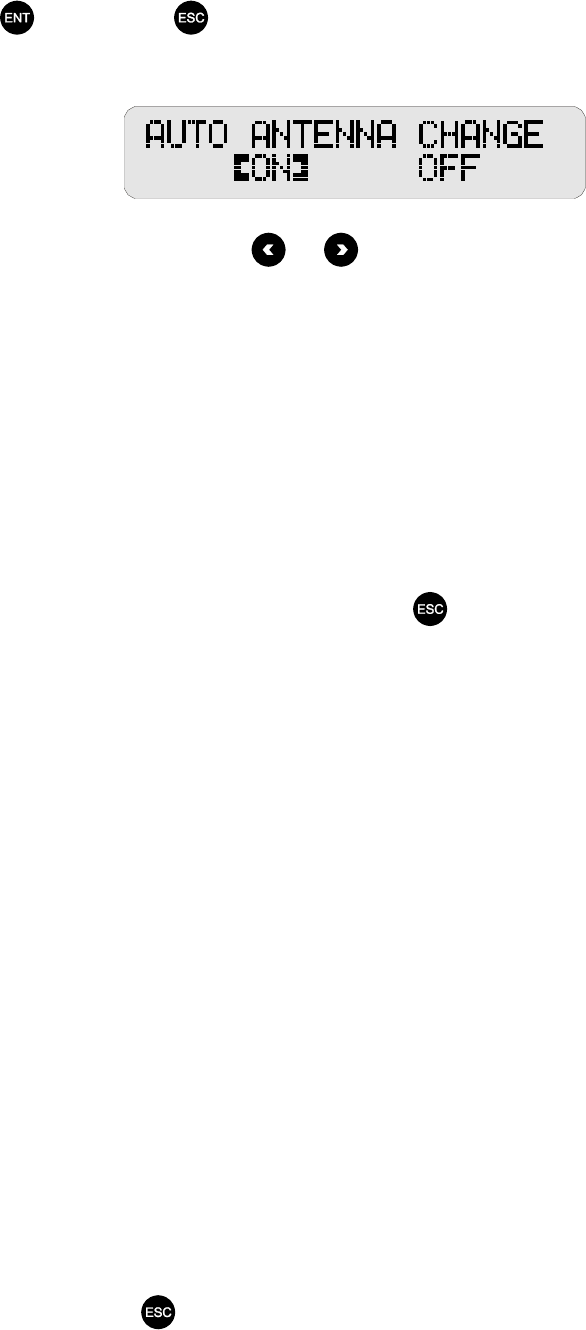

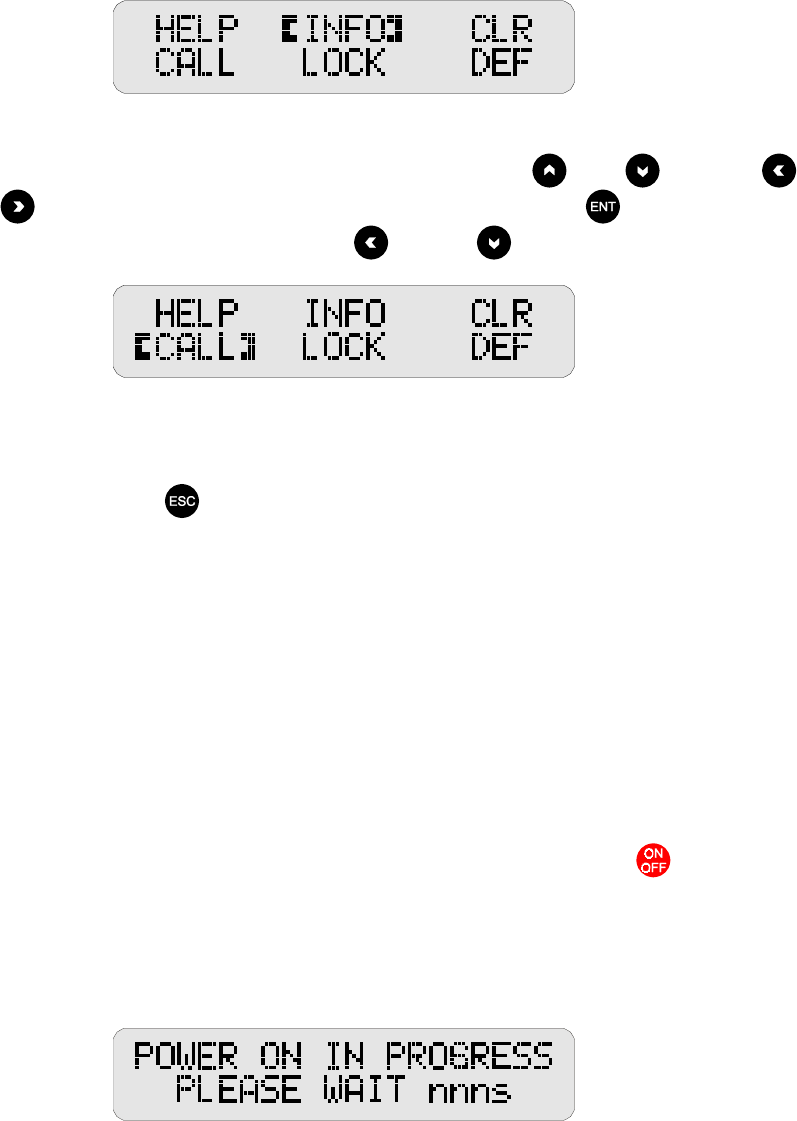

INFO sub-menu is shown between square brackets in the illustration above. If you wish to select
another sub-menu, move the brackets in the required direction with the (UP), (DOWN),
(LEFT), and (RIGHT) arrows, so that they enclose the desired item. Press (Enter) to open the
respective sub-menu. For example, by means of the and then you will select CALL sub-menu:
When the edge of the display is reached, future movement in the same direction will cause the brackets
to scroll to the opposite end of the display.
To exit from an item, press the (Escape) button. If you press it repeatedly, you will eventually reach
the OFF or MAIN menu. When that menu is reached, the ESC button becomes inoperative.
The purpose and use of these six sub-menus are described in Section 5, after the description of the
basic functions and use of the amplifier.
4. MAIN MENU, FREQUENCY AND ANTENNA SELECTION
Operation of the amplifier is simplified a great deal due to the high degree of automation. You can start
operation immediately after it is installed. However, to make full use of its possibilities and to fully
configure the amplifier to your local conditions, we recommend you thoroughly read the following
information.
a) In order to turn on the amplifier, while the Main Power Switch is on, press the red button on the
RCU and hold it on for about 1 second. The LCD and all LED indicators will flash for about 2 seconds
and you will hear "TEST" being sent in CW. During this time you can check if all indicators are flashing.
After successfully passing the INITIAL SELFTEST, the LED indicators go out and only the red - POWER,
orange - STB (Standby) indicators and the following inscription on the LCD remain lighted:
(nnn is the number of seconds remaining to readiness for operation)
A 2.5 minutes tube warm-up period follows during which heater and bias voltages are applied. During
this time the amplifier remains in STBY, so you can operate with the transceiver only.
Pressing any button during this period will result in turning the amplifier off and going into OFF-menu.
14
N O T E
When you intend to have a pause in operating, it is better to leave the amplifier in
STBY mode instead of turning it off, using the red colored button. Tube life is
shortened by repeatedly turning on and off the tube heater supply.
N O T E
However, if you unintentionally power-off the amplifier, it is best to switch it on
again immediately. When the pause is short (up to 1 minute) and the cathodes are
still warm, the warm-up period is shortened significantly, which reduces the waiting
time and prolongs the tube's expected life.
After the indicated period expires, all voltages are automatically applied to the tubes in the correct
sequence. At the same time the stepper motors tune the plate circuit to the frequency segment on
which the amplifier was used immediately before last switching it off. You hear "R" being sent in CW and
the MAIN MENU appears on the LCD (see example below):

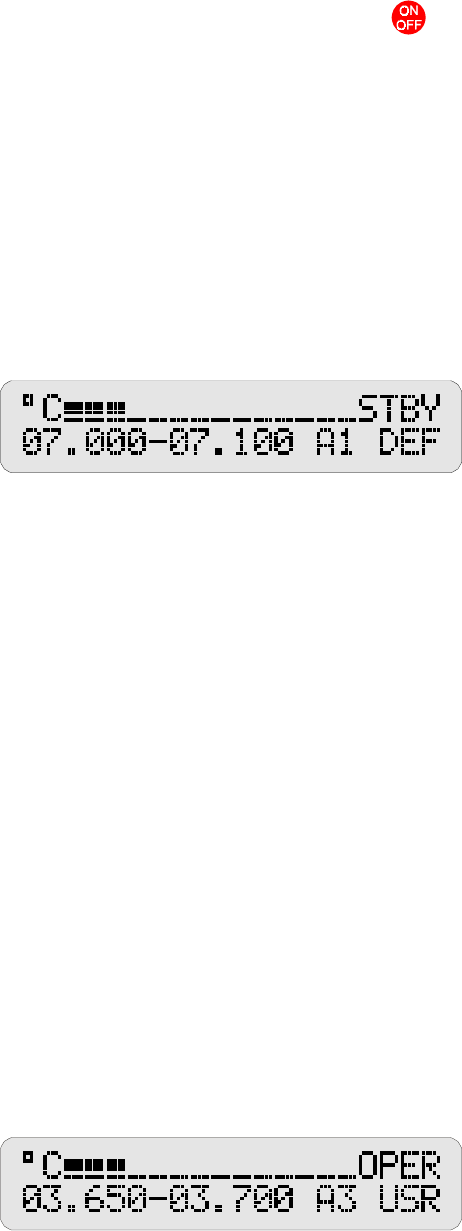

The display informs you about the current state of the amplifier. The bargraph on the upper line indi-
cates the Exhaust Air temperature and each bar corresponds to 10 degrees centigrade. On the right-
hand side of the same line there is an indication for OPER and STBY mode.
The whole HF spectrum is split in 250 segments. Segment width increases with frequency and is 25kHz
on 160m, reaching 300kHz on 10m. You can use up to ten different antennas per frequency segment.
This could be very useful with narrow-bandwidth antennas.
The frequency segment on which the amplifier is tuned up (in MHz) is indicated on the left-hand side on
the display lower line. To the right of it is indicated the number of the antenna in use (in the example A1
- first) and next to it the tune type for this frequency segment and this antenna (in the example DEF -
Default or factory programmed). The amplifier may also be user-tuned by means of the AUTO sub-
menu as explained in Section 4-1.
b) If the VSWR of the antenna is acceptable (below 1.5:1), you may start operating the amplifier imme-
diately after pressing the OPR (Operate) button. The green LED-indicator next to the button glows
and you may transmit. The two LED-bargraphs indicate the power fed into the antenna (forward
power) and the power reflected from it (reflected power). The difference between the two is the real
output power delivered from the amplifier.
If you start transmitting on a frequency different from the indicated segment and the amplifier is in
OPER mode, it automatically senses your operating frequency, selects the corresponding segment, and
tunes up on it. This retuning takes less than 1 second and you are immediately ready to operate on the
new frequency. Example:
15
In the example, a signal frequency between 3650 and 3700kHz was applied and antenna No 3 was last
used there with tuning done by the user (USR).
NOTE
If in DEF sub-menu (see S.5-6) AUTO ANTENNA CHANGE is OFF, then the an-
tenna number would not change with frequency and remains No 1.
c) A new frequency segment can be selected in two ways:
las mentioned above, apply from the transceiver a short duration signal (with the amplifier in OPR
mode) - a single word in SSB or a dot in CW (even at 40 wpm) would be enough;
lmanually, in the MAIN-menu by selecting the desired segment by means of the and but-
tons. Then confirm it with .
d) A new antenna number can be selected while in the MAIN-menu. Press the or buttons to
select an antenna number, then confirm it with .
N O T E
If you have stop on a certain segment or antenna, but you do not confirm your
choice within 10 seconds, the display will automatically revert to the previous seg-
ment/antenna.
You will notice that while going through antennas and frequency segments, the inscriptions for antenna
number and type of tune-up are shown in lowercase characters. This means that they are not those for
which the amplifier is currently tuned up. If you pass through the current segment, you will see that
UPPERCASE characters are used. While scanning through the options you can see for which segments
and for which antennas in them you have DEF (default) or USR (pre-programmed by the user). You can
scan through these values without affecting the operation of the amplifier. New settings only take effect
after having been confirmed by using the button.
e) The MAIN-menu consists of four sub-menus which can be selected by pressing the button (see
fig.3-2 and S.8).
The purpose and use of these four sub-menus are described in the next sections 4-1 to 4-5.
f) In order to turn the amplifier off, press the red button on the RCU. If you are not going to use the
amplifier for a long time (more than 30 minutes), it is best to turn off the amplifier using the Main Power
switch (on the main amplifier chassis) as well.
16
4-1. AUTO TUNE sub-menu
a) Let us examine the difference between the two types: DEF- and USR- tunings.
DEFault tuning settings are permanently available in your amplifier memory. They are normally used
when the load VSWR at the input end of the feed line is very low.
Real loads often have VSWR greater than 1.5:1, which usually requires the use of an outboard antenna
tuner. Your amplifier will perform the functions of an automatic antenna tuner for VSWR less than 3:1,
or 2:1 on 160m if you prepare USR (User) tunings. This is a fully automatic procedure of matching the
real load to the optimum tubes load.
User tuning settings are memorized and stored in a nonvolatile memory. They will be retrieved auto-
matically each time you change the operating frequency or antenna number as described in the previ-
ous section. This will enable you to use the amplifier without an outboard antenna tuner over a wider
frequency range and to change frequencies and antennas faster than would otherwise be possible.
The amplifier is capable of memorizing up to 10 different antenna tunings for each frequency segment.
User tuning settings are identified with the identifiers A1 to A9 and AM, irrespective whether they are
for different antennas or for different environment conditions (for example wet and dry weather on
the same antenna).
N O T E
REFLECTED POWER readings and the measured VSWR depend on the load im-
pedance only and not on the amplifier tuning. If the impedance is different from the
nominal (50 Ohm pure resistive), the REFLECTED POWER bargraph will always
indicate the reflected power presence (even at actual USR-tuning). The proper USR
tuning will, however, allow you to operate with greater power without distortions
and danger to the amplifier.
The real power in the load is equal to the difference between the FORWARD- and REFLECTED-
bargraph readings. For instance, at indicator reading for FORWARD 1775W, and for REFLECTED 275W,
the real output power is 1500W. At very high VSWR (lack of antenna or shortened antenna), the FOR-
WARD and REFLECTED readings will be almost equal, while the real output power (the difference
between them) will be practically zero.
The amplifier can operate safely if the following rule is obeyed: "REFLECTED POWER < 500W". Matching
can be assured for loads with VSWR up to 3:1 (for 160m - 2:1). Nevertheless, for some loads matching
is possible even at higher VSWR.
C A U T I O N
Using a feeder of coaxial cable at VSWR > 3:1 on HF bands is not recommended.
At such high values of VSWR, the high voltages, high currents, and heat associated
with line losses, risk permanently damaging the coaxial cable.
Always prefer USR- to DEF-tunings and update them periodically, in particular when you install a new
antenna or when a significant change in the environment occurs (snow, ice, newly appeared or re-
moved massive objects, power lines etc.) that would cause significant changes in the antenna imped-
ance.
17
b) Procedure for preparation of USR-tunings.
We recommend that you prepare USR-tunings for the center frequencies of the segments, but you can
do them for other preferred frequencies.
N O T E
If you use more than one antenna per segment, it is necessary that you select the
proper antenna number (see S.4d) BEFORE the next step. Otherwise you may "over-
write" some useful tuning for another antenna number.

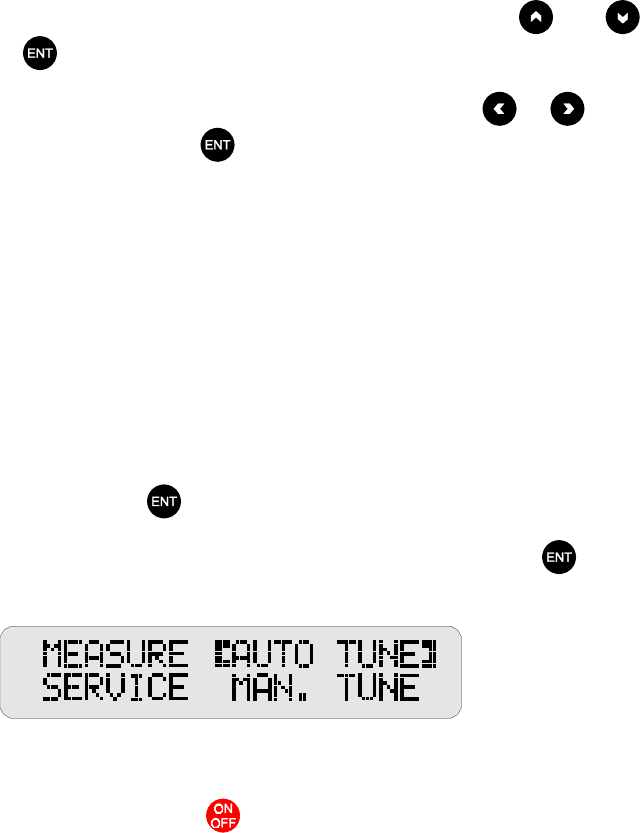

To select the AUTO TUNE sub-menu while in the MAIN menu, press ENT twice:
The amplifier will then wait for you to apply between 10 and 20W continuous (CW) signal with the
desired frequency. If you leave the amplifier waiting longer than 40 seconds, then it will automatically
revert to the MAIN menu.
The automatic matching process starts the moment power remains constant within the indicated bound-
aries. This is shown by the mark on the lower line which indicates the applied input power and must be
somewhere between the two brackets . The antenna impedance matching is ex-
ecuted automatically in less than 3 seconds and the following message to the operator appears, while
the letter "S" is being sent in CW:
If for some reason matching cannot be accomplished successfully (for example excessive VSWR or
unstable drive power during tune-up), the process ends up with the choice of DEF-tuning:
After removing drive power, the RCU returns automatically to the MAIN menu with USR or DEF
indicated in the lower right-hand side corner.
18
4-2. MANUAL TUNE sub-menu
C A U T I O N
During manual tune do not apply continuous drive longer than 3 minutes and after
that leave pauses of 1-2 minutes for cooling of the tubes.
If for some reason you prefer to match the antenna impedance manually, you can do it in the MAN.TUNE
sub-menu. The procedure starts as for AUTO TUNE, but you will need to adjust the LOAD and TUNE
settings yourself:
Below the inscriptions TUNE and LOAD are indicated the numbers of the current positions of the
motors which control the respective capacitors. To the left of them there are arrows indicating which
way the automatic procedure would move the motor (they are correct only at drive power of 5 to
50W). When changing the direction of the arrows you will hear a sound signal.
The current output power is shown below Pout on the display.
By means of the and buttons you can increase or decrease the step number of the motor
selected in brackets. With the and buttons you can select which motor is to be controlled or
select STO (store), in order to memorize the tuning done as USR in the nonvolatile memory.
To leave the procedure, remove power and press .
N O T E
If you adhere to the tune-up criteria following the arrows prompts, you will achieve
the same results as AUTO TUNE. Because of this, the MAN.TUNE procedure is
only appropriate if you have tune-up criteria of your own. We recommend you use
the AUTO TUNE procedure instead.
4-3. MEASURE sub-menu
Sub-menu MEASURE can be used for control of the technical state of the amplifier and the parameters
associated with it . The LCD is divided into two equal display areas, and in either you can monitor any
of the 20 parameters provided for measuring, for example TEMP-F and DC-INPUT:
With the and buttons you can select the item to be measured (listed in an alphabetic order),
and with and - which display area. When ENT is pressed, the LCD will give a short description
of the parameter selected. This display will appear on the LCD for 5 seconds.
19

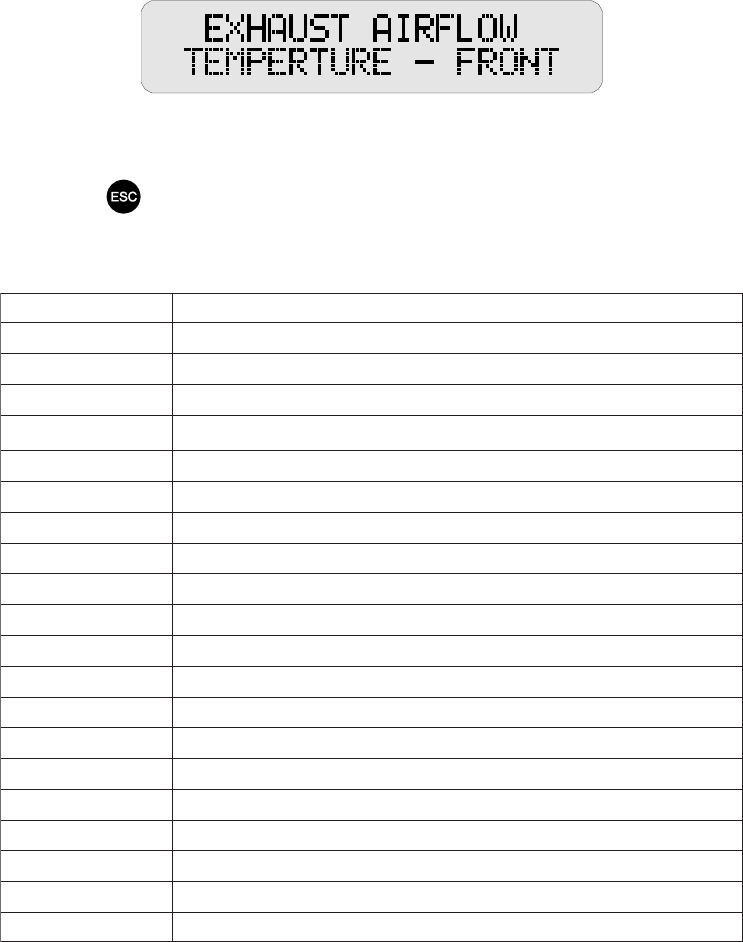

For example, for TEMP-F:
During measuring, the amplifier can be used and controlled in OPR or STBY modes, to transmit and
change the frequency segment and antenna if a new frequency is applied to it. Return to the MAIN -
menu is done by the button.
Follows the list of items which can be measured:
noitaiverbbAdnarusaeM
SAIBEGATLOVSAIBDIRG
TUPNI-CDTUPNIREWOPCD
EVIRDREWOPFREVIRD
.QERFDESUYCNEUQERFTSAL
P-DWFREWOPDRAWROF)ANNETNA(DAOL
V-LIFEGATLOVTNEMALIF
NIAGNIAGREWOPREIFILPMA
VHEULAVEGATLOVHGIHETALP
TNORF-FIEBUTTNORF-TNERRUCTNEMALIF
RAER-FIEBUTRAER-TNERRUCTNEMALIF
DIRG-ITNERRUCCDDIRG
ETALP-ITNERRUCCDETALP
NEERCS-ITNERRUCCDNEERCS
SNIAMEGATLOVTUPNI)SNIAM(ENIL
FR-ETALP)EULAVKAEP(EDUTILPMAFRETALP
P-LFR)ANNETNA(DAOLMORFDETCELFERREWOP
V-NEERCSEGATLOVNEERCSCD
F-PMETSUAHXET EBUTTNORF-ERUTAREPMETWOLFRIA
R-PMETSUAHXET EBUTRAER-ERUTAREPMETWOLFRIA
RWSVOITAREVAWGNIDNATSEGATLOV)ANNETNA(DAOL
4-4. SERVICE sub-menu
The sub-menu SERVICE can be selected and used only in STBY mode. It is used for adjustment of the
zero-signal plate current and the optical sensors disks during repair. We recommend this procedure is
carried out only by a trained service technician.
If the amplifier remains in the SERVICE sub-menu for more than 5 minutes without any further RCU
input, it will return automatically to the MAIN menu. For more information see the TECHNICAL
SUPPLEMENT .
20
4-5. Erasing USR segments (return to DEF- tunings)
If you wish to clear a USR setting for a frequency segment and/or antenna, there are two ways this can
be accomplished:
a) to clear all memorized USR-tuning settings - the procedure is described in S.5-5.
b) for separate segments and/or antennas:
lselect the segment and antenna for which you want to erase the USR-tuning (see S.4c,d).
lpress and hold the button, and press , while still holdng . Then release them at the same
time:
if now you press again, you will erase the USR-tuning for the selected segment and antenna. If,
however, you press or do nothing for more than 10 seconds, the operation will be cancelled. The
result is reflected in the lower right-hand side corner of MAIN MENU: DEF or USR for the respective
segment and antenna.
5. OFF-MENU
There are 6 sub-menus that can be selected (see also S.3):
5-1. HELP
By means of the and buttons query the Revision Code of the software, the Running Time of
tubes, the Serial Numbers of RCU, Amplifier, and Tubes (front and rear), as well as the Safety Instruc-
tions and the most important rules for operating the amplifier.
5-2. CALL
By means of the , , and buttons you can select any arbitrary 9-character text to appear
in the OFF-MENU (for example your own CALL SIGN). The and buttons select the character
in the position indicated by the cursor (the characters are in an alphabetic order by the ASCII-code).
The and buttons move the cursor left or right to select different character positions.
Erasing the nonvolatile memory (see S.5-7) will cause the CALL message to revert to the default setting
A C O M 2 0 0 0 A or the distributor's name, until the text is changed following the procedure
described above.
21
5-3. INFO (INFO BOX)
During operation of the amplifier, information is stored in the nonvolatile memory about the 12 most
recent protection trips or irregularities and the time when they have occurred (indicated as tubes
working hours). This information, along with other service data is also stored which can be transmitted
to the service center for use by remote diagnostics.
For transmitting the information, the standard BAUDOT code is used with the following parameters:
45.45Bd speed, AFSK, 170Hz Shift, 2295Hz Mark-tone, 2125Hz Space-tone. The signal is emitted
acoustically by the BEEP-indicator of the RCU and its strength is constant.
In order to transmit the signal, bring the microphone of the telephone near the RCU (or use other
convenient means) and in the OFF-MENU twice depress the button. Three identical transmission
cycles follow of about 1 minute duration each, or 3 minutes and 10 seconds total, during which you will
hear the typical RTTY sound from the RCU. The procedure can be interrupted at any time by pressing
the ESC button.
Using the DOS application (option) you can read the same information on the screen of a PC, save it in
a file, print it, or mail it via INTERNET (see S. 1-2).
5-4. LOCK
N O T E
If you use this feature be careful that you DO NOT FORGET THE CODE!
By following the instructions below, you can set a lock code to protect against undesired power-on of
the amplifier by other persons, for example by children.

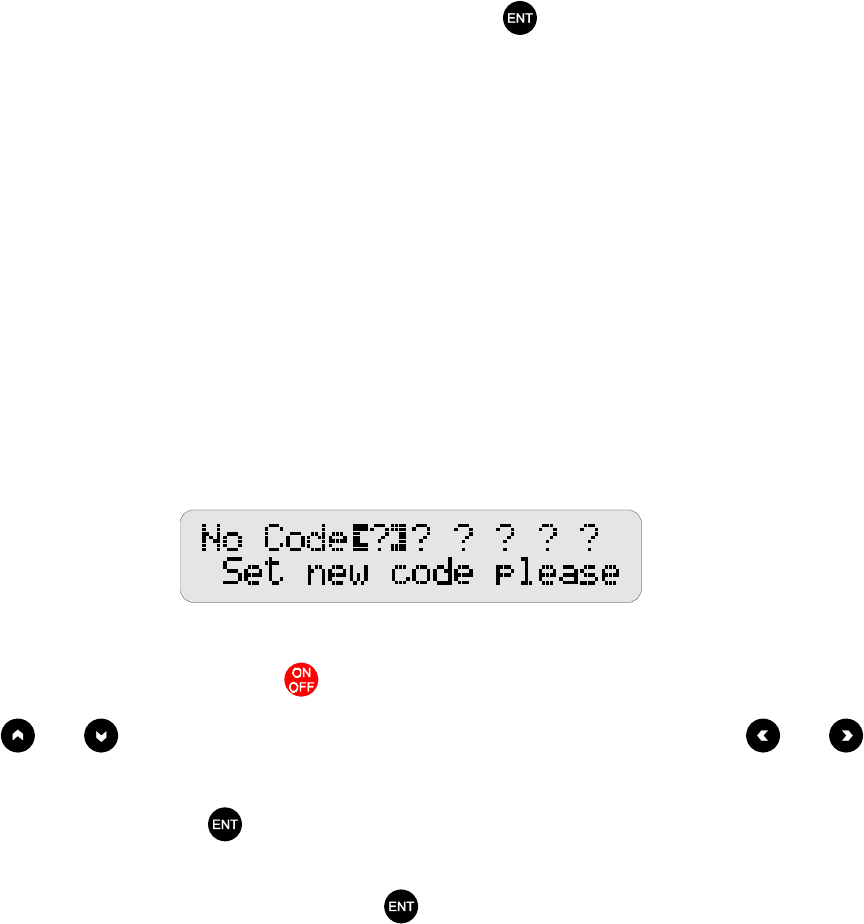

Initially, the code characters are question marks, which indicates that no code is set (the manufacturer
does not set any code):
The lock code is a number with up to six figures which afterwards must be set by anyone who wants to
switch on the amplifier with the red button or to change the code.
The and buttons change the code figure selected by the brackets, while the and
buttons move the brackets among the different figure positions. It is not mandatory that you use six
figures, nor be they orderly. For example, the code could be 32???6 or 238935. After you have selected
the desired code, press the button.
In order to eliminate the code, select the LOCK sub-menu, enter the active LOCK-code, then set six
question marks instead of a code and press the button.
22
5-5. CLR
N O T E
If you use this function, it is advisable that you update the USR tunings (see S.4-1).
This function clears all USR-tunings from the nonvolatile memory but does not change anything else in
the INFO-BOX. The function is activated by pressing the button after having selected the CLR
sub-menu.
The use of CLR is convenient when the amplifier is moved to another operating place to prevent from
mixing with the remaining USR-tunings which are valid for the antennas at the old location. Of course,
if the total number of antennas is less than 10 per segment, you can do USR-tunings with new antenna
numbers and thus preserve the USR-tunings for the antennas at the old location as well.
5-6. DEF (Defaults)
In this sub-menu you can vary the operating mode of the amplifier to cope with abnormal mains volt-
age, set the local network self address of the amplifier, and change the antenna selection mode. Once
DEF has been selected, the 3 sub-menus are reached sequentially by pressing ENT to step through
them.
a) After selecting DEF, the first time you press button you will access the MAINS VOLTAGE func-
tion:
N O T E
Inappropriate use of this function may reduce the gain or the maximum undistorted
output power.
At constantly lower or higher mains voltage you can declare this to the amplifier. The information is
taken into account for the preparation of the next USR-tunings. Selection is done by the and
buttons. Pressing the button confirms the choice selected, while preserves the previous pa-
rameter. In either case the SELF ADDRESS is next selected:
b) SELF ADDRESS
Here you can set the amplifier self address for operation in a network with other systems. When the
amplifier is not used in a network, this address is meaningless.
The number is increased or decreased by means of the and buttons. Confirmation is accom-
23
plished via or aborted via , after which you reach the last function of the DEF sub-menu:
c) AUTO ANTENNA CHANGE
Selection is changed by means of the or buttons. When "ON" is selected, while changing
frequency segments (manually or following the transceiver frequency - see S.4c), the antenna last used
in the respective segment and tuning settings for it will be selected. This is convenient when your
antennas are not more than 1 or 2 for each band, because otherwise, while changing the frequency
segment, you have to keep track of which antenna you used last.
If "OFF" is selected, this function is disabled and the currently used antenna is changed only after a
special command for antenna change (given manually - see S.4d - or via the local network). When
changing frequency segments, the tuning settings for the antenna currently used will be selected in the
new segment. This mode is preferred when you have multiple antennas per band.
Selection of ON or OFF does not change any contents for tuning settings in the nonvolatile memory.
d) If you wish just to be informed about the current selection of these parameters, you can pass through
the DEF sub-menu, without changing anything, using the button. The default settings are "NOR-
MAL", "No.01" and "ON".
5-7. Erasing Nonvolatile Memory
N O T E
Erasing Nonvolatile Memory erases all user data for the amplifier stored in its non-
volatile memory and the INFO-BOX. This includes the following:
lthe number of worked-on hours is set to zero;
lthe text set for CALL is reset to ACOM2000A (or the distributors name);
lthe information stored for recent 12 protection trips is cleared;
lselection for LOW-NORMAL-HIGH of mains voltage is set to NORMAL;
lthe lock code is set to ? ? ? ? ? ?;
lthe amplifier self address in local network is set to 01;
lthe last segment and antenna in use is set to 1800-1825 A1;
lall USR-tuning settings for all segments and antennas are set to DEF;
lthe auto antenna change mode is set to ON.
If you are fully convinced that you want all of these actions to take place, before turning ON the mains
switch , press and hold the button and while holding it on, turn on the mains power switch (on the
24
front panel of the amplifier). The LCD flashes for about 5 seconds:
The procedure is now completed and the amplifier remains in OFF-menu with no user data in it. The
serial numbers of the RCU, amplifier and its tubes as well as the software revision code, however, are
preserved.
N O T E
After this procedure set new data in OFF-menu (DEF, LOCK and CALL sub-menus)
and update the USR-tunings for the frequency segments and antennas to be used
(see S.4-1).
6. MAINTENANCE
W A R N I N G HIGH VOLTAGE!
The amplifier works with high voltages up to 3000V which is LETHAL! For
your safety pull the amplifier power plug out of the mains wall outlet and
WAIT AT LEAST 30 minutes EACH TIME BEFORE you remove the cover of
the amplifier. Do not touch any part inside while the amplifier is open be-
cause some residual voltages may still be present.
6-1. Cleaning
W A R N I N G
Do not use solvents for cleaning - they may be dangerous both for you and
for the amplifier paint.
Do not open the amplifier. Cleaning of the amplifier and RCU outer surfaces can be done with a piece
of soft cotton cloth lightly moistened with clean water.
6-2. Backup Battery Replacement
If on the RCU display you get a message LOW BATTERY-DATA IS IN DANGER or LOSS OF STORED
DATA-CHECK BATTERY PLEASE, it is necessary that the nonvolatile memory battery for USR-TUNINGS
be replaced. This is a 3V/38mAh "coin - type" lithium battery with a diameter of 12mm (1/2inch) and
leads for soldering. The following types are suitable:
- BR1225T2-1 of RAYOVAC USA
- BR1225-1HC of PANASONIC
This is a complex and possibly dangerous operation. For this reason we recommend this work is car-
25
ried out by a trained service technician. See the TECHNICAL SUPPLEMENT for details.The expected
life of a new battery is at least 5 years.
6-3. Fuses Replacement
If occasion should require replacement of the mains fuses, use only standard ones.
The two Primary Mains Fuses of the amplifier are located on the rear panel (Fig. 2.3). They are 20A/
250V Quick blow, 1-1/4 x 1/4 inch Cartridge Fuses, Size "0" Ceramic..
Besides the primary fuses, on the MAINS CONTROL BOARD there are seven small glass fuses (5x20mm)
which are not replaced by the user. Should one of these fuses be blown, it imay be indicative of other
failures. This is a complex and possibly dangerous operation. For this reason we recommend this work
is carried out by a trained service technician. See the TECHNICAL SUPPLEMENT for details.
6-4. Tubes Replacement
The new tubes must be supplied as a Matched Pair with close electrical characteristics. Otherwise one
of the tubes will bear an excessive share of the operating currents, which will lead to overheating and
reduced tube life.
Two 4CX800A (GU74B) high performance ceramic-metal tetrodes manufactured by Svetlana are em-
ployed in the amplifier. This is a complex and possibly dangerous operation. For this reason we recom-
mend this work is carried out by a trained service technician. See the TECHNICAL SUPPLEMENT for
details.
6-5. The ACOM2000A Simplified Schematic Diagram
See Fig.6-1 ACOM2000A Simplified Schematic Diagram.The two 4CX800A (GU74B) Svetlana high
performance ceramic-metal tetrodes (V1 and V2) with plate dissipation of 800W each are grid-driven.
The input signal from the RF INPUT jack is passed through a broadband input matching circuit which
comprises some components in the PHASE DETECTOR PCB and also L1, L2, C2, C3 and R1. This
circuit tunes out the input capacitance of the tubes. The resistor R1 is a termination load of this circuit
and can dissipate up to 100W of drive power.
Cathode resistors R2 and R5 create DC and RF negative feedback and equalize the gain of the tubes.
The varistor RV1 in the screen grid circuit protects the tube screen grid, and voltage regulator in the
events of a flashover.
The combinations L3-R3 and L4-R6 in the plate circuits are VHF/UHF parasitic suppressors. DC plate
voltage is fed through chokes RFC2-RFC3 and the capacitor C10 blocks it from the output. The output
circuit comprises L5-L6 and C12-C16, which form a classic Pi-L network and suppress the harmonic
frequency emissions. It is switched and tuned over the bands by S1A-S1D and the stepping motors M3-
M5 via the MOTOR DRIVER PCB. The output signal is fed through the vacuum antenna relay K1,
wattmeter current transformer TA1 and high-pass filter RFC5-C20 to the antenna output. The chokes
RFC4 and RFC5 keep track of the antenna relay contact conditions and together with C20 prevent the
plate supply from reaching the antenna and RFC5 shunts it to ground if the DC blocking capacitor C10
fails. The resistor R9 and FV1 protect the amplifier from static discharges via the RF OUT connector.
The PHASE DETECTOR together with the PLATE CAPACITIVE DIVIDER, RF WATTMETER and three
OPTOSENSOR circuits are the main sources of information for the control circuit of the amplifier
during the autotune process. The control circuit consists of the CENTRAL PROCESSOR UNIT, based
26
on the 80C31 microprocessor as main system and the Z86E04 Zilog single chip microprocessor used as
antenna relay QSK controller. They are interfaced by the INTERFACE PCB to all other circuits.
All voltages delivered from the LOW VOLTAGE and HIGH VOLTAGE SUPPLY PCBs, tubes currents,
temperatures and airflow cooling capability are permanently monitored. A lot of software-derived
protections are based on this information.
The SIGNAL FILTER PCB and RFC1 eliminate RF feedback from incoming cables, including the mains
power cord. The Remote Control Unit (RCU) is based on the same 80C31 microprocessor and uses a
dot-matrix back-lighted alphanumeric 40-character liquid crystal display.
Detailed electrical schematic diagrams are available in the TECHNICAL SUPPLEMENT to this manual.
Contact your dealer for details.
6-6. Troubleshooting
Should the RCU display indicate a problem, look up the message in the list below and before you
contact the service of your dealer(see S.1-2 and S.5-3), try the recommendations. The messages are
listed in an alphabetic order. The abbreviations used for some recommendations are decoded after the
list.
In case of necessity of transportation see S.7-3.
MESSAGE RECOMMENDATION
ADC - OVERFLOW OFF5*
ANTENNA CONTROL UNIT MALFUNCTION check the control cable from the amplifier IN-
TERFACE connector to ACU (Antenna Con-
trol Unit, if there is one).
ANTENNA RELAY CLOSED CCC*
IT SHOULD BE OPEN
ANTENNA RELAY OPEN CCC*
IT SHOULD BE CLOSED
ARC FAULT try again; check antenna cable, selector, an-
tenna and grounding for loose contacts or
worsened insulation.
AUTOMATIC PROTECTION power not removed more than 10 seconds af-
DRIVE POWER REMOVED ter the message "REMOVE AND REDUCE
DRIVE POWER" appeared.
BAND SWITCH SYSTEM MALFUNCTION OFF5*
BIAS CONTROL MALFUNCTION OFF5*; CCC*
BIAS TOO LOW AT POWER ON OFF5*; CCC*
BIAS VOLTAGE TOO LOW OFF5*; CCC*
COVER INTERLOCK OPEN Check cover; OFF5*
27
DETECTED RF POWER AT WRONG TIME Check if there is power in the antenna induced
from another nearby transmitter; CCC;OFF5*
DRIVE FREQUENCY OUT OF RANGE check the transceiver frequency; OFF5*
DRIVE POWER TOO HIGH RD&T*
EXCESSIVE G2 CURRENT RD&T*
EXCESSIVE PLATE CURRENT RD&T*
FREQUENCY VIOLATION submit to your dealer your license for opera-
tion in the respective frequency band.
FRONT TUBE EXHAUST TEMP TOO HIGH check if air intake (rear panel) and exhaust
(above tubes) openings are clear of obstruc-
tions; RD&T*
G1: EXCESSIVE GRID CURRENT RD&T*
G2: CURRENT TOO HIGH RD&T*
G2 CONTROL CIRCUIT MALFUNCTION OFF5*
G2 VOLTAGE TOO HIGH OFF5*; RD&T*
G2 VOLTAGE TOO LOW OFF5*; RD&T*
HEATER CURRENT TOO HIGH CMV*
HEATER CURRENT TOO LOW CMV*
HEATER VOLTAGE TOO HIGH CMV*
HEATER VOLTAGE TOO LOW CMV*
HEATERS ON BEFORE TIMEOUT STARTED OFF5*
HIGH VOLTAGE TOO HIGH CMV*
HIGH VOLTAGE TOO LOW CMV*
HV TOO LOW AT POWER ON check if the power transformer is properly
connected (see S.2-3) ; CMV*
IG2=......mA SHOULD BE ZERO OFF5*
IG1=......mA SHOULD BE ZERO OFF5*
Ip= ......mA SHOULD BE ZERO OFF5*
Ip PRESENT: SHOULD BE ZERO OFF5*
INPUT RELAY CLOSED CCC; OFF5*
IT SHOULD BE OPEN
LOAD CAPACITOR SYSTEM MALFUNCTION OFF5*
28
LOSS OF STORED DATA see S.6-2.
CHECK BATTERY PLEASE
LOW BATTERY DATA IS IN DANGER see S.6-2.
LOW AIRFLOW check if air intake (rear panel) and exhaust
(above tubes) openings are clear of obstruc-
tions; RD&T*
LOW GAIN RD&T*; check the coaxial cable from trans-
ceiver output to amplifier input.
MICROPROCESSOR CONFLICT OFF5*
MOTOR VOLTAGE TOO HIGH CMV*
MOTOR VOLTAGE TOO LOW check if the power transformer is properly
connected (see S.2-3) ; CMV*
QSK BREAK in FAULT OFF5*; CCC*
PROCESSOR CONFLICT
REAR TUBE EXHAUST TEMP TOO HIGH check if air intake (rear panel) and exhaust
(above tubes) openings are clear of obstruc-
tions; RD&T*;
REFLECTED POWER TOO HIGH check antenna cable, selector, antenna and
grounding for loose contacts or worsened in-
sulation; trim the antenna for minimum VSWR
or use an antenna tuner; try another antenna;
check if REFLECTED POWER is induced from
another nearby transmitter.
REMOVE AND REDUCE DRIVE POWER RD&T*
RF PLATE =......V SHOULD BE ZERO OFF5*; CCC*
RF GRID =......W SHOULD BE ZERO OFF5*; CCC*
SCREEN VOLTAGE ON OFF5*
BEFORE TIMEOUT OVER
TUNE CAPACITOR SYSTEM MALFUNCTION OFF5*
+5V TOO HIGH (TOO LOW) CMV*
+/- 12V TOO HIGH (TOO LOW) CMV*
+24V /+48V TOO HIGH (TOO LOW) CMV*
* Abbreviations:
OFF5 - Turn amplifier off for 5 minutes and try again.
RD&T - Reduce power from transceiver; do AUTO TUNE - see S.4-1.
CMV - Check the mains voltage and its conformity with the voltage selector - see S.2-2 and
29
table 2-1.
CCC - Check the control cable from the transceiver to the KEY-IN input - see S.2-4.
7. SPECIFICATIONS
7-1. Parameters
a) Frequency Coverage: All amateur bands 1.8-29.7MHz; extensions and/or changes on request.
b) Power Output: 1500W PEP or continuous carrier, no mode limit.
In continuous carrier modes (RTTY etc.) for transmissions longer than 15 minutes (up to several hours
depending on ambient temperature), the optional auxiliary fan must be mounted.
c) Intermodulation Distortion: Better than 35dB below rated output.
d) Hum and noise: Better than 35dB below rated output.
e) Harmonics Output Suppression: Better than 50dB below rated output.
f) Input and Output Impedances:
lnominal value: 50 Ohm unbalanced, UHF (SO239) type connectors;
linput circuit: broadband, VSWR less than 1.3:1, 1.8-30MHz continuously (no tunings, no switching);
lbypass path VSWR less than 1.1:1, 1.8-30MHz continuously;
loutput matching capability: better than VSWR 3:1 (2:1 for 160m) or greater at reduced output
levels; automated.
g) Automatic Tuning:
lAntenna Impedance Matching - less than 3 seconds;
lBand Change - less than 1 second;
lSegment Change - less than 0.2 seconds.
h) RF Gain: 14.5dB, frequency response less than 0.5dB (50 to 60W drive power for rated output).
i) ALC: grid-current derived, -11V max, rear panel adjustable.
j) Primary Power: 90-132V (100 & 120V nominal taps, 10% tol.) and 180-264V (200, 220 & 240V
nominal taps, 10% tol.), 50-60Hz, single phase, 3500VA consumption at rated output.
k) Complies CE safety and electromagnetic compatibility requirements, as well as FCC-regulations (10
& 12m bands lock provided).
l) Size & Weight (operating): W440mm x D500mm x H180mm, 36kg.
m) Operating environments:
ltemperature range: 0...+50 degs.Celsius;
30
lhumidity: up to 75% @ +35 degs.Celsius.
lheight: up to 3000m above sea level without output deterioration.
7-2. Functions
a) Antenna Impedance Matching Process: automated.
b) Provides Antenna Control Interface for Automatic Antenna Selector and Tuner.
c) User tuning settings memory - nonvolatile for up to 10 antennas per frequency segment (settings for
50 Ohm default provided). On power-up, the lithium backup battery voltage is checked. The battery is
rechecked every 24 hours that amplifier remains powered up for maximum data security. If the battery
level is low, a LOW BATTERY precaution to the operator appears on the RCU.
d) Tubes: two 4CX800A (GU74B) Svetlana high performance ceramic-metal tetrodes with plate dissi-
pation of 800W each, grid driven, forced air cooling.
e) T/R System: QSK operation with built-in vacuum RF antenna relay.
f) Protections:
lcover interlock for operator's safety;
linrush power-on current control;
lall supply voltages;
lcontrol grid, screen grid, plate and heater currents;
lcooling airflow;
lexhaust air temperature - each tube separately;
lmotors motion;
lT/R sequencing;
lantenna relay contacts, including RF power induced in antenna from another nearby transmitter;
lantenna matching quality;
lreflected power;
lRF arcs, including in antenna system;
loverdrive;
lunauthorized access to amplifier (password).
g) INFO BOX for 12 recent protection trips, default selections, individual amplifier's data, power-on
hours record, and remote diagnostics via phone line, PC or INTERNET.
h) Up to 3 meters remote control and display unit (LEDs for power-on and oper/stby, LED-bargraphs
for forward and reflected power, dot-matrix back-lighted alphanumeric LCD), on-board assistance and
troubleshooting suggestions etc. No controls on main unit (except for the ON/OFF main switch and
31
indicator).
i) All functions accessible from PC via serial port, local network functions for more than one (up to 16)
sets of amplifier / antenna units, working in a system.
j) Measurement and/or constantly monitoring of 20 most important parameters of the amplifier via
RCU and/or PC.
k) Adjustable RCU Beep and Contrast.
7-3. Storage and Shipment
C A U T I O N
Should you need to transport the amplifier, use the original packing as described
below.
First pull the mains plug out of the mains outlet, afterwards disconnect all cables from the rear panel of
the amplifier (remove the ground connection last) and wait 30 minutes. Then remove the mains power
transformer, observing the requirements of S.2-3, but in reverse order. Pack the RCU in the box pro-
vided for it, and put it in the amplifier in the place of the mains transformer. Screw in the two shipping
screws of the blower (located on the rear panel). Screw in the transport board to the transformer using
the four shipping screws, pack the four shorter (mounting) bolts in the polyethylene envelope. Finally
mount the cover and pack the amplifier and transformer in their original cartons.
a) Storage environments: the amplifier can be kept packed in dry and ventilated unheated premises
without chemically active substances (acids, alkalies etc.) in the following climatic environment:
ltemperature range: -40 to +70 degs.Celsius;
lhumidity: up to 75% @ +35 degs.Celsius.
b) Shipping Size and Weight:
lW400mm x D340mm x H340mm, 19kg - Transformer carton;
lW610mm x D560mm x H305mm, 19kg - Amplifier carton.
c) Shipping environments: all types of transportation, including aircraft baggage section up to 12000
meters above sea level.
32
8. BRIEF MENU GUIDE
lPOWER SWITCH -> OFF MENU:
HELP - to read serial numbers, power-on hours, suggestions
CALL - to change inscription in OFF-menu
INFO - to send telephone diagnostics information
LOCK - to set or change access code
CLR - to delete all USR-tunings
DEF - to define mains voltage diversions, network self address and antenna change mode
lON/OFF BUTTON -> MAIN MENU -> OPR/STB BUTTON - to use amplifier.
AUTO TUNE - to match antennas (USR-tunings preparation)
MAN.TUNE - to match antennas manually
MEASURE - to measure amplifier parameters
SERVICE - to check motors' motion and tubes' zero-signal current
lON/OFF BUTTON -> back to OFF MENU MENU GUIDE
9. ACOM WARRANTY
1 year parts (including tubes) and labor.
