User Manual

900 MHz WIRELESS
INDOOR/OUTDOOR
SPEAKERS
OPERATING INSTRUCTIONS
2
• Readtheseinstructions.Allthesafetyandoperatinginstructionsshouldbereadbeforethisproductis
operated.
• Keeptheseinstructions.Thesafetyandoperatinginstructionsshouldberetainedforfuturereference.
• Heedallwarnings.Allwarningsontheapplianceandintheoperatinginstructionsshouldbeadheredto.
• Followallinstructions.Alloperatinganduseinstructionsshouldbefollowed.
• Donotusethisapparatusnearwater.Theapplianceshouldnotbeusednearwaterormoisture,for
example,inawetbasementornearaswimmingpool.
• Cleanonlywithdrycloth.
• Donotblockanyventilationopenings.Installinaccordancewiththemanufacturer’sinstructions.
• Donotinstallnearanyheatsourcessuchasradiators,heatregisters,stoves,orotherapparatus
(includingampliers)thatproduceheat.
• Donotdefeatthesafetypurposeofthepolarizedorgroundingplug.Apolarizedplughastwobladeswith
onewiderthantheother.Agroundingplughastwobladesandathirdgroundingprong.Thewideblade
orthethirdprongisprovidedforyoursafety.Iftheprovidedplugdoesnottintoyouroutlet,consultan
electricianforreplacementoftheobsoleteoutlet.
• Protectthepowercordfrombeingwalkedonorpinchedparticularlyattheplugs,convenience
receptacles,andatthepointwheretheyexitfromtheapparatus.
• Onlyuseattachments/accessoriesspeciedbythemanufacturer.
• Useonlywiththecart,stand,tripod,bracket,ortablespeciedbythemanufacturer,or
soldwiththeapparatus.Whenacartorrackisused,usecautionwhenmovingthecart/
apparatuscombinationtoavoidinjuryfromtip-over.
• Unplugtheapparatusduringlightningstormsorwhenunusedforlongperiodsoftime.
• Referallservicingtoqualiedpersonnel.Servicingisrequiredwhentheapparatushasbeendamagedin
anyway,suchaspowersupplycordorplugisdamaged,liquidhasbeenspilledorobjectshavefalleninto
theapparatushasbeenexposedtorainormoisture,doesnotoperatenormally,orhasbeendropped.
• Pleasekeeptheunitinawell-ventilatedenvironment.
• WARNING:Toreducetheriskofreorelectricshock,donotexposethisapparatustorainormoisture.
 Theapparatusshallnotbeexposedtodrippingorsplashingandthatobjectslledwithliquids,suchas
vases,shallnotbeplacedontheapparatus.
• WARNING:Themainpowerplugisusedasadisconnectdevice,thedisconnectdeviceshallremain
readilyoperable.
• WARNING:Toreducetheriskofelectricshock,donotremovecover(orback)astherearenouser-
serviceablepartsinside.Referservicingtoqualiedpersonnel.
• WARNING:Thebatteriesshallnotbeexposedtoexcessiveheatsuchassunshine,reorthelike.
• Theapparatusshouldbeconnectedtoapoweroutletwithaprotectivegroundingconnection.
• Toreducetheriskofelectricshock,donotremovecover(orback)asthereareno-user-serviceableparts
inside.Referservicingtoqualiedpersonnel.
CAUTION
RISKOFELECTRICSHOCK
DONOTOPEN
Thelightningashwitharrowheadsymbol,withinanequilateraltriangleisintendedtoalert
theusertothepresenceofuninsulated“dangerousvoltage”withintheproductsenclosure
thatmaybeofsufcientmagnitudetoconstituteariskofelectricshock.
Theexclamationpointwithinanequilateraltriangleisintendedtoalertthe
usertothepresenceofimportantoperatingandmaintenance(servicing)
instructionsintheliteratureaccompanyingtheappliance.
Important Safety Instructions
3
Thiswirelessspeakersystemappliesthelatest900MHzwirelesstechnology
thatenablesyoutoenjoymusicandTVsoundanywhereinsideoroutside
yourhome.Youcansimplyconnectthetransmitterwithanyaudiosource
suchasaniPod,TV,DVD,Hi-FiorCD/MP3player.
Introduction
FEATURES
1. 900MHzRFtechnology
2. Autotuningsystemonspeakers
3. PhaseLockLoop(PLL)transmissionsystemontransmitter
4. Water-proofspeakers
5. Stereoeffectonspeakers
6. Operatingdistanceupto50meters(openeld)
7. Nolineofsightlimitation
8. AutoON/OFFcontrolontransmitter
9. Autoshut-offonspeakers
10. Remotecontrolunit

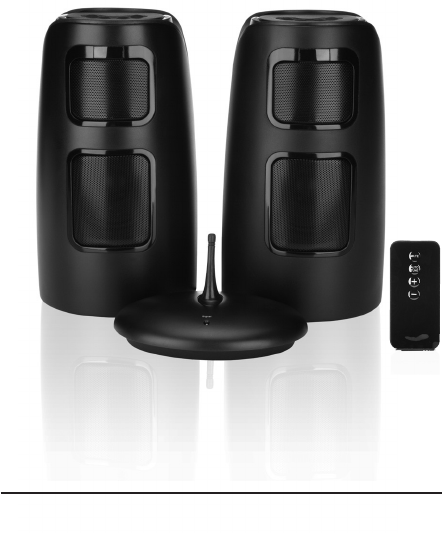

WHAT’S IN THE BOX
RFTransmitter(1)
RFSpeakers(2)
ACadapterfortransmitter(1)
ACadapterforspeakers(2)
Remotecontrol(batteryincluded)
3.5mmjackto2xRCA(1)
WHAT YOU NEED TO GET STARTED
6xCsizealkalinebatteries(speakers)
forfullwirelessfunctionoruse
adaptersprovided.
4
Installation
REMOTE CONTROL UNIT
A. Toactivatetheremote,removethebatterycoverattherearoftheremote
controlunitandremovetabonbuttoncellbattery(included).Replacethe
battery.
B. Closethebatterycompartment.
MUTE
AUTO TUNE
VOLUME (+)
VOLUME (-)
BATTERY
COMPARTMENT
NOTE:Requiresone
buttoncellbatteryfor
remote(included)
5

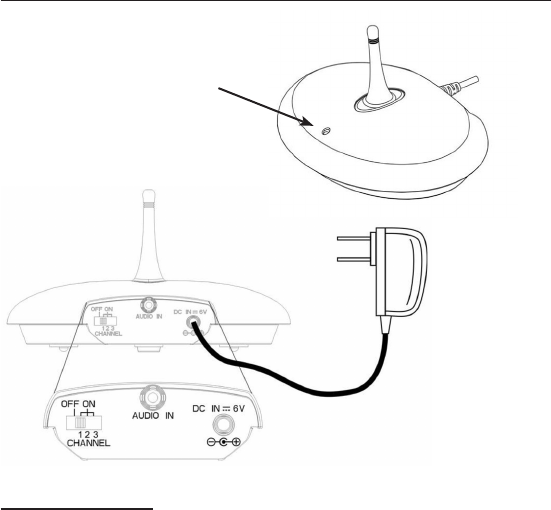

TRANSMITTER
A. ConnectthesuppliedACpoweradaptertoanelectricalwalloutlet.
B. PlugtheACpoweradapterintheDCjacklocatedattherearofthe
transmitter.
C. Therearofthetransmitterhasoneaudiocordthatcanbeconnectedtoan
audiooutputjackofaTV,iPod,DVD,andCD/MP3playerwiththeaudio
cableprovided.
Whenthepoweradapterconnectionisnished,theLEDonthetransmitter
willlightupingreen.Connecttheaudiocableandturnontheaudiodevice,
theLEDwillchangefromgreentoblue.
Installation
POWER SIGNAL
INDICATOR
(GREEN/BLUE)
AC
ADAPTER
6
Installation
SPEAKERS
Use with batteries (fully wireless) or with adapters provided
A. Insert6xCsizealkalinebatteries(notincluded)intothebattery
compartmentobservingthecorrectpolarityatthebottomofthespeakers
orconnectthe9VpoweradaptertotheDCinputjackonthebottomof
eachspeaker,thenplugitintothewallACoutlet.
B. PressthepowerbuttontoturnthespeakersON.ThePower/StandbyLED
willbegreen.
LED
INDICATOR
DC JACK BATTERY COMPARTMENT
REQUIRES:6xCsizealkaline
batteries(notincluded)forfull
wirelessusage.
*Rechargeablerecommended
(availableatTheSource)
POWER
AUTO TUNE
VOLUME (-)
VOLUME (+)
7
Installation
OPERATION
1. Connectthepoweradaptertothewalljackandtransmitter.TheLEDwill
turngreen.
2. Turnontheaudiosource(TVoraudiocomponent)towhichthetransmitter
isconnectedwith.TheLEDwillturnfromgreentoblue.
3. Selectchanel1,2or3onthetransmitterforthebestperformanceinyour
location.
4. Pressthepowerbuttononthespeakerandadjustthevolumebypressing
the(+)or(-)buttonfordesiredlisteninglevel.Thevolumecanbeadjusted
bypressingthe(+)or(-)buttonlocatedontheremotecontrolunit.
5. PresstheAUTOTUNEbuttontogetthebesttuningreceptionin
thespeakers.Whenthebuttonispressed,frequencytuningstarts
automaticallyandstopswhenasignalisdetected.
6. Youcannowplacethespeakersanywhereinsideoroutsidewithin50
meters(openeld)ofthetransmitter.
SWITCHING OFF
1. Ifthereisnoaudioinputsignaltotransmitterin4minutes,thetransmitter
willgointostandbymodeandtheLEDwillchangefrombluetogreen.
2. Ifthepoweradapterisunplugged,theLEDontransmitterwillturnoff.
3. Thespeakerwillreverttostandbymodeautomaticallyifthereisno
inputsignaltothetransmitterandLEDwillturngreen.Thespeaker
automaticallyshutsoffwhenstandbymodecontinuesfor5minutes.
MUTE FUNCTION
1. PresstheMutebuttonontheremotecontroltotemporarilystopmusicplay.
TheLEDonthespeakerswilldim.
2. PresstheMutebuttonagaintoresumeplay(ifmuteispressedwithin
approximately180seconds).
Please Note:TheMutefunctiontemporarilystopsmusicplayfor
approximately180seconds–afterthistimethespeakerbuttonswillneedto
bepressedtoresumemusicplayasthespeakerswillenterpowersavemode.
OTHER CONTROLS
1. Selectvolumeuporvolumedownonthespeakerorremotecontrolunit.
2. Ifyouhearinterferencefromothercomponentsre-adjustthetuningcontrol
bymovingthechannelknobto1,2or3onthetransmitter,thenpressing
theAUTOTUNEbuttononthespeakerorremoteforthebestreception.
8
Technical Specications
Transmission Mode: UHFstereo
Frequency: 900MHz
Operation Voltage: Transmitter:DC6V300mAadapter
Speaker: DC9V1.1Aadapteror6X“C”size
 alkalinebatteries(notincluded)
 Rechargeablerecommended
Remote
Control: Buttoncellbattery(included)
Frequency Response: 50Hz–10KHz
Operation Distance: Upto50m(openeld)
Output Power (RMS): 2x5W(Max)
Speakers: 2-way
Indoor/Outdoor: Yes(IPX3waterresistant)
Impedance: 4ohms
Distortion: <1.5%
S/N: >65dB(typical)
Separation: >40 dB
NOTE:
IPX3waterrating(waterresistant)
Protectagainstsprayingwater.Watersprayingupto60degreesfromvertical
at10L/minatapressureof80to100kN/m2for5minutes.
9
Troubleshooting
NO SOUND
• EnsuretheACadapterisfullyinsertedintotheACoutletandthepower
connectioninputonthetransmitter.
• Ensurethespeakerisswitchedon.
• Thespeaker’sbatterycapacityistoolow,replacewithnewbatteriesor
connecttheACadapterstothespeakers.
• EnsuretheTVoraudiocomponentisON.
• Theconnectedaudio/videoequipmentisnotplaying.Startplayingthe
equipment.
• Thevolumeofthespeakeristoolow,adjustthevolumetoanappropriate
level.
DISTORTED
• PresstheAUTOTUNEbuttononthespeakersuntilthefrequencyis
matchedonthetransmitter.
• Changethepositionofthechannelselectoronthetransmitter.Thenpress
theAUTOTUNEbuttononthespeakers.
• Batterycapacityistoolow.Replacewiththenewbatteries.
• Ensurethevolumelevelofspeakersisadjustedproperly.
• Thespeakeristoofarfromtransmitter,moveitcloser.
• Theinputleveloftheaudiosignalistoolow.Turnupthevolumeofthe
audiosourceequipment.
10
The FCC Wants You to Know
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver. Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an
experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. Where shielded interface cables have been
provided with the product or specified additional components or accessories elsewhere defined to
be used with the installation of the product, they must be used in order to ensure compliance with
FCC regulation.
Industry Canada-ICES-003
CAUTION
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la
classe B est conforme à la norme NMB-003 du Canada.
Transmitter IC Number: 255A-4016029
Receiver IC Number: 255A-4016029R

Navigation menu
