INSTUDIO BLUETOOTH SPEAKER
BS1130TUS
BS1130TE
8016810
Instruction Manual
A. INTRODUCTION
This Bluetooth wireless speaker system applies the latest BT 2.1 wireless technology platform
that enables you to enjoy music, video everywhere you want.
B. FEATURES
1. Bluetooth 2.1 Platform
2. Operating distance up to 10 meters / 33 feet (open area)
3. Powered by 6x “C”Size alkaline batteries (not included) or Power adapter
4. IPX 3 Water-proof feature
5. 3.5mm line in jack
C. PACKAGING
2 X Bluetooth speakers
2 X 3.5 to 3.5mm audio cable
1 X User manual
2 X AC/DC adapter

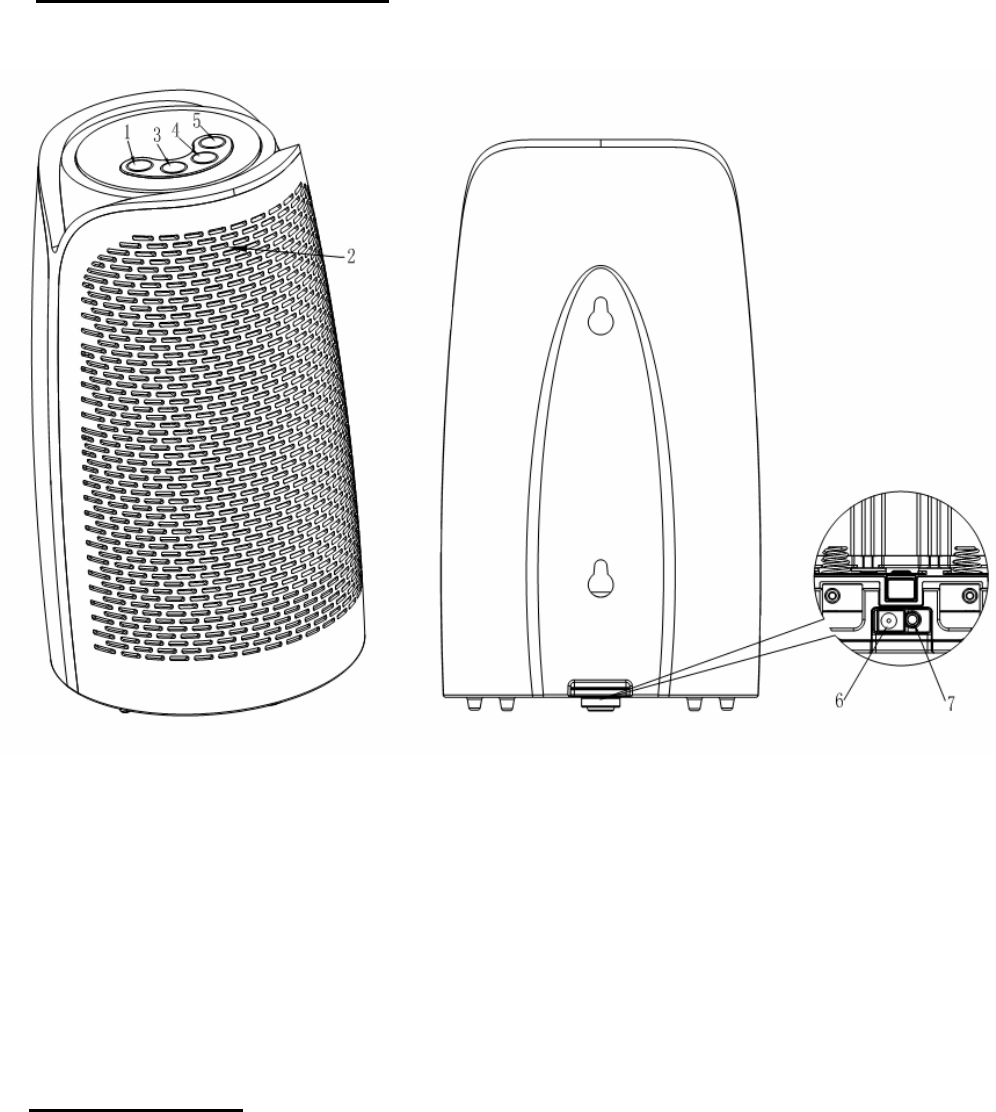

D. COMPONENT IDENTIFICATION
1. Power ON/OFF
2. Power LED Indicator(Red, Blue, Green)
3. Pair
4. Volume -
5. Volume+
6. Power adapter jack
7. 3.5mm audio jack
E. General operation:
Power on:
Press POWER button for 2 seconds. Blue LED will flash quickly two times.
Power off:
Press POWER button for 2 seconds. Blue LED will flash quickly three times.
Switch between Bluetooth and Line in
Quick press Power key once, SOLID GREEN LED lights up.
Maximum volume :
When maximum volume is reached,Red and Blue LED flash.
F. PAIRING (Stereo, play music with two speakers)

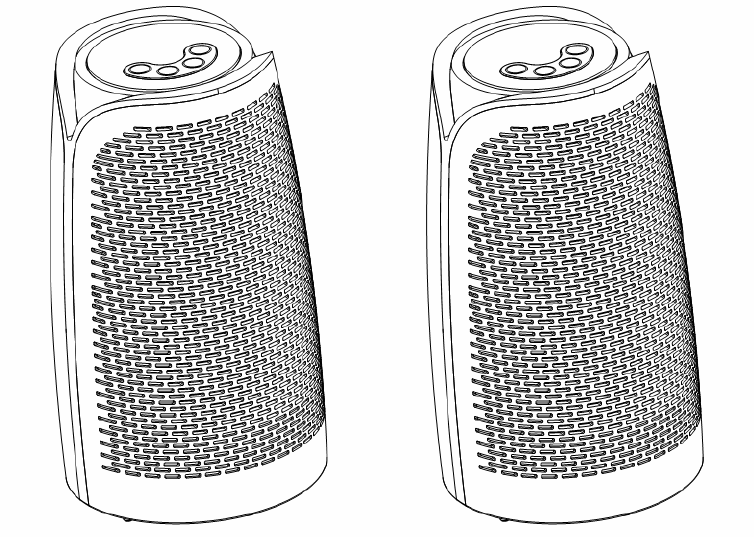

Step 1. Pairing between two speakers
1. Make sure two speakers are powered off.
2. Press and hold the POWER button (approx. 4 seconds) for the first speaker until RED LED
flashes.
3. Press and hold the POWER button (approx. 8 seconds) of the second speaker until RED
and BLUE LED flash alternatively.
4. Solid RED LED lights up when two speakers are connected. (approx. 12 seconds)

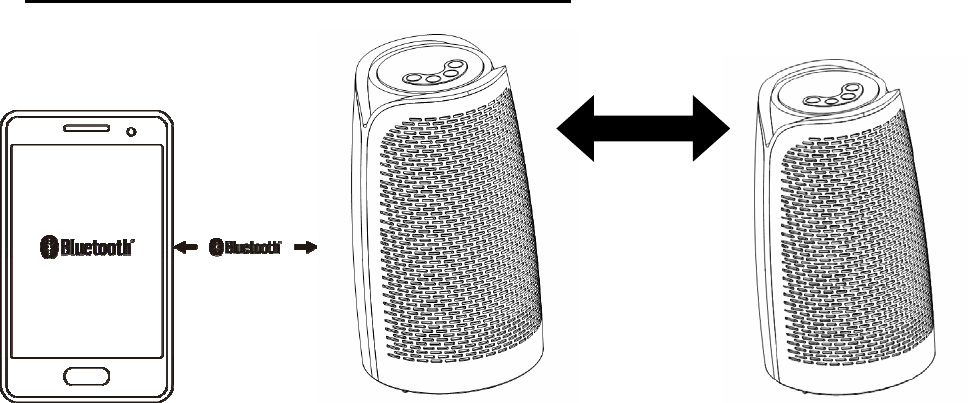

Step 2. Pairing between speakers and bluetooth device (eg. Mobile phone)
1. Make sure two speakers are connected.
2. Enable your Bluetooth device such as cell phones, tablets or other Bluetooth media, and
make sure it is in searching mode.
3. Choose either one of the speakers and press and hold the PAIR key for 4 seconds to enter
the pairing mode, this speaker will be the MASTER speaker (Left Channel)(BLUE LED
flashes quickly), the other speaker will be the SLAVE speaker (Right Channel) (BLUE LED
flashes slowly) .
4. Select “inStudio 8016810” in the list shown in the Bluetooth device.
Connected
Connected
Bluetooth Device
5. Enter “0000” if password is required.
6. When connected, BLUE LED will flash slowly for the MASTER speaker(Left Channel). RED
LED will light up for SLAVE speaker(Right Channel).
7. When playing music, for MASTER speaker(Left Channel) SOLID BLUE LED lights up, for
SLAVE speaker (Right Channel) SOLID RED LED lights up.
Important Note: When two speakers are connected to the user's bluetooth device, if
user tries to search the third bluetooth device around, there will be interference and
sound interruption.

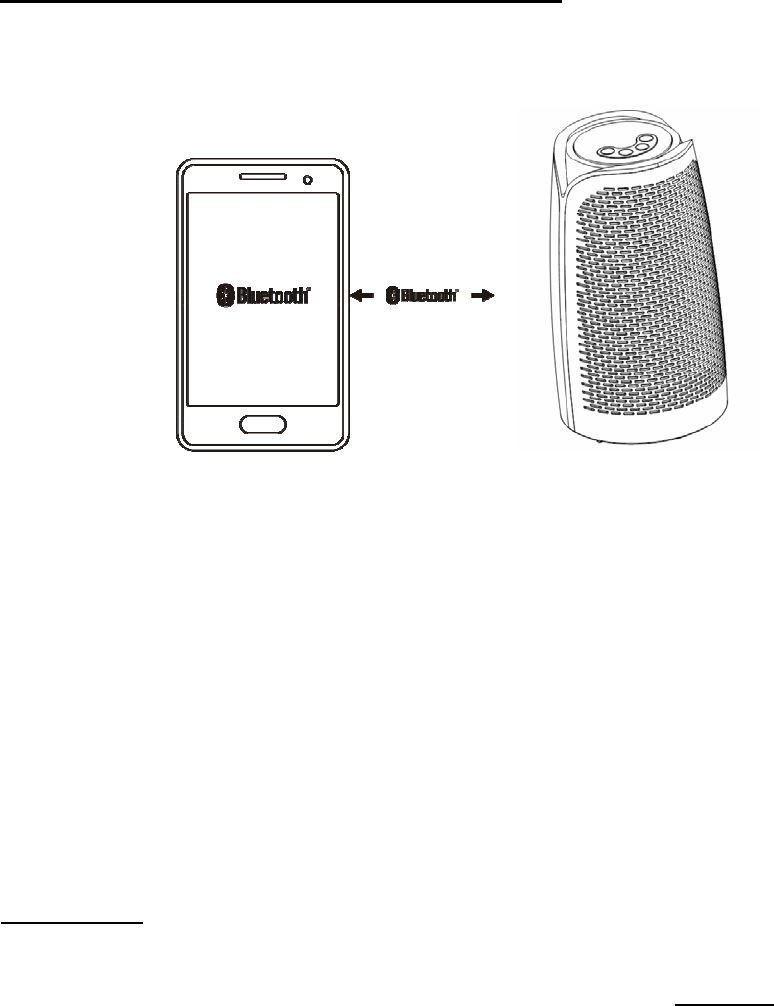

G. Pairing (Mono, play music with one speaker only)
1. Swith the speaker (ONE Speaker only) on. Press the PAIR button and hold for 4 seconds to
enter pairing mode. The BLUE LED flashes quickly.
2. Enable your Bluetooth device such as cell phones, tablets or other Bluetooth media, and
make sure it is in searching mode.
3. Select “inStudio 8016810” from the list of discovered Bluetooth devices on your cell phones,
tablets or other Bluetooth media. Wait for the connection to be completed.
4. Enter “0000” if password is required.
5. When Bluetooth connection is made, SOLID BLUE LED lights up.
6. You can now enjoy your music.
H. Auto Pairing
Once pairing is made the first time, auto pairing will start next time when you swith on the
speakers. Bluetooth of your bluetooth device must be enabled BEFORE swithcing on the
speakers.
Connected
Bluetooth Device
I. Line in
1. Connect the speaker with your audio device directly by the supplied 3.5mm cable
2. Quick press POWER button once to swith to line in mode.
3. Green LED lights up.
Important note: Line in function only supports MONO mode with one speaker.

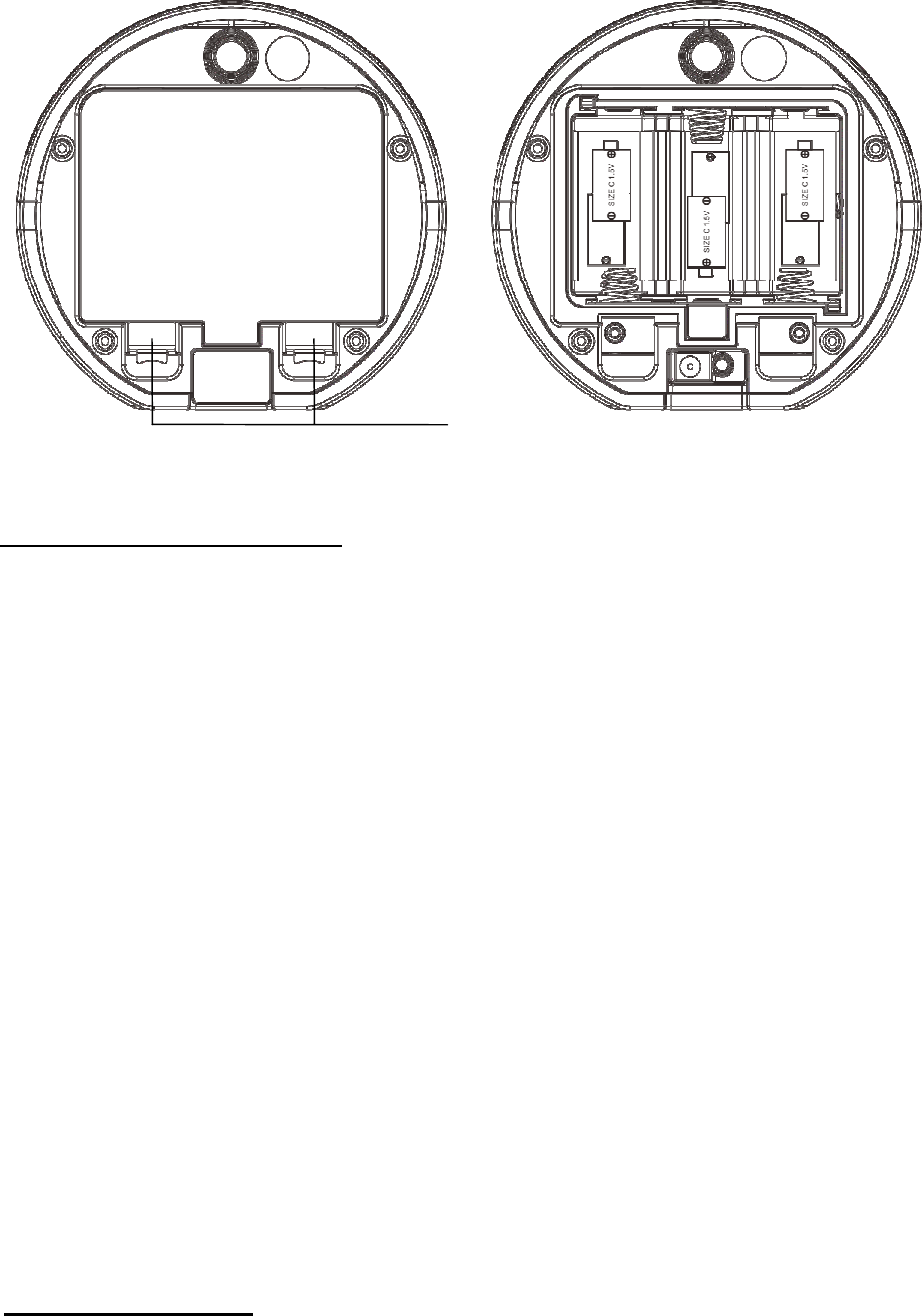

Battery Installation:
1. Turn the speaker over; on the bottom of the speaker you will see the battery door.
2. Open the battery door by pinching the two tabs and pulling towards you.
3. Install 6 (six) C size batteries following the battery markings inside the compartment.
4. Close the battery door until the door snaps shut.
Batter
y
compartment
J. TECHNICAL SPECIFICATIONS
Carrier Frequency : Bluetooth 2.1
Power Requirements : By 6x C size alkaline batteries (not included)
Or power adapter
Audio Frequency Response : 30Hz – 18KHz
Distortion : <1%
S/N Ratio : 65dB (typical)
Channel Separation : 60dB (Typical)
Operation Distance : Up to 10 meters / 33 feet (open area)
Audio Output Power : 5W
NOTES:
This speaker is in compliance with the specified Bluetooth version. It does not guarantee
compatibility of all functions on every Bluetooth enabled device. Please check with your
mobile phone's user manual for compatibility and functionality.
Volume control of MASTER speaker (Left Channel) and SLAVE(Right Channel) are controlled
independently.
When maximum volume is reached, RED and BLUE LED will flash for three times.
When there is no bluetooth connection for 15 minutes, speakers will be auto power off.
When battery is low, RED, BLUE, GREEN LED will flash alternatively for 60 seconds and
power will be off.
K. TROUBLE SHOOTING
NO SOUND
- The speaker’s battery charge is too low. Replace with the new batteries.
- Ensure the speaker is ON.
- Ensure Bluetooth device is ON.
Bottom portion of the speaker Insert batteries correct direction
TABS
- The volume of speaker is too low; adjust the volume to an appropriate level.
- Unable to connect with BlueTooth device, RESET the speaker by pressing and holding the
Pair/Battery Check button for 12 seconds.
- The speaker may be too far away from the Bluetooth device, move closer to it.
