Acoustic Arc AAI-BS1160A-0 Bluetooth Speaker User Manual Hinge Hook
Acoustic Arc International Ltd. Bluetooth Speaker Hinge Hook
User Manual
iCanBT / Bluetooth Speaker
BD-90273
Instruction Manual
A. INTRODUCTION
This Bluetooth wireless speaker system applies the latest BT 3.0 wireless technology platform
that enables you to enjoy music, video everywhere you want.
B. FEATURES
1. Bluetooth 3.0 Platform
2. Operating distance up to 10 meters / 33 feet (open area)
3. Powered by 8x AA alkaline batteries (not included) or Power adapter (not included)
4. IPX 4 Water-proof feature
5. 3.5mm line in jack
C. PA C K AG ING
1 X Bluetooth speaker
1 X 3.5 to 3.5mm audio cable
1 X User manual
D. COMPONENT IDENTIFICATION
1. Power ON/OFF and AUX IN Control
2. Power LED Indicator
3. Pair
4. Volume -
5. Volume+
6. Power adapter jack
7. 3.5mm audio jack
E. PAIRING
1. Press the power button for 3 seconds to turn the speaker on, the Blue LED light will flash
slowly.
2. Enable your Bluetooth device such as cell phones, tablets or other Bluetooth media, and make
sure it is in searching mode.
2. The Bluetooth speaker will automatically search your blue tooth device，pair it up when
' iCanBT ' appears on your Bluetooth device.
3.
4. If no auto pairing connection is made, press the Pair button and hold for 5 seconds until the
Blue LED flash quickly.
5. Select “iCanBT” in the list shown in the Bluetooth device.
6. Enter “0000” if password is required.
7. When Bluetooth connection is made, the Blue LED will solid.
1
2
3 4 5
6
7
8. Listen to your music.
9. Change to Aux in mode by short press of Power/Aux button, the LED will turn form Blue to
Green. Short press again back to Bluetooth mode.

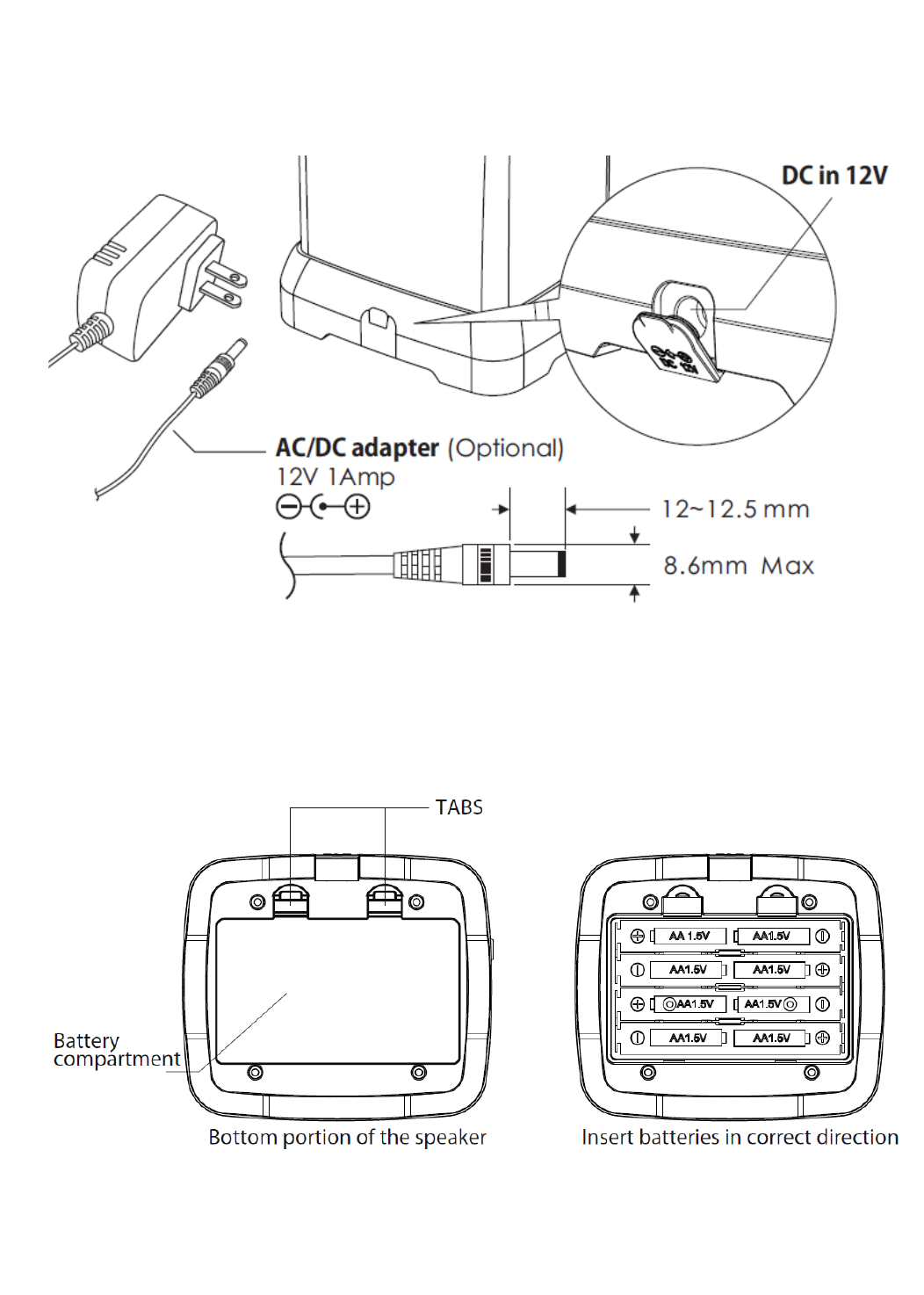

Battery Installation:
1. Turn the speaker over; on the bottom of the speaker you will see the battery door.
2. Open the battery door by pinching the two tabs and pulling towards you.
3. Install 8 (eight) AA batteries following the battery markings inside the compartment.
4. Close the battery door until the door snaps shut.
F. TECHNICAL SPECIFICATIONS
Carrier Frequency : Bluetooth 3.0
Power Requirements : By 8x AA alkaline batteries (not included)
Or power adapter (not included)
Frequency Response : 30Hz – 18KHz
Distortion : <0.5%
S/N Ratio : 65dB (typical)
Channel Separation : 50dB (Typical)
Operation Distance : Up to 10 meters / 33 feet (open area)
Output Power : 5W (Max)
NOTES: This speaker is in compliance with the specified Bluetooth version. It does not guarantee
compatibility of all functions on every Bluetooth enabled device. Please check with your mobile
phone's user manual for compatibility and functionality.
G. TROUBLE SHOOTING
NO SOUND
- The speaker’s battery charge is too low. Replace with the new batteries.
- Ensure the speaker is ON.
- Ensure Bluetooth device is ON.
- The volume of speaker is too low; adjust the volume to an appropriate level.
- Unable to connect with Bluetooth device, restart the pairing process.
- The speaker may be too far away from the Bluetooth device, move closer to it.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Note: Clean the speaker with soft, lint - free, dry cloth. Never use detergents or abrasive cleaners
to clean.
H. FCC STATEMENT
This device complies with part 15 of the FCC rules. Operation is subject to the following two con-
ditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause un-
desired operation.
Important: Changes or modifications to this product not authorized and could void the FCC com-
pliance and negate your authority to operate the product.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
The Bluetooth word, mark and logo are owned by Bluetooth SIG, Inc. Any and all other
trademarks and trade names are those of their respective owners.
If at any time in the future you should need to dispose of this product please note that:
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice. (Waste Electrical and Electronic Equipment Directive).
