Acoustic Arc AAI-DS0620B-0 Wireless Speaker System User Manual
Acoustic Arc International Ltd. Wireless Speaker System
User Manual
DS0620B
2.4 GHz Wireless Outdoor Speaker System
Item #40325
Owner's Manual
(Read carefully the instructions before using this system)
Introduction
This 2.4GHz digital wireless speaker system utilizes the most advanced wireless technology to
deliver dynamic, high-quality audio anywhere inside or outside your home. The wireless audio
transmission travels freely through walls, floors and other solid objects. Simply connect the
system to any audio source such as Radio, TV, VCR, Hi-Fi and CD/MP3/ VCD/DVD players... to
enjoy full-spectrum, lifelike sound without complicated wiring and installation.
Features
1. 2.4GHz Frequency Hopping Spread Spectrum (FHSS) digital transmission.
2. 32-Channel scan-tuning between transmitter and receiver.
3. Audio output power up to 20 Watts RMS per channel.
4. Weather-resistant speaker and remote control.
5. Mood light effect.
6. Dual weather-resistant speaker driver (super bass and tweeter built-in).
7. Pairing between transmitter and speaker
8. Supports stereo audio (with optional additional speaker).
9. AUX In jack.
10. Operating distance up to 50 meters in open area (less through walls and other obstructions).
11. Works through walls, floors and anywhere in the room.
12. Virtually interference-free stereo quality.
13. Electronic Volume Control on Speakers.
14. Remote control unit.
15. Powered by 6 D batteries, or by included AC/DC adapter.
16. Portable Transmitter powered by 4 AA batteries, or by included AC/DC adapter
Package content
i. 1 x RF transmitter
ii. 1 x RF speaker
iii. 1 x Remote control
iv. 1 x ac/dc adapter for transmitter
v. 1 x ac/dc adapter for speaker
vi. 1 x RCA to RCA cable
vii. 1 x 3.5mm to 6.3 mm adapter plug
viii. 1 x user manual

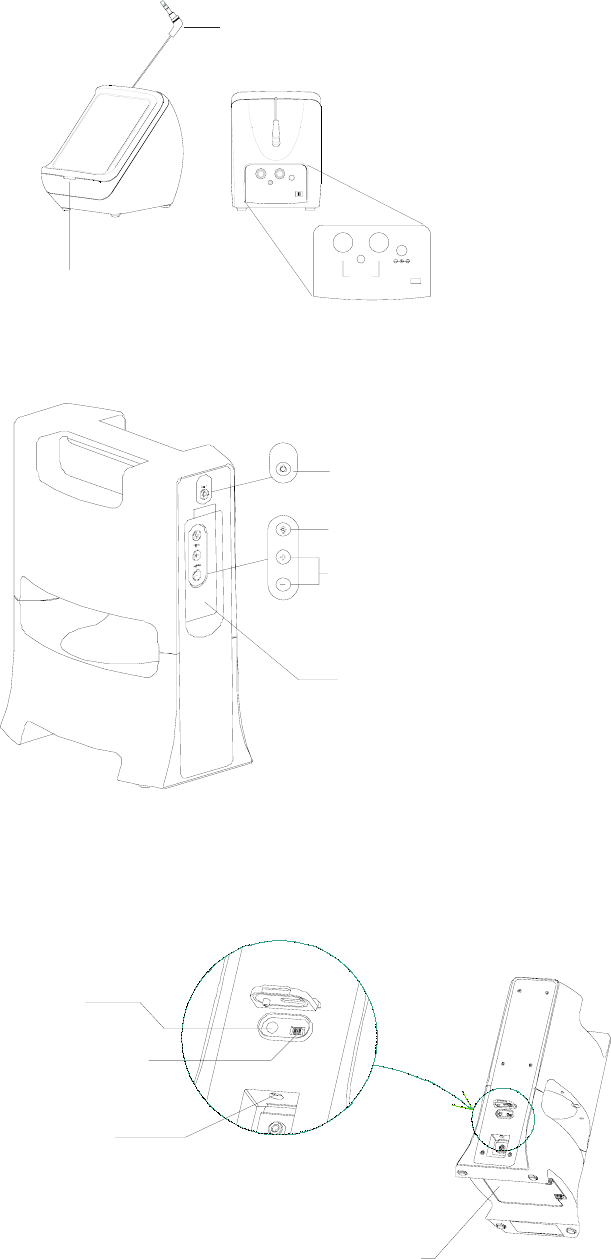

Transmitter

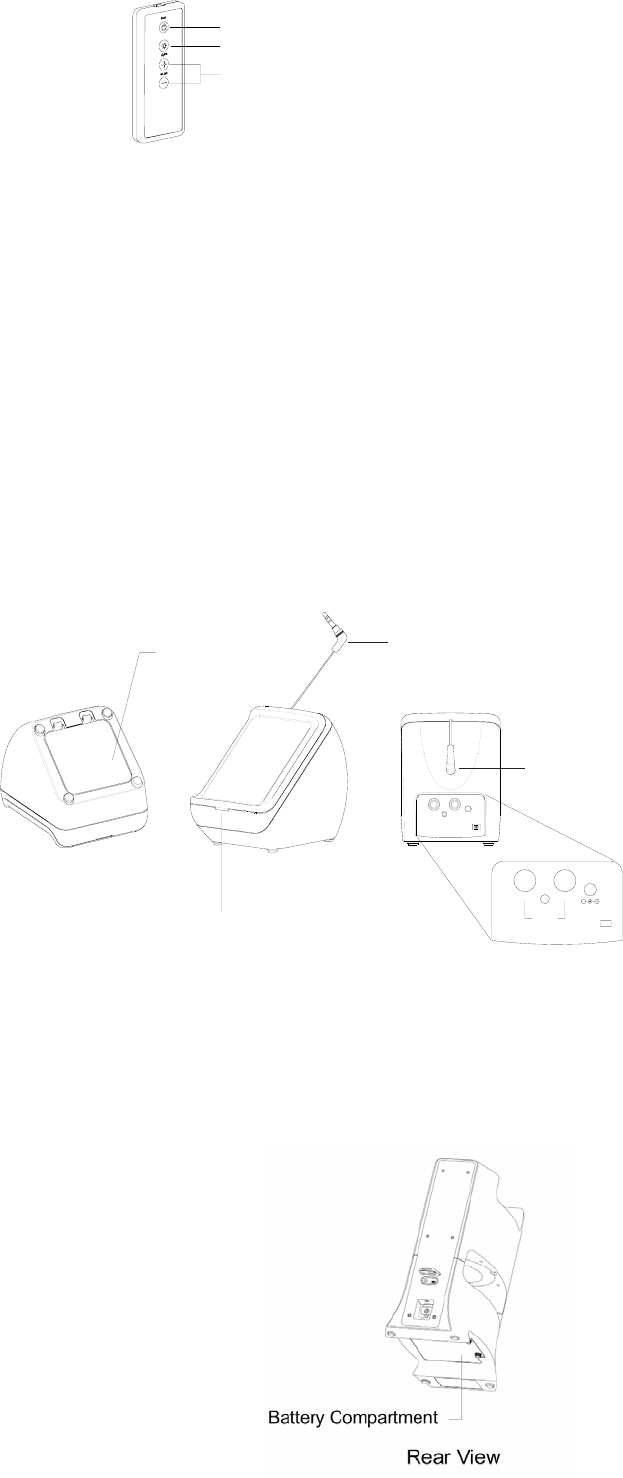

R
Pair
AUDIO IN
DC IN 6V
ON OFF
L
Power on indicator
Input
Speaker
Remote Control Storage
Power on/off
Mood light / Pair
Volume Up/Down
Front View

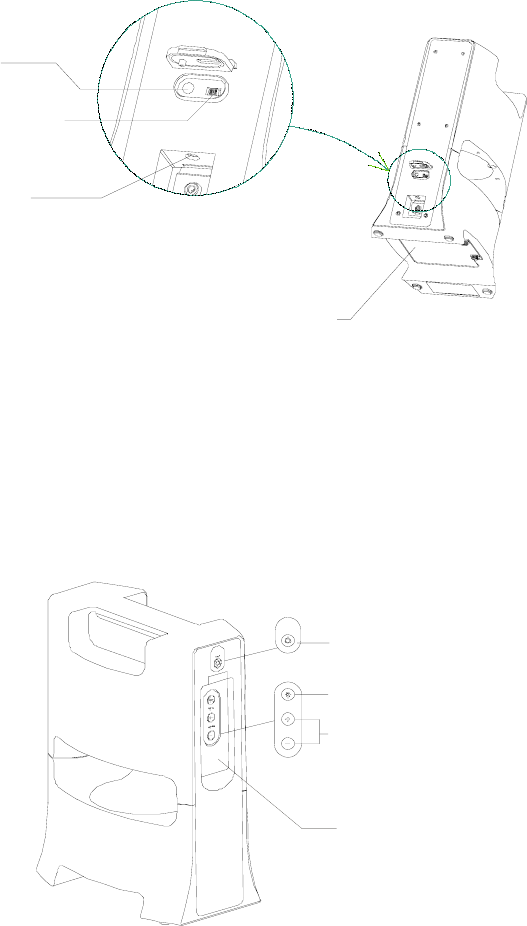

Rear View
Battery Compartment
R/M/L Switch
Aux In
DC IN 12V
Remote Control
Volume Up/Down
Mood Light
Power ON/OFF
Installation
Transmitter
1. Plug the included AC/DC adapter into a standard wall outlet.
2. Insert the adapter connector plug firmly into the DC IN jack located on the rear panel of the
transmitter base, OR
3. Insert 4 AA alkaline battery (not supplied) on the battery compartment and close the battery
door.
4. Extend the retractable audio cable located on the back panel of the transmitter and connect it
to the output jack of virtually any audio source.
Note : Do not fully extend the cable until ready to retract.
5. To retract the cable, pull it until it is fully extended and then allow it to feed back into the
base.
R
Pair
AUDIO IN
DC IN 6 V
ON OFF
L
Power on indicator
Input
Storage Jack
For Plug When
Not In Use
Battery compartment
Speaker Receiver
Battery Power
1. To operate the speaker using battery power, gently turn the speaker over and open the
battery compartment cover located underneath.
2. Insert six (6) D alkaline batteries (not provided) into the battery compartment, observing
proper +/- polarities as indicated.
3. Replace the battery compartment cover.
AC Power
1. To operate the speaker using AC power, plug the included 12V power adapter into a
standard wall outlet.
2. Insert the power adapter connector firmly into the DC IN jack located on the back panel of
the speaker.
Rear View
Battery Compartment
R/M/L Switch
Aux In
DC IN 12V
Operation
1. To switch on the speaker, press the POWER button 3sec. located on the front panel of the
speaker. The GREEN power LED illuminates.
2. To switch off the speaker, press the POWER button 3sec again.
Remote Control Storage
Power on/off
Mood light / Pair
Volume Up/Down
Front View
Remote Control
The remote control is ready to use with a factory-installed button cell battery. It can be stored
in the recessed area on the front panel.
Basic Operation
1. When the transmitter power adapter (or battery is inserted) is connected and plugged into a
standard wall outlet, switch the on/off switch to ON. The transmitter's GREEN led will light
up.
2. To switch on the speaker, press the POWER button 3sec on the front panel of the speaker.
The GREEN led illuminates.
3. Turn on the audio source the transmitter is turned off for less then 4 minutes, the blue LEDs
on the transmitter and the speaker illuminate when the audio signal link between the two is
made.
4. If the audio source connected to the transmitter is turned off for less than 4 minutes, the
BLUE leds on the transmitter and the speaker remain on, but no sound is transmitted.
When the audio signal returns to the transmitter, sound is transmitted again.
5. If no signal is detected for more than 4 minutes, the transmitter automatically turns off ; the
BLUE leds on the transmitter and the speaker switch to GREEN.
6. If no signal is detected from the transmitter for more than 5 minutes, the speaker
automatically shifts to Standby mode.
7. If no audio signal is detected from the transmitter for more than 15 minutes, the speaker
automatically turns off. The GREEN led goes off.
8. To switch on the speaker, press the POWER button 3sec on the front panel of the speaker.
9. To switch off the speaker. Press the POWER button 3sec again.
PAIRING
1. If there is no audio sound is detected after connecting is done, re-pairing processes is
required.
2. Press the “PAIR” buttons on both transmitter and speakers Mood light /Pair button for 5
seconds, there will have a “Do” sound detected when the pairing process is finished.
Mood Light
For mood light effect, press the LIGHTS button on the speaker or remote control.
Left / Right Channel and Mono Selection
The Wireless Outdoor Speaker System comes with one speaker and is designed for either Mono or
Stereo playback. For stereo playback, an additional speaker must be purchased separately. Mono
playback is suggested when only one speaker is used in an area or room.
Mono Playback
To enable Mono playback, ensure that the switch located on the back panel of the speaker is in the
MONO position.
Stereo Playback
To enable Stereo playback, set the switch on one of the two speakers' back panel to LEFT. Set the
switch on the other speaker to RIGHT.
Note 1 : It is also possible to listen to only the Left or Right audio channel using only the speaker
set. To do so, simply set the switch on the speaker's back panel to LEFT or RIGHT. Only the
channel selected will be audible.
Note 2 : If two speakers are connected to the system, ensure both speakers are placed within the
effective operational range. If either speaker is out of range it will cause distortion to both
speakers.
AUX In
To connect an audio device directly to the speaker, insert the output audio cable from the device into
the AUX In jack located on the back panel of the speaker.
Note :
− If the source signal is too weak for reception, the transmitter automatically switched off after
approximately 4 minutes to protect the unit and save power. If the source signal returns to an
adequate level, the transmitter automatically switches back on.
− When the transmitter is in Standby mode, the speaker automatically switches off after
approximately 20 minutes to protect the unit and save power.
− To switch speaker power back on during Standby mode, press the POWER button on the remote
control. The signal link between the transmitter and speaker reconnects automatically.
Troubleshooting
No sound
− Ensure the AC adapter is securely plugged into the wall outlet and the transmitter DC IN jack.
− Ensure the speaker POWER button is in the ON position.
− Speaker batteries may be too weak. Replace with new batteries or connect with the included
ac/dc adapter.
− Ensure the connected audio device is switched on and producing a signal.
− Ensure that the volume level is set to a moderate level.
− Redo the pairing process by pressing the “Pair” button on the speakers and transmitter
simultaneously.
Distortion
− Speaker batteries may be too weak, Replace with new batteries or connect with the included
ac/dc adapter.
− Ensure that the volume level is set to a moderate level.
− The speakers are too far from the transmitter. Move closer to the transmitter base.
− The audio input signal may be too low : increase the volume level of the audio source.
− If two speakers are connected to the system, ensure both speakers are placed within the effective
operational range. If either speaker is out of range it will cause distortion to both speakers.
Specifications
Transmission Mode : UHF Stereo
Carrier Frequency : 2.4GHz Digital
Operation Voltage : Transmitter, DC 6C 300mA
Speaker, DC 12V 1.5A or 6 x D alkaline batteries (not included)
Remote Control, 1 x CR2032 button cell
Frequency Response : 30 Hz – 20 KHz
Distortion : 0.5%
S/N Ratio : 65 dB
Operation Distance : Up to 50 meters (open area)
Speaker Audio Output Power : 20W Max. (RMS)
WARNING :Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Please contact one of our Product Specialists for assistance or questions at:
1-800-537-8484 or email ps@frontgate.com
Specialists are available weekdays 8:00 a.m. to 8:00 p.m. EST or Saturday 9:30 a.m. to
6:00 p.m.
