Acrox Technologies COWIFIKB05 Wireless Keyboard User Manual WWM121357 9 109103 GH KB5100 KB5200W UM Rev090709
Acrox Technologies Co., Ltd. Wireless Keyboard WWM121357 9 109103 GH KB5100 KB5200W UM Rev090709
Manual
PID # 121357/9-109103
Rev. 090708
2.4 GHz Wireless Desktop
& Optical Mouse
Model #:
KB5100W & KB5200W
User’s Manual
2
All brand name and trademarks are the property of their respective owners
USER’S RECORD:
To provide quality customer service and technical support, it is suggested that you keep the
following information as well as your store receipt and this user’s manual.
Date of Purchase: ________________________________
Model Number: ________________________________
Product Rev Number (located below the UPC on the package): ____________________
FCC RADIATION NORM:
FCC
This equipment has been tested and found to comply with limits for Class B digital device pursuant
to Part 15 of Federal Communications Commission (FCC) rules.
FCC Compliance Statement
These limits are designed to provide reasonable protection against frequency interference in
residential installation. This equipment generates, uses, and can radiate radio frequency energy,
and if not installed or used in accordance with the instructions, may cause harmful interference to
radio communication. However, there is no guarantee that interference will not occur in television
reception, which can be determined by turning the equipment off and on. The user is encouraged
to try and correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and the receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected to.
CAUTION!
The Federal Communications Commission warns the user that changes or modifications to the
unit not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
3
PACKAGE CONTENTS:
Your new wireless keyboard & mouse will ship with the following items.
- Wireless Keyboard, Optical Mouse & Receiver
- User’s Manual
- Warranty Information
SYSTEM REQUIREMENTS:
Please be sure that you meet all of the system requirements below to avoid difficulties during
installation.
- PCs & Mac
®
Compatibles
- Windows
®
2000, XP and Vista
- Mac
®
OS 10.3 and Above
- An Available USB Port
- 2 AA Batteries For the Mouse (not included)
- 2 AAA Batteries For the Keyboard (not included)
SYSTEM SPECIFICATIONS:
Your new wireless keyboard & mouse complies with the following specifications.
- USB Interface
- 2.4 GHz Wireless Technology
4
INSTALLING THE BATTERIES:
1. Press and slide to remove the Battery Compartment Cover on the back of your mouse.
2. Install two AA batteries into your mouse following the battery orientation guide in the
battery bay.
3. Replace the Battery Compartment Cover back onto your mouse until it securely locks.
4. Press the Battery Compartment Cover Release Latch at the bottom of your keyboard and
remove the Battery Compartment Cover from your keyboard.
Battery
Orientation Guide
5

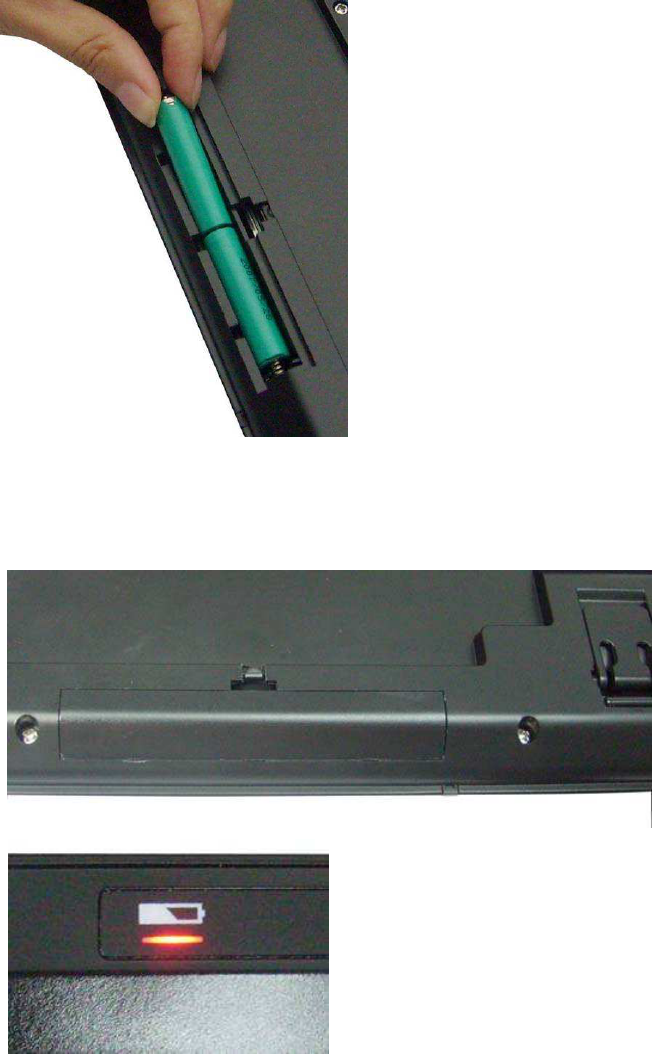

5. Install two AAA batteries into your keyboard following the battery orientation guide in the
battery bay.
6. Replace the Battery Compartment Cover back onto your keyboard until it securely locks.
The LED indicator on your keyboard will light up for 3 seconds after the batteries are
installed successfully. (Note: The LED indicator on the keyboard will blink when the battery
is low.)
6
CONNECTING TO A COMPUTER:
1.
Turn on your computer.
2.
Make sure batteries for your keyboard and mouse have been properly installed, refer to
the Installing the batteries section in this manual if necessary. Switch on your mouse, the
red LED indicator inside the mouse will light on for 3 seconds. (Note: The red LED
indicator of your mouse will blink when batteries in your mouse is low.)
3.
Insert the enclosed receiver into an available USB port on your computer. The green LED
indicator on the receiver will light on for 5 seconds to show it’s powered on. (Note: The
green LED indicator on the receiver will blink when your mouse is working.)
4.
Your computer will detect and install the necessary drivers automatically
5.
Your wireless keyboard and mouse are now ready to be used.
Note: There is a “Connect” button located at the bottom of the mouse and keyboard. In case
of high interference or when multiple set of desktops are in use within close proximity, please
press the “Connect” button on the keyboard or mouse to re-establish a new connection with
the receiver to ensure smooth operation of the keyboard and mouse. The device will re-
connect with the receiver in approximately 10 seconds.
Switch
LED Indicator
LED Indicator
7
KEYBOARD SPECIAL FUNCTION KEYS:
Open Internet Explorer.
Open Outlook Express or your default
e-mail program.
Open the search
window.
Play/pause of currently playing
multimedia file
Volume up
Volume down
Mute Volume
Open the calculator. (Note: This hot
key does not support Windows
®
2000
system)
Open “My computer” (Note: This hot key does not support Windows
®
2000
system)
8
ANTY INFORMATION:
WARRANTY INFORMATION:
Gear Head, LLC warrants that this product shall be free from defects in materials and
workmanship for the reasonable lifetime of the product. If the product is defective, Gear Head,
LLC’s sole obligation under this warranty shall be at its election, subject to the terms of this
warranty, to repair or replace any parts deemed defective. This warranty is for the exclusive
benefit of the original purchaser and is not assignable or transferable. THIS WARRANTY IS
MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND ANY IMPLIED
WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE TERMS OF THIS
WARRANTY, UNLESS OTHERWISE PROHIBITED BY LAW.
Exclusions
To the fullest extent permitted by law, Gear Head, LLC expressly disclaims and excludes from this
warranty any liability for damages, including but not limited to general, special, indirect, incidental,
consequential, aggravated, punitive or exemplary damages, and economic loss (even if Gear
Head™ is informed of their possibility), third party claims against you, including for any loss or
damages, and claims or damages related to loss of, or, damage to, your records or data. This
warranty does not apply to any product the exterior of which has been damaged or defaced. This
warranty will be voided by misuse, improper physical environment, improper repair, acts of God,
war or terror, commercial use, and improper service, operation or handling.
Technical Support
Please access Technical Support on the web or contact our technicians at info@pcgearhead.com
for help.
www.pcgearhead.com
Gear Head™ provides phone support, 866-890-7115, Monday - Friday from 9:00 am – 5:30 pm
Eastern Time. Before calling, please make sure you have available the Model # (located on the
front page of your User’s Manual) and information regarding your computer’s operating system.
Return Merchandise for Service
Any claim under this warranty must be made in writing to Gear Head, LLC, within 30 days after the
owner discovers the circumstances giving rise to any such claim, and must include a copy of this
warranty document, a receipt or copy of your invoice marked with the date of purchase, and the
original packaging. You may contact us on the web at www.pcgearhead.com or by emailing us at
info@pcgearhead.com to receive service or request a return service authorization.
