Acrox Technologies KB12 Bluetooth Keyboard User Manual 3D Wheel Optical Mouse
Acrox Technologies Co., Ltd. Bluetooth Keyboard 3D Wheel Optical Mouse
User manual
K1W
Bluetooth Keyboard
USER'S GUIDE
Ver.:1.00
CAUTION: To use this product properly, please read the user's guide before installation
1
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
The product comply with the US/Canada portable RF exposure limit set
forth for an uncontrolled environment and are safe for intended
operation as described in this manual. The further RF exposure
reduction can be achieved if the product can be kept as far as possible
from the user body or set the device to lower output power if such
function is available.
3

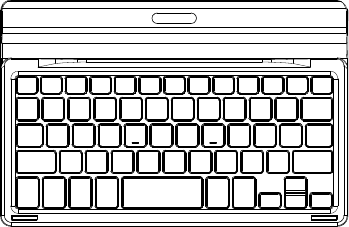

Bluetooth Keyboard
Thank you for your purchasing the Bluetooth keyboard .Before you use
this product, please read this manual thoroughly and use this product
correctly. After you read this manual, please keep it in place and refer to
it when necessary.
Supplied with the product:
The following items are included in the package. Please make sure all
items are included as you open the package. If there is any item missing
or damaged, please contact the reseller who sold you this product, or
our support center.
- Bluetooth Keyboard
- User’s Guide
- USB Charging cable
System Requirements:
You must have a Bluetooth enabled computer to use this device.
The Bluetooth keyboard is designed to work with Bluetooth enabled
devices. Bluetooth is generally enabled through either built-in Bluetooth
hardware, a Bluetooth USB adapter, or other type of Bluetooth adapter.
Windows XP with Bluetooth enabling software that includes support for
keyboards is required.
IPad iOS 6 , Mac OS X (10.2.8 or later) running Bluetooth software
version 1.5 or later is required.
4
Functional Introduction
Hot Keys (* compound key, Press with Fn key)
1
Home Screen
Get back to the Home screen
2
*Search
Search inside apps , albums, artists, or song
3
*Soft Keyboard
Open the Soft Keyboard
4
*Copy
Copies the selected item(s) to the Clipboard
5
*Cut
Removes the current selection and places it on
the clipboard.
6
*Paste
Paste the copied or cut item(s) from Clipboard
7
*Previous Track
Switches to the previous media track
8
*Play/Pause
Switches between playing and pausing
9
*Next Track
Switches to the next media track
10
*Mute
Mutes (turns off) the computer's sound
5
11
*Volume -
Decreases the computer's sound volume
12
*Volume +
Increases the computer's sound volume
13
*Lock
Force iPad to go into sleep/lock mode
14
Power Switch
Power On / Off Switch
15
Pairing Button
Pairing Button
16
Micro USB Charger Jack
DC Input Connect
17
LED Indictor
Pair / Battery low / Charger status
Installing Hardware
Step1: Activate by turning on the power switch located at the side of the
keyboard.
Step2: Press the Pairing button to start the pairing process, the red LED
should start blinking.
Step3: Start your device’s Bluetooth set up function to search for this
Bluetooth keyboard.(Mini iPad is in searching situation. It can search
Bluetooth keyboard. Search for Bluetooth keyboard and remind to enter
password in the Bluetooth keyboard)
Note: There will not have any prompt, just click enter after your enter
password in the Mini iPad screen. It will be connected successfully.
Step4: Connect successfully , The keyboard is in working situation.
Charge
The red LED keep flashing in your working , the keyboard is short of
power. It is time to charge the keyboard.
Step1: Use the USB charging cable plug into outlet, put one end of the
plug into keyboard USB charging cable.
Step2: Now red indictor, after charging finish, red indictor off.
6
LED Indicator :
Definition
Indicator
Description
“Pair” / “Battery low”
/“Charging”
Red
To indicate Keyboard paring ,
charging and battery low
status.
Note:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Now, enjoy and have fun!
Trouble Shooting Guide
• Ensure that the computer’s Bluetooth technology is working. If a
Bluetooth USB adapter is being used, make sure it is plugged in properly.
Try un-plugging and re-plugging the USB adapter. On some Systems, a
restart may be required.
• If the red LED starts blinking while the keyboard is in use, it is indicating
a battery low status and it is time to change a new battery.
• On the PC, refer to the Bluetooth software help guide to ensure that
Bluetooth is working properly. The PC must be running a version of
Bluetooth for Windows XP that supports input devices (mice and
keyboards).
• On the Mac, click on the Bluetooth icon within the system preferences
pane. Refer to the Apple Bluetooth help file to ensure Bluetooth is
working properly.
7
• Ensure your batteries are fully charged and inserted correctly.
• If the keyboard still is not discovered, ensure the correct versions of the
software is installed. Mac OS10.2.8 or higher and Apple Bluetooth®
software 1.5 or higher.
• Try moving the keyboard closer to the computer or to the adapter.
• Ensure that there are no other Bluetooth devices in discover mode.
