Acrox Technologies KB32 AmazonBasics Wireless Keyboard with Touchpad for Smart TVs User Manual
Acrox Technologies Co., Ltd. AmazonBasics Wireless Keyboard with Touchpad for Smart TVs
User Manual

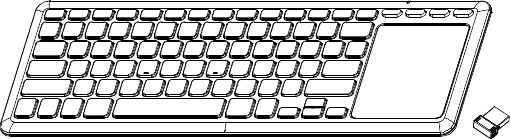

Wireless Touchpad keyboard
USER'S GUIDE
Ver.:1.00
CAUTION: To use this product properly, please read the user's guide before installation
1
(1) The label shall be located in a conspicuous location on the device and
shall contain the unique identification described in §2.1074 of this chapter
and the following logo:
(i) If the product is authorized based on testing of the product or system; or
(ii) If a personal computer is authorized based on assembly using separately
authorized components, in accordance with §15.101(c)(2) or (c)(3), and the
resulting product is not separately tested
Instruction manual shall include,
“Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.”
“NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.”
2
Functional Introduction
Key Function
1. *Return Return to previous page
2 Media Select Turn on the Media player program
3. Switch apps Switch between open apps
4. Menu Display Function menu window
AAA battery X 2
3
5. search Open Global search
6. Show/Hide desktop Remove current app from screen or
minimize the desktop window
7. Maximum Window Maximize window
8. Switch screen Choose a presentation display mode
9. Previous Switch to the previous media track
10. Play/Pause Switch between playing and pausing media
11. Next Switch to the next media track
12. Volume - Decreases the computer's sound volume
13. Volume + Increases the computer's sound volume
14 Mute Mute (turns off) the computer's sound
15 Homepage Start the default Web browser and loads
the home Web
p
a
g
e
16 LED indicator Caps Lock /Low Battery & Pairing Indicator
17 Touchpad
18 Mouse Left Key
19 Mouse Right Key
20 Power Switch Power On / Off Switch
21 Battery Cover
F1~F12 compound key, Press with Fn key.
Fn + HOME
Fn + END
Fn + Pg UP
Fn + Pg DN
4
Setup the Connection between the Receiver and
the Keyboard.
1. Insert the batteries into the Keyboard, then follow the steps below.
3. Plug the Nano receiver into the USB port on your computer.
4. If the keyboard does not work, please put them into pairing mode.
5. Pairing: Re-plug the receiver into the USB port on your computer, then
press “ESC + K “ to pairing. If the keyboard does not work after 10
seconds, pair them again. (The receiver has auto pairing function).
6. The LED indicator on the Keyboard flashes steadily when it is in
pairing mode and stops blinking when it is successfully paired
with the receiver.
7. When low battery, the battery indicator on the keyboard will start to
blink.
LED indicator
RED LED Blinks for 10 sec.
Low Battery Warning
RED LED is on for 10 sec.
Power ON
RED LED Blinking
Pairing (LED OFF when paired or
failed after 10 sec.)
Blue LED is on
Caps Lock on
5

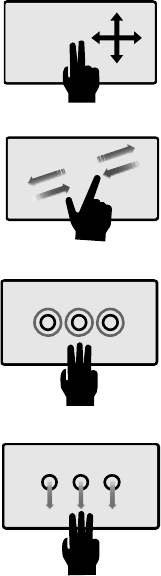

Touchpad gestures
Scroll: Two fingers to scroll up or down / two fingers to scroll left or
right.
Zoom in & Zoom out: Pinch out for zoom in or pinch in for zoom out.
3.Open Cortana: Three fingers(3-finger) click.
4.Show the desktop: Three fingers(3-finger) scroll down.
6
․The warnings and follow all instructions.
․Place the product on a firm and level surface
․Clean only with a dry cloth. Do not use aggressive cleaners as they will
damage the surface.
․Only use attachments/accessories specified by the manufacturer.
․Do not place the appliance in the vicinity of a heat source or in direct
sunlight.
․Do not place a naked flame source on or near this product.
․Repairs must be performed by the manufacturer or its service agent or a
similarly qualified person.
․Do not immerse the unit, power cable or any accessories in water or any
other solution.
․Do not expose this product to dripping or splashing or stand any vessel
containing liquid on or near this product.
7
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
IC warning
- English:
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
- French:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement."
