Acrox Technologies Co., Ltd. 2.4G NANO MOUSE GA4 MRT Users Guide 20081216
Users Manual
Safety Notice
1 This product complies with IEC 60825-1,
class 1 laser product.
2 Your product complies with FCC and CE rules.
3 This product has no serviceable parts. Use of
controls or adjustments of procedures other than
the user guide may result in danger.
2.4GHz Wireless Optical Mouse
w/Nano Receiver
USER'S GUIDE
Ver.:1.00
CAUTION: To use this product properly, please read the user's guide before installation
Please DO NOT direct the laser beam at anyone’s eye.
1
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: You are cautioned that changes or modifications not
expressly approved by the party responsible for compliance could void
your authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
2
Functional Introduction
Installing the batteries
Step 1: Take the battery cover off.
Step 2: Insert the batteries as shown inside the battery compartment.
Step 3: Replace the cover.
Pull
AAA Battery
1’st 2’nd
Nano Receive
r
Scrolling Wheel &
Low Battery /
Pairing indicator
Left button
Connect Button
Right button
Battery
Cover
3

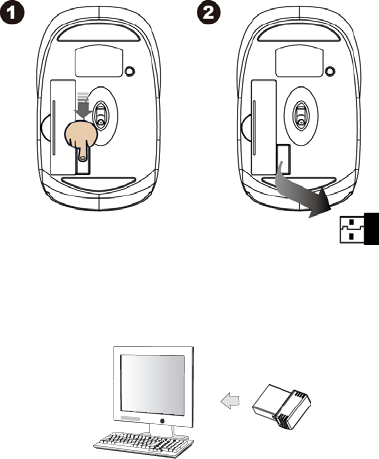

Nano Receiver
Setup the Connection between the Receiver and the Mouse
1. Plug the Nano receiver into the USB port of your computer.
2. Insert the batteries into the mouse, then follow the steps below.
3. If the mouse is not working, please put it into pairing mode.
4. Pairing: Re-plug the Nano receiver into the USB port of your computer.
If the mouse does not work after 10 seconds, then press the connect
buttons on the mouse again. (Nano receiver has auto pairing
Take out
Push
4
function).
5.The LED indicator on mouse flashes steadily when it is in pairing
mode and stops blinking when it is successfully paired with the
receiver. The mouse remains off afterwards.
6. When the battery is low, the Low Power indicator blinking.
During pairing
Green LED Blinking 10 Sec.
Connected NG
Green LED Off
Red LED Blinking
Low Battery
Red LED on 10 Sec.
Power On
Scrolling Wheel &
Low Battery /
Pairing indicator
Connected OK
