Acrox Technologies MU64 AmazonBasics Wireless Keyboard and Mouse Combo User Manual
Acrox Technologies Co., Ltd. AmazonBasics Wireless Keyboard and Mouse Combo
User Manual

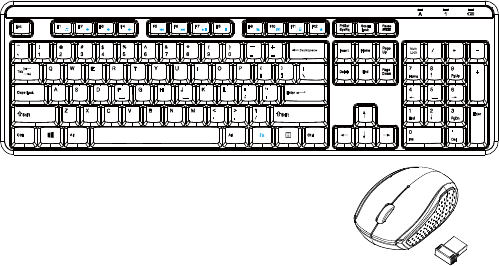

AmazonBasics Wireless Keyboard
and Mouse Combo
w/Nano Receiver
USER'S GUIDE
Ver.:1.00
CAUTION: To use this product properly, please read the user's guide before installation
1
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an
uncontrolled environment and are safe for intended operation as described in
this manual. The further RF exposure reduction can be achieved if the
product can be kept as far as possible from the user body or set the device to
lower output power if such function is available.
2
Functional Introduction
Installing the batteries
Step 1: Take the battery cover off.
Step 2: Insert the batteries as shown inside the battery compartment.
Step 3: Replace the cover.
Step 4: Turn on power switch.
**Warning:
*Please insert the battery with the correct position according to the instruction
labeled on the mouse.
AAA Battery
Left button
Right button
Battery Cover
Scrolling Wheel Connect
Button
ON/OFF Switch
Nano Receiver
LED Indicator
Pull
1st 2nd
3
Step 5: If you need to travel with your wireless mouse, made sure you
turn off the POWER SWITCH.
Keyboard Buttons
Key Function (* compound key, Press with Fn key)
1 Media Player on Turn on the Media player program
2 Volume down (Voice-) Decrease the computer's sound
volume.
AAA battery X 2
4
3 Volume up (Voice+) Increase the computer's sound volume.
4 Mute Mute (turns off) the computer's sound
5 Previous Switch to the previous media track
6 Next Switch to the next media track
7 Play/Pause Switch between playing and pausing
media
8 Stop(Media) Stop playing the media in the media
player
9 Homepage(www/e) Start the default Web browser and
loads the home Web page
10 Outlook(E-mail)Default Start the default e-mail program
11 My Computer My Computer
12 My Favorites Open My favorite after into Internet
browser application
13 LED indicator Caps Lock
14 LED indicator Number Lock
15 LED indicator Low Battery & Pairing Indicator
16 Connect Button
17 Battery Cover
Encrypted air-protocol with AES 128
AES (Advance Encryption Standard) is a specification for the encryption
of electronic data.
5

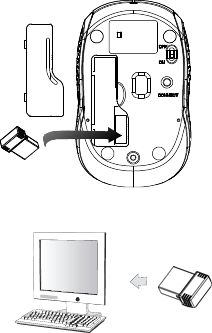

Setup the Connection between the Receiver and
the Mouse, Keyboard.
1. Insert the batteries into the mouse & Keyboard, then follow the steps
below.
2. In the meantime, to open the mouse under the cover, take the nano
receiver out.
3. Plug the Nano receiver into the USB port on your computer.
4. If the mouse or keyboard does not work, please put them into pairing
mode.
5. Pairing: Re-plug the receiver into the USB port on your computer, then
press connect button of the mouse and keyboard. If the mouse or
keyboard does not work after 10 seconds, pair them again. (The
receiver has auto pairing function).
6. The LED indicator on the mouse & Keyboard flashes steadily when it
is in pairing mode and stops blinking when it is successfully paired
with the receiver.
6
7. When low battery, the battery indicator on the keyboard or the mouse
will start to blink.
LED indicator *Keyboard Indicator
LED Blinks for 10 sec.
Low Battery Warning
LED is on for 10 sec.
Power ON
LED Blinking
Pairing (LED OFF when paired or
failed after 10 sec.)
LED Indicator
*Mouse Indicator
LED Blinks for 10 sec.
During Pairing (LED OFF when
paired or failed after 10 sec.)
LED Blinks for 10 sec.
Low Battery Warning
7
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
NOTE: Any changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's authority to
operate the equipment.
IC WARNING
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
