Acrox Technologies MUWIRWRE01 Dongle User Manual KBH G11 MRW Users Guide 2009
Acrox Technologies Co., Ltd. Dongle KBH G11 MRW Users Guide 2009
UserMan_PRDMUWIRWRE01

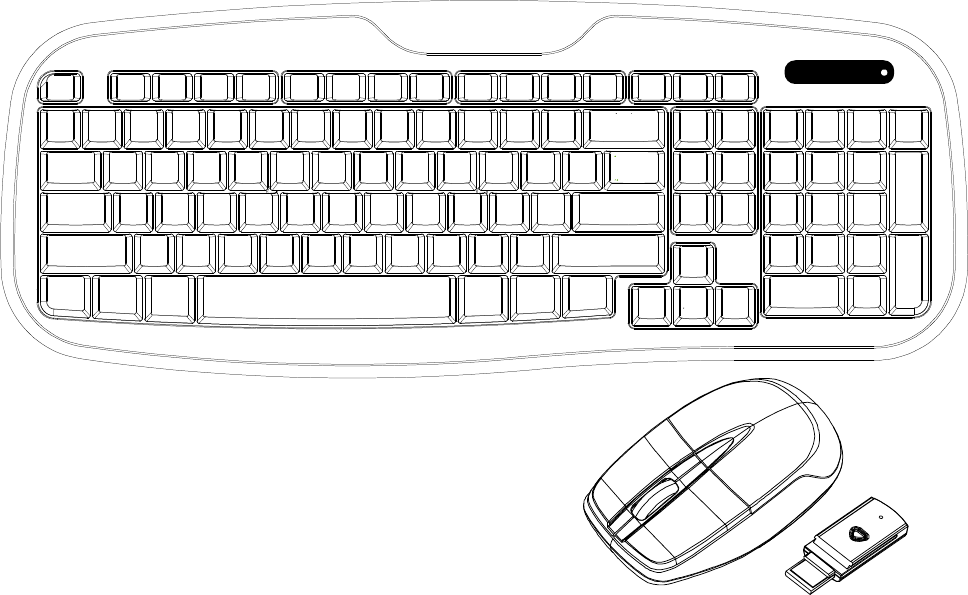

2.4G Standard Keyboard
& Mouse
USER'S GUIDE
Ver.:1.00
CAUTION: To use this product properly, please read the user's guide before installation
1
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2
Functional Introduction
Battery and Power Management:
Installing the batteries
Step 1: Pull the battery cover backward.
Step 2: Insert the batteries as shown inside the battery compartment.
Step 3: Replace the cover.
For Extra usage hours, use two AA batteries instead of two AAA Batteries.
Scrolling Wheel &
LED Indicator
Left button
Right button
Battery
Cover
LED Indicator
RF Receiver
Connect Button
ON/OFF
Switch
Push
3
Keyboard Buttons
1. LED Indicator Low Battery & Pairing Indicator
2. 103 standard-Keys
3. Connect Button
4 Battery Cover
AAA battery X2
4
Setup the Connection between the Receiver and the Mouse,
Keyboard.
1. Plug the RF receiver into the USB port of your computer.
2. Insert the batteries into the mouse and keyboard, then follow the steps
below.
3. If the mouse or the keyboard is not working, please put them into
pair mode.
4. Pairing: Re-plug the receiver into the USB port of your computer, then
press connect button of the moue and keyboard. If the mouse or
keyboard does not work after 10 seconds, pair them again. (The
receiver has auto pairing function).
5.The LED indicators on receiver flashes when the mouse is moving or
when the keyboard is in use.
6. When the battery of the keyboard is low, the Low Power indicator
would blink.
Scrolling Wheel &
LED Indicator
*Mouse Indicator
Red LED is on for 10 sec.
Power ON
Red LED Blinking
Pairing (LED OFF when paired or
failed after 10 sec.)
5
L
ED Indicator
LED Indicator
Power ON
*Receiver Indicator
Green LED is on for 3 sec.
Green LED Blinking
(If any action)
Power ON
*
Keyboard
I
ndicator
Red LED is on for 10 sec.
Red LED Blinking
Pairing (LED OFF when paired or
failed after 10 sec.)
Red LED Blinks for 10 sec.
Low Battery Warning
