Users Manual
Rechargeable Bluetooth

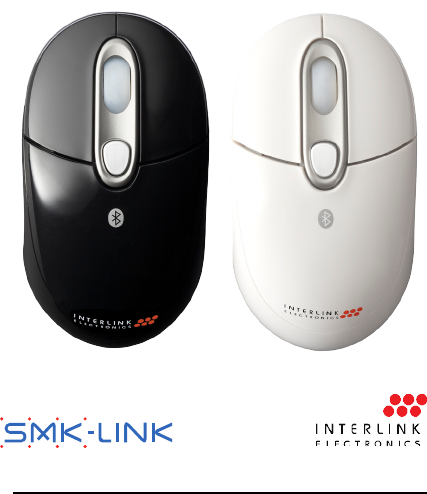

Notebook Mouse
Page 2
Regulatory Compliance
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
FCC Certication
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
•
•
Page 3
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Notice: Any changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Extension cables are not recommended, if used, they
must be shielded in order to comply with the emission
limits.
IC Certification
TThe term “IC” before the certification/registration
number only signifies that the Industry Canada technical
specifications were met.
Declaration of conformity
Hereby, SMK-LINK Electronics, Inc. declares that
this Bluetooth Rechargeable Notebook Mouse is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
All trademarks and registered trademarks mentioned
in this document are the property of their respective
owners.
Features and specifications are subject to change without
notice.
•
•
Page 4
MV2 Line Drawings for User's Manual
System Requirements
Hardware:
Bluetooth-enabled computer system;
1 available USB 1.1 or 2.0 port
Operating System:
Windows 2000, XP or Vista;
Mac OS 10.4.6+
Package Contents
Bluetooth notebook mouse
USB charging cable
2 x AAA rechargeable Ni-MH batteries
User’s manual
Carrying pouch
Installing the Rechargeable
Batteries (Supplied)
•
•
•
•
•
•
•
•
•
MV2 Line Drawings for User's Manual
_
+_
+
Page 5

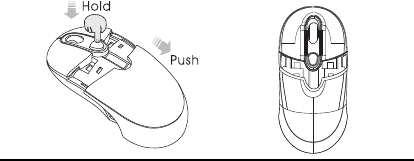

Step 1: Place the mouse on a at surface
and remove the battery cover from the
top of the mouse by pressing the release
button located below the scroll wheel. The
mouse will automatically eject the battery
cover.
Step 2: Insert the two supplied AAA
rechargeable Ni-MH batteries (included
in the package) to the battery slots. Make
sure the positive (+) and negative (-)
ends of the batteries match the polarity
markings inside the battery compartment.
Step 3: Snap the battery cover back into
position.
Do not use any disposable or Alkaline
batteries in this mouse. Use only the
rechargeable Ni-MH batteries supplied
with this mouse. Should replacing
batteries become necessary use only rechargeable AAA
batteries. Do not mix new and old batteries in the
mouse.
Page 6
Charging the Batteries
• It’s recommended that you fully charge the
batteries before initial use; nevertheless it’s
ready for set up (see next step) anytime dur-
ing charging.

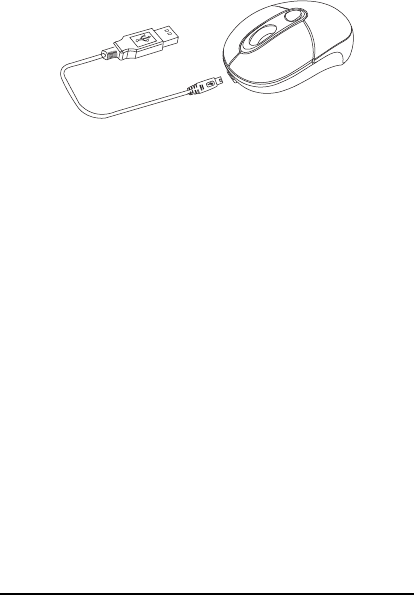

• Plug the USB connector of the charge cable
(included in the box) into the computer’s
available USB port.
• Connect the mini-USB tip of the cable to
the mouse charge port located at the front
end of the mouse.
• The mouse scroll wheel glows indicating
the battery power is low and continues to
glow while the batteries are being charged.
MV2 Line Drawings for User's Manual
Page 7
When fully charged the scroll wheel will
cease to glow.
• The initial charging process may take up to
8 hours. Subsequent recharge may require
less time depending on the level of residual
power of the batteries.
• The mouse is operational during charg-
ing; you can continue use the mouse while
charging it via the USB charge cable.
• You are now ready to set up the mouse to
work with your Bluetooth system. (Note:
it’s not necessary to wait for the batteries to
be fully charged before setting up Bluetooth
connection to your system.) Turn on the
power by sliding the on/off switch located
at the bottom of the mouse to the “on” posi-
tion.
Make sure the computer’s power
management is set to disable
hibernation mode while the mouse is
being charged. (Go to Control Panel,
Power Options, select “Hibernate” from
the tabs and uncheck the box marked
“Enable Hibernation”.)
Page 8
Setting up Bluetooth Connection
Before you can use Bluetooth devices for
the rst time you must connect your devices
through a standard discovery mode and pairing
process.
During the process, depending on the system
and the Bluetooth software used, it may ask
you whether you want to use a passkey; please
select “no passkey”.
The Bluetooth Rechargeable Notebook
MV2 Line Drawings for User's Manual

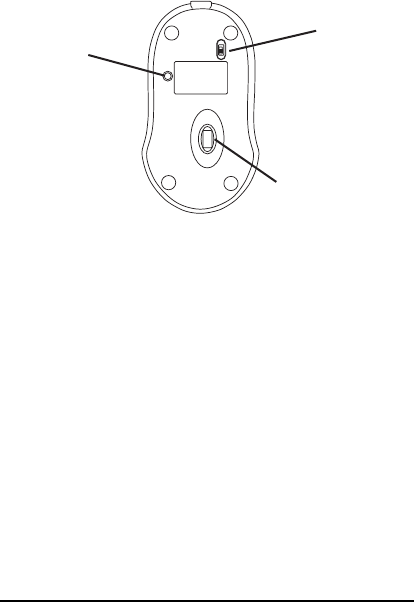

Connect button On/Off Switch
Optical Sensor
Page 9
Mouse is designed to work with the three
major Bluetooth software stack (protocol)
standards: WIDCOMM (Broadcom),
Microsoft and Toshiba. In addition, this
mouse supports Macintosh OS with Bluetooth
capability. Please review the documentation
that come with your computer system for any
specics regarding your Bluetooth system
and/or consult with your system vendor if
your system does not support one of the above
mentioned Bluetooth software stacks.
WIDCOMM Bluetooth Software
Make sure your computer’s Bluetooth
radio is turned on.

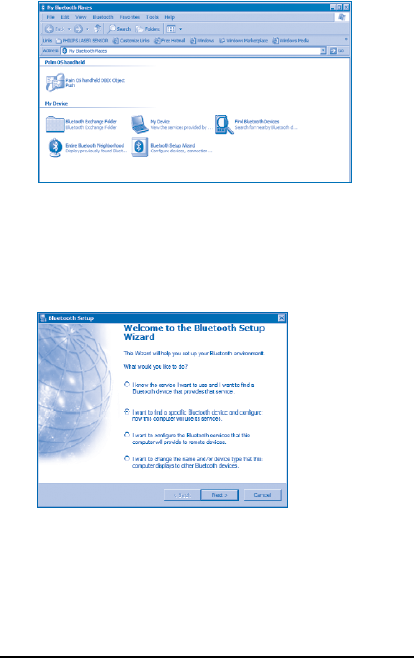

Double click on the Bluetooth Places icon
located on your desktop or in the system
tray.
1.
2.
Page 10
At the Bluetooth Setup Wizard, check “I
want to nd a specic Bluetooth device
and congure how this computer will use
its services.” Click Next.
Turn your mouse on. Press the connect
button located at the bottom of the mouse
until the red LED mouse sensor lights up
and the scroll wheel of the mouse ashes.
3.
4.
Page 11

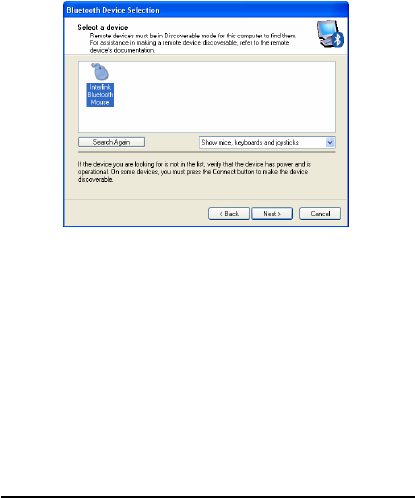

The computer will search for new
Bluetooth devices in the range and
list each device on the screen. Select
the Interlink Bluetooth Rechargeable
Notebook Mouse. Click Next.
Follow the onscreen instructions and
installation process begins when you click
Next.

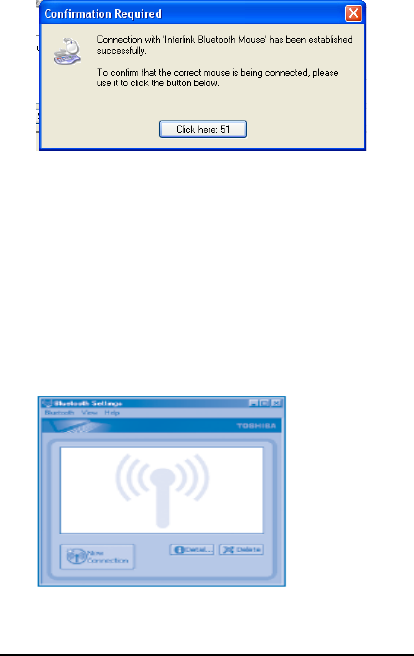

The Conrmation Required window
appears. At this point your Bluetooth
mouse should be able to move the cursor.
Use your mouse to click on the Click here
box. Your Bluetooth mouse has been
successfully installed.
5.
6.
7.
Page 12
TOSHIBA Bluetooth Software
Make sure your computer’s Bluetooth
radio is turned on.
Double click on the Bluetooth Manager
icon in the system tray and then click New
Connection.
The Add new Connection Wizard window
1.
2.
3.
Page 13

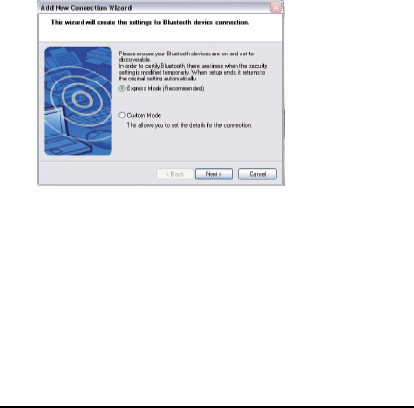

appears. Choose the Express Mode and
click Next.
Turn your mouse on. Press the connect
button located at the bottom of the mouse
until the red LED mouse sensor lights up
and the scroll wheel of the mouse ashes.
The computer will search for new
Bluetooth devices in the range and
4.
5.
Page 14

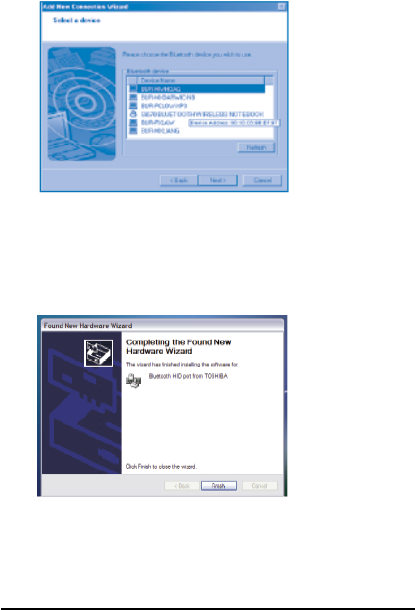

list each device on the screen. Select
the Interlink Bluetooth Rechargeable
Notebook Mouse. Click Next.
The system starts installing drivers.
After installation is done, the New
Hardware Wizard window appears. It
will offer to search for Windows updates,
select No and click Next.

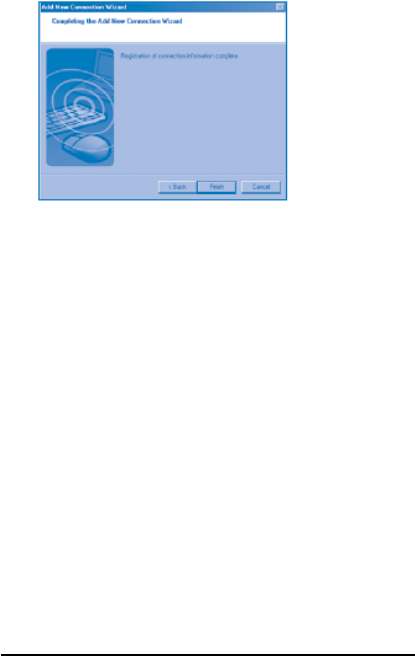

Follow the onscreen instructions until the
installation process is completed.
6.
7.
8.
Page 15
MICROSOFT Bluetooth Software
Make sure your computer’s Bluetooth
radio is turned on.
Double click on the Bluetooth Manager
icon in the system tray.

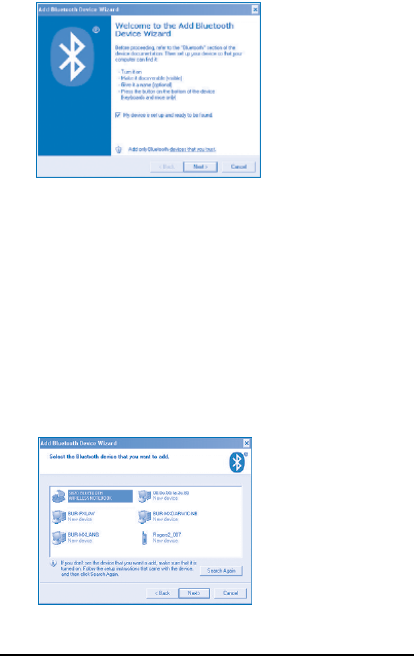

Select Add Bluetooth Device.
Select “My device is set up and ready to
be found” on the Add Bluetooth Device
window and click Next.
1.
2.
3.
4.
Page 16
Turn your mouse on. Press the connect
button located at the bottom of the mouse
until the red LED mouse sensor lights up
and the scroll wheel of the mouse ashes.
The computer will search for new
Bluetooth devices in the range and list
each device on the screen. Select the
Interlink Bluetooth Rechargeable
Notebook Mouse. Click Next.
5.
6.
Page 17

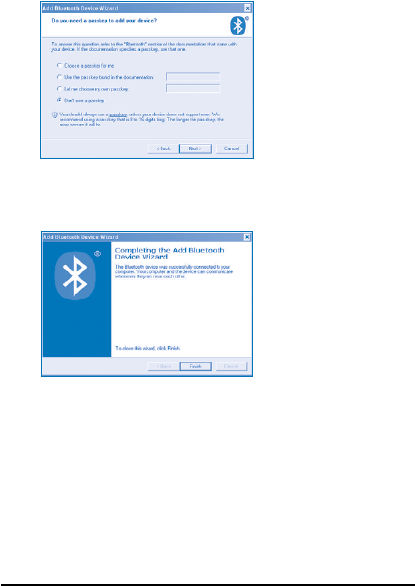

A window appears asking for a passkey.
Select “Don’t use a passkey” and click
Next.
Click Finish. Your Bluetooth mouse is set
up and ready to go.
APPLE Macintosh Bluetooth Software
Make sure your computer’s Bluetooth
radio is turned on.
Click the Bluetooth icon located on your
7.
8.
1.
2.
Page 18

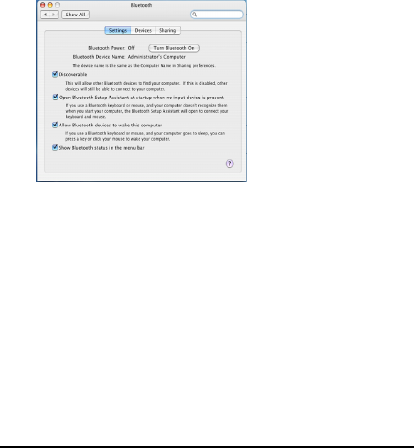

desktop or in the system bar.
Or, click the Apple icon and click System
Preferences, then click on the Bluetooth
icon.
Select Turn Bluetooth On to enable
Bluetooth for your Macintosh computer if
it’s not already on.
Select Set Up Bluetooth Devices.
Bluetooth Setup Assistant screen will
show up. Click Continue.

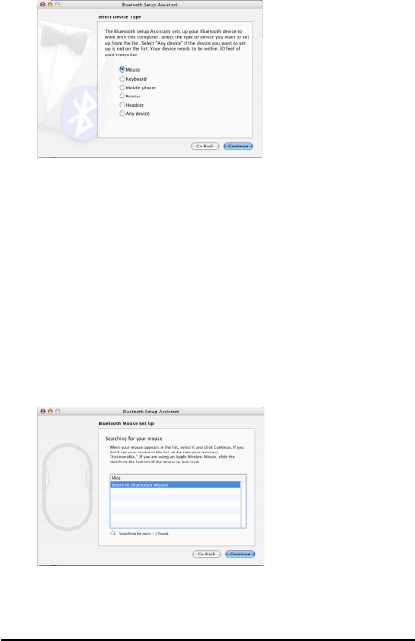

Select Mouse from the device list and
click Continue.
3.
4.
5.
6.
Page 19
Turn your mouse on. Press the connect
button located at the bottom of the mouse
until the red LED mouse sensor lights up
and the scroll wheel of the mouse ashes.
The computer will search for new
Bluetooth devices in the range and list
each device on the screen. Select the
Interlink Bluetooth Rechargeable
Notebook Mouse. Click Continue.
The mouse will start pairing with the
computer. Click Continue.
7.
8.
9.
Page 20

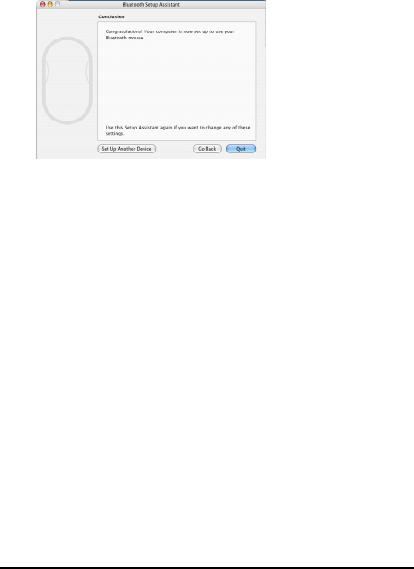

On the Conclusion screen, click Quit to
exit setup. Your Bluetooth Mouse is
successfully installed.
Operating Tips & Trouble Shooting
Make sure the mouse is turned on by
checking the on/off switch located at the
bottom of the mouse before using it.
Conserve the battery power by switching
the on/off switch to “off” position while
traveling or if the mouse will not be in use
for awhile. If you will not use the mouse
for a long period of time remove the
batteries from the battery compartment.
During operation the mouse will go into
10.
•
•
•
Page 21
sleep mode after 8 minutes of inactivity to
save battery power. Click on any mouse
button to wake it up.
When the mouse cursor behaves erratically
check the scroll wheel for power-low
indicator, i.e. LED light glowing; and
follow the instructions in Charging the
Batteries section to recharge the batteries.
The mouse is functional during recharge.
The mouse stays connected to your
Bluetooth-enabled computer even when
it’s turned off and out of range once it’s
set up. If for any reason the connection
to the system is lost, rst check if the
Bluetooth mouse icon is still displayed in
My Bluetooth Places and verify that the
Bluetooth computer is within the range
(up to 30 feet). If the connection is lost it
can be xed by following the instructions
in the Setting up Bluetooth Connection
section above to reconnect the devices.
If the connection is frequently lost under
normal operation, contact your system
vendor’s technical support or check for
•
•
•
Page 22
Bluetooth stack update on your system
vendor’s website.
Warranty: SMK-LINK Electronics warrants to the
original end-user purchaser of the Product (“you”) that the
Product, excluding batteries, will be free from defects in
materials or workmanship under normal use and service for
one-year from date of purchase. Dated invoice or sales receipt
is necessary to accompany the Product returned for warranty
service consideration. Any Product repaired or replaced under
the terms of the warranty is covered for the remainder of the
original warranty period or ninety (90) days from the date of
service or return shipping, whichever is longer. If the Product
becomes defective in materials or workmanship during the
warranty period, SMK-LINK Electronics will, at its option,
either repair or replace it with a more current or upgraded
model if the originally purchased model is not available. This
warranty does not cover products which have been subjected
to misuse, accident, physical damage, improper installation,
abnormal operation or handling, neglect, inundation or re, or
when product regulatory label has been removed, altered or
rendered illegible; nor does it cover accessory and consumable
items. In no case shall SMK-LINK Electronics be liable for
any indirect special, incidental, or consequential damages based
upon breach of warranty, breach of contract, negligence, strict
tort or any other legal theory. Such damages include, but are not
limited to, loss of prots, loss of savings or revenues, inability
to use the product or any associated equipment, cost of capital,
cost of any substitute equipment, facilities or services, claims by
third parties other than you, and injury to property. SMK-LINK
Electronics’s total liability for damages for any cause related
to, or arising out of, the use or inability to use the product,
shall not exceed the original price paid for the product even if
SMK-LINK Electronics has been informed of such possibility.
Page 23
If your Product requires warranty service, you must rst contact
SMK-LINK Electronics Product Support to receive an RMA
Number. The contact information can be found on SMK-
LINK Electronics website: http://www.smklink.com/support/
contactsupport.html.
This warranty does not affect your statutory right and you may
also have other rights which vary from state to state. Unless
modied in writing, signed by both you and SMK-LINK
Electronics, this warranty is understood to be the complete
and exclusive agreement between the parties, superseding all
prior agreements, oral or written, and all other communications
between the parties relating to the subject matter of this
warranty.
Product Support
SMK-Link Electronics Corporation
3601-B Calle Tecate, Camarillo, CA 93012
TEL: (888) 696-3500 FAX: (805) 987-6665
Page 24
Thank You
Thank you for purchasing the Rechargeable
Bluetooth Notebook Mouse. We know you
had other choices and we appreciate that you
chose Interlink Electronics by SMK-Link for
your wireless needs. So that we may better
serve you in the future, please register online
at www.smklink.com/register.
P/N 94-45877 Rev. P3
© 2008 SMK-Link Electronics, Inc.
