Users Manual

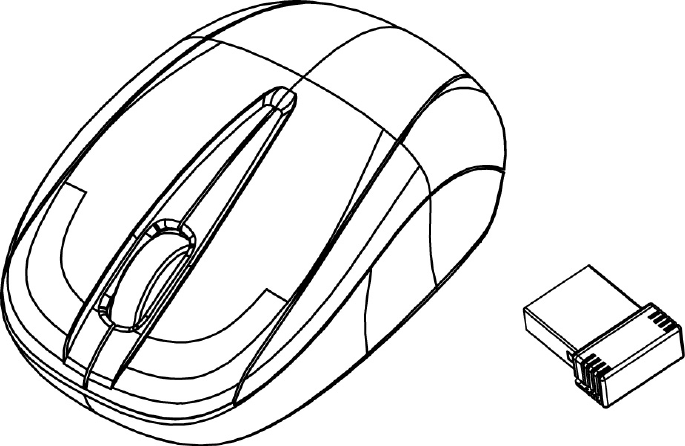

2.4GHz Wireless Optical Mouse
w/Nano Receiver
USER'S GUIDE
Ver.:1.00
1
Federal Communication Commission Interference Statement
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2
Functional Introduction
Installing the batteries
Step 1: Take the battery cover off.
Step 2: Insert the batteries as shown inside the battery compartment.
Step 3: Replace the cover.
Nano Receiver
Scrolling Wheel &
Low Battery /
Pairing indicator
Left button
Connect Button
Right button
Battery
Cover
Pull
AAA Battery
1’st 2’nd
3
Nano Receiver
Setup the Connection between the Receiver and the Mouse
1. Plug the Nano receiver into the USB port of your computer.
2. Insert the batteries into the mouse, then follow the steps below.
3. If the mouse is not working, please put it into pairing mode.
4. Pairing: Re-plug the Nano receiver into the USB port of your computer.
If the mouse does not work after 10 seconds, then press the connect
buttons on the mouse again. (Nano receiver has auto pairing
function).

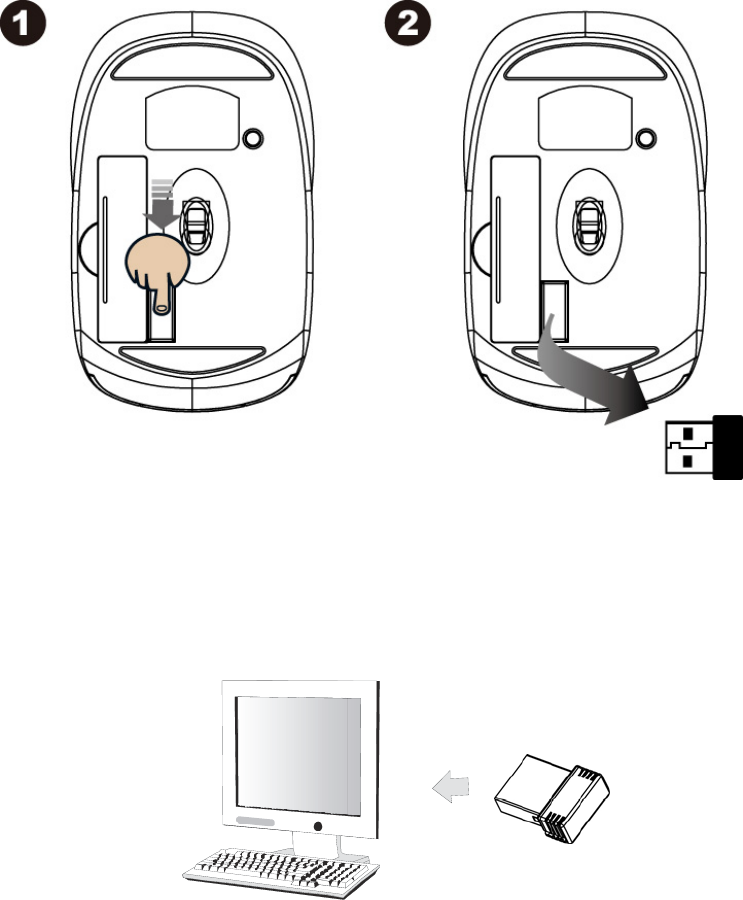

Take out
Push
4
5.The LED indicator on mouse flashes steadily when it is in pairing
mode and stops blinking when it is successfully paired with the
receiver. The mouse remains off afterwards.
6. When the battery is low, the Low Power indicator blinking.
During pairing
Green LED Blinking 10 Sec.
Connected NG
Green LED Off
Red LED Blinking
Low Battery
Red LED on 10 Sec.
Power On
Scrolling Wheel &
Low Battery /
Pairing indicator
Connected OK
