Acrox Technologies PRESENT003 Wireless Presenter User Manual 3396398
Acrox Technologies Co., Ltd. Wireless Presenter 3396398
User Manual
2.4GHz Cordless Presenter
with Laser Pointer
USER'S GUIDE
Ver.:1.00
CAUTION: To use this product properly, please read the user’s
manual before installation
Please DO NOT direct the laser beam at anyone’s eye.
1
Regulatory Compliance
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
This device must accept any interference received,
including interference that may cause undesired operation.
FCC Certification
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
˙Reorient or relocate the receiving antenna.
˙Increase the separation between the equipment and
receiver.
˙Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
˙Consult the dealer or an experienced radio/TV
technician for help.
Notice: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment. Extension cables are not recommended, if
used, they must be shielded in order to comply with the emission
limits.
2

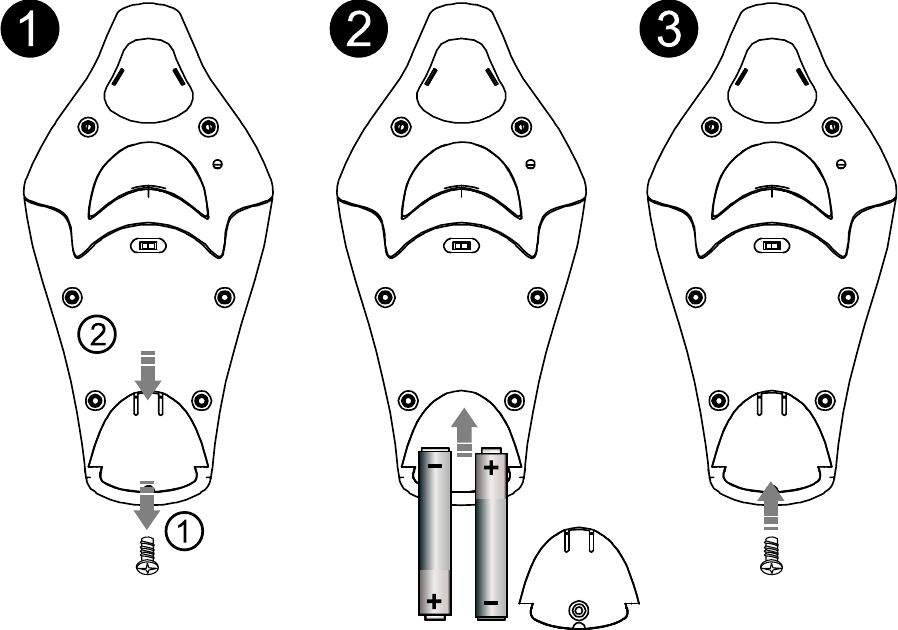

Installing the Batteries (Supplied)
˙Take off the screw.
˙Open the battery cover in the button of the Presenter
and sliding the door off the presenter.
˙Insert the two supplied AAA batteries (included in the
package) to the battery slots. Make sure the positive (+)
and negative (-) ends of the batteries match the polarity
markings inside the battery compartment.
˙Close the battery cover back into position.
˙Lock up the screw.
˙Turn on power switch.
*Sliding the battery
cover off
*Insert batteries to the
correct polarities
Push
AAA battery X 2
3
Connecting the Presenter to the Computer
˙Plug the USB receiver dongle into an available
USB port on your computer. Wait for the computer to go
through its default process of recognizing the new
hardware and installing the built-in native driver. You
don’t need to do anything while your computer is going
through the installation of a new device.
˙The radio frequency (RF) codes are factory preset for
your convenience; the presenter should be functional at
this point.
˙If for any reason the presenter does not work correctly,
i.e. the presentation slides do not advance to the next
page. If the presenter is not working, please put it into
pairing mode.
USB Receiver
Connect Button
Power
ON/OFF Switch
4
˙Pairing: Re-plug the RF receiver into the USB port of
your computer. Turn on power switch. Then press the
connect buttons on the presenter. If the presenter does not
work after 30 seconds, Re-pairing again. (RF receiver has
auto pairing function).
˙The LED indicator on receiver remains off afterwards
when it is successfully paired with the presenter.
˙This will make the presenter and the receiver to
connecting. This step can be repeated when needed.
Using the Presenter
Click
(Mouse Left)
Previous
Page
Laser Bean
Dark Screen
Track Ball
Next
Page
Application
Switch
Laser Bean
Switch
Connect
Button
Power
ON/OFF Switch
LED Indicator
*Receiver Indicator
Green LED ON 3 Sec.
Power ON
When presenter action
Green LED Blinking
5
Track Ball
Track ball is functional like a mouse
cursor.
Next Page key to advance to the next
slide.
Previous Page key to return to the
previous slide.
Application Switch (Alt-Tab) key
displays all the open windows and
switches to the desired window by
pausing over the selected window icon
for 3 seconds.
Dark Screen toggle key blackens the
screen and resumes the presentation.
Laser Pointer key triggers the laser
beam. The laser beam emits for the
duration that you press the key.
Click (Mouse left key function)
