Page 1
User’s Manual
Wireless Presenter with Laser
Pointer
Page 2
Regulatory Compliance
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
FCC Certication
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
•
•
Page 3
Consult the dealer or an experienced radio/TV
technician for help.
Notice: Any changes or modications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Extension cables are not recommended, if used, they
must be shielded in order to comply with the emission
limits.
IC Certication
The term “IC” before the certication/registration
number only signies that the Industry Canada technical
specications were met.
Declaration of conformity
Hereby, SMK-LINK Electronics Corporation, declares
that this product is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
All trademarks and registered trademarks mentioned
in this document are the property of their respective
owners.
Features and specications are subject to change without
notice.
© 2008 SMK-LINK Electronics, Inc.
•
Page 4
System Requirements
Hardware: 1 available USB port
Operating System: Windows 2000, XP or Vista
Macintosh OS X or above (F5 SlideShow and Alt-Tab
Application Switch not supported)
Package Contents
Wireless 2.4 GHz presenter
Micro USB receiver dongle (stored inside
presenter)
2 x AAA batteries
User’s manual
Carrying case
Installing the Rechargeable
Batteries (Supplied)
•
•
•
•
•

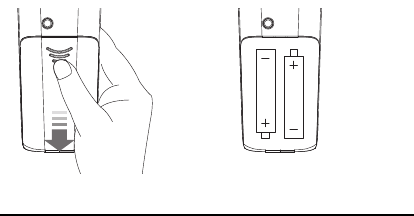

Sliding the battery cover off Insert batteries to the correct
polarities
Page 5
Open the battery compartment by pressing
down the cover latch and sliding the door off
the presenter.
Insert the two supplied AAA batteries
(included in the package) to the battery slots.
Make sure the positive (+) and negative
(-) ends of the batteries match the polarity
markings inside the battery compartment.
Close the battery cover back into position.
Connecting the Presenter to
the Computer
Retrieve the micro USB receiver
dongle from the built-in storage
located at the top-end of the presenter.
•
•
•
•
Top View of the Presenter
USB Receiver
Page 6
Connect the micro USB receiver dongle to
an available USB port on your computer.
Wait for the computer to go through its
default process of recognizing the new
hardware and installing the built-in native
driver. You don’t need to do anything
while your computer is going through the
installation of a new device.
Power on the presenter by sliding the
on/off switch to ON position.
•
•
On/off Switch
Power switch on the presenter
Page 7
The radio frequency (RF) codes are
factory preset for your convenience; the
presenter should be functional at this
point.
If for any reason the presenter does not
function correctly, i.e. the presentation
slides do not advance to the next page,
there may be other wireless devices
in the vicinity operating in the same
radio frequency channel. The presenter
can easily be reset to another channel
by pressing once on the USB receiver
dongle’s connect button while it’s plugged
in to the computer’s USB port, followed
by pressing once on the connect button
located at the bottom of the presenter.
This will switch the presenter and the
receiver to a different channel to avoid
interference. This step can be repeated
when needed.
•
•
Page 8
Using the Presenter
Connect Button
(1) Press the connect button on the receiver
(2) Press the connect button on the presenter
Laser Beam Dongle Storage
On/off
Application Switch
Previous Page
Dark Screen
Slideshow/Esc
Next Page
Laser Pointer
Scroller
Page 9
F5/Esc
Slideshow toggle key starts a
slideshow (F5) and exits from a
slideshow (Esc). Note: in
PowerPoint slideshow starts with
page 1 when resumed in the
middle of a presentation.
Next Page key to advance to the
next slide.
Previous Page key to return to the
previous slide.
Application Switch (Alt-Tab) key
displays all the open windows and
switches to the desired window by
pausing over the selected window
icon for 3 seconds.
Dark Screen toggle key blackens
the screen and resumes the
presentation.
Laser Pointer key triggers the laser
beam. The laser beam emits for
the duration that you press the key.
•
•
•
•
•
•
Page 10
Scroller on the side allows the presentation
of a long document such as an Excel le.
Scrolling one notch up or down advances one
line at a time. To advance in rapid mode press
up or down on the scroller for more than 1
second at a time. In PowerPoint the scroller
serves as an alternative key for Next Page and
Previous Page.
Operating Tips & Trouble Shooting
Make sure the presenter is turned on by
checking the on/off switch located at the
side of the presenter before using it.
Conserve the battery power by switching
the on/off switch to “OFF” position while
traveling. If you will not use the presenter
for a long period of time remove the
batteries from the battery compartment.
When the laser beam becomes dim it may
be due to low battery power. Replace
with 2 fresh batteries to ensure continuous
presentation without power disruption.
•
•
•
•
Page 11
The presenter stays connected to your
computer even when it’s turned off. If
for any reason the connection to the
system is lost or interference is detected
(erratic slide control), rst check if
the micro USB receiver dongle is
plugged in to the computer USB port,
then verify that the presenter is within
the range (up to 70 feet) from your
computer. If the connection is lost it can
be xed by following the instructions
in the Connecting the Presenter to
the Computer section to reconnect the
devices.
Remember to retrieve the micro USB
receiver dongle from the computer and
store it in the storage compartment when
not in use.
Warranty: SMK-LINK Electronics warrants to the
original end-user purchaser of the Product (“you”) that the
Product, excluding batteries, will be free from defects in
materials or workmanship under normal use and service
for one-year from date of purchase. Dated invoice or sales
receipt is necessary to accompany the Product returned
•
•
Page 12
for warranty service consideration. Any Product repaired
or replaced under the terms of the warranty is covered for
the remainder of the original warranty period or ninety
(90) days from the date of service or return shipping,
whichever is longer. If the Product becomes defective
in materials or workmanship during the warranty period,
SMK-LINK Electronics will, at its option, either repair
or replace it with a more current or upgraded model if the
originally purchased model is not available. This warranty
does not cover products which have been subjected to
misuse, accident, physical damage, improper installation,
abnormal operation or handling, neglect, inundation or
re, or when product regulatory label has been removed,
altered or rendered illegible; nor does it cover accessory
and consumable items. In no case shall SMK-LINK
Electronics be liable for any indirect special, incidental,
or consequential damages based upon breach of warranty,
breach of contract, negligence, strict tort or any other legal
theory. Such damages include, but are not limited to, loss
of prots, loss of savings or revenues, inability to use the
product or any associated equipment, cost of capital, cost
of any substitute equipment, facilities or services, claims
by third parties other than you, and injury to property.
SMK-LINK Electronics’s total liability for damages for
any cause related to, or arising out of, the use or inability
to use the product, shall not exceed the original price paid
for the product even if SMK-LINK Electronics has been
informed of such possibility. If your Product requires
warranty service, you must rst contact SMK-LINK
Electronics Product Support to receive an RMA Number.
The contact information can be found on SMK-LINK
Electronics website: http://www.smklink.com/support/
contactsupport.html. This warranty does not affect your
statutory right and you may also have other rights which
vary from state to state. Unless modied in writing,
signed by both you and SMK-LINK Electronics, this
Page 13
warranty is understood to be the complete and exclusive
agreement between the parties, superseding all prior
agreements, oral or written, and all other communications
between the parties relating to the subject matter of this
warranty.
Product Support
SMK-Link Electronics Corporation
3601-B Calle Tecate, Camarillo, CA 93012
TEL: (888) 696-3500 FAX: (805) 987-6665
Laser Warning
The LASER button located at the center of
the control disc activates a laser which
emits a red laser beam from the front of
the presenter unit. It is typically used as a
pointer during presentations. The laser beam emits for
the duration that you press the button.
Caution
Do not stare into laser beam for it can cause harm to
your eyes. Do not aim the laser at people and procedures
other than those specied therin may result in hazardous
radiation exposure.
FDA Compliance for Class 2 Laser
CFR21 SUBCHAPTER J
EN 60825-1:1994+A1+A2
Page 14
Thank You
Thank you for purchasing the Wireless
Presenter with Laser Pointer. We know you
had other choices and we appreciate that you
chose Interlink Electronics Wireless Presenter
by SMK-LINK for your product needs. So
that we may better serve you in the future,
please register online at www.smklink.com/
register.
© 2008 SMK-LINK Electronics
