Wireless Optical
Stow-N-GoTM
Notebook Mouse
30
WIRELESS OPTICAL
STOW-N-GOTM
NOTEBOOK MOUSE
Introduction
Congratulations on your purchase of the Wireless Optical Stow-N-GoTM
Notebook Mouse. This mouse features a tracking resolution switch for
users who require more precision or speed with various applications.
The Stow-N-Go receiver clips onto the mouse for ease of use while
traveling or on the go. This mouse also features a 4-way scrolling tilt-
wheel which allows for both vertical and horizontal navigation.
• Hardware - USB port
• Windows® 2000/XP
• Windows Vista™
• Mac OS X 10.2.8 (or greater)
System Requirements
2
Installing the Batteries
Wireless Optical Stow-N-GoTM Notebook Mouse
2. Insert two AA-size batteries, making sure that the positive (+) and
negative (-) ends of each battery match the polarity indicators inside
the battery compartment. To replace the battery cover, place the
cover on top of the mouse and slide forward until it clicks into place.
NOTE: WHEN THE BATTERY IS LOW, THE LOW POWER INDICATOR LIGHT LOCATED
IN THE DPI SWITCHING BUTTON WILL FLASH RED. PLEASE REPLACE WITH TWO
NEW AA-SIZE BATTERIES.
1. Remove the battery cover from the back of the mouse by sliding off
the cover of the mouse. Hold the mouse in your hands and with the
back of the mouse away from you. Press down on the corners of the
battery cover and slide towards the back of the mouse. Lift the cover
off from the back of the mouse.
When power is on, the mouse goes into "sleep mode" after 8
minutes of inactivity. To activate the mouse, press any mouse key.
DPI switching
button
3
Wireless Optical Stow-N-GoTM Notebook Mouse
(A) Remove the USB receiver from the bottom of the mouse.
This will activate the on/off switch.
Establishing the Connection
(B)
(A)
(C)
(D)
(B) Plug the USB receiver into an available USB port on your computer.
(C) Press and release the setup key on the receiver.
(D) Press the setup key on the bottom of the mouse.
This device has 256 identification codes that allow the mouse and its
receiver to operate without interference from other radio frequency
devices. If you experience interference during use, repeat steps C and
D to change the connection channel.
NOTE: TO TURN THE MOUSE OFF, SIMPLY PLACE THE USB RECEIVER BACK INTO THE
STORAGE SLOT. THIS WILL MAXIMIZE BATTERY LIFE WHEN NOT IN USE.
4
Wireless Optical Stow-N-GoTM Notebook Mouse
This mouse is equipped with a 4-way scrolling function.
Installing the tilt-wheel software driver
To enable the tilt-wheel function, the software driver must be installed.
NOTE: PLEASE SELECT THE "3 BUTTON MOUSE" OPTION WHEN PROMPTED TO
DO SO.
2. The Installation Wizard window will prompt.
Follow the on-screen instructions to complete the installation.
1. Insert the driver software CD into your computer’s CD-ROM drive.
If setup does not begin automatically, click Start, Run, and enter
D:\Setup.exe (where D: is the path of your CD-ROM drive) and then
click OK.
After the software driver is successfully installed, there will be a “Tilt
Mouse” icon located in the task bar.
NOTE: THE TILT-WHEEL FEATURE IS SUPPORTED BY THE MAC OPERATING
SYSTEM. NO DRIVER INSTALLATION IS NECESSARY. THE FOLLOWING STEPS
ARE FOR WINDOWS OPERATING SYSTEMS ONLY.
1. Please download the software driver (Model # AMW25) from the
official Targus web site: http://www.targus.com
Save the setup.exe file to your computer and double click on the icon
to launch the installation process.
5
Wireless Optical Stow-N-GoTM Notebook Mouse
Adjusting the DPI Setting
This mouse features 3 selectable resolution settings (1600 / 1200 /
800 DPI). By pressing the resolution switch, you can instantly adjust
the tracking speed of the mouse. When the DPI is set at 1600, the
indicator light will glow brightest and when it is set at 1200, the light will
become dimmer. The indicator will be off when the DPI is set at 800
DPI. The setting will be saved when the mouse is turned off. The
indicator light will shut off in 10 seconds after selecting the desired
resolution.
1600 DPI
1200 DPI
800 DPI
Pressing the scroll-wheel left or right, enables the horizontal scrolling
feature.
Using the 4-way scrolling tilt-wheel
NOTE: DOUBLE CLICK ON THE “TILT MOUSE” ICON IN THE TASK BAR WILL LAUNCH
THE MOUSE SETTINGS SCREEN. YOU CAN EDIT THE SETTINGS AND PREFERENCES
IN THIS WINDOW.
6
Wireless Optical Stow-N-GoTM Notebook Mouse
Mac OS
Mac OS:

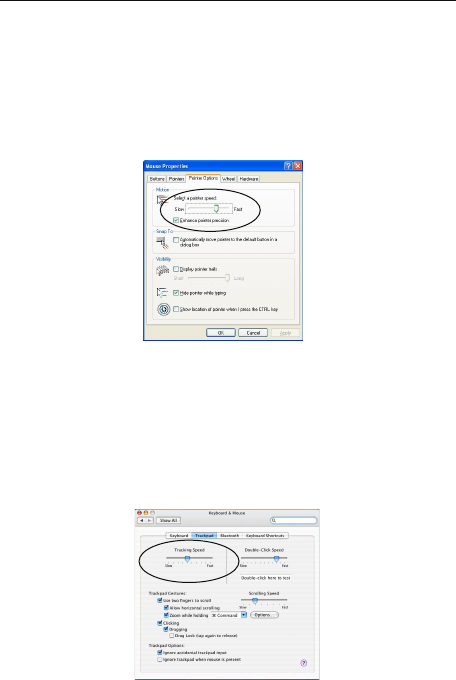

After selecting the desired resolution, you can also fine tune the
sensitivity. This can be adjusted in the “System Preference” of the
Mac operating system.
Click on the Apple logo --> System Preference --> Keyboard & Mouse
In the “Keyboard & Mouse” window, locate the “Trackpad” tab. Under
“tracking speed”, use the slider to change the speed of the mouse.
Windows XP
Windows XP:
After selecting the desired resolution, you can also fine tune the
sensitivity. This can be adjusted in the “control panel” of the Windows
operating system.
Click on Start --> Setting --> Control Panel --> Mouse
In the “mouse properties” window, locate the “pointer options” tab.
Under “motion”, use the slider to change the speed of the mouse. Click
apply to confirm the changes.
7
Transmitter
Receiver
RF • 27.045Mhz
Interface • USB 1.1
Power • USB Bus Powered 5V DC
Product Specification
RF • 27.045Mhz
Battery Type • Alkaline battery AA
Effective RF
Communication Range • 1.2 meters max
RF output Power • Below 1mW max
Power Consumption • 15mA max
Wireless Optical Stow-N-GoTM Notebook Mouse
This mouse is equipped with the latest sensor technology that conserves
power and provides up to six months of battery life. Battery life is determined
using one hour of continuous use, five days per week.
8
Wireless Optical Stow-N-GoTM Notebook Mouse
Technical Support
For technical questions, please visit:
US Internet: www.targus.com/support.asp
Australia Internet: www.targus.com/au
Email: infoaust@targus.com
Telephone: 1800-641-645
New Zealand Telephone: 0800-633-222
Product Registration
This device complies with Part 15 of the FCC Rules. Opera-
tion is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) This device must
accept any interference received, including interference that
may cause undesired operation.
Regulatory Compliance
Targus warrants this product to be free from defects in materi-
als and workmanship for one year. If your Targus accessory is
found to be defective within that time, we will promptly repair
or replace it. This warranty does not cover accidental damage,
wear and tear, or consequential or incidental loss. Under no
conditions is Targus liable for loss of, or damage to a devices
nor loss of, or damage to, programs, records, or data; nor any
consequential or incidental damages, even if Targus has been
informed of their possibility. This warranty does not affect your
statutory rights.
Targus recommends that you register your Targus accessory
shortly after purchasing it. Go to:
http://www.targus.com/registration.asp. You will need to
provide your full name, email address, phone number, and
company information (if applicable).
Warranty
9
Wireless Optical Stow-N-GoTM Notebook Mouse
This equipment has been tested and found to comply with the limits of
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna;
• Increase the separation between the equipment and receiver;
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected;
• Consult the dealer or an experienced radio/TV technician for help.
Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries. All trademarks
and registered trademarks are the properties of their respective owners. All rights
reserved.
FCC Statement
Tested to Comply
Changes or modifications not authorized by the party responsible for
compliance could void the user’s authority to operate this product.
Declaration of Conformity
Hereby, Targus, declares that this device is in compliance with the
essential requirements and other relevant provisions of Directive
1999/5/EC.
