Actia Nordic TEM4G TEM4G User Manual

ACTIA Nordic AB TEM4G

User Manual

Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
1
(
13
)
TEM4G
User Manual
(NAS)
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
2
(
13
)
Content
1 General ...................................................................................................................................................... 3
1.1 Revision history ................................................................................................................................. 3
1.2 Abbreviations .................................................................................................................................... 3
1.3 References ......................................................................................................................................... 3
2 Introduction ............................................................................................................................................... 4
3 Technical Description ................................................................................................................................ 5
3.1 Connectors ......................................................................................................................................... 5
3.1.1 Main connector .......................................................................................................................... 5
3.1.2 Interface to head unit ................................................................................................................. 5
3.1.3 SIM interface ............................................................................................................................. 5
3.1.4 GNSS antenna............................................................................................................................ 5
3.1.5 2G/3G/4G antenna ..................................................................................................................... 5
3.2 Power supply ..................................................................................................................................... 5
3.3 SIM interface ..................................................................................................................................... 5
4 Antennas .................................................................................................................................................... 6
4.1 Internal antennas ................................................................................................................................ 6
4.1.1 WLAN antenna .......................................................................................................................... 6
4.1.2 Cellular backup antenna ............................................................................................................ 6
4.2 External antenna ................................................................................................................................ 6
5 RF parameters ............................................................................................................................................ 7
5.1.1 Supported bands ........................................................................................................................ 7
5.2 GNSS ................................................................................................................................................. 7
5.2.1 Supported bands ........................................................................................................................ 7
5.3 WLAN ............................................................................................................................................... 7
5.3.1 Supported bands ........................................................................................................................ 7
6 Mechanical design ..................................................................................................................................... 8
7 Functional Description .............................................................................................................................. 9
7.1 WLAN access point ........................................................................................................................... 9
7.2 Data gateway ..................................................................................................................................... 9
7.3 Positioning information ..................................................................................................................... 9
7.4 Telematics applications ..................................................................................................................... 9
7.4.1 Automatic emergency call ......................................................................................................... 9
7.4.2 Manual emergency call .............................................................................................................. 9
7.4.3 Roadside assistance call ............................................................................................................. 9
7.4.4 Theft Warning............................................................................................................................ 9
7.4.5 Stolen Vehicle Tracking .......................................................................................................... 10
7.4.6 Remote Vehicle Immobilization .............................................................................................. 10
7.4.7 Remote door unlock................................................................................................................. 10
7.4.8 Other applications .................................................................................................................... 10
8 Installation and maintenance ................................................................................................................... 11
8.1 Installation ....................................................................................................................................... 11
8.2 Maintenance .................................................................................................................................... 11
9 Regulatory Certifications ......................................................................................................................... 12
9.1 USA (FCC) ...................................................................................................................................... 12
9.1.1 FCC Warnings and Notices ..................................................................................................... 12
9.1.2 OEM Requirements ................................................................................................................. 12
9.2 Canada (IC) ..................................................................................................................................... 12
9.2.1 OEM Requirements ................................................................................................................. 13
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
3
(
13
)
1 General
This document describes the North American (NAS) version of ACTIA’s product ACUII-06.
1.1 Revision history
Revision
Author
Date
Description
W
1.0
Nicklas Andersson
201
7
-
0
3
-
27
Draft
1.2 Abbreviations
Abbreviation
Meaning
DoIP
Diagnostics over IP
ECU
Electrical Control Unit
GNSS
Global Navigation Satellite System
OBD
On
-
Board Diagnostics
SRS
Supplemental Restraint System
WLAN
Wireless Local Area Network
1.3 References
Reference
Title
Doc. number
Revision
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
4
(
13
)
2 Introduction
The TEM4G is a connectivity ECU that is factory fitted in cars. It provides following functionality:
WLAN access point - for people inside the vehicle.
Data gateway - for the WLAN access point and other ECUs in the vehicle.
Positioning information - for other ECUs in the vehicle, such as the navigation system.
Telematics applications - like emergency calls, breakdown calls and stolen vehicle
tracking.
The TEM4G has an integrated 2G/3G/4G modem that provides data connection and voice call
functionality needed for the different applications.
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
5
(
13
)
3 Technical Description

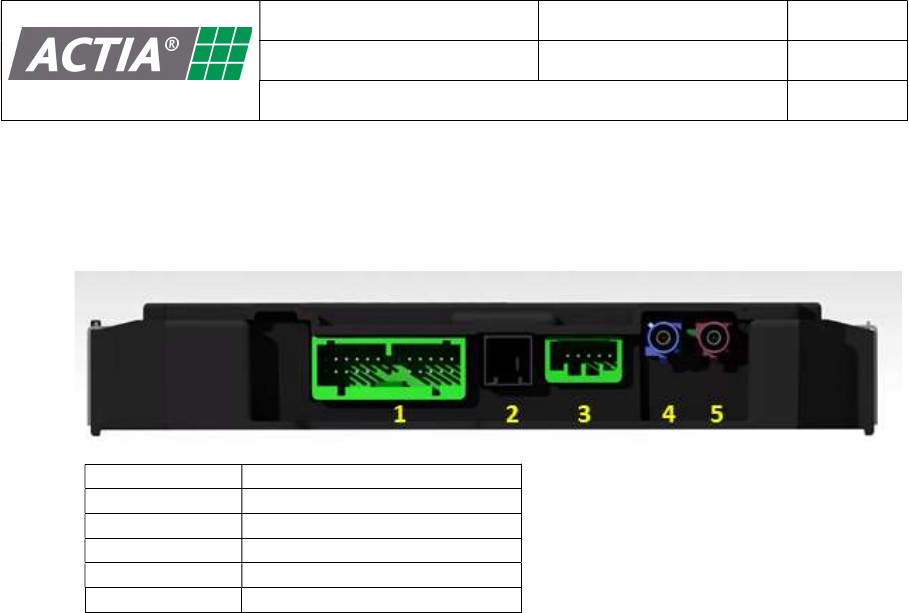

3.1 Connectors
Connector
No
Function
1
Main connector
2
Interface to head unit
3
SIM interface
4
GNSS antenna
5
2G/3G/4G antenna
3.1.1 Main connector
The main connector is used to connect power, CAN communication, microphone, external buttons,
and connection to the SRS control unit.
3.1.2 Interface to head unit
This connector is used for communication with the head unit. Proprietary USB interface.
3.1.3 SIM interface
This interface is to be connected to an external ACTIA SIM holder.
3.1.4 GNSS antenna
The blue Fakra is the input for the GNSS antenna.
3.1.5 2G/3G/4G antenna
The violet/bordeaux Fakra connector is used to connect an external 2G/3G/4G antenna.
3.2 Power supply
Operating voltage range: 8-16 VDC. Nominal 13.8V.
Maximum current consumption 1.5A @ 8V.
If the main power supply (car battery) is broken, e.g. after a crash, some telematics application is
still functional using an internal backup battery.
3.3 SIM interface
The embedded modem can use two different SIM sources:
An ACTIA SIM card holder, where the user can put in his own SIM card.
An embedded SIM chip.
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
6
(
13
)
4 Antennas
4.1 Internal antennas
4.1.1 WLAN antenna
WLAN communication is made with an integrated antenna inside the TEM4G housing.
4.1.2 Cellular backup antenna
If the external 2G/3G/4G antenna is broken, e.g. after a crash, the embedded modem can still be
operating using an integrated backup antenna inside the TEM4G housing.

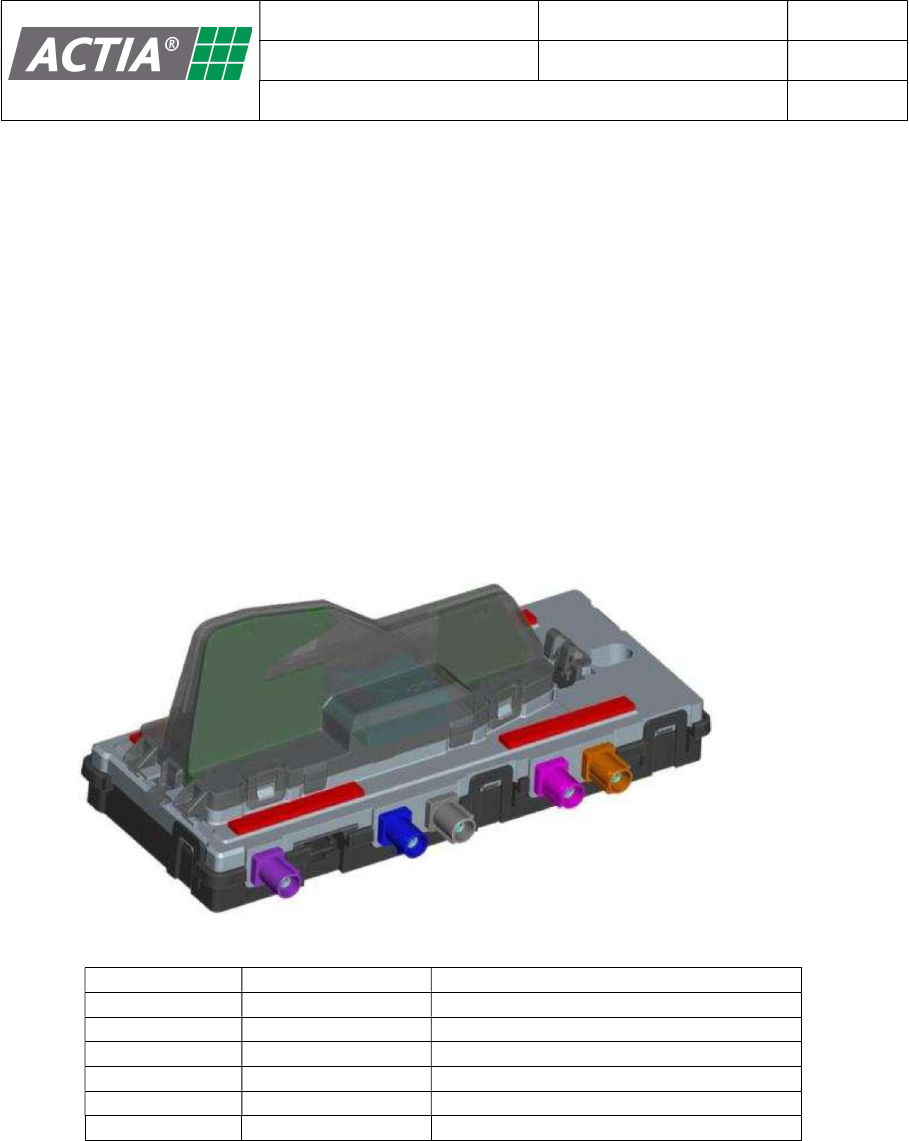

4.2 External antenna
TEM4G is certified to be used with an external roof mounted antenna. Volvo part number
31409875.
Connector
No
Color
Connection on ACUII
-
06
1
Violet/Bordeaux
2G/3G/4G antenna
2
Black
(RKE, not connected to ACUII
-
06)
3
Blue
GNSS antenna
4
Grey
(SDARS,
not connected to ACUII
-
06)
5
Pink
3G/4G diversity antenna
6
Orange
WLAN antenna
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
7
(
13
)
5 RF parameters
5.1.1 Supported bands
Technology
Bands
GSM/GPRS/EDGE
850/900/1800/1900
WCDMA/HSPA
I
I (
1900
),
I
V (
AWS
), V (8
5
0)
LTE FDD Bd2 (1900), Bd4 (AWS), Bd5 (850),
Bd17
(700)
5.2 GNSS
GNSS antenna input is the blue Fakra connector.
5.2.1 Supported bands
Technology
Bands
GPS
L1
GLONASS
L1 FDMA
5.3 WLAN
The WLAN antenna is inside the TEM4G housing.
The product supports 802.11b/g/n at 2.4GHz. Supported channels are listed below. When the
product is installed in a vehicle the useable channels are limited to what is allowed in the current
country.
5.3.1 Supported bands
5.3.1.1 802.11b
Parameter
Channels
1
-
11
Data rates
1, 2, 5.5, 11 Mbps
5.3.1.2 802.11g
Parameter
Channels
1
-
11
Data rates
6, 9, 12, 18, 24, 36, 48, 54 Mbps
5.3.1.3 802.11n
Parameter
Channels
1
-
11
(2.4GHz)
Data rates
MCS0
-
MCS7
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
8
(
13
)

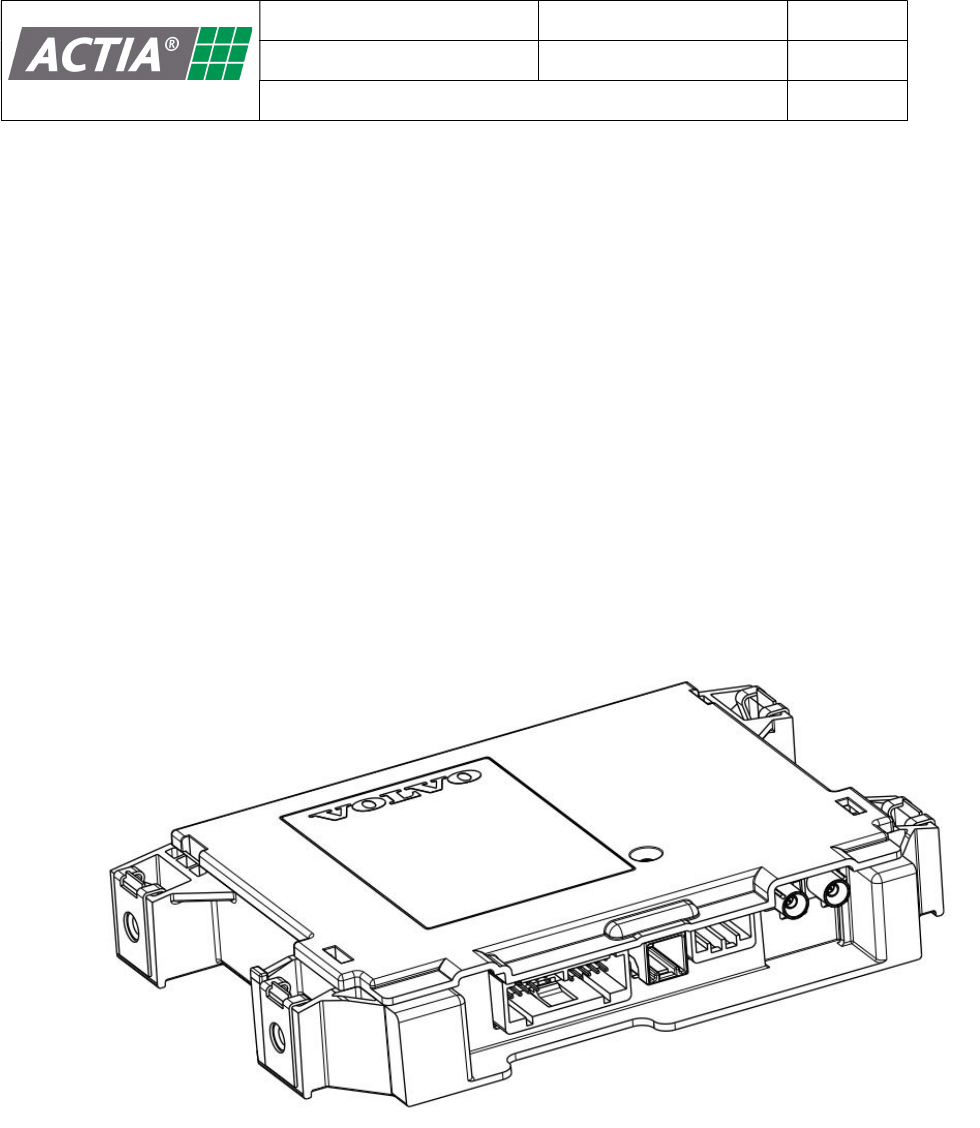

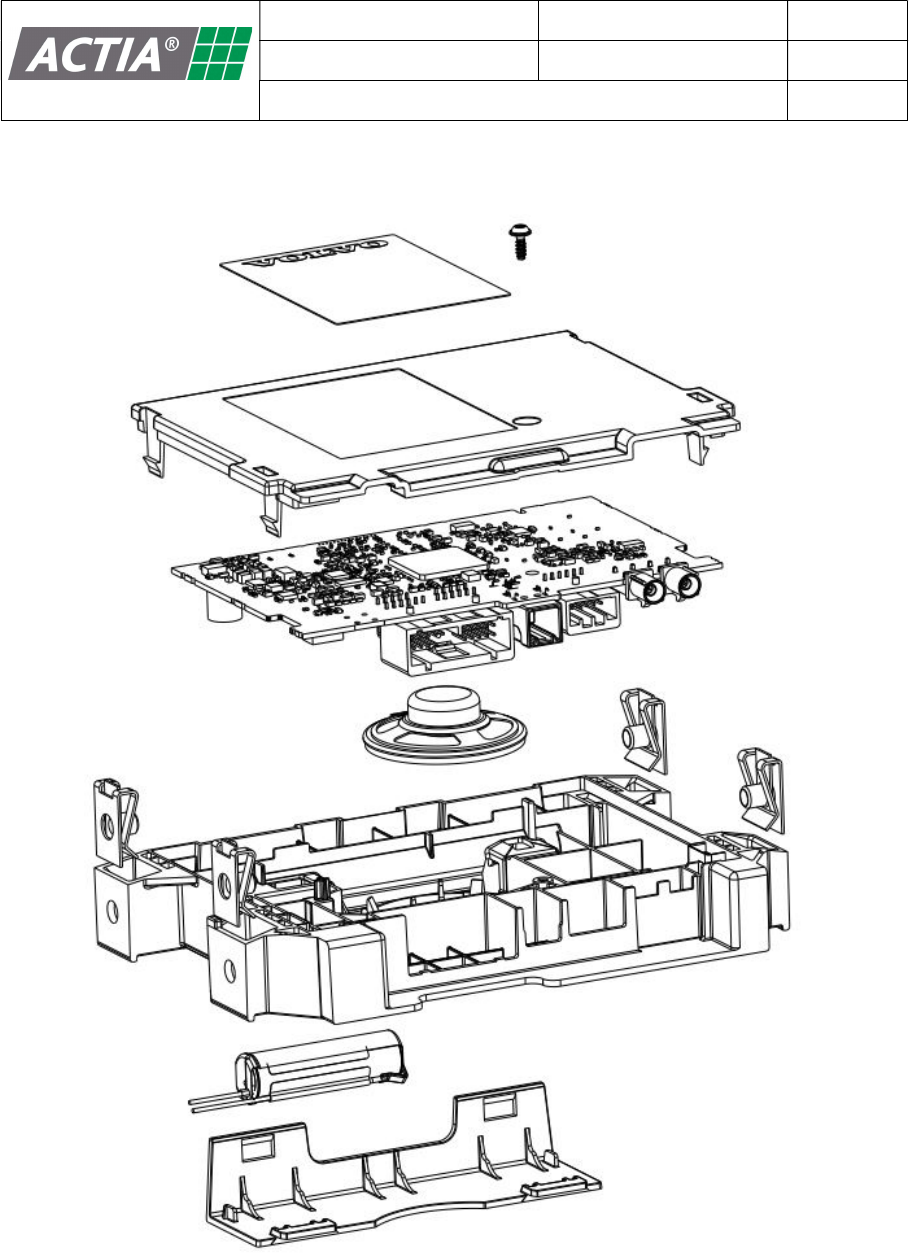

6 Mechanical design
Figure 1 – Mechanical design
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
9
(
13
)
7 Functional Description
7.1 WLAN access point
TEM4G can act as a WLAN access point for passengers in the car.
User interface needs to be implemented in an external unit, e.g. in a head unit with display. The
WLAN access point functionality is controlled via IHU Ethernet interface.
7.2 Data gateway
TEM4G acts as a data gateway for the WLAN access point and other ECUs in the vehicle. It can
e.g. provide internet connectivity for the head unit.
The data gateway is controlled via the IHU Ethernet interface.
7.3 Positioning information
The product automatically outputs GNSS raw position data on the CAN bus.
The GNSS data is used by other ECUs in the vehicle, for instance the Navigation system
7.4 Telematics applications
The product hosts a number of telematics applications. Some examples:
7.4.1 Automatic emergency call
If the car is in a crash and the SRS control unit indicates seat belt pretensioners, airbags or
inflatable curtain has deployed, an automatic alarm is sent to a predefined Customer Service
Center, via data connection or SMS, with information about the vehicle's location and that one or
more of the previously mentioned systems has deployed.
A voice call is also set up to the call center.
7.4.2 Manual emergency call
It is also possible to start an emergency call manually by pressing a SOS button for at least 2
seconds.
A service that has been initiated can be cancelled by pressing the EXIT button within 10 seconds.
7.4.3 Roadside assistance call
Another button for roadside assistance will send data message and set up a voice call to a
predefined road side assistance number.
A service that has been initiated can be cancelled by pressing the EXIT button within 10 seconds.
7.4.4 Theft Warning
The call center and the car owner is contacted with a data message if the car alarm indicates the car
is being stolen.
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
10
(
13
)
7.4.5 Stolen Vehicle Tracking
The call center can initiate tracking of the car if it has been reported stolen. The vehicle location
will then be reported to the call center.
7.4.6 Remote Vehicle Immobilization
If the car has been reported stolen the call center can instruct the car not to start.
7.4.7 Remote door unlock
The call center or the car owner can unlock the car remotely.
7.4.8 Other applications
With data provided from TEM4G it is also possible to build applications in e.g. mobile phones to
be used by the car owner. Examples:
Vehicle location (present car location on a map)
Instrument panel information (show e.g. mileage, fuel level)
Status check (if service is needed)
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
11
(
13
)
8 Installation and maintenance
8.1 Installation
The product is factory fitted in vehicles. It is not possible to buy this product separately.
8.2 Maintenance
The status of the product can be read via diagnostic connections using special workshop tools. In
addition, other ECUs monitor the communication from the product and in case of missing/invalid
communication, the Central Electronic Module in the vehicle is alerted, and will display a warning
to the driver.
Maintenance and replacement of the product can only be performed by certified workshops.
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
12
(
13
)
9 Regulatory Certifications
9.1 USA (FCC)
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
9.1.1 FCC Warnings and Notices
WARNING: The FCC requires the user to be notified that any changes or modifications made to
this device that are not expressly approved by ACTIA Nordic AB could void the user's authority to
operate the equipment.
RF EXPOSURE WARNING: This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be installed and operated with
minimum distance 20 cm between the radiator and your body. This transmitter must not be co-
located or operating in conjunction with any other antenna or transmitter.
NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
9.1.2 OEM Requirements
Following text should be printed in the user manual for vehicles in US:
Type Approval USA
FCC ID: 2AGKKTEM4G
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
9.2 Canada (IC)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Owner
Nicklas Andersson
Date
2017
-
03
-
27
Classification
Document number
Revision
W1.0
Title
TEM4G User Manual
Page
13
(
13
)
9.2.1 OEM Requirements
Following text should be printed in the user manual for vehicles in Canada:
Type Approval Canada
IC: 20839-TEM4G
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.

Navigation menu
