VOXX

REAR SEAT VIDEO

HEADREST SYSTEM

Owner’s Manual

AvAilAble in three configurAtions

HR8A

HR8AD

8 INCH

ANDROID

MONITOR

8INCH ANDROID

MONITOR WITH

DVD

Contents

Welcome ��1

VOXX Rear Seat Video Headrest System Congurations ��2

Product Features ��3

Cautions ��4

Quick Start Guide ��4

General Operating Instructions��5

Front Panel Controls For HR8A ��6

Front Panel Controls For HR8AD ��7

Remote Control and Headphone Battery Installation ��8

Battery Cautions and Warnings ��9

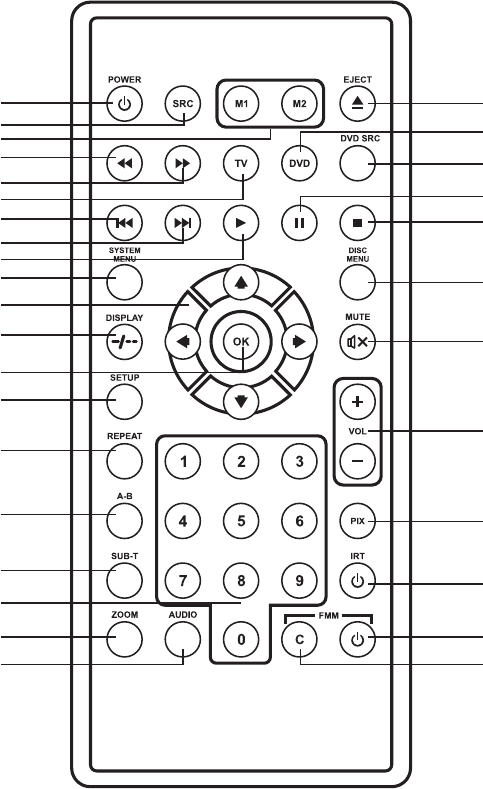

Remote Control Operation ��10

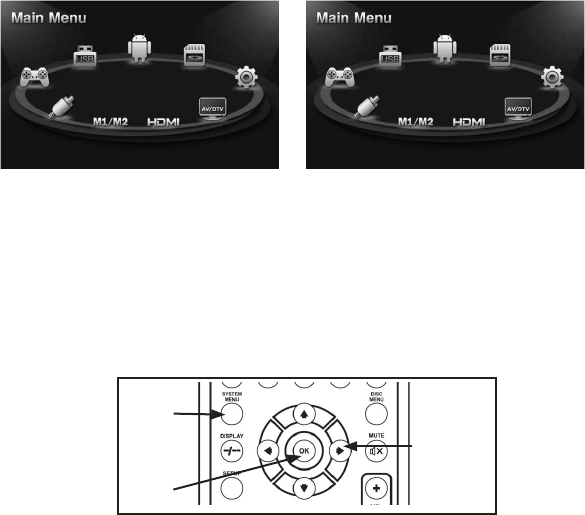

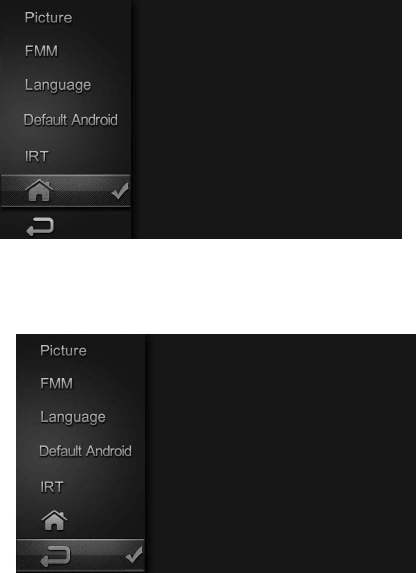

System Menu (HR8A) ��13

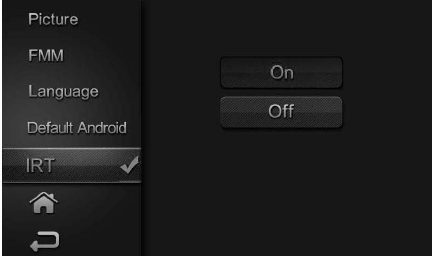

System Setup Sub-Menus(HR8A) ��14

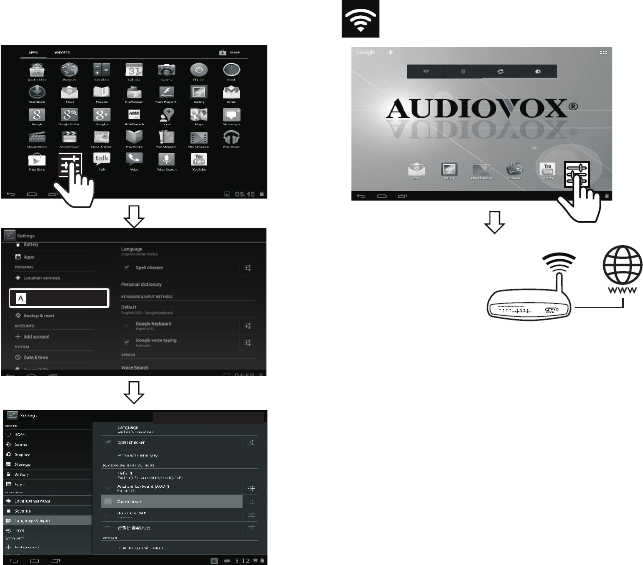

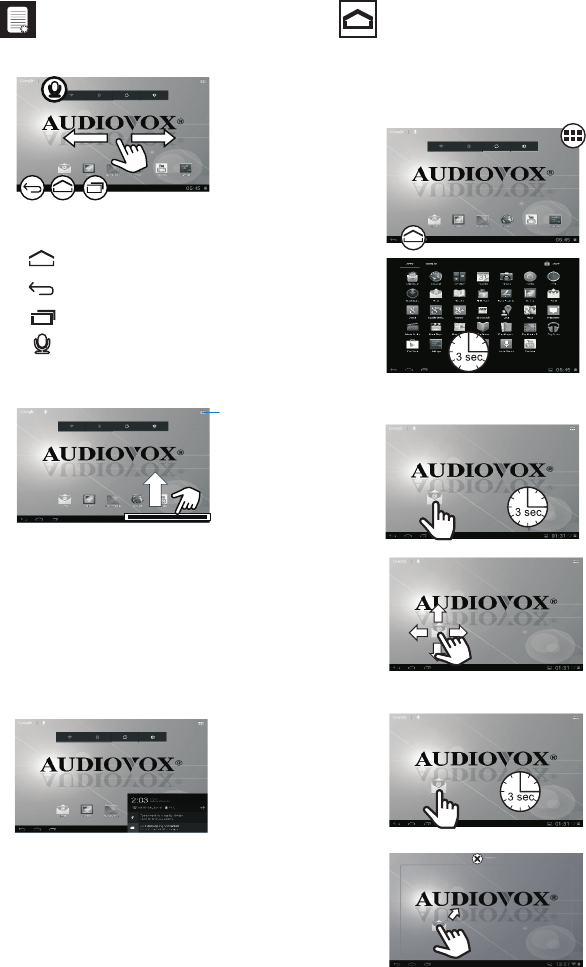

Android Mode(HR8A/HR8AD) ��22

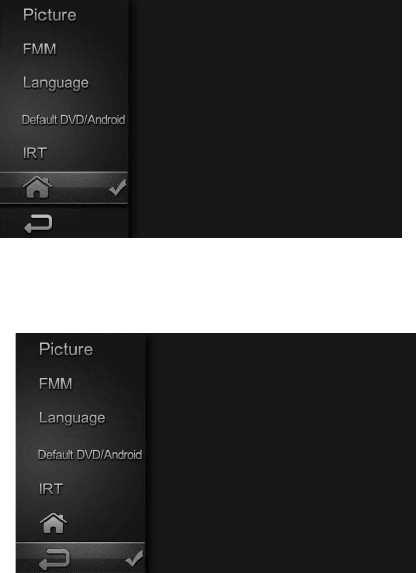

System Menu (HR8AD) ��25

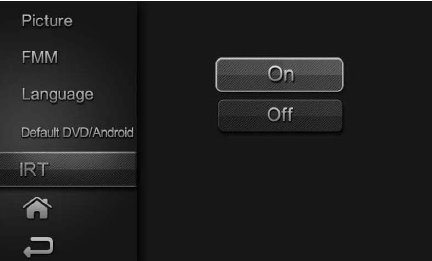

System Setup Sub-Menus(HR8AD) �� 26

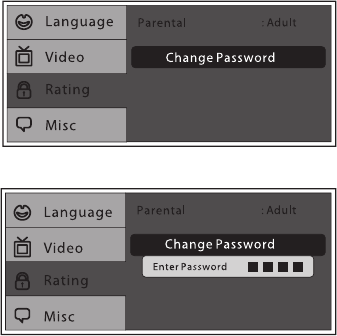

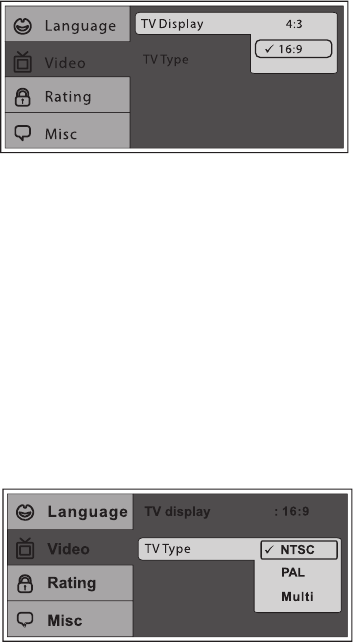

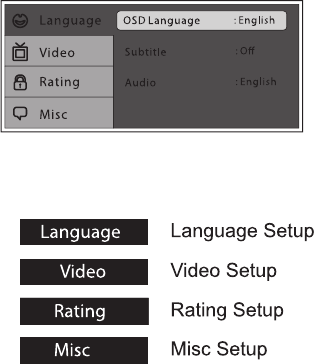

DVD Playback Settings and Adjustments (HR8AD) ��34

AV Inputs,AV Outputs and HDMI/MHL ��39

DISC Basics(HR8AD) ��40

Playback of Media ��41

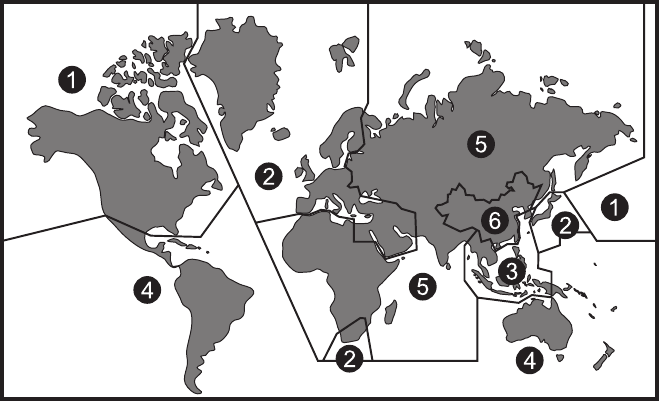

DVD Region Codes(HR8AD) ��45

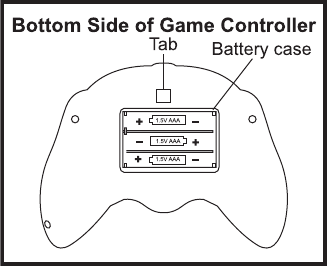

Game Controller Operation �� 46

Troubleshooting �� 48

Specications ��49

FCC Caution �� 50

User Notes ��51

TABLE OF CONTENTS

may not be reproduced without the express written permission of VOXX�

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

1

Thank you for purchasing the VOXX Rear Seat Video Headrest System� Before operating this

system read this manual thoroughly and retain it for future reference�

WELCOME

Licensed under one or more of the following patents: Patented, refer to www�voxxintl�com/

company/patents�

The Rear Seat Video Headrest System is set-

up and adjusted with easy to use menus that

are accessed using the remote control or the

front panel buttons�

The supplied two-channel wireless Infrared

(IR) headphones have an A-B switch that

allow the users to select the audio from

either M1 on “CH. A” or M2 on ”CH. B”

• The M1 monitor will only respond to

the remote control when the Monitor

Select “M1” button is pressed�

• The M2 monitor will only respond to

the remote control when the Monitor

Select “M2” button is pressed�

The VOXX is a versatile Rear Seat Video

Headrest System and is available in the

conguration (please refer to page 2 for a

detailed description of the conguration)�

Each of the conguration come with two

replacement video monitor headrests

referred to as either “M1” or “M2” in this

manual� The system allows the users to

watch the same DVD/Video Source on

both monitors simultaneously or individual

DVD/Video Sources on either monitor�

The full function wireless remote control

operates either monitor by selecting Monitor

Select “M1” or “M2” button�

HR8A: is a 8” Android LCD monitor that

allows the user to select from several

sources (Android mode,USB,HDMI/

MHL,SD Card,M1/M2,AV-IN,AUX, and

GAME* Source)� The monitor has a

built-in infrared audio transmitter

channel�

HR8AD: is a 8” Android LCD monitor with

a built-in DVD player that allows the user

to select from several sources(Android

mode,DVD,USB,HDMI/MHL,SD

Card,M1/M2,AV-IN,AUX,andGAME*

Source)� The monitor has a built-in

infrared audio transmitter channel�

* GAME Optional

2

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

VOXX REAR SEAT VIDEO HEADREST SYSTEM CONFIGURATIONS

Available in the conguration as follows:

New Features:

1� When an optional Game Pack is installed, either monitor can be designated as “Player 1”�

Selection is based on a “rst come, rst serve” basis� The second monitor will automatically

become “Player 2”�

2� Auto”M1 ON”of the HR8AD(M2)monitor(s) when the HR8AD(M1) is rst turned ON�This is

done by selecting”M1”in the Default AUTO ON/OFF sub-menu�

3� Auto”ON”of the HR8A(M2) monitor(s) when a video source is detected� This is done by

selecting”AV”in the Default AUTO ON/OFF sub-menu�

4� 100 Channel FM Modulator�

Conguration 1: Model HR8A

Two 8” Android LCD monitors (HR8A) (Figure 1.)

NOTE:When the Monitors is set to the M1source and to “AUTO ON“,M2 will turn ON

automatically when M1 is in playback mode.

Conguration 2: Model HR8AD

Two 8” Android LCD monitors with a built-in DVD player (Figure2.)

+

Figure 1

HR8A

(M1)

HR8A

(M2)

+

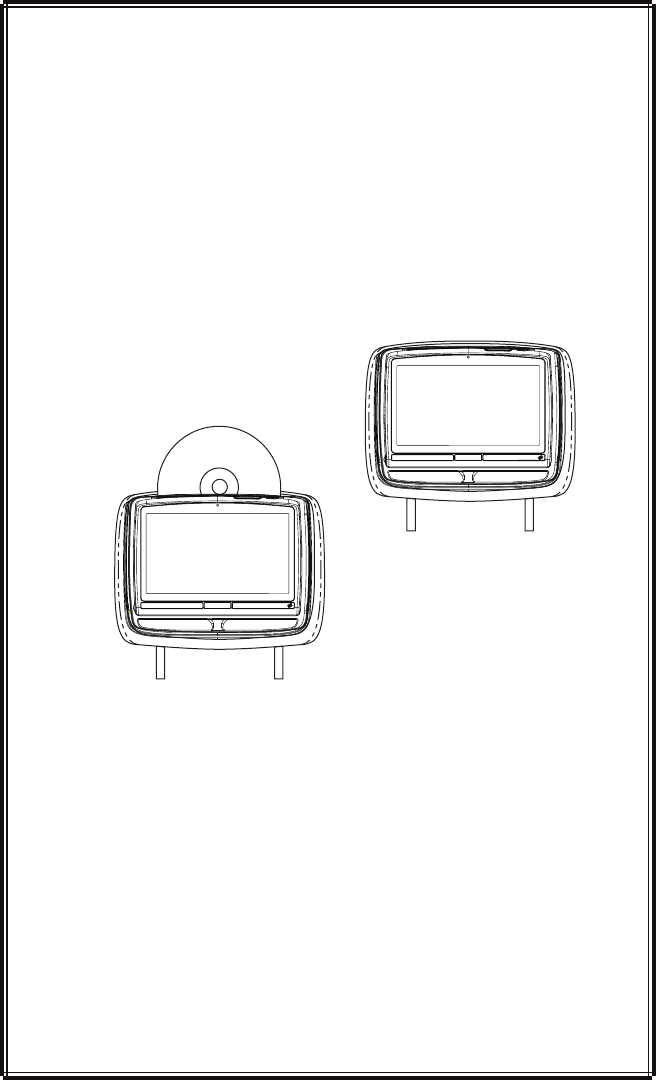

Figure 2

HR8AD

(M1)

HR8AD

(M2)

3

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

The VOXX Rear Seat Video Headrest System

consists of:

1� Two factory matched Headrests with

8-inch Color TFT-LCD Display Screen

(800x480) 16:9 aspect ratio� (See

conguration options on previous page�)

2� Two Wireless Infrared (IR) Headphones

equipped with volume control and A/B

switch to select between “M1” and “M2”�

Note: The wireless IR headphones must

be used within a line of sight from the

transmitter as infrared transmission,

like visible light, travels only in an

unrestricted line of sight�

3� Two Infrared (IR) Transmitters for

listening to audio signal through Wireless

IR Headphones�

4� One wireless FM transmitter used to

listen to audio (M1 only) through the

vehicle’s FM radio by tuning to one of 100

frequencies� Try each station frequency

until you achieve a clear audio signal�

Note: Whenever the FM transmitter

is active, regular radio reception may

be poor. Turn the FM transmitter

o to allow normal radio reception

PRODUCT FEATURES

5� USB Port used to connect a USB memory

device (eg� thumb drive) Content on the

USB device can be played by selecting

“USB” source�

6� Remote Sensor on the Front Panel�

7� One Full Function Remote Control to

operate either headrest by selecting “M1”

or “M2”�”

8� Control Buttons on the Front Panel

HR8A: POWER, VOLUME UP /DOWN,SD

CARD,USB,AUX IN,HDMI/MHL INPUT.

HR8AD: POWER, VOLUME UP/DOWN,

SD CARD,DVD,USB,AUX IN,HDMI/MHL

INPUT,EARPHONE.

9� OSD (On Screen Display) menus�

4

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Turn ON the Monitors (M1 and M2)�

1� Press the Power ON/OFF button� The

power indicator will light up red�

2� Insert a DVD, CD, MP3 disc into the disc

slot located on top of the M1 monitor

(disc label toward user)� Push down

gently on the disc until the player pulls

the disc in (Do Not force disc)for M1with

DVD only,Not suitable for Both Android

monitor�

3� Tilt the monitor to a comfortable

viewing position�

4� The supplied wireless IR headphones

have an ”A-B” switch used to select

the audio from either the “M1” or

“M2” monitor� When sitting in front

of the M1 screen, use the CH. A setting�

When sitting in front of the M2 screen,

use the CH. B setting� Set the headset

to the proper channel and press the

Power On/O switch� The power

indicator will light up red� Turn the

volume down to its lowest setting

QUICK START GUIDE

before putting the headphones on�

When the DVD menu appears(HR8AD),

select the menu item using the UP/

DOWN buttons and press Enter or Play

button�

5� If audio playback through the

vehicle radio is preferred, use the FM

transmitter ON/OFF button on the

remote control� Set the vehicle radio to

the channel selected on the M1 monitor�

If interference with a local radio station

occurs, set the FM modulator to one

of the other 100 radio frequencies

using the Channel Select buttons on

the remote control or front panel�

Note: To operate the M1 screen, press

M1 on the remote control. To operate

the M2 screen, press M2.

6� To turn OFF either M1 or M2, press and

hold the Power ON/OFF button for 5

seconds or turn the vehicle OFF�

Safety Precaution

For safety reasons, when changing a video

disc it is recommended that the vehicle

not be in motion, and that you do not

allow children to unfasten safety belts to

change a disc or make any adjustments to

the system� System adjustments can be

accomplished using the remote control unit,

while safety belts remain fastened� Enjoy

your entertainment system but remember

that the safety of all passengers remains the

number one priority�

CAUTION

Always run the vehicle’s engine while using

the VOXX Rear Seat Video Headrest System�

Using this system without running the

engine can result in battery drainage� To

avoid the risk of battery drainage, please

remember to turn o the device when the

vehicle is not in use for long periods of time�

Important Notice

An LCD Panel and/or Video Monitor may be

installed in a motor vehicle and visible to the

driver if the LCD Panel or Video Monitor is

used for vehicle information, system control,

rear or side observation or navigation� If

the LCD Panel or Video Monitor is used for

television reception, video or DVD play, the

LCD Panel or Video Monitor must be installed

so that these features will only function when

the vehicle is in “park” or when the vehicle’s

parking brake is applied�

An LCD Panel or Video Monitor used for

television reception, video or DVD play that

operates when the vehicle is in gear or when

the parking is not applied must be installed

to the rear of the driver’s seat where it will

not be visible, directly or indirectly, to the

operator of the motor vehicle�

CAUTIONS

5

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

For best disc operation , it is important that

you read this section completely�

DVD Region Coding

For HR8AD and the DVD are coded by region�

These region codes must match in order for

the DVD to play� If the codes do not match,

the DVD will not play� The HR8AD code is set

to region 1� Playback of any other region will

not work in the HR8AD�

Type of Discs the HR8AD Will Play

• DVD-Video: DVD containing video�

• CD-DA: CD containing musical or sound

content only�

• CD-Video: CD contains movie only�

• CD-R/RW: A disc that containing audio les

(for example, a CD-R with downloaded

MP3 les), MPEG, or JPEG les�

Note: The following discs will NOT play in the

HR8AD, Optical disc- CD-1, CD-ROM, and

DVD-ROM Mini disc- CDG (audio only, not

graphics), Blu-ray.

Loading and Playing Discs(HR8AD)Before

loading a disc, make sure that it is compatible

with the player�

Press the POWER button to turn the system

ON� Load the disc (label facing the user) into

the disc slot� The disc will load automatically

and begin to play�

Note: Some discs may start at the root menu,

where play must be selected to start movie.

Notes on Discs(HR8AD)

• Do not touch the disc surface� Handle the

disc by the edge�

• It is important that discs are clean prior to

use�

• If disc is not clean, use a commercially

available cleaning cloth to gently wipe

the disc from the center out� (Figure 3)

Note: Do not use solvents such as benzene,

thinner, cleaners, or antistatic spray

intended for analog discs.

• Keep discs protected in their cases or

disc magazines when not in use� Do not

subject discs to heat/high temperature�

Avoid leaving discs in a parked vehicle or

on a dashboard/rear tray�

• Do not use discs that have after-market

Paper or plastic labels/stickers attached�

The following malfunctions may result

from using such discs:

• Inability to eject a disc (due to a label

or sticker peeling o and jamming the

eject mechanism)�

• Inability to read audio data correctly

(i�e�, playback skipping, or no playback)

due to heat shrinking of a sticker or

label causing a disc to warp�

• Use only standard, round discs� If you

insert irregular, non-round, shaped discs

they may jam in the DVD player or not play

properly�

Figure 3

GENERAL OPERATING INSTRUCTIONS,FOR THOSE MODEL

WITH DVD BUILT INHR8AD

6

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Figure 4

7

1

2

34

5

6

8

9

11

10

1. IR TRANSMITTER and IR SENSOR

IR Transmitter: is used to broad cast audio

signal to the wireless IR headphones�

IR Sensor: is used to receive signals from

the remote control �

2. USB PORT

This port is used to connect a USB

device for playback of content� To view

content, select “USB” source and insert

the USB device� The USB device will start

automatically �

3. SD CARD

Support SD HC up to 32GB and IO

Connector:Micro SD(TF Card) �

4. AUX IN(HR8A)

These jiacks are used to supply extera

audio and inputs audio to the unit�

5. EARPHONE

6. HDMI/MHL INPUT

For connection of device with HDMI/

MHL output�( Note:Requires a HDMI/

MHL enabled device and a special HDMI/

MHL adapter�Contact your HDMI/MHL

device supplier for adapter)�

7. Protective Cover

Used to protect and cover the HDMI jack,

AV Input jacks and USB port when not in

use �

8. 8-inch TFT LCD Display Screen(Touch

panel ) (800 x 480) �

9. Camera

Front 0�3MP

10. VOLUME UP and DOWN

11. POWER Button

Press this button to turn the unit ON and

OFF�

FRONT PANEL CONTROLS FOR HR8A

HR8A

/MHL

7

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Figure 5

8

2

3

45

6

7

9

10

12

11

1. DVD disc insertion slot

2. IR TRANSMITTER and IR SENSOR

IR Transmitter: is used to broadcast audio

signal to the wireless IR headphones�

IR Sensor: is used to receive signals from

the remote control �

3. USB PORT

This port is used to connect a USB

device for playback of content� To view

content, select “USB” source and insert

the USB device� The USB device will start

automatically

4. SD CARD

Support SD HC up to 32GB and IO

Connector:Micro SD(TF Card) �

5. AUX IN

These jacks are used to supply extera

audio and inputs audio to the unit�

6. EARPHONE

7. HDMI/MHL INPUT

For connection of device with HDMI/

MHL output�( Note:Requires a HDMI/

MHL enabled device and a special HDMI/

MHL adapter�Contact your HDMI/MHL

device supplier for adapter)�

8. Jack Cover

Used to protect and cover the HDMI jack,

AV Input jacks and USB port when not in

use �

9. 8-inch TFT LCD Display Screen(Touch

panel) (800 x 480) �

10. Camera

Front0�3MP

11. POWER Button

Press this button to turn the unit ON and

OFF�

HR8AD

/MHL

1

Warnings

• Do not use any solvents or abrasive

cleaning materials when cleaning the

screen� Use only a lightly dampened lint

free cloth to wipe the screen if it is dirty�

• Lock the front panel in the fully closed

position when not in use� Do not put

pressure on the screen, caution children

to avoid touching or scratching the screen�

FRONT PANEL CONTROLS FOR HR8AD

8

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

REMOTE CONTROL AND HEADPHONE BATTERY INSTALLATION

Installation of the Remote Control Battery

Figure6

Figure 7 Figure 8

The remote control comes with a battery already installed with a Pull Tab to prevent battery

discharge� Remove the Pull Tab before attempting to use the remote� (Figure6)�

Note: The remote control will only operate this device. It is not a universal remote control and

will not control other equipment.

Remote control

Back View

CR2025

3V

Protective Pull Tab (Clear Plastic )

(1) (2) (1)

1� While holding the remote control, insert thumbnail into the battery door side notch (1) and

index ngernail into battery door upper notch (2) and slide battery holder open (Figure7)�

2� Install one CR2025 battery (1) (Figure 8)�

Note: Make sure that the proper polarity (+ or -) is observed.

3� Slide the battery holder back into the remote control until it locks (Figure8)�

9

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

The wireless IR headphone unit requires two AAA batteries�

1� Locate the battery compartment cover on the left earphone�

2� While holding the left earphone in one hand, press down on the battery compartment

cover and slide it UP and OFF in the direction shown� (Figure9)

3� Insert two AAA batteries (included), carefully following the markings inside to ensure the

batteries are inserted properly ( “+”and “-” ends in the correct positions�)

4� Replace the battery compartment cover� (Figure 9)

Installation of the Headphone Batteries

HEADPHONE BATTERY INSTALLATION

Figure9

• Always keep the monitors, remote control

and headphones clean and dry�

• Always seek qualied personnel to

perform repairs to the system or individual

components of the system� Never attempt

your own repairs.

• Do not drop remote control and

headphones or expose to strong impacts�

• Do not expose monitors, remote control

and headphones to direct sunlight for

extended periods of time�

• Always ensure that the battery is

correctly installed in the remote control

and headphones with the positive and

negative sides in the direction as shown in

the battery compartment�

• Use one CR2025(3V) Lithium battery

(160MAh) in the remote control�

Do not use dierent types.

• Use two AAA(1�5v) Alkaline batteries

in each of the headphones�

Do not use dierent types.

• Do not use old batteries in the remote

control or headphones�

• When the battery fails to function, replace

it immediately�

• Remove the battery if the remote control

and headphones are not used for a month

or longer�

• Keep all batteries out of the reach of

children� Should the battery be swallowed,

immediately consult a doctor�

• When disposing used batteries, please

comply with governmental regulations

or environmental rules that apply in your

area�

BATTERY CAUTIONS AND WARNINGS

Cautions and Warnings

10

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

REMOTE CONTROL OPERATION

Figure 10

1

2

3

4

5

6

7

8

9

10

11

12

13

15

16

17

18

19

20

14

21

22

23

24

25

26

27

28

29

30

31

32

11

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

REMOTE CONTROL OPERATION (continued)

1. POWER

Press this button to turn the system ON�

Press the button again to turn the system

OFF� (Figure 10)

2. SOURCE

Press this button to display or close main

menu�(Figure 10)

3. Monitor Select

M1 Button- select the remote control

code to allow control of the unit in M1

mode� M2 Button- select the remote

control code to allow control of the unit

in M2 mode�

4. SCAN BACKWARD Button

Press this button to search in the

backward direction� Press repeatedly to

change the search speed from 2, 4, 8, and

16 times the normal speed� (Figure10)

5. SCAN FORWARD Button

Press this button to search in the

forward direction� Press repeatedly

to change the search speed from 2,

4, 8, and 16 times the normal speed�

(Figure 10)

6. TV (not applicable)

Note: If this button is pressed the remote

control will not control DVD functions

until the DVD button is pressed again�

(Figure 10)

7. PREVIOUS Button

Press to return to the previous chapter or

track�(Figure 10)

8. NEXT

Press to skip to the next chapter or

track� (Figure 10)

9. PLAY Button(HR8AD)

Press this button to initiate play mode

when a disc is loaded in the disc

compartment� (Figure 10 )

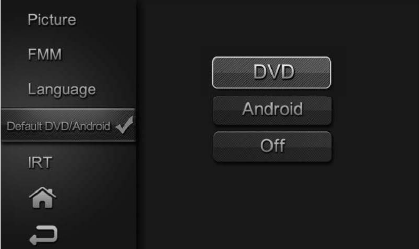

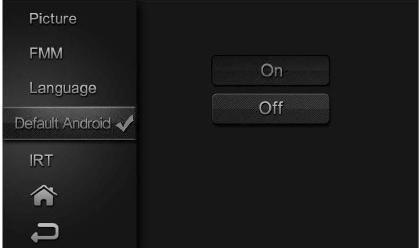

10. SYSTEM MENU

This button is used to make system

setup adjustments� Each time the

button is pressed, the adjustment OSD

cycles through bars for picture control,

fm modulator, osd language, irt on/o,

and default dvd on/o (M1) or default av

auto on/o (M2)�

11. UP/DOWN/LEFT/RIGHT Arrows

Press these buttons to navigate the menu

selection on the screen� (Figure 10)

12. DISPLAY(HR8AD)

Press this button to display current disc

information while the disc is playing�

Press UP/DOWN arrow buttons to select

the Title or Chapter� For Title/Chapter

selection, use the numeric buttons to

enter the desired Title/Chapter selection�

(Figure10)

13. ENTER

Press this button to make an OSD

selection or begins playback of the

DVD,USB� (Figure120)

14. SETUP (Unit must be set DVD source)

Press this button to navigate the Setup

Menu� Please refer to the following pages

to congure the system: General Setup

Page, Audio Setup Page, Preference

Page, and Password Setup Page� (Figure

10)(HR8AD)

15. REPEAT

Press this button to switch the repeat

mode by CHAPTER, TITLE, ALL and

cancel while playing DVD-video� Other

disc types such as VCD, CD, and SVCD

that only have two repeat modes that

can be selected: TRACK and ALL

Note: Both repeat functions of VCD and

SVCD need the PBC status set to ON

when available� (Figure 10)

16. A-B REPEAT

No function on this model� (Figure 10)

17. SUBTITLE

No function on this model� (Figure 10)

18. Numbers(HR8AD)

Decimal number: 0 to 9; and +100: Add

100� Used for selecting tracks on a disc�

19. ZOOM(HR8AD)

Press this button to enlarge the picture

12

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

REMOTE CONTROL OPERATION (continued)

when playing a DVD disc�Press repatedly

to change the zoom from 2x,3x,4xand o

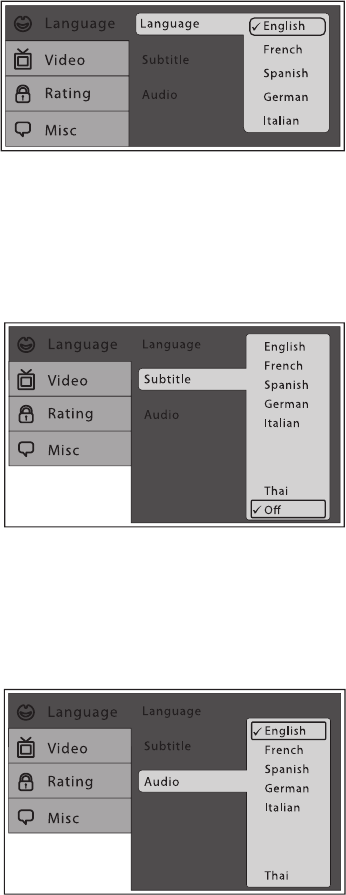

20. AUDIO(HR8AD)

Press this button to display and select

the available AUDIO languages in DVD

mode� Each time you press the button,

the language changes�

Note: The audio languages vary from

disc to disc� (Figure10)

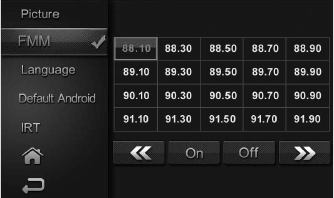

21. FMM Modulator channel select(c)

No function on this model�

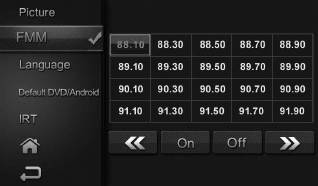

22. FMM ON/OFF

This button is used to turn the wireless

FM Modulator ON and OFF� (Figure 10)

23. IRT ON/OFF

This button is used to turn the Infrared

Transmitter ON and OFF for Wireless

IR Headphones� Pressing M1 then the

IRT ON/OFF button will control the IR

Transmitter for M1� Pressing M2 then

the IRT ON/OFF button will control the

IR Transmitter for M2� (Figure 10)

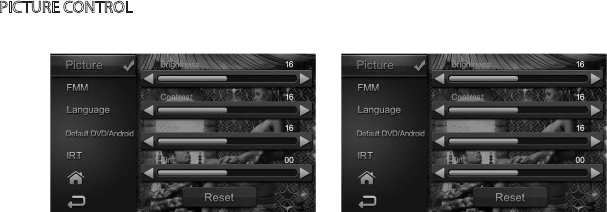

24. PIX

This button is used to make picture

adjustments�Each time the button

is pressed,the adjustment OSD

cycles through bars for BRIGHTNESS

CONTRASR,COLOR,TINT,AND RESET�

Once the desired adjustment bar is

displayed,use the UP/DOWN button

to adjust the setting�The bar display

will automatically disappear if no

adjustments are made within 6 seconds

or if any button is pressed�(Figure10)

25. VOLUME DOWN(-)or UP(+)

Only function on HR8A and HR8AD�

26. MUTE

Press this button to mute the sound

transmitted to the headphones� “MUTE”

will be displayed on the screen� Pressing

the button again restores sound to the

previously set level� (Figure10)

27. DISC MENU(HR8AD)

Press this button to access the menu of

the DVD in play� (Figure10)

28. STOP(HR8AD)

Press this button to stop playback of disc�

(Figure 10)

29. PAUSE Button(HR8AD)

Press this button to pause the playback of

a disc� Pressing pause again or pressing

the Play button will resume normal

playback� (Figure10)

30. DVD Source

No function on this model�

31. DVD Mode Select(HR8AD)

Press this button to control DVD

functions� (Figure10)

32. EJECT(HR8AD)

Press this button to eject the disc from

the disc slot� (Figure10)

13

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Source Select

When Source select is selected,the main menu screen appear to allow user to select the

desired source or select setting to go to the system menu�

The System Menu allows the user to personalize the VOXX Rear Seat video headrest system

settings� It is used in the initial setup to adjust the picture quality and customize an adjustable

functions� Once the initial settings are customized, they will remain the same until modied

or reset to the factory default settings�

This section describes how to adjust and set settings using the nine setup screens :

Using the System Menu

Navigating and selecting available settings in the System Menu is accomplished using the

Remote Control buttons �(Figure 12)

Follow the steps outlined in this section to select and customize each of the nine adjustable

functions (Sub-Menus) listed above, and refer to the sections that apply�

NOTE: Press the SOURCE button to access the Main Menu.

Figure 12

SYSTEM MENUHR8A

HR8A(M1) HR8A(M2)

Figure 11

SYSTEM

MENU UP,DOWN,

LEFT and

RIGHT

DIRECTION

BUTTONS

ENTER

BUTTON

14

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

SYSTEM SUBMENUS

1� Press the SYSTEM MENU button on the remote control (Figure 12) to show the MAIN

MENU�

2� Use the UP/DOWN direction buttons to select the desired setting in the Main Menu screen

and press the ENTER button or SOURCE button to select the Sub-Menu screen� NOTE:

Selected Items in the Main Menu and the Sub-Menus will be highlighted in yellow .

3� Use the UP, DOWN, LEFT and RIGHT direction buttons to select an item in the Sub-Menu

screen and then press the ENTER button to select�

4� To exit Main Menu screen or the Sub-Menu screens at anytime, press the System MENU

button on the remote control or touch the button on the front panel�

SYSTEM SETUP MENU HR8A continued)

15

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

PICTURE CONTROL

PICTURE CONTROL from the Front Panel (M1 and M2) (Figure13):

1� Touch the SOURCE button on the front panel of the system to show the Main Menu�

2� Click to select Picture Control and enter the sub-menu�

3� Click UP or DOWN to select one of the four setting in the Sub-

Menu (Brightness, Contrast, Color, Tint and Reset)� Using the

LEFT/RIGHT direction buttons, adjust the level of the picture setting chosen�

NOTE: Levels are set from “0” to “32” for Brightness, Contrast and Color. The levels for Tint

is set from “-16” to “+16” . No Tint Control in PAL Mode.

PICTURE CONTROL from the Remote Control:

1� Select “M1” or “M2” and press the PIX button to select Picture Control.

2� Use the UP/DOWN direction buttons to select one of the four setting

in the Sub-Menu (Brightness, Contrast, Color, Tint and Reset)� Using the

LEFT/RIGHT direction buttons, adjust the level of the picture setting chosen�

NOTE: Levels are set from “0” to “16” for Brightness, Contrast and Color. The levels for Tint

is set from “-16” to “+16”. No Tint Control in PAL Mode.

3� Select reset to return the picture setting control back to factory defaults�

Figure 13

SYSTEM SETUP SUBMENUS (HR8Acontinued)

HR8A(M1) HR8A(M2)

16

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

FM CHANNEL

FM CHANNEL from the Front Panel (M1 Only) (Figure 14):

1� Touch the SOURCE button on the front panel of the system (Figure22) to show the Main

Menu�

2� Click UP/DOWN to select FM Modulator and to enter the sub-menu�

3� Click UP/DOWN to select FM Channel and to enter selection�

4� Click UP/DOWN/LEFT and RIGHT to select the best channel/frequency from a four page

list of one hundred possibilities then direct into the selection�

5� When a channel/frequency is selected, the FM Modulator screen will display the channel/

frequency the system is set to�

NOTE:

WHEN CHOOSING A CHANNEL SHOULD FIRST SELECT ONE CHANNEL

ACCORDING TO THE CONFIRMED REAR CAN SWITCH TO OTHER

OPTIONS .

SYSTEM SETUP SUBMENUS (HR8A continued)

Figure 14

17

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

SYSTEM SETUP SUBMENUS (HR8A continued)

FM Channel From the Remote Control (Figure 15):

1� Select “M1” on the Remote Control�

2� Press the System Menu button then use the UP/DOWN direction buttons to select

FM Modulator and press the Enter button to enter the FM Modulator sub-menu�

3� Use the UP/DOWN/LEFT and RIGHT direction buttons to select the best channel/

frequency from a ve page list of one hundred possibilities then press the ENTER button

to enter selection� NOTE: When a channel/frequency is selected, the FM Modulator screen

will display the channel/frequency the system is set to.

FM ON/OFF Direct Access Button on the Remote Control (Figure15):

1� Press the FMM ON/OFF button on the remote control to turn the FM Modulator ON and

OFF� When ON is selected, the channel/frequency (FMM xxxxMHz) the system is set to will

be displayed on the lower left-side of the main screen� When OFF is selected, FMM OFF

will be displayed on the lower left-side of the main screen� (Figure15)

FMM ON/OFF

BUTTON

FMM CHANNEL

SELECT

Figure 15

18

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

LANGUAGE

LANGUAGE from the Front Panel (M1 and M2) (Figure16):

1� Click the SOURCE button on the front panel of the system to show the Main Menu�

2� Click UP/DOWN to select Language and enter the sub-menu�

3� Click UP/DOWN direction buttons to select the desired language then to save the setting�

LANGUAGE from the Remote Control

4� Select “M1” on the Remote Control�

5� Press the SYSTEM MENU button then use the UP/DOWN direction buttons (gure 26) to

select Language and press the OK button to enter the Language sub-menu�

6� Use the UP/DOWN direction buttons to select the desired language then press the

OK button to save the setting�

SYSTEM SETUP SUBMENUS (HR8A continued)

Figure 16

19

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

DEFAULT ANDRIOD ON/OFF

With the “Default ANDROID ON” feature selected, the unit will default to ANDROID Mode each

time the system is turned ON� For example, if the user is playing a game and the system is

turned OFF, the next time the system is turned ON, it will power-up in ANDROID Mode.

Default ANDROID ON/OFF from the Front Panel (Figure 17 ):

1� Touch the SOURCE button on the front panel of the system to show the Main Menu.

2� Click UP/DOWN direction buttons to select DEFAULT ANDROID ON/OFF and to enter the

sub-menu�

3� Click UP/DOWN direction buttons to select DEFAULT ANDROID ON or OFF and to enter

selection�

Default ANDROID ON/OFF from the Remote Control

1� Select “M1” or “M2” on the Remote Control�

2� Press the System Menu button then use the UP/DOWN direction buttons to select

DEFAULT ANDROID ON/OFF and press the OK button to enter the sub-menu�

3� Use the UP/DOWN direction buttons to select DEFAULT ANDROID ON OR OFF and press

the OK button to make the selection�

Figure 17

SYSTEM SETUP SUBMENUS (HR8A continued)

20

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

IRT ON/OFF

IRT ON/OFF (M1 and M2 ) from the Front Panel(Figure 18):

1� Touch the SOURCE button on the front panel of the system to show the Main Menu�

2� Click UP/DOWN to select IRT ON/OFF and enter the sub-menu�

3� Click UP/DOWN to select IRT ON or OFF and � When ON is selected, IRT ON will be

displayed on the System Menu screen� When OFF is selected, IRT OFF will be displayed on

the System Menu screen�

IRT ON/OFF (M1 and M2) from the Remote Control

4� Select “M1” or “M2” on the Remote Control�

5� Press the System Menu button then use the UP/DOWN direction buttons to select IRT

ON/OFF and press the OK button to enter the sub-menu�

6� Use the UP/DOWN direction buttons to turn the IRT ON or OFF and press the

OK button to enter selection� When ON is selected, IRT will be displayed on the System

Menu screen� When OFF is selected, IRT OFF will be displayed on the System Menu screen�

IRT ON/OFF Direct Access Button on the Remote Control

7� Select M1 or M2 on the Remote Control�

8� Press the IRT ON/OFF button to turn the IRT ON or OFF� When ON is selected, IRT ON will

be displayed on the System Menu screen� When OFF is selected, IRT OFF will be displayed

on the System Menu screen and will disappear from screen within 5sec - 6sec�

Figure 18

SYSTEM SETUP SUBMENUS (HR8A continued)

21

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

SYSTEM SETUP SUBMENUS (HR8A continued)

HOME

Select this button will return to Main Menu�

BACK

Select this button will return to ANDROID MODE�

Figure19

22

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

ANDROID MODE (HR8A /HR8AD)

Navigation Organize

On the Home screen

Swipe left or right to select a screen

Access apps

and widgets

Go to the Home screen

Adding apps to the Home screen

Moving apps

Deleting apps

Back one level or exit

Switch to open application

Search the internet or the unit

Drag up the bottom bar to check events�

For quick access, organize icons, shortcuts,

and widgets on the Home screen pages�

Power control widget:

On/O switches for Wi-Fi®, Bluetooth®,

background sync (for some apps, like mail),

battery life, and screen brightness�

23

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

ANDROID MODE (HR8A /HR8AD continued)

Language Selection Connect to Wi-Fi®

Language & input

To access the Language and Input Controls:

1� Select the Settings Menu app�

2� Scroll down the settings options� Select

Language & input�

3� From there, select the desired language,

spell check, Text-to-speech controls, and

mouse pointer speed�

To connect the Model HR8A/HR8AD to the

internet via Wi-Fi:

1� Access Wi-Fi in the Settings menu�

2� Slide the Wi-Fi switch to ON to view

available networks�

3� Select an available Wi-Fi network�

24

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

ANDROID MODE (HR8A /HR8AD continued)

Google™ Account Setup

Getting Started with the HR8A/HR8AD

Google Play™

A Google™ account allows access to all your personal information from any computer or

mobile device�

Google Play™: Google Play™ allows access to all your favorites such as movies, books, music,

magazines, apps, and more�

Synchronize and back up: Makes your information accessible across all computers and

mobile devices�

Access Anywhere: Check all your personal information from any computer or mobile device

such as email, calendar, contacts, etc�

To launch the Google Play Store app, touch the Play Store icon in

your Home screen�

Anything purchased on Google Play™ using the HR8A/HR8AD will be

available on any of your Android™ devices�

Note: Previous Google Play™ purchases are available on the HR8A/

HR8AD as long as the same Google™ account is used�

When prompted, sign in using the email address and password

created for your Google™ account�

An email address from the following services allows access to

Google play:

> Gmail™

> Google Apps™

> Google Plus™

> YouTube™

> Adwords™

25

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Source Select

When Source select is selected,the main menu screen appear to allow user to select the

desired source or select setting to go to the system menu�

The System Menu allows the user to personalize the VOXX Rear Seat video headrest

system settings� It is used in the initial setup to adjust the picture quality and

customize an adjustable functions� Once the initial settings are customized,

they will remain the same until modied or reset to the factory default settings�

NOTE: System Menu changes are best made without a DVD inserted into the unit.

This section describes how to adjust and set settings using the six setup screens :

Using the System Menu

Navigating and selecting available settings in the System Menu is accomplished using the

Remote Control buttons (Figure 21 ), or the Front Panel buttons �

Follow the steps outlined in this section to select and customize each of the nine adjustable

functions (Sub-Menus) listed above, and refer to the sections that apply�

NOTE: Press the SOURCE button to access the Main Menu.

Figure 21

SYSTEM MENUHR8AD

HR8AD (M1) HR8AD (M2)

Figure 20

SYSTEM

MENU UP,DOWN,

LEFT and

RIGHT

DIRECTION

BUTTONS

ENTER

BUTTON

26

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

SYSTEM SUBMENUS

1� Press the SYSTEM MENU button on the remote control (Figure 33) or Press the SOURCE

button on the front panel of the system to show the MAIN MENU�

2� Use the UP/DOWN direction buttons to select the desired setting in the Main Menu screen

and press the ENTER button or SOURCE button to select the Sub-Menu screen� NOTE:

Selected Items in the Main Menu and the Sub-Menus will be highlighted in yellow.

3� Use the UP, DOWN, LEFT and RIGHT direction buttons to select an item in the Sub-Menu

screen and then press the ENTER button to select�

4� To exit Main Menu screen or the Sub-Menu screens at anytime, press the System

MENU button on the remote control or the SOURCE button on the front panel�

SYSTEM SETUP MENU HR8AD continued)

27

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

PICTURE CONTROL

PICTURE CONTROL from the Front Panel (M1 and M2):

1� Touch the SOURCE button on the front panel of the system to show the System Menu�

2� Click UP/DOWN to select Picture Control and to enter the sub-menu�

3� Click UP or DOWN to select one of the four setting in the Sub-

Menu (Brightness, Contrast, Color, Tint and Reset)� Using the

LEFT/RIGHT direction buttons, adjust the level of the picture setting chosen�

NOTE: Levels are set from “0” to “32” for Brightness, Contrast and Color. The levels for Tint

is set from “-16” to “+16” . No Tint Control in PAL Mode.

PICTURE CONTROL from the Remote Control:

1� Select “M1” or “M2” and press the PIX button to select Picture Control.

2� Use the UP/DOWN direction buttons to select one of the four setting

in the Sub-Menu (Brightness, Contrast, Color, Tint and Reset)� Using the

LEFT/RIGHT direction buttons, adjust the level of the picture setting chosen�

NOTE: Levels are set from “0” to “16” for Brightness, Contrast and Color. The levels for Tint

is set from “-16” to “+16”. No Tint Control in PAL Mode.

3� Select reset to return the picture setting control back to factory defaults�

Figure 22

SYSTEM SETUP SUBMENUS (HR8AD continued)

Note: Picture control settings for DVD mode are separate from the other A/V

sources� After adjusting the DVD picture controls, the user can make separate

settings for the other A/V sources�

HR8AD(M1) HR8AD(M2)

28

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

FM CHANNEL

FM CHANNEL from the Front Panel (M1 Only) (Figure 23):

1� Press the SOURCE button on the front panel of the system to show the Main Menu�

2� Click UP/DOWN to select FM Modulator andto enter the sub-menu�

3� Click UP/DOWN to select FM Channel and to enter selection�

4� Click UP/DOWN/LEFT and RIGHT to select the best channel/frequency from a four page

list of one hundred possibilities thendirect into the selection�

5� When a channel/frequency is selected, the FM Modulator screen will display the channel/

frequency the system is set to�

NOTE:

WHEN CHOOSING A CHANNEL SHOULD FIRST SELECT ONE CHANNEL

ACCORDING TO THE CONFIRMED REAR CAN SWITCH TO OTHER

OPTIONS .

SYSTEM SETUP SUBMENUS (HR8AD continued)

Figure 23

29

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

FM Channel From the Remote Control (Figure 24):

1� Select “M1” on the Remote Control�

2� Press the System Menu button then use the UP/DOWN direction buttons to select

FM Modulator and press the Enter button to enter the FM Modulator sub-menu�

3� Use the UP/DOWN/LEFT and RIGHT direction buttons to select the best channel/

frequency from a ve page list of one hundred possibilities then press the ENTER button

to enter selection� NOTE: When a channel/frequency is selected, the FM Modulator screen

will display the channel/frequency the system is set to.

FM ON/OFF Direct Access Button on the Remote Control (Figure 24):

1� Press the FMM ON/OFF button on the remote control to turn the FM Modulator ON and

OFF� When ON is selected, the channel/frequency (FMM xxxxMHz) the system is set to will

be displayed on the lower left-side of the main screen� When OFF is selected, FMM OFF

will be displayed on the lower left-side of the main screen� (Figure24)

FMM ON/OFF

BUTTON

FMM CHANNEL

SELECT

Figure 24

SYSTEM SETUP SUBMENUS (HR8AD continued)

30

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

LANGUAGE

LANGUAGE from the Front Panel (M1 and M2) (Figure 25):

1� Click the SOURCE button on the front panel of the system to show the Main Menu�

2� Click UP/DOWN to select Language and enter the sub-menu�

3� Click UP/DOWN direction buttons to select the desired language then to save the setting�

LANGUAGE from the Remote Control

4� Select “M1” on the Remote Control�

5� Press the SYSTEM MENU button then use the UP/DOWN direction buttons to select

Language and press the OK button to enter the Language sub-menu�

6� Use the UP/DOWN direction buttons to select the desired language then press the

OK button to save the setting�

SYSTEM SETUP SUBMENUS (HR8AD continued)

Figure 25

31

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

DEFAULT DVD/ANDROID ON/OFF

With the “Default DVD/Android ON” feature selected, the unit will default to DVD or Android

Mode each time the system is turned ON� For example, if the user is playing a game and the

system is turned OFF, the next time the system is turned ON, it will power-up in DVD or Android

Mode.

Default DVD/Android ON/OFF from the Front Panel :

1� Touch the SOURCE button on the front panel of the system to show the Main Menu.

2� Click UP/DOWN to select DVD/ANDROID /OFF �

Default DVD ON/OFF from the Remote Control

1� Select “M1” or “M2” on the Remote Control�

2� Press the System Menu button then use the UP/DOWN direction buttons to select

DEFAULT DVD ON/OFF and press the ENTER button to enter the sub-menu�

3� Use the UP/DOWN direction buttons to select DEFAULT DVD ON OR OFF and press the

OK button to make the selection�

Figure 26

SYSTEM SETUP SUBMENUS (HR8AD continued)

32

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

SYSTEM SETUP SUBMENUS (HR8AD continued)

IRT ON/OFF

IRT ON/OFF (M1 and M2 ) from the Front Panel(Figure 27):

1� Touch the SOURCE button on the front panel of the system to show the Main Menu�

2� Click UP/DOWN select IRT ON/OFF and enter the sub-menu�

3� Click the UP/DOWN to select IRT ON or OFF and

to enter selection� When ON is selected, IRT ON will be displayed on the System Menu

screen� When OFF is selected, IRT OFF will be displayed on the System Menu screen�

IRT ON/OFF (M1 and M2) from the Remote Control

4� Select “M1” or “M2” on the Remote Control�

5� Press the System Menu button then use the UP/DOWN direction buttons to select IRT

ON/OFF and press the Enter button to enter the sub-menu�

6� Use the UP/DOWN direction buttons to turn the IRT ON or OFF and press the

ENTER button to enter selection� When ON is selected, IRT will be displayed on the System

Menu screen� When OFF is selected, IRT OFF will be displayed on the System Menu screen�

IRT ON/OFF Direct Access Button on the Remote Control

7� Select M1 or M2 on the Remote Control�

8� Press the IRT ON/OFF button to turn the IRT ON or OFF� When ON is selected, IRT ON will

be displayed on the System Menu screen� When OFF is selected, IRT OFF will be displayed

on the System Menu screen and will disappear from screen within 5sec - 6sec�

Figure 27

33

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

SYSTEM SETUP SUBMENUS (HR8AD continued)

HOME

Select this button will return to Main Menu�

BACK

Select this button will return to ANDROID MODE�

Figure28

Figure29

34

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

The DVD Playback Setup Menu contains features and options that allows the user to

customize the DVD player� For example, the user can set a language for the on-screen

display or prevent DVD playback for children�

USING THE SETUP BUTTON ON THE REMOTE CONTROL

1� Press the SETUP button on the remote� The DVD Setup Menu appears on the screen with

four major setup option pages� (Figure 30)

2� Use the UP/DOWN direction buttons to highlight the desired setup option page�

3� Use the RIGHT direction button to enter the desired setup option page�

4� Use the UP/DOWN direction buttons to select the desired options and press Enter to

conrm the selection�

5� Repeat steps 3~4 to continue setting all available options in the setup option page�

6� To select a dierent Setup Option Pages, press the LEFT direction button to return to the

Setup Menu�

7� Repeat steps 2~5 for each of the Setup Option Pages�

8� Press the SETUP button on the remote control again to exit Setup Menu and save changes�

DVD PLAYBACK SETTINGS AND ADJUSTMENTS(HR8AD)

Figure30

Figure31

35

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

LANGUAGE SETUP

Language (for On-Screen Display (OSD): The Language setup option page allows the user to

select the language for the OSD� The user can either select English, French, Spanish, German

or Italian for the OSD language� (Figure 32)

Subtitle: The Subtitle setup option page allows the user to select the language for

the OSD� The user can either select English, French, Spanish, German, Italian, Chinese,

Japanese, Thai or OFF to be displayed on the screen during playback of a disc�

Note: The subtitle selection is only available for discs that are recorded in the above listed

languages. If the selected, language is not available, the player will play and display on the

screen the original language contained in the disc� (Figure33)

Audio: The Audio setup option page allows the user can select the audio language (English,

French, Spanish, German, Italian, Chinese, Japanese or Thai)� (Figure 34)

Note: The audio selection is only available for discs that are recorded in the above listed

languages. If the selected, language is not available, the player will play and display on the

screen the original language contained in the disc.

Figure 32

Figure33

Figure34

SETTINGS AND ADJUSTMENTS (continued)

36

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

VIDEO SETUP

TV Display: The TV Display setup option page allows the user to adjust screen aspect ratio to

either 4:3 or 16:9� (Figure 35)

4:3) Displays a wide picture with black bands on the upper and lower portions of the

screen�

16:9) Displays a wide picture with black bands on the upper and lower portion of the

screen� The bandwidth will vary, depending on the aspect ratio of the disc�

TV Type: The TV TYPE setup allows the user to match the video output of the player to the

broadcast system of a connected TV� This system supports both National Television System

Committee (NTSC) and Phase Alternating Line (PAL) television broadcasting standards�

(Figure 36)

NTSC) Select this mode if the connected TV is a NTSC system� The video signal of a PAL disc

will be converted to NTSC format

PAL) Select this mode if the connected TV is a PAL system� The video signal of a NTSC disc

will be converted to PAL format

Multi) Select this mode if the connected TV is a multi-system� The video signal format of a

will be in accordance with the video signal of the disc

NOTE: For best performance, this setting should remain at NTSC.

Figure35

Figure36

DVD PLAYBACK SETTINGS AND ADJUSTMENTS (HR8AD)

37

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

RATING SETUP

Rating: The Rating setup option page allows the user to limit the content of movie playback

(G, PG, PG–13, R, NC– 7 and Adult)� The lower the value, the more strict the control� The rating

level can only be changed using a parental control password� For rst time use the default

parental control password is 3308 using UP directional button to enter parental mode, key in

the default password (3308) and press ENTER� Press ENTER again to select the parental level,

select the level and press ENTER (Figure37)� To change the password to your own password

press “Change Password” mode and enter the default password (3308) and press ENTER� Press

ENTER and again and key in a new four digit password� After complete press ENTER to end the

process� (Figure 38)

Note: The Default Password is 3308. This password is always eective even after you have

selected your own password and changed it. To avoid the possibility of others using the

default password to set the parental level and change the password, you can record this

default password in another area and delete it from this manual. Some discs can be limited

depending on the age of users while some discs cannot.

Figure 38

Figure37

SETTINGS AND ADJUSTMENTS (HR8AD)

38

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Misc SETUP

Misc Setup: Select “MISC” using the UP/DOWN direction buttons, then press the RIGHT

direction button to enter the Misc menu� Select the subtitle you desire using the UP/DOWN

direction buttons, then press “ENTER” to conrm the setting� Press the LEFT direction button

to return� (Figure 39)

Load Factory: Load Factory allows you to reset all options to factory settings� * This function

will not aect the Rating control settings� (Figure 40)

Screen Saver

ON -Screen saver will appear

OFF -Screen saver will not appear

Note: The DVD player will enable the Screen Saver mode if the unit is inactive for approximately

2 minutes. (Figure41)

SETTINGS AND ADJUSTMENTS (HR8AD)

Figure 39

Figure 40

Figure 41

39

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

1. Audio Inputs

An external video source, video game system, or other audio/video devices can be

connected to the AV input� This AV input connection is normally performed when the

unit is installed� Turn the video source component on with its power button or remote

control and it is now ready to play the audio and video signals from the source connected

to the AV input�

2. Audio Output

The Audio output will provide the Audio signal from the M1 unit� This output can be

heard on the Built-In Wireless Modulator�

3. HDMI/MHL

The HDMI inputs allow the user to enjoy high-denition digital images and high-quality

sound by connecting a HD device such as a Blu-ray player or smartphone with an HDMI

output to the system�The HDMI inputs also allow the user to connect with a Mobile High-

Denition Link(MHL)mobile phone�Plug in the HDMI/MHL device with a special adapter

available from you mobile phone provider�

Notes:

 •This souce requires an HDMI/MHL enabled device and a special HDMI/MHL adapter.

Contact your HDMI/MHL device supplier for the adapter�

 •Phonefunctionality(phonecalls,texting,etc)maybelimitedwhileusingtheadapter.

 •HDMIcontentisavailableontheAVoutput.

•Inputaudiosignal:2channel

•Inputvideosignal:480p,480i,576p,576i,720p,1080i,and1080p.

AV INPUTS,AV OUTPUTS AND HDMI/MHL

40

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

To get the optimum use out of the DVD player, make sure you read this section completely�

Types of Discs your DVD Player will play

• DVD* disc - DVD discs that contain video�

• Audio disc - Audio CDs that contain musical or sound content only�

• MP3 disc - A disc that contains audio les (for example, a CD-R with

downloaded MP3 les)�

*This system is capable of playing most recordable DVD formats� However, due to

the variety of disc manufacturers and software, playback cannot be guaranteed�

Loading and Playing Discs

Before you load a disc, make sure that it is compatible with the player� Insert the disc with the

disc label facing toward the driver�

Note: The following Discs CANNOT be used with this player:

• Mini-Disc

• Laserdisc

• CD-1, CD-ROM, DVD-ROM, Super Audio CD (SACD), DVD Audio, JPEG,

BD (Blu-ray Disc)�

To load and Play a Disc

1� Press the Power button to turn the unit ON�

2� Select DVD mode and insert the disc (label facing user) into the disc compartment�

3� Push down gently on the disc and the player will pull the disc in�

DISC BASICS  HR8AD 

41

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

PLAYBACK OF MEDIA

PLAYING DVD’s

1� Press the DISPLAY button on the remote control to display the status banner� The

banner include Title, Chapter, Angle, Audio, Subtitle, Audio, Subtitle, Title selection & Chapter

selection�

2� Title Selection

Press the Number (0~9) buttons to initiate a change of title selection, then press ENTER

to implement the selection�

3� Chapter selection

Press the Number (0~9) buttons to initiate a change of chapter selection, then press

ENTER to implement the selection� As you toggle through the options, the repeat option

changes at that time� The track, for example, repeats once that track has ended� The

selected repeat option loops repeatedly until you turn it o�

PLAYING USB’s

1� The System will detect the insertion of the USB media automatically if no disc is loaded�

The system only auto detects the rst media inserted (USB drive); the second media

source can be manually selected by pressing the DVD Source button on the remote

control�

2� When a disc is inserted, the system will switch to DVD mode immediately regardless if

USB media is currently playing�

3� The DVD source (DVD or USB) can only be changed while the DVD is not playing�

4� This system cannot support more than 2 memory partitions on the USB thumb drive�

Note: The system will always default to the DVD when the system detects a disc in the

DVD player.

PLAYING MP3 DISC’s

CD-R discs that have been encoded in MP3 format can be played on your DVD player� The DVD

player plays the songs in the order they were burned on to the disc� When playback is started

the elapsed time of the track that is playing will be displayed�

Selecting Folders and Songs

When a device containing MP3 les is loaded in the player, the navigation menu appears

automatically�

1� Use the UP/DOWN direction buttons to move the highlight to the desired folder

(if present) on the left side of the menu and press ENTER� The songs in the folder will be

displayed on screen�

2� Use the UP/DOWN direction buttons to highlight the desired track containing the song

and Press ENTER to begin track playback�

42

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Skipping Songs

Use the NEXT button on the remote control to move to the next song� Use the Previous button

to move to the previous song�

Selecting a Play Mode

Filter (For MP3 & JPEG only)

Filter Mode enables or disables the display of les contained on the media based on their le

extension� (Figure 42)

The lter function applies to the following formats:

Audio - Audio data format (MP3, WMA)

Photo - Photo data format (JPEG)

Video - Video data format (MPEG)

Flat Mode: play the entire disc

This mode is always on (default)� During the Flat Mode, all the data folder with MP3, JPEG &

Movies will be played in sequence� If the Flat Mode function is o, it will only play the selected

folder; other folders are disabled� (Figure 43)

PLAYBACK OF MEDIA (continued)

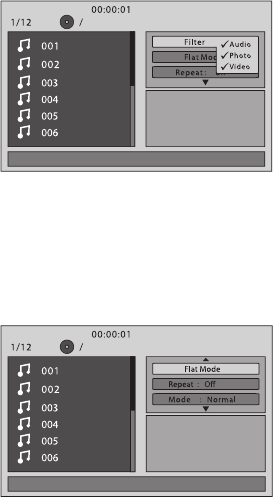

Figure 42

Figure43

43

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Repeat: Play Repetitively

Repeat function has 4 options : O, Single, Folder and All� Move cursor to Repeat Function and

press ENTER, each time ENTER is pressed the unit will cycle through the available options (O/

Single/Folder and All are displayed in that order)� Repeat default is OFF; (Figure44)

O Turn o repeat function

Single Repeat the song being played until STOP is pressed�

Folder Play all songs in a folder repetitively

All Play all songs on the disc repetitively

Mode: Play Mode

The Mode function has 4 options: Normal, Shue, Random and Music Intro� Move cursor

to the Mode function area and press ENTER repeatedly till the desired mode is displayed�

Normal/Shue/Random/Music Intro are displayed in that order� The Mode function default

is Normal� (Figure45)

Normal: Play all songs in folder once�

Shue: Play songs in a folder in a shue order� Each song in the folder is played only once�

Random: Play songs in a folder in a random order� Each song in a folder will only be played

once�

Music Intro: Play each song in order in the folder for 10 seconds The purpose of the “Music

Intro” function is to provide the user with a sample of each song for 10 seconds, thereby

making it easy to select and listen to a favorite song�

Figure 44

Figure45

PLAYBACK OF MEDIA continued

44

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Add to program

Method: To add the selected songs into Browser view, make sure disc playback is OFF� Move

cursor to “Edit Mode” function and press ENTER� After “Edit Mode” is selected, move cursor to

songs list and select the songs which will be compiled and press ENTER� A check mark appears

to the left of the selected song; to add the selected songs to the program, move cursor to the

“Add to Program” function and press ENTER� The selected songs is added into a new program

list and the check mark will disappear on play list, move cursor to “Program View” function

and press ENTER to browse the songs in the program� Press PLAY button to play the selected

songs� (Figure46)

Note: Edit Mode, Program View or Add to Program functions are relationship related when

selecting the preferred song add to the songs list.

Clear program

Method: To clear the selected song les, press the STOP button twice during playback mode�

Move the cursor to the “Edit Mode” function and press ENTER� After “Edit Mode” is selected,

move cursor to selected songs list and select the songs you want to delete� Press ENTER and a

check mark will appear to the left of the selected song� Move the cursor to clear program and

press ENTER, the selected songs will be deleted from the play list� (Figure 47)

PLAYBACK OF MEDIA continued

Figure46

Figure 47

45

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

The DVD player is preset to a region code at the factory depending on where the DVD player

is sold� DVDs from a dierent region cannot be played in this unit and the unit will display

“WRONG REGION”� (Figure48 )

Region 1- USA, Canada

Region 2- Japan, Europe, South Africa, Middle East, Greenland

Region 3- S� Korea, Taiwan, Hong Kong, Parts of South East Asia

Region 4- Australia, New Zealand, Latin America (including Mexico)

Region 5- Eastern Europe, Russia, India, Africa

Region 6- China

DVD REGION CODESHR8AD

Figure 48

24

46

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Battery Installation (Figure 49)

Before attempting to operate your remote control, install the batteries

as described below:

1. Turn the game controller face down. Using your nger, lift the battery

cover tab and remove the cover.

2. Install three “AAA” batteries. Make sure that proper polarity

(+ or -) is observed.

3. Align the cover tab with the game controller and press down on the

cover tab until the cover locks.

CAUTION:

The Game Controller will go into a sleep mode after 3 minutes if no buttons are pressed� Do not

store the game controller in a seat pocket where the buttons may be inadvertently pressed�

GAME CONTROLLER OPERATION

Figure 49

47

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

UP

DOWN

LEFT

RIGHT

SELECTSTA RT

B

A

TB

TA

P1

STARTSELECT

DIRECTION

BUTTONS

LED-POWER

INDICATOR

A

TA

TB

BACK

B

UP

DOWN

LEFT

RIGHT

SELECTSTART

B

A

TB

TA

P2

Functional Description (Figure 50)

1� Use the START button to enter the games list (1-54). Then use the direction

buttons to move the arrow to the desired game. Press the START button to select

the game. Use the SELECT button to exit to the game list.

2� A Key: “A Function Key” activates the jump function and optional weapons�

3� B Key: “ B Function Key” activates the re and attack functions�

4� TA Key: TURBO “A” Function Key�

5� TB Key : TURBO “B” Function Key�

6� BACK Key: The Back key is used to return to the previous page� While playing a game

pressing the Back button will return to the games list� Pressing the Back button again will

return to the games main page “54 Arcade Games”�

7� Press the START button to begin the game� Press the START button again at any time to

pause the game�

NOTE: The LED power indicator will light only when a game controller key is pressed.

There are 54 games in the games list to choose from and 6 are for two players.

One-Player

The games can be selected from either the M1 monitor or the M2 monitor. Whichever

viewer selects the game source becomes Player 1 (and uses the P1 controller)

Two-Players

When there are two players, the rst user to select the game source uses the P1

controller. Player 2 uses the P2 controller. The P1 controller is used for game

selection. P2 controller can select a game but the game can only be started by

pressing the START button on P1 controller.

Figure50

48

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

TROUBLESHOOTING

Symptom Remedy

Device does not power “ON” • Is the ignition turned “ON”?

• Is the screen rotated to the operating position?

• Are batteries installed in remote control?

IR sensor inoperative • Verify that the batteries in the remote control are good�

• Verify that the remote sensor eye is not obstructed�

• Verify that M1 or M2 has been selected correctly�

Disc won’t play • Insert a disc with label side facing toward user�

• Check if the disc is defective by trying another disc�

• Check the type of disc you put into DVD compartment slot�

This DVD player only plays DVDs, audio CDs, and MP3s� It

will not play a Blu-ray disc�

• Both the device and the disc are coded by region� If the

regional codes don’t match, the disc can’t be played�

Disc plays, but then stops

immediately

• The disc is dirty and needs cleaning�

• Condensation has formed� Allow the player to dry out�

• The disc is scratched� Replace the disc�

No picture • Check that you are in DVD mode if playing a DVD

Distorted picture • Check the disc for ngerprints and clean with a soft cloth,

wiping from center to edge�

• Sometimes a small amount of picture distortion may

appear� This is not a malfunction�

Cannot advance through a

movie

• You cannot advance through the opening credits and

warning information that appears at the beginning of

movies because the disc is programmed to prohibit that

action�

No sound or distorted sound • If you are using the IR headphones, make sure you turn ON

the IR transmitter on the DVD system�

• Verify that the batteries in the IR Headphones are good�

• Is volume turned “UP” on IR Headphones?

• Is anything blocking signal between the monitor and the

Headphones?

• Make sure your DVD player is connected properly� Make

sure all cables are securely inserted into the appropriate

jacks�

• The disc is loaded backwards� Turn the disc around so that

the disc is facing towards the driver�

Device feels warm • When the device is in use for a long period of time, the

surface will be heated� This is normal�

Player does not respond

to all commands during

playback

• Operations are not permitted by the disc�

• Refer to the instructions in the disc inlay�

49

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

SPECIFICATIONS

Monitor Specications

Type TFT Active Matrix LCD

Resolution 2400 (W) x 480 (H)

Pixels 1,152,000

Back Light LED

Power Source +12 VDC

Power Consumption 28W

Operating Temperature 32°F ~ 125°F (0°C ~ +55°C)

Storage Temperature -22°F ~ 150°F (-20°C ~ +70°C)

Video Display System NTSC/PAL

Back Light Life 20,000 hours

50

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

FCC CAUTION

Label requirements

This device complies with part 15 of the FCC Rules� Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation�

Information to user

Any Changes or modications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment�

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules� These limits are designed to provide reasonable

protection against harmful interference in a residential installation� This equipment generates

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications� However, there

is no guarantee that interference will not occur in a particular installation� If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

-Reorient or relocate the receiving antenna�

-Increase the separation between theequipment and receiver�

-Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected�

-Consult the dealer or an experienced radio/TV technician for help�

RF warning for Mobile device

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment� This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body�

51

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

USER NOTES

52

If you have any questions regarding this product or

require technical assistance, please call 1-800-225-6074

Action Electronics 9R3HRD30803 8 inch Android Monitor with DVD User Manual

Action Electronics Co.,Ltd. 8 inch Android Monitor with DVD Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
