Action Electronics 9R3ODM51331 Overhead With Integrated DVD/USB/HDMI(HD) System User Manual

Overhead With Integrated DVD/

USB/HDMI(HD) System

Owner's Manual

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners, they may scratch the screen.

Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the lowest position.

Remember to leave the dome light switch in the off or auto positions when the vehicle

is unattended, as the dome lights, if left on, can drain

the vehicle's battery.

Do not put pressure on the screen.

Caution children to avoid touching or scratching the screen, as it may become dirty or

damaged.

Patented: Refer to www.voxxintl.com/patents

FCC Caution

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits

set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance 20cm

between the radiator & your body.

Congratulations

Safety Precaution

Congratulations on your purchase of DVD Player with drop-down video / monitor.

The MTG10UHD/MTG13UHD has been designed to provide passengers with unlimited

content options delivering smiles for many miles. Please read the directions that follow

to familiarize yourself with the product to ensure that you obtain the best results from

your equipment.

Note: Installation options vary, see the individual owner’s manuals for each component

in your system to obtain a full understanding of each component’s operation.

For safety reasons, when changing video media, it is recommended that the vehicle

is not in motion, and that you do not allow children to unfasten seat belts to change

video media or make any adjustments to the system. System adjustments can be

accomplished using the remote control, while seat belts remain fastened. Enjoy your

entertainment system but remember the safety of all passengers remains the number

one priority.

5

Table of Contents

Features .............................................................................................................6

Controls and indicators diagram(front view) ....................................... 7

Controls and indicators diagram(side view) ......................................... 9

Remote Control Operation .......................................................................10

Remote Control functions ......................................................................... 10

Turning the unit on or oﬀ ..........................................................................15

Source menu ..................................................................................................16

System Menu Setting and Adjustments ..............................................18

Playing DVDs and Audio Discs ................................................................25

Playing USB Devices ....................................................................................25

Playing MP3 Discs ........................................................................................26

DVD Basics ......................................................................................................27

HDMI/MHL Devices ......................................................................................29

USB Input ....................................................................................................... 30

Troubleshooting ...........................................................................................31

Speciﬁcations ................................................................................................. 32

Warranty ..........................................................................................................33

6

• 10.1”/13.3” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display

LED Backlit Monitor

• Built-in DVD Player

• Last position memory for DVD Player

• Six Audio / Video Source Inputs

DVD, USB, AV, AUX, HDMI/MHL 1, HDMI/MHL or SmartStream.

• USB 2.0 Port (User Accessible with Media Playback and Charging support)

• HD Input 1 (User Accessible with MHL support)

• HD Input 2 (Hidden Input via 24Pin Connector - Must be connected during

Installation)

Connection of HDMI/USB Remote access Harness

Connection of SmartStream wireless content streaming Module

• On Screen Display (OSD) for control of picture quality and functions

• Full function remote control

• Plays DVD, CD and MP3 discs

•

199 Channel Wireless FM Modulator

• Dual Channel IR Transmitter

• M1/M2 Operation (for when 2 systems are installed in 1 Vehicle so that IR

Headphone Audio and Remote Control operation is independent)

Features

7

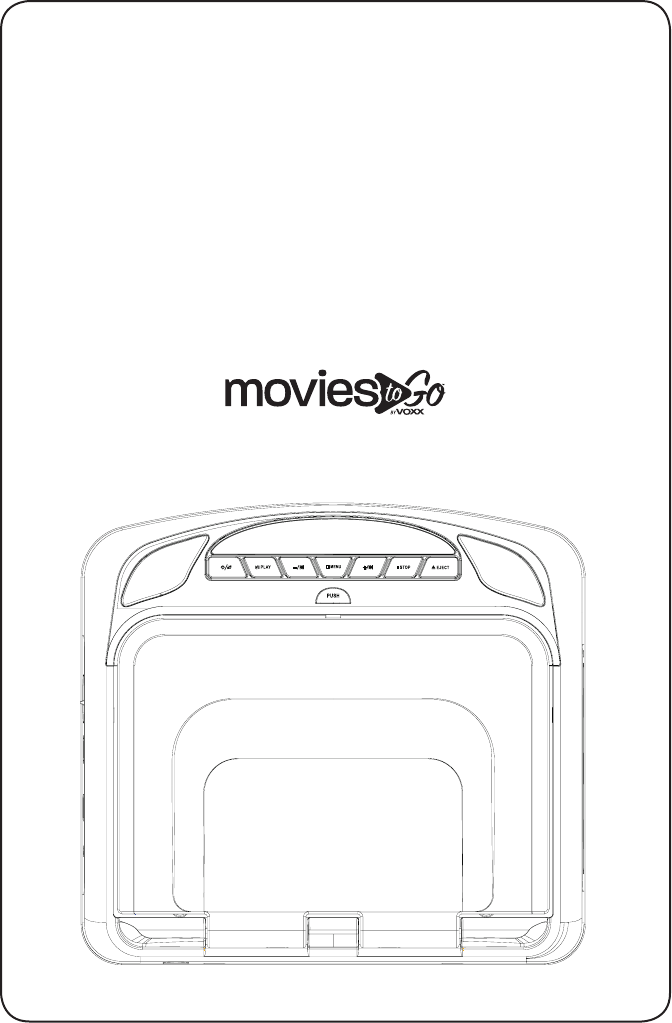

Controls and indicators diagram (front view)

1. POWER/SOURCE ( ) Button

This button is used to turn the system on/oﬀ and to selcet the source .

2. Play/Pause (u/II ) Button

This button is used to start playback of a disc or pause a disc.

3. DOWN / Previous ( ) Button

Short press to select the source mode and system menu pages.

Long press to select previous chapter or track during play the DVD.

4. MENU Select Button

This button is used to display and select options on the system menu.

5. UP/NEXT( ) Button

Short press to select the source mode and system menu pages.

Long press to select next chapter or track during play the DVD.

8

Controls and indicators diagram (front view)-Continued

6. STOP (n) Button

-Press the STOP button once: Stops playback.

- Pressing the PLAY button again will resume normal playback from where movie was

stopped.

- Press the STOP button twice and then press the PLAY button to start playback from the

beginning of the DVD.

7. EJECT ( ) Button

This button is used for ejecting a disc from the disc compartment.

8. Dome Lights

Provide additional interior illumination.

9. Infrared Transmitter/Remote Sensor

IR Transmitter: is used to broadcast audio signal to wireless IR headphones.

IR Sensor: is used to receive signals from the remote control.

10. Screen Release

Push this button to release the screen from the locked position.

11. Ventilation Openings

12. LCD O Switch

Used to turn oﬀ the LCD backlight when the LCD is in the closed position.

13. LCD Panel

9

1. DVD Disc Insertion Slot

For loading and removing discs. When a disc is inserted, the unit will automatically turn ON

and switch to DVD source. Insert a disc with label side facing up.

Note: The disc slot indicator is red when a disc is inserted and green when the disc slot is

empty.

2. AUX IN

This jack is used to supply external audio and video inputs to the unit.

3. USB INPUT

For connection of a USB memory device. This input will also charge a USB device that

contains a battery.

Note: The USB input supplies up to 2A of charging current. (Samsung Mobile Devices

up to 500mA). It is recommended to connect the device to a vehicle power outlet for full

charging capabilities.

4. HD INPUT

For connection of devices with HDMI/MHL outputs.

Note: Requires an HDMI/MHL enabled device and the appropriate adapter cable for that

device. Contact your HDMI/MHL device supplier for the adapter.

5. THREE POSITION DOME LIGHT SWITCH

ON - Turns on the dome lights.

OFF - The dome lights will not turn on in this position.

AUTO - Automatically turns on the dome lights in conjunction with the vehicle's interior

illumination.

Controls and indicators diagram (side view)

10

Battery Replacement

1. Remove the battery cover.

2. Insert two AAA batteries into the battery holder. Be sure to observe the correct polarity.

3. Reinstall the battery cover into the battery holder until the holder is click .

Remote control operation

11

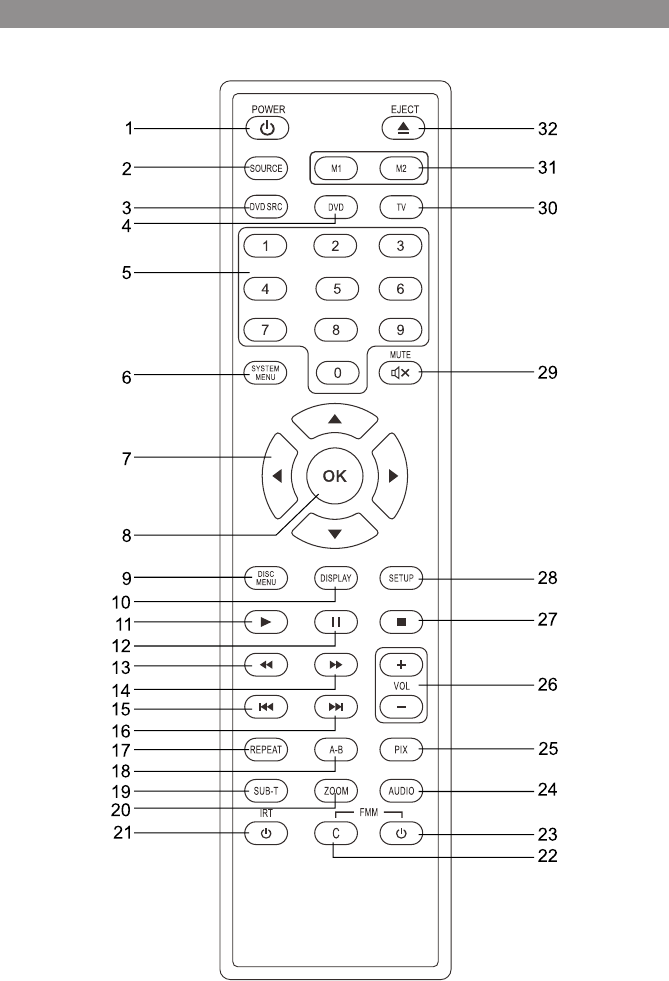

Remote Control functions

12

* Function control is available on the unit and the Remote Control.

** Function not available in this model.

1. POWER*

Press this button to turn the unit ON and OFF.

2. SOURCE*

Press to display the Source OSD for DVD, USB, AV, AUX,HDMI1 and HDMI2.

3. DVD Source**

No function on this model.

4. DVD Mode Select Button

Switches certain function keys on the remote control for DVD function.

5. NUMBERS

Allows the user to enter the numbers 0-9 for selection of the tracks, titles, chapters or

password setting.

6. SYSTEM MENU

Allows the user to access the system menu. Press the por q cursor buttons to select

PICTURE, AUDIO, SYSTEM, PLAYER, FMM and SMART STREAM Settings.

7. CURSOR (pqt u)

Use the cursor buttons to access menu selections on the screen.

8. OK

Used to execute a selected setting or menu option.

9. DISC MENU

In DVD mode, press once to access the Root Menu and then press again to resume to

previous screen.

10. DISPLAY

Press once to display current disc information of Title, Chapter & Time. Press again to

display Subtitle, Audio & Angle while the disc is playing.

.

11. PLAY (u)*

Press to activate the play mode while a disc is loaded into the disc compartment.

12. PAUSE (II)*

Press to pause playback.

Remote Control functions(Continued)

DVD TT 0/12 CH 0/25 00:00:00

OFF OFF OFF

....

13

13. SCAN BACKWARD ( )

Press to search in a backward direction. Press repeatedly to change the search speed from

2, 4, 8, 20 times and normal speed.

14. SCAN FORWARD ( )

Press to search in a forward direction. Press repeatedly to change the search speed from 2,

4, 8, 20 times and normal speed.

15. PREVIOUS ( )

Press to return to the previous chapter or track.

16. NEXT ( )

Press to skip to the next chapter or track.

17. REPEAT

Allows the user to repeat a selected chapter, title or all track.

18. A-B REPEAT

Allows user to repeat the playback from point A to point B.

Press A-B button On-Screen Display DVD player

Once Repeat A Mark the beginning of the

section to repeat (Set point A)

Twice A-B Mark the end of the section to repeat

(Set point B)

3 times AB Oﬀ Cancel the A-B repeat function

19. SUBTITLE

Press to display and select the subtitle language in DVD mode. Each time this button is

pressed, the subtitle language changes.Pressing the button will also turn the subtitles oﬀ.

Note: The type and number of subtitle languages vary from disc to disc.

20. ZOOM

Press this button to enlarge or decrease the picture size when playing a DVD disc.

Press ZOOM button DVD Player performs

1 Time Enlarges the picture 2X

2 Times Enlarges the picture 3X

3 Times Enlarges the picture 4X

4 Times Reduces the picture 1/2

5 Times Reduces the picture 1/3

6 Times Reduces the picture 1/4

7 Times Picture is returned to original size

21. IRT ON/OFF

Turns the Infrared Transmitter on/oﬀ for IR wireless headphones.

Remote Control functions(Continued)

14

22. FM MODULATOR CHANNEL SELECT (C)**

No function on this model.

User may use the system menu to select the FM Modulator.

23. FMM ON/OFF

Turns the FM Modulator power on/oﬀ.

24. AUDIO

Press to display and select audio language in DVD mode. Each time this button is

pressed, the language changes.

25. PIX ( Picture Select )**

No function on this model.

26. VOLUME DOWN (-) or UP (+)**

No function on this model.

27. STOP (n)*

Press to stop playback. (Playback will resume from the point it is stopped).

Press twice to stop playback fully. (Playback will resume from the beginning of the disc).

Note: For MP3 or photo mode, press twice to return to Audio/Photo/Video option menu.

28. SETUP**

No function on this model.

User can use the system to select the function may need.

29. MUTE

Press this button to mute the audio for the wireless FM Modulator, IR headphones and

audio output.

Pressing the button again restores the audio to the previously set level.

30. TV Mode Select

Switches certain function keys on the remote control for monitor functions.

31. MONITOR SELECT

M1 Button – Set the remote control code to allow control of the unit in M1 mode.

M2 Button – Set the remote control code to allow control of the unit in M2 mode.

Note: M1/M2 operation is only for when 2 systems are installed in the same vehicle. This

allows independent Remote Control and independent playback of audio for each system.

32. EJECT ( )*

Press this button to eject the disc.

Remote Control functions(Continued)

15

1. Push in the Screen Release button to unlock the LCD screen. The screen will drop down

slightly.

2. Pivot the screen downward until a comfortable viewing angle is reached. The hinge friction

will hold the screen in position while the system is in use.

3. Press the power button on the unit or the remote control to turn the system on and oﬀ.

When in use, the internal backlighting will illuminate the controls.

4. After the unit has been turned on and is displaying a picture, adjust the viewing angle by

pivoting the screen to optimize the picture quality.

5. Remember to turn the unit oﬀ and pivot the LCD screen to the locked position when not

in use.

Power ON/OFF

Button

Screen Release

Turning the unit on or o

16

The System is capable of accessing six source inputs. To select or change a source, press the

source button on the front panel or the Source button on the remote control. The source

OSD will appear on the screen as shown in the ﬁgure below. Use the ＋ or － cursor buttons

on the front panel or the p or q cursor buttons on the remote control to highlight a source.

Press the Source button on the front panel or the OK button on the remote control to select

the desired source.

DVD

The DVD source input is used to play DVDs, Audio CDs and MP3 discs.

USB

The USB source input is used to play MP3 ﬁles, JPEG ﬁles (Photos) and MPEG I, II ﬁles.

AV

An external video source such as a video game system, or other audio/video devices can be

connected to the AV input. This AV input connection is performed when the unit is installed.

Turn the video source component on with its power button or remote control and it is now

ready to play the audio and video signals from the source connected to the AV input.

AUX

An external video source such as a video game system or other audio/video devices may be

connected to the system via the AUX input. Connect your peripheral device to the supplied

Aux Adapter harness and plug the harness into the AUX Input on the side of the system. Turn

the external source component on with its power button or remote control and it is now ready

to play the audio and video signal from the source connected to AUX.

SOURCE

AV

AUX

HDMI 1

HDMI 2

MOVE

DVD

USB

Source menu

17

HDMI 1 & HDMI 2

These Source inputs allow the user to enjoy high-deﬁnition digital images and high-quality

sound by connecting a HD device such as a Blu-ray player or smartphone with an HDMI output

to the system. The HDMI inputs also allow the user to connect with a Mobile High-Deﬁnition

Link (MHL) mobile phone. Connect your HDMI/MHL device with an optional HDMI cable.

Smartphones and Tablet require the appropriate adapter for your smart device. You can also

use this input to connect a Smart Stick such as a ROKU, Amazon FireTV and Chromecast device

(these devices may require Wi-Fi Hotspot access to stream content which is not included with

this system).

Notes:

• This source requires an HDMI/MHL enabled device and a special HDMI/MHL adapter.

Contact your HDMI/MHL device supplier for the adapter.

• Phone functionality (phone calls, texting, etc.) may be limited while using the adapter.

• HDMI content is copy protected and is not available on the AV output of the System.

Source menu(Continued)

18

The Setup Menu contains features and options that let you customize your DVD player.

For example, you can set a language for the on-screen display or set up PARENTAL

controls to control DVD playback for children.

Using the System Menu

1. Press the System Menu button on the remote. The System Menu appears on the

screen as shown in the figure below. There are 6 icons that will appear individually in

the upper left hand corner of the System Menu as each option is selected.

.

2. To select the desired setup option, move the highlighted (in blue) option using

the up/down ( ) cursor buttons. Press the right ( ) cursor button to access the

options on the right hand side of the screen.

3. After entering the setup area (on the right side of the screen), highlight the desired

option using the up/down ( ) cursor buttons.

4. Press the right ( ) cursor button to toggle the sub menu that contains the different

options available.

5. Repeat steps 3 and 4 to set the options for each option on the same Setup Page.

6. To change to another Setup page, press the system menu cursor button to the icon

side of the setup page. Then, repeat steps 2 through 5.


AUDIO Setup

SYSTEM Setup

PLAYER Setup

FMM Setup

SMART STREAM


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM

ADJUST

EXIT

BRIGHTNESS

LANGUAGE

TV SYSTEM

CONTRAST

DEFAULT DVD

SCREEN SAVER

COLOR

MONITOR MODE

ASPECT RATIO

PASSWORD SETUP

TINT

RESET

RATING

LAST MEMORY

AUDIO LANGUAGE

MOVE

16

0

MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

IRT

MOVE MENU

L/R

ON

ENGLISH

NTSC

ADULT

ON

M1

16:9

ENGLISH


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

LANGUAGE

DEFAULT DVD

MONITOR MODE

RESET

MOVE MENU

ENGLISH

ON

M1


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT

FM

FMM CHANNEL

MOVE MENU

ON


MIRACAST/AIRPLAY&DLNA

AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT MOVE MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT MOVE MENU

88.1MHz

88.3MHz

88.5MHz

88.7MHz

88.9MHz

89.1MHz

89.3MHz

89.5MHz

89.7MHz

89.9MHz

90.1MHz

90.3MHz

90.5MHz

90.7MHz

90.9MHz

91.1MHz

91.3MHz

91.5MHz

91.7MHz

91.9MHz

92.1MHz

92.3MHz

92.5MHz

92.7MHz

92.9MHz

93.1MHz

93.3MHz

93.5MHz

93.7MHz

93.9MHz

94.1MHz

94.3MHz

94.5MHz

94.7MHz

94.9MHz

95.1MHz

95.3MHz

95.5MHz

95.7MHz

95.9MHz

96.1MHz

96.3MHz

96.5MHz

96.7MHz

96.9MHz

YES NO

System Menu Setting and Adjustments

19

PICTURE CONTROL

The PICTURE setup functions allows the user to

select and set the picture control function.

BRIGHTNESS, CONTRAST, COLOR adjustments range

from 0 to 32.

TINT adjustments range from -16 to 16.

AUDIO MODE

The AUDIO setup functions allows the user to select

and set the IRT Headpone transmitter "ON" or "OFF"

IRT

The IR transmitter can be set to ON or OFF.The IR

Transmitter must be set to "ON" for the wireless

headphone to be operational.

System Menu Setting and Adjustments(Continued)


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

BRIGHTNESS

CONTRAST

COLOR

TINT

MOVE

16

0

MENU

16


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

BRIGHTNESS

CONTRAST

COLOR

TINT

MOVE

16

0

MENU

16


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

BRIGHTNESS

CONTRAST

COLOR

TINT

MOVE

0

MENU

16


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

BRIGHTNESS

CONTRAST

COLOR

TINT

MOVE MENU

16

0

7. If without a Remote control user can use the local key to select the function setting.

a.) Menu = Long press to call up the setup menu screen information or return/exit

the system menu

= Short press function as Down Key

b.)

u/II Play = Enter Key

c.) = Left Key

d.) = Right Key


AUDIO

SYSTEM

PLAYER

FMM

ADJUST EXIT

LANGUAGE

DEFAULT DVD

MONITOR MODE

RESET

MOVE MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM

ADJUST EXIT

IRT

MOVE MENU

L/R

ON

ENGLISH

ON

M1

20

SYSTEM MODE

The system setup function allow the user to select

the system function. Functions listed below.

LANGUAGE

The LANGUAGE setup allows the user to select

ENGLISH,SPANISH, FRENCH, GERMAN for the on-

screen language display.

DEFAULT DVD

The DEFAULT DVD allows the user to set the system

default source to DVD ON or OFF.

If souce default is set to ON, every time the unit

is turned off the on, the unit will power up and

automatically switch the source to DVD.

If source default is set to OFF and the system is

turned off then on, the unit will power up in the

source that was last selected.

MONITOR MODE

This allows the user to change the system to M1 or

M2 mode. Once the setting is changed, the remote

control and IR headphones will only work if set to

that same setting.

1.M1 Mode - For the Remote Control to operate the

system when set to M1, press the M1

button on the Remote Control.

Please make sure IR Headphones are set to

Channel A when the system is in M1 mode.

2.M2 Mode - For the Remote Control to operate the

system when set to M2, press the M2

button on the Remote Control.

Please make sure IR Headphones are set to

Channel B when the system is in M2 mode.


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM

ADJUST

EXIT

BRIGHTNESS

LANGUAGE

TV SYSTEM

CONTRAST

DEFAULT DVD

SCREEN SAVER

COLOR

MONITOR MODE

ASPECT RATIO

PASSWORD SETUP

TINT

RESET

RATING

LAST MEMORY

AUDIO LANGUAGE

MOVE

16

0

MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

IRT

MOVE MENU

L/R

ON

ENGLISH

NTSC

ADULT

ON

M1

16:9

ENGLISH


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

LANGUAGE

DEFAULT DVD

MONITOR MODE

RESET

MOVE MENU

ENGLISH

ON

M1


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT

FM

FMM CHANNEL

MOVE MENU

ON


MIRACAST/AIRPLAY&DLNA

AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT MOVE MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT MOVE MENU

88.1MHz

88.3MHz

88.5MHz

88.7MHz

88.9MHz

89.1MHz

89.3MHz

89.5MHz

89.7MHz

89.9MHz

90.1MHz

90.3MHz

90.5MHz

90.7MHz

90.9MHz

91.1MHz

91.3MHz

91.5MHz

91.7MHz

91.9MHz

92.1MHz

92.3MHz

92.5MHz

92.7MHz

92.9MHz

93.1MHz

93.3MHz

93.5MHz

93.7MHz

93.9MHz

94.1MHz

94.3MHz

94.5MHz

94.7MHz

94.9MHz

95.1MHz

95.3MHz

95.5MHz

95.7MHz

95.9MHz

96.1MHz

96.3MHz

96.5MHz

96.7MHz

96.9MHz

YES NO

System Menu Setting and Adjustments(Continued)


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM

ADJUST

EXIT

BRIGHTNESS

LANGUAGE

TV SYSTEM

CONTRAST

DEFAULT DVD

SCREEN SAVER

COLOR

MONITOR MODE

ASPECT RATIO

PASSWORD SETUP

TINT

RESET

RATING

LAST MEMORY

AUDIO LANGUAGE

MOVE

16

0

MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

IRT

MOVE MENU

L/R

ON

ENGLISH

NTSC

ADULT

ON

M1

16:9

ENGLISH


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

LANGUAGE

DEFAULT DVD

MONITOR MODE

RESET

MOVE MENU

ENGLISH

ON

M1


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT

FM

FMM CHANNEL

MOVE MENU

ON


MIRACAST/AIRPLAY&DLNA

AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT MOVE MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT MOVE MENU

88.1MHz

88.3MHz

88.5MHz

88.7MHz

88.9MHz

89.1MHz

89.3MHz

89.5MHz

89.7MHz

89.9MHz

90.1MHz

90.3MHz

90.5MHz

90.7MHz

90.9MHz

91.1MHz

91.3MHz

91.5MHz

91.7MHz

91.9MHz

92.1MHz

92.3MHz

92.5MHz

92.7MHz

92.9MHz

93.1MHz

93.3MHz

93.5MHz

93.7MHz

93.9MHz

94.1MHz

94.3MHz

94.5MHz

94.7MHz

94.9MHz

95.1MHz

95.3MHz

95.5MHz

95.7MHz

95.9MHz

96.1MHz

96.3MHz

96.5MHz

96.7MHz

96.9MHz

YES NO


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

LANGUAGE

DEFAULT DVD

MONITOR MODE

RESET

MOVE MENU

ENGLISH

ON

M1


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

LANGUAGE

DEFAULT DVD

MONITOR MODE

RESET

MOVE MENU

ENGLISH

ON

M1

21

RESET

The RESET functions allows all settings options to

be reset to factory settings.

PLAYER MODE

The Player setup function allow the user to select DVD

functionality.

TV SYSTEM

The TV SYSTEM setup allows the user to choose

television standard which corresponds to your TV.

NTSC-Select this type for NTSC TV

PAL-Select this type for PAL TV

AUTO-Select this type if the connected screen is

a multi-system TV. The video format of the

disc (NTSC or PAL) will determine the video

signal output.

SCREEN SAVER

This allows you to set the Screen Saver mode.

ON -Screen Saver will appear

OFF -Screen Saver will not appear

Note: The DVD player will enter Screen Saver mode

if the unit is inactive for approximately 2 minutes.


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM

ADJUST

EXIT

BRIGHTNESS

LANGUAGE

TV SYSTEM

CONTRAST

DEFAULT DVD

SCREEN SAVER

COLOR

MONITOR MODE

ASPECT RATIO

PASSWORD SETUP

TINT

RESET

RATING

LAST MEMORY

AUDIO LANGUAGE

MOVE

16

0

MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

IRT

MOVE MENU

L/R

ON

ENGLISH

NTSC

ADULT

ON

M1

16:9

ENGLISH


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

LANGUAGE

DEFAULT DVD

MONITOR MODE

RESET

MOVE MENU

ENGLISH

ON

M1


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT

FM

FMM CHANNEL

MOVE MENU

ON


MIRACAST/AIRPLAY&DLNA

AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT MOVE MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT MOVE MENU

88.1MHz

88.3MHz

88.5MHz

88.7MHz

88.9MHz

89.1MHz

89.3MHz

89.5MHz

89.7MHz

89.9MHz

90.1MHz

90.3MHz

90.5MHz

90.7MHz

90.9MHz

91.1MHz

91.3MHz

91.5MHz

91.7MHz

91.9MHz

92.1MHz

92.3MHz

92.5MHz

92.7MHz

92.9MHz

93.1MHz

93.3MHz

93.5MHz

93.7MHz

93.9MHz

94.1MHz

94.3MHz

94.5MHz

94.7MHz

94.9MHz

95.1MHz

95.3MHz

95.5MHz

95.7MHz

95.9MHz

96.1MHz

96.3MHz

96.5MHz

96.7MHz

96.9MHz

YES NO


PICTURE PICTURE

AUDIO

AUDIO AUDIO

SYSTEM

SYSTEM SYSTEM

PLAYER

PLAYER PLAYER

FMM

FMM FMM

SMART STREAM

SMART STREAM SMART STREAM

ADJUST

ADJUST ADJUST

EXIT

EXIT EXIT

TV SYSTEM

SUBTITLEGLANGUAGE

TV SYSTEM TV SYSTEM

SCREEN SAVER

MENU LANGUAGE

SCREEN SAVER SCREEN SAVER

ASPECT RATIO

ASPECT RATIO ASPECT RATIO

PASSWORD SETUP

PASSWORD SETUPPASSWORD SETUP

RATING

RATINGRATING

LAST MEMORY

LAST MEMORY LAST MEMORY

AUDIO LANGUAGE

AUDIO LANGUAGE AUDIO LANGUAGE

MOVE

MOVE MOVE

MENU

MENU MENU

NTSC

ENGLISH

NTSC NTSC

ADULT ADULT

ADULT

ADULT ADULT

ON

ON ON

ON

ON ON

16:9

4:3 PS

16:9 16:9

ENGLISH

ENGLISH ENGLISH

System Menu Setting and Adjustments(Continued)


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

LANGUAGE

DEFAULT DVD

MONITOR MODE

RESET

MOVE MENU

ENGLISH

ON

M1


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

LANGUAGE

DEFAULT DVD

MONITOR MODE

RESET

MOVE MENU

ENGLISH

ON

M1


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT MOVE MENU

YES NO

22


PICTURE PICTURE

AUDIO

AUDIO AUDIO

SYSTEM

SYSTEM SYSTEM

PLAYER

PLAYER PLAYER

FMM

FMM FMM

SMART STREAM

SMART STREAM SMART STREAM

ADJUST

ADJUST ADJUST

EXIT

EXIT EXIT

TV SYSTEM

SUBTITLEGLANGUAGE

TV SYSTEM TV SYSTEM

SCREEN SAVER

MENU LANGUAGE

SCREEN SAVER SCREEN SAVER

ASPECT RATIO

ASPECT RATIO ASPECT RATIO

PASSWORD SETUP

PASSWORD SETUPPASSWORD SETUP

RATING

RATINGRATING

LAST MEMORY

LAST MEMORY LAST MEMORY

AUDIO LANGUAGE

AUDIO LANGUAGE AUDIO LANGUAGE

MOVE

MOVE MOVE

MENU

MENU MENU

NTSC

ENGLISH

NTSC NTSC

ADULT ADULT

ADULT

ADULT ADULT

ON

ON ON

ON

ON ON

16:9

4:3 PS

16:9 16:9

ENGLISH

ENGLISH ENGLISH

ASPECT RATIO(For DVD Screen Display)

4:3 PS (Pan Scan)

The left and right of the screen are cut off and

displays the central portion of the 16:9 screen.

4:3 LB (Letter Box)

Displays the content of the DVD title in the 16:9

aspect ratio.The black bars will appear at the top

and bottom of the screen.

16:9

This displays a wide picture with black bands on

the upper and lower portion of the screen. The

bandwidth will vary,depending on the aspect ratio

of the disc.

PASSWORD SETUP

The default password is 3308. To change the rating

of the DVD player press 3308 to access the RATING

setting.

NOTE: 3308 must be pressed to set a new

password.

• Press 3308

• Enter the new 4 digit password

• Press SETUP 2 times to exit the setup mode.

NOTE: The 3308 password is always accepted in the

setup menu even after a new password has been

entered. To avoid the possibility of others using

the default password to set the parental level and

change the password, record this default password

in another area and delete it from this manual.

The restriction of viewing disc content by younger

users may be available on some discs, but not on

others.

NOTE: When the password is set to a new

password, that password must be used to play

movies that have content rated above the setting

in the setup menu. The user will be prompted to

put the password in before the movie can play.

After the password is entered press the ENTER

button on the remote control.


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM

ADJUST

EXIT

TV SYSTEM

SUBTITLEGLANGUAGE

TV SYSTEM

SCREEN SAVER

MENU LANGUAGE

SCREEN SAVER

ASPECT RATIO

PASSWORD SETUP

PASSWORD SETU

PPASSWORD SETUP

RATING

RATIN

GRATING

LAST MEMORY

AUDIO LANGUAGE

MOVE

MENU

NTSC

ENGLISH

NTSC

ADULT ADULT

ADULT

ON

16:9

4:3 PS

16:9

ENGLISH


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM

ADJUST

EXIT

TV SYSTEM

SUBTITLEGLANGUAGE

TV SYSTEM

SCREEN SAVER

MENU LANGUAGE

SCREEN SAVER

ASPECT RATIO

PASSWORD SETUP

PASSWORD SETUPP

ASSWORD SETUP

RATING

RATINGR

ATING

LAST MEMORY

AUDIO LANGUAGE

MOVE

MENU

NTSC

ENGLISH

NTSC

ADULT ADULT

ADULT

ON

16:9

4:3 PS

16:9

ENGLISH

System Menu Setting and Adjustments(Continued)

23


PICTURE PICTURE

AUDIO

AUDIO AUDIO

SYSTEM

SYSTEM SYSTEM

PLAYER

PLAYER PLAYER

FMM

FMM FMM

SMART STREAM

SMART STREAM SMART STREAM

ADJUST

ADJUST ADJUST

EXIT

EXIT EXIT

TV SYSTEM

SUBTITLEGLANGUAGE

TV SYSTEM TV SYSTEM

SCREEN SAVER

MENU LANGUAGE

SCREEN SAVER SCREEN SAVER

ASPECT RATIO

ASPECT RATIO ASPECT RATIO

PASSWORD SETUP

PASSWORD SETUPPASSWORD SETUP

RATING

RATINGRATING

LAST MEMORY

LAST MEMORY LAST MEMORY

AUDIO LANGUAGE

AUDIO LANGUAGE AUDIO LANGUAGE

MOVE

MOVE MOVE

MENU

MENU MENU

NTSC

ENGLISH

NTSC NTSC

ADULT

ADULT ADULT

ON

ON ON

ON

ON ON

16:9

4:3 PS

16:9 16:9

ENGLISH

ENGLISH ENGLISH

LAST MEMORY

The last memory function allows DVD playback

to begin from the point when playback was last

stopped. The last memory feature allows the user to

turn the last memory feature function on or off.

AUDIO LANGUAGE

This setting allows you to select a preferred audio

language. This function only applies to discs

encoded with diﬀerent audio languages.

Options: ENGLISH, FRENCH, SPANISH and GERMAN.

NOTE: If the selected language is not available for

the currently playing disc, the disc's default setting

is applied.

SUBTITLE LANGUAGE

This setting allows you to select a preferred subtitle

language. This function only applies to discs

encoded with subtitles. Options: ENGLISH, FRENCH,

SPANISH, GERMAN and OFF.

NOTE: If the selected language is not available for

the currently playing disc, the disc's default setting

is applied.

MENU LANGUAGE

This setting allows you to select a preferred disc

menu language.

Options: ENGLISH, FRENCH, SPANISH and GERMAN.

NOTE: If the selected language is not available for

the currently playing disc, the disc's default setting

is applied.


PICTURE PICTURE

AUDIO

AUDIO AUDIO

SYSTEM

SYSTEM SYSTEM

PLAYER

PLAYER PLAYER

FMM

FMM FMM

SMART STREAM

SMART STREAM SMART STREAM

ADJUST

ADJUST ADJUST

EXIT

EXIT EXIT

TV SYSTEM

SUBTITLEGLANGUAGE

TV SYSTEM TV SYSTEM

SCREEN SAVER

MENU LANGUAGE

SCREEN SAVER SCREEN SAVER

ASPECT RATIO

ASPECT RATIO ASPECT RATIO

PASSWORD SETUP

PASSWORD SETUPPASSWORD SETUP

RATING

RATINGRATING

LAST MEMORY

LAST MEMORY LAST MEMORY

AUDIO LANGUAGE

AUDIO LANGUAGE AUDIO LANGUAGE

MOVE

MOVE MOVE

MENU

MENU MENU

NTSC

ENGLISH

NTSC NTSC

ADULT ADULT

ADULT

ADULT ADULT

ON

ON ON

ON

ON ON

16:9

4:3 PS

16:9 16:9

ENGLISH

ENGLISH ENGLISH


PICTURE PICTURE

AUDIO

AUDIO AUDIO

SYSTEM

SYSTEM SYSTEM

PLAYER

PLAYER PLAYER

FMM

FMM FMM

SMART STREAM

SMART STREAM SMART STREAM

ADJUST

ADJUST ADJUST

EXIT

EXIT EXIT

TV SYSTEM

SUBTITLEGLANGUAGE

TV SYSTEM TV SYSTEM

SCREEN SAVER

MENU LANGUAGE

SCREEN SAVER SCREEN SAVER

ASPECT RATIO

ASPECT RATIO ASPECT RATIO

PASSWORD SETUP

PASSWORD SETUPPASSWORD SETUP

RATING

RATINGRATING

LAST MEMORY

LAST MEMORY LAST MEMORY

AUDIO LANGUAGE

AUDIO LANGUAGE AUDIO LANGUAGE

MOVE

MOVE MOVE

MENU

MENU MENU

NTSC

ENGLISH

NTSC NTSC

ADULT ADULT

ADULT

ADULT ADULT

ON

ON ON

ON

ON ON

16:9

4:3 PS

16:9 16:9

ENGLISH

ENGLISH ENGLISH


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

TV SYSTEM

SCREEN SAVER

ASPECT RATIO

PASSWORD SETUP

RATING

LAST MEMORY

AUDIO LANGUAGE

MOVE MENU

NTSC

6 ADULT

ON

16:9

ENGLISH

System Menu Setting and Adjustments(Continued)

24

FMM MODULATION(ON/OFF)

This setting allows you to turn the FMM modulator

ON or OFF.

FMM CHANNEL

This setting allows you to select the

frequency. The unit has a 199 channel built-in

wireless FM Modulator. The FM Modulator can

be set from 88.1MHz to 107.9MHz in 0.1MHz

steps, i.e.88.1,88.2,88.3,88.7 etc.

To choose an FM frequency for audio playback

through your vehicle’s radio:

1. Use the p q t or u cursor buttons to select a

frequency not used by a radio station in the area.

Press OK to select the highlighted frequency.

There are a total of 3 FM CHANNEL pages

containing frequencies from 88.1 MHz to 107.9

MHz in 0.1 MHz steps. To access the additional FM

Channel pages, use the t or u cursor buttons to

highlight the on screen left and right arrows and

press OK. Once the frequency has been selected,

tune the vehicle’s radio to the selected frequency.

2. Press the DVD button to restore the remote

control to DVD functions.

Note: The wireless FM modulator will perform well in

most applications. However, in certain geographical

areas the quality of the wireless signal may be less than

optimal, resulting in static or strong local station bleed

through. If this is a consistent problem, an FMDIRB

(hard wired FM connection) can be installed by your

dealer.

SMART STREAM(Optional Feature)

This setting allows you to select Wireless

Streaming Display Mode. Press YES to enter the

Wireless Streaming Display Mode or press NO to

exit.

Note: The SmartStream Wireless Streaming Display

feature will only work when optional module WM1

is connected to the system. Please refer to the

SmartStream manual for user operation.


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM

SELECT

EXIT

FM MODULATION

FMM CHANNEL

MOVE

MENU

ON


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXITMOVE MENU

91.1MHz

91.3MHz

91.5MHz

91.7MHz

91.9MHz

92.1MHz

92.3MHz

92.5MHz

92.7MHz

92.9MHz

93.1MHz

93.3MHz

93.5MHz

93.7MHz

93.9MHz

94.1MHz

94.3MHz

94.5MHz

94.7MHz

94.9MHz

95.1MHz

95.3MHz

95.5MHz

95.7MHz

95.9MHz

96.1MHz

96.3MHz

96.5MHz

96.7MHz

96.9MHz

88.1MHz

88.3MHz

88.5MHz

88.7MHz

88.9MHz

89.1MHz

89.3MHz

89.5MHz

89.7MHz

89.9MHz

90.1MHz

90.3MHz

90.5MHz

90.7MHz

90.9MHz

88.1MHz


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM

SELECT

EXIT

FM MODULATION

FMM CHANNEL

MOVE

MENU

ON


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXITMOVE MENU

91.1MHz

91.3MHz

91.5MHz

91.7MHz

91.9MHz

92.1MHz

92.3MHz

92.5MHz

92.7MHz

92.9MHz

93.1MHz

93.3MHz

93.5MHz

93.7MHz

93.9MHz

94.1MHz

94.3MHz

94.5MHz

94.7MHz

94.9MHz

95.1MHz

95.3MHz

95.5MHz

95.7MHz

95.9MHz

96.1MHz

96.3MHz

96.5MHz

96.7MHz

96.9MHz

88.1MHz

88.3MHz

88.5MHz

88.7MHz

88.9MHz

89.1MHz

89.3MHz

89.5MHz

89.7MHz

89.9MHz

90.1MHz

90.3MHz

90.5MHz

90.7MHz

90.9MHz

88.1MHz

PICTURE PICTURE

AUDIO AUDIO

SYSTEM SYSTEM

PLAYER PLAYER

FMM FMM

SMART STREAM SMART STREAM

SELECT SELECT EXIT EXIT

FM MODULATION FM MODULATION

FMM CHANNEL FMM CHANNEL

MOVE MOVE

MENU MENU

ON ON


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT MOVE MENU

88.1MHz

88.2MHz

88.3MHz

88.4MHz

88.5MHz

88.6MHz

88.7MHz

88.9MHz

89.0MHz

89.1MHz

90.2MHz

90.3MHz

90.4MHz

90.5MHz

90.6MHz

88.1MHz


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM

ADJUST

EXIT

BRIGHTNESS

LANGUAGE

TV SYSTEM

CONTRAST

DEFAULT DVD

SCREEN SAVER

COLOR

MONITOR MODE

ASPECT RATIO

PASSWORD SETUP

TINT

RESET

RATING

LAST MEMORY

AUDIO LANGUAGE

MOVE

16

0

MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

IRT

MOVE MENU

L/R

ON

ENGLISH

NTSC

ADULT

ON

M1

16:9

ENGLISH


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT

LANGUAGE

DEFAULT DVD

MONITOR MODE

RESET

MOVE MENU

ENGLISH

ON

M1


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT

FM

FMM CHANNEL

MOVE MENU

ON


MIRACAST/AIRPLAY&DLNA

AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM ADJUST EXIT MOVE MENU


AUDIO

SYSTEM

PLAYER

FMM

SMART STREAM SELECT EXIT MOVE MENU

88.1MHz

88.3MHz

88.5MHz

88.7MHz

88.9MHz

89.1MHz

89.3MHz

89.5MHz

89.7MHz

89.9MHz

90.1MHz

90.3MHz

90.5MHz

90.7MHz

90.9MHz

91.1MHz

91.3MHz

91.5MHz

91.7MHz

91.9MHz

92.1MHz

92.3MHz

92.5MHz

92.7MHz

92.9MHz

93.1MHz

93.3MHz

93.5MHz

93.7MHz

93.9MHz

94.1MHz

94.3MHz

94.5MHz

94.7MHz

94.9MHz

95.1MHz

95.3MHz

95.5MHz

95.7MHz

95.9MHz

96.1MHz

96.3MHz

96.5MHz

96.7MHz

96.9MHz

YES NO

MIRACAST/AIRPLAY&DLNA

EXIT

MENU

System Menu Setting and Adjustments(Continued)

25

Playing DVDs

When a disc is loaded. Press the DISPLAY button on the remote control to display the

status banner. The status banner includes the disc title, chapter audio language , subtitle

& angle.

Title Selection: Some DVDs contain more than one title (e.g. sitcoms, collections, etc.)

Press the numeric (0-9) buttons to initiate a change of chapter title selection.

Using the repeat feature to select OFF, Chapter, Title and Repeat All to play the movies

contents.

Playing Audio CDs

When playing an audio CD, the DISPLAY banner appears automatically. The track number

and the elapsed time of the disc are displayed.

Selecting a Track: Selection of a specific track is accomplished by using the numbers keys.

Press the number key corresponding to the desired track and the player will implement

the selection.

• Press the previous button (9) to return to the previous chapter or track.

• Press the next button (:) to skip to the next chapter or track.

Using the REPEAT feature

The default mode for the Repeat feature is OFF. Pressing REPEAT on the remote control

consecutively changes the repeat options.

• OFF Plays all songs on the disc and stops after all songs are played

• REP 1 Repeats 1 song

• REP DIR Plays songs in the directory

• REP ALL Plays all songs on the disc repeatedly

Playing USB Devices

To play a USB device, change the source to USB and plug a USB device into the USB port.

When a USB device is inserted into the player the navigation menu appears automatically.

AUDIO

Enjoy your audio in this mode.

ex: mp3, wma, wav. . .

ENTER

Playing DVD and Audio Discs

26

Use the cursor keys p q t or uand OK to navigate the on screen menus.

The USB port can play AUDIO, PHOTO, VIDEO . The following formats are supported:

Audio

• MP3

• WMA

• AAC


• JPEG

• BMP

Video*

• AVI (MPEG4-DIVX (DIVX 4.0/5.0), MPEG4-XVID - (720 x 576 max resolution)

• MPG (MPEG-1) - (720 x 576 max resolution)

• MOV (MPEG4-DIVX) - (720 x 576 max resolution)

• FLV (FLV1) - (720 x 576 max resolution)

• SWF (FLV1) - (720 x 576 max resolution)

• DAT (MPEG1) - (720 x 576 max resolution)

• VOB (MPEG2) - (720 x 576 max resolution)

•

Note: All formats may not play depending on the software used to convert the video file

from its original format.

Playing MP3 Discs

MP3 is a format for storing digital audio. An audio CD-quality song can be compressed

into MP3 format with very little loss of quality, while taking up much less space. CD-R

discs that have MP3 format files can be played on the DVD player. The DVD player plays

the songs in the order they were burned on to the disc.

Selecting Folders and Songs:

When an MP3 disc is loaded in the player, the navigation menu will appear on the screen

automatically and a song will start playing.

To change songs use the arrows to select a different song and press the or

button to play the selected song. To change folders press the button to move to the

root folder and press the or button to display all the folders on the disc. Use

the buttons to select a new folder and press the or button to enter the new folder.

The unit will begin playing the first song of the folder.

Playing DVD and Audio Discs

Playing MP3 Discs

27

To get the optimum use out of the DVD Player, please read the following:

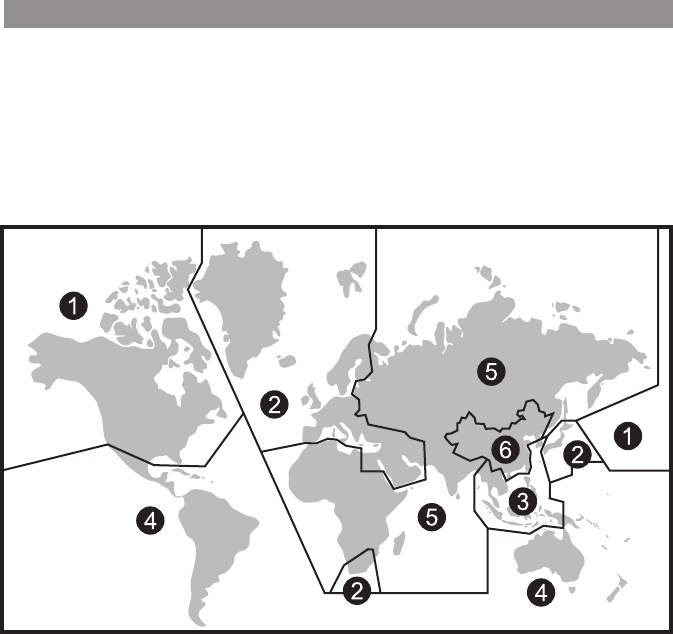

DVD Region Code

The DVD player is preset to a region code at the factory depending on where the DVD

player is sold. A DVD from a different region cannot be played in this unit and the unit will

display "WRONG REGION”.

Region 1- USA, Canada

Region 2- Japan, Europe, South Africa, Middle East, Greenland

Region 3- S. Korea, Taiwan, Hong Kong, Parts of South East Asia

Region 4- Australia, New Zealand, Latin America (including Mexico)

Region 5- Eastern Europe, Russia, India, Africa

Region 6- China

DVD Basics

28

HDMI (HDMI/MHL)

An HD Input is located on the side of the unit.

This input can be used for devices with HDMI or MHL output ports (such as smartphones,

tablets and HDMI devices) and may require the purchase of an HDMI cable and HDMI

adapter which is available from your device manufacturer. Each device has unique

requirements, please consult with your device or smartphone manufacturer to determine

which type of output your device supports.

NOTE: Some adapters can be powered from the USB port on the front/bottom of the

unit . Powering the adapter will charge the smartphone when using the smartphone as a

media source.

Smartphones and Tablets

For Apple products, go to the Apple Store or enter the following link into your web

browser to find the adapter required for your device. Different models require different

adapters.

 •http://support.apple.com/kb/ht4108*

See the following links for other smartphone and tablet manufacturers:

Samsung Multimedia adapter:

• http://www.samsung.com/us/mobile/

cell-phones-accessories/multimedia-adapters

NOTE: Some Samsung smartphones may require an additional 5-pin micro USB to 11- pin

micro USB adapter in addition to the multimedia adapter.

For other smartphone makes and models check with your device service provider to find

an adapter that will work with your device.

Amazon is a good source for finding an adapter that will work with your smartphone.

DVD Basics

29

HDMI Devices **:

Amazon FireTV Stick streaming device:

• www.amazon.com and search for FireTV Stick

Chromecast media streaming device:

• www.google.com and search for Chromecast

Roku HDMI streaming device:

• http://www.roku.com/products/compare

MHL devices**:

Roku MHL Streaming Stick

• http://www.roku.com/roku-ready/models*

Note: does not require external power but must be purchased with the Roku remote

control

HDMI Devices

30

USB1 Port(User Accessible)

The USB port provides two functions:

1. Media port for USB thumb drives:

2. charging:

• The USB port will not charge a portable device when the unit is turned OFF.

• The USB port will charge a portable device in the following modes:

• DVD/USB (Not recommended)

• AV

• AUX

• HDMI/MHL

• It will not charge in USB mode.

• For Apple /Android Mobile , It will charge at up to 2 Amps of charging current.

• For Samsung Mobile, It will charge at up to 500mA of charging current.

USB2 Port(Hidden Input for when remote HDMI/USB Harness HDH12 is Installed)

1. The USB port charging only.

2. Max Charging current

For Apple /Android Mobile , It will charge at up to 2 Amps of charging current.

For Samsung Mobile, It will charge at up to 500mA of charging current.

3. Charging is available in all source.

4. USB2 is not a source, so it can’t be selected in the Main Menu or Source.

USB Inputs

31

PROBLEM SOLUTION

IR remote inoperative • Verify that the battery in the remote is fresh.

• Verify that the remote sensor eye is not obstructed.

Disc won't play • Insert a disc with the label side facing the viewer.

• Check the type of disc you put into disc tray. This DVD only plays

DVD, audio CD and MP3s.

• Both the unit and the disc are coded by region. If the regional

codes don’t match, the disc can’t be played.

Play starts, but then stops

immediately

• The disc is dirty. Clean it.

• Condensation has formed. Allow player to dry out.

No sound or distorted

sound

• Make sure your DVD is connected properly. Make sure all cables

are securely inserted into the appropriate jacks.

• If you are using the 2-channel IR headphones, make sure you

turn on the IR headphone power, make sure the correct channel

(A or B) is selected.

• If the FM Modulator is ON make sure proper frequency has been

selected.

Cannot advance through a

movie

• Most discs prohibit advancing through the opening credits and

warning information that appear at the beginning of movies.

The icon ( ) appears • The feature or action cannot be completed at this time

because:

1. The disc’s software restricts it.

2. The disc’s software doesn’t support the feature (e.g., angles)

3. The feature is not available at the moment.

4. A title or chapter number that is out of range has

been requested.

Picture is distorted • The disc might be damaged. Try another disc.

• It is normal for some distortion to appear during forward or

reverse scan.

Troubleshooting

32

Type

Resolution

Pixels

Operation Temperature

Storage Temperature

Backlit life

Video Display System

Video Output

Power Source

Dimension (L x W x H)

TFT Active Matrix LCD

1920 (RGB) (X3) x 1080

6,220,800

32 ~ 113º F (0 ~ 45º C)

-4 ~ 149º F (-10 ~ 65º C)

20,000 Hours

NTSC / PAL / AUTO

1.0Vp-p @ 75 ohms

12VDC

375mm x 330mm x 77mm

14.8in x 13.0in x 3in

Specifications subject to change without notice.

Specifcaitons

33

AppliestoMoviesToGoMobileVideoProducts

VOXX Electronics Corporation,

180 Marcus Blvd Hauppauge, NY 11788 1-800-645-4994

12 MONTH LIMITED WARRANTY

VOXX ELECTRONICS CORP. (the Company) warrants to the original

retail purchaser of this product that should this product or any part thereof,

under normal use and conditions, be proven defective in material or workman

ship within 12 months from the date of original purchase, such defect(s) will

be repaired or replaced with reconditioned product (at the Company's option)

without charge for parts and repair labor. A game controller, if supplied, is

similarly warranted for ninety (90) days.

To obtain repair or replacement within the terms of this Warranty, the product

is to be delivered with proof of warranty coverage (e.g. dated bill of sale),

specification of defect(s), transportation prepaid, to the Company at the

address shown below.

This Warranty does not extend to the elimination of externally generated static

or noise, to correction of antenna problems, to costs incurred for

installation, removal or reinstallation of the product, or to damage to digital

memory/media devices, gaming devices, discs, speakers, accessories, or

vehicle electrical systems.

This Warranty does not apply to any product or part thereof which, in the

opinion of the Company, has suffered or been damaged through alteration,

improper installation, mishandling, misuse, neglect, accident, or by removal

or defacement of the factory serial number/bar code label(s). THE EXTENT

OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO

THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT,

SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID

BY PURCHASER FOR THE PRODUCT.

This Warranty is in lieu of all other express warranties or liabilities. ANY

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS

WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY

HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 24

MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL

THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL

DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No

person or representative is authorized to assume for the Company any liability

other than expressed herein in connection with the sale of this product.

www.voxxelectronics.co

m

Action Electronics 9R3ODM51331 Overhead With Integrated DVD/USB/HDMI(HD) System User Manual

Action Electronics Co.,Ltd. Overhead With Integrated DVD/USB/HDMI(HD) System

User manual

Navigation menu

Namespaces

Views

Navigation
