Action Electronics 9R3VOD100 FM transmitter User Manual 91 A5 1001AG IB VOD100 V9
Action Electronics Co.,Ltd. FM transmitter 91 A5 1001AG IB VOD100 V9
Users Manual
OPERATION
MANUAL
128-8338
Important Notice
Installation of overhead products requires careful planning and preparation. Be extremely careful when working on a vehicle with side curtain air
bags. Do not route wires near any portion of the side curtain air bag assemblies. This includes any anchor points in A, B, C or D pillars of the vehicle.
Routing wires in these areas or running wires by the side curtain air bags can prevent the side curtain air bag from fully deploying which can result in
personal injury to vehicle occupants. If you have any questions regarding wire routing in a vehicle, please contact Audiovox Technical Support at 1-
800-225-6074.
When connecting power and ground in a mobile video installation ensure that the ACC wire is fused at the point where it is connected to the
vehicle ACC wiring. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection point and the
mobile video product.
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for
vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception,
video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park” or
when the vehicle's parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking
brake is not applied must be installed to the rear of the driver's seat where it will not be visible, directly or indirectly, to the operator of the motor
vehicle.
Licensed under one or more of the following patents,
Patent NOS. 5,775,762 and 5,927,784
uDo not use any solvents or cleaning materials when cleaning the video monitor.
uDo not use any abrasive cleaners, they may scratch the screen.
uUse only a lightly dampened lint free cloth to wipe the screen if it is dirty.
uLock the LCD screen in the fully closed position when not in use.
uBefore putting on headphones always adjust the volume setting to the lowest position.
uRemember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain
the vehicle’s battery.
uDo not put pressure on the screen.
uCaution children to avoid touching or scratching the screen, as it may become dirty or damaged.
Warnings
3
FEATURES
Congratulations on your purchase of the Audiovox VOD100
DVD Player with Drop-Down Video / Monitor. The VOD100
has been designed to give you and your family many years of
video entertainment in the mobile environment. Please read
the directions that follow to familiarize yourself with the
product to ensure that you obtain the best results from your
equipment.
Please note: Installation options vary, see the individual
,
owner s manuals for each component in your system to
obtain a full understanding of each component’s operation.
Safety Precaution
For safety reasons, when changing video media it is
recommended that the vehicle is not in motion, and that you
do not allow children to unfasten seat-belts to change video
media or make any adjustments to the system. System
adjustments can be accomplished using the remote control,
while seat-belts remain fastened. Enjoy your Audiovox
entertainment system but remember the safety of all
passengers remains the number one priority.
•10.2” TFT (Thin Film Transistor) Active Matrix LCD
(Liquid Crystal Display) Monitor
• Built-in DVD Player
•Multi-Lingual OSD (On Screen Display) for Control of
Picture Quality and Functions
•Infrared Transmitter for use with IR Wireless
Headphones
• Two Audio / Video Source Inputs (DVD, AV1/AUX)
•Dome Lights with Built-in Three Way Switch
•Built-in 16 Channel Frequency Wireless FM Modulator
•Last Position Memory for DVD
• Screen Mode Selection (16:9, 4:3)
•Full Function Remote Control
•Backlit Controls
• AV Output
4

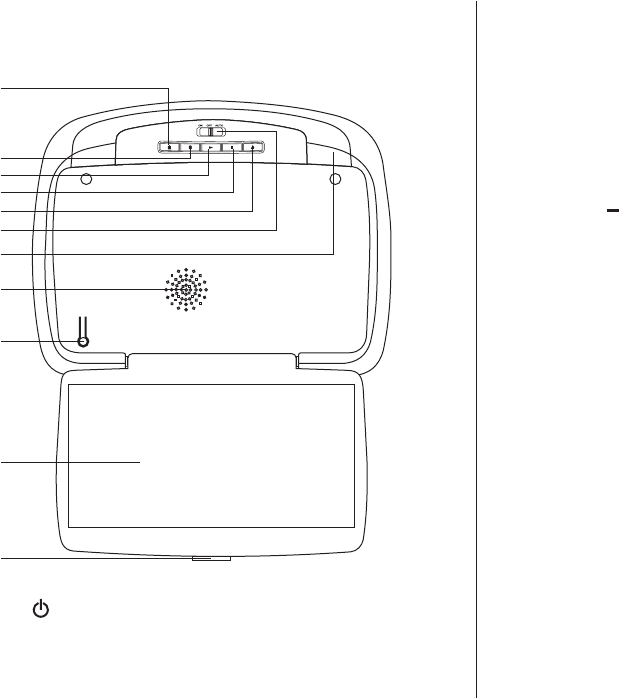

CONTROLS AND INDICATORS DIAGRAM
(FRONT VIEW)
3. PLAY (u) Button
This button is used to start playback of a disc.
4. STOP (n) Button
- Press STOP once : (Stop) display perform to stop playback,
pressing the PLAY button again will resume normal
playback.
- Press STOP twice : (<Stop) display perform to stop
playback.
5. EJECT (?) Button
This Button is used for ejecting discs from the disc
Compartment when the source is DVD and the unit is
powered up.
6. Three Position Dome Light Switch
ON - Turns on the dome lights.
OFF - The dome lights will not turn on in this position.
AUTO - Automatically switches on the dome lights in
conjunction with the vehicle's interior illumination.
7. Dome Lights
Provide additional interior illumination.
8. Ventilation Openings
9. LCD Cut Off Switch
Used to turn off the LCD panel monitor when in the closed
position.
10. LCD Panel
11. Screen Release
Press to release the screen.
8
9
10
11
6
5
3
4
2
1
7
1. POWER ( ) Button
Used to turn the system on/off.
2. Source Select
Use to select one of the four sources: DVD, AV1/AUX.
5

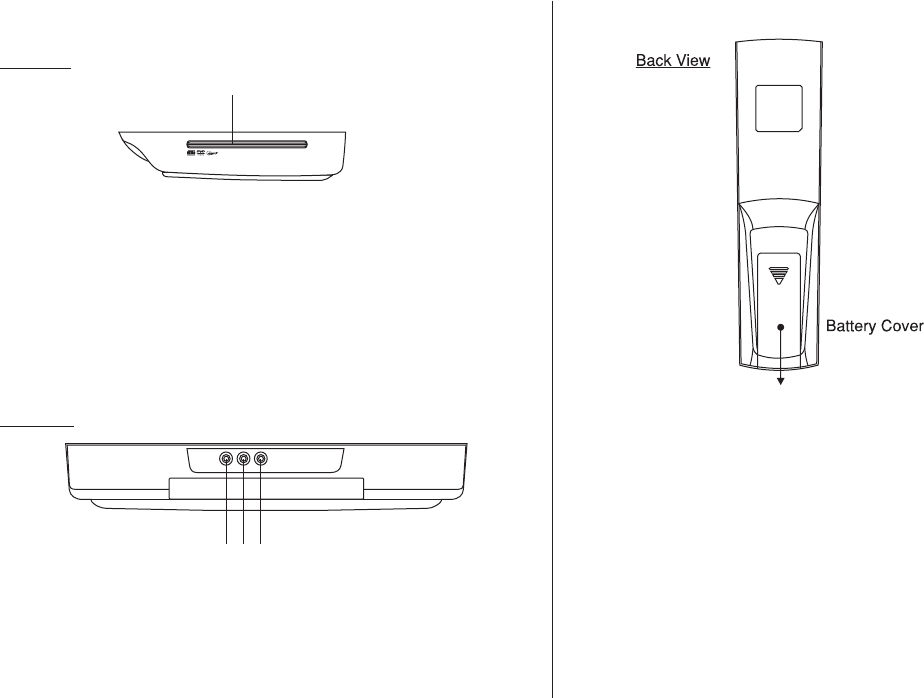

Side View
CONTROL FUNCTION DESCRIPTION
(SIDE VIEW & BACK VIEW)
Side View
1. DVD Disc insertion Slot
For loading and removing discs. Unit must be in a powered on
state to load disc when disc is inserted. Insert disc with label side
facing up.
Back View
1. Auxiliary Video Input
2. Auxiliary Audio Left Input
3. Auxiliary Audio Right Input
1
1 2 3
REMOTE CONTROL OPERATION
Battery Installation
Before attempting to operate your Remote Control, install the
batteries as described below.
1) Turn the Remote Control face down. Using your finger, slide
the battery cover off in the direction of the arrow.
2) Install Two "AAA" batteries. Make sure that proper polarity
(+ or -) is observed.
3) Align the cover tabs with the remote control and slide the
cover until it locks.
The remote control will operate the VOD100. It is not a universal
remote control and will not control equipment from other
Manufacturers.
6

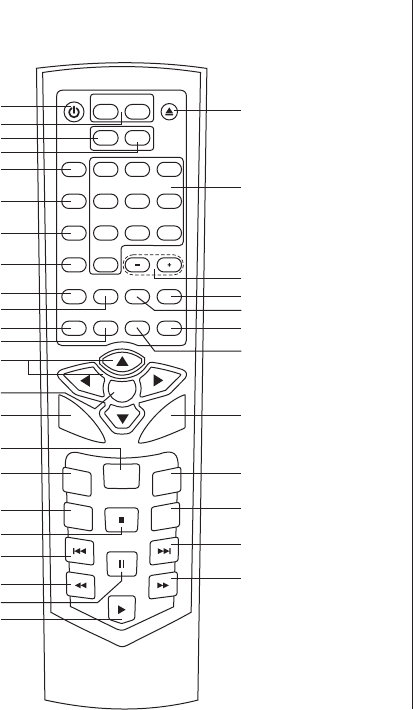

MAIN FUNCTION DESCRIPTION
POWER
SOURCE
VOLUME
AUTO
MEMORY
SKIP/
SEARCH
ERASE/
WRITE
FMM
ON/OFF
RETURN DISPLAY
IRT
ON/OFF MUTE
CHANNEL
SELECT
DAY/
NIGHT PIX
MONITOR SELECT
M1
1 2
5
8
4
7
0
3
6
9
TV
M2
DVD
OK
MENU
REPEAT
SETUP
ZOOMAUDIO
SUBTITLE
A-B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
EJECT
*
** Function not available in this model.
Function control is available on the unit and the remote control.
1.
Press this button to turn the unit ON and OFF.
2. MONITOR SELECT
M1 Button - Sets the remote control code to allow control of
the unit set to M1 mode only.
M2 Button** - Invalid function for this model
3. TV Mode Select Button
Switches certain function keys on the remote control for TV
functions.
4. DVD Mode Select Button
Switches certain function keys on the remote control for DVD
functions.
5. SOURCE Button*
Each time the button is pressed, the audio / video source will
change in the following sequence: DVD > AV1 / AUX.
6. AUTO MEMORY Button (AUTO PROGRAM Button)**
When the AUTO MEMORY button is pressed, all channels are
searched and channels that are detected with signals of
sufficient levels are automatically stored in memory.
POWER Button*
7
7. SKIP / SEARCH Button**
This button selects between SKIP and SEARCH mode. In "SKIP mode" the TV tuner will tune and stop on channels that are programmed
into memory when the CHANNEL UP / DOWN buttons are used. When the SKIP mode is disable, the TV will stop on all active channels.
8. ERASE / WRITE Button**
While tuned to a channel, pressing this button will alternately store or erase the channel from memory.
9. FMM ON / OFF Button
Turns the wireless FM Modulator on or off.
10. CHANNEL SELECT Button
Selects the wireless FM Modulator Frequency (CH1 88.1MHz, CH2 88.3MHz, CH3 88.5MHz, CH4 88.7MHz, CH5 88.9MHz, CH6
89.1MHz, CH7 89.3MHz, CH8 89.5MHz, CH9 89.7MHz, CH10 89.9MHz, CH11 90.1MHz, CH12 90.3MHz, CH13 90.5MHz, CH14
90.7MHz, Ch15 90.9MHz, CH16 91.1MHz)
11. RETURN Button
Press Return Once : Go to disc menu.
Press Return Twice : Go to movies playback.
12. DISPLAY
Press to display current disc information while the disc is playing. Press cursor (pq) buttons to select the Title or Chapter.
For Title/Chapter selection use the numeric buttons to enter the desired Title Chapter selection.
13. CURSOR / CHANNEL UP DOWN (pqtu)
Use these buttons to navigate the menu selections on the screen.
Use the CHp to increase the channel number and use CHq to decrease the channel number. **
14. OK Button (ENTER)
Used to implement a selected setting or menu option.
8
15. MENU Button
Allows the user to access the DVD menu(DVD MODE).
16. REPEAT Button
Allows the user to repeat a selected title, chapter, or track.
17. AUDIO Button
Press to display and select the available AUDIO languages in DVD mode. Each time you press the button, the language changes.
Note: The languages for audio vary from disc to disc.
18. SUBTITLE Button
Press to display and select the available subtitle language in DVD mode. Each time you press the button, the subtitle language
changes.
Note: The type and number of languages for subtitle vary from disc to disc.
19. STOP (<) Button*
Press STOP once : (Stop) display perform to stop playback, pressing the PLAY button again will resume normal playback.
Press STOP twice : (<Stop) display perform to stop playback.
20. PREVIOUS (9) Button
Press to return to the previous chapter or track.
21. SCAN BACKWARD (7) Button
Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, and 16 times the normal speed.
22. PAUSE (II) Button
Allows the user to pause the playback. Pressing pause again or pressing the Play Button will resume normal playback.
23. PLAY Button*
Press to activate the play mode when a disc is loaded in the disc compartment.
9
24. SCAN FORWARD (8) Button
Press to search in a forward direction. Press repeatedly to change the search speed from 2, 4, 8, and 16 times the normal speed.
25. NEXT (:) Button
Press to skip to the next chapter or track.
26. A-B Button
Allow user to repeat the playback from point A to point B.
Press A-B button On-Screen Display DVD player
Once Repeat A- Mark the beginning of the section to repeat (Set point A)
Twice Repeat A-B Mark the end of the section to repeat (Set point B)
3 times AB Off Cancel the A-B repeat function
27. ZOOM Button
Press this button to enlarge the picture when playing a DVD disc.
Press ZOOM button DVD player perform
Once Enlarge the picture 1 times of the original size
Twice Enlarge the picture 2 times of the original size
3 times Enlarge the picture 3 times of the original size
4 times Picture is returned to original size

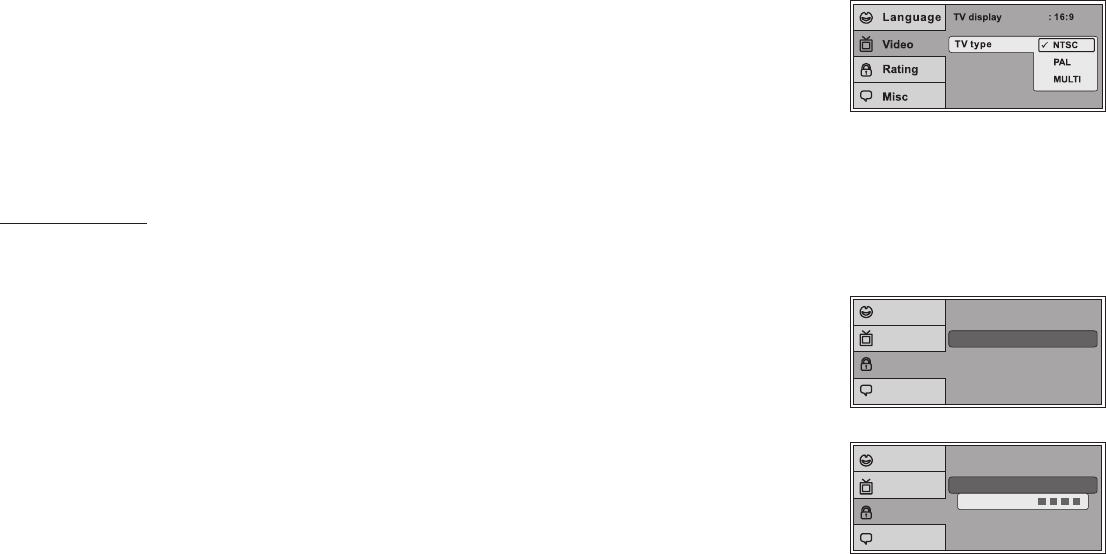

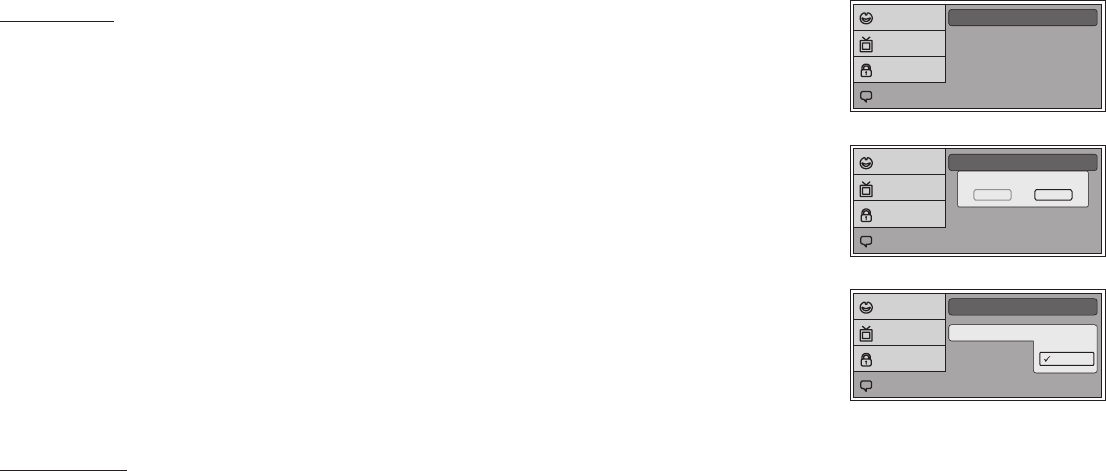

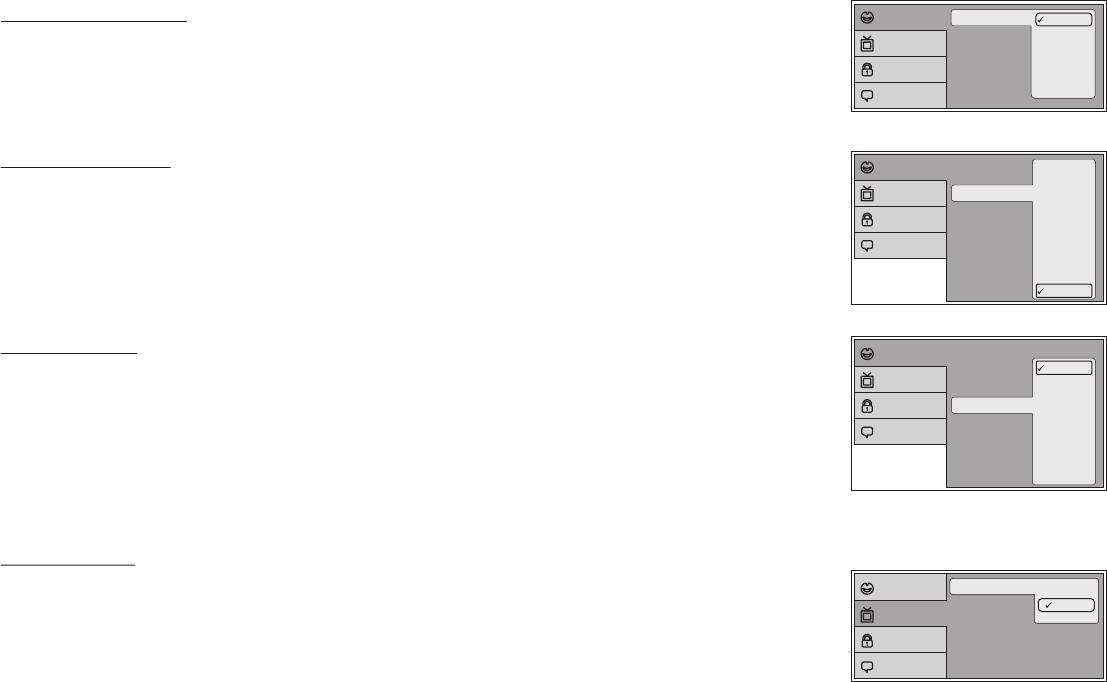

28. SETUP Button
Press to display the Setup Menu which allows the user to change the DVD player options such as Language, Video, Rating and
Misc. Refer to the settings and Adjustments section for more information.
29. IRT ON/OFF Button
Turns the Infrared Transmitter IRT ON or OFF for IR Wireless Headphones.
30. MUTE Button
Press this button to mute all the audio.
Pressing the button again restores the sound to the previously set level.
10
31. DAY / NIGHT Mode Button**
This control toggles the unit between "Day" and "Night" LCD illumination modes. In the "Day" mode, the LCD backlit intensity is at
Maximum. In "Night" mode, the LCD backlit is dimmed to a preset level that is more suitable for low light operation.
32. PIX Button (Picture Select)
Each time this button is pressed, the on screen picture adjustment displays the "adjustment bar" for BRIGHTNESS, CONTRAST,
COLOR, TINT or RESET. Once the desired adjustment bar is displayed, use the VOLUME(+)/ VOLUME(-) button to adjust the setting.
The display will automatically turn off if no adjustments are made within 6 seconds, or is any other button is pressed.
33. VOLUME DOWN (-) or UP (+)
Press to decrease or increase the level of the picture adjustments.
34. NUMBER Buttons
Allow the user to enter numbers 0 to 9 for selection of selection of CD tracks, DVD chapters and password.
35. EJECT (?) Button*
This button is used to eject the disc.
11
SETTINGS AND ADJUSTMENTS
PICTURE ADJUSTMENTS
When watching a program, the picture quality can be adjusted to suit your taste.
PIX (P) Button

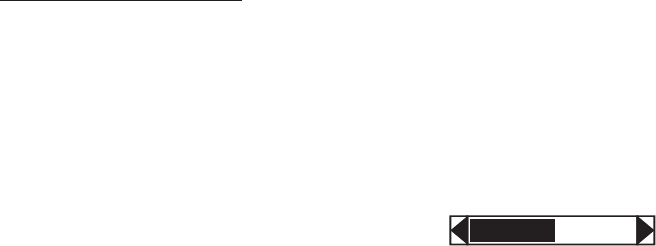

1) Each time this button is pressed, the on screen picture adjustment displays the "adjustment bar" for BRIGHTNESS, CONTRAST,
COLOR, TINT or RESET.
2) Once the desired adjustment bar is displayed, use the VOLUME(+)/ VOLUME(-) button to adjust the setting.
The display will automatically turn off if no adjustments are made within 6 seconds, or is any other button is pressed.
3) Press the PIX button five times to select RESET, then press either Volume (-) or the Volume (+) button on the remote or the main unit
and all of the picture settings (BRIGHTNESS, CONTRAST, COLOR and TINT) will return to the factory setting.
BRIGHTNESS 16
SYSTEM MENU
SCREEN MODE
OSD LANGUAGE
SOURCE DEFAULT DVD
SCREEN MODE
16:9
4:3
12
MENU ADJUSTMENT
SYSTEM (MAIN) MENU and On Screen Display (OSD)
1) In TV mode, Press the MENU button on the remote, the main page of the system menu will appear on screen.
2) Use the cursor buttons p or q to select the desired item in the main page and press the OK button to select.
3) The sub menu will appear on screen.
4) Use the cursor buttons p or q to select an item in the sub menu and then press the OK button to select.
5) Press the Menu button to exit System Menu.
Note: System Menu can be control via Remote Control only.
(Items selected in the menu will have a green background)
SCREEN MODE SELECT
This allows the user to change the screen format (aspect ratio 16:9, 4:3).
1) To select the screen aspect ratio format highlight SCREEN MODE and then press the OK button to enter the sub menu. Then use the
cursor buttons p or q to select from either 4:3 or 16:9. Press the OK button to confirm the setting.

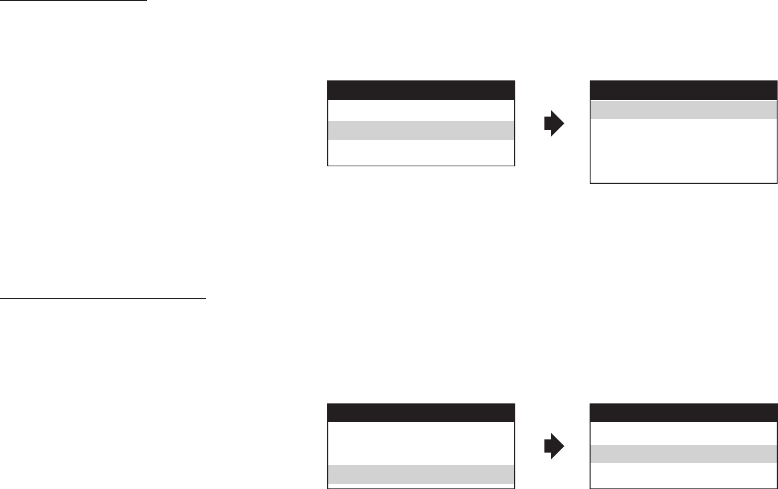

OSD LANGUAGE
This allows the user to select the language for the on-screen display. The user can either select English, Spanish, French or German for
the OSD language.
SYSTEM MENU
SCREEN MODE
OSD LANGUAGE
SOURCE DEFAULT DVD
SOURCE DEFAULT DVD
ON
OFF
SYSTEM MENU
SCREEN MODE
OSD LANGUAGE
SOURCE DEFAULT DVD
OSD LANGUAGE
ENGLISH
SPANISH
FRENCH
GERMAN
13
SOURCE DEFAULT DVD
This allows the user to select from:
DVD default on- When ever the unit is turned on it will return to DVD mode.
DVD default off- When ever the unit is turned on it will return to the last source selected.
14
SETTINGS AND ADJUSTMENTS
The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen
display or prevent DVD playback for children.
Using the Setup Menu
1. Press the SETUP button on the remote. The Setup Menu appears on the screen as shown per diagram.
Subtitle
Audio
OSD Language : English
: Off
: English
Language
Video
Rating
Misc
2. In order to set the desired option, move the highlight into the setup area using the cursor button
3. After entering the setup area, highlight the desired option using the cursor button p or q.
4. Press u to move the highlight to the different options for the selected item. Press p or q to select the desired options, and then press OK
button to confirm the selection.
5. Repeat steps 3~4 to continue setting the options that reside on the same Setup Page.
6. To change to another Setup page, press t until the highlight moves back to the icon on the top part of the Setup Menu. Then, repeat steps
2~5.
Exiting the Setup Menu
Press the SETUP button again only.
u.
15
TV type
TV display 4:3
16:9
Language
Video
Rating
Misc
Subtitle
Audio
OSD Language English
French
Spanish
German
Italian
Language
Video
Rating
Misc
LANGUAGE SETUP
Language for On-Screen Display
OSD MENU: The OSD MENU setup allows you to select the language for the on-screen display.
The user can either select English, French, Spanish, German or Italian for the OSD language.
SUBTITLE SETUP
select "SUBTITLE" using pqbutton, then press ubutton to enter the Sub menu. Select the subtitle you
desire using pqbutton, then press "OK" to confirm the setting. Press tbutton to return.
Note: The subtitle selection is only available for discs that are recorded in the above listed languages. If the selected,
language is not available, the player will play and display on the screen the original language contained in the disc.
AUDIO SETUP
select "AUDIO" using pqbutton, then press ubutton to enter the Sub menu. Select the audio you
desire using pqbutton, then press "OK" to confirm the setting. Press tbutton to return.
Note: The audio selection is only available for discs that are recorded in the above listed languages. If the selected,
language is not available, the player will play and display on the screen the original language contained in the disc.
VIDEO SETUP
TV Display
The TV DISPLAY setup allows you to adjust screen setting (aspect ratio).
4:3 This displays the wide picture with black bands on the upper and lower portions of the screen.
16:9 This displays a wide picture with black bands on the upper and lower portion of the screen.
The bandwidth will vary, depending on the aspect ratio of the disc.
Subtitle
Audio
OSD Language English
French
Spanish
German
Italian
Japanese
Chinese
Thai
Off
Language
Video
Rating
Misc
Subtitle
Audio
OSD Language
English
French
Spanish
German
Italian
Japanese
Chinese
Thai
Language
Video
Rating
Misc
16
The rating level can only be changed when the displayed lock is open. For first time use to change parental
control, using cursor ubutton to enter parental mode, key in the default password (3308) and press OK.
Press OK button again to select the parental level, select the level and press OK. To change the password to
your own password press "Change Password" mode and enter the default password (3308) and press OK.
Press OK button and again and key in a new four digit password. After complete press OK button to end the
process.
RATING SETUP
Rating
This item allows you to limit the content of movie playback from G to Adult. The lower the value, the more strict the control.
1. G
2. PG
3. PG - 13
4. R
5. NC - 17
6. Adult
Parental : 6.Adult
Change password
Enter Password
Language
Video
Rating
Misc
Parental : 6.Adult
Change password
Language
Video
Rating
Misc
Note: The Default Password is 3308. This password is always effective even after you have selected your own password and changed it. To avoid the possibility
of others using the default password to set the parental level and change the password, you can record this default password in another area and delete it from
this manual. Some discs can be limited depending on the age of users while some discs cannot.
TV Type
The TV TYPE setup allows you to select the system to fit to the color system of the TV to be connected.
NTSC - Select this type for NTSC TV
PAL - Select this type for PAL TV
MULTI - Select this type for multi-system TV
17
Screen saver : On
Load Factory
Language
Video
Rating
Misc
Screen Saver
Load Factory
Load Factor y
Yes No
Language
Video
Rating
Misc
Misc SETUP
select "MISC" using pqbutton, then press ubutton to enter the Misc menu. Select the subtitle you desire
using pqbutton, then press "OK" to confirm the setting. Press tbutton to return.
Load Factory
Load Factory allows you to reset all options to factory settings.
* This function will not affect the Rating control settings.
Screen saver Off
Load Factory
On
Language
Video
Rating
Misc
Playing DVDs
1. Press the DISPLAY button on the remote control to display the status banner. The banner include title, chapter, angle, audio, subtitle, title
selection & chapter selection.
2. Title Selection
Press numeric(0~9) buttons to initiate a change of title selection. Then press OK button to implement the selection.
3. Chapter selection
Press numeric(0~9) buttons to initiate a change of chapter selection. Then press OK button to implement the selection.
As you toggle through the options, the repeat option changes at that time. The track, for example, repeats once that track has ended. The
selected repeat option loops repeatedly until you turn it off.
Screen Saver
ON -Screen saver will appear
OFF -Screen saver will not appear
Note: The DVD player will enable the Screen Saver mode if the unit is inactive for approximately 2 minutes.
18
Playing MP3 Discs
MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while
taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the
songs in the order they were burned on to the disc.
When playback is started the elapsed time of the track that is playing will be displayed.
Selecting Folders and Songs
When a device containing MP3 files is loaded in the player, the navigation menu appears automatically.
1. Press p or q to move the highlight to the desired folder (if present) on the left side of the menu and press OK. The songs in the folder will be
displayed on screen.
2. Press p or q to move the highlight to the desired track containing the song and press OK to begin track playback.
Skipping Songs
Use the Next (:) button on the remote control to move to the next song. Use the Previous (9) button to move to the previous song.
The Filter function applies to the following formats:
Audio - Audio data format (MP3, WMA)
Photo - Photo data format (JPEG)
Video - Video data format (MPEG , )
Selecting a Play Mode
Filter (For MP3 & JPEG only)
Fliter Mode enables or disables the display of files contained on the media based on their file extension.
1/12
Repeat : of f
002
003
004
005
006
Flat Mode
Music Playing
/
001
00:00:01
Filter Au dio
Video
19

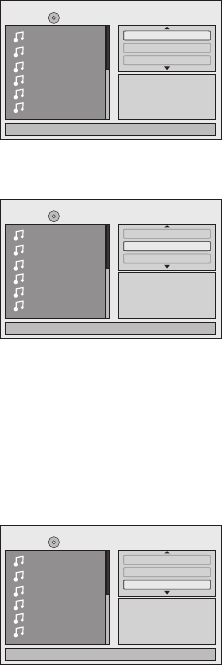

Flat Mode: play the entire disc
This mode is aways on (default). During the Flat Mode all the data folder with MP3, JPEG & movies will be played in
sequence. If the Flat Mode function is off, it will only play the selected folder; other folders are disabled.
1/12
Mode : Norm al
002
003
004
005
006
Repeat : of f
Music Playing
/
001
00:00:01
Flat Mode
Repeat: play repetitively
Repeat function has 4 options : Off, Single, Folder, All. Move cursor to Repeat function and press OK,
Off/Single/Folder/All are displayed in that order. Repeat default is Off;
Off Turn off repeat function
Single Repeat the song being played until STOP is pressed.
Folder Play all songs in a folder repetitively
All Play all songs on the disc repetitively
1/12
Mode : Norm al
002
003
004
005
006
Repeat : of f
Music Playing
/
001
00:00:01
Flat Mode
Mode: play mode
The Mode function has 4 options: Normal, Shuffle, Music Intro. Move cursor to the desired Mode function and press OK;
Normal/Shuffle/Random/Music Intro are selected in that order. The Mode function default status is Normal.
Normal: Play all songs in folder once
Shuffle: Play songs in a folder in a shuffle order. Each song in the folder is played only once.
Random: Play songs in a folder in a random order.
Music Intro: Play each song in order in the folder for 10 seconds
Remark– The purpose of the Music Intro function is to provide the user with a sample of each song
for 10 seconds, thereby making it easy to select and listen to a favorite song.
Random and
1/12
Mode : Norm al
002
003
004
005
006
Repeat : of f
Music Playing
/
001
00:00:01
Flat Mode
20

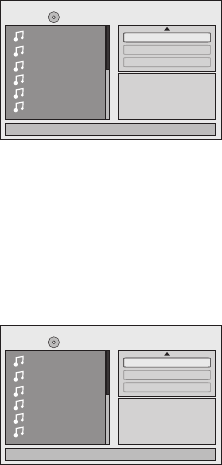

Method: To add the selected songs into Browser view, make sure disc playback is off. Move cursor to Edit mode
function and press OK. After Edit mode is selected, move cursor to songs list and select the songs which will be
compiled and press OK. A check mark appears to the left of the selected song; to add the selected songs to the
program, move cursor to the “Add to program” function and press OK. The selected songs is added into a new
program list and the check mark will disappear on play list, move cursor to “Program view” function and press OK
to browse the songs in the program. Press play button to play the selected songs.
Add to program
Notice: Edit mode, Program view or Add to program functions are relationship related when select the preferred song add to the songs list.
1/12
Add to prog ram
002
003
004
005
006
Program v iew
Music Playing
/
001
00:00:01
Edit mode
Album: --- ---------
Method: To clear the selected songs program file, double press stop button to the playback mode, move cursor
to Edit mode function and press OK. After Edit mode is selected, move cursor to selected songs list and select
the songs which you want to delete; press OK and a check mark will appears to the left of the selected song,
move cursor to clear program and press OK, the selected songs will be deleted and disappear on the play list.
Clear program
Notice: Edit mode, Browser view or Clear program functions are relationship related when delete the selected song at the songs list.
1/12
Clear pro gram
002
003
004
005
006
Browser v iew
Music Playing
/
001
00:00:01
Edit mode
Album: --- ---------
21

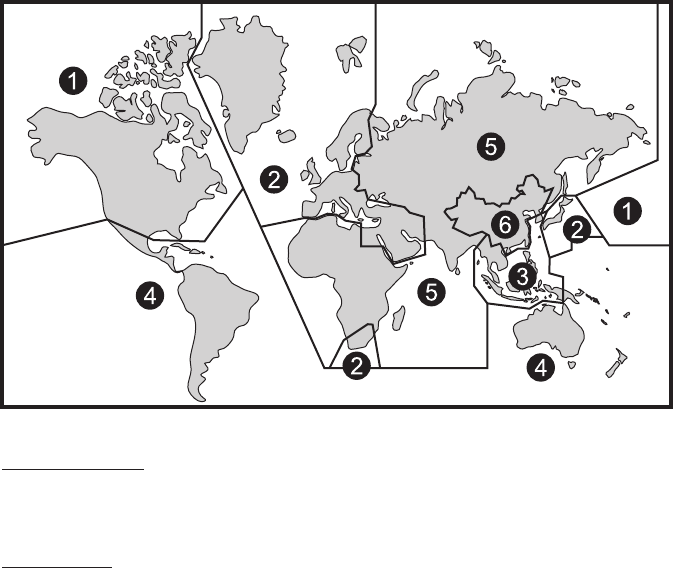

DVD Area Code
The DVD player are given a region code according to the country or area marked as shown in following map. Other country code cannot be
played in this unit and the unit will display “DISC REGION INCORRECT”.
DVD Basics
To get the optimum use out of the DVD section, make sure you read this section completely.
Types of Discs your DVD will play
•Audio discs - Audio CDs contain musical or sound content only.
•MP3 discs - A disc that contains audio files (for example, a CD-R with downloaded MP3 files).
* This system is capable of playing most recordable DVD formats. However, due to the variety of disc manufacturers and software,
playback cannot be guaranteed.
Loading and Playing Discs
Before you load a disc, make sure that it is compatible with the player. Insert the disc with the label facing the driver.
Note: the following Discs CANNOT be used with this player :
•MiniDisc
•Laserdisc
•CD-1, CD-ROM, DVD-ROM, Super Audio CD (SACD), DVD Audio, JPEG (KODAK)
To load and Play a Disc
Press the Power button to turn the unit ON. Select DVD mode and insert the disc (Label towards driver) into the disc compartment.
•DVD* disc - DVD discs which contain video.
22
23
TURNING THE UNIT ON OR OFF
1. Pushing in the Screen Release button will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a
Comfortable viewing angle is reached. The hinge friction will hold the screen in position while the system is in use.
2. Pressing the power button* on the unit or the remote control will turn the system on and off. When in use the internal backlighting will
illuminate the controls.
3. After the unit has been turned on and is displaying a picture, adjust the viewing angle, by pivoting the screen to optimize the picture
quality.
4. Remember to turn the unit off and pivot the LCD to the locked position when not in use.
Power
ON/OFF
Button
Remote Sensor
Infrared Transmitter
Screen Release
OVERHEAD DOME LIGHTS
The Dome Lights integrated into the VOD100 are controlled by a three position slide switch. Sliding the switch to the ON position will turn the
,
lights ON. The OFF position will prevent the lights from turning ON with the vehicle s interior lighting, and the auto position will allow the lights to
,
turn ON and OFF with the vehicle s interior lighting. Refer to the Installation Guide for wire connections. Do not leave the vehicle unattended with
the dome light switch in the ON position, as this could result in a discharged battery.
REMOTE SENSOR
The VOD100 infrared remote sensors to relay signals to the unit when the remote control is pointed at the remote sensor.
24
ACCESSORIES
WIRELESS HEADPHONES
VOD100The includes a built-in infrared transmitter for use with the supplied wireless headphones. The headphone volume is adjusted using
the controls on each headset. Any number of wireless headphones may be used but they must be used within a line of sight from the transmitter,
as infrared transmissions, like visible light travel only in a straight line. See the documentation accompanying your wireless headphones.
SOURCE FEATURE*
AV1
The AV1 input may be connected to a Video Cassette Player (VCP), video game system, or other audio / video devices. To access the AV1
inputs, turn the VOD100 on and press the S (source) button on the VOD100 or the Source button on the remote control until "AV1/AUX" is
displayed on the screen. Turn the video source component on with its power button or remote control. The VOD100 is now ready to play the
audio and video signals from the source connected to AV1 input.
AV Out
The VOD100 provides an AV output for optional video monitor(s). This output will provide the AV signals that duplicate the picture/audio being
processed by the VOD100 to an additional monitor or video display. Please see your installer for more information.
AUX
The VOD100 will accept an audio / video input through the 3 RCA jacks located on the rear of the unit. The audio / video device could be a
video game system, video camera, or other input device.
TROUBLESHOOTING
25
PROBLEM
IR remote inoperative
Disc won't play
No sound or distorted sound
Play starts, but then stops immediately
?Insert a disc with the label side facing up.
?Check the type of disc you put into disc tray. This DVD only plays DVDs, audio CDs
and MP3s.
?Both the unit and the disc are coded by region. If the regional codes don't match,
the disc can't be played. This DVD player is set to Region Number 1.
?Make sure your DVD is connected properly. Make sure all cables are securely
inserted into the appropriate jacks.
?If you are using the 2-channel IR headphones, make sure you turn on the IR
headphone power, make sure the correct channel (A) is selected.
?Make sure the Modulator is ON and the proper Frequency has been selected on
the DVD player and car radio.
?The disc is dirty. Clean it.
?Condensation has formed. Allow player to dry out.
Can t advance through a movie' ?You can t advance through the opening credits and warning information that
appears at the beginning of movies because the disc is programmed to prohibit that
action.
'
SOLUTION
?Verify that the batteries in the remote are fresh.
?Verify that the remote sensor eye is not obstructed.
26
PROBLEM
Picture is distorted ?The disc might be damaged. Try another disc.
?It is normal for some distortion to appear during forward or reverse scan.
SOLUTION
?The feature or action cannot be completed at this time because:
1. The disc's software restricts it.
2. The disc's software doesn't support the feature (e.g., angles)
3. The feature is not available at the moment.
4. You've requested a title or chapter number that is out of range.
No forward or reverse scan ?Some discs have sections that prohibit rapid scanning or title and chapter skip.
?If you try to skip through the warning information and credits at the beginning of a
movie, you won't be able to. This part of the movie is often programmed to prohibit
skipping through it.
Not allowed at the moment
REPLACEMENT PARTS SPECIFICATIONS
Remote Control LCD Backlighting Edge Light Tube
Resolution 2400 x 480
Pixels 1,152,000
Operation Temperature 32 ~131 F (0 ~ 55 C)
Storage Temperature -4 ~ 158 F (-20 ~ 70 C)
Backlit life 30,000 Hours
Video Display System NTSC / PAL
Video Output 1.0Vp-p @ 75 ohms
Power Source 12V DC
Dimension L x W x H
11.0" x 9.5" x 1.7"
289mm x 243mm x 44mm
Specifications subject to change without notice.
136-4196
27
© 2007 Audiovox Electronics Corporation 128-5495F
AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or
any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of
original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for
parts and repair labor. A game controller, if supplied, is similarly warranted for ninety (90) days.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g.
dated bill of sale), specification of defect(s), transportation prepaid, to the Company at the address shown below.
This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna problems, to costs
incurred for installation, removal or reinstallation of the product, or to damage to digital memory/media devices, gaming devices,
discs, speakers, accessories, or vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged
through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial
number/bar code label(s). THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR
OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE
PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION
FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE
BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY
BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No
person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the
sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential
damage so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788 l 1-800-645-4994
12 MONTH LIMITED WARRANTY
Applies to Audiovox Mobile Video Products
128-8338© 2008 Audiovox Electronics Corp., Hauppauge, NY 11788
WWW
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
