Action Electronics 9R3VOD85 8.5” Overhead LCD TV With DVD Player User Manual 91 RJ 1002

Action Electronics Co.,Ltd. 8.5” Overhead LCD TV With DVD Player 91 RJ 1002

Users Manual

OPERATIONMANUALADV258.5" OVERHEAD LCDMONITOR WITHDVD PLAYER128-XXXXRR
Important NoticeAn LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is usedfor vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for televisionreception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicleis in “park” or when the vehicle’s parking brake is applied.An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when theparking brake is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the operatorof the motor vehicle.Warnings•Do not use any solvents or cleaning materials when cleaning the video monitor.•Do not use any abrasive cleaners, they may scratch the screen.•Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.•Lock the LCD screen in the fully closed position when not in use.•Before putting on headphones always adjust the volume setting to the lowest position.•Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drainthe vehicle’s battery.•Do not put pressure on the screen.•Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.Television ReceptionThis entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television reception in a moving vehicle will be limited and in some areas will not be possible due to weak and variable signal strength. Television viewing in a stationaryvehicle will result in an improvement, but may still be marginal due to signal strength. The quality of the picture will not be consistent withhome TV reception. Reception may be affected by weather and distance from TV station. A weak signal may cause the picture to roll, besnowy, or cause some color loss.Licensed under one or more of the following patents,Patent NOS. 5,775,762 and 5,927,784
3• 8.5" TFT (Thin Film Transistor) Active Matrix LCD(Liquid Crystal Display) Monitor• Built-in DVD Player• OSD (On Screen Display) for Control of Picture Qualityand Functions• Single Channel Infrared Transmitter for Optional IR Wireless Headphones• Four Audio / Video Source Inputs (DVD, AUX/Game,AV1, TV*/AV2)•Dome Lights with Built-in Three Way Switch•Built-in Five Frequency Wireless FM Modulator•Last Position Memory for DVD•Headphone Jack• Screen Mode Selection (16:9, 4:3)• Wireless Game Controller•Full Function Remote Control•Backlit Controls•Day / Night Picture Modes for Nighttime Use• 1 AV Output Via RCA Pigtail* Optional TV tuner (P/N PODTVT2)FEATURESCongratulations on your purchase of the Advent ADV25DVD Player with Drop-Down Video / Monitor. The ADV25has been designed to give you and your family many yearsof video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself withthe product to ensure that you obtain the best results from your equipment.Please note: Installation options vary, see the individual owner’s manuals for each component in your system to obtain a full understanding of each component’s operation.Safety PrecautionFor safety reasons, when changing video media it is recommended that the vehicle is not in motion, and that you do not allow children to unfasten seat-belts to change video media or make any adjustments to the system. System adjustments can be accomplished using the remote control, while seat-belts remain fastened. Enjoy your Advent entertainment system but remember the safety of all passengers remains the number one priority.

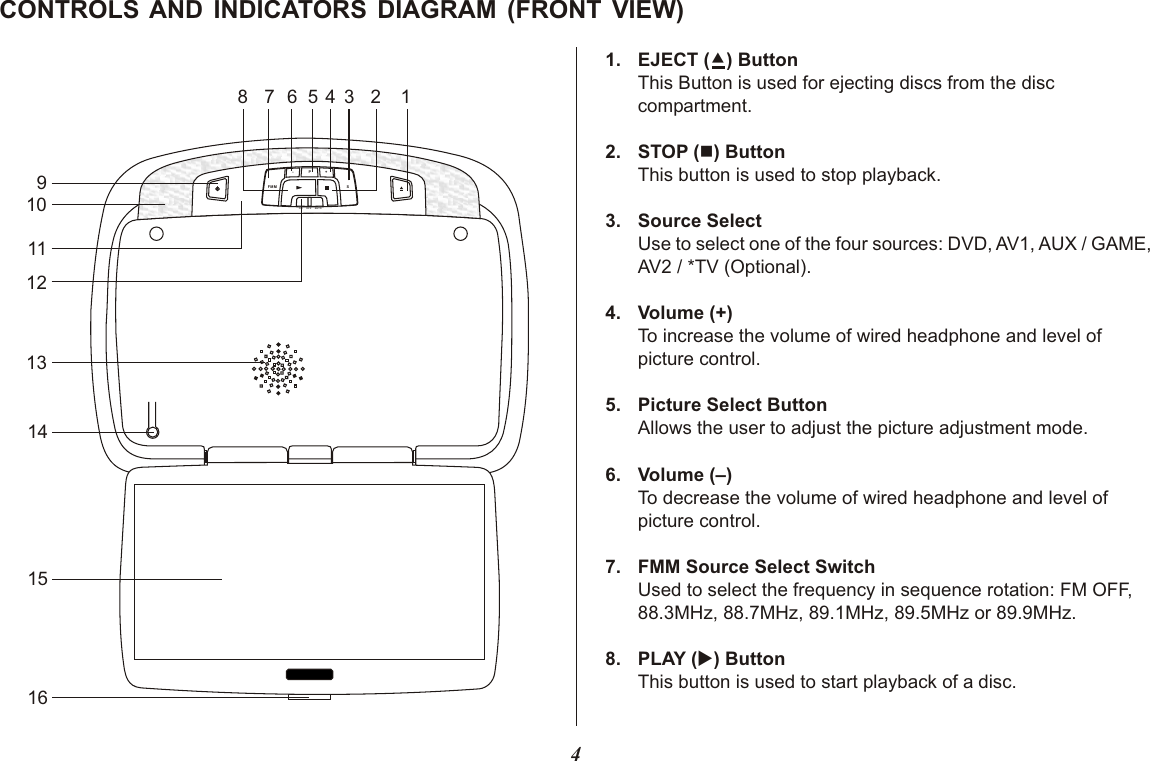

4CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW)912345678101112131415161. EJECT () ButtonThis Button is used for ejecting discs from the disc compartment.2. STOP (n) ButtonThis button is used to stop playback.3. Source SelectUse to select one of the four sources: DVD, AV1, AUX / GAME,AV2 / *TV (Optional).4. Volume (+)To increase the volume of wired headphone and level of picture control.5. Picture Select ButtonAllows the user to adjust the picture adjustment mode.6. Volume (–)To decrease the volume of wired headphone and level of picture control.7. FMM Source Select SwitchUsed to select the frequency in sequence rotation: FM OFF, 88.3MHz, 88.7MHz, 89.1MHz, 89.5MHz or 89.9MHz.8. PLAY (u) Button This button is used to start playback of a disc.ON OFF AUTOSFMM–+P

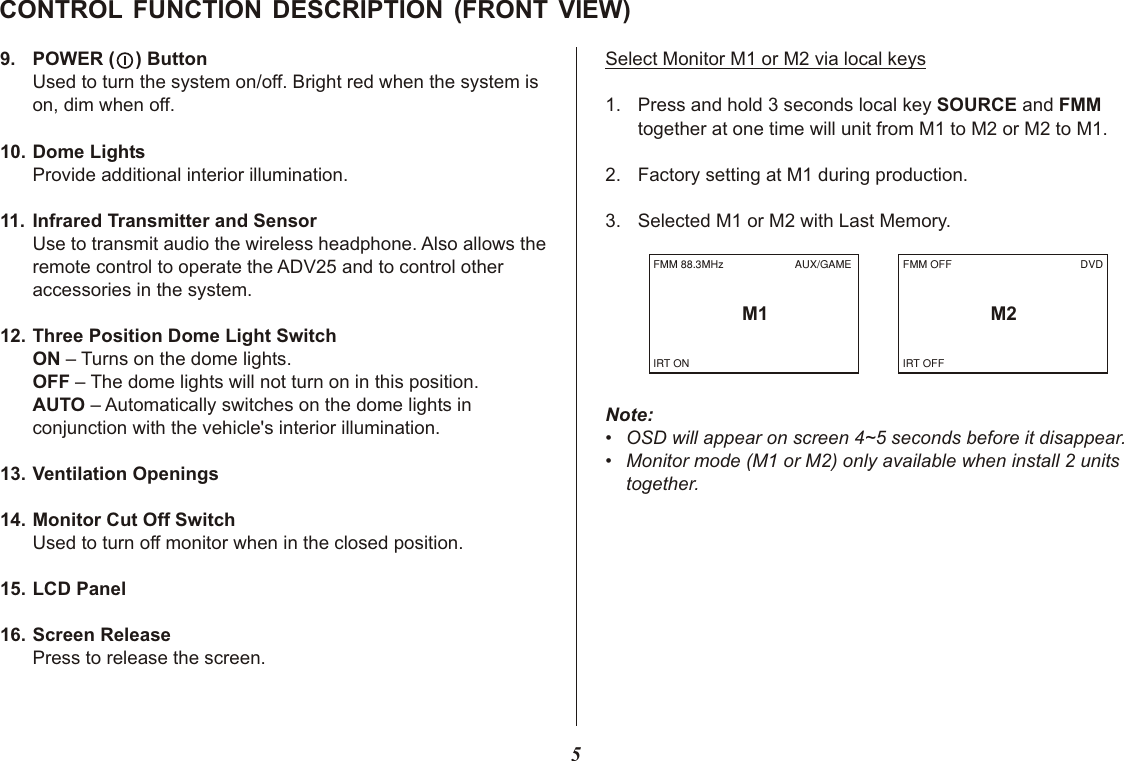

5CONTROL FUNCTION DESCRIPTION (FRONT VIEW)9. POWER ( ) ButtonUsed to turn the system on/off. Bright red when the system is on, dim when off.10. Dome LightsProvide additional interior illumination.11. Infrared Transmitter and SensorUse to transmit audio the wireless headphone. Also allows the remote control to operate the ADV25 and to control other accessories in the system.12. Three Position Dome Light SwitchON – Turns on the dome lights.OFF – The dome lights will not turn on in this position.AUTO – Automatically switches on the dome lights in conjunction with the vehicle's interior illumination.13. Ventilation Openings14. Monitor Cut Off SwitchUsed to turn off monitor when in the closed position.15. LCD Panel16. Screen ReleasePress to release the screen.Select Monitor M1 or M2 via local keys1. Press and hold 3 seconds local key SOURCE and FMM together at one time will unit from M1 to M2 or M2 to M1.2. Factory setting at M1 during production.3. Selected M1 or M2 with Last Memory.Note:• OSD will appear on screen 4~5 seconds before it disappear.• Monitor mode (M1 or M2) only available when install 2 units together.FMM OFFM2DVDIRT OFFFMM 88.3MHzM1AUX/GAMEIRT ON

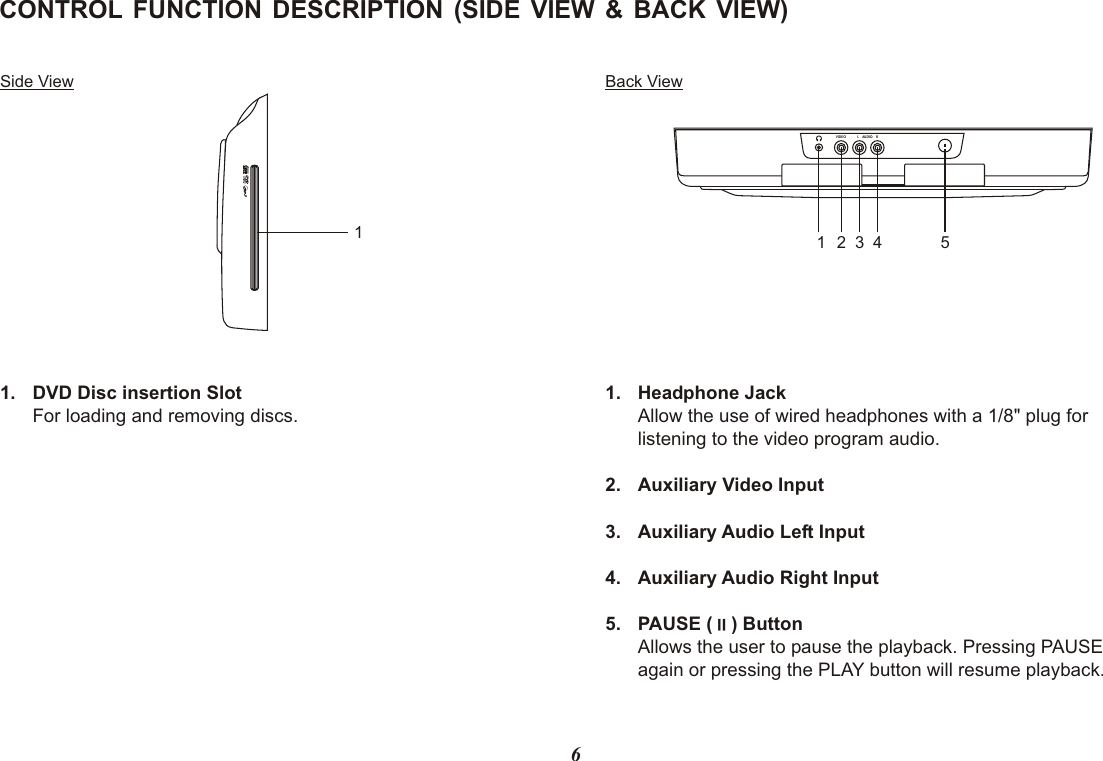

Side View1Back ViewCONTROL FUNCTION DESCRIPTION (SIDE VIEW & BACK VIEW)VIDEO L AUDIO R1 2 3 4 51. DVD Disc insertion SlotFor loading and removing discs.1. Headphone JackAllow the use of wired headphones with a 1/8" plug for listening to the video program audio.2. Auxiliary Video Input3. Auxiliary Audio Left Input4. Auxiliary Audio Right Input5. PAUSE (;) ButtonAllows the user to pause the playback. Pressing PAUSE again or pressing the PLAY button will resume playback.6
7REMOTE CONTROL OPERATIONBattery InstallationBefore attempting to operate your Remote Control, install the batteries as described below.1) Turn the Remote Control face down. Using a fingernail, lift the battery cover off.2) Install Two “AAA” batteries. Make sure that proper polarity(+ or -) is observed.3) Align the cover tabs with the remote control and press down until the cover clicks.The remote control will operate the ADV25. It is not a universal remote control and will not control equipment from other manufacturers.MAIN FUNCTION DESCRIPTIONPOWERSOURCEVOLUMEAUTOMEMORYSKIP/SEARCHERASE/WRITEFMMON/OFFRETURN DISPLAYIRTON/OFF MUTECHANNELSELECTDAY/NIGHT PIXMONITOR SELECTM11258470369TVM2DVDOKMENUREPEATSETUPZOOMAUDIOSUBTITLEA-B1234567891011121314151617181920212223242526272829303132333435EJECT

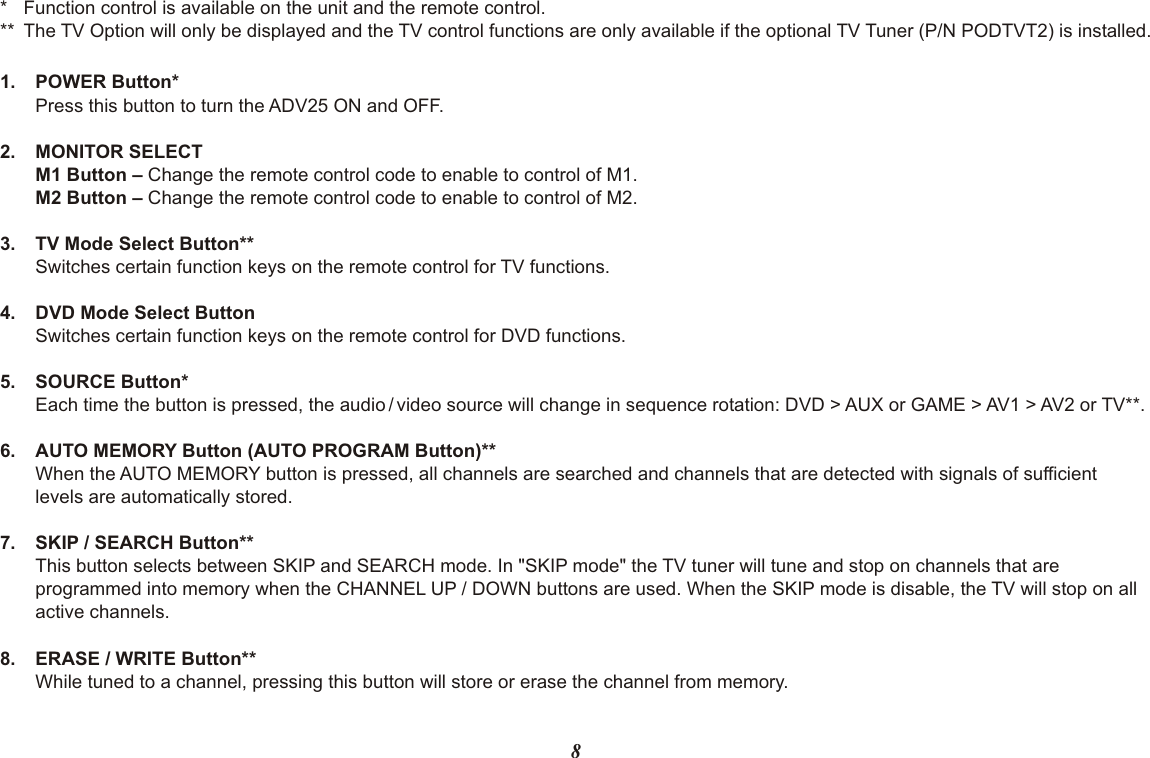

81. POWER Button*Press this button to turn the ADV25 ON and OFF.2. MONITOR SELECTM1 Button – Change the remote control code to enable to control of M1.M2 Button – Change the remote control code to enable to control of M2.3. TV Mode Select Button**Switches certain function keys on the remote control for TV functions.4. DVD Mode Select ButtonSwitches certain function keys on the remote control for DVD functions.5. SOURCE Button*Each time the button is pressed, the audio / video source will change in sequence rotation: DVD > AUX or GAME > AV1 > AV2 or TV**.6. AUTO MEMORY Button (AUTO PROGRAM Button)**When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with signals of sufficient levels are automatically stored.7. SKIP / SEARCH Button**This button selects between SKIP and SEARCH mode. In "SKIP mode" the TV tuner will tune and stop on channels that areprogrammed into memory when the CHANNEL UP / DOWN buttons are used. When the SKIP mode is disable, the TV will stop on all active channels.8. ERASE / WRITE Button**While tuned to a channel, pressing this button will store or erase the channel from memory. * Function control is available on the unit and the remote control.** The TV Option will only be displayed and the TV control functions are only available if the optional TV Tuner (P/N PODTVT2) is installed.

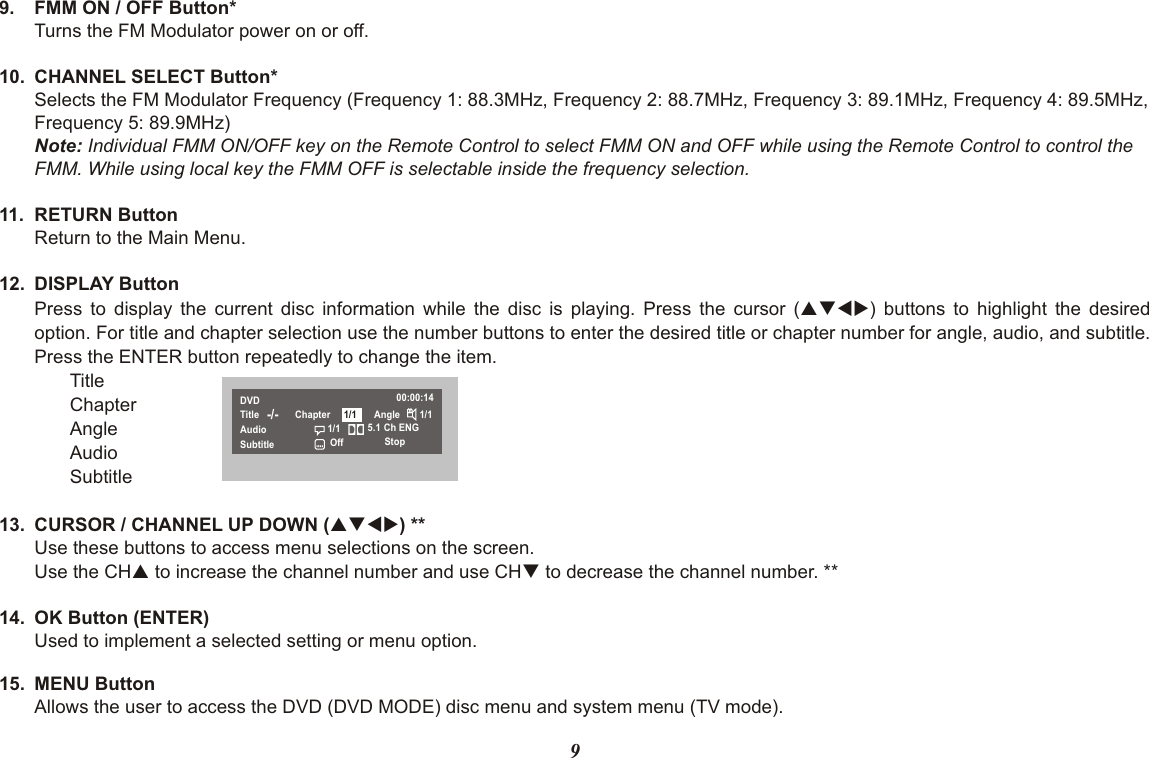

99. FMM ON / OFF Button*Turns the FM Modulator power on or off.10. CHANNEL SELECT Button*Selects the FM Modulator Frequency (Frequency 1: 88.3MHz, Frequency 2: 88.7MHz, Frequency 3: 89.1MHz, Frequency 4: 89.5MHz, Frequency 5: 89.9MHz)Note: Individual FMM ON/OFF key on the Remote Control to select FMM ON and OFF while using the Remote Control to control the FMM. While using local key the FMM OFF is selectable inside the frequency selection.11. RETURN ButtonReturn to the Main Menu.12. DISPLAY ButtonPress to display the current disc information while the disc is playing. Press the cursor (pqtu) buttons to highlight the desiredoption. For title and chapter selection use the number buttons to enter the desired title or chapter number for angle, audio, and subtitle.Press the ENTER button repeatedly to change the item.TitleChapterAngleAudioSubtitle13. CURSOR / CHANNEL UP DOWN (pqtu) **Use these buttons to access menu selections on the screen.Use the CHp to increase the channel number and use CHq to decrease the channel number. **14. OK Button (ENTER)Used to implement a selected setting or menu option.15. MENU ButtonAllows the user to access the DVD (DVD MODE) disc menu and system menu (TV mode).DVDTitleAudioSubtitle-/- Chapter Angle 1/100:00:14Ch ENGStop5.1Off1/11/1

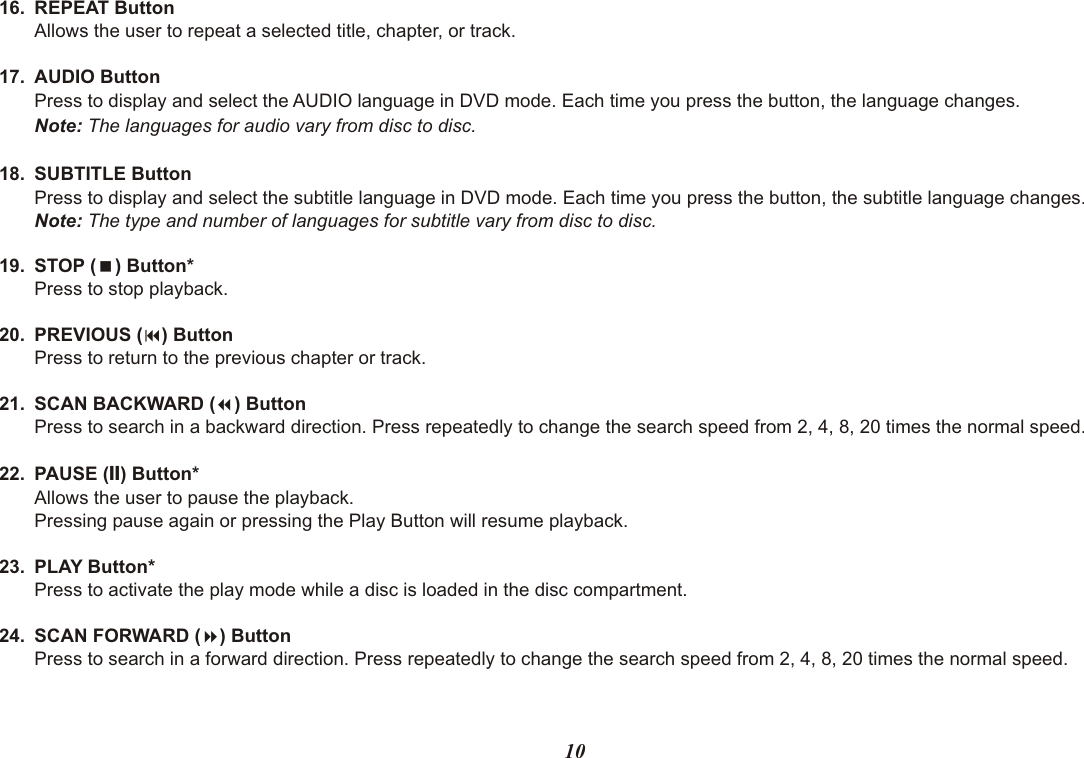

1016. REPEAT ButtonAllows the user to repeat a selected title, chapter, or track.17. AUDIO ButtonPress to display and select the AUDIO language in DVD mode. Each time you press the button, the language changes.Note: The languages for audio vary from disc to disc.18. SUBTITLE ButtonPress to display and select the subtitle language in DVD mode. Each time you press the button, the subtitle language changes.Note: The type and number of languages for subtitle vary from disc to disc.19. STOP (<) Button*Press to stop playback.20. PREVIOUS (9) ButtonPress to return to the previous chapter or track.21. SCAN BACKWARD (7) ButtonPress to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 20 times the normal speed.22. PAUSE (II) Button*Allows the user to pause the playback.Pressing pause again or pressing the Play Button will resume playback.23. PLAY Button*Press to activate the play mode while a disc is loaded in the disc compartment.24. SCAN FORWARD (8) ButtonPress to search in a forward direction. Press repeatedly to change the search speed from 2, 4, 8, 20 times the normal speed.

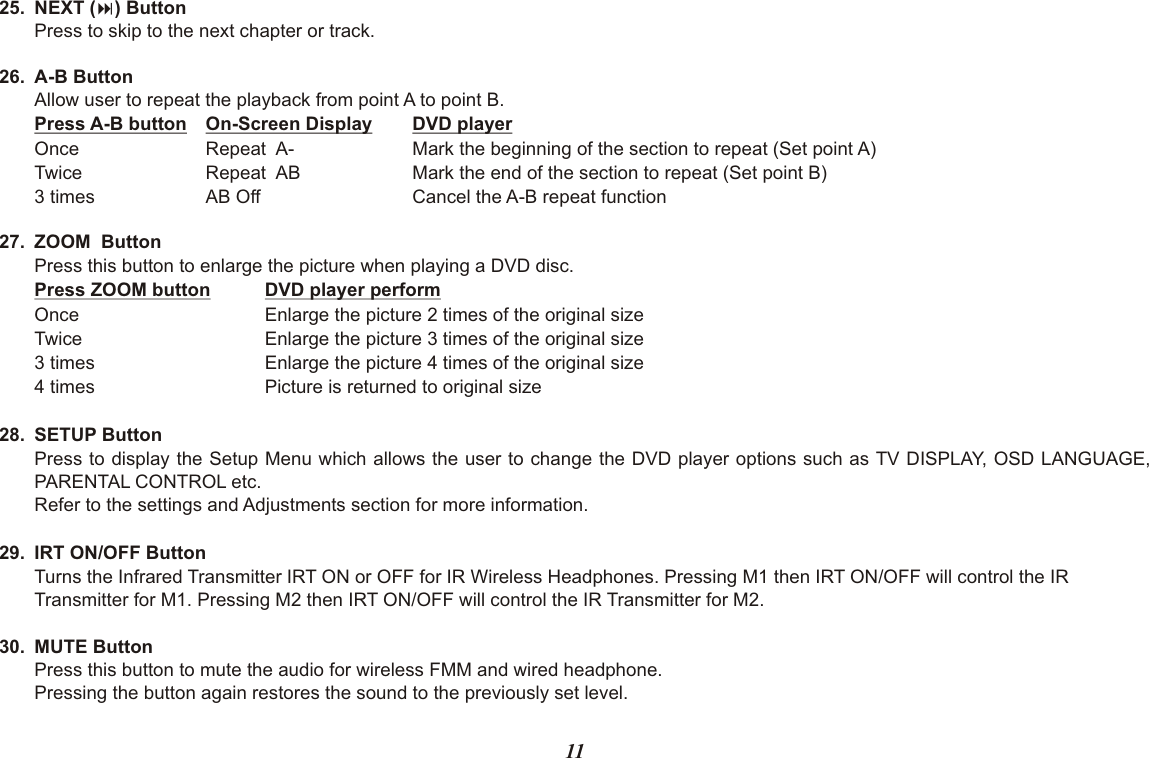

1125. NEXT (:) ButtonPress to skip to the next chapter or track.26. A-B ButtonAllow user to repeat the playback from point A to point B.Press A-B button On-Screen Display DVD player Once Repeat A- Mark the beginning of the section to repeat (Set point A)Twice Repeat AB Mark the end of the section to repeat (Set point B)3 times AB Off Cancel the A-B repeat function27. ZOOM ButtonPress this button to enlarge the picture when playing a DVD disc.Press ZOOM button DVD player performOnce Enlarge the picture 2 times of the original sizeTwice Enlarge the picture 3 times of the original size3 times Enlarge the picture 4 times of the original size4 times Picture is returned to original size28. SETUP ButtonPress to display the Setup Menu which allows the user to change the DVD player options such as TV DISPLAY, OSD LANGUAGE, PARENTAL CONTROL etc. Refer to the settings and Adjustments section for more information.29. IRT ON/OFF ButtonTurns the Infrared Transmitter IRT ON or OFF for IR Wireless Headphones. Pressing M1 then IRT ON/OFF will control the IR Transmitter for M1. Pressing M2 then IRT ON/OFF will control the IR Transmitter for M2.30. MUTE ButtonPress this button to mute the audio for wireless FMM and wired headphone. Pressing the button again restores the sound to the previously set level.

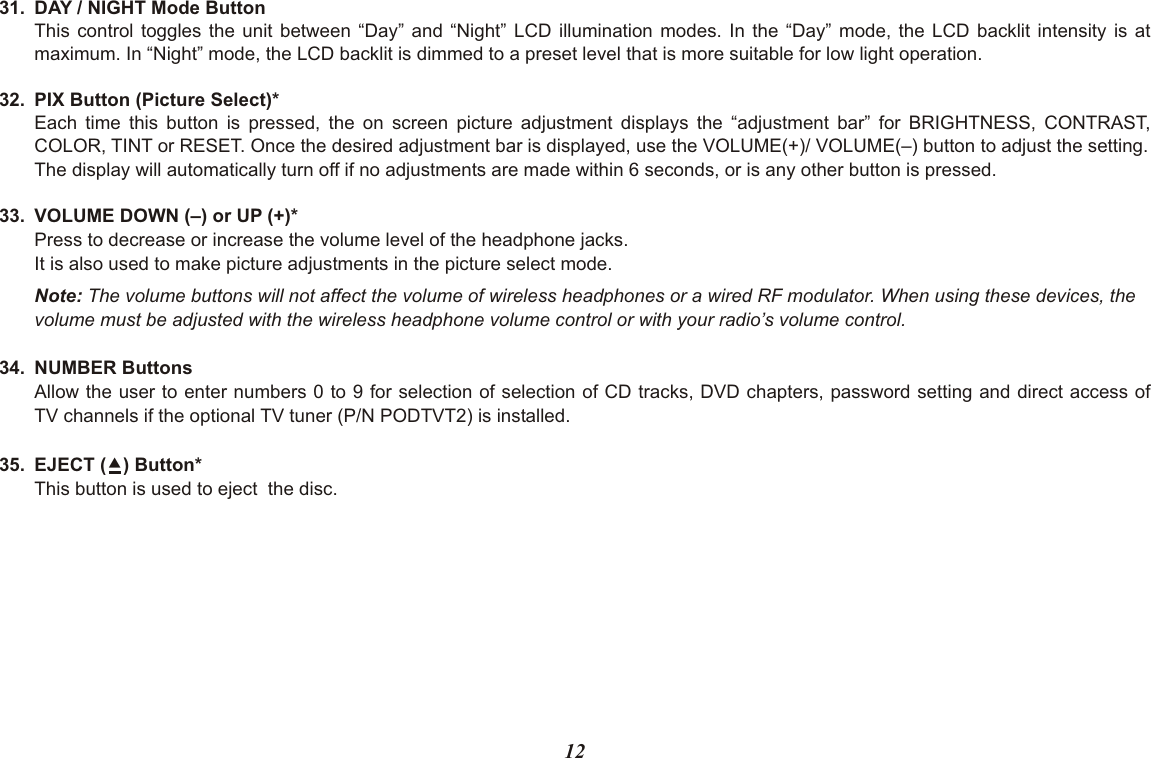

1231. DAY / NIGHT Mode ButtonThis control toggles the unit between “Day” and “Night” LCD illumination modes. In the “Day” mode, the LCD backlit intensity is at maximum. In “Night” mode, the LCD backlit is dimmed to a preset level that is more suitable for low light operation.32. PIX Button (Picture Select)*Each time this button is pressed, the on screen picture adjustment displays the “adjustment bar” for BRIGHTNESS, CONTRAST,COLOR, TINT or RESET. Once the desired adjustment bar is displayed, use the VOLUME(+)/ VOLUME(–) button to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds, or is any other button is pressed.33. VOLUME DOWN (–) or UP (+)*Press to decrease or increase the volume level of the headphone jacks.It is also used to make picture adjustments in the picture select mode.Note: The volume buttons will not affect the volume of wireless headphones or a wired RF modulator. When using these devices, thevolume must be adjusted with the wireless headphone volume control or with your radio’s volume control.34. NUMBER ButtonsAllow the user to enter numbers 0 to 9 for selection of selection of CD tracks, DVD chapters, password setting and direct access ofTV channels if the optional TV tuner (P/N PODTVT2) is installed.35. EJECT () Button*This button is used to eject the disc.

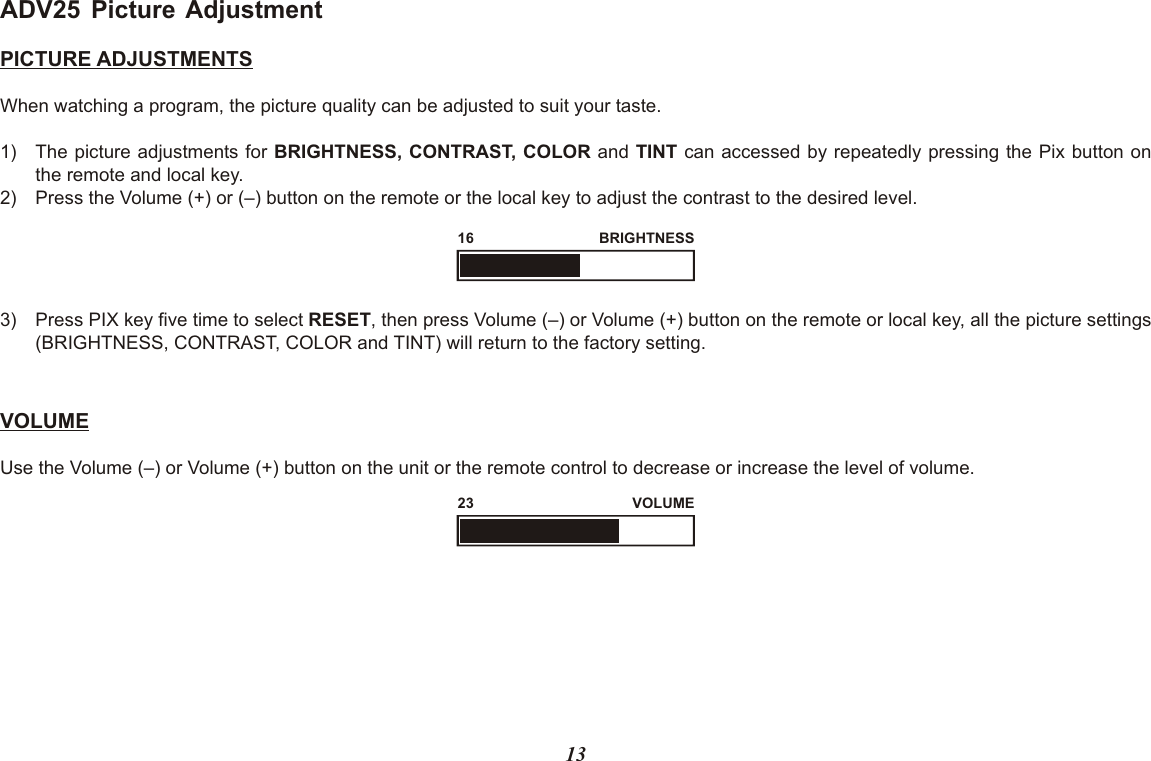

13ADV25 Picture AdjustmentPICTURE ADJUSTMENTSWhen watching a program, the picture quality can be adjusted to suit your taste.1) The picture adjustments for BRIGHTNESS, CONTRAST, COLOR and TINT can accessed by repeatedly pressing the Pix button onthe remote and local key.2) Press the Volume (+) or (–) button on the remote or the local key to adjust the contrast to the desired level.VOLUMEUse the Volume (–) or Volume (+) button on the unit or the remote control to decrease or increase the level of volume.3) Press PIX key five time to select RESET, then press Volume (–) or Volume (+) button on the remote or local key, all the picture settings (BRIGHTNESS, CONTRAST, COLOR and TINT) will return to the factory setting. BRIGHTNESS16VOLUME23
ADV25 Menu AdjustmentSYSTEM (MAIN) MENU and On Screen Display (OSD)1) In TV mode, Press MENU Key, main page will appear on screen.2) Use cursor button p or q to select item in the main page and press OK button for selection.3) Selected item in main page the sub page will appear on screen.4) Use cursor button p or q to select item in the sub page and press OK button for selection.5) After selected item in the sub page by pressed on the OK key it will automatic go back to main page for other selection.6) Press Menu key to exit System Menu. Selected item in the System Menu with Last Memory.Note: System Menu can be control via Remote Control only.SCREEN MODE SELECTThis allows the user to change the screen format (aspect ratio 4:3, 16:9).1) To select the screen aspect ratio format highlight MODE SELECT and press OK button to enter the submenu. Then press cursorbutton p or q to select from 4:3 or 16:9. Press OK button to confirm the setting.SYSTEM MENUSCREEN MODEOSD LANGUAGESOURCE DEFAULT DVDSCREEN MODE4:316:914

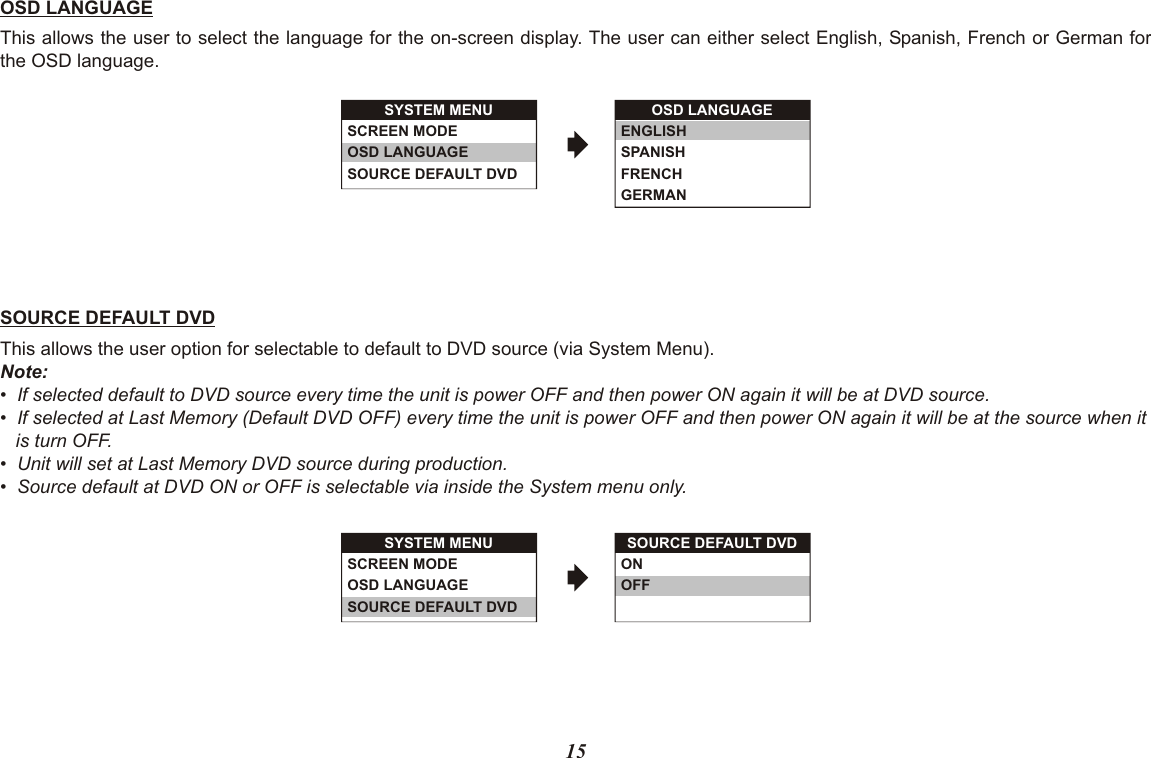

OSD LANGUAGEThis allows the user to select the language for the on-screen display. The user can either select English, Spanish, French or German forthe OSD language.SOURCE DEFAULT DVDThis allows the user option for selectable to default to DVD source (via System Menu).Note:• If selected default to DVD source every time the unit is power OFF and then power ON again it will be at DVD source.• If selected at Last Memory (Default DVD OFF) every time the unit is power OFF and then power ON again it will be at the source when it is turn OFF.• Unit will set at Last Memory DVD source during production.• Source default at DVD ON or OFF is selectable via inside the System menu only.SYSTEM MENUSCREEN MODEOSD LANGUAGESOURCE DEFAULT DVDSOURCE DEFAULT DVDONOFFSYSTEM MENUSCREEN MODEOSD LANGUAGESOURCE DEFAULT DVDOSD LANGUAGEENGLISHSPANISHFRENCHGERMAN15
16SETTINGS AND ADJUSTMENTSThe Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen display, limit playback for children.Using the Setup Menu1. Press the SETUP button on the remote. The Setup Menu appears on the screen as shown per diagram.Language Video RatingFrenchSpanishGermanItalianOSD Menu English EnglishVideoLanguageRatingLanguage SetupVideo SetupRating Setup2. In order to Go to the desired page, move the highlight using the cursor button t or u to the icon indicated.3. After entering the desired page, highlight the desired item using the cursor button p or q.4. Press u to move the highlight to the different options for the selected item.Press p or q to select the desired options, and then press ENTER to confirm the selection.5. Repeat steps 3~4 to continue setting the items in the same Setup Page.6. To change to another Setup page, press t until the highlight moves back to the icon on the top part of the Setup Menu. Then, repeat steps 2~5.Exiting the Setup MenuPress the SETUP button again only.

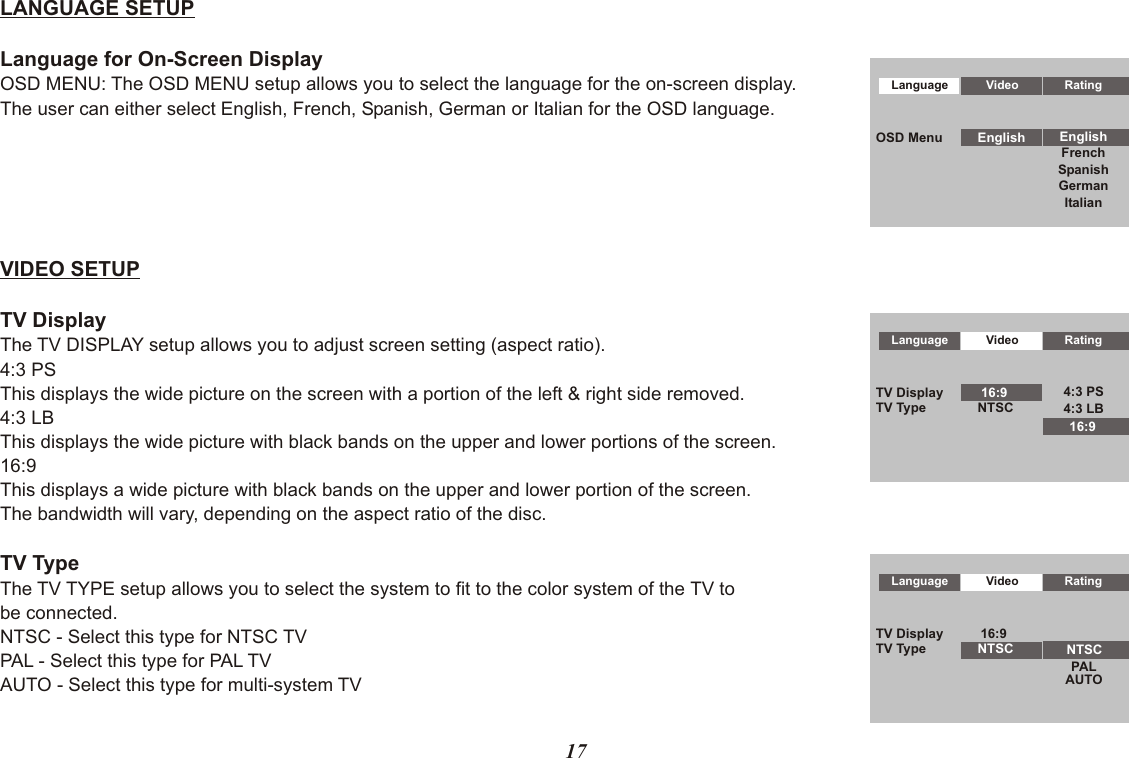

17LANGUAGE SETUPLanguage for On-Screen DisplayOSD MENU: The OSD MENU setup allows you to select the language for the on-screen display.The user can either select English, French, Spanish, German or Italian for the OSD language.VIDEO SETUPTV DisplayThe TV DISPLAY setup allows you to adjust screen setting (aspect ratio). 4:3 PSThis displays the wide picture on the screen with a portion of the left & right side removed.4:3 LBThis displays the wide picture with black bands on the upper and lower portions of the screen.16:9This displays a wide picture with black bands on the upper and lower portion of the screen.The bandwidth will vary, depending on the aspect ratio of the disc.TV TypeThe TV TYPE setup allows you to select the system to fit to the color system of the TV tobe connected. NTSC - Select this type for NTSC TVPAL - Select this type for PAL TVAUTO - Select this type for multi-system TVLanguage Video RatingFrenchSpanishGermanItalianOSD Menu English EnglishLanguage Video Rating4:3 LBTV Display 16:9 4:3 PSTV Type NTSC16:9Language Video RatingPALTV Display 16:9TV Type NTSCNTSCAUTO
18Language Video RatingPassword----Rating AdultLoad FactoryResetLanguage Video RatingPassword----Rating AdultLoad FactoryResetLanguage Video RatingPasswordRating AdultLoad FactoryReset****RATING SETUPRatingThis item allows you to limit the content of movie playback from G to Adult. The lower the value,the more strict the control.GPGPG – 3RNC – 17AdultThe rating level can only be changed when the displayed lock is open. For first time use, key in thedefault password (3308) and press enter. To set a new password, key in a new four-digit passwordand press enter Load FactoryThe Load Factory — Reset allows you to reset all options to factory settings.* This function will not affect the Rating control settings.Note: The Default Password is 3308. This password is always effective even after youhave selected your own password and changed it. To avoid the possibility of othersusing the default password to set the parental level and change the password, you can record this default password in another area and delete it from this manual. Some discscan be limited depending on the age of users while some discs cannot.

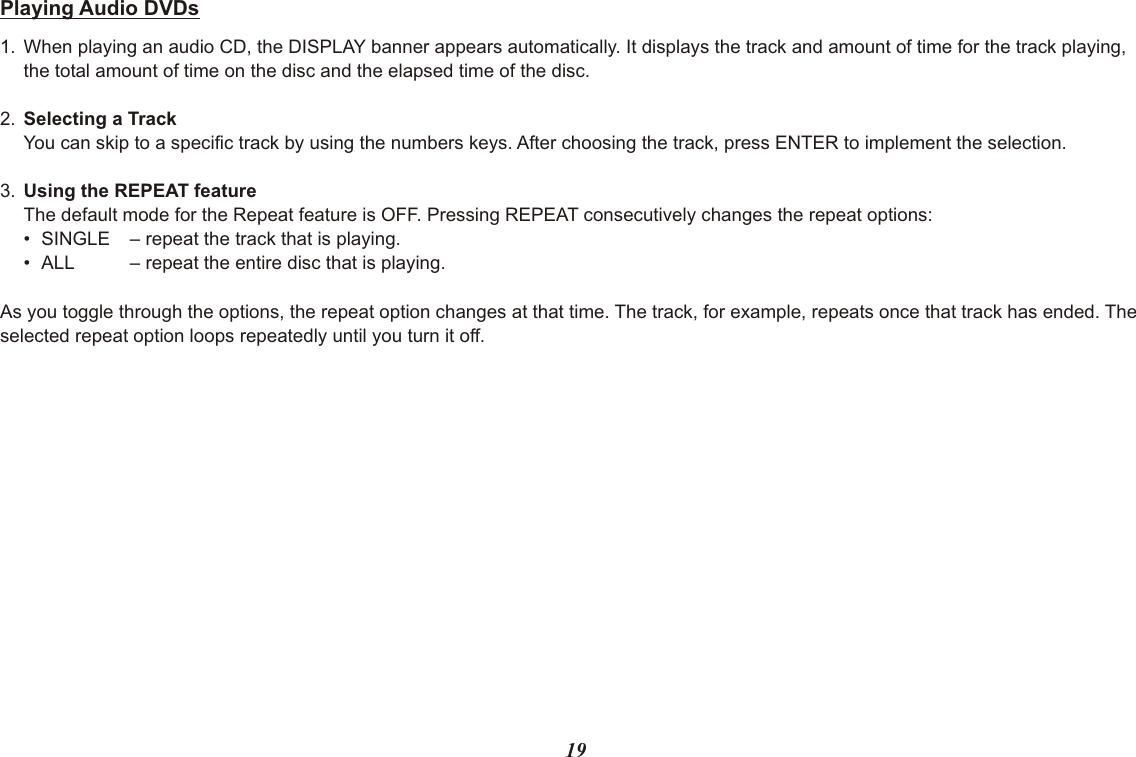

19Playing Audio DVDs1. When playing an audio CD, the DISPLAY banner appears automatically. It displays the track and amount of time for the track playing, the total amount of time on the disc and the elapsed time of the disc.2. Selecting a TrackYou can skip to a specific track by using the numbers keys. After choosing the track, press ENTER to implement the selection.3. Using the REPEAT featureThe default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options:• SINGLE – repeat the track that is playing.• ALL – repeat the entire disc that is playing.As you toggle through the options, the repeat option changes at that time. The track, for example, repeats once that track has ended. The selected repeat option loops repeatedly until you turn it off.
20Playing MP3 DiscsMP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the songs in the order they were burned on to the disc.Press DISPLAY button on the remote to display the time counter display elapsed only.• Time elapsed is the time that the song has played• Time remaining is the amount of time left for the song being played.Selecting Folders and SongsWhen an MP3 is loaded in the player, the navigation menu appears automatically.1. Press p or q to move the highlight to the desired folder and press ENTER to display thesongs in the folder. 2. Press p or q to move the highlight to the desired song and press ENTER to begin playbackof the highlighted song.Skipping SongsUse the Next (:) button on the remote control to move to the next song. Use the Previous (9) button to move to the previous song.Selecting a Play ModeYou can choose what order the songs will play on a disc temporarily. The default play mode is FOLDER. Press REPEAT consecutively to choose the desired play mode. The play mode options are:• FOLDER Plays the songs in a folder in the order they were recorded.• SHUFFLE Plays the songs in a folder in random order (from within the selected folder).• RANDOM Plays the songs in a folder in random order.• SINGLE Plays a selected song.• REPEAT ONE Repeat the song that is playing.• REPEAT FOLDER Repeat the folder that is playing.Stop1CD-R MENUCE_shoPlantSceneryShangha879069879093894041789Mode Folder Normal894044 10ROOTAnimal

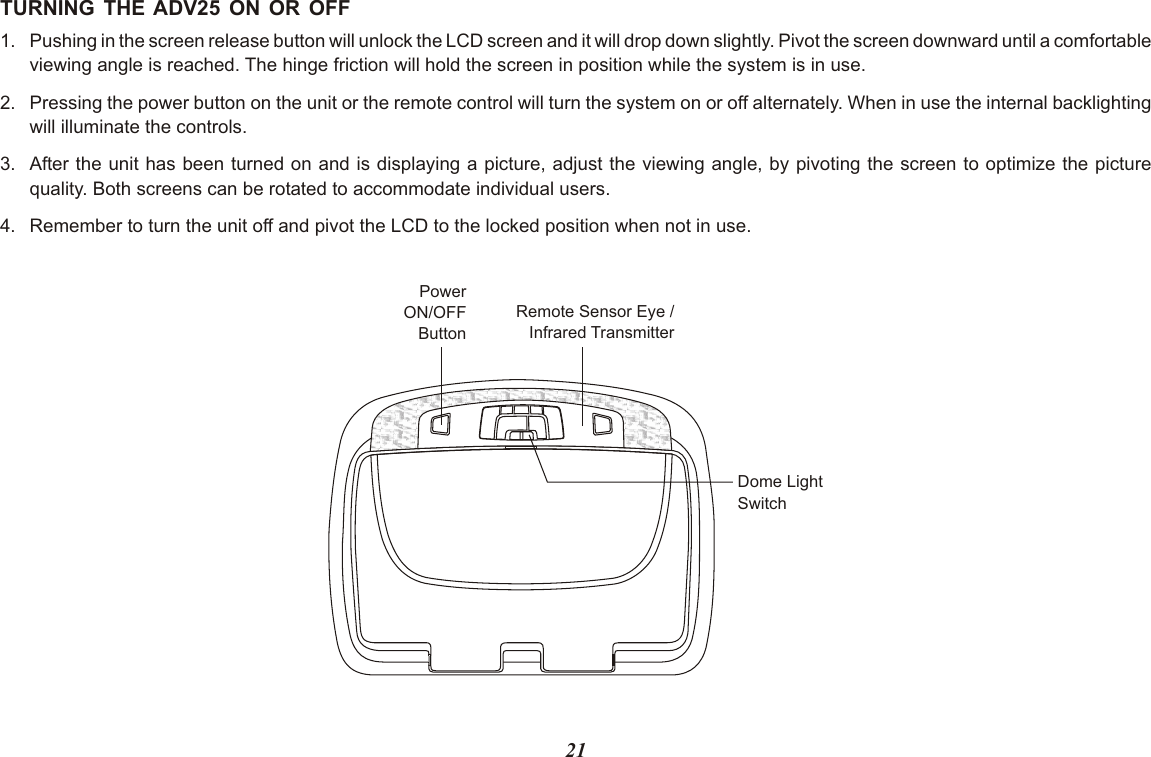

21TURNING THE ADV25 ON OR OFF1. Pushing in the screen release button will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortableviewing angle is reached. The hinge friction will hold the screen in position while the system is in use.2. Pressing the power button on the unit or the remote control will turn the system on or off alternately. When in use the internal backlightingwill illuminate the controls.3. After the unit has been turned on and is displaying a picture, adjust the viewing angle, by pivoting the screen to optimize the picturequality. Both screens can be rotated to accommodate individual users.4. Remember to turn the unit off and pivot the LCD to the locked position when not in use.PowerON/OFFButtonRemote Sensor Eye /Infrared TransmitterDome LightSwitch

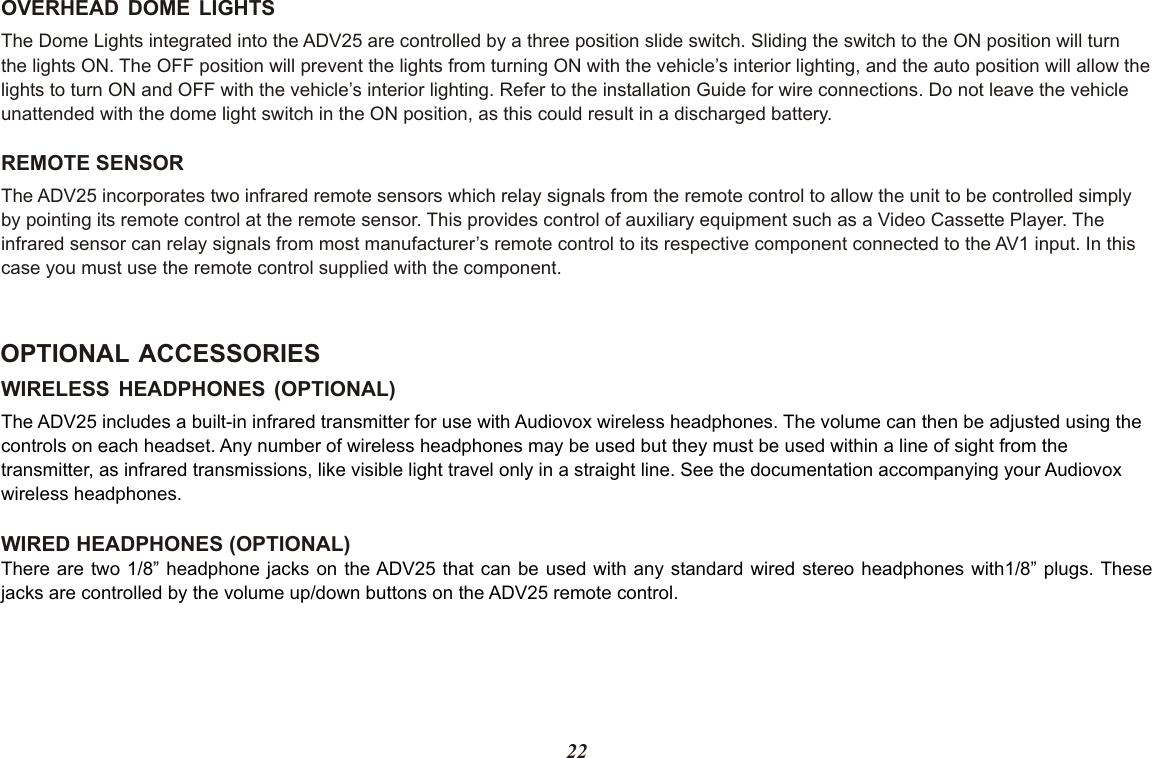

22WIRELESS HEADPHONES (OPTIONAL)WIRED HEADPHONES (OPTIONAL)The ADV25 includes a built-in infrared transmitter for use with Audiovox wireless headphones. The volume can then be adjusted using the controls on each headset. Any number of wireless headphones may be used but they must be used within a line of sight from the transmitter, as infrared transmissions, like visible light travel only in a straight line. See the documentation accompanying your Audiovox wireless headphones.There are two 1/8” headphone jacks on the ADV25 that can be used with any standard wired stereo headphones with1/8” plugs. Thesejacks are controlled by the volume up/down buttons on the ADV25 remote control.OPTIONAL ACCESSORIESOVERHEAD DOME LIGHTSThe Dome Lights integrated into the ADV25 are controlled by a three position slide switch. Sliding the switch to the ON position will turnthe lights ON. The OFF position will prevent the lights from turning ON with the vehicle’s interior lighting, and the auto position will allow thelights to turn ON and OFF with the vehicle’s interior lighting. Refer to the installation Guide for wire connections. Do not leave the vehicle unattended with the dome light switch in the ON position, as this could result in a discharged battery. REMOTE SENSORThe ADV25 incorporates two infrared remote sensors which relay signals from the remote control to allow the unit to be controlled simplyby pointing its remote control at the remote sensor. This provides control of auxiliary equipment such as a Video Cassette Player. The infrared sensor can relay signals from most manufacturer’s remote control to its respective component connected to the AV1 input. In this case you must use the remote control supplied with the component.

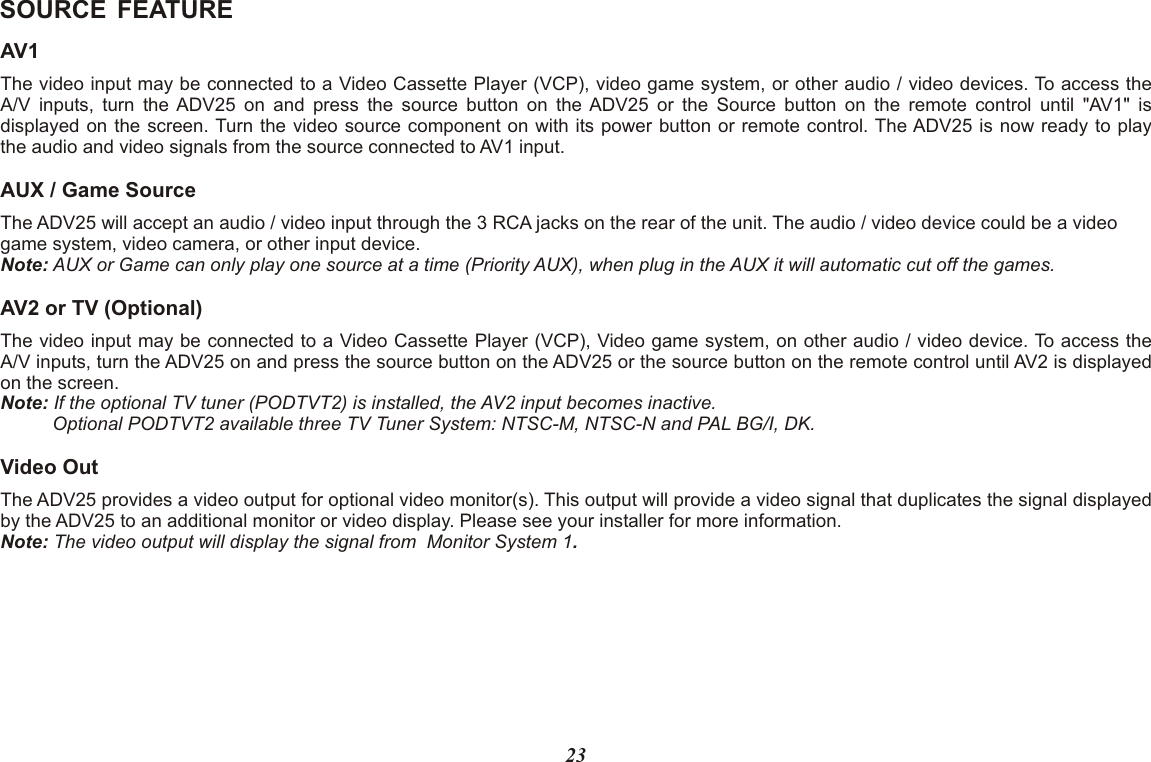

23AV1The video input may be connected to a Video Cassette Player (VCP), video game system, or other audio / video devices. To access theA/V inputs, turn the ADV25 on and press the source button on the ADV25 or the Source button on the remote control until "AV1" isdisplayed on the screen. Turn the video source component on with its power button or remote control. The ADV25 is now ready to playthe audio and video signals from the source connected to AV1 input.AUX / Game SourceThe ADV25 will accept an audio / video input through the 3 RCA jacks on the rear of the unit. The audio / video device could be a video game system, video camera, or other input device.Note: AUX or Game can only play one source at a time (Priority AUX), when plug in the AUX it will automatic cut off the games.AV2 or TV (Optional)The video input may be connected to a Video Cassette Player (VCP), Video game system, on other audio / video device. To access the A/V inputs, turn the ADV25 on and press the source button on the ADV25 or the source button on the remote control until AV2 is displayedon the screen.Note: If the optional TV tuner (PODTVT2) is installed, the AV2 input becomes inactive. Optional PODTVT2 available three TV Tuner System: NTSC-M, NTSC-N and PAL BG/I, DK.Video OutThe ADV25 provides a video output for optional video monitor(s). This output will provide a video signal that duplicates the signal displayedby the ADV25 to an additional monitor or video display. Please see your installer for more information.Note: The video output will display the signal from Monitor System 1.SOURCE FEATURE

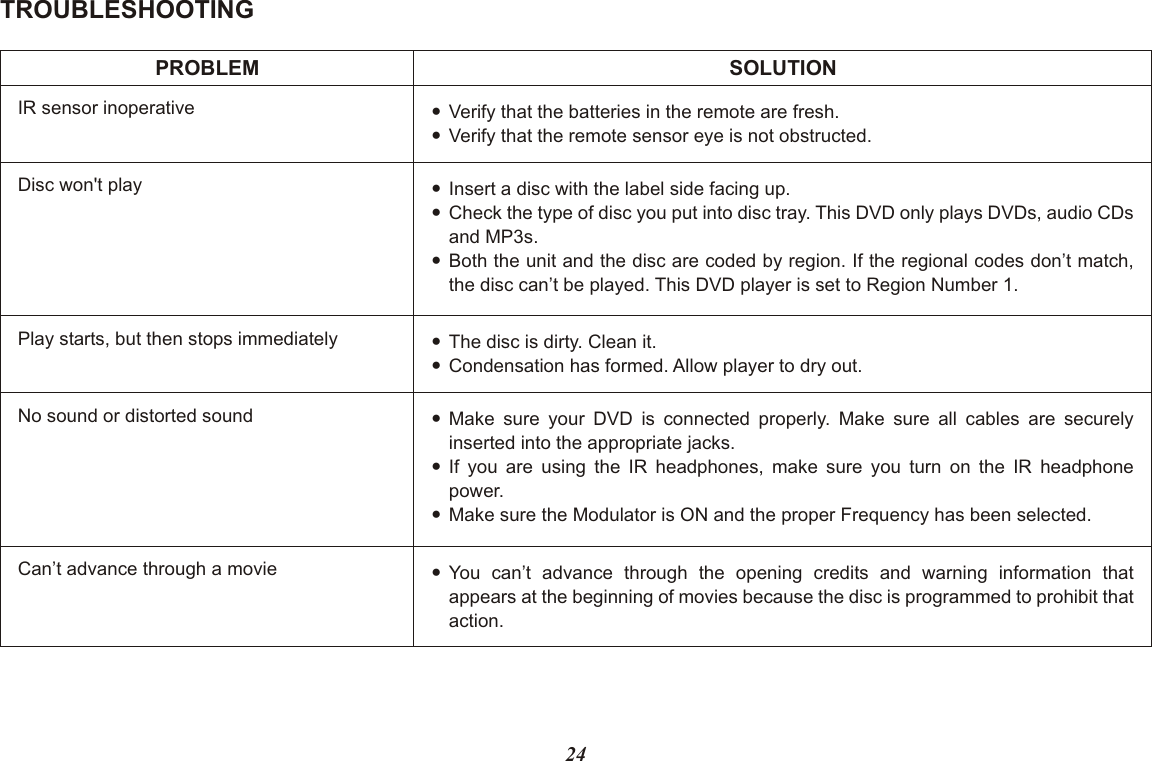

TROUBLESHOOTING24PROBLEMIR sensor inoperativeDisc won't playNo sound or distorted soundPlay starts, but then stops immediatelyCan’t advance through a movieVerify that the batteries in the remote are fresh.Verify that the remote sensor eye is not obstructed.Insert a disc with the label side facing up.Check the type of disc you put into disc tray. This DVD only plays DVDs, audio CDs and MP3s.Both the unit and the disc are coded by region. If the regional codes don’t match,the disc can’t be played. This DVD player is set to Region Number 1.Make sure your DVD is connected properly. Make sure all cables are securely inserted into the appropriate jacks.If you are using the IR headphones, make sure you turn on the IR headphonepower.Make sure the Modulator is ON and the proper Frequency has been selected.The disc is dirty. Clean it.Condensation has formed. Allow player to dry out.You can’t advance through the opening credits and warning information thatappears at the beginning of movies because the disc is programmed to prohibit that action.SOLUTION

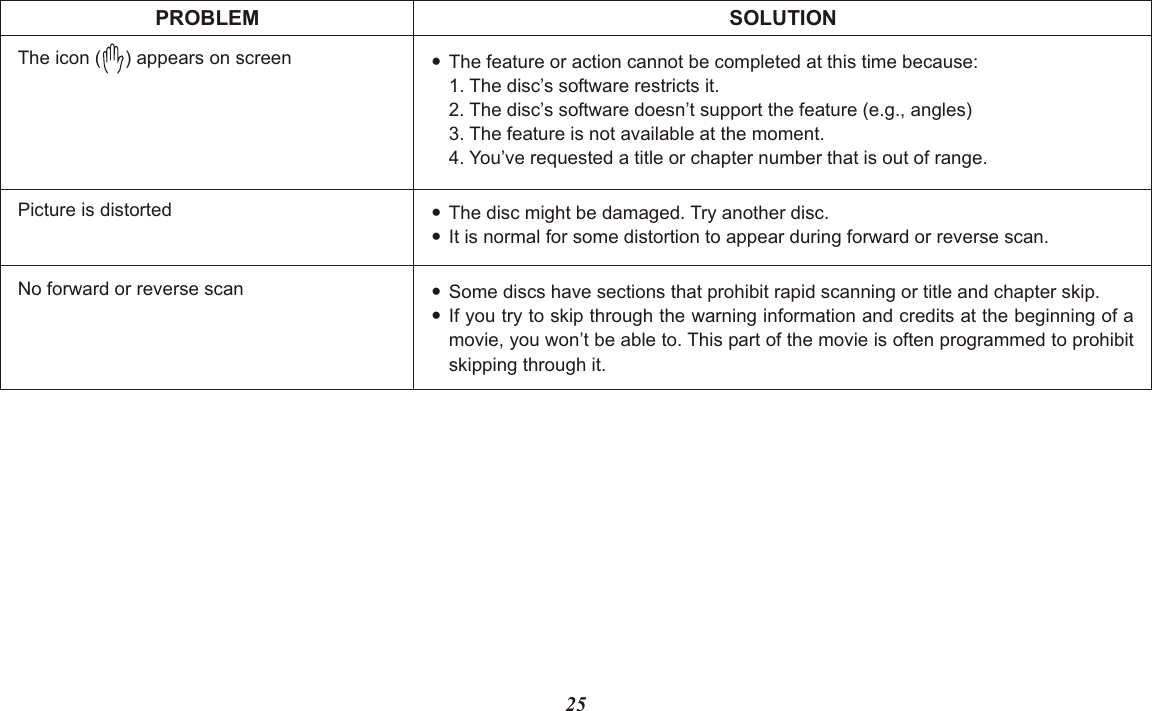

25PROBLEMPicture is distorted The disc might be damaged. Try another disc.It is normal for some distortion to appear during forward or reverse scan.SOLUTIONThe icon ( ) appears on screenxThe feature or action cannot be completed at this time because:1. The disc’s software restricts it.2. The disc’s software doesn’t support the feature (e.g., angles)3. The feature is not available at the moment.4. You’ve requested a title or chapter number that is out of range.No forward or reverse scan Some discs have sections that prohibit rapid scanning or title and chapter skip.If you try to skip through the warning information and credits at the beginning of a movie, you won’t be able to. This part of the movie is often programmed to prohibit skipping through it.

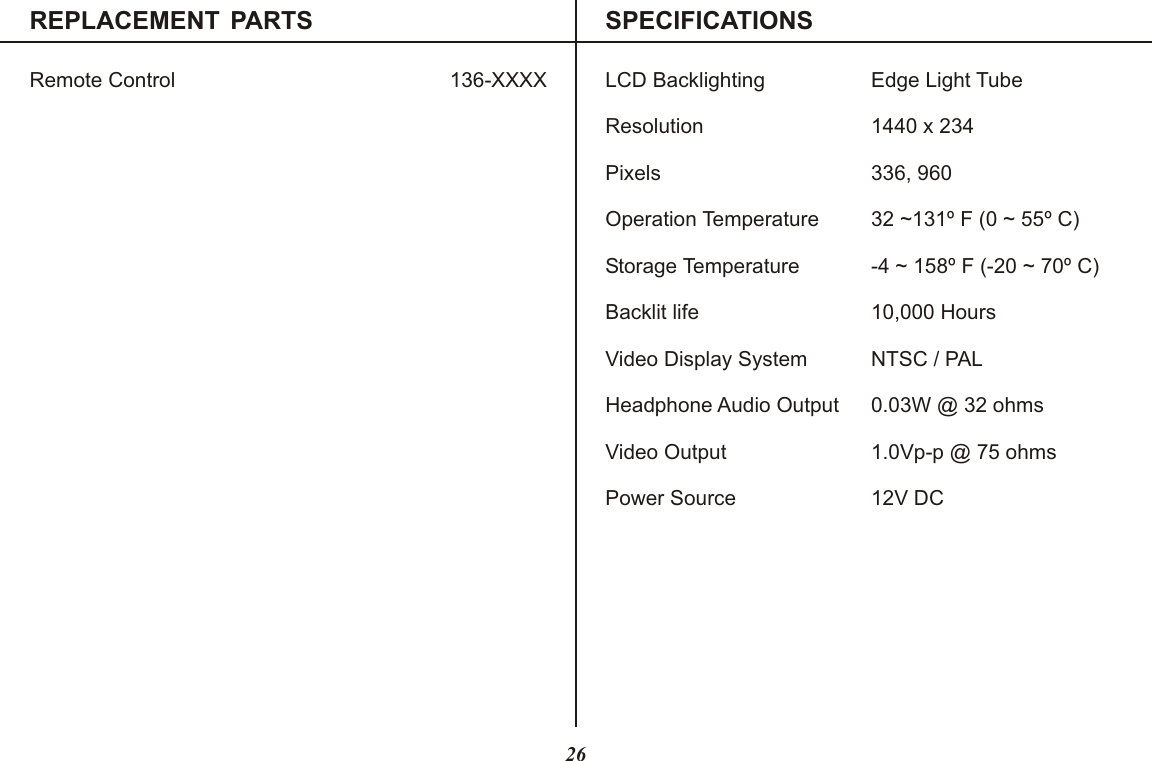

REPLACEMENT PARTS SPECIFICATIONSRemote Control LCD Backlighting Edge Light TubeResolution 1440 x 234Pixels 336, 960Operation Temperature 32 ~131º F (0 ~ 55º C)Storage Temperature -4 ~ 158º F (-20 ~ 70º C)Backlit life 10,000 HoursVideo Display System NTSC / PALHeadphone Audio Output 0.03W @ 32 ohmsVideo Output 1.0Vp-p @ 75 ohmsPower Source 12V DC136-XXXX26

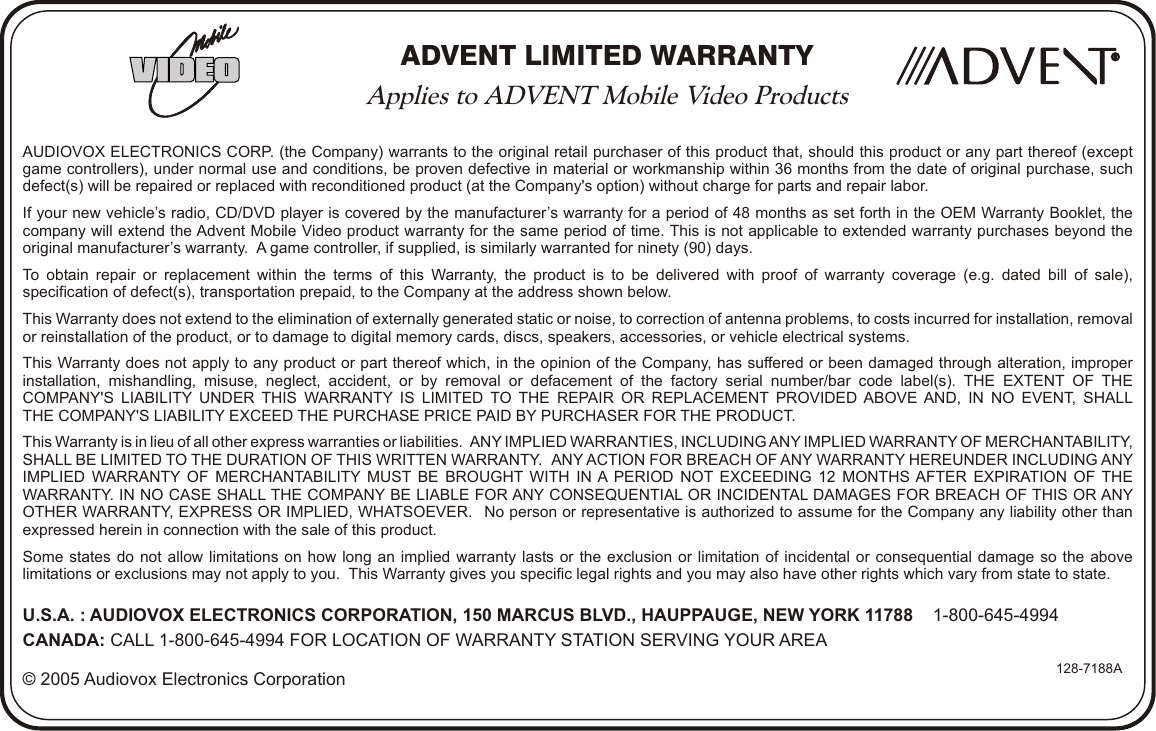

ADVENT LIMITED WARRANTYApplies to ADVENT Mobile Video ProductsAUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that, should this product or any part thereof (exceptgame controllers), under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.If your new vehicle’s radio, CD/DVD player is covered by the manufacturer’s warranty for a period of 48 months as set forth in the OEM Warranty Booklet, thecompany will extend the Advent Mobile Video product warranty for the same period of time. This is not applicable to extended warranty purchases beyond theoriginal manufacturer’s warranty. A game controller, if supplied, is similarly warranted for ninety (90) days.To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill of sale),specification of defect(s), transportation prepaid, to the Company at the address shown below.This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna problems, to costs incurred for installation, removalor reinstallation of the product, or to damage to digital memory cards, discs, speakers, accessories, or vehicle electrical systems.This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code label(s). THE EXTENT OF THECOMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALLTHE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITH IN A PERIOD NOT EXCEEDING 12 MONTHS AFTER EXPIRATION OF THE WARRANTY. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the abovelimitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.U.S.A. : AUDIOVOX ELECTRONICS CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 1-800-645-4994CANADA: CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA© 2005 Audiovox Electronics Corporation 128-7188ARR

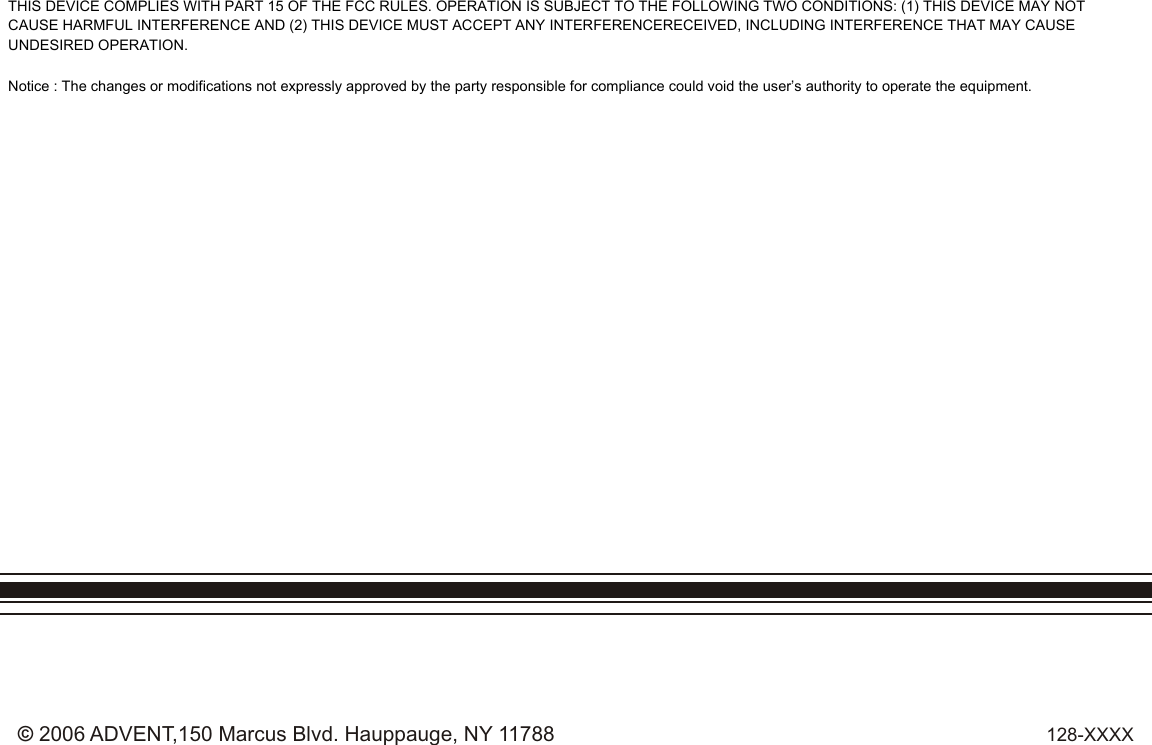

128-XXXX© 2006 ADVENT,150 Marcus Blvd. Hauppauge, NY 11788THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCERECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
